The document provides an introduction to the C programming language. It discusses the structure of a C program including documentation, preprocessor directives, header files, and function definitions. It also describes various math and trigonometric functions available in the standard library like sqrt, pow, sin, cos, and log. The rest of the document outlines the steps to compile and execute a C program and defines key concepts like variables, constants, and data types in C.

1. Introduction to C
1

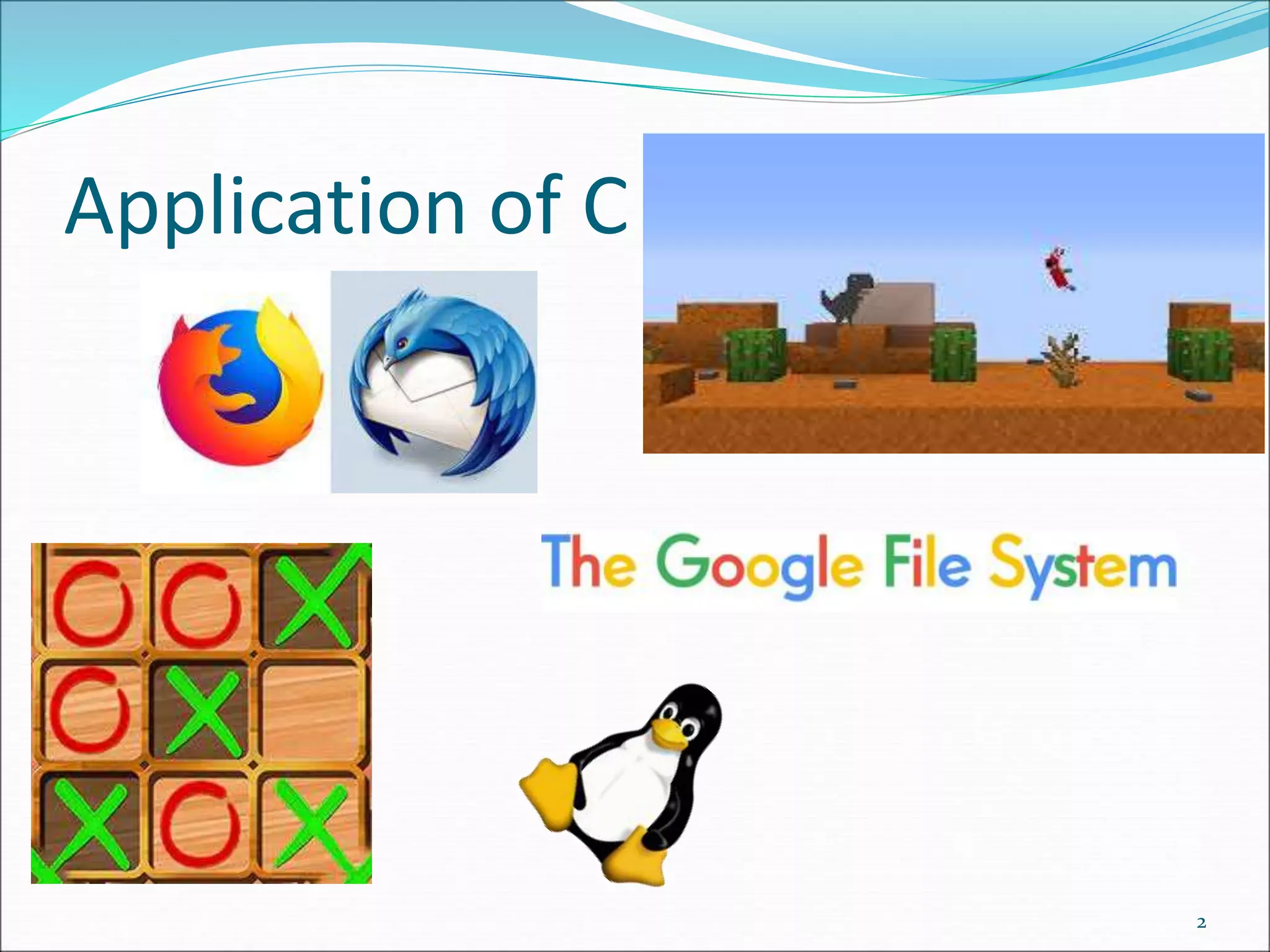

2. Application of C
2

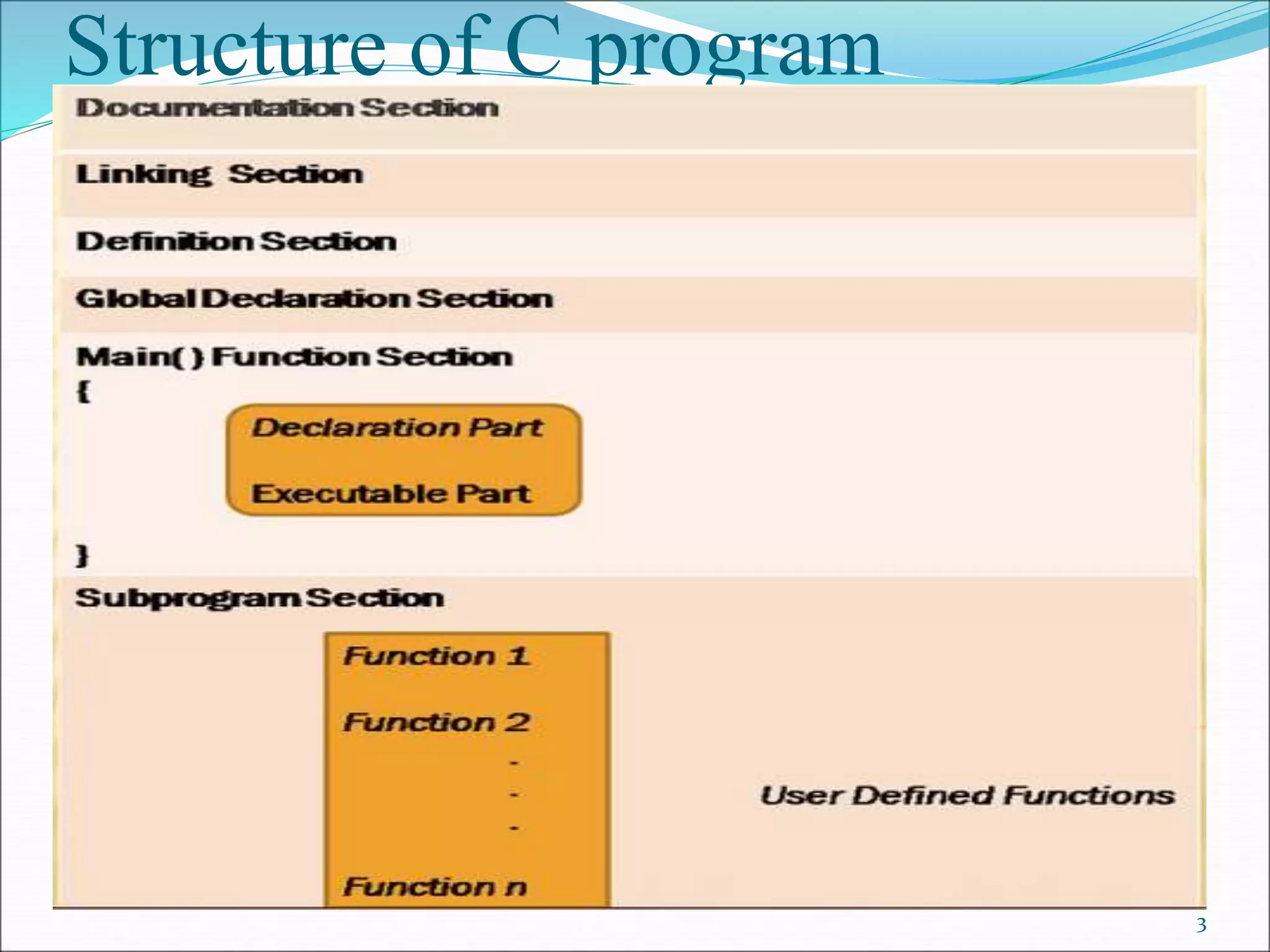

3. Structure of C program
3

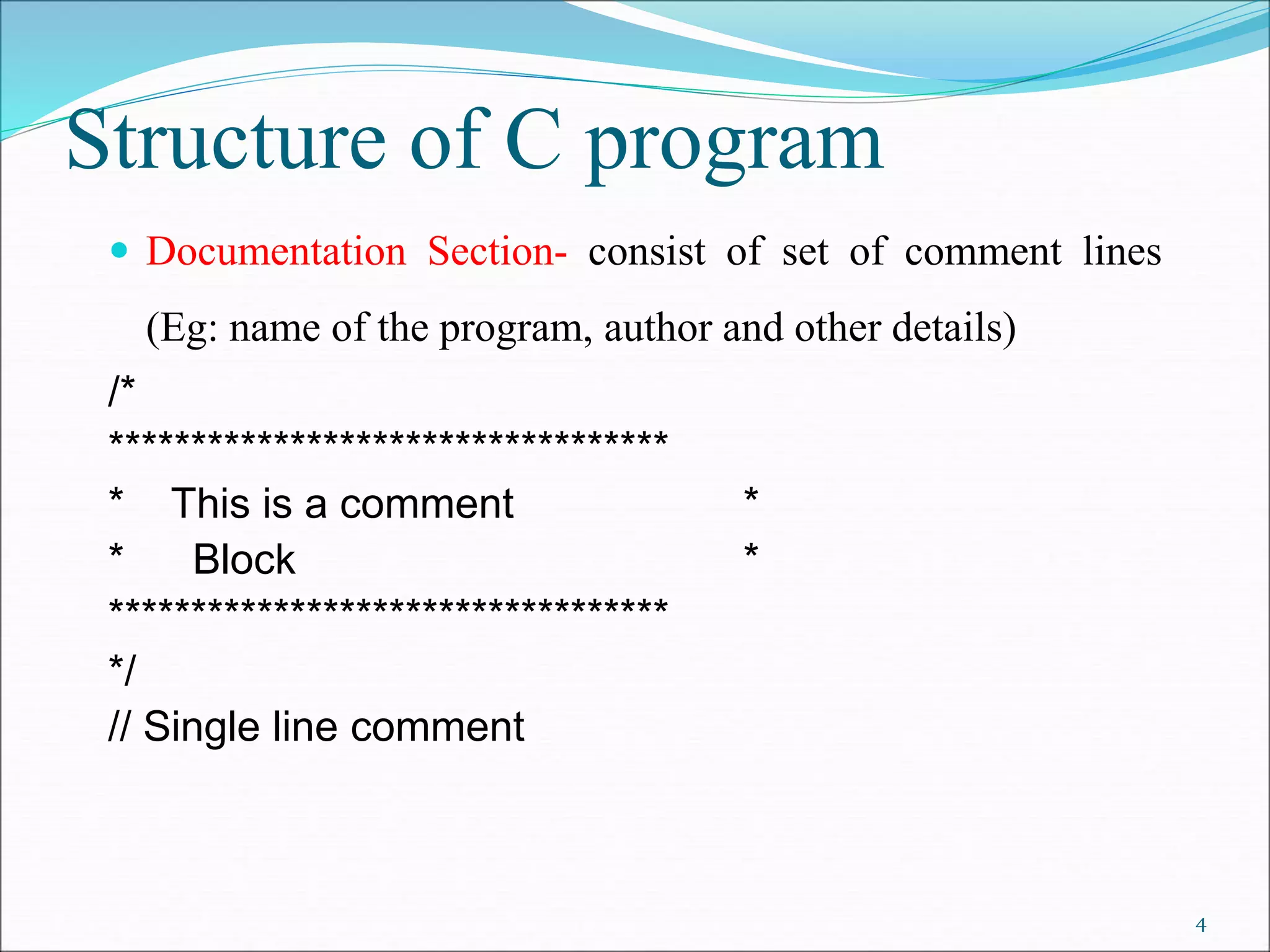

4. Structure of C program
 Documentation Section- consist of set of comment lines
(Eg: name of the program, author and other details)
/*
**********************************
* This is a comment *
* Block *
**********************************
*/
// Single line comment
4

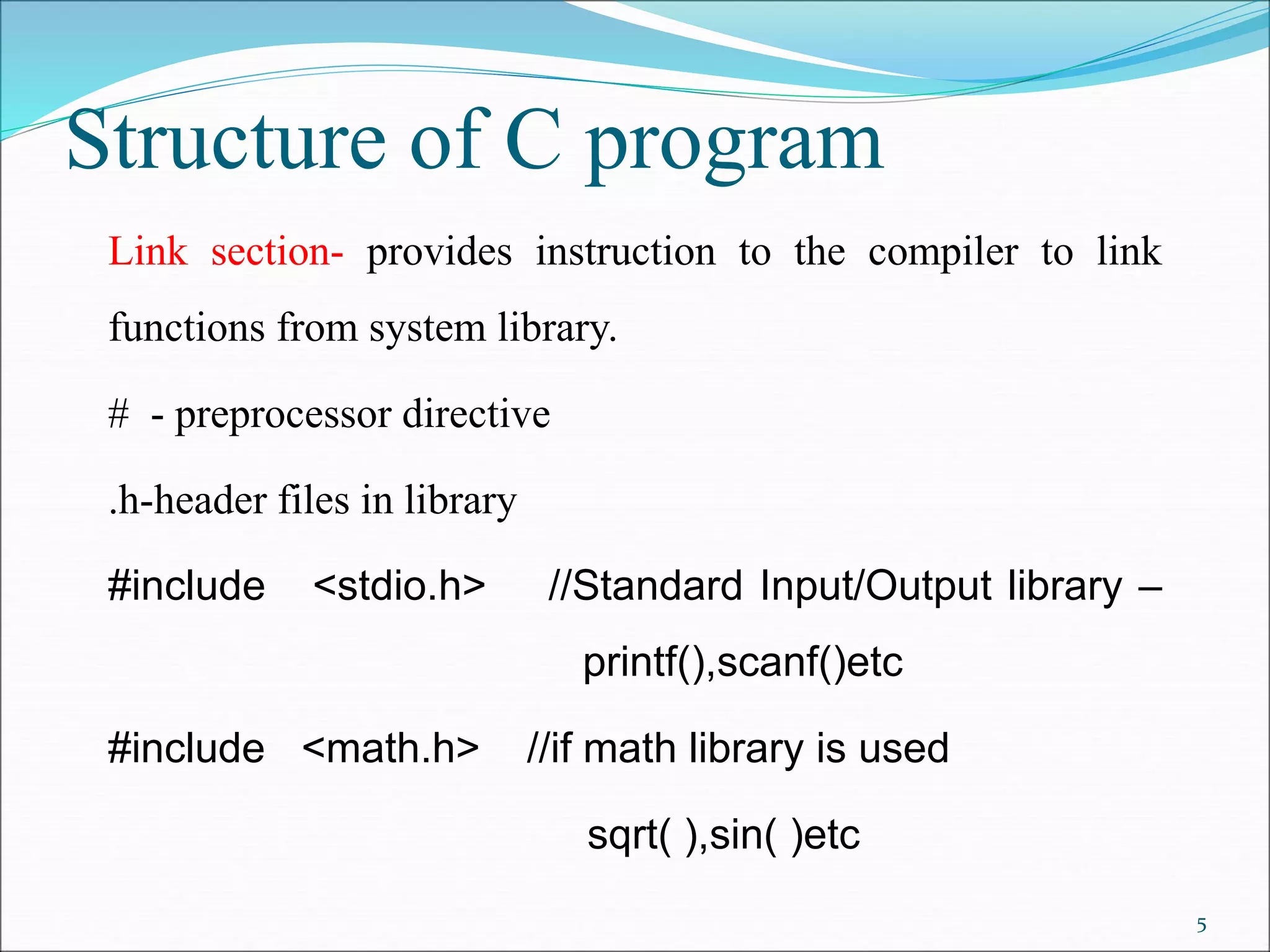

5. Structure of C program
Link section- provides instruction to the compiler to link
functions from system library.
# - preprocessor directive
.h-header files in library
#include <stdio.h> //Standard Input/Output library –
printf(),scanf()etc
#include <math.h> //if math library is used
sqrt( ),sin( )etc
5

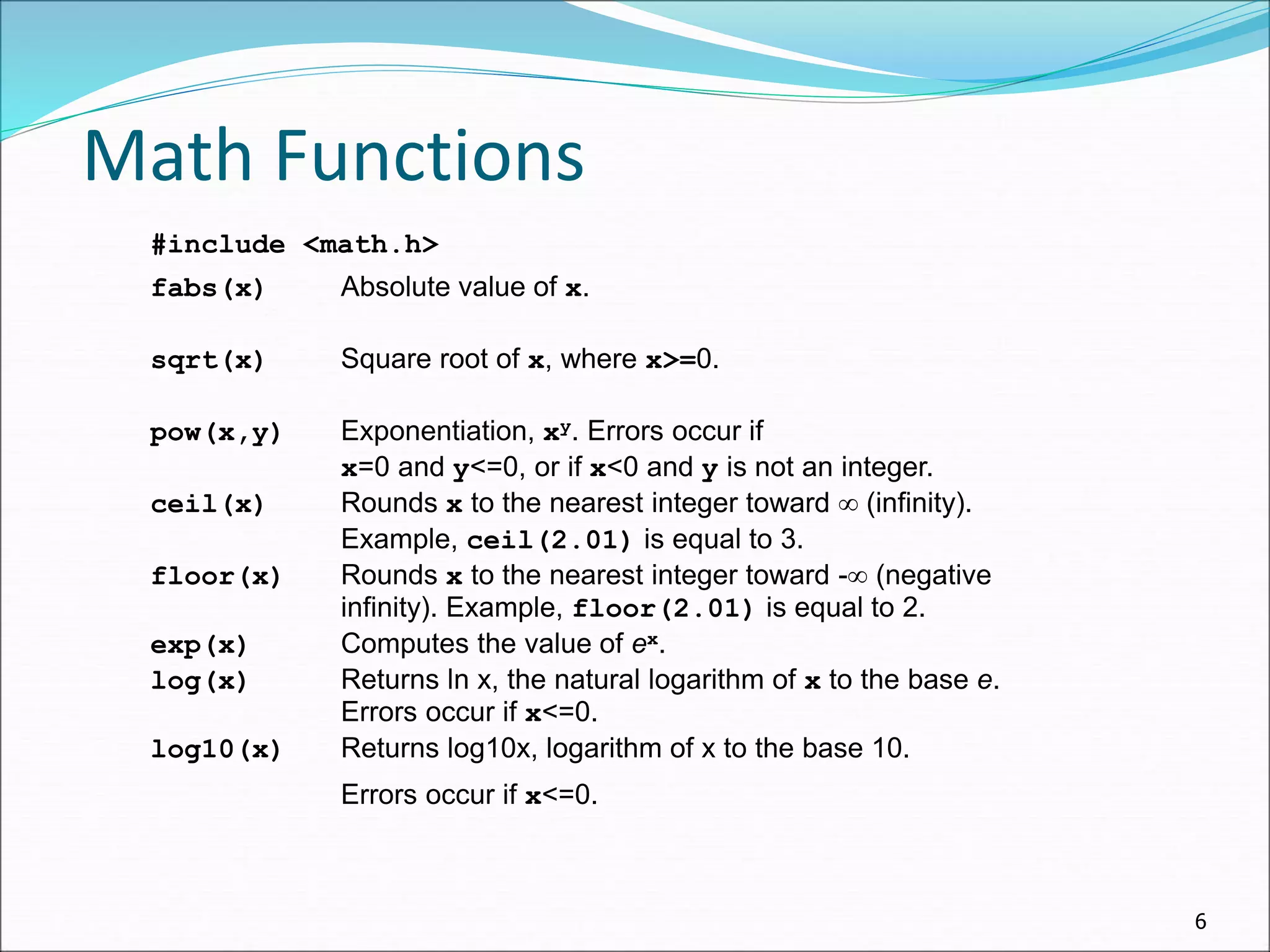

6. 6
Math Functions
#include <math.h>
fabs(x) Absolute value of x.
sqrt(x) Square root of x, where x>=0.
pow(x,y) Exponentiation, xy. Errors occur if
x=0 and y<=0, or if x<0 and y is not an integer.
ceil(x) Rounds x to the nearest integer toward  (infinity).
Example, ceil(2.01) is equal to 3.
floor(x) Rounds x to the nearest integer toward - (negative
infinity). Example, floor(2.01) is equal to 2.
exp(x) Computes the value of ex.
log(x) Returns ln x, the natural logarithm of x to the base e.
Errors occur if x<=0.
log10(x) Returns log10x, logarithm of x to the base 10.
Errors occur if x<=0.

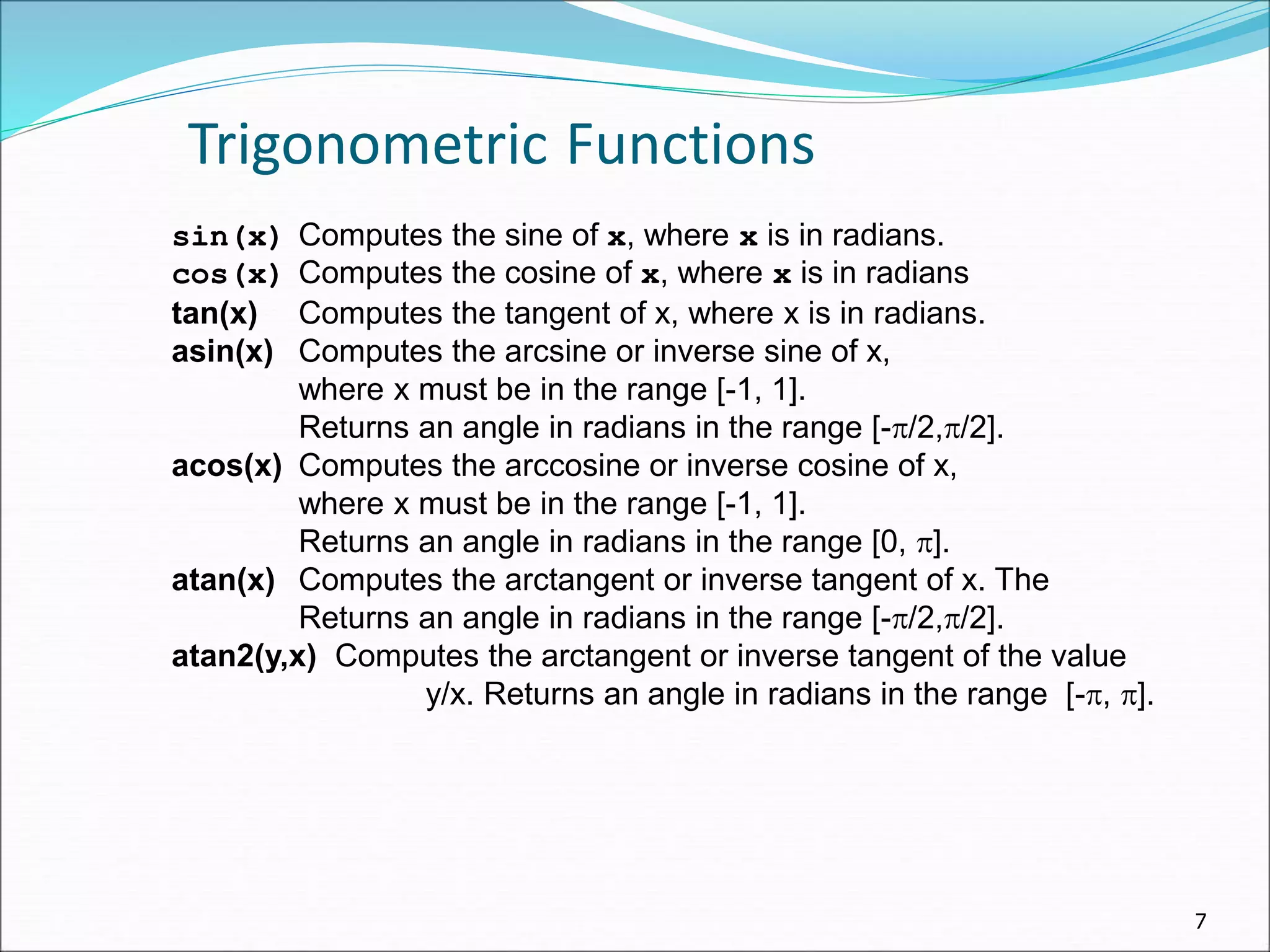

7. 7
Trigonometric Functions
sin(x) Computes the sine of x, where x is in radians.
cos(x) Computes the cosine of x, where x is in radians
tan(x) Computes the tangent of x, where x is in radians.
asin(x) Computes the arcsine or inverse sine of x,
where x must be in the range [-1, 1].
Returns an angle in radians in the range [-/2,/2].
acos(x) Computes the arccosine or inverse cosine of x,
where x must be in the range [-1, 1].
Returns an angle in radians in the range [0, ].
atan(x) Computes the arctangent or inverse tangent of x. The
Returns an angle in radians in the range [-/2,/2].
atan2(y,x) Computes the arctangent or inverse tangent of the value
y/x. Returns an angle in radians in the range [-, ].

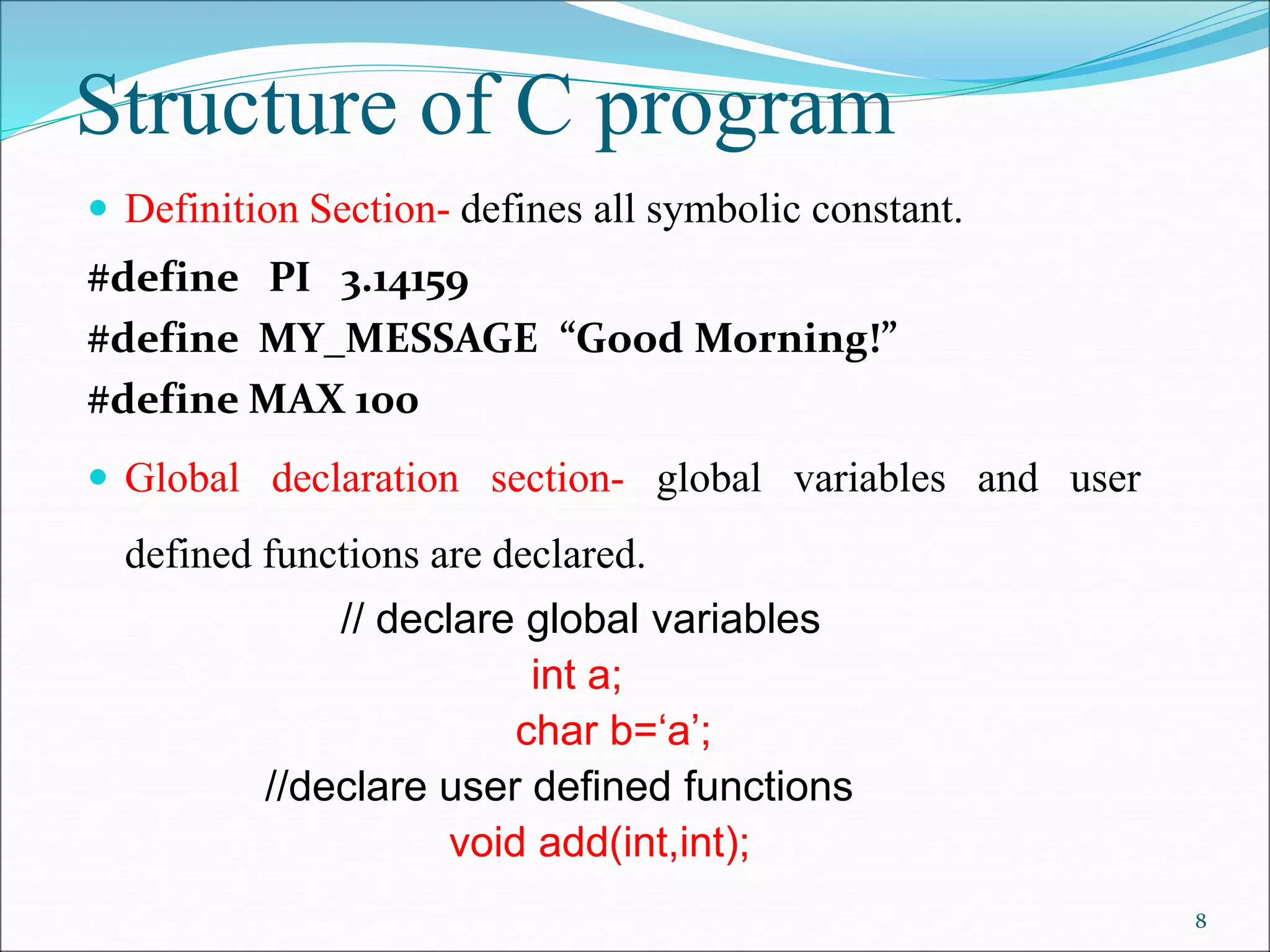

8. Structure of C program
 Definition Section- defines all symbolic constant.
#define PI 3.14159
#define MY_MESSAGE “Good Morning!”
#define MAX 100
 Global declaration section- global variables and user
defined functions are declared.
// declare global variables
int a;
char b=‘a’;
//declare user defined functions
void add(int,int);
8

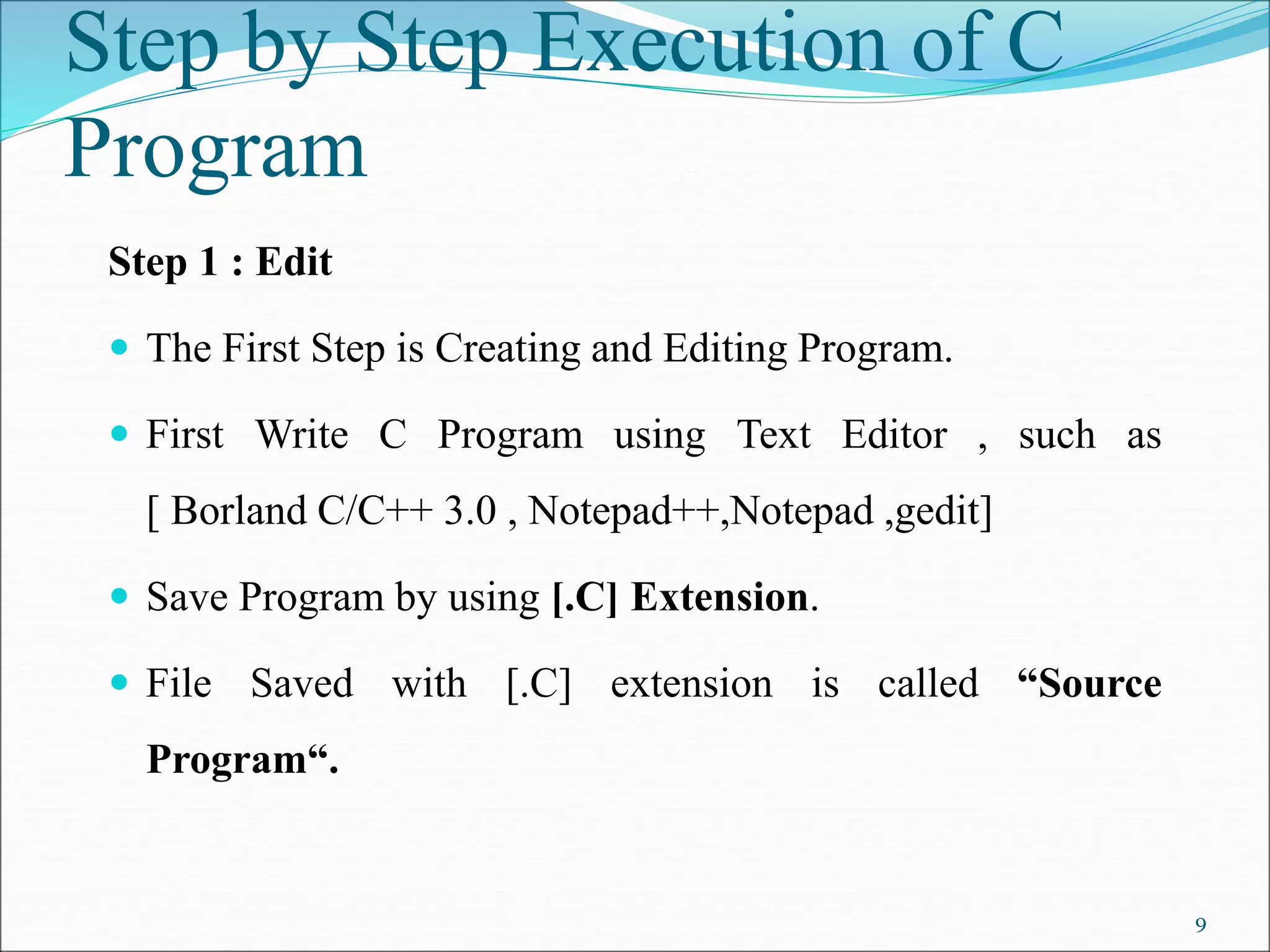

9. Step 1 : Edit
 The First Step is Creating and Editing Program.
 First Write C Program using Text Editor , such as
[ Borland C/C++ 3.0 , Notepad++,Notepad ,gedit]
 Save Program by using [.C] Extension.
 File Saved with [.C] extension is called “Source
Program“.
Step by Step Execution of C
Program
9

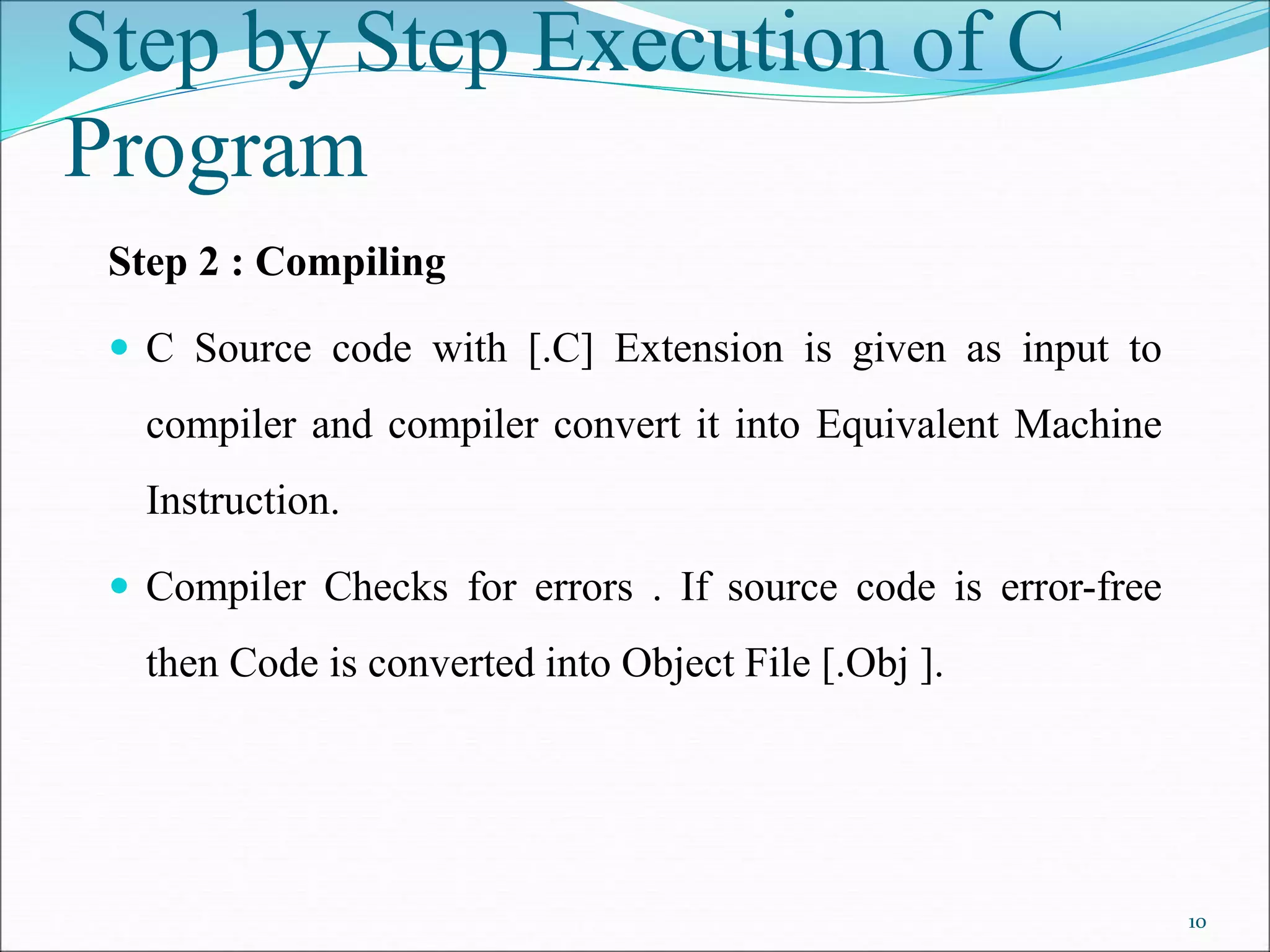

10. Step 2 : Compiling
 C Source code with [.C] Extension is given as input to
compiler and compiler convert it into Equivalent Machine
Instruction.
 Compiler Checks for errors . If source code is error-free
then Code is converted into Object File [.Obj ].
Step by Step Execution of C
Program
10

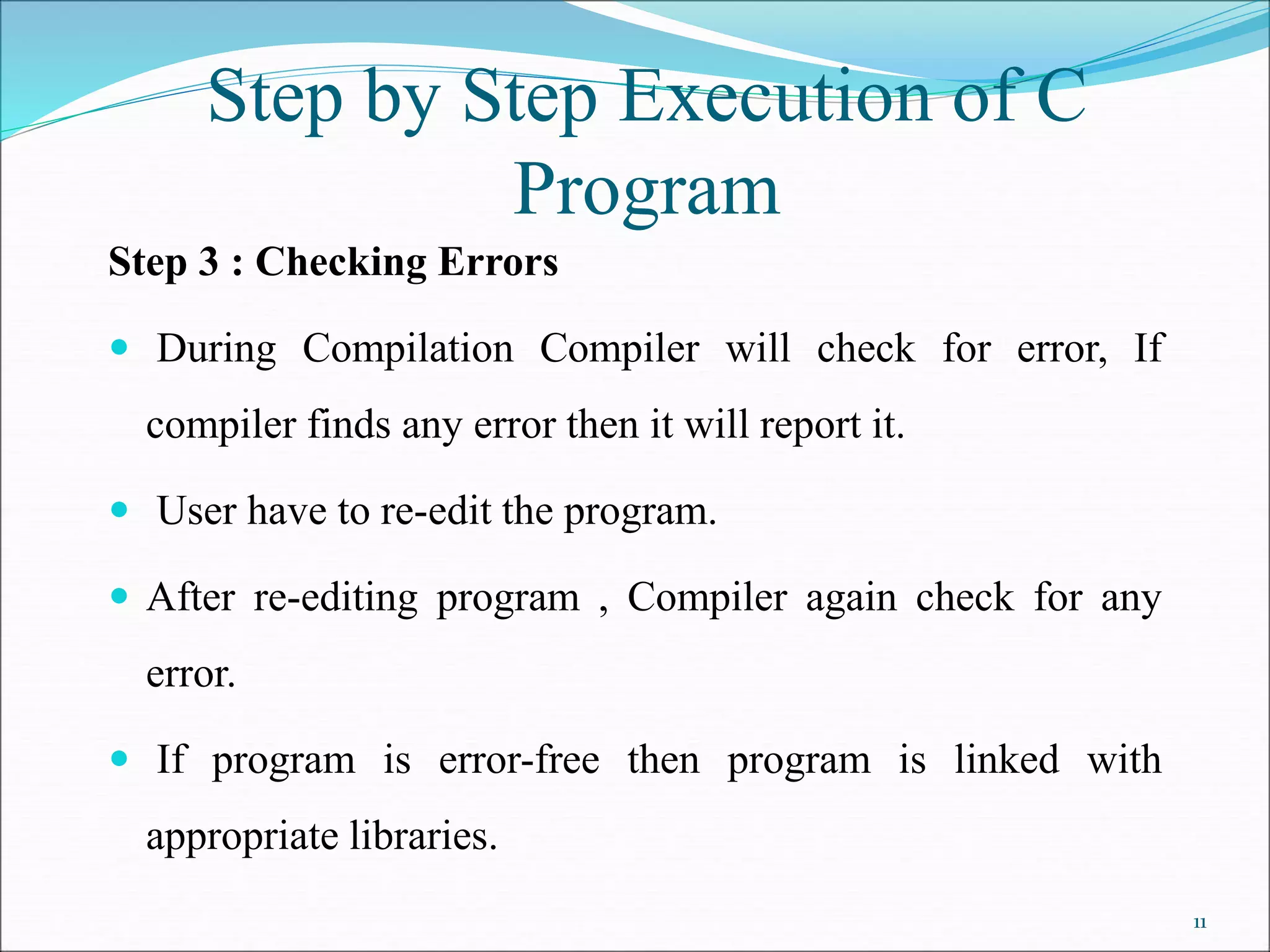

11. Step 3 : Checking Errors
 During Compilation Compiler will check for error, If
compiler finds any error then it will report it.
 User have to re-edit the program.
 After re-editing program , Compiler again check for any
error.
 If program is error-free then program is linked with
appropriate libraries.
Step by Step Execution of C
Program
11

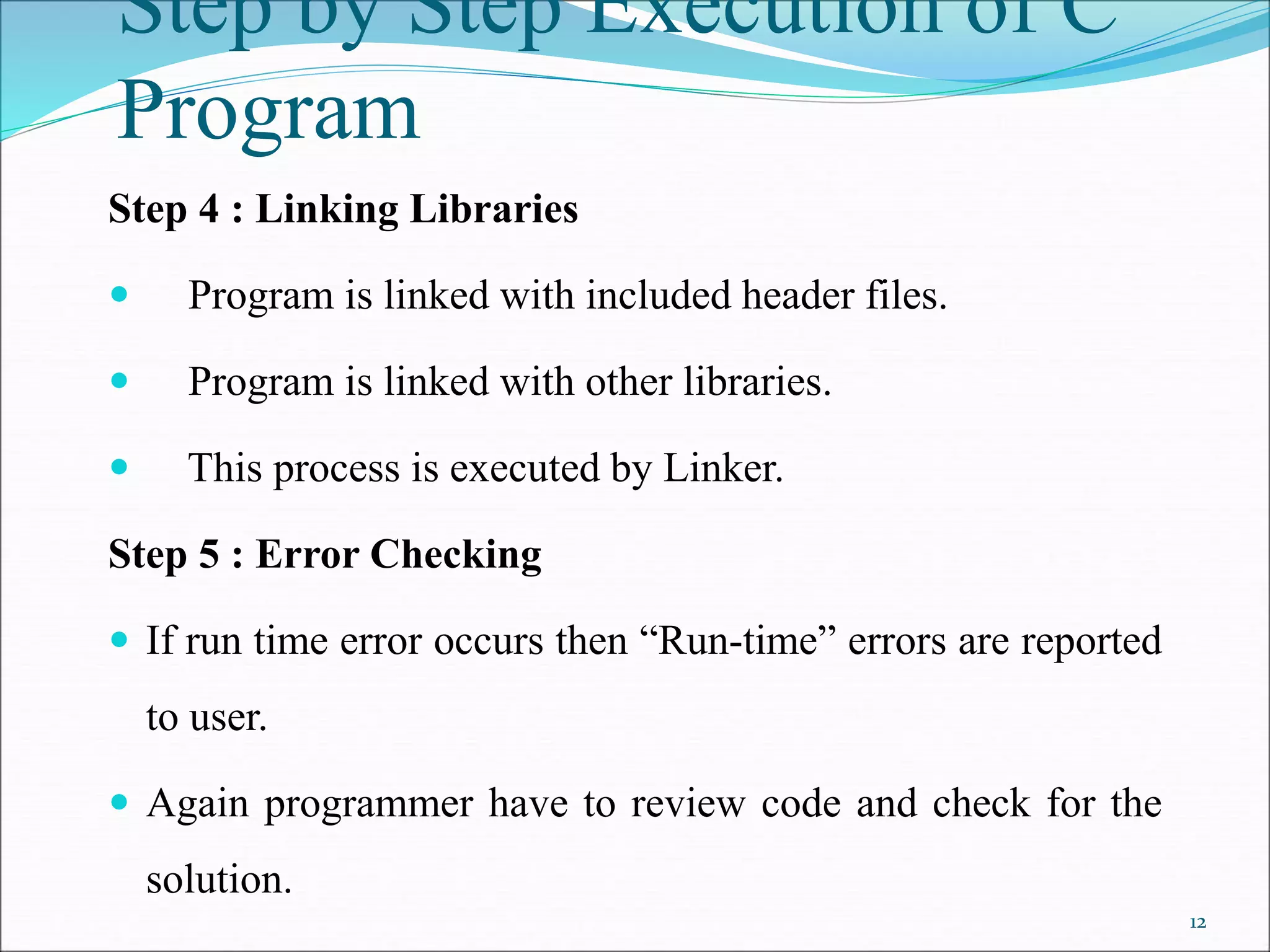

12. Step by Step Execution of C
Program
Step 4 : Linking Libraries
 Program is linked with included header files.
 Program is linked with other libraries.
 This process is executed by Linker.
Step 5 : Error Checking
 If run time error occurs then “Run-time” errors are reported
to user.
 Again programmer have to review code and check for the
solution.
12

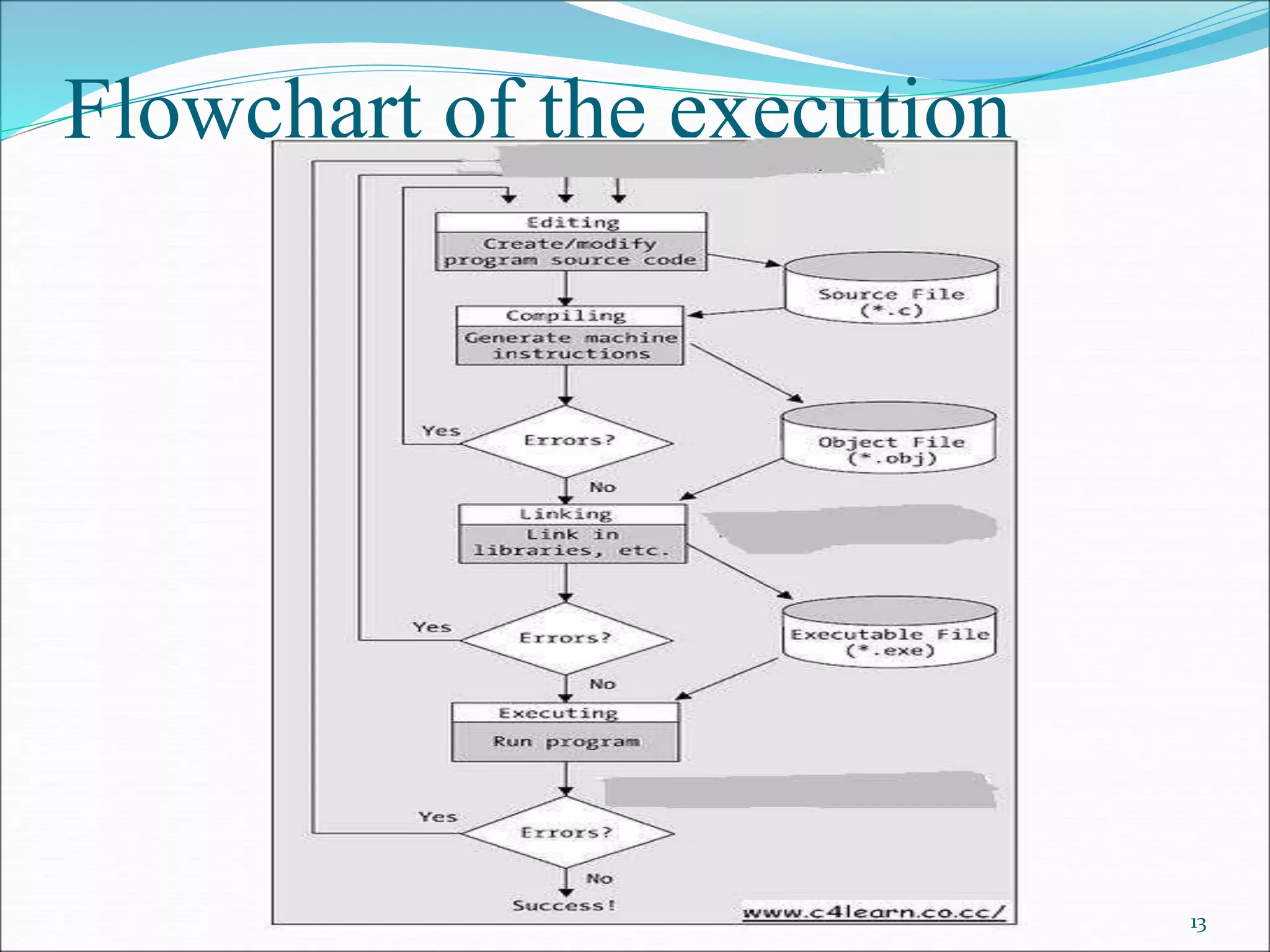

13. Flowchart of the execution
13

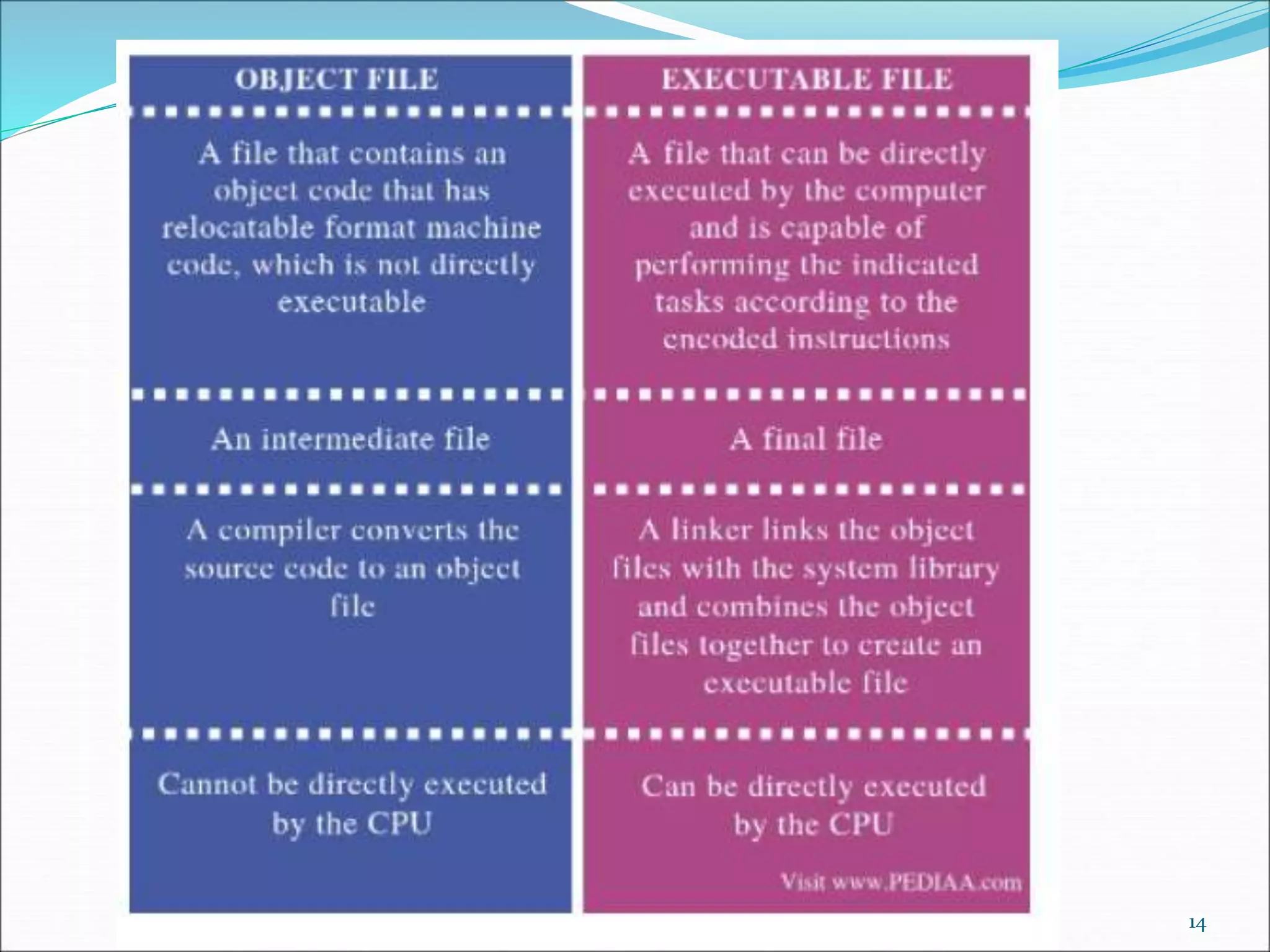

14. 14

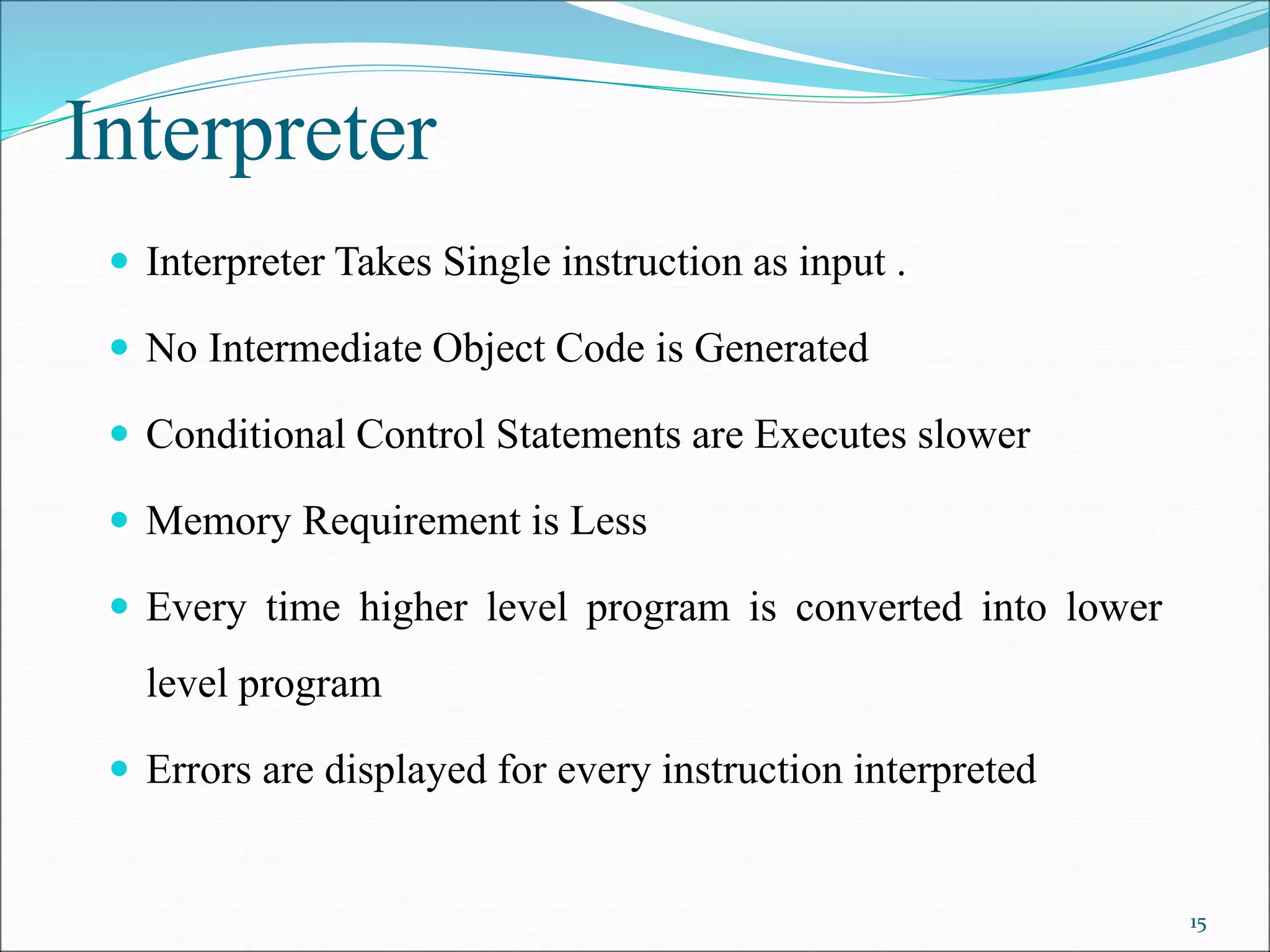

15. Interpreter
 Interpreter Takes Single instruction as input .
 No Intermediate Object Code is Generated
 Conditional Control Statements are Executes slower
 Memory Requirement is Less
 Every time higher level program is converted into lower
level program
 Errors are displayed for every instruction interpreted
15

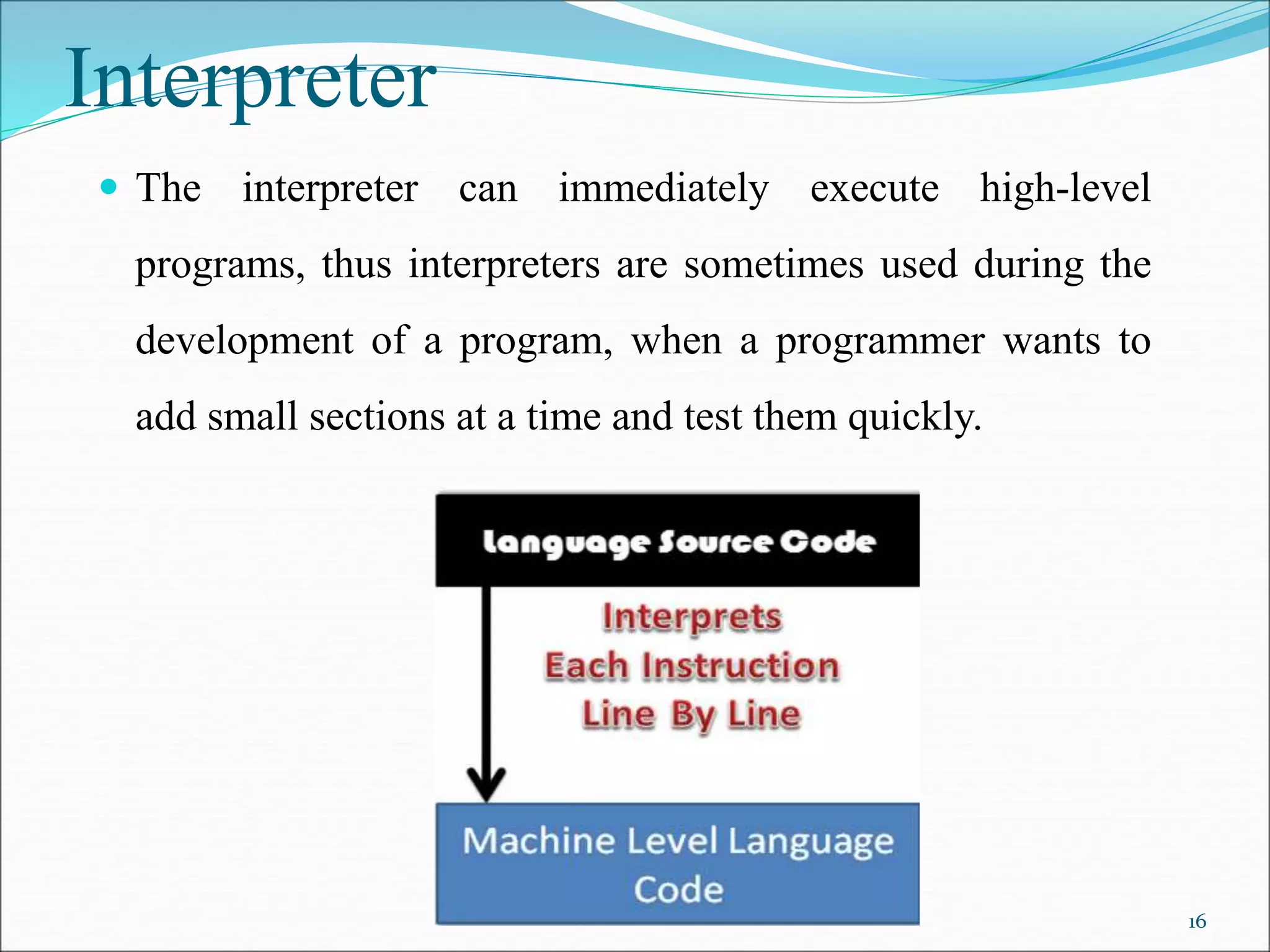

16. Interpreter
 The interpreter can immediately execute high-level
programs, thus interpreters are sometimes used during the
development of a program, when a programmer wants to
add small sections at a time and test them quickly.
16

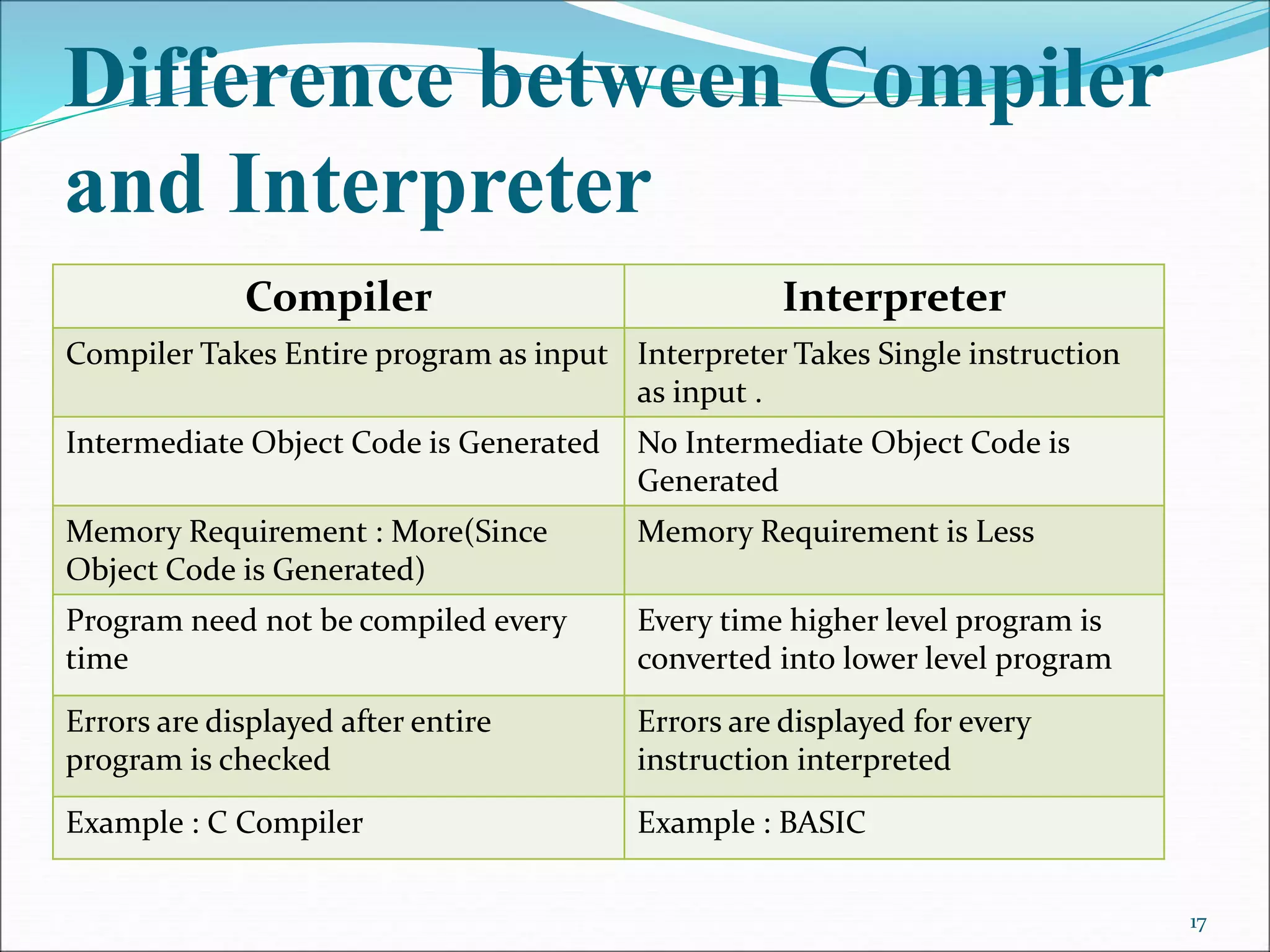

17. Difference between Compiler
and Interpreter
Compiler Interpreter
Compiler Takes Entire program as input Interpreter Takes Single instruction
as input .
Intermediate Object Code is Generated No Intermediate Object Code is
Generated
Memory Requirement : More(Since
Object Code is Generated)
Memory Requirement is Less
Program need not be compiled every
time
Every time higher level program is
converted into lower level program
Errors are displayed after entire
program is checked
Errors are displayed for every
instruction interpreted
Example : C Compiler Example : BASIC
17

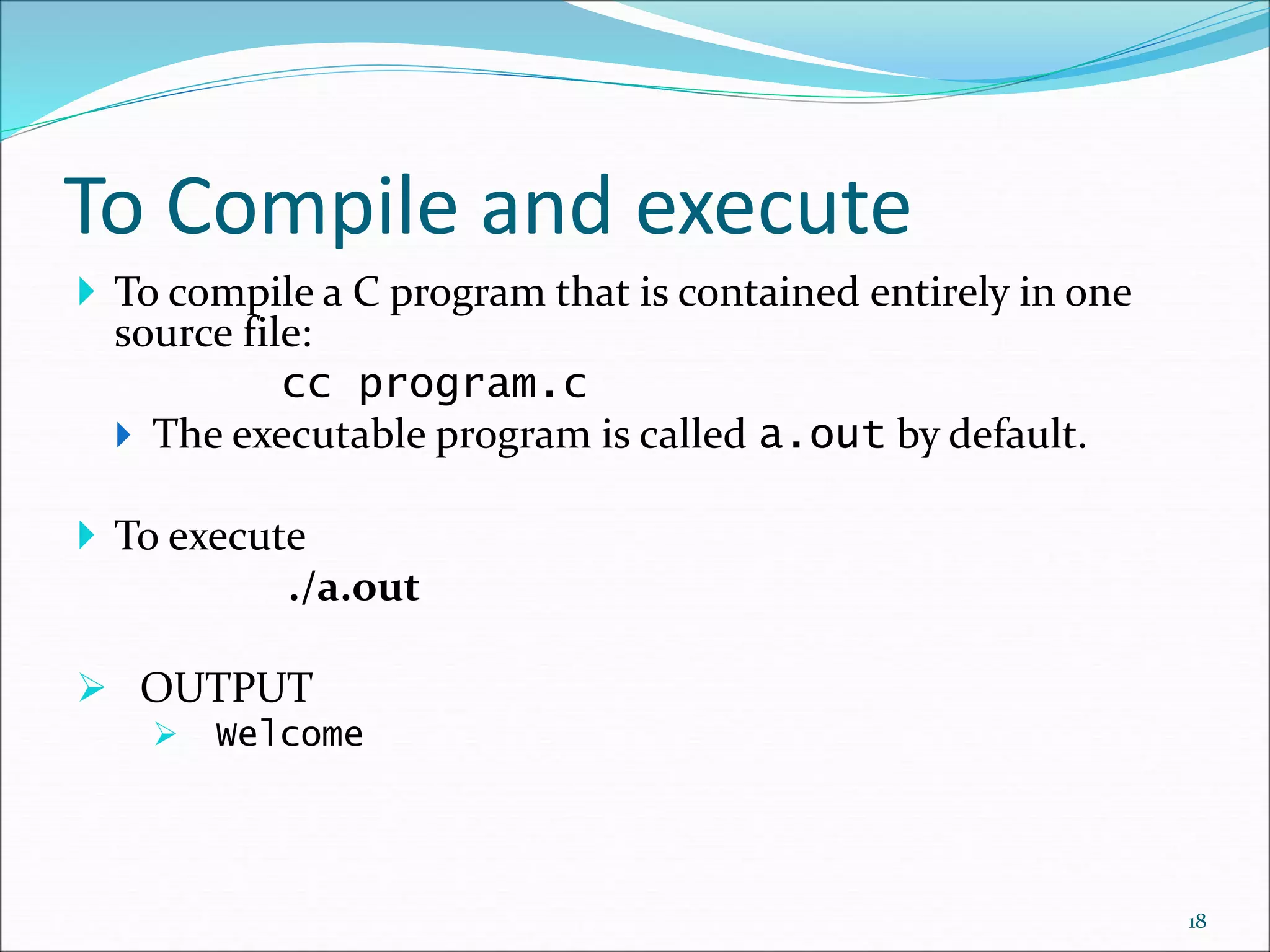

18. To Compile and execute
 To compile a C program that is contained entirely in one
source file:
cc program.c
 The executable program is called a.out by default.
 To execute
./a.out
 OUTPUT
 Welcome
18

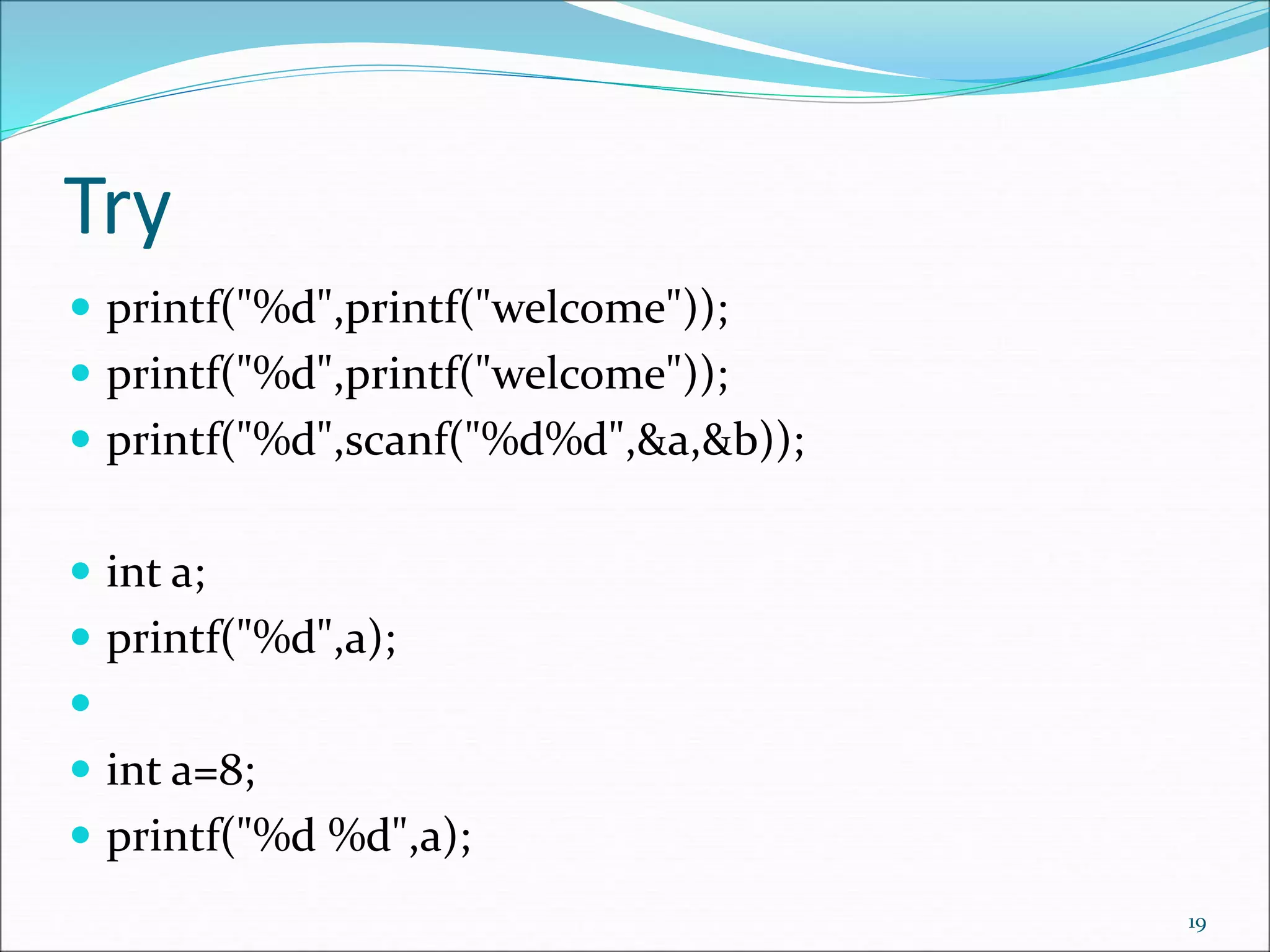

19. Try
 printf("%d",printf("welcome"));
 printf("%d",printf("welcome"));
 printf("%d",scanf("%d%d",&a,&b));
 int a;
 printf("%d",a);

 int a=8;
 printf("%d %d",a);
19

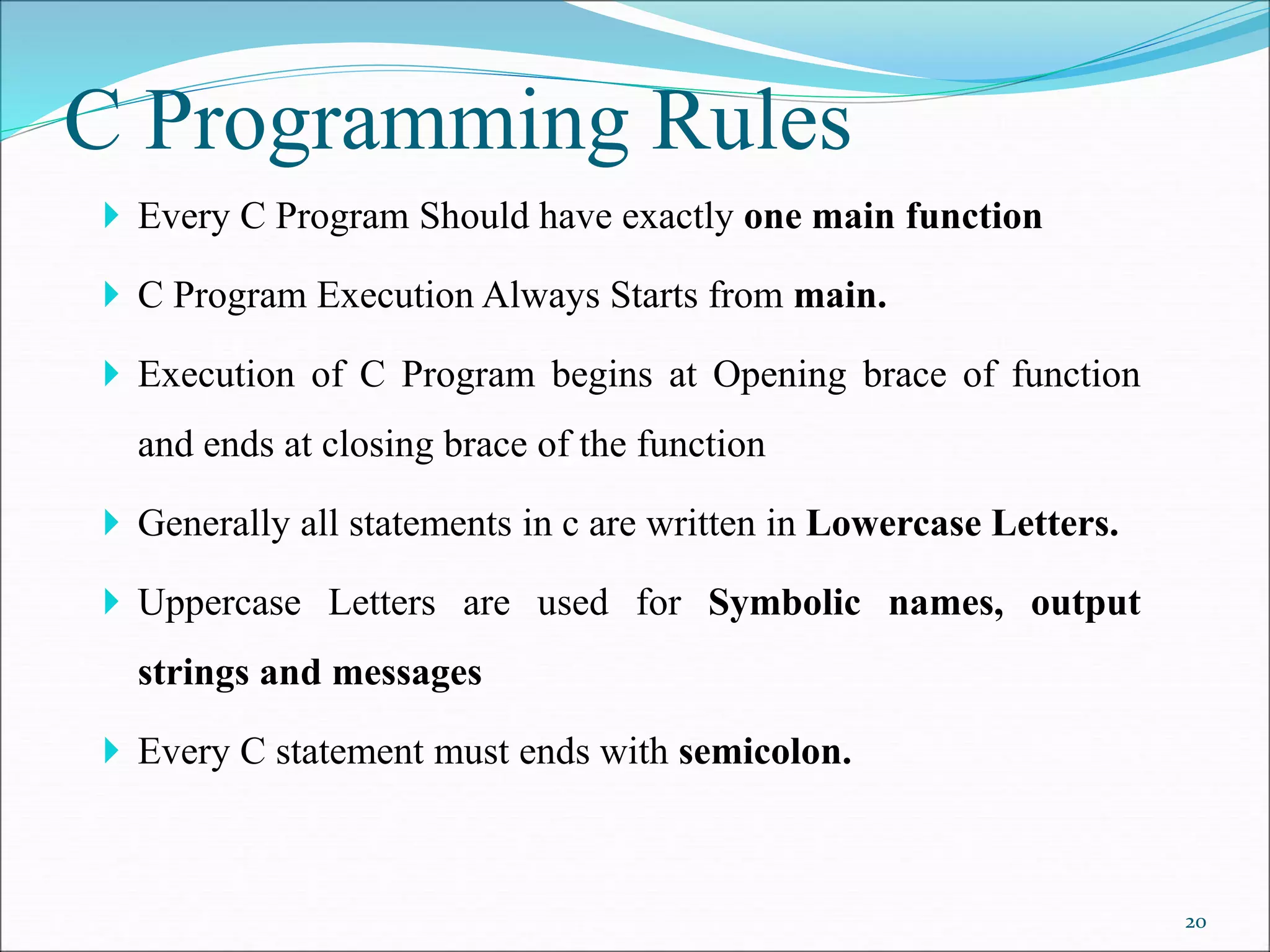

20. C Programming Rules
 Every C Program Should have exactly one main function
 C Program Execution Always Starts from main.
 Execution of C Program begins at Opening brace of function
and ends at closing brace of the function
 Generally all statements in c are written in Lowercase Letters.
 Uppercase Letters are used for Symbolic names, output
strings and messages
 Every C statement must ends with semicolon.
20

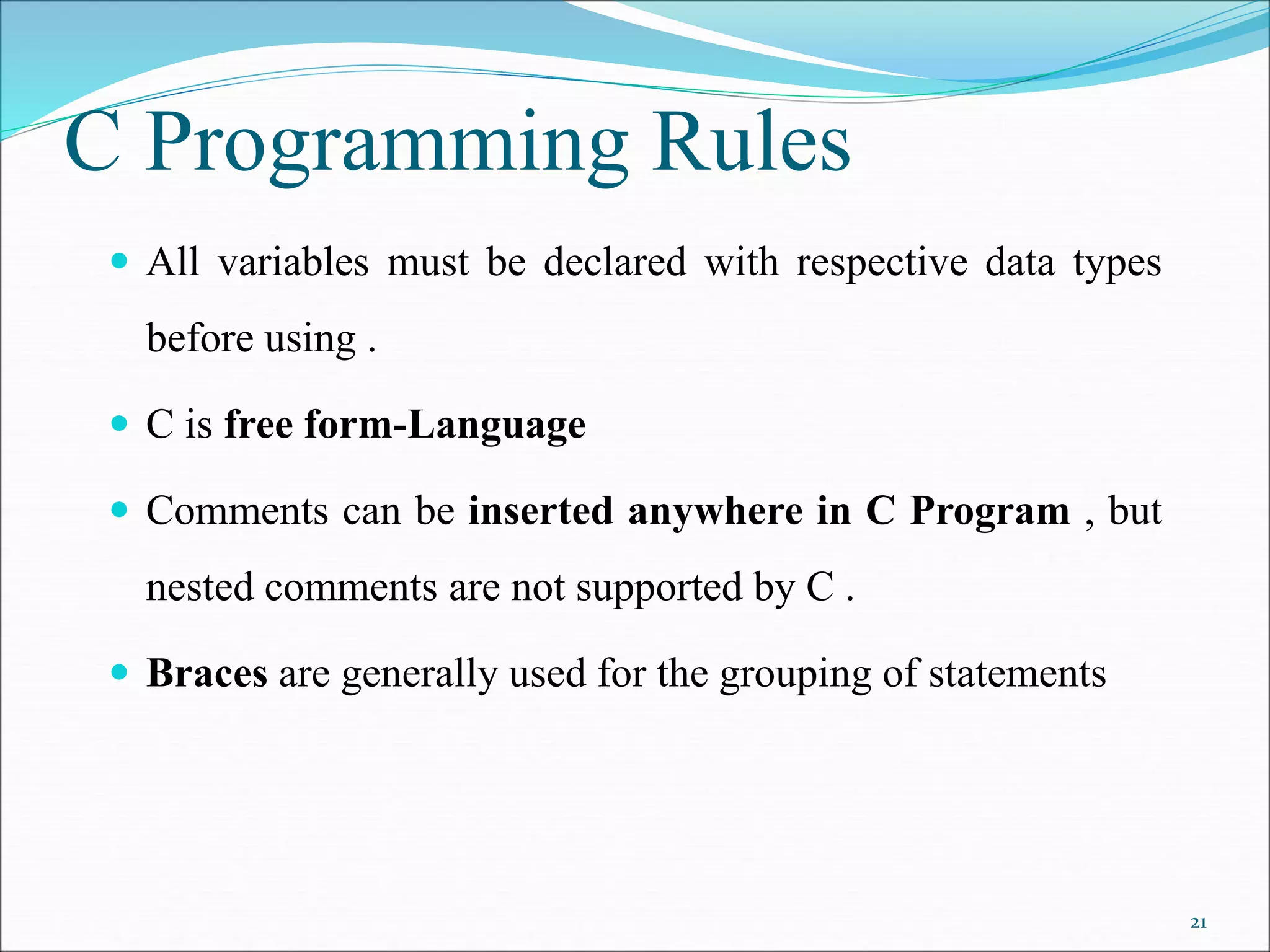

21. C Programming Rules
 All variables must be declared with respective data types
before using .
 C is free form-Language
 Comments can be inserted anywhere in C Program , but
nested comments are not supported by C .
 Braces are generally used for the grouping of statements
21

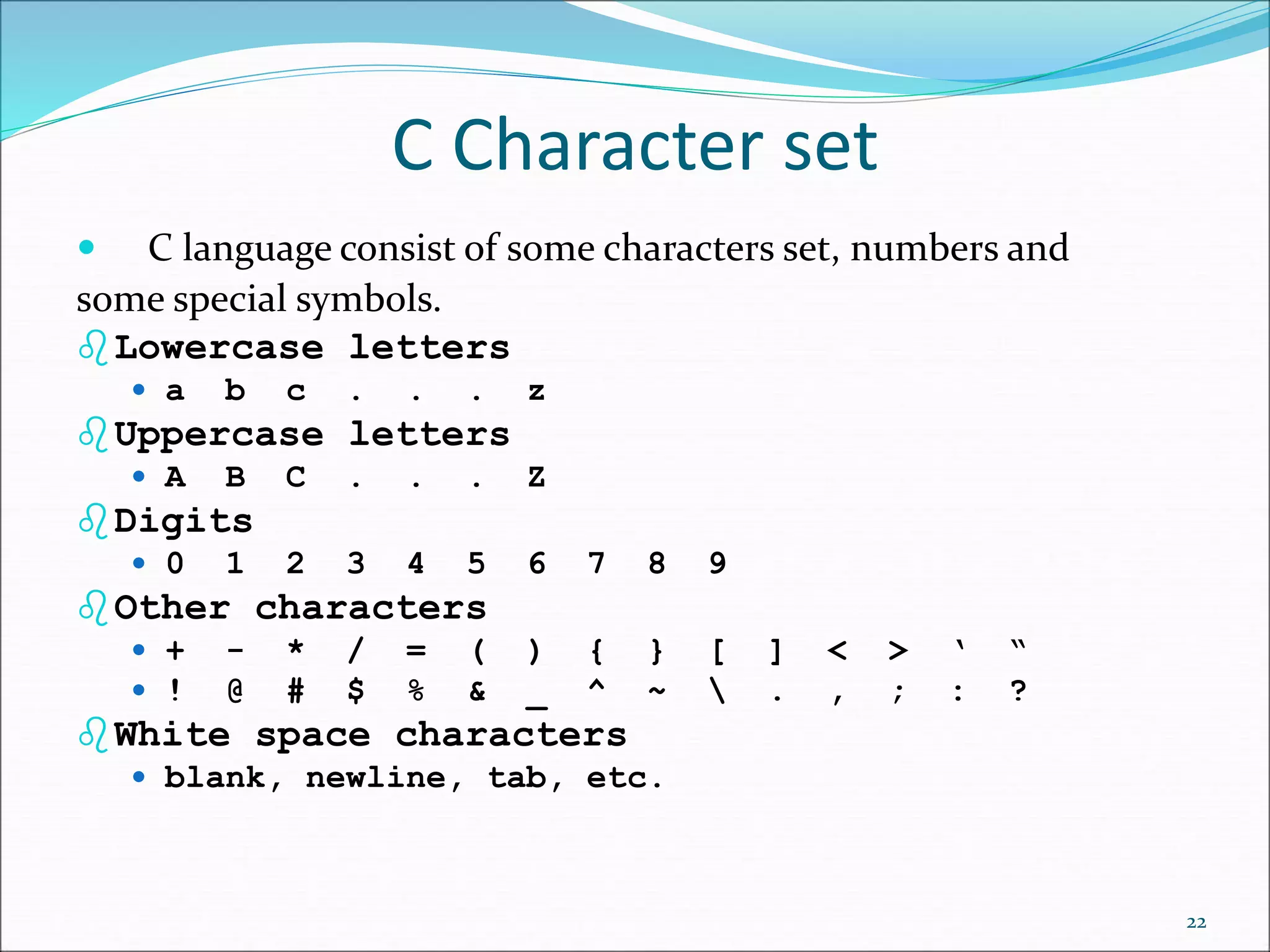

22. C Character set
 C language consist of some characters set, numbers and
some special symbols.
Lowercase letters
 a b c . . . z
Uppercase letters
 A B C . . . Z
Digits
 0 1 2 3 4 5 6 7 8 9
Other characters
 + - * / = ( ) { } [ ] < > ‘ “
 ! @ # $ % & _ ^ ~ . , ; : ?
White space characters
 blank, newline, tab, etc.
22

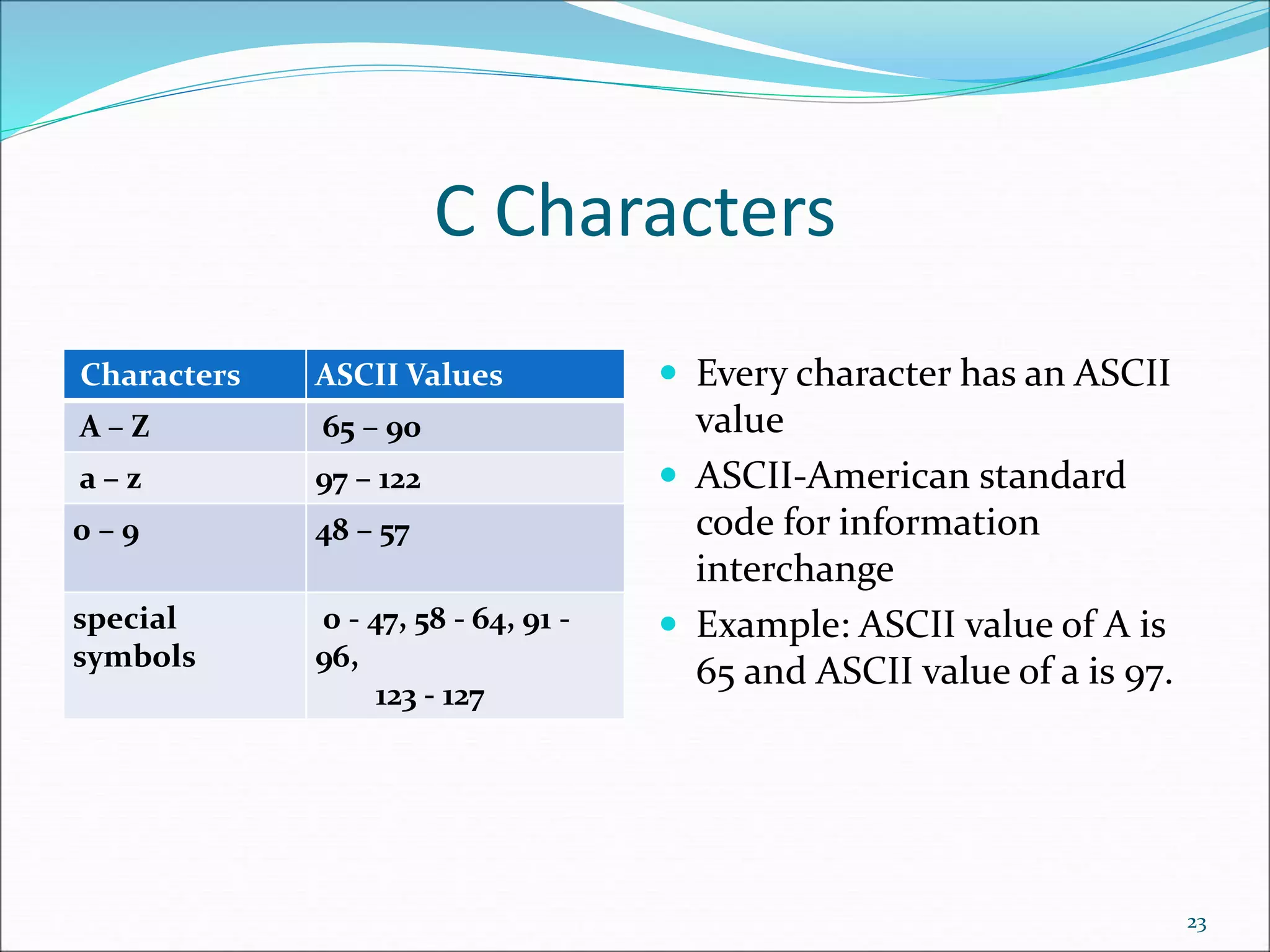

23. C Characters
Characters ASCII Values
A – Z 65 – 90
a – z 97 – 122
0 – 9 48 – 57
special
symbols
0 - 47, 58 - 64, 91 -
96,
123 - 127
 Every character has an ASCII
value
 ASCII-American standard
code for information
interchange
 Example: ASCII value of A is
65 and ASCII value of a is 97.
23

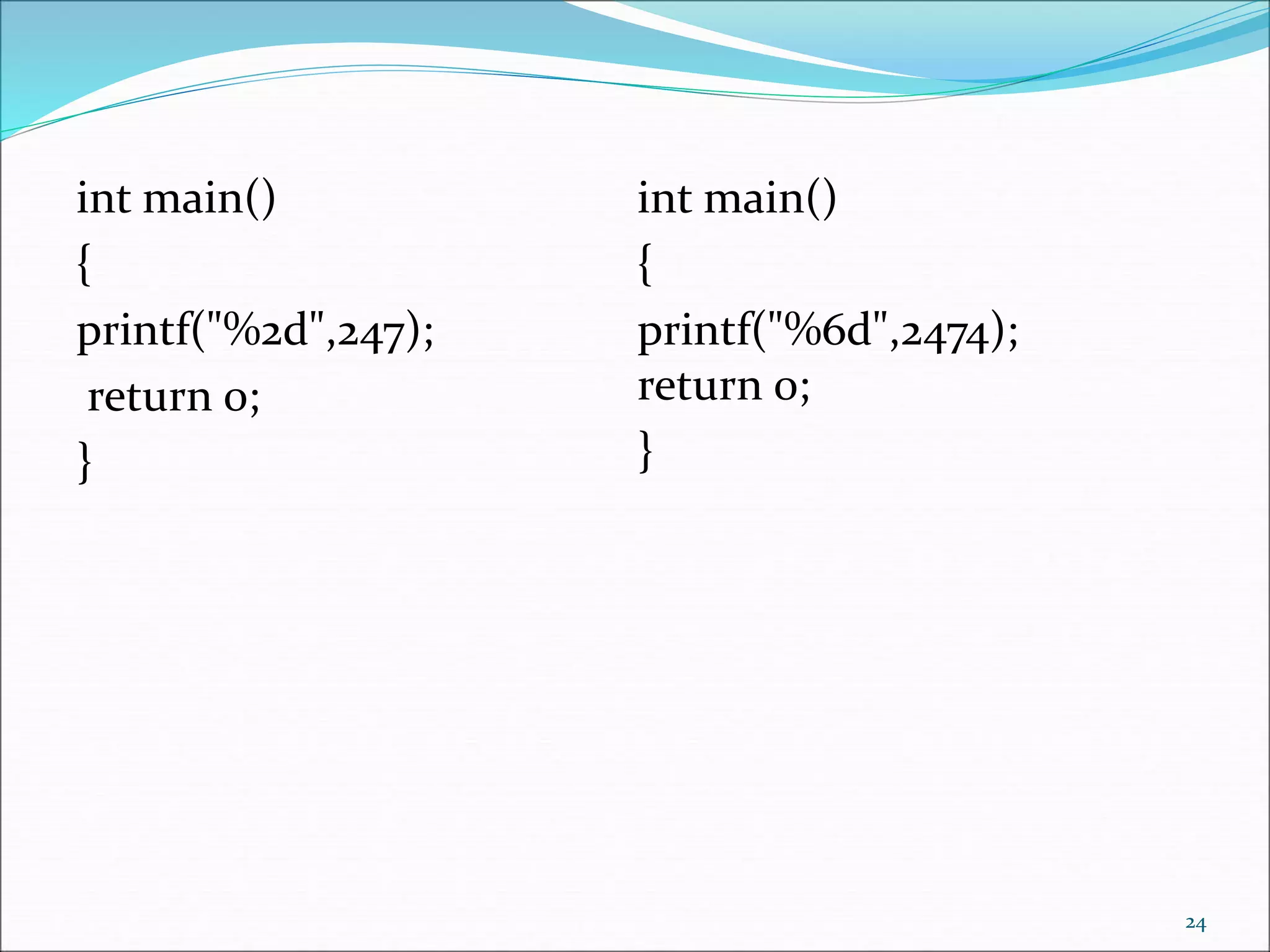

24. int main()
{
printf("%2d",247);
return 0;
}
24
int main()
{
printf("%6d",2474);
return 0;
}

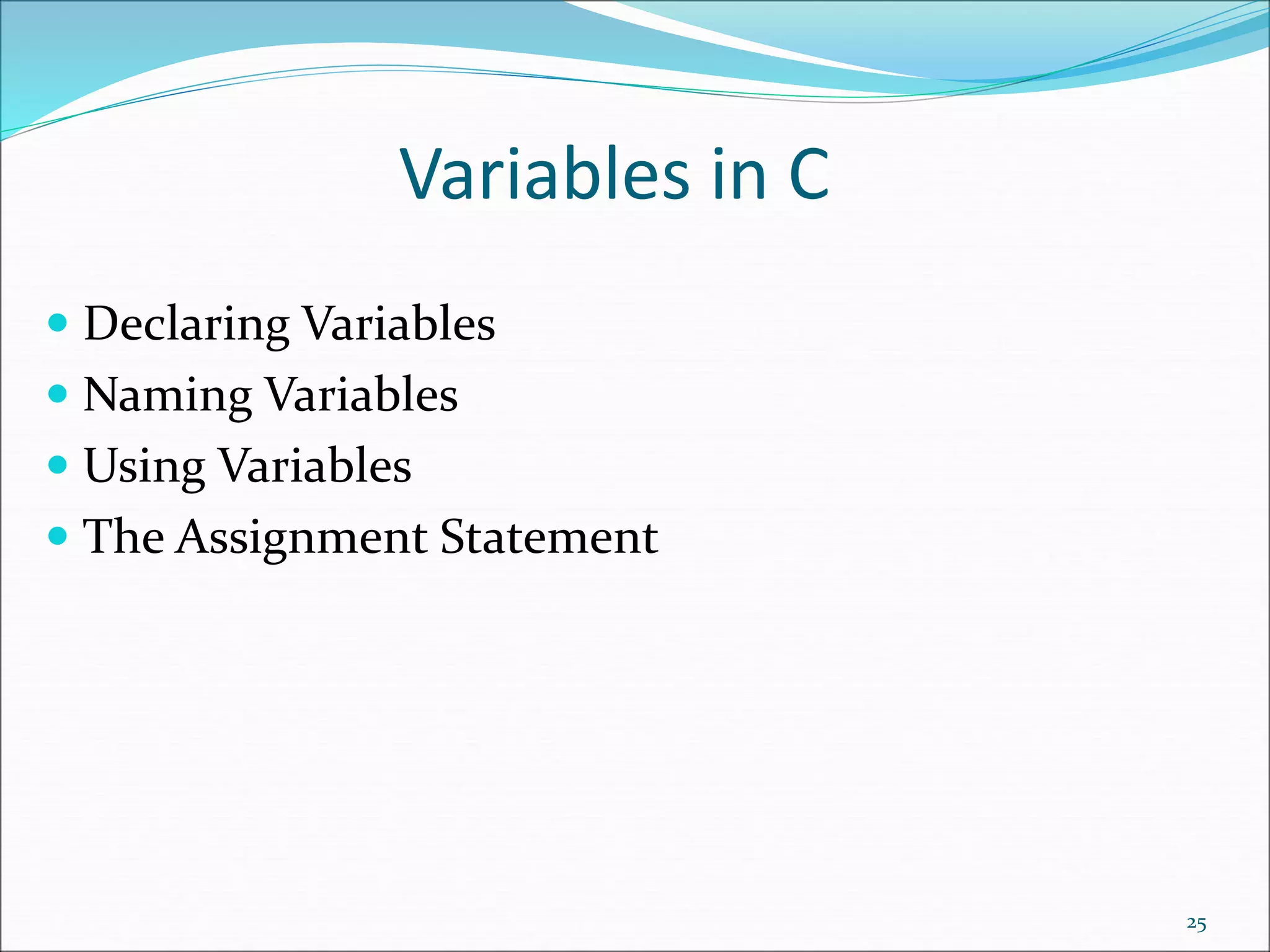

25. Variables in C
 Declaring Variables
 Naming Variables
 Using Variables
 The Assignment Statement
25

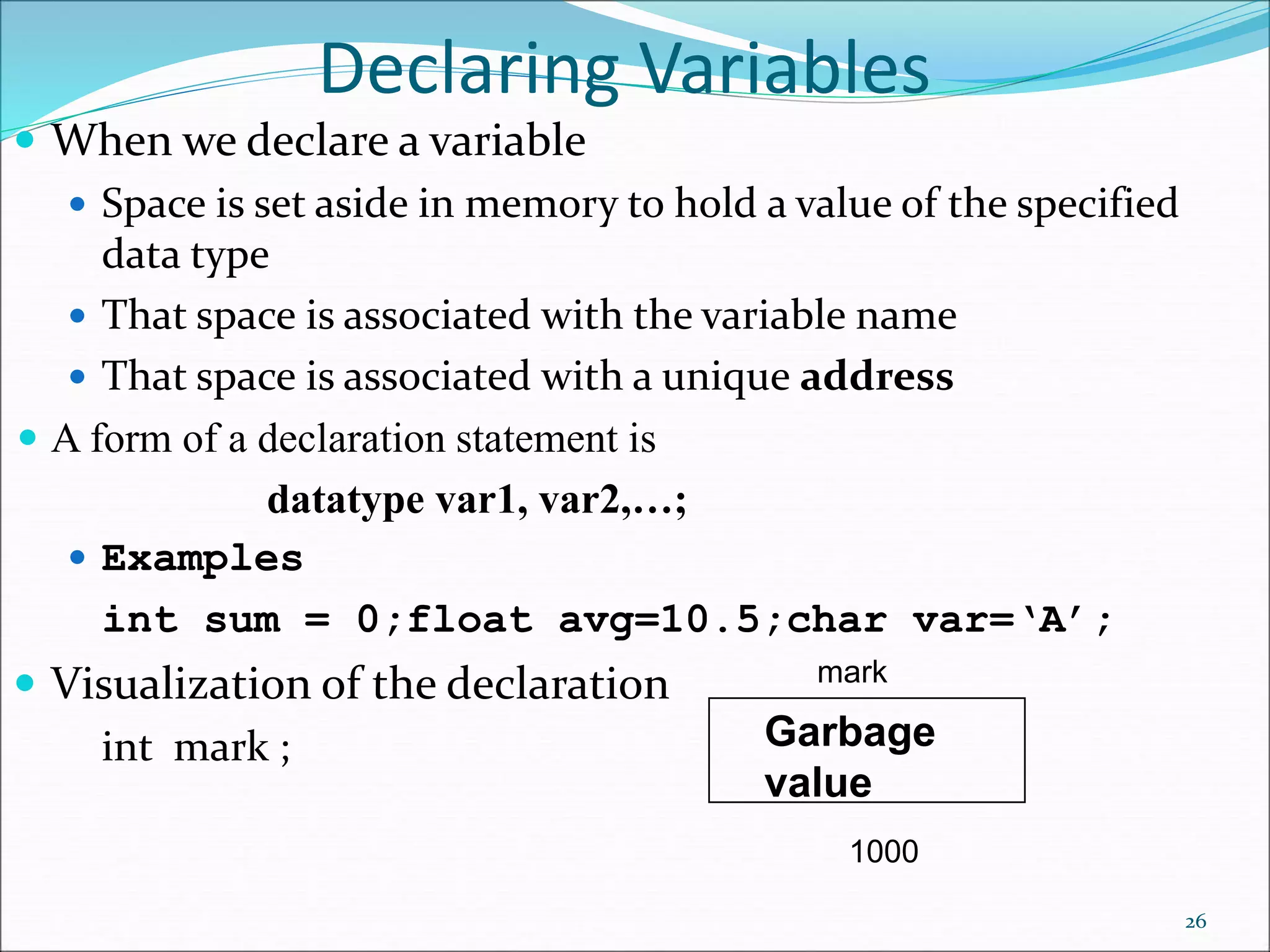

26. Declaring Variables
 When we declare a variable
 Space is set aside in memory to hold a value of the specified
data type
 That space is associated with the variable name
 That space is associated with a unique address
 A form of a declaration statement is
datatype var1, var2,…;
 Examples
int sum = 0;float avg=10.5;char var=‘A’;
 Visualization of the declaration
int mark ;
26
mark
1000
Garbage
value

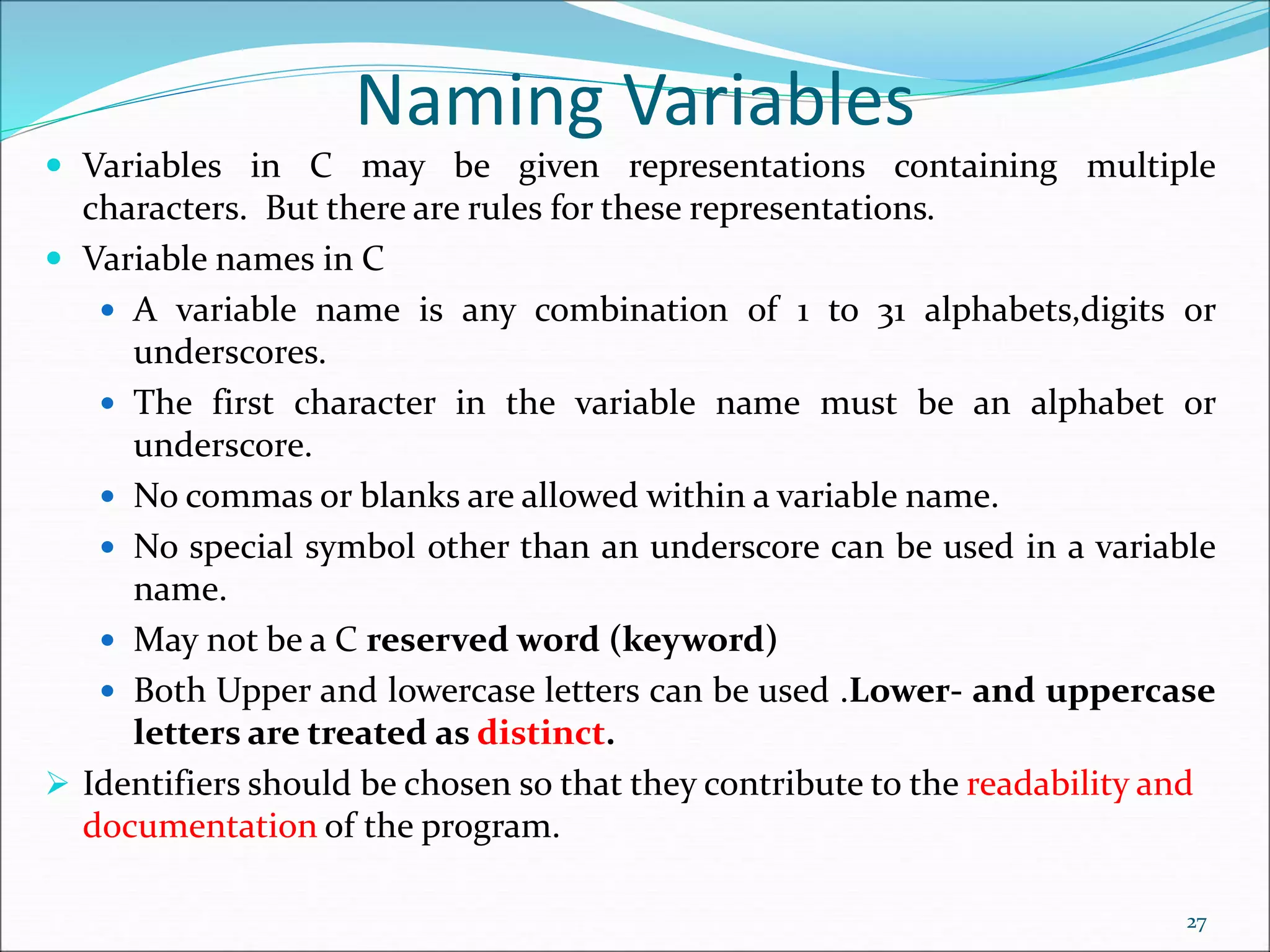

27. Naming Variables
 Variables in C may be given representations containing multiple
characters. But there are rules for these representations.
 Variable names in C
 A variable name is any combination of 1 to 31 alphabets,digits or
underscores.
 The first character in the variable name must be an alphabet or
underscore.
 No commas or blanks are allowed within a variable name.
 No special symbol other than an underscore can be used in a variable
name.
 May not be a C reserved word (keyword)
 Both Upper and lowercase letters can be used .Lower- and uppercase
letters are treated as distinct.
 Identifiers should be chosen so that they contribute to the readability and
documentation of the program.
27

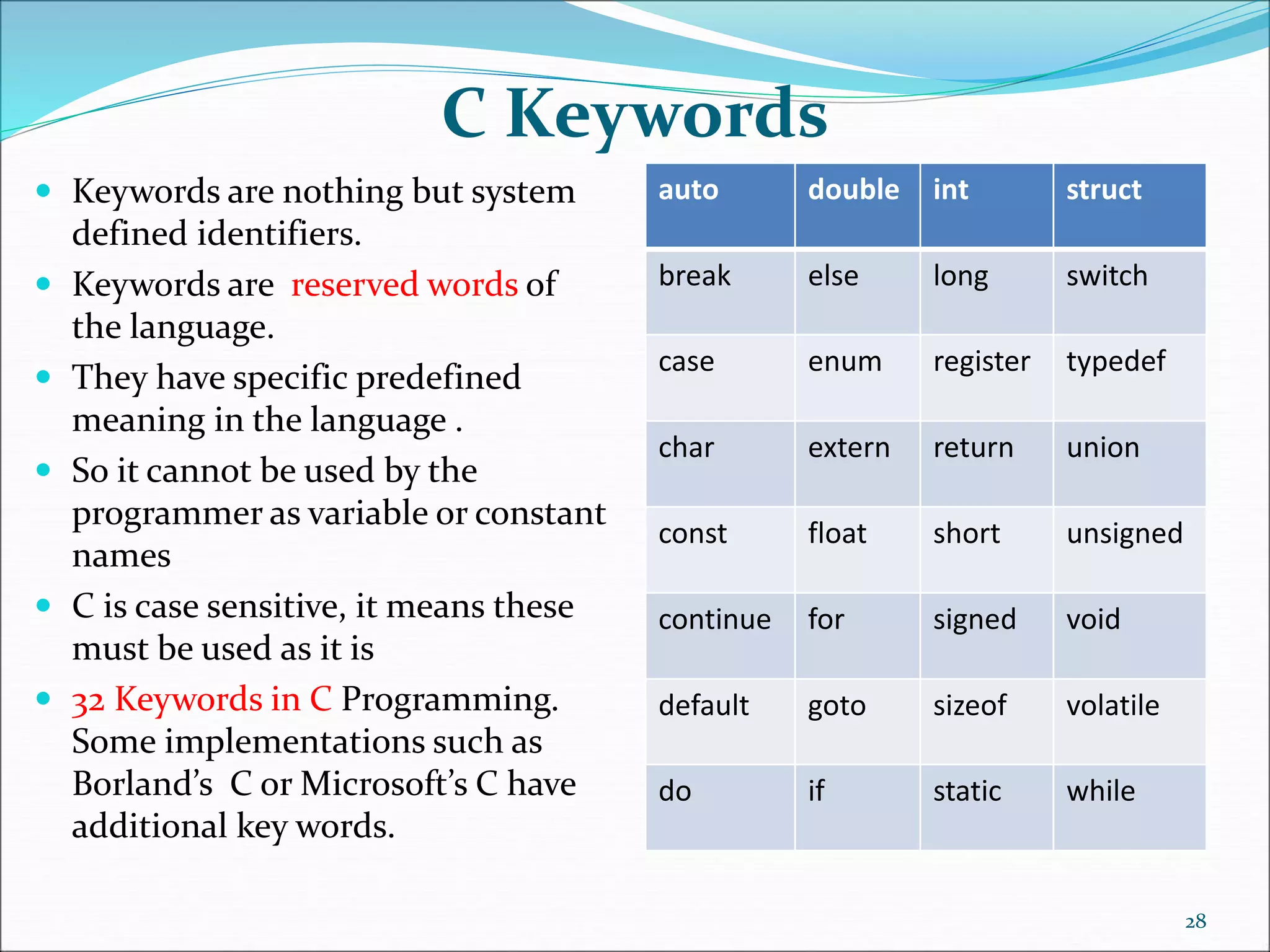

28. C Keywords
 Keywords are nothing but system
defined identifiers.
 Keywords are reserved words of
the language.
 They have specific predefined
meaning in the language .
 So it cannot be used by the
programmer as variable or constant
names
 C is case sensitive, it means these
must be used as it is
 32 Keywords in C Programming.
Some implementations such as
Borland’s C or Microsoft’s C have
additional key words.
auto double int struct
break else long switch
case enum register typedef
char extern return union
const float short unsigned
continue for signed void
default goto sizeof volatile
do if static while
28

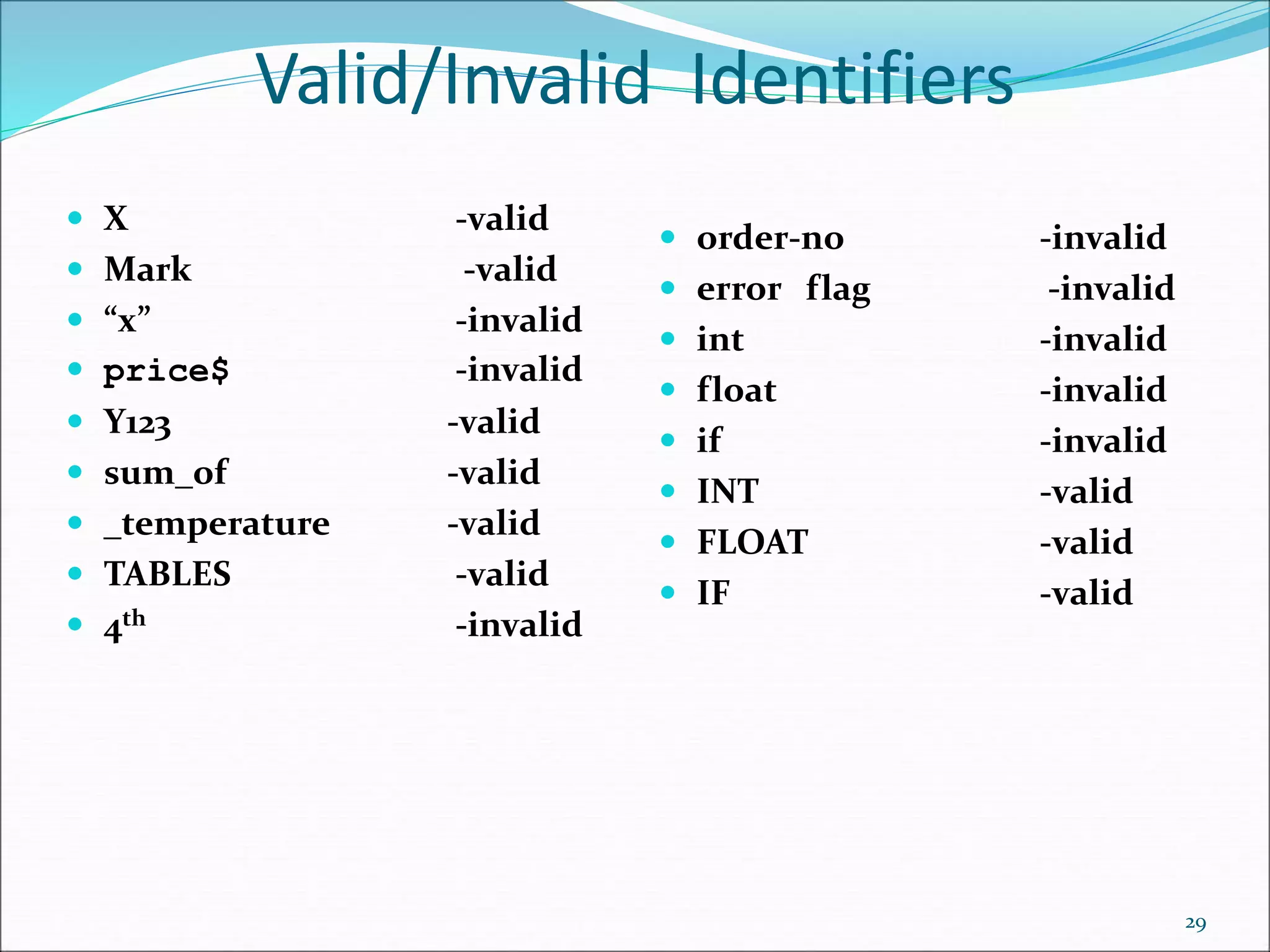

29. Valid/Invalid Identifiers
 X -valid
 Mark -valid
 “x” -invalid
 price$ -invalid
 Y123 -valid
 sum_of -valid
 _temperature -valid
 TABLES -valid
 4th -invalid
29
 order-no -invalid
 error flag -invalid
 int -invalid
 float -invalid
 if -invalid
 INT -valid
 FLOAT -valid
 IF -valid

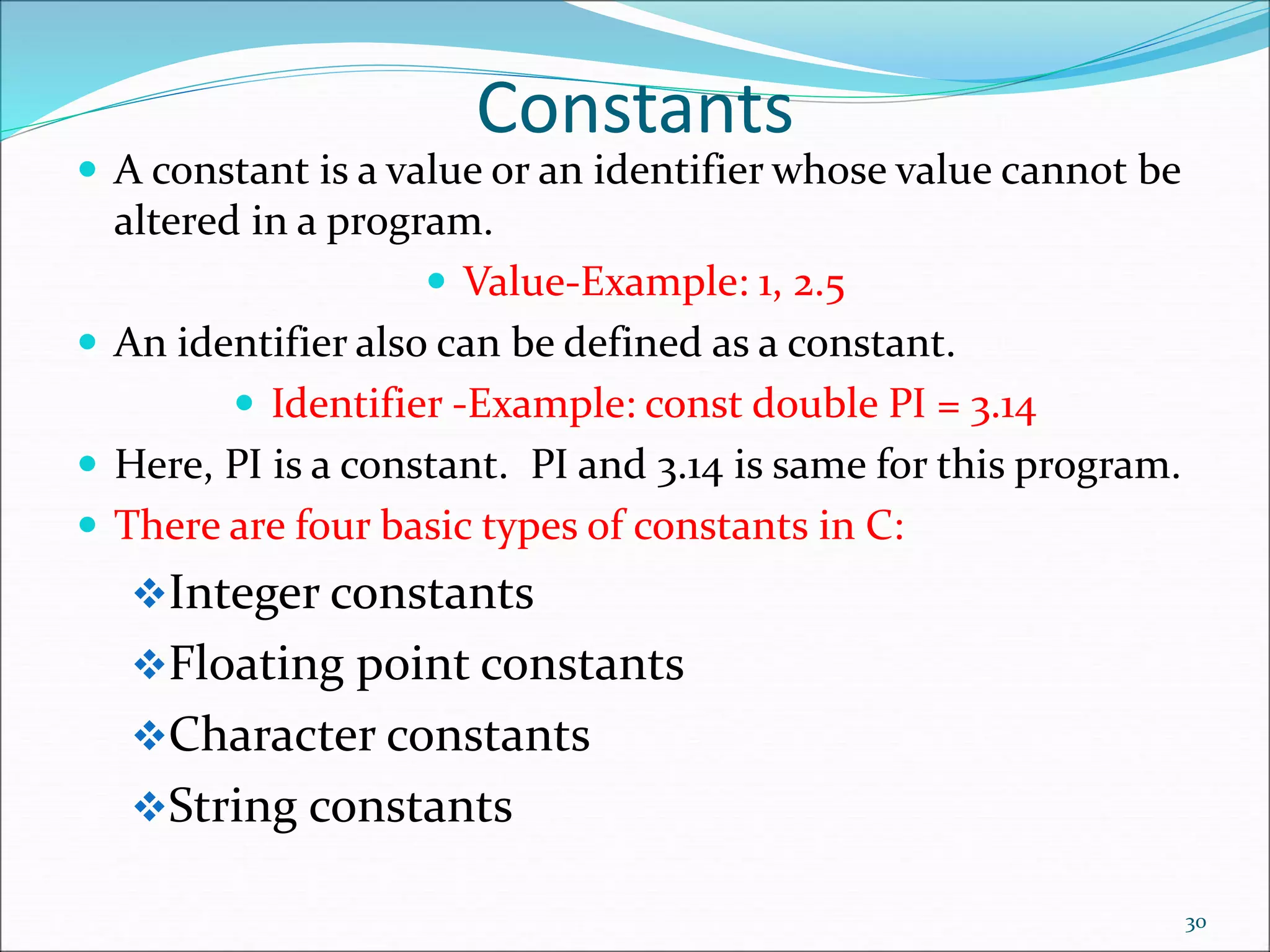

30. Constants
 A constant is a value or an identifier whose value cannot be
altered in a program.
 Value-Example: 1, 2.5
 An identifier also can be defined as a constant.
 Identifier -Example: const double PI = 3.14
 Here, PI is a constant. PI and 3.14 is same for this program.
 There are four basic types of constants in C:
Integer constants
Floating point constants
Character constants
String constants
30

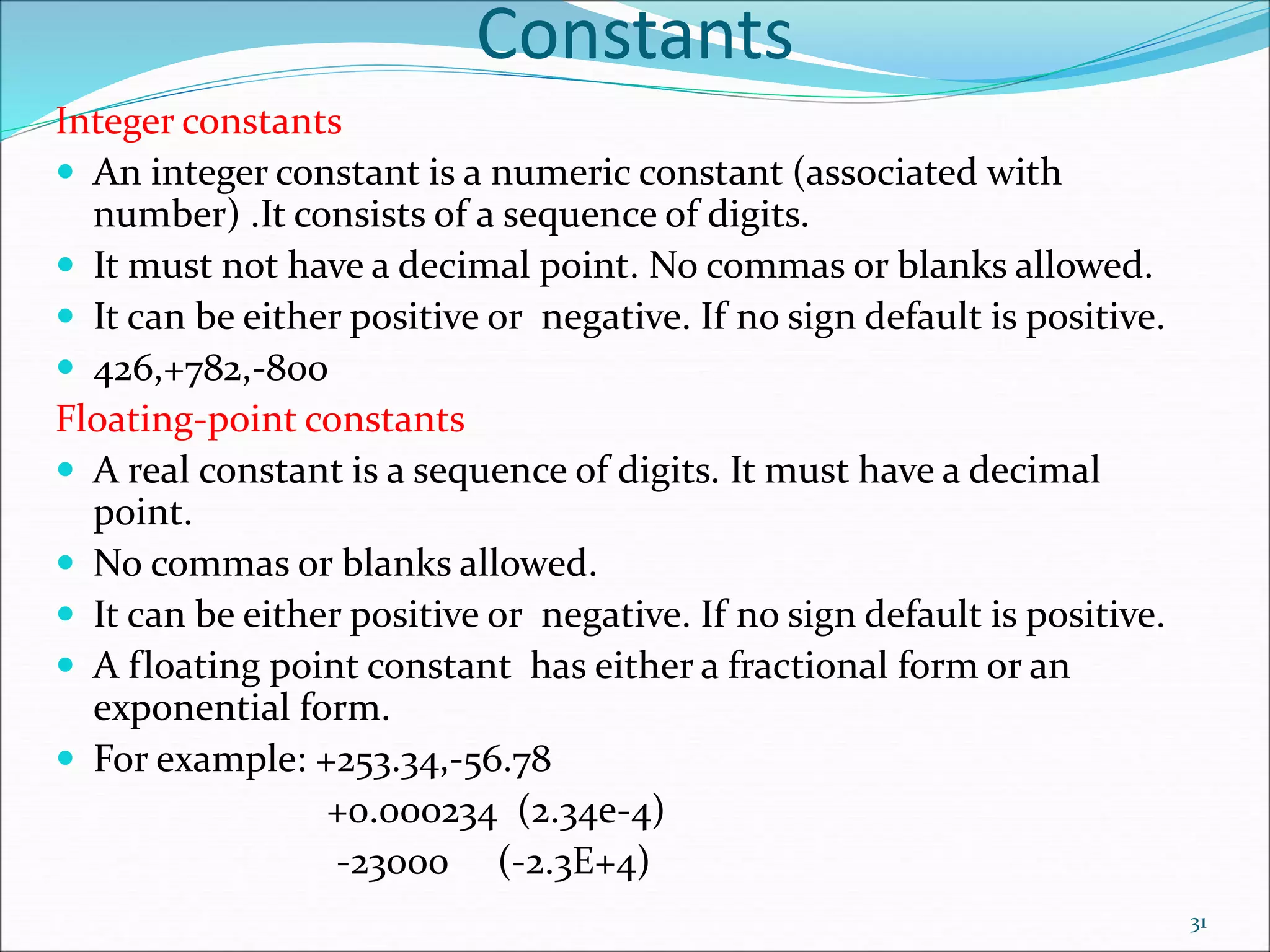

31. Constants
Integer constants
 An integer constant is a numeric constant (associated with
number) .It consists of a sequence of digits.
 It must not have a decimal point. No commas or blanks allowed.
 It can be either positive or negative. If no sign default is positive.
 426,+782,-800
Floating-point constants
 A real constant is a sequence of digits. It must have a decimal
point.
 No commas or blanks allowed.
 It can be either positive or negative. If no sign default is positive.
 A floating point constant has either a fractional form or an
exponential form.
 For example: +253.34,-56.78
+0.000234 (2.34e-4)
-23000 (-2.3E+4)
31

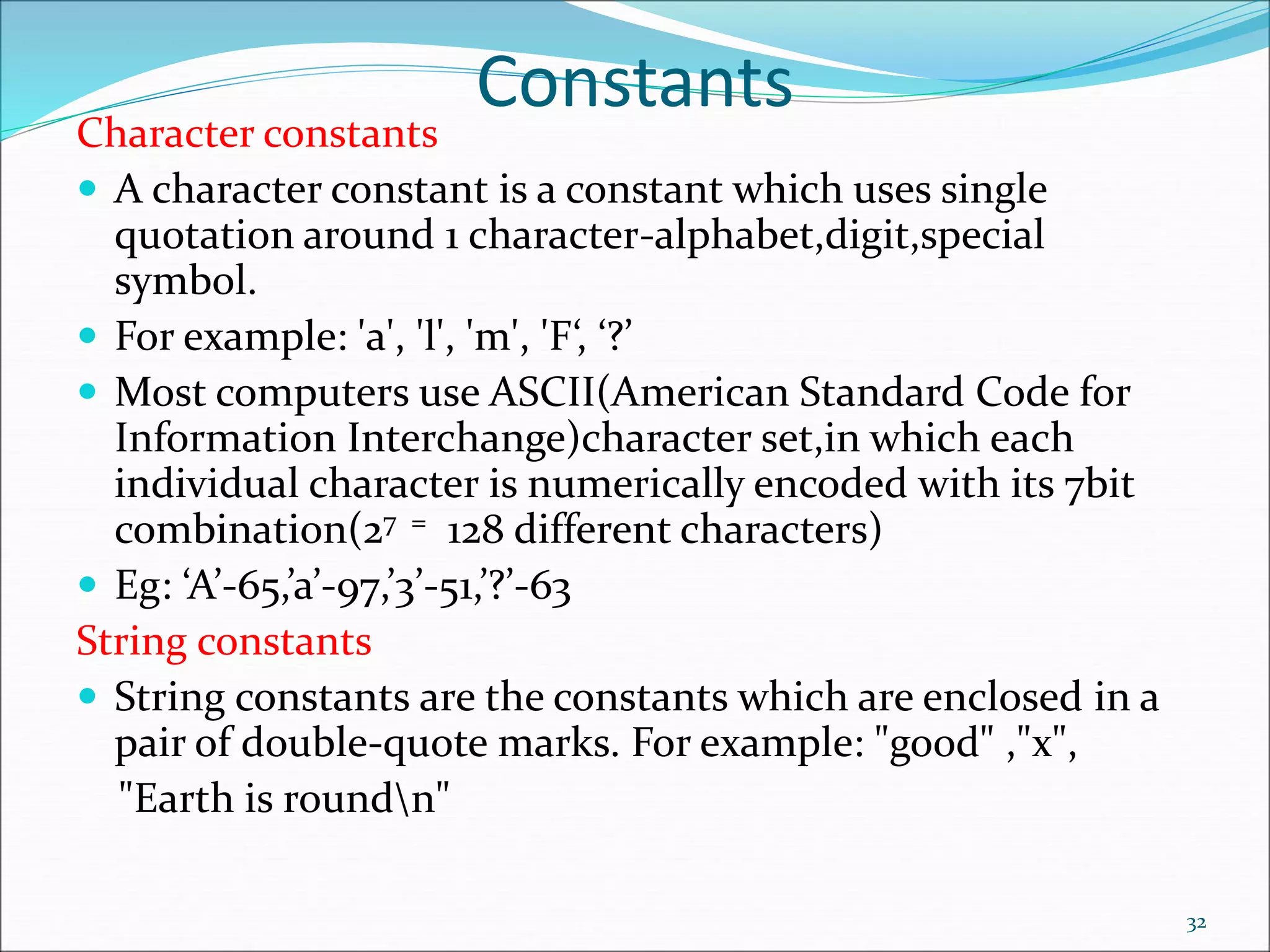

32. Constants
Character constants
 A character constant is a constant which uses single
quotation around 1 character-alphabet,digit,special
symbol.
 For example: 'a', 'l', 'm', 'F‘, ‘?’
 Most computers use ASCII(American Standard Code for
Information Interchange)character set,in which each
individual character is numerically encoded with its 7bit
combination(27 = 128 different characters)
 Eg: ‘A’-65,’a’-97,’3’-51,’?’-63
String constants
 String constants are the constants which are enclosed in a
pair of double-quote marks. For example: "good" ,"x",
"Earth is roundn"
32

33. Symbolic constants
 A symbolic constant is a name that substitutes for a sequence of
characters.
 The character may represent a numeric, character or string constant.
 When a program is compiled each occurrence of symbolic constant is
replaced by its corresponding character sequence.
 Use uppercase for symbolic constants.
 A symbolic constant is defined by # define name text(no semicolon)
 Examples:
#define PI 3.14159 #define TRUE 1 #define FALSE 0
#define FRIEND “Susan”
33

34. Special Character-Escape
 Sometimes, it is necessary to use characters which
cannot be typed or has special meaning in C
programming.
 The backslash is called the escape character.
 The backslash ( ) causes "escape" from the normal
way the characters are interpreted by the compiler.
 To use these characters, escape sequence is used.
 For example: n is used for newline.
 The newline character ‘n’ represents a single character called
newline.Think of n as “escaping” the usual meaning of n.
34

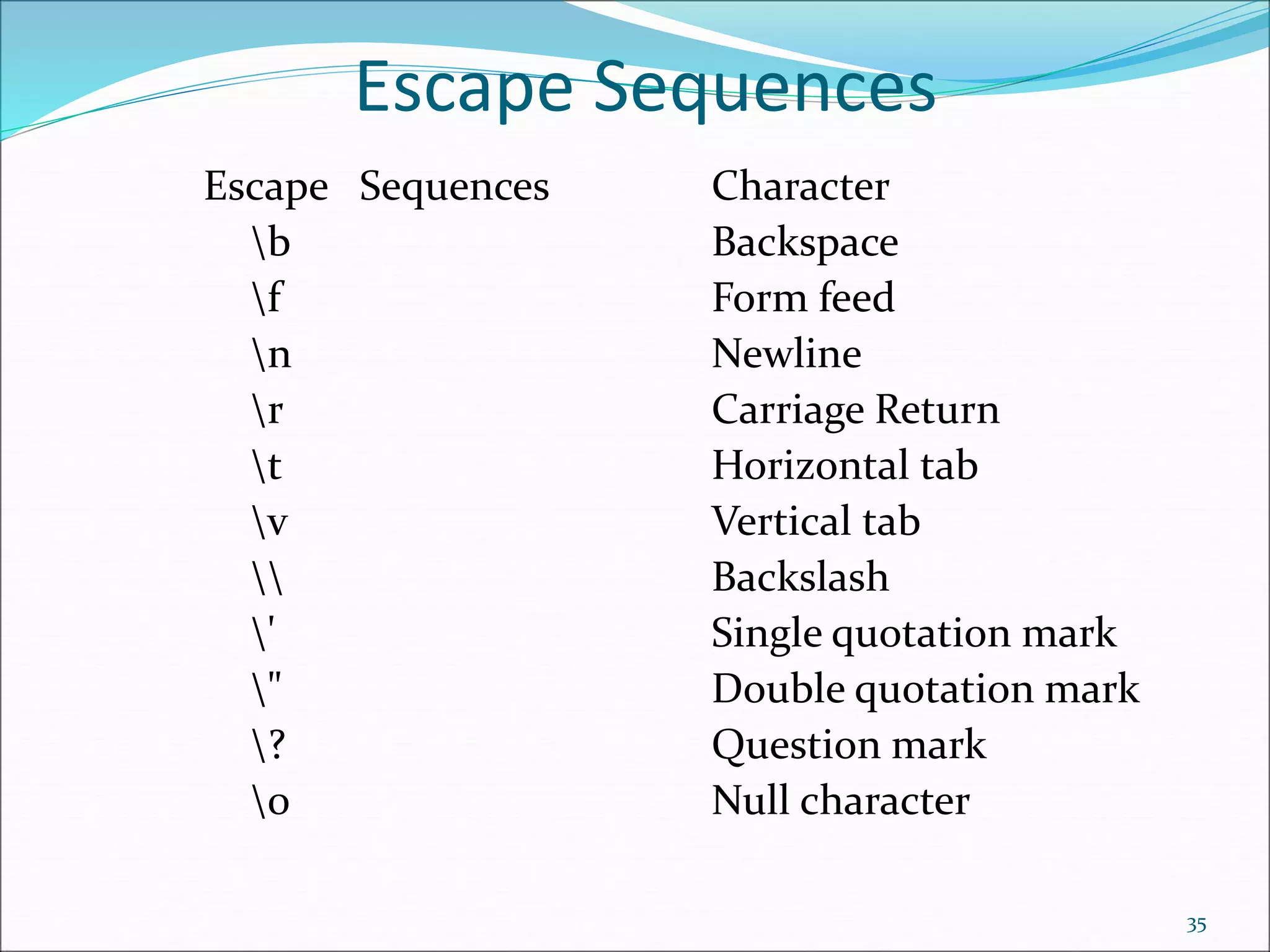

35. Escape Sequences
Escape Sequences Character
b Backspace
f Form feed
n Newline
r Carriage Return
t Horizontal tab
v Vertical tab
Backslash
' Single quotation mark
" Double quotation mark
? Question mark
0 Null character
35

36. Declarations
 Declaration associates a group of variables with a
specific data type.
 All variables must be declared before they can appear
in an executable statements.
 A declaration consists of a data type followed by one
or more variable names ending with semicolon.
 Each array variable must be followed by a pair of
square brackets, containing a positive integer which
specifies the size(i.e the number of elements)of the
array.
36

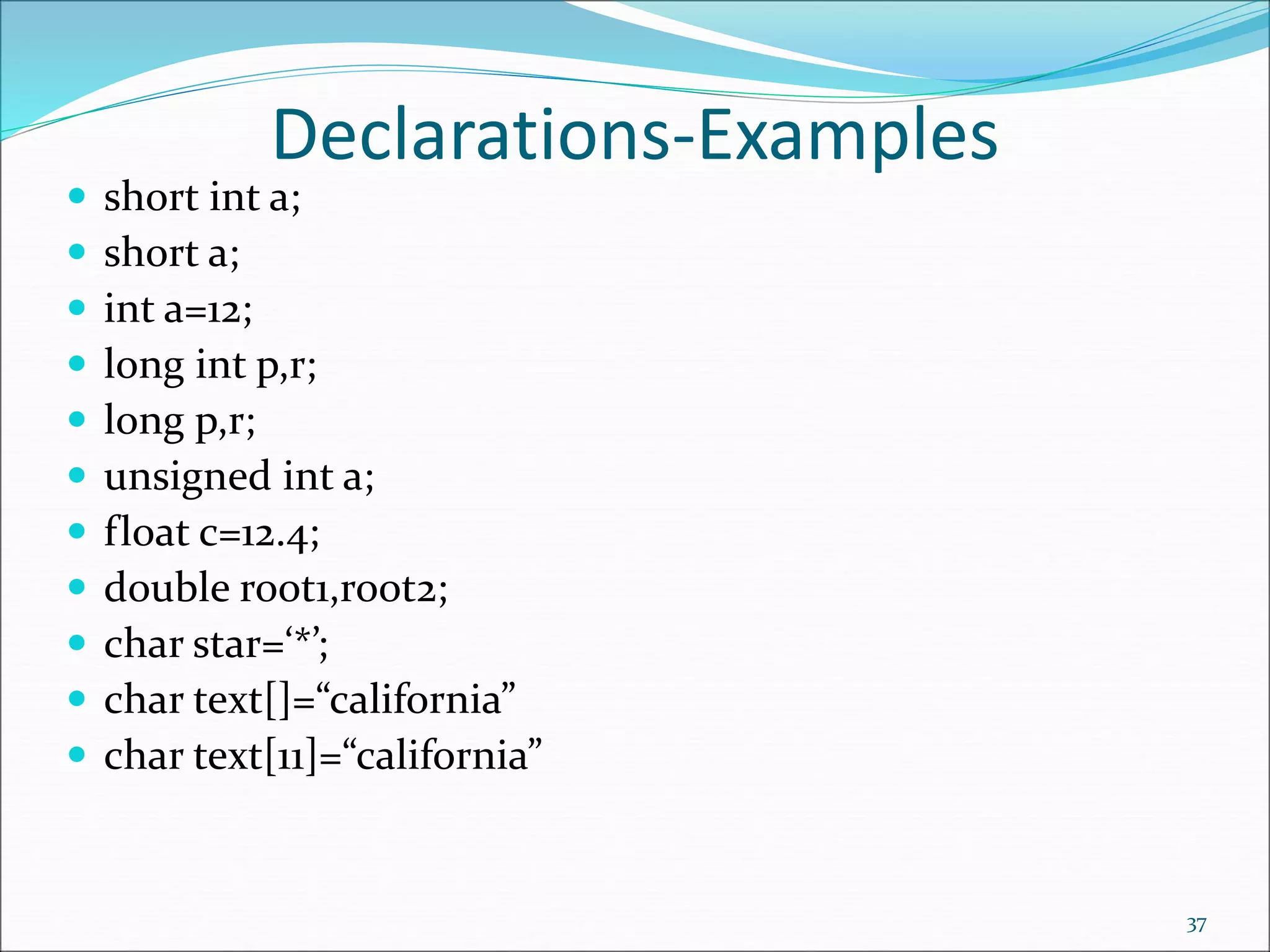

37. Declarations-Examples
 short int a;
 short a;
 int a=12;
 long int p,r;
 long p,r;
 unsigned int a;
 float c=12.4;
 double root1,root2;
 char star=‘*’;
 char text[]=“california”
 char text[11]=“california”
37

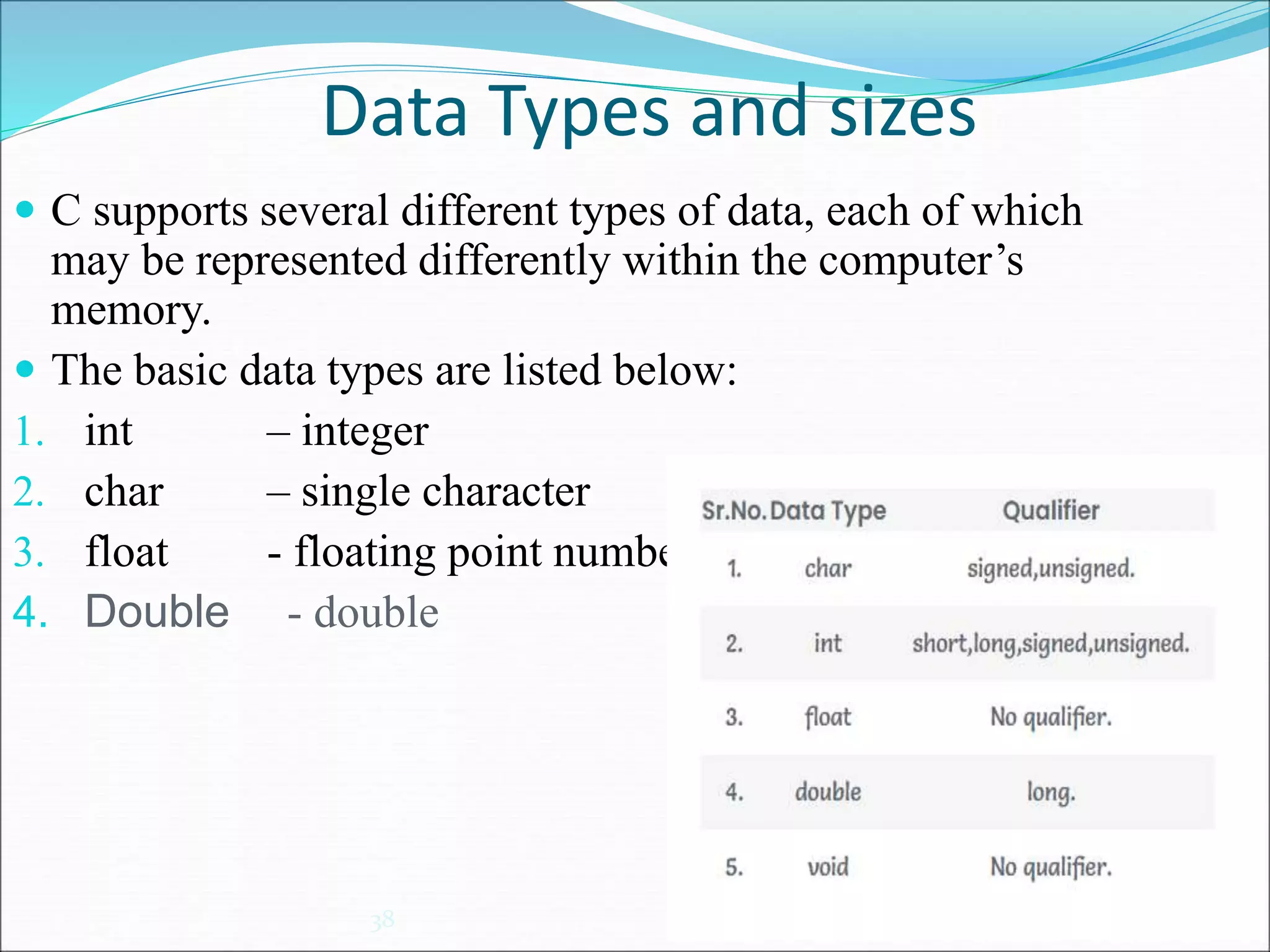

38. Data Types and sizes
38
 C supports several different types of data, each of which
may be represented differently within the computer’s
memory.
 The basic data types are listed below:
1. int – integer
2. char – single character
3. float - floating point number
4. Double - double

39. 39

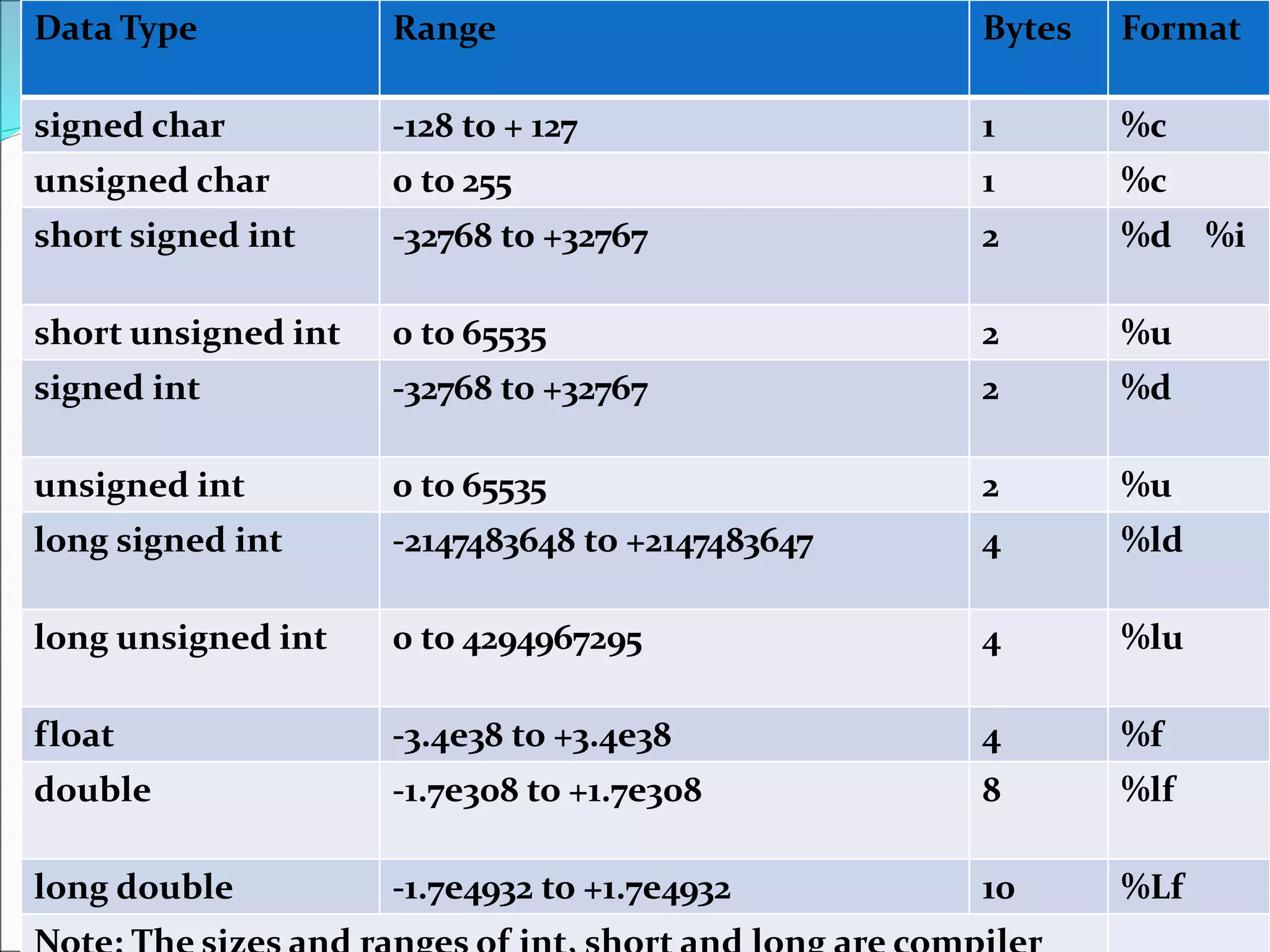

Data Type Range Bytes Format
signed char -128 to + 127 1 %c
unsigned char 0 to 255 1 %c
short signed int -32768 to +32767 2 %d %i
short unsigned int 0 to 65535 2 %u
signed int -32768 to +32767 2 %d
unsigned int 0 to 65535 2 %u
long signed int -2147483648 to +2147483647 4 %ld
long unsigned int 0 to 4294967295 4 %lu
float -3.4e38 to +3.4e38 4 %f
double -1.7e308 to +1.7e308 8 %lf
long double -1.7e4932 to +1.7e4932 10 %Lf

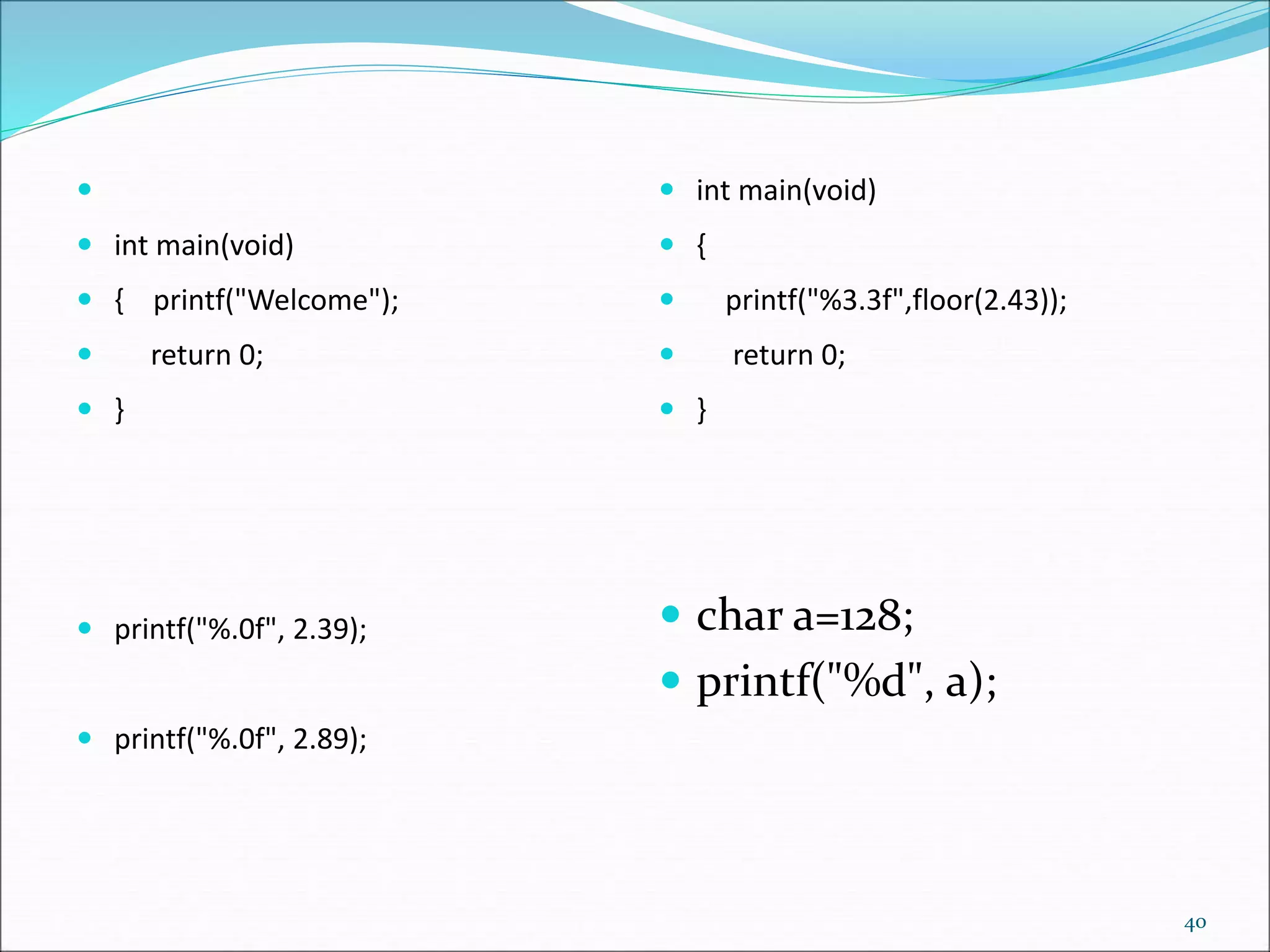

40. 
 int main(void)
 { printf("Welcome");
 return 0;
 }
 printf("%.0f", 2.39);
 printf("%.0f", 2.89);
 int main(void)
 {
 printf("%3.3f",floor(2.43));
 return 0;
 }
 char a=128;
 printf("%d", a);
40

41. 41

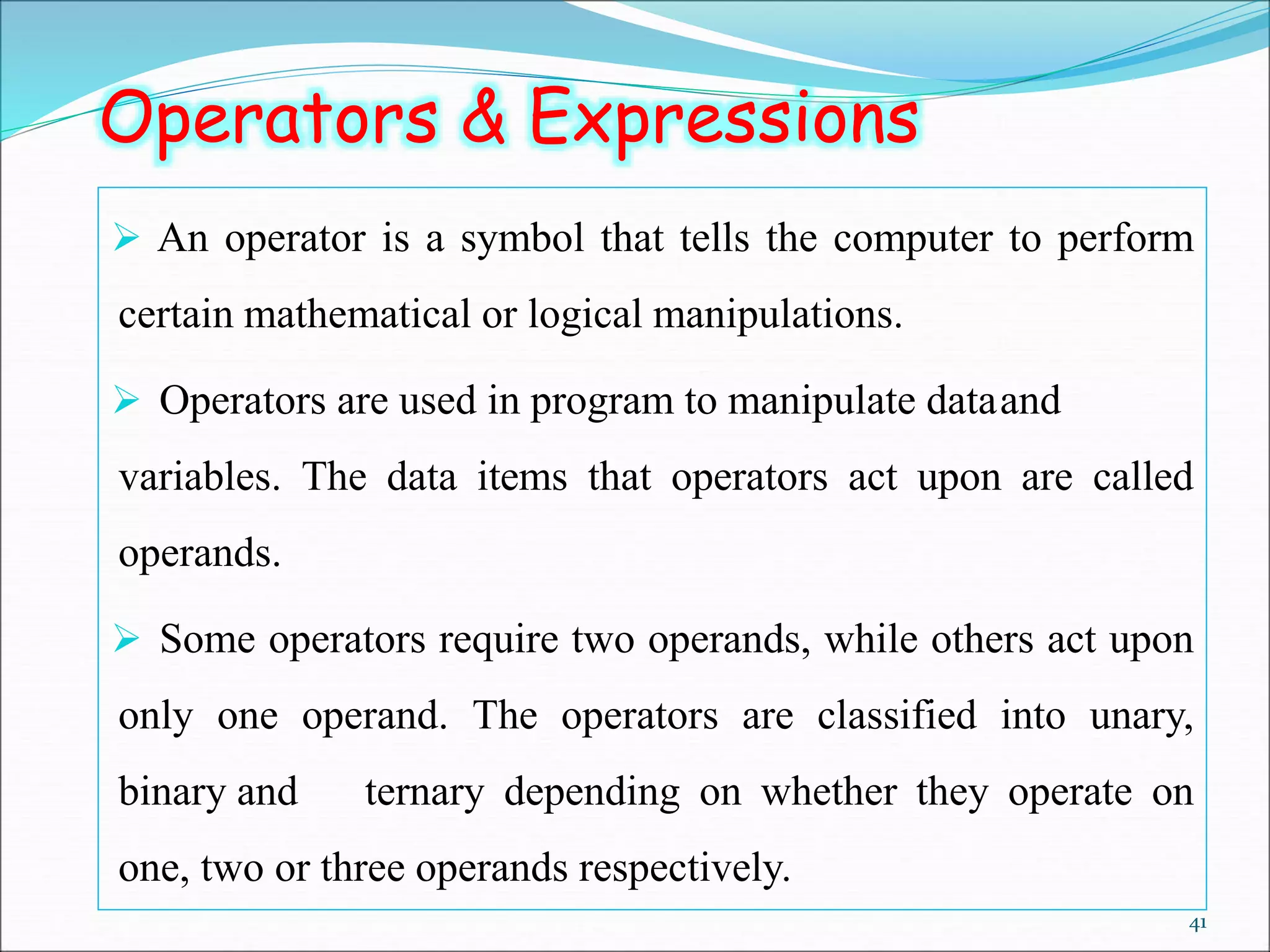

Operators & Expressions
 An operator is a symbol that tells the computer to perform
certain mathematical or logical manipulations.
 Operators are used in program to manipulate dataand
variables. The data items that operators act upon are called
operands.
 Some operators require two operands, while others act upon
only one operand. The operators are classified into unary,
binary and ternary depending on whether they operate on
one, two or three operands respectively.

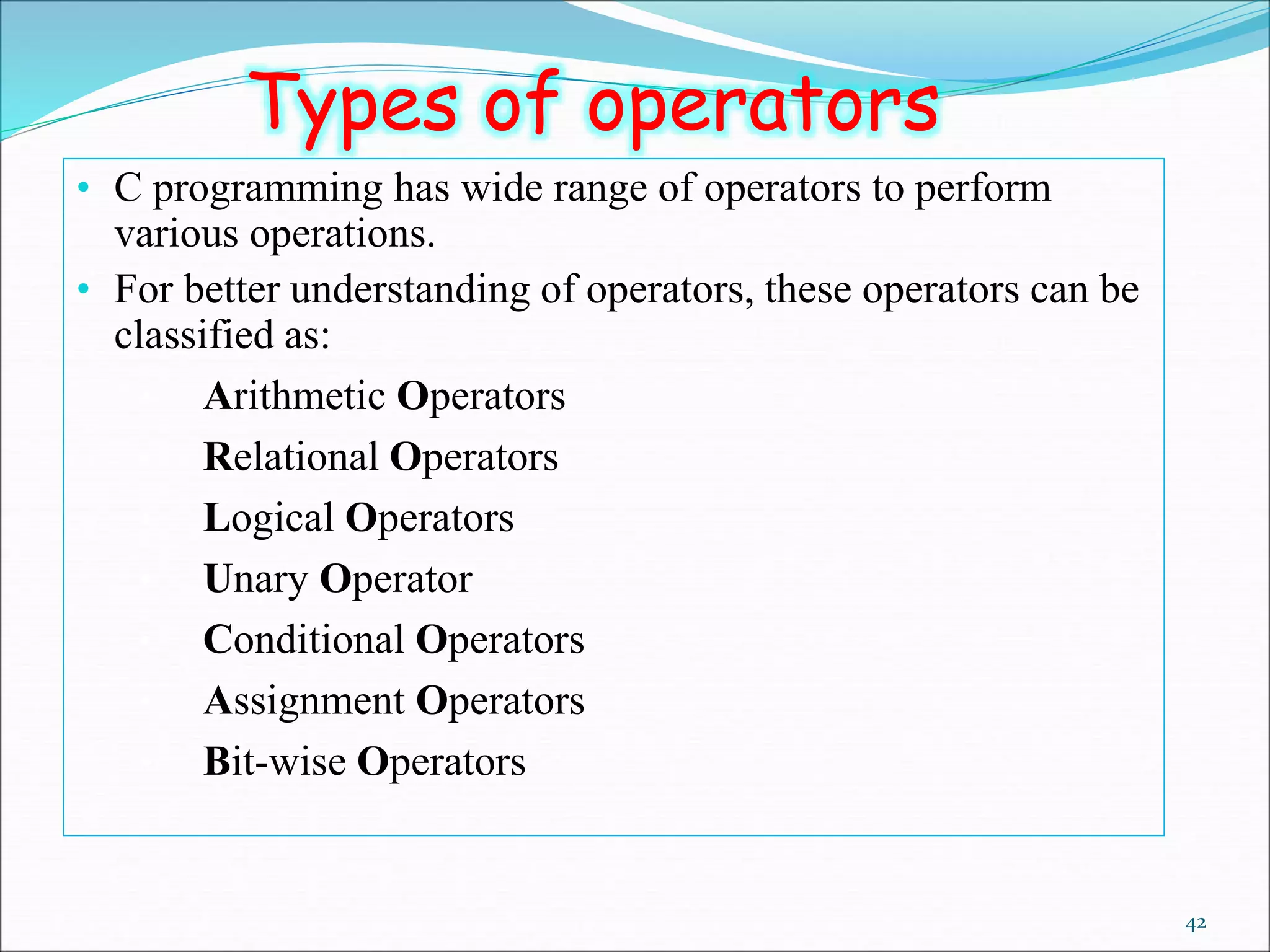

42. 42
• C programming has wide range of operators to perform
various operations.
• For better understanding of operators, these operators can be
classified as:
• Arithmetic Operators
• Relational Operators
• Logical Operators
• Unary Operator
• Conditional Operators
• Assignment Operators
• Bit-wise Operators
Types of operators

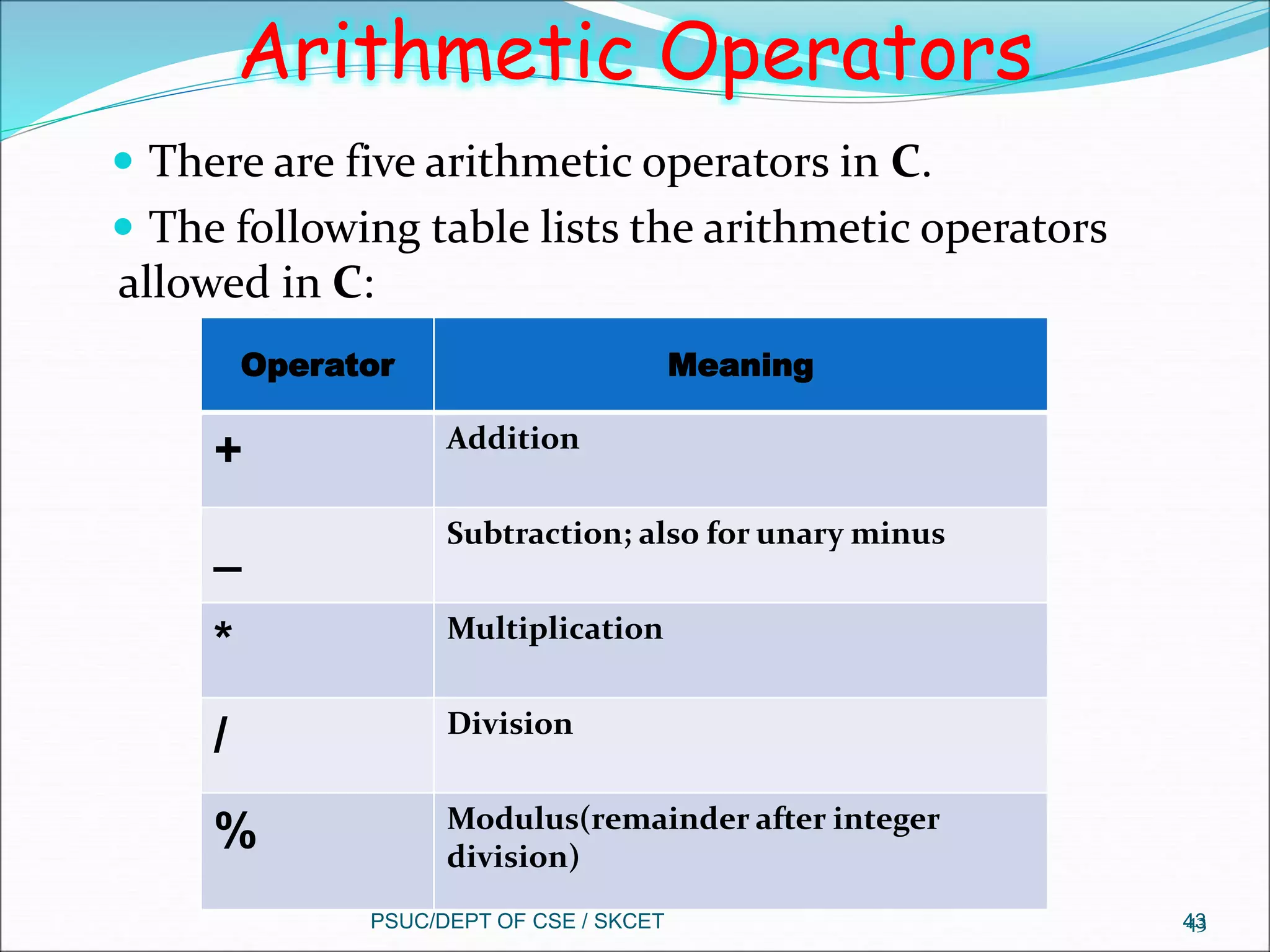

43. 43
Arithmetic Operators
 There are five arithmetic operators in C.
 The following table lists the arithmetic operators
allowed in C:
PSUC/DEPT OF CSE / SKCET 43
Operator Meaning
+ Addition
_ Subtraction; also for unary minus
* Multiplication
/ Division
% Modulus(remainder after integer
division)

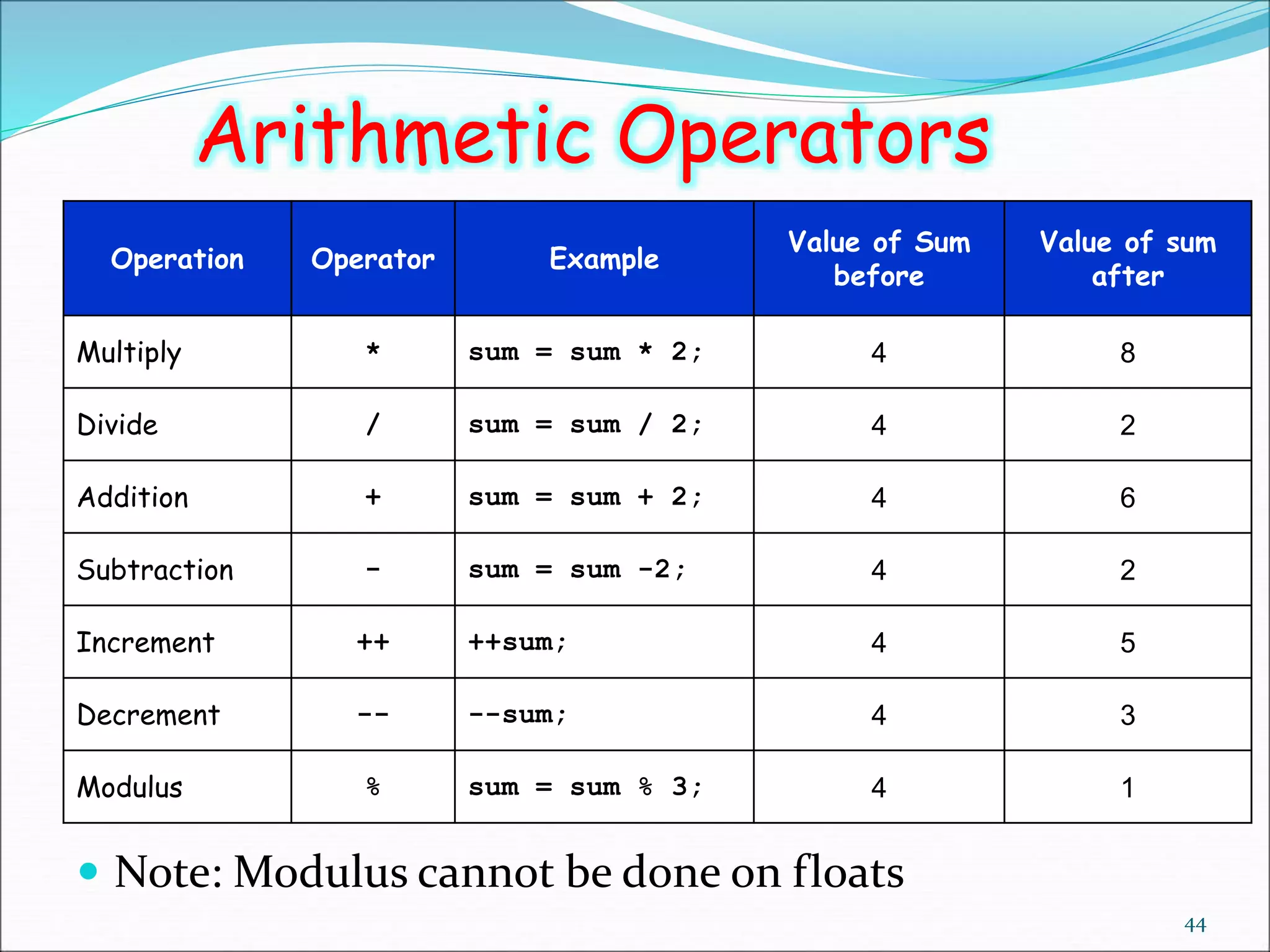

44.  Note: Modulus cannot be done on floats
44
Arithmetic Operators
Operation Operator Example
Value of Sum
before
Value of sum
after
Multiply * sum = sum * 2; 4 8
Divide / sum = sum / 2; 4 2
Addition + sum = sum + 2; 4 6
Subtraction - sum = sum -2; 4 2
Increment ++ ++sum; 4 5
Decrement -- --sum; 4 3
Modulus % sum = sum % 3; 4 1

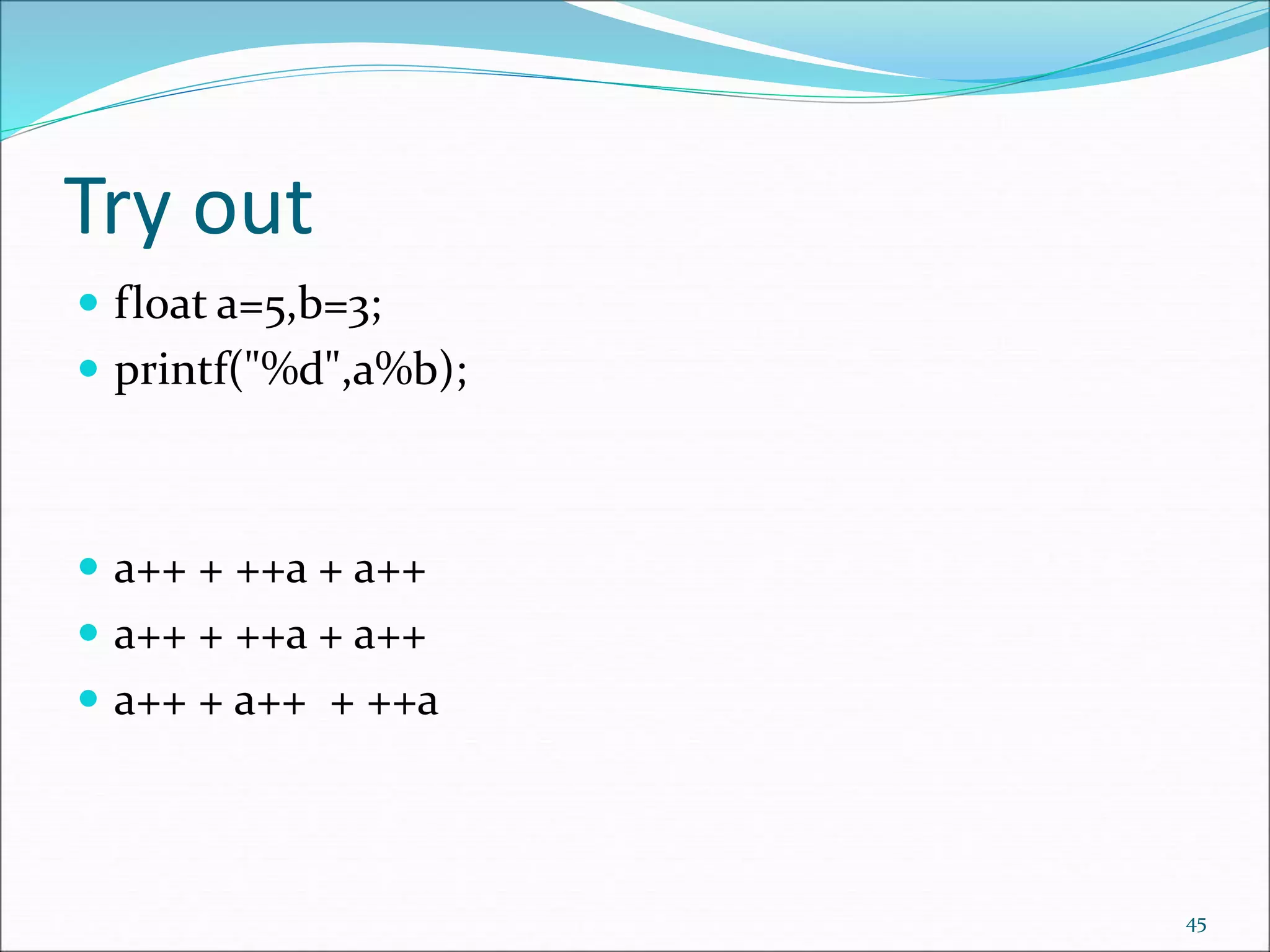

45. Try out
 float a=5,b=3;
 printf("%d",a%b);
 a++ + ++a + a++
 a++ + ++a + a++
 a++ + a++ + ++a
45

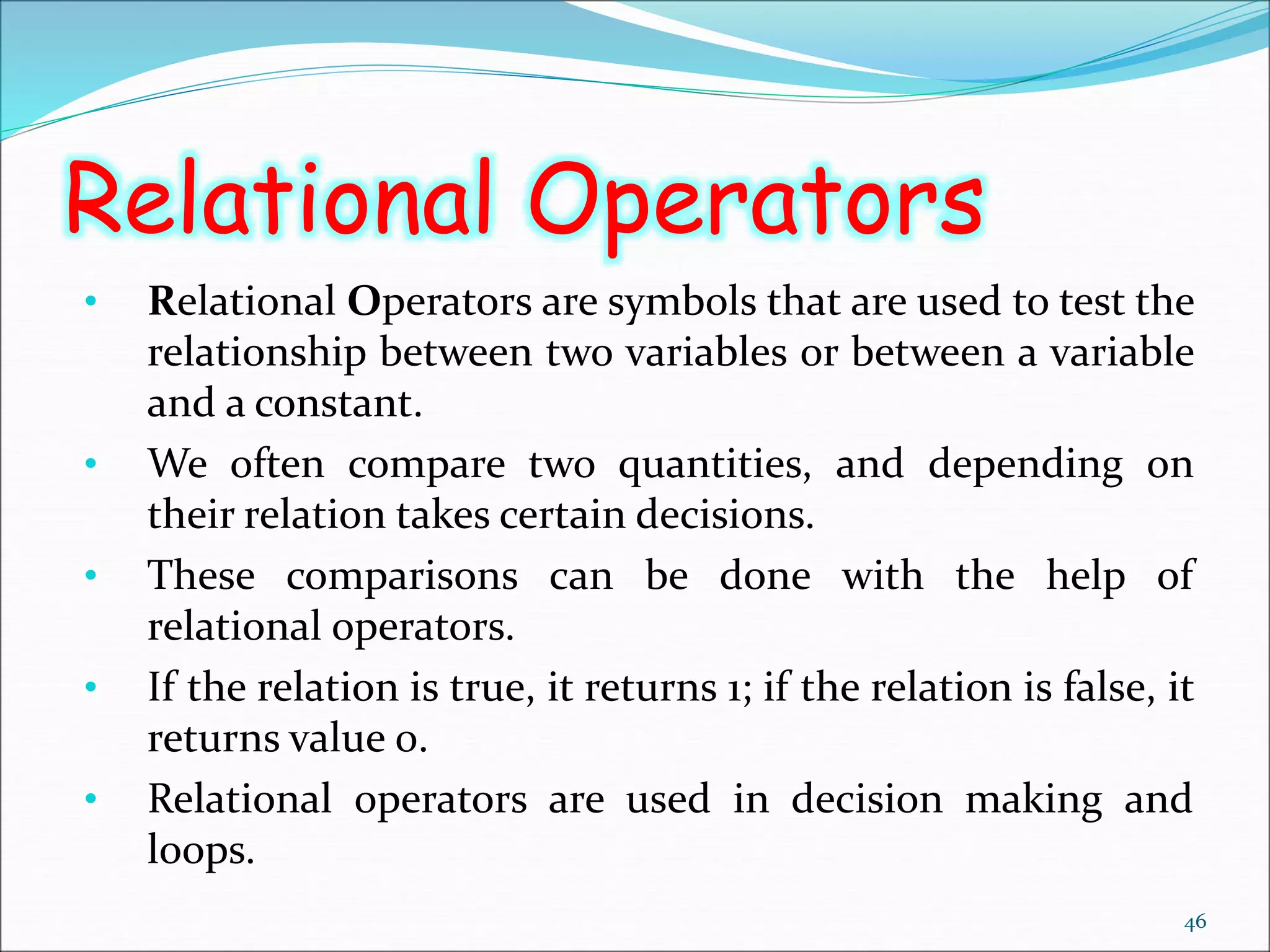

46. Relational Operators
• Relational Operators are symbols that are used to test the
relationship between two variables or between a variable
and a constant.
• We often compare two quantities, and depending on
their relation takes certain decisions.
• These comparisons can be done with the help of
relational operators.
• If the relation is true, it returns 1; if the relation is false, it
returns value 0.
• Relational operators are used in decision making and
loops.
46

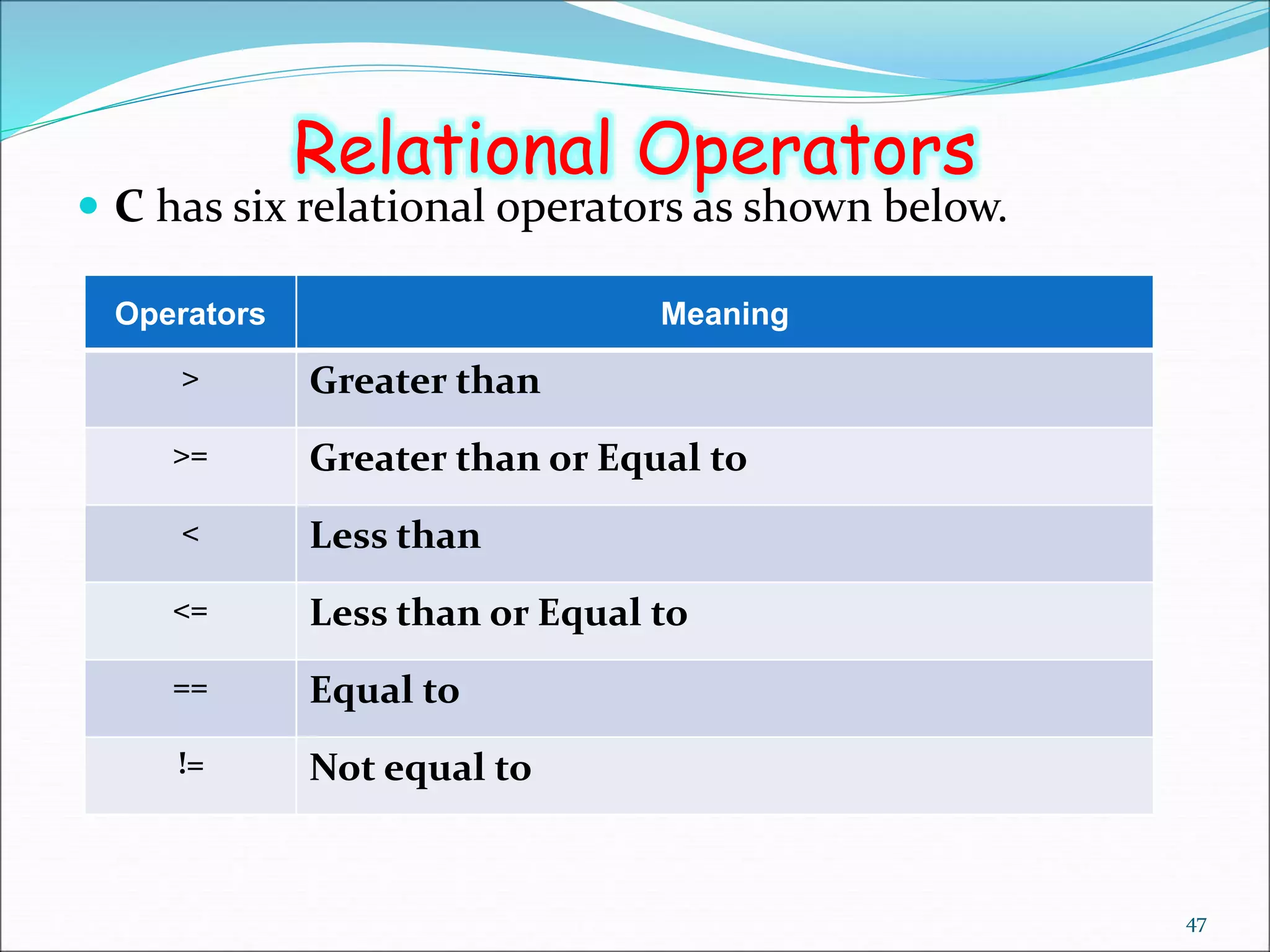

47. 47
Relational Operators
 C has six relational operators as shown below.
Operators Meaning
> Greater than
>= Greater than or Equal to
< Less than
<= Less than or Equal to
== Equal to
!= Not equal to

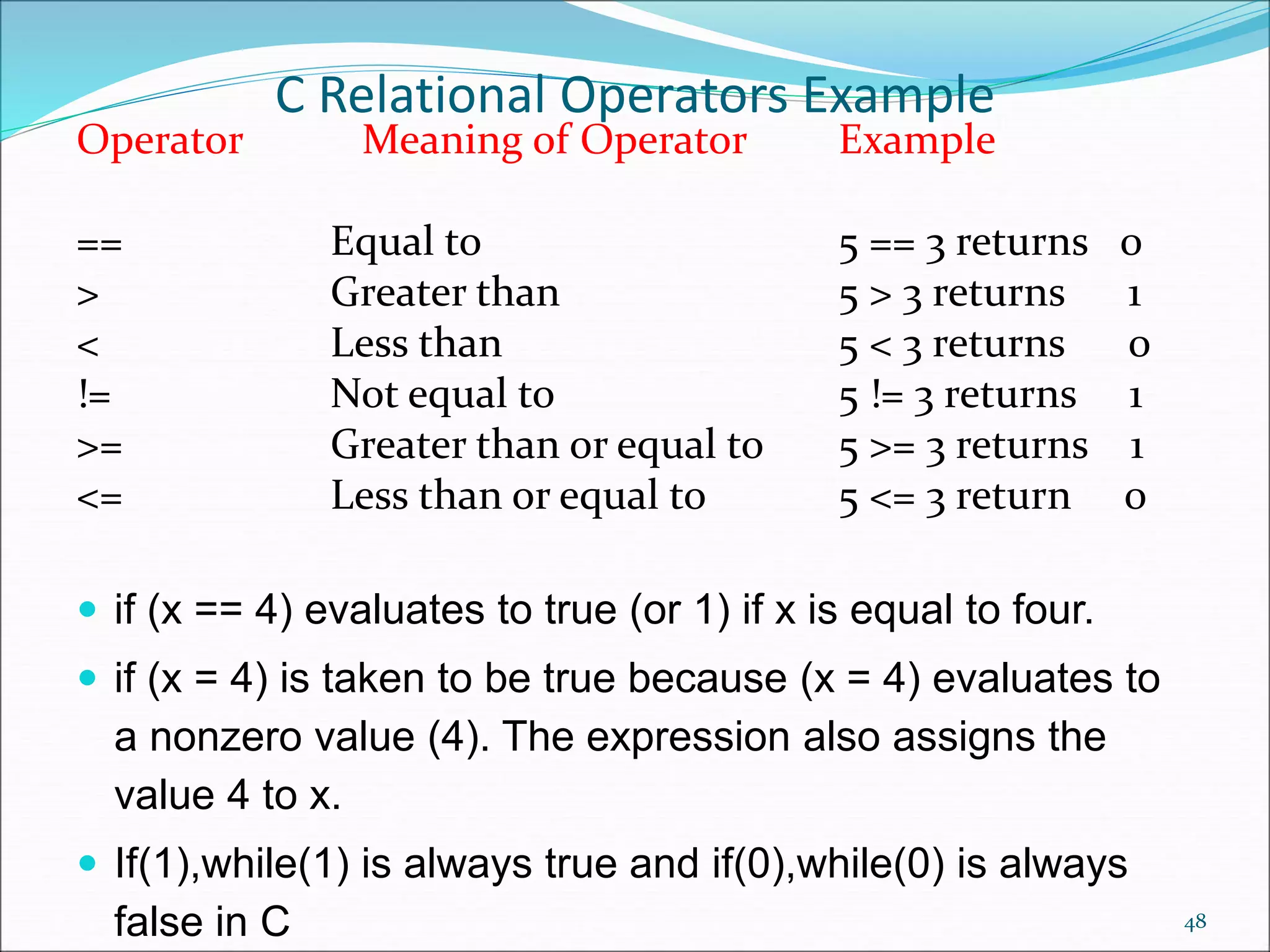

48. C Relational Operators Example
Operator Meaning of Operator Example
== Equal to 5 == 3 returns 0
> Greater than 5 > 3 returns 1
< Less than 5 < 3 returns 0
!= Not equal to 5 != 3 returns 1
>= Greater than or equal to 5 >= 3 returns 1
<= Less than or equal to 5 <= 3 return 0
 if (x == 4) evaluates to true (or 1) if x is equal to four.
 if (x = 4) is taken to be true because (x = 4) evaluates to
a nonzero value (4). The expression also assigns the
value 4 to x.
 If(1),while(1) is always true and if(0),while(0) is always
false in C 48

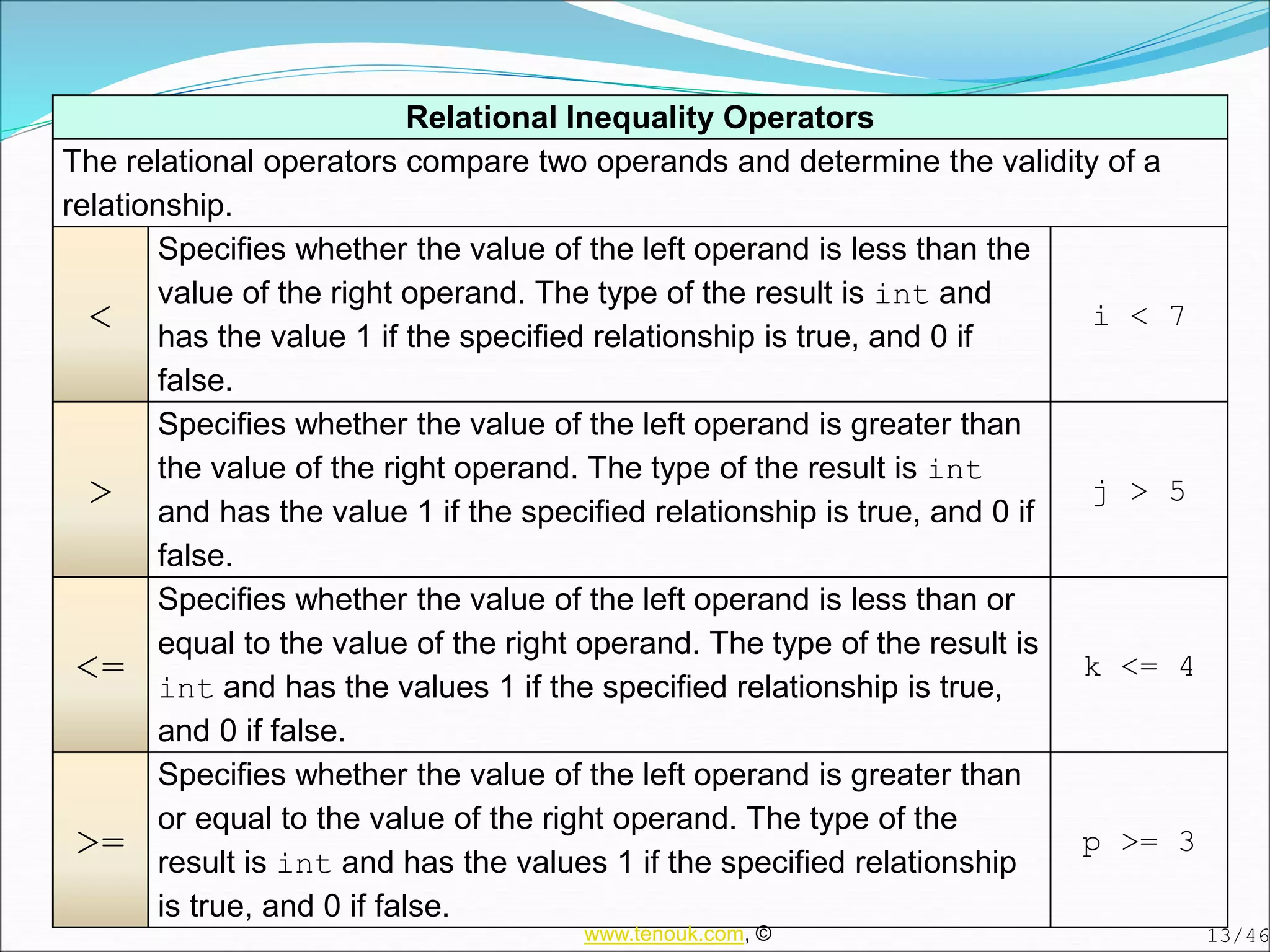

49. Relational Inequality Operators
The relational operators compare two operands and determine the validity of a
relationship.
<
Specifies whether the value of the left operand is less than the
value of the right operand. The type of the result is int and
has the value 1 if the specified relationship is true, and 0 if
false.
i < 7
>
Specifies whether the value of the left operand is greater than
the value of the right operand. The type of the result is int
and has the value 1 if the specified relationship is true, and 0 if
false.
j > 5
<=
Specifies whether the value of the left operand is less than or
equal to the value of the right operand. The type of the result is
int and has the values 1 if the specified relationship is true,
and 0 if false.
k <= 4
>=
Specifies whether the value of the left operand is greater than
or equal to the value of the right operand. The type of the
result is int and has the values 1 if the specified relationship
is true, and 0 if false.
p >= 3
13/46
www.tenouk.com, ©

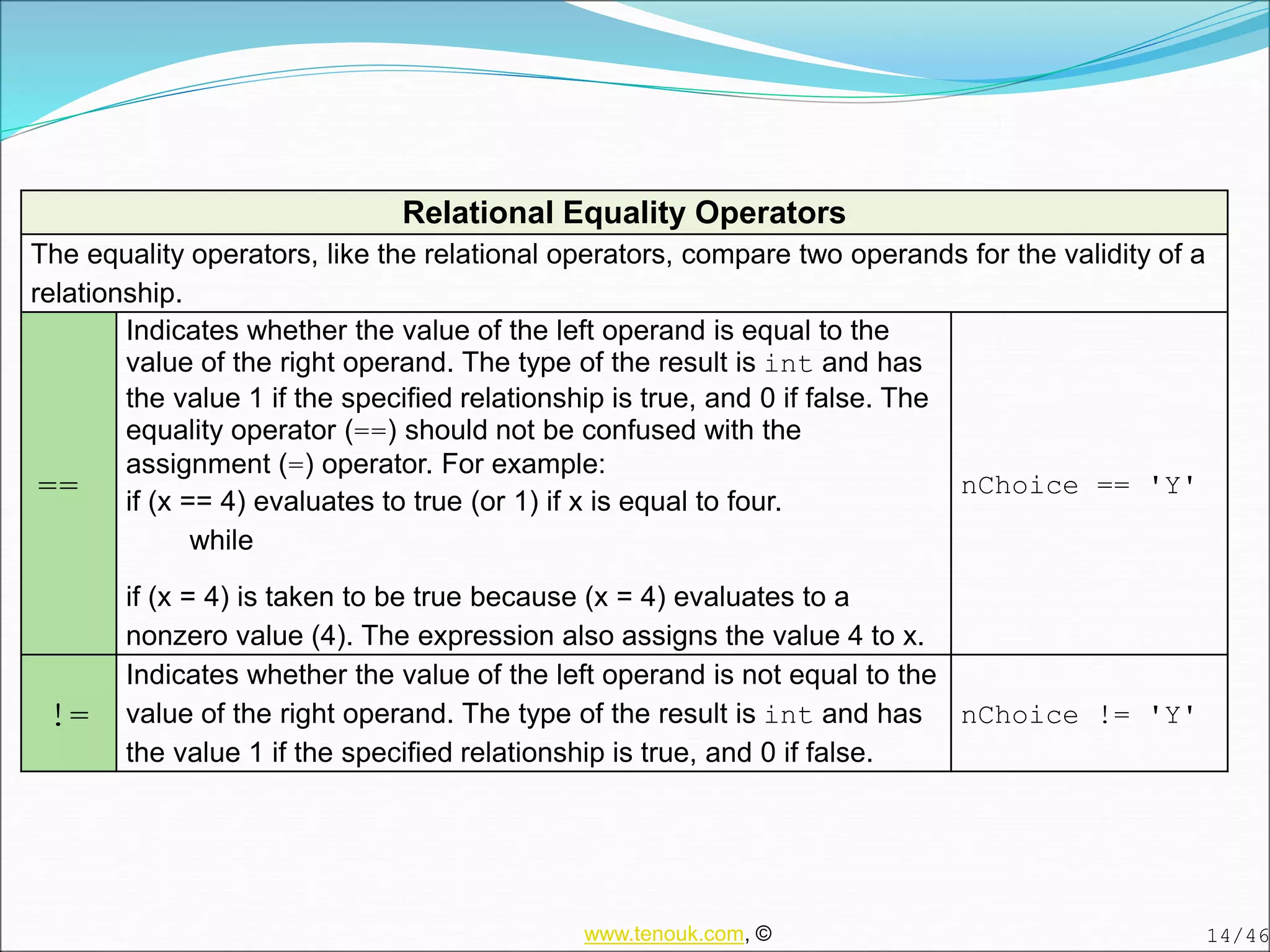

50. Relational Equality Operators
The equality operators, like the relational operators, compare two operands for the validity of a
relationship.
==
Indicates whether the value of the left operand is equal to the
value of the right operand. The type of the result is int and has
the value 1 if the specified relationship is true, and 0 if false. The
equality operator (==) should not be confused with the
assignment (=) operator. For example:
if (x == 4) evaluates to true (or 1) if x is equal to four.
while
if (x = 4) is taken to be true because (x = 4) evaluates to a
nonzero value (4). The expression also assigns the value 4 to x.
nChoice == 'Y'
!=
Indicates whether the value of the left operand is not equal to the
value of the right operand. The type of the result is int and has
the value 1 if the specified relationship is true, and 0 if false.
nChoice != 'Y'
14/46
www.tenouk.com, ©

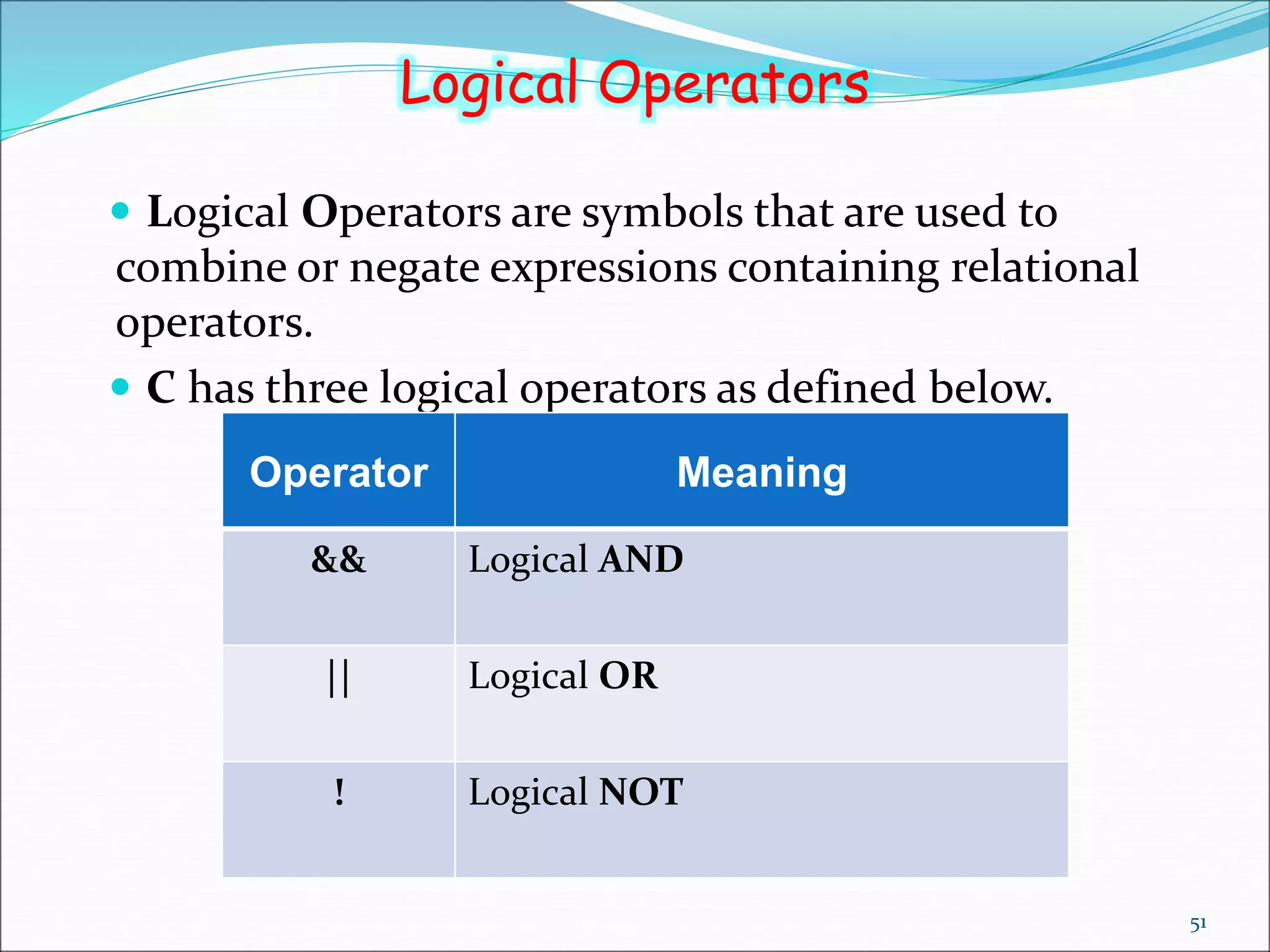

51. Logical Operators
51
 Logical Operators are symbols that are used to
combine or negate expressions containing relational
operators.
 C has three logical operators as defined below.
Operator Meaning
&& Logical AND
|| Logical OR
! Logical NOT

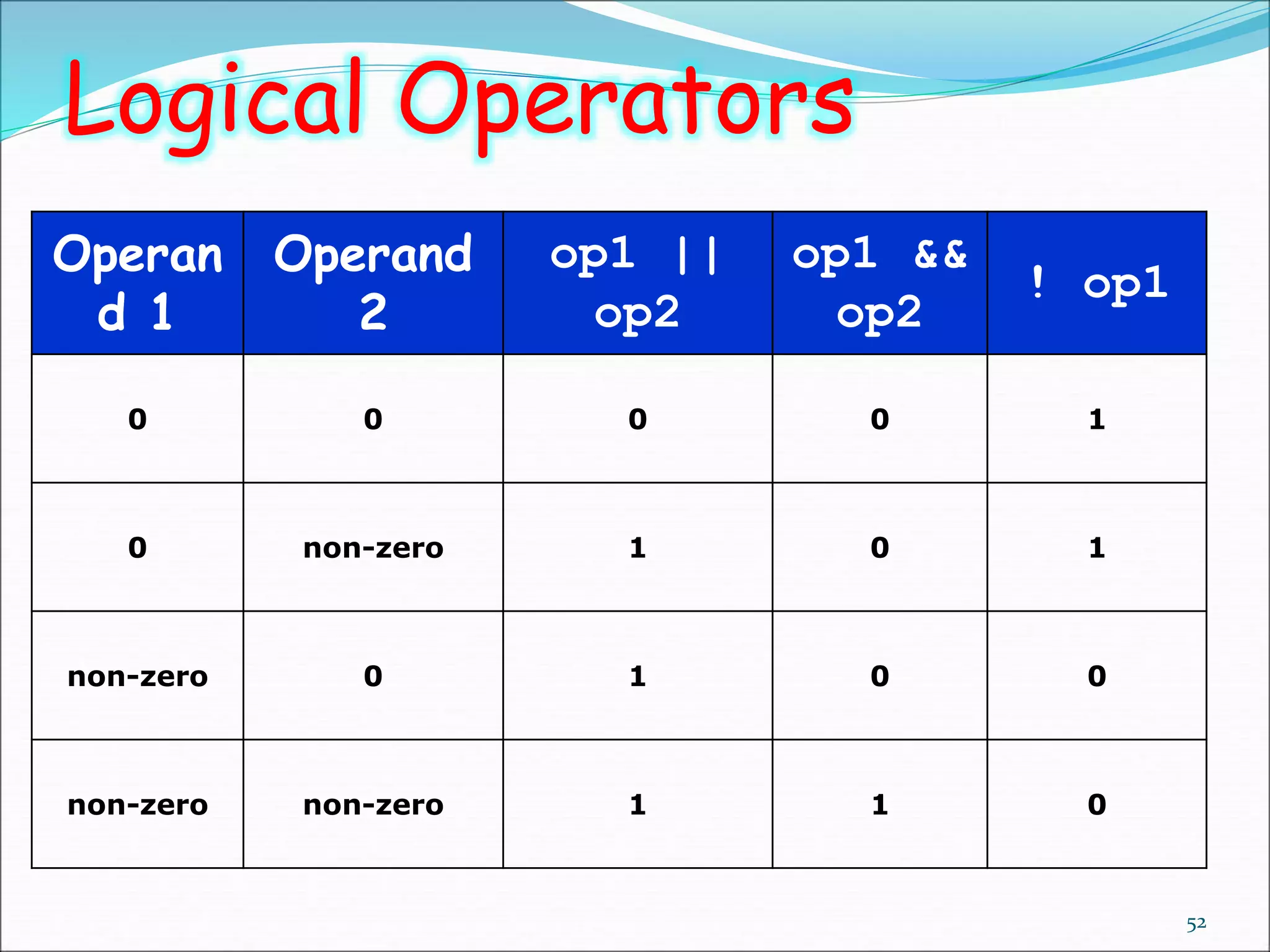

52. Logical Operators
52
Operan
d 1
Operand
2
op1 ||
op2
op1 &&
op2
! op1
0 0 0 0 1
0 non-zero 1 0 1
non-zero 0 1 0 0
non-zero non-zero 1 1 0

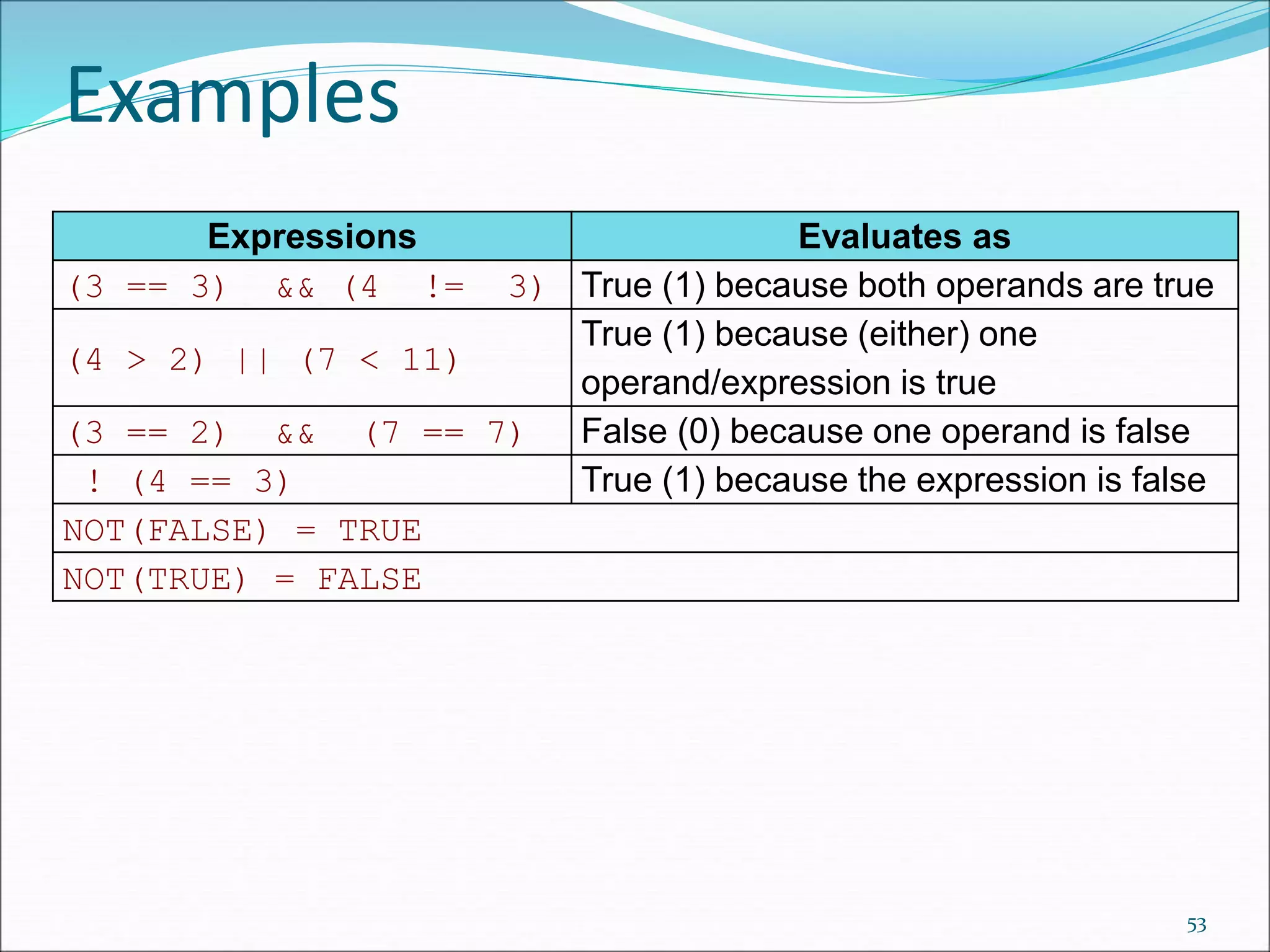

53. Expressions Evaluates as
(3 == 3) && (4 != 3) True (1) because both operands are true
(4 > 2) || (7 < 11)
True (1) because (either) one
operand/expression is true
(3 == 2) && (7 == 7) False (0) because one operand is false
! (4 == 3) True (1) because the expression is false
NOT(FALSE) = TRUE
NOT(TRUE) = FALSE
Examples
53

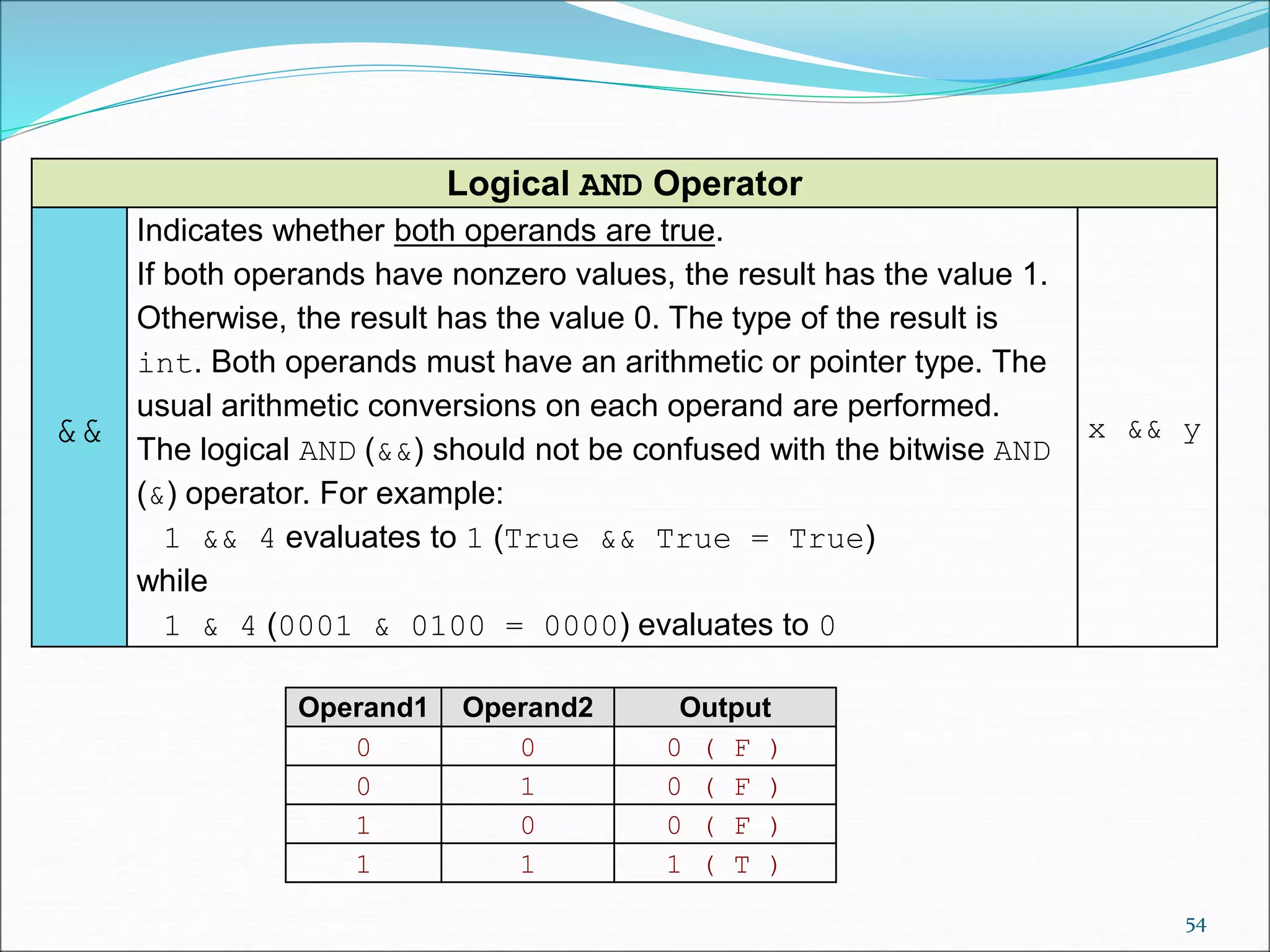

54. Logical AND Operator
&&
Indicates whether both operands are true.
If both operands have nonzero values, the result has the value 1.
Otherwise, the result has the value 0. The type of the result is
int. Both operands must have an arithmetic or pointer type. The
usual arithmetic conversions on each operand are performed.
The logical AND (&&) should not be confused with the bitwise AND
(&) operator. For example:
1 && 4 evaluates to 1 (True && True = True)
while
1 & 4 (0001 & 0100 = 0000) evaluates to 0
x && y
Operand1 Operand2 Output
0 0 0 ( F )
0 1 0 ( F )
1 0 0 ( F )
1 1 1 ( T )
54

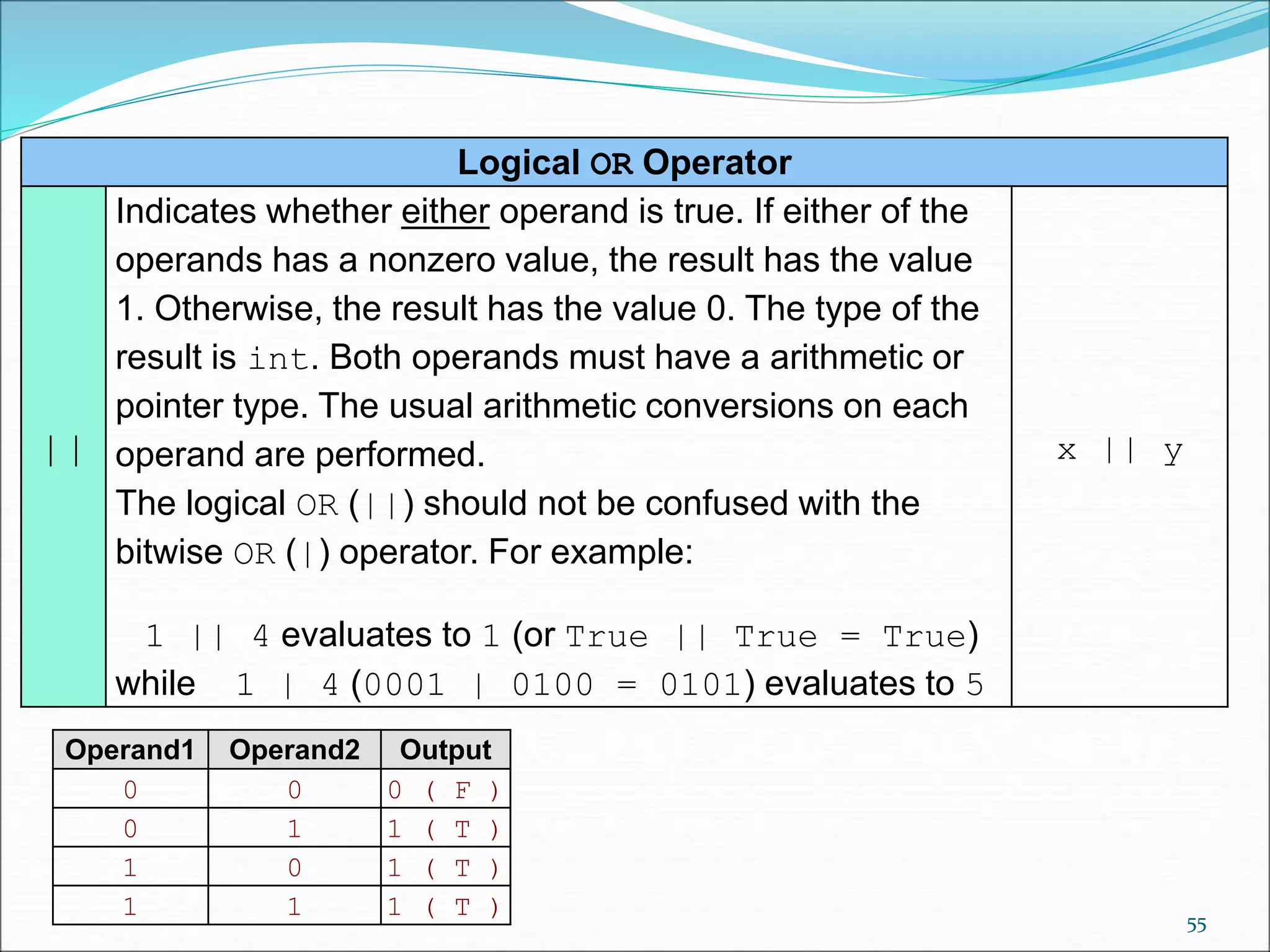

55. Logical OR Operator
||
Indicates whether either operand is true. If either of the
operands has a nonzero value, the result has the value
1. Otherwise, the result has the value 0. The type of the
result is int. Both operands must have a arithmetic or
pointer type. The usual arithmetic conversions on each
operand are performed.
The logical OR (||) should not be confused with the
bitwise OR (|) operator. For example:
1 || 4 evaluates to 1 (or True || True = True)
while 1 | 4 (0001 | 0100 = 0101) evaluates to 5
x || y
Operand1 Operand2 Output
0 0 0 ( F )
0 1 1 ( T )
1 0 1 ( T )
1 1 1 ( T ) 55

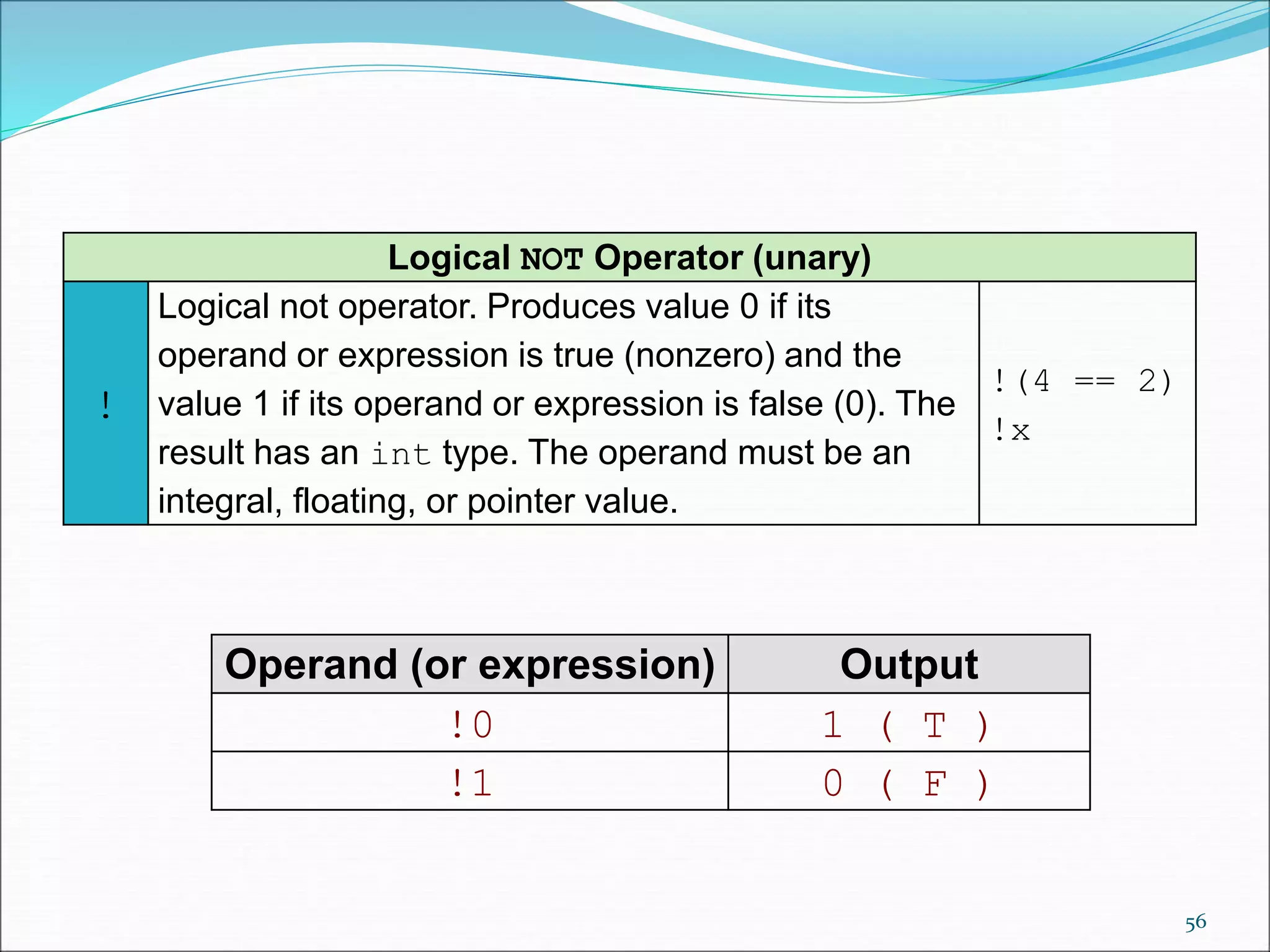

56. Logical NOT Operator (unary)
!
Logical not operator. Produces value 0 if its
operand or expression is true (nonzero) and the
value 1 if its operand or expression is false (0). The
result has an int type. The operand must be an
integral, floating, or pointer value.
!(4 == 2)
!x
Operand (or expression) Output
!0 1 ( T )
!1 0 ( F )
56

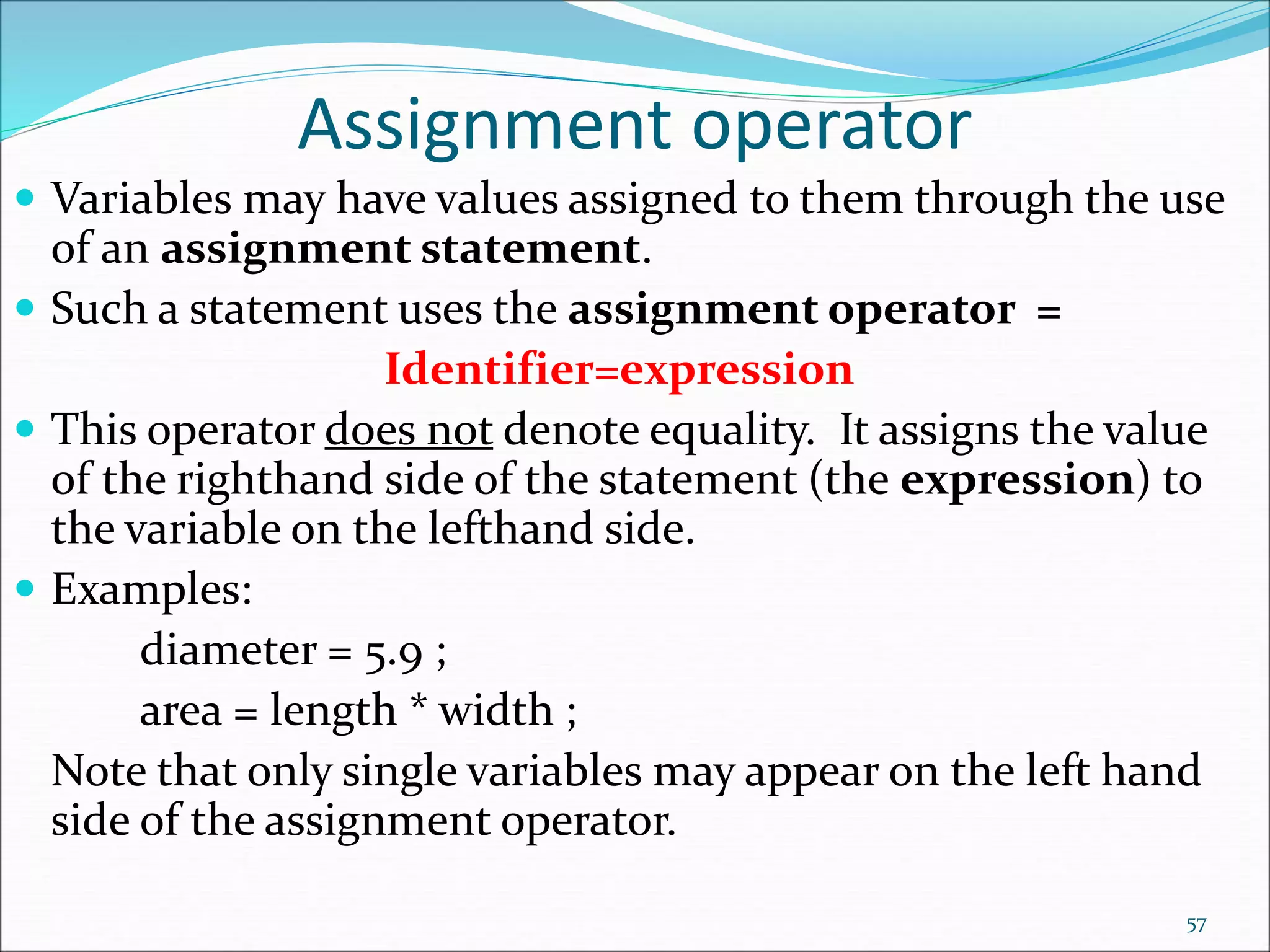

57. Assignment operator
 Variables may have values assigned to them through the use
of an assignment statement.
 Such a statement uses the assignment operator =
Identifier=expression
 This operator does not denote equality. It assigns the value
of the righthand side of the statement (the expression) to
the variable on the lefthand side.
 Examples:
diameter = 5.9 ;
area = length * width ;
Note that only single variables may appear on the left hand
side of the assignment operator.
57

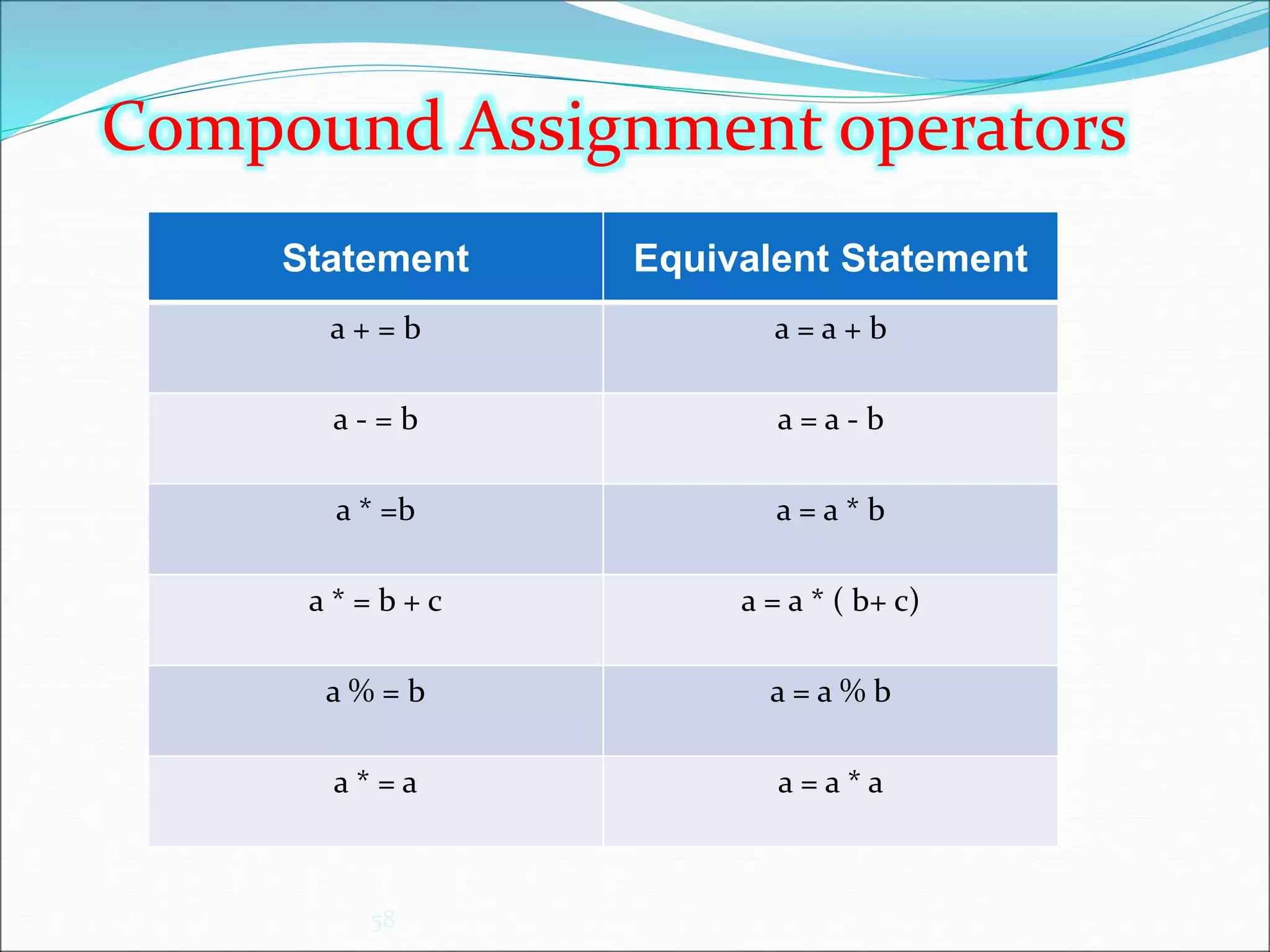

58. 58
Statement Equivalent Statement
a + = b a = a + b
a - = b a = a - b
a * =b a = a * b
a * = b + c a = a * ( b+ c)
a % = b a = a % b
a * = a a = a * a
Compound Assignment operators

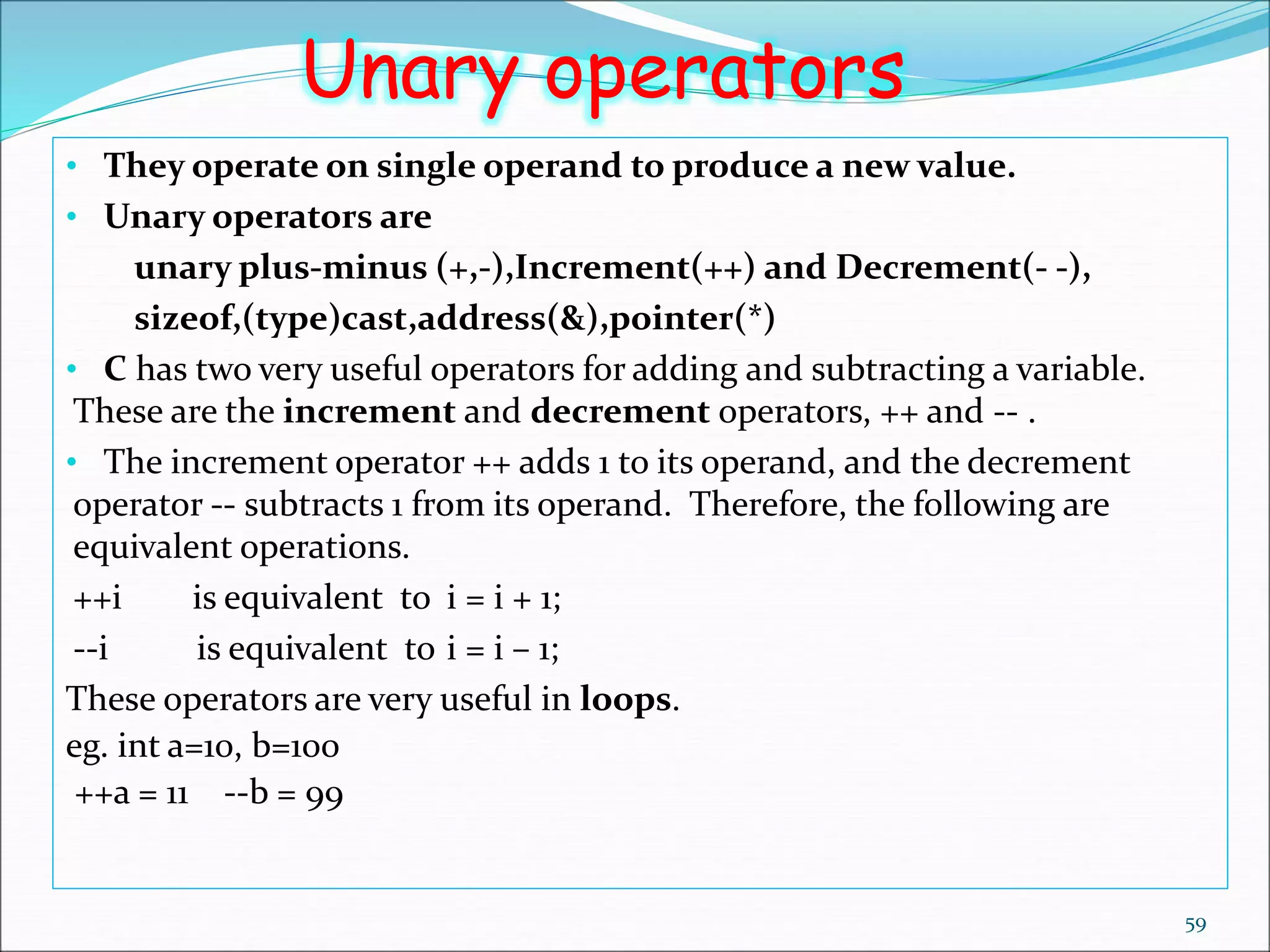

59. 59
Unary operators
• They operate on single operand to produce a new value.
• Unary operators are
unary plus-minus (+,-),Increment(++) and Decrement(- -),
sizeof,(type)cast,address(&),pointer(*)
• C has two very useful operators for adding and subtracting a variable.
These are the increment and decrement operators, ++ and -- .
• The increment operator ++ adds 1 to its operand, and the decrement
operator -- subtracts 1 from its operand. Therefore, the following are
equivalent operations.
++i is equivalent to i = i + 1;
--i is equivalent to i = i – 1;
These operators are very useful in loops.
eg. int a=10, b=100
++a = 11 --b = 99

60. Increment and Decrement Operators
 ++ (Increment Operator)
 Prefix: ++n
 Postfix: n++
 -- (Decrement Operator)
 Prefix: --n
 Postfix: n--
60
Prefix: value changed before being used
Postfix: value used before being changed

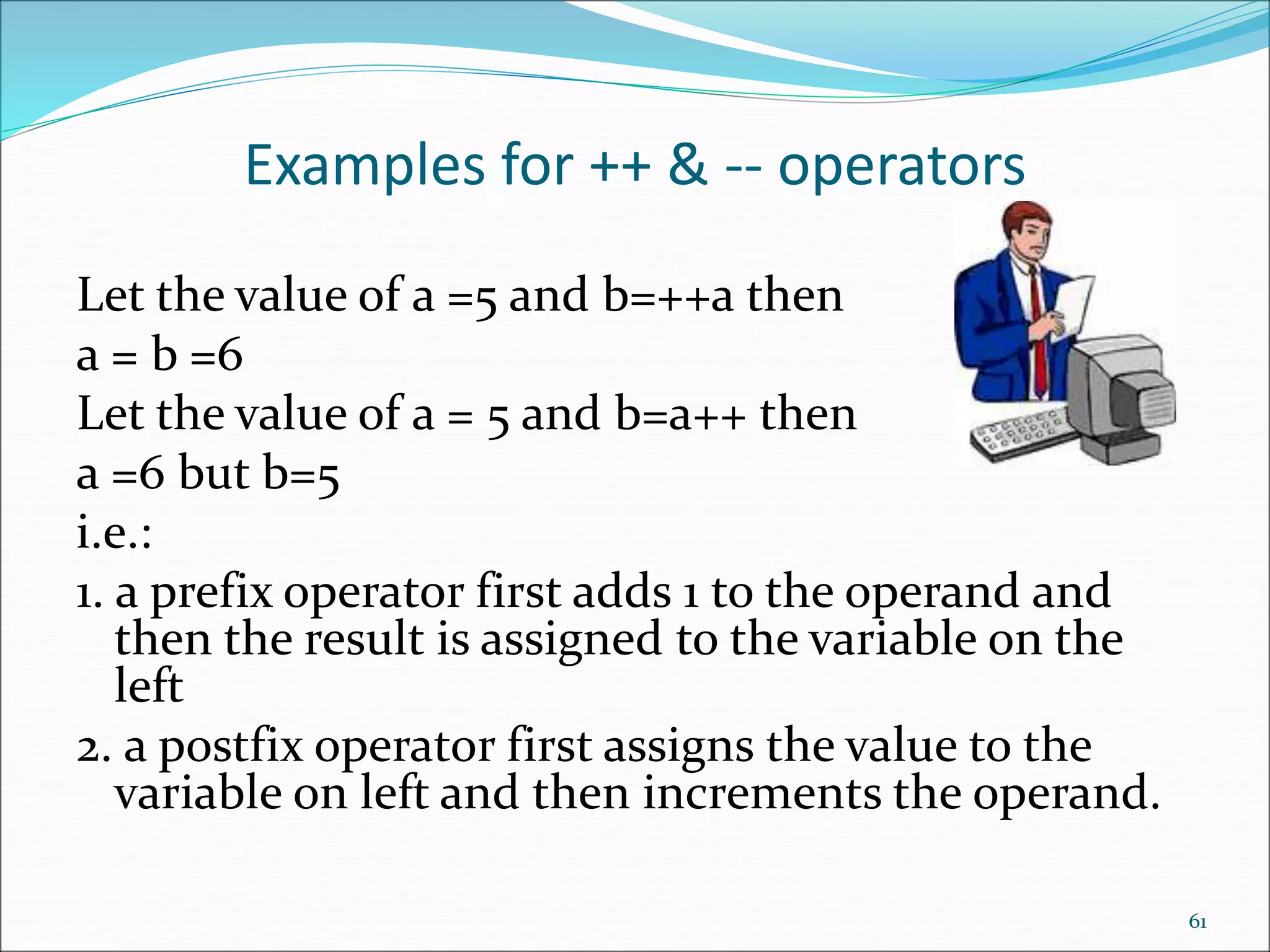

61. Examples for ++ & -- operators
Let the value of a =5 and b=++a then
a = b =6
Let the value of a = 5 and b=a++ then
a =6 but b=5
i.e.:
1. a prefix operator first adds 1 to the operand and
then the result is assigned to the variable on the
left
2. a postfix operator first assigns the value to the
variable on left and then increments the operand.
61

62. Increment and Decrement Operators
 Increment Operator ++
 post increment x++;
 pre increment ++x;
 Decrement Operator --
 post decrement x--;
 pre decrement --x;
62
} x=x+1;
} x=x-1;
But, the difference is in the following example. Suppose x=10;
A = x++ - 5; means A=x-5; x=x+1; so, A= 5 and x=11
B =++x - 5; means x=x+1; B=x-5; so, B=6 and x=11

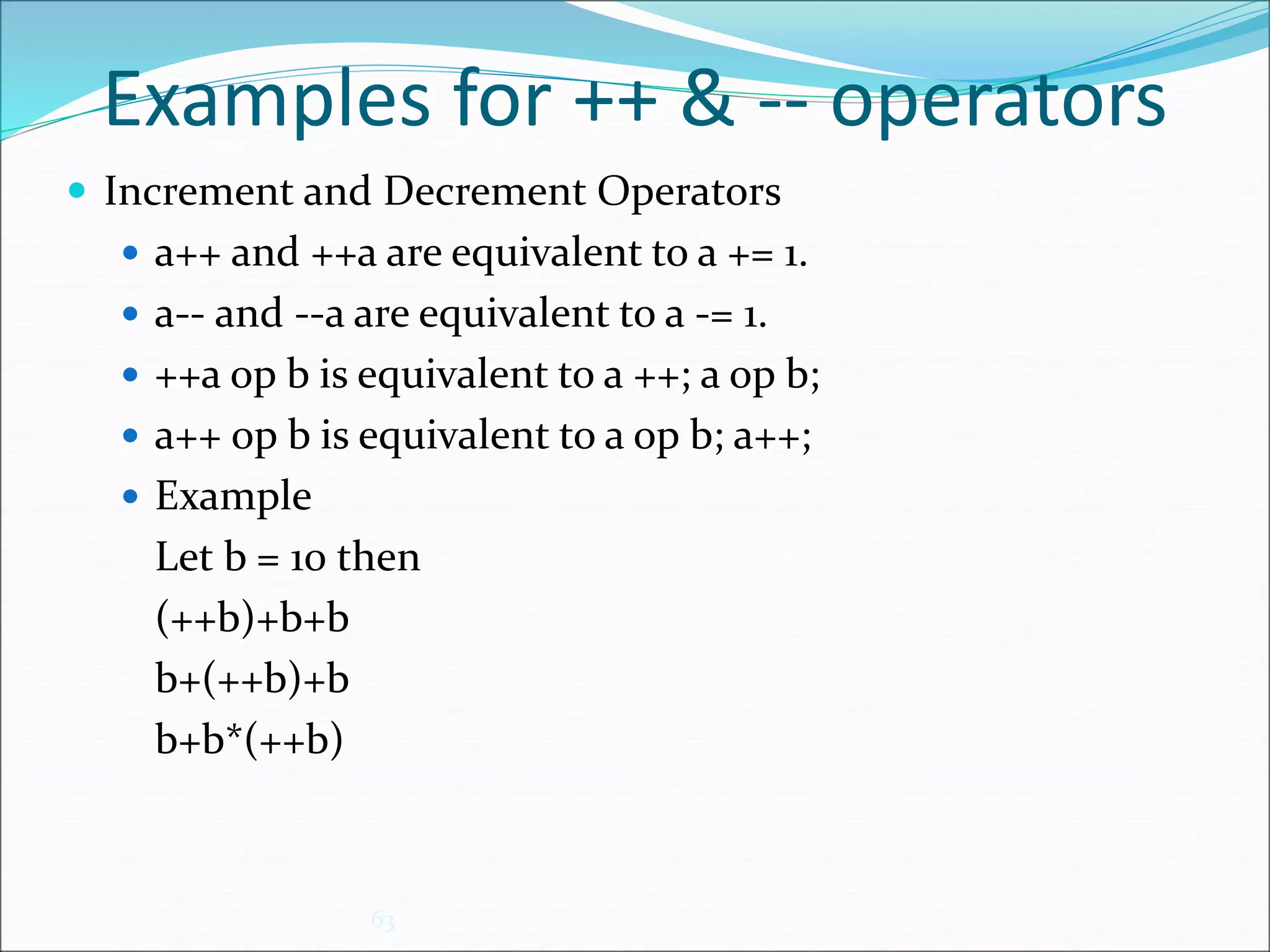

63. Examples for ++ & -- operators
 Increment and Decrement Operators
 a++ and ++a are equivalent to a += 1.
 a-- and --a are equivalent to a -= 1.
 ++a op b is equivalent to a ++; a op b;
 a++ op b is equivalent to a op b; a++;
 Example
Let b = 10 then
(++b)+b+b
b+(++b)+b
b+b*(++b)
63

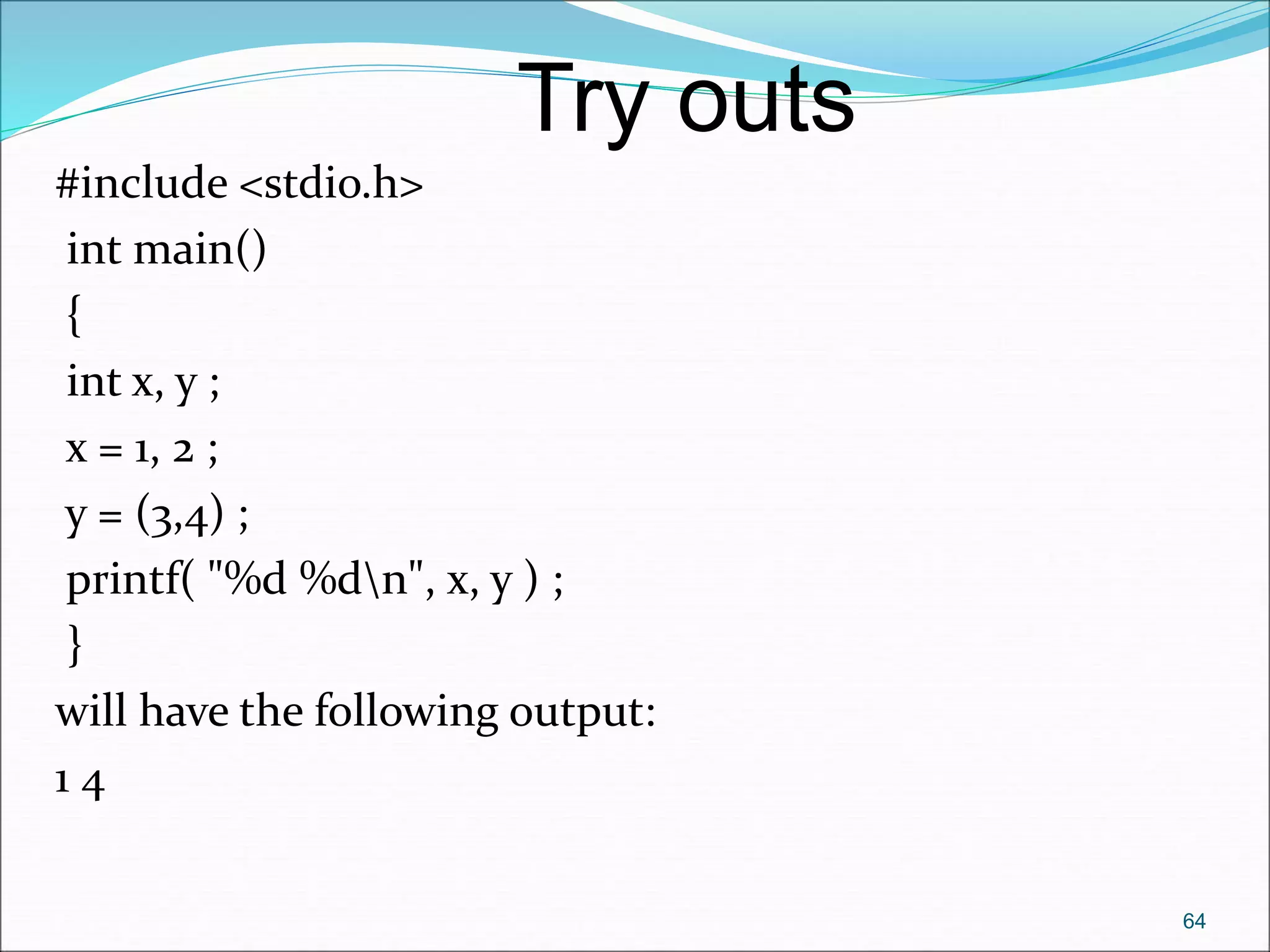

64. #include <stdio.h>
int main()
{
int x, y ;
x = 1, 2 ;
y = (3,4) ;
printf( "%d %dn", x, y ) ;
}
will have the following output:
1 4
64
Try outs

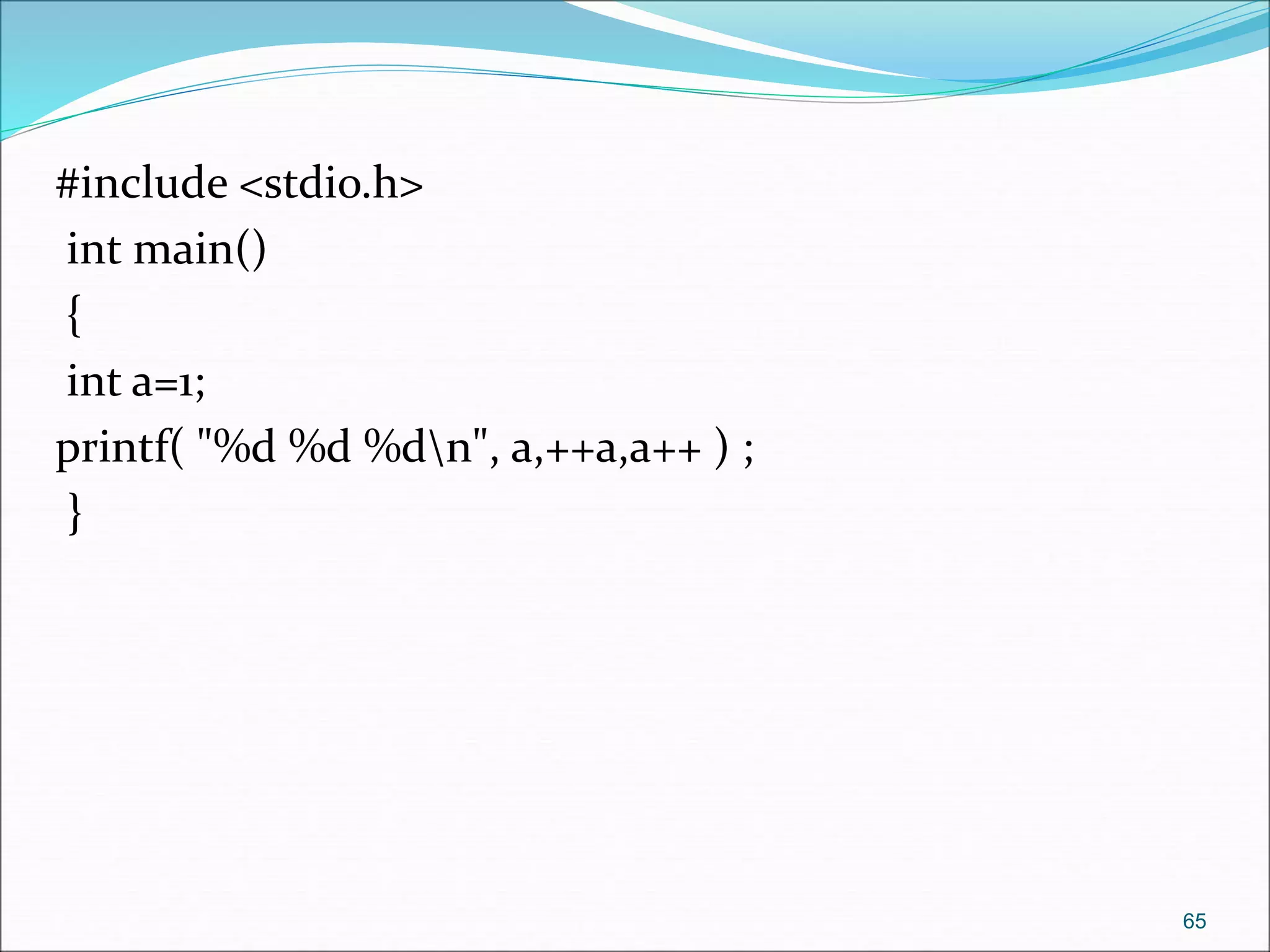

65. #include <stdio.h>
int main()
{
int a=1;
printf( "%d %d %dn", a,++a,a++ ) ;
}
65

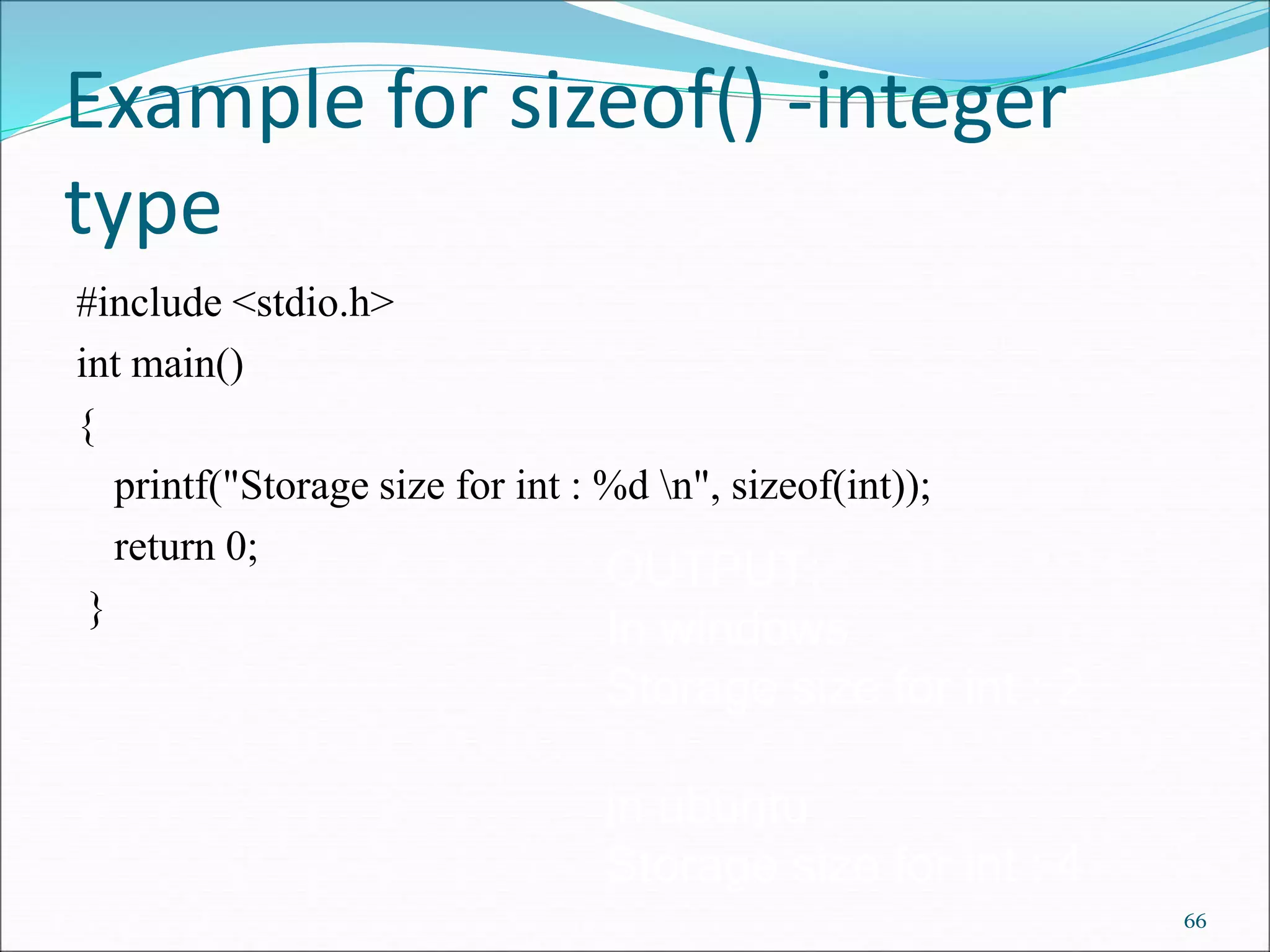

66. Example for sizeof() -integer
type
#include <stdio.h>
int main()
{
printf("Storage size for int : %d n", sizeof(int));
return 0;
}
66
OUTPUT:
In windows
Storage size for int : 2
in ubuntu
Storage size for int : 4

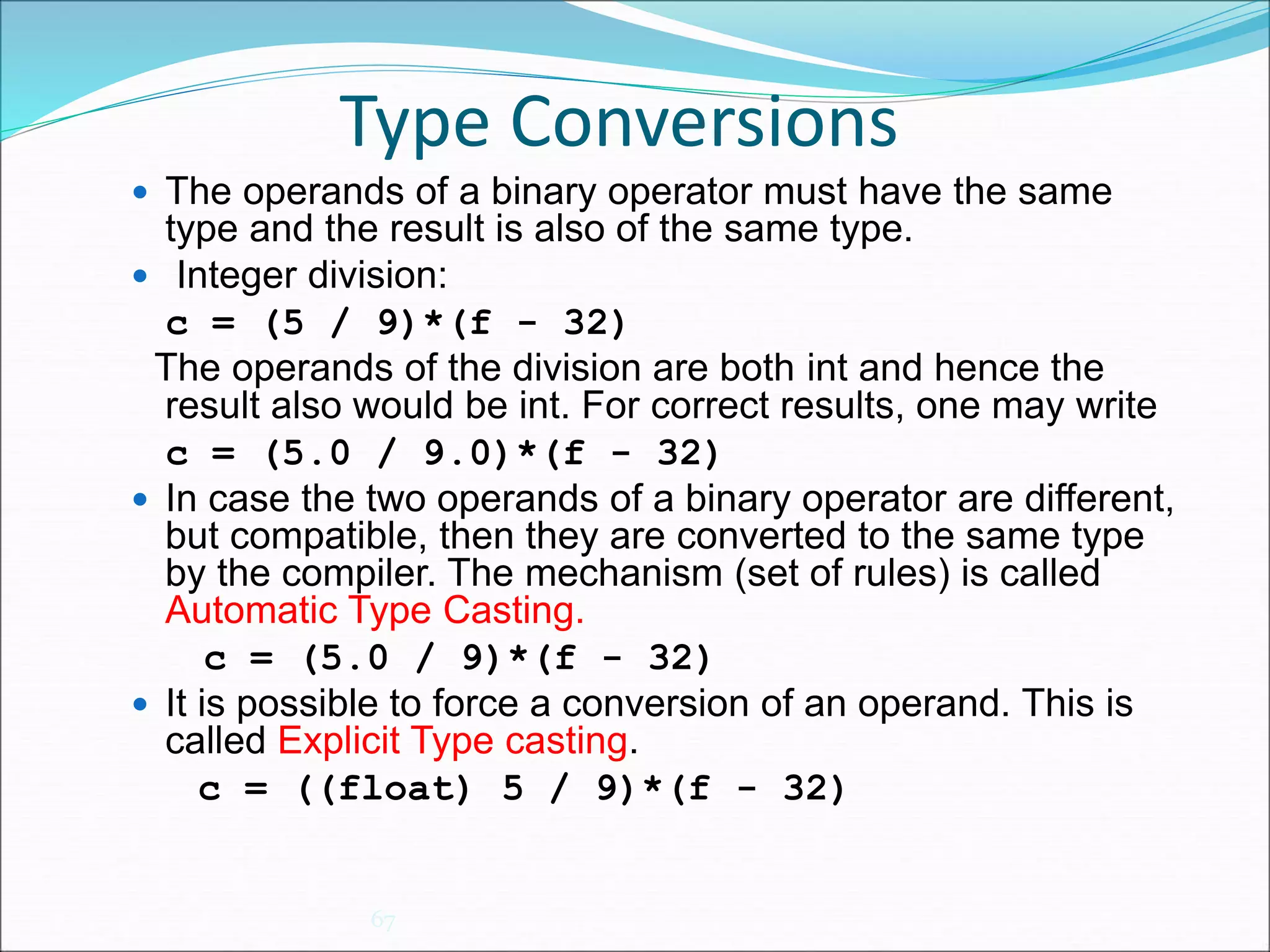

67. Type Conversions
67
 The operands of a binary operator must have the same
type and the result is also of the same type.
 Integer division:
c = (5 / 9)*(f - 32)
The operands of the division are both int and hence the
result also would be int. For correct results, one may write
c = (5.0 / 9.0)*(f - 32)
 In case the two operands of a binary operator are different,
but compatible, then they are converted to the same type
by the compiler. The mechanism (set of rules) is called
Automatic Type Casting.
c = (5.0 / 9)*(f - 32)
 It is possible to force a conversion of an operand. This is
called Explicit Type casting.
c = ((float) 5 / 9)*(f - 32)

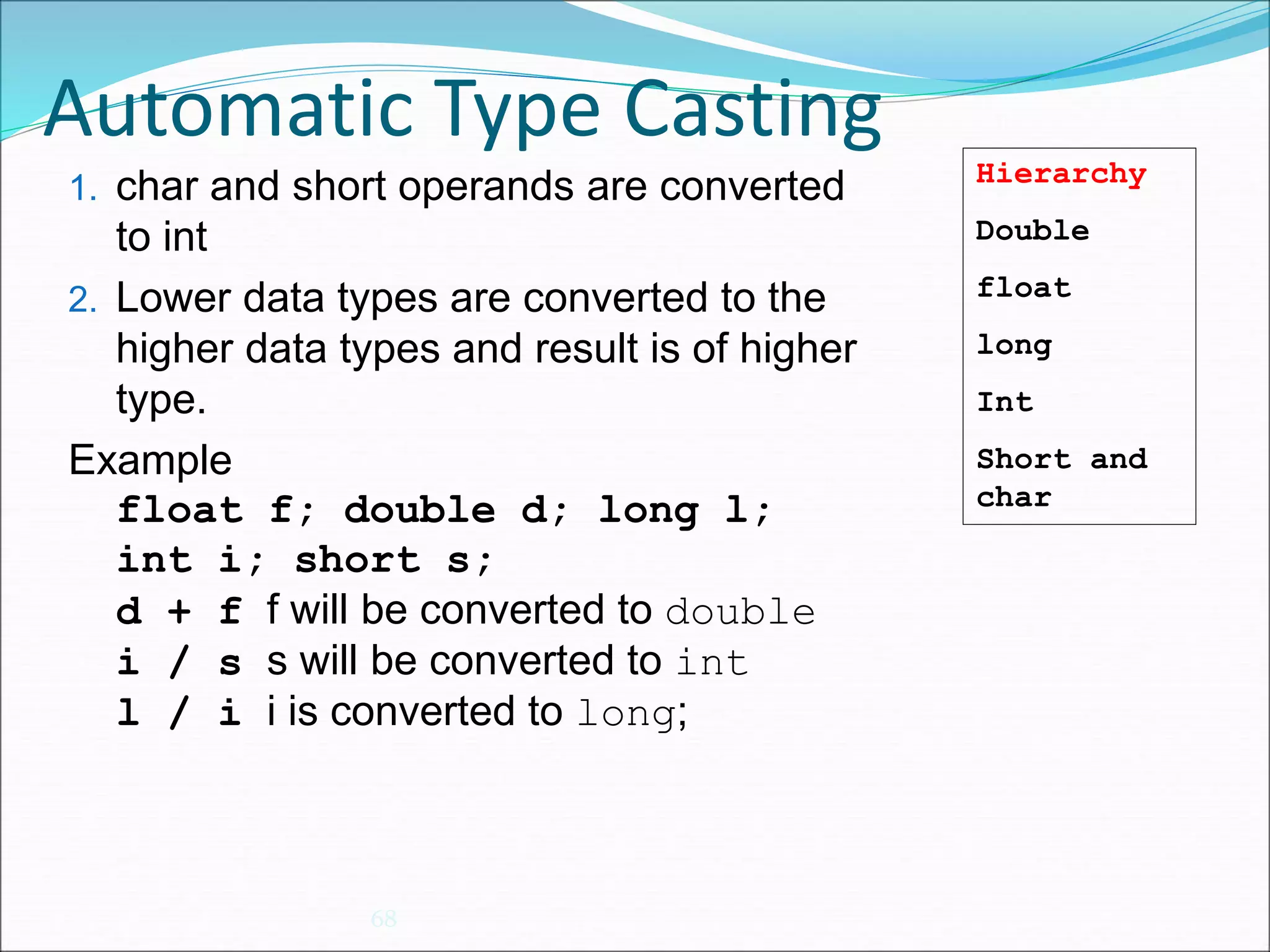

68. Automatic Type Casting
68
1. char and short operands are converted
to int
2. Lower data types are converted to the
higher data types and result is of higher
type.
Example
float f; double d; long l;
int i; short s;
d + f f will be converted to double
i / s s will be converted to int
l / i i is converted to long;
Hierarchy
Double
float
long
Int
Short and
char

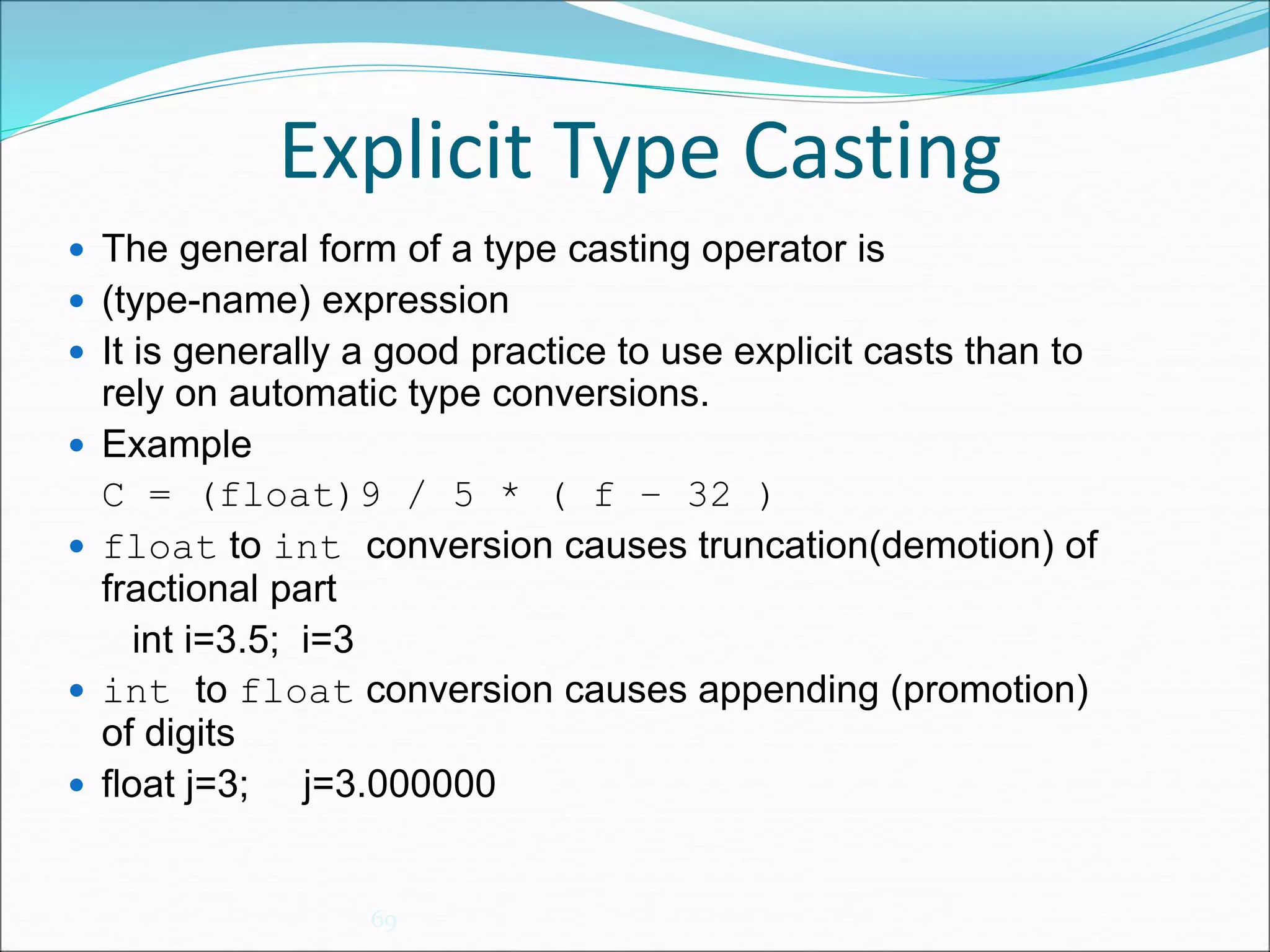

69. Explicit Type Casting
69
 The general form of a type casting operator is
 (type-name) expression
 It is generally a good practice to use explicit casts than to
rely on automatic type conversions.
 Example
C = (float)9 / 5 * ( f – 32 )
 float to int conversion causes truncation(demotion) of
fractional part
int i=3.5; i=3
 int to float conversion causes appending (promotion)
of digits
 float j=3; j=3.000000

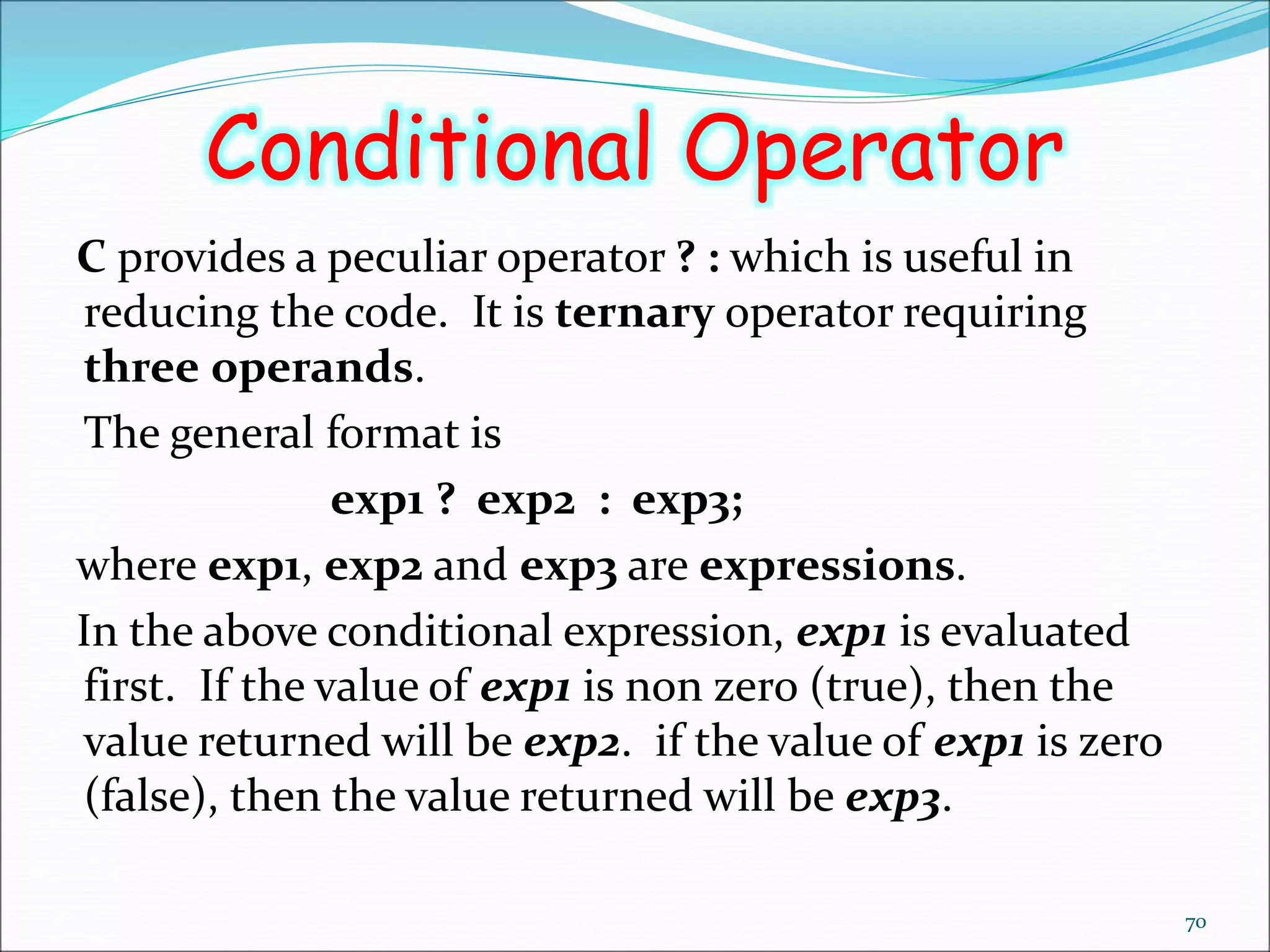

70. Conditional Operator
C provides a peculiar operator ? : which is useful in
reducing the code. It is ternary operator requiring
three operands.
The general format is
exp1 ? exp2 : exp3;
where exp1, exp2 and exp3 are expressions.
In the above conditional expression, exp1 is evaluated
first. If the value of exp1 is non zero (true), then the
value returned will be exp2. if the value of exp1 is zero
(false), then the value returned will be exp3.
70

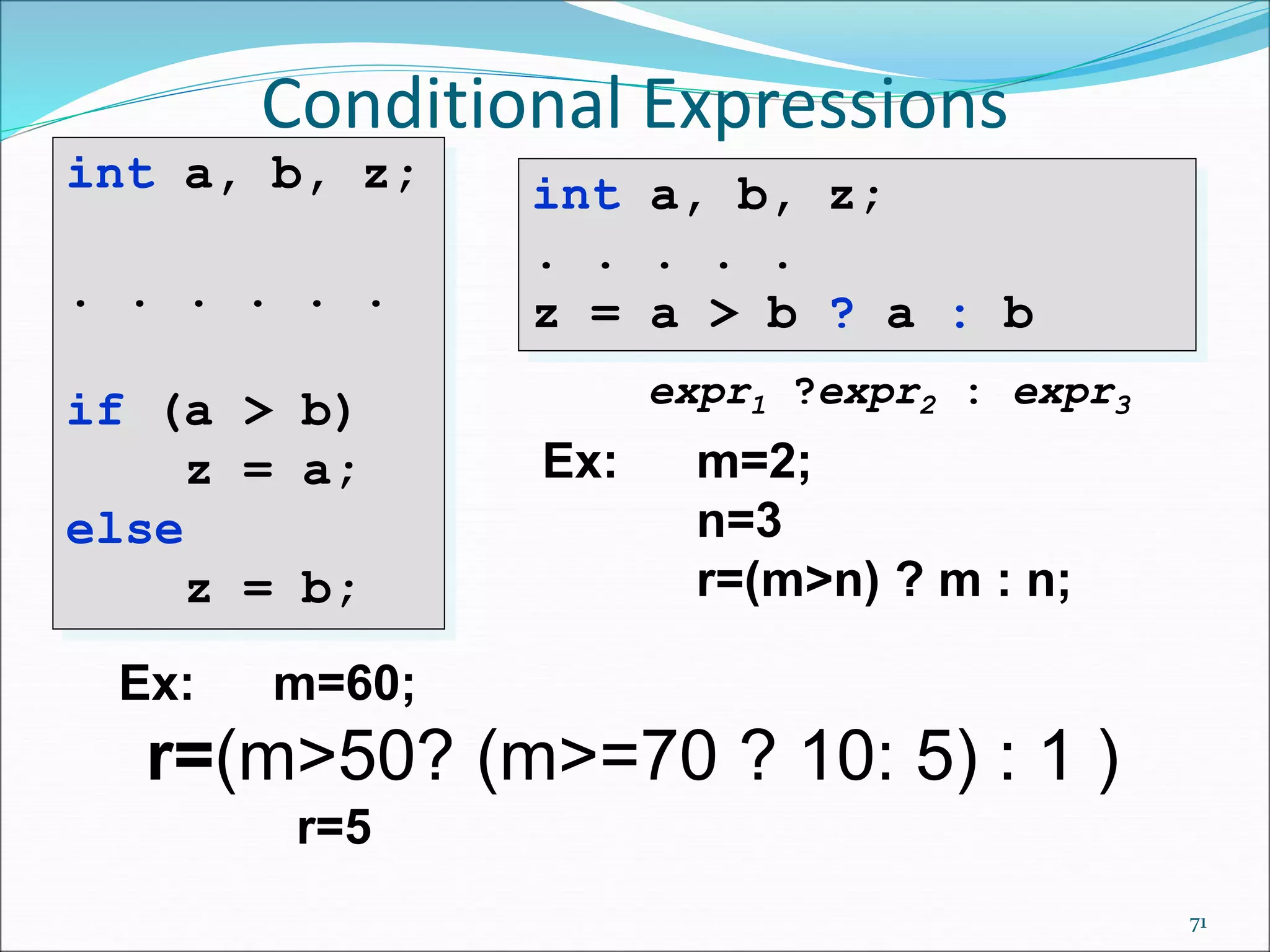

71. Conditional Expressions
71
int a, b, z;
. . . . . .
if (a > b)
z = a;
else
z = b;
int a, b, z;
. . . . .
z = a > b ? a : b
expr1 ?expr2 : expr3
Ex: m=2;
n=3
r=(m>n) ? m : n;
Ex: m=60;
r=(m>50? (m>=70 ? 10: 5) : 1 )
r=5

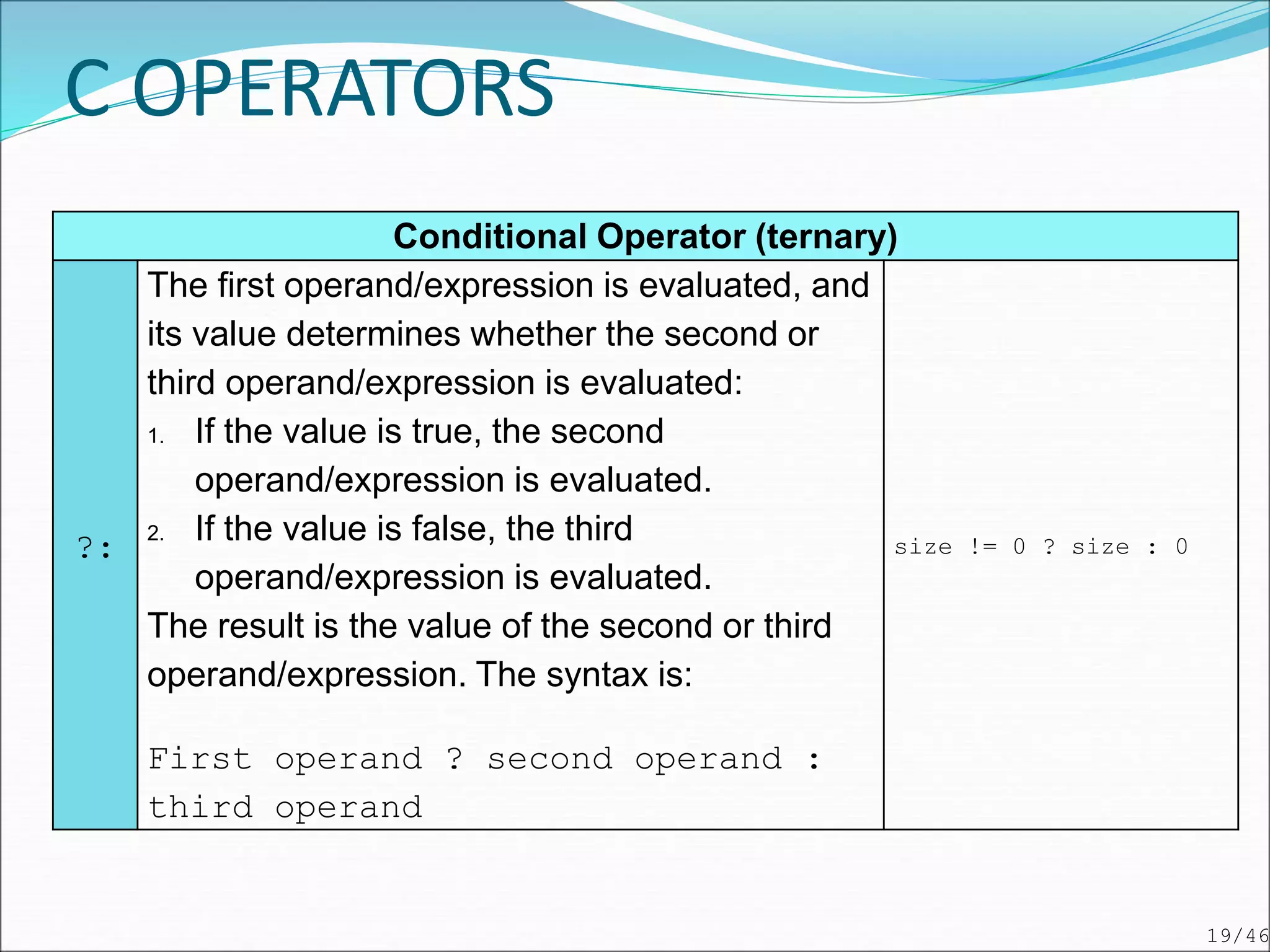

72. Conditional Operator (ternary)
?:
The first operand/expression is evaluated, and
its value determines whether the second or
third operand/expression is evaluated:
1. If the value is true, the second
operand/expression is evaluated.
2. If the value is false, the third
operand/expression is evaluated.
The result is the value of the second or third
operand/expression. The syntax is:
First operand ? second operand :
third operand
size != 0 ? size : 0
C OPERATORS
19/46

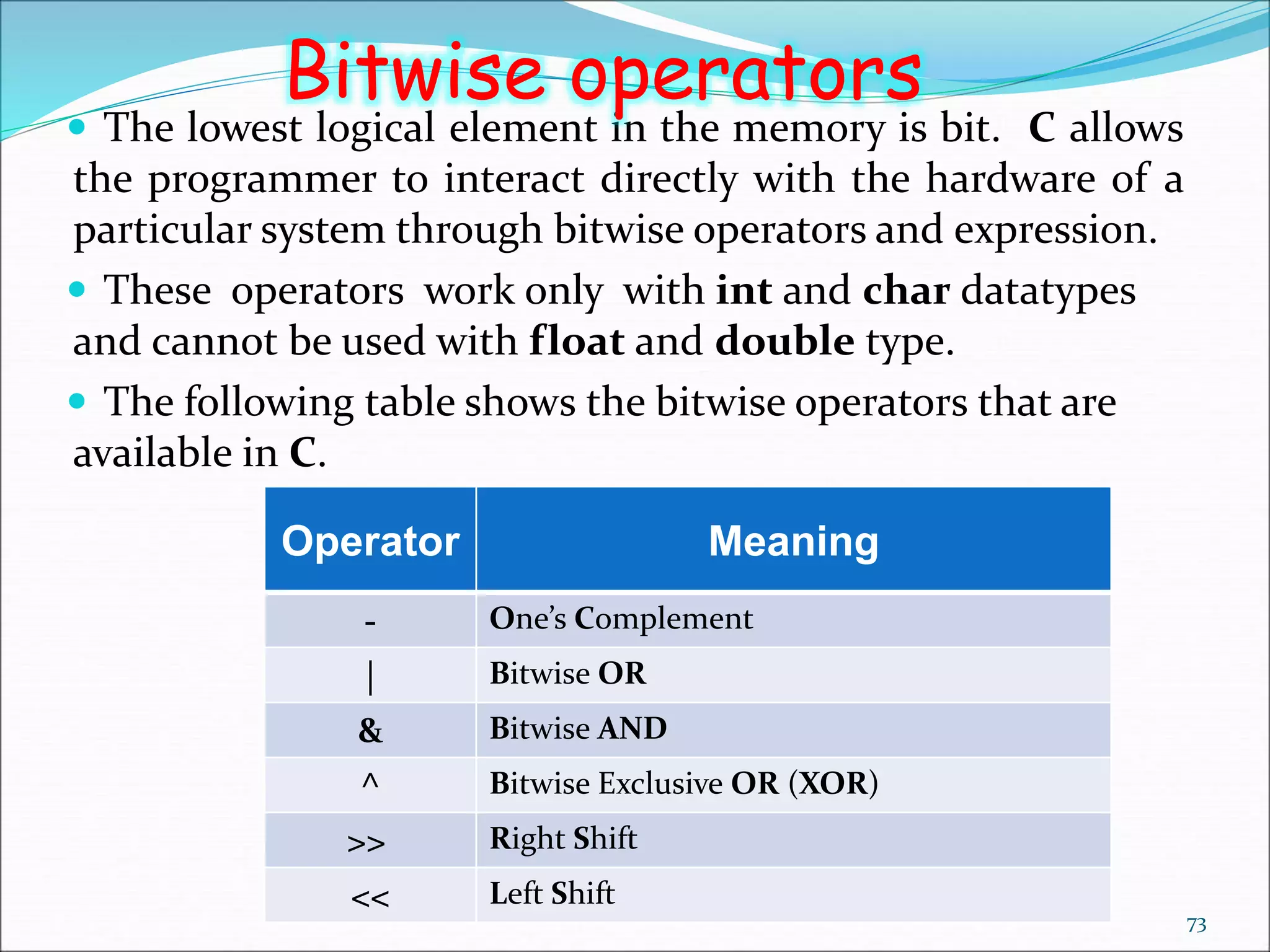

73.  The lowest logical element in the memory is bit. C allows
the programmer to interact directly with the hardware of a
particular system through bitwise operators and expression.
 These operators work only with int and char datatypes
and cannot be used with float and double type.
 The following table shows the bitwise operators that are
available in C.
73
Bitwise operators
Operator Meaning
- One’s Complement
| Bitwise OR
& Bitwise AND
^ Bitwise Exclusive OR (XOR)
>> Right Shift
<< Left Shift

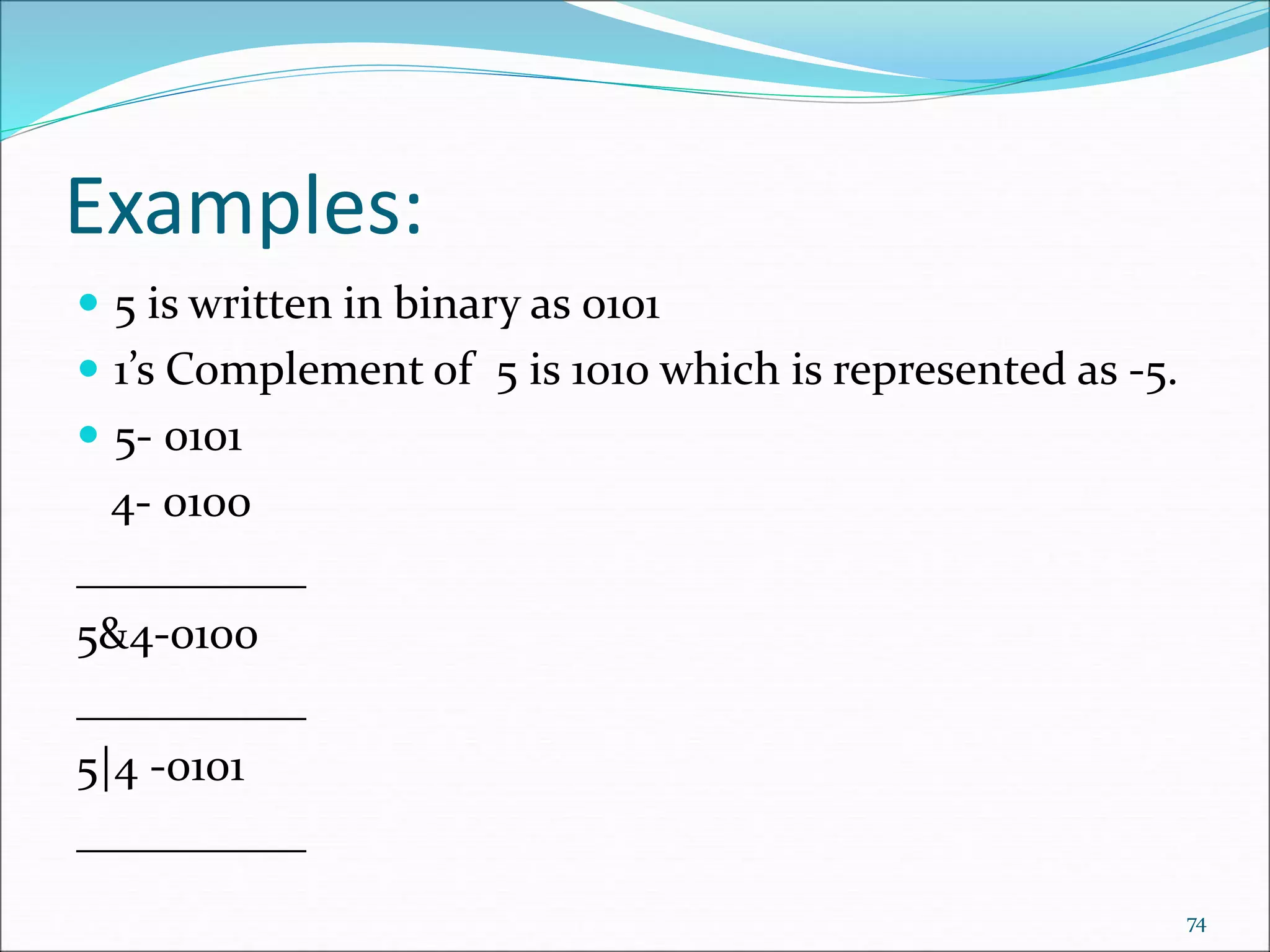

74. Examples:
 5 is written in binary as 0101
 1’s Complement of 5 is 1010 which is represented as -5.
 5- 0101
4- 0100
__________
5&4-0100
__________
5|4 -0101
__________
74

75. Bitwise Operators
75
Operation Operator Comment
Value of Sum
before
Value of sum
after
AND & sum = sum & 2; 4 0
OR | sum = sum | 2; 4 6
Exclusive OR ^ sum = sum ^ 2; 4 6
1's Complement ~ sum = ~sum; 4 -5
Left Shift << sum = sum << 2; 4 16
Right Shift >> sum = sum >> 2; 4 1
1=00000000 00000000 00000000 00000001
2=00000000 00000000 00000000 00000010
4=00000000 00000000 00000000 00000100
8=00000000 00000000 00000000 00001000
16=00000000 00000000 00000000 00010000
5=00000000 00000000 00000000 00000101
11111111 11111111 11111111 11111010
-5=11111111 11111111 11111111 11111011
by 2’s complement method

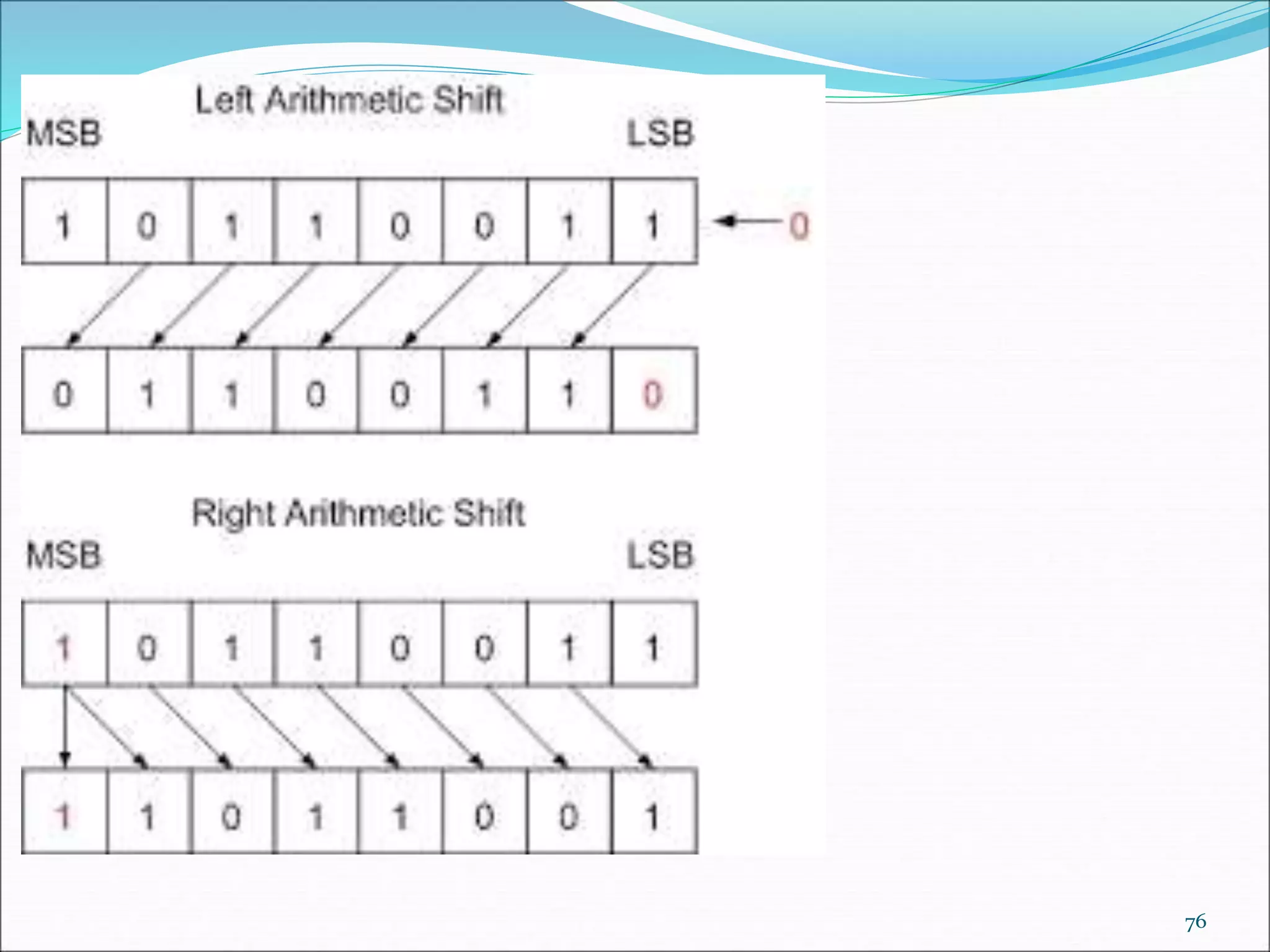

76. 76

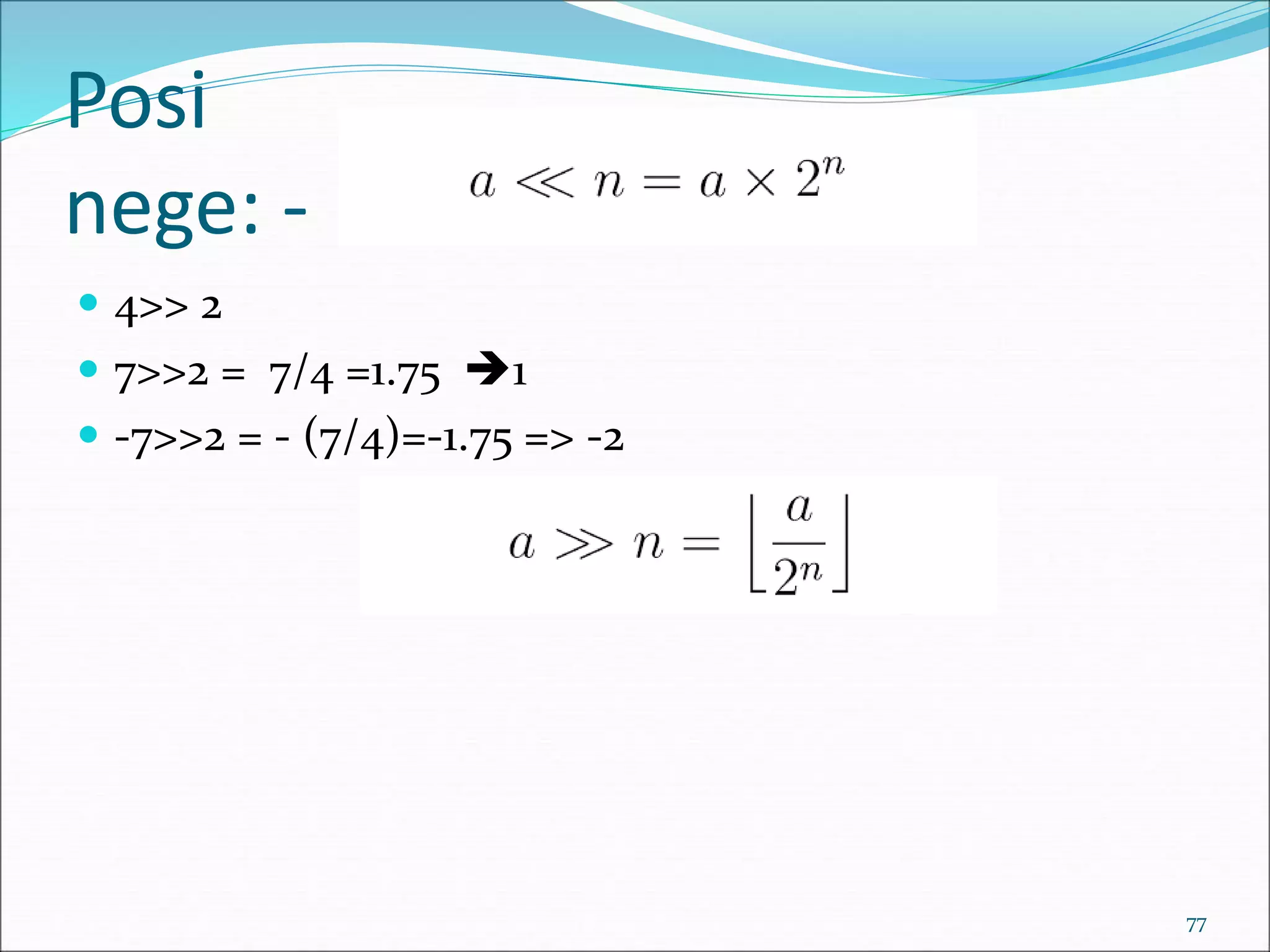

77. Posi
nege: -
 4>> 2
 7>>2 = 7/4 =1.75 1
 -7>>2 = - (7/4)=-1.75 => -2
77

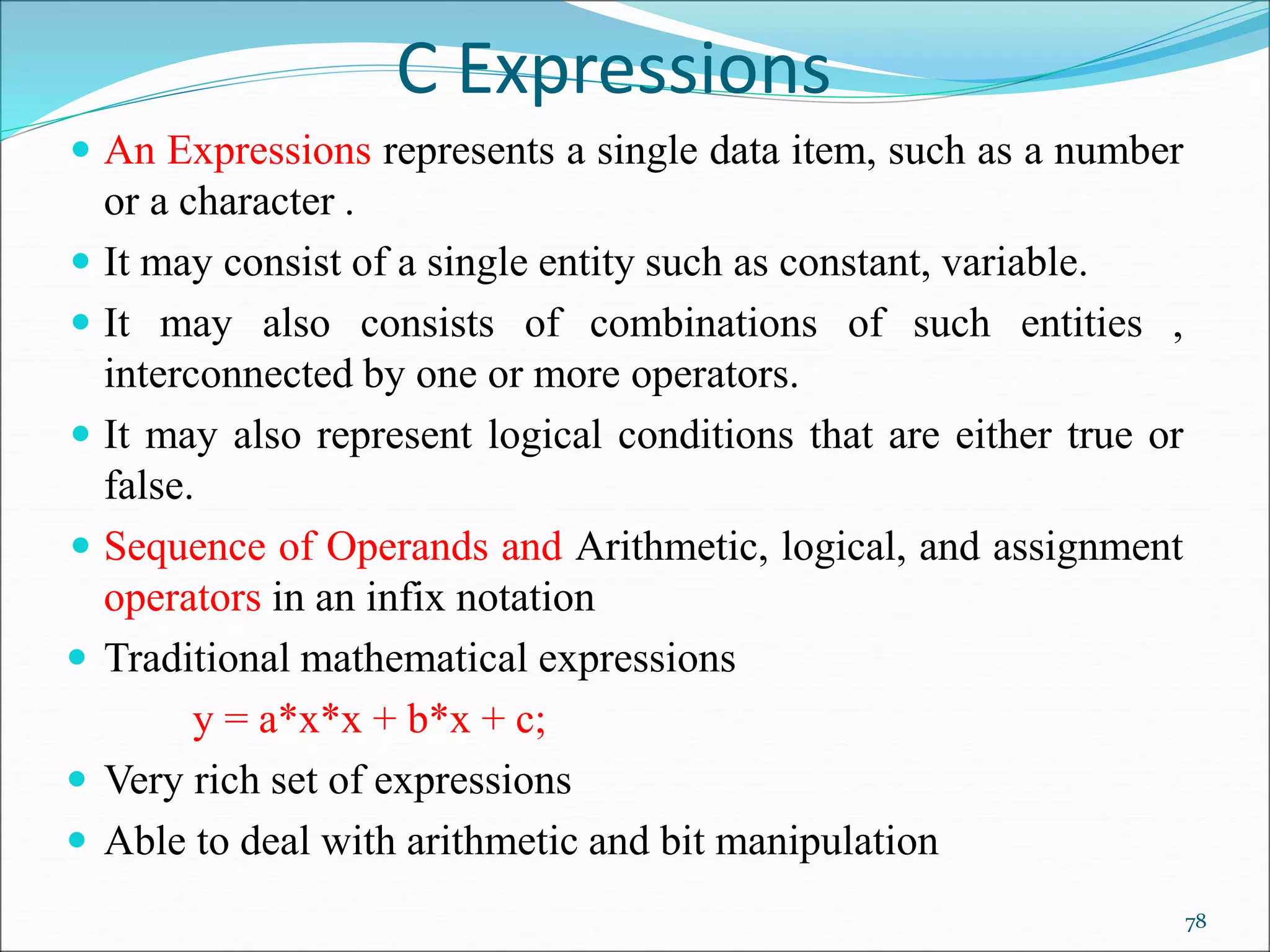

78. C Expressions
 An Expressions represents a single data item, such as a number
or a character .
 It may consist of a single entity such as constant, variable.
 It may also consists of combinations of such entities ,
interconnected by one or more operators.
 It may also represent logical conditions that are either true or
false.
 Sequence of Operands and Arithmetic, logical, and assignment
operators in an infix notation
 Traditional mathematical expressions
y = a*x*x + b*x + c;
 Very rich set of expressions
 Able to deal with arithmetic and bit manipulation
78

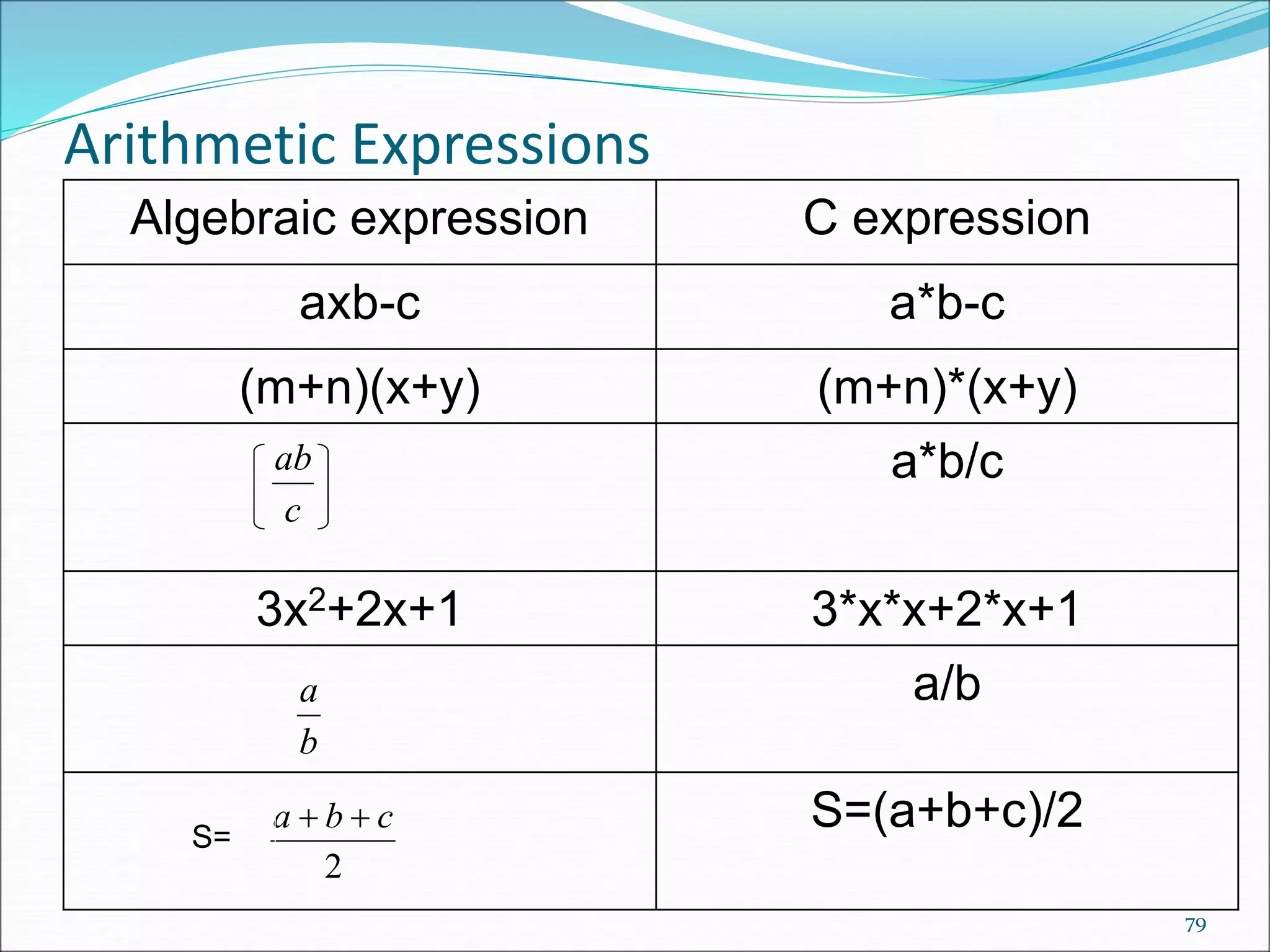

79. Arithmetic Expressions
79
Algebraic expression C expression
axb-c a*b-c
(m+n)(x+y) (m+n)*(x+y)
a*b/c
3x2+2x+1 3*x*x+2*x+1
a/b
S=(a+b+c)/2
c
ab
b
a
2
c
b
a 

S=

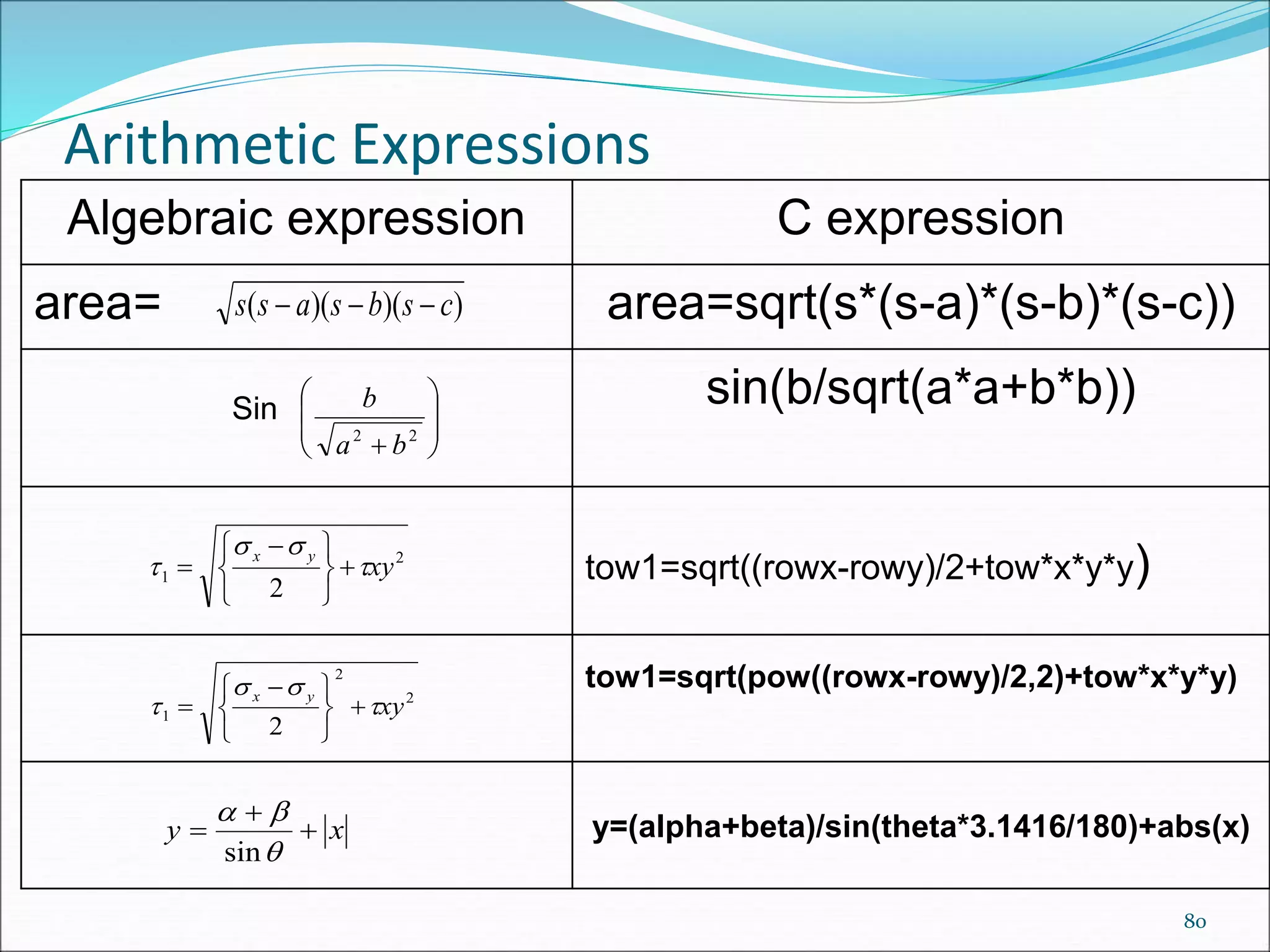

80. Arithmetic Expressions
80
Algebraic expression C expression
area= area=sqrt(s*(s-a)*(s-b)*(s-c))
sin(b/sqrt(a*a+b*b))
tow1=sqrt((rowx-rowy)/2+tow*x*y*y)
tow1=sqrt(pow((rowx-rowy)/2,2)+tow*x*y*y)
y=(alpha+beta)/sin(theta*3.1416/180)+abs(x)
)
)(
)(
( c
s
b
s
a
s
s 


Sin








 2
2
b
a
b
2
1
2
xy
y
x



 





 

2
2
1
2
xy
y
x



 





 

x
y 





sin

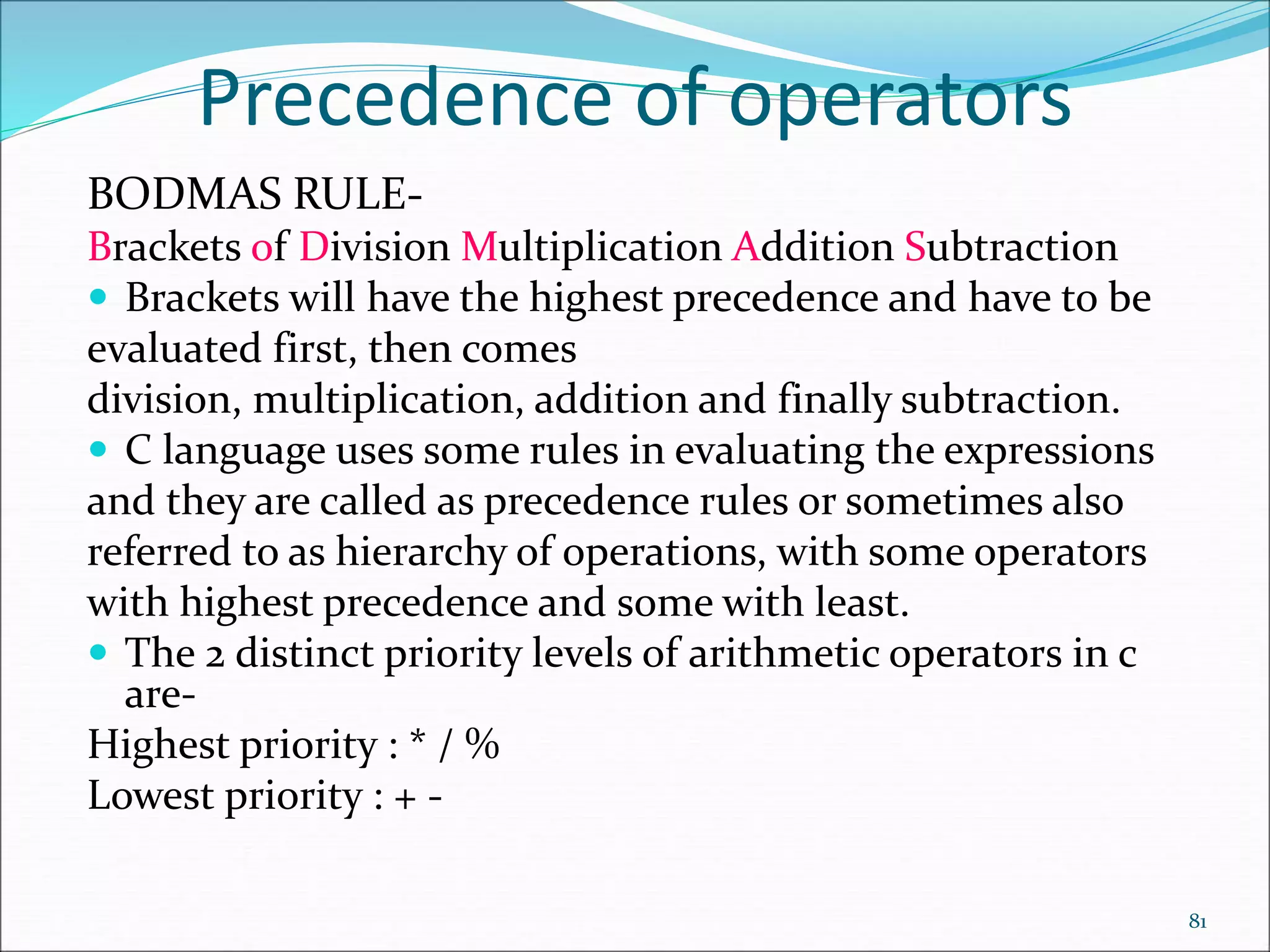

81. Precedence of operators
BODMAS RULE-
Brackets of Division Multiplication Addition Subtraction
 Brackets will have the highest precedence and have to be
evaluated first, then comes
division, multiplication, addition and finally subtraction.
 C language uses some rules in evaluating the expressions
and they are called as precedence rules or sometimes also
referred to as hierarchy of operations, with some operators
with highest precedence and some with least.
 The 2 distinct priority levels of arithmetic operators in c
are-
Highest priority : * / %
Lowest priority : + -
81

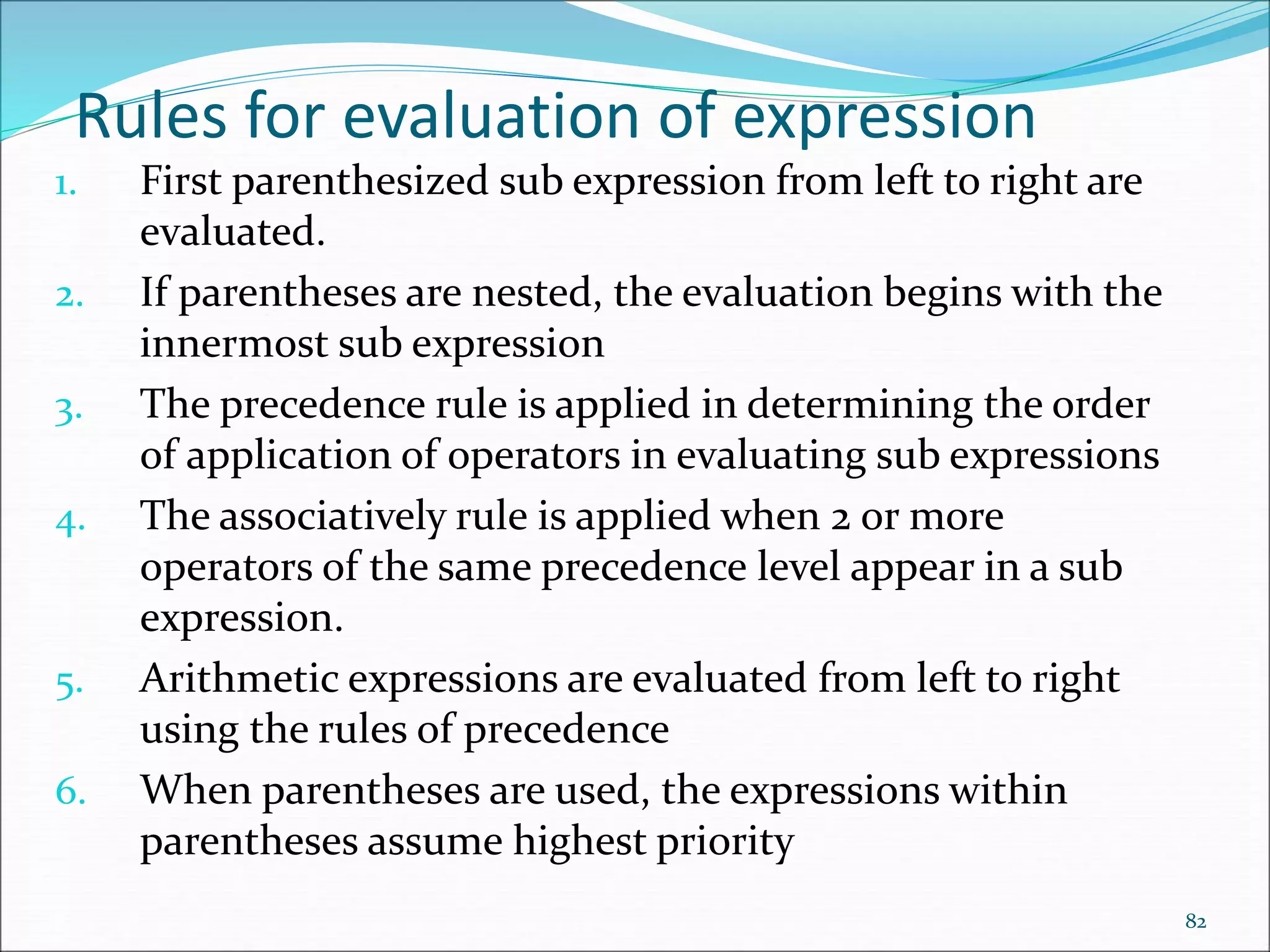

82. Rules for evaluation of expression
1. First parenthesized sub expression from left to right are
evaluated.
2. If parentheses are nested, the evaluation begins with the
innermost sub expression
3. The precedence rule is applied in determining the order
of application of operators in evaluating sub expressions
4. The associatively rule is applied when 2 or more
operators of the same precedence level appear in a sub
expression.
5. Arithmetic expressions are evaluated from left to right
using the rules of precedence
6. When parentheses are used, the expressions within
parentheses assume highest priority
82

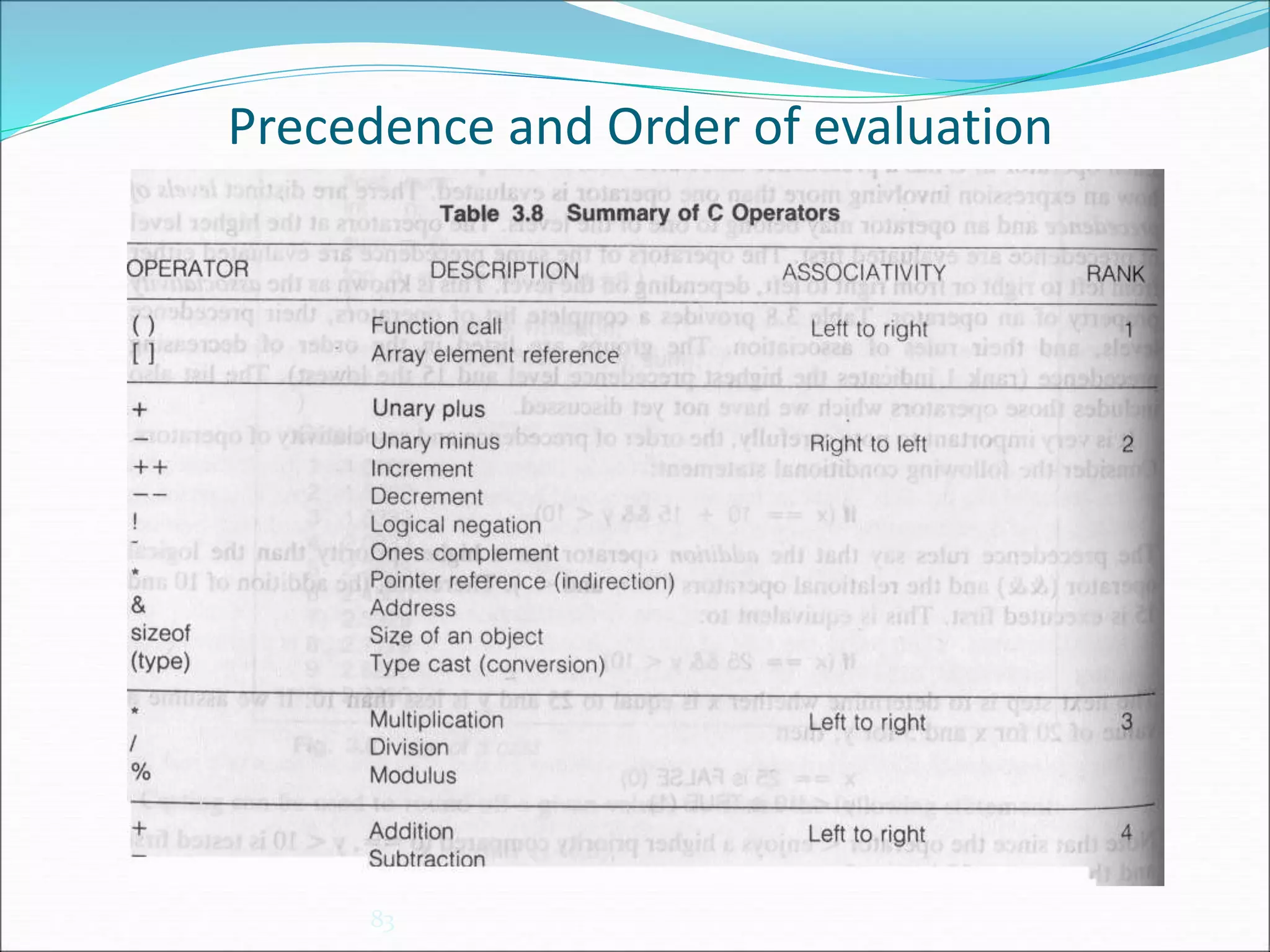

83. Precedence and Order of evaluation
83

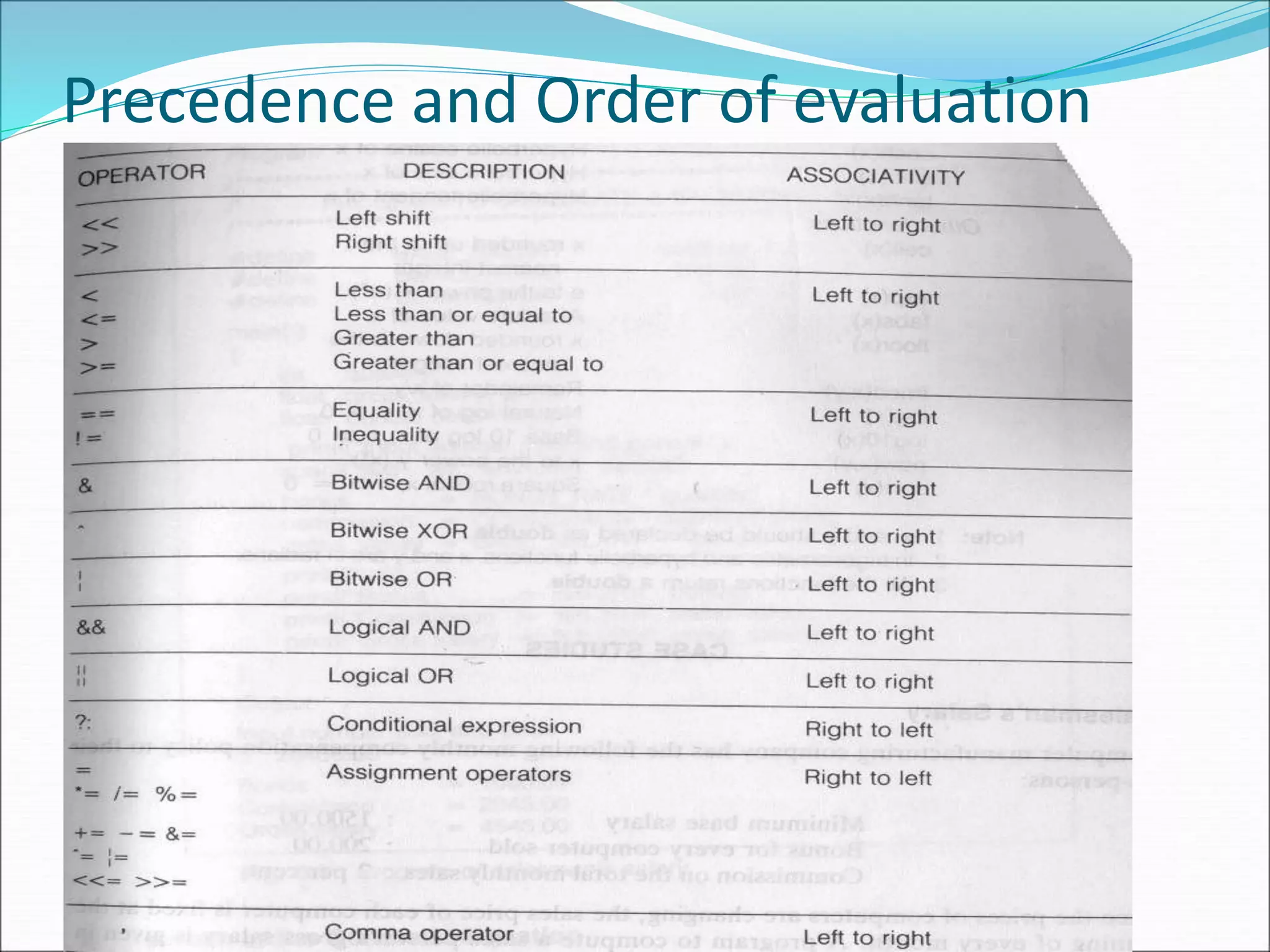

84. Precedence and Order of evaluation
84

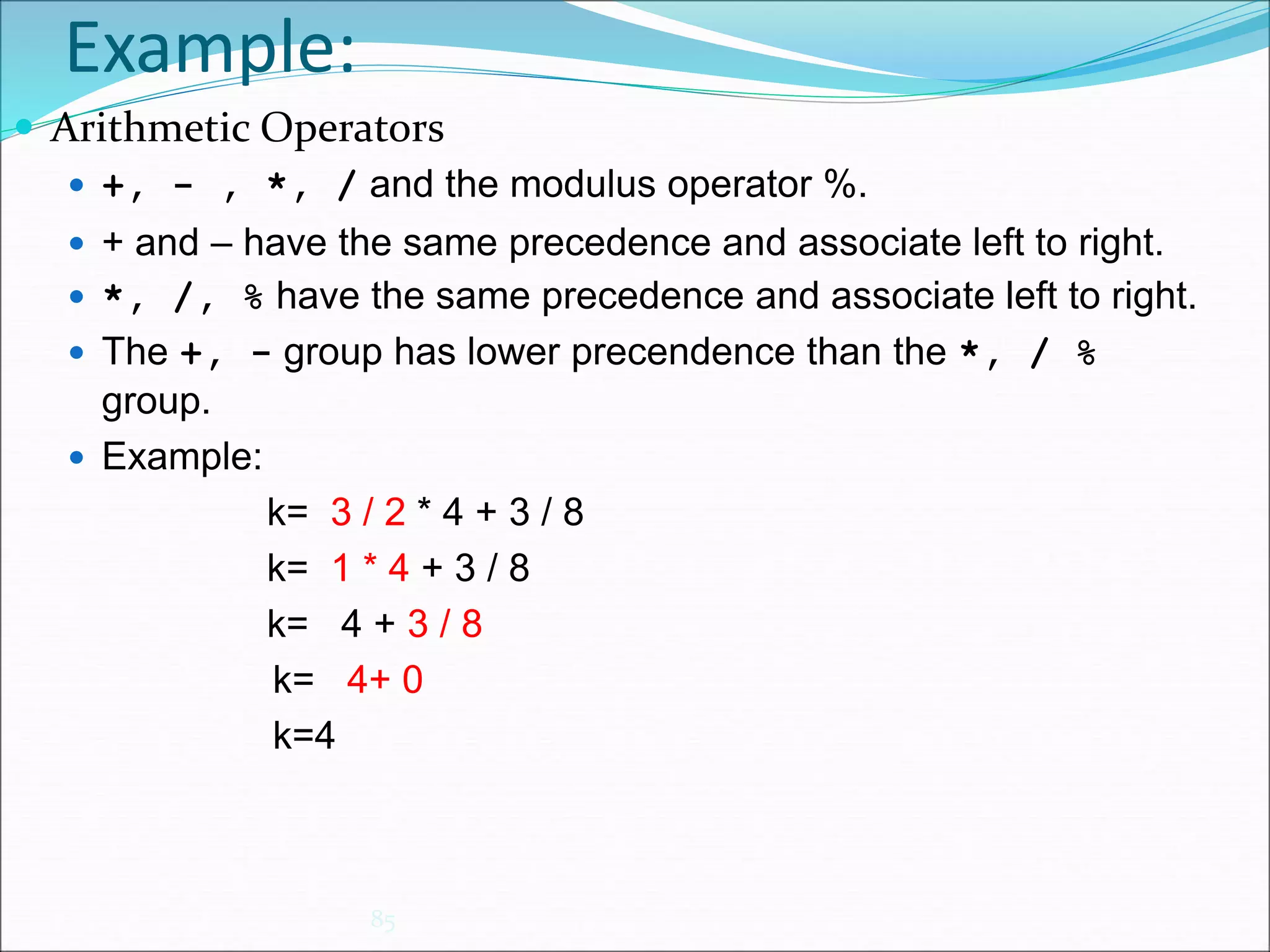

85. Example:
85
 Arithmetic Operators
 +, - , *, / and the modulus operator %.
 + and – have the same precedence and associate left to right.
 *, /, % have the same precedence and associate left to right.
 The +, - group has lower precendence than the *, / %
group.
 Example:
k= 3 / 2 * 4 + 3 / 8
k= 1 * 4 + 3 / 8
k= 4 + 3 / 8
k= 4+ 0
k=4

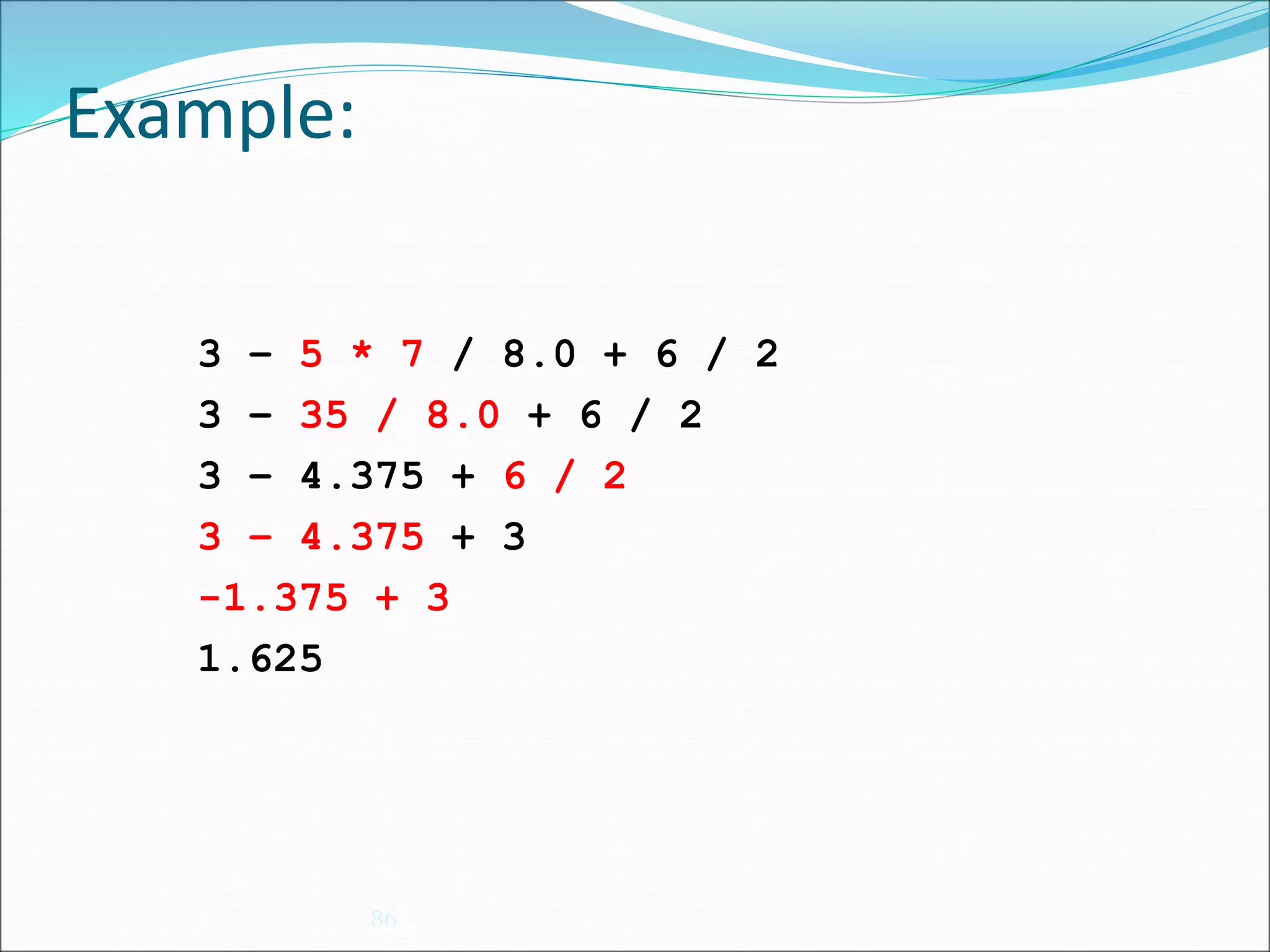

86. Example:
86
3 – 5 * 7 / 8.0 + 6 / 2
3 – 35 / 8.0 + 6 / 2
3 – 4.375 + 6 / 2
3 – 4.375 + 3
-1.375 + 3
1.625

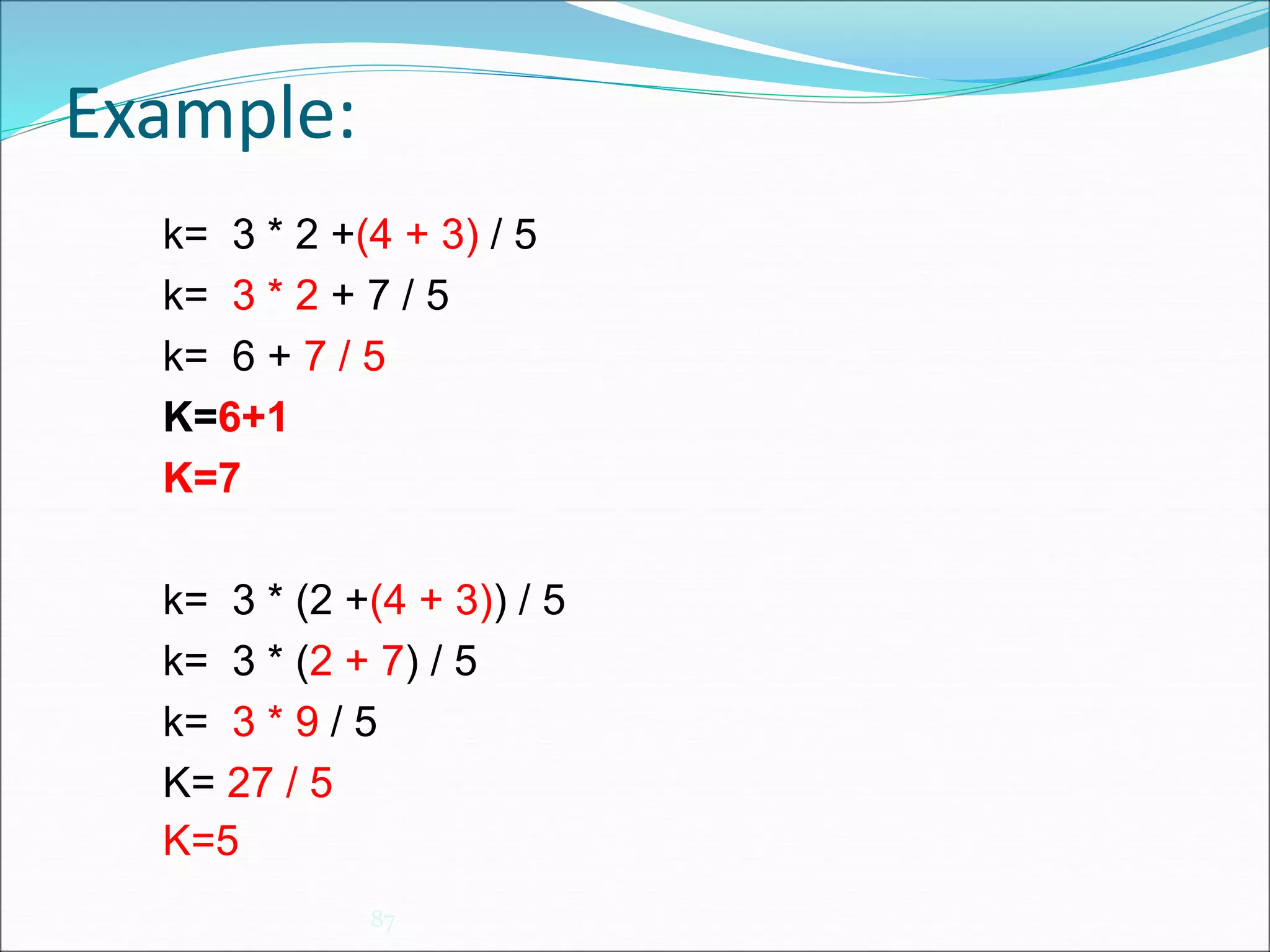

87. Example:
87
k= 3 * 2 +(4 + 3) / 5
k= 3 * 2 + 7 / 5
k= 6 + 7 / 5
K=6+1
K=7
k= 3 * (2 +(4 + 3)) / 5
k= 3 * (2 + 7) / 5
k= 3 * 9 / 5
K= 27 / 5
K=5

88. Step-by-step show how C will
perform the operations
c = 6 - -3 * (6 + 2 * 2) + (6 / 2 )* -3;
c = 6 - -3 * (6 + 4) + (6 / 2 )* -3
c = 6 - -3 *10 +(6/2)* -3
c = 6 - -3 *10 +3* -3
c = 6 - -30 +3* -3
c = 6 - -30 + -9
c = 36 + -9
c = 27
 output:
Value of c = 27
88

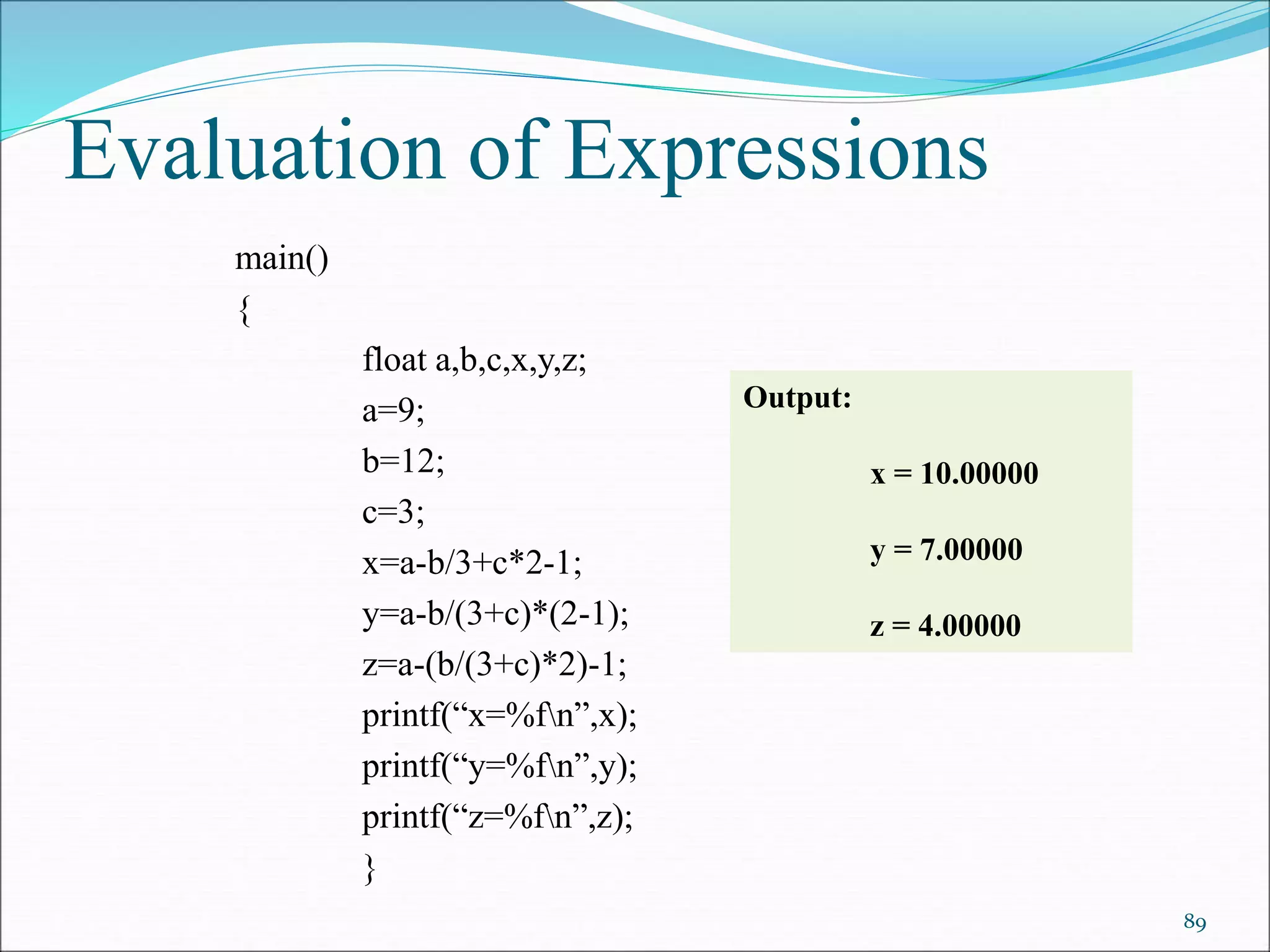

89. Evaluation of Expressions
main()
{
float a,b,c,x,y,z;
a=9;
b=12;
c=3;
x=a-b/3+c*2-1;
y=a-b/(3+c)*(2-1);
z=a-(b/(3+c)*2)-1;
printf(“x=%fn”,x);
printf(“y=%fn”,y);
printf(“z=%fn”,z);
}
89
Output:
x = 10.00000
y = 7.00000
z = 4.00000

90. Example
Evaluate the expression when a=4
b=a- ++a
=a – 5
=5-5
=0
90

91. Evaluation of expression
a++ + ++a
A++ + a++
++A + ++a +a++
x=2 y=3 z=4
Evaluate x*(-2*(y+z)/3) -8 91

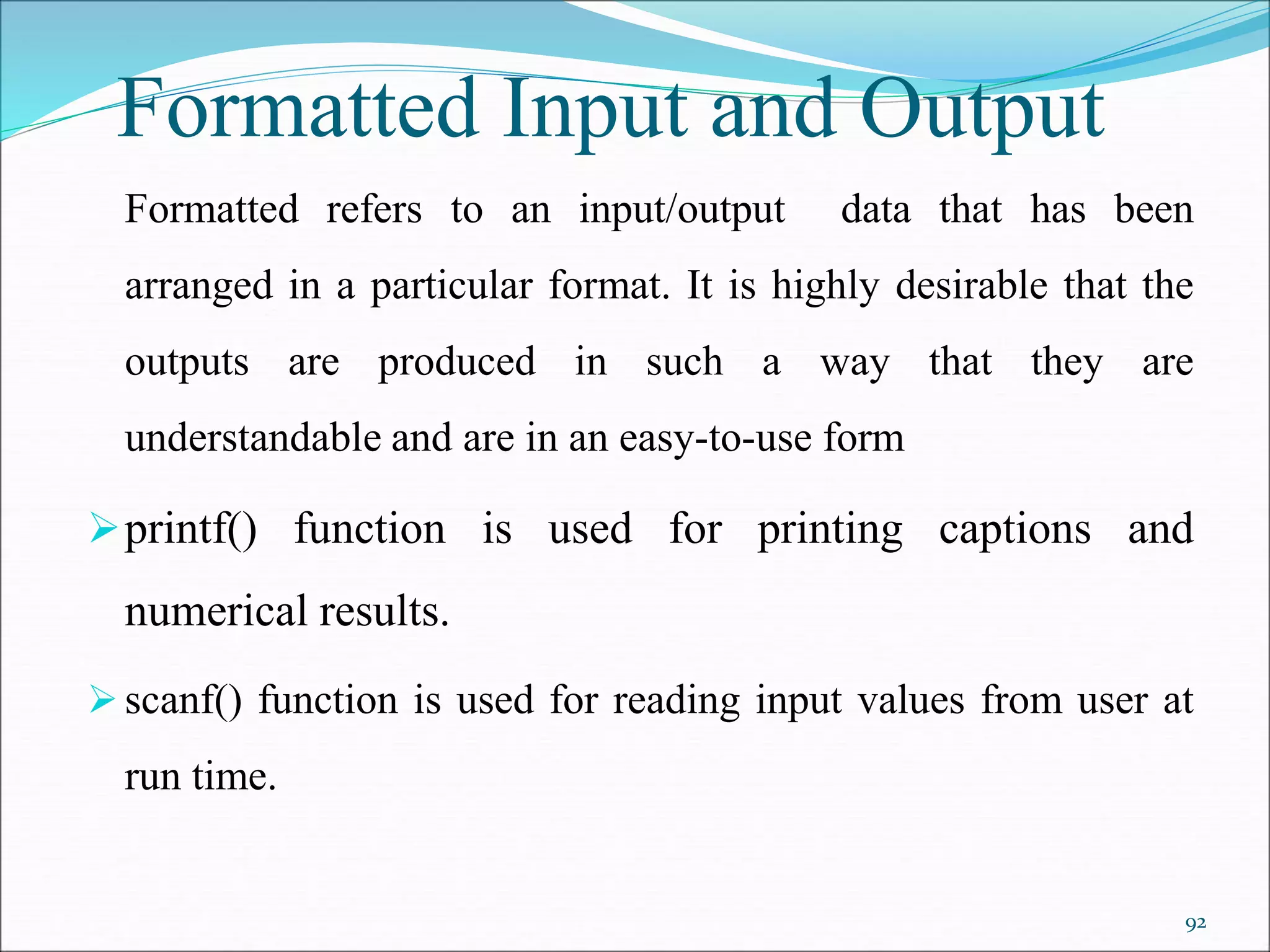

92. Formatted Input and Output
Formatted refers to an input/output data that has been
arranged in a particular format. It is highly desirable that the
outputs are produced in such a way that they are
understandable and are in an easy-to-use form
printf() function is used for printing captions and
numerical results.
scanf() function is used for reading input values from user at
run time.
92

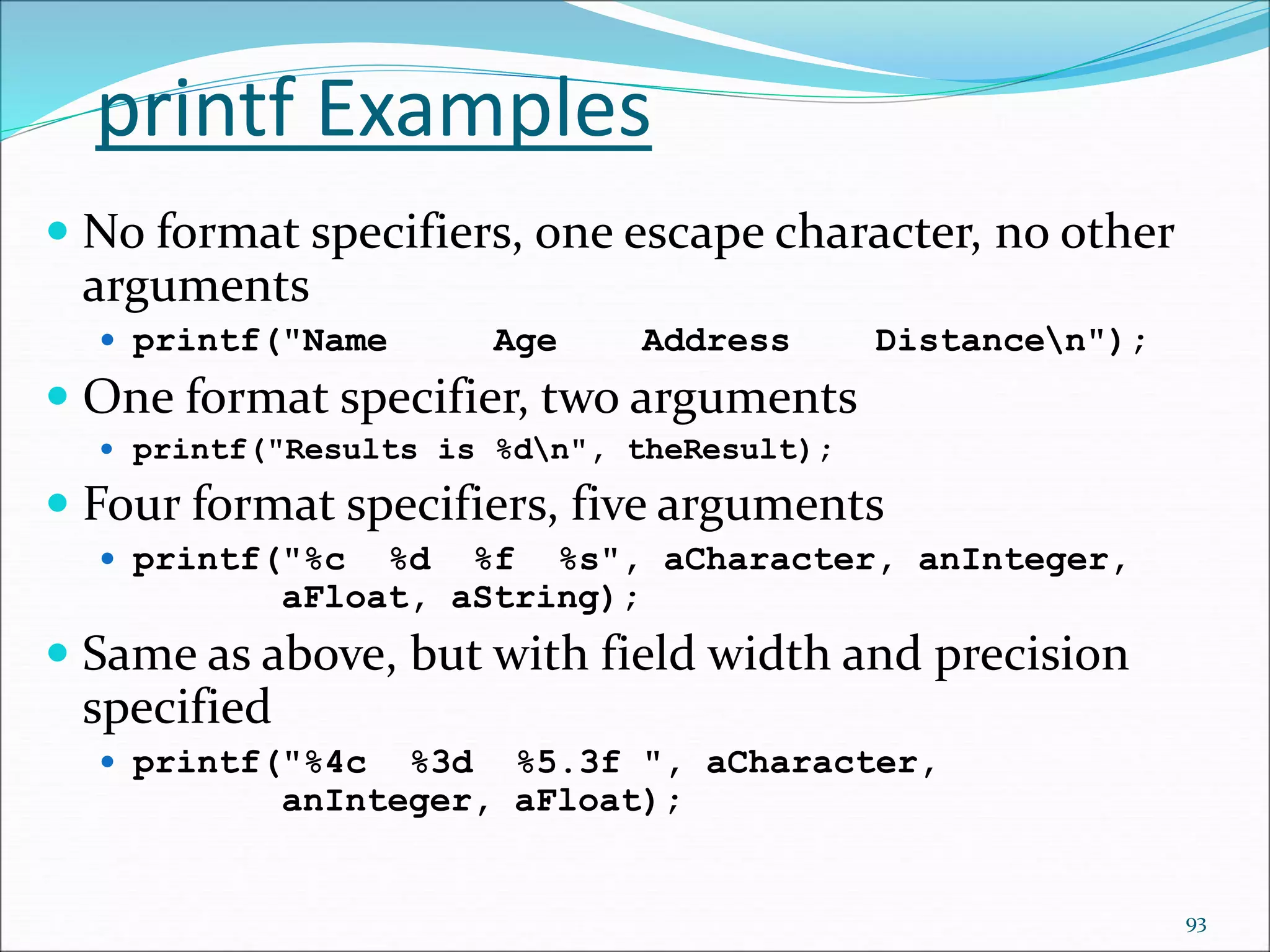

93. printf Examples
 No format specifiers, one escape character, no other
arguments
 printf("Name Age Address Distancen");
 One format specifier, two arguments
 printf("Results is %dn", theResult);
 Four format specifiers, five arguments
 printf("%c %d %f %s", aCharacter, anInteger,
aFloat, aString);
 Same as above, but with field width and precision
specified
 printf("%4c %3d %5.3f ", aCharacter,
anInteger, aFloat);
93

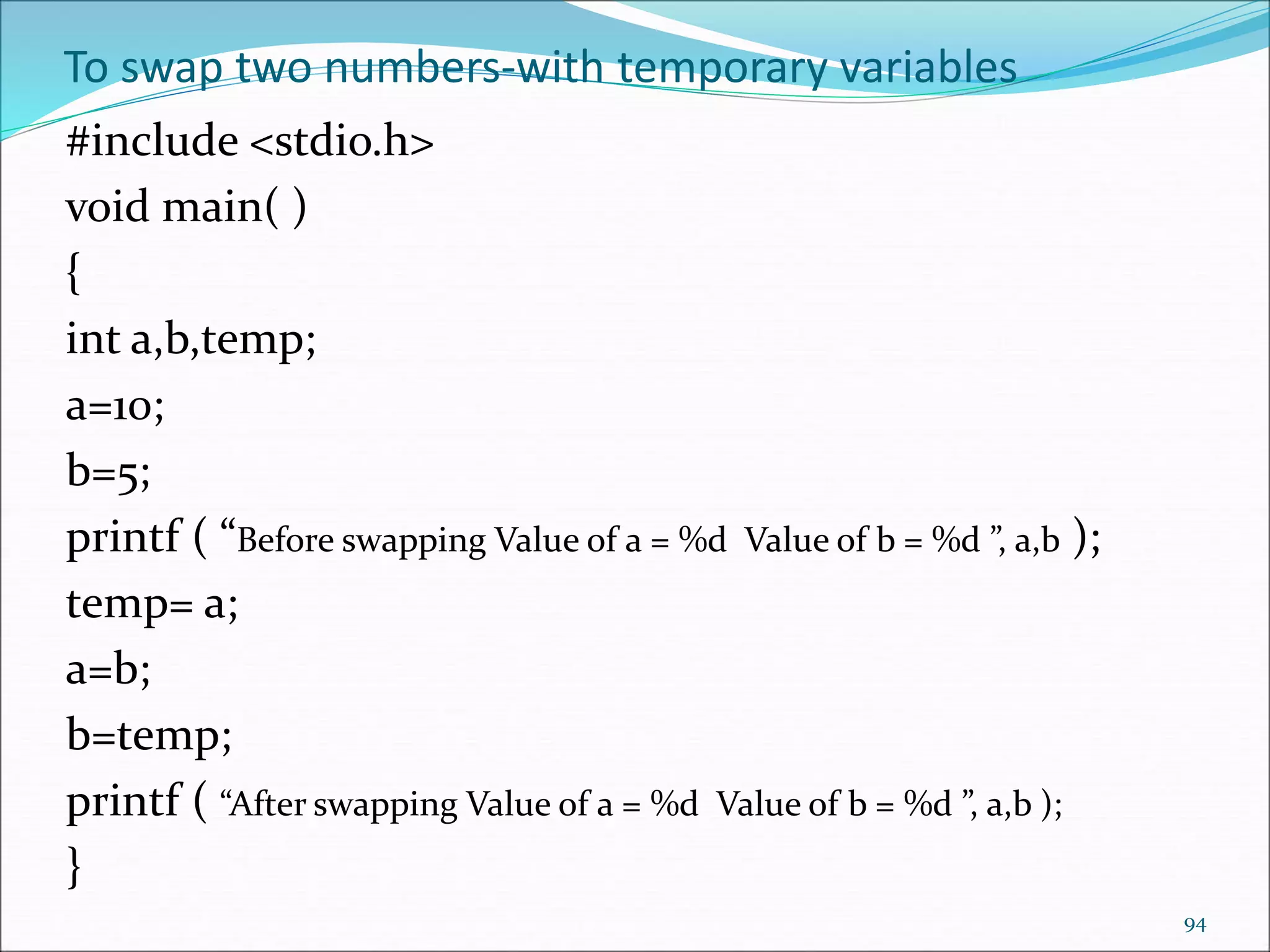

94. To swap two numbers-with temporary variables
#include <stdio.h>
void main( )
{
int a,b,temp;
a=10;
b=5;
printf ( “Before swapping Value of a = %d Value of b = %d ”, a,b );
temp= a;
a=b;
b=temp;
printf ( “After swapping Value of a = %d Value of b = %d ”, a,b );
}
94

95. To swap two numbers-without temporary variables
#include <stdio.h>
void main( )
{
int a,b;
a=10;
b=5;
a=a+b;
b=a-b;
a=a-b;
printf ( “Value of a = %d”, a );
printf ( “Value of b = %d”, b );
} 95

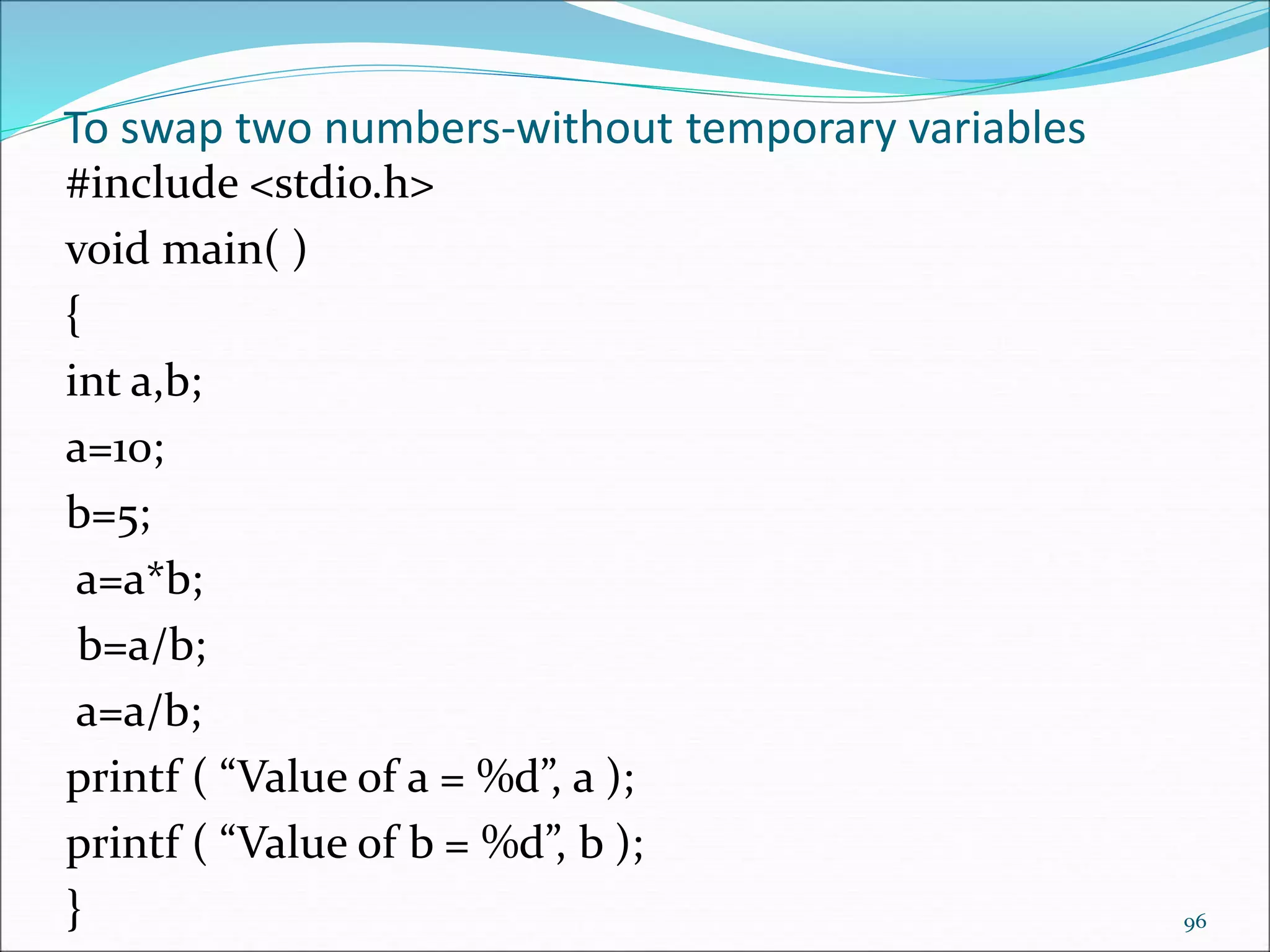

96. To swap two numbers-without temporary variables
#include <stdio.h>
void main( )
{
int a,b;
a=10;
b=5;
a=a*b;
b=a/b;
a=a/b;
printf ( “Value of a = %d”, a );
printf ( “Value of b = %d”, b );
} 96

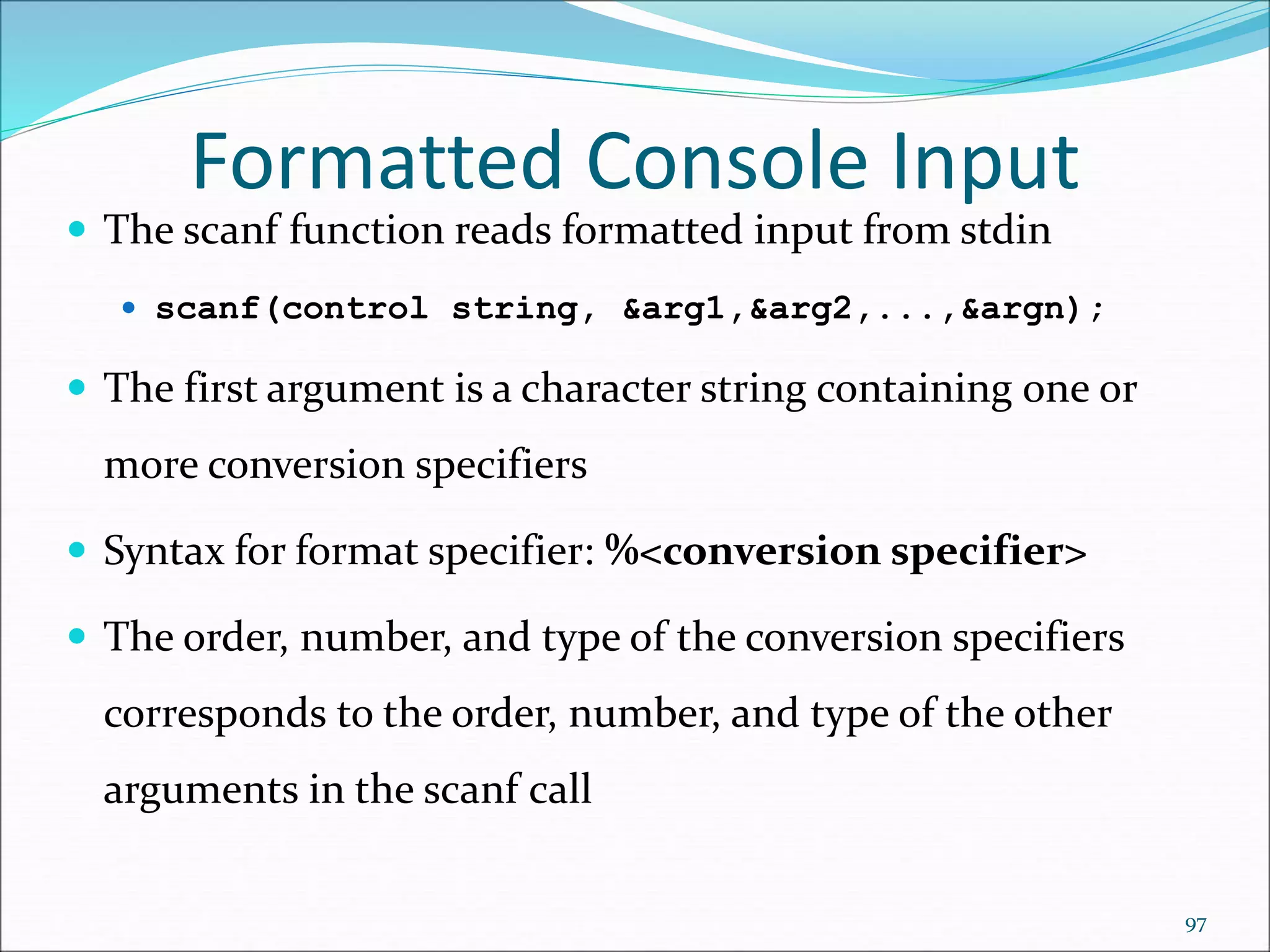

97.  The scanf function reads formatted input from stdin
 scanf(control string, &arg1,&arg2,...,&argn);
 The first argument is a character string containing one or
more conversion specifiers
 Syntax for format specifier: %<conversion specifier>
 The order, number, and type of the conversion specifiers
corresponds to the order, number, and type of the other
arguments in the scanf call
Formatted Console Input
97

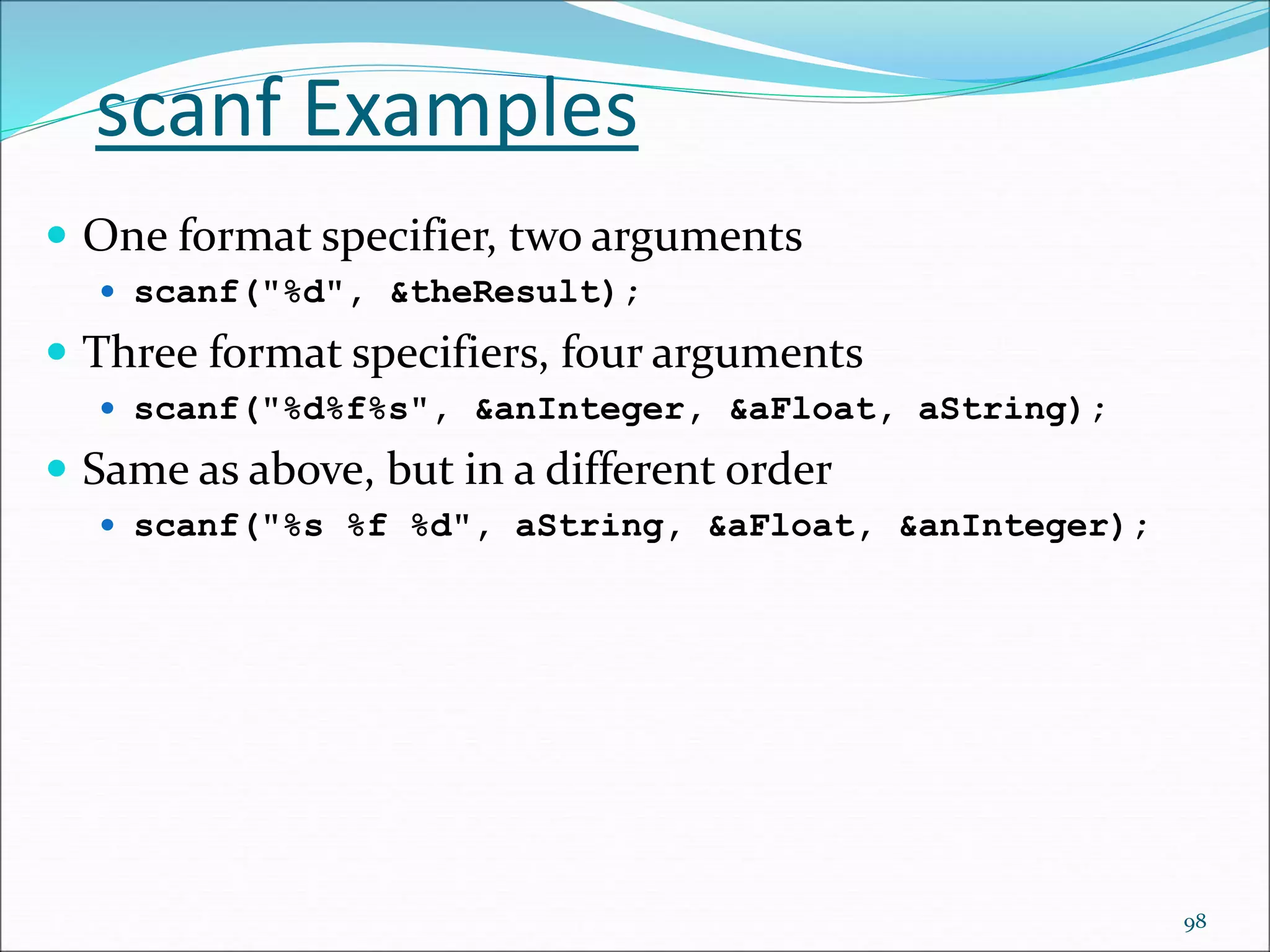

98. scanf Examples
 One format specifier, two arguments
 scanf("%d", &theResult);
 Three format specifiers, four arguments
 scanf("%d%f%s", &anInteger, &aFloat, aString);
 Same as above, but in a different order
 scanf("%s %f %d", aString, &aFloat, &anInteger);
98

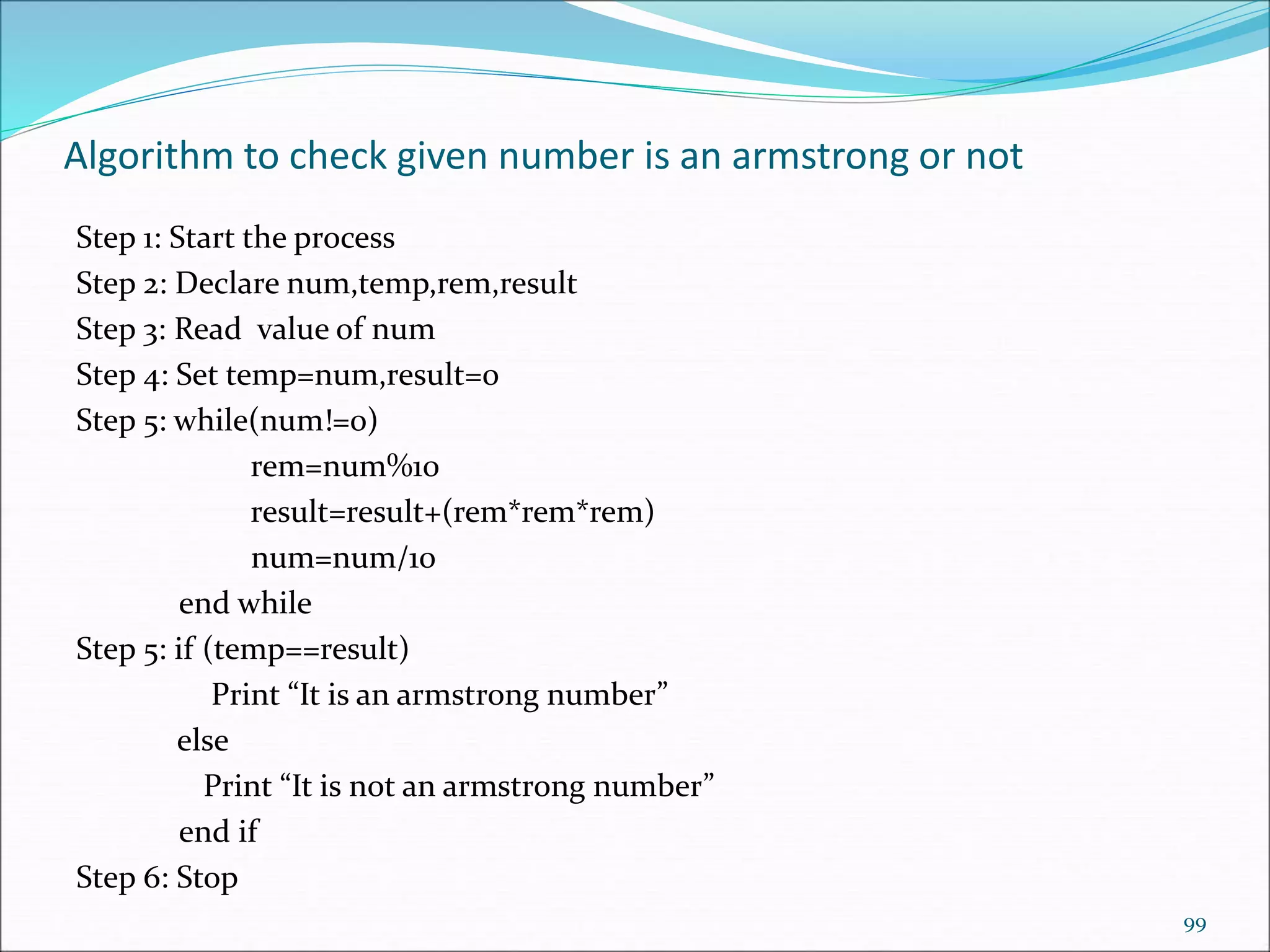

99. Algorithm to check given number is an armstrong or not
Step 1: Start the process
Step 2: Declare num,temp,rem,result
Step 3: Read value of num
Step 4: Set temp=num,result=0
Step 5: while(num!=0)
rem=num%10
result=result+(rem*rem*rem)
num=num/10
end while
Step 5: if (temp==result)
Print “It is an armstrong number”
else
Print “It is not an armstrong number”
end if
Step 6: Stop
99

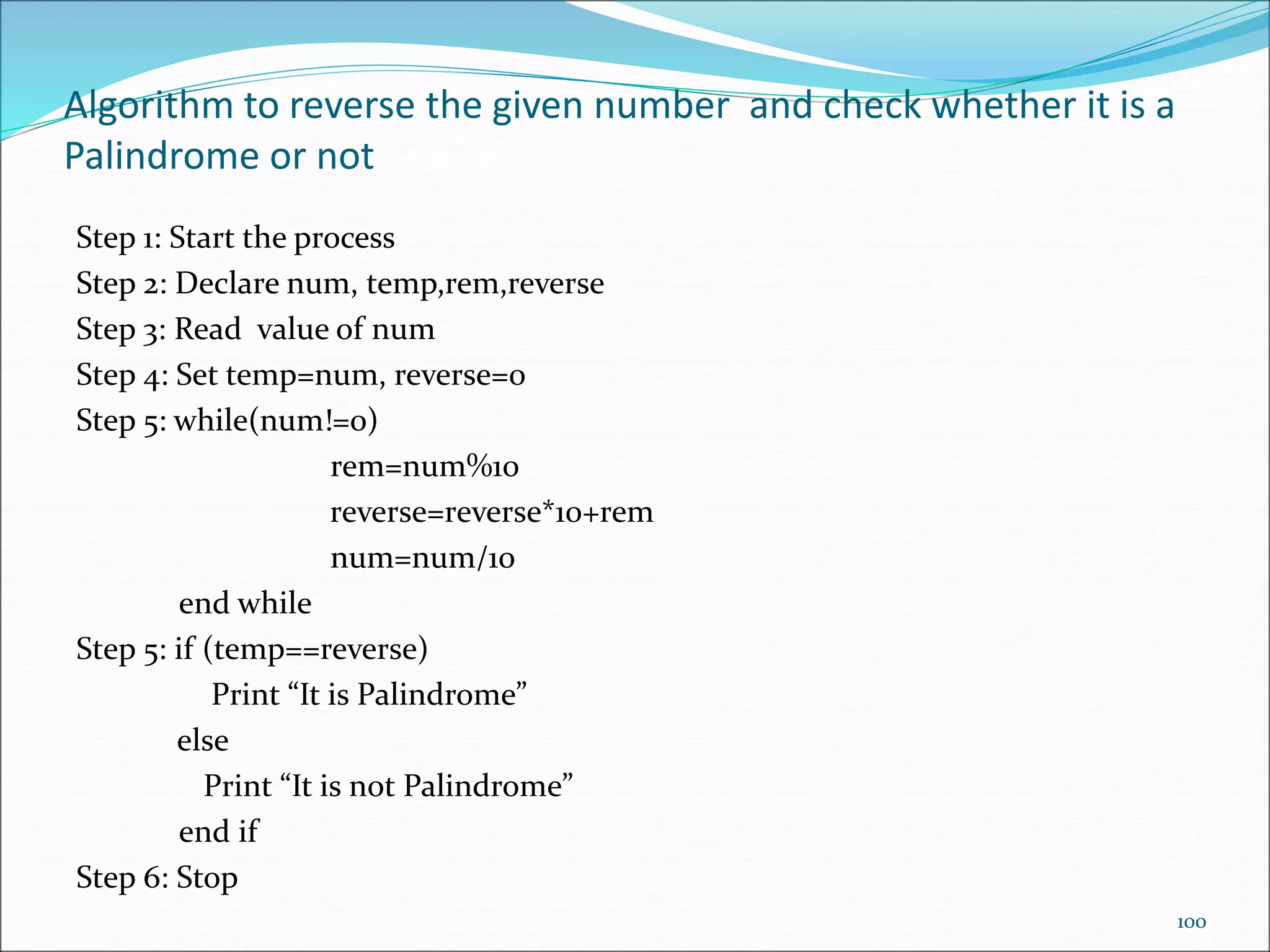

100. Algorithm to reverse the given number and check whether it is a
Palindrome or not
Step 1: Start the process
Step 2: Declare num, temp,rem,reverse
Step 3: Read value of num
Step 4: Set temp=num, reverse=0
Step 5: while(num!=0)
rem=num%10
reverse=reverse*10+rem
num=num/10
end while
Step 5: if (temp==reverse)
Print “It is Palindrome”
else
Print “It is not Palindrome”
end if
Step 6: Stop
100

101. 101
