Presentation at Bay Area OpenDaylight meetup on April 18, 2016.

1. Beryllium Release
Srini Seetharaman
srini.seetharaman@gmail.com

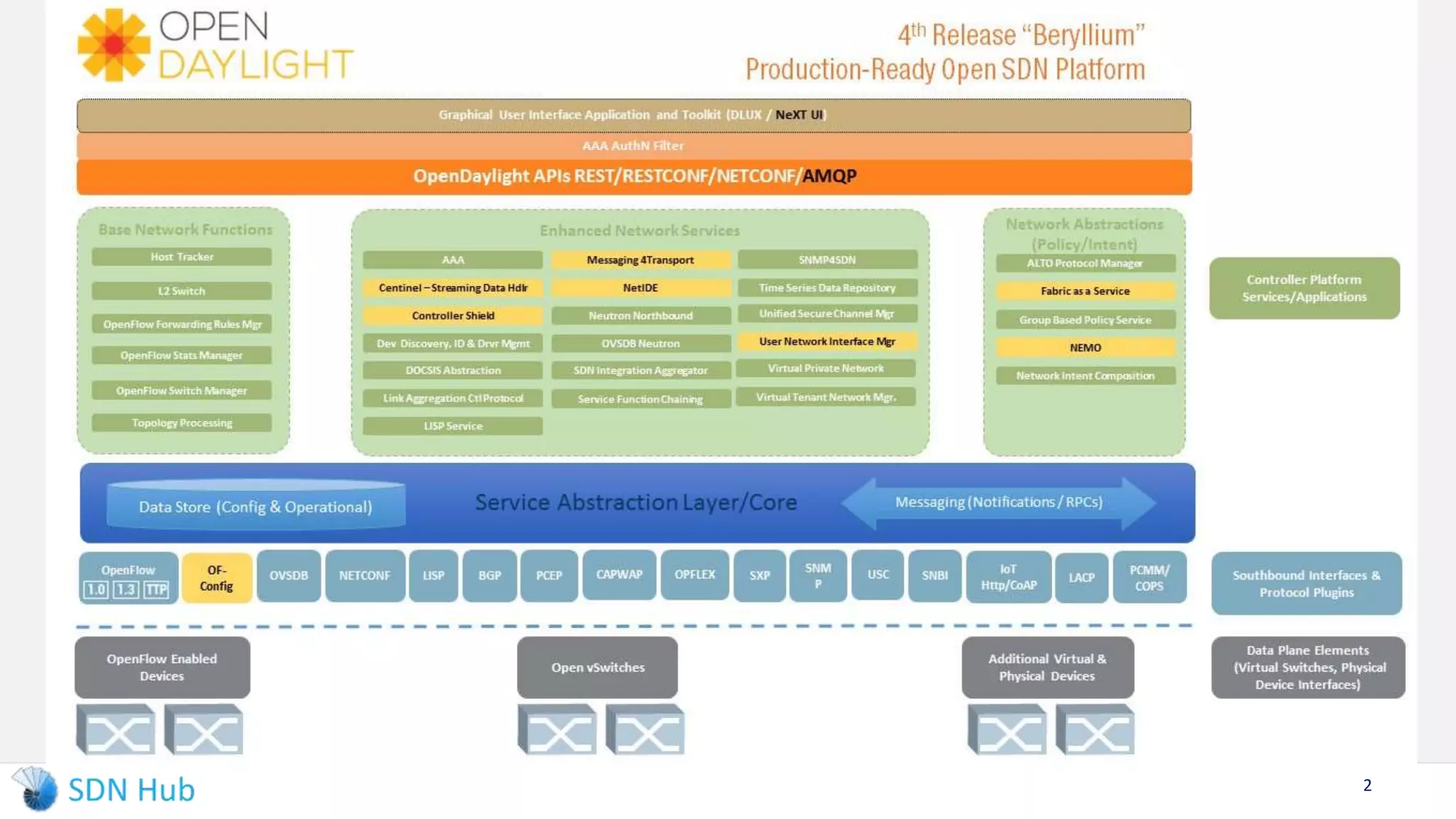

2. 2

3. 3

4. List of Projects in Beryllium and Release Notes
► Authentication, Authorization and Accounting (AAA)
► ALTO
► BGP PCEP
► Control And Provisioning of Wireless Access Points
(CAPWAP)
► Centinel
► Controller
► Controller Shield
► Device Identification and Driver Management (DIDM)
► DLUX
► Fabric As A Service (FaaS)
► Group Based Policy (GPB)
► Internet of Things Data Management (IoTDM)
► L2 Switch
► Link Aggregation Control Protocol (LACP)
► LISP Flow Mapping
► MD-SAL
► Messaging4Transport
► NeXt UI Toolkit (NeXt)
► NEtwork MOdeling (NEMO)
► NETCONF
► NetIDE
► Network Intent Composition (NIC)
► Neutron Northbound
► SDN Interface Application (SDNi)
► ODL Root Parent
► OpenFlow Configuration Protocol
(OF-CONFIG)
► OpFlex
► OpenFlow Plugin
► OpenFlow Protocol Library
► OVSDB Integration
4
► Packet Cable/PCMM
► Service Function Chaining (SFC)
► Secure Network Bootstrapping Infrastructure
(SNBI)
► SNMP Plugin
► SNMP4SDN
► Secure tag eXchange Protocol (SXP)
► TCP-MD5
► Topology Processing Framework
► Time Series Data Repository (TSDR)
► Table Type Patterns (TTP)
► Unified Secure Channel (USC)
► User Network Interface Manager (UNIMGR)
► VPN Service
► Virtual Tenant Network (VTN)
► YANG PUBSUB
► YANG Tools

5. Other Sources
► What’s New and Hot in OpenDaylight Beryllium – Colin Dixon
http://events.linuxfoundation.org/sites/events/files/slides/new-and-hot-in-
beryllium.pdf
► ODL Explorer – Inocybe
http://www.odlexplorer.com
<#>

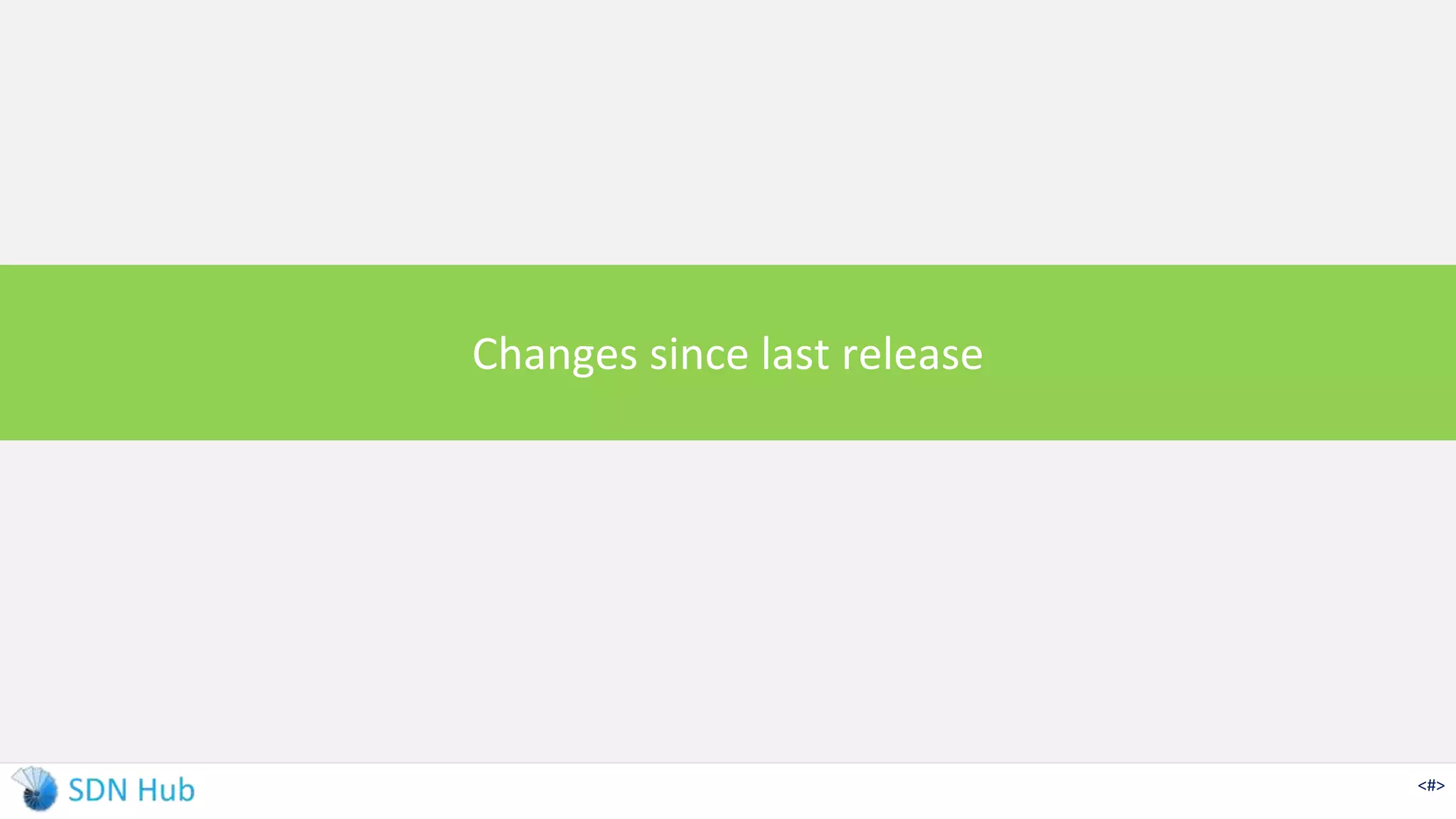

6. Changes since last release
<#>

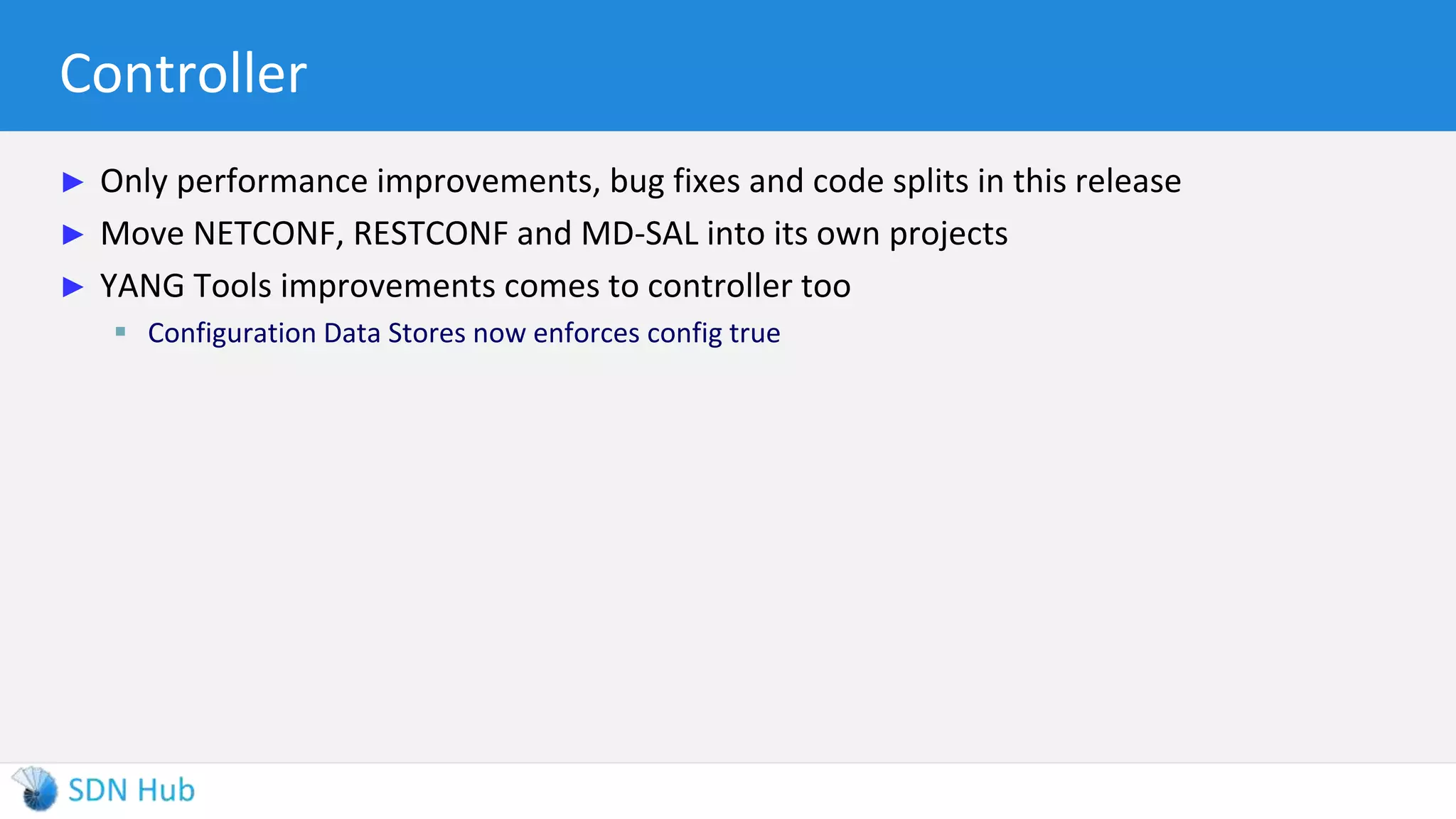

7. Controller
► Only performance improvements, bug fixes and code splits in this release
► Move NETCONF, RESTCONF and MD-SAL into its own projects
► YANG Tools improvements comes to controller too
 Configuration Data Stores now enforces config true

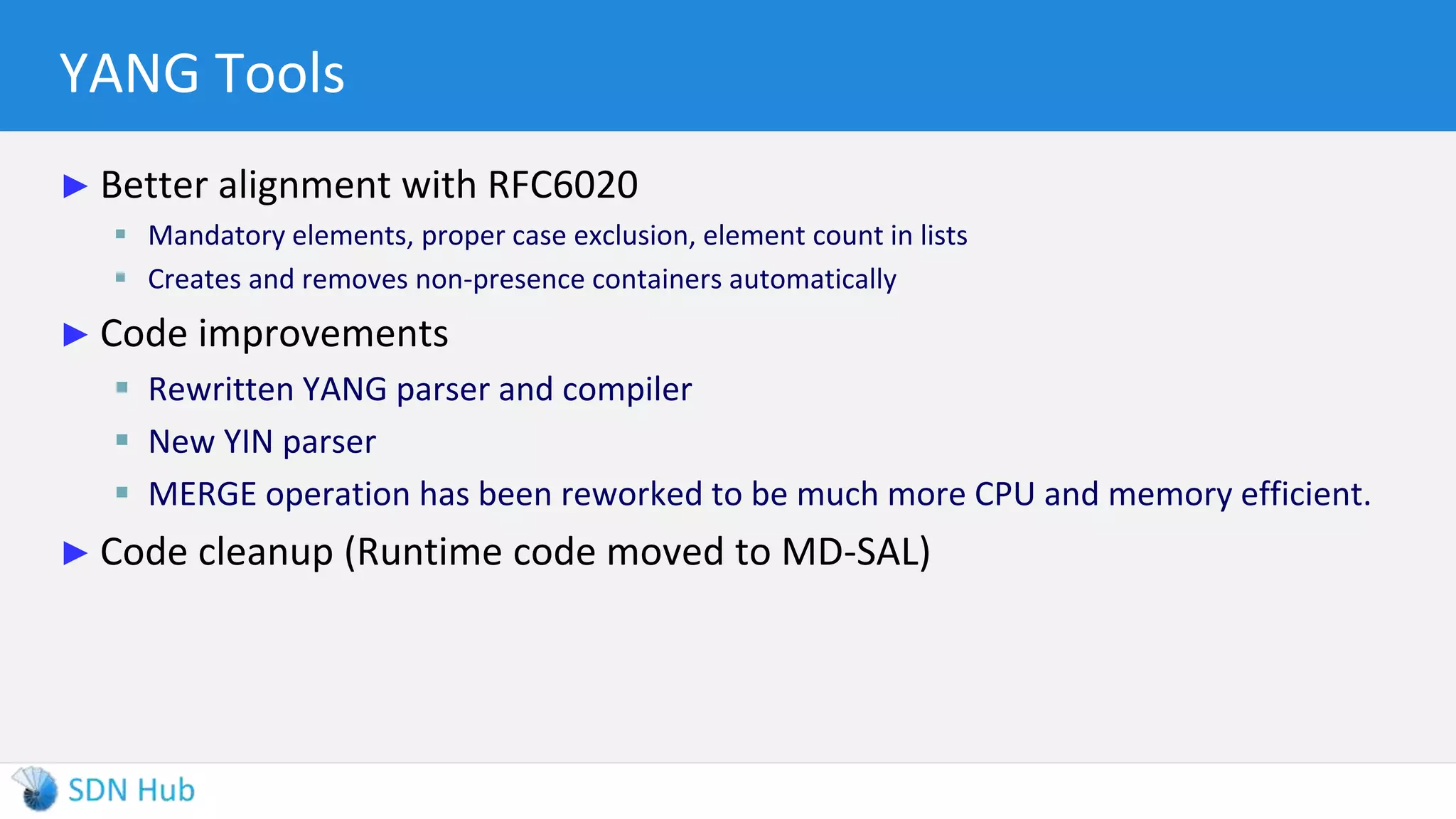

8. YANG Tools
► Better alignment with RFC6020
 Mandatory elements, proper case exclusion, element count in lists
 Creates and removes non-presence containers automatically
► Code improvements
 Rewritten YANG parser and compiler
 New YIN parser
 MERGE operation has been reworked to be much more CPU and memory efficient.
► Code cleanup (Runtime code moved to MD-SAL)

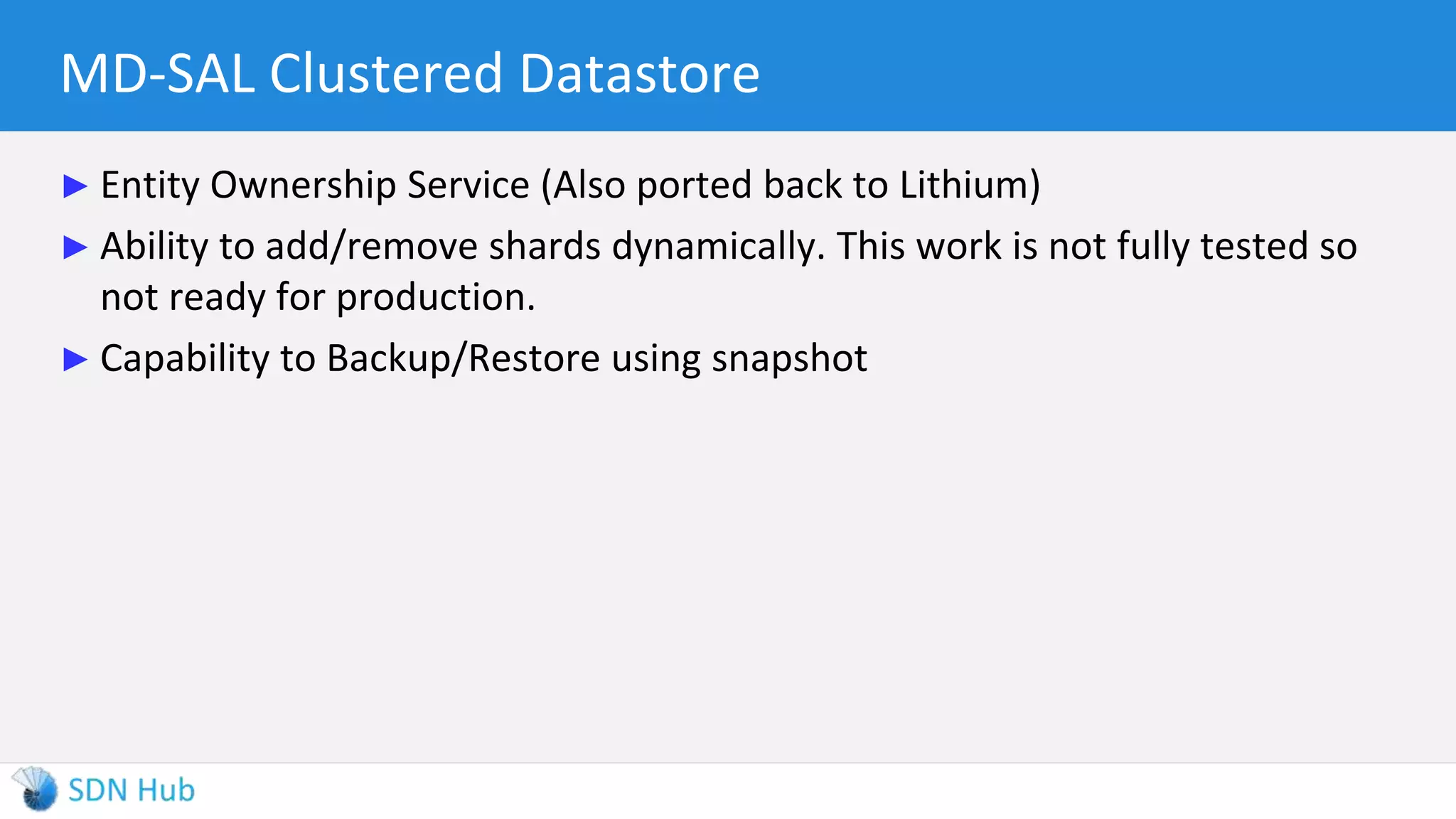

9. MD-SAL Clustered Datastore
► Entity Ownership Service (Also ported back to Lithium)
► Ability to add/remove shards dynamically. This work is not fully tested so
not ready for production.
► Capability to Backup/Restore using snapshot

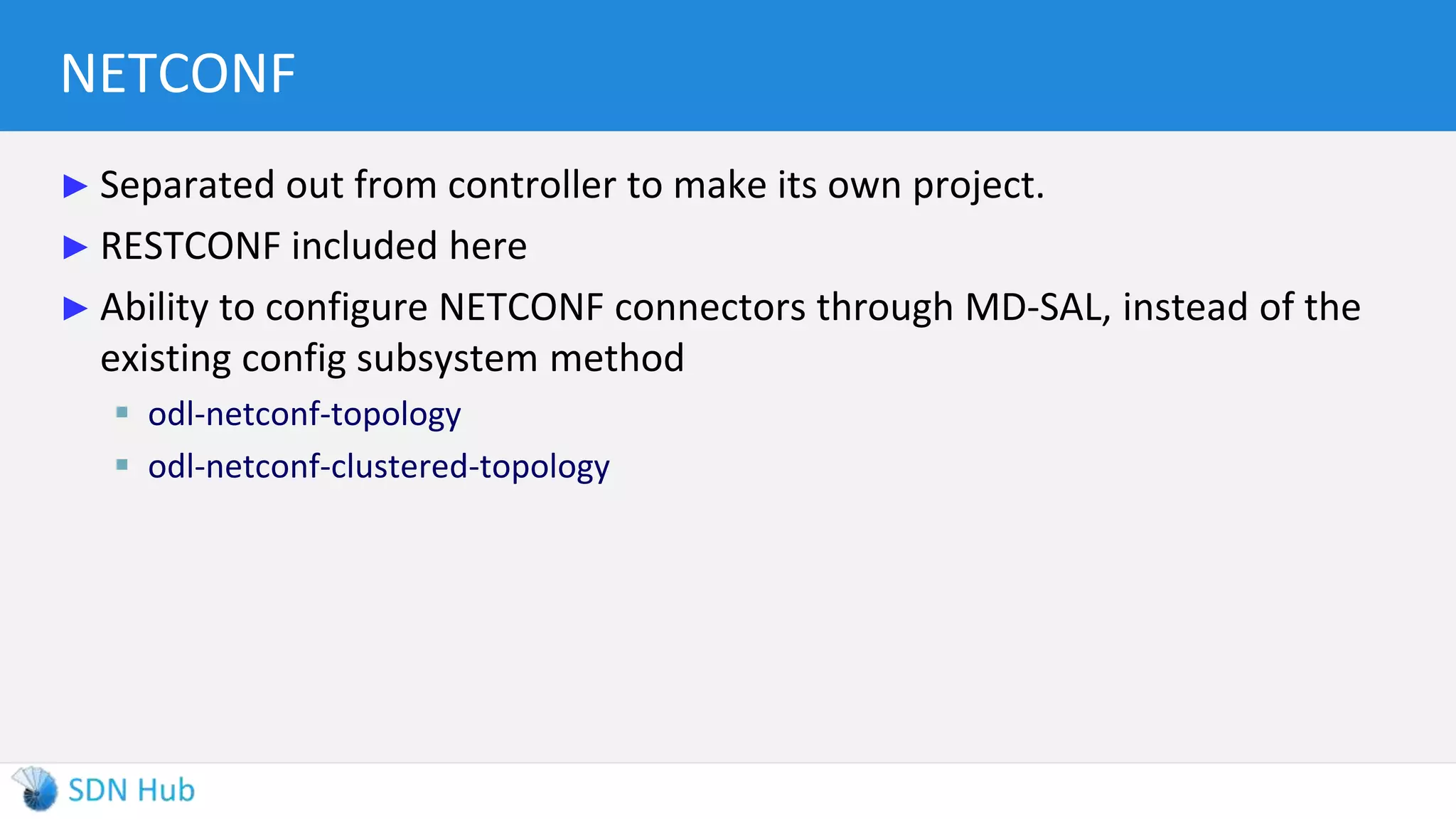

10. NETCONF
► Separated out from controller to make its own project.
► RESTCONF included here
► Ability to configure NETCONF connectors through MD-SAL, instead of the
existing config subsystem method
 odl-netconf-topology
 odl-netconf-clustered-topology

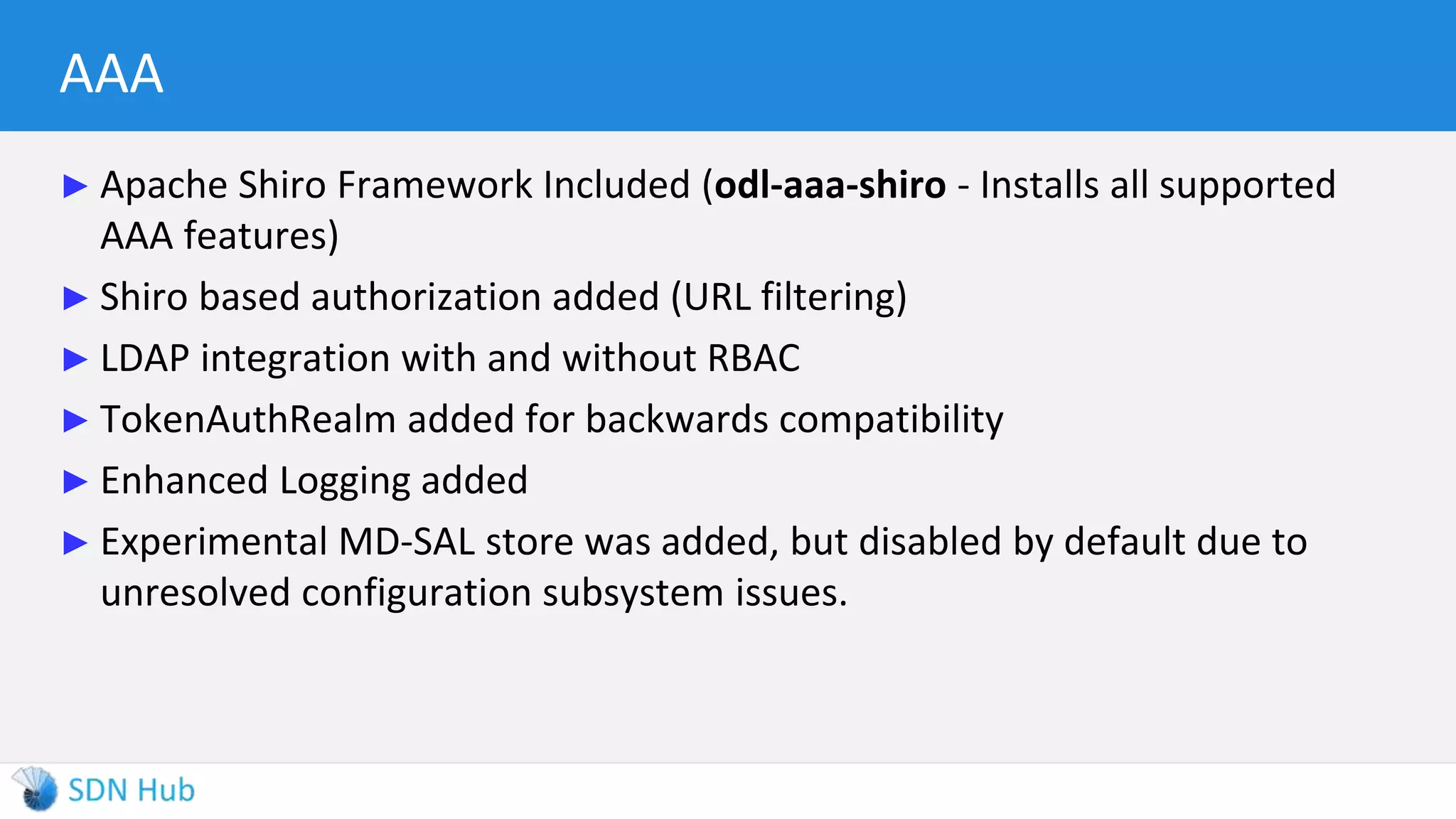

11. AAA
► Apache Shiro Framework Included (odl-aaa-shiro - Installs all supported
AAA features)
► Shiro based authorization added (URL filtering)
► LDAP integration with and without RBAC
► TokenAuthRealm added for backwards compatibility
► Enhanced Logging added
► Experimental MD-SAL store was added, but disabled by default due to
unresolved configuration subsystem issues.

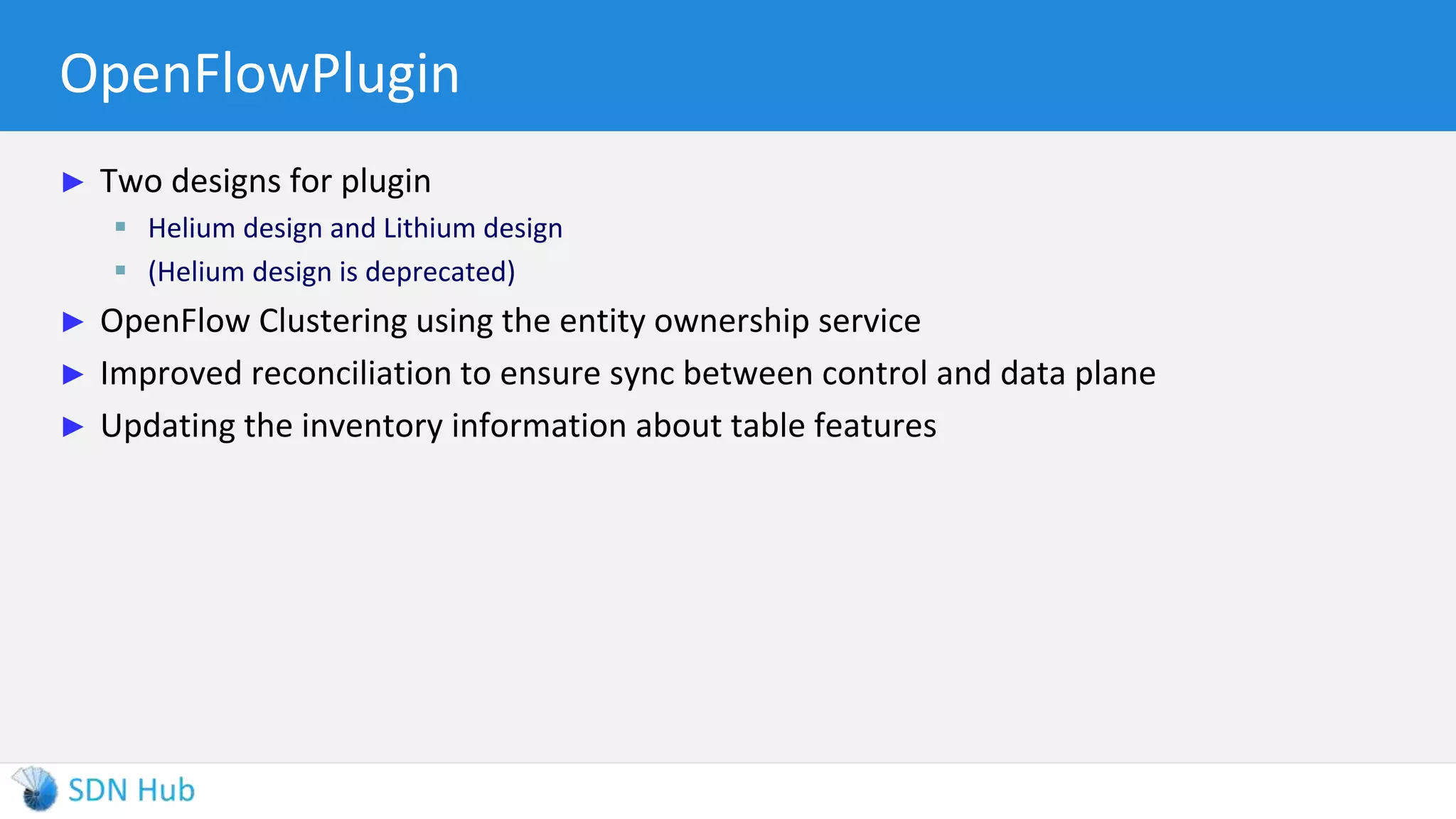

12. OpenFlowPlugin
► Two designs for plugin
 Helium design and Lithium design
 (Helium design is deprecated)
► OpenFlow Clustering using the entity ownership service
► Improved reconciliation to ensure sync between control and data plane
► Updating the inventory information about table features

13. OVSDB
► Increased code and testing coverage
► Improved network virtualization integration with OpenStack
 Netvirt updates for flow optimizations and config migration
 ODL SFC and OPNFV SFC integration, application pipeline coexistence
 Increased Neutron parity by adding Security Groups and Metadata support
 Enhanced L3 DVR functionality
► Southbound improvements
 Hardware VTEP support
 Open_vSwitch support for QoS and Queue
 DPDK enhancements
► Clustering/HA/Persistence support
► odl-ovsdb-ui

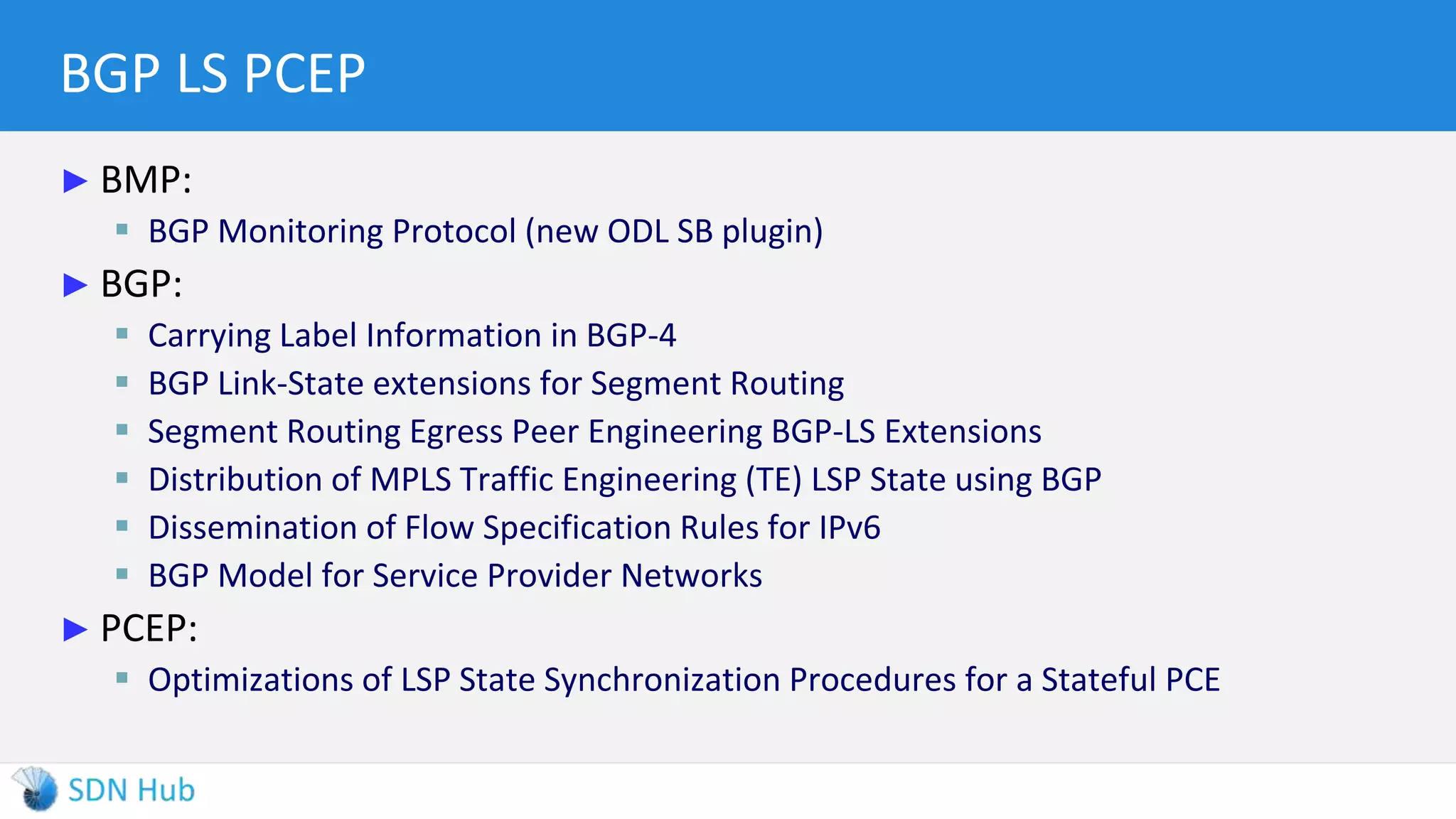

14. BGP LS PCEP
► BMP:
 BGP Monitoring Protocol (new ODL SB plugin)
► BGP:
 Carrying Label Information in BGP-4
 BGP Link-State extensions for Segment Routing
 Segment Routing Egress Peer Engineering BGP-LS Extensions
 Distribution of MPLS Traffic Engineering (TE) LSP State using BGP
 Dissemination of Flow Specification Rules for IPv6
 BGP Model for Service Provider Networks
► PCEP:
 Optimizations of LSP State Synchronization Procedures for a Stateful PCE
