Android kernel unit testing

1. Introduction of Unit Test
on Android Kernel
Jiahe Jou, 2012/11/22

2. Revisions
DATE AUTHOR DESCRIPTION
2012/11/13 Jiahe Jou Draft.

3. Outlines
● OMAP DDT Overview
● Compile and Installation
● Pre-requirement
● Run Test
● Automation Tool
● Customization
● Utilities

4. OMAP DDT Overview
● OMAP DDT(Device Driver Test)
○ Device driver testing framework for OMAP Linux kernel
○ Part of Linux OMAP Project
● Repository location
○ Old: git://dev.omapzoom.org/pub/scm/richo/device_driver_test.git
○ New: git://gitorious.org/omap-ddt/omap-ddt.git
● Current branches
○ master
○ ddt-2.6.35
○ ddt-2.6.39
○ ddt-3.0

5. OMAP DDT Overview

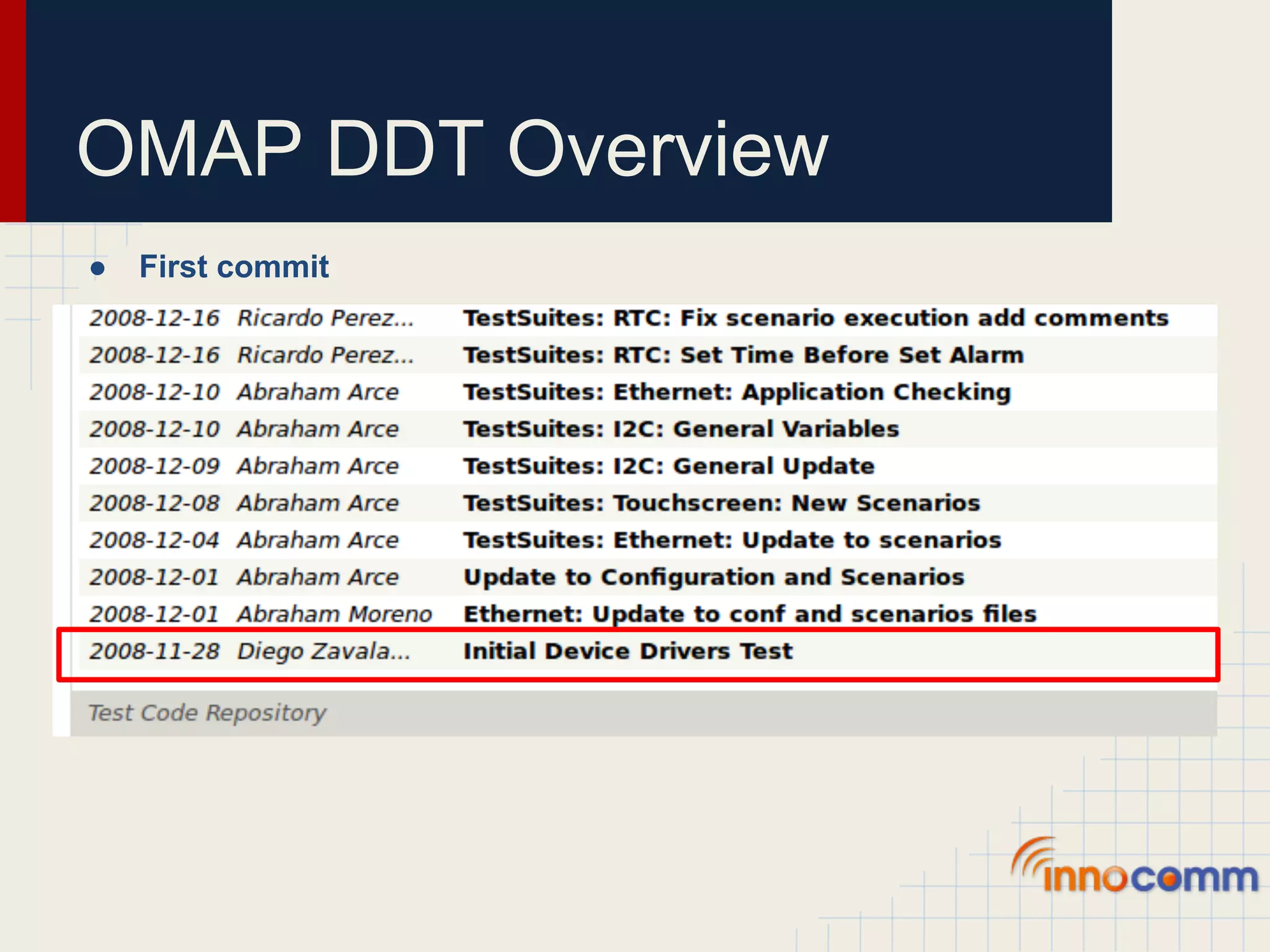

● First commit

6. OMAP DDT Overview

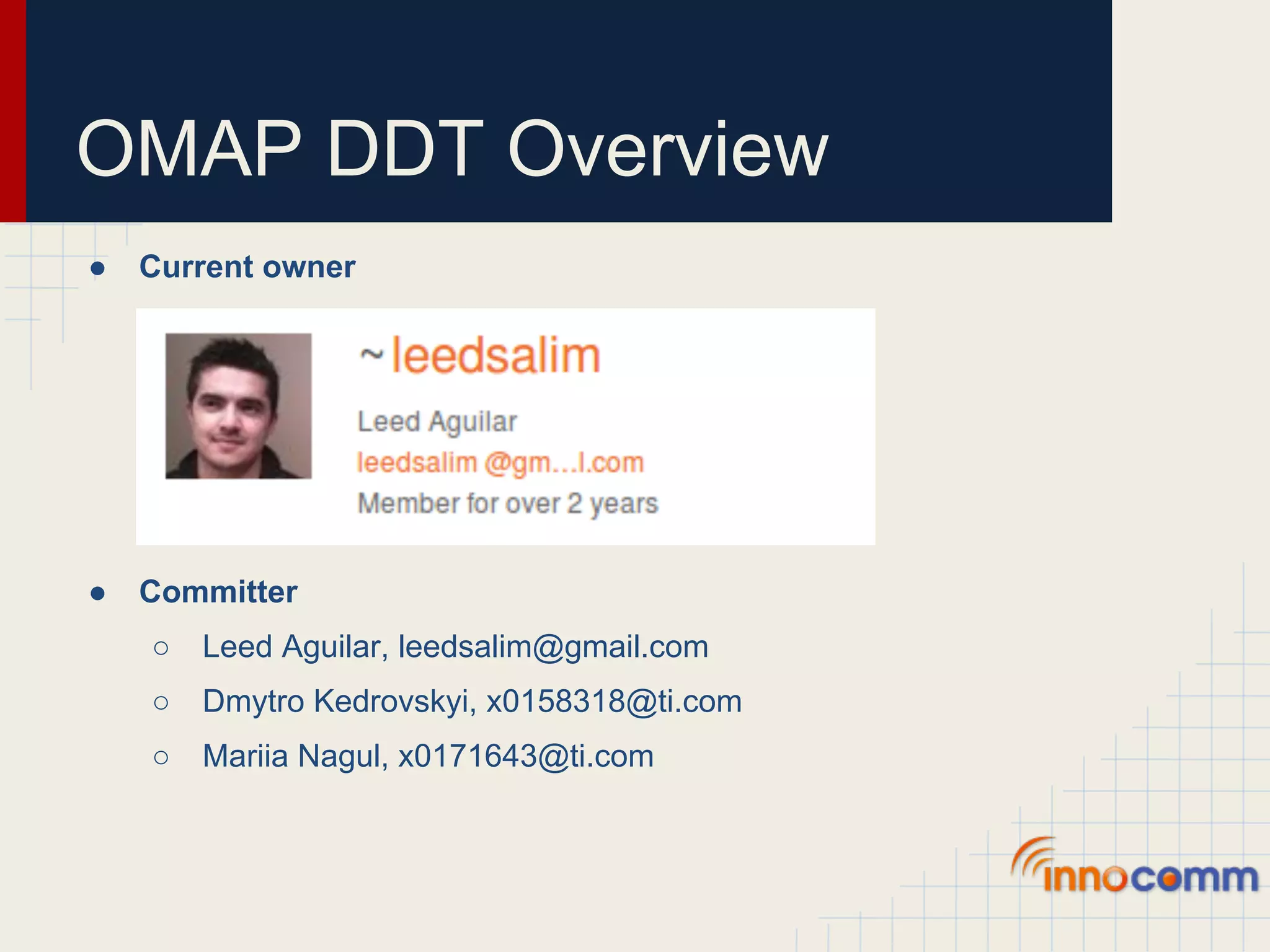

● Current owner
● Committer
○ Leed Aguilar, leedsalim@gmail.com
○ Dmytro Kedrovskyi, x0158318@ti.com
○ Mariia Nagul, x0171643@ti.com

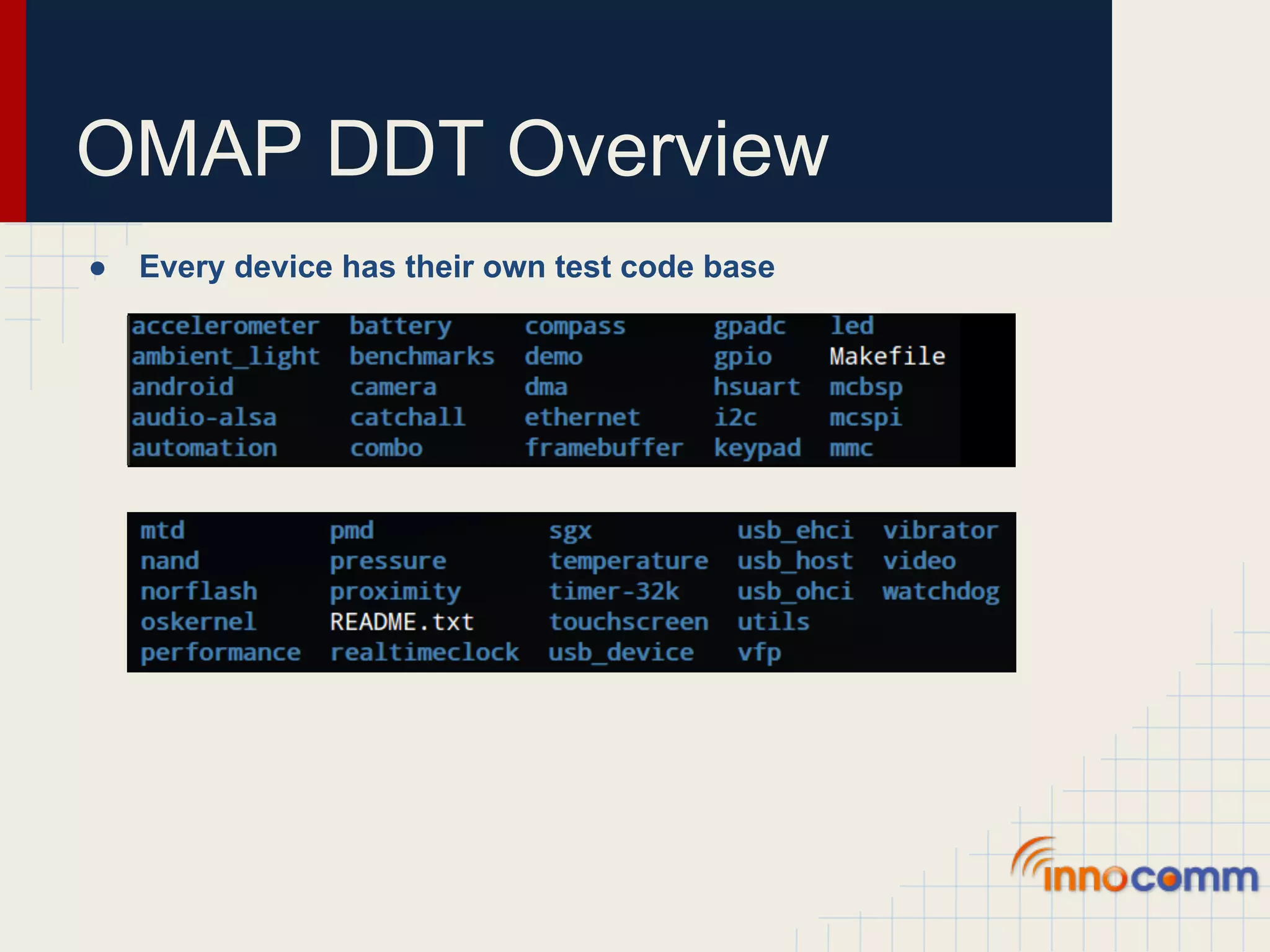

7. OMAP DDT Overview
● Every device has their own test code base

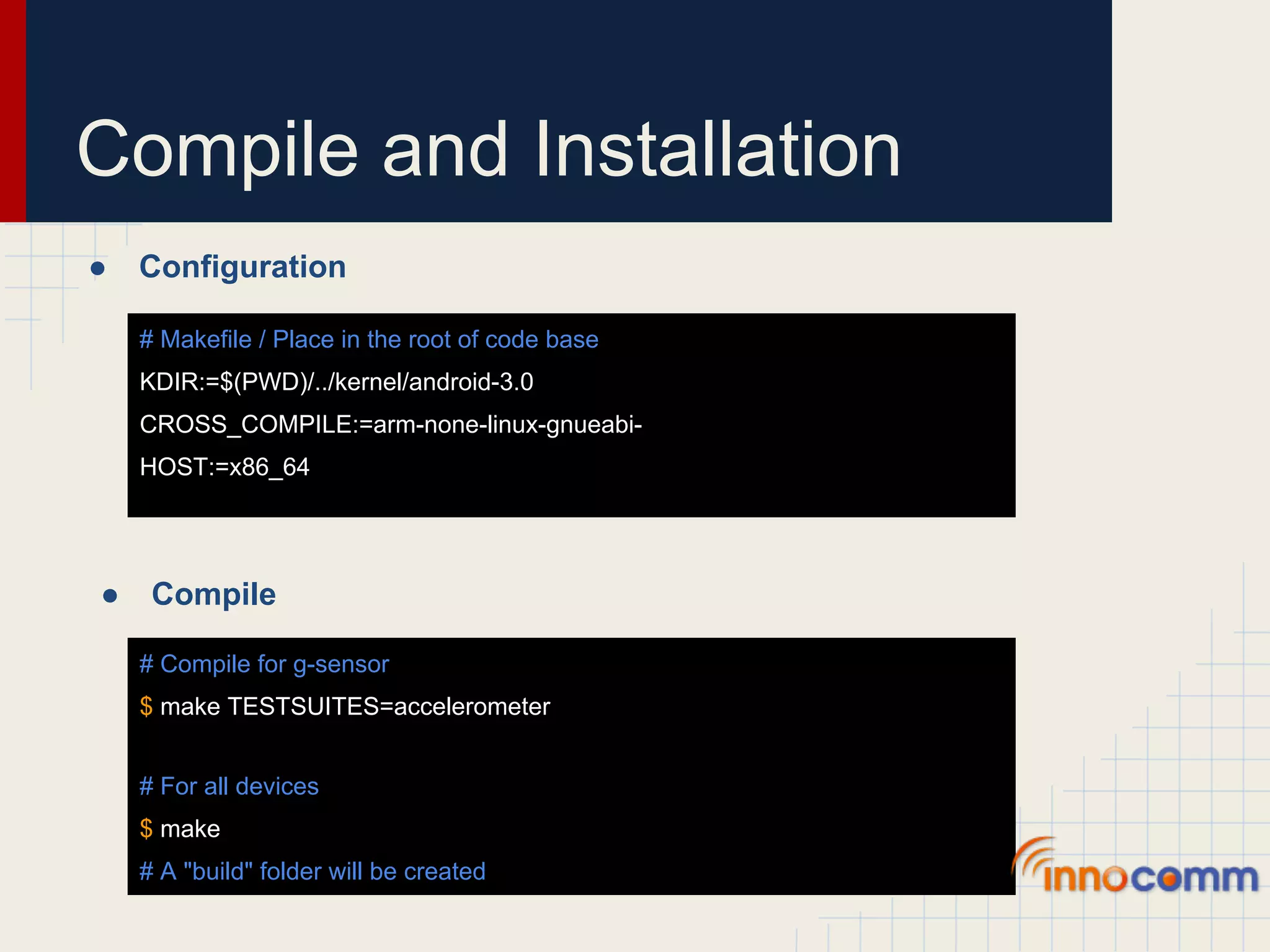

8. Compile and Installation
● Configuration
# Makefile / Place in the root of code base
KDIR:=$(PWD)/../kernel/android-3.0
CROSS_COMPILE:=arm-none-linux-gnueabi-
HOST:=x86_64
● Compile
# Compile for g-sensor
$ make TESTSUITES=accelerometer
# For all devices
$ make
# A "build" folder will be created

9. Compile and Installation

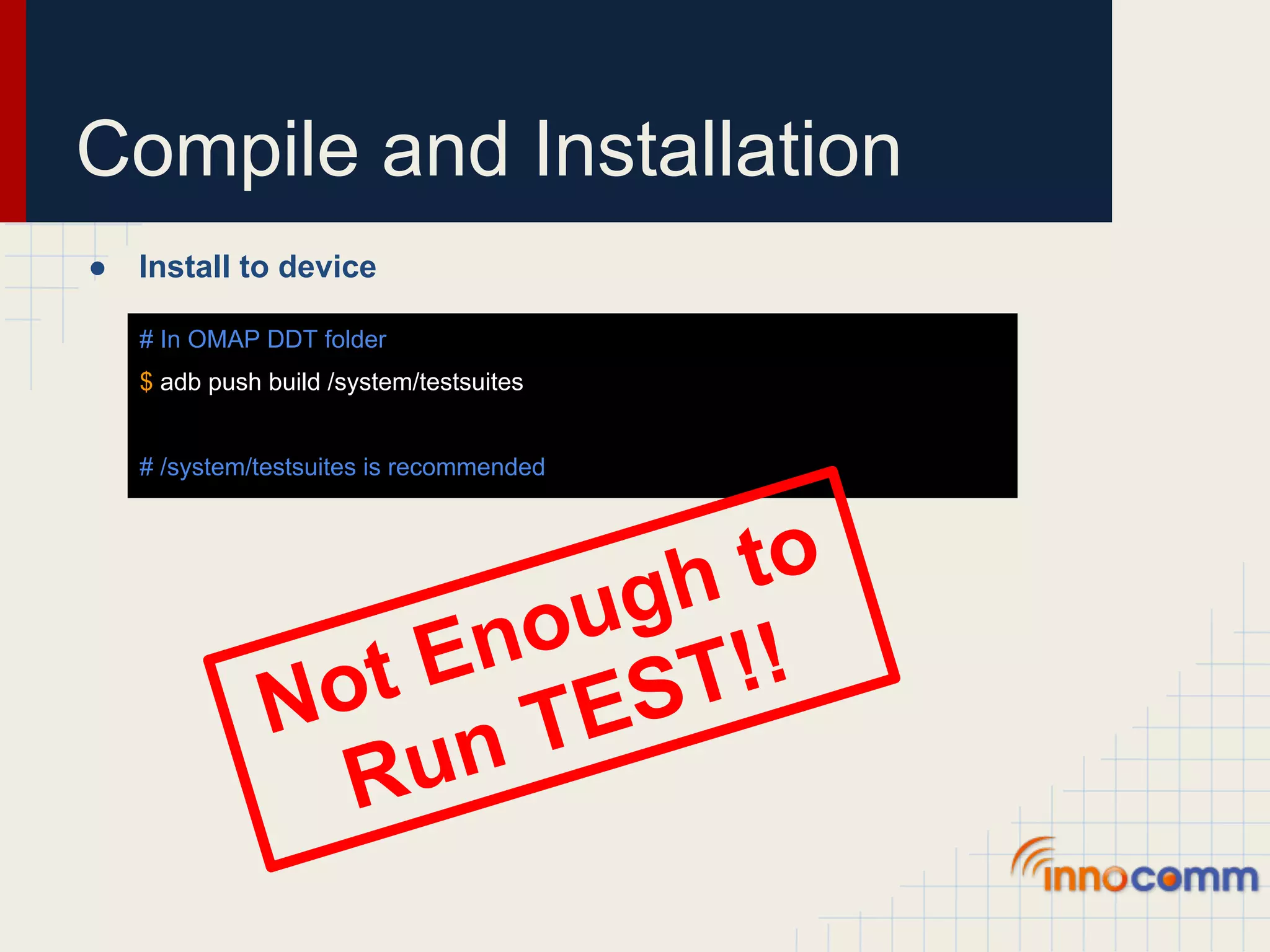

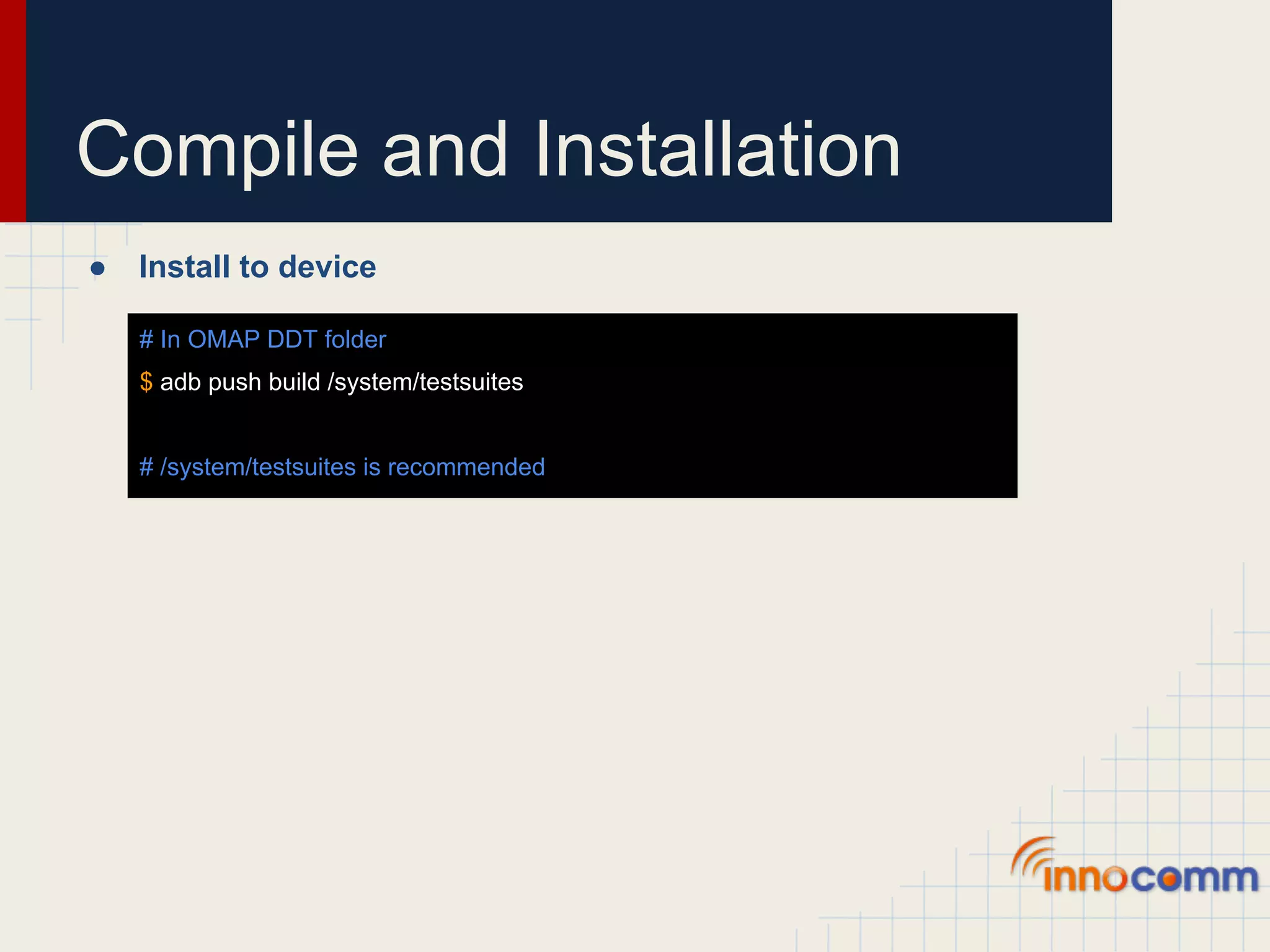

● Install to device
# In OMAP DDT folder
$ adb push build /system/testsuites
# /system/testsuites is recommended

10. Compile and Installation
● Install to device
# In OMAP DDT folder
$ adb push build /system/testsuites
# /system/testsuites is recommended
gh to
ou !!
En ST
Not TE
R un

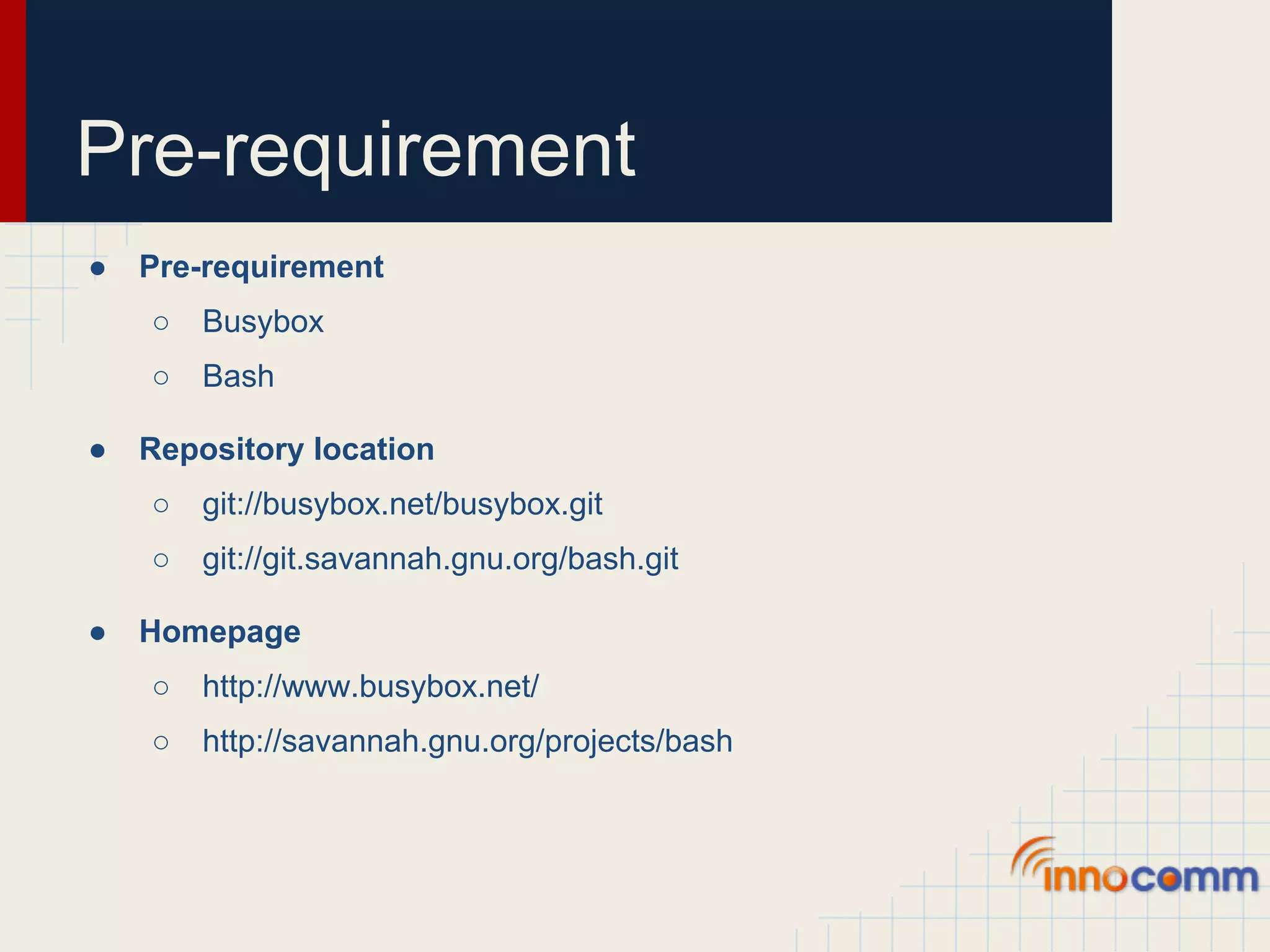

11. Pre-requirement
● Pre-requirement
○ Busybox
○ Bash
● Repository location
○ git://busybox.net/busybox.git
○ git://git.savannah.gnu.org/bash.git
● Homepage
○ http://www.busybox.net/
○ http://savannah.gnu.org/projects/bash

12. Pre-requirement

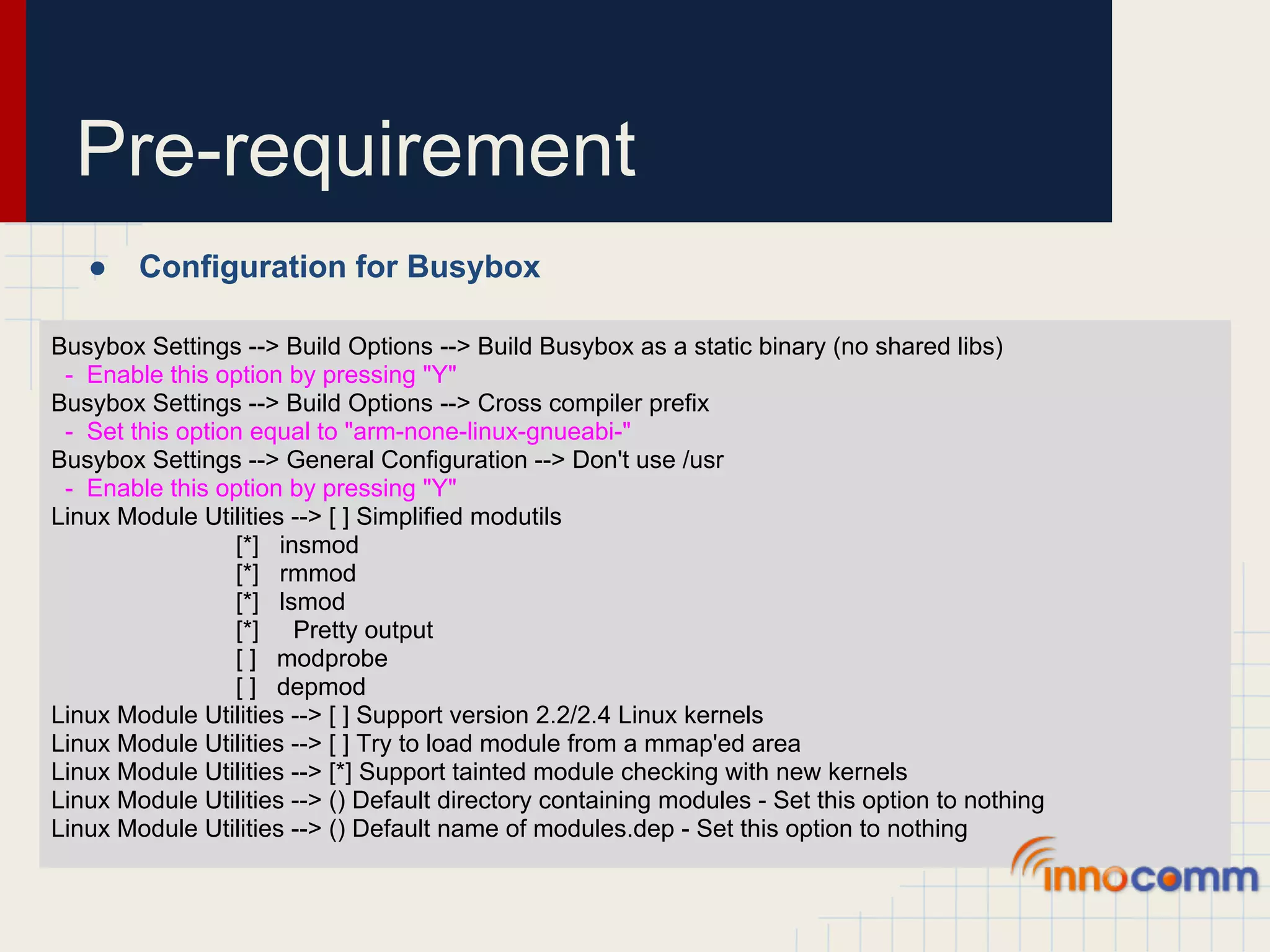

● Configuration for Busybox
Busybox Settings --> Build Options --> Build Busybox as a static binary (no shared libs)
- Enable this option by pressing "Y"
Busybox Settings --> Build Options --> Cross compiler prefix
- Set this option equal to "arm-none-linux-gnueabi-"
Busybox Settings --> General Configuration --> Don't use /usr
- Enable this option by pressing "Y"
Linux Module Utilities --> [ ] Simplified modutils
[*] insmod
[*] rmmod
[*] lsmod
[*] Pretty output
[ ] modprobe
[ ] depmod
Linux Module Utilities --> [ ] Support version 2.2/2.4 Linux kernels
Linux Module Utilities --> [ ] Try to load module from a mmap'ed area
Linux Module Utilities --> [*] Support tainted module checking with new kernels
Linux Module Utilities --> () Default directory containing modules - Set this option to nothing
Linux Module Utilities --> () Default name of modules.dep - Set this option to nothing

13. Pre-requirement

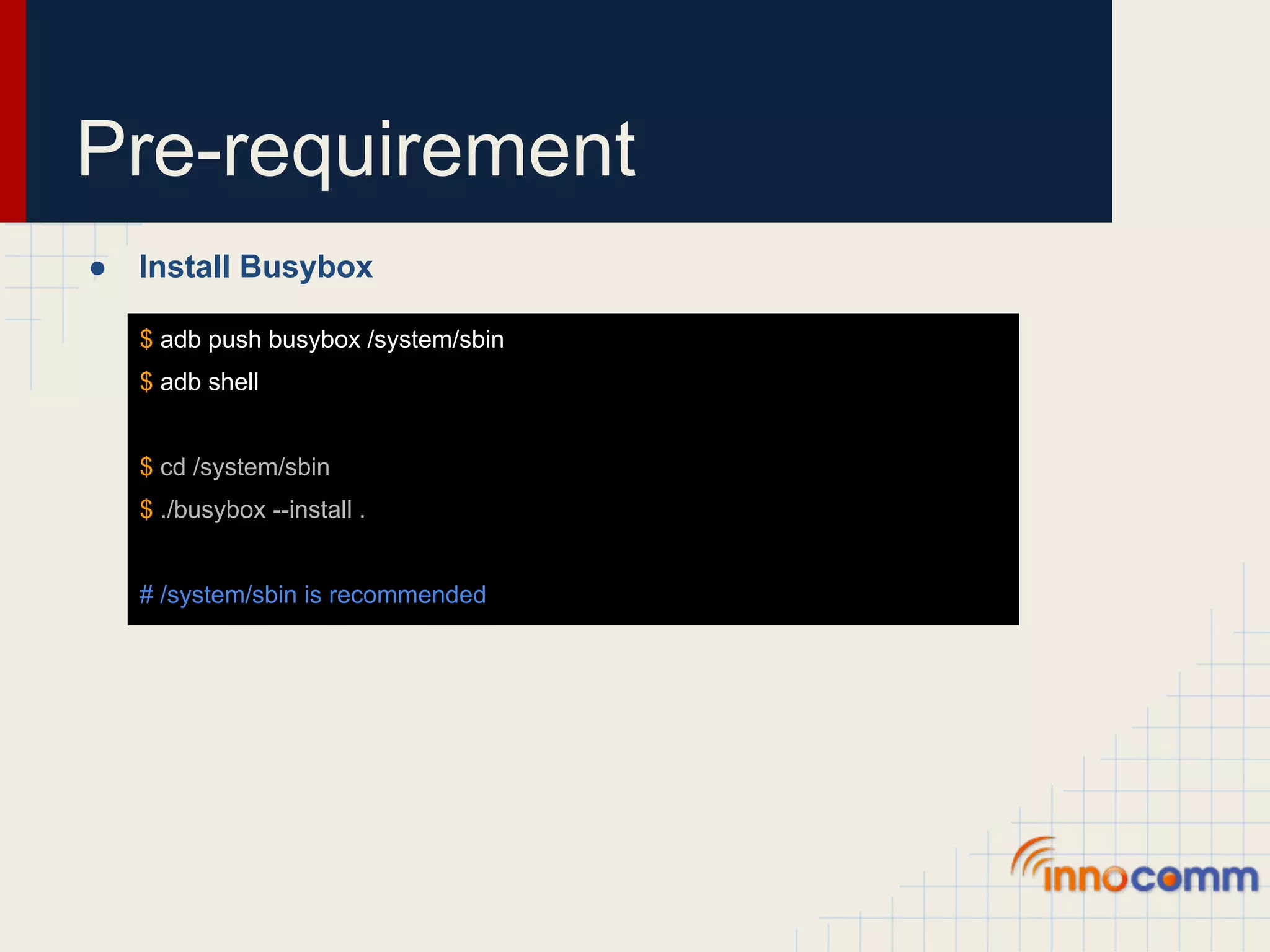

● Install Busybox
$ adb push busybox /system/sbin
$ adb shell
$ cd /system/sbin
$ ./busybox --install .
# /system/sbin is recommended

14. Pre-requirement
● Install Busybox
$ adb push busybox /system/sbin
$ adb shell
$ cd /system/sbin
$ ./busybox --install .
# /system/sbin is recommended
Don't forget the DOT

15. Pre-requirement

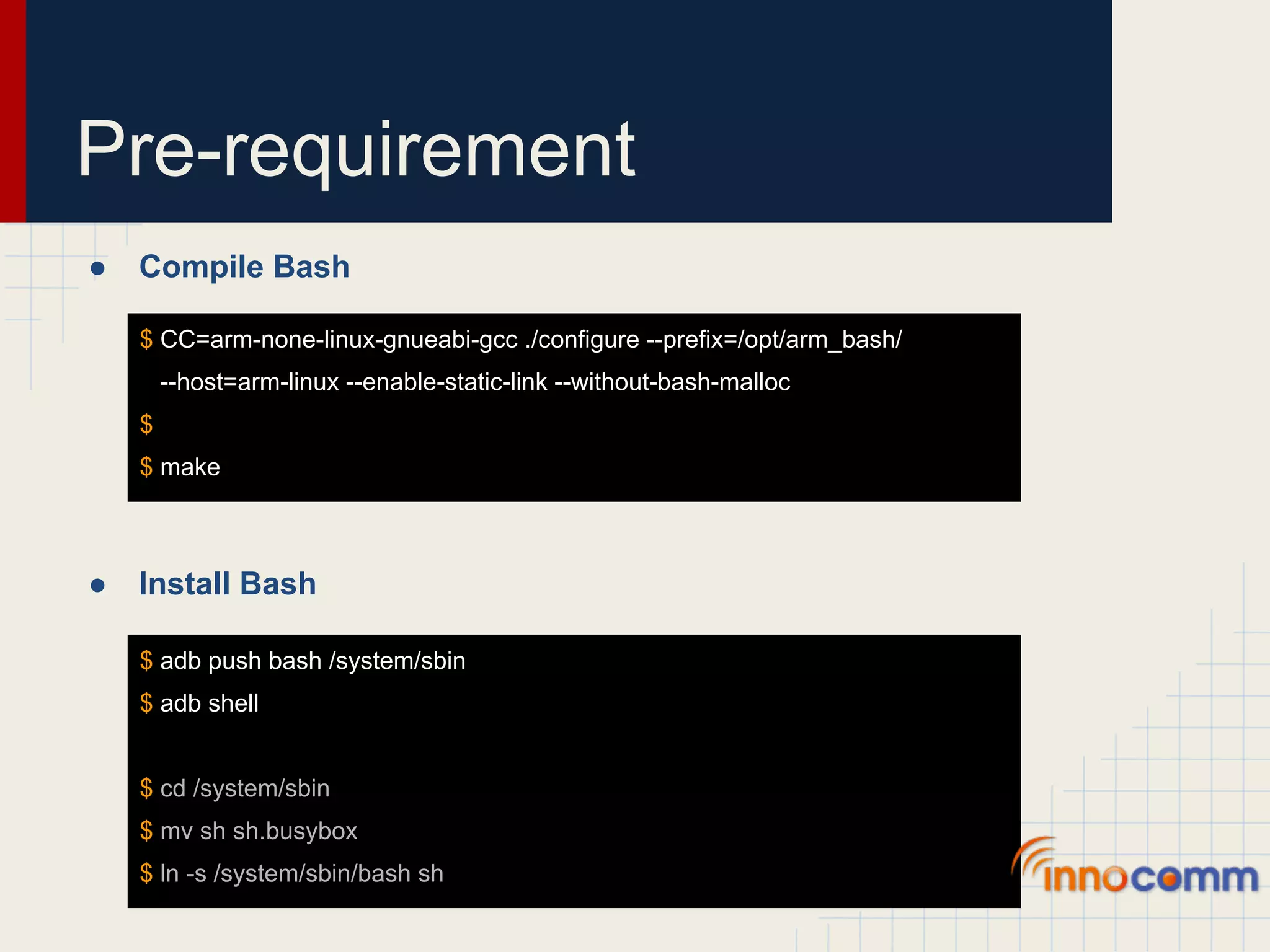

● Compile Bash
$ CC=arm-none-linux-gnueabi-gcc ./configure --prefix=/opt/arm_bash/
--host=arm-linux --enable-static-link --without-bash-malloc
$
$ make
● Install Bash
$ adb push bash /system/sbin
$ adb shell
$ cd /system/sbin
$ mv sh sh.busybox
$ ln -s /system/sbin/bash sh

16. Run Test

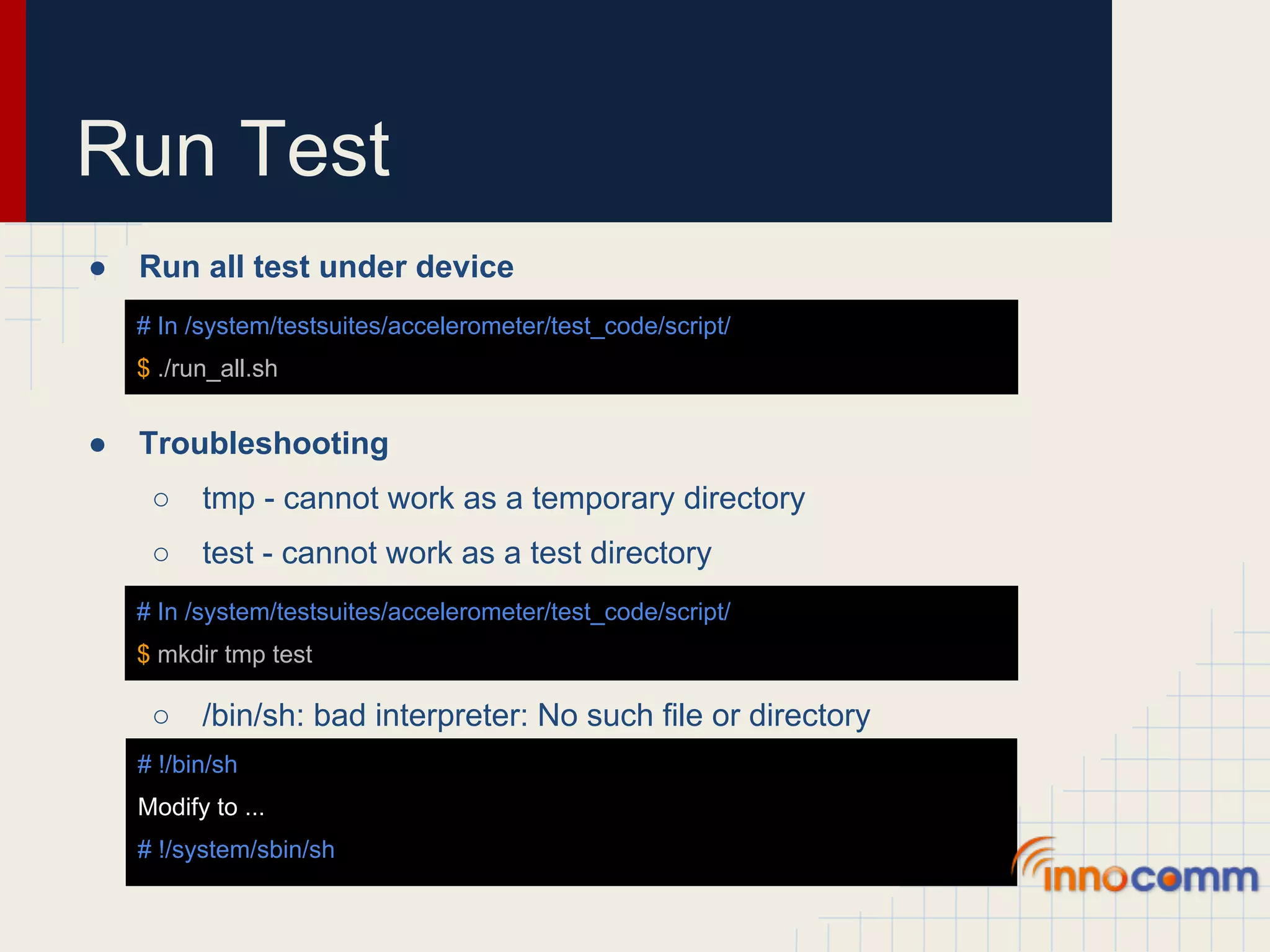

● Run all test under device
# In /system/testsuites/accelerometer/test_code/script/
$ ./run_all.sh
● Troubleshooting
○ tmp - cannot work as a temporary directory
○ test - cannot work as a test directory
# In /system/testsuites/accelerometer/test_code/script/
$ mkdir tmp test
○ /bin/sh: bad interpreter: No such file or directory
# !/bin/sh
Modify to ...
# !/system/sbin/sh

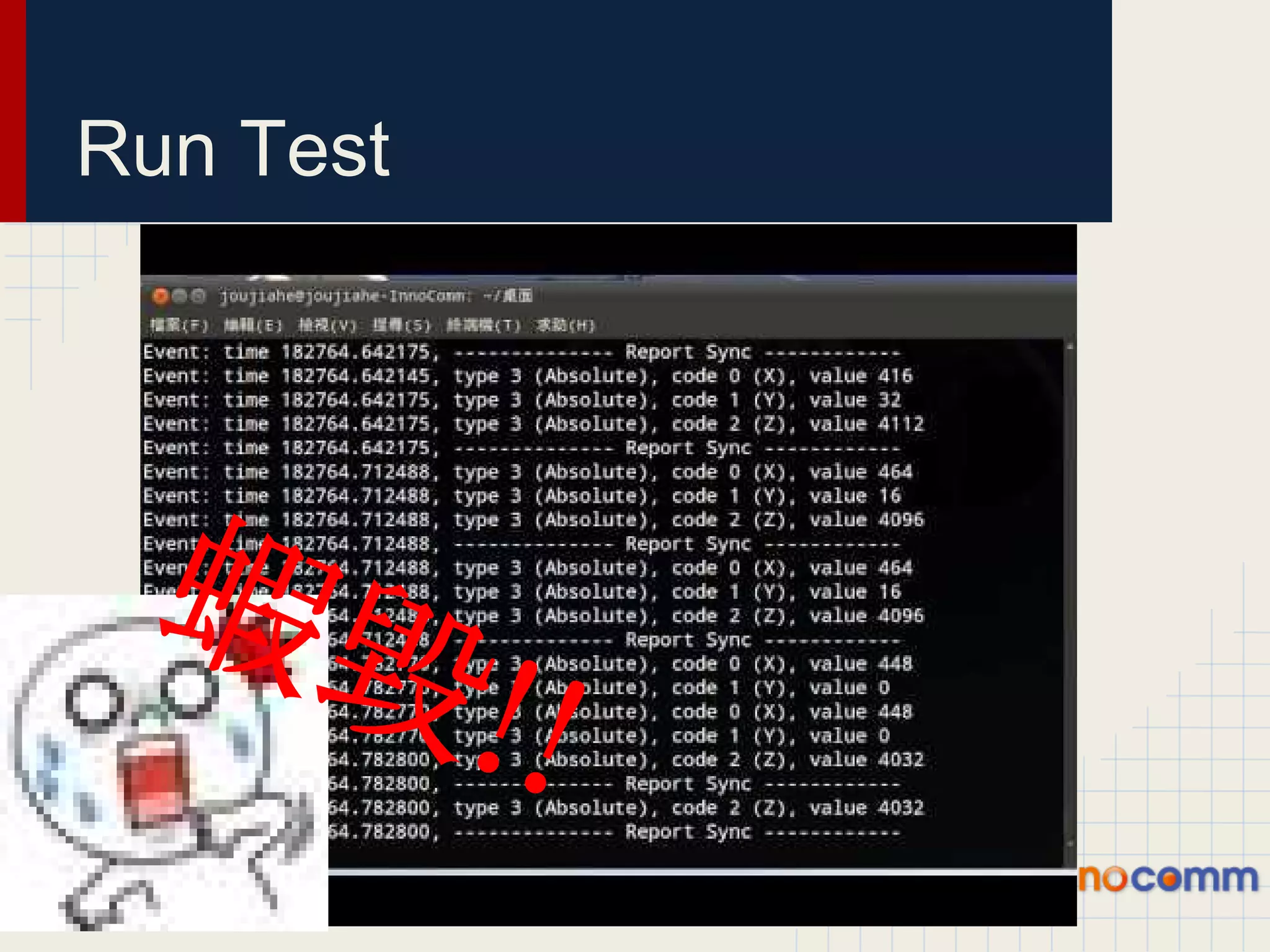

17. Run Test

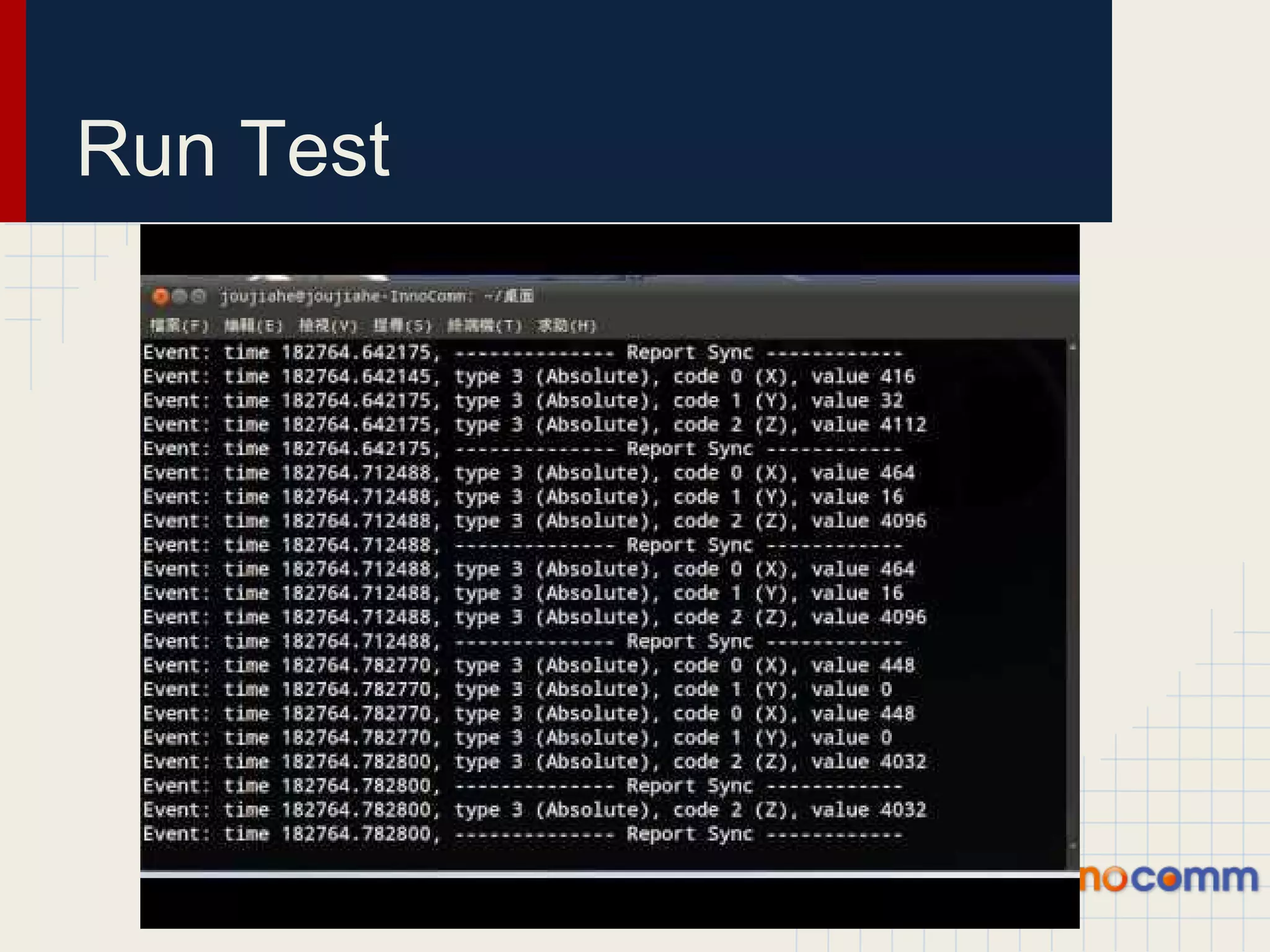

18. Run Test
蝦毀
!!

19. Automation Tool

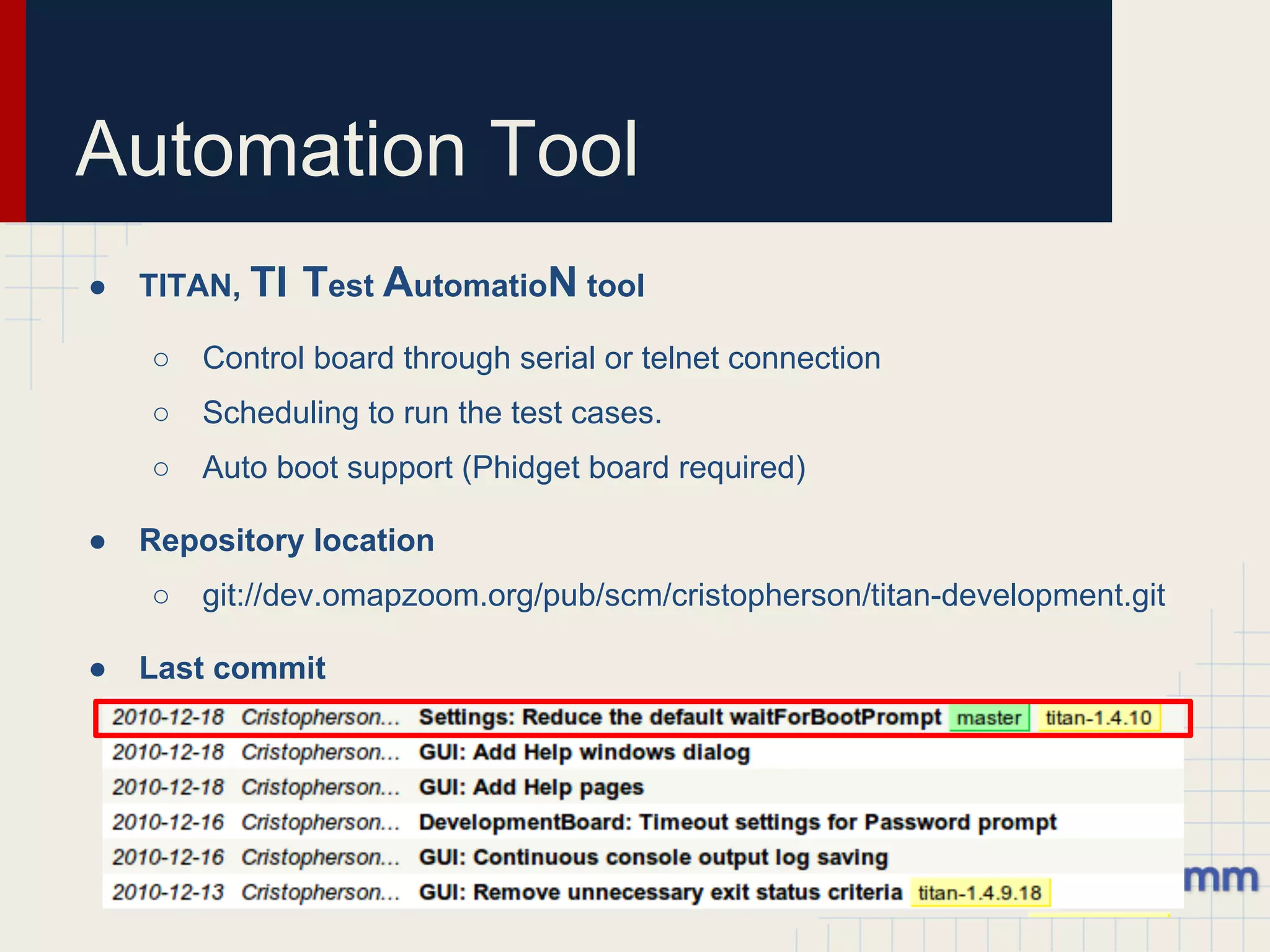

● TITAN, TI Test AutomatioN tool
○ Control board through serial or telnet connection
○ Scheduling to run the test cases.
○ Auto boot support (Phidget board required)
● Repository location
○ git://dev.omapzoom.org/pub/scm/cristopherson/titan-development.git
● Last commit

20. Automation Tool

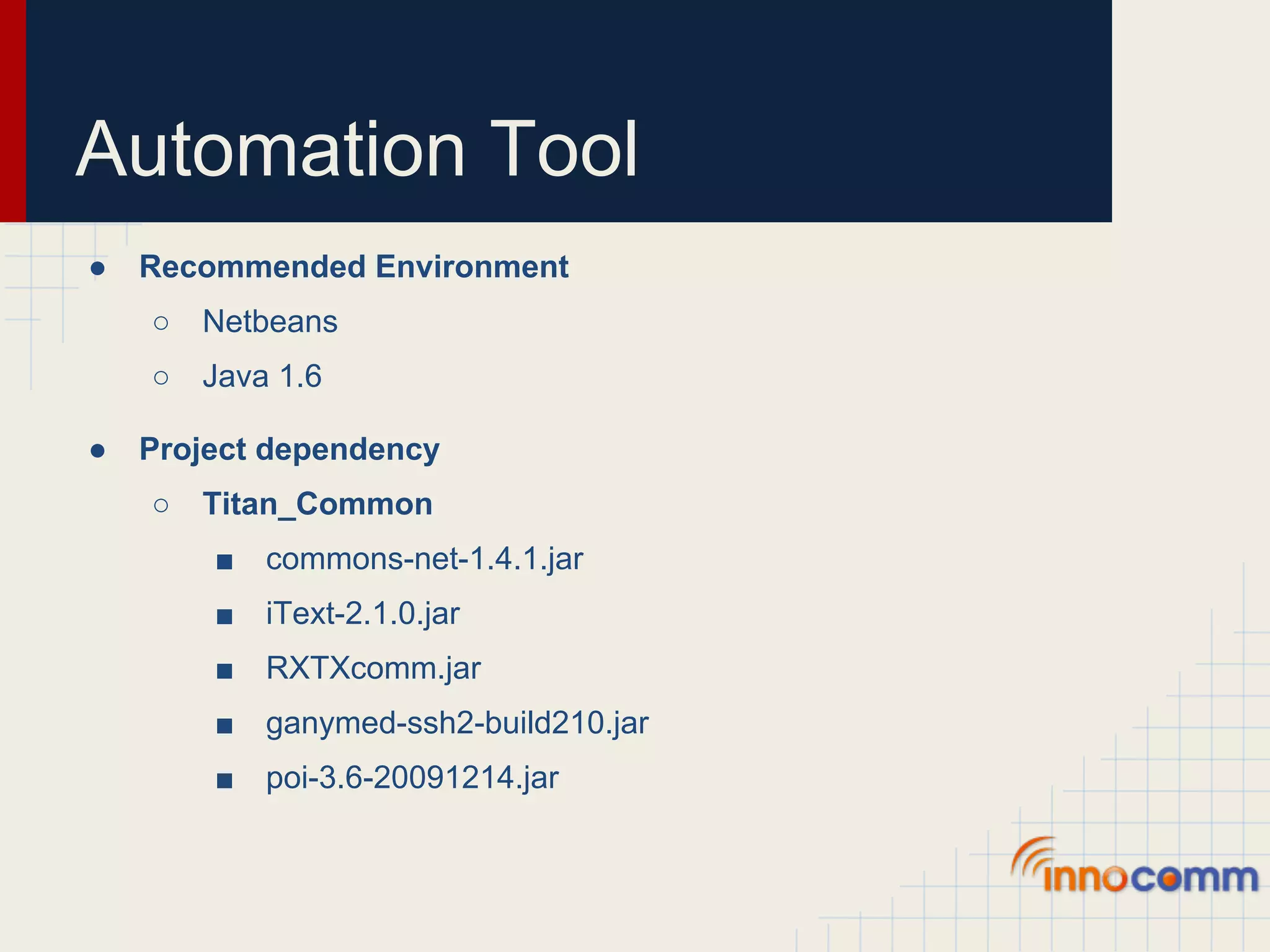

● Recommended Environment
○ Netbeans
○ Java 1.6
● Project dependency
○ Titan_Common
■ commons-net-1.4.1.jar
■ iText-2.1.0.jar
■ RXTXcomm.jar
■ ganymed-ssh2-build210.jar
■ poi-3.6-20091214.jar

21. Automation Tool

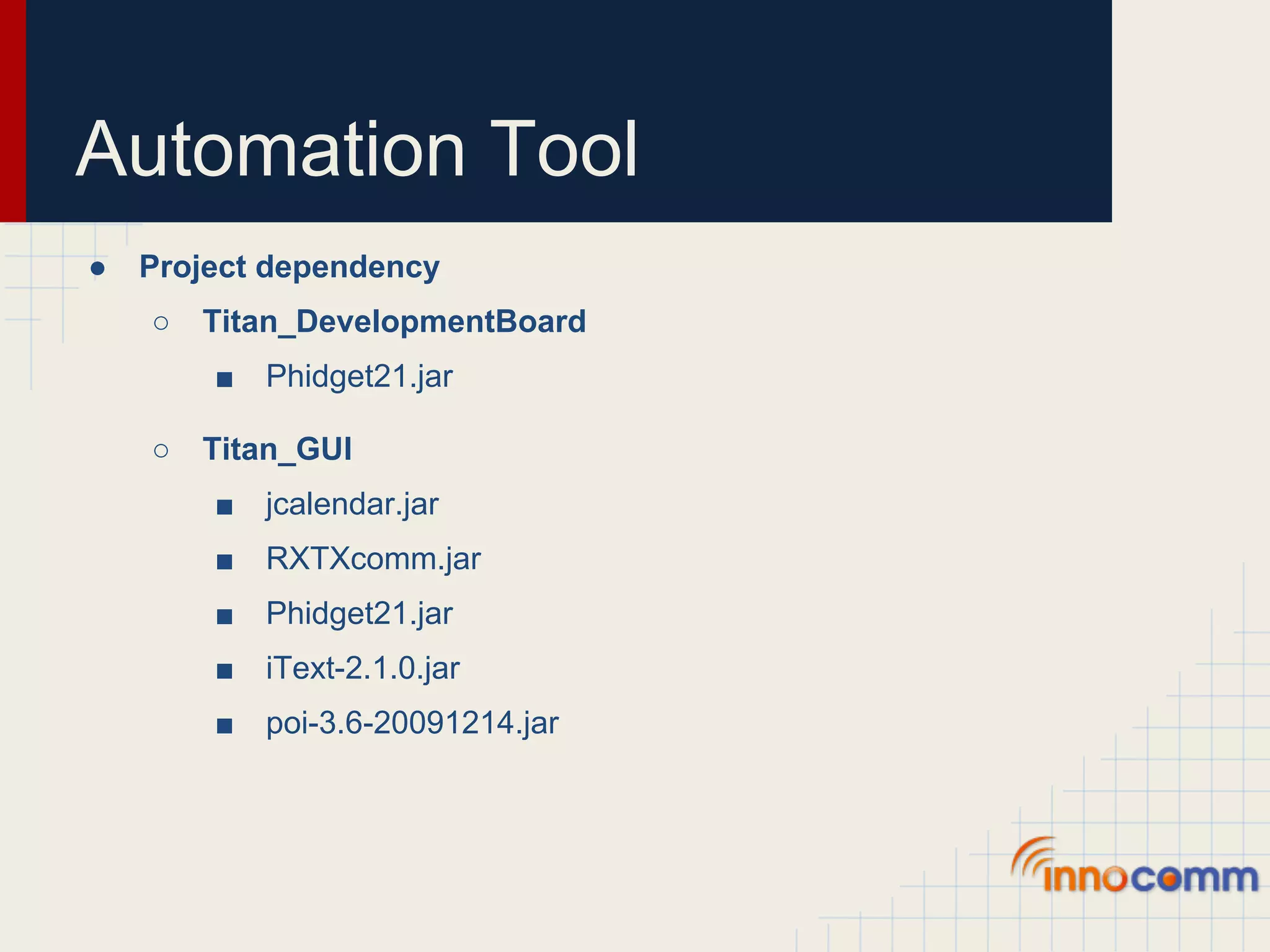

● Project dependency
○ Titan_DevelopmentBoard
■ Phidget21.jar
○ Titan_GUI
■ jcalendar.jar
■ RXTXcomm.jar
■ Phidget21.jar
■ iText-2.1.0.jar
■ poi-3.6-20091214.jar

22. Automation Tool
● Screenshot

23. Automation Tool

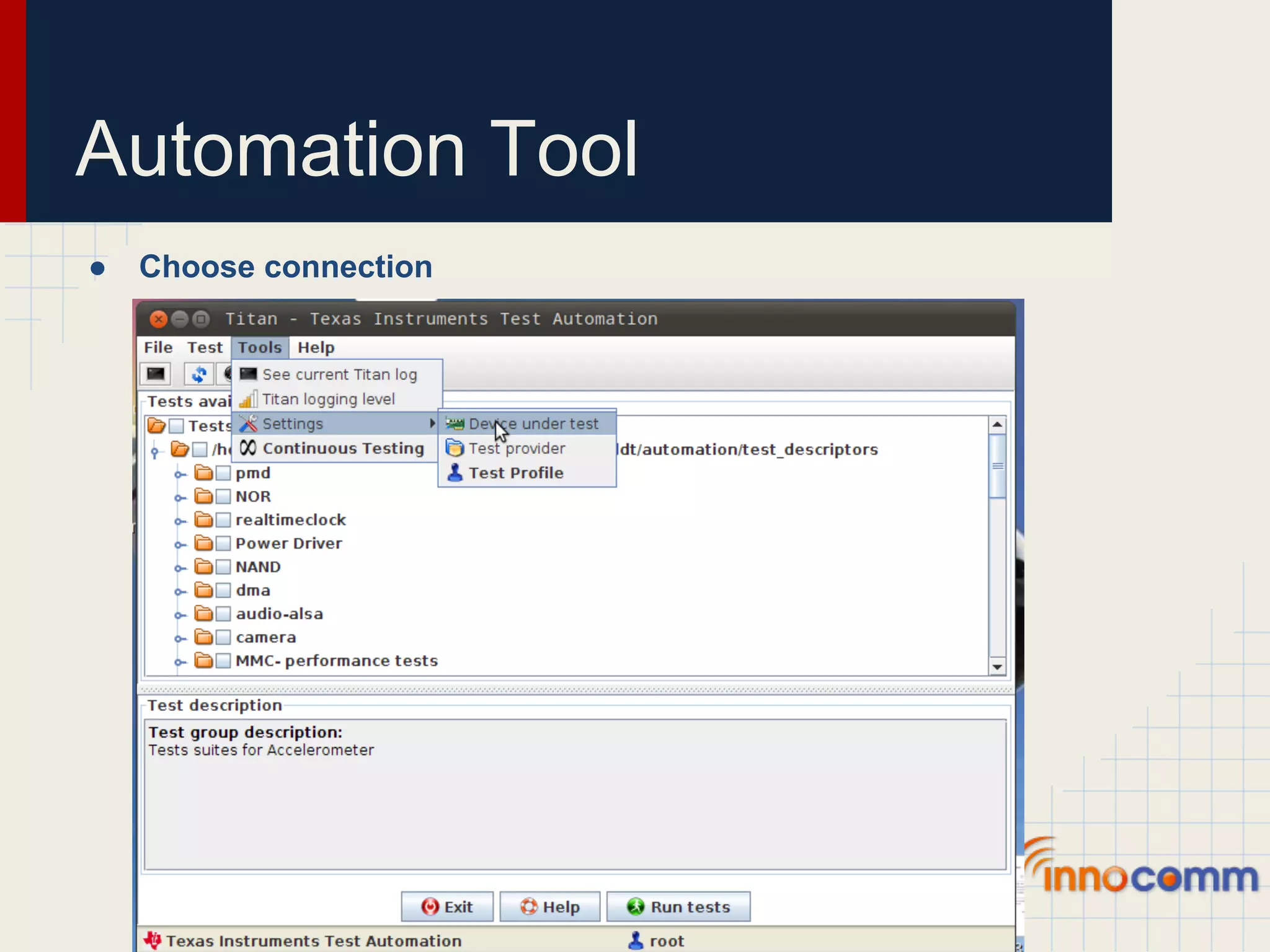

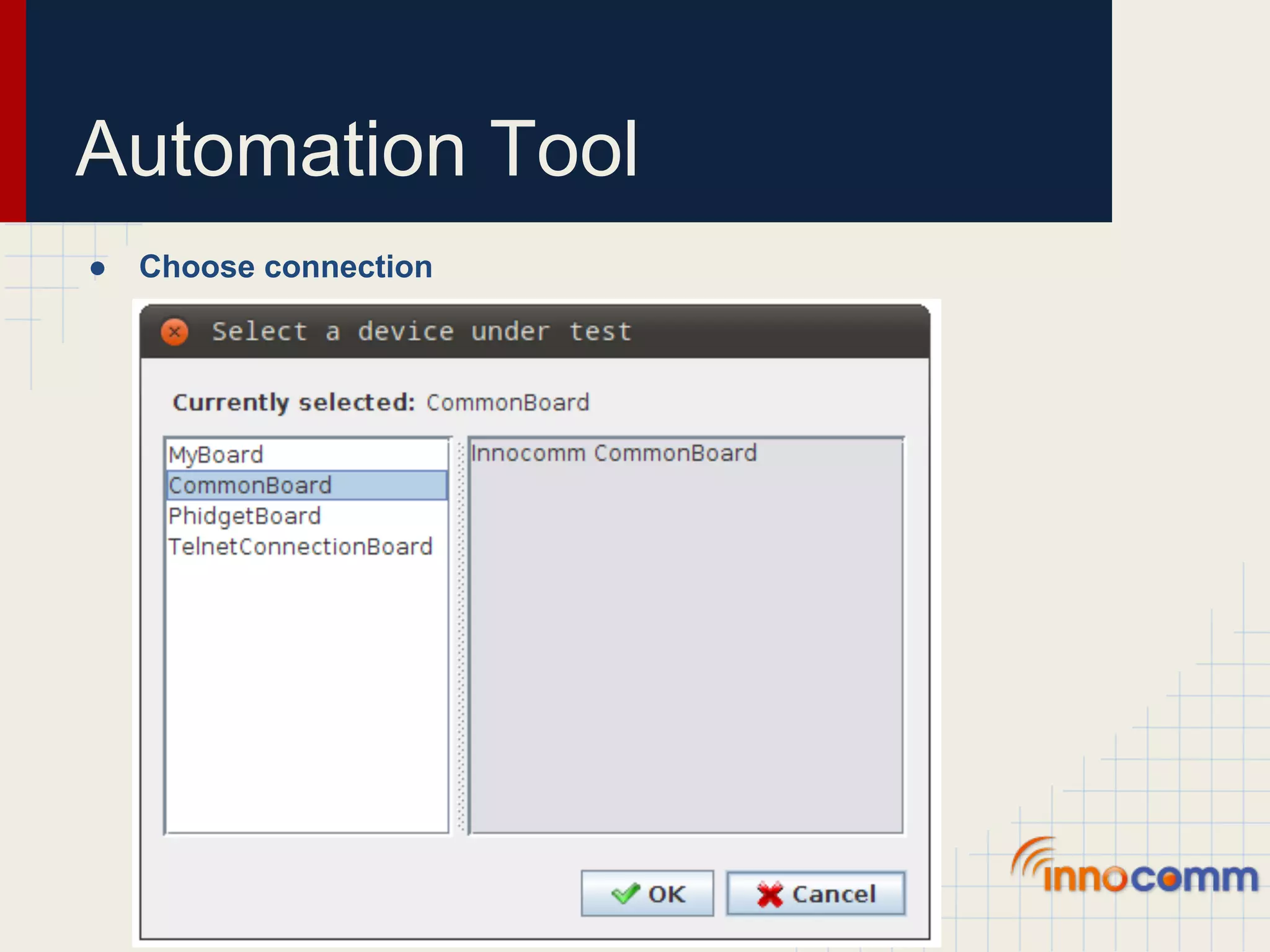

● Choose connection

24. Automation Tool
● Choose connection

25. Automation Tool

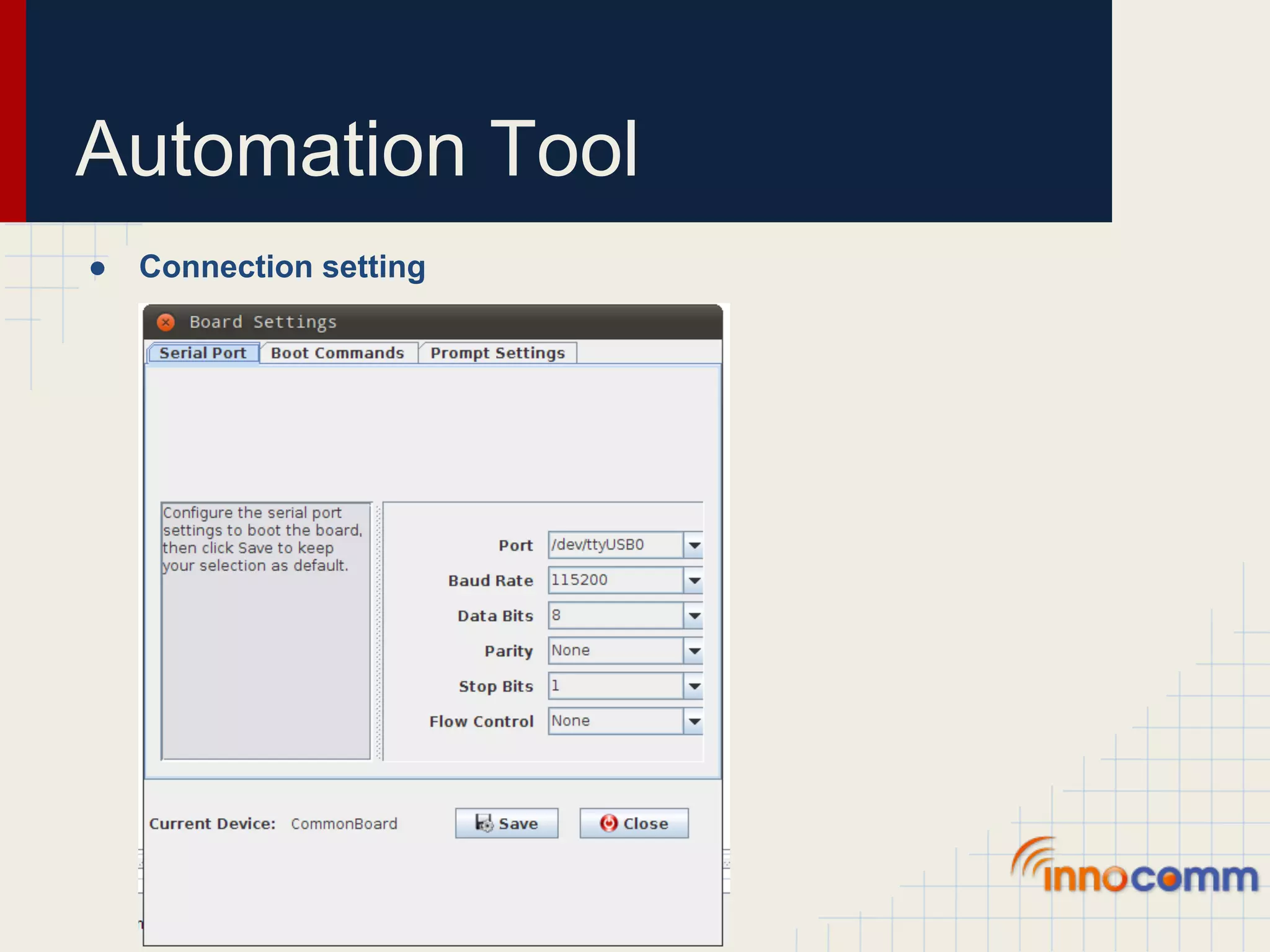

● Connection setting

26. Automation Tool

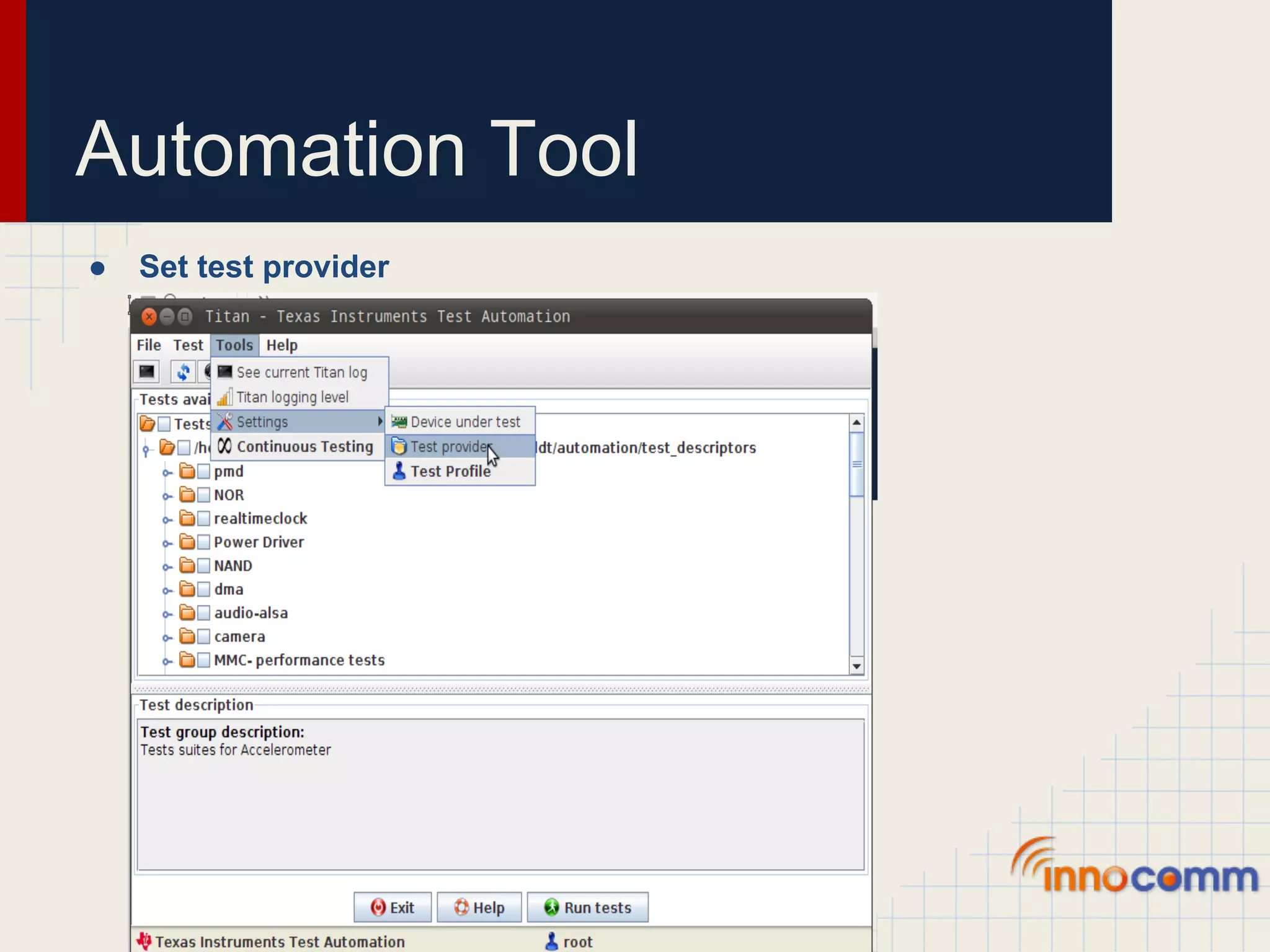

● Set test provider

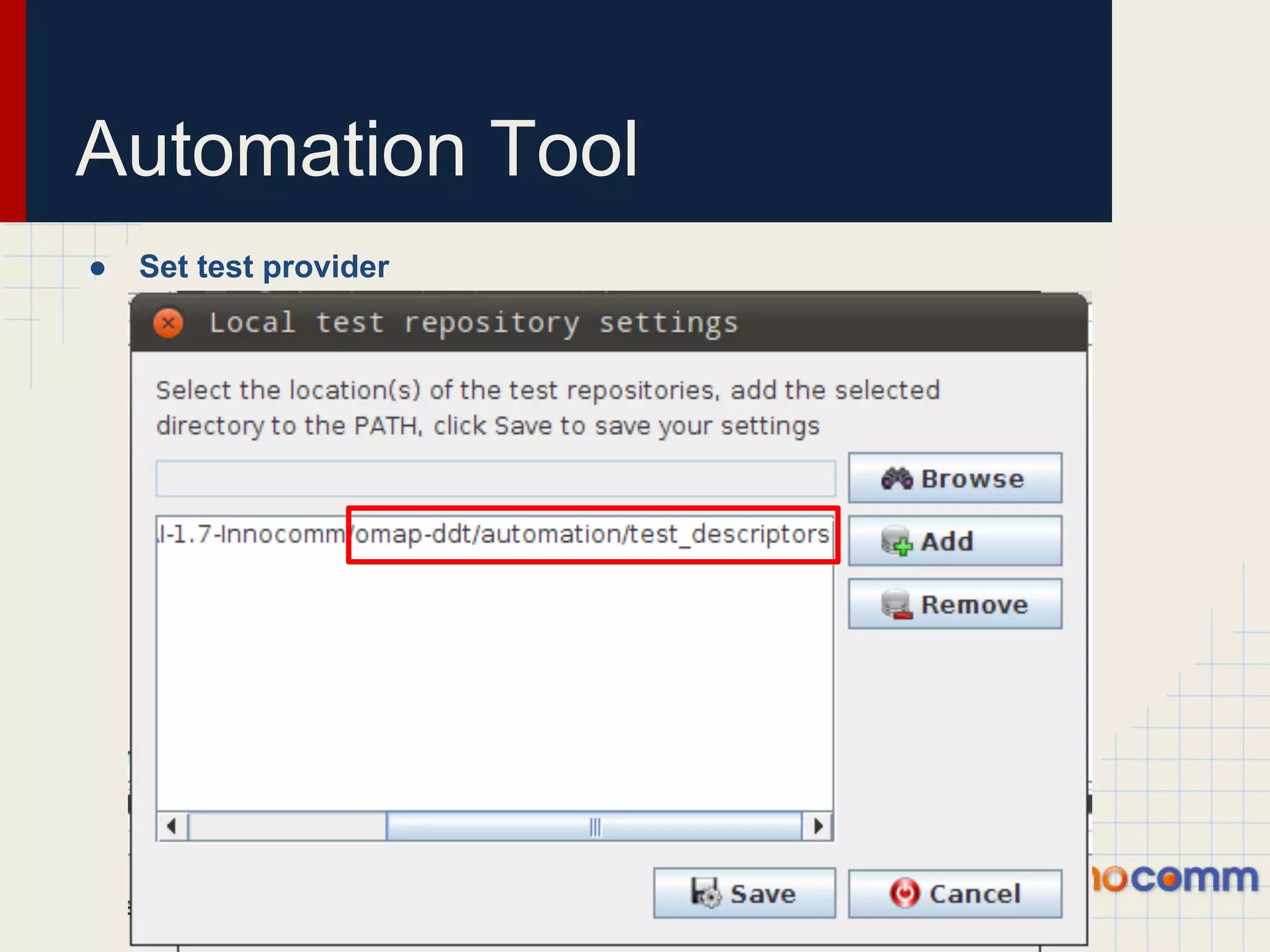

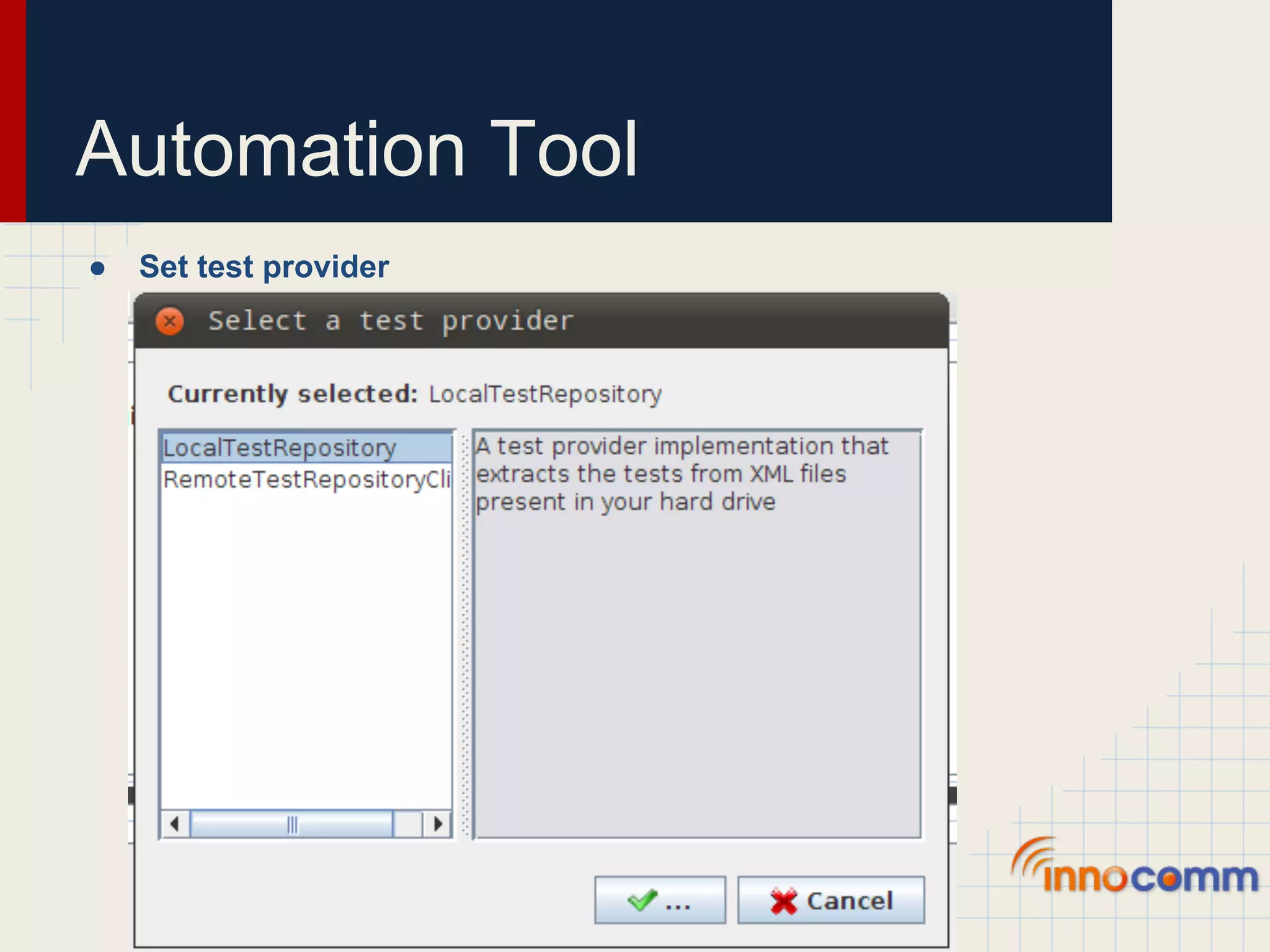

27. Automation Tool
● Set test provider

28. Automation Tool
● Set test provider

29. Automation Tool
● Tests loaded

30. Automation Tool

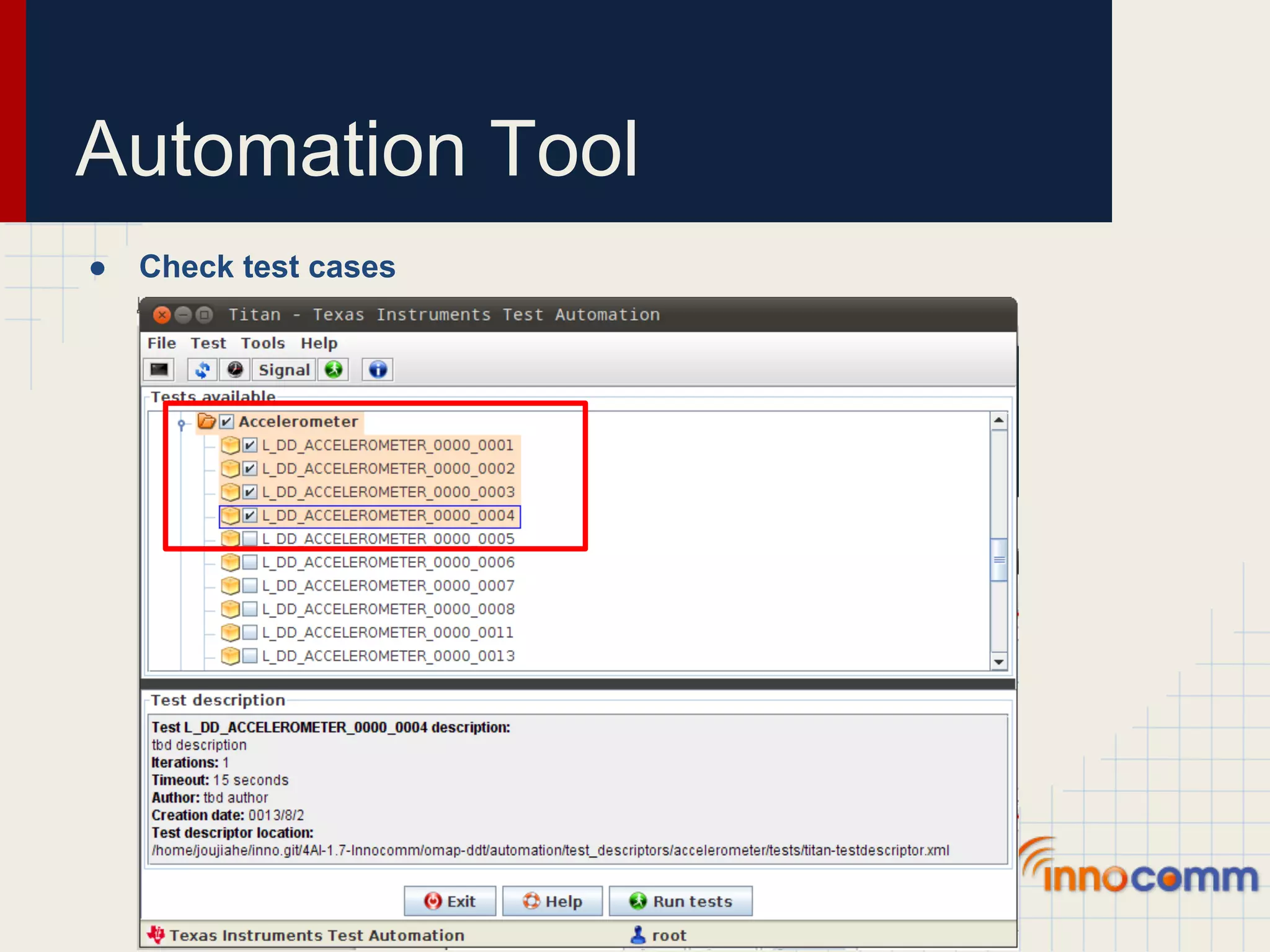

● Check test cases

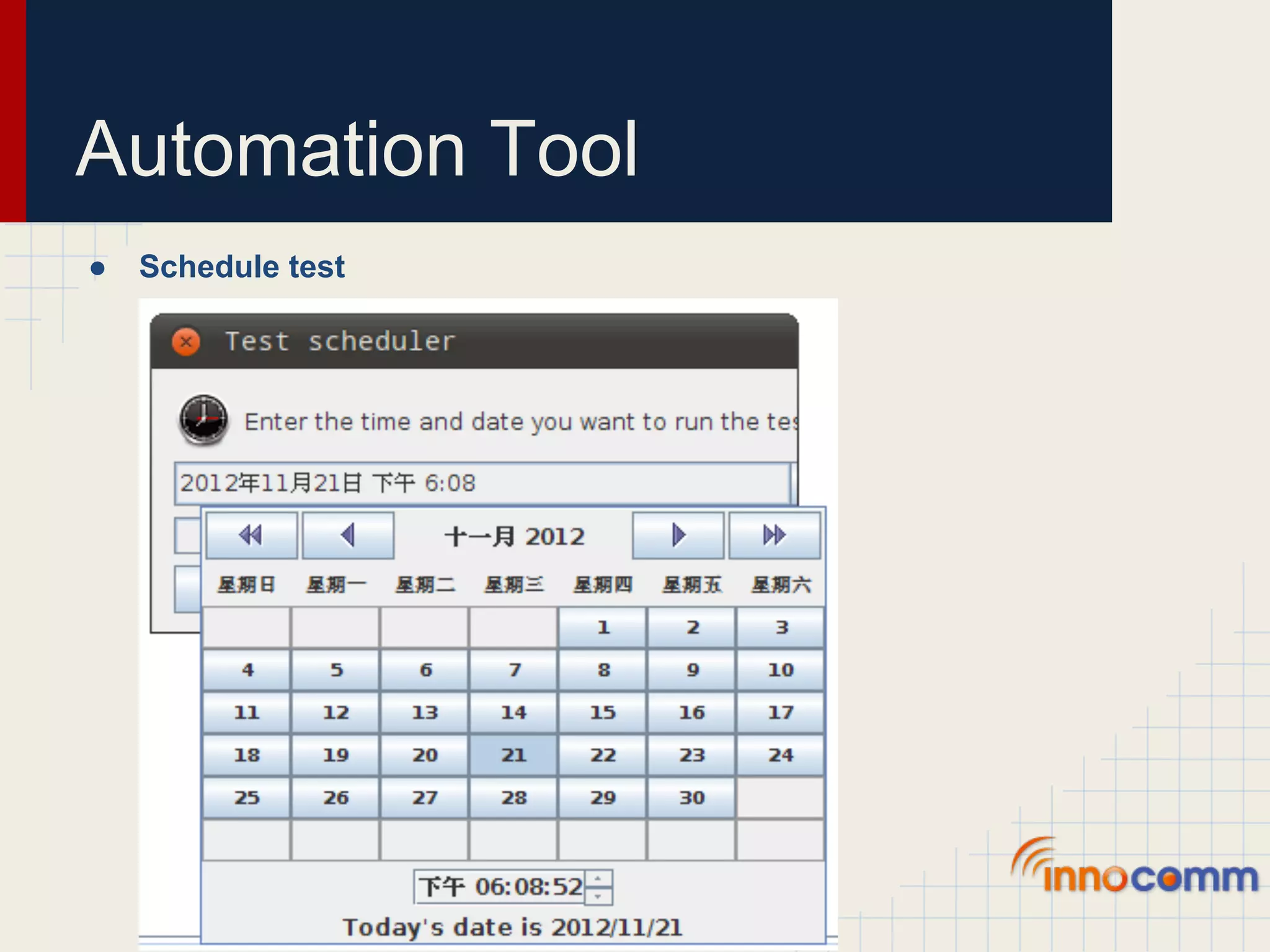

31. Automation Tool
● Schedule test

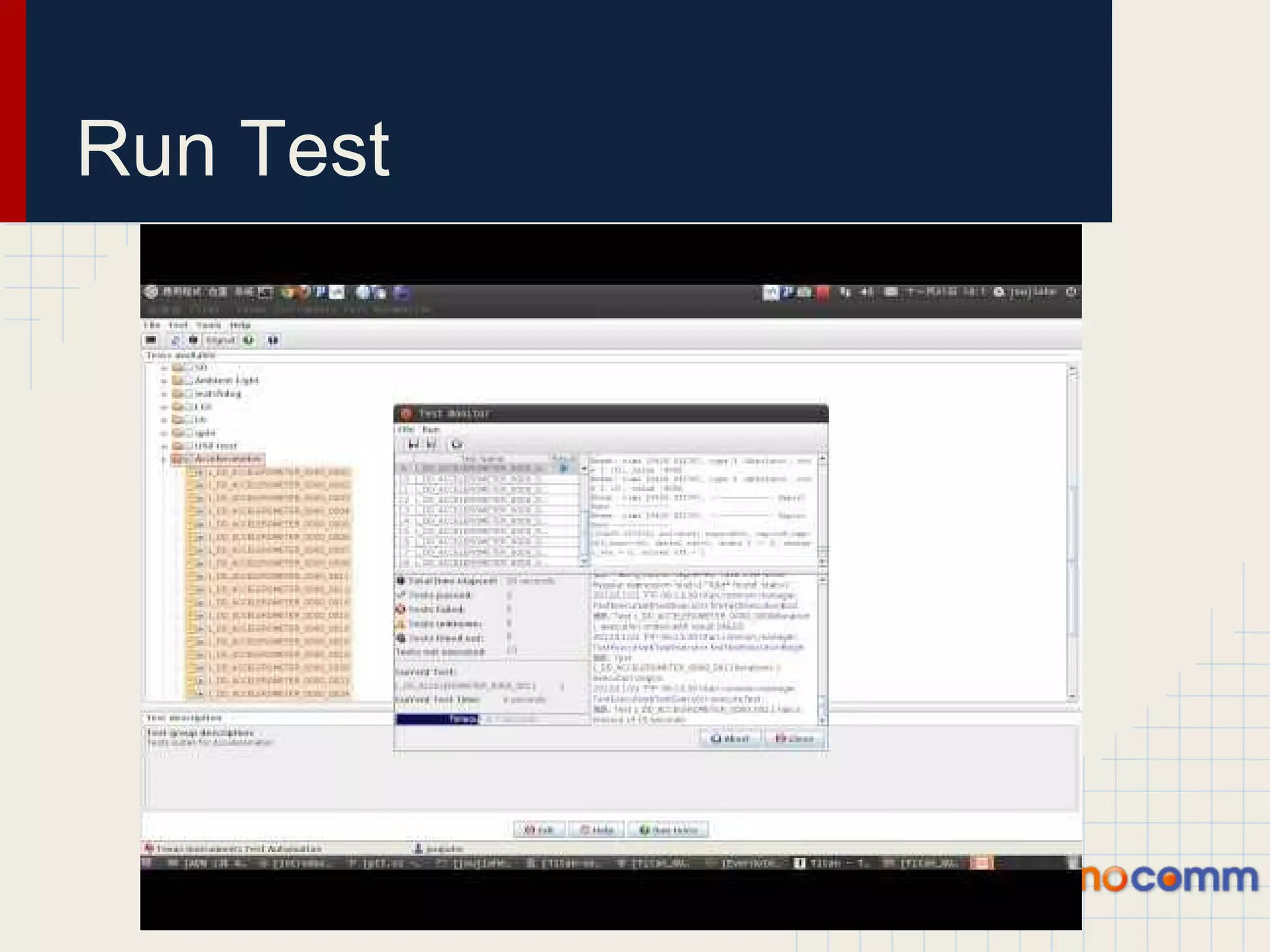

32. Run Test

33. Customization
● Test code organization
main configuration file
run all tests
test runner

34. Customization

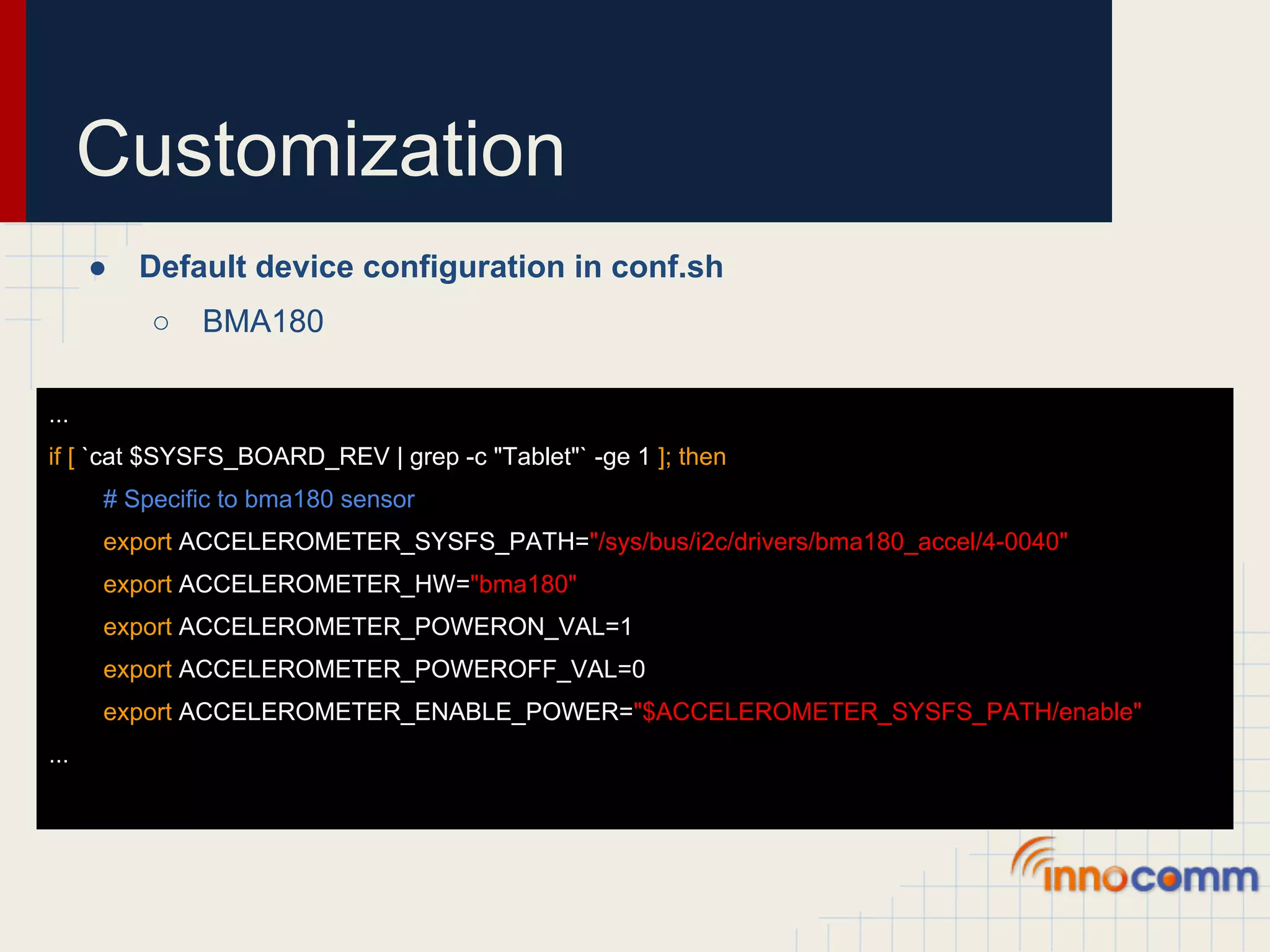

● Default device configuration in conf.sh
○ BMA180
...
if [ `cat $SYSFS_BOARD_REV | grep -c "Tablet"` -ge 1 ]; then
# Specific to bma180 sensor
export ACCELEROMETER_SYSFS_PATH="/sys/bus/i2c/drivers/bma180_accel/4-0040"
export ACCELEROMETER_HW="bma180"
export ACCELEROMETER_POWERON_VAL=1
export ACCELEROMETER_POWEROFF_VAL=0
export ACCELEROMETER_ENABLE_POWER="$ACCELEROMETER_SYSFS_PATH/enable"
...

35. Customization
● Add my device configuration to conf.sh
○ BMA250E
...
elif [ `cat $SYSFS_BOARD_REV | grep -c "Panda"` -ge 1 ]; then
# Specific to bma250e sensor
export ACCELEROMETER_SYSFS_PATH="/sys/devices/accelerometer"
export ACCELEROMETER_HW="bma250e"
export ACCELEROMETER_POWERON_VAL=1
export ACCELEROMETER_POWEROFF_VAL=0
export ACCELEROMETER_ENABLE_POWER="$ACCELEROMETER_SYSFS_PATH/enable"
# Some extra configurations
...

36. Customization

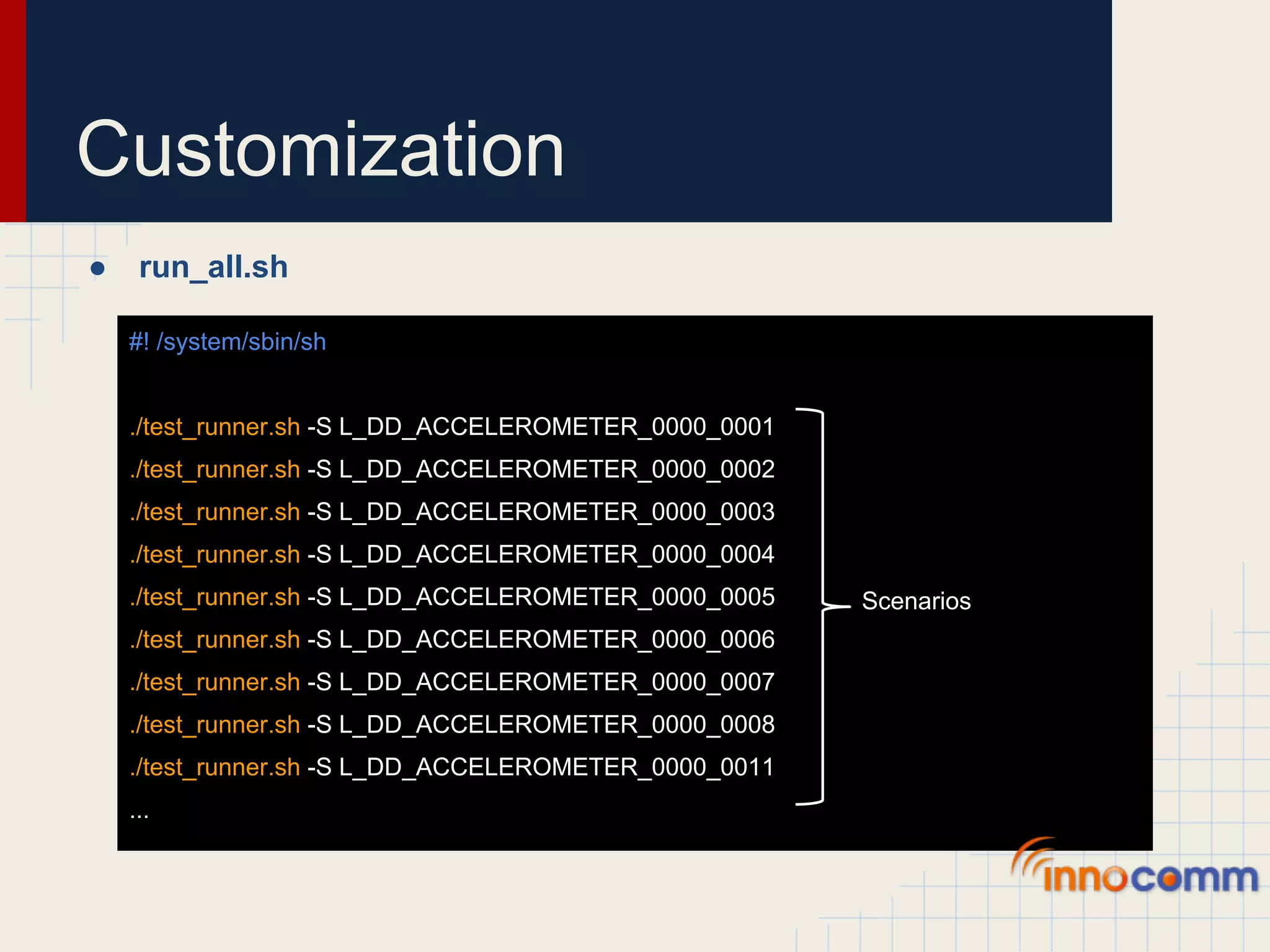

● run_all.sh
#! /system/sbin/sh
./test_runner.sh -S L_DD_ACCELEROMETER_0000_0001
./test_runner.sh -S L_DD_ACCELEROMETER_0000_0002
./test_runner.sh -S L_DD_ACCELEROMETER_0000_0003
./test_runner.sh -S L_DD_ACCELEROMETER_0000_0004
./test_runner.sh -S L_DD_ACCELEROMETER_0000_0005 Scenarios
./test_runner.sh -S L_DD_ACCELEROMETER_0000_0006
./test_runner.sh -S L_DD_ACCELEROMETER_0000_0007
./test_runner.sh -S L_DD_ACCELEROMETER_0000_0008
./test_runner.sh -S L_DD_ACCELEROMETER_0000_0011
...

37. Customization

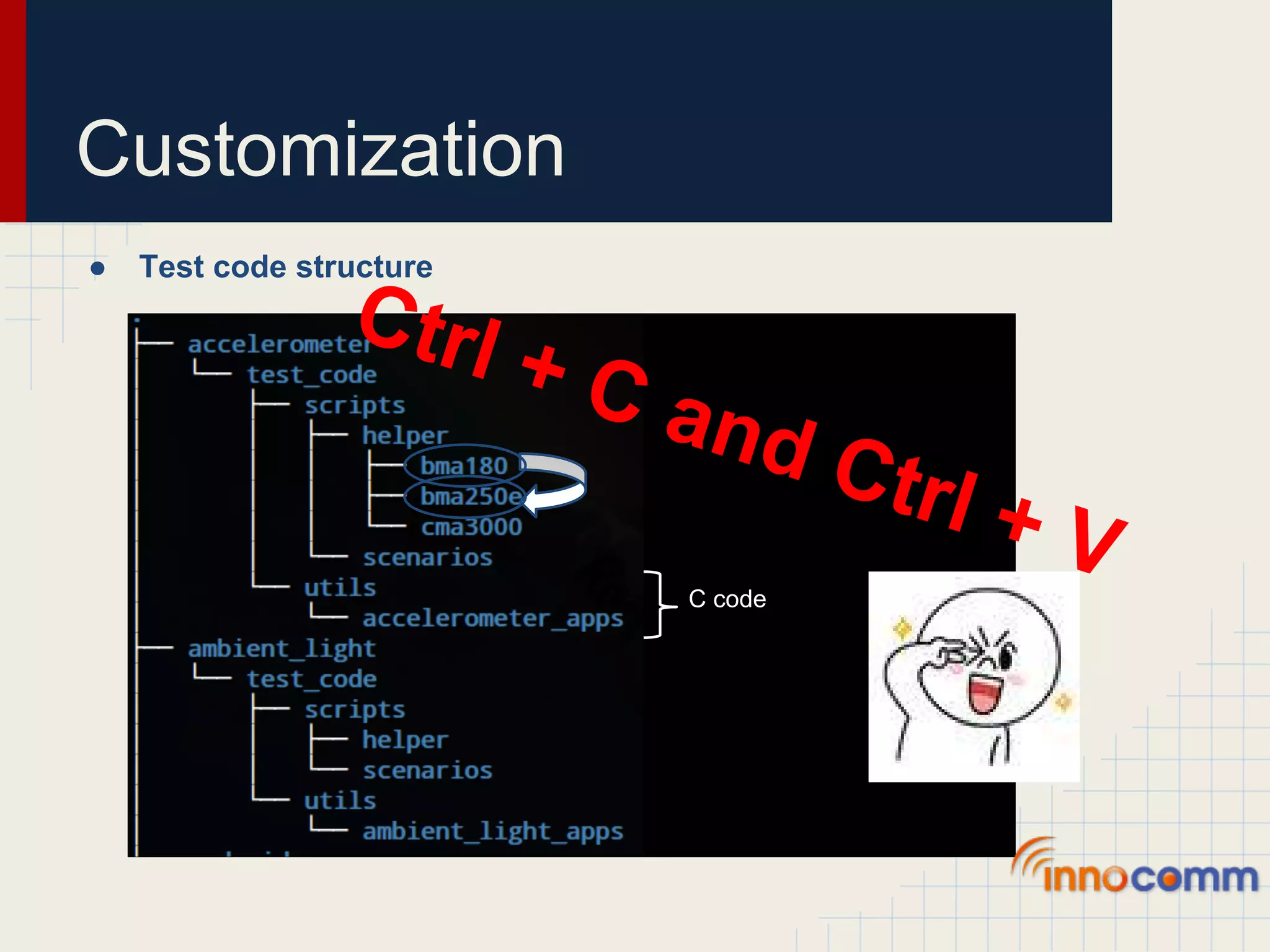

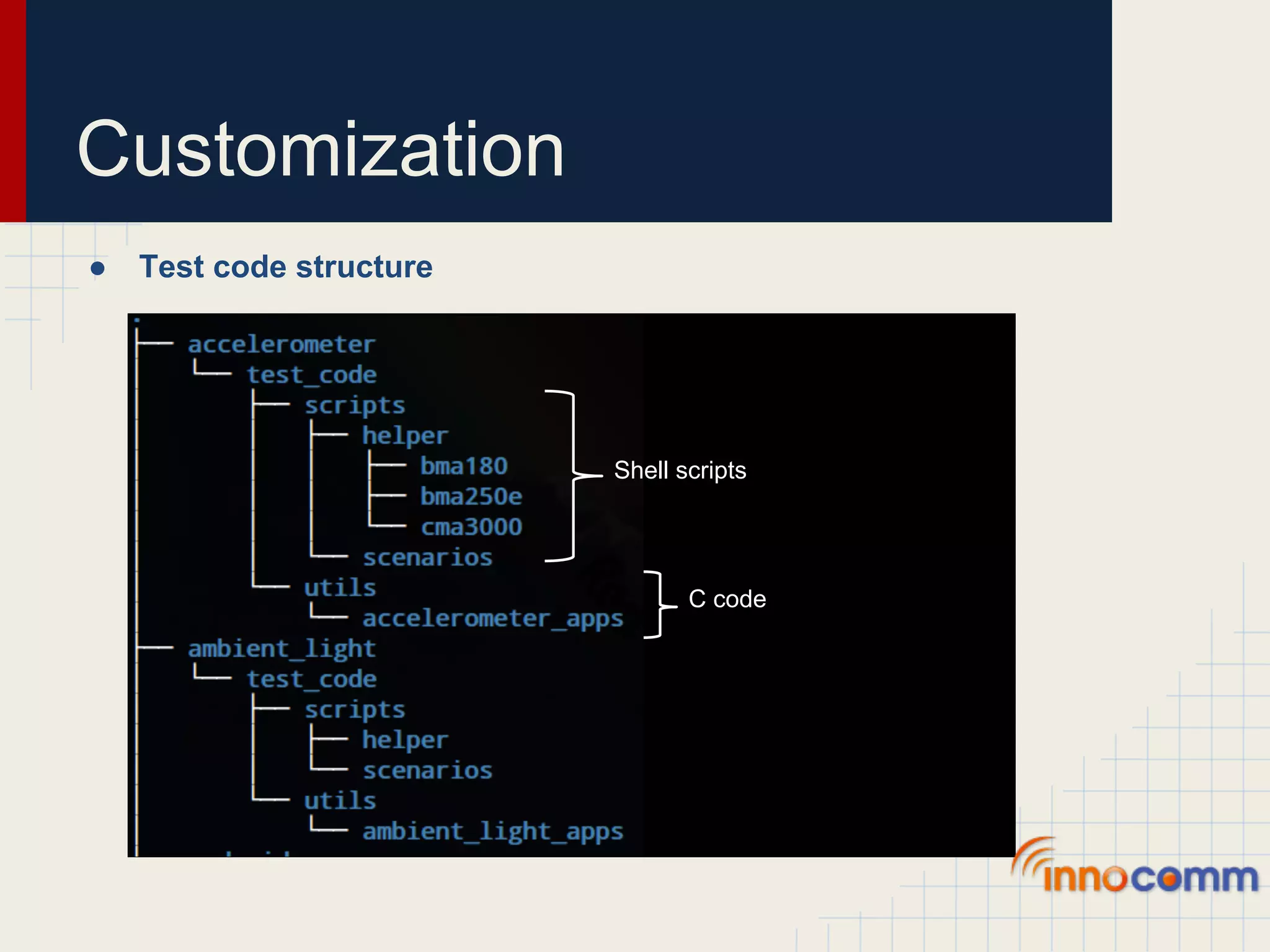

● Test code structure
Shell scripts
C code

38. Customization
● Test code structure
Ctrl
+ C an
d Ct
rl +
V
C code

39. Customization

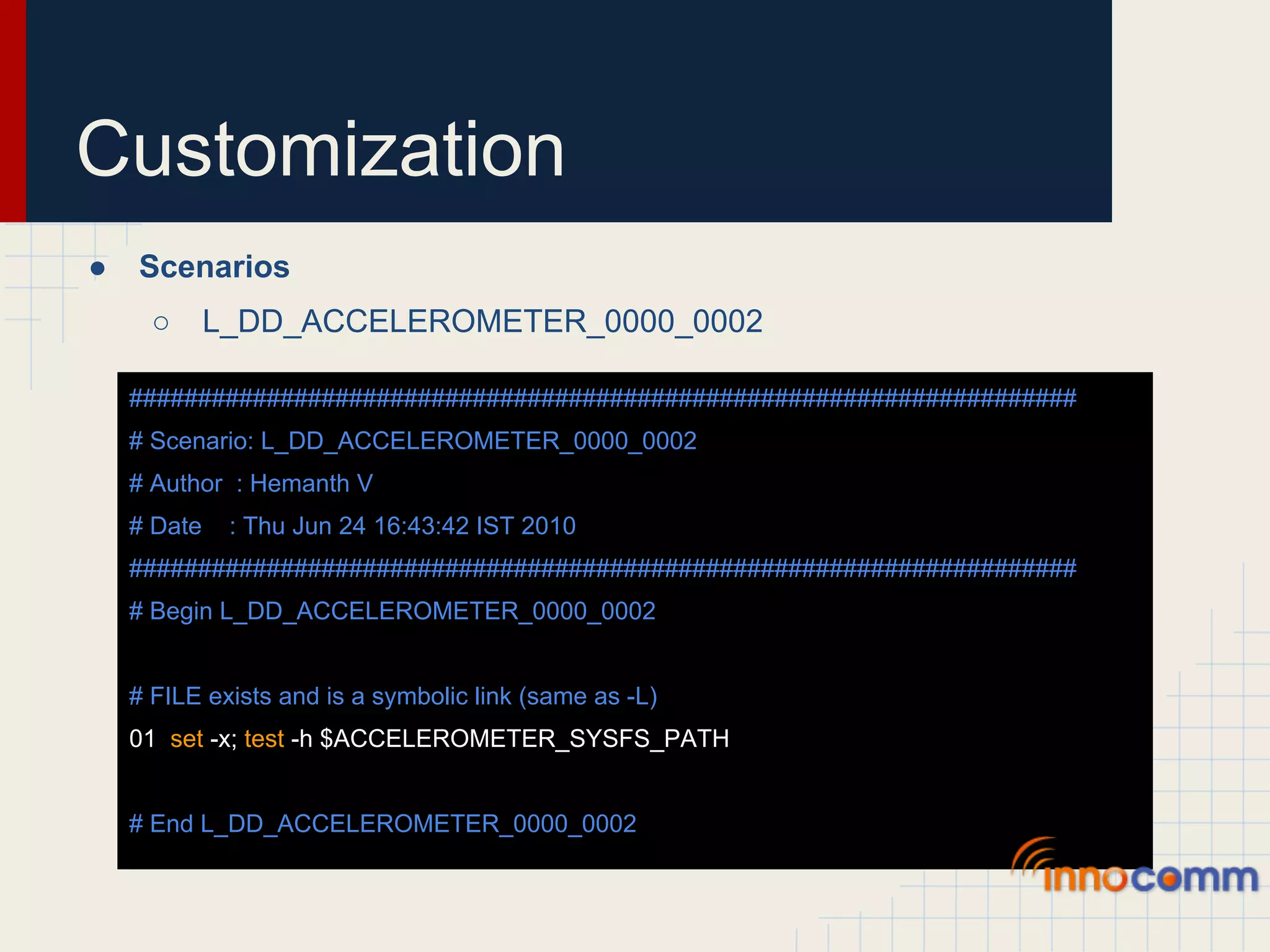

● Scenarios
○ L_DD_ACCELEROMETER_0000_0002
#####################################################################
# Scenario: L_DD_ACCELEROMETER_0000_0002
# Author : Hemanth V
# Date : Thu Jun 24 16:43:42 IST 2010
#####################################################################
# Begin L_DD_ACCELEROMETER_0000_0002
# FILE exists and is a symbolic link (same as -L)
01 set -x; test -h $ACCELEROMETER_SYSFS_PATH
# End L_DD_ACCELEROMETER_0000_0002

40. Customization

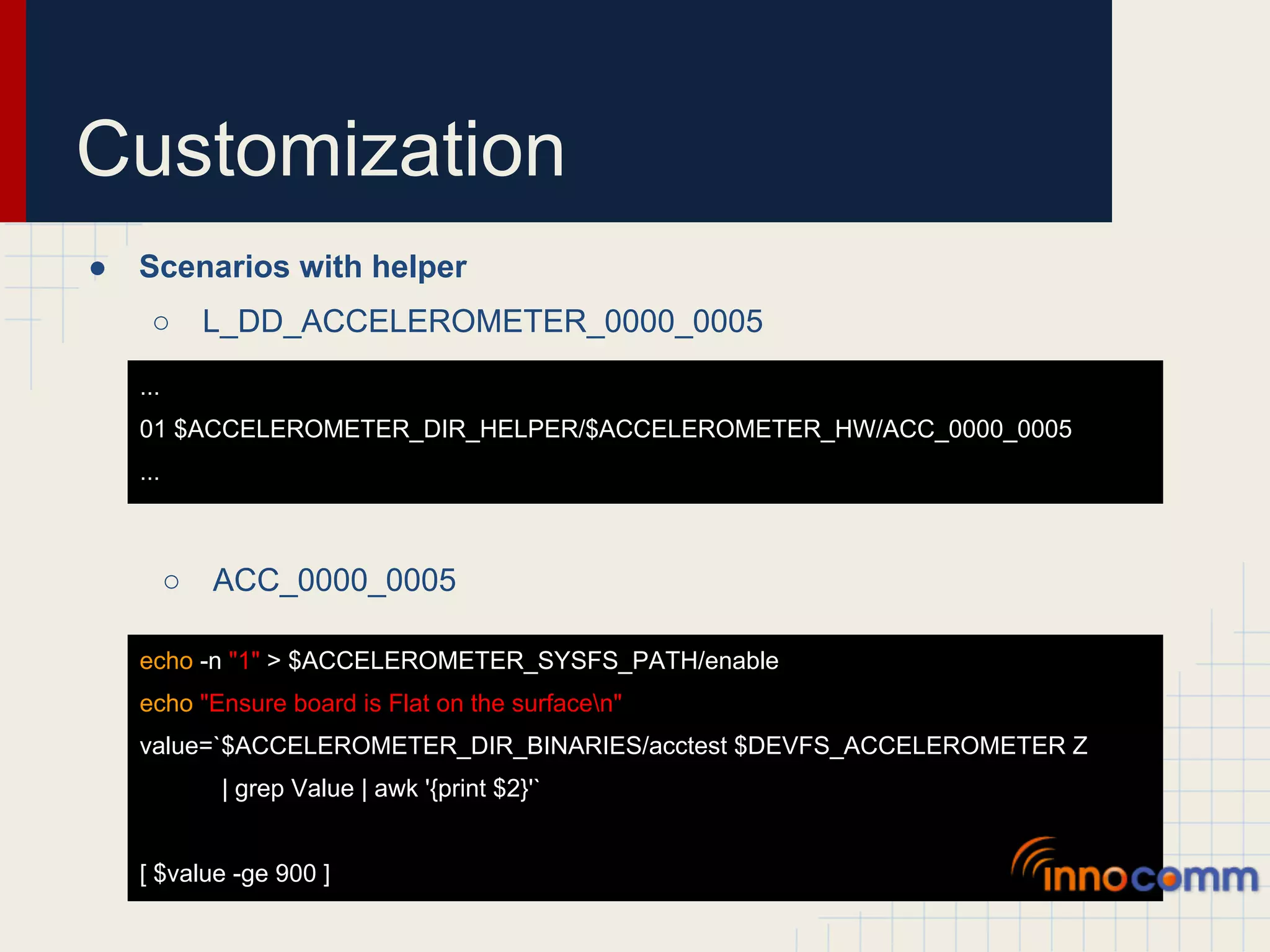

● Scenarios with helper
○ L_DD_ACCELEROMETER_0000_0005
...
01 $ACCELEROMETER_DIR_HELPER/$ACCELEROMETER_HW/ACC_0000_0005
...
○ ACC_0000_0005
echo -n "1" > $ACCELEROMETER_SYSFS_PATH/enable
echo "Ensure board is Flat on the surfacen"
value=`$ACCELEROMETER_DIR_BINARIES/acctest $DEVFS_ACCELEROMETER Z
| grep Value | awk '{print $2}'`
[ $value -ge 900 ]

41. Customization

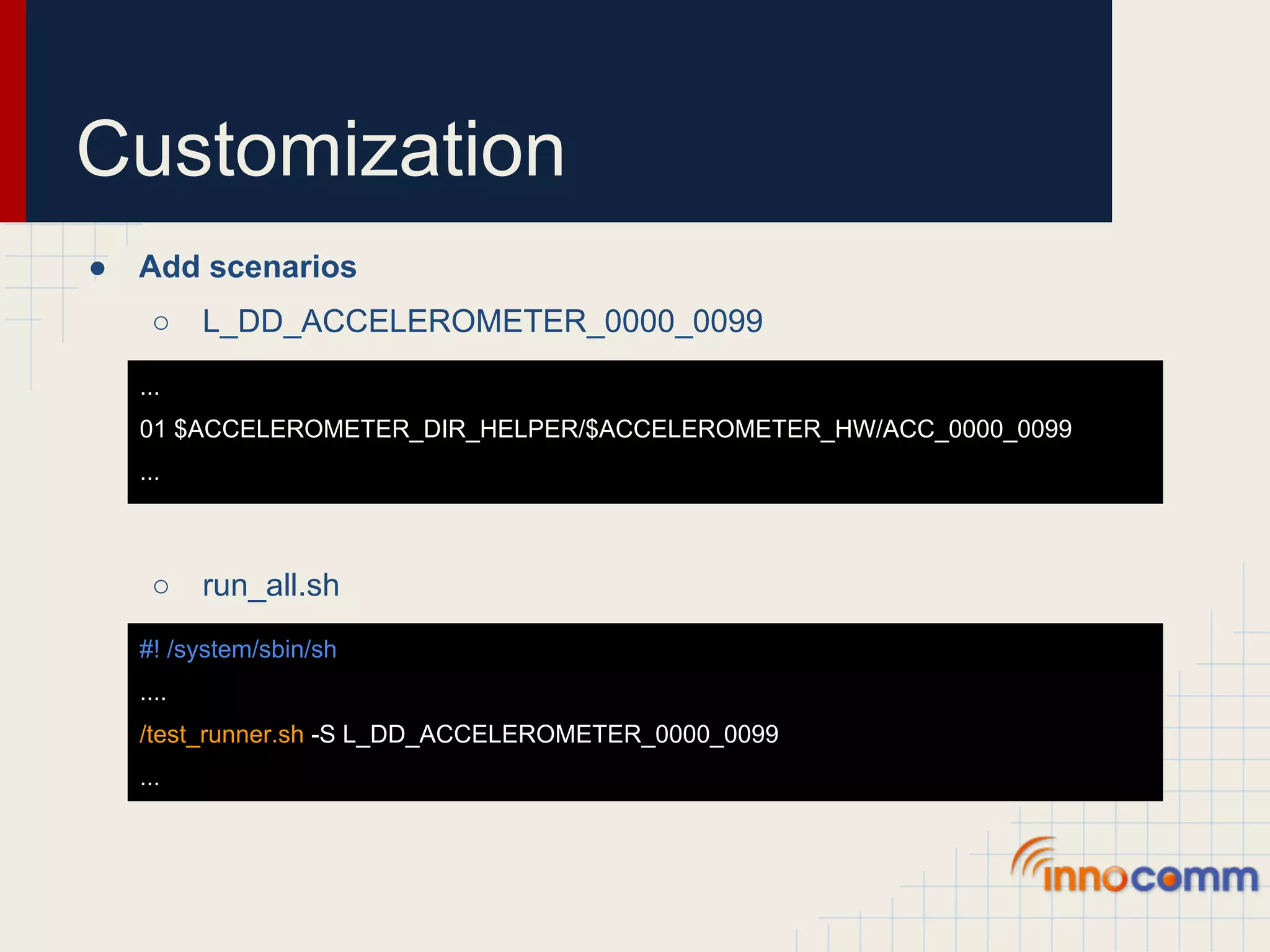

● Add scenarios
○ L_DD_ACCELEROMETER_0000_0099
...
01 $ACCELEROMETER_DIR_HELPER/$ACCELEROMETER_HW/ACC_0000_0099
...
○ run_all.sh
#! /system/sbin/sh
....
/test_runner.sh -S L_DD_ACCELEROMETER_0000_0099
...

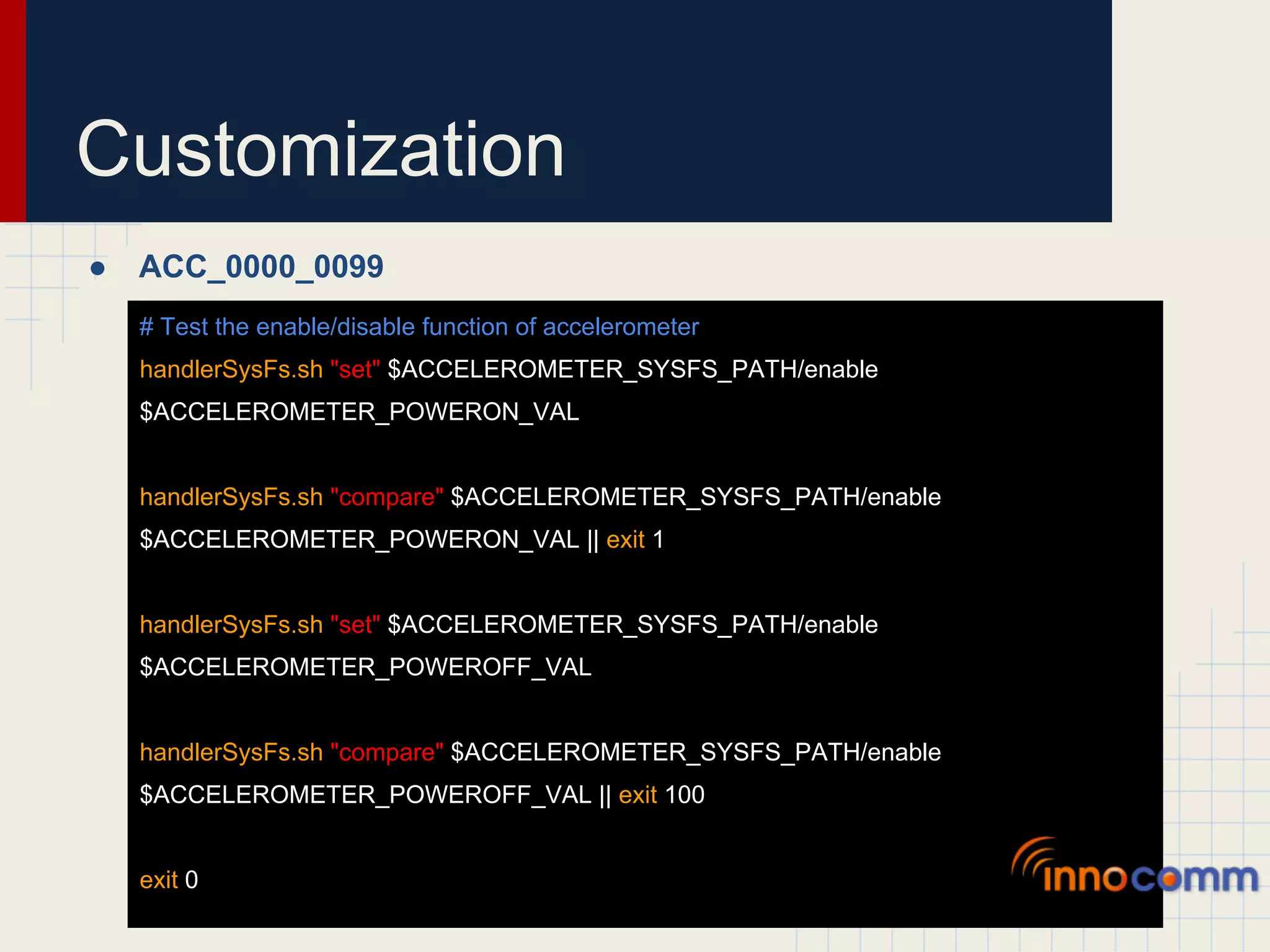

42. Customization
● ACC_0000_0099
# Test the enable/disable function of accelerometer
handlerSysFs.sh "set" $ACCELEROMETER_SYSFS_PATH/enable
$ACCELEROMETER_POWERON_VAL
handlerSysFs.sh "compare" $ACCELEROMETER_SYSFS_PATH/enable
$ACCELEROMETER_POWERON_VAL || exit 1
handlerSysFs.sh "set" $ACCELEROMETER_SYSFS_PATH/enable
$ACCELEROMETER_POWEROFF_VAL
handlerSysFs.sh "compare" $ACCELEROMETER_SYSFS_PATH/enable
$ACCELEROMETER_POWEROFF_VAL || exit 100
exit 0

43. Customization

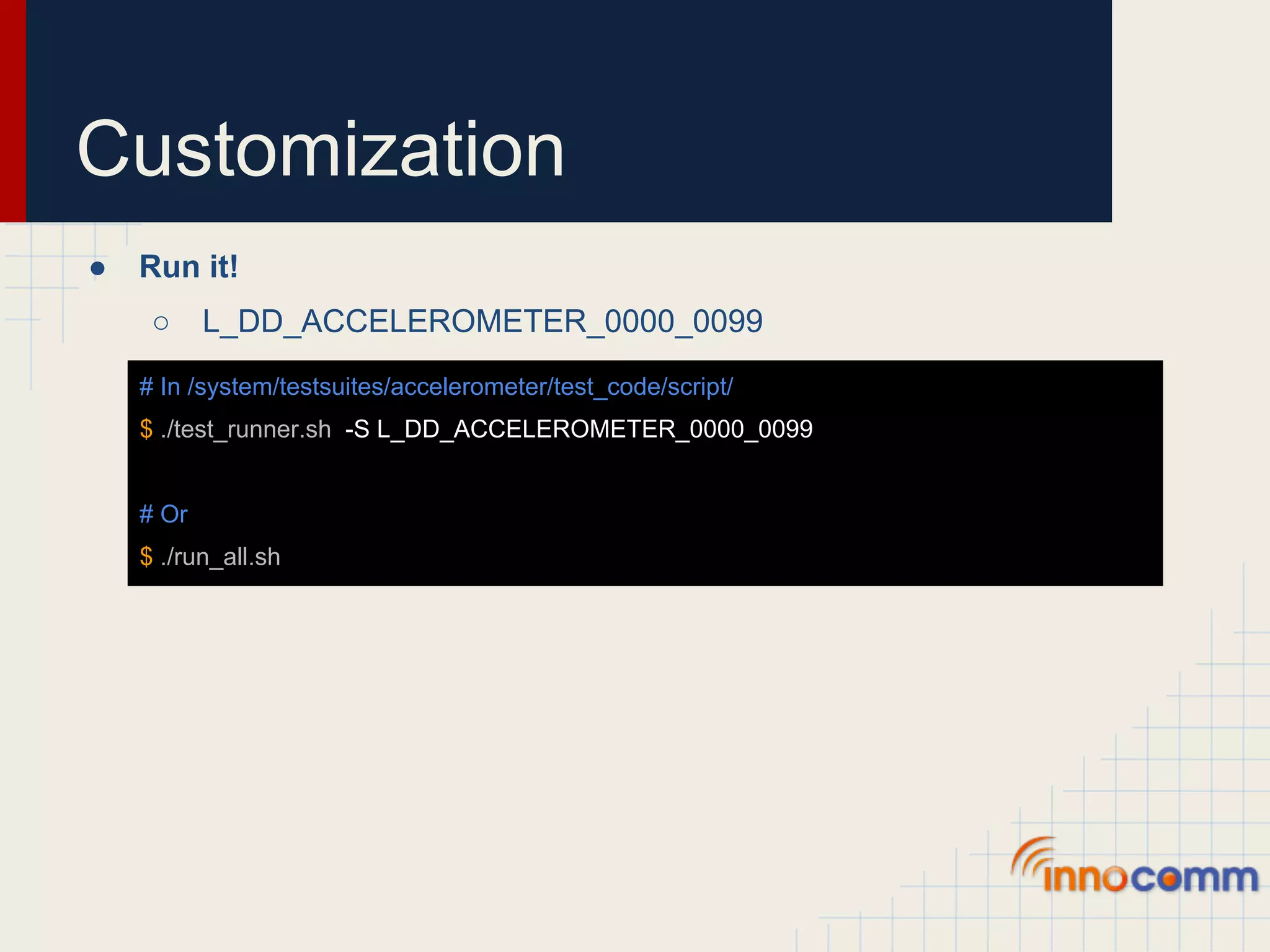

● Run it!
○ L_DD_ACCELEROMETER_0000_0099
# In /system/testsuites/accelerometer/test_code/script/
$ ./test_runner.sh -S L_DD_ACCELEROMETER_0000_0099
# Or
$ ./run_all.sh

44. Customization

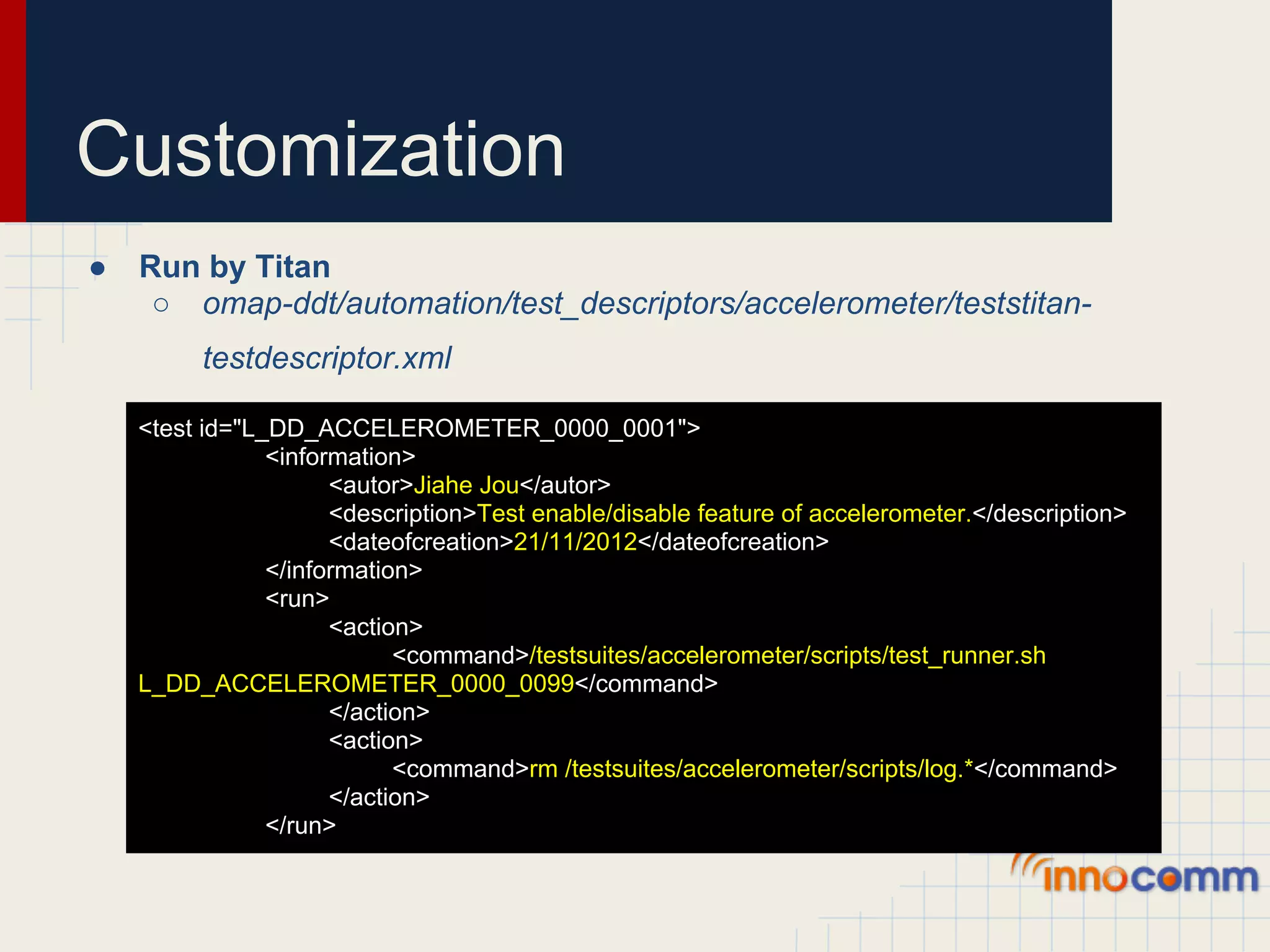

● Run by Titan
○ omap-ddt/automation/test_descriptors/accelerometer/teststitan-
testdescriptor.xml
<test id="L_DD_ACCELEROMETER_0000_0001">
<information>
<autor>Jiahe Jou</autor>
<description>Test enable/disable feature of accelerometer.</description>
<dateofcreation>21/11/2012</dateofcreation>
</information>
<run>
<action>
<command>/testsuites/accelerometer/scripts/test_runner.sh
L_DD_ACCELEROMETER_0000_0099</command>
</action>
<action>
<command>rm /testsuites/accelerometer/scripts/log.*</command>
</action>
</run>

45. Customization

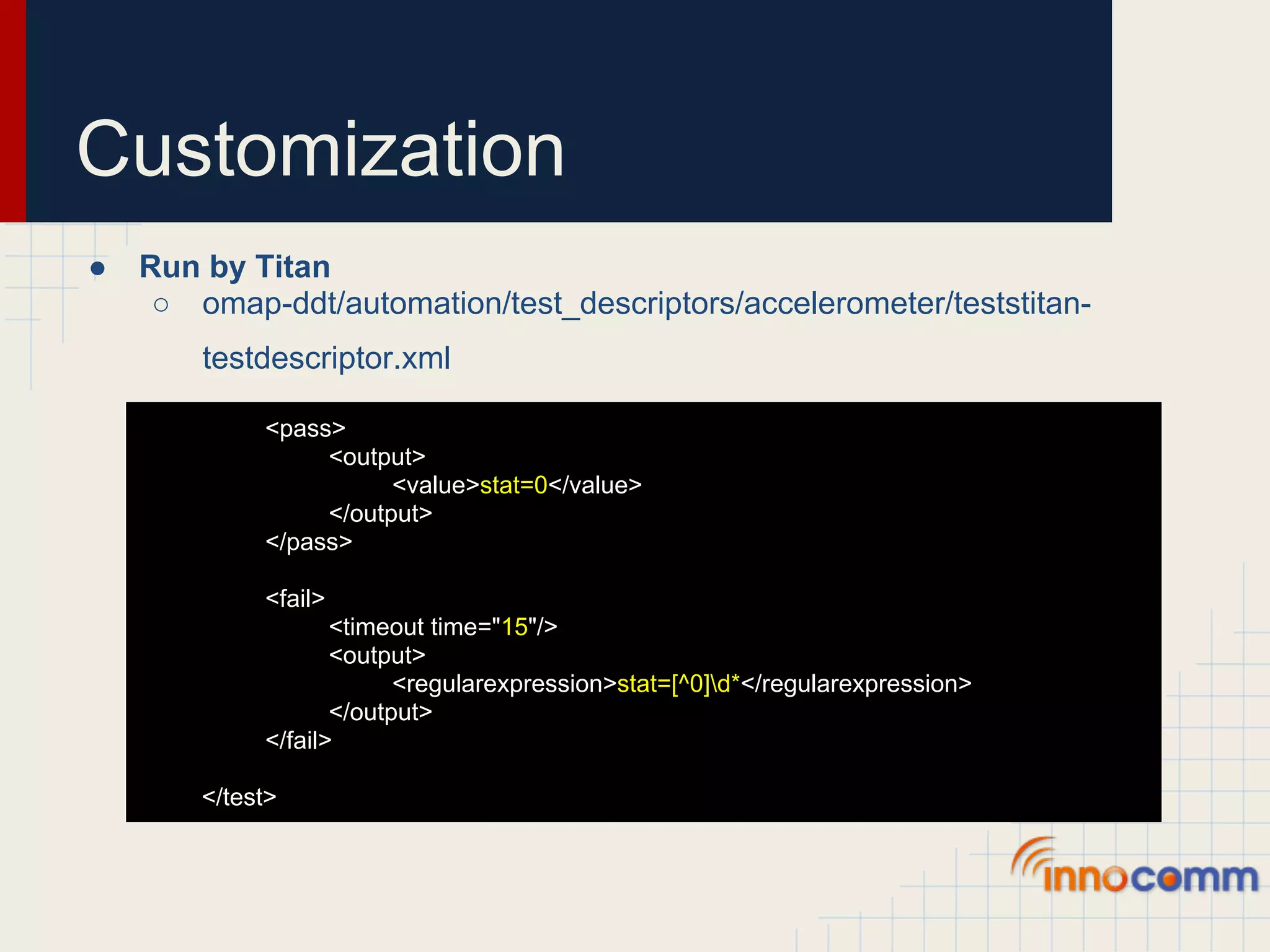

● Run by Titan
○ omap-ddt/automation/test_descriptors/accelerometer/teststitan-
testdescriptor.xml
<pass>
<output>
<value>stat=0</value>
</output>
</pass>
<fail>
<timeout time="15"/>
<output>
<regularexpression>stat=[^0]d*</regularexpression>
</output>
</fail>
</test>

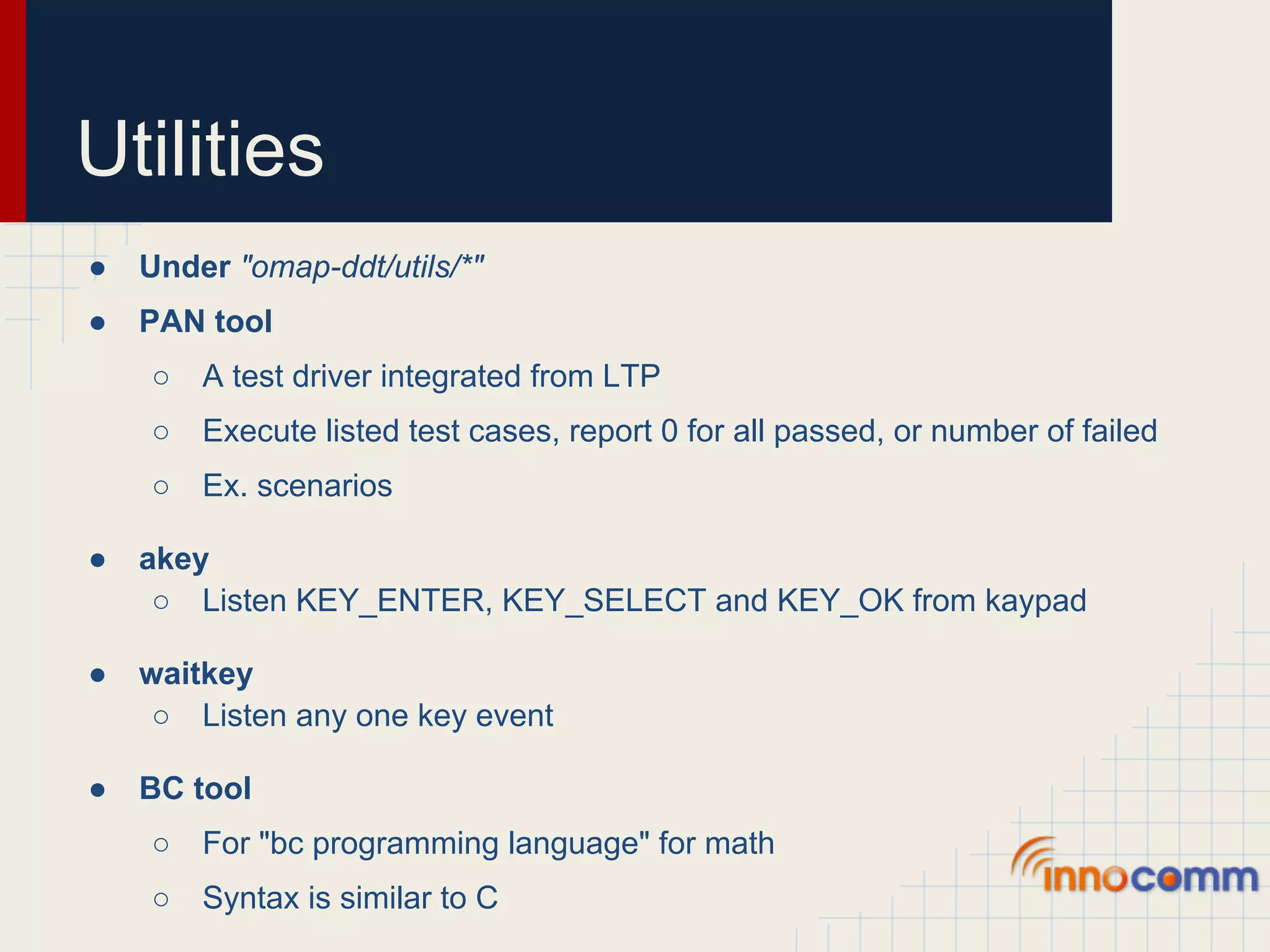

46. Utilities
● Under "omap-ddt/utils/*"
● PAN tool
○ A test driver integrated from LTP
○ Execute listed test cases, report 0 for all passed, or number of failed
○ Ex. scenarios
● akey
○ Listen KEY_ENTER, KEY_SELECT and KEY_OK from kaypad
● waitkey
○ Listen any one key event
● BC tool
○ For "bc programming language" for math
○ Syntax is similar to C

47. Utilities

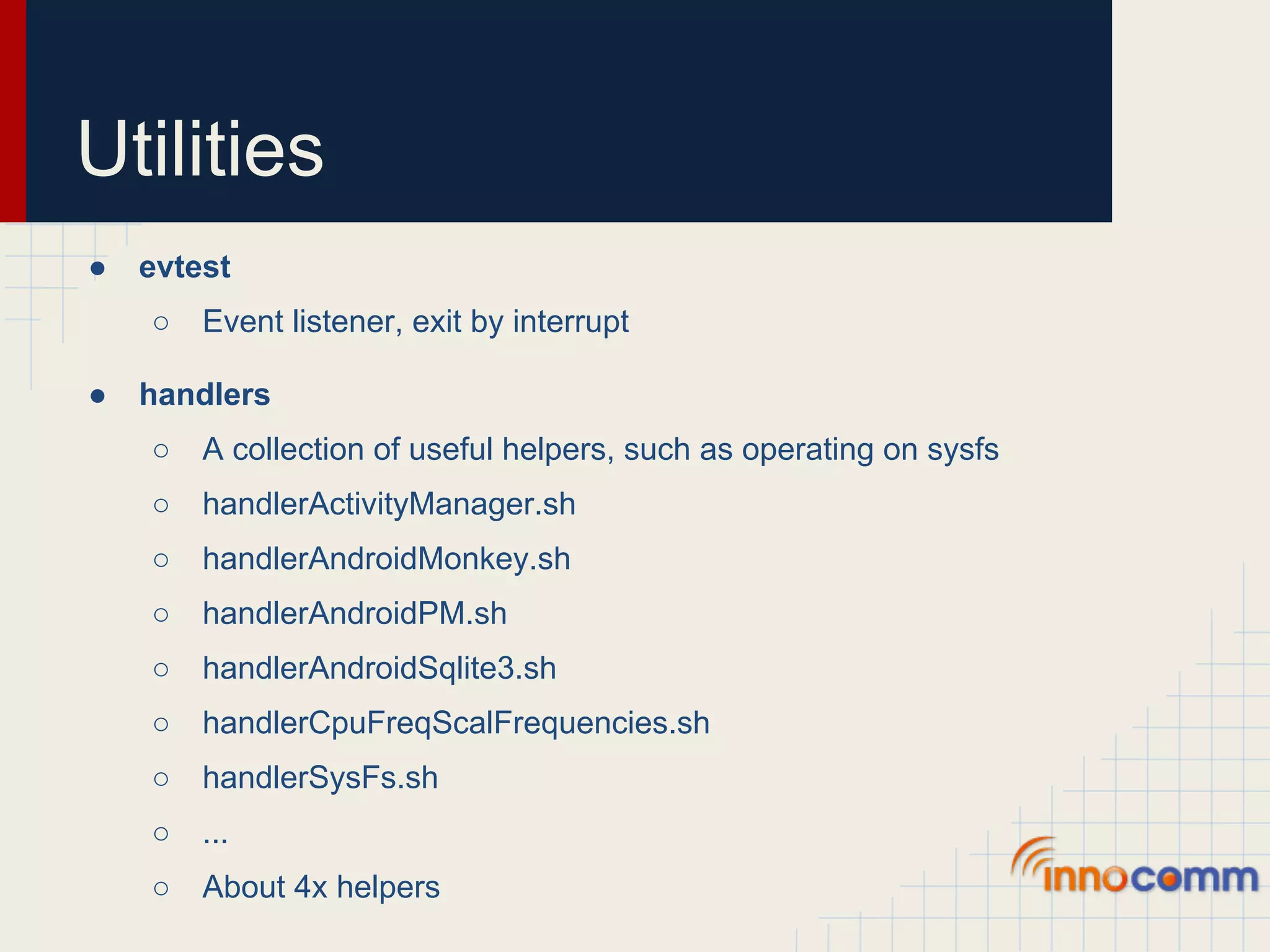

● evtest
○ Event listener, exit by interrupt
● handlers
○ A collection of useful helpers, such as operating on sysfs
○ handlerActivityManager.sh
○ handlerAndroidMonkey.sh
○ handlerAndroidPM.sh
○ handlerAndroidSqlite3.sh
○ handlerCpuFreqScalFrequencies.sh
○ handlerSysFs.sh
○ ...
○ About 4x helpers

48. Utilities

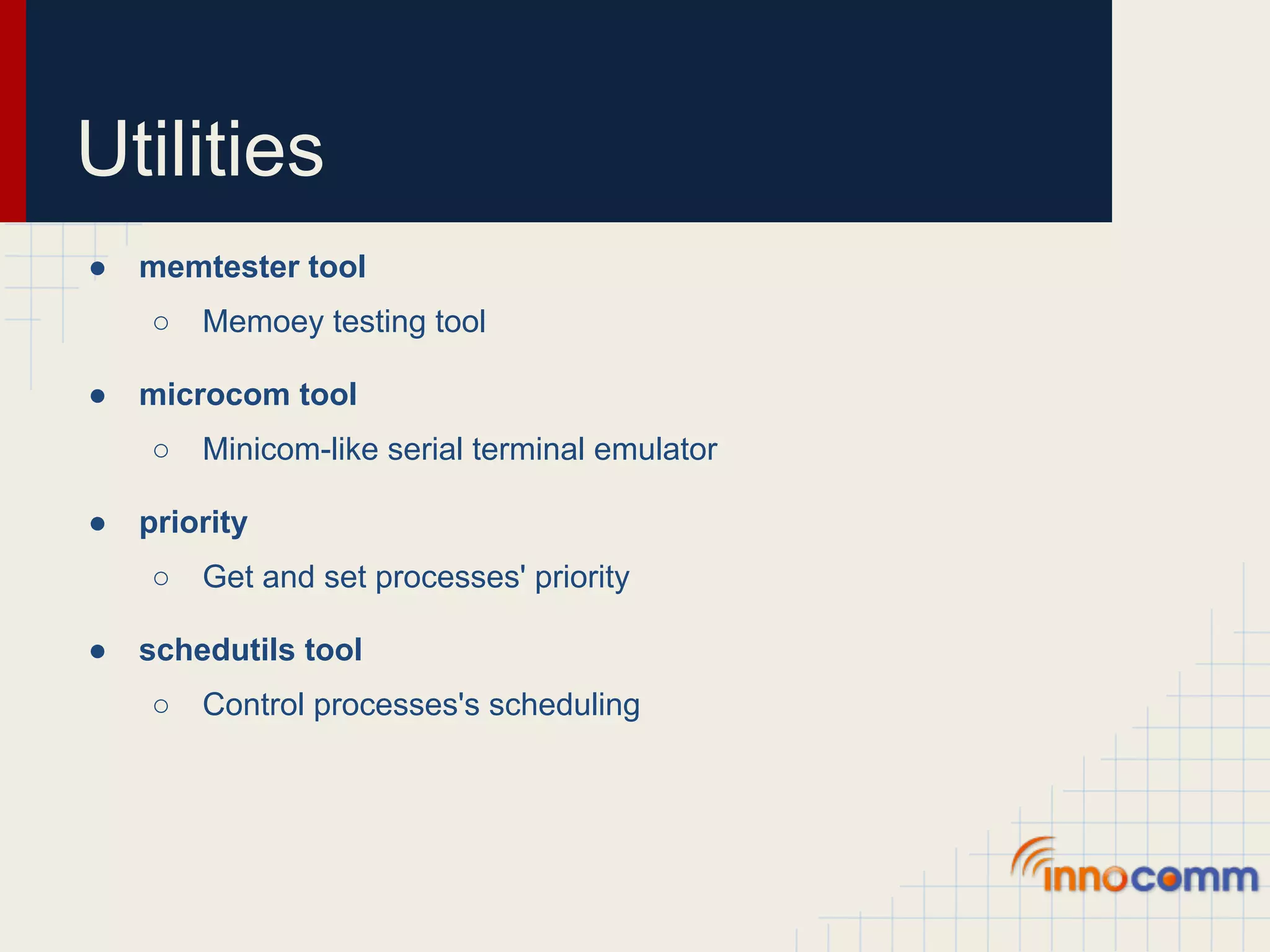

● memtester tool
○ Memoey testing tool
● microcom tool
○ Minicom-like serial terminal emulator
● priority
○ Get and set processes' priority
● schedutils tool
○ Control processes's scheduling

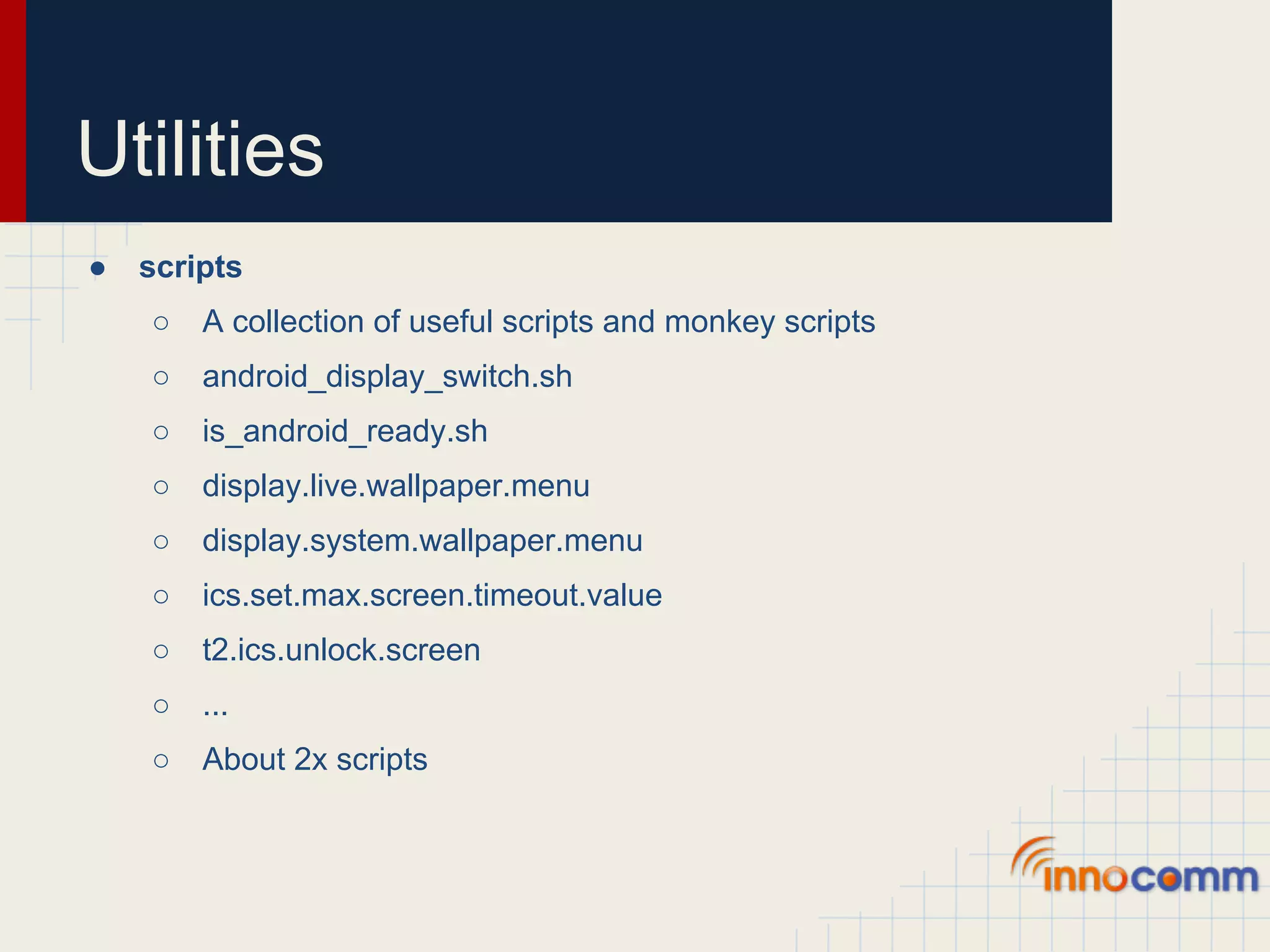

49. Utilities
● scripts
○ A collection of useful scripts and monkey scripts
○ android_display_switch.sh
○ is_android_ready.sh
○ display.live.wallpaper.menu
○ display.system.wallpaper.menu
○ ics.set.max.screen.timeout.value
○ t2.ics.unlock.screen
○ ...
○ About 2x scripts

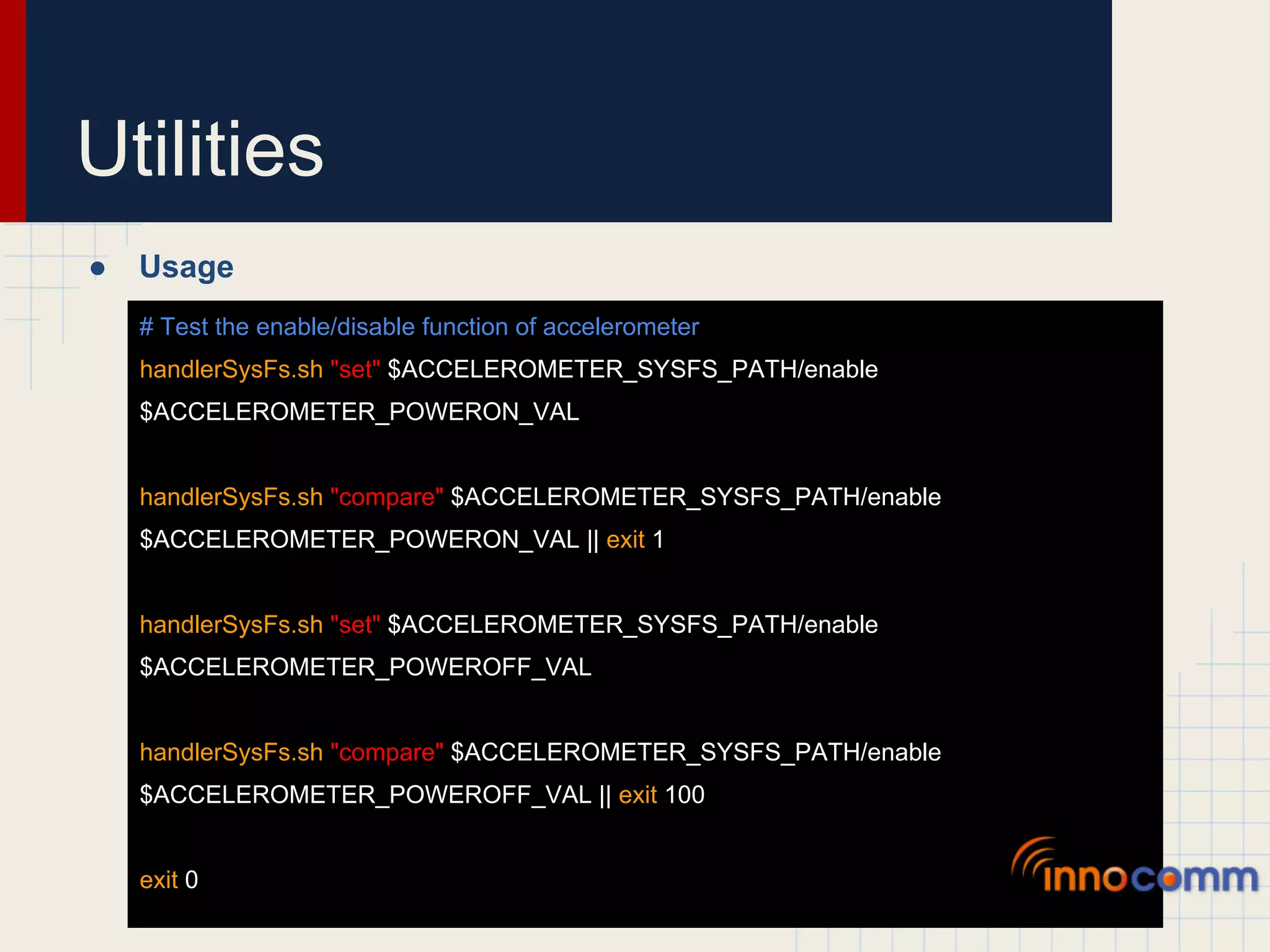

50. Utilities
● Usage
# Test the enable/disable function of accelerometer
handlerSysFs.sh "set" $ACCELEROMETER_SYSFS_PATH/enable
$ACCELEROMETER_POWERON_VAL
handlerSysFs.sh "compare" $ACCELEROMETER_SYSFS_PATH/enable
$ACCELEROMETER_POWERON_VAL || exit 1
handlerSysFs.sh "set" $ACCELEROMETER_SYSFS_PATH/enable
$ACCELEROMETER_POWEROFF_VAL
handlerSysFs.sh "compare" $ACCELEROMETER_SYSFS_PATH/enable
$ACCELEROMETER_POWEROFF_VAL || exit 100
exit 0

51. Utilities

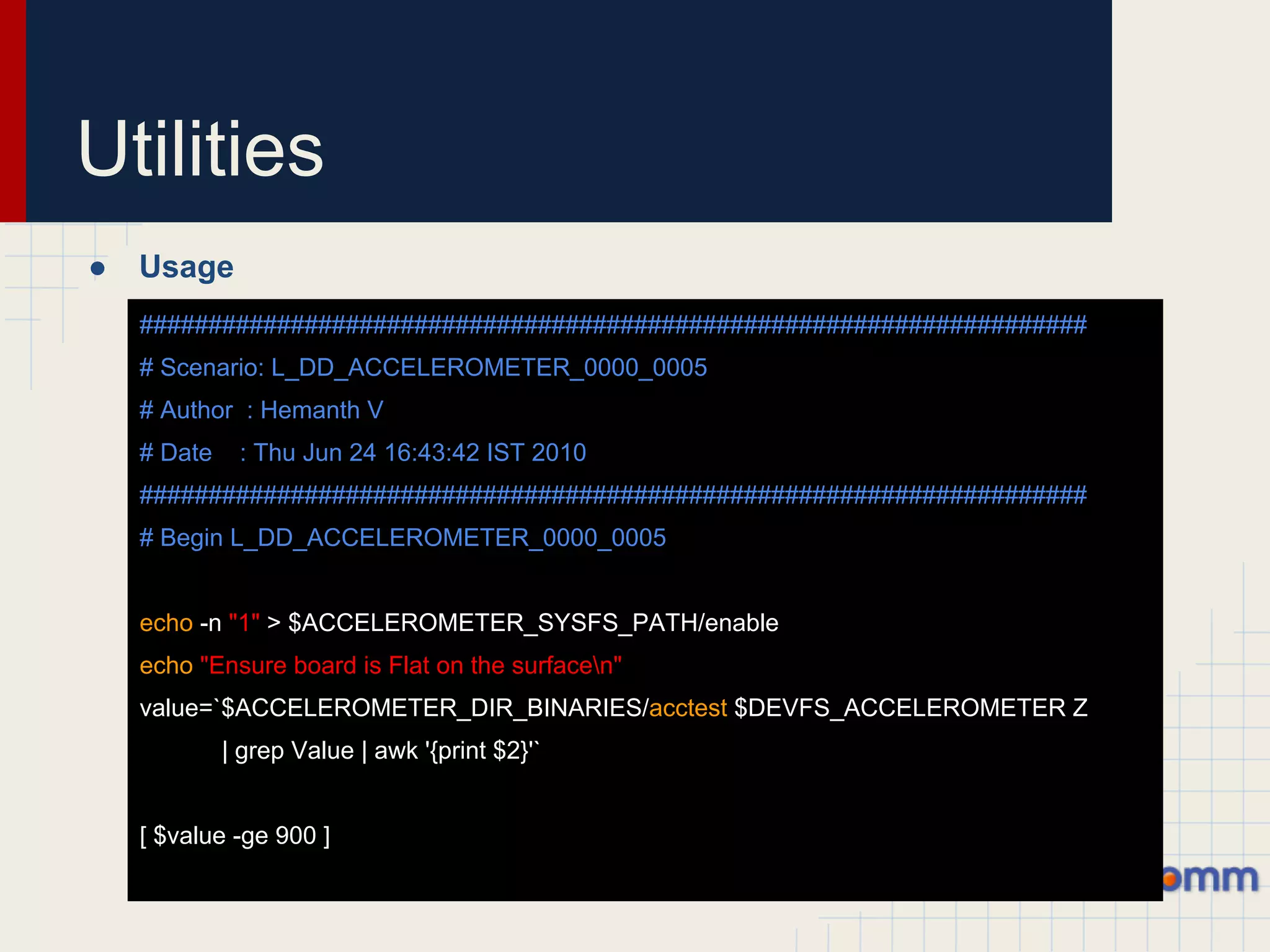

● Usage
#####################################################################
# Scenario: L_DD_ACCELEROMETER_0000_0005
# Author : Hemanth V
# Date : Thu Jun 24 16:43:42 IST 2010
#####################################################################
# Begin L_DD_ACCELEROMETER_0000_0005
echo -n "1" > $ACCELEROMETER_SYSFS_PATH/enable
echo "Ensure board is Flat on the surfacen"
value=`$ACCELEROMETER_DIR_BINARIES/acctest $DEVFS_ACCELEROMETER Z
| grep Value | awk '{print $2}'`
[ $value -ge 900 ]
