Introduction

1
SkyDrive

1.INTRODUCTION:-

Sky drive(officially Microsoft sky drive, previously “windows live sky drive”
and windows live folders) is a file hosting service that allows users to upload and sync files to a
cloud storage and then access them from a web browser or their local device. it is part to the
windows live range of online services and allows users to keep the files private, share them with
the contacts, or make the files public. publically shared files do not require a Microsoft account
to access. the service offers 7GB of free storage for new users.Additional storage is available for
purchase. Users who signed up to sky drive prior to April 22, 2012 cloud opt - in for a limited
time offer of 25GB of free storage upgrade. the service is built using HTML5 technologies, and
files up to 300MB can be uploaded via drag and drop into the web browser,or up to 2GB via the
Skydrive desktop application for Microsoft windows and os x.

Fig 0.microsoft’s skies drive official logo.

DEPT OF CSE,VITW

2
SkyDrive

2. HISTORY:-
 On its launch, Sky drive known as a Windows Live Folders at the time (with a
Codename of Sky Drive), was provided as a limited beta available to a few testers in the United
States. On August 1, 2007, the service was expanded to a wider audience. Where windows live
folders are nothing but the folders with the windows start button logo, which indicates that the
files and the data that are present in that folder are stored in cloud and if we want we can store
add the folders to that folder such that they are stored at cloud storage.

Fig 1.windows live folder.

 Shortly after, on August 9, 2007 the service was renamed Windows Live Sky Drive and
made available to testers in the United Kingdom and India. As of 22 May 2008 Sky Drive was
available to 62 countries and regions.
 On December 2, 2008,the capacity of an individual Sky Drive account was upgraded from
5 GB to 25 GB,and Microsoft added a separate entry point called Windows Live Photos which
allowed users to access their photos and videos stored on Sky Drive. This entry point allowed
users to add "People tags" to their photos,download photos into Windows Live Photo Gallery
or as a ZIP file, as well as viewing EXIF metadata such as camera information for the photos
uploaded. Microsoft also added full-screen slide show support for photos using Silver light.

DEPT OF CSE,VITW

3
SkyDrive

 SkyDrive was updated to "Wave 4" release on June 7, 2010, and added support for Office
Web Apps, offering versioning support. In this update, due to the discontinuation of Windows,
the ability to synchronize and share bookmarked Web links between users via SkyDrive has also
been discontinued.
 On June 20, 2011, Microsoft overhauled the user interface for Sky drive, built using HTML5
Technologies. Microsoft also doubled the file size limit from 50 MB to 100 MB per file, as well
as adding new features such as caching and hardware acceleration, support for HTML5 videos,
Quick views , cleaner arrangement of photos , infinite scrolling. This update also brought
Together the different entry points for Sky Drive, such as Windows Live Photos and Windows
Live Office, into one single interface.
 On December 3, 2011 , Microsoft released a SkyDrive for iOS app, and a SkyDrive for
Windows Phone app , which are available in the App Store and Windows Phone Marketplace
respectively. On April 22 , 2012 , Microsoft released a Sky Drive desktop app for Windows
Vista, Windows 7, Windows 8, and OS X users which allows them to synchronize files on
SkyDrive, much like Windows Live Mesh, as well as allowing users to "fetch" files on their
computer via the web browser.
 On August 14, 2012, Microsoft announced a new update for SkyDrive which brought
changes and improvements to SkyDrive.com, SkyDrive for Windows desktop and OS X, and
the SkyDrive API as part of Live Connect. For SkyDrive.com, the updates brought a new
"modern"design for the web service consistent with Outlook.com,and along with the UI update
the service also received improvements such as instant search,contextual toolbar,multi-select in
thumbnail view, drag-and-drop files into folders, and sorting improvements.
 On August 28, 2012, Microsoft released a Sky Drive app for Android on Google
Play store. On September 18, 2012, Microsoft also introduced a recycle bin feature on
Sky Drive and announced that Sky Drive will support the creation of online surveys via
Excel Web App.

DEPT OF CSE,VITW

4
SkyDrive

3.BASICUSE:-
 The main basic uses of using skydrive are as follows:-
 The main use here is instead of using a pen drive of a usb drive we can store
our files in the cloud .
 We can access the files anytime and anywhere by using web browsers like
chrome and by using smart phones and tablets which has an internet
connection.
 As we are creating and stroing the files in the cloud we can access the files and
sync the files from anywhere.the following figure shows it diagrammatically.

Fig 2.cloud accessing.
 Not only fro videos and photos we can also create

 Word document.
 Powe point document
 One note documents.

 By using the “WORD WEB APP” which is a service offered by the skydrive
to create a word documents and power point documents and also one note
documents easily.

 “WORD WEB APP” is the type of the services offered by the cloud
computing which is nothing but the SaaS(software as a service).

DEPT OF CSE,VITW

5
SkyDrive

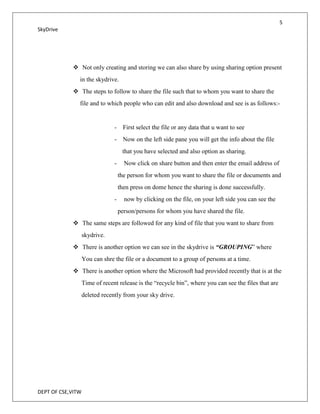

 Not only creating and storing we can also share by using sharing option present
in the skydrive.
 The steps to follow to share the file such that to whom you want to share the
file and to which people who can edit and also download and see is as follows:-

- First select the file or any data that u want to see
- Now on the left side pane you will get the info about the file
that you have selected and also option as sharing.
- Now click on share button and then enter the email address of
the person for whom you want to share the file or documents and
then press on dome hence the sharing is done successfully.
- now by clicking on the file, on your left side you can see the
person/persons for whom you have shared the file.
 The same steps are followed for any kind of file that you want to share from
skydrive.
 There is another option we can see in the skydrive is “GROUPING” where
You can shre the file or a document to a group of persons at a time.
 There is another option where the Microsoft had provided recently that is at the
Time of recent release is the “recycle bin”, where you can see the files that are
deleted recently from your sky drive.

DEPT OF CSE,VITW

6
SkyDrive

 HOW SKY DRIVE IS ACCESSED:- sharing in sky drive.
Fig 3.File

There are two ways how we can access the sky drive are:-
1)Windows live sign in.

[www.home.live.com]
2)skydrive.com
[www.skydrive.com]

 www.home.live.com:- if we have the windowslive id hence we go to this web
page sign in to access the sky drive.

DEPT OF CSE,VITW

7
SkyDrive

Fig 4.windows live sign in/signup page.

 If you don’t have the account then just click on sign up and fill the simple form
with details and then the account is created. and the form look like as follows.

DEPT OF CSE,VITW

8
SkyDrive

Fig 5.signup form.

 www.skydrive.com:- it is the official site for thwe sky drive where u can have
a sign field,where you can sign in your account to access your date and store
the data in cloud.
 The microsofts had been proving this iste from recent years since from last 2
years but in October 2012 ,the site had been updated by using new technologies
and with rich graphics where the user can access the site very easily and
effectively..
 after successful sign in by using any of the above methos the home is look likes
as follows if you have some files.

DEPT OF CSE,VITW

9
SkyDrive

Fig 6.home page of sky drive with some files.

 The files and folders that are present in your storage are displayed after
signing into your account.
 The Microsoft’s had used some of the technological modifications that are used
here in the website of sky drive in such a manner that the pictures that are in the
folder are represented after sign in as a slide show which is very comfortable
and had a cool look to the user how is using it.
4.STORAGE ISSUES
 As we had seen that the skydrive saving the data in clouds, but the general

DEPT OF CSE,VITW

10
SkyDrive

doubt for a layman is how they are storing the data in cloud?. Is the cloud had any storage
device to store data? and so on…
 But the issue here is the skydrive stores the information in cloud storage as
stored by all the cloud services which are following the cloud computing technology to store and
to retrieve the data.
 The cloud architecture is the common architecture which are used by the all the
cloud storage provides including the skydrive also. the basic architecture is as follows:-

Fig 7.cloud architecture
 Desperate computer owners might delete entire folders worth of old files in
order to make space for new information. But some are choosing to rely on a growing
trend: cloud storage..
 While cloud storage sounds like it has something to do with weather fronts and
storm systems, it really refers to saving data to an off-site storage system maintained by a third

DEPT OF CSE,VITW

11
SkyDrive

party. Instead of storing information to your computer's hard drive or other local storage device,
you save it to a remote database. The Internet provides the connection between your computer
and the database.
 On the surface, cloud storage has several advantages over traditional data
storage. For example, if you store your data on a cloud storage system, you'll be able to get to
that data from any location that has Internet access. You wouldn't need to carry around a physical
storage device or use the same computer to save and retrieve your information. With the right
storage system, you could even allow other people to access the data, turning a personal project
into a collaborative effort.
 The some of the service soffered by the cloud computing are as follows:-

1)Infrastructure as a service (IaaS)
2)Platform as a service (PaaS)
3)Software as a service (SaaS)
4)Network as a service (NaaS)
5)Storage as a service (STaaS)
6)Security as a service (SECaaS)
7)Data as a service (DaaS)
8)Database as a service (DBaaS)
9)Test environment as a service (TEaaS)
10)Desktop virtualization
11)API as a service (APIaaS)
12)Backend as a service (BaaS) .
 To provide the software as a aweb app and storage of data sky drive did not
uses the all the above services,it onlu uses the main services that all the other sky storage
providers are following.

 The main two services provided by the sky drive are SaaS and DBaaS.

DEPT OF CSE,VITW

12
SkyDrive

 To provide the online word and power point apps the sky drive uses the SaaS
such that we can use the ms word and power point and much more which are present in actuval
ms office as a software service.

Fig 8 .SaaS architecture.

 The sky drive uses the another service called DBaaS to store and
Accessing of files from anywhere and at any time.

DEPT OF CSE,VITW

13
SkyDrive

 The structure of the DBaaS is of follows:-

Fig 9.DBaaS architecture.

 The service interface act as a a3rd party for storing the data which is
given by the user and it can be retrieved by the user later.
 The clients gives the data which is only required such that the data that
are given the documents and the power points are received by the applications gives that data to
the service interface and it stores in the databases and gives the information whenever the
user wants.

DEPT OF CSE,VITW

14
SkyDrive

5.TECHNOLOGIES
 HTML5 HTML5 is a markup language for structuring and presenting content for the World
Wide Web and a core technology of the Internet. It is the fifth revision of the HTML standard
(created in 1990 and standardized as HTML4 as of 1997) and, as of December 2012, is a
W3C Candidate Recommendation. Its core aims have been to improve the language with
support for the latest multimedia while keeping it easily readable by humans and consistently
understood by computers and devices (web browsers, parsers, etc.). HTML5 is intended to
subsume not only HTML 4, but XHTML 1 and DOM Level 2 HTML as well.
 Html5 adds many new syntactic features. These include the
new <video>, <audio> and <canvas> elements, as well as the integration of scalable vector
graphics (SVG) content (that replaces the uses of generic <object> tags) and Mathml for
mathematical formulas. These features are designed to make it easy to include and
handle multimedia and graphical content on the web without having to resort to proprietary
plug-in and APIs. Other new elements, such as <section>, <article>, <header> and <nav>,
are designed to enrich the semantic content of documents. New attributes have been
introduced for the same purpose, while some elements and attributes have been removed.
Some elements, such as <a>, <cite> and <menu> have been changed, redefined or
standardized. The APIs and document object model (DOM) are no longer afterthoughts, but
are fundamental parts of the HTML5 specification. HTML5 also defines in some detail the
required processing for invalid documents so that syntax errors will be treated uniformly by
all conforming browsers and other user agents.

 AJAX Ajax ( AJAX; an acronym for Asynchronous JavaScript and XML)is a group of
interrelated web development techniques used on the client-side to create asynchronous web
applications. With Ajax, web applications can send data to, and retrieve data from,
a server asynchronously (in the background) without interfering with the display and
behavior of the existing page. Data can be retrieved using the XMLHttpRequest object.
Despite the name, the use of XML is not required (JSON is often used instead), and the
requests do not need to be asynchronous.

Ajax is not a single technology, but a group of technologies. HTML and CSS can be used in
combination to mark up and style information. The DOM is accessed with JavaScript to

DEPT OF CSE,VITW

15
SkyDrive

dynamically display, and to allow the user to interact with the information presented. JavaScript
and the XMLHttpRequest object provide a method for exchanging data asynchronously between
browser and server to avoid full page reloads.

JSON JSON or JavaScript Object Notation, is a text-based open standard designed for human-
readable data interchange. It is derived from the JavaScript scripting language for representing
simple data structures and associative arrays, called objects. Despite its relationship to
JavaScript, it is language-independent, with parsers available for many languages.

The JSON format was originally specified by Douglas Crockford, and is described in RFC
4627. The official Internet media type for JSON isapplication/json. The JSON filename
extension is .json.

The JSON format is often used for serializing and transmitting structured data over a
network connection. It is used primarily to transmit data between a server and web application,
serving as an alternative to XML.

 VIRTUVALIZED LIST VIEWS

The virtual list view (VLV) control is a type of supportedControl that can
be attached to a search operation to indicate that only a subset of the results should be returned. It
may be used to iterate through the search results a page at a time.
The virtual list view (VLV) control is similar to the simple paged results
control with the exception that it can be used to retrieve an arbitrary subset of the results from the
server, and it requires that the search request also include the server-side sort control to ensure
that the results are consistently sorted across requests.

Fig 10.ajax official logo.
 6.FEAUTURES
 There are some of the other technologies that are present before the

DEPT OF CSE,VITW

16
SkyDrive

sky drive some of them are Google docs ,drop box, cloud..etc.

 When compared to the features of the sky drive are as follows:-

Fig 11.file storage and access.

DEPT OF CSE,VITW

17
SkyDrive

Fig 12.accessing files.

DEPT OF CSE,VITW

18
SkyDrive

Fig 13.work together online.

Fig 14.photos and videos.

DEPT OF CSE,VITW

19
SkyDrive

Fig 15.supportability.
 7.ADVANTAGES
 Its like an online ms office.
 Working together at a time
 Editing a document at a time by many number of users.
 Sharing
 Downloading.
 7GB storage at the time of first sign up.
 Less costs for additional storage.
 Hotmail messenger.
 Connectivity to social networks.
 Calendar and high flexibility when compared.

DEPT OF CSE,VITW

20
SkyDrive

8.

DEPT OF CSE,VITW

21
SkyDrive

9.REFERENCES

 www.skydrive.com
 www.windowslive.com
 www.wikipedia.com
 www.howstuffworks.com
 www.microsoft.com

DEPT OF CSE,VITW

Introduction

More Related Content

What's hot

Viewers also liked

Similar to Introduction

Introduction
