This document discusses inheritance and method overriding in Java. It defines inheritance as a mechanism where one class inherits features from another superclass. There are different types of inheritance in Java including single, multilevel, hierarchical and multiple inheritance through interfaces. Method overriding allows a subclass to provide its own implementation of a method defined in the superclass without modifying the superclass. The rules for overriding include matching argument lists and not overriding private, static or final methods. Overriding enables dynamic binding at runtime.

1. INHERITANCE &
METHOD
OVERRIDING
ADVANCED JAVA
PROGRAMMING
NADAR SARASWATHI COLLEGE OF ARTS AND
SCIENCE,THENI.
B.NIVEGEETHA(I-MSC(CS))

2. INHERITANCE
 Inheritance is an important pillar of OOP(Object Oriented
Programming). It is the mechanism in java by which one class is
allow to inherit the features(fields and methods) of another class.
Important terminology:
 Super Class: The class whose features are inherited is known as
super class(or a base class or a parent class).
 Sub Class: The class that inherits the other class is known as sub
class(or a derived class, extended class, or child class). The
subclass can add its own fields and methods in addition to the
super class fields and methods.
 Reusability: Inheritance supports the concept of “reusability”,
i.e. when we want to create a new class and there is already a
class that includes some of the code that we want, we can derive
our new class from the existing class. By doing this, we are
reusing the fields and methods of the existing class.

3. SINGLE INHERITANCE
 Types of Inheritance in Java
 Below are the different types of inheritance which is supported
by Java.
 Single Inheritance : In single inheritance, subclasses inherit
the features of one super class. In image below, the class A
serves as a base class for the derived class B.

4. MULTILEVEL
INHERITANCE
 Multilevel Inheritance : In Multilevel Inheritance, a derived
class will be inheriting a base class and as well as the derived
class also act as the base class to other class. In below image, the
class A serves as a base class for the derived class B, which in
turn serves as a base class for the derived class C. In Java, a class
cannot directly access the grandparent’s members.

5. HIERARCHICAL
INHERITANCE
 Hierarchical Inheritance : In Hierarchical Inheritance, one
class serves as a super class (base class) for more than one sub
class. In below image, the class A serves as a base class for the
derived class B,C and D.

6. MULTIPLE INHERITANCE
 Multiple Inheritance (Through Interfaces) : In Multiple
inheritance ,one class can have more than one super class and
inherit features from all parent classes. Please note that Java
does not support multiple inheritance with classes. In java, we
can achieve multiple inheritance only through Interfaces. In
image below, Class C is derived from interface A and B.

7. HYBRID INHERITANCE
 Hybrid Inheritance(Through Interfaces) : It is a mix of two or
more of the above types of inheritance. Since java doesn’t
support multiple inheritance with classes, the hybrid inheritance
is also not possible with classes. In java, we can achieve hybrid
inheritance only through Interfaces.

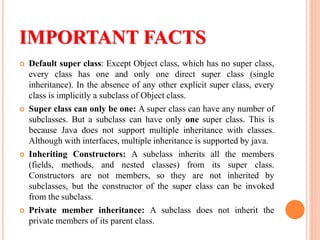

8. IMPORTANT FACTS
 Default super class: Except Object class, which has no super class,
every class has one and only one direct super class (single
inheritance). In the absence of any other explicit super class, every
class is implicitly a subclass of Object class.
 Super class can only be one: A super class can have any number of
subclasses. But a subclass can have only one super class. This is
because Java does not support multiple inheritance with classes.
Although with interfaces, multiple inheritance is supported by java.
 Inheriting Constructors: A subclass inherits all the members
(fields, methods, and nested classes) from its super class.
Constructors are not members, so they are not inherited by
subclasses, but the constructor of the super class can be invoked
from the subclass.
 Private member inheritance: A subclass does not inherit the
private members of its parent class.

9. GENERAL SYNTAX OF
INHERITANCE
public class Class extends
ParentClass
{
//new variable or methods here
}

10. EXAMPLE
public class Shape {
int length;
int breadth;
}
public class Rectangle extends Shape
{
int area;
public void calculateArea()
{
area = length*breadth;
}
public static void main(String args[])
{
Rectangle r = new Rectangle();
//Assigning values to Shape class attributes
r.length = 10;
r.breadth = 20;
//Calculate the area
r.calcualteArea();
System.out.println("The Area of rectangle of length "" +r.length+"" and breadth
""+r.breadth+"" is ""+r.area+""");
}

11. METHOD OVERRIDING
 Declaring a method in sub class which is already present
in parent class is known as method overriding. Overriding is
done so that a child class can give its own implementation to a
method which is already provided by the parent class. In this
case the method in parent class is called overridden method and
the method in child class is called overriding method.

12. class Human
{
//Overridden method
public void eat()
{
System.out.println("Human is eating");
}
}
class Boy extends Human
{
//Overriding method public void eat()
{
System.out.println("Boy is eating");
}
public static void main( String args[])
{
Boy obj = new Boy();
//This will call the child class version of eat()
obj.eat();
}
}

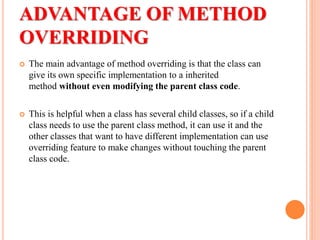

13. ADVANTAGE OF METHOD
OVERRIDING
 The main advantage of method overriding is that the class can
give its own specific implementation to a inherited
method without even modifying the parent class code.
 This is helpful when a class has several child classes, so if a child
class needs to use the parent class method, it can use it and the
other classes that want to have different implementation can use
overriding feature to make changes without touching the parent
class code.

14. RULES OF METHOD
OVERRIDING
 Argument list: The argument list of overriding method (method
of child class) must match the Overridden method(the method of
parent class). The data types of the arguments and their sequence
should exactly match.
 private, static and final methods cannot be overridden as they are
local to the class. However static methods can be re-declared in
the sub class, in this case the sub-class method would act
differently and will have nothing to do with the same static
method of parent class.
 Binding of overridden methods happen at runtime which is
known as dynamic binding
 If a class is extending an abstract class or implementing
an interface then it has to override all the abstract methods
unless the class itself is a abstract class.

15. END
