Infrastructure is code with the AWS cloud development kit
The document outlines the AWS Cloud Development Kit (CDK) and its advantages over manual and scripted infrastructure management approaches. It discusses the benefits of using the CDK for building reproducible, automated, and declarative resource provisioning with examples and a demo setup. Additionally, it presents various AWS services supported by the CDK and encourages further exploration of its features and community resources.
Infrastructure is code with the AWS cloud development kit
- 1. Infrastructure IsCode with theAWSCloud Development Kit Richard H Boyd Sr Developer Advocate AWS DeveloperTools

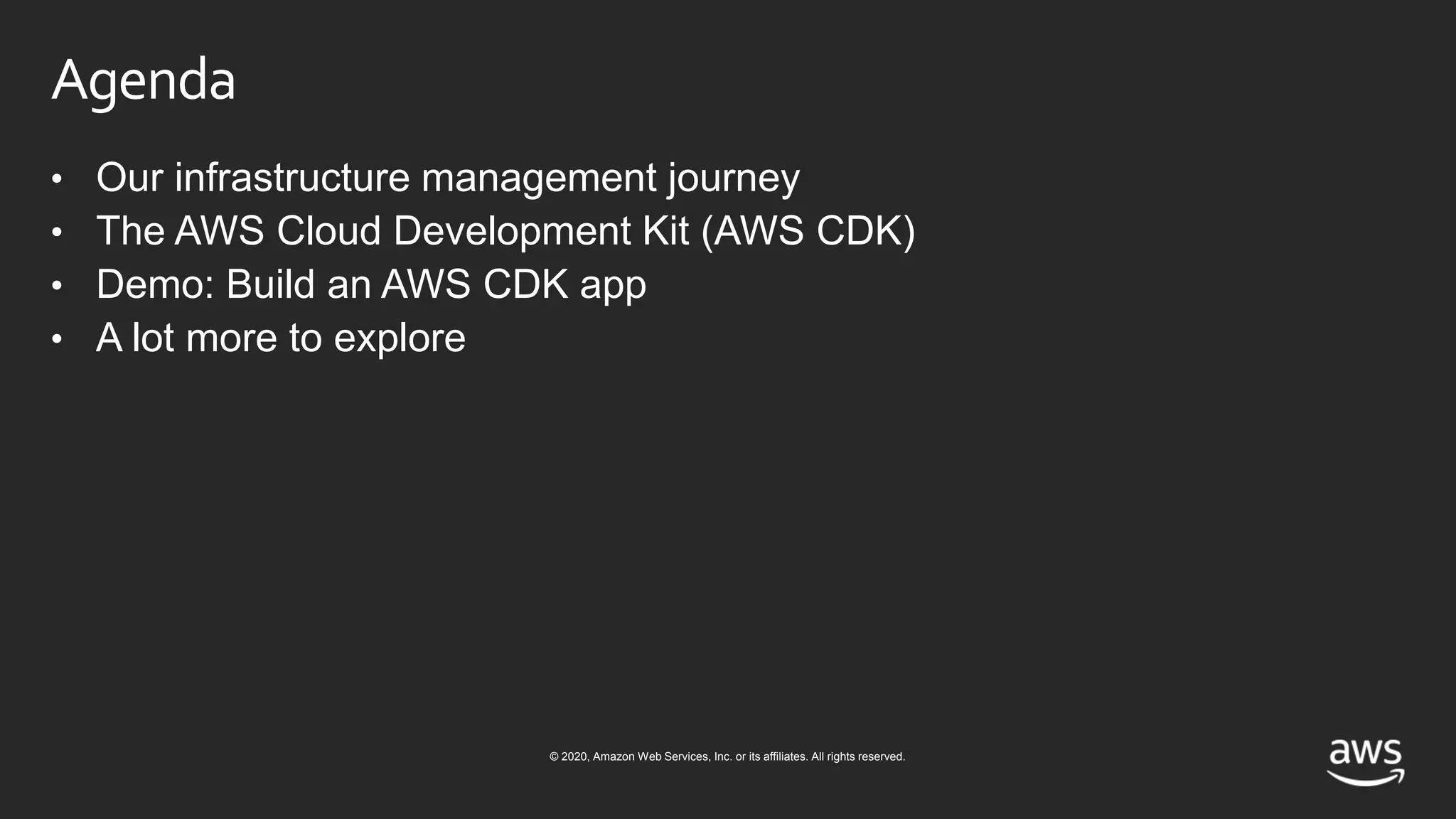

- 2. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Agenda • Our infrastructure management journey • The AWS Cloud Development Kit (AWS CDK) • Demo: Build an AWS CDK app • A lot more to explore
- 3. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved.

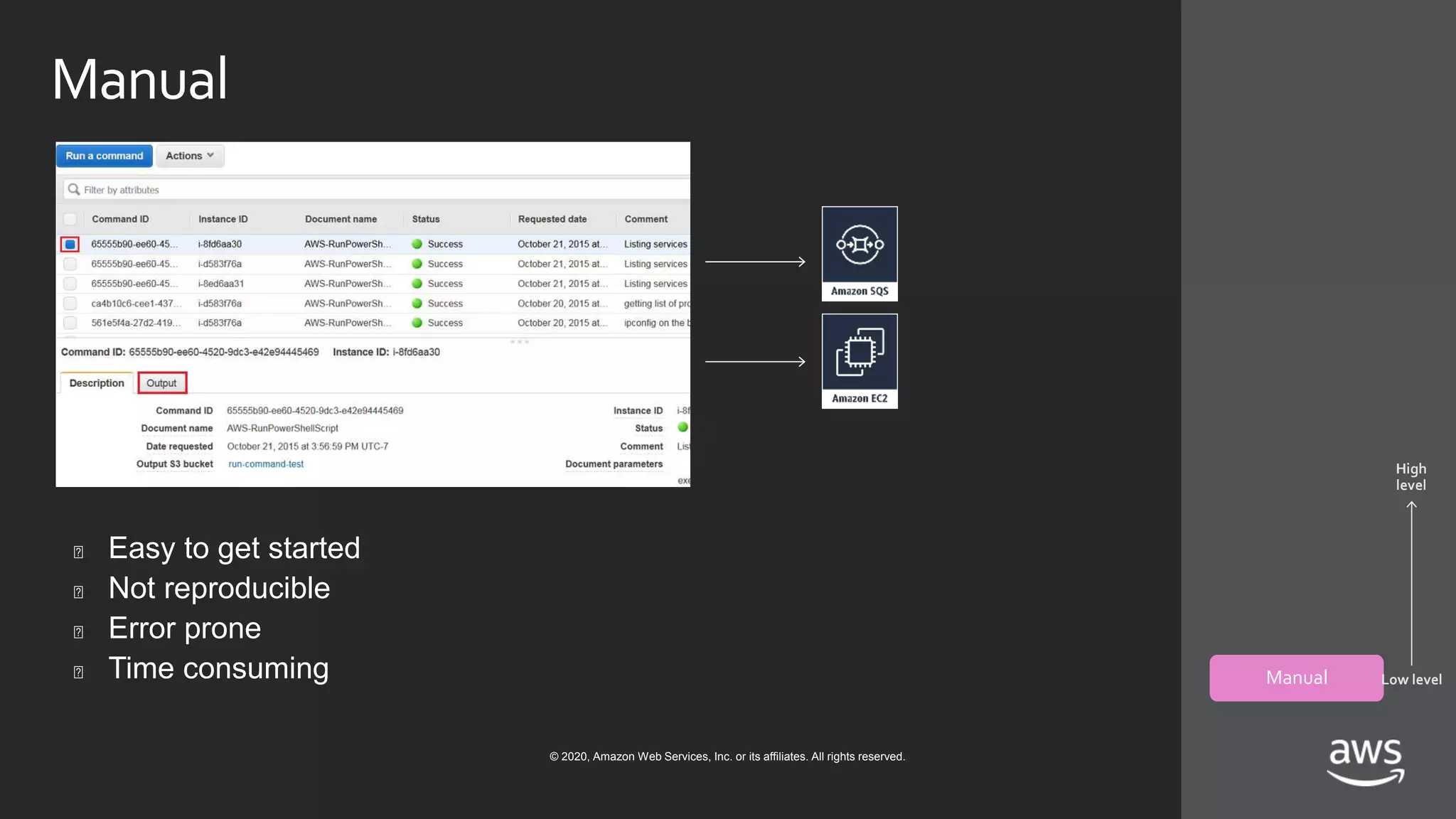

- 4. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Manual � Easy to get started � Not reproducible � Error prone � Time consuming Manual High level Low level

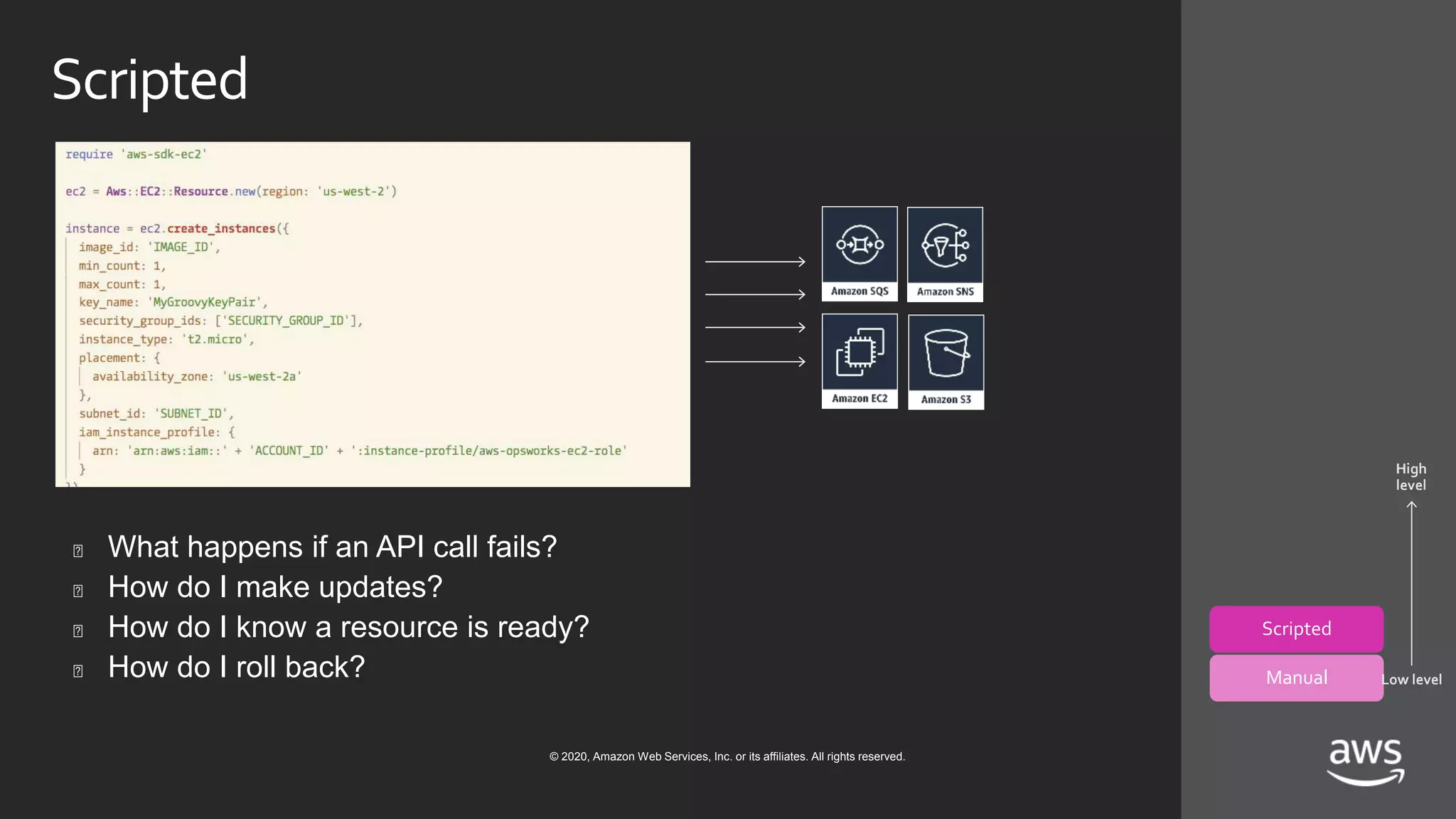

- 5. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Scripted � What happens if an API call fails? � How do I make updates? � How do I know a resource is ready? � How do I roll back? Scripted Manual High level Low level

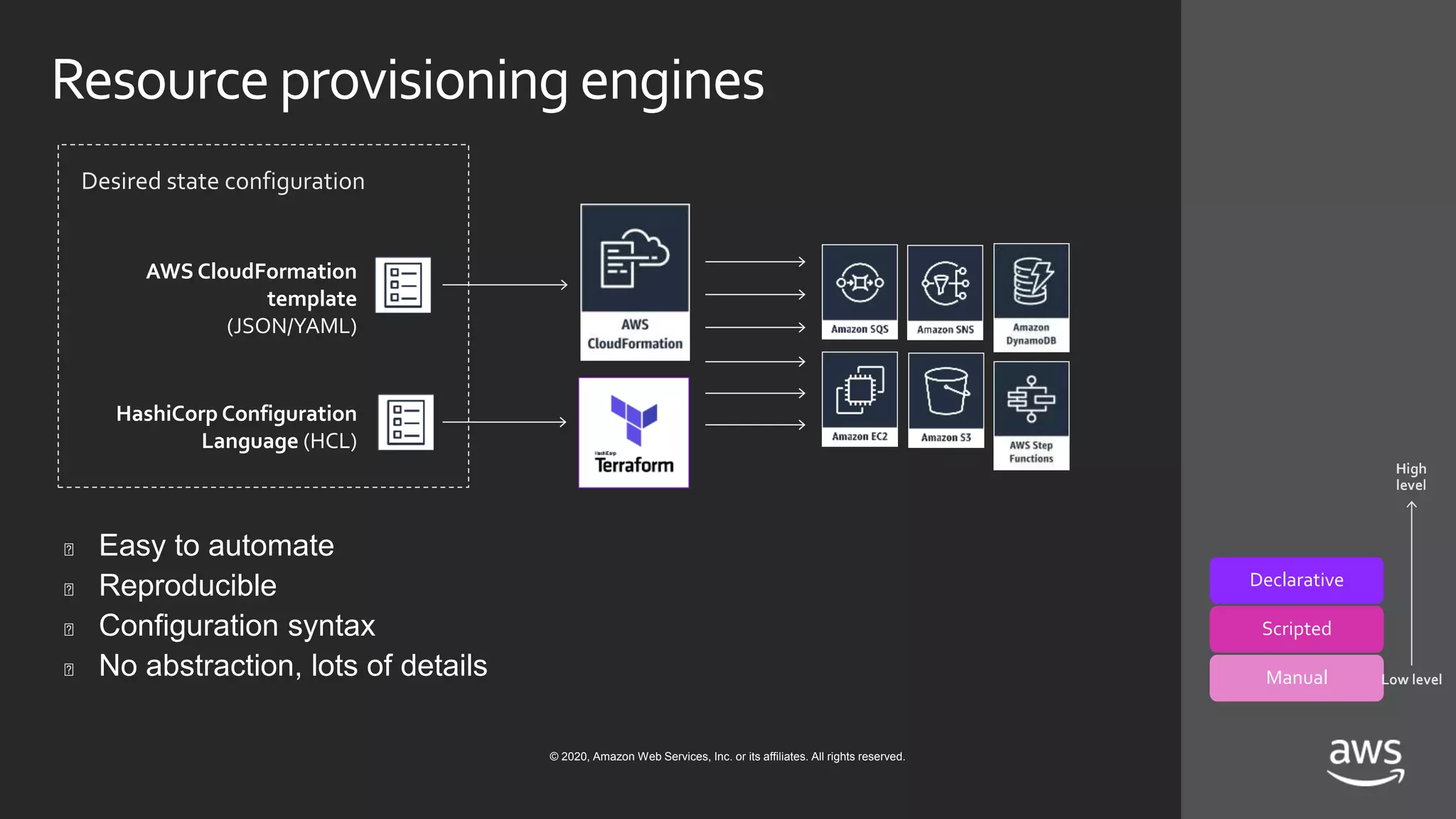

- 6. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Resourceprovisioning engines AWS CloudFormation template (JSON/YAML) HashiCorp Configuration Language (HCL) Desired state configuration Declarative Scripted Manual High level Low level � Easy to automate � Reproducible � Configuration syntax � No abstraction, lots of details

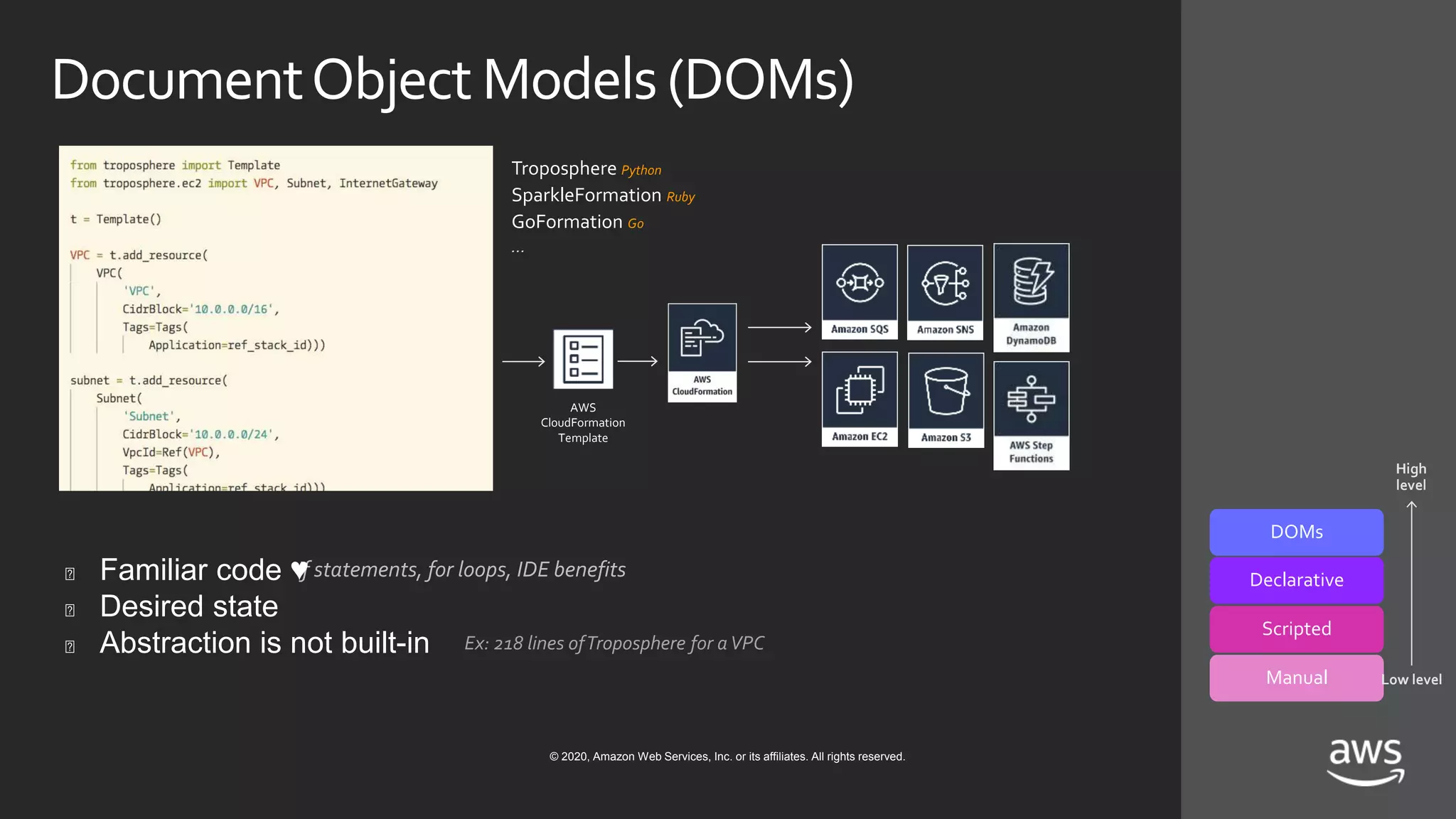

- 7. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. DocumentObject Models (DOMs) Troposphere Python SparkleFormation Ruby GoFormation Go … if statements, for loops, IDE benefits Ex: 218 lines ofTroposphere for aVPC AWS CloudFormation Template � Familiar code ♥️ � Desired state � Abstraction is not built-in DOMs Declarative Scripted Manual High level Low level
- 8. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved.

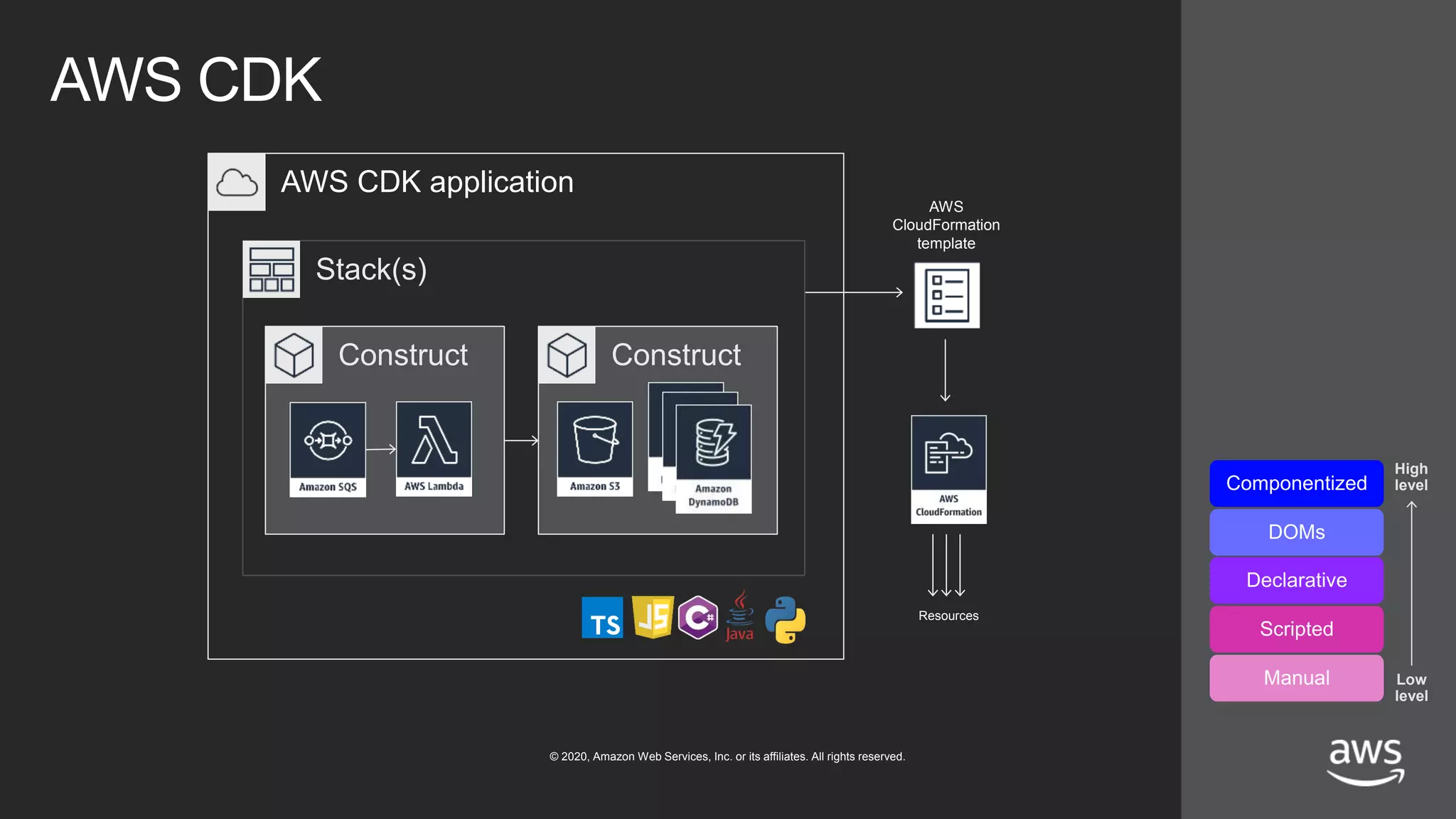

- 9. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. AWS CloudFormation template AWS CDK application Stack(s) Construct Construct AWS CDK Componentized DOMs Declarative Scripted Manual High level Low level Resources

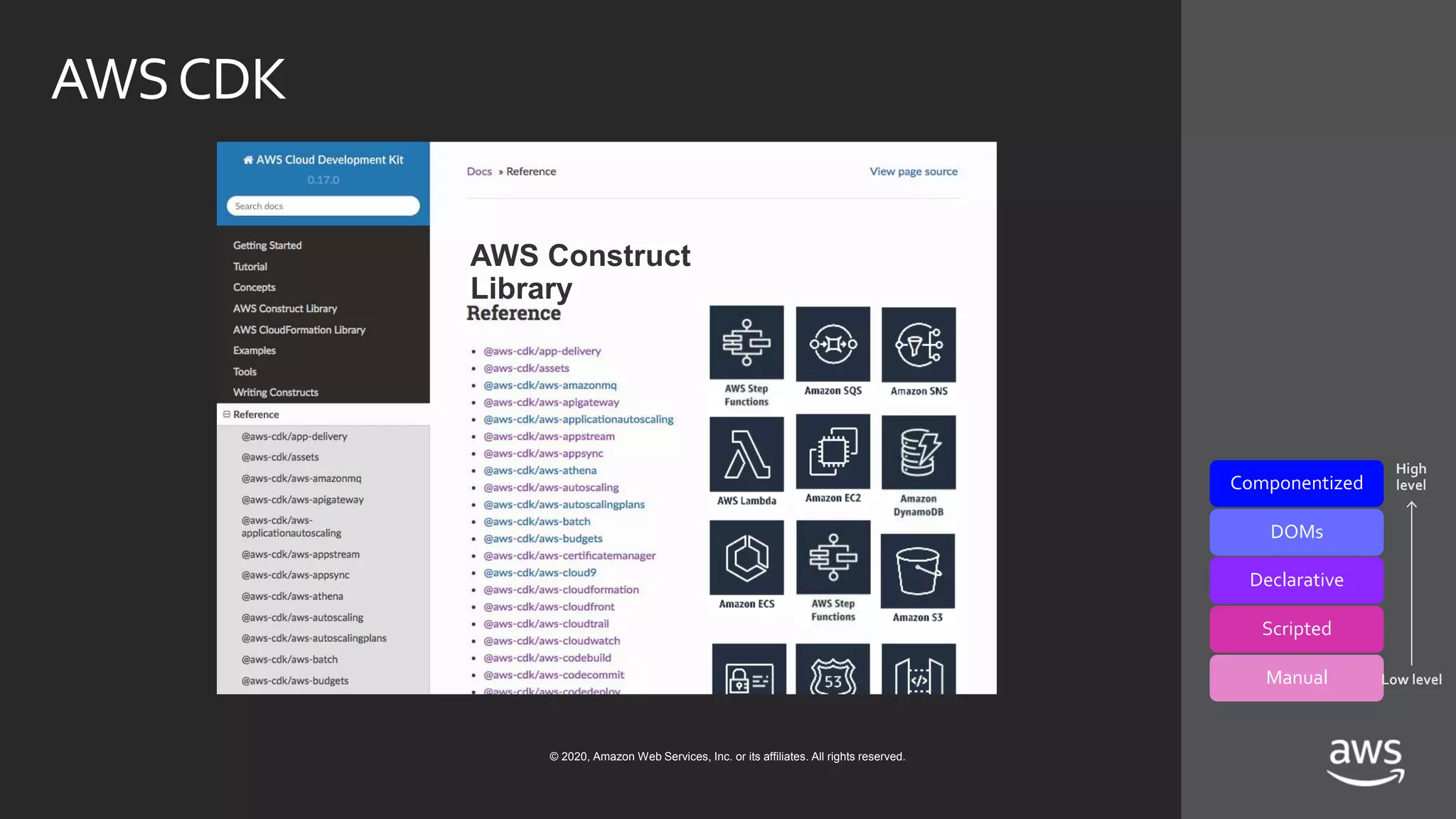

- 10. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. AWS Construct Library AWSCDK Componentized DOMs Declarative Scripted Manual High level Low level

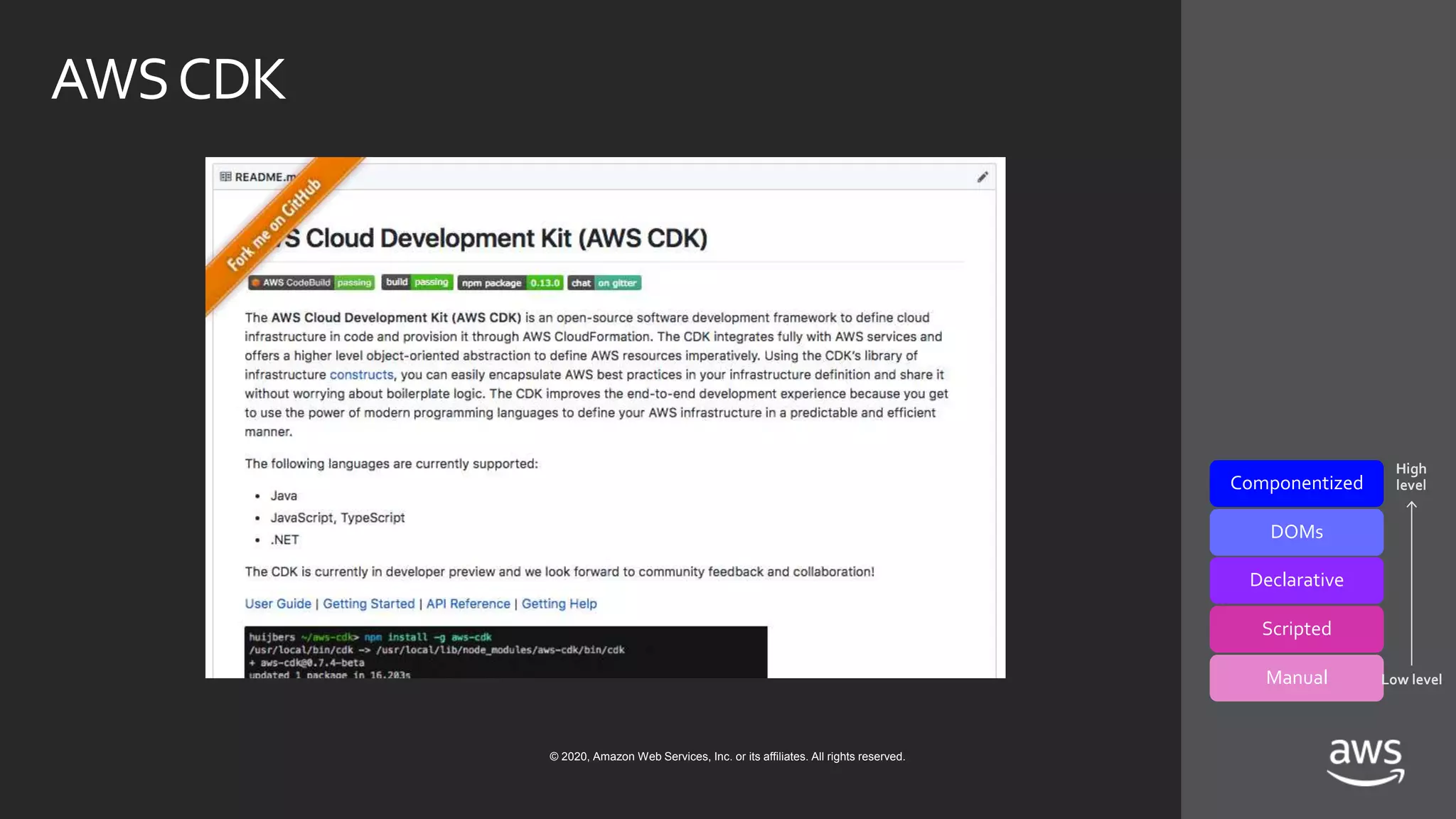

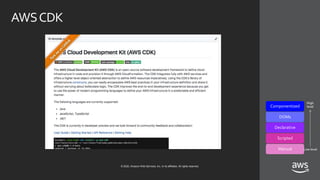

- 11. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Componentized DOMs Declarative Scripted Manual High level Low level AWSCDK

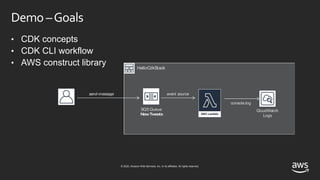

- 12. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Demo –Goals • CDK concepts • CDK CLI workflow • AWS construct library HelloCdkStack event source SQS Queue NewTweets CloudWatch Logs console.log send-message

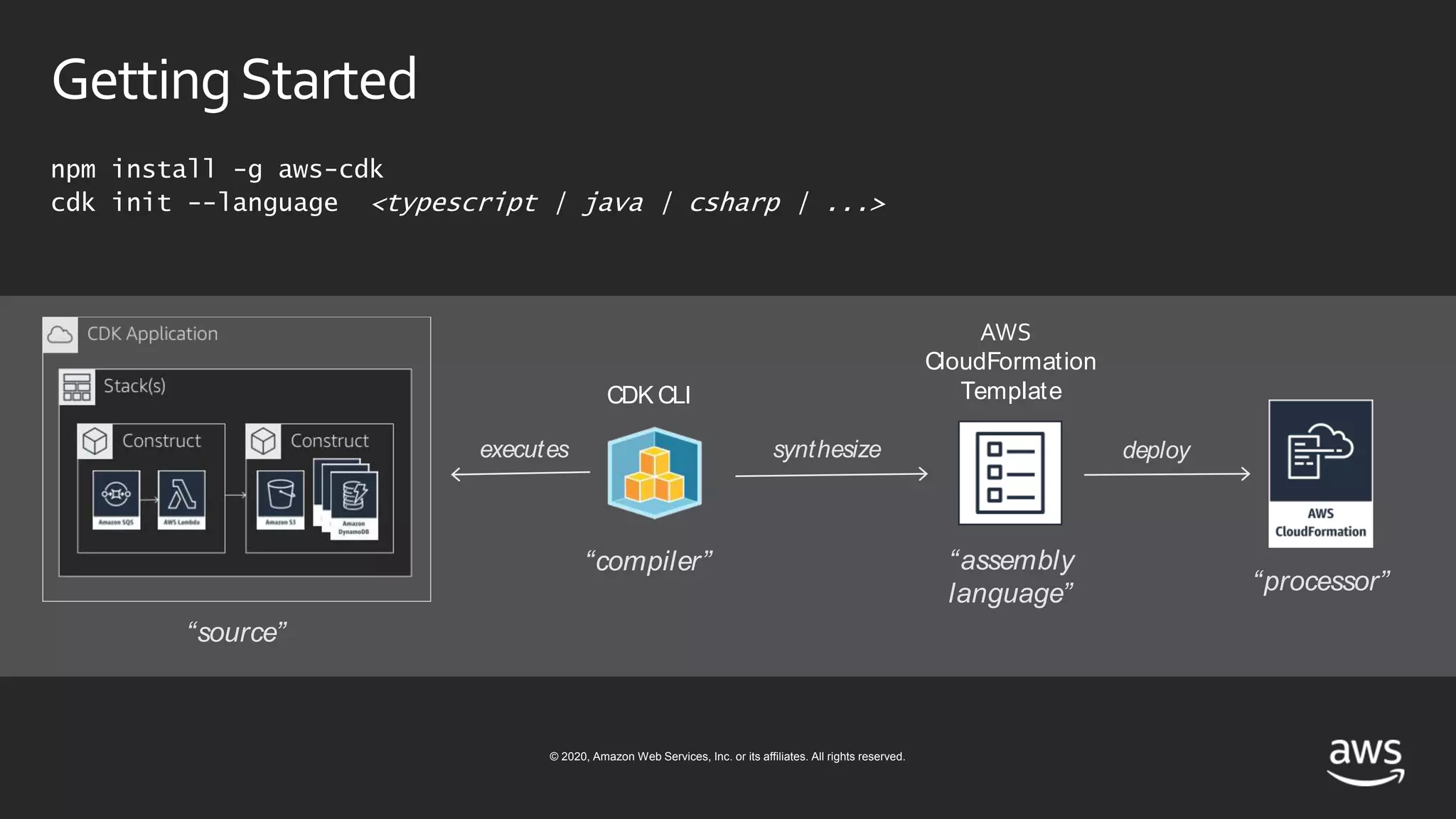

- 13. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. GettingStarted npm install -g aws-cdk cdk init --language <typescript | java | csharp | ...> CloudFormation Template “compiler” CDK CLI “processor” “assembly language” “source” synthesize deployexecutes

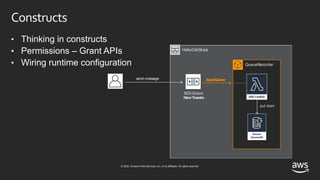

- 14. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Constructs • Thinking in constructs • Permissions – Grant APIs • Wiring runtime configuration HelloCdkStack SQS Queue NewTweets QueueRecorder put-item inputQueuesend-message

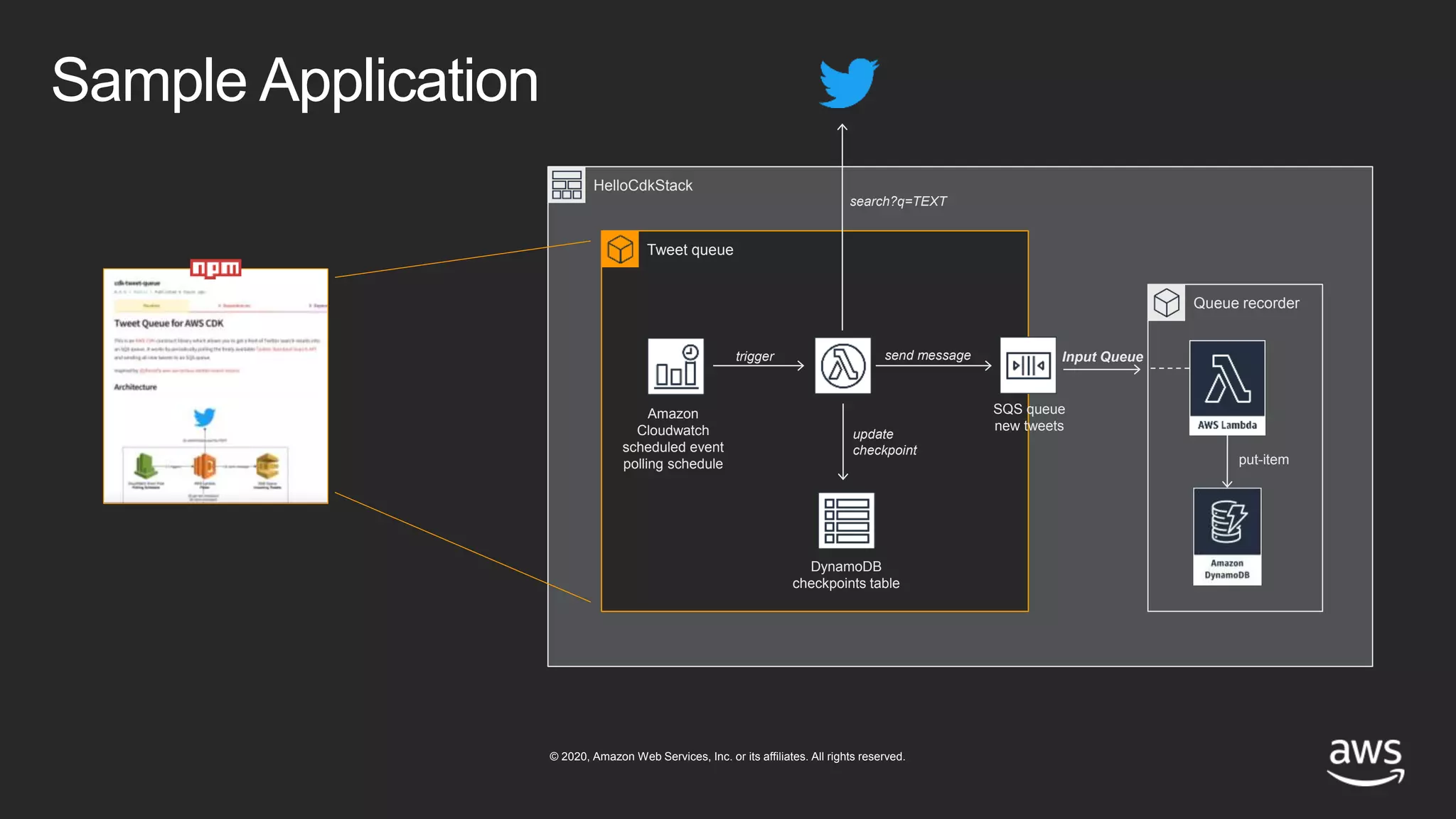

- 15. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. HelloCdkStack Tweet queue Input Queue put-item SQS queue new tweets Amazon Cloudwatch scheduled event polling schedule DynamoDB checkpoints table trigger update checkpoint send message search?q=TEXT Queue recorder Sample Application
- 16. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved.

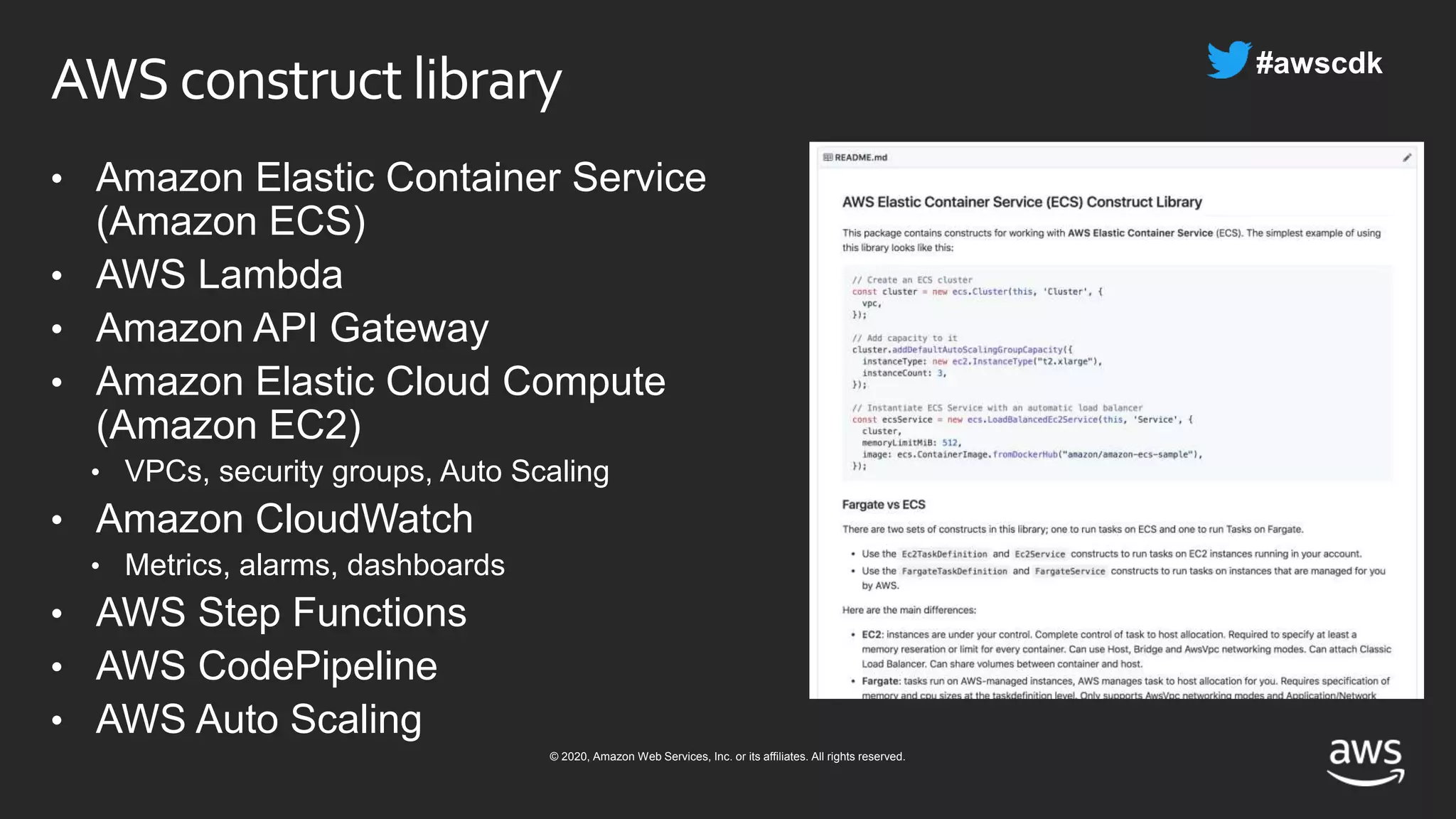

- 17. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. AWS constructlibrary • Amazon Elastic Container Service (Amazon ECS) • AWS Lambda • Amazon API Gateway • Amazon Elastic Cloud Compute (Amazon EC2) • VPCs, security groups, Auto Scaling • Amazon CloudWatch • Metrics, alarms, dashboards • AWS Step Functions • AWS CodePipeline • AWS Auto Scaling

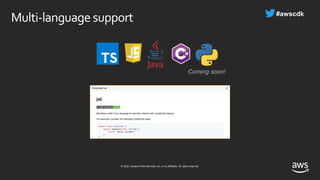

- 18. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Multi-language support Coming soon!
- 19. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Advanced topics • Multi-stack and cross-region applications • Declarative constructs with AWS CDK applets • Working with the AWS CloudFormation DOM • Embedding existing AWS CloudFormation templates • Importing resources from other stacks • Embedding code bundles, docker files, and others into constructs

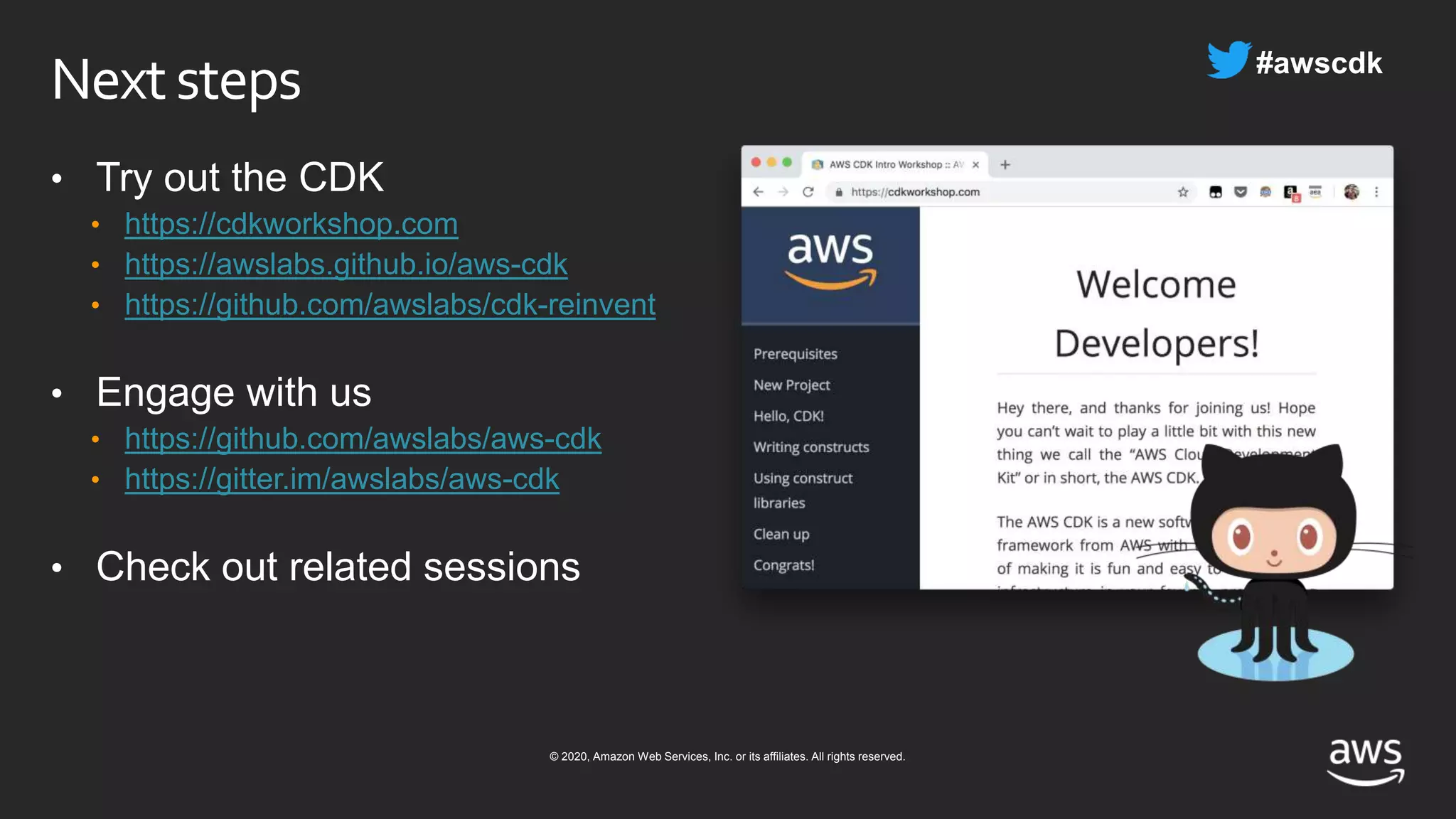

- 20. © 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Nextsteps • Try out the CDK • https://cdkworkshop.com • https://awslabs.github.io/aws-cdk • https://github.com/awslabs/cdk-reinvent • Engage with us • https://github.com/awslabs/aws-cdk • https://gitter.im/awslabs/aws-cdk • Check out related sessions
- 21. Thank you! © 2020,Amazon Web Services, Inc. or its affiliates. All rights reserved. Richard H Boyd @rchrdbyd
