![4096
1024
256
64
16
4
1
Runtime [s]
Load and first validation
55M model: approx. 15 minutes
Rete network’s
initialization
overhead pays off
Model size [million elements]
4store IncQuery-D Titan IncQuery-D 4store](https://image.slidesharecdn.com/incqueryd-cloudmdetalk-141001034042-phpapp01/85/IncQuery-D-Distributed-Incremental-Model-Queries-over-the-Cloud-Engineering-and-Deployment-Challenges-53-320.jpg)

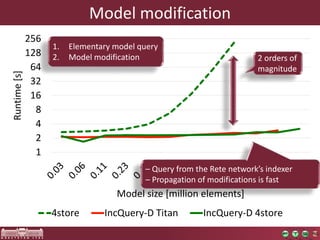

![256
128
64
32
16
8
4
2
1
Runtime [s]
Model modification
1. Elementary model query
2. Model modification
2 orders of
magnitude
– Query from the Rete network’s indexer
– Propagation of modifications is fast
Model size [million elements]
4store IncQuery-D Titan IncQuery-D 4store](https://image.slidesharecdn.com/incqueryd-cloudmdetalk-141001034042-phpapp01/85/IncQuery-D-Distributed-Incremental-Model-Queries-over-the-Cloud-Engineering-and-Deployment-Challenges-54-320.jpg)

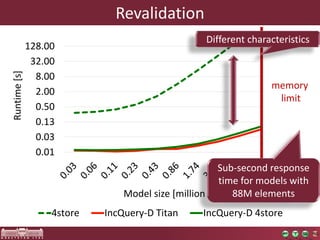

![128.00
32.00
8.00
2.00
0.50
0.13
0.03
0.01
Runtime [s]
Revalidation
Different characteristics
Sub-second response
time for models with
88M elements
Model size [million elements]
memory
limit
4store IncQuery-D Titan IncQuery-D 4store](https://image.slidesharecdn.com/incqueryd-cloudmdetalk-141001034042-phpapp01/85/IncQuery-D-Distributed-Incremental-Model-Queries-over-the-Cloud-Engineering-and-Deployment-Challenges-55-320.jpg)
Uploaded byDaniel Varro
IncQuery-D: Distributed Incremental Model Queries over the Cloud: Engineering and Deployment Challenges
The document outlines the engineering and deployment challenges of distributed incremental model queries over the cloud, focusing on the EMF-IncQuery framework and its scalability in model-driven engineering. It discusses the motivation for early validation of design rules and the complexities involved in querying large models, particularly in industrial contexts like the automotive industry. The architecture of IncQuery-D is presented, highlighting its distributed nature, use of cloud infrastructure, and performance benchmarks for model validation and query evaluation.
More Related Content
Similar to IncQuery-D: Distributed Incremental Model Queries over the Cloud: Engineering and Deployment Challenges
IncQuery-D: Distributed Incremental Model Queries over the Cloud: Engineering and Deployment Challenges
- 1. Distributed Incremental ModelQueries over the Cloud: Engineering and Deployment Challenges Budapest University of Technology and Economics Department of Measurement and Information Systems Dániel Varró Budapest University of Technology and Economics Fault Tolerant Systems Research Group

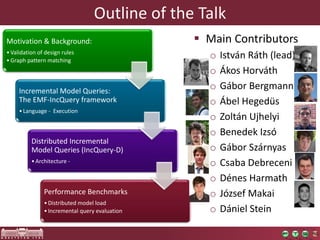

- 2. Outline of theTalk Motivation & Background: • Validation of design rules • Graph pattern matching Incremental Model Queries: The EMF-IncQuery framework • Language - Execution Distributed Incremental Model Queries (IncQuery-D) • Architecture - Performance Benchmarks • Distributed model load • Incremental query evaluation Main Contributors o István Ráth (lead) o Ákos Horváth o Gábor Bergmann o Ábel Hegedüs o Zoltán Ujhelyi o Benedek Izsó o Gábor Szárnyas o Csaba Debreceni o Dénes Harmath o József Makai o Dániel Stein
- 3. SCALABLE MODEL DRIVENENGINEERING

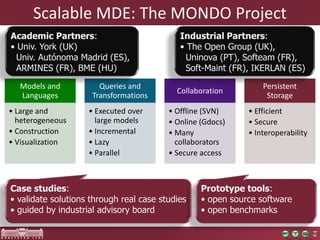

- 4. Scalable MDE: TheMONDO Project Models and Languages • Large and heterogeneous • Construction • Visualization Queries and Transformations • Executed over large models • Incremental • Lazy • Parallel Collaboration • Offline (SVN) • Online (Gdocs) • Many collaborators • Secure access Persistent Storage • Efficient • Secure • Interoperability Case studies: • validate solutions through real case studies • guided by industrial advisory board Prototype tools: • open source software • open benchmarks Academic Partners: • Univ. York (UK) Univ. Autónoma Madrid (ES), ARMINES (FR), BME (HU) Industrial Partners: • The Open Group (UK), Uninova (PT), Softeam (FR), Soft-Maint (FR), IKERLAN (ES)
- 5. MOTIVATION FOR INCREMENTALMODEL QUERIES

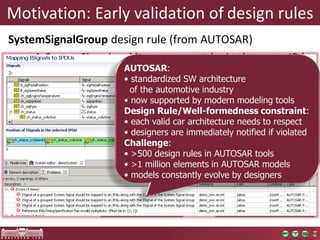

- 6. Motivation: Early validationof design rules SystemSignalGroup design rule (from AUTOSAR) o A SystemSignal and its group must be in the same IPdu o Challenge: find violations quickly in large models o New difficulties • reverse navigation • complex manual solution AUTOSAR: • standardized SW architecture of the automotive industry • now supported by modern modeling tools Design Rule/Well-formedness constraint: • each valid car architecture needs to respect • designers are immediately notified if violated Challenge: • >500 design rules in AUTOSAR tools • >1 million elements in AUTOSAR models • models constantly evolve by designers

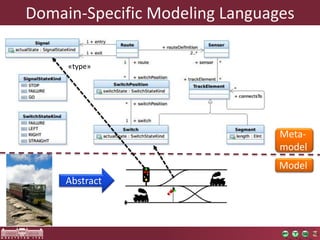

- 7. Domain-Specific Modeling Languages Abstract Meta-model Model «type»

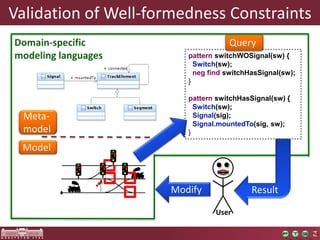

- 8. Validation of Well-formednessConstraints Meta-model Model Query pattern switchWOSignal(sw) { Switch(sw); neg find switchHasSignal(sw); } pattern switchHasSignal(sw) { Switch(sw); Signal(sig); Signal.mountedTo(sig, sw); } Modify User Result

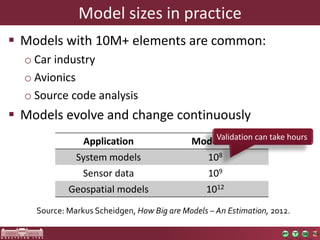

- 9. Model sizes inpractice Models with 10M+ elements are common: o Car industry o Avionics o Source code analysis Models evolve and change continuously Validation can take hours Application Model size System models 108 Sensor data 109 Geospatial models 1012 Source: Markus Scheidgen, How Big are Models – An Estimation, 2012.
- 10. MODEL QUERIES AND GRAPH PATTERN MATCHING

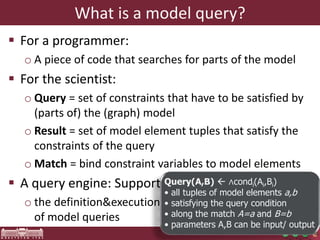

- 11. What is amodel query? For a programmer: o A piece of code that searches for parts of the model For the scientist: o Query = set of constraints that have to be satisfied by (parts of) the (graph) model o Result = set of model element tuples that satisfy the constraints of the query o Match = bind constraint variables to model elements A query engine: Supports o the definition&execution of model queries Query(A,B) ∧condi(Ai,Bi) • all tuples of model elements a,b • satisfying the query condition • along the match A=a and B=b • parameters A,B can be input/ output

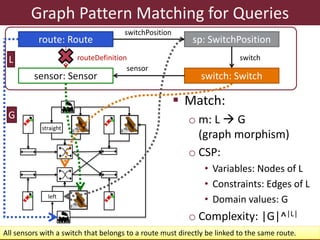

- 12. Graph Pattern Matchingfor Queries route: Route sp: SwitchPosition routeDefinition sensor: Sensor switch: Switch Match: o m: L G (graph morphism) o CSP: • Variables: Nodes of L • Constraints: Edges of L • Domain values: G o Complexity: |G|^|L| L G straight left switchPosition switch sensor All sensors with a switch that belongs to a route must directly be linked to the same route.

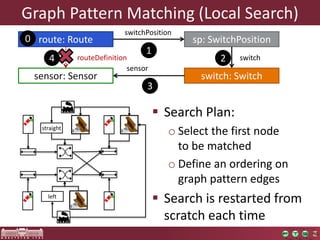

- 13. Graph Pattern Matching(Local Search) switchPosition route: Route sp: SwitchPosition switch routeDefinition sensor sensor: Sensor switch: Switch Search Plan: o Select the first node to be matched o Define an ordering on graph pattern edges Search is restarted from scratch each time 1 2 0 3 4 straight left

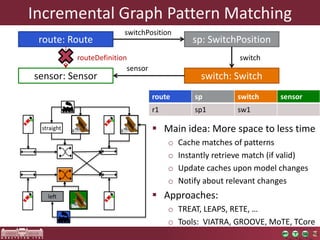

- 14. Incremental Graph PatternMatching switchPosition route: Route sp: SwitchPosition switch routeDefinition sensor sensor: Sensor switch: Switch Main idea: More space to less time o Cache matches of patterns o Instantly retrieve match (if valid) o Update caches upon model changes o Notify about relevant changes Approaches: o TREAT, LEAPS, RETE, … o Tools: VIATRA, GROOVE, MoTE, TCore straight left route sp switch sensor r1 sp1 sw1

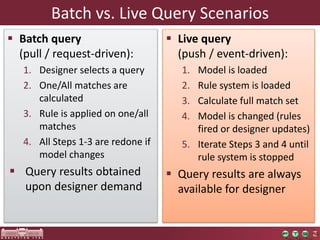

- 15. Batch vs. LiveQuery Scenarios Batch query (pull / request-driven): 1. Designer selects a query 2. One/All matches are calculated 3. Rule is applied on one/all matches 4. All Steps 1-3 are redone if model changes Query results obtained upon designer demand Live query (push / event-driven): 1. Model is loaded 2. Rule system is loaded 3. Calculate full match set 4. Model is changed (rules fired or designer updates) 5. Iterate Steps 3 and 4 until rule system is stopped Query results are always available for designer
- 16. INCREMENTAL MODEL QUERIES: THE EMF-INCQUERY PROJECT

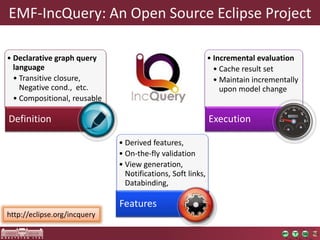

- 17. EMF-IncQuery: An OpenSource Eclipse Project • Declarative graph query language • Transitive closure, Negative cond., etc. • Compositional, reusable Definition • Incremental evaluation • Cache result set • Maintain incrementally upon model change Execution • Derived features, • On-the-fly validation • View generation, Notifications, Soft links, Databinding, Features http://eclipse.org/incquery

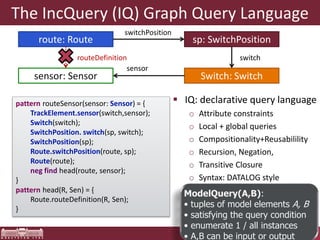

- 18. The IncQuery (IQ)Graph Query Language route: Route sp: SwitchPosition routeDefinition sensor: Sensor Switch: Switch IQ: declarative query language o Attribute constraints o Local + global queries o Compositionality+Reusabilility o Recursion, Negation, o Transitive Closure o Syntax: DATALOG style pattern routeSensor(sensor: Sensor) = { TrackElement.sensor(switch,sensor); Switch(switch); SwitchPosition. switch(sp, switch); SwitchPosition(sp); Route.switchPosition(route, sp); Route(route); neg find head(route, sensor); } pattern head(R, Sen) = { Route.routeDefinition(R, Sen); } ModelQuery(A,B): • tuples of model elements A, B • satisfying the query condition • enumerate 1 / all instances • A,B can be input or output switchPosition switch sensor

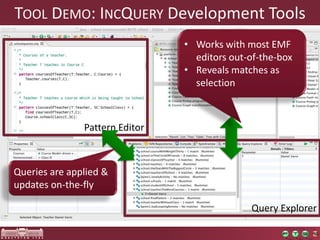

- 19. TOOL DEMO: INCQUERYDevelopment Tools Query Explorer Pattern Editor Queries are applied & updates on-the-fly • Works with most EMF editors out-of-the-box • Reveals matches as selection

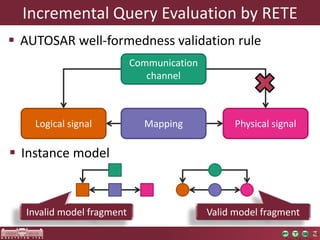

- 20. Incremental Query Evaluationby RETE AUTOSAR well-formedness validation rule Communication channel Logical signal Mapping Physical signal Instance model Invalid model fragment Valid model fragment

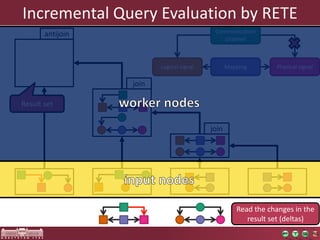

- 21. Incremental Query Evaluationby RETE Read the changes in the PFrFRioMlileplltoaahtdghea ietftwhyeineottphrrhkueeetsm rucnhnlootaoddsndeegeltsess result set (deltas) join join antijoin Result set Communication channel Logical signal Mapping Physical signal

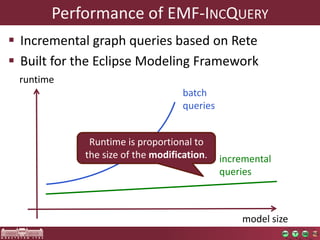

- 22. Performance of EMF-INCQUERY Incremental graph queries based on Rete Built for the Eclipse Modeling Framework model size runtime batch queries incremental queries Runtime is proportional to the size of the modification.

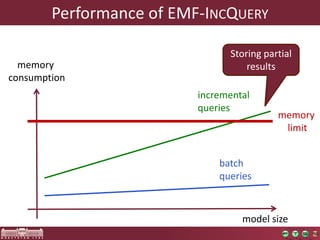

- 23. Performance of EMF-INCQUERY Storing partial memory results consumption incremental queries batch queries memory limit model size

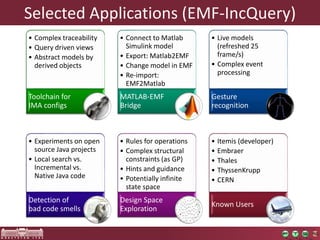

- 24. Selected Applications (EMF-IncQuery) • Complex traceability • Query driven views • Abstract models by derived objects Toolchain for IMA configs • Connect to Matlab Simulink model • Export: Matlab2EMF • Change model in EMF • Re-import: EMF2Matlab MATLAB-EMF Bridge • Live models (refreshed 25 frame/s) • Complex event processing Gesture recognition • Experiments on open source Java projects • Local search vs. Incremental vs. Native Java code Detection of bad code smells • Rules for operations • Complex structural constraints (as GP) • Hints and guidance • Potentially infinite state space Design Space Exploration • Itemis (developer) • Embraer • Thales • ThyssenKrupp • CERN Known Users
- 25. INCQUERY-D: DISTRIBUTED INCREMENTALMODEL QUERIES

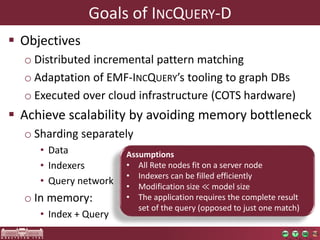

- 26. Goals of INCQUERY-D Objectives o Distributed incremental pattern matching o Adaptation of EMF-INCQUERY’s tooling to graph DBs o Executed over cloud infrastructure (COTS hardware) Achieve scalability by avoiding memory bottleneck o Sharding separately • Data • Indexers • Query network o In memory: • Index + Query Assumptions • All Rete nodes fit on a server node • Indexers can be filled efficiently • Modification size ≪ model size • The application requires the complete result set of the query (opposed to just one match)

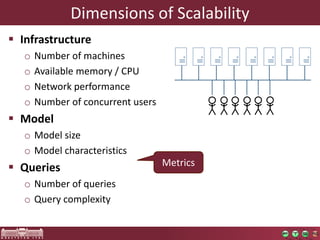

- 27. Dimensions of Scalability Infrastructure o Number of machines o Available memory / CPU o Network performance o Number of concurrent users Model o Model size o Model characteristics Queries o Number of queries o Query complexity Metrics

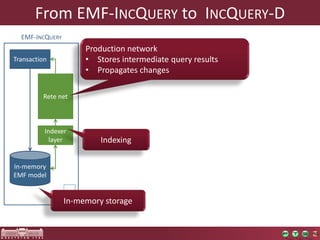

- 28. From EMF-INCQUERY toINCQUERY-D EMF-INCQUERY Transaction Rete net Indexer layer In-memory EMF model Production network • Stores intermediate query results • Propagates changes Indexing In-memory storage
- 29. Database shard 0 INCQUERY-D Architecture Database shard 1 Server 1 Database shard 2 Server 2 Database shard 3 Server 3 Transaction Server 0 Rete net Indexer layer INCQUERY-D Distributed query evaluation network Distributed indexer Model access adapter Distributed indexing, notification Distributed persistent storage Distributed production network • Each intermediate node can be allocated to a different host • Remote internode communication

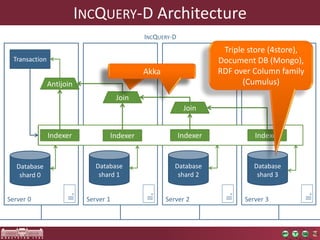

- 30. INCQUERY-D Architecture Join Database shard 1 Server 1 Join Database shard 2 Server 2 Triple store (4store), Document DB (Mongo), RDF over Column family (Cumulus) Database shard 3 Server 3 Transaction Database shard 0 In-memory EMF model Server 0 Antijoin Indexer layer INCQUERY-D Akka Indexer Indexer Indexer Indexer

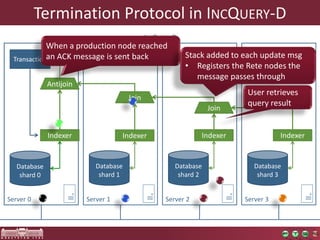

- 31. Termination Protocol inINCQUERY-D Database shard 0 When a production node reached an ACK message is sent back Stack added to each update msg Database shard 1 Server 1 • Registers the Rete nodes the message passes through Database shard 2 Server 2 User retrieves query result Database shard 3 Server 3 Transaction Server 0 INCQUERY-D Join Join Antijoin Indexer Indexer Indexer Indexer

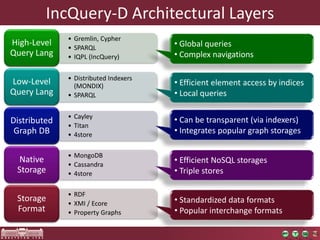

- 32. IncQuery-D Architectural Layers • Gremlin, Cypher • SPARQL • IQPL (IncQuery) High-Level Query Lang • Distributed Indexers (MONDIX) • SPARQL Low-Level Query Lang • Cayley • Titan • 4store Distributed Graph DB • MongoDB • Cassandra • 4store Native Storage • RDF • XMI / Ecore • Property Graphs Storage Format • Global queries • Complex navigations • Efficient element access by indices • Local queries • Can be transparent (via indexers) • Integrates popular graph storages • Efficient NoSQL storages • Triple stores • Standardized data formats • Popular interchange formats

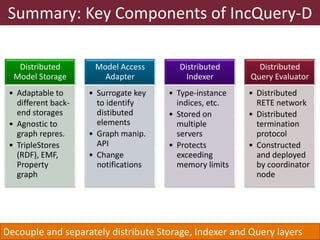

- 33. Summary: Key Componentsof IncQuery-D Distributed Model Storage • Adaptable to different back-end storages • Agnostic to graph repres. • TripleStores (RDF), EMF, Property graph Model Access Adapter • Surrogate key to identify distibuted elements • Graph manip. API • Change notifications Distributed Indexer • Type-instance indices, etc. • Stored on multiple servers • Protects exceeding memory limits Distributed Query Evaluator • Distributed RETE network • Distributed termination protocol • Constructed and deployed by coordinator node Decouple and separately distribute Storage, Indexer and Query layers
- 34.
- 35. Load Model (1)Loading a Query Update Model Request Result Deploy RETE RETE Network Allocate RETE Cloud Infra-structure Construct RETE Load Query Construct RETE • From EMF-IncQuery specs • Should incorporate infrastructure constraints Deploy RETE • Managed by a coordinator node • Intelligent sharding of RETE nodes

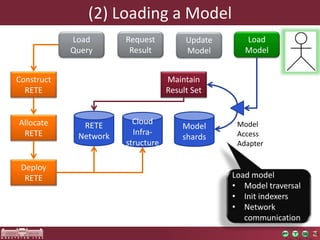

- 36. Load Model (2)Loading a Model Update Model Request Result Model shards Deploy RETE RETE Network Allocate RETE Maintain Result Set Cloud Infra-structure Construct RETE Model Access Adapter Load Query Load model • Model traversal • Init indexers • Network communication

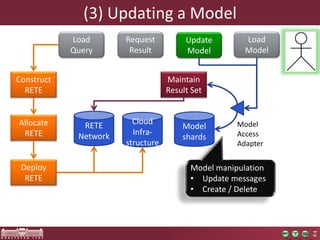

- 37. Load Model (3)Updating a Model Update Model Request Result Model shards Deploy RETE RETE Network Allocate RETE Maintain Result Set Cloud Infra-structure Construct RETE Model Access Adapter Load Query Model manipulation • Update messages • Create / Delete
- 38. (4) Requesting QueryResult Load Model Update Model Request Result Model shards Deploy RETE RETE Network Allocate RETE Evaluate Query Maintain Result Set Cloud Infra-structure Construct RETE Model Access Adapter Load Query Evaluate query • Process incoming messages • Propagate along RETE network Retrieve results • instantly

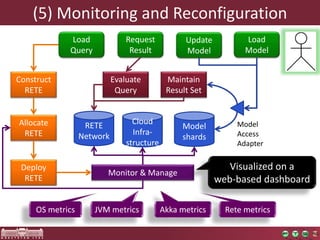

- 39. (5) Monitoring andReconfiguration Load Model Update Model Request Result Model shards Deploy RETE RETE Network Allocate RETE Evaluate Query Maintain Result Set Cloud Infra-structure Monitor & Manage Construct RETE Model Access Adapter Load Query Visualized on a web-based dashboard OS metrics JVM metrics Akka metrics Rete metrics
- 40. DEPLOYMENT PROCESS FOR DISTRIBUTED RETE
- 41. RETE Deployment Process Query Language Query Predicates RETE Structure route: Route sp: SwitchPosition routeDefinition sensor: Sensor Switch: Switch Platform Description Allocation / Mapping Deployment Descriptor pattern routeSensor(sensor: Sensor) = { TrackElement.sensor(switch,sensor); Switch(switch); SwitchPosition. switch(sp, switch); SwitchPosition(sp); Route.switchPosition(route, sp); Route(route); neg find head(route, sensor); } pattern head(R, Sen) = { Route.routeDefinition(R, Sen); } switchPosition switch sensor

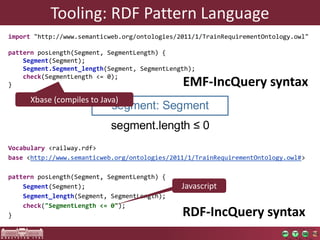

- 42. Tooling: RDF PatternLanguage import "http://www.semanticweb.org/ontologies/2011/1/TrainRequirementOntology.owl" pattern posLength(Segment, SegmentLength) { Segment(Segment); Segment.Segment_length(Segment, SegmentLength); check(SegmentLength <= 0); } EMF-IncQuery syntax Vocabulary <railway.rdf> base <http://www.semanticweb.org/ontologies/2011/1/TrainRequirementOntology.owl#> pattern posLength(Segment, SegmentLength) { Segment(Segment); Segment_length(Segment, SegmentLength); check("SegmentLength <= 0"); } segment: Segment segment.length 0 RDF-IncQuery syntax Xbase (compiles to Java) Javascript

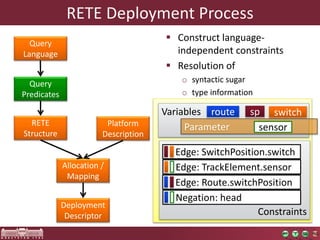

- 43. RETE Deployment Process Construct language-independent constraints Resolution of o syntactic sugar o type information Query Language Query Predicates RETE Structure Platform Description Allocation / Mapping Deployment Descriptor Variables route sp switch Parameter sensor Edge: SwitchPosition.switch Edge: TrackElement.sensor Edge: Route.switchPosition Negation: head Constraints

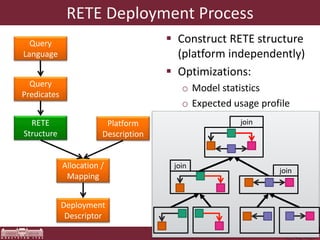

- 44. RETE Deployment Process Construct RETE structure (platform independently) Optimizations: o Model statistics o Expected usage profile Query Language Query Predicates RETE Structure Platform Description Allocation / Mapping Deployment Descriptor join join join
- 45. RETE Deployment Process Architecture model (Cloud infrastructure) o Virtual Machines • Memory limits • CPU speed • Storage capacity o Communication Channels • Bandwidth Specified by a textual DSL (Xtext) Query Language Query Predicates RETE Structure 1 2 3 4 Platform Description Allocation / Mapping Deployment Descriptor
- 46. RETE Deployment Process Machine Allocated Nodes 1 In1, In2, Join2 2 In3 3 In4 4 Join1, Join3 Query Language Query Predicates RETE Structure 1 2 3 4 Platform Description Allocation / Mapping Deployment Descriptor Join1 Join3 Join2 In1 In2 In3 In4

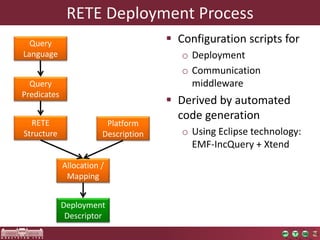

- 47. RETE Deployment Process Configuration scripts for o Deployment o Communication middleware Derived by automated code generation o Using Eclipse technology: EMF-IncQuery + Xtend Query Language Query Predicates RETE Structure Platform Description Allocation / Mapping Deployment Descriptor
- 48.

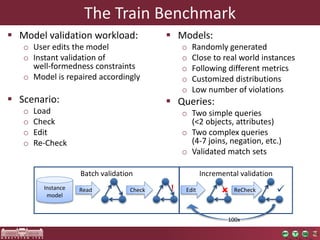

- 49. The Train Benchmark Model validation workload: o User edits the model o Instant validation of well-formedness constraints o Model is repaired accordingly Scenario: o Load o Check o Edit o Re-Check Models: o Randomly generated o Close to real world instances o Following different metrics o Customized distributions o Low number of violations Queries: o Two simple queries (<2 objects, attributes) o Two complex queries (4-7 joins, negation, etc.) o Validated match sets Batch validation Incremental validation Instance model Read Check ! Edit ReCheck 100x

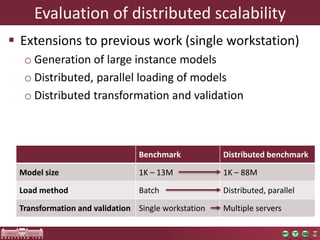

- 50. Evaluation of distributedscalability Extensions to previous work (single workstation) o Generation of large instance models o Distributed, parallel loading of models o Distributed transformation and validation Benchmark Distributed benchmark Model size 1K – 13M 1K – 88M Load method Batch Distributed, parallel Transformation and validation Single workstation Multiple servers
- 51. IncremBenatcahl sgcreanpahr isoce–nIanrciQouery-D Load and first validation: load the graph to the databases and execute initialize the the query Rete net and retrieve the results Transformation: query the graph and delete some elements incrementally query the graph and delete some elements, propagate the changes Revalidation: execute retrieve the query results from the Rete net Load and first validation GraphML Transformation Revalidation DB shards Result set Rete net DB shards Result set Rete net

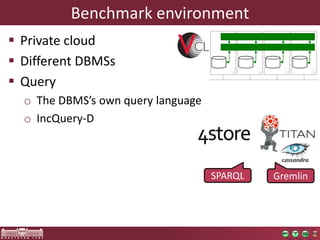

- 52. Benchmark environment Private cloud Different DBMSs Query o The DBMS’s own query language o IncQuery-D SPARQL Gremlin

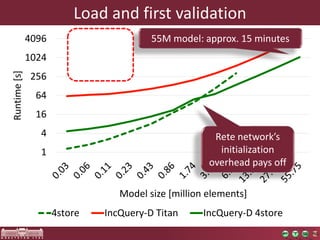

- 53. 4096 1024 256 64 16 4 1 Runtime [s] Load and first validation 55M model: approx. 15 minutes Rete network’s initialization overhead pays off Model size [million elements] 4store IncQuery-D Titan IncQuery-D 4store
- 54. 256 128 64 32 16 8 4 2 1 Runtime [s] Model modification 1. Elementary model query 2. Model modification 2 orders of magnitude – Query from the Rete network’s indexer – Propagation of modifications is fast Model size [million elements] 4store IncQuery-D Titan IncQuery-D 4store
- 55. 128.00 32.00 8.00 2.00 0.50 0.13 0.03 0.01 Runtime [s] Revalidation Different characteristics Sub-second response time for models with 88M elements Model size [million elements] memory limit 4store IncQuery-D Titan IncQuery-D 4store

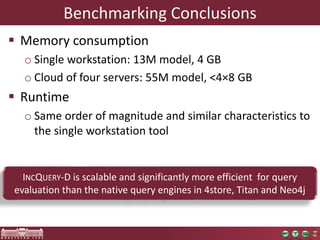

- 56. Benchmarking Conclusions Memory consumption o Single workstation: 13M model, 4 GB o Cloud of four servers: 55M model, <4×8 GB Runtime o Same order of magnitude and similar characteristics to the single workstation tool INCQUERY-D is scalable and significantly more efficient for query evaluation than the native query engines in 4store, Titan and Neo4j

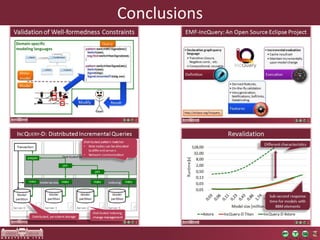

- 57.
