1

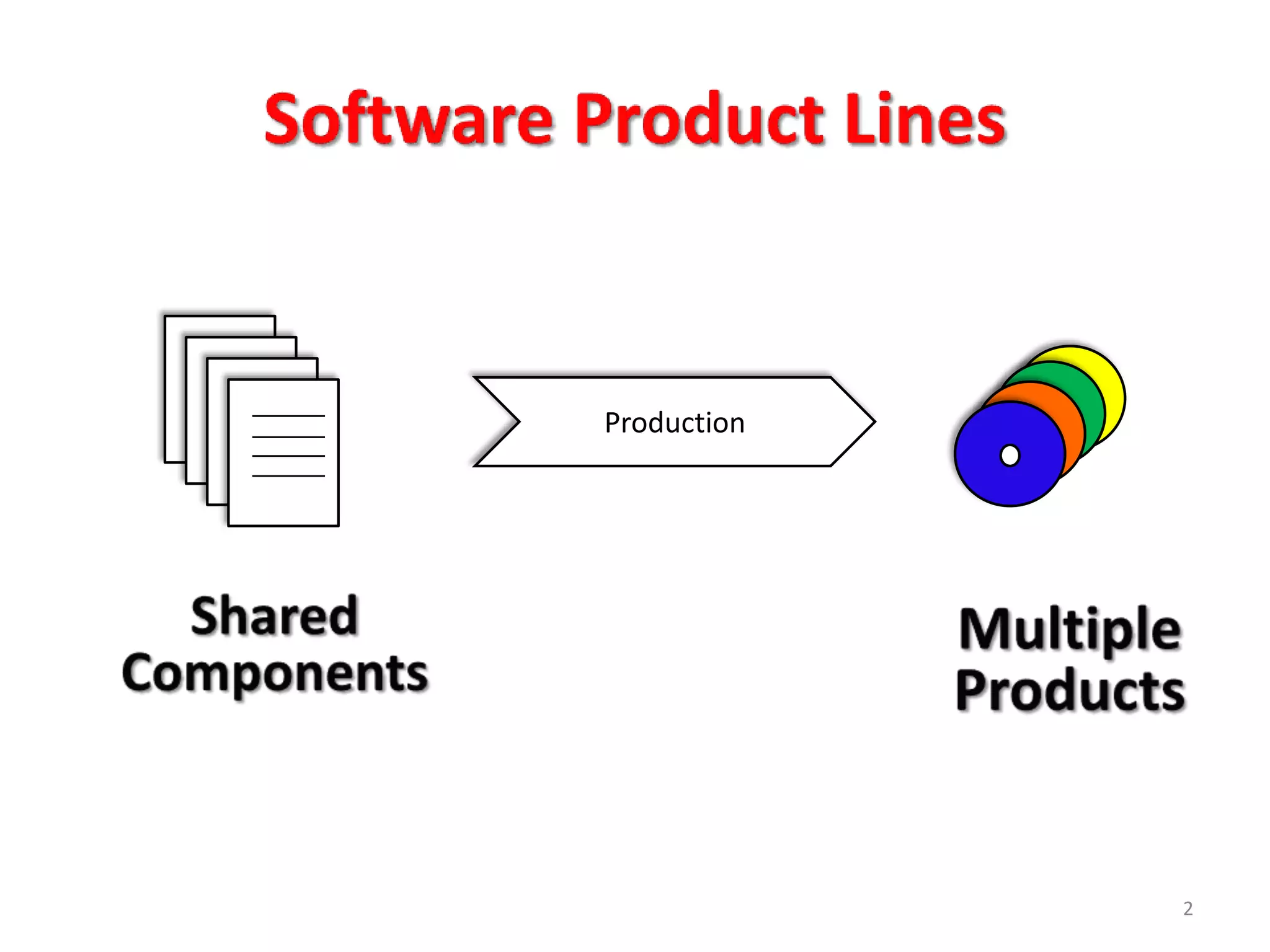

Production




             2

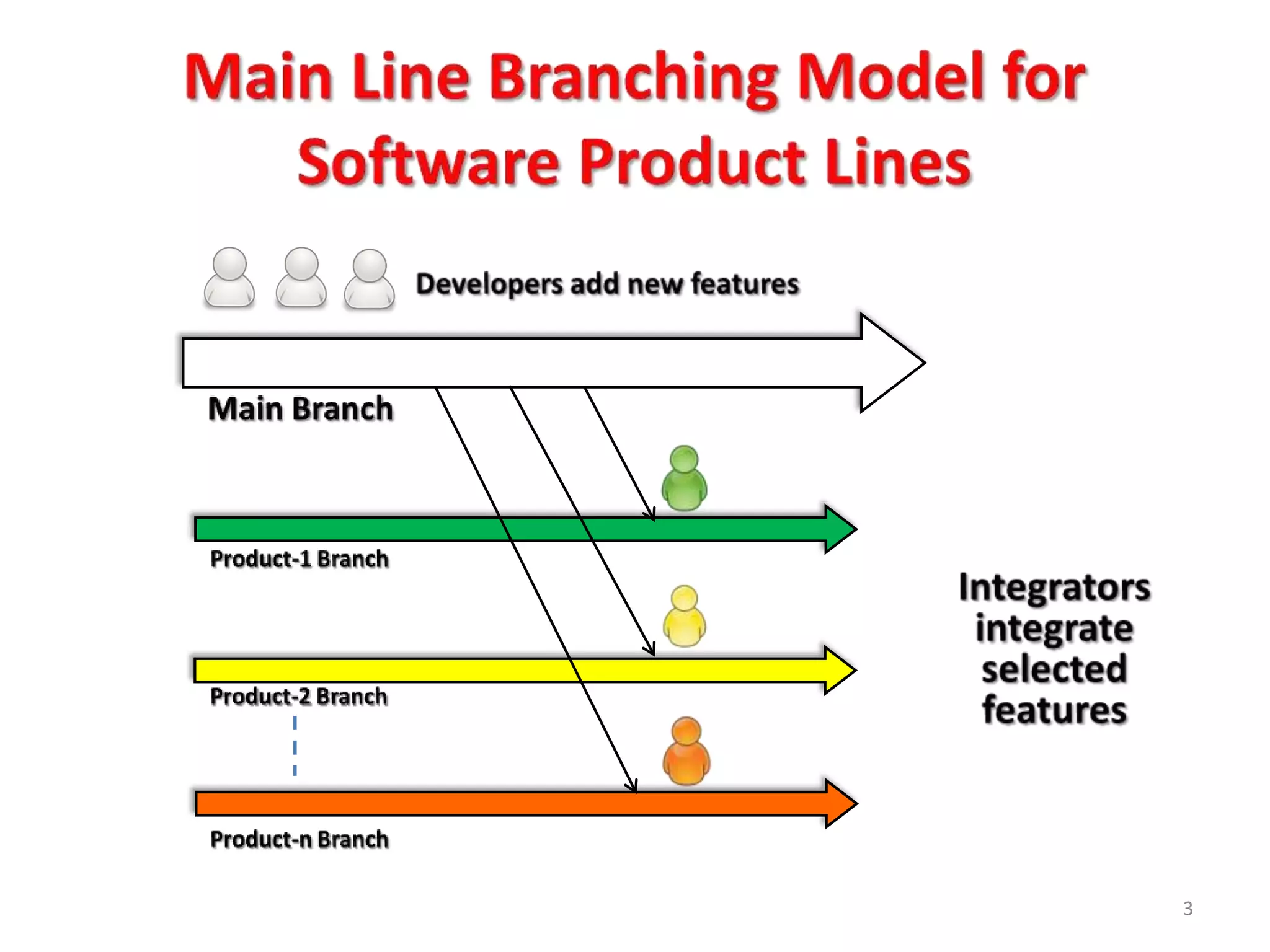

3

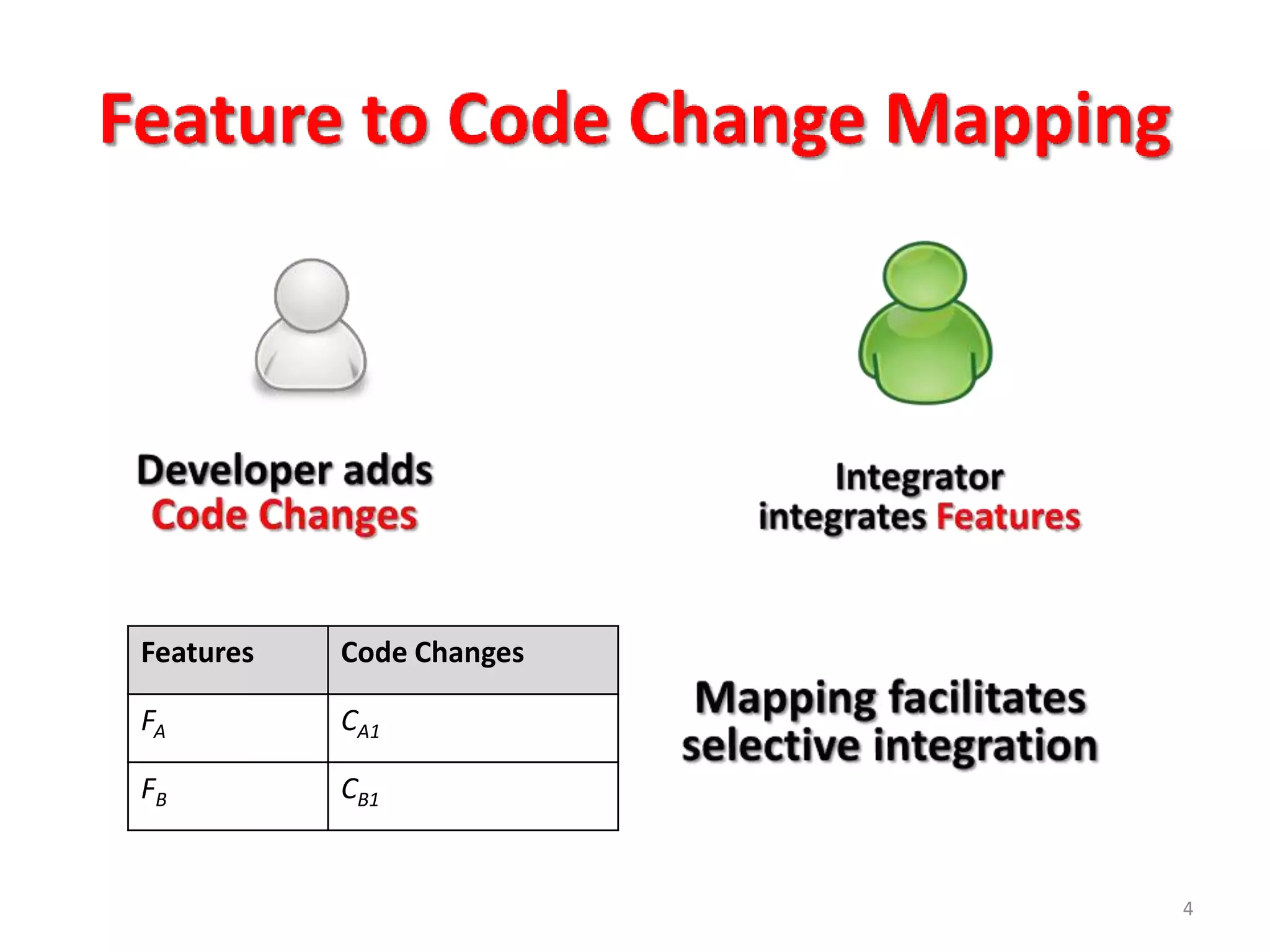

Features   Code Changes

FA         CA1

FB         CB1


                          4

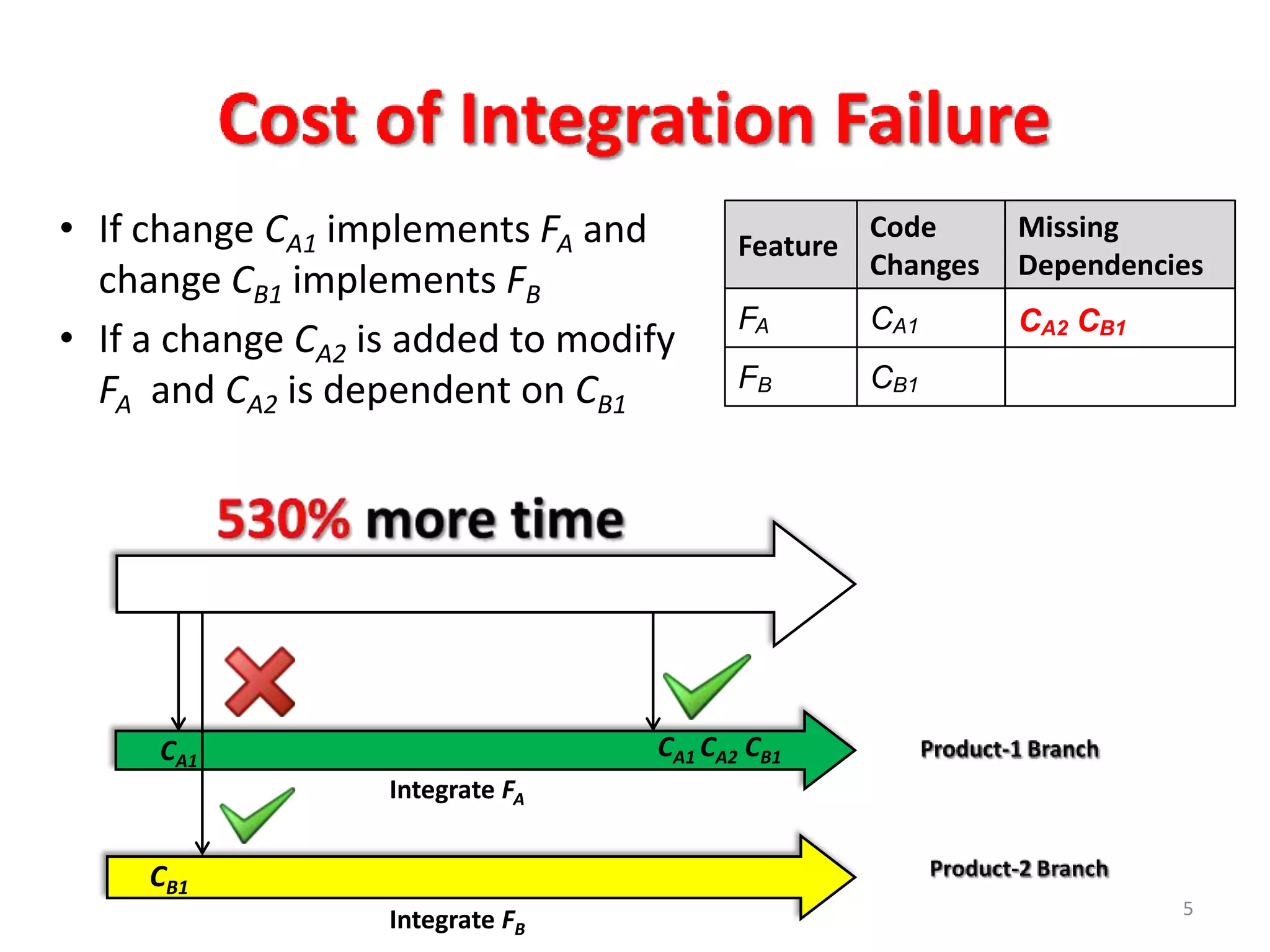

• If change CA1 implements FA and        Feature
                                                   Code      Missing
                                                   Changes   Dependencies
  change CB1 implements FB
                                         FA        CA1       CA2 CB1
• If a change CA2 is added to modify
  FA and CA2 is dependent on CB1         FB        CB1




     CA1                          CA1 CA2 CB1
                   Integrate FA


     CB1
                                                                       5
                   Integrate FB

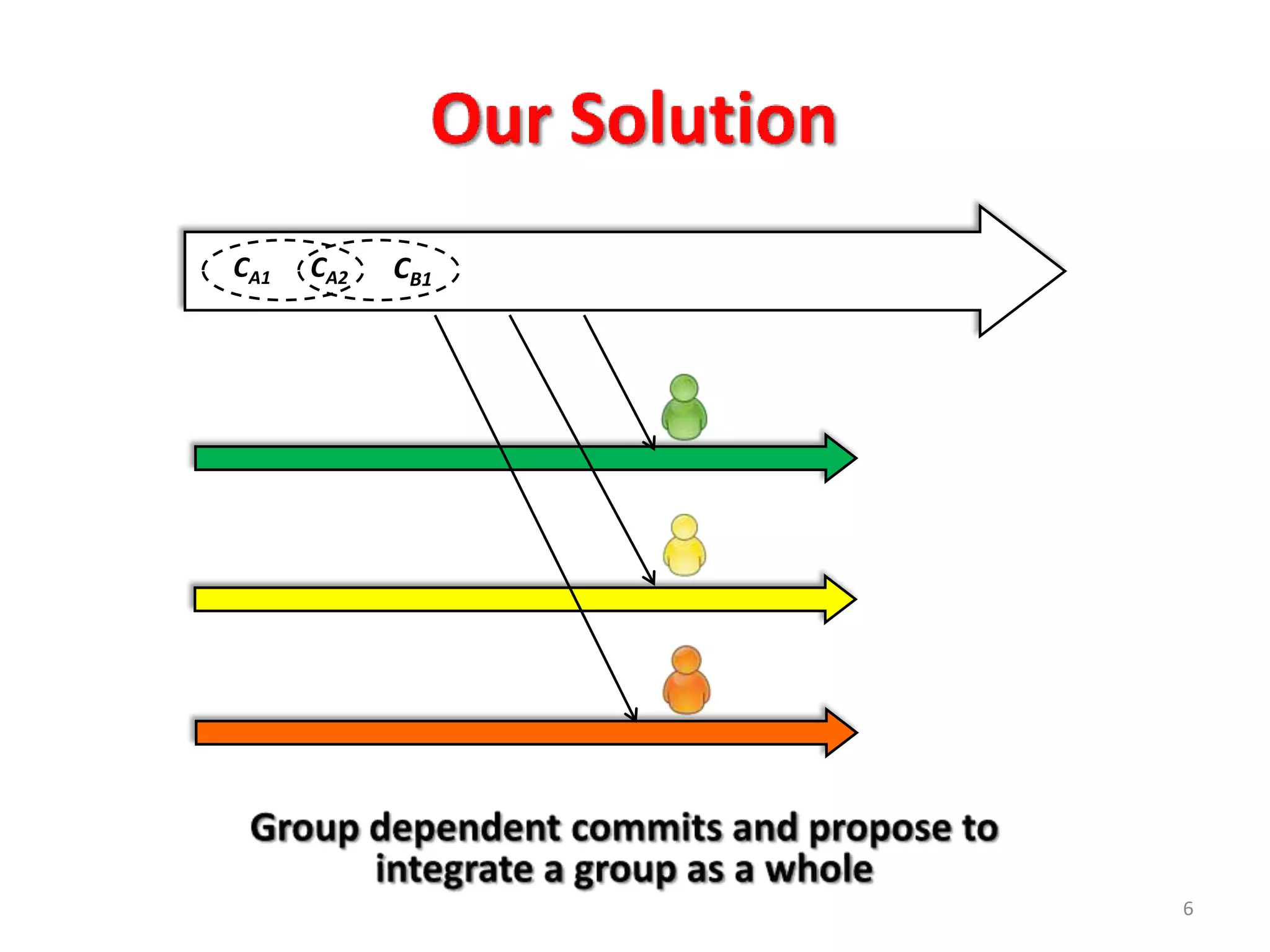

CA1   CA2   CB1




                  6

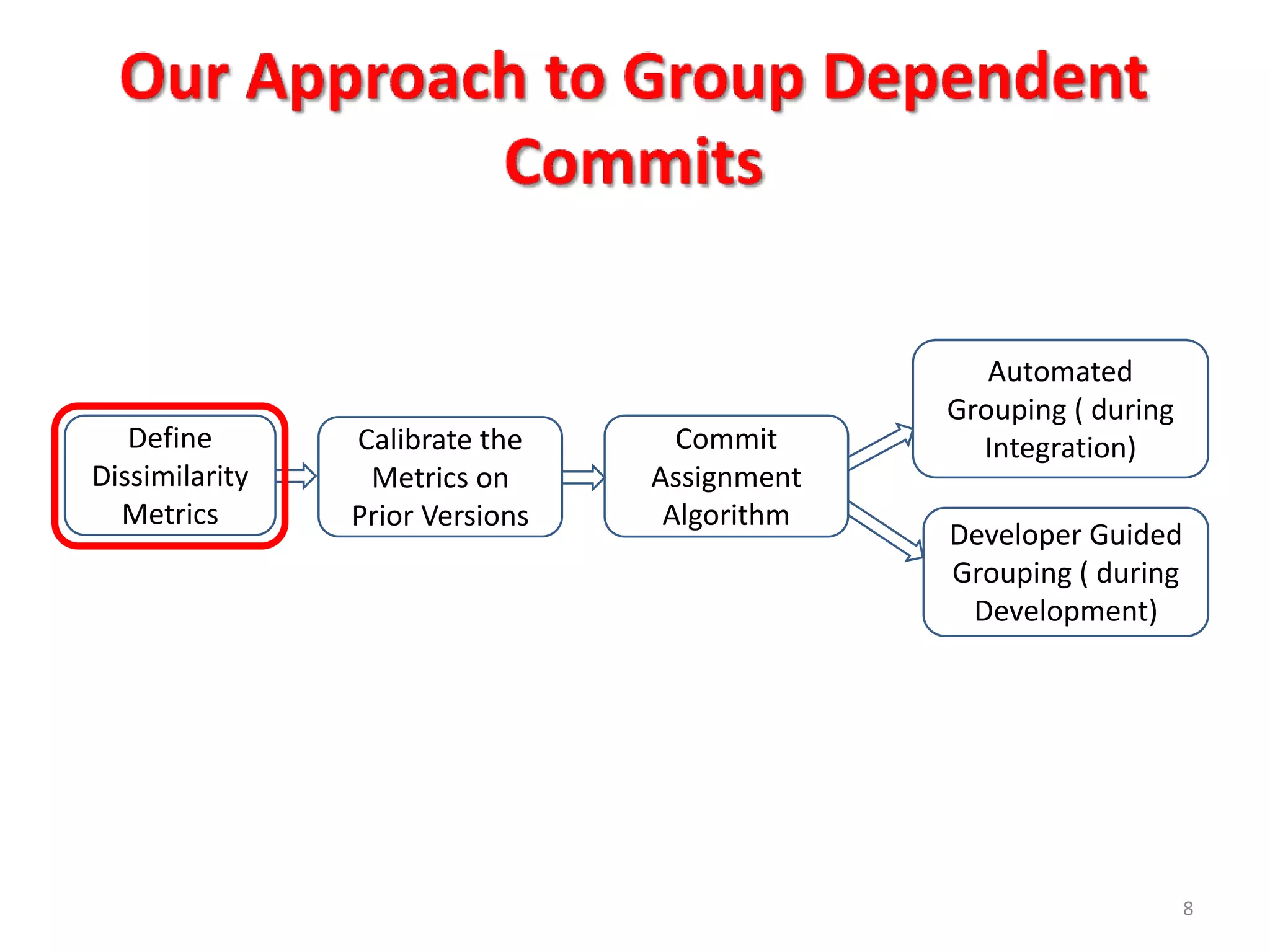

Automated
                                              Grouping ( during
   Define       Calibrate the      Commit       Integration)
Dissimilarity    Metrics on      Assignment
  Metrics       Prior Versions    Algorithm
                                              Developer Guided
                                              Grouping ( during
                                               Development)




                                                                  8

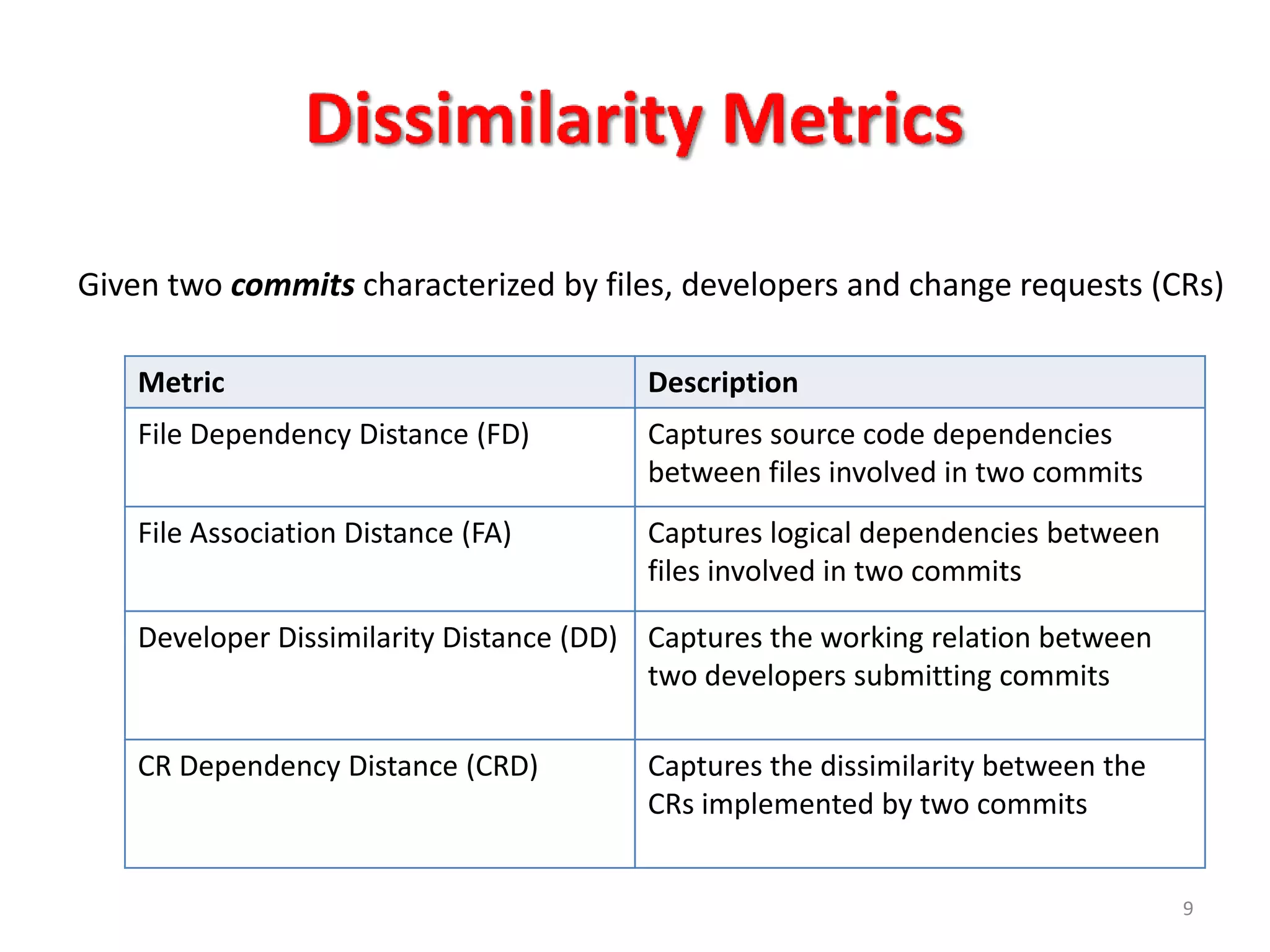

Given two commits characterized by files, developers and change requests (CRs)

    Metric                               Description
    File Dependency Distance (FD)        Captures source code dependencies
                                         between files involved in two commits
    File Association Distance (FA)       Captures logical dependencies between
                                         files involved in two commits

    Developer Dissimilarity Distance (DD) Captures the working relation between
                                          two developers submitting commits

    CR Dependency Distance (CRD)         Captures the dissimilarity between the
                                         CRs implemented by two commits


                                                                                  9

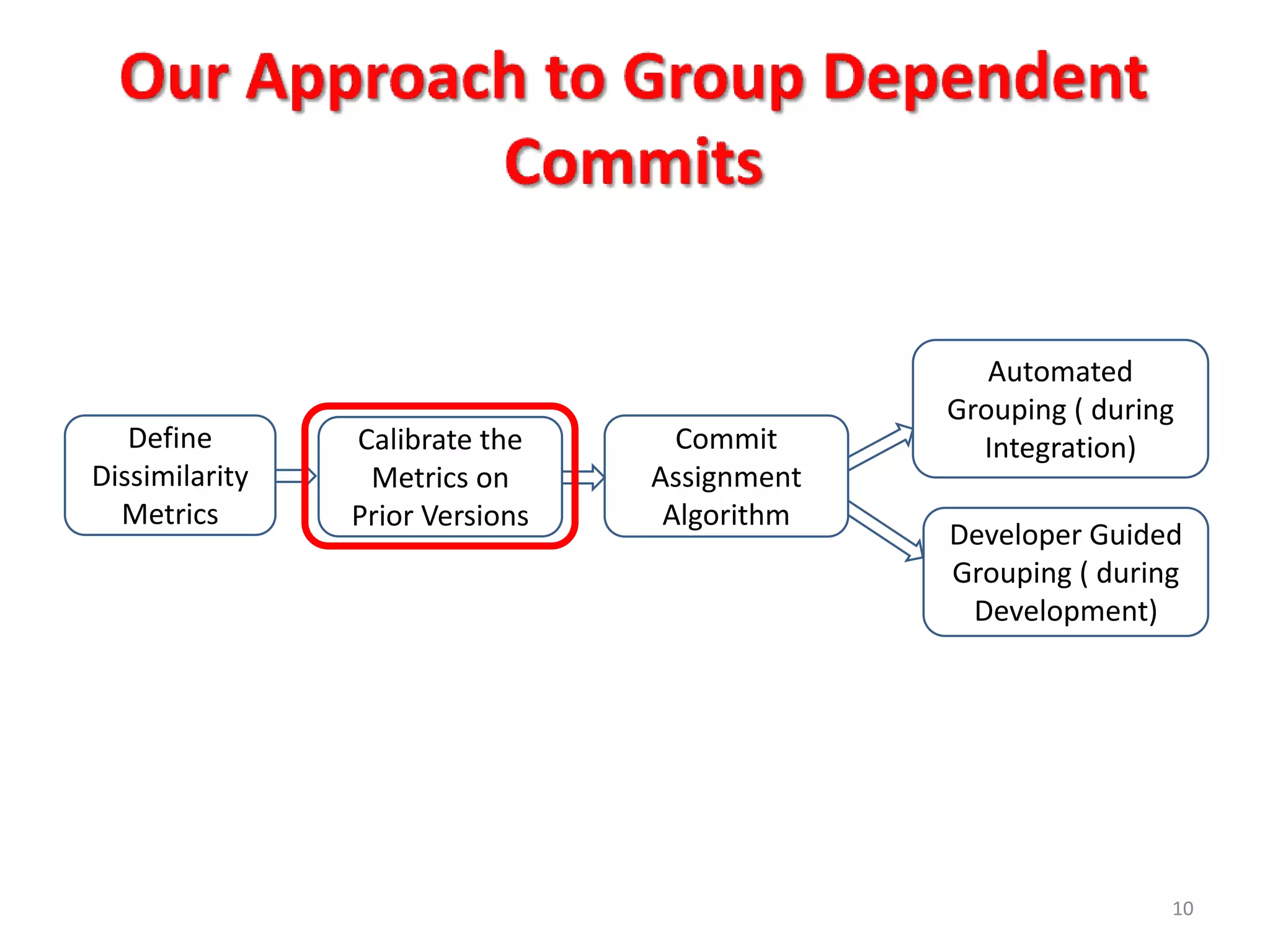

Automated
                                              Grouping ( during
   Define       Calibrate the      Commit       Integration)
Dissimilarity    Metrics on      Assignment
  Metrics       Prior Versions    Algorithm
                                              Developer Guided
                                              Grouping ( during
                                               Development)




                                                              10

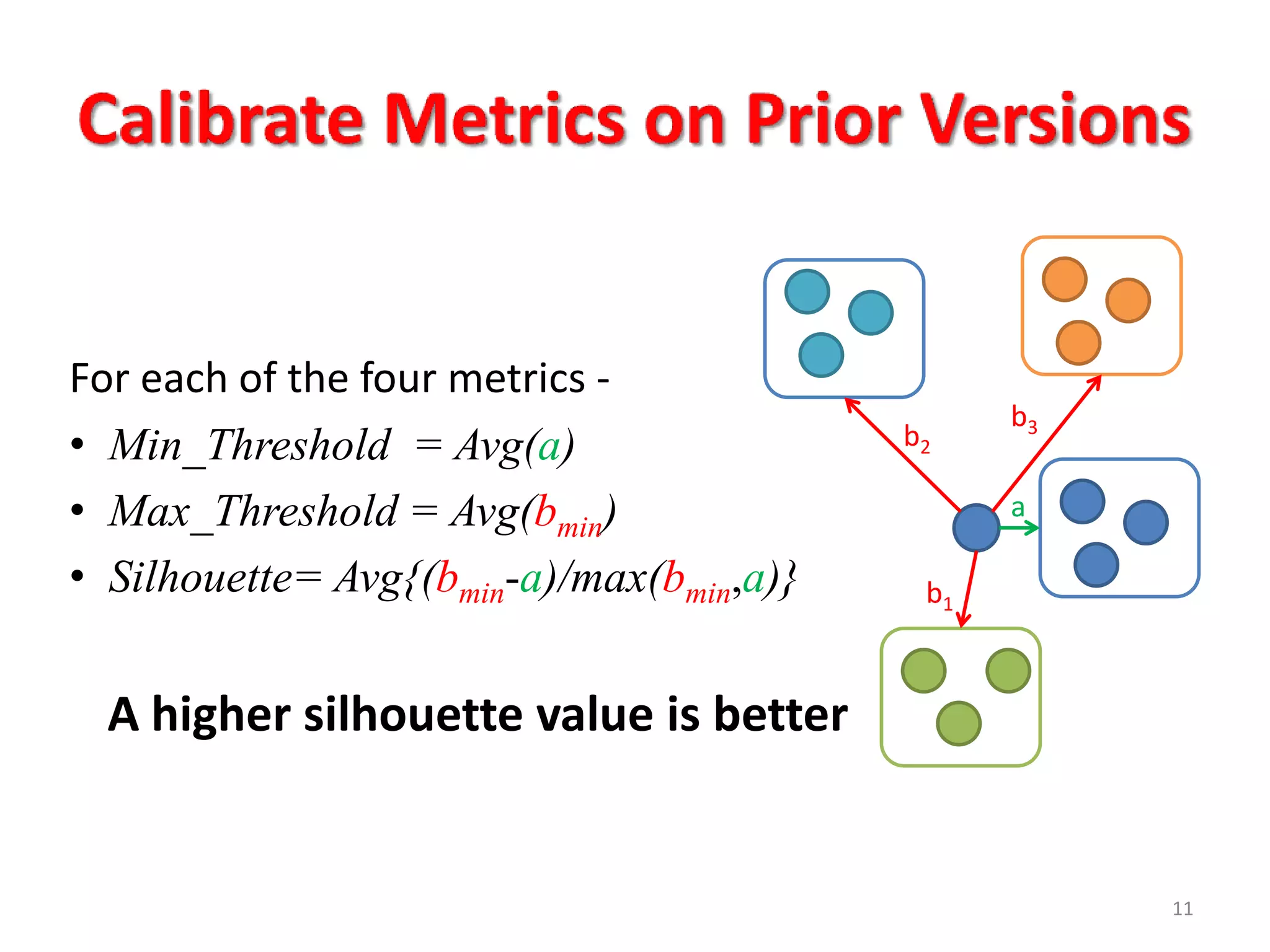

For each of the four metrics -
                                                b3
• Min_Threshold = Avg(a)                  b2

• Max_Threshold = Avg(bmin)                     a

• Silhouette= Avg{(bmin-a)/max(bmin,a)}    b1



  A higher silhouette value is better


                                                     11

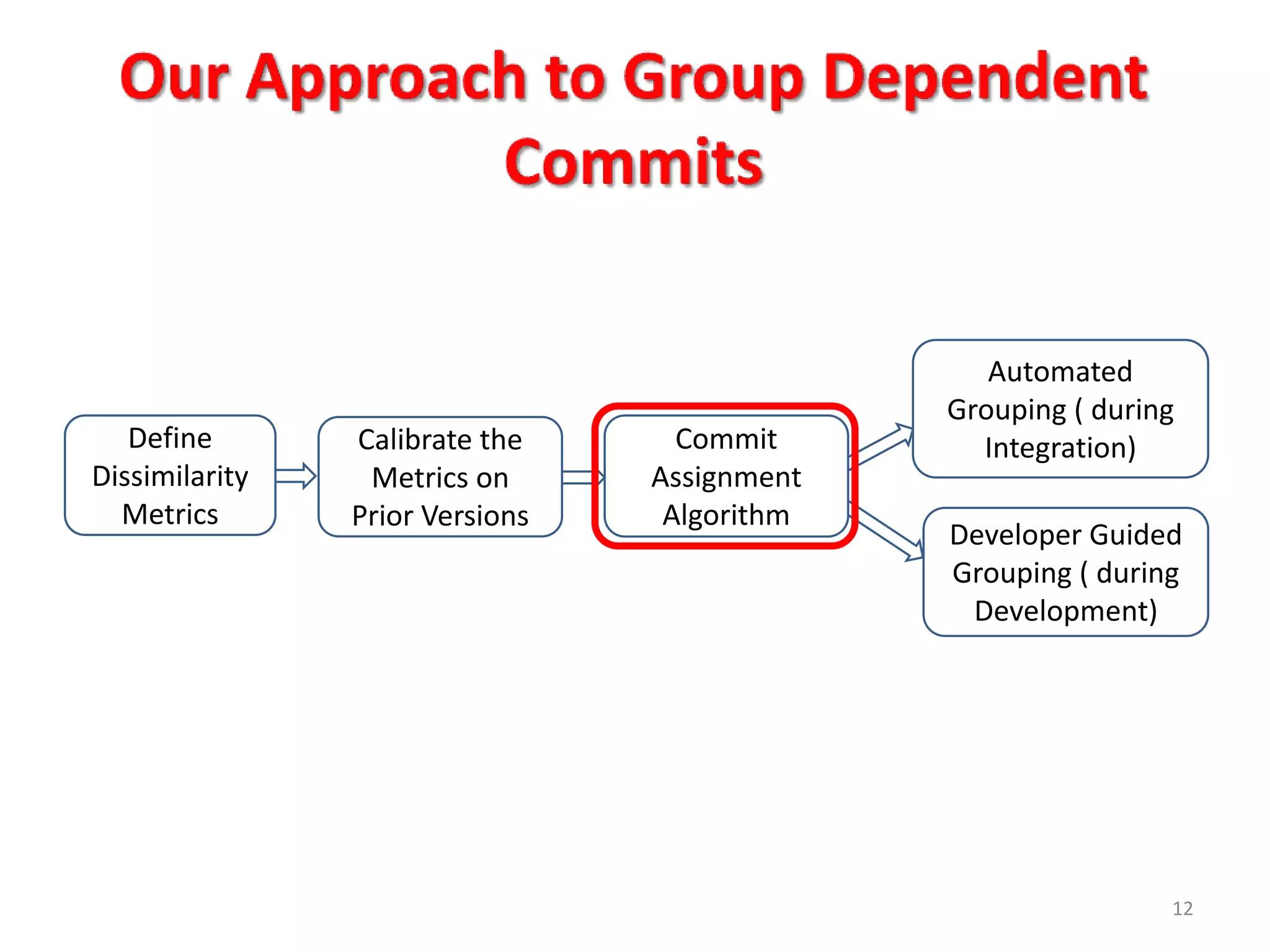

Automated
                                              Grouping ( during
   Define       Calibrate the      Commit       Integration)
Dissimilarity    Metrics on      Assignment
  Metrics       Prior Versions    Algorithm
                                              Developer Guided
                                              Grouping ( during
                                               Development)




                                                              12

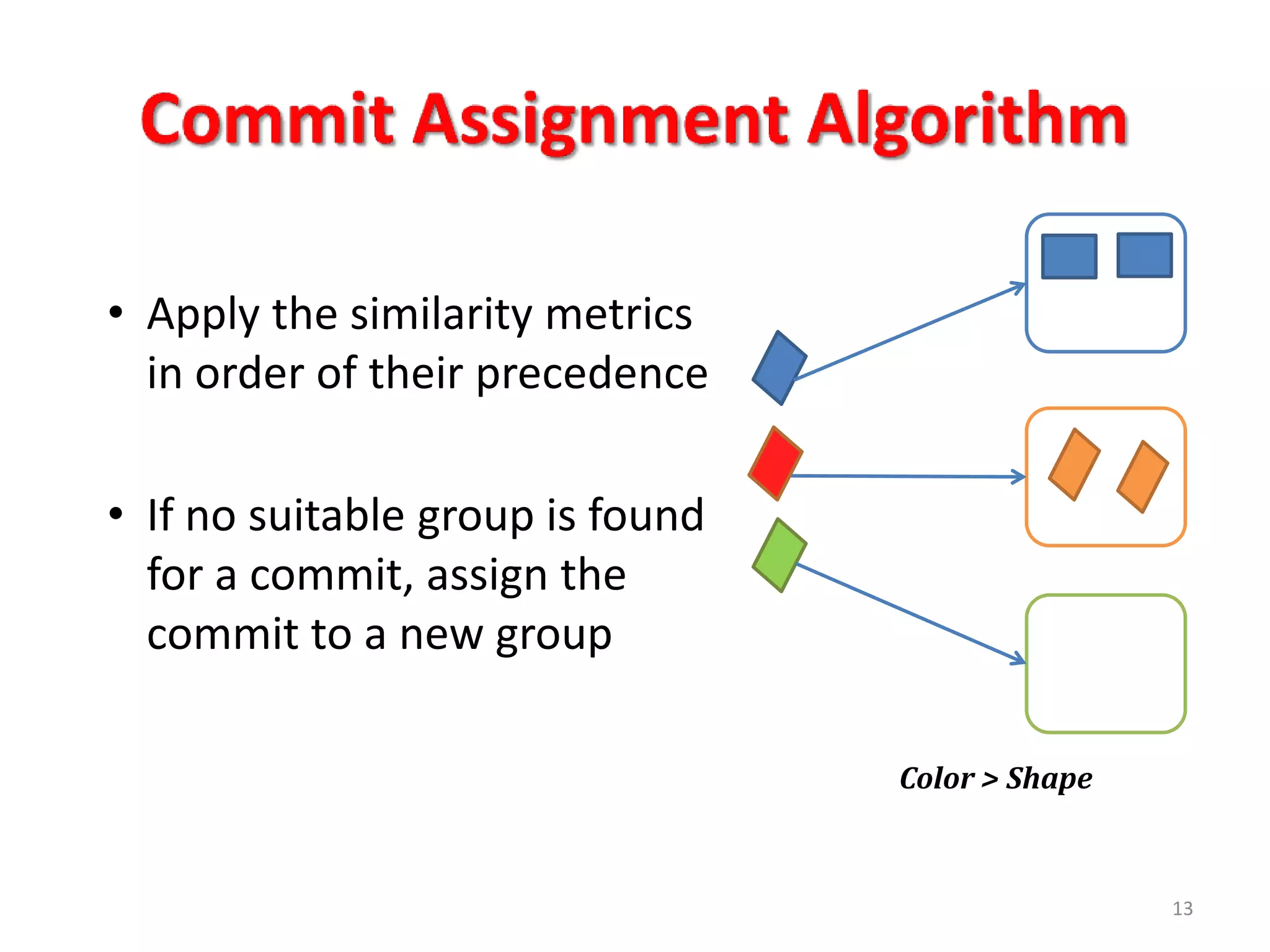

• Apply the similarity metrics
  in order of their precedence

• If no suitable group is found
  for a commit, assign the
  commit to a new group

                                  Color > Shape


                                                  13

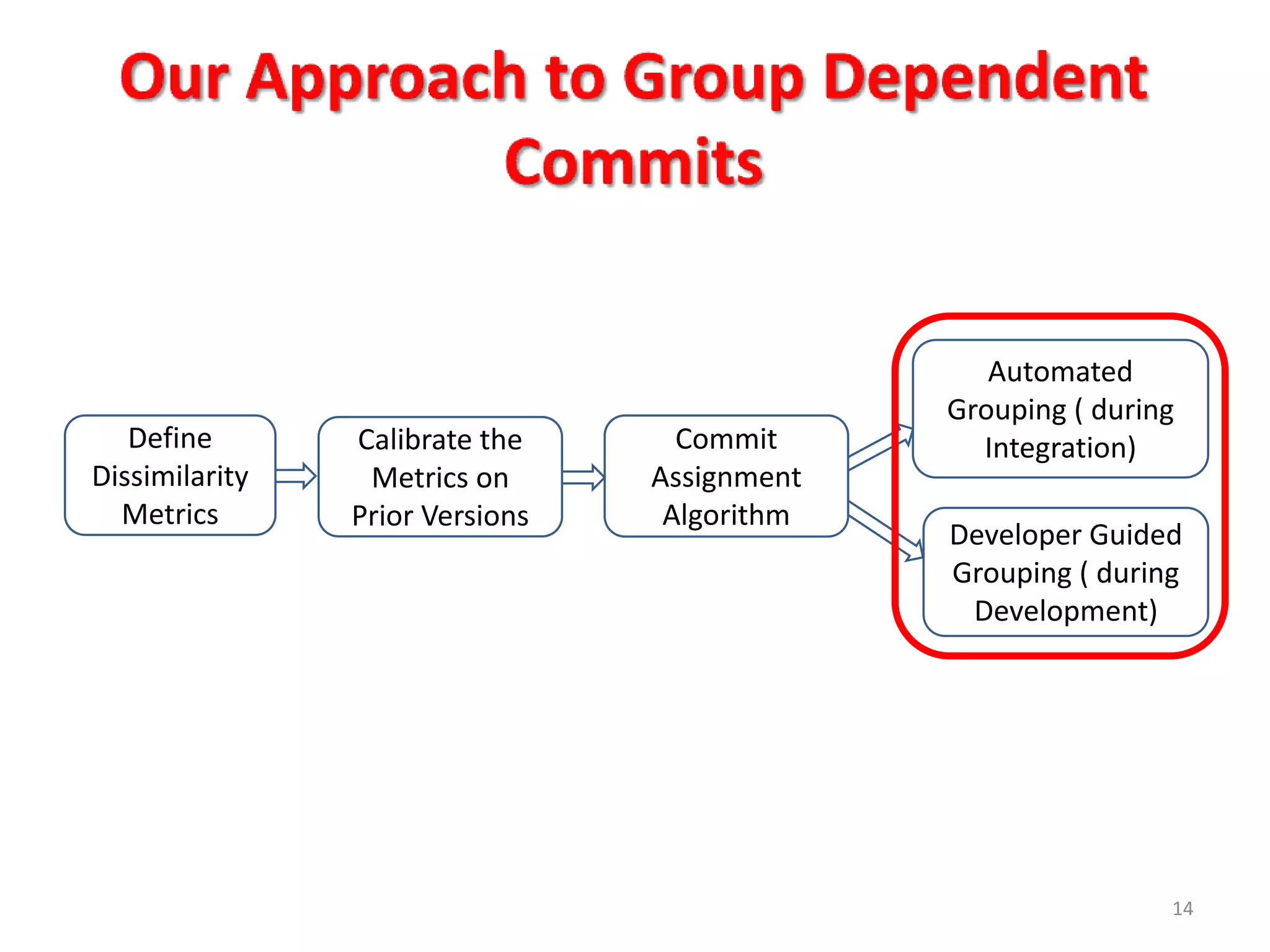

Automated
                                              Grouping ( during
   Define       Calibrate the      Commit       Integration)
Dissimilarity    Metrics on      Assignment
  Metrics       Prior Versions    Algorithm
                                              Developer Guided
                                              Grouping ( during
                                               Development)




                                                              14

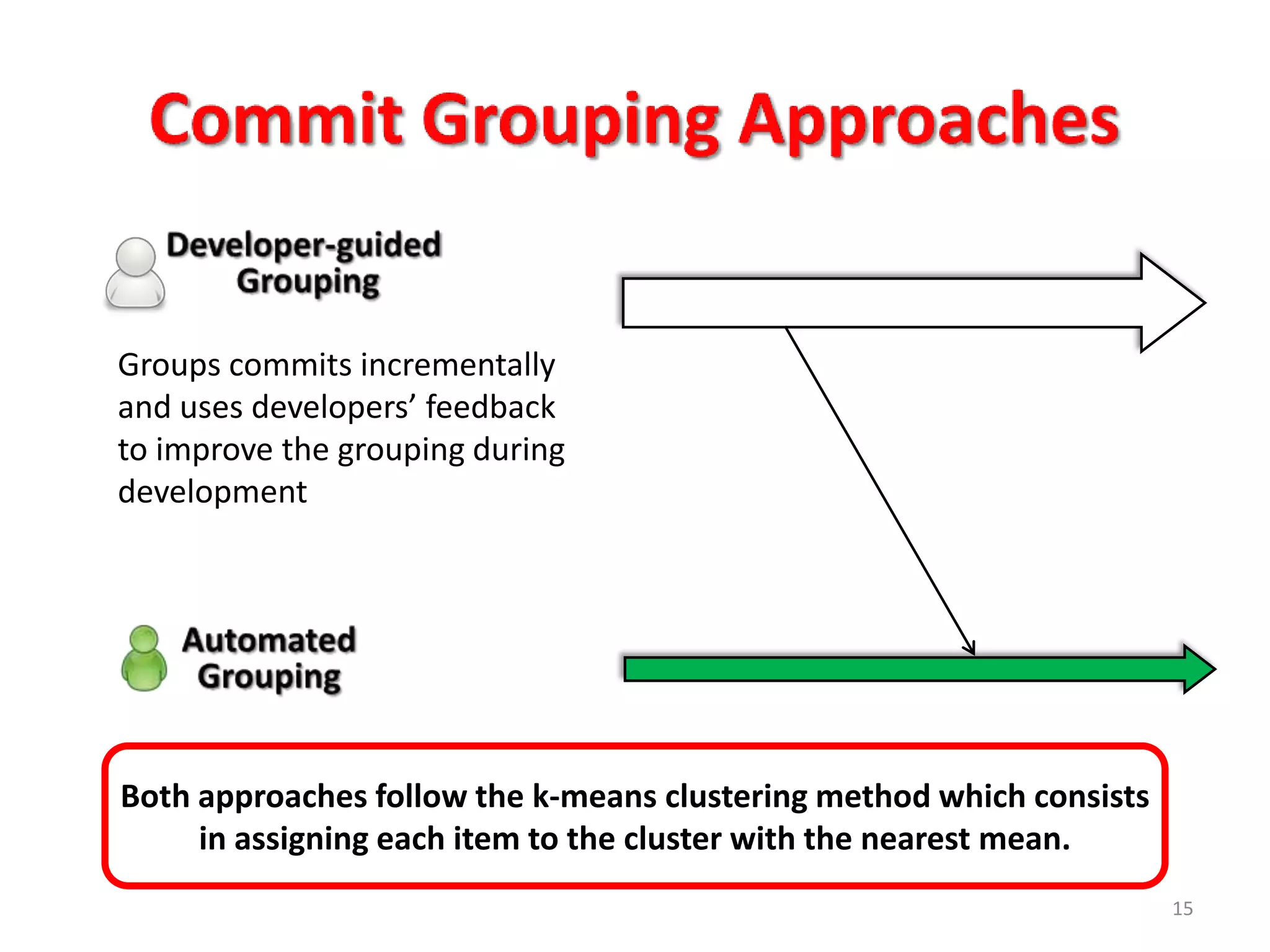

Groups commits incrementally
and uses developers’ feedback
to improve the grouping during
development




Both approaches follow the k-means clustering method which consists
     in assigning each item to the cluster with the nearest mean.
                                                                      15
We analyzed three major versions of a family of mobile
                   applications

                                                         16

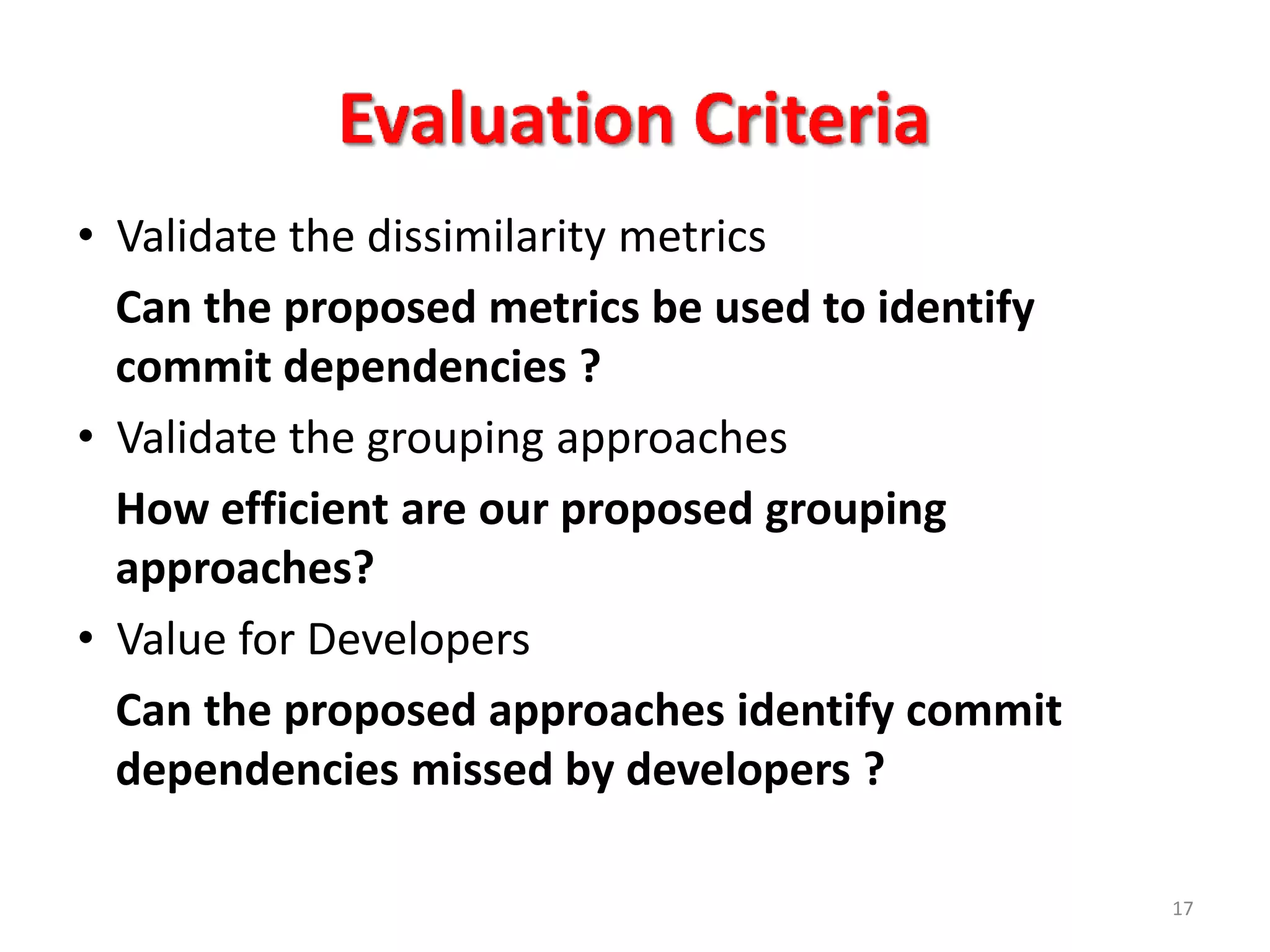

• Validate the dissimilarity metrics
  Can the proposed metrics be used to identify
  commit dependencies ?
• Validate the grouping approaches
  How efficient are our proposed grouping
  approaches?
• Value for Developers
  Can the proposed approaches identify commit
  dependencies missed by developers ?

                                                 17

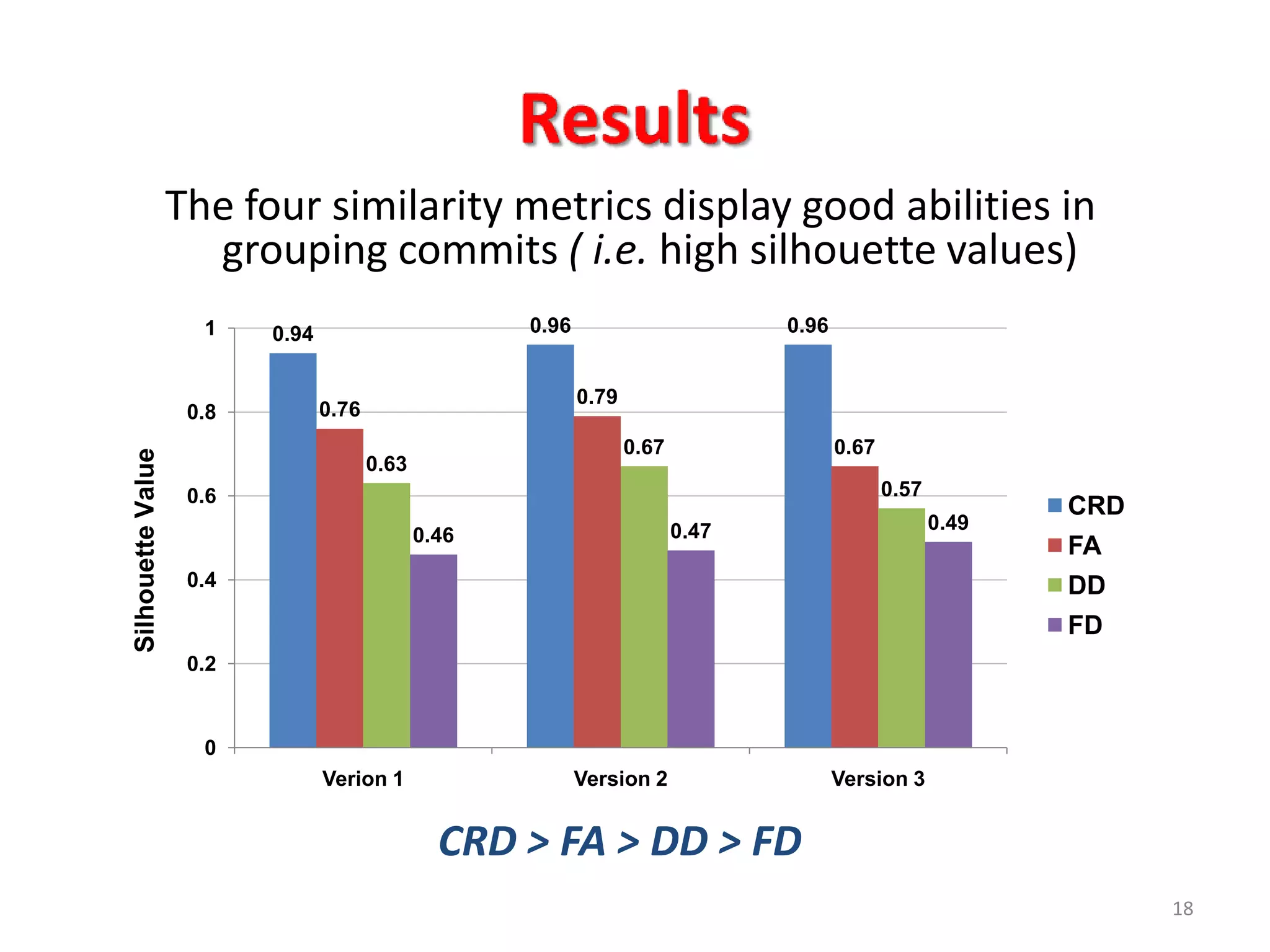

The four similarity metrics display good abilities in
                     grouping commits ( i.e. high silhouette values)
                     1    0.94                        0.96                        0.96


                                                             0.79
                    0.8          0.76
                                                                    0.67                 0.67
Silhouette Value




                                        0.63
                    0.6                                                                         0.57
                                                                                                              CRD
                                                                           0.47                        0.49
                                               0.46
                                                                                                              FA
                    0.4                                                                                       DD
                                                                                                              FD
                    0.2


                     0
                                 Verion 1                    Version 2                   Version 3


                                                 CRD > FA > DD > FD
                                                                                                                    18

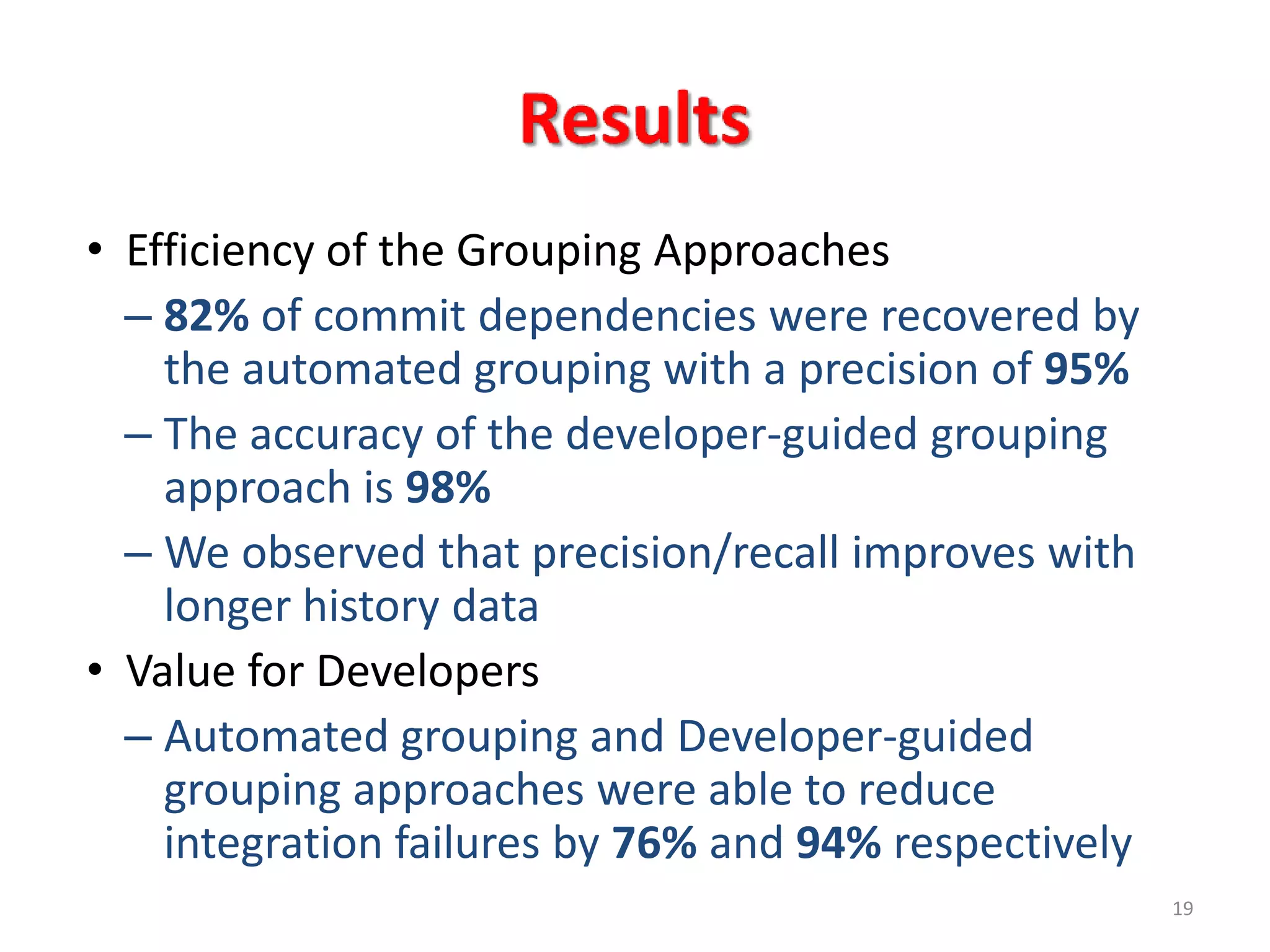

• Efficiency of the Grouping Approaches
  – 82% of commit dependencies were recovered by
    the automated grouping with a precision of 95%
  – The accuracy of the developer-guided grouping
    approach is 98%
  – We observed that precision/recall improves with
    longer history data
• Value for Developers
  – Automated grouping and Developer-guided
    grouping approaches were able to reduce
    integration failures by 76% and 94% respectively
                                                       19

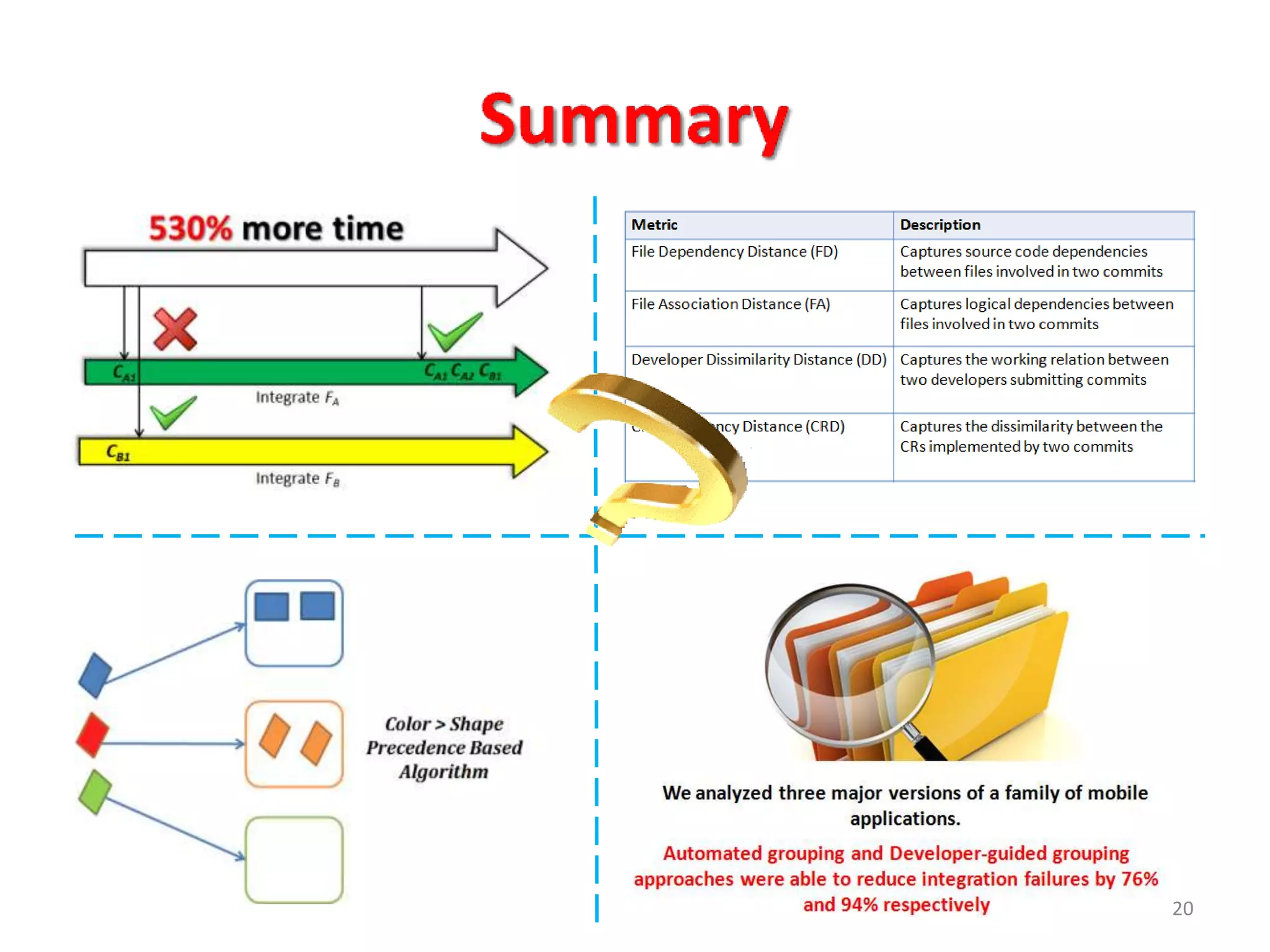

20
