1. iX HMI solution - Scripting
The world's most graphic HMI solution. Truly open.

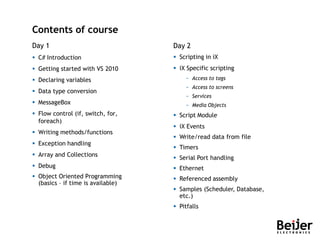

2. Contents of course
Day 1
C# Introduction
Getting started with VS 2010
Declaring variables
Data type conversion
MessageBox
Flow control (if, switch, for,
foreach)
Writing methods/functions

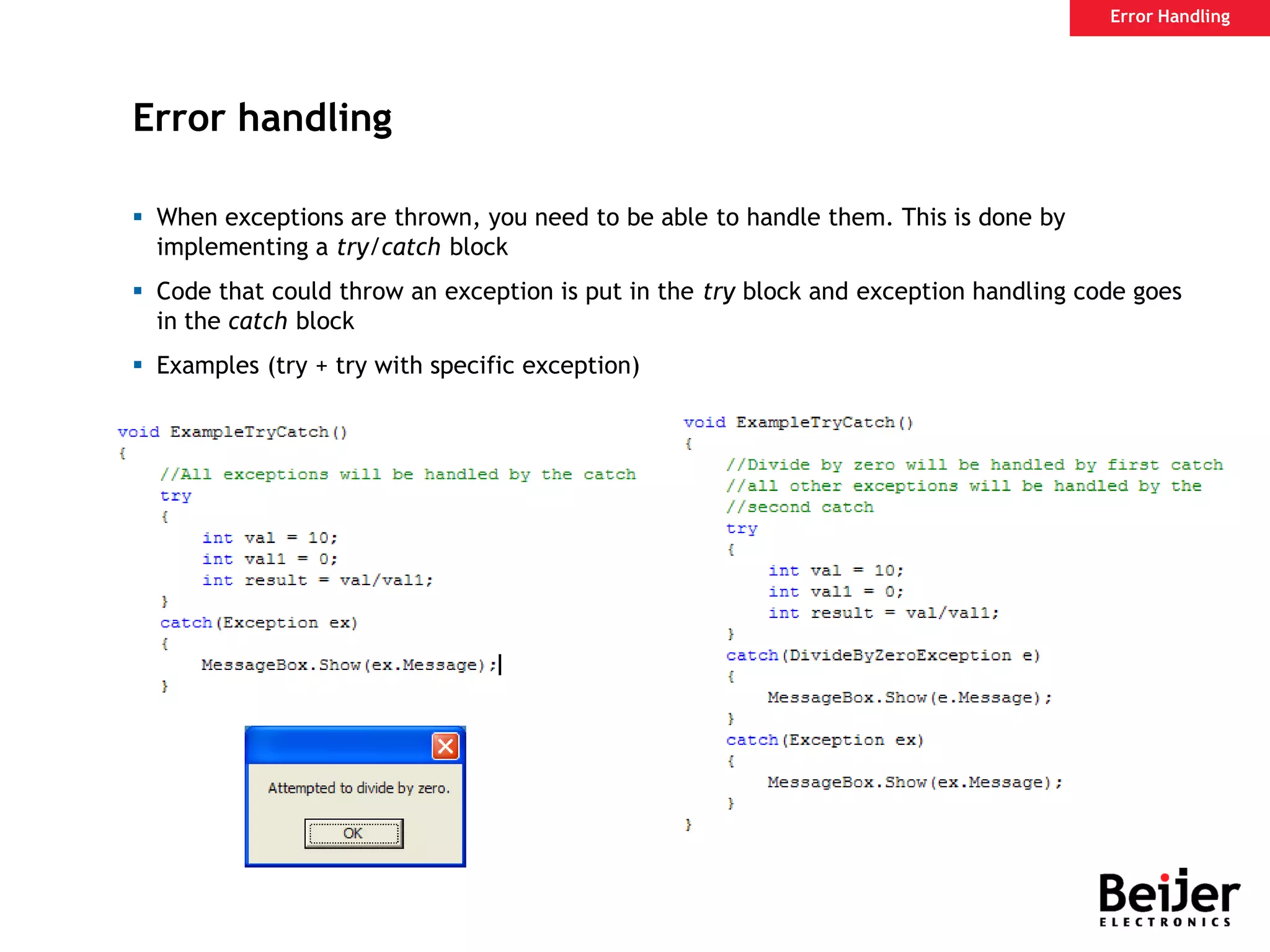

Exception handling

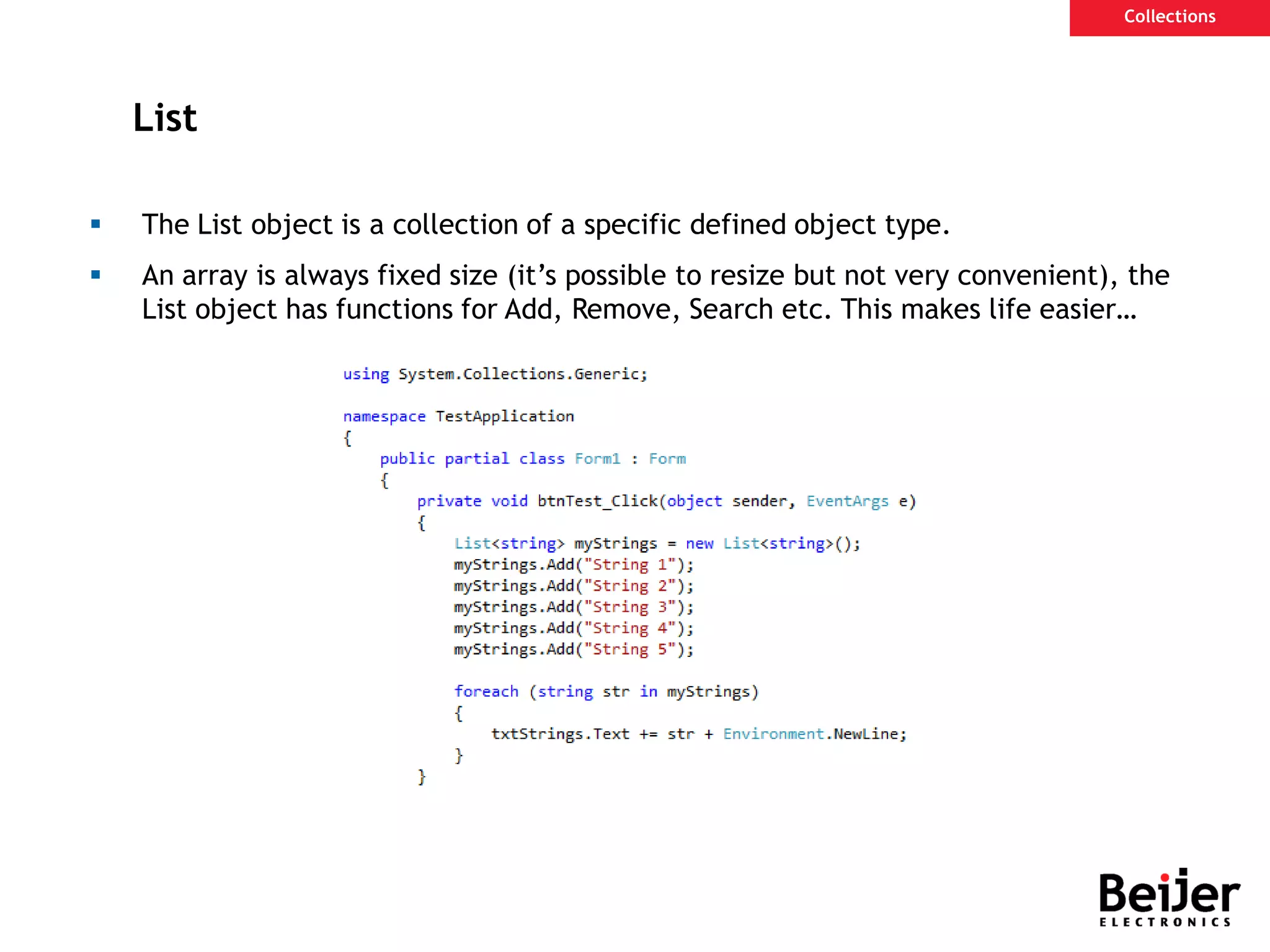

Array and Collections
Debug

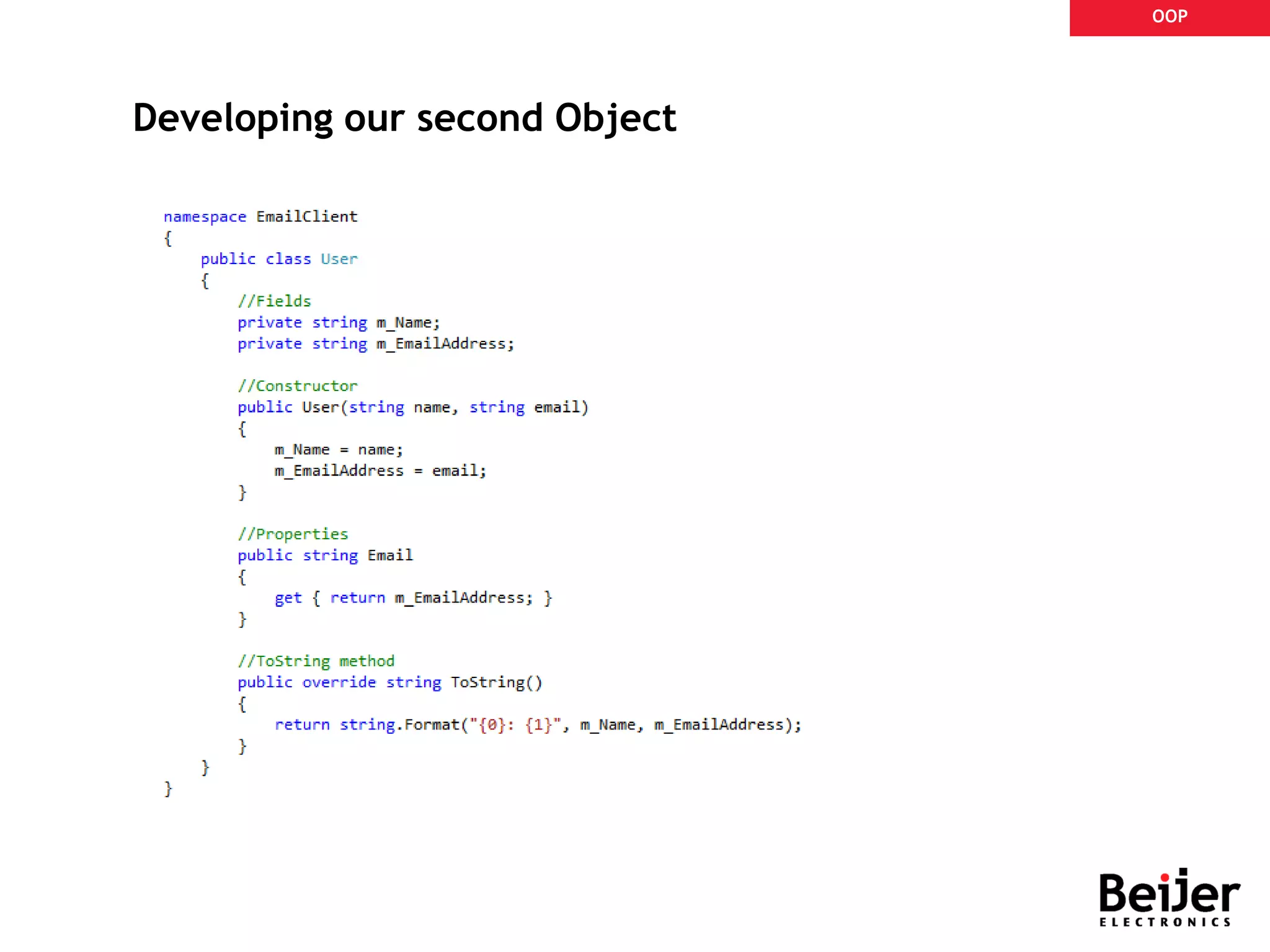

Object Oriented Programming
(basics – if time is available)
Day 2

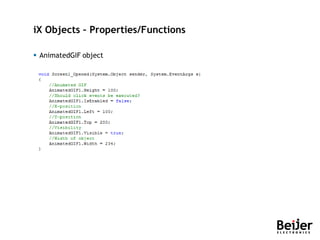

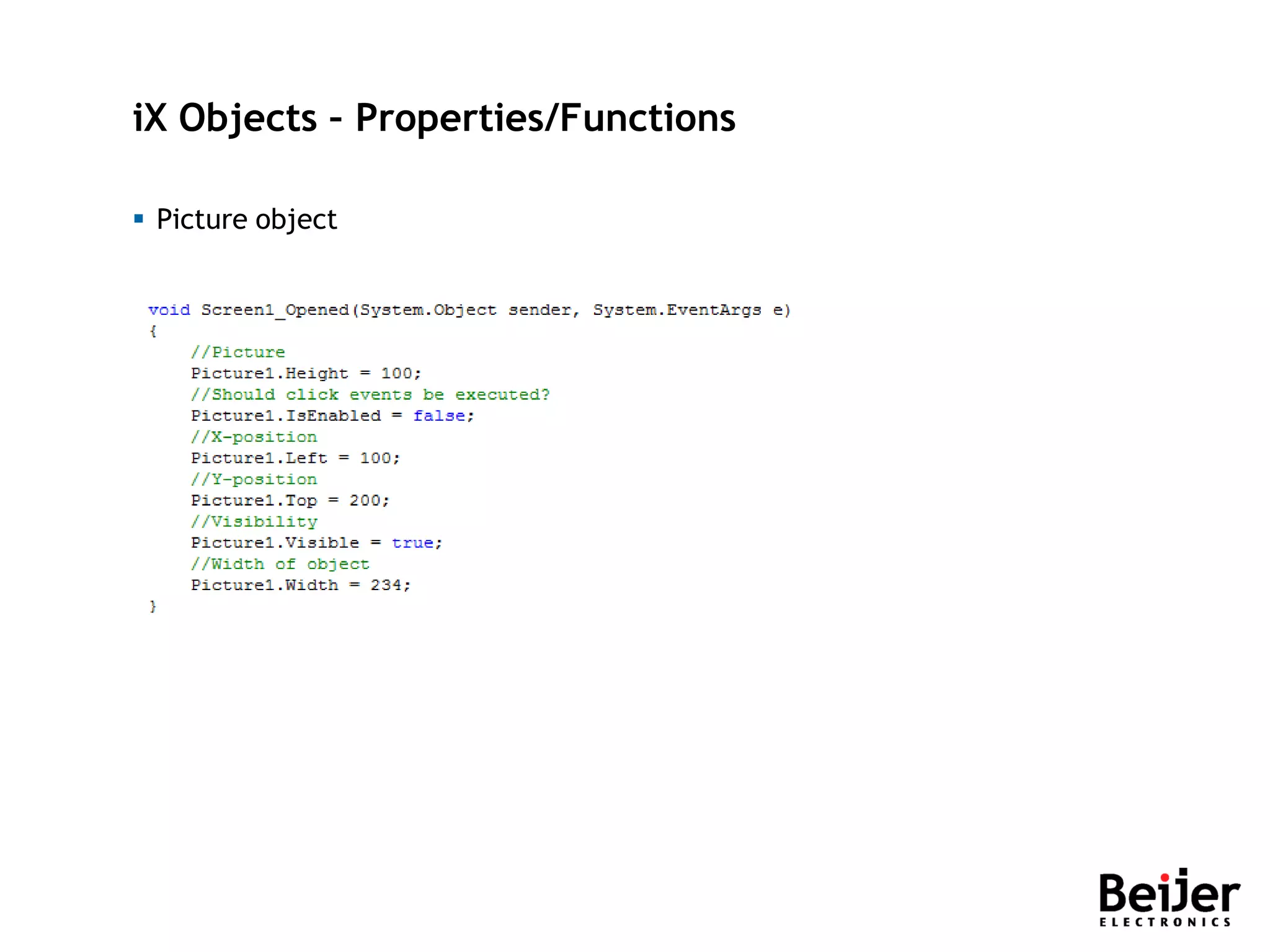

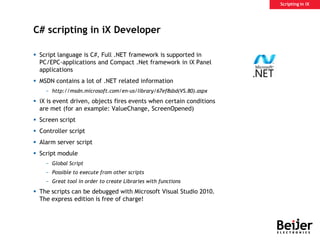

Scripting in iX
iX Specific scripting

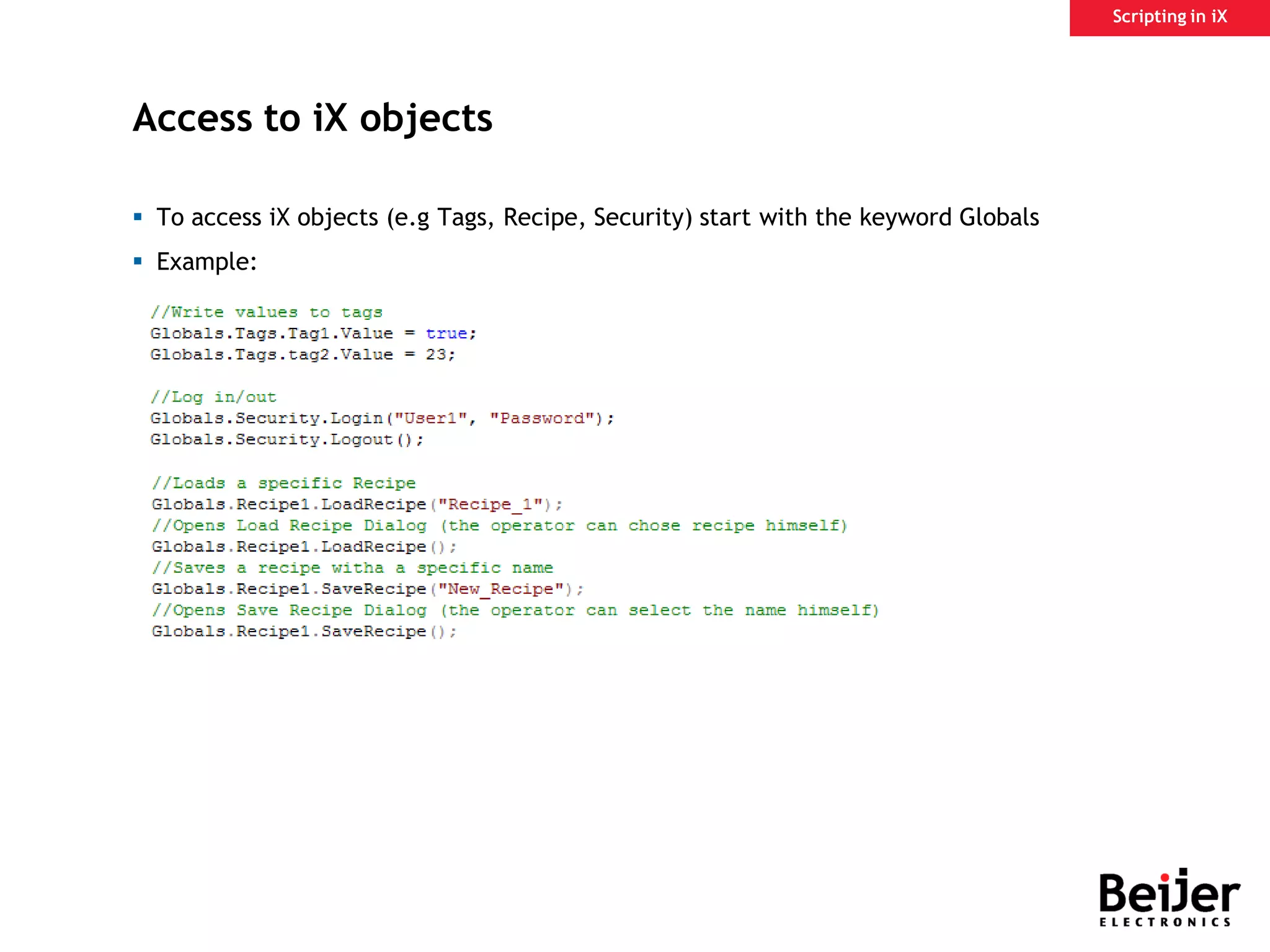

− Access to tags
− Access to screens
− Services
− Media Objects

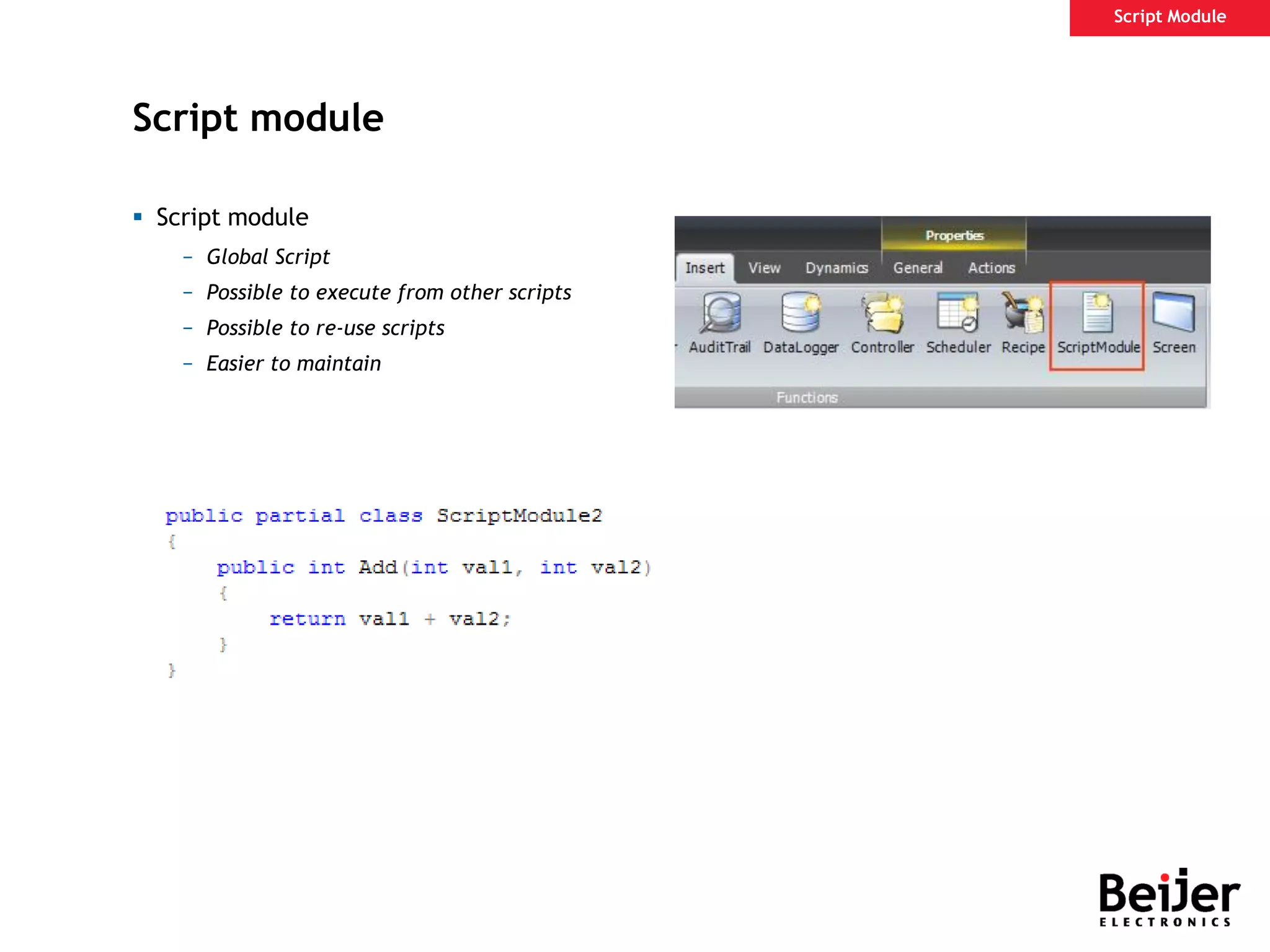

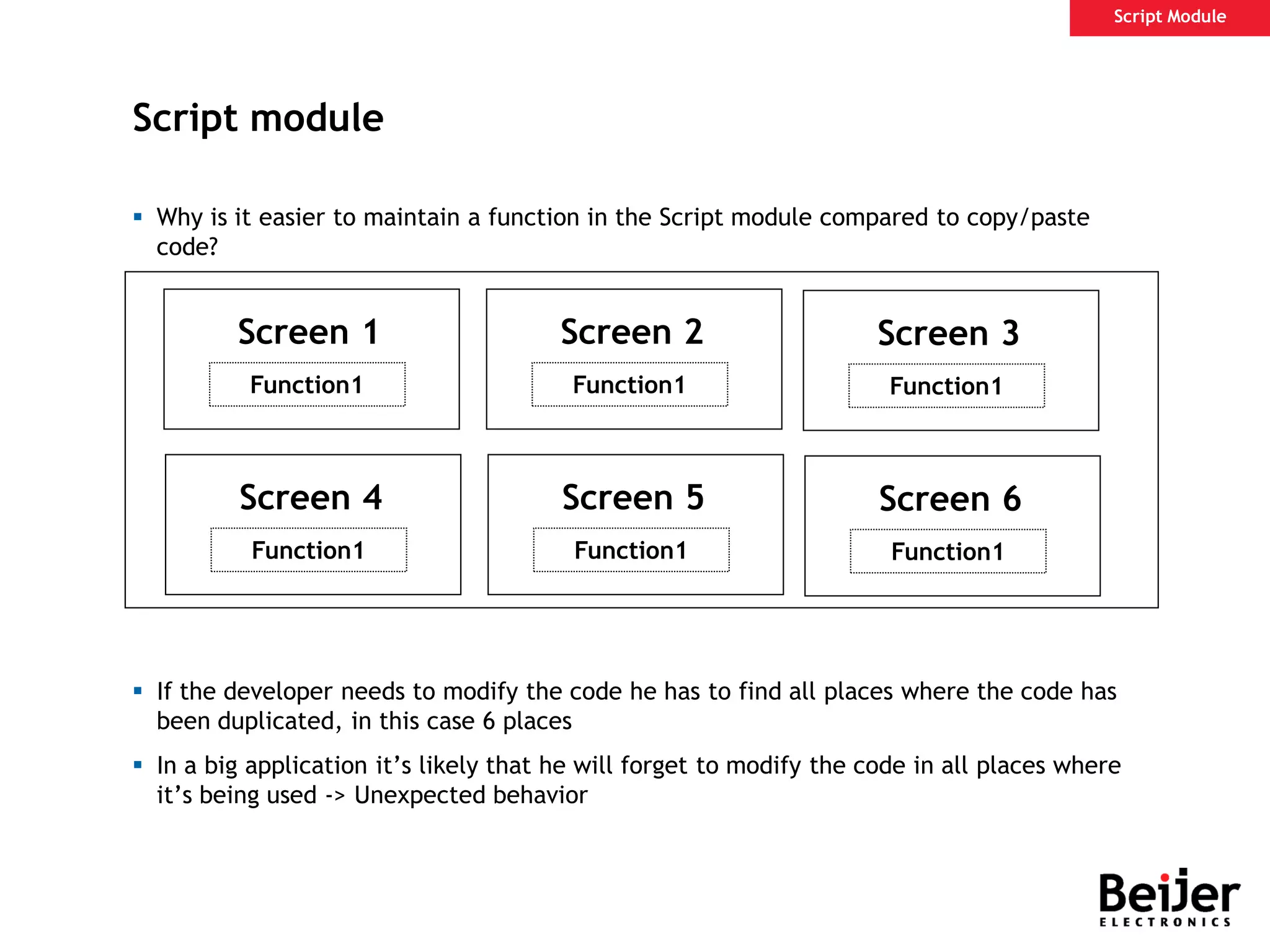

Script Module

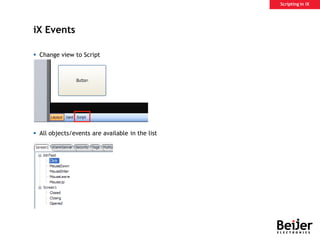

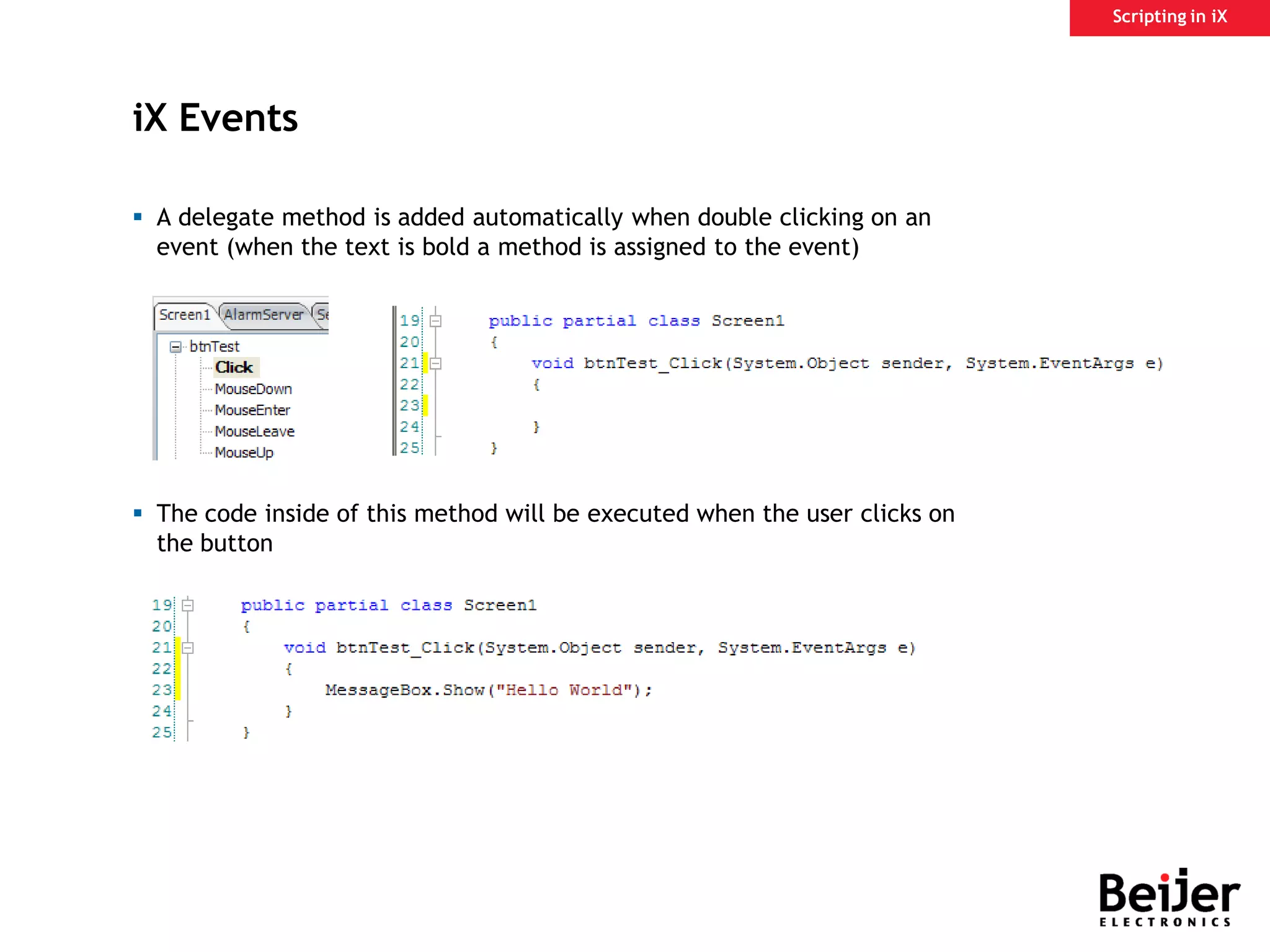

iX Events

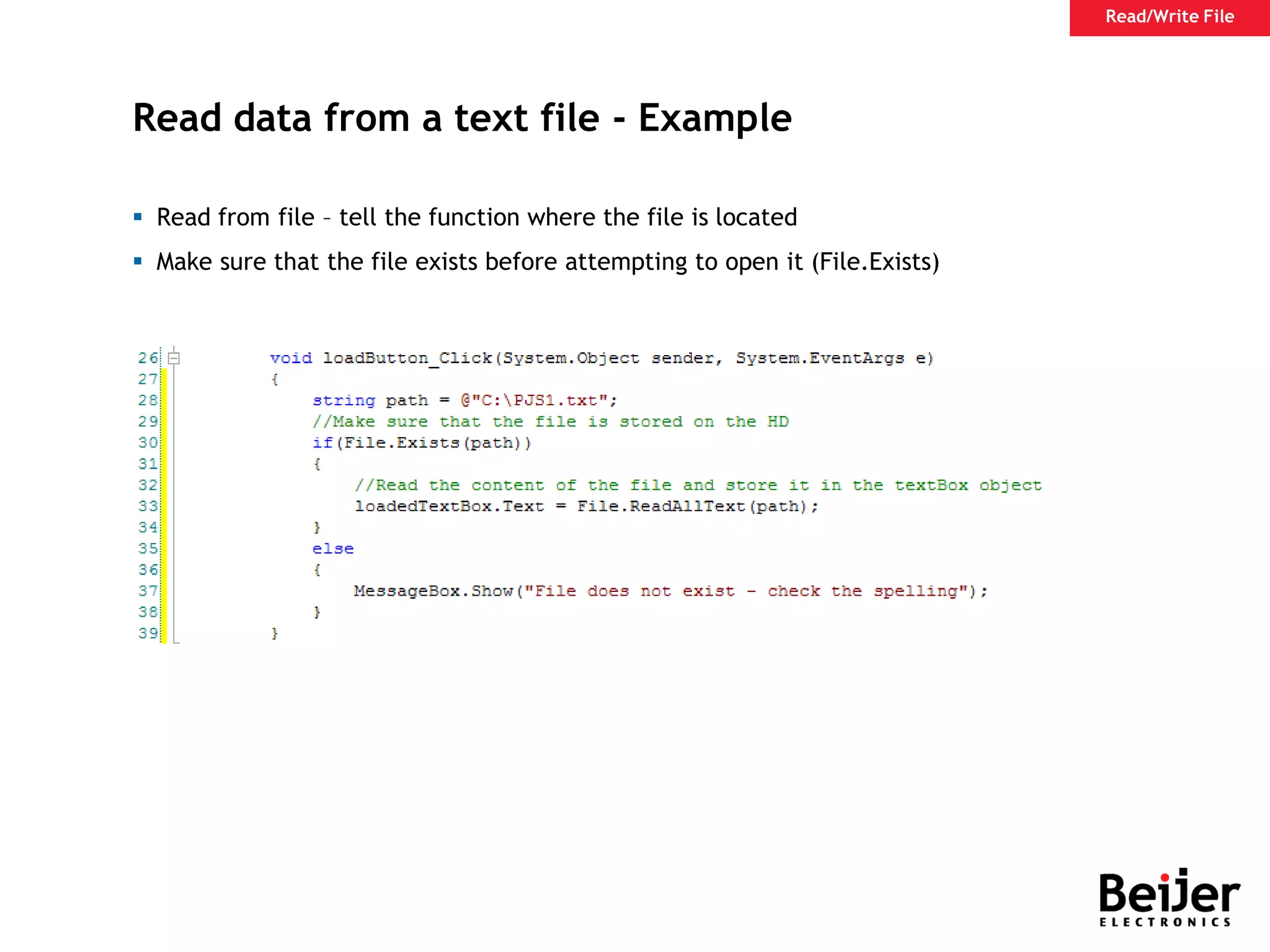

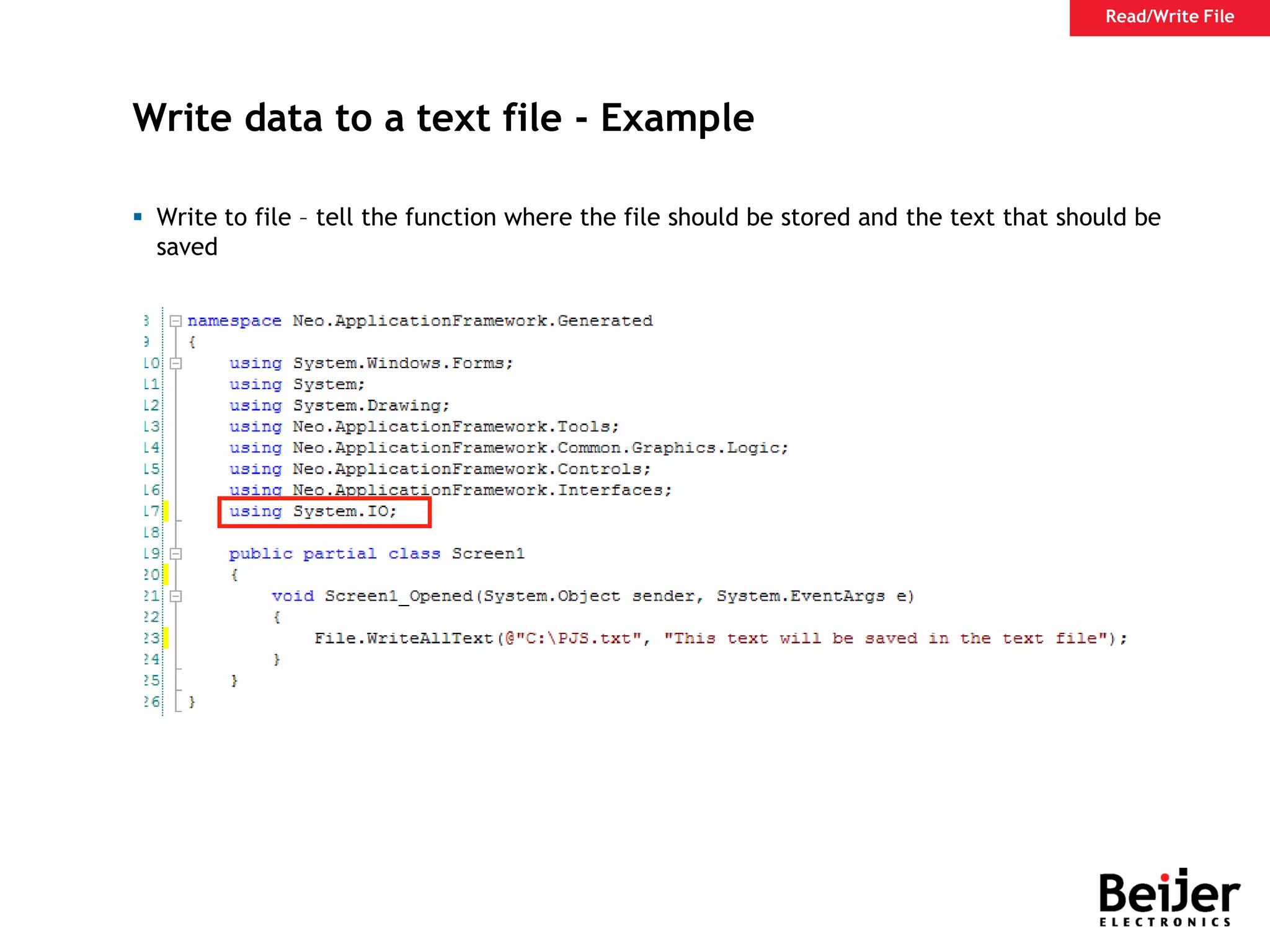

Write/read data from file
Timers

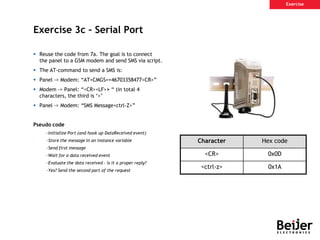

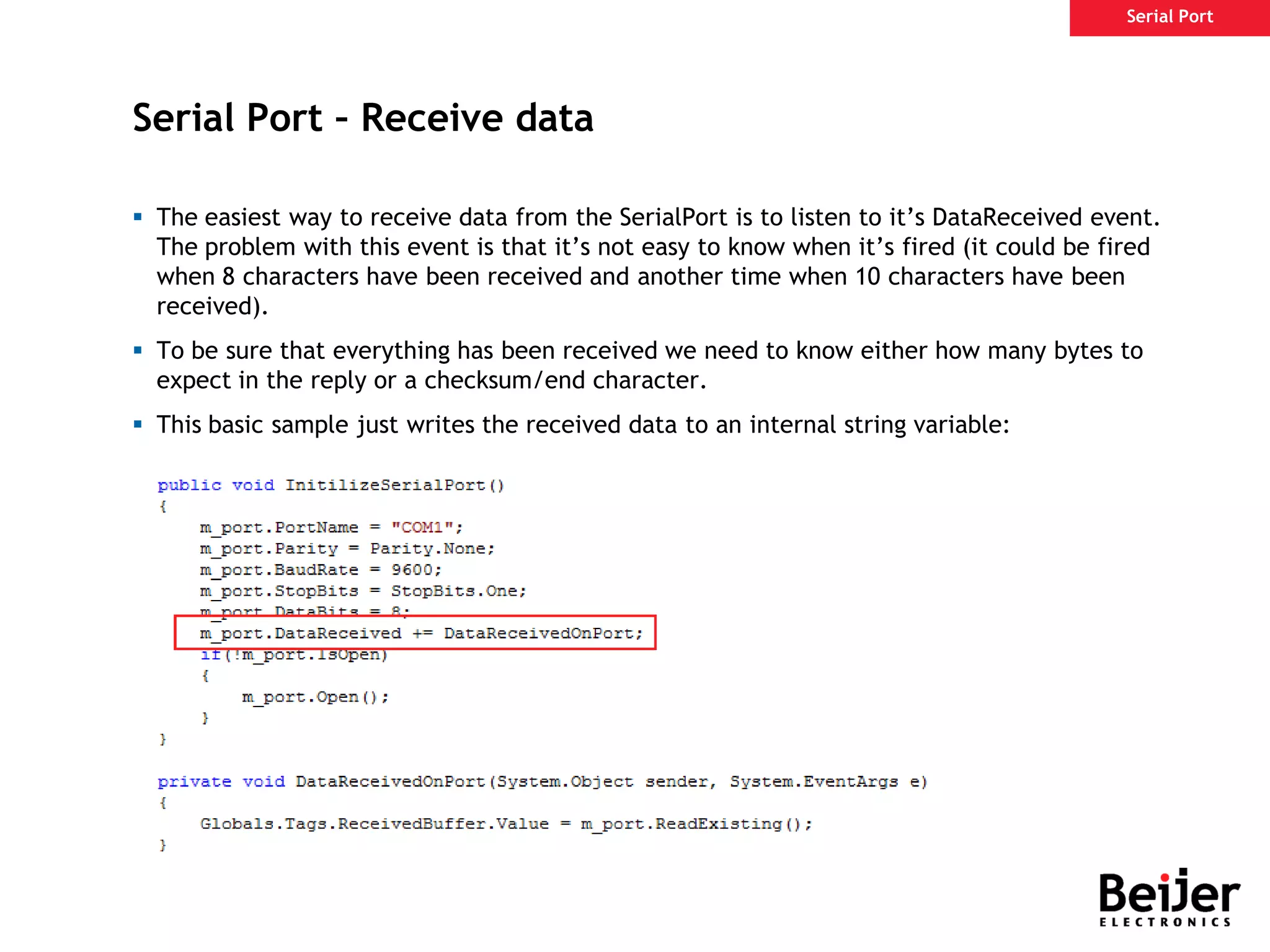

Serial Port handling

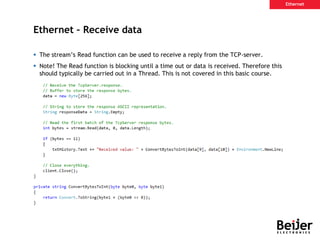

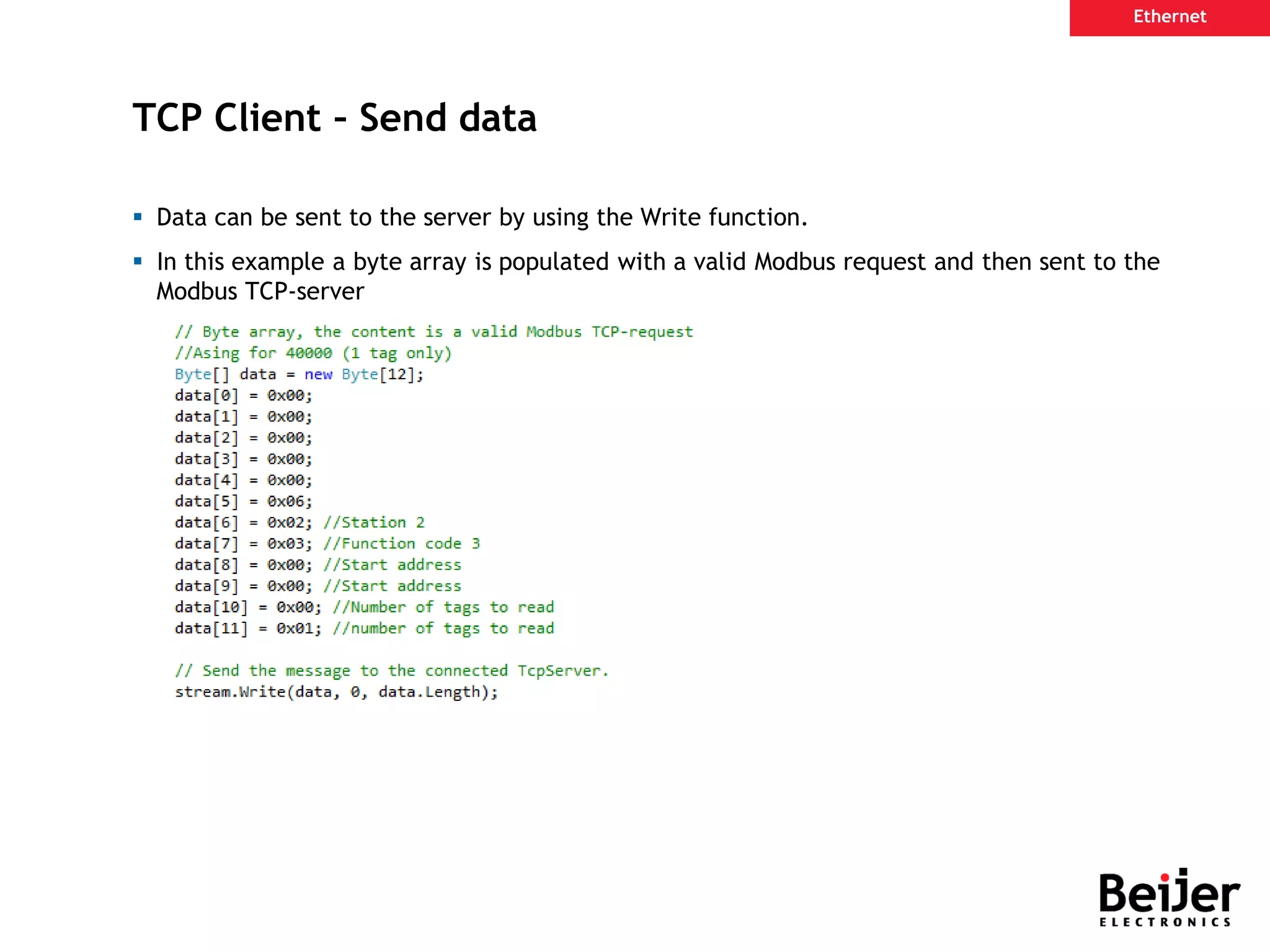

Ethernet

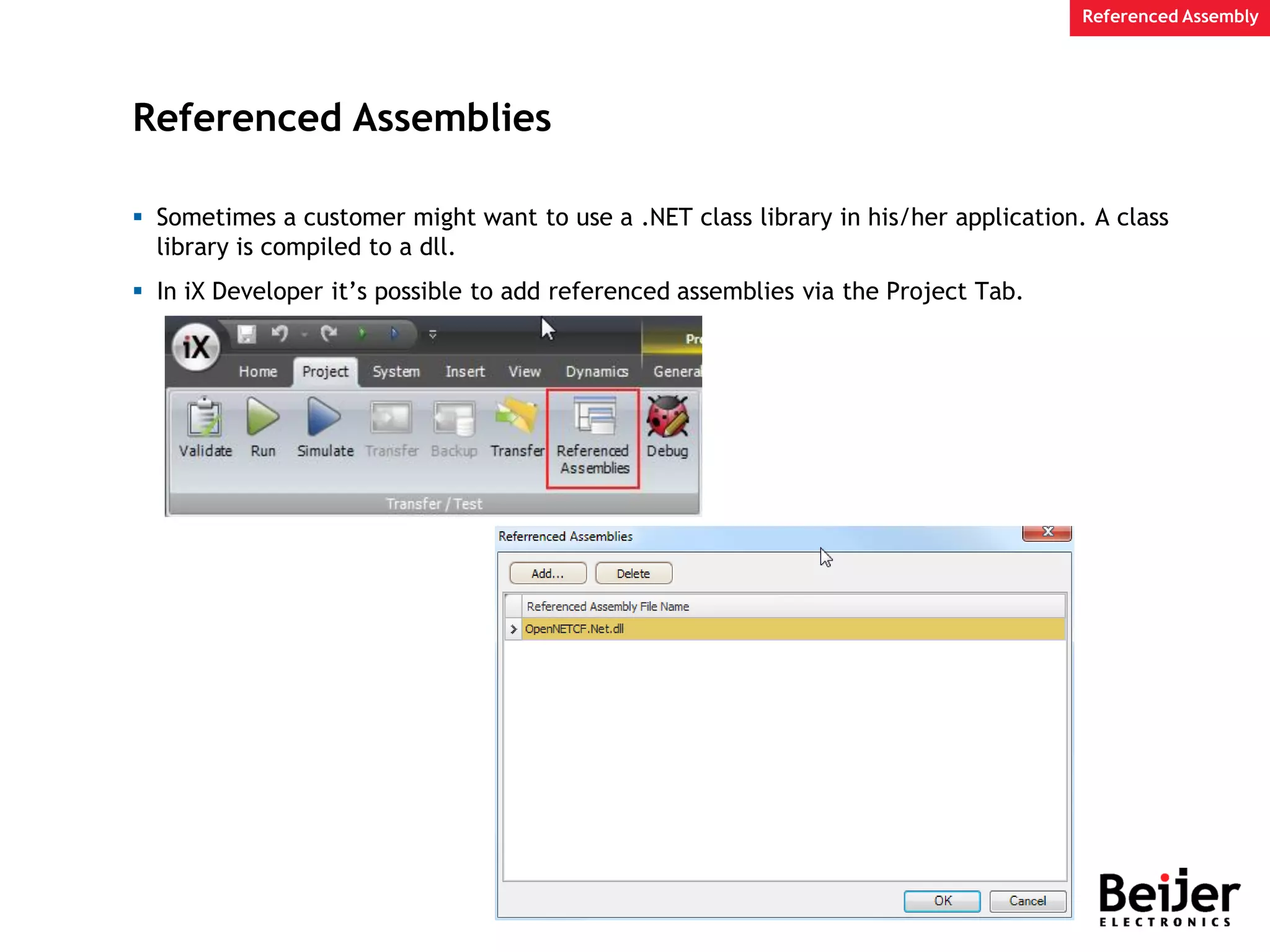

Referenced assembly

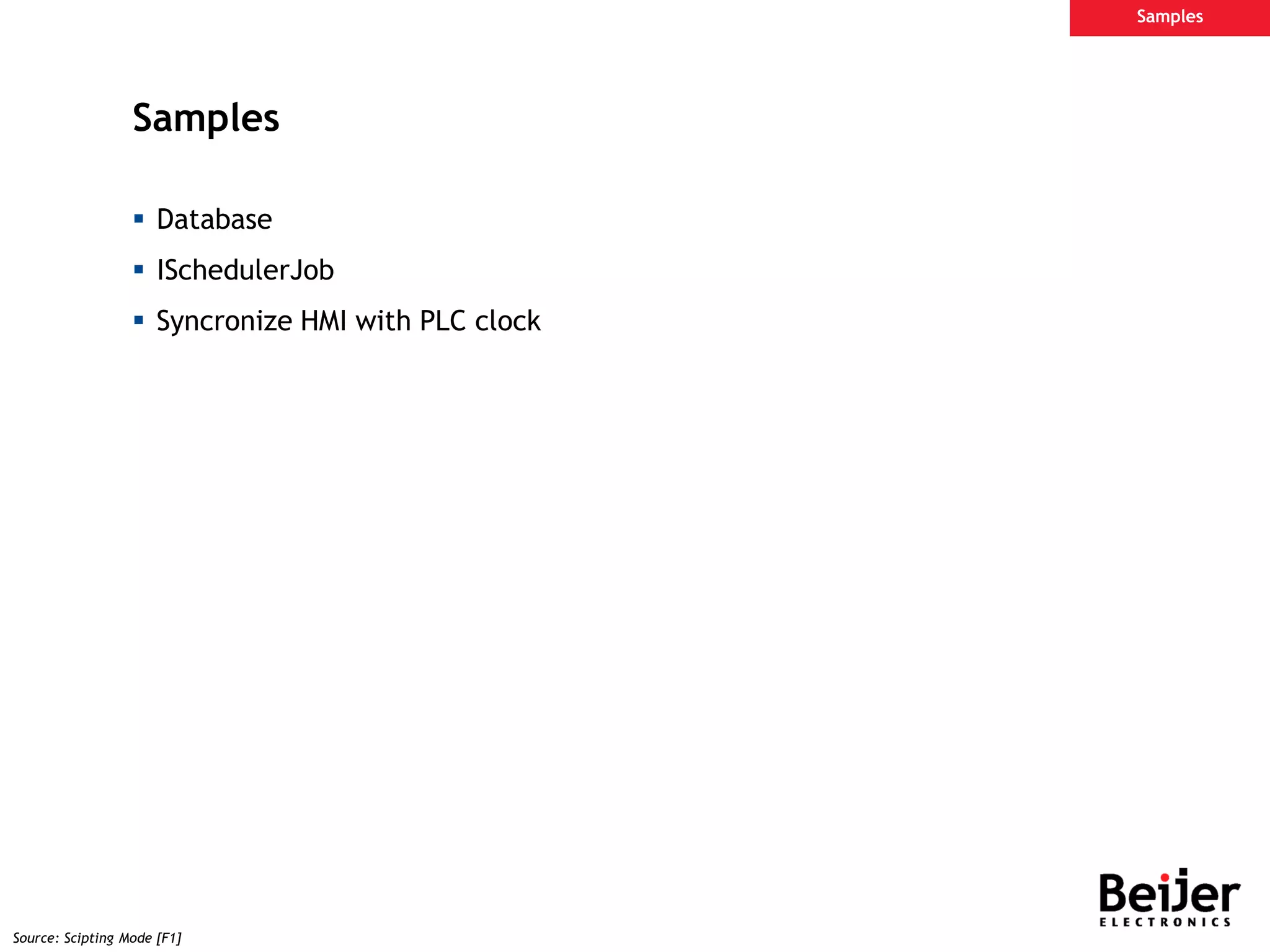

Samples (Scheduler, Database,
etc.)
Pitfalls
3. Day 1 – C# basic concepts
The world's most graphic HMI solution. Truly open.

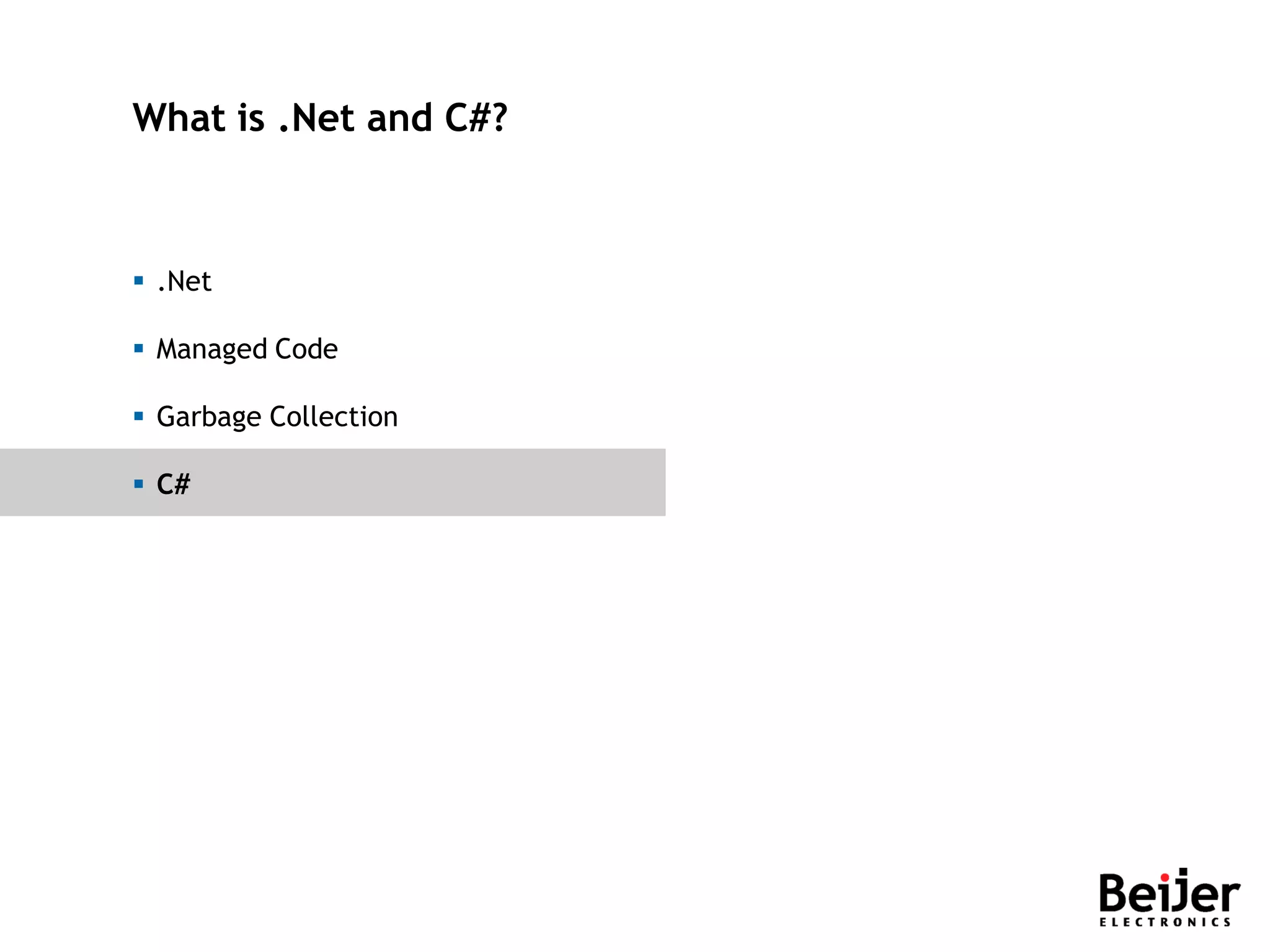

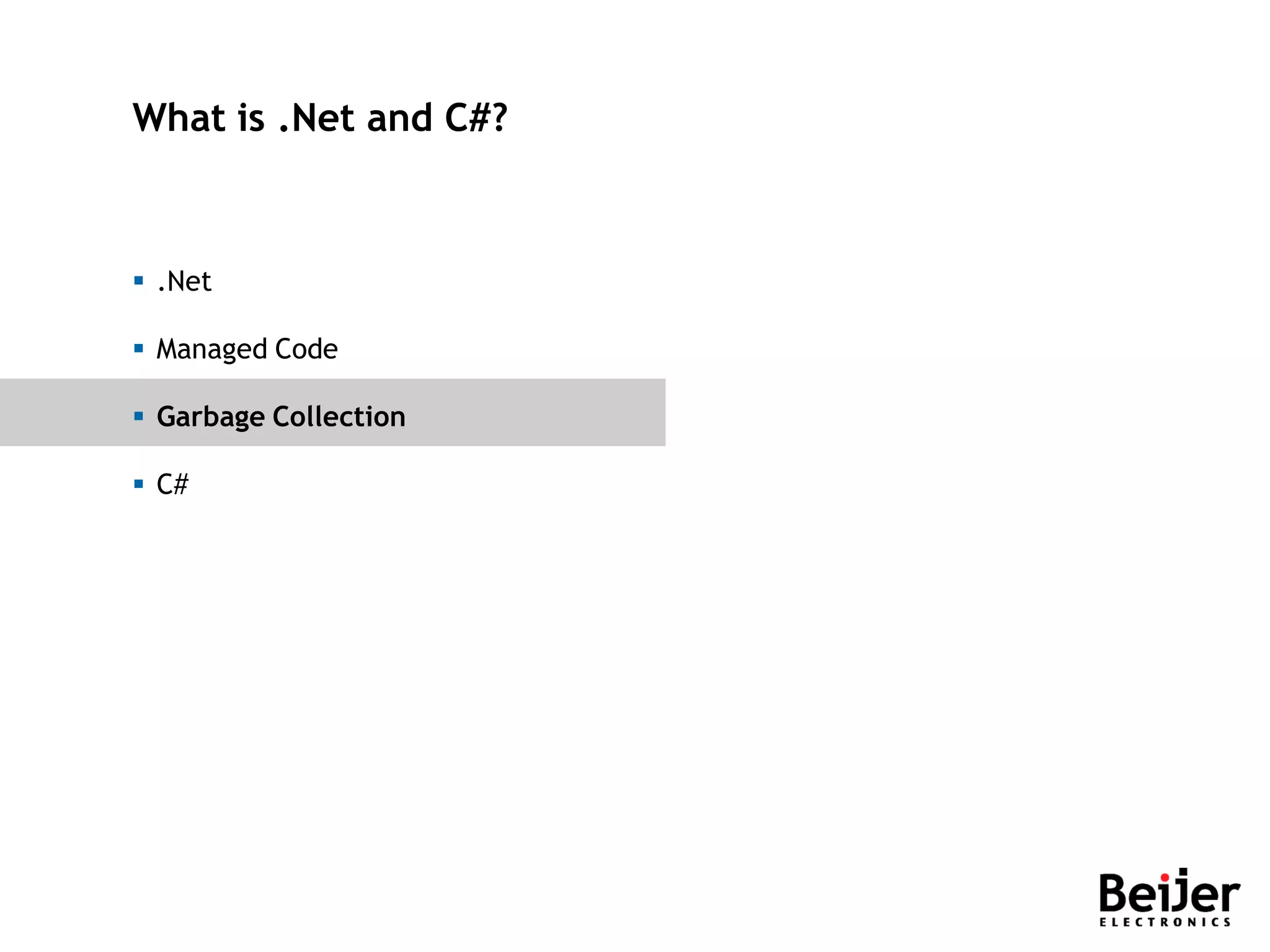

4. What is .Net and C#?
.Net
Managed Code
Garbage Collection
C#

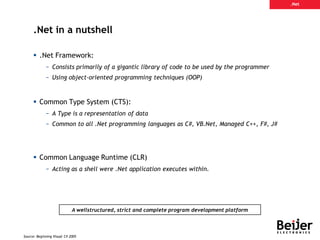

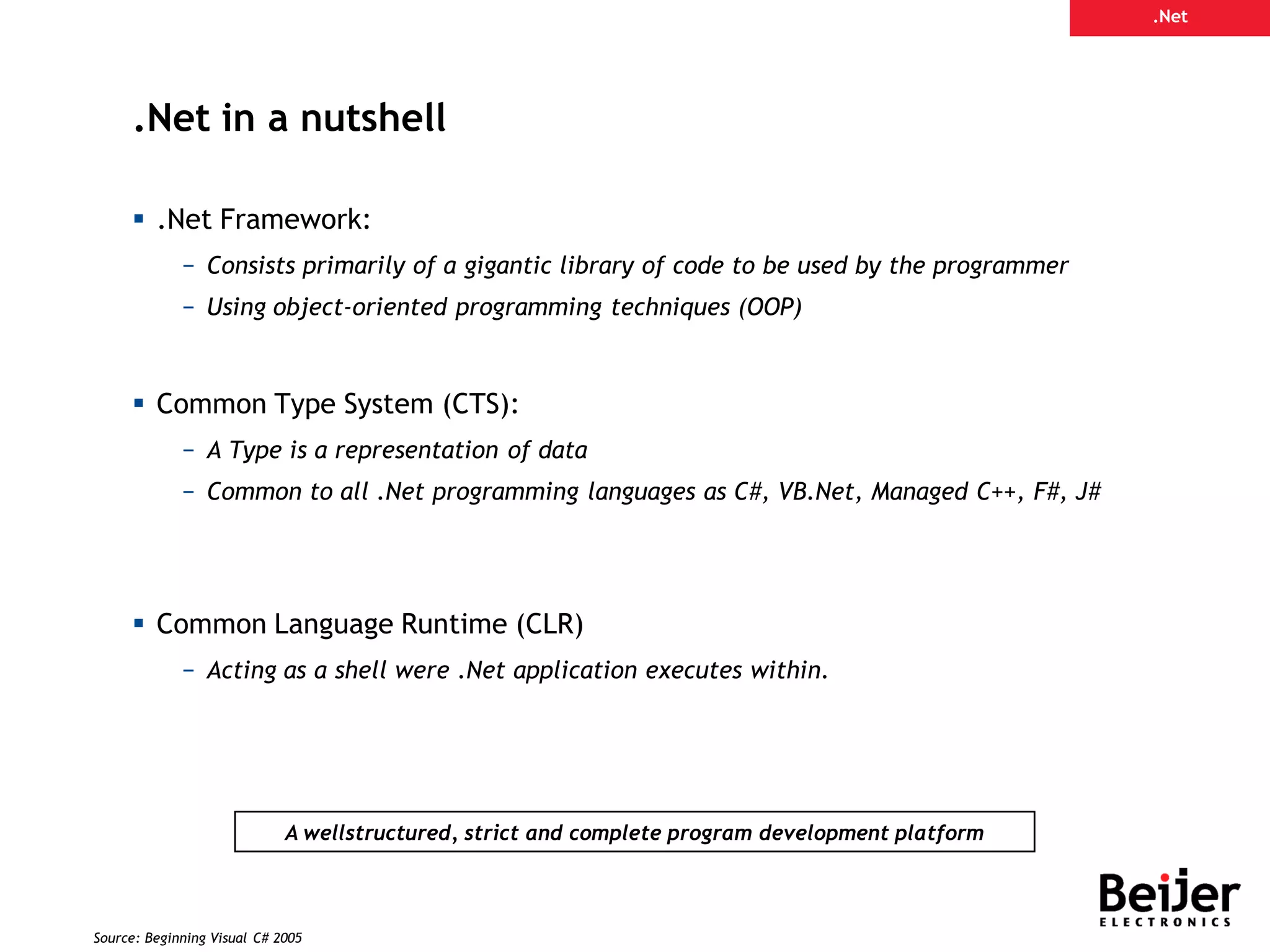

5. .Net in a nutshell
.Net Framework:
− Consists primarily of a gigantic library of code to be used by the programmer
− Using object-oriented programming techniques (OOP)
Common Type System (CTS):
− A Type is a representation of data
− Common to all .Net programming languages as C#, VB.Net, Managed C++, F#, J#
Common Language Runtime (CLR)
− Acting as a shell were .Net application executes within.
A wellstructured, strict and complete program development platform
Source: Beginning Visual C# 2005
.Net
6. What is .Net and C#?
.Net
Managed Code
Garbage Collection
C#

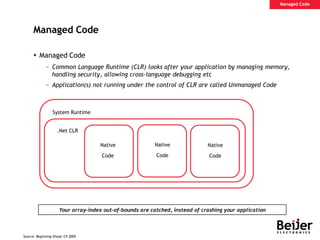

7. Managed Code
Managed Code
− Common Language Runtime (CLR) looks after your application by managing memory,
handling security, allowing cross-language debugging etc
− Application(s) not running under the control of CLR are called Unmanaged Code
Your array-index out-of-bounds are catched, instead of crashing your application
Source: Beginning Visual C# 2005
Managed Code
System Runtime
.Net CLR
Native
Code
Native
Code
Native
Code
8. What is .Net and C#?
.Net
Managed Code
Garbage Collection
C#

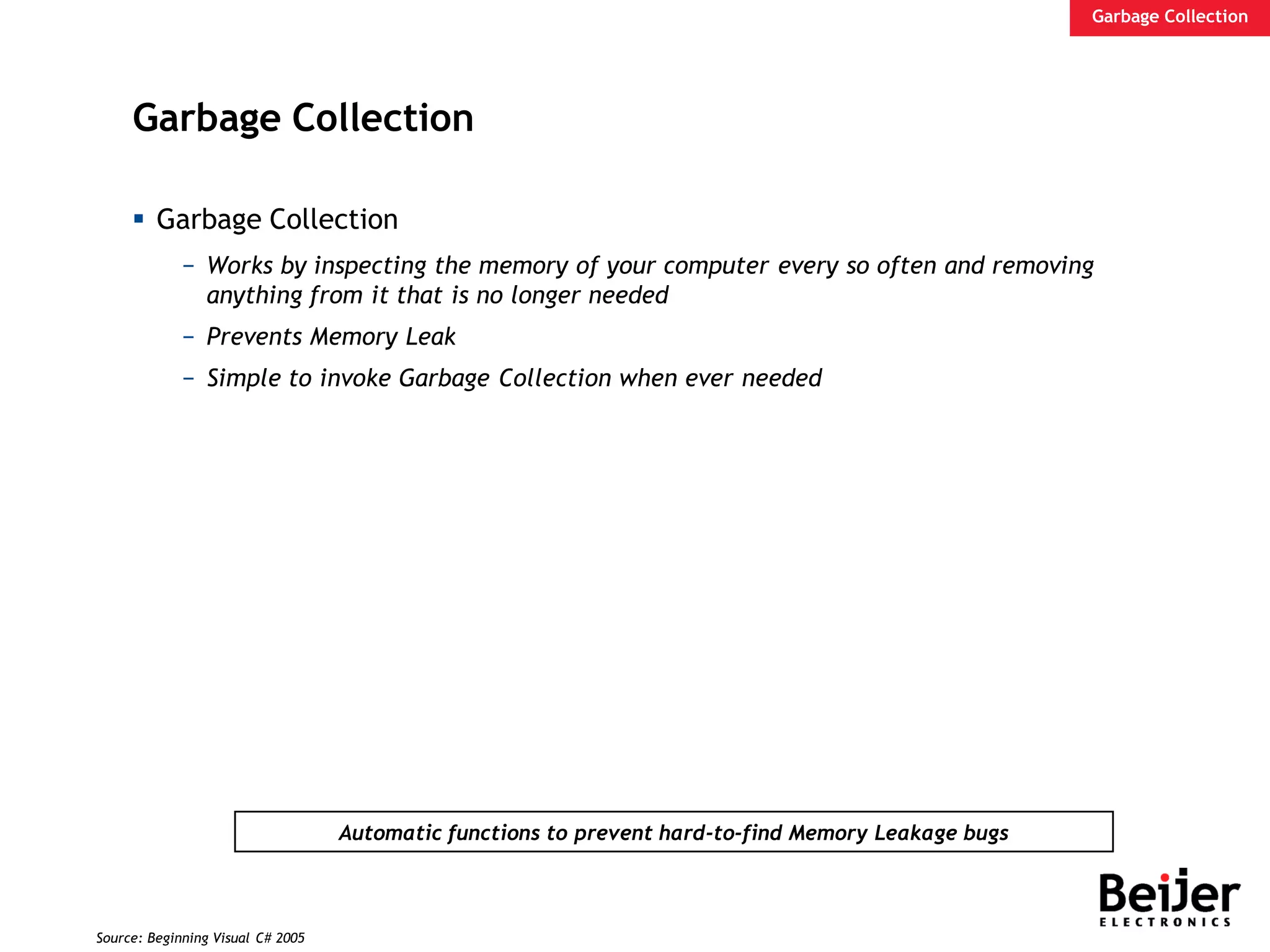

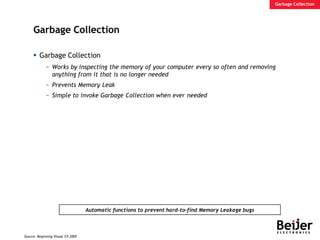

9. Garbage Collection
Garbage Collection
− Works by inspecting the memory of your computer every so often and removing
anything from it that is no longer needed
− Prevents Memory Leak
− Simple to invoke Garbage Collection when ever needed
Automatic functions to prevent hard-to-find Memory Leakage bugs
Source: Beginning Visual C# 2005
Garbage Collection
10. What is .Net and C#?
.Net
Managed Code
Garbage Collection
C#

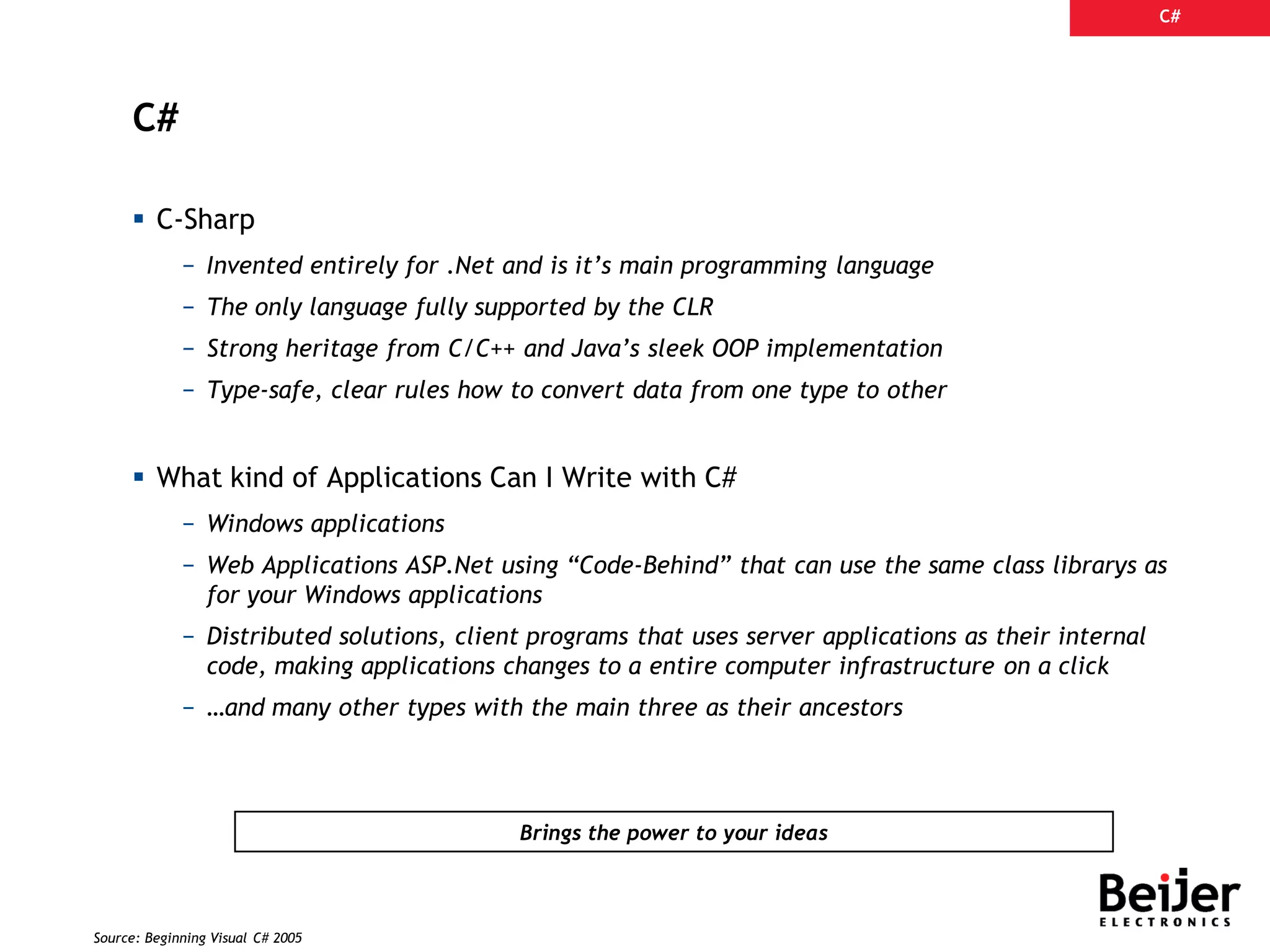

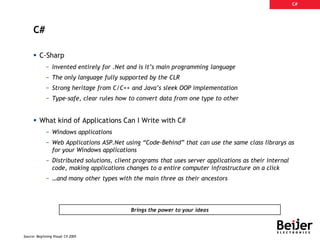

11. C#
C-Sharp
− Invented entirely for .Net and is it’s main programming language
− The only language fully supported by the CLR
− Strong heritage from C/C++ and Java’s sleek OOP implementation
− Type-safe, clear rules how to convert data from one type to other
What kind of Applications Can I Write with C#
− Windows applications
− Web Applications ASP.Net using “Code-Behind” that can use the same class librarys as
for your Windows applications
− Distributed solutions, client programs that uses server applications as their internal
code, making applications changes to a entire computer infrastructure on a click
− …and many other types with the main three as their ancestors
Brings the power to your ideas
Source: Beginning Visual C# 2005
C#

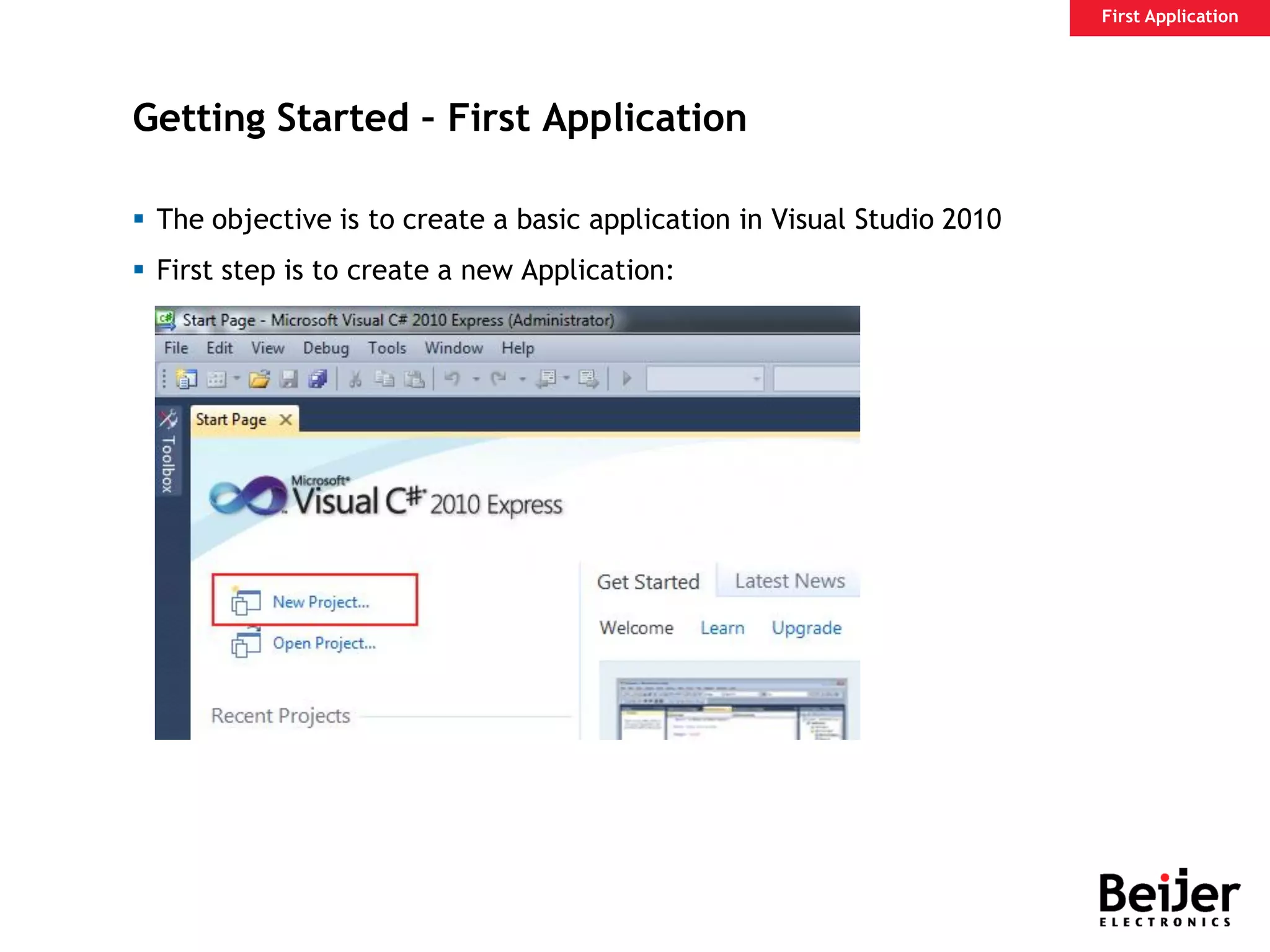

12. Getting Started – First Application
The objective is to create a basic application in Visual Studio 2010
First step is to create a new Application:
First Application

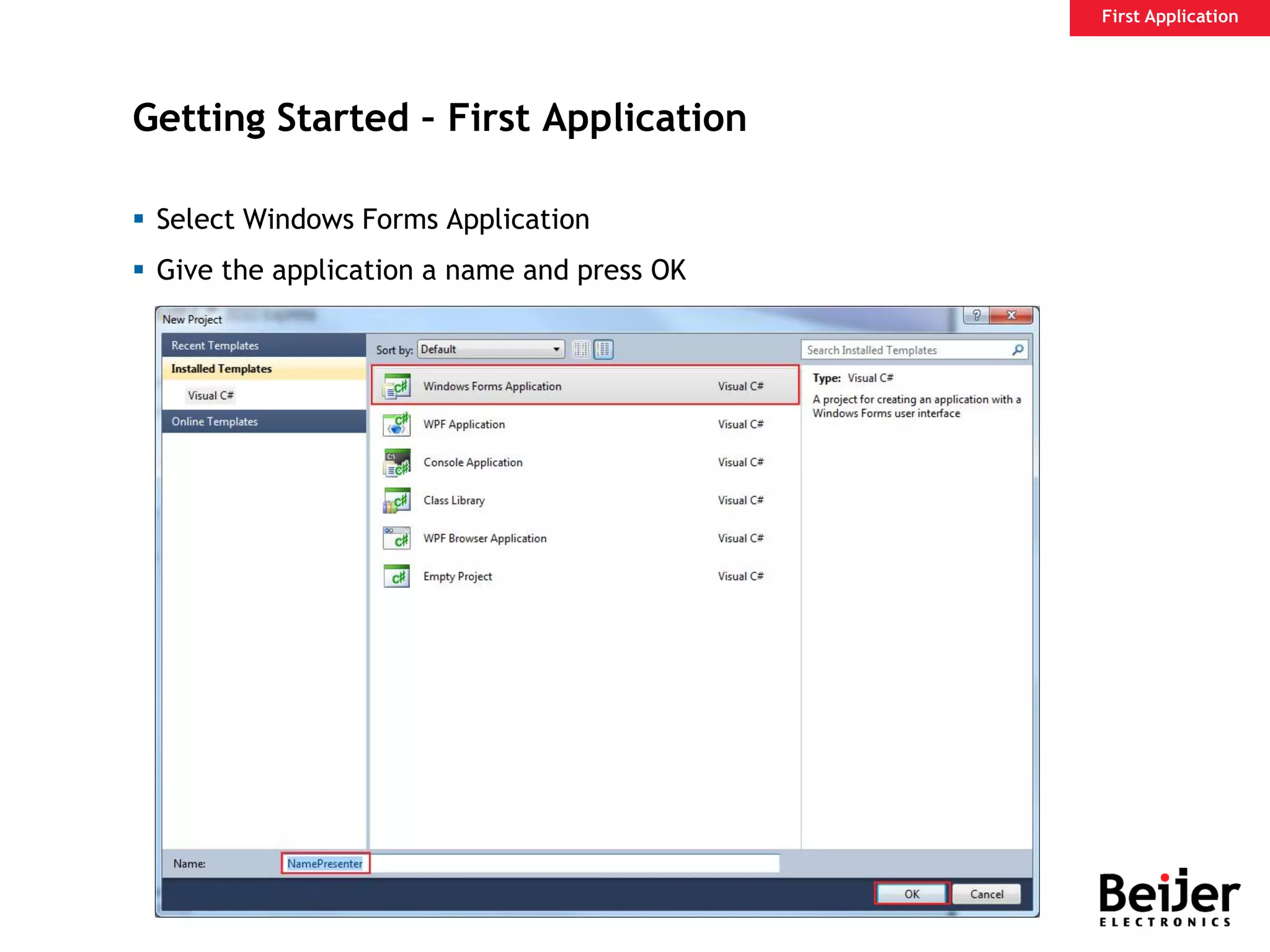

13. Getting Started – First Application
Select Windows Forms Application
Give the application a name and press OK
First Application

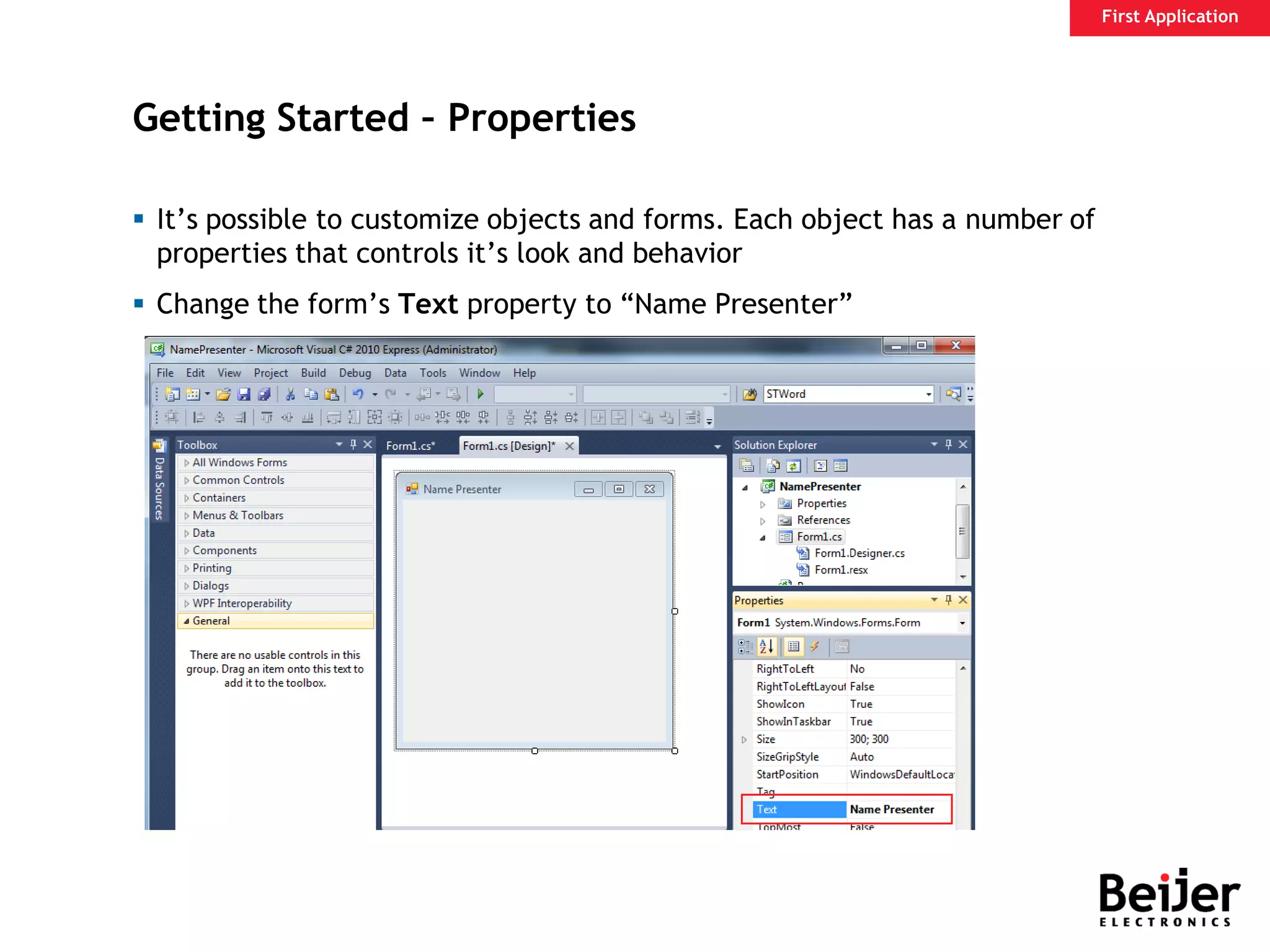

14. Getting Started – Properties
It’s possible to customize objects and forms. Each object has a number of
properties that controls it’s look and behavior
Change the form’s Text property to “Name Presenter”
First Application

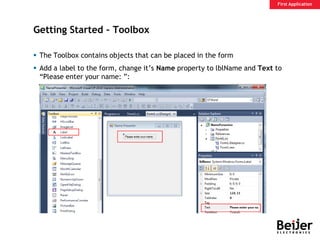

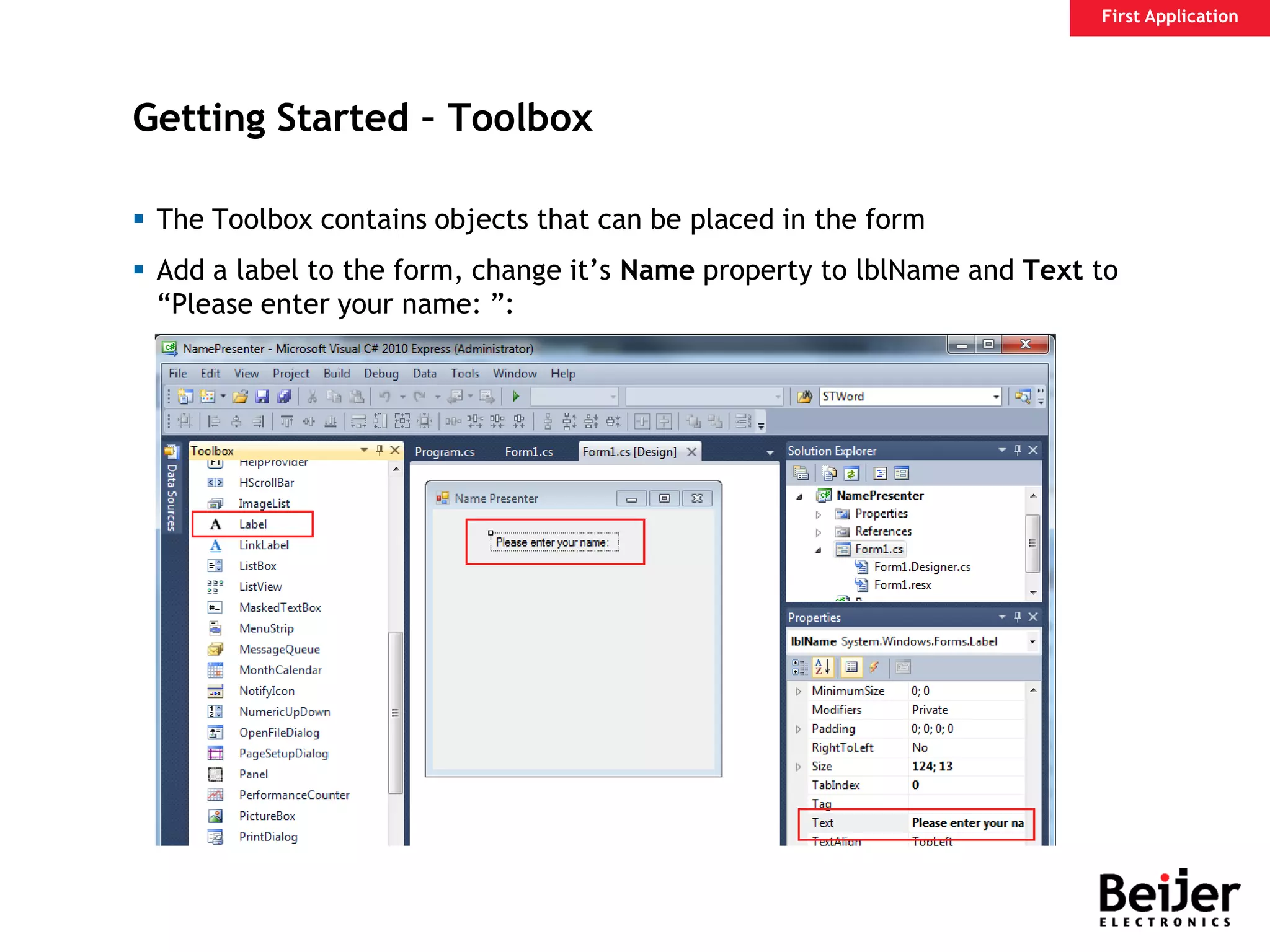

15. Getting Started – Toolbox
The Toolbox contains objects that can be placed in the form
Add a label to the form, change it’s Name property to lblName and Text to
“Please enter your name: ”:
First Application

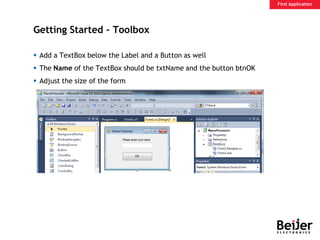

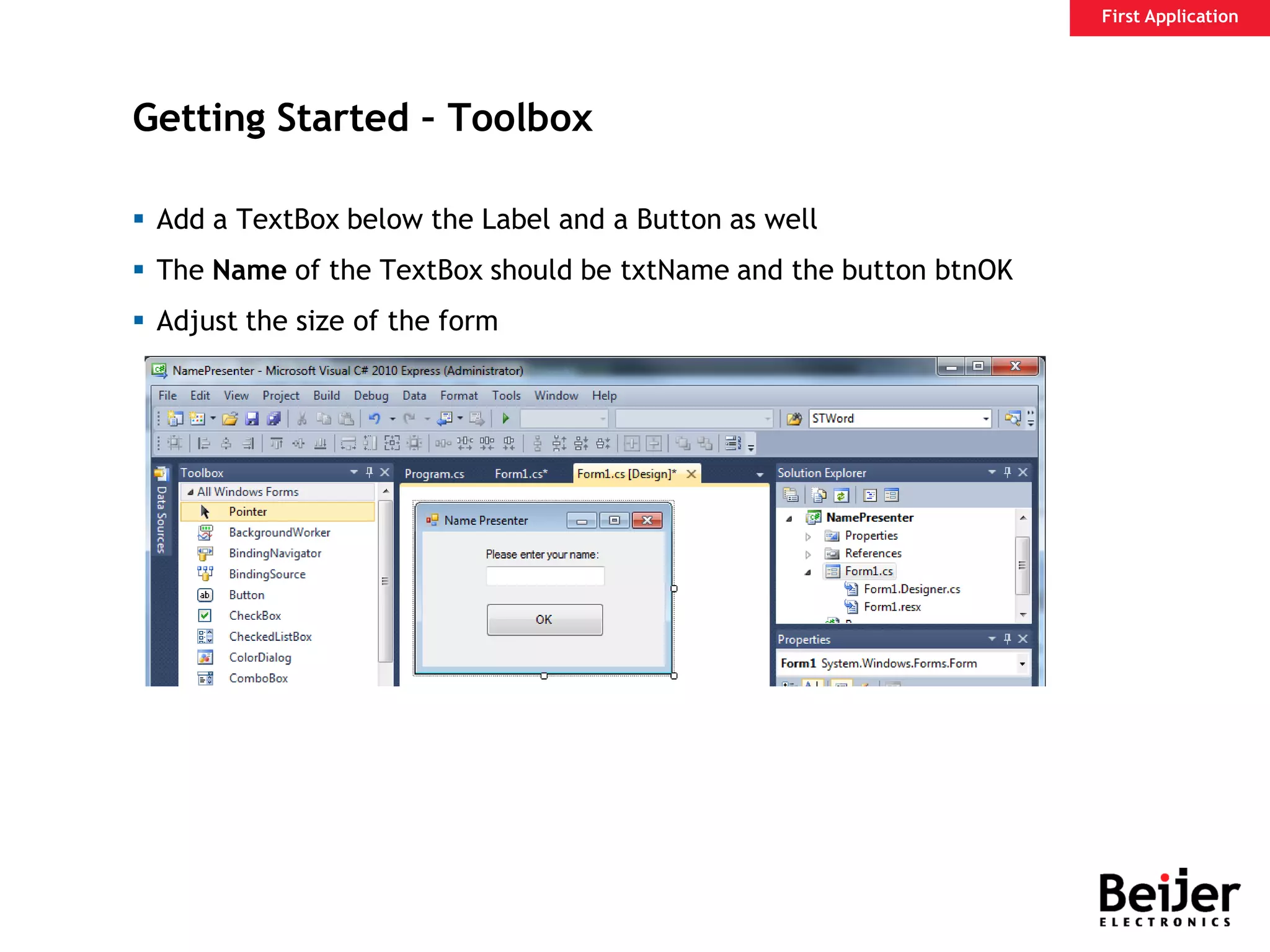

16. Getting Started – Toolbox
Add a TextBox below the Label and a Button as well
The Name of the TextBox should be txtName and the button btnOK
Adjust the size of the form
First Application

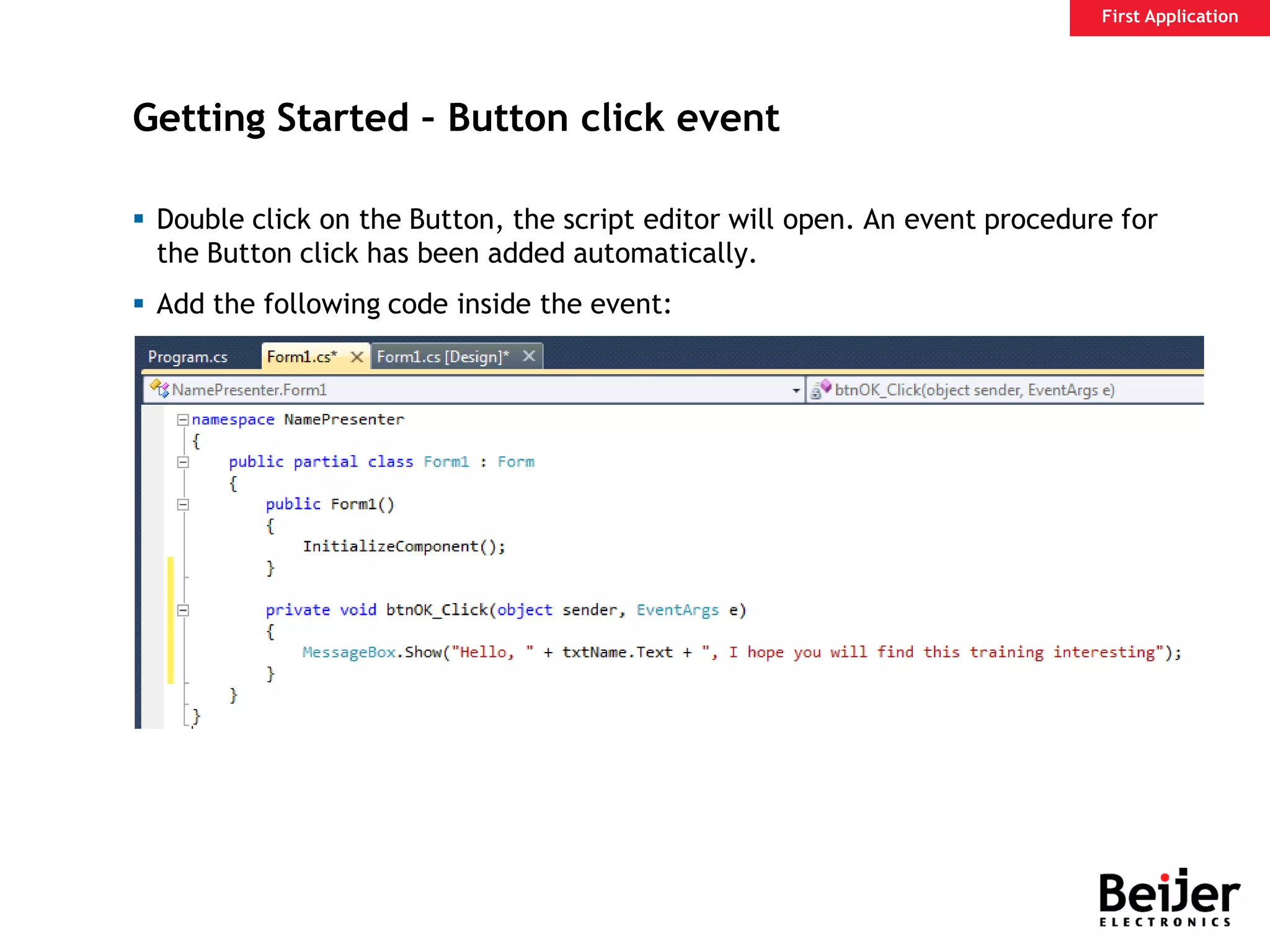

17. Getting Started – Button click event
Double click on the Button, the script editor will open. An event procedure for
the Button click has been added automatically.
Add the following code inside the event:
First Application

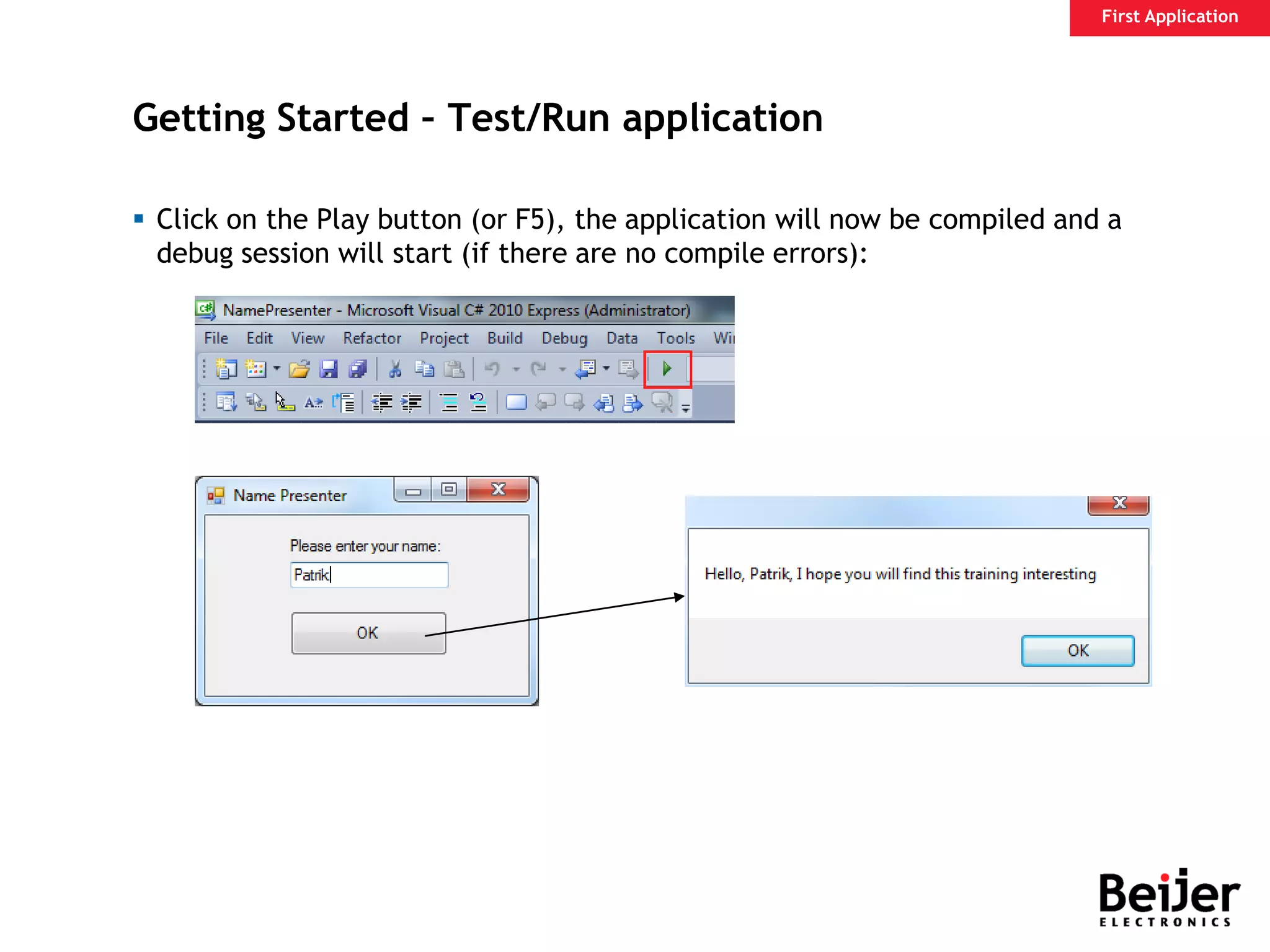

18. Getting Started – Test/Run application
Click on the Play button (or F5), the application will now be compiled and a
debug session will start (if there are no compile errors):
First Application

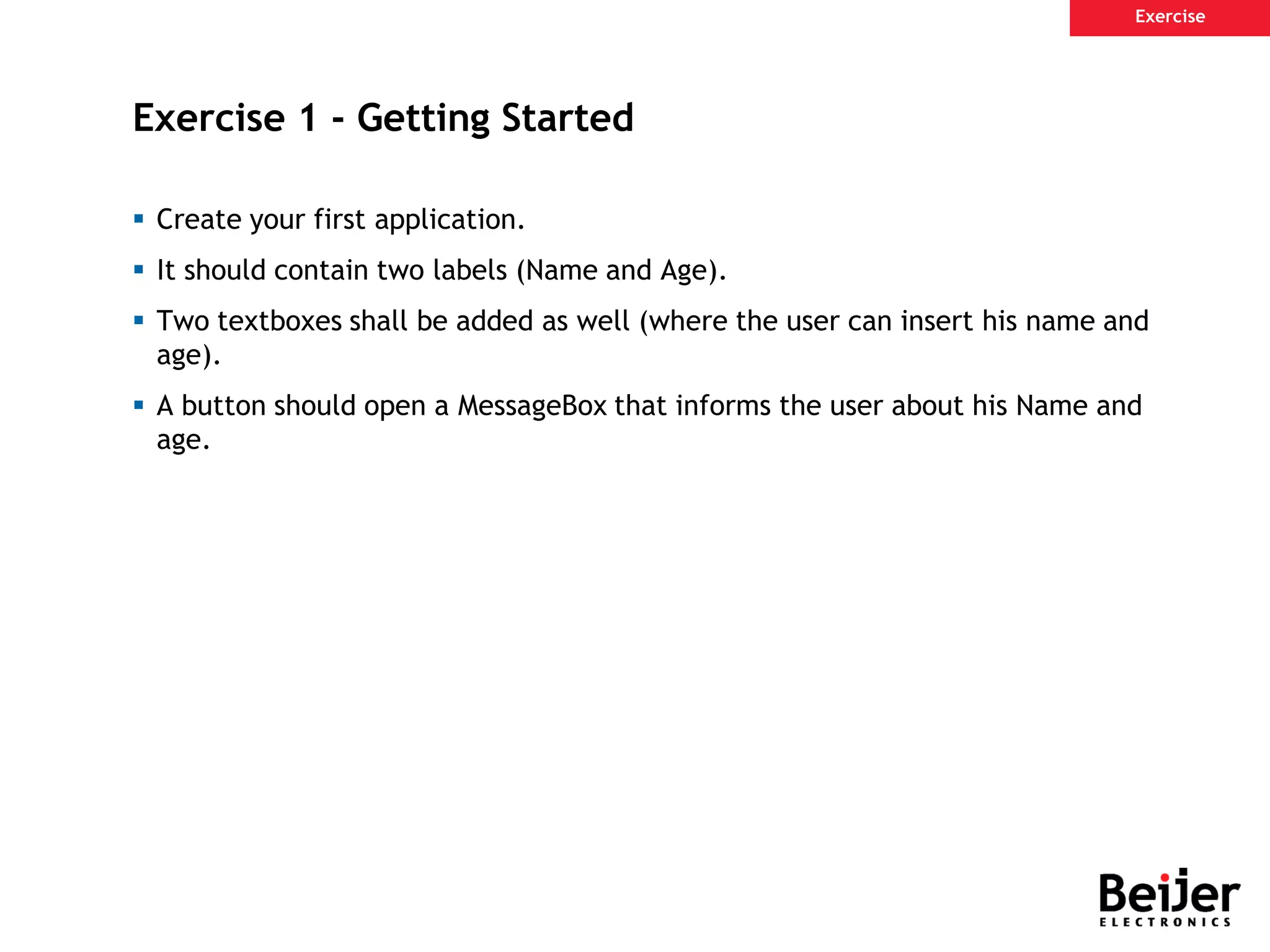

19. Exercise 1 - Getting Started
Create your first application.
It should contain two labels (Name and Age).
Two textboxes shall be added as well (where the user can insert his name and
age).
A button should open a MessageBox that informs the user about his Name and
age.
Exercise

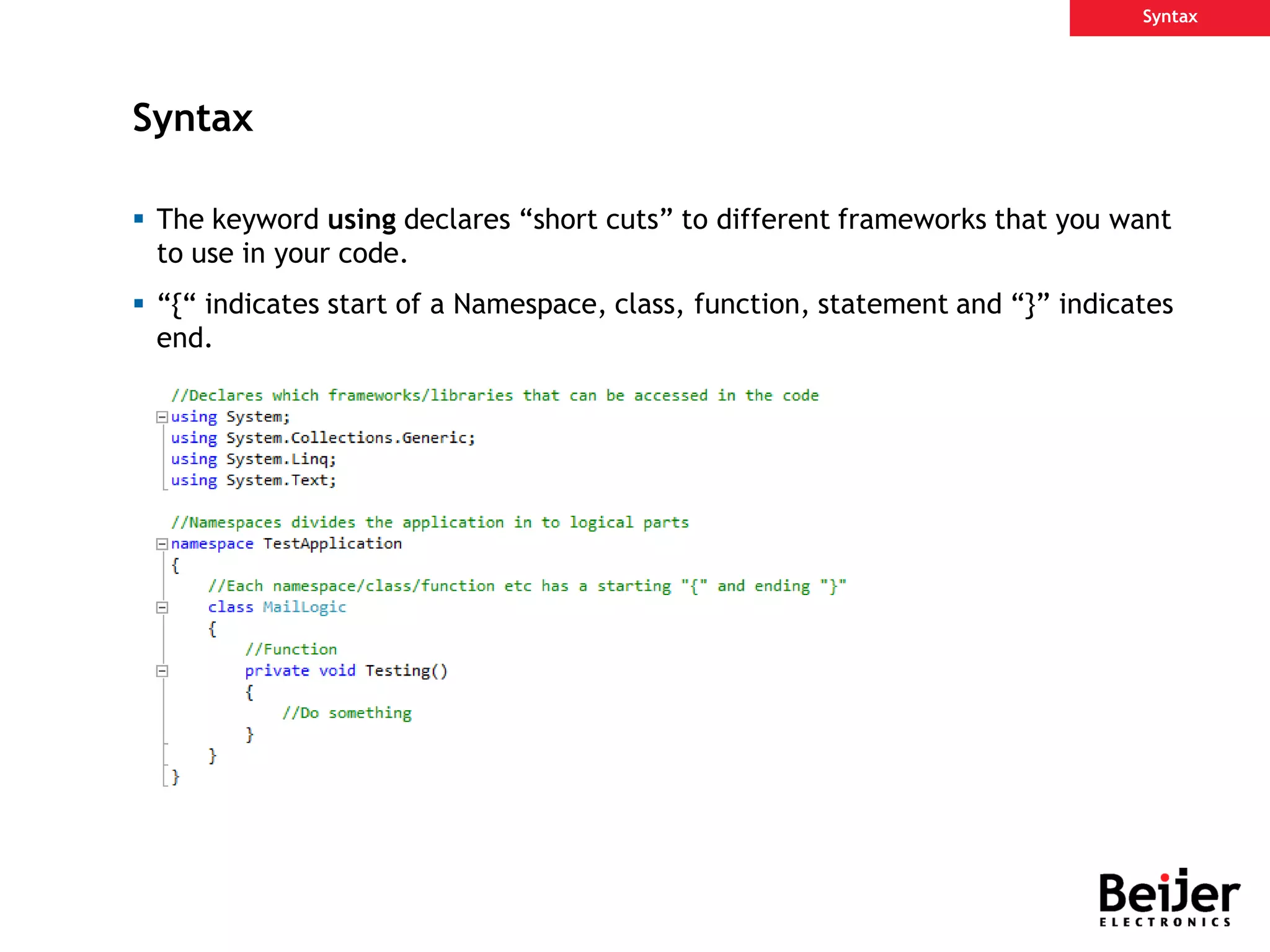

20. Syntax
The keyword using declares “short cuts” to different frameworks that you want
to use in your code.
“{“ indicates start of a Namespace, class, function, statement and “}” indicates
end.
Syntax

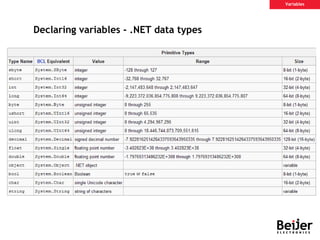

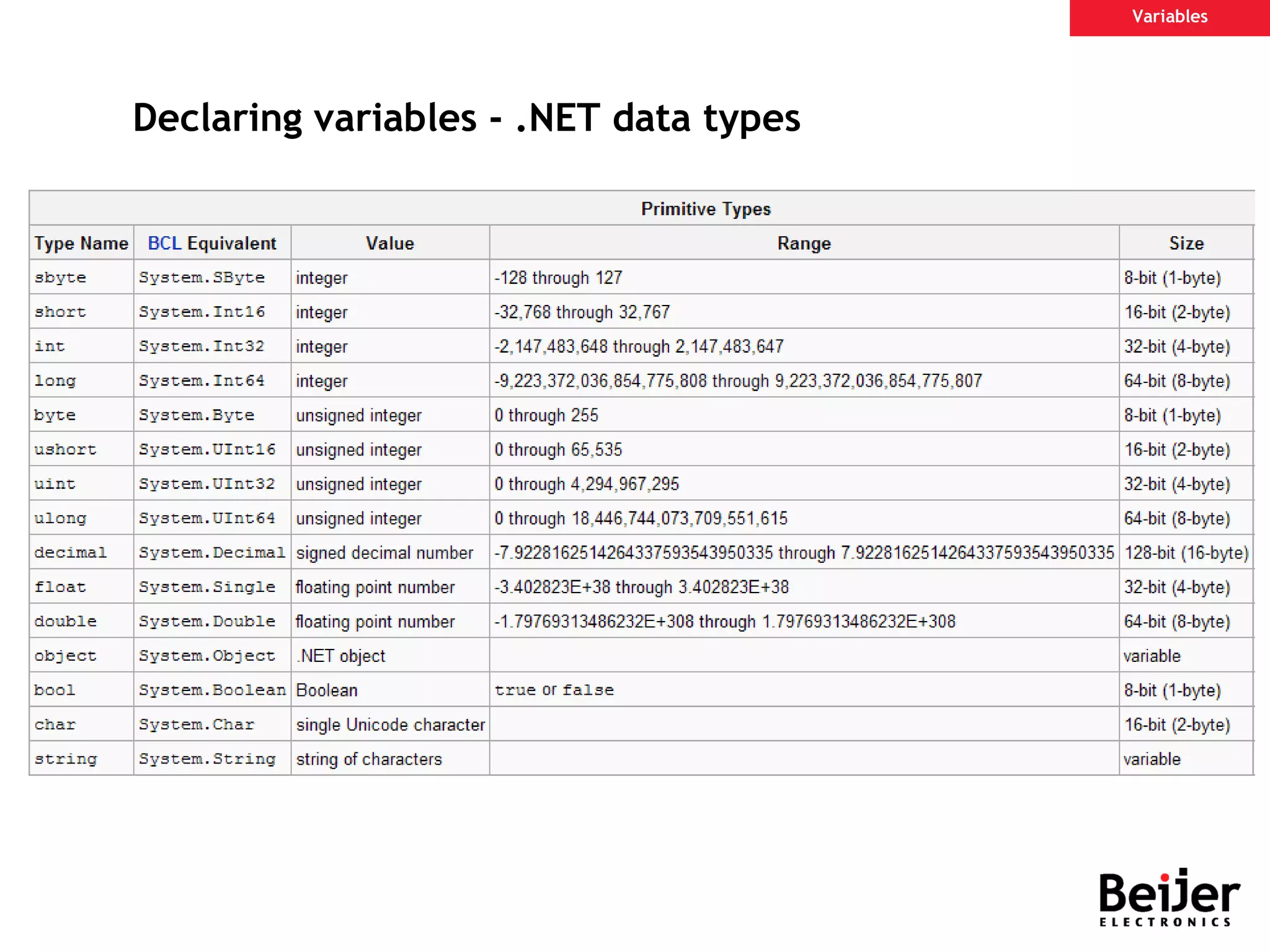

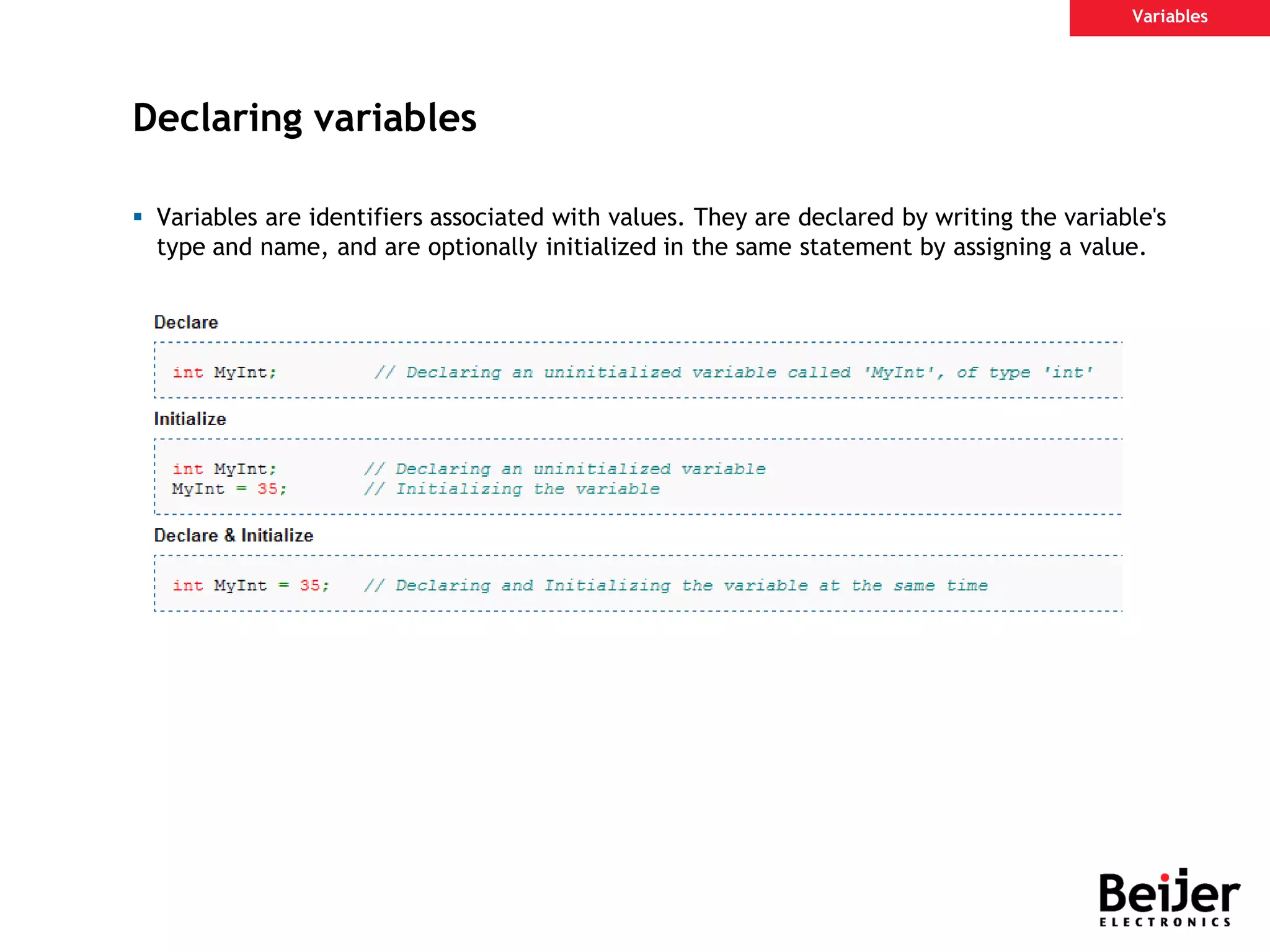

21. Declaring variables
Variables are identifiers associated with values. They are declared by writing the variable's
type and name, and are optionally initialized in the same statement by assigning a value.
Variables

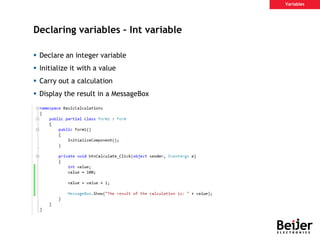

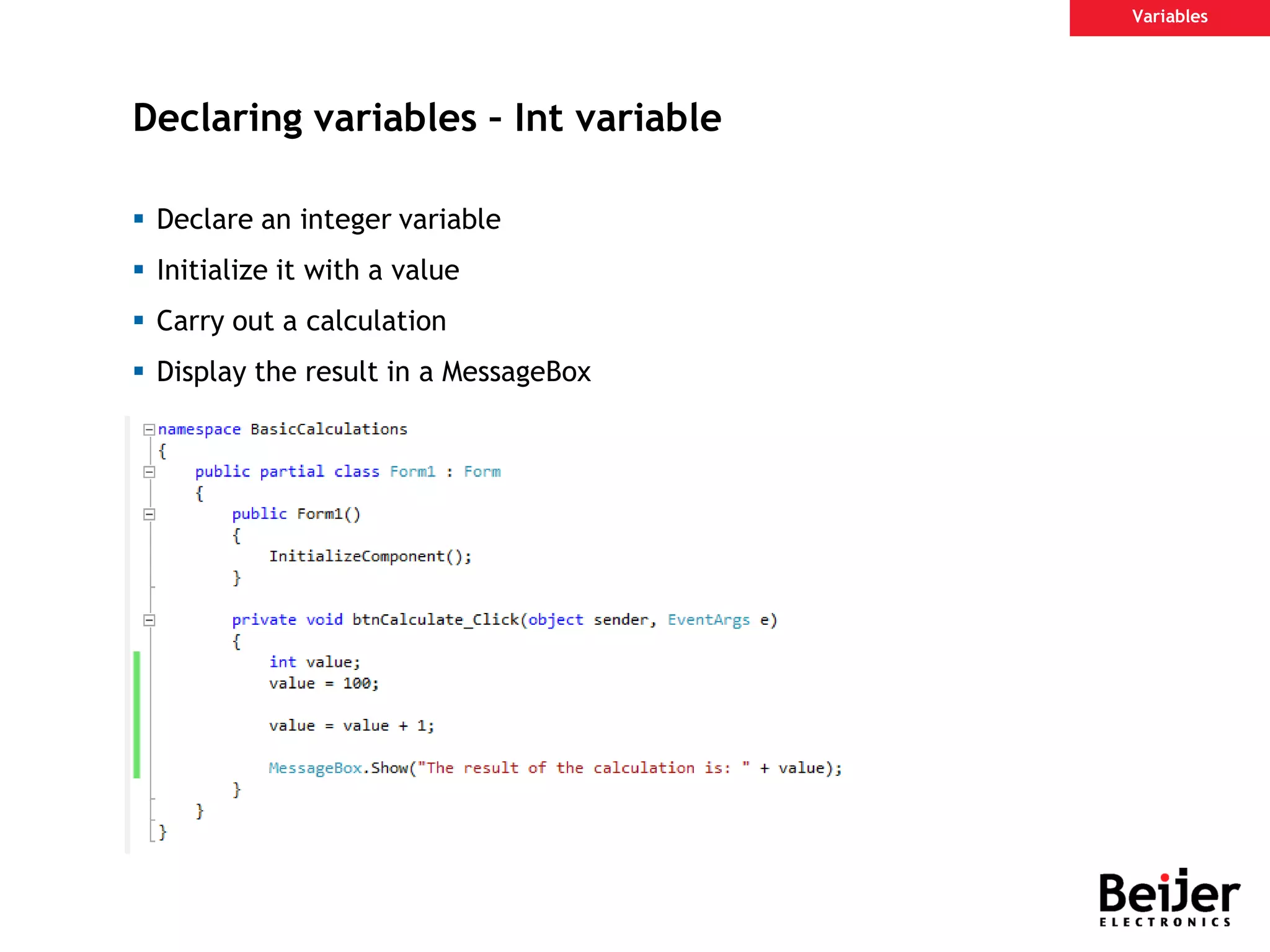

23. Declaring variables – Int variable
Declare an integer variable
Initialize it with a value
Carry out a calculation
Display the result in a MessageBox
Variables

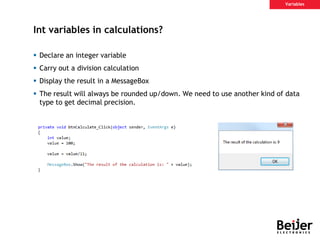

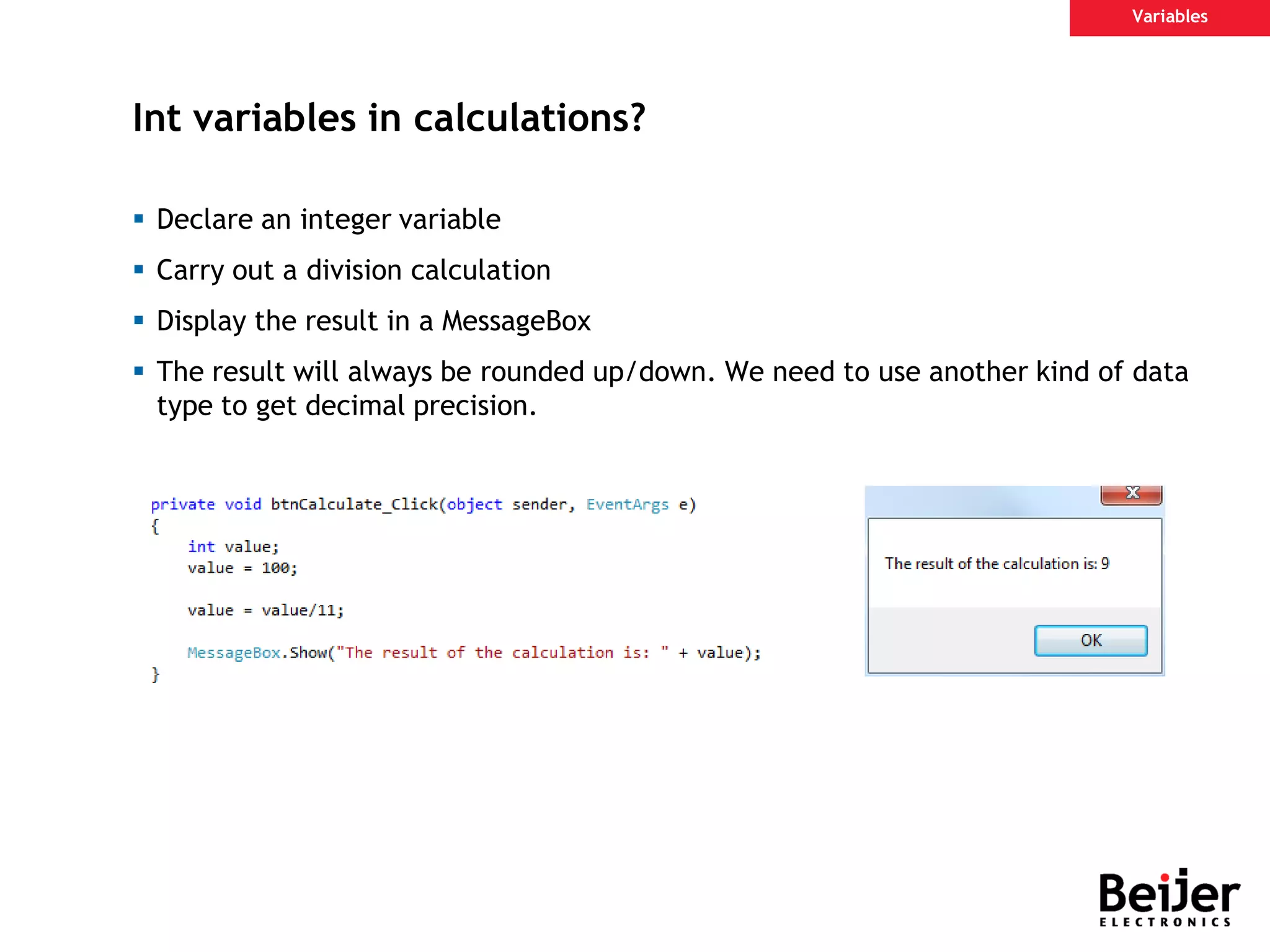

24. Int variables in calculations?
Declare an integer variable
Carry out a division calculation
Display the result in a MessageBox
The result will always be rounded up/down. We need to use another kind of data
type to get decimal precision.
Variables

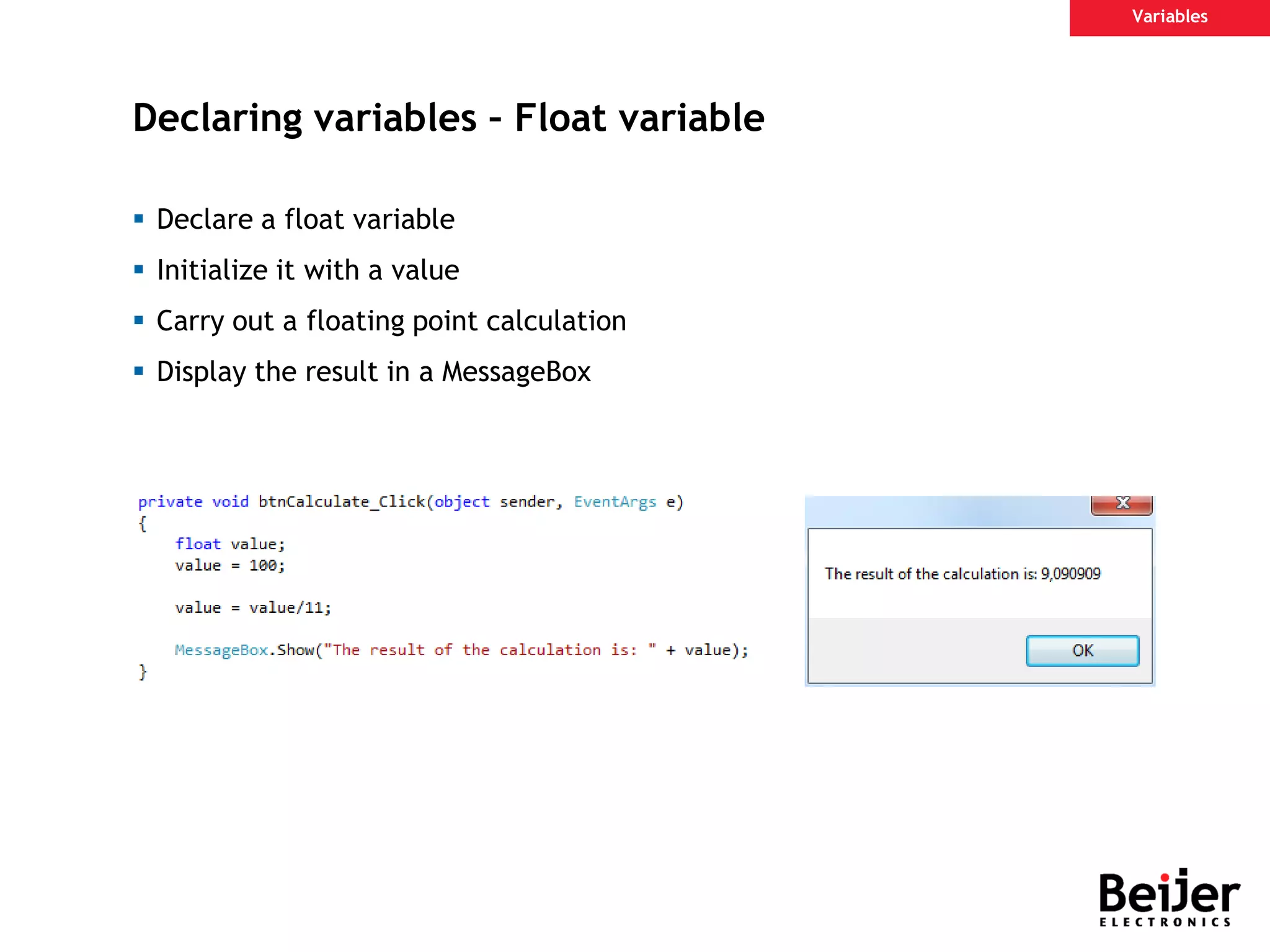

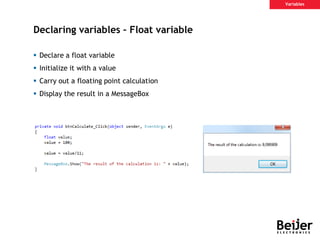

25. Declaring variables – Float variable
Declare a float variable
Initialize it with a value
Carry out a floating point calculation
Display the result in a MessageBox
Variables

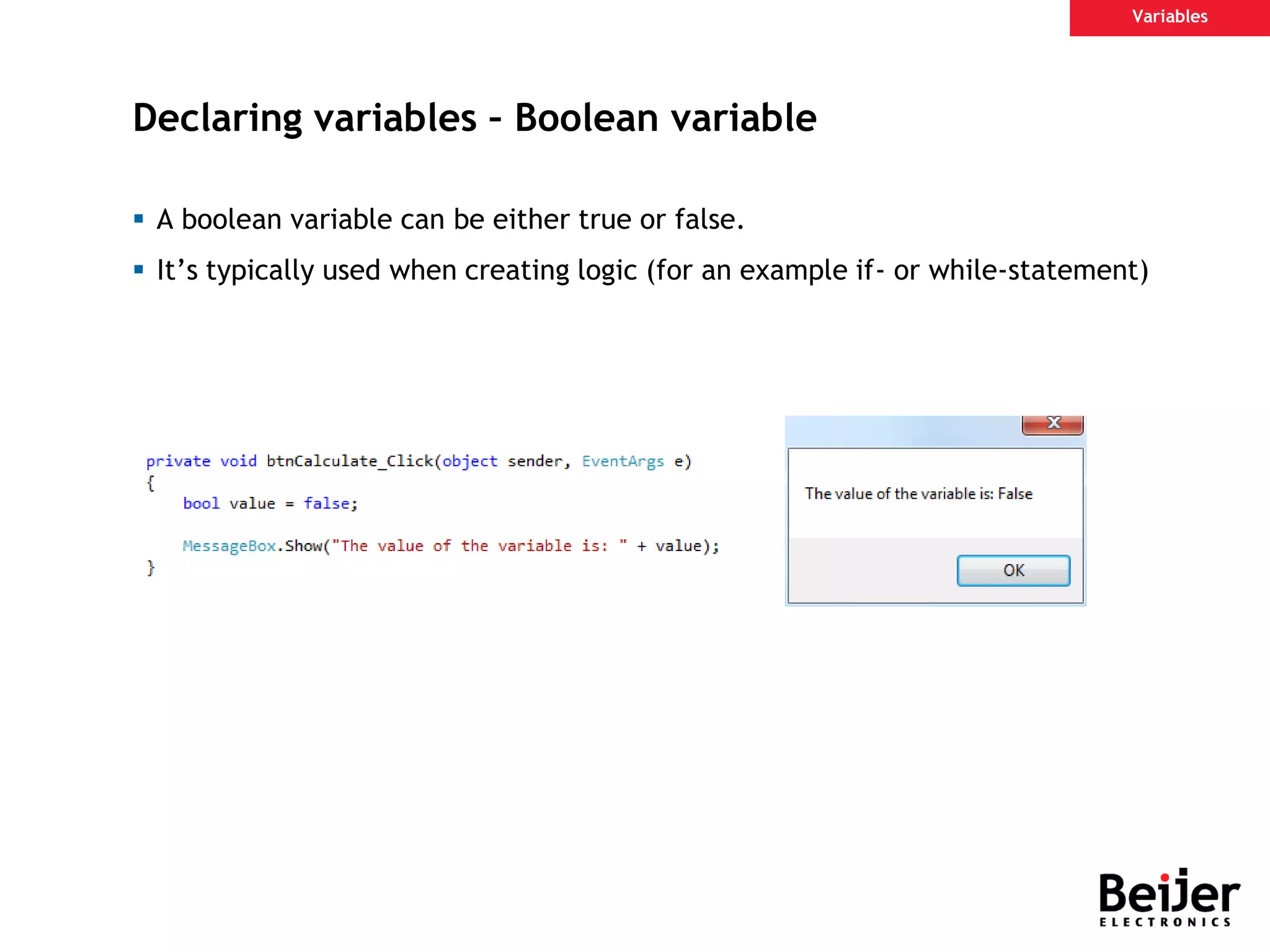

26. Declaring variables – Boolean variable
A boolean variable can be either true or false.
It’s typically used when creating logic (for an example if- or while-statement)
Variables

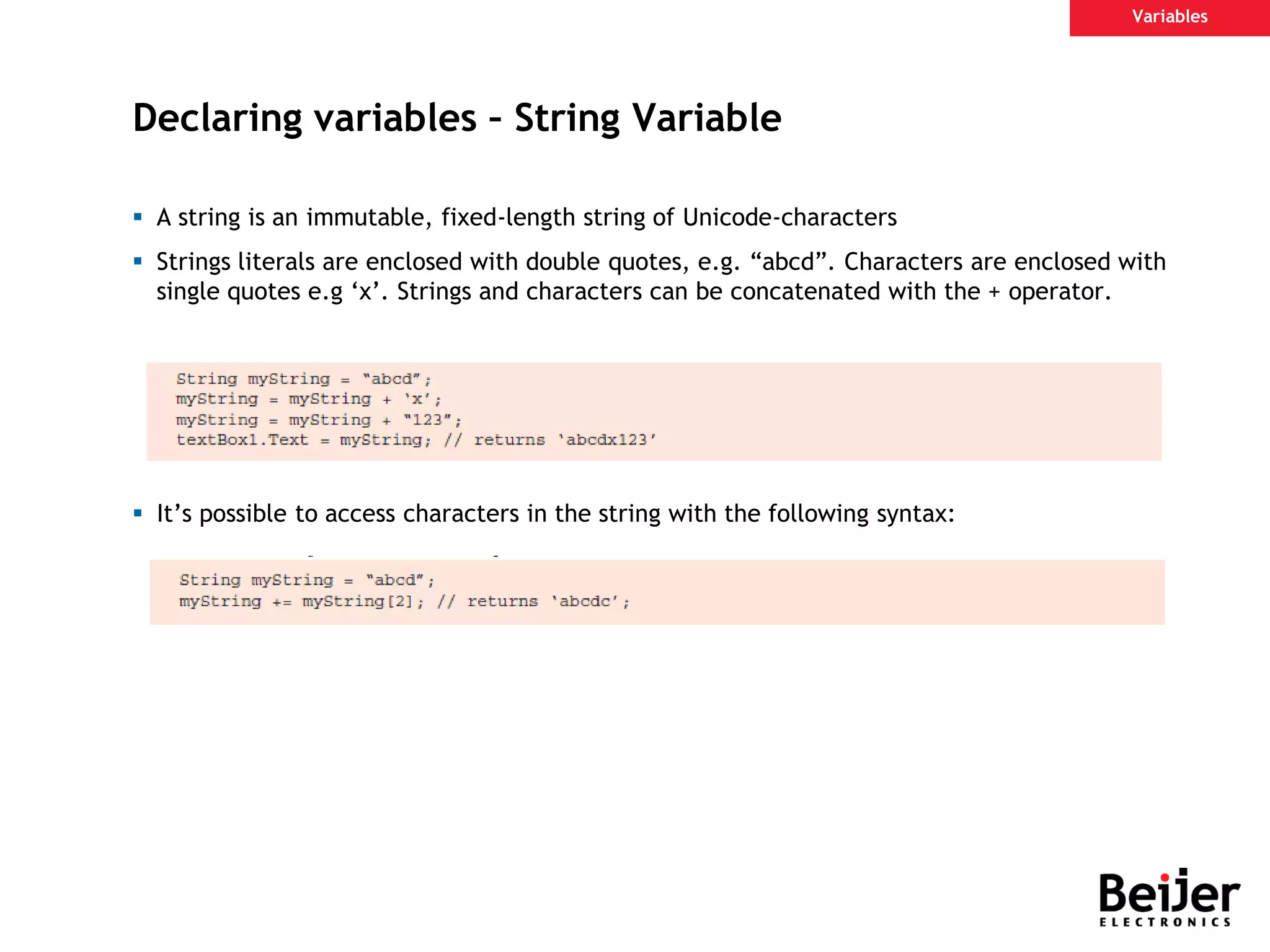

27. Declaring variables – String Variable
A string is an immutable, fixed-length string of Unicode-characters
Strings literals are enclosed with double quotes, e.g. “abcd”. Characters are enclosed with
single quotes e.g ‘x’. Strings and characters can be concatenated with the + operator.
It’s possible to access characters in the string with the following syntax:
Variables

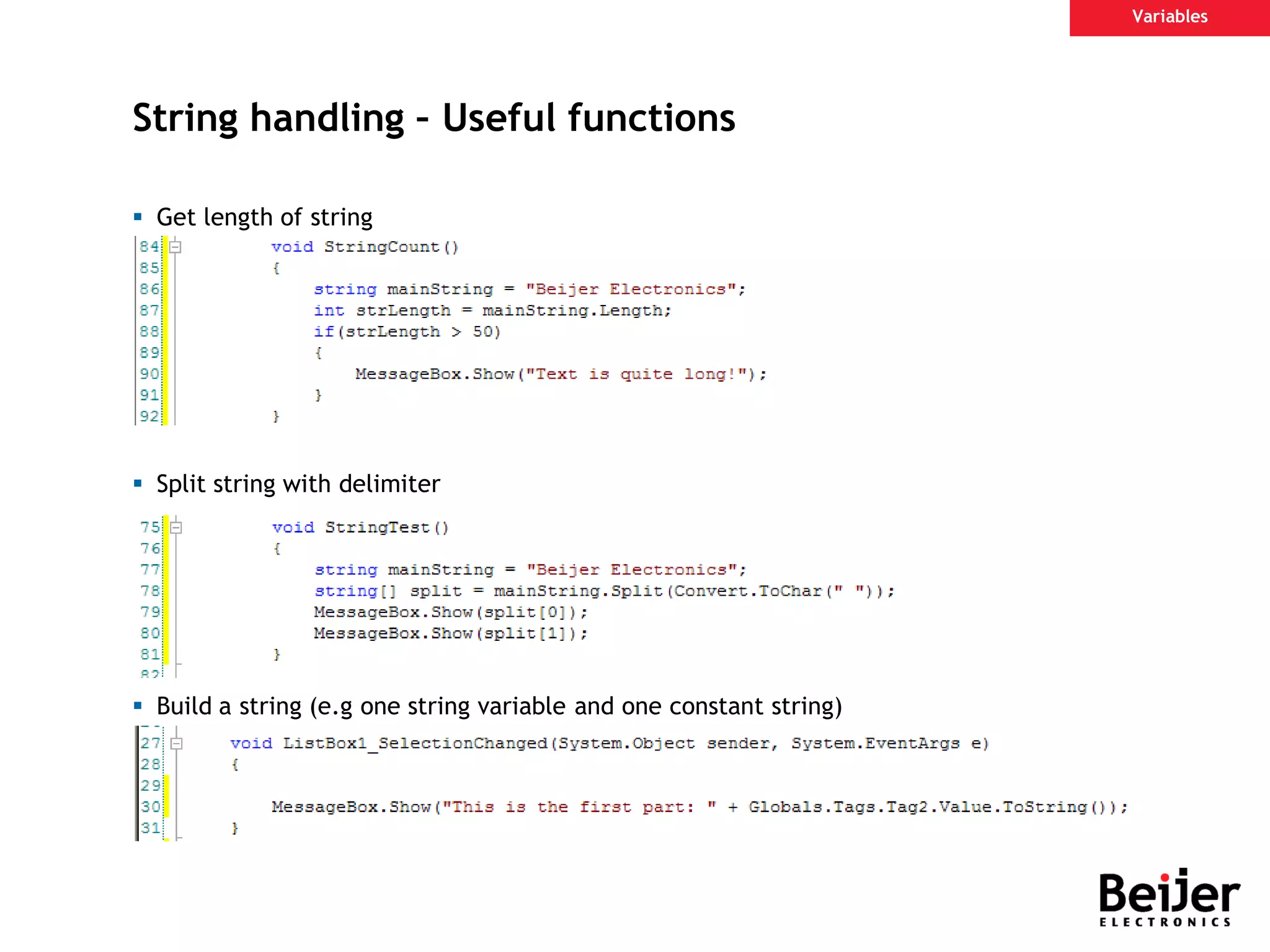

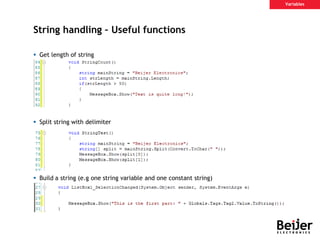

28. String handling – Useful functions
Get length of string
Split string with delimiter
Build a string (e.g one string variable and one constant string)
Variables

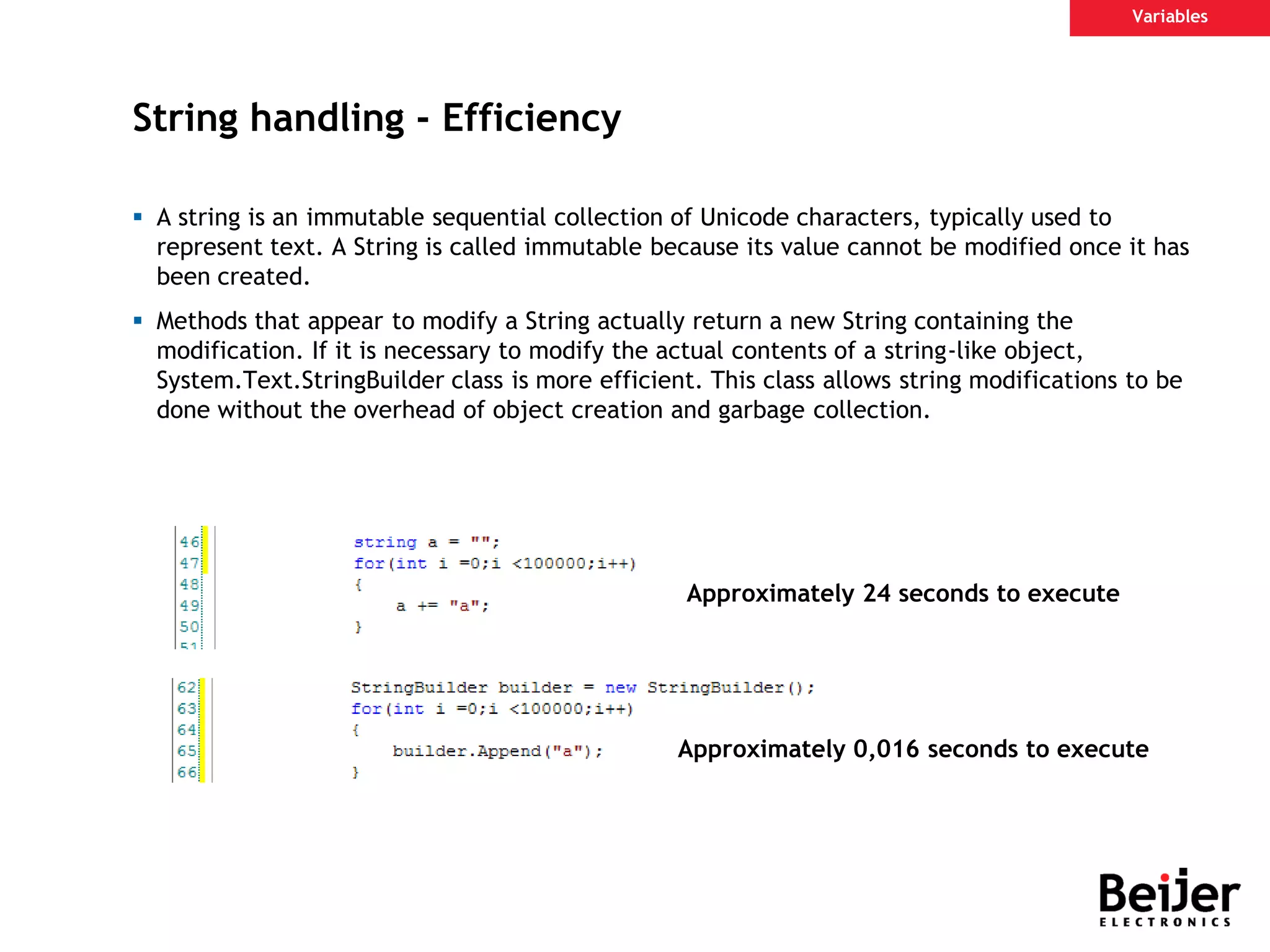

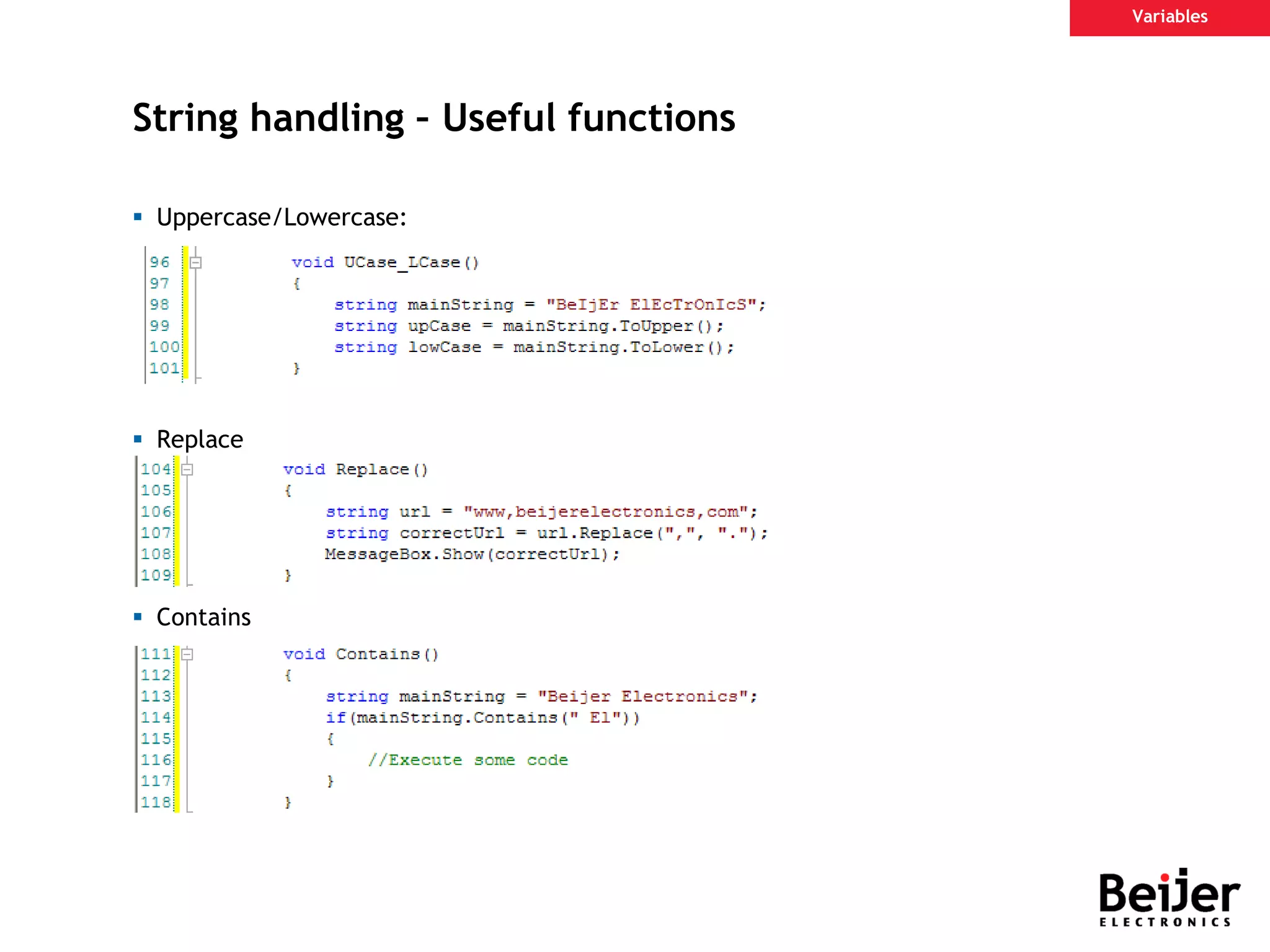

30. String handling - Efficiency
A string is an immutable sequential collection of Unicode characters, typically used to
represent text. A String is called immutable because its value cannot be modified once it has
been created.
Methods that appear to modify a String actually return a new String containing the
modification. If it is necessary to modify the actual contents of a string-like object,
System.Text.StringBuilder class is more efficient. This class allows string modifications to be
done without the overhead of object creation and garbage collection.
Approximately 24 seconds to execute
Approximately 0,016 seconds to execute
Variables
31. Formatting strings

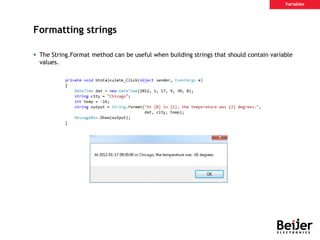

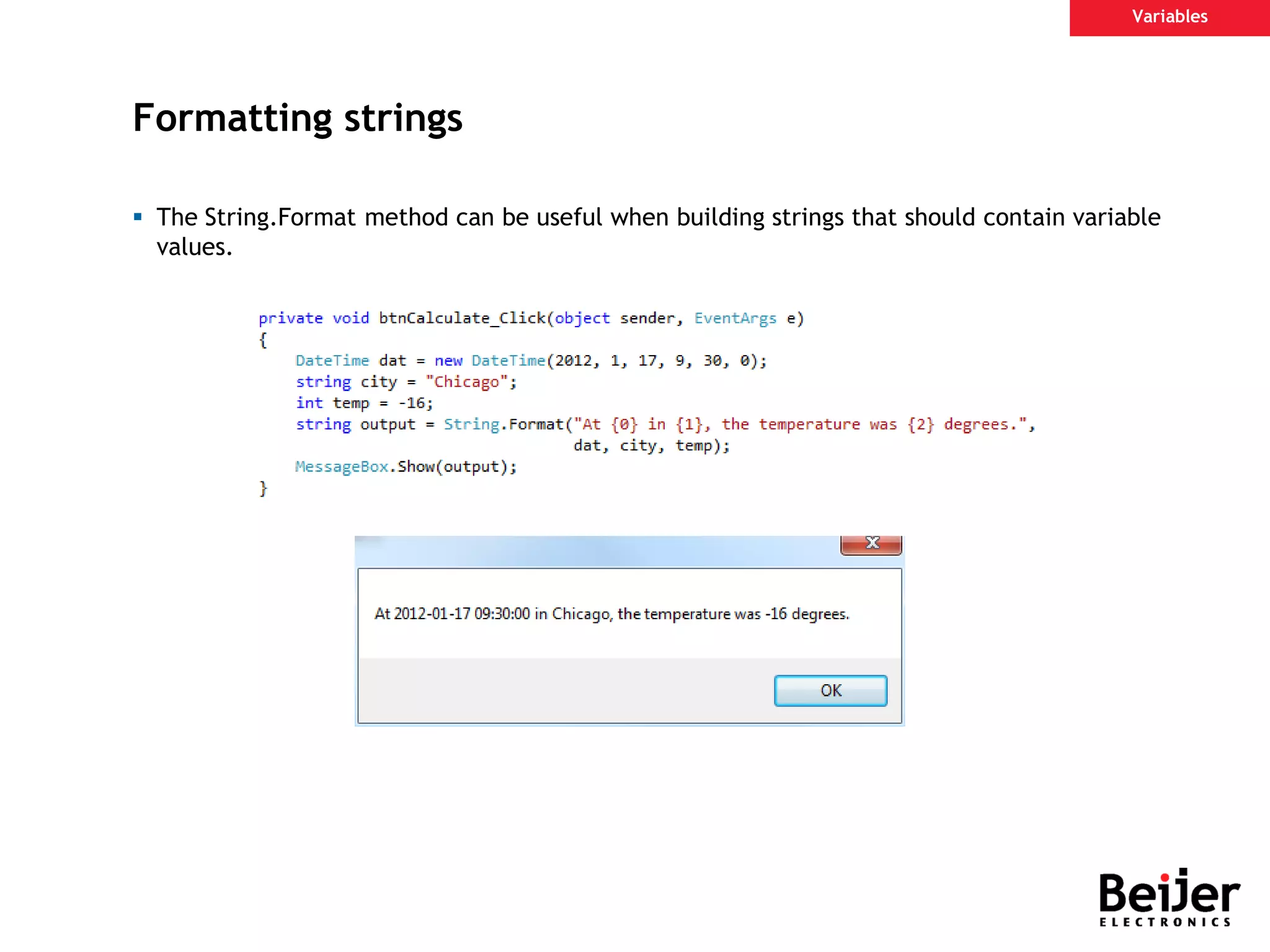

The String.Format method can be useful when building strings that should contain variable
values.
Variables

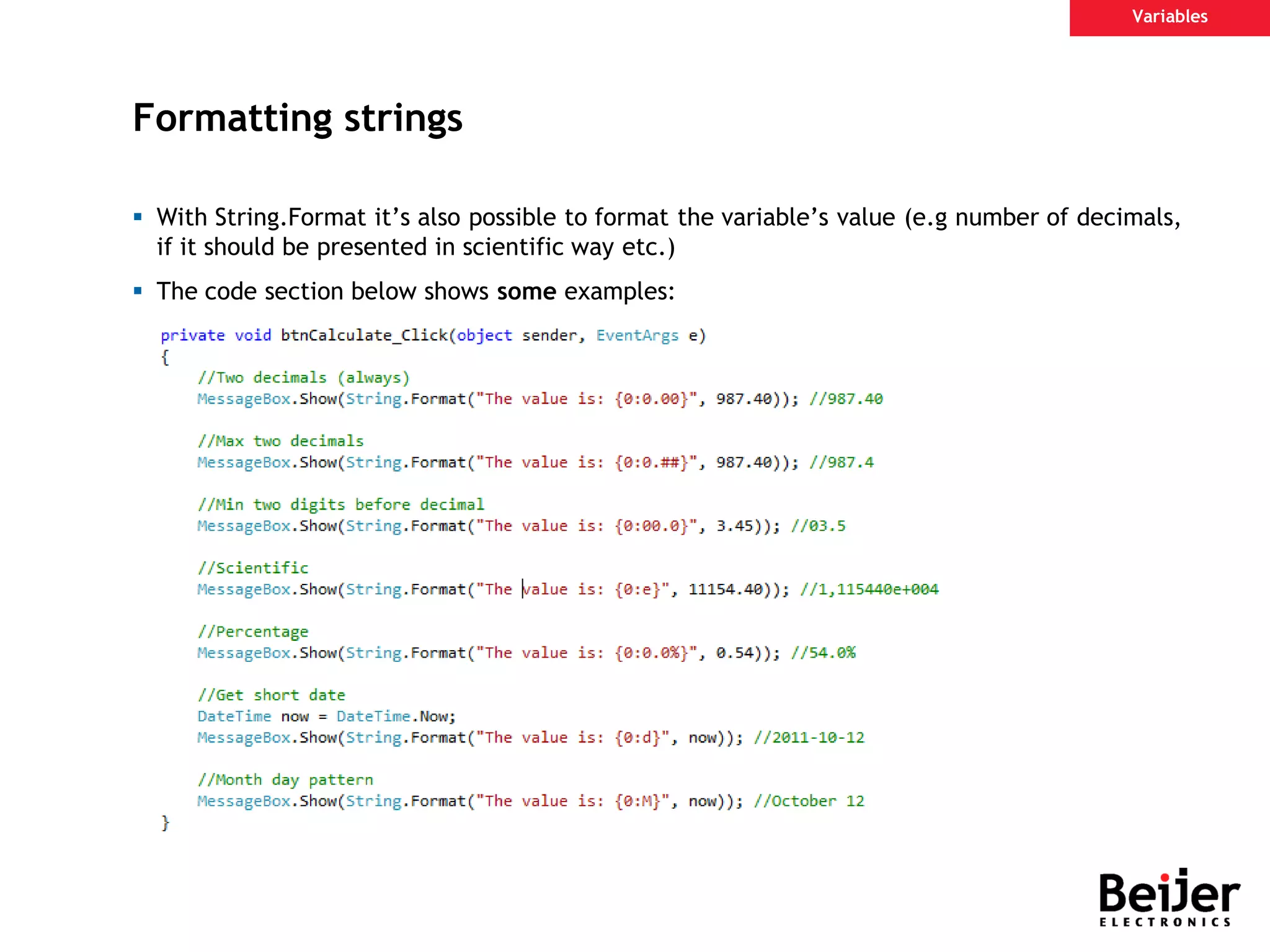

32. Formatting strings
With String.Format it’s also possible to format the variable’s value (e.g number of decimals,
if it should be presented in scientific way etc.)
The code section below shows some examples:
Variables

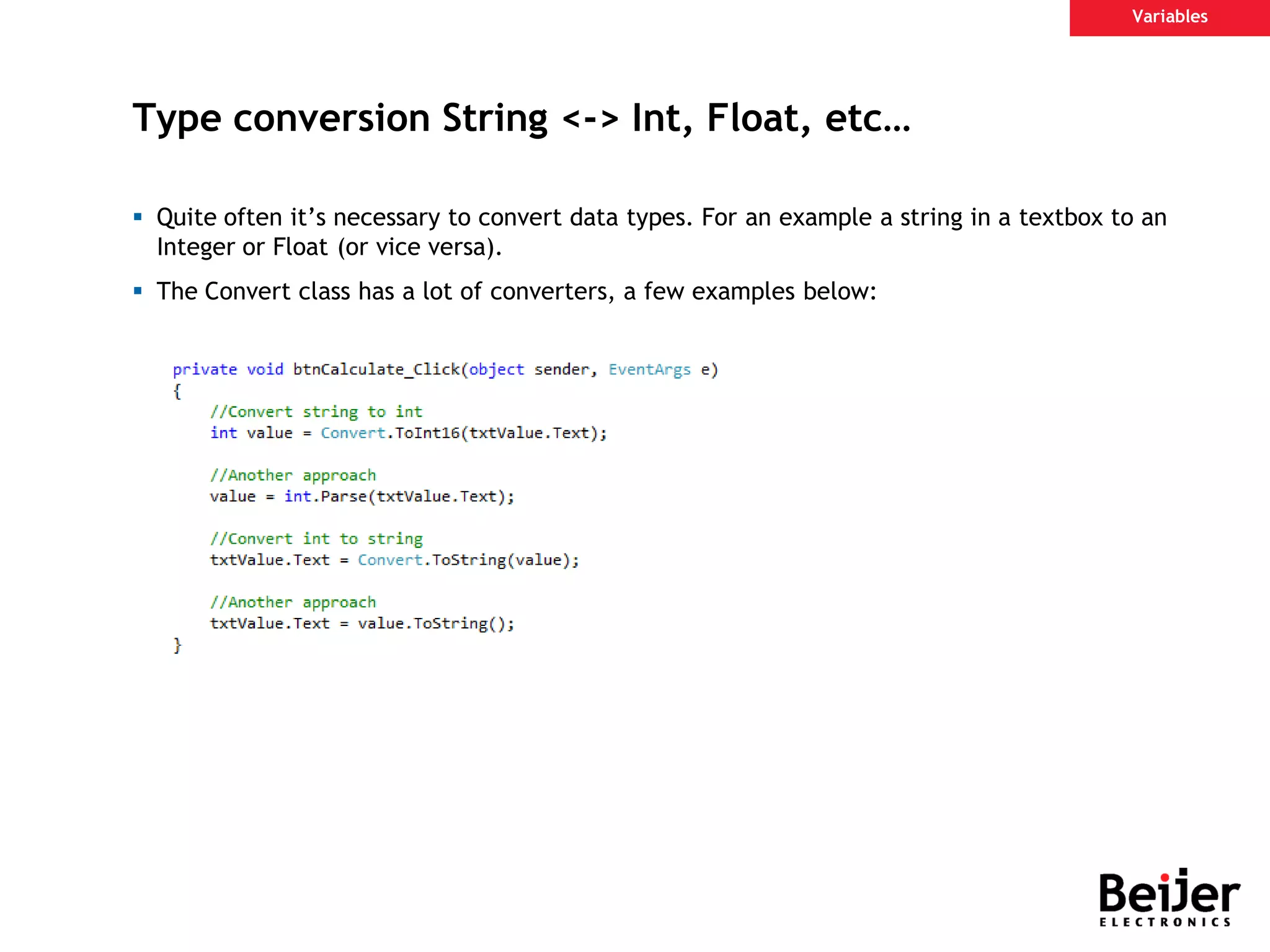

33. Type conversion String <-> Int, Float, etc…
Quite often it’s necessary to convert data types. For an example a string in a textbox to an
Integer or Float (or vice versa).
The Convert class has a lot of converters, a few examples below:
Variables

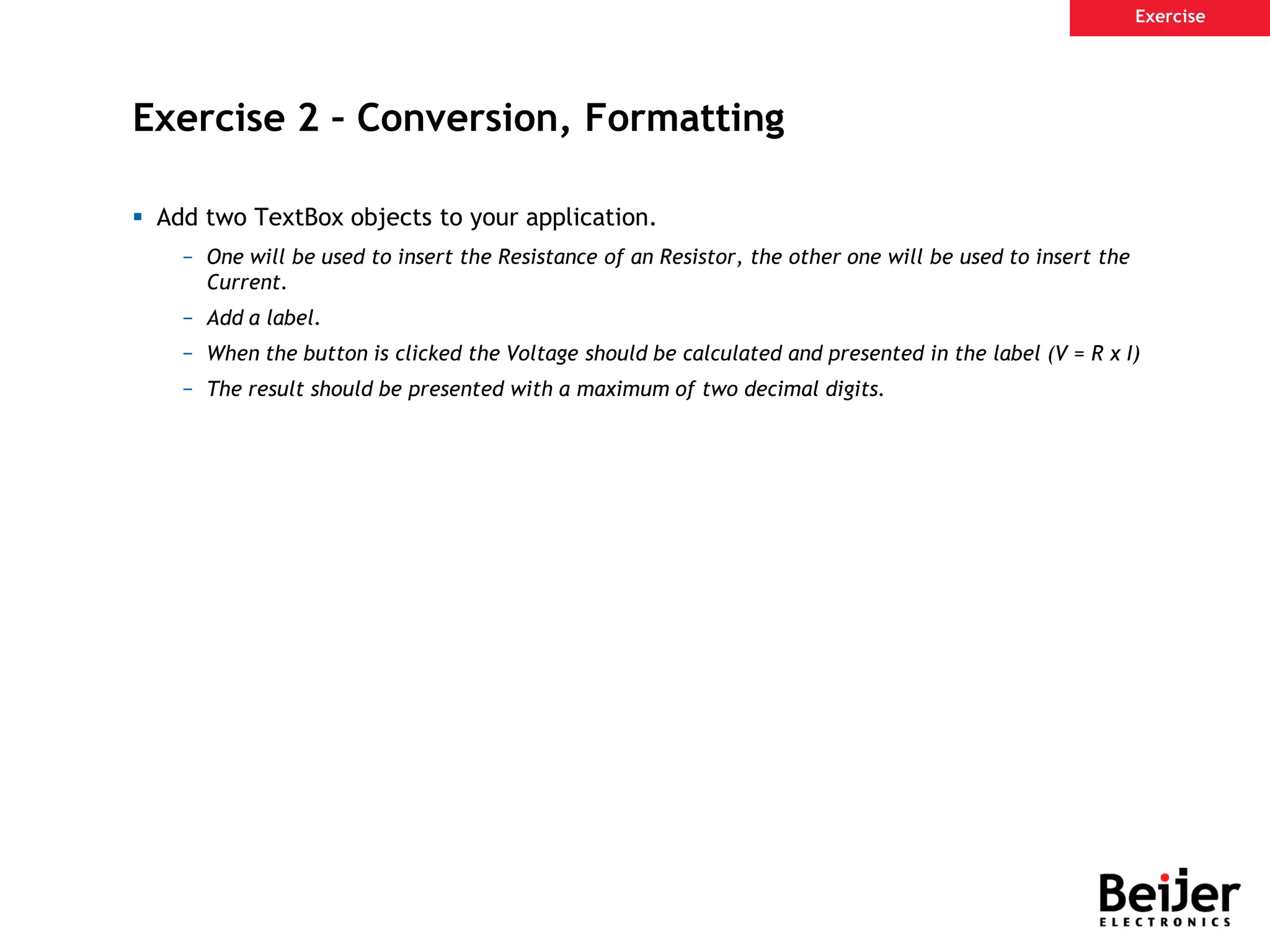

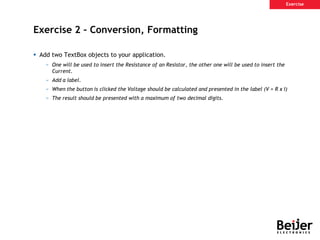

34. Add two TextBox objects to your application.
− One will be used to insert the Resistance of an Resistor, the other one will be used to insert the
Current.
− Add a label.
− When the button is clicked the Voltage should be calculated and presented in the label (V = R x I)
− The result should be presented with a maximum of two decimal digits.
Exercise 2 – Conversion, Formatting
Exercise

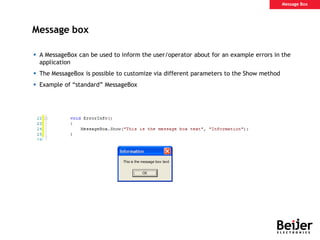

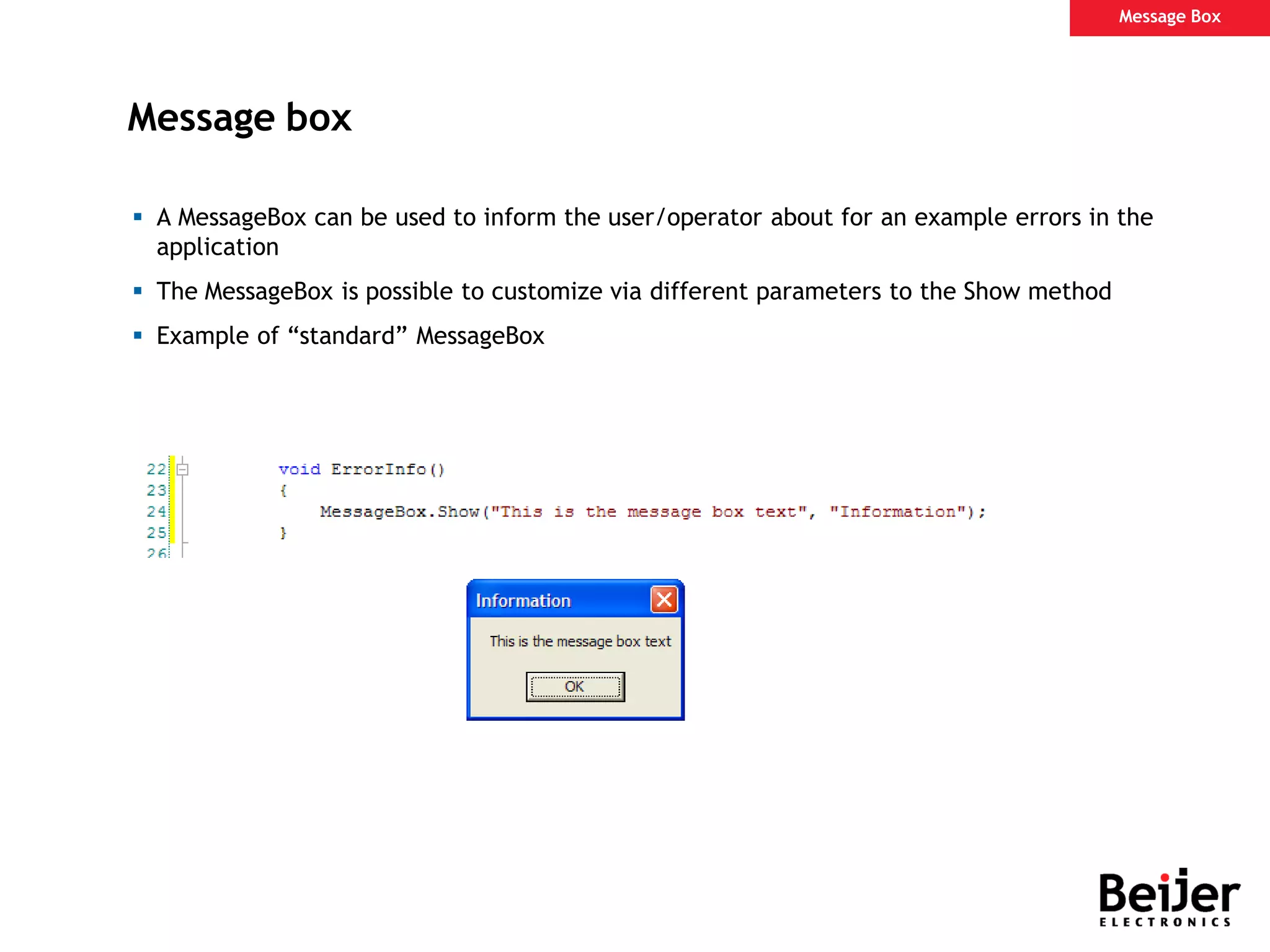

35. A MessageBox can be used to inform the user/operator about for an example errors in the
application
The MessageBox is possible to customize via different parameters to the Show method
Example of “standard” MessageBox
Message box
Message Box

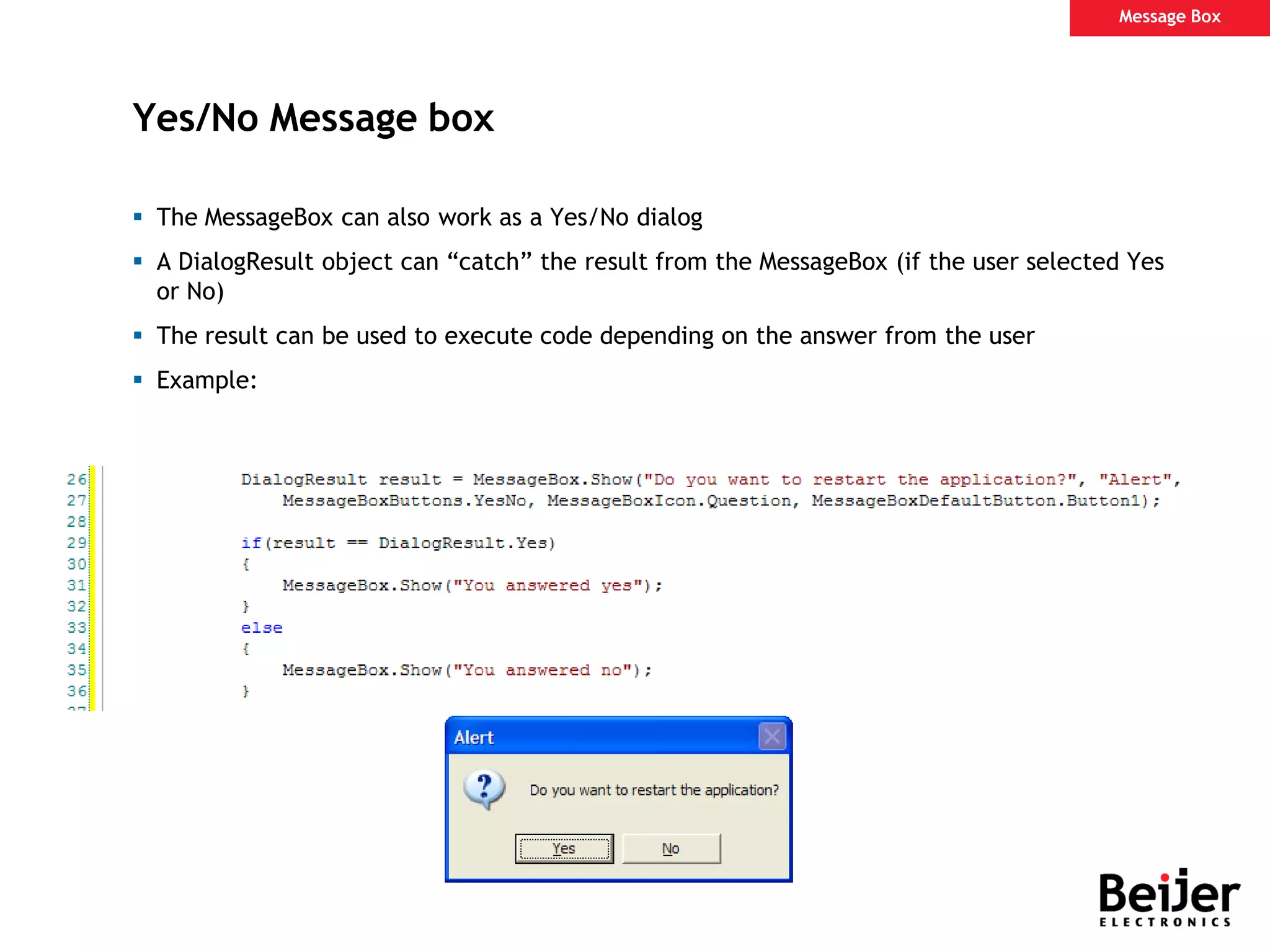

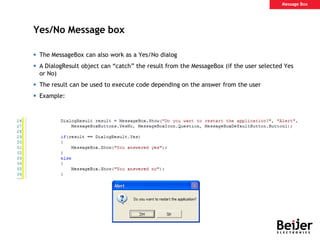

36. The MessageBox can also work as a Yes/No dialog
A DialogResult object can “catch” the result from the MessageBox (if the user selected Yes
or No)
The result can be used to execute code depending on the answer from the user
Example:
Yes/No Message box
Message Box

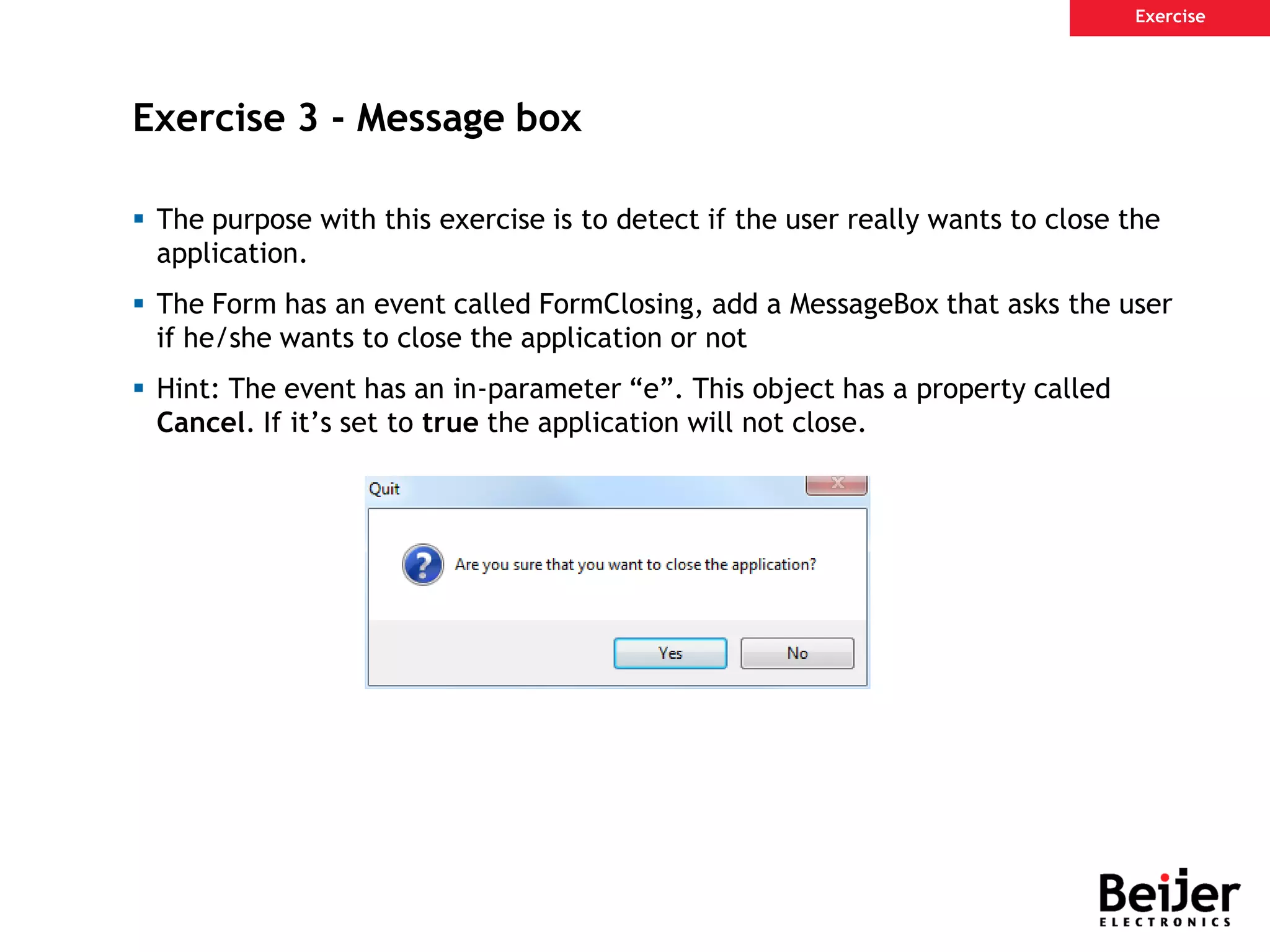

37. The purpose with this exercise is to detect if the user really wants to close the
application.
The Form has an event called FormClosing, add a MessageBox that asks the user
if he/she wants to close the application or not
Hint: The event has an in-parameter “e”. This object has a property called
Cancel. If it’s set to true the application will not close.
Exercise 3 - Message box
Exercise

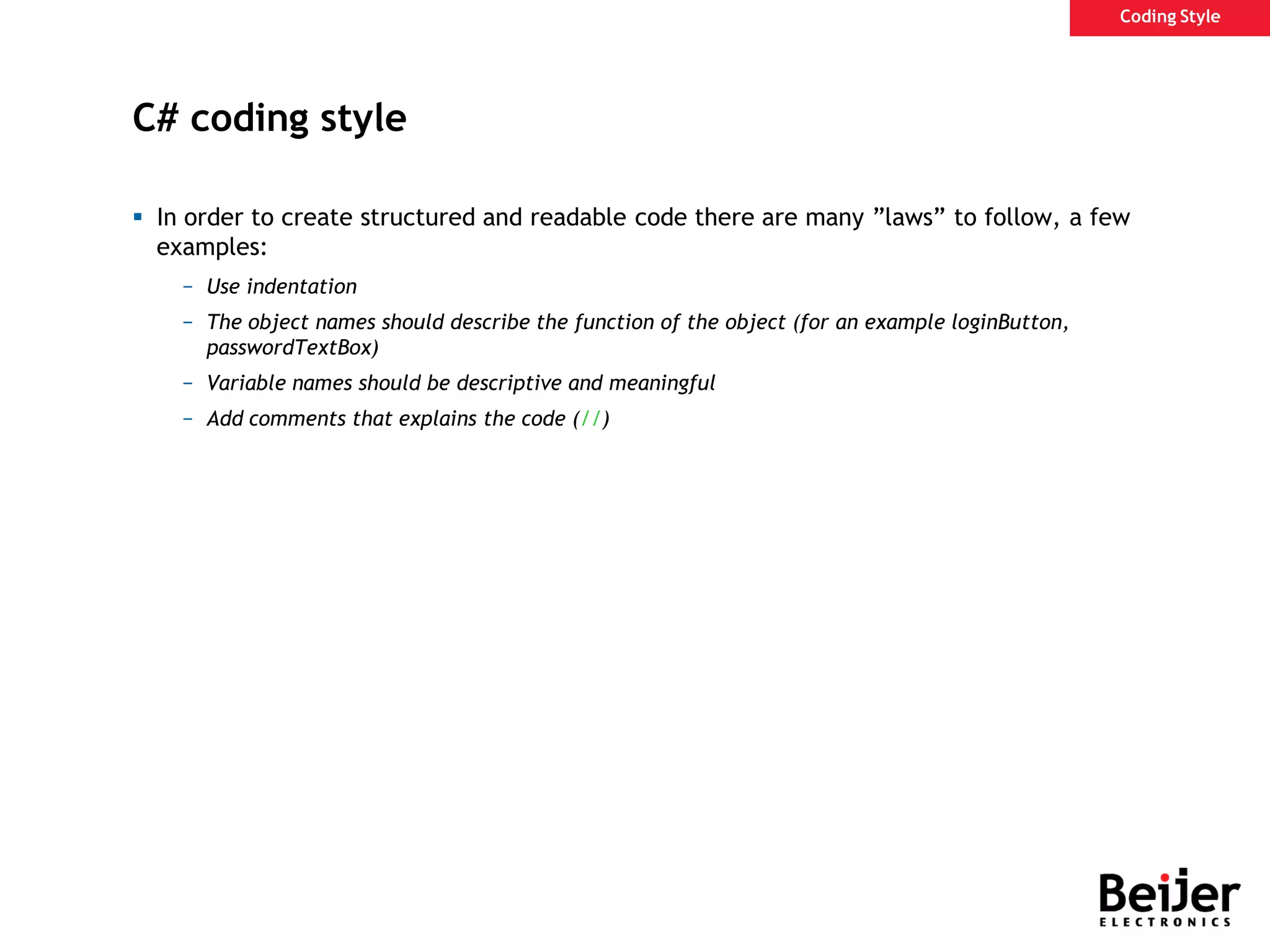

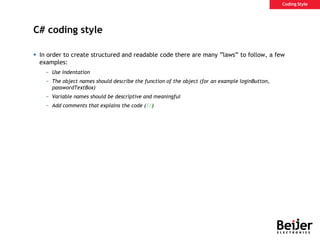

38. C# coding style
In order to create structured and readable code there are many ”laws” to follow, a few
examples:
− Use indentation
− The object names should describe the function of the object (for an example loginButton,
passwordTextBox)
− Variable names should be descriptive and meaningful
− Add comments that explains the code (//)
Coding Style

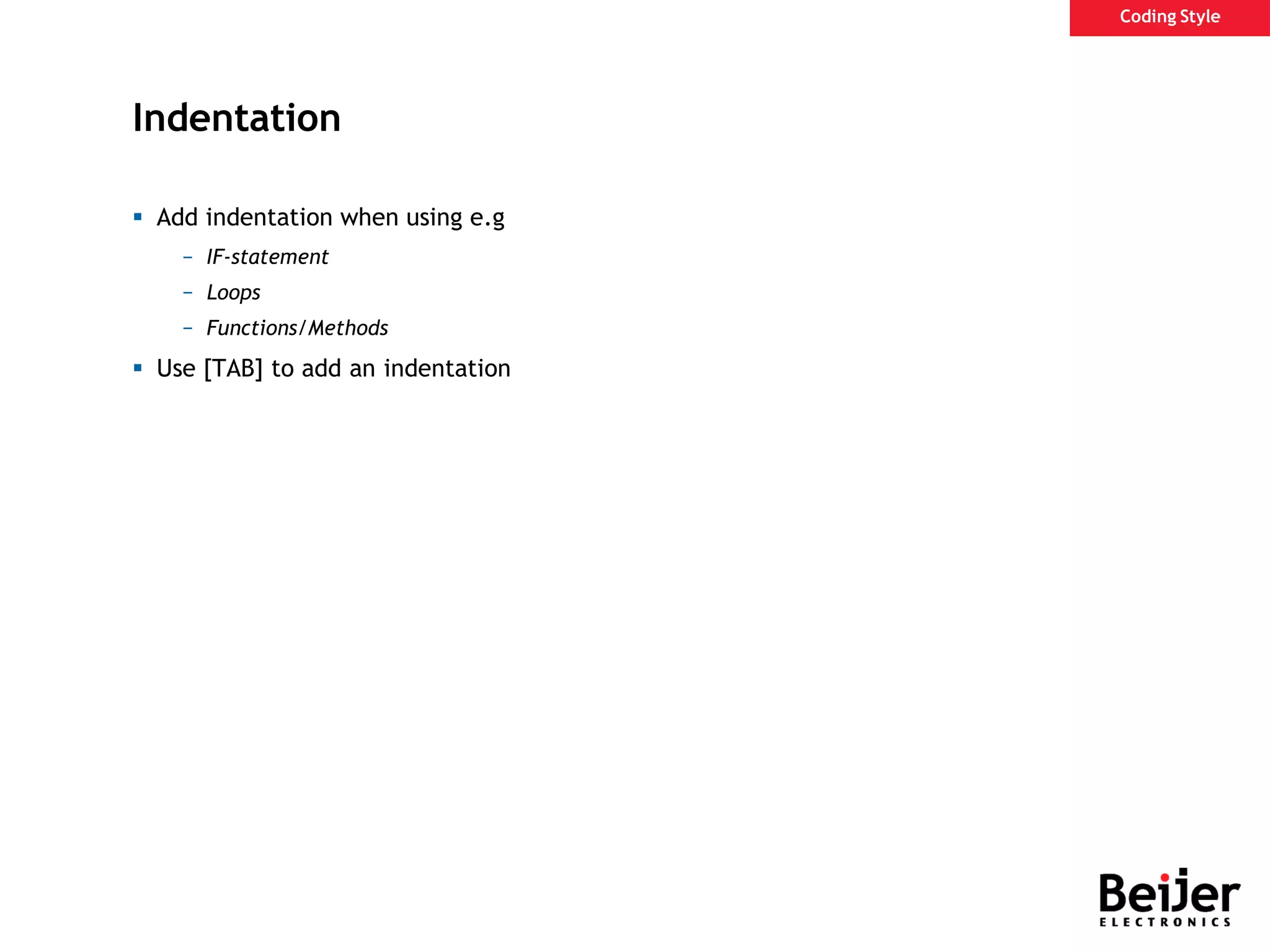

39. Indentation
Add indentation when using e.g
− IF-statement
− Loops

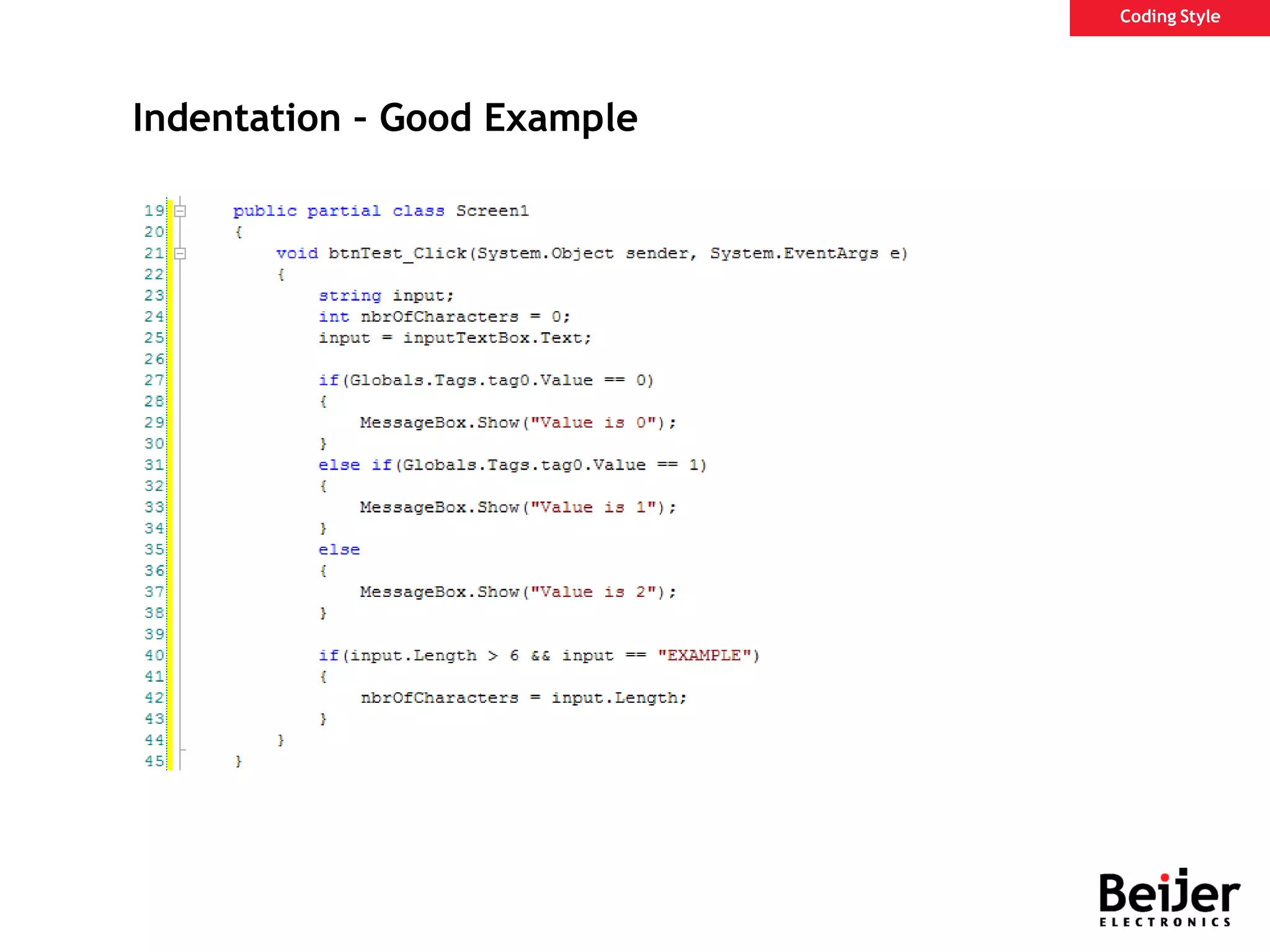

− Functions/Methods
Use [TAB] to add an indentation
Coding Style

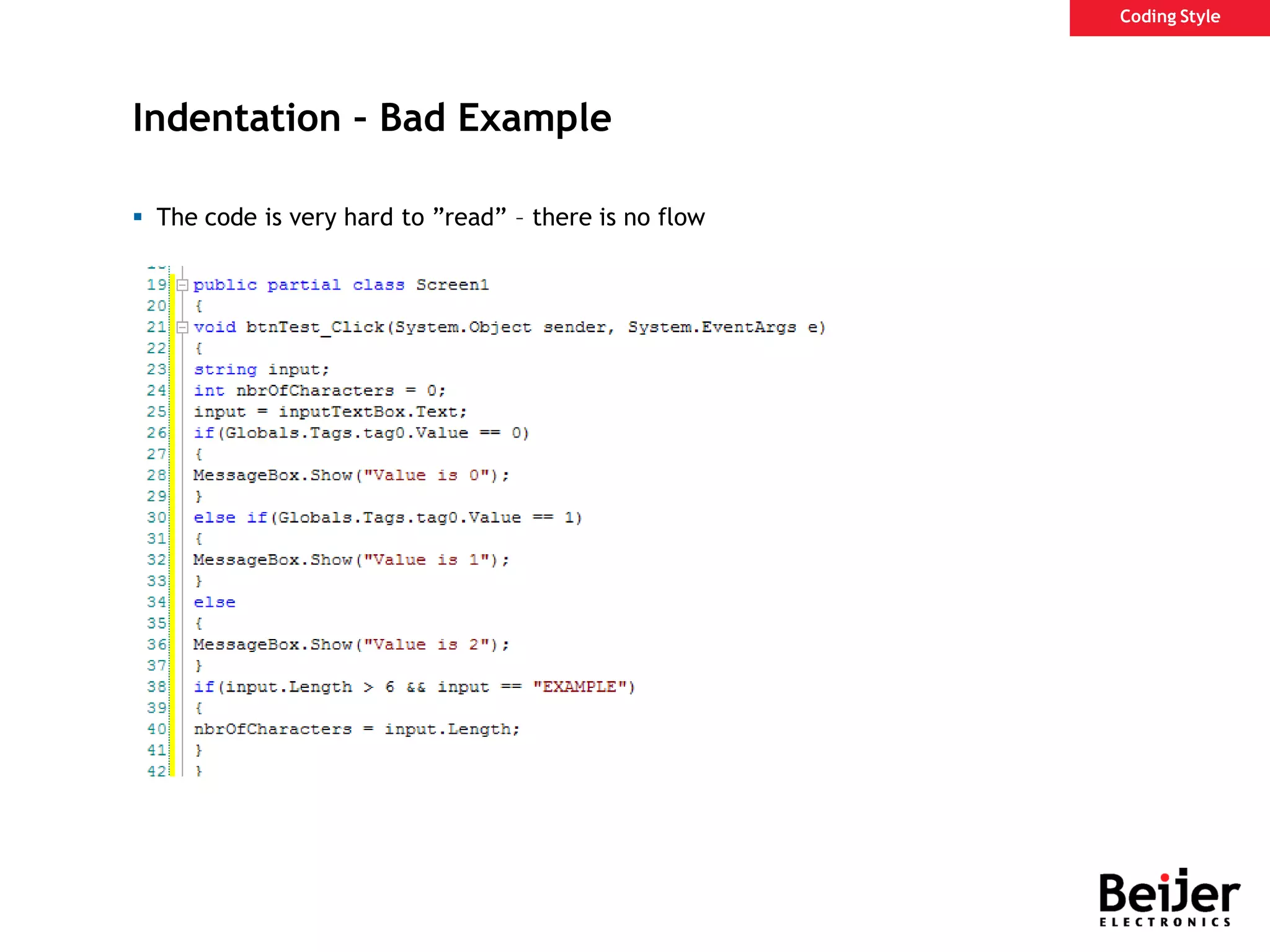

40. Indentation – Bad Example
The code is very hard to ”read” – there is no flow
Coding Style

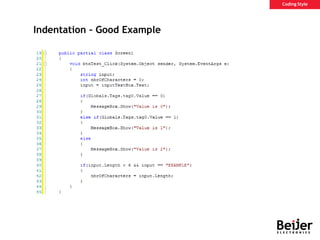

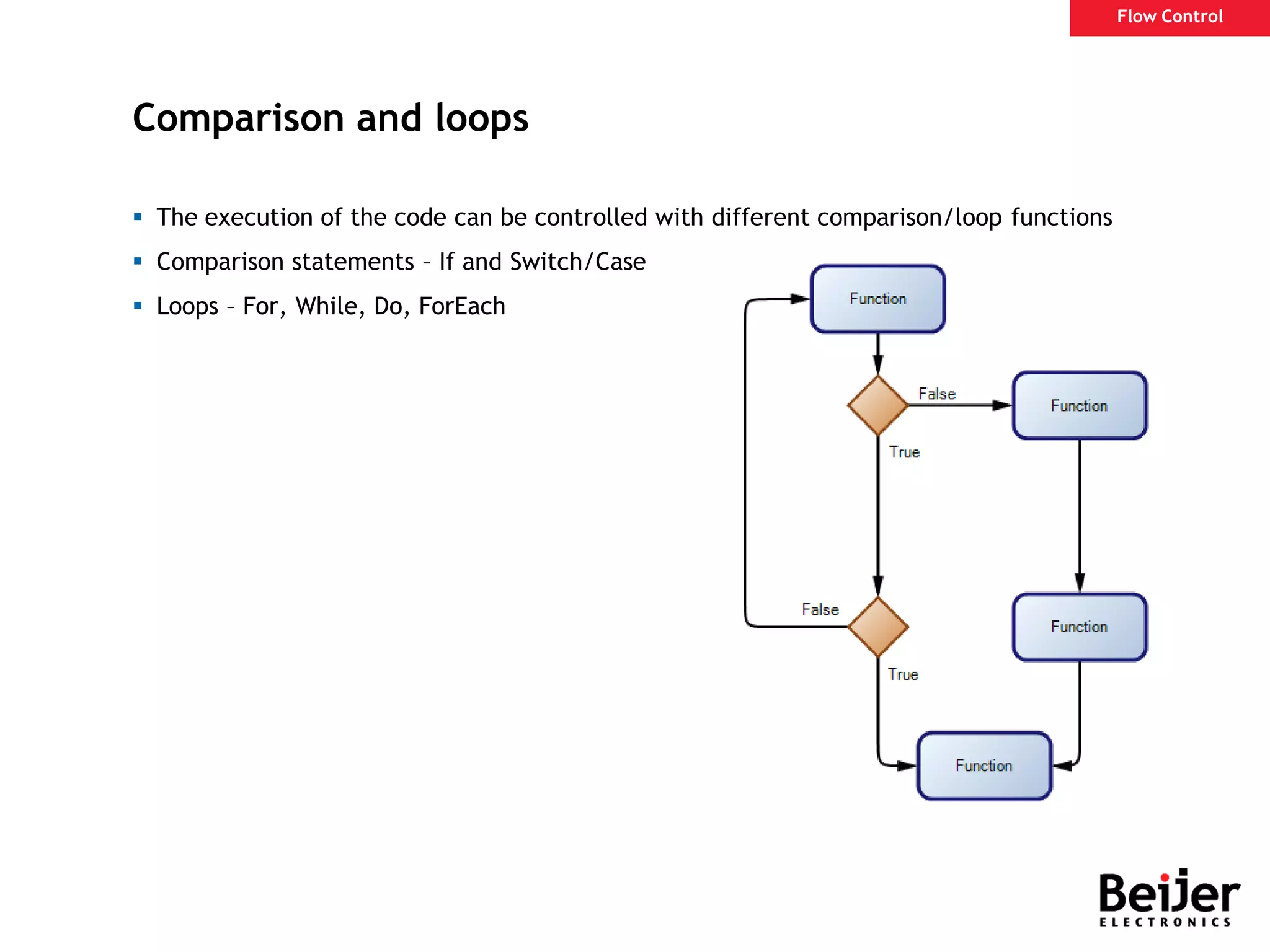

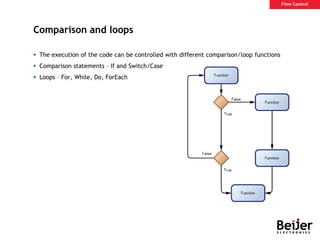

42. Comparison and loops
The execution of the code can be controlled with different comparison/loop functions
Comparison statements – If and Switch/Case
Loops – For, While, Do, ForEach
Flow Control

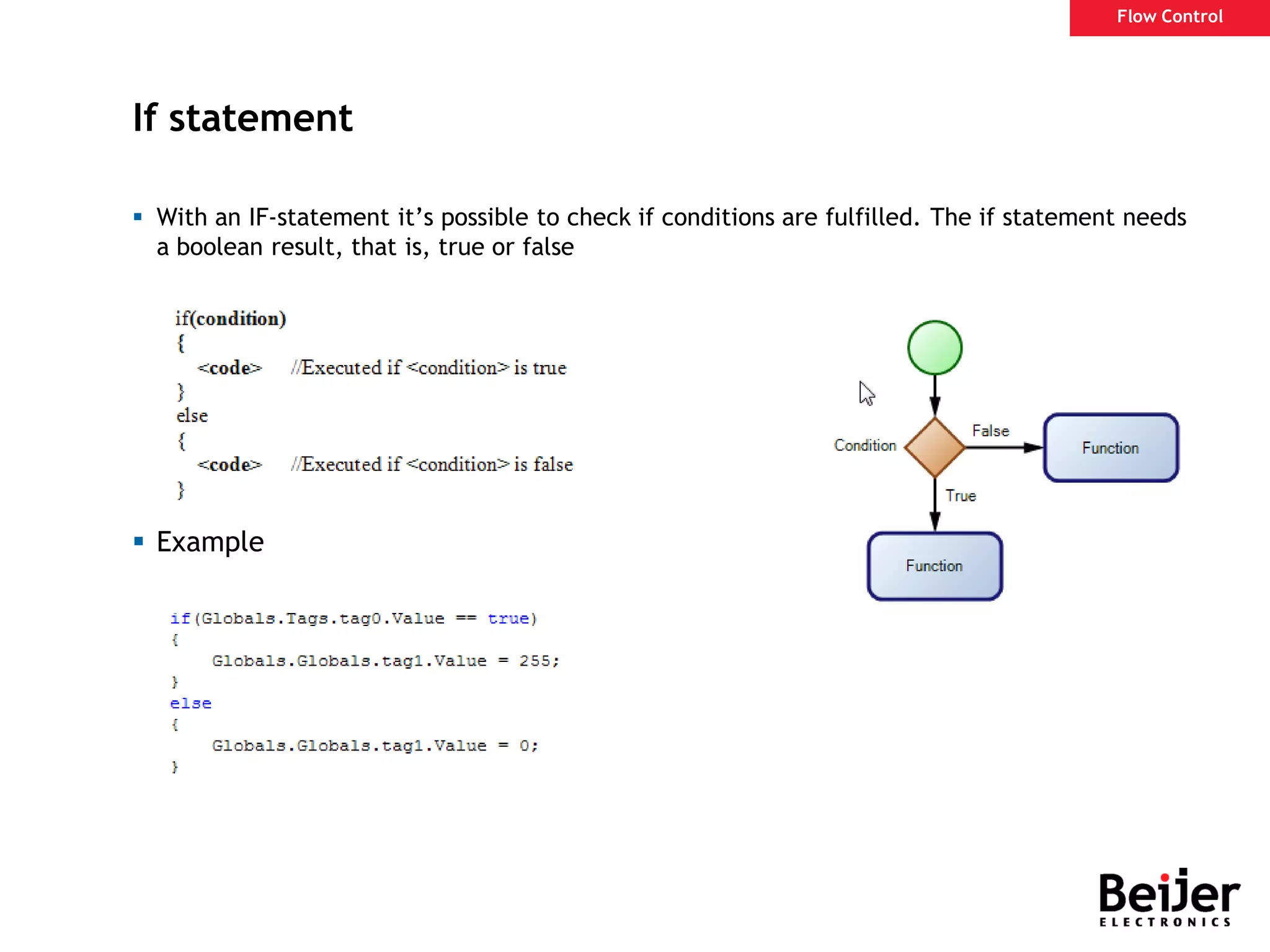

43. If statement
With an IF-statement it’s possible to check if conditions are fulfilled. The if statement needs
a boolean result, that is, true or false
Example
Flow Control

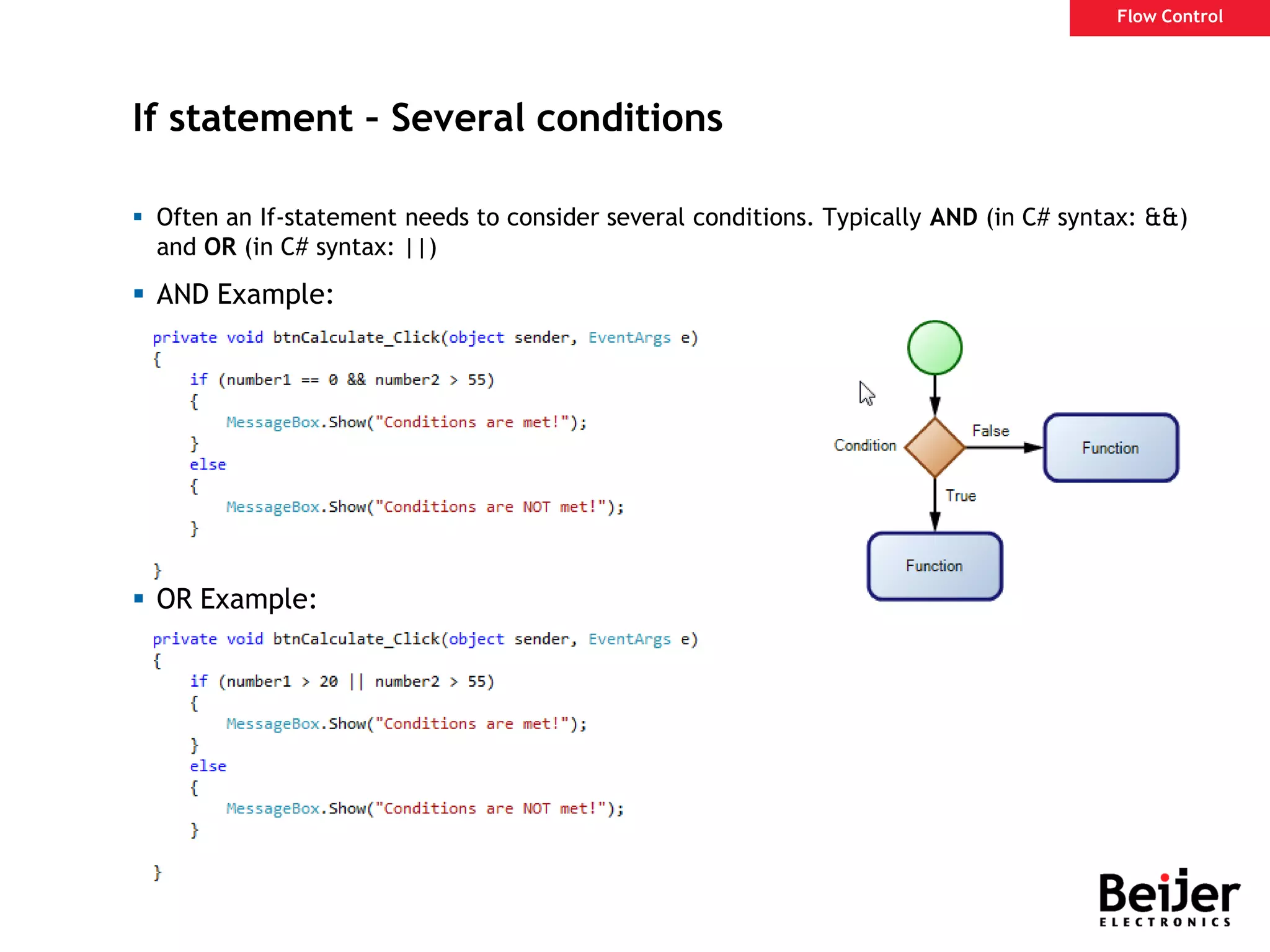

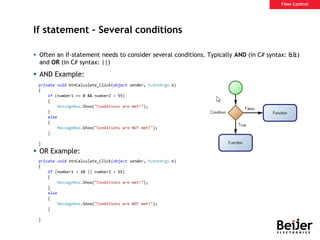

44. If statement – Several conditions
Often an If-statement needs to consider several conditions. Typically AND (in C# syntax: &&)
and OR (in C# syntax: ||)
AND Example:
OR Example:
Flow Control

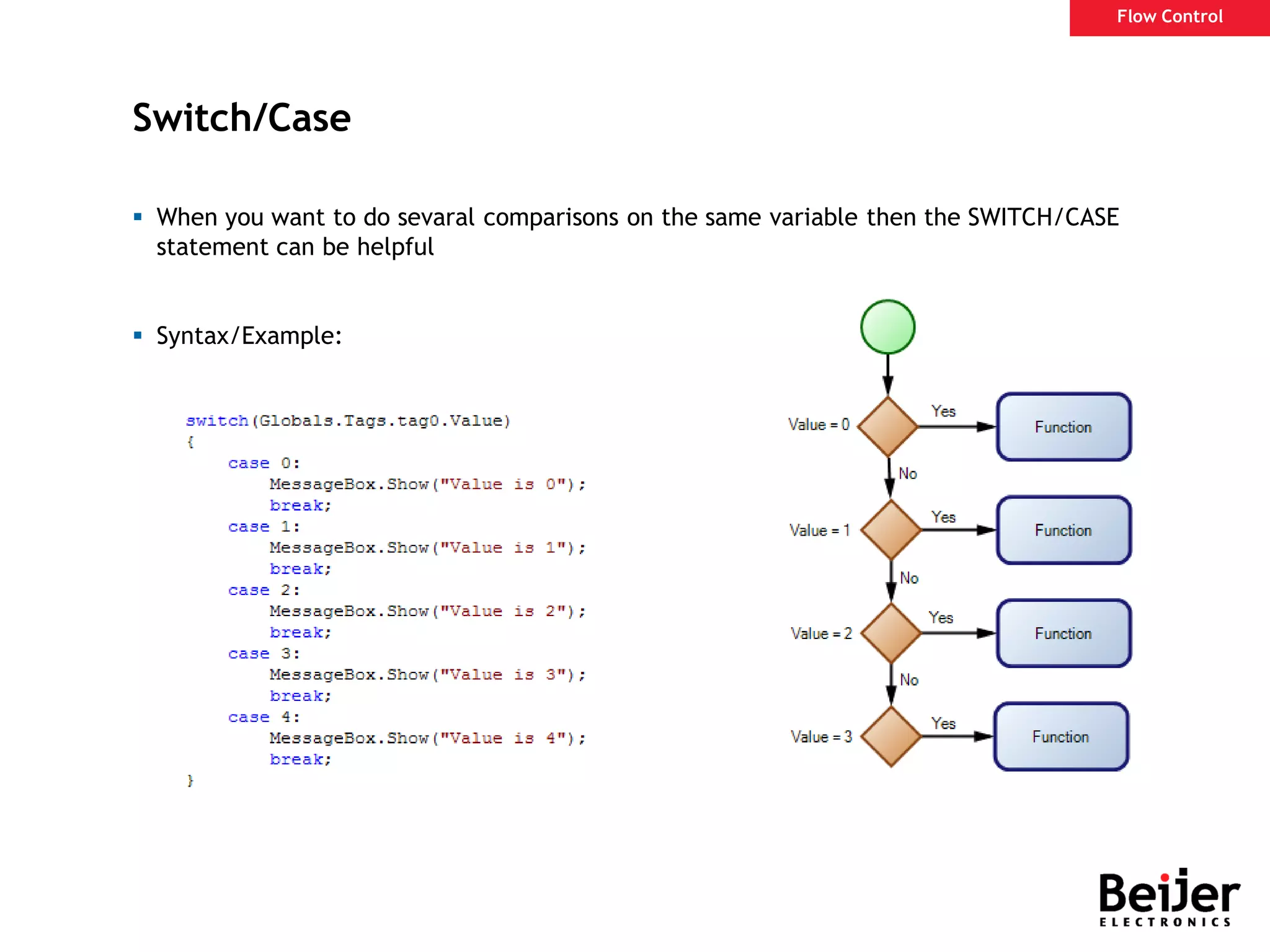

45. Switch/Case
When you want to do sevaral comparisons on the same variable then the SWITCH/CASE
statement can be helpful
Syntax/Example:
Flow Control

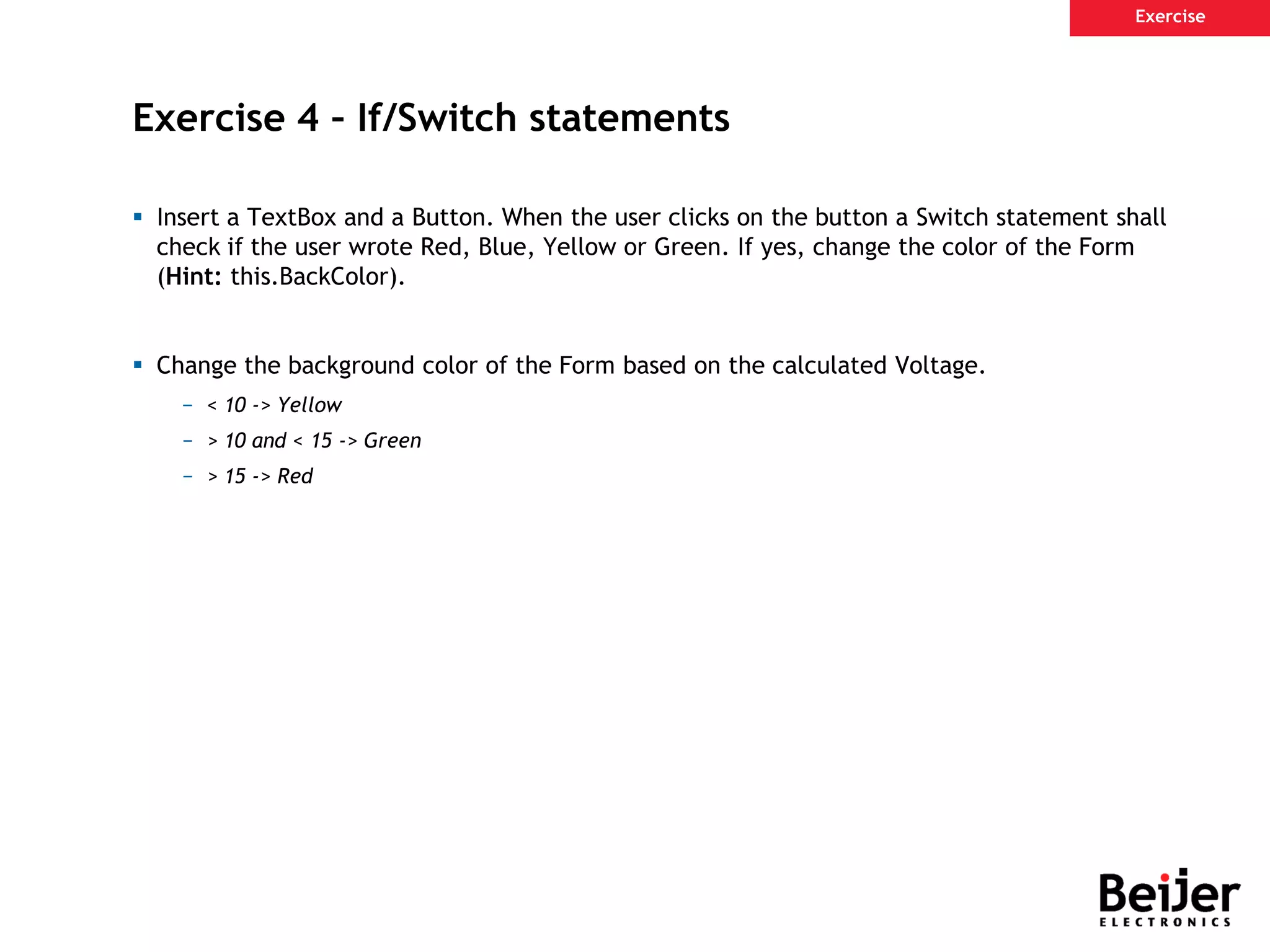

46. Exercise 4 – If/Switch statements
Insert a TextBox and a Button. When the user clicks on the button a Switch statement shall
check if the user wrote Red, Blue, Yellow or Green. If yes, change the color of the Form
(Hint: this.BackColor).
Change the background color of the Form based on the calculated Voltage.
− < 10 -> Yellow
− > 10 and < 15 -> Green
− > 15 -> Red
Exercise

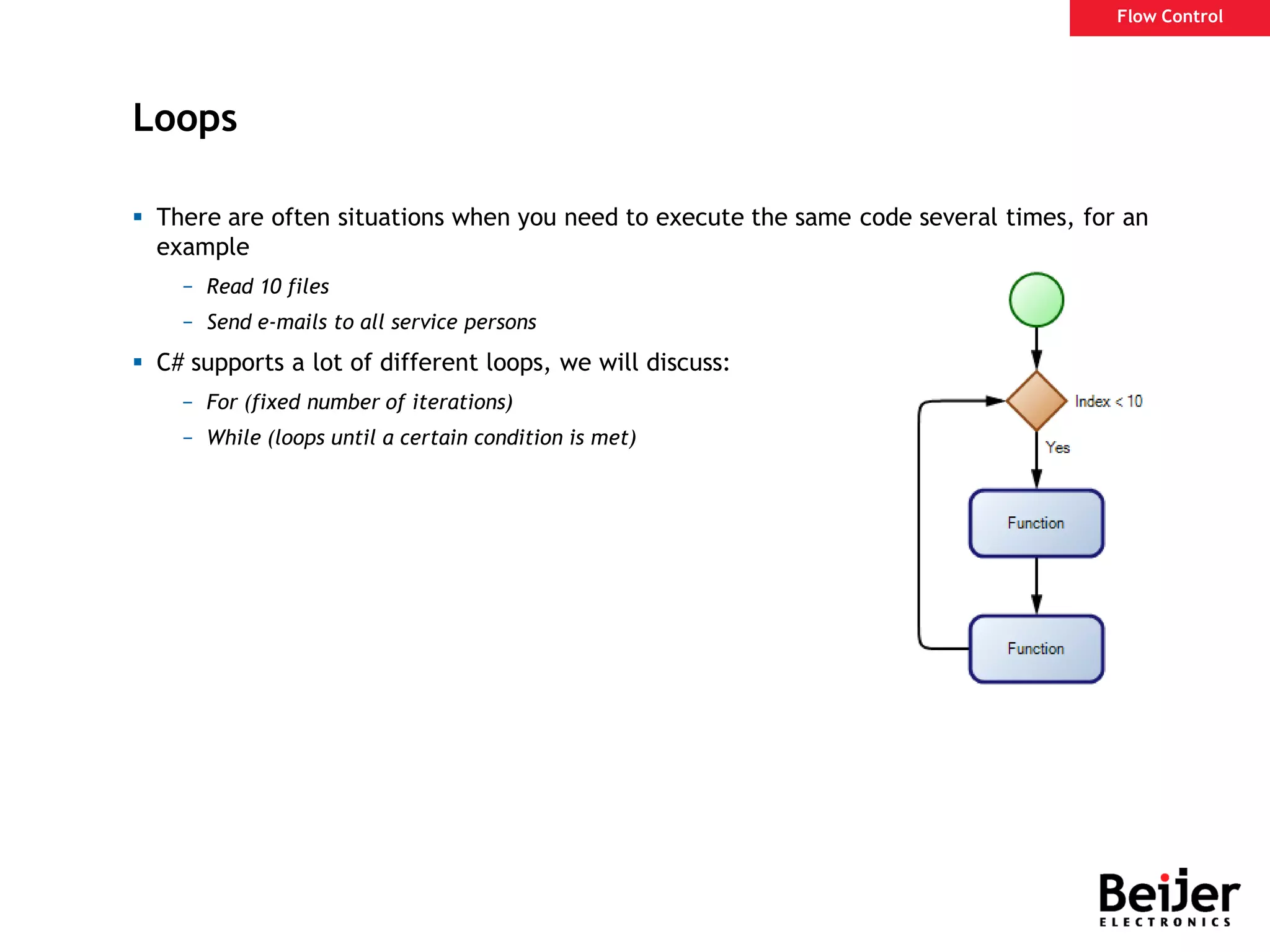

47. Loops
There are often situations when you need to execute the same code several times, for an
example
− Read 10 files
− Send e-mails to all service persons
C# supports a lot of different loops, we will discuss:
− For (fixed number of iterations)
− While (loops until a certain condition is met)
Flow Control

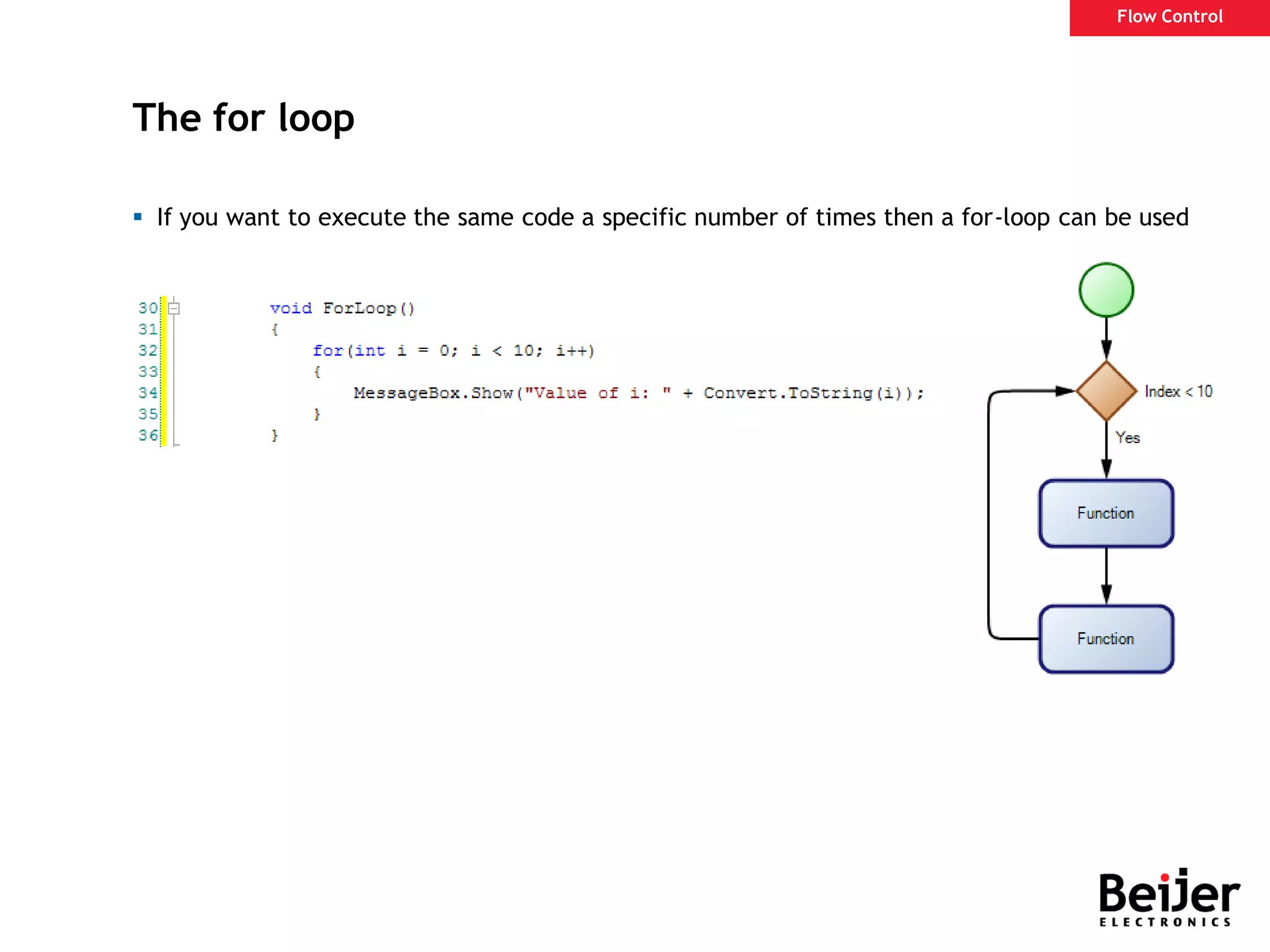

48. The for loop
If you want to execute the same code a specific number of times then a for-loop can be used
Flow Control

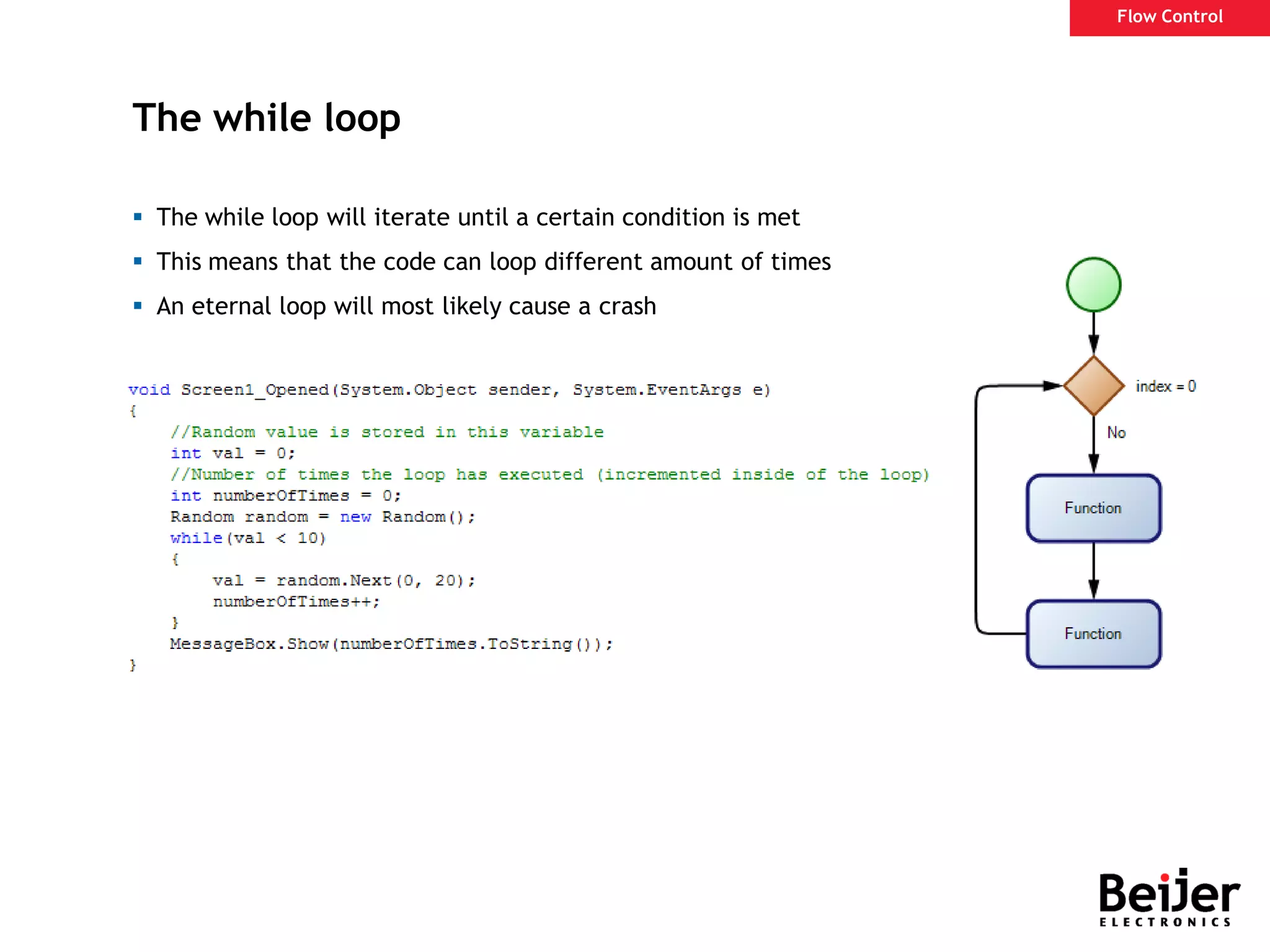

49. The while loop
The while loop will iterate until a certain condition is met
This means that the code can loop different amount of times
An eternal loop will most likely cause a crash
Flow Control

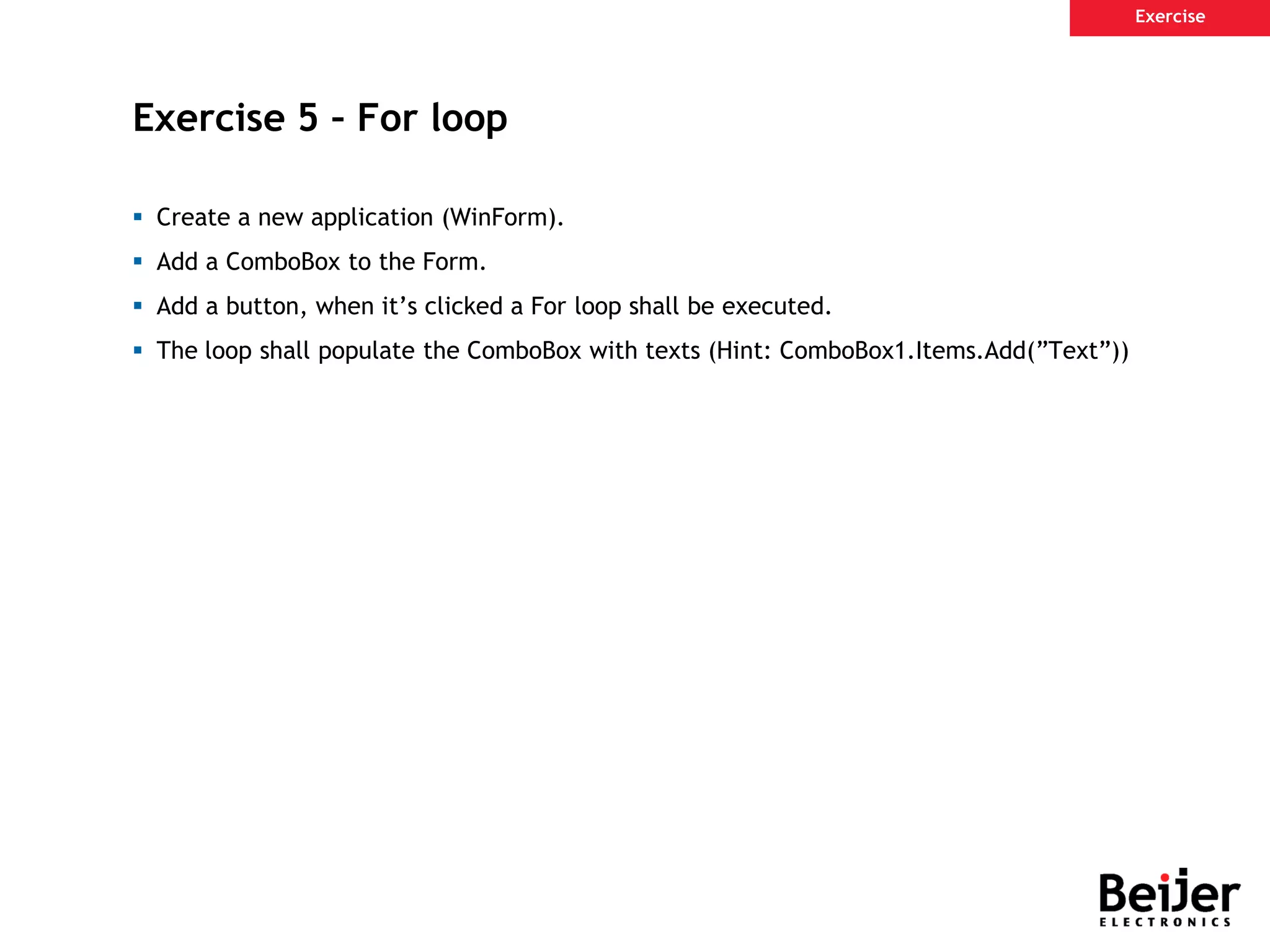

50. Exercise 5 – For loop
Create a new application (WinForm).
Add a ComboBox to the Form.
Add a button, when it’s clicked a For loop shall be executed.
The loop shall populate the ComboBox with texts (Hint: ComboBox1.Items.Add(”Text”))
Exercise
51. Methods and functions

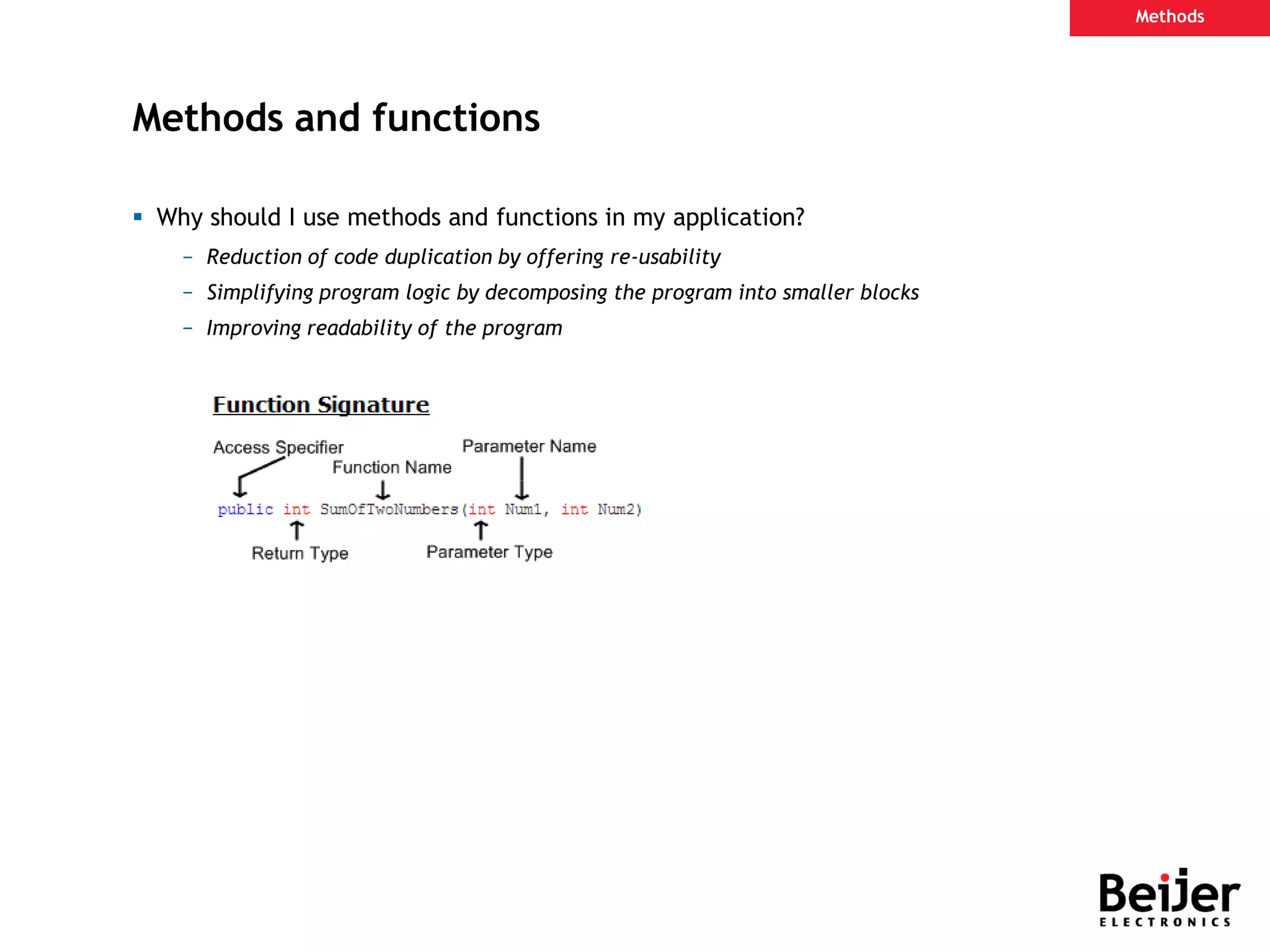

Why should I use methods and functions in my application?
− Reduction of code duplication by offering re-usability
− Simplifying program logic by decomposing the program into smaller blocks
− Improving readability of the program
Methods

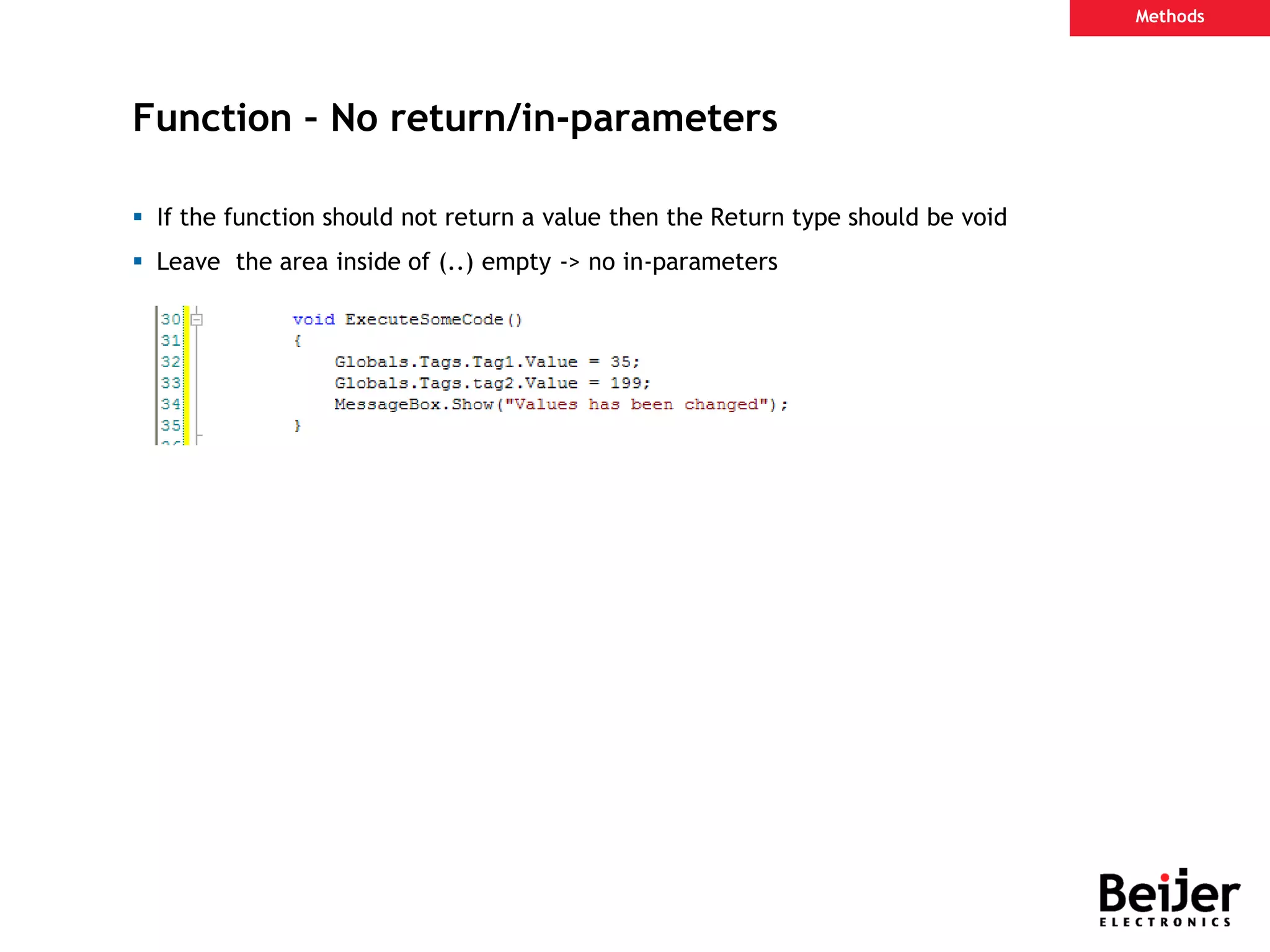

52. Function – No return/in-parameters
If the function should not return a value then the Return type should be void
Leave the area inside of (..) empty -> no in-parameters
Methods

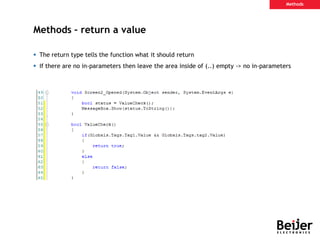

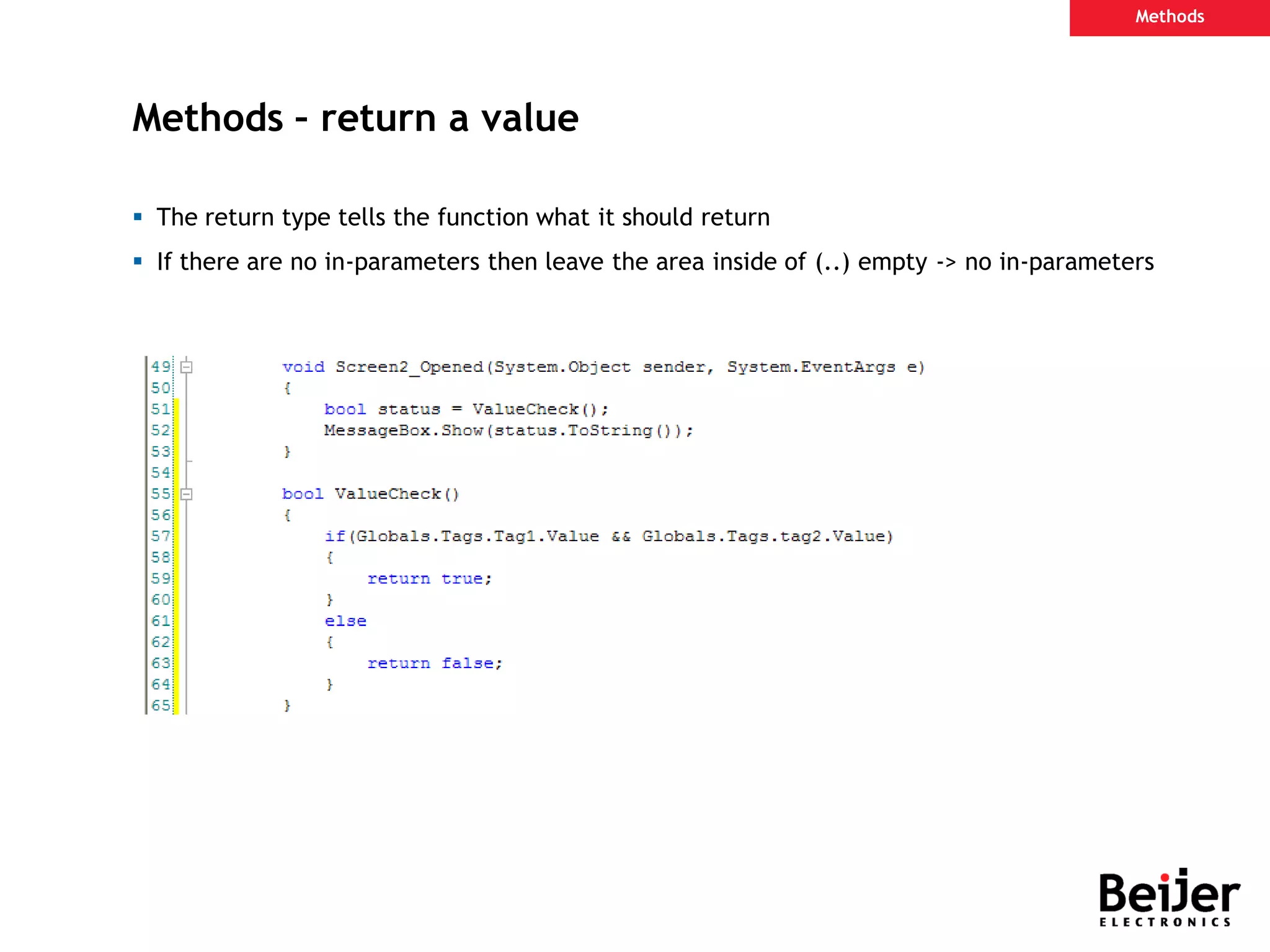

53. Methods – return a value
The return type tells the function what it should return
If there are no in-parameters then leave the area inside of (..) empty -> no in-parameters
Methods

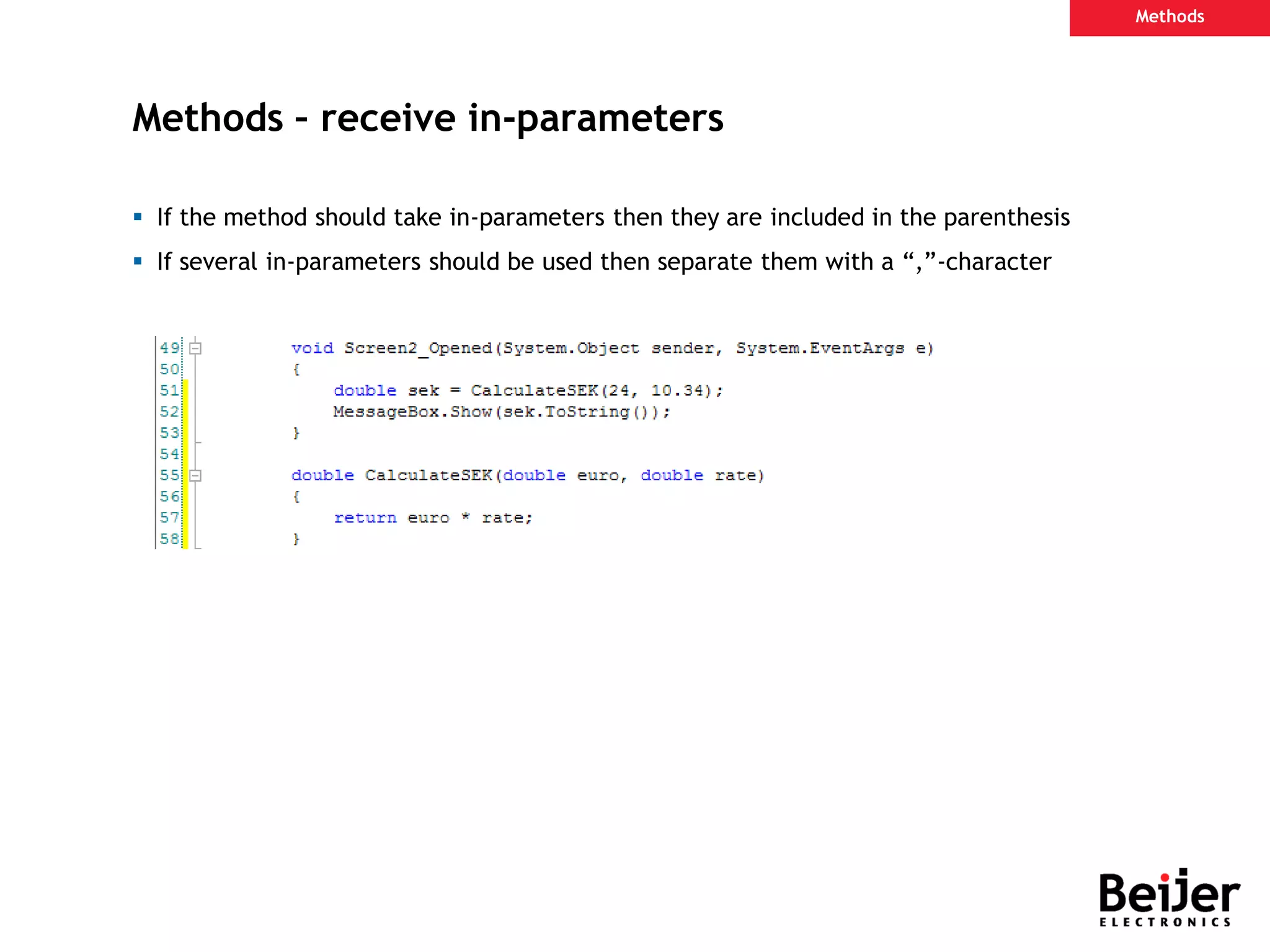

54. Methods – receive in-parameters
If the method should take in-parameters then they are included in the parenthesis
If several in-parameters should be used then separate them with a “,”-character
Methods

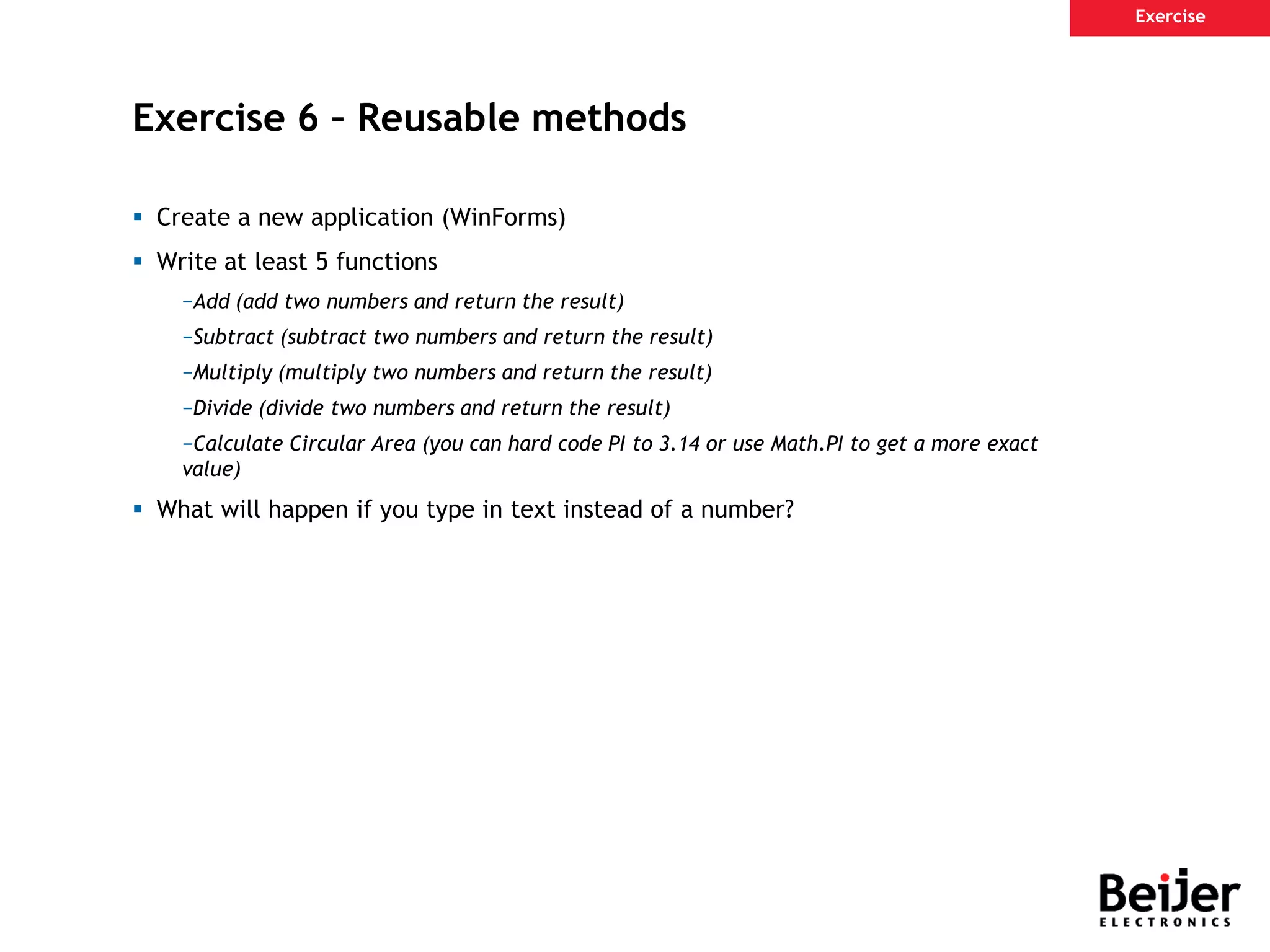

55. Exercise 6 – Reusable methods
Create a new application (WinForms)
Write at least 5 functions
−Add (add two numbers and return the result)
−Subtract (subtract two numbers and return the result)
−Multiply (multiply two numbers and return the result)
−Divide (divide two numbers and return the result)
−Calculate Circular Area (you can hard code PI to 3.14 or use Math.PI to get a more exact
value)
What will happen if you type in text instead of a number?
Exercise

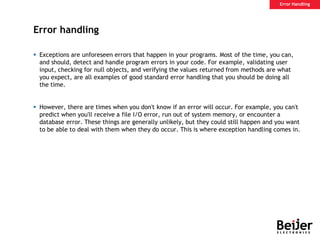

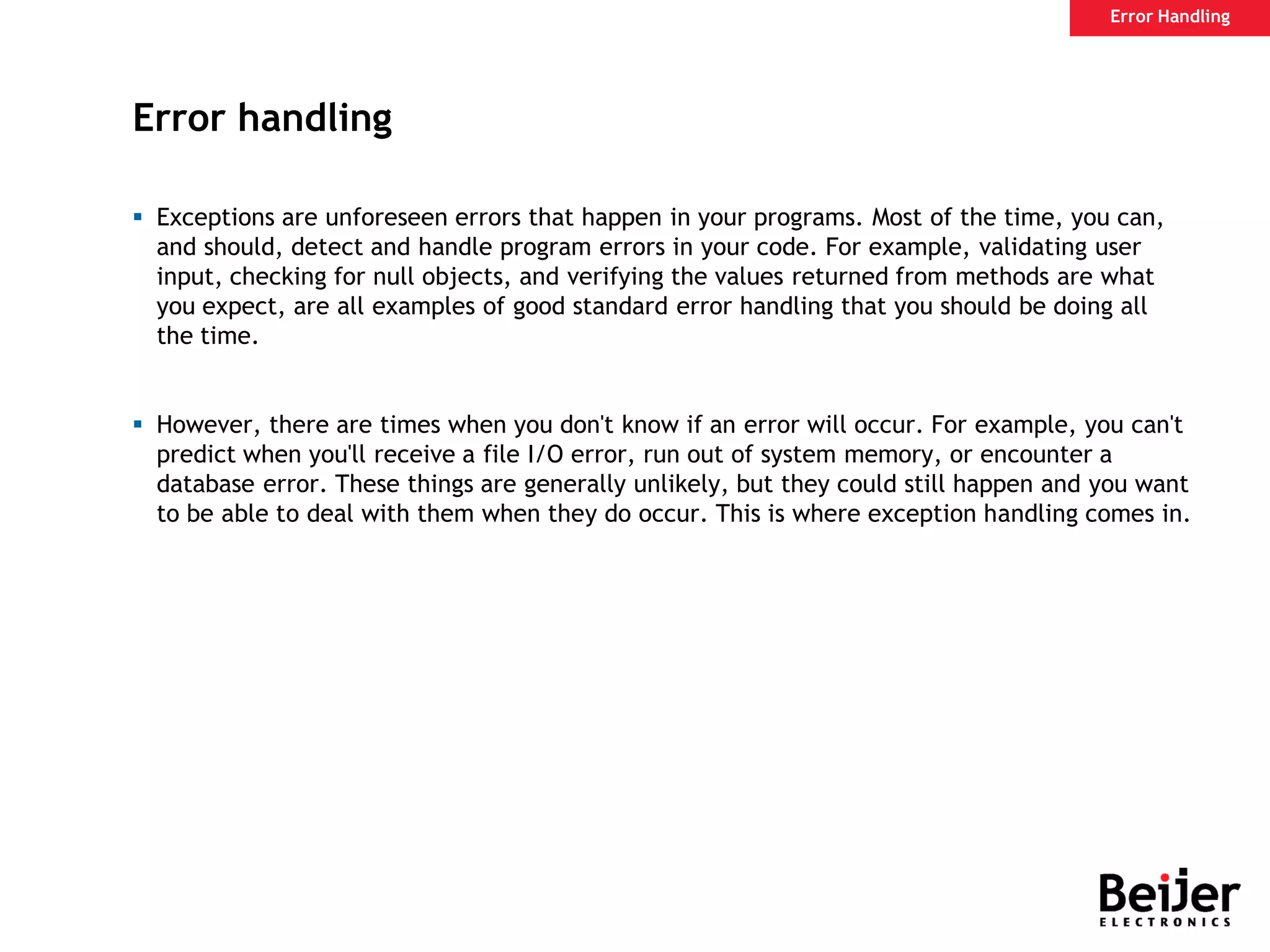

56. Error handling
Exceptions are unforeseen errors that happen in your programs. Most of the time, you can,
and should, detect and handle program errors in your code. For example, validating user
input, checking for null objects, and verifying the values returned from methods are what
you expect, are all examples of good standard error handling that you should be doing all
the time.
However, there are times when you don't know if an error will occur. For example, you can't
predict when you'll receive a file I/O error, run out of system memory, or encounter a
database error. These things are generally unlikely, but they could still happen and you want
to be able to deal with them when they do occur. This is where exception handling comes in.
Error Handling

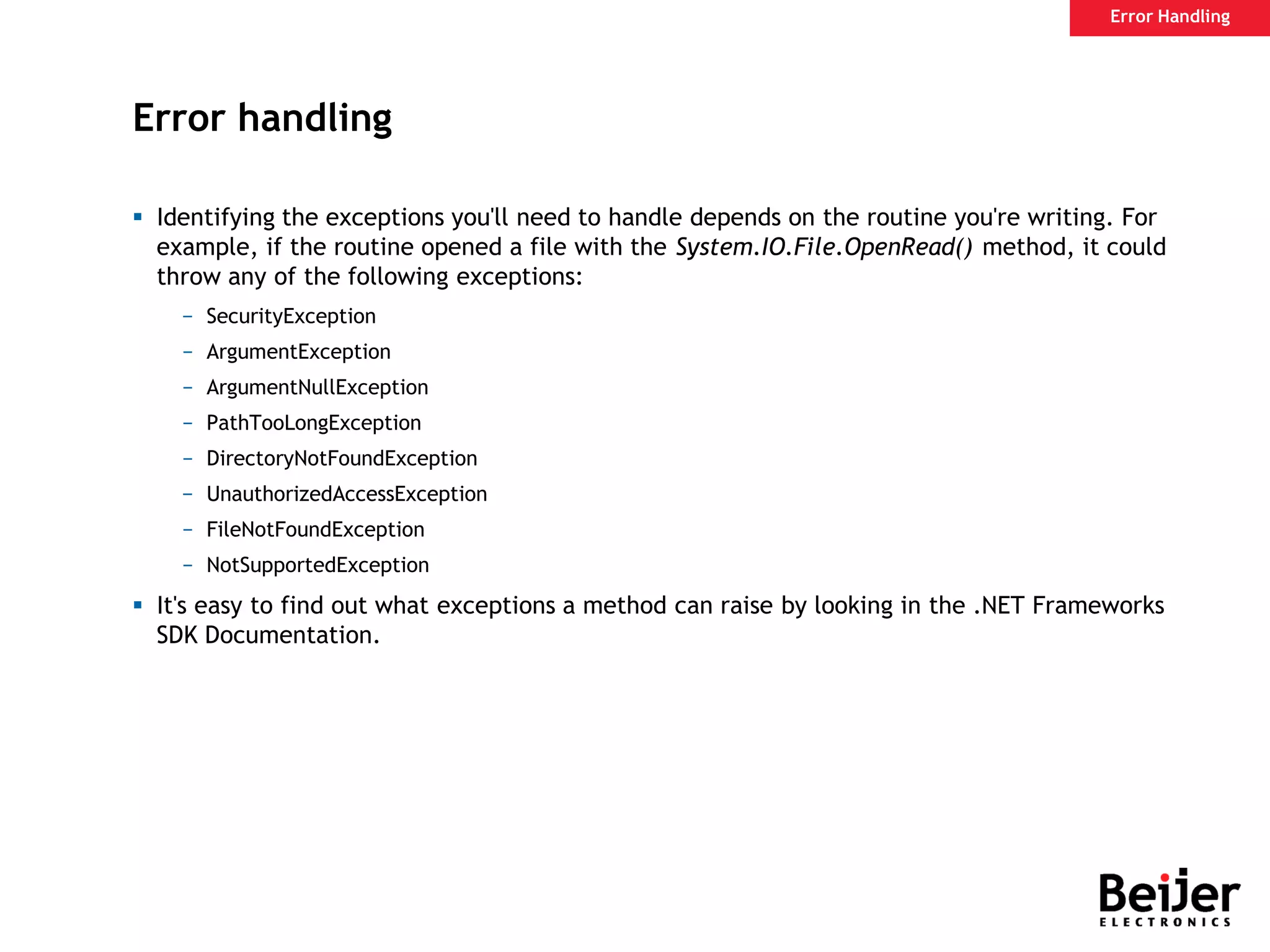

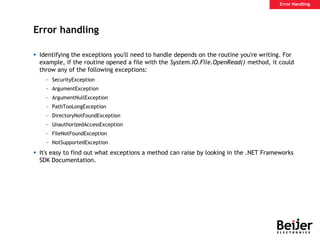

57. Error handling
Identifying the exceptions you'll need to handle depends on the routine you're writing. For
example, if the routine opened a file with the System.IO.File.OpenRead() method, it could
throw any of the following exceptions:
− SecurityException
− ArgumentException
− ArgumentNullException
− PathTooLongException
− DirectoryNotFoundException
− UnauthorizedAccessException
− FileNotFoundException
− NotSupportedException
It's easy to find out what exceptions a method can raise by looking in the .NET Frameworks
SDK Documentation.
Error Handling

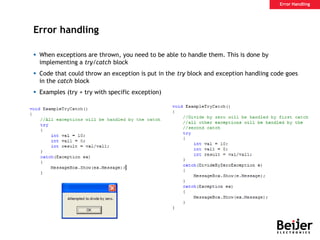

58. Error handling
When exceptions are thrown, you need to be able to handle them. This is done by
implementing a try/catch block
Code that could throw an exception is put in the try block and exception handling code goes
in the catch block
Examples (try + try with specific exception)

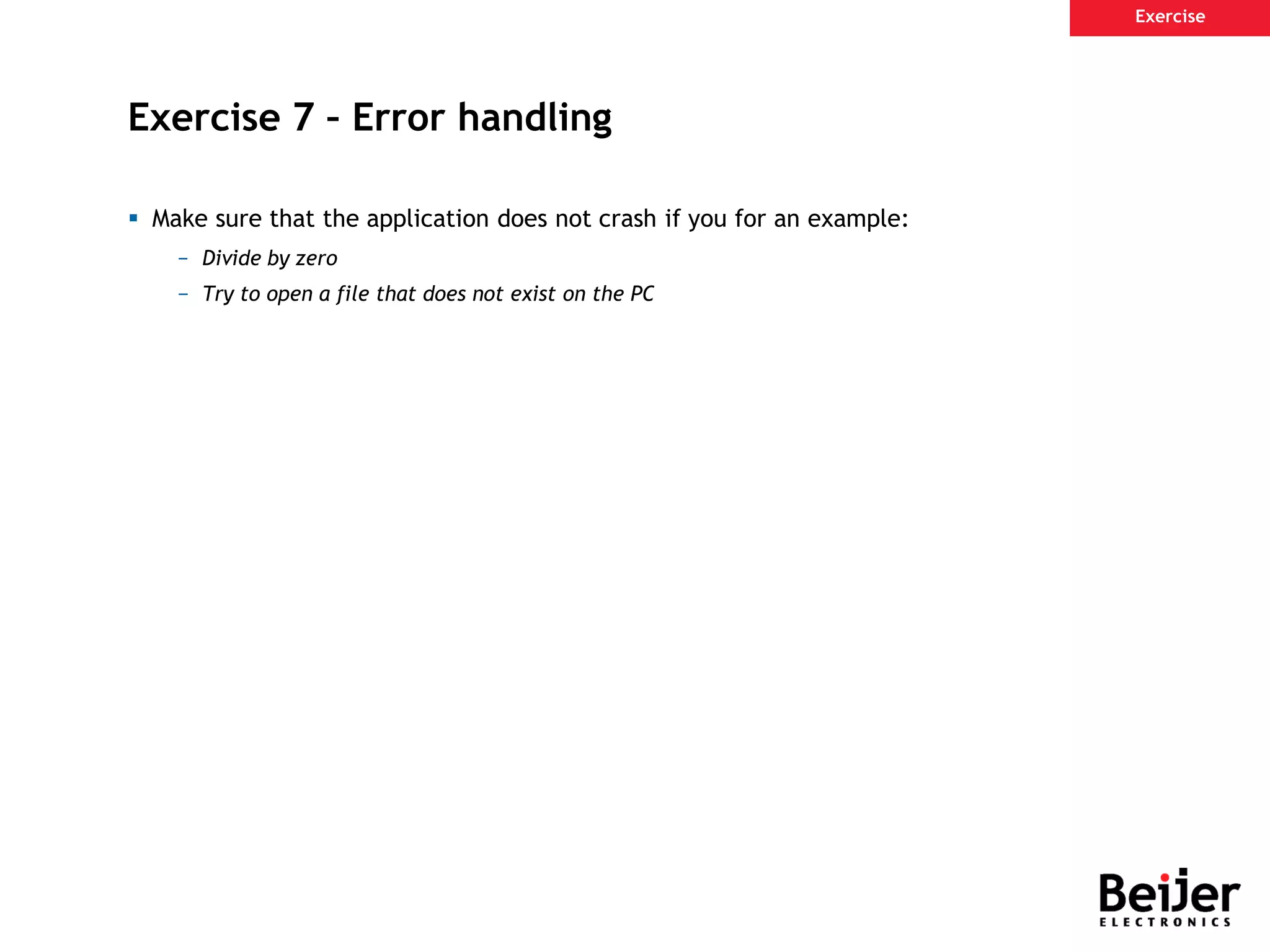

Error Handling
59. Make sure that the application does not crash if you for an example:
− Divide by zero
− Try to open a file that does not exist on the PC
Exercise 7 – Error handling
Exercise

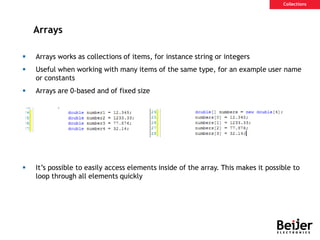

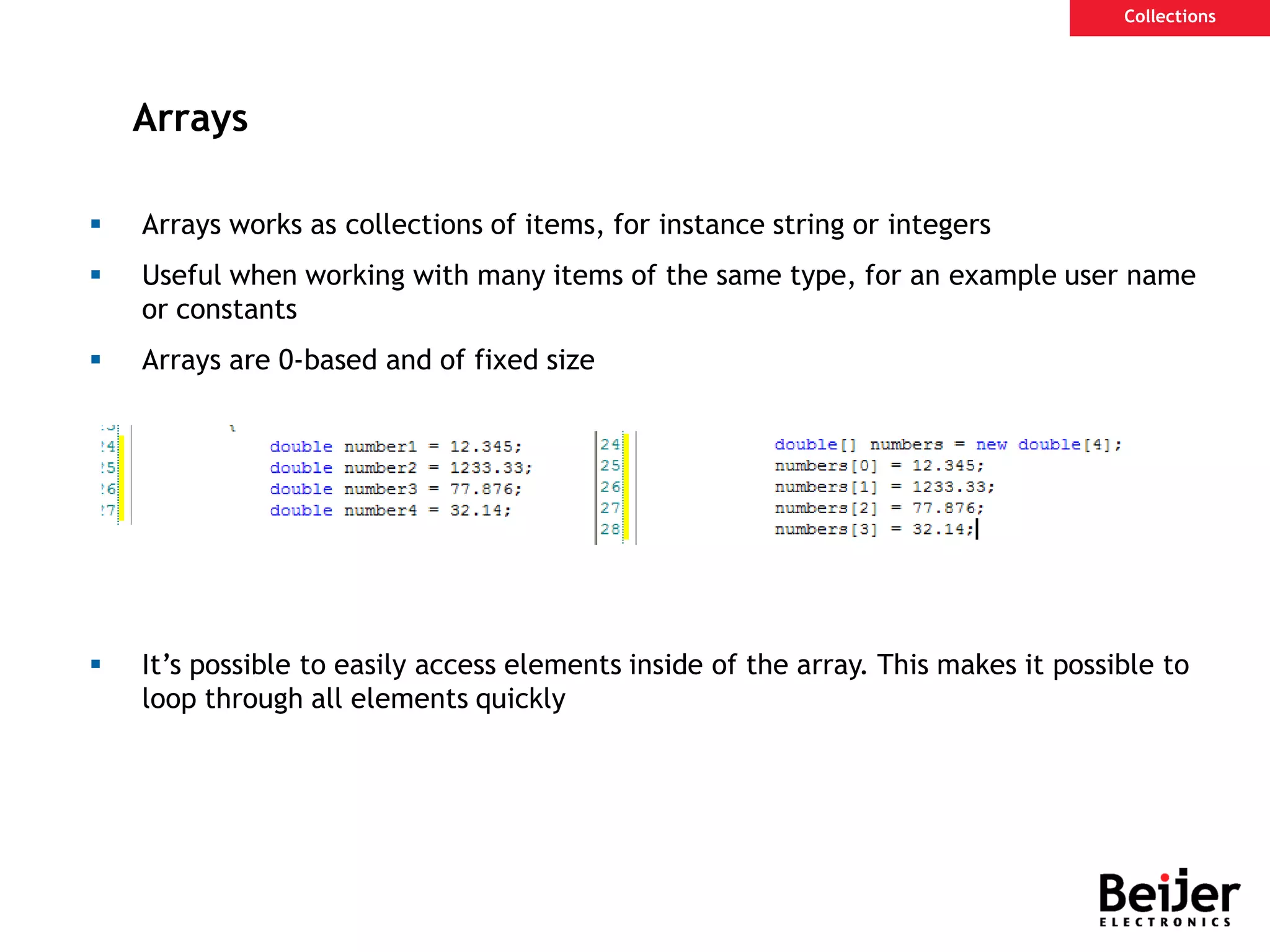

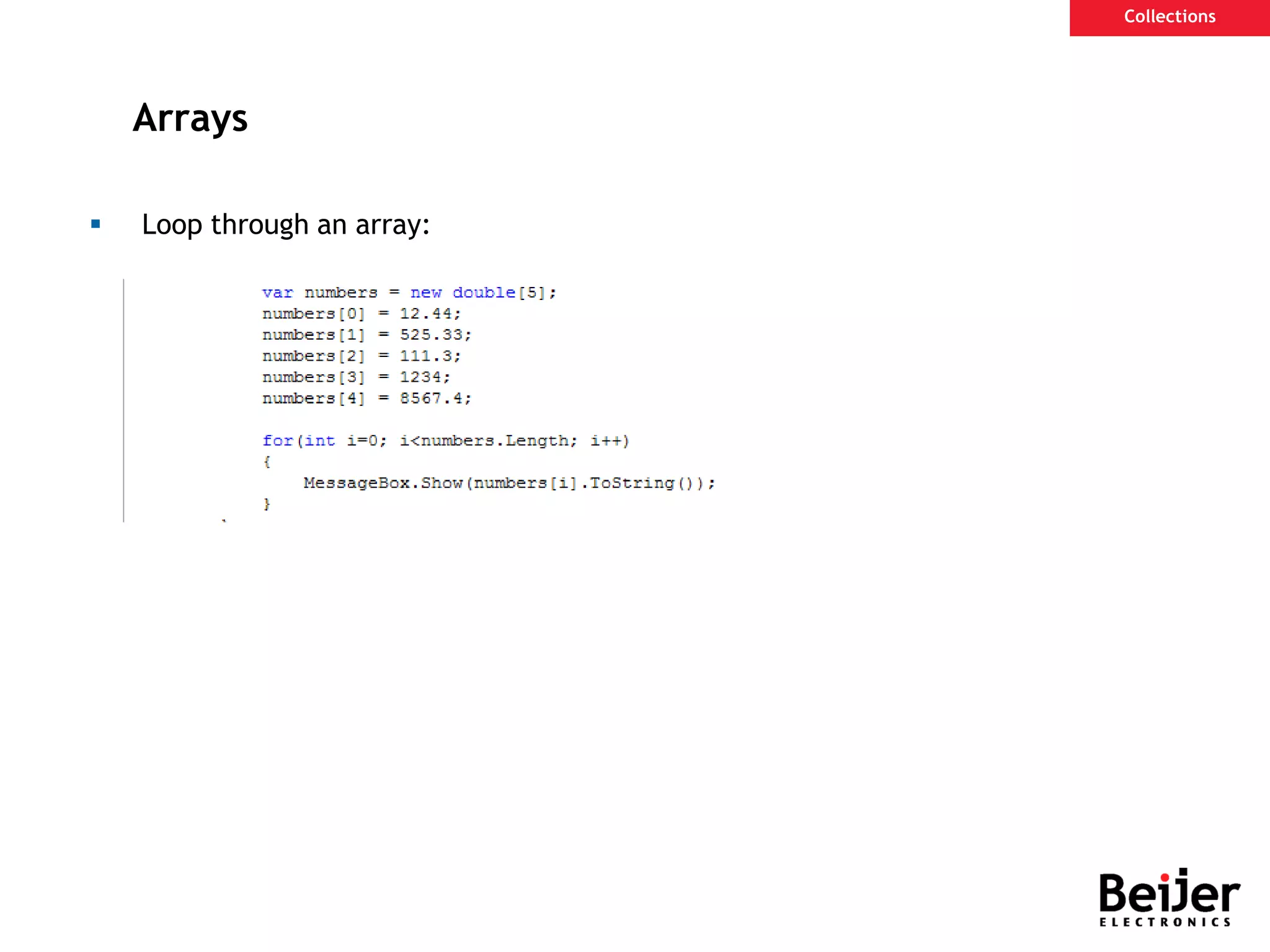

60. Arrays
Arrays works as collections of items, for instance string or integers
Useful when working with many items of the same type, for an example user name
or constants
Arrays are 0-based and of fixed size
It’s possible to easily access elements inside of the array. This makes it possible to
loop through all elements quickly
Collections

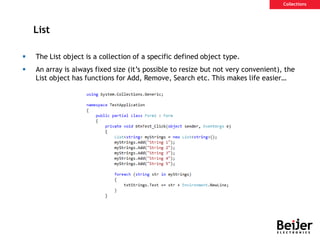

62. List
The List object is a collection of a specific defined object type.
An array is always fixed size (it’s possible to resize but not very convenient), the
List object has functions for Add, Remove, Search etc. This makes life easier…
Collections

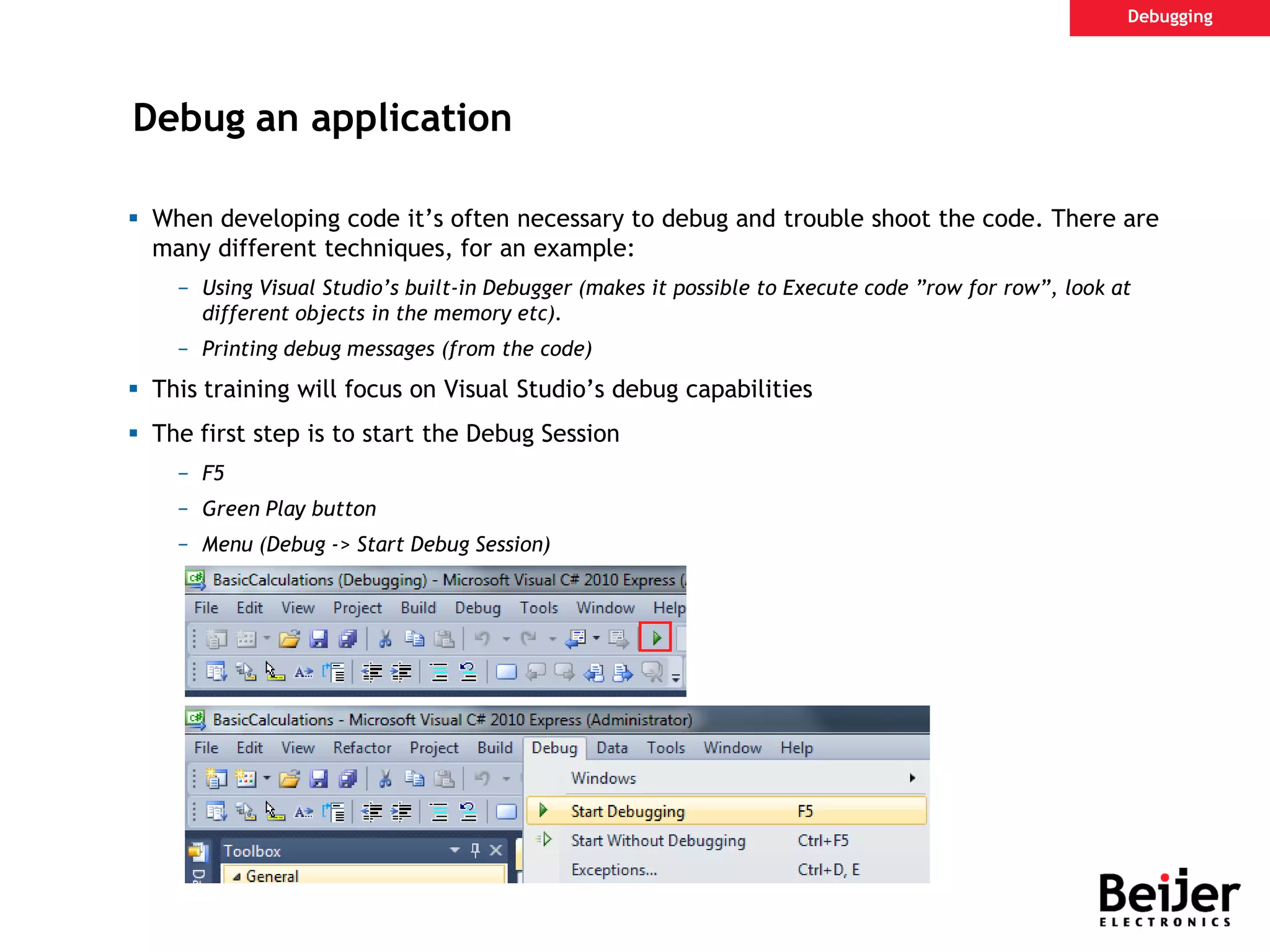

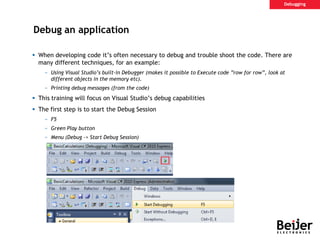

63. Debug an application
When developing code it’s often necessary to debug and trouble shoot the code. There are
many different techniques, for an example:
− Using Visual Studio’s built-in Debugger (makes it possible to Execute code ”row for row”, look at
different objects in the memory etc).
− Printing debug messages (from the code)
This training will focus on Visual Studio’s debug capabilities
The first step is to start the Debug Session
− F5
− Green Play button
− Menu (Debug -> Start Debug Session)
Debugging

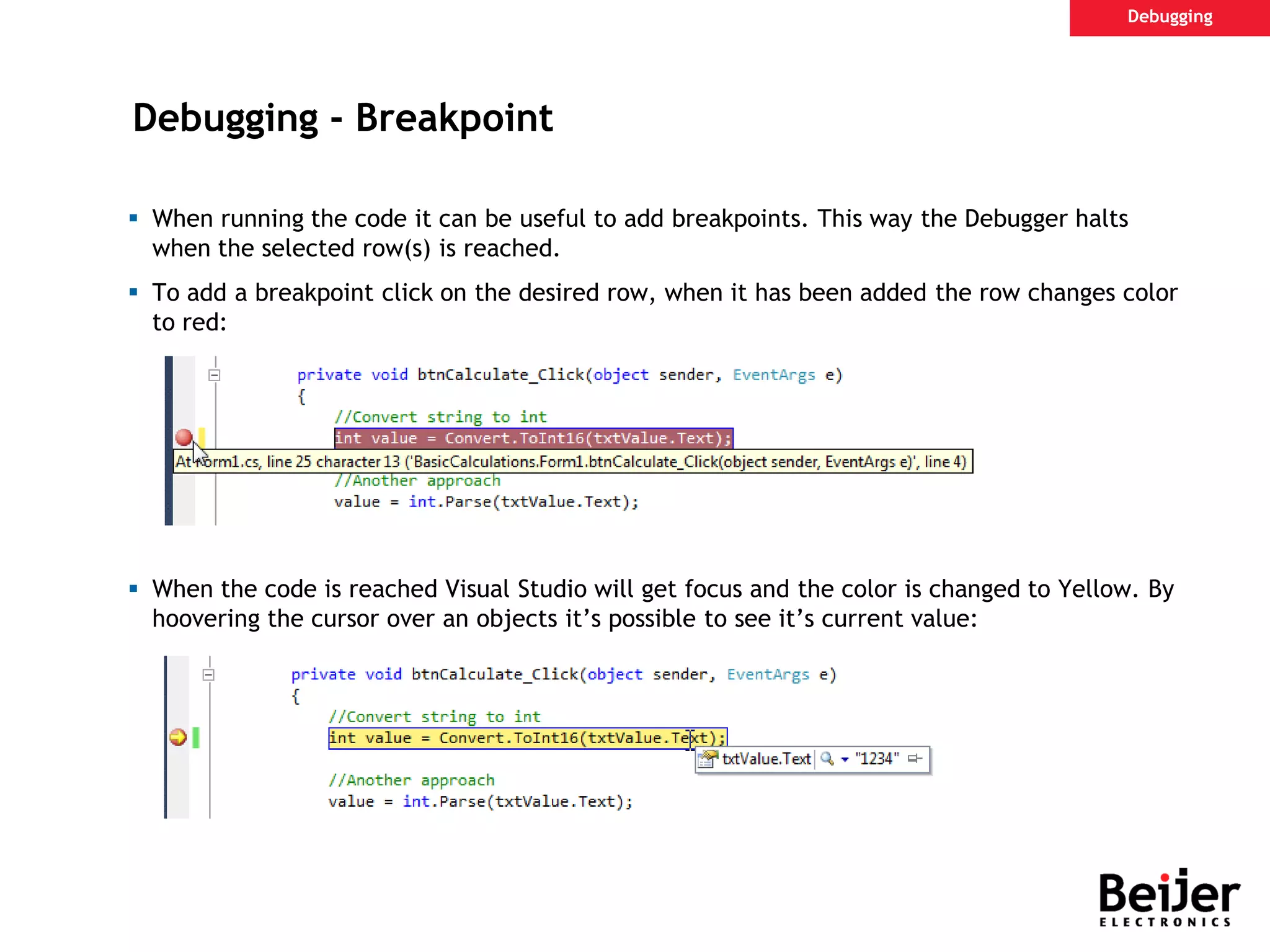

64. Debugging - Breakpoint
When running the code it can be useful to add breakpoints. This way the Debugger halts
when the selected row(s) is reached.
To add a breakpoint click on the desired row, when it has been added the row changes color
to red:
When the code is reached Visual Studio will get focus and the color is changed to Yellow. By
hoovering the cursor over an objects it’s possible to see it’s current value:
Debugging

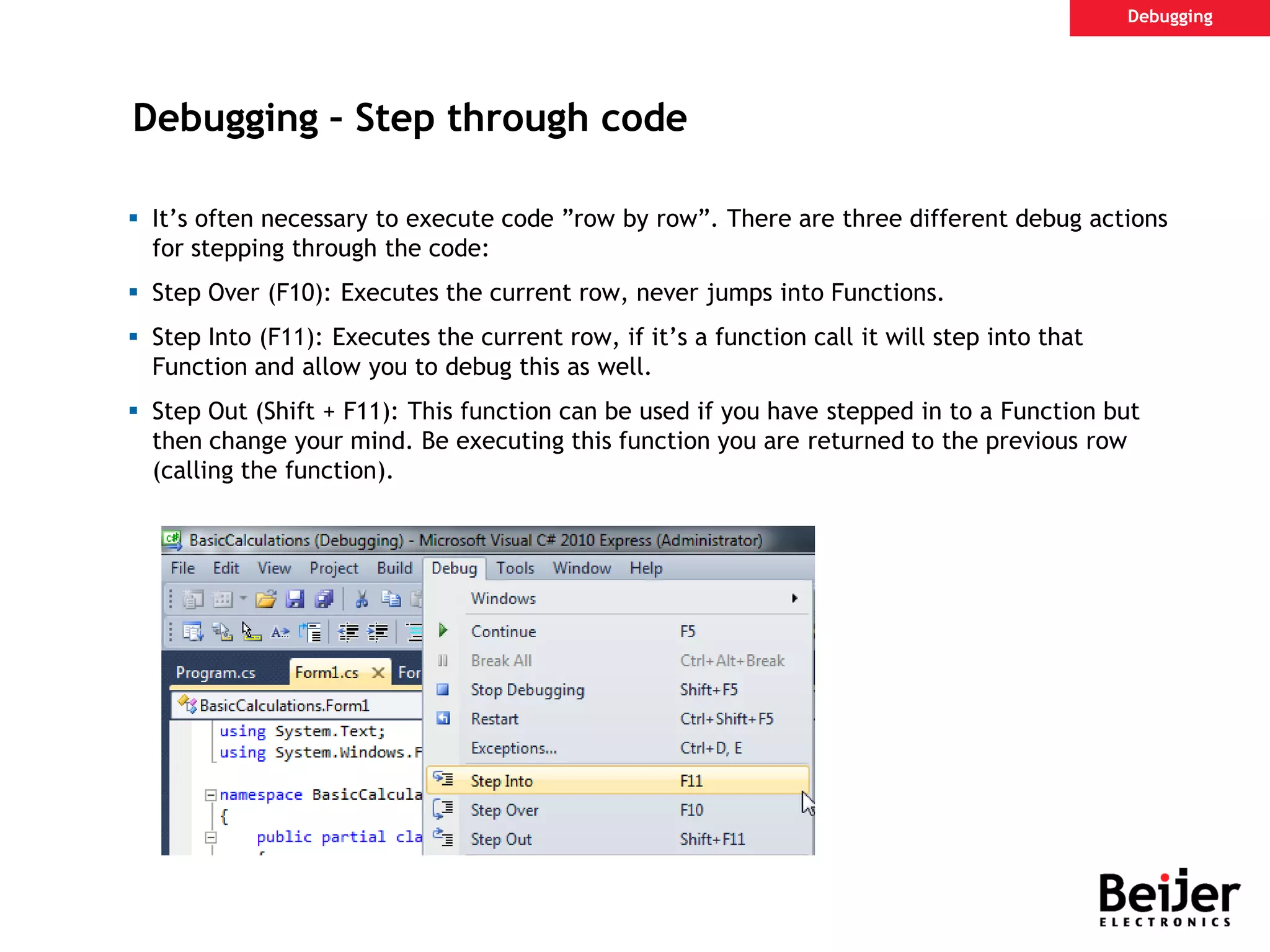

65. Debugging – Step through code
It’s often necessary to execute code ”row by row”. There are three different debug actions
for stepping through the code:
Step Over (F10): Executes the current row, never jumps into Functions.
Step Into (F11): Executes the current row, if it’s a function call it will step into that
Function and allow you to debug this as well.
Step Out (Shift + F11): This function can be used if you have stepped in to a Function but
then change your mind. Be executing this function you are returned to the previous row
(calling the function).
Debugging

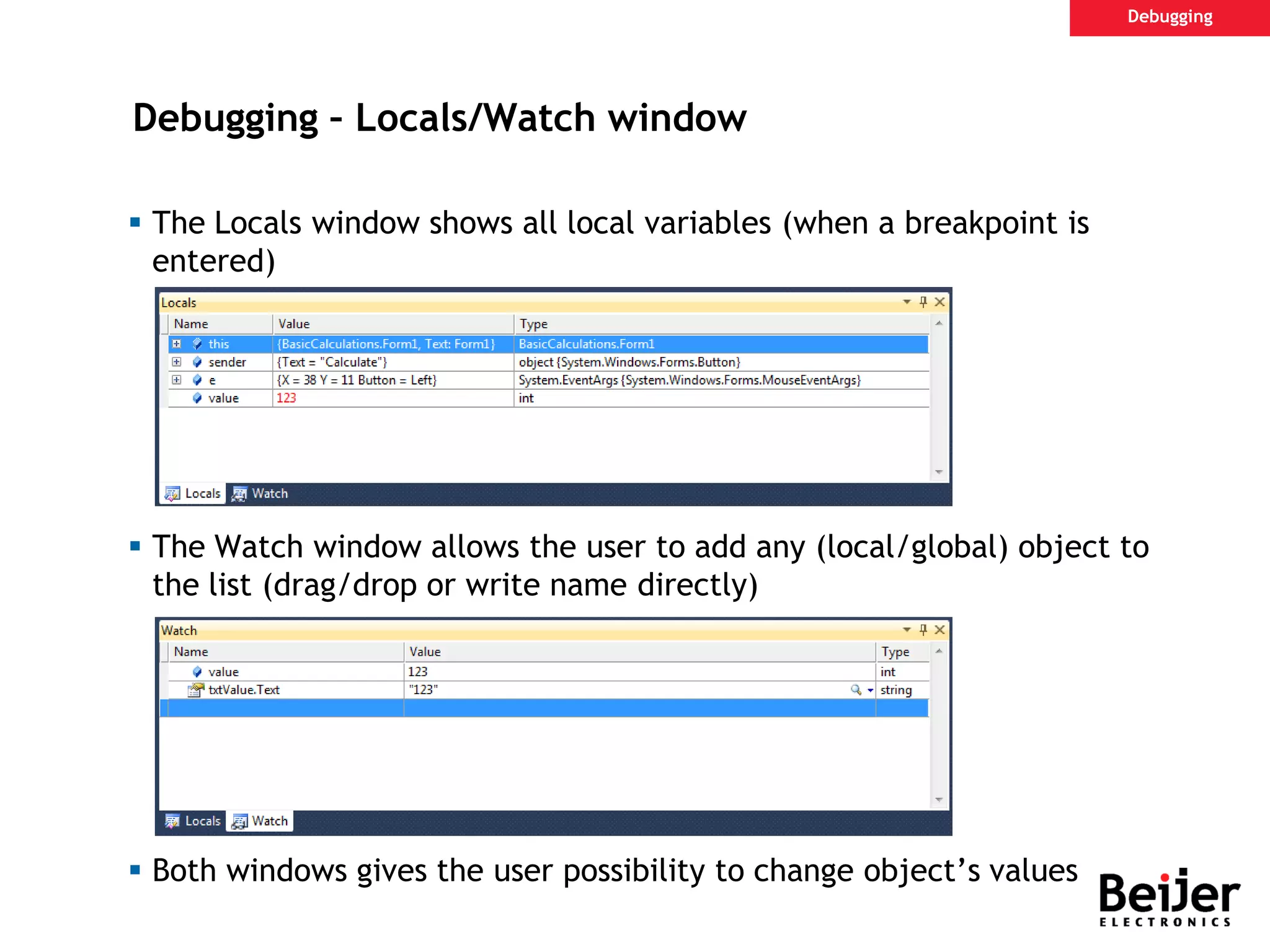

66. Debugging – Locals/Watch window
The Locals window shows all local variables (when a breakpoint is
entered)
The Watch window allows the user to add any (local/global) object to
the list (drag/drop or write name directly)
Both windows gives the user possibility to change object’s values
Debugging

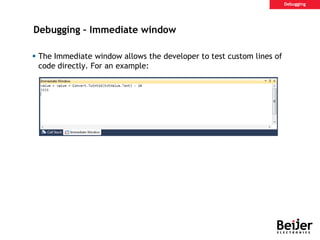

67. Debugging – Immediate window
The Immediate window allows the developer to test custom lines of
code directly. For an example:
Debugging

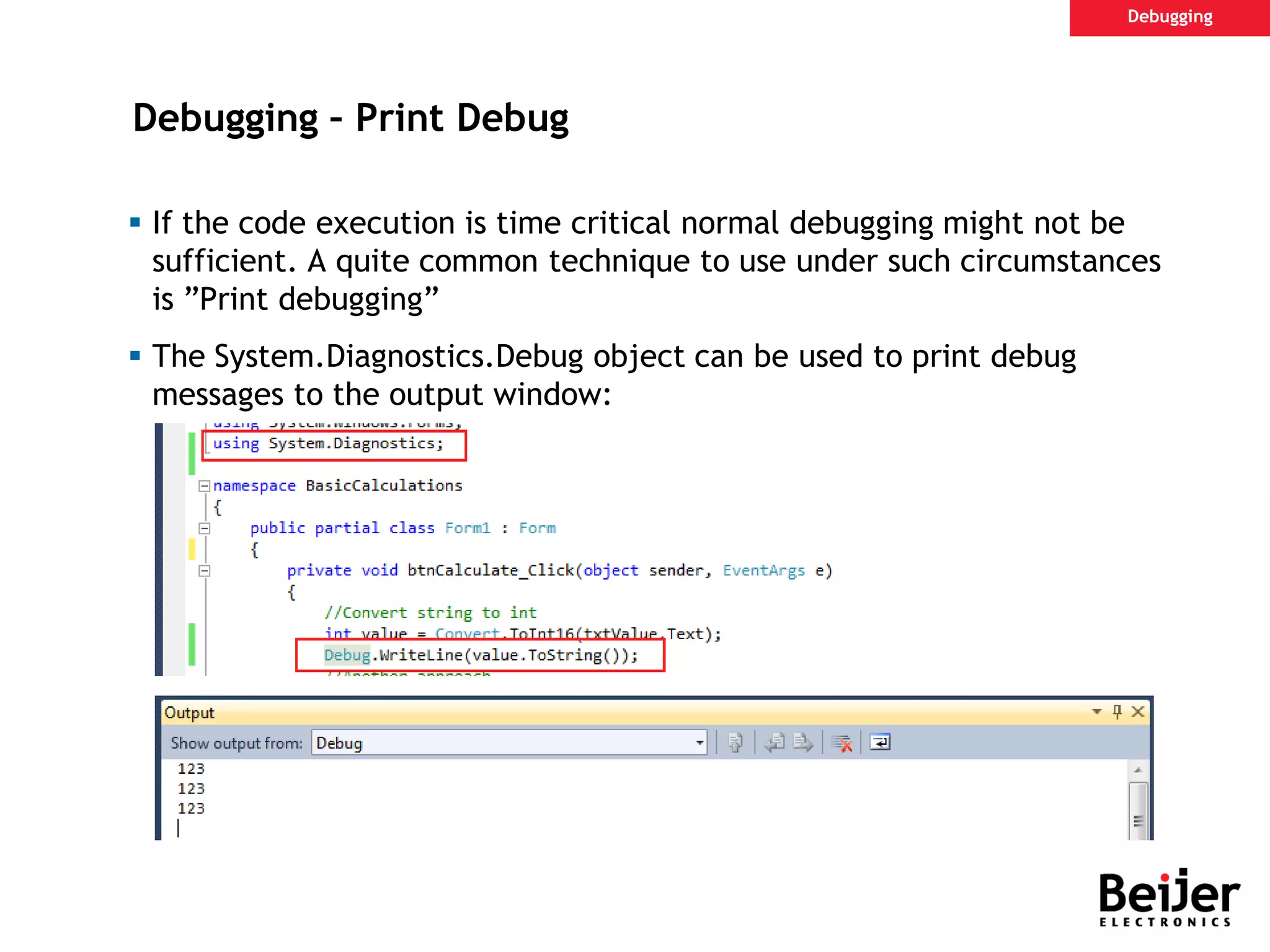

68. Debugging – Print Debug
If the code execution is time critical normal debugging might not be
sufficient. A quite common technique to use under such circumstances
is ”Print debugging”
The System.Diagnostics.Debug object can be used to print debug
messages to the output window:
Debugging

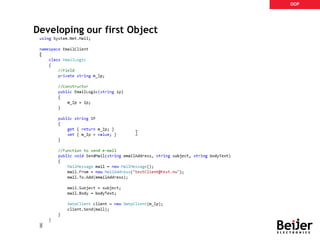

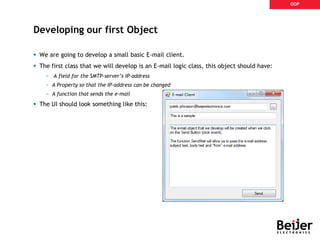

69. Developing our first Object
We are going to develop a small basic E-mail client.
The first class that we will develop is an E-mail logic class, this object should have:
− A field for the SMTP-server’s IP-address
− A Property so that the IP-address can be changed
− A function that sends the e-mail
The UI should look something like this:
OOP

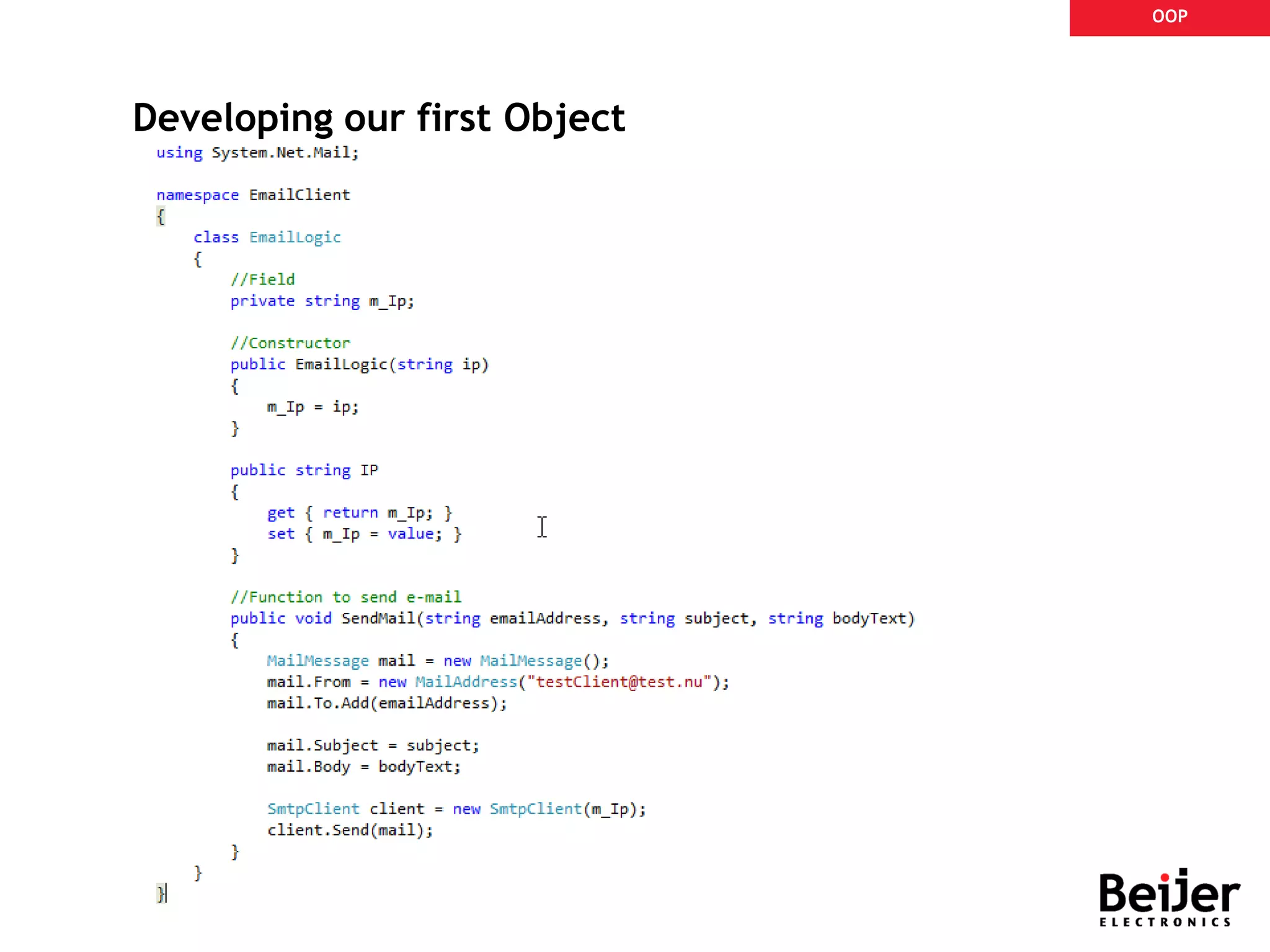

71. Exercise 8 – EmailLogic Object
Exercise
Develop a UI similar to the one below, give all controls meaningful names (instead of
standard TextBox1 etc.) .
Add a new Class to the application, name it EmailLogic. This Class shall contain a
Constructor, a private Field for the IP, a Property so that the IP can be accessed and finally
a function for sending an e-mail.
Test the application.

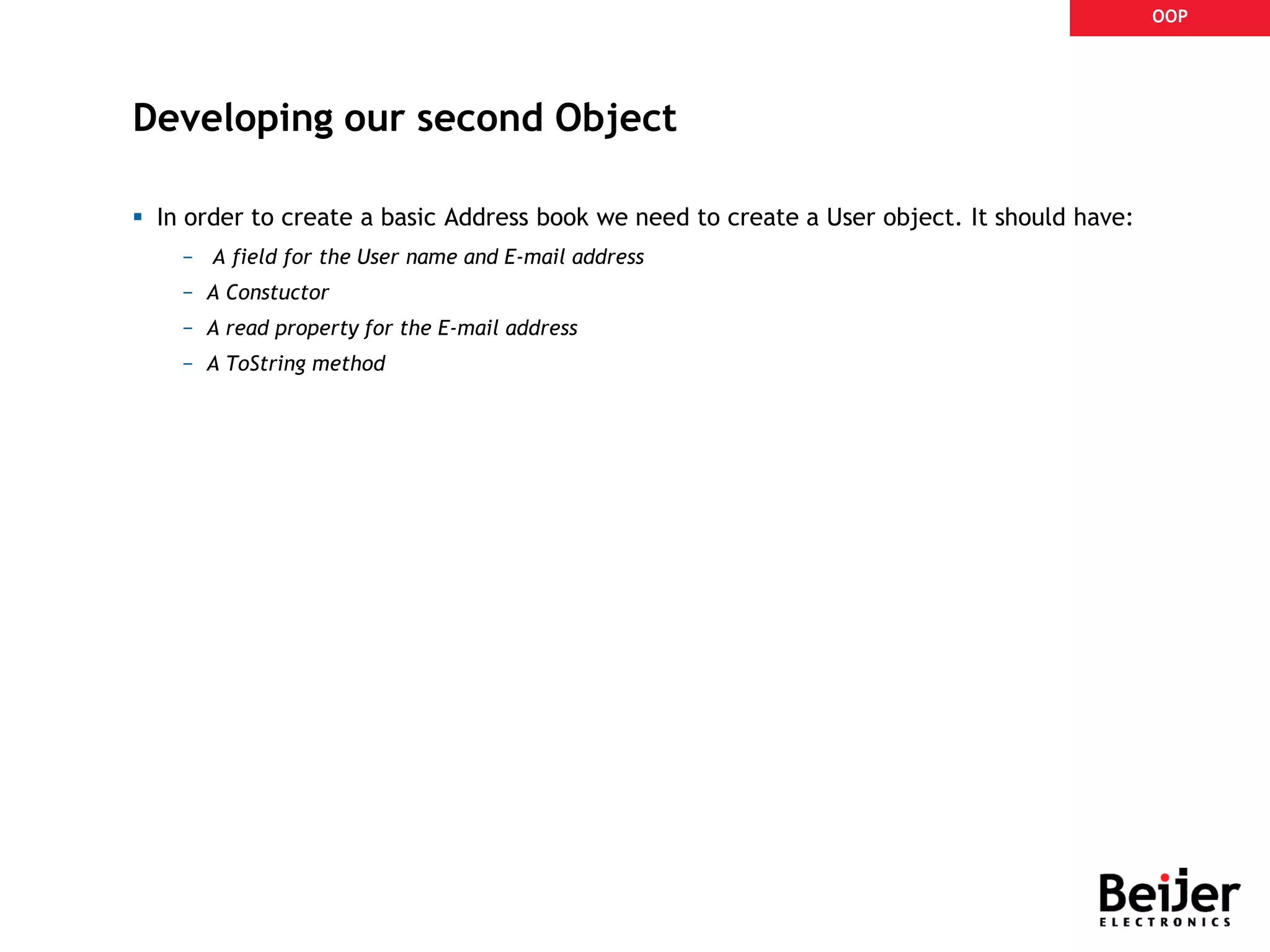

72. Developing our second Object
In order to create a basic Address book we need to create a User object. It should have:
− A field for the User name and E-mail address
− A Constuctor
− A read property for the E-mail address
− A ToString method
OOP

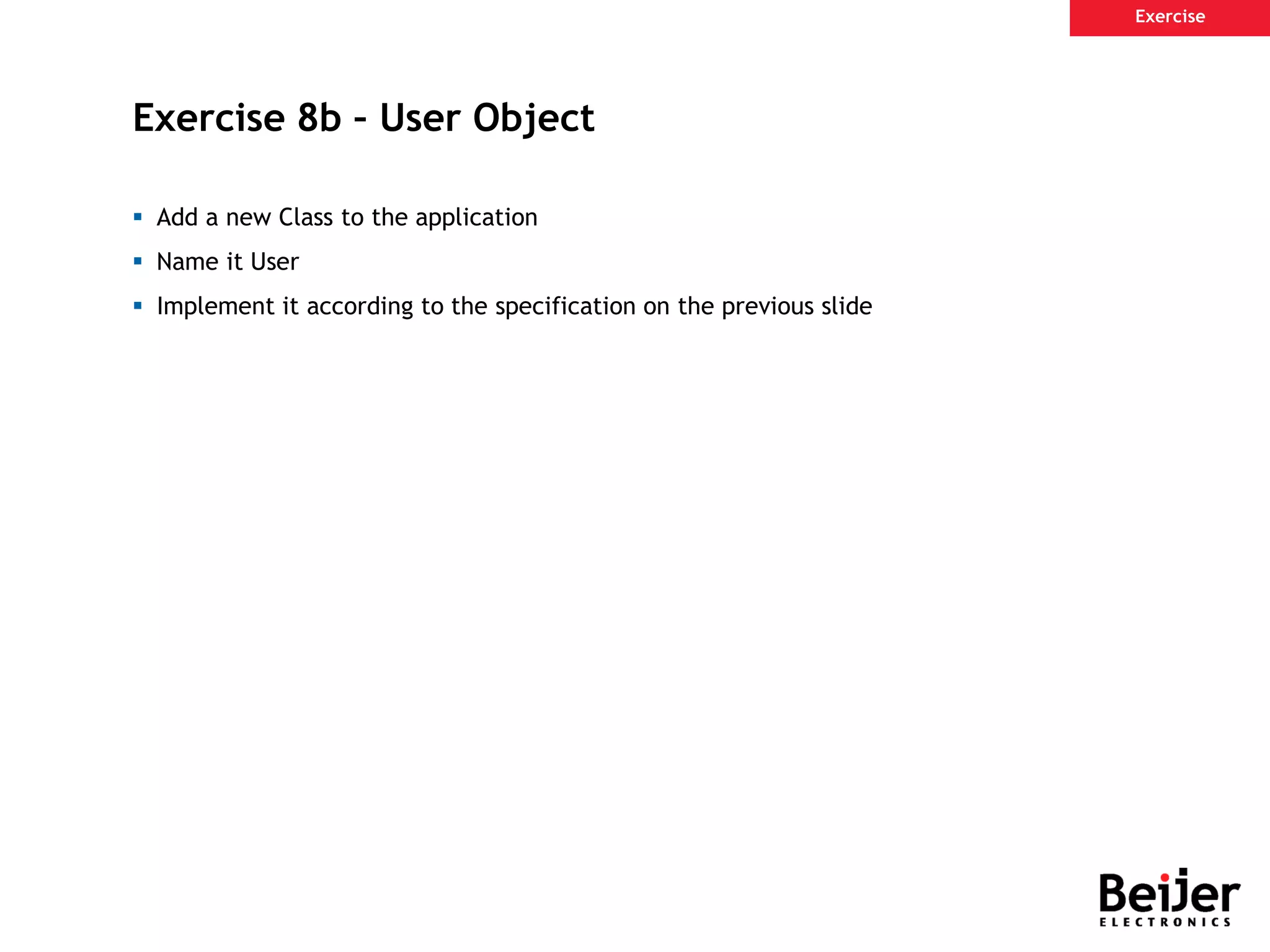

74. Exercise 8b – User Object
Exercise
Add a new Class to the application
Name it User
Implement it according to the specification on the previous slide

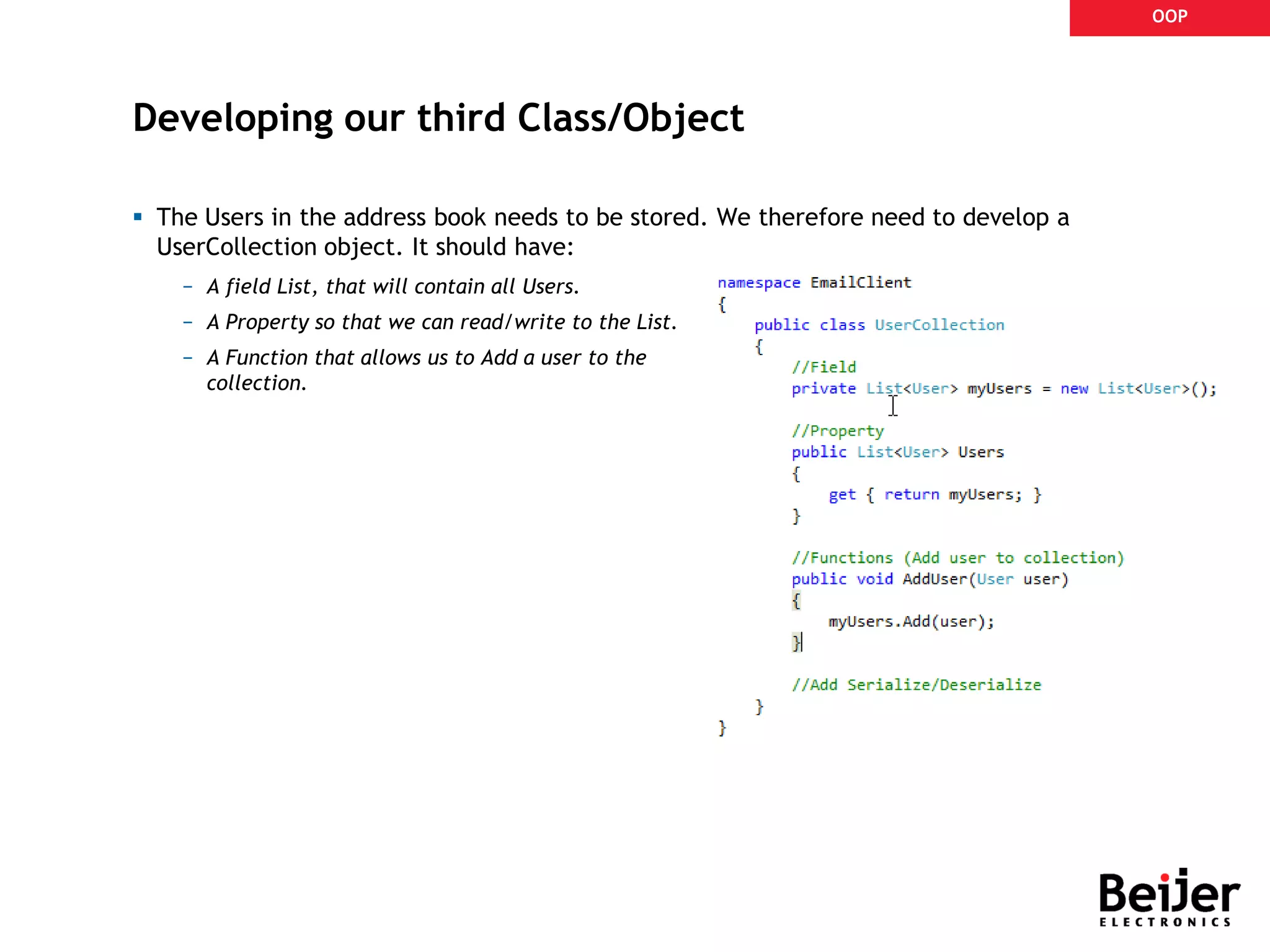

75. Developing our third Class/Object
The Users in the address book needs to be stored. We therefore need to develop a
UserCollection object. It should have:
− A field List, that will contain all Users.
− A Property so that we can read/write to the List.
− A Function that allows us to Add a user to the
collection.
OOP

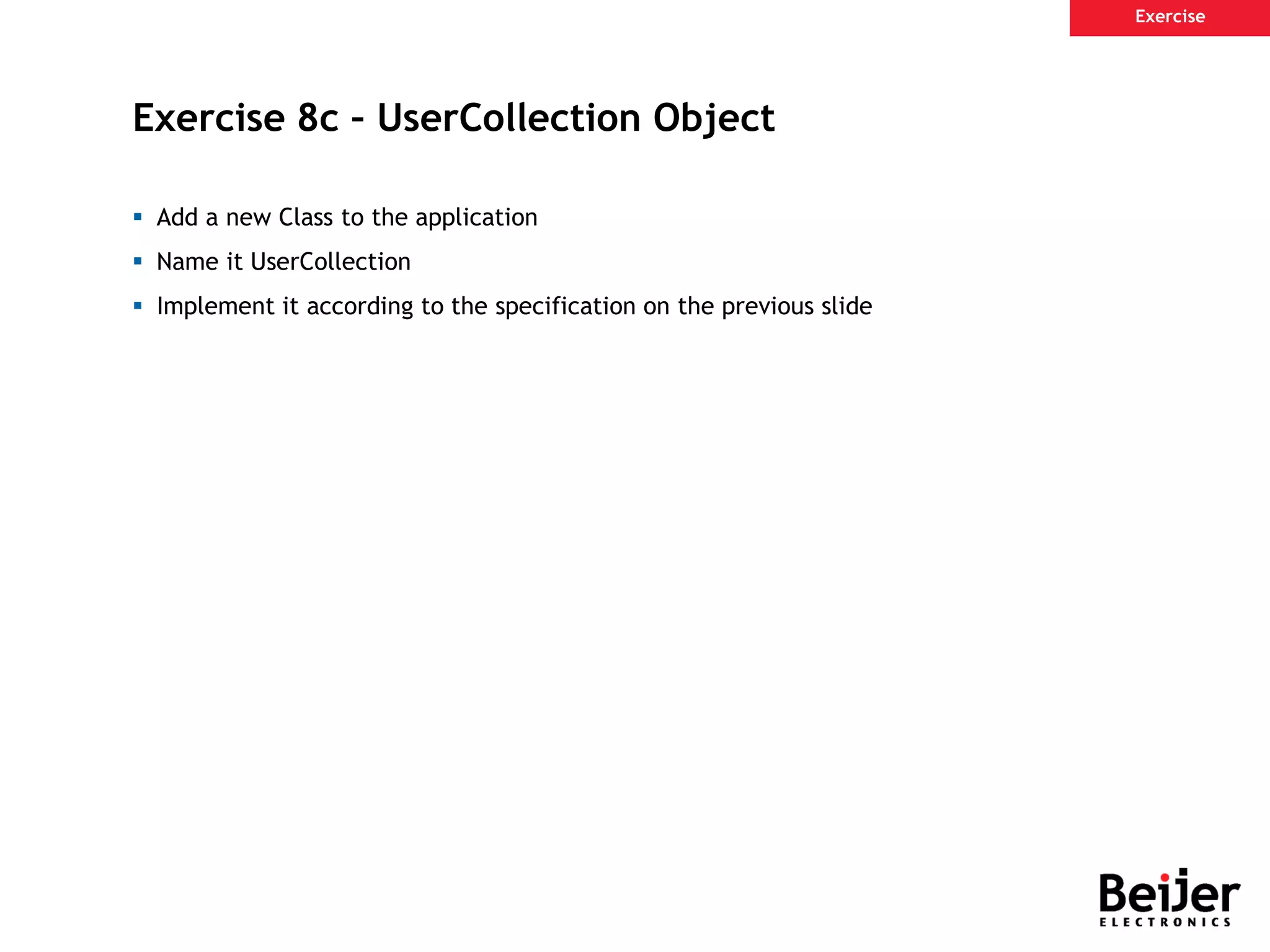

76. Exercise 8c – UserCollection Object
Exercise
Add a new Class to the application
Name it UserCollection
Implement it according to the specification on the previous slide

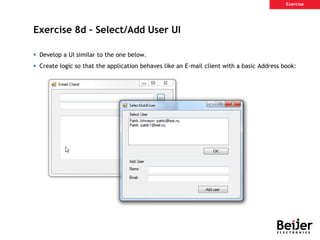

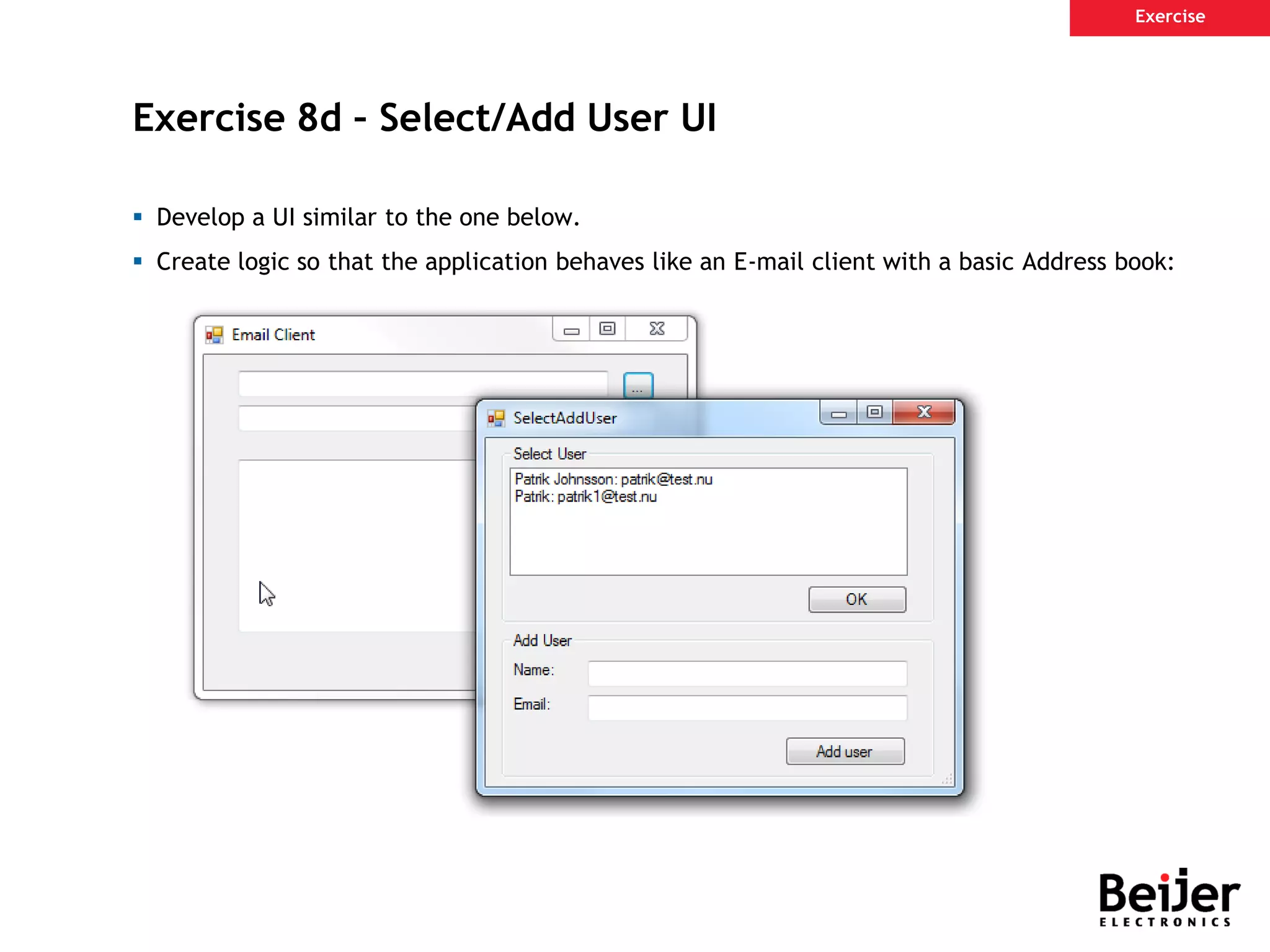

77. Exercise 8d – Select/Add User UI
Exercise
Develop a UI similar to the one below.
Create logic so that the application behaves like an E-mail client with a basic Address book:
78. Day 2 – C# scripting in iX Developer
The world's most graphic HMI solution. Truly open.

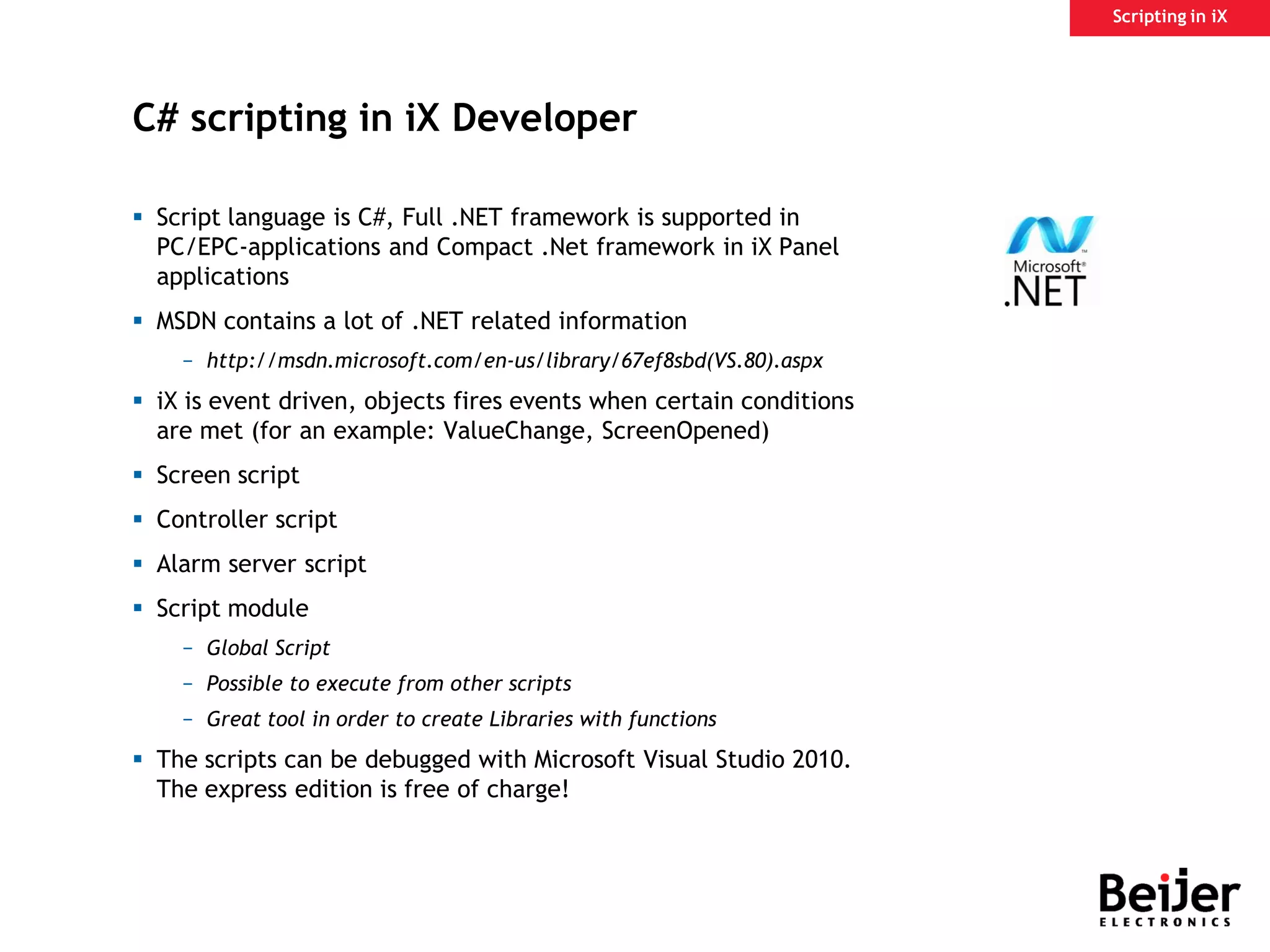

79. C# scripting in iX Developer
Script language is C#, Full .NET framework is supported in
PC/EPC-applications and Compact .Net framework in iX Panel
applications
MSDN contains a lot of .NET related information
− http://msdn.microsoft.com/en-us/library/67ef8sbd(VS.80).aspx
iX is event driven, objects fires events when certain conditions
are met (for an example: ValueChange, ScreenOpened)
Screen script
Controller script
Alarm server script
Script module
− Global Script
− Possible to execute from other scripts
− Great tool in order to create Libraries with functions
The scripts can be debugged with Microsoft Visual Studio 2010.
The express edition is free of charge!
Scripting in iX

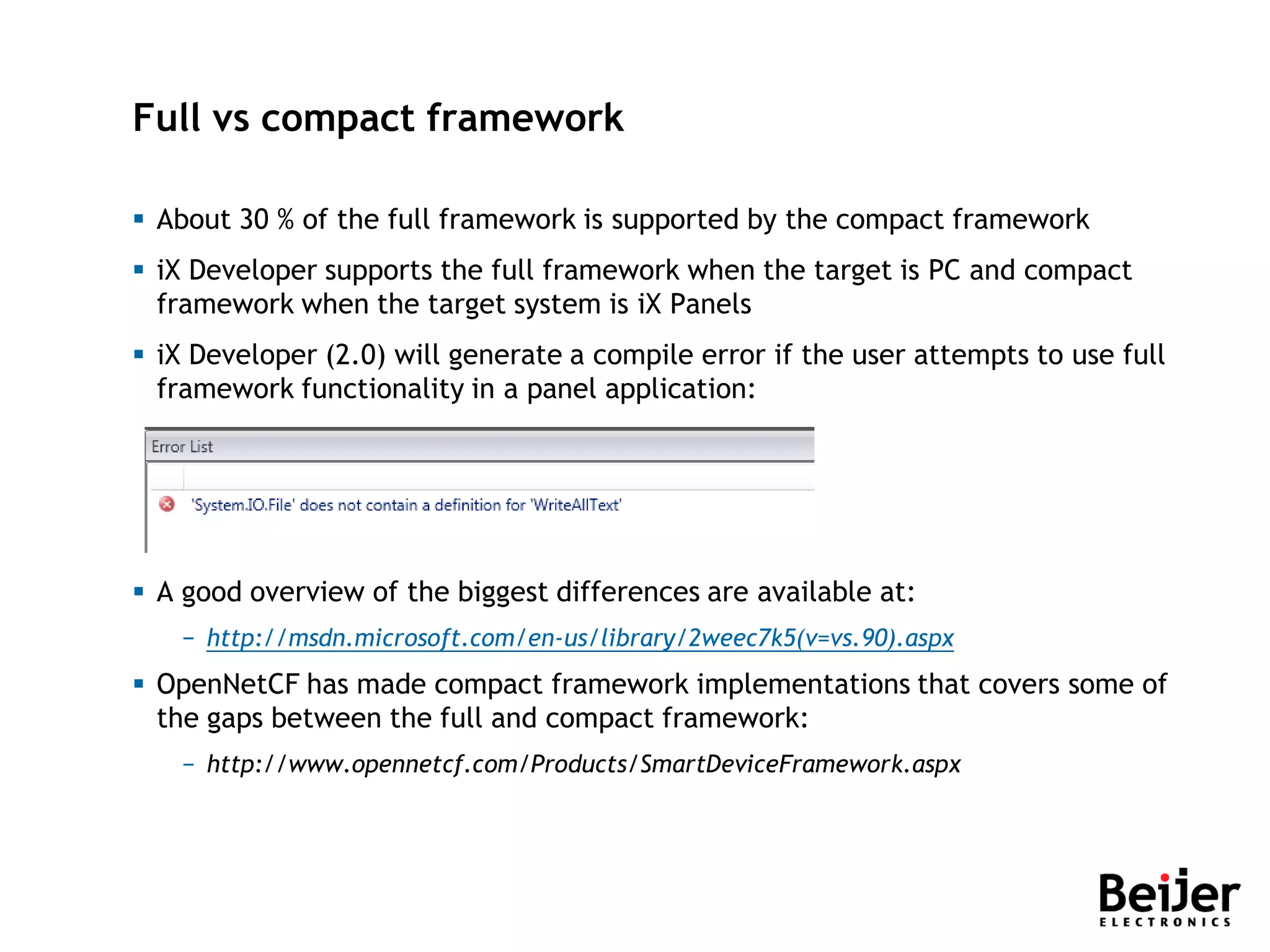

80. Full vs compact framework
About 30 % of the full framework is supported by the compact framework
iX Developer supports the full framework when the target is PC and compact
framework when the target system is iX Panels
iX Developer (2.0) will generate a compile error if the user attempts to use full
framework functionality in a panel application:
A good overview of the biggest differences are available at:
− http://msdn.microsoft.com/en-us/library/2weec7k5(v=vs.90).aspx
OpenNetCF has made compact framework implementations that covers some of
the gaps between the full and compact framework:
− http://www.opennetcf.com/Products/SmartDeviceFramework.aspx

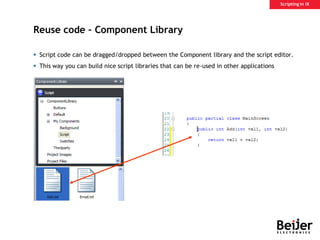

81. Reuse code – Component Library
Script code can be dragged/dropped between the Component library and the script editor.
This way you can build nice script libraries that can be re-used in other applications
Scripting in iX

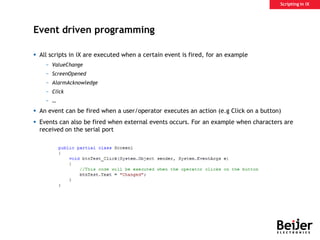

82. Event driven programming
All scripts in iX are executed when a certain event is fired, for an example
− ValueChange
− ScreenOpened
− AlarmAcknowledge
− Click
− …
An event can be fired when a user/operator executes an action (e.g Click on a button)
Events can also be fired when external events occurs. For an example when characters are
received on the serial port
Scripting in iX
83. iX Events
Change view to Script
All objects/events are available in the list
Scripting in iX

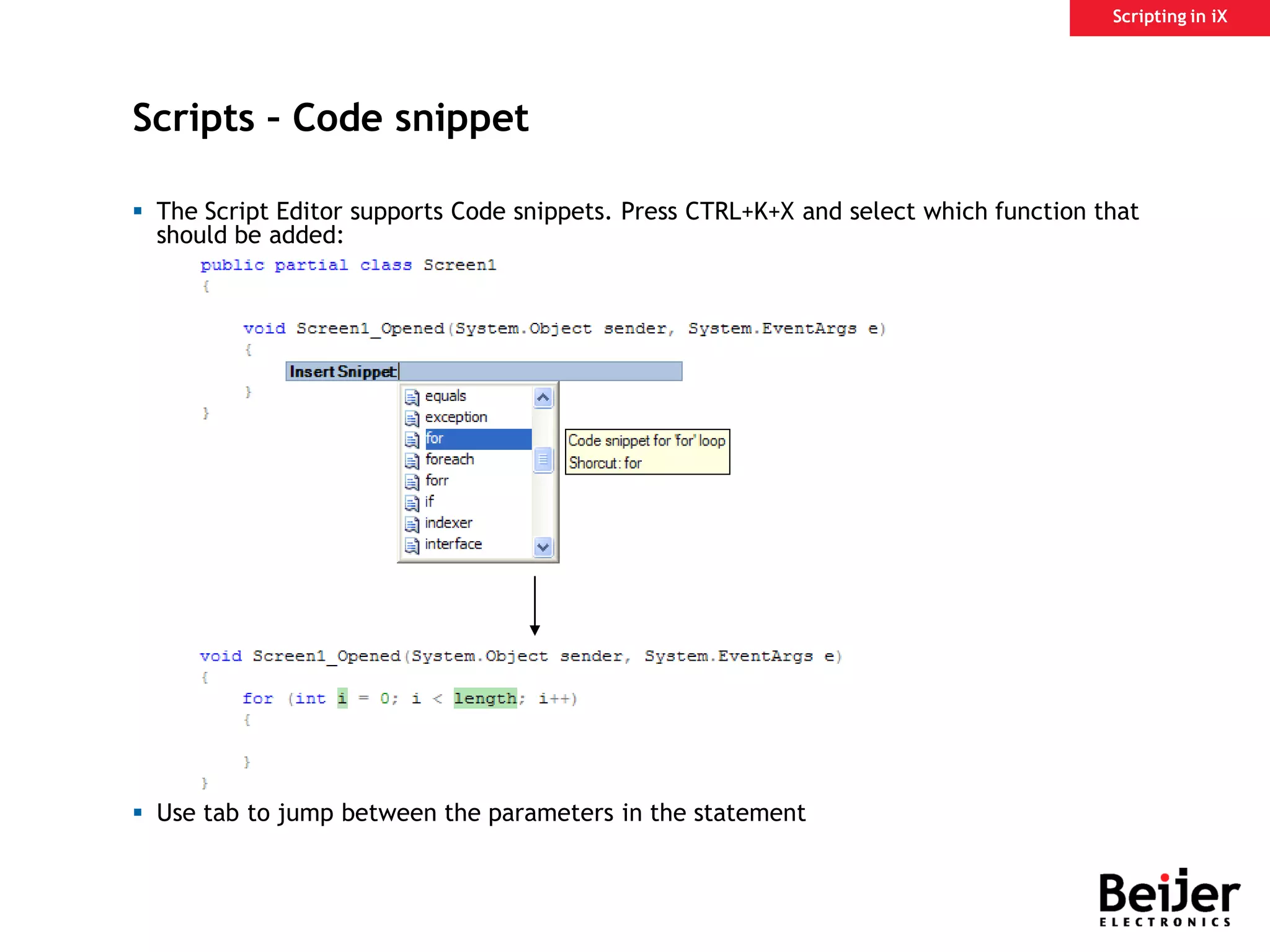

84. The Script Editor supports Code snippets. Press CTRL+K+X and select which function that
should be added:
Use tab to jump between the parameters in the statement
Scripts – Code snippet
Scripting in iX
85. iX Events
A delegate method is added automatically when double clicking on an
event (when the text is bold a method is assigned to the event)
The code inside of this method will be executed when the user clicks on
the button
Scripting in iX

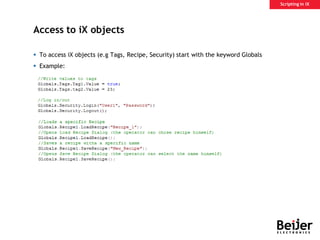

86. Access to iX objects
To access iX objects (e.g Tags, Recipe, Security) start with the keyword Globals
Example:
Scripting in iX

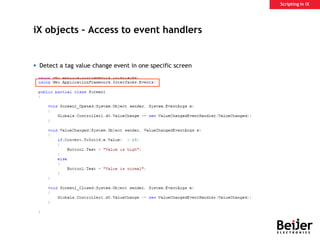

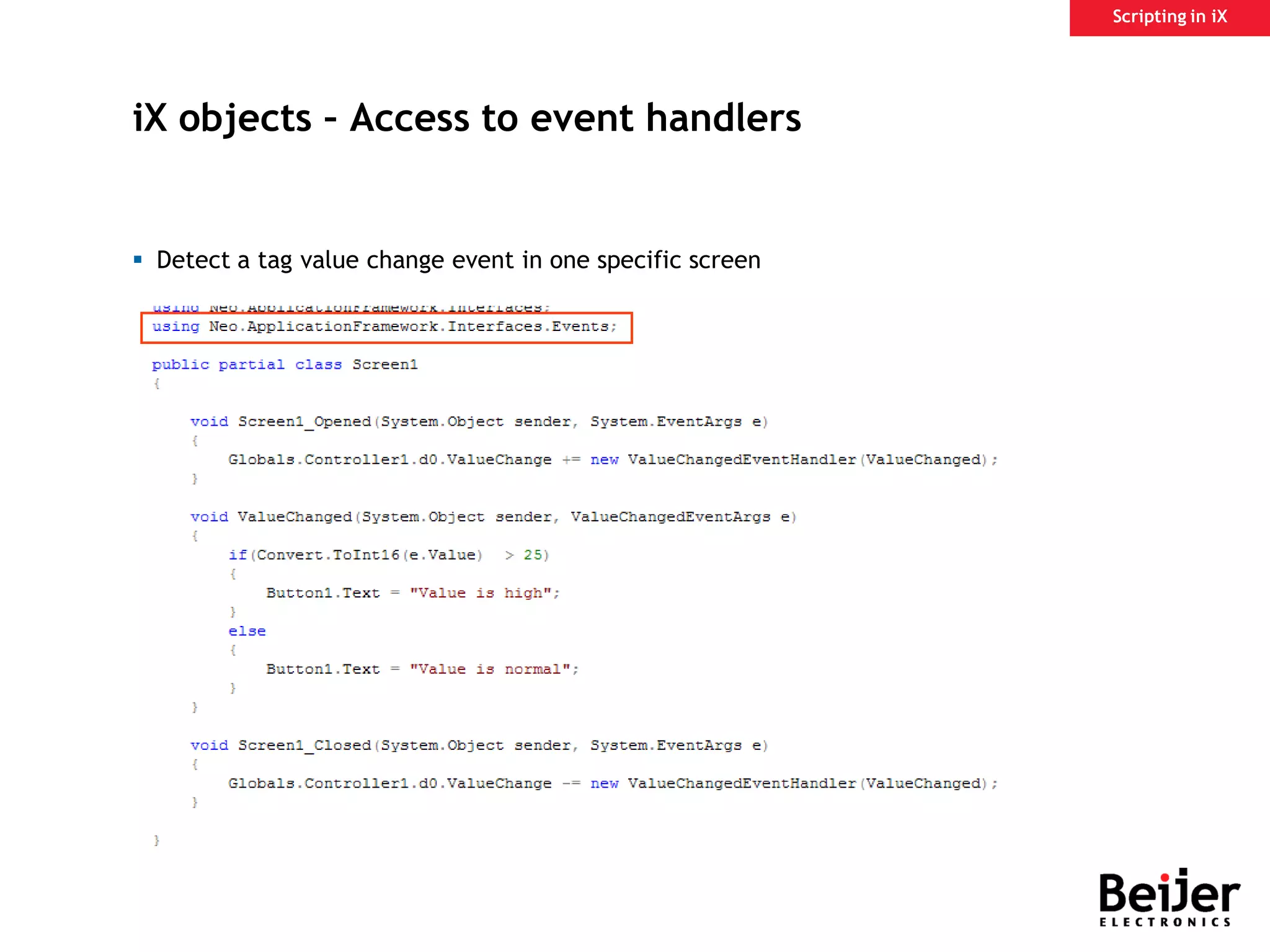

87. iX objects – Access to event handlers
Detect a tag value change event in one specific screen
Scripting in iX

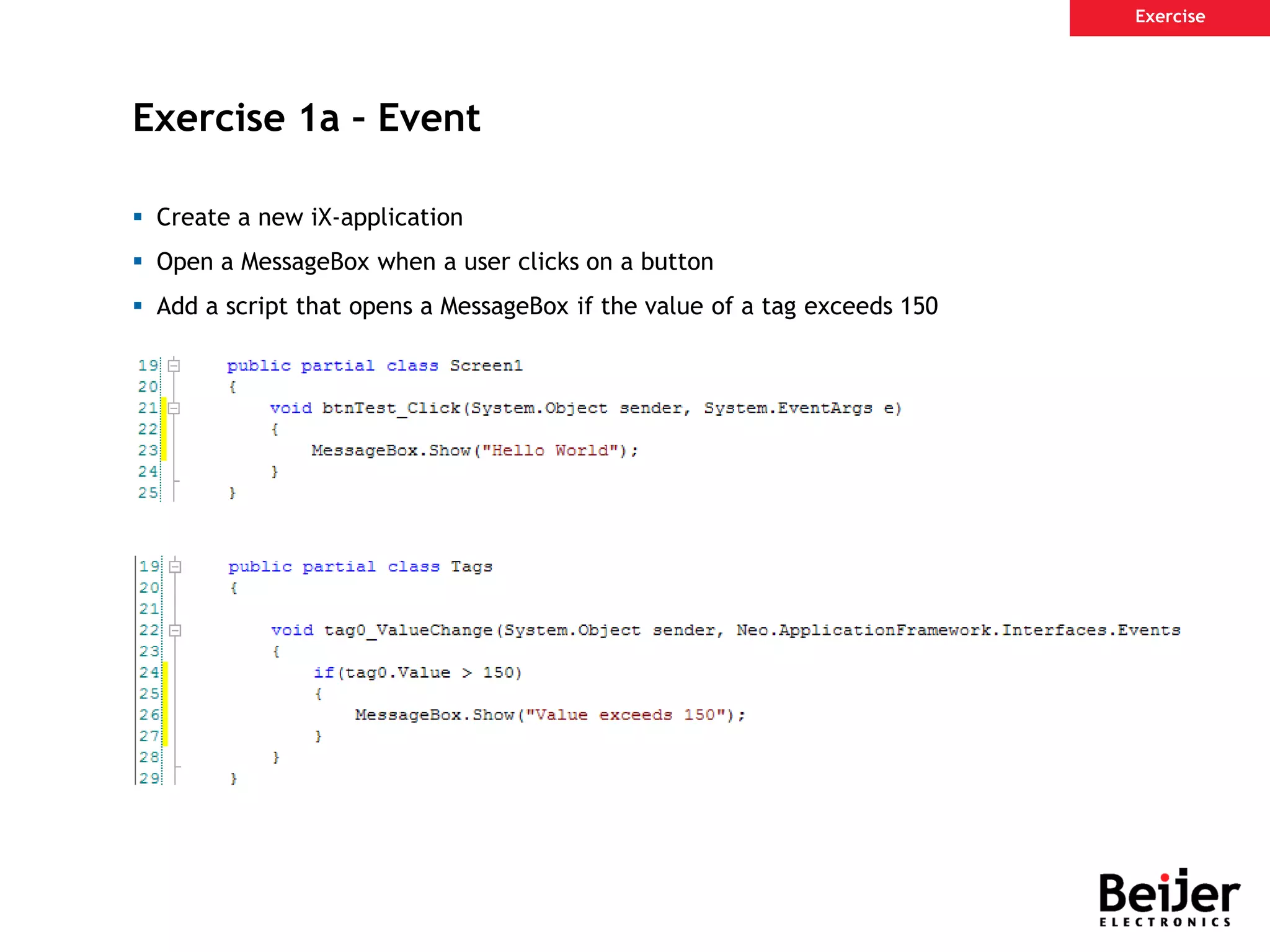

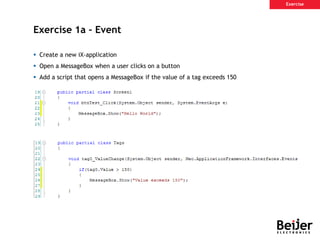

88. Exercise 1a – Event
Create a new iX-application
Open a MessageBox when a user clicks on a button
Add a script that opens a MessageBox if the value of a tag exceeds 150
Exercise

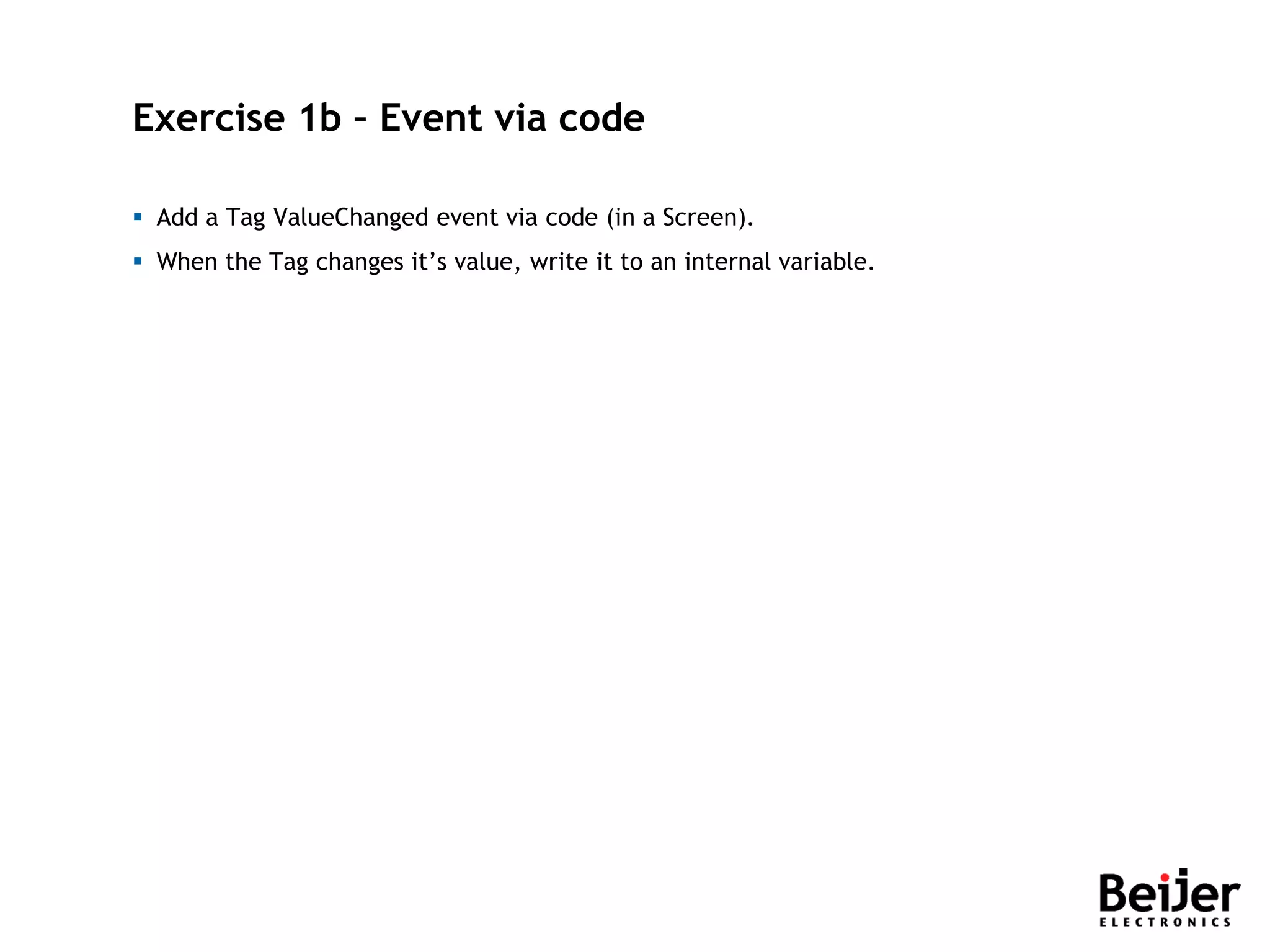

89. Exercise 1b – Event via code
Add a Tag ValueChanged event via code (in a Screen).
When the Tag changes it’s value, write it to an internal variable.
90. Script module
Script module
− Global Script
− Possible to execute from other scripts
− Possible to re-use scripts
− Easier to maintain
Script Module

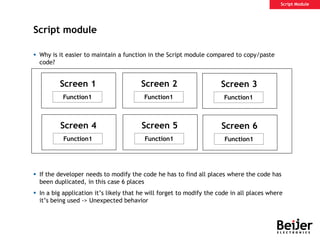

91. Script module
Why is it easier to maintain a function in the Script module compared to copy/paste
code?
If the developer needs to modify the code he has to find all places where the code has
been duplicated, in this case 6 places
In a big application it’s likely that he will forget to modify the code in all places where
it’s being used -> Unexpected behavior
Function1
Screen 1
Function1
Screen 2
Function1
Screen 3
Function1
Screen 4
Function1
Screen 5
Function1
Screen 6
Script Module

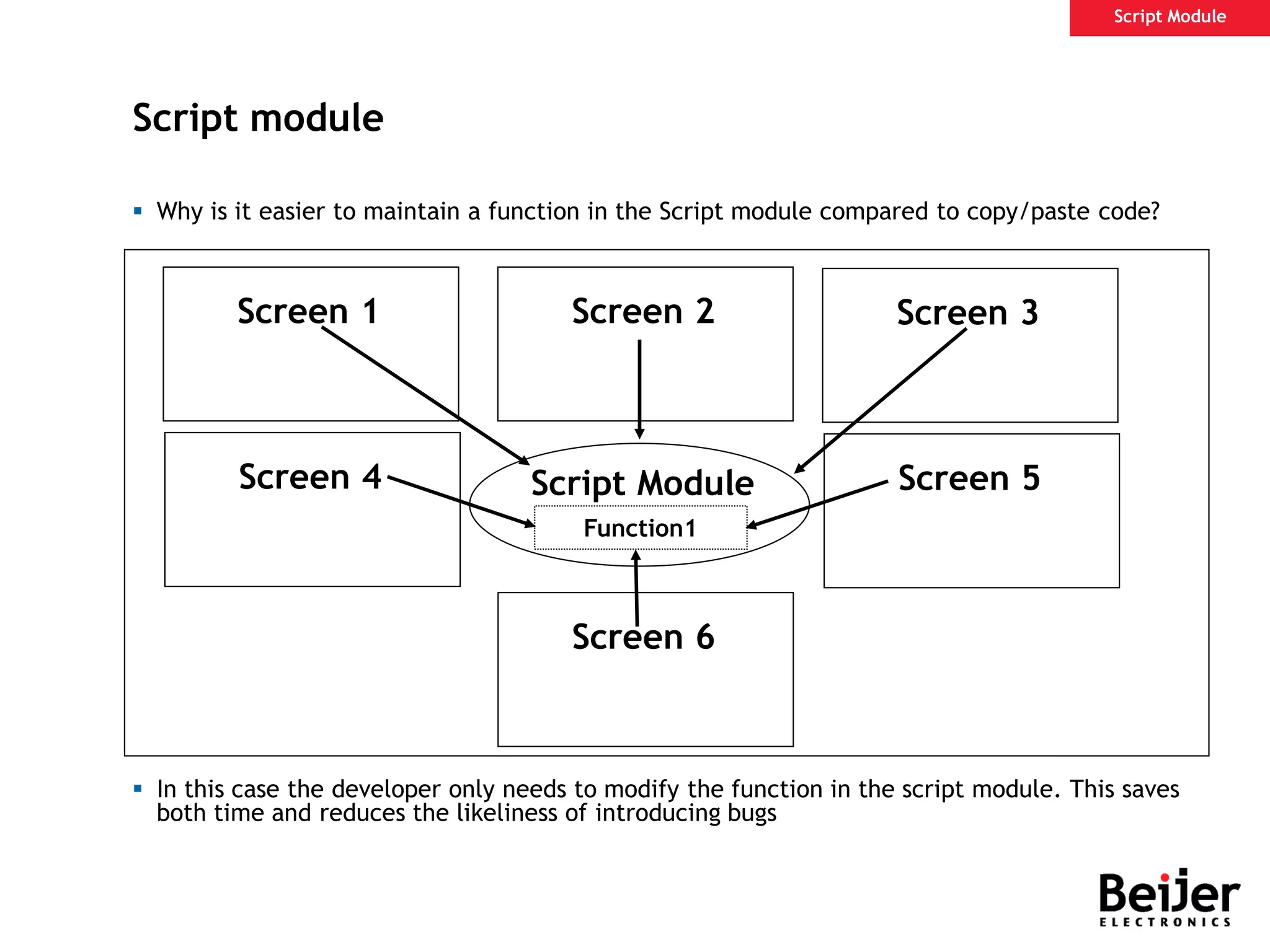

92. Script module
Why is it easier to maintain a function in the Script module compared to copy/paste code?
In this case the developer only needs to modify the function in the script module. This saves
both time and reduces the likeliness of introducing bugs
Screen 1 Screen 2 Screen 3
Screen 4
Screen 6
Screen 5
Function1
Script Module
Script Module

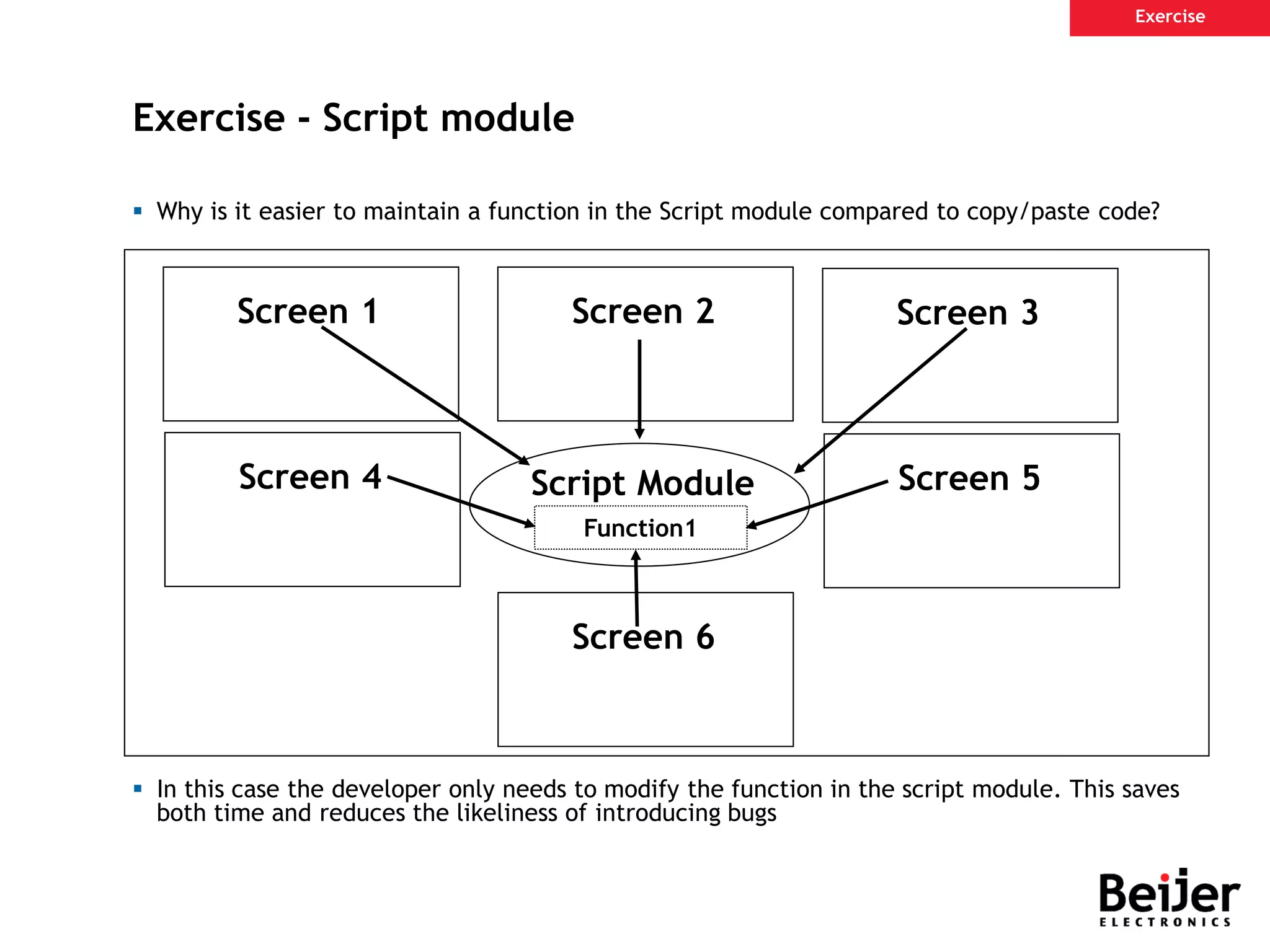

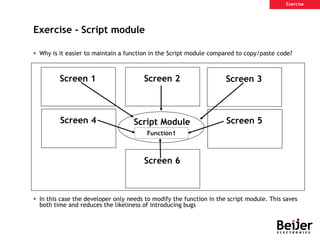

93. Exercise - Script module
Why is it easier to maintain a function in the Script module compared to copy/paste code?
In this case the developer only needs to modify the function in the script module. This saves
both time and reduces the likeliness of introducing bugs
Screen 1 Screen 2 Screen 3
Screen 4
Screen 6
Screen 5
Function1
Script Module
Exercise

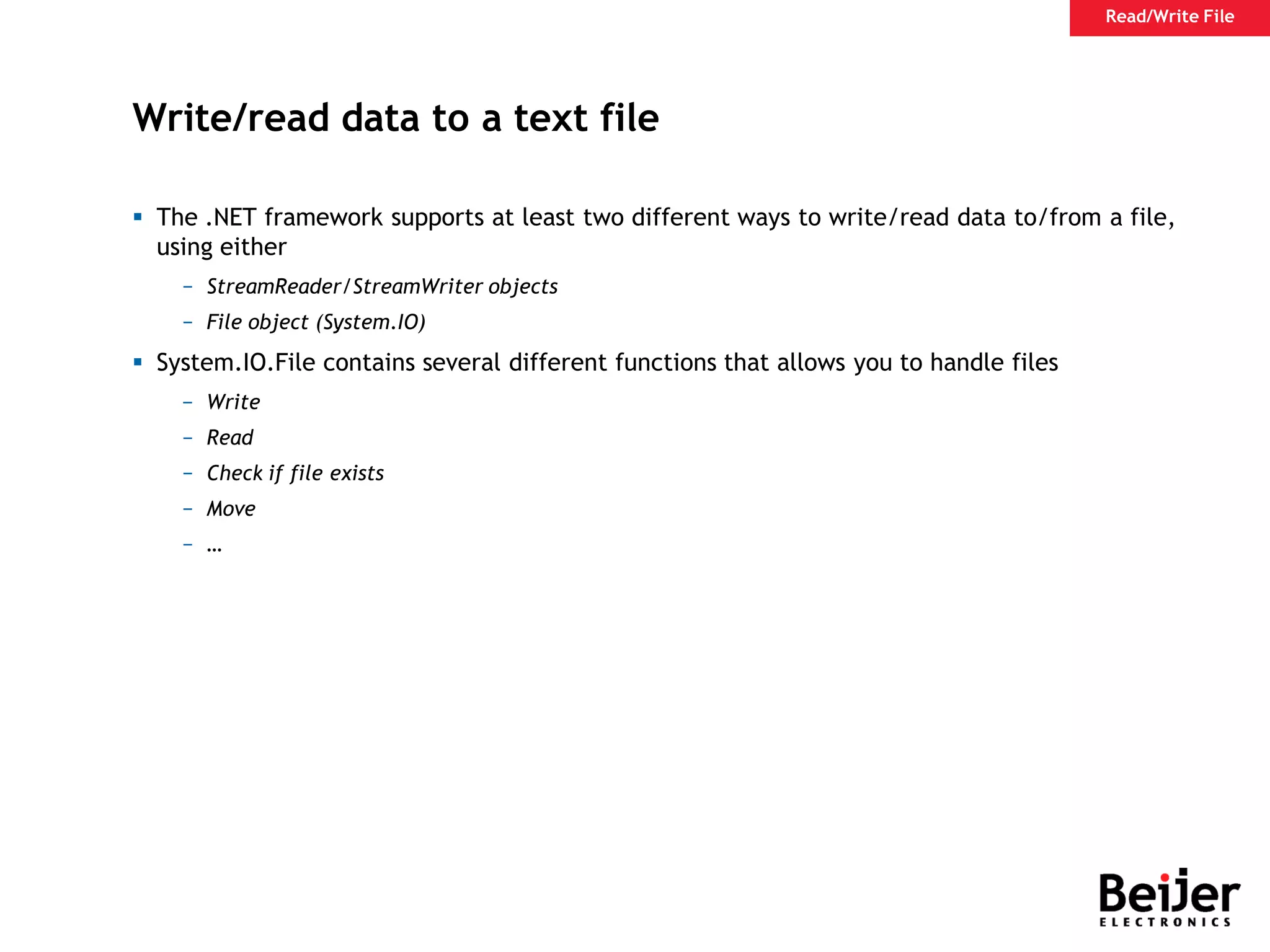

94. Write/read data to a text file
The .NET framework supports at least two different ways to write/read data to/from a file,
using either
− StreamReader/StreamWriter objects
− File object (System.IO)
System.IO.File contains several different functions that allows you to handle files
− Write
− Read
− Check if file exists
− Move
− …
Read/Write File
95. Write data to a text file - Example
Write to file – tell the function where the file should be stored and the text that should be
saved
Read/Write File
96. Read data from a text file - Example
Read from file – tell the function where the file is located
Make sure that the file exists before attempting to open it (File.Exists)
Read/Write File

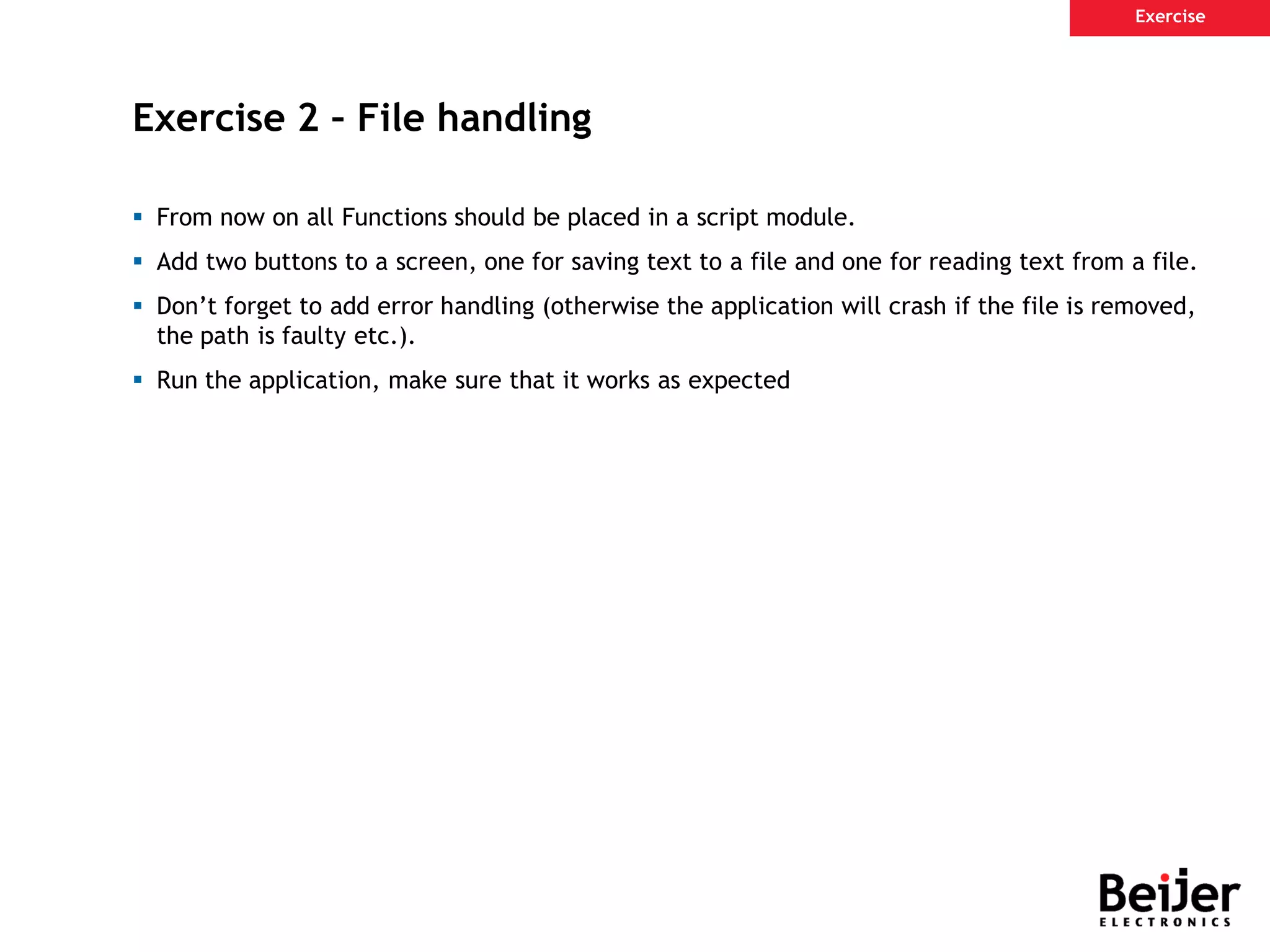

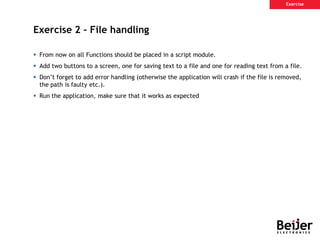

97. Exercise 2 – File handling
From now on all Functions should be placed in a script module.
Add two buttons to a screen, one for saving text to a file and one for reading text from a file.
Don’t forget to add error handling (otherwise the application will crash if the file is removed,
the path is faulty etc.).
Run the application, make sure that it works as expected
Exercise

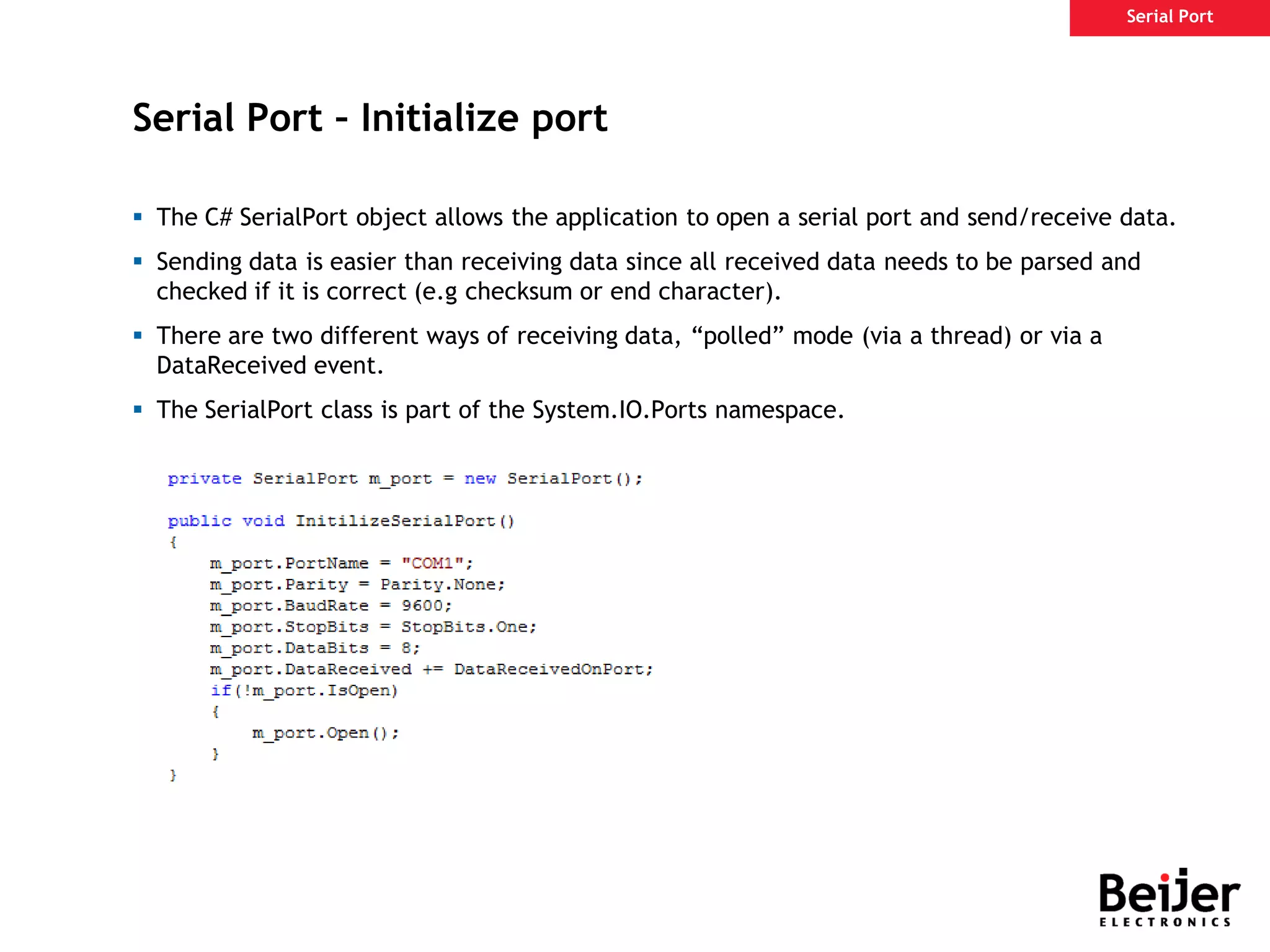

98. Serial Port – Initialize port
The C# SerialPort object allows the application to open a serial port and send/receive data.
Sending data is easier than receiving data since all received data needs to be parsed and
checked if it is correct (e.g checksum or end character).
There are two different ways of receiving data, “polled” mode (via a thread) or via a
DataReceived event.
The SerialPort class is part of the System.IO.Ports namespace.
Serial Port

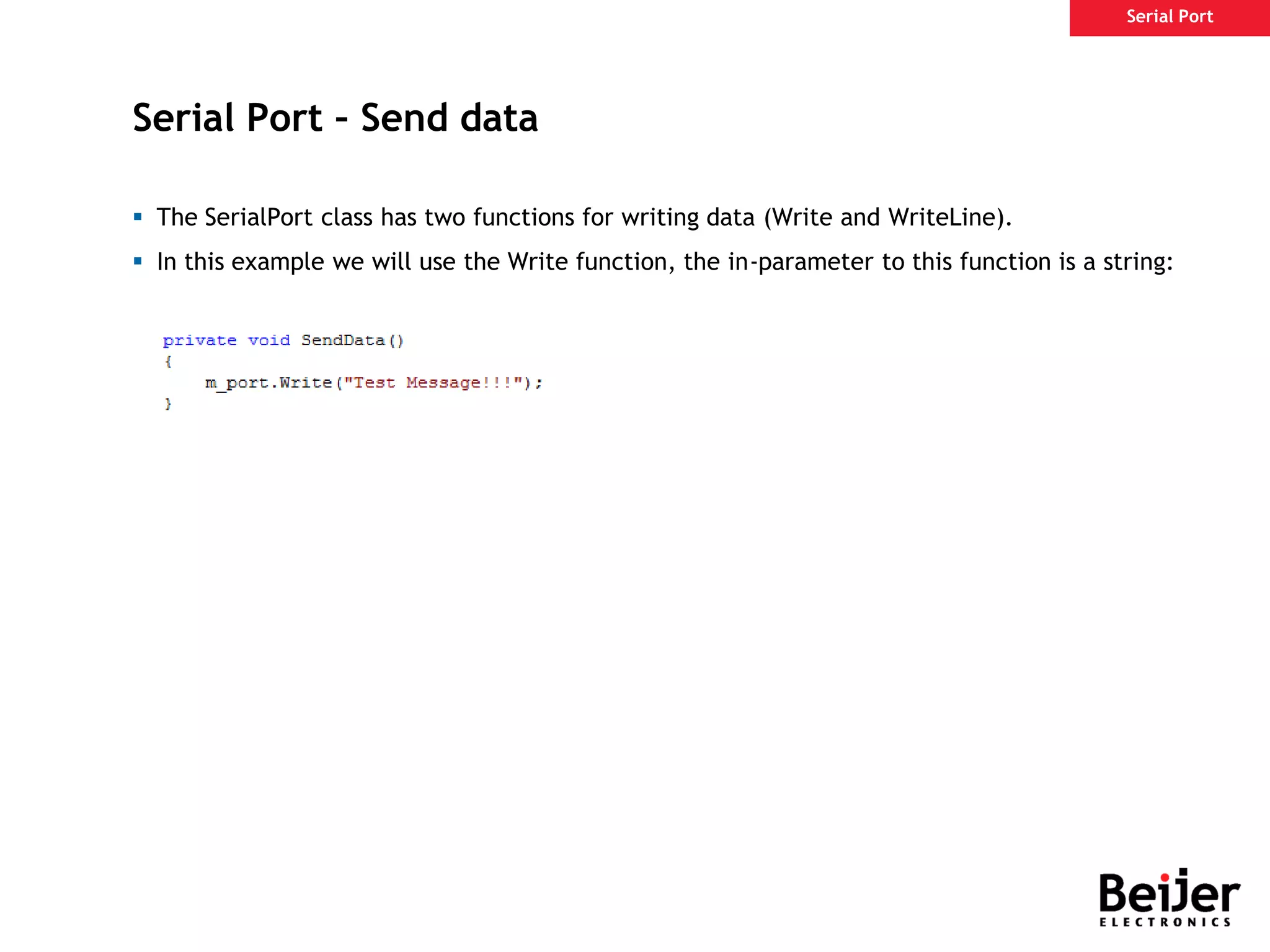

99. Serial Port – Send data
The SerialPort class has two functions for writing data (Write and WriteLine).
In this example we will use the Write function, the in-parameter to this function is a string:
Serial Port

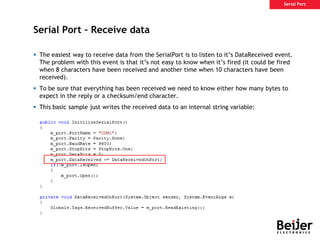

100. Serial Port – Receive data
The easiest way to receive data from the SerialPort is to listen to it’s DataReceived event.
The problem with this event is that it’s not easy to know when it’s fired (it could be fired
when 8 characters have been received and another time when 10 characters have been
received).
To be sure that everything has been received we need to know either how many bytes to
expect in the reply or a checksum/end character.
This basic sample just writes the received data to an internal string variable:
Serial Port

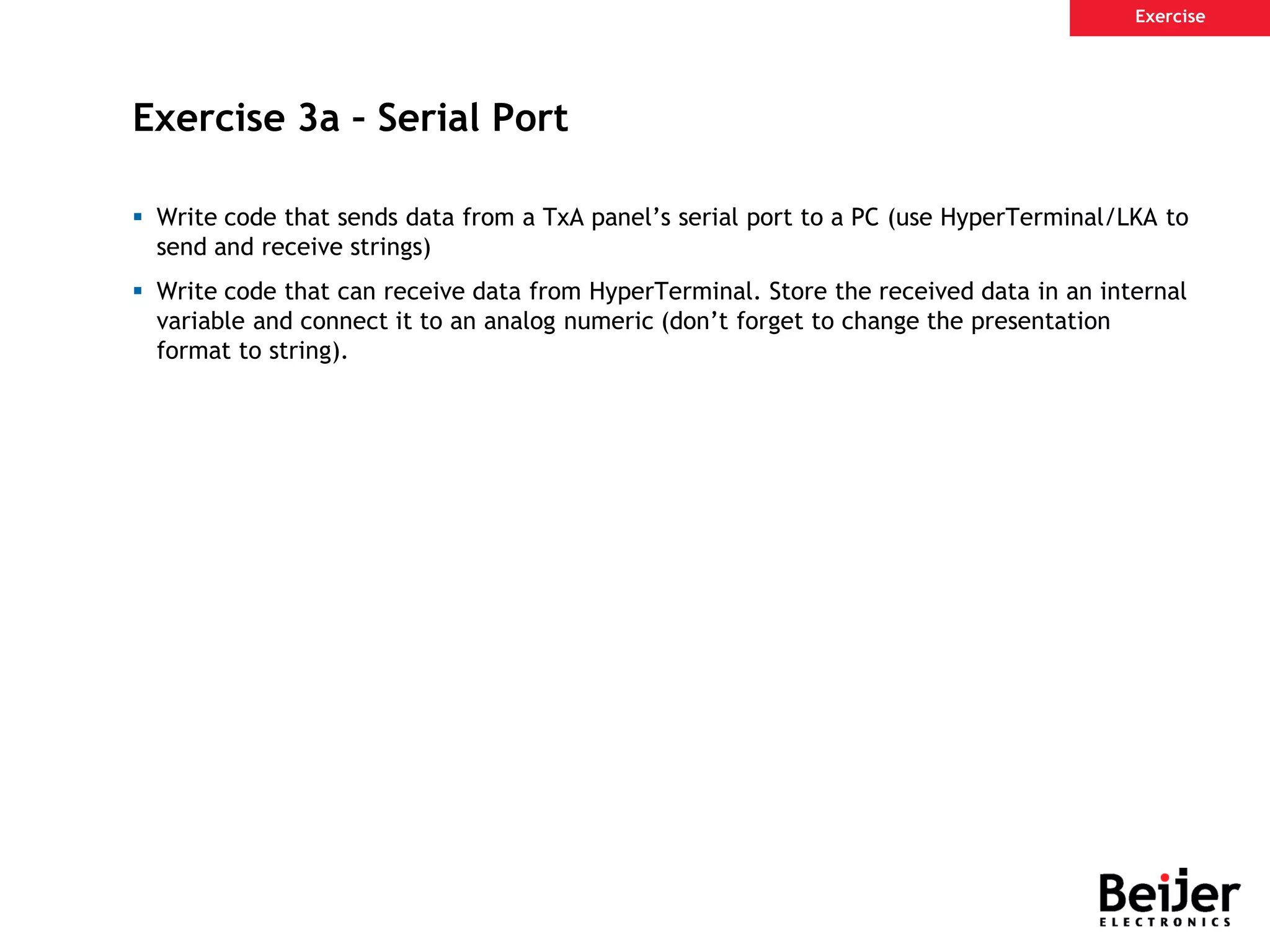

101. Write code that sends data from a TxA panel’s serial port to a PC (use HyperTerminal/LKA to
send and receive strings)
Write code that can receive data from HyperTerminal. Store the received data in an internal
variable and connect it to an analog numeric (don’t forget to change the presentation
format to string).
Exercise 3a – Serial Port
Exercise

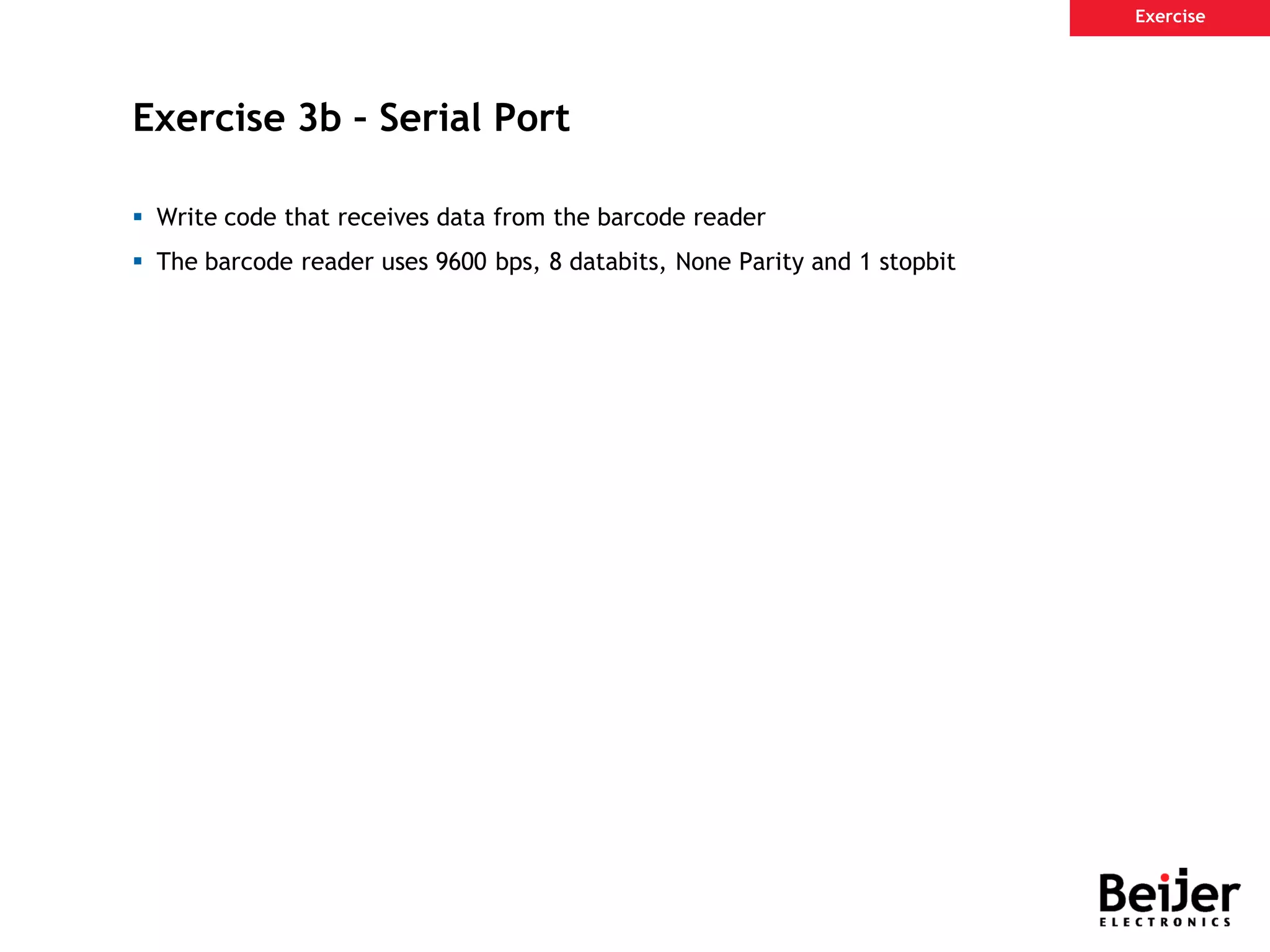

102. Write code that receives data from the barcode reader
The barcode reader uses 9600 bps, 8 databits, None Parity and 1 stopbit
Exercise 3b – Serial Port
Exercise

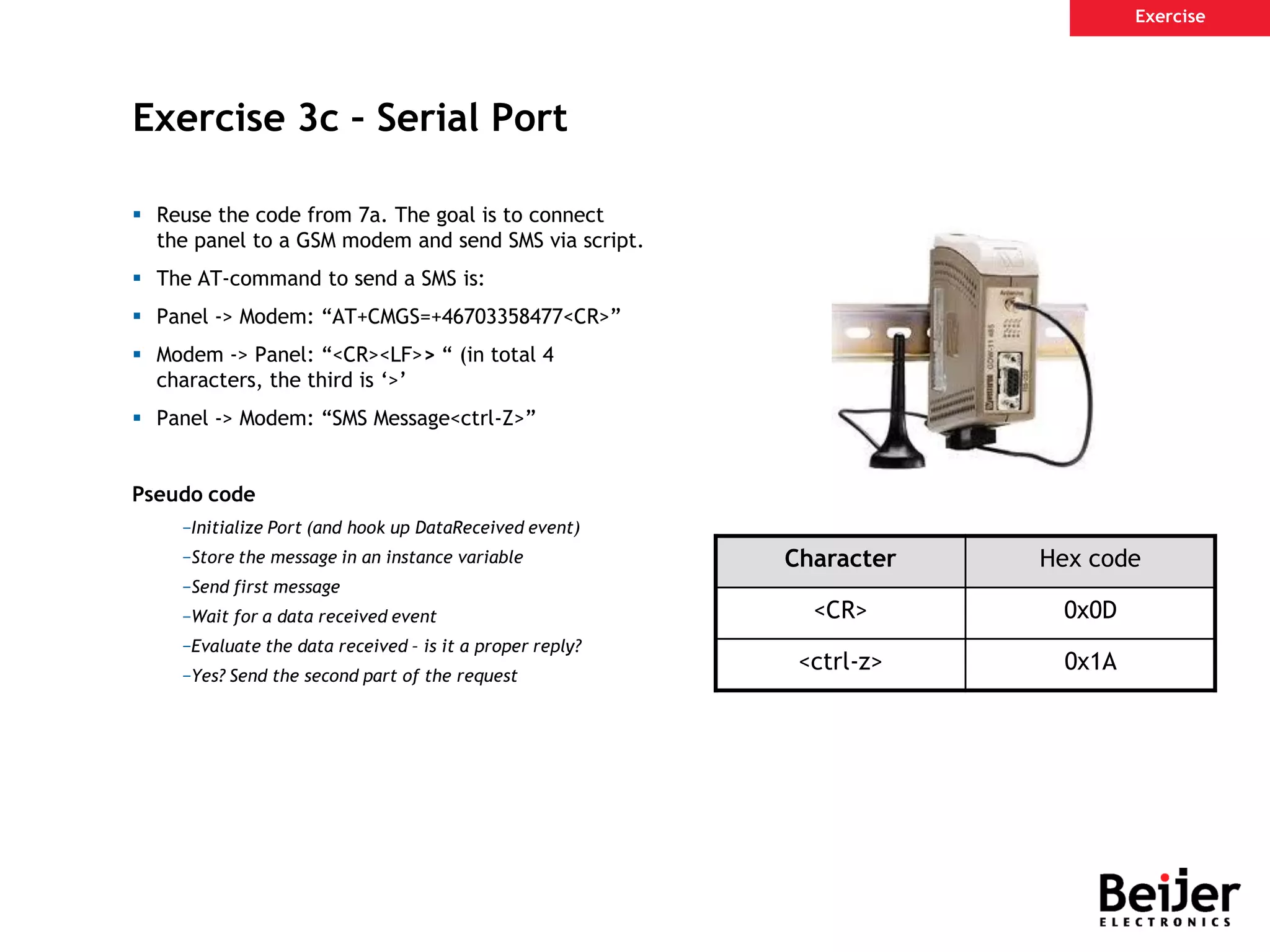

103. Exercise 3c – Serial Port
Reuse the code from 7a. The goal is to connect
the panel to a GSM modem and send SMS via script.
The AT-command to send a SMS is:
Panel -> Modem: “AT+CMGS=+46703358477<CR>”
Modem -> Panel: “<CR><LF>> “ (in total 4
characters, the third is ‘>’
Panel -> Modem: “SMS Message<ctrl-Z>”
Pseudo code
−Initialize Port (and hook up DataReceived event)
−Store the message in an instance variable
−Send first message
−Wait for a data received event
−Evaluate the data received – is it a proper reply?
−Yes? Send the second part of the request
Character Hex code
<CR> 0x0D
<ctrl-z> 0x1A
Exercise

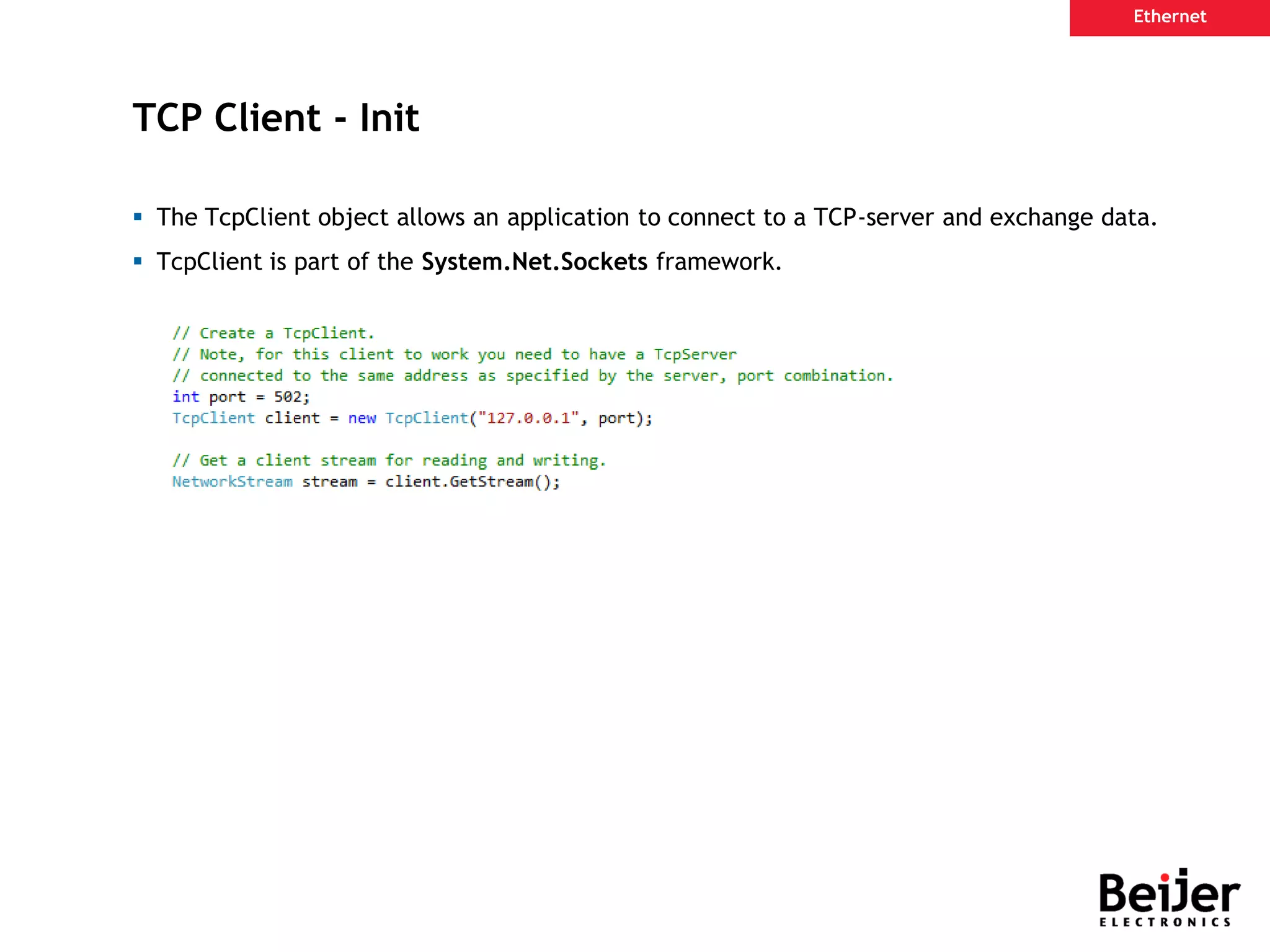

104. TCP Client - Init
The TcpClient object allows an application to connect to a TCP-server and exchange data.
TcpClient is part of the System.Net.Sockets framework.
Ethernet
105. TCP Client – Send data
Data can be sent to the server by using the Write function.
In this example a byte array is populated with a valid Modbus request and then sent to the
Modbus TCP-server
Ethernet

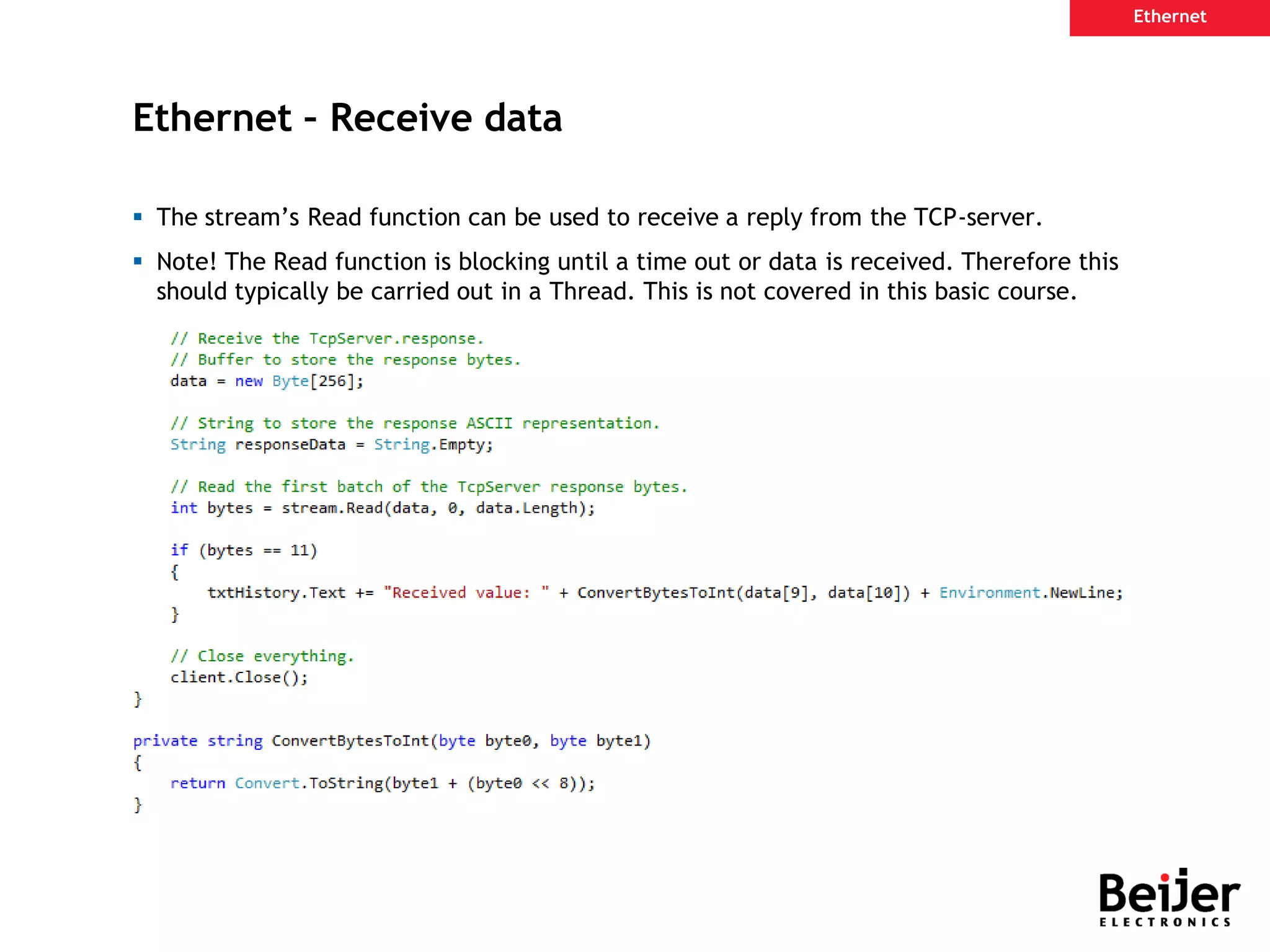

106. Ethernet – Receive data
The stream’s Read function can be used to receive a reply from the TCP-server.
Note! The Read function is blocking until a time out or data is received. Therefore this
should typically be carried out in a Thread. This is not covered in this basic course.
Ethernet

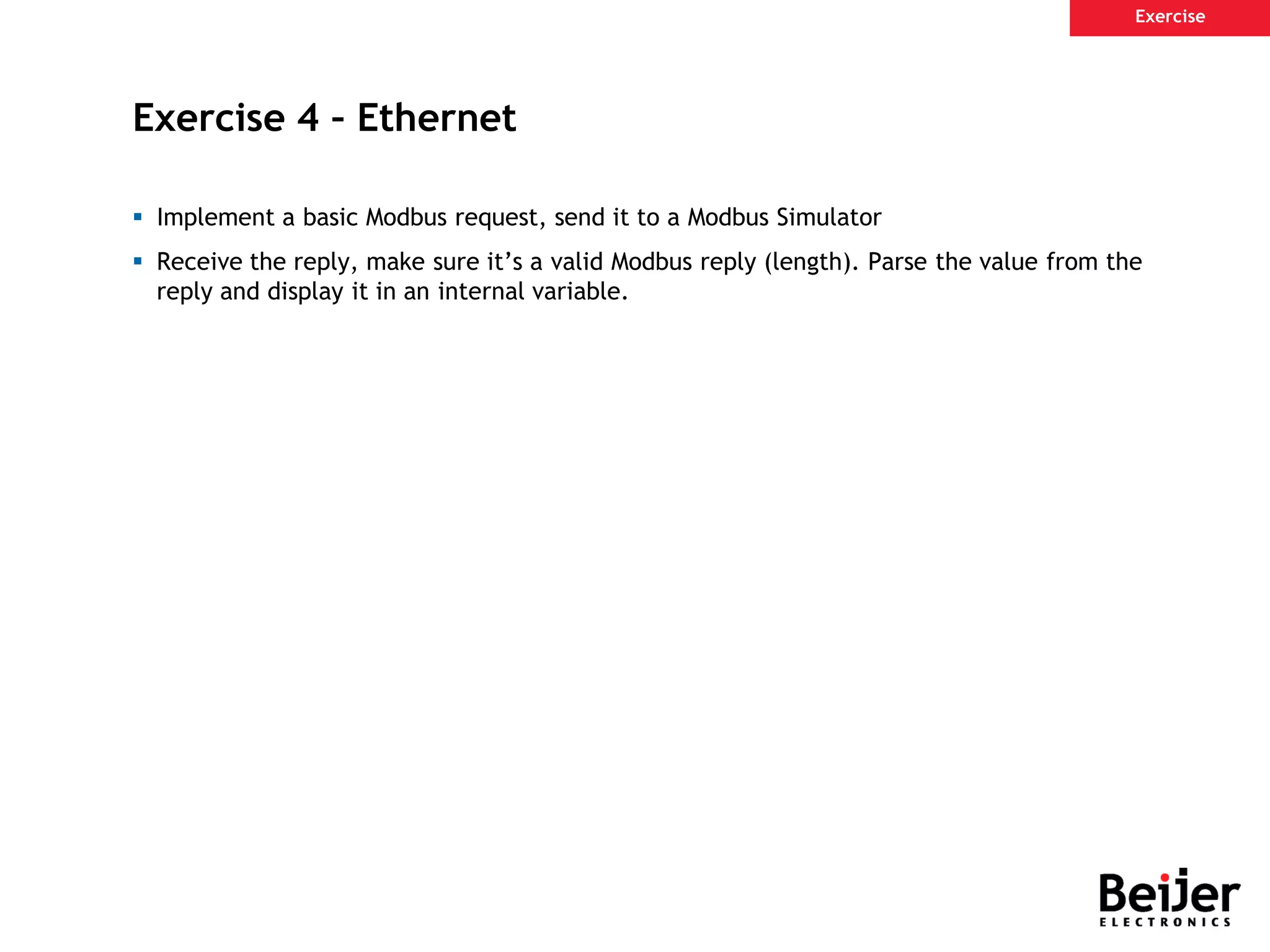

107. Implement a basic Modbus request, send it to a Modbus Simulator
Receive the reply, make sure it’s a valid Modbus reply (length). Parse the value from the
reply and display it in an internal variable.
Exercise 4 – Ethernet
Exercise

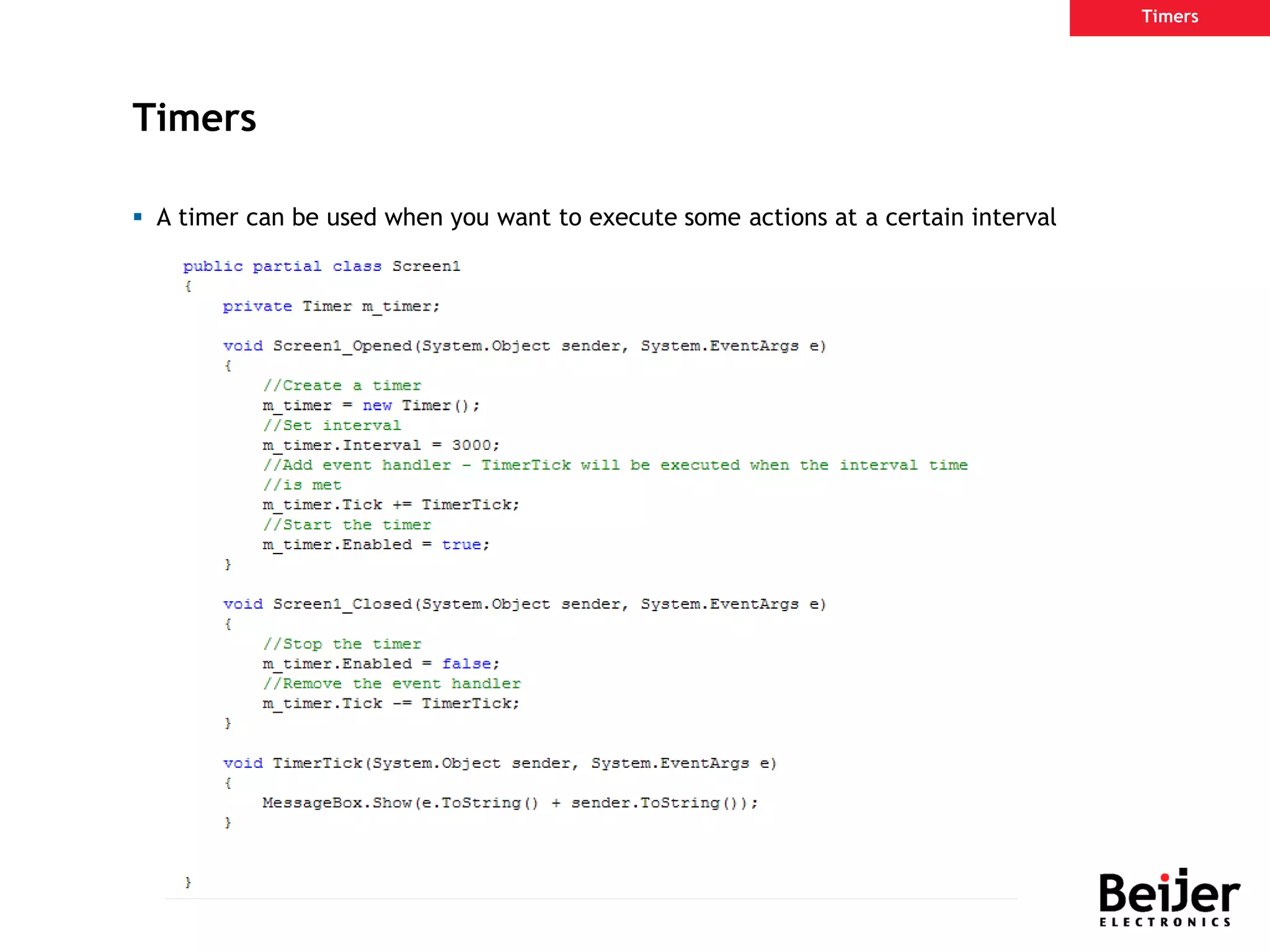

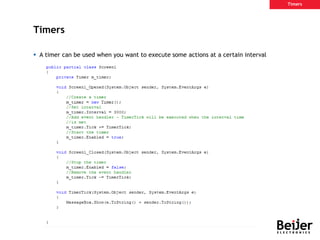

108. A timer can be used when you want to execute some actions at a certain interval
Timers
Timers

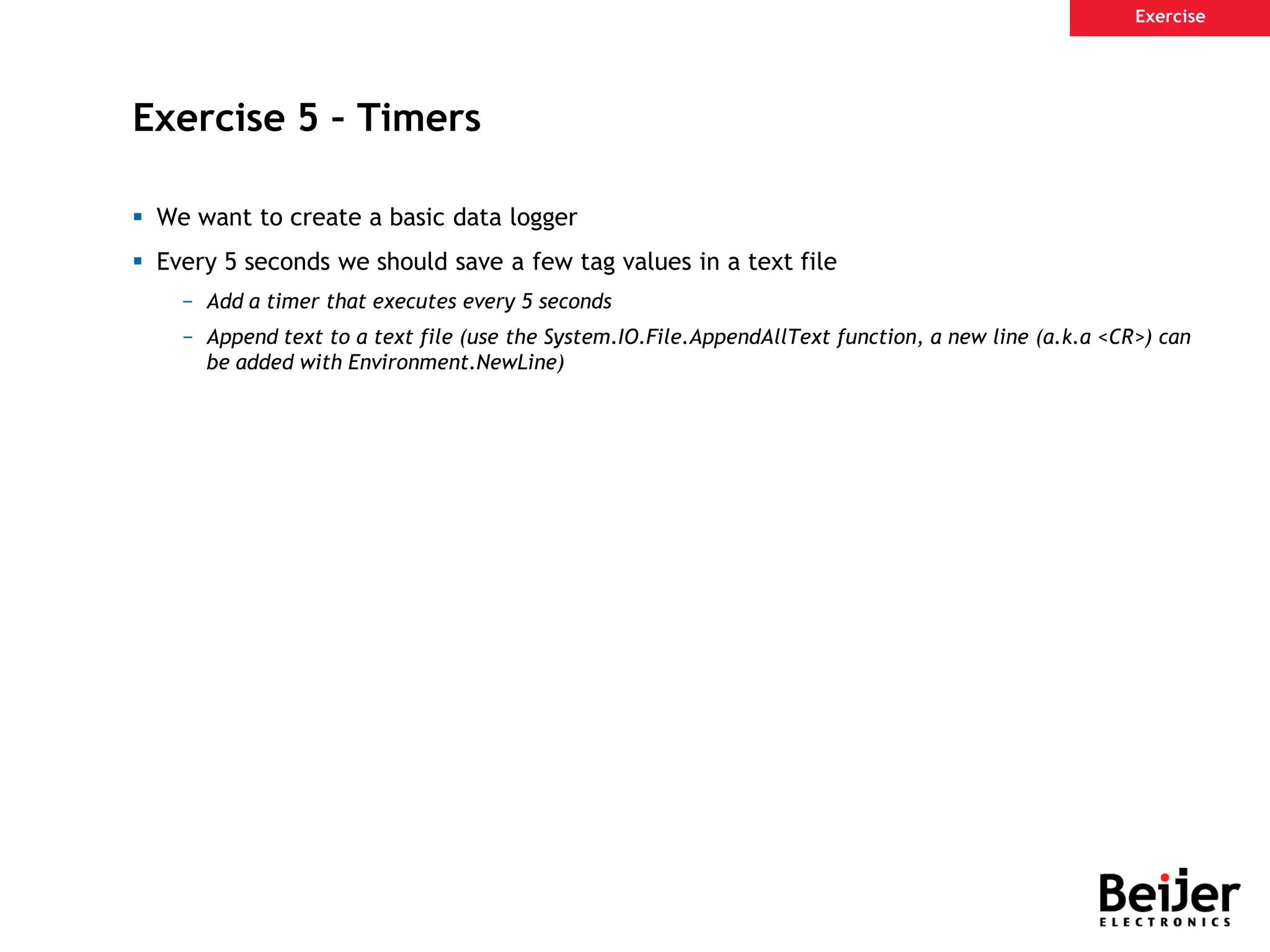

109. We want to create a basic data logger
Every 5 seconds we should save a few tag values in a text file
− Add a timer that executes every 5 seconds
− Append text to a text file (use the System.IO.File.AppendAllText function, a new line (a.k.a <CR>) can
be added with Environment.NewLine)
Exercise 5 – Timers
Exercise

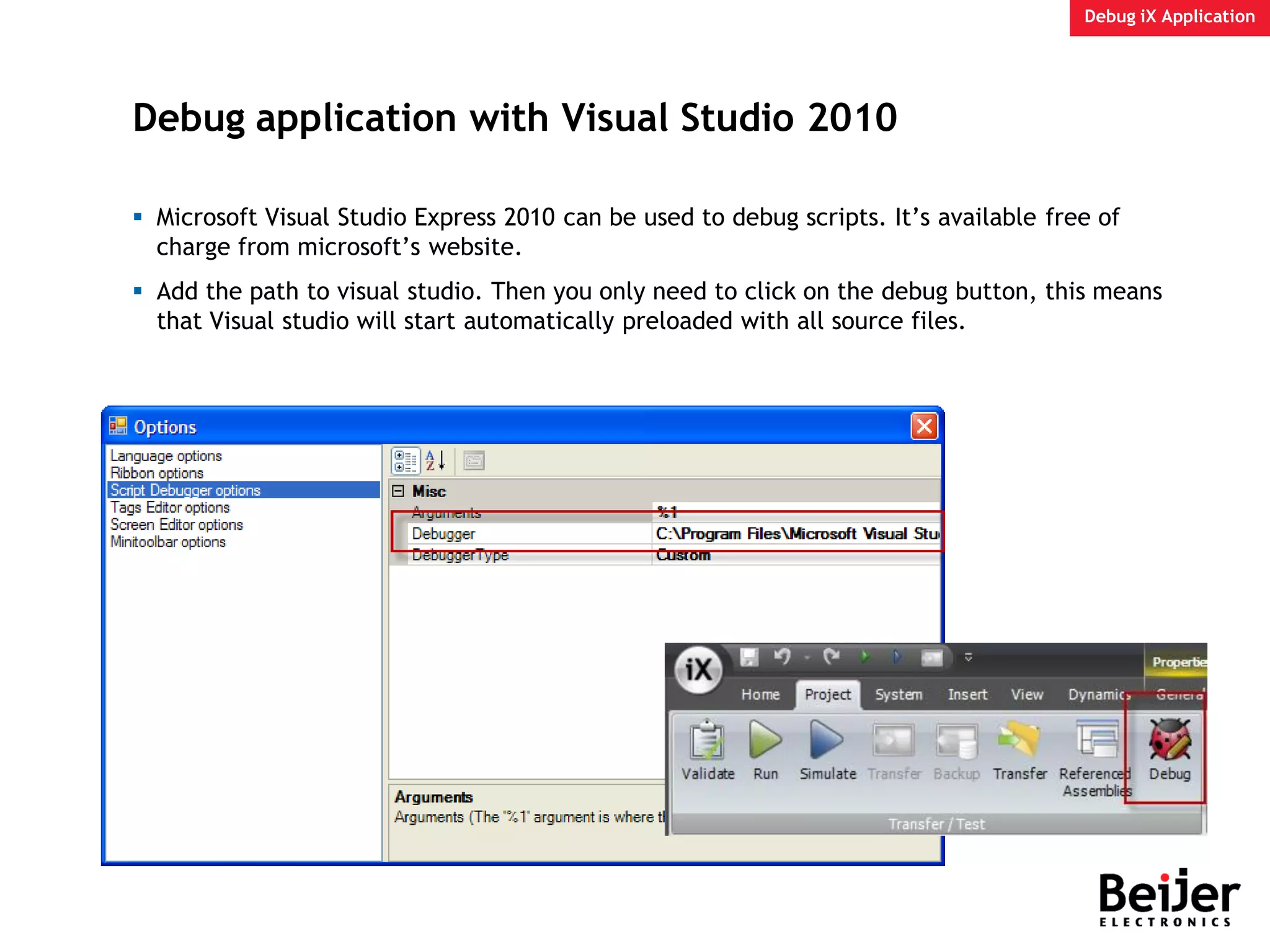

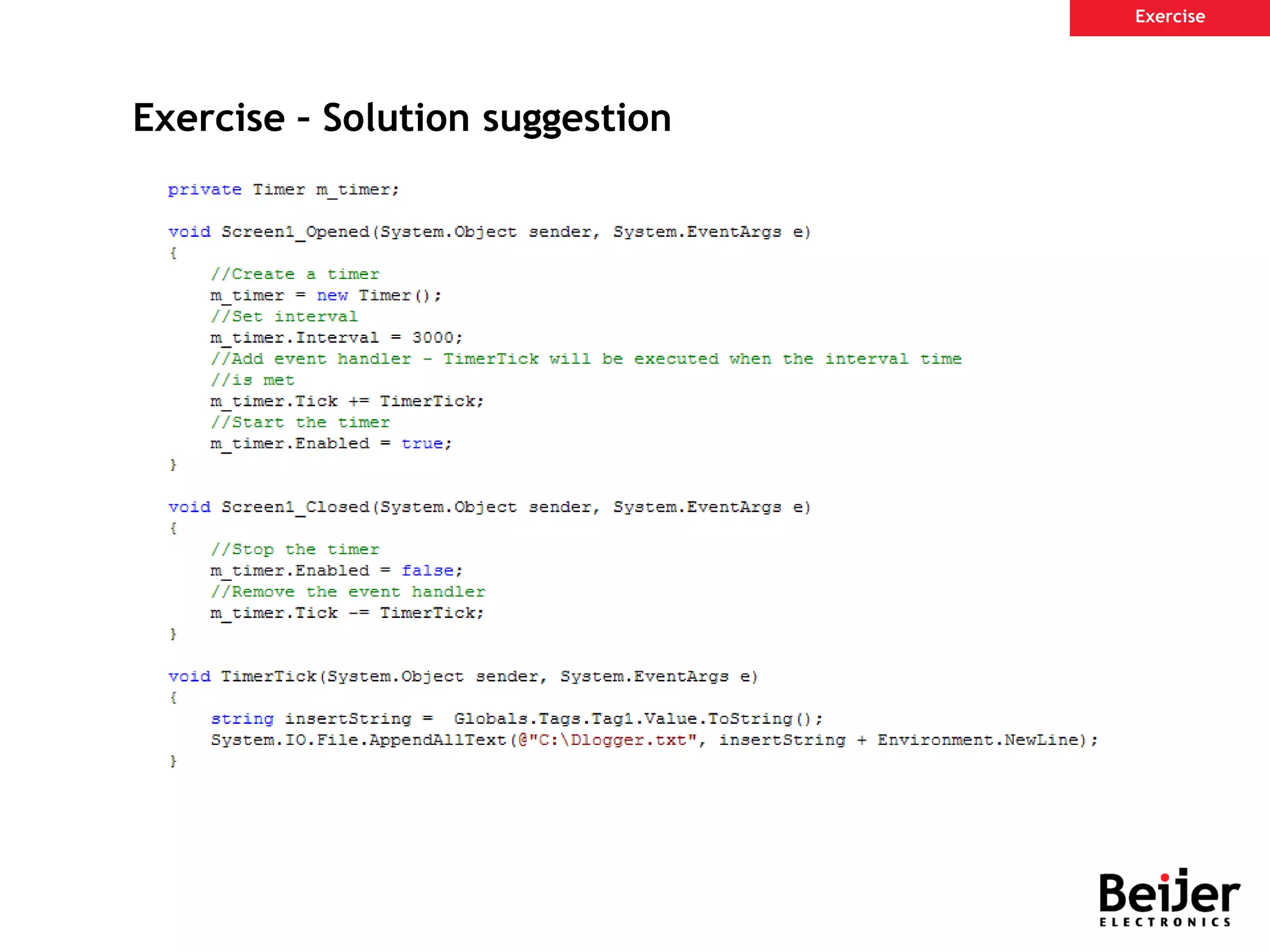

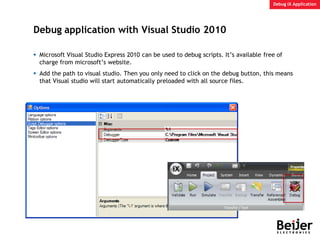

111. Debug application with Visual Studio 2010
Microsoft Visual Studio Express 2010 can be used to debug scripts. It’s available free of
charge from microsoft’s website.
Add the path to visual studio. Then you only need to click on the debug button, this means
that Visual studio will start automatically preloaded with all source files.
Debug iX Application
112. Referenced Assemblies
Sometimes a customer might want to use a .NET class library in his/her application. A class
library is compiled to a dll.
In iX Developer it’s possible to add referenced assemblies via the Project Tab.
Referenced Assembly

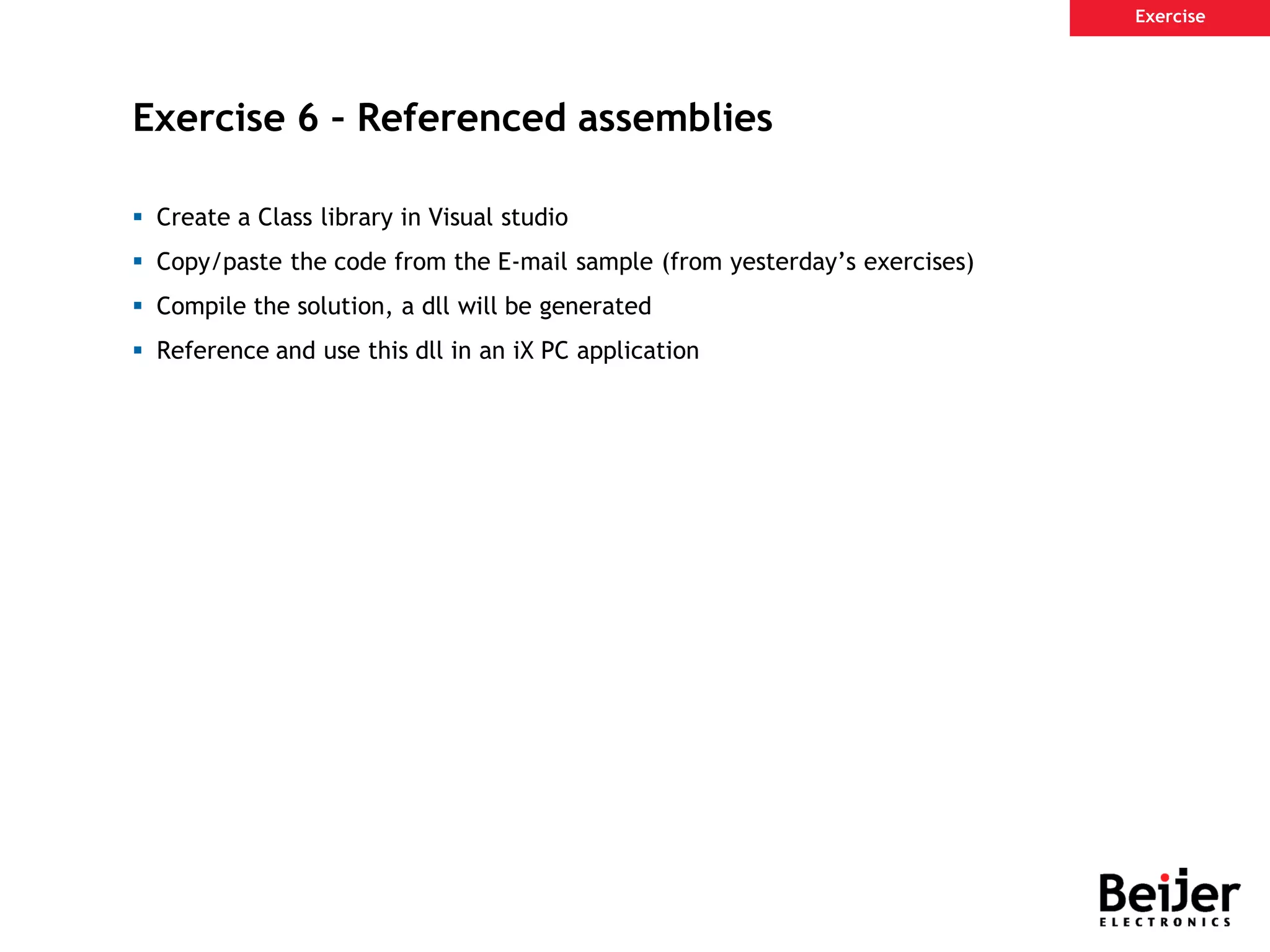

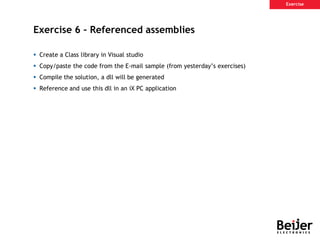

113. Create a Class library in Visual studio
Copy/paste the code from the E-mail sample (from yesterday’s exercises)
Compile the solution, a dll will be generated
Reference and use this dll in an iX PC application
Exercise 6 – Referenced assemblies
Exercise

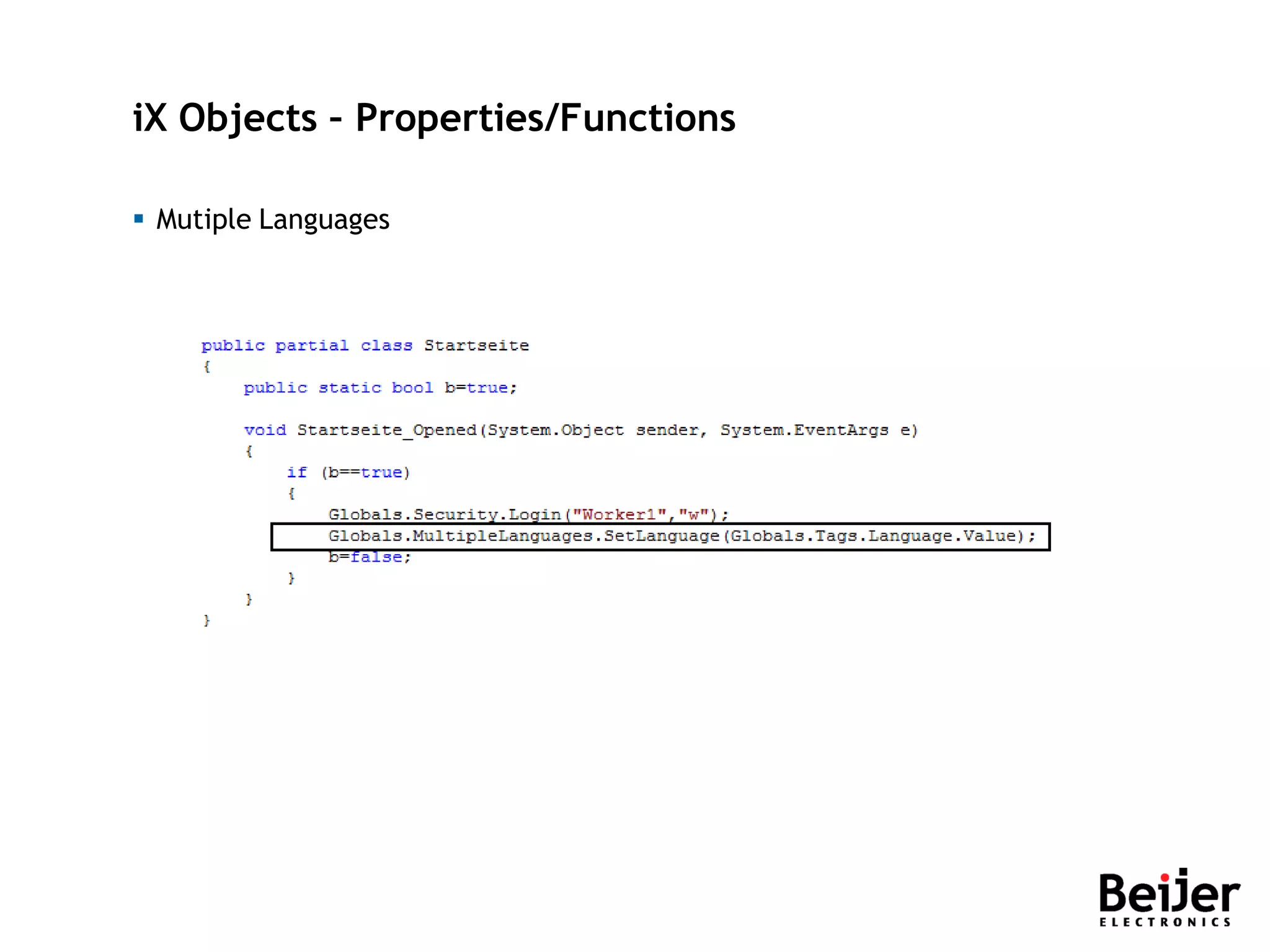

115. iX Objects – Properties/Functions
Mutiple Languages
116. iX Objects – Properties/Functions
Line object
117. iX Objects – Properties/Functions
Rectangle object

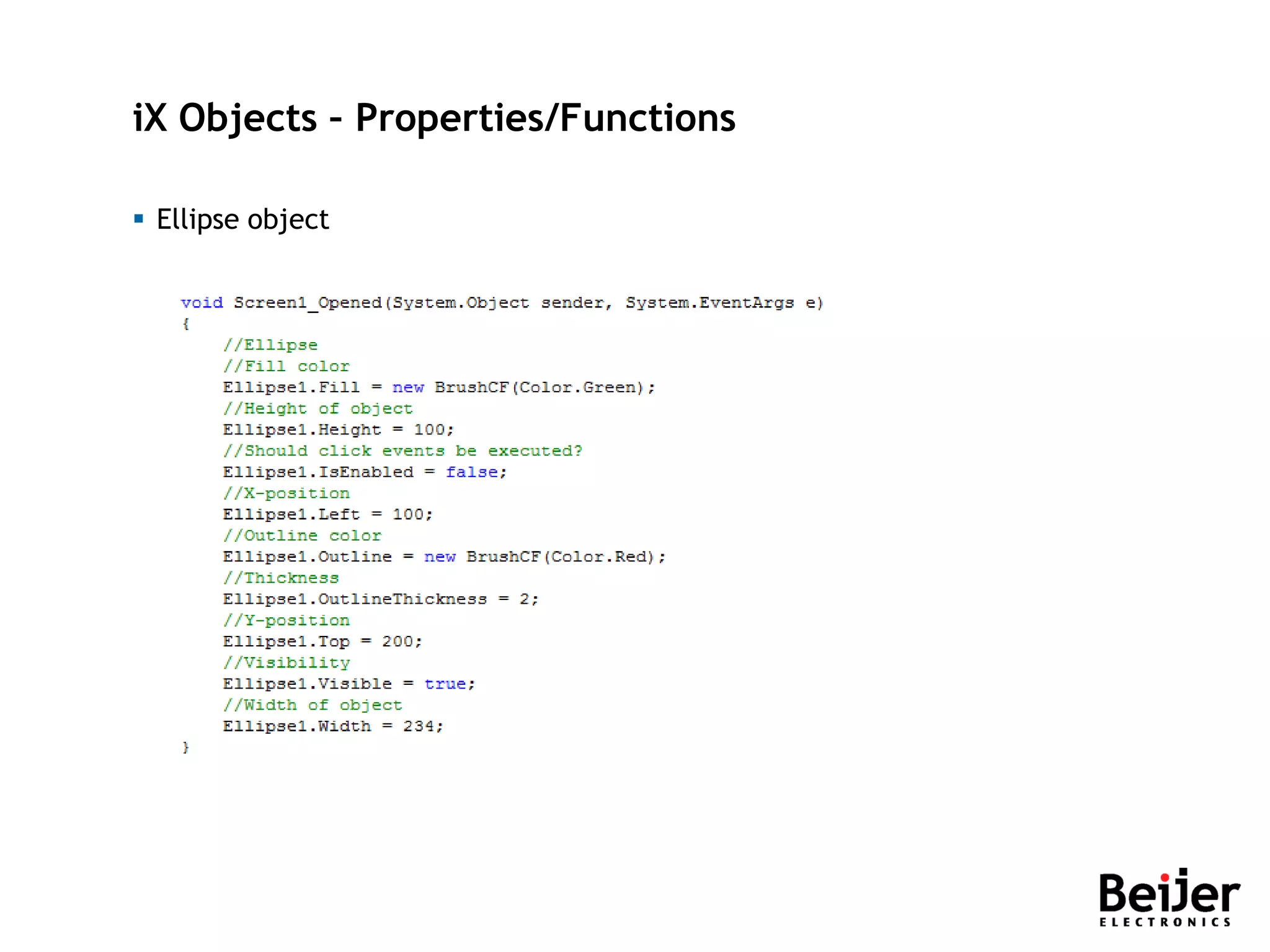

118. iX Objects – Properties/Functions
Ellipse object
119. iX Objects – Properties/Functions

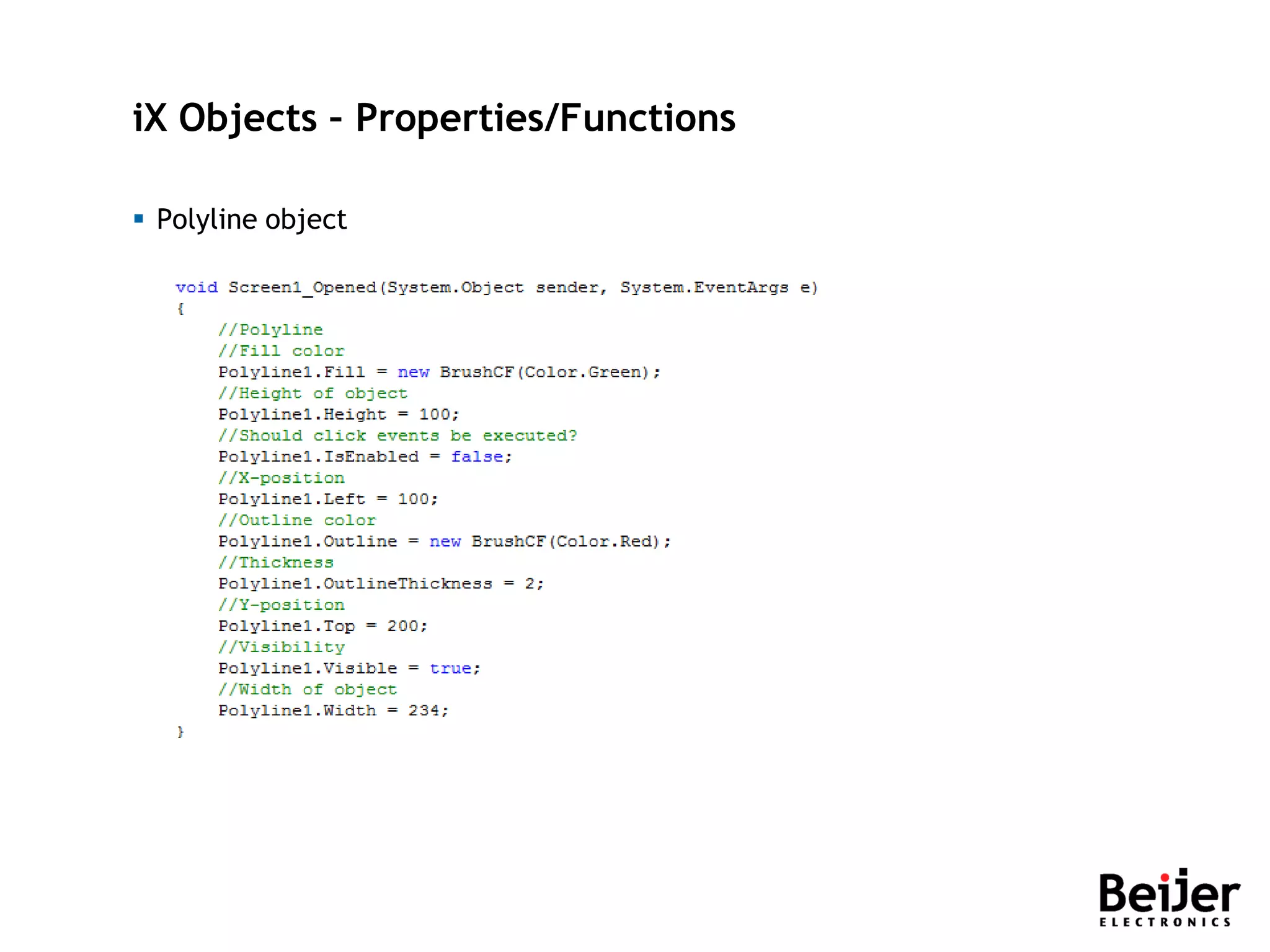

Polyline object

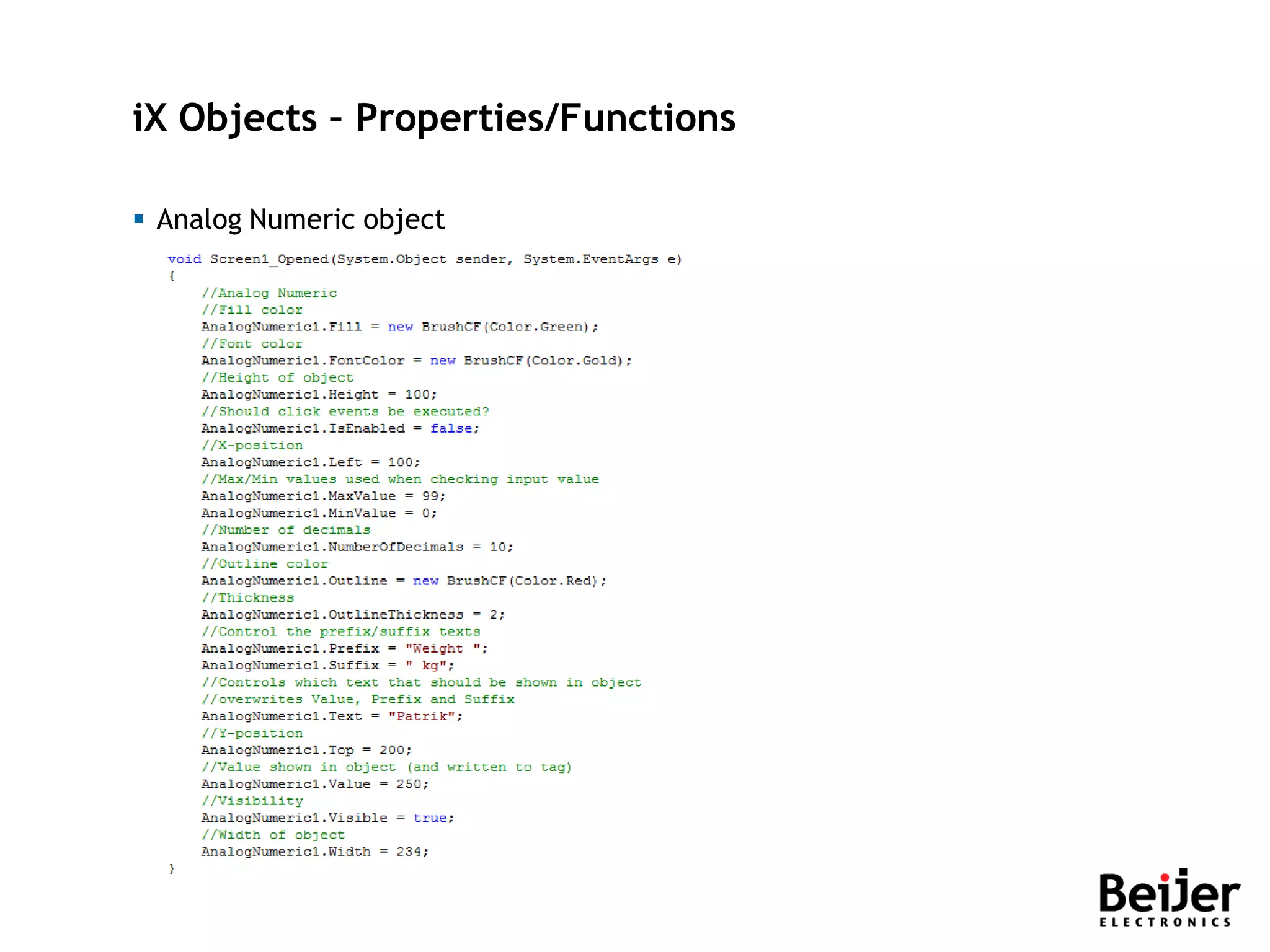

120. iX Objects – Properties/Functions
Analog Numeric object

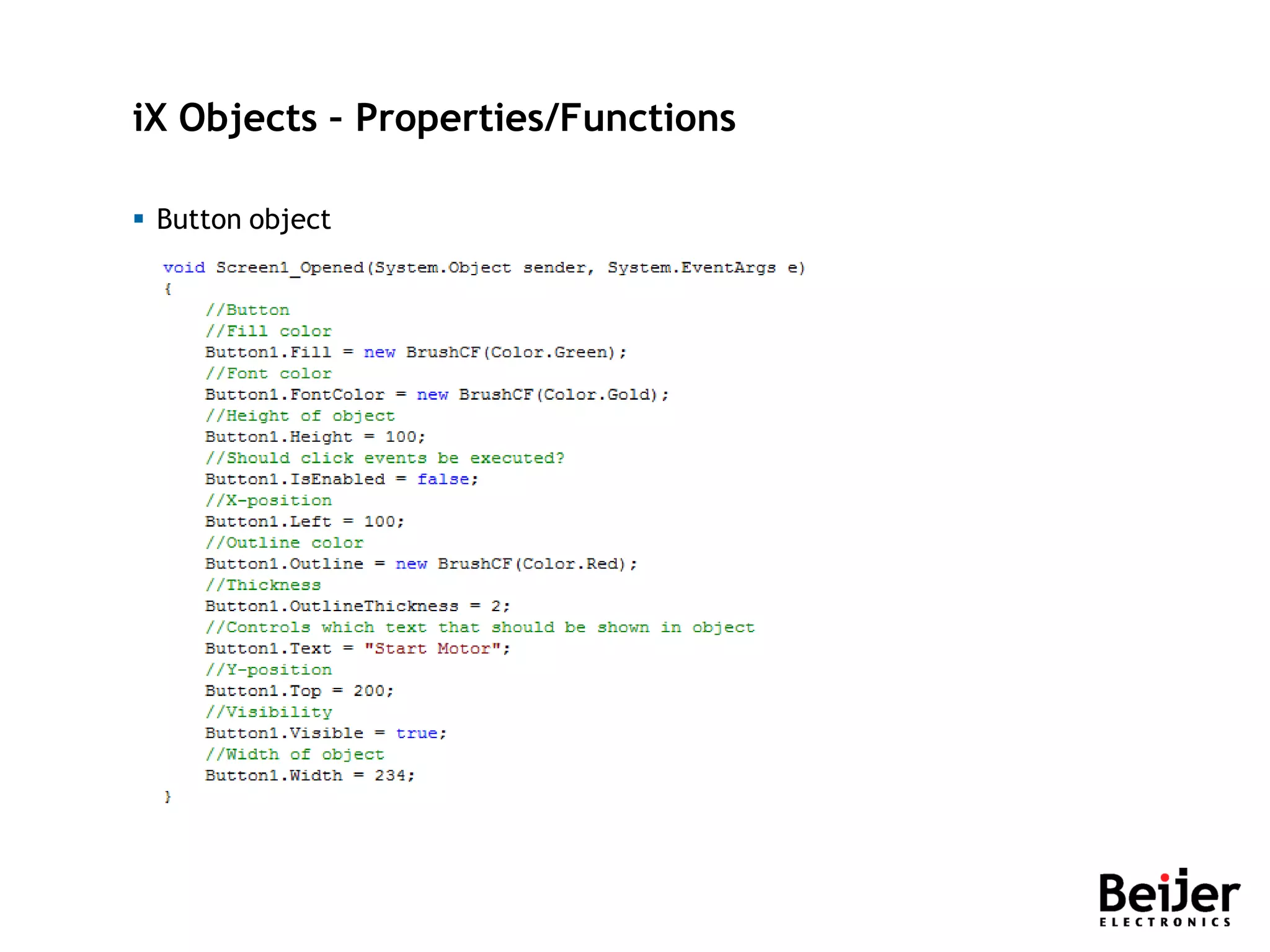

121. iX Objects – Properties/Functions
Button object

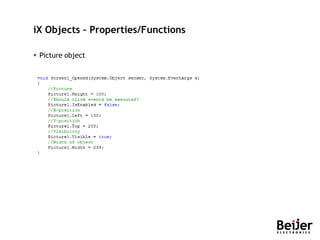

122. iX Objects – Properties/Functions
Picture object

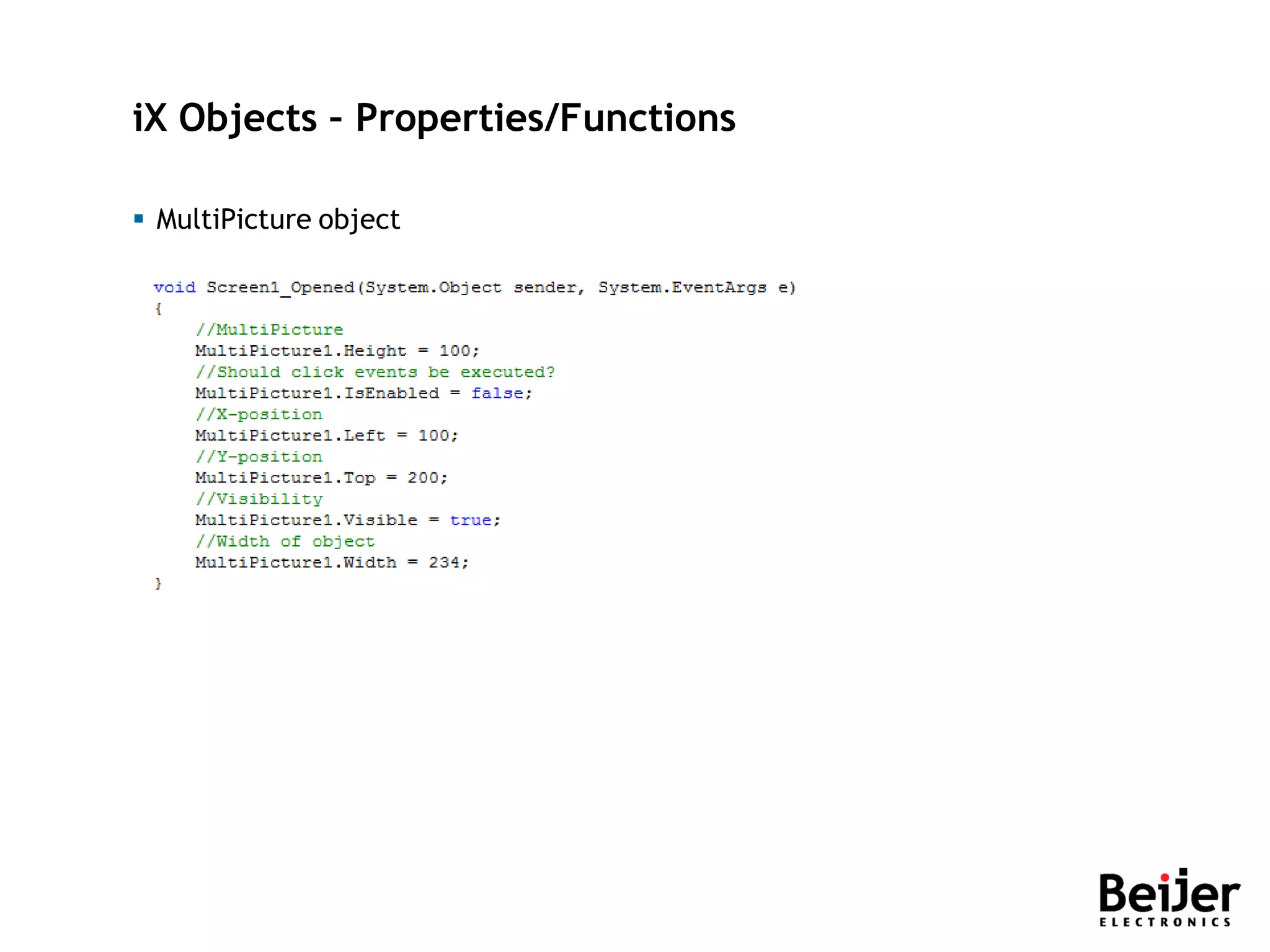

123. iX Objects – Properties/Functions
MultiPicture object

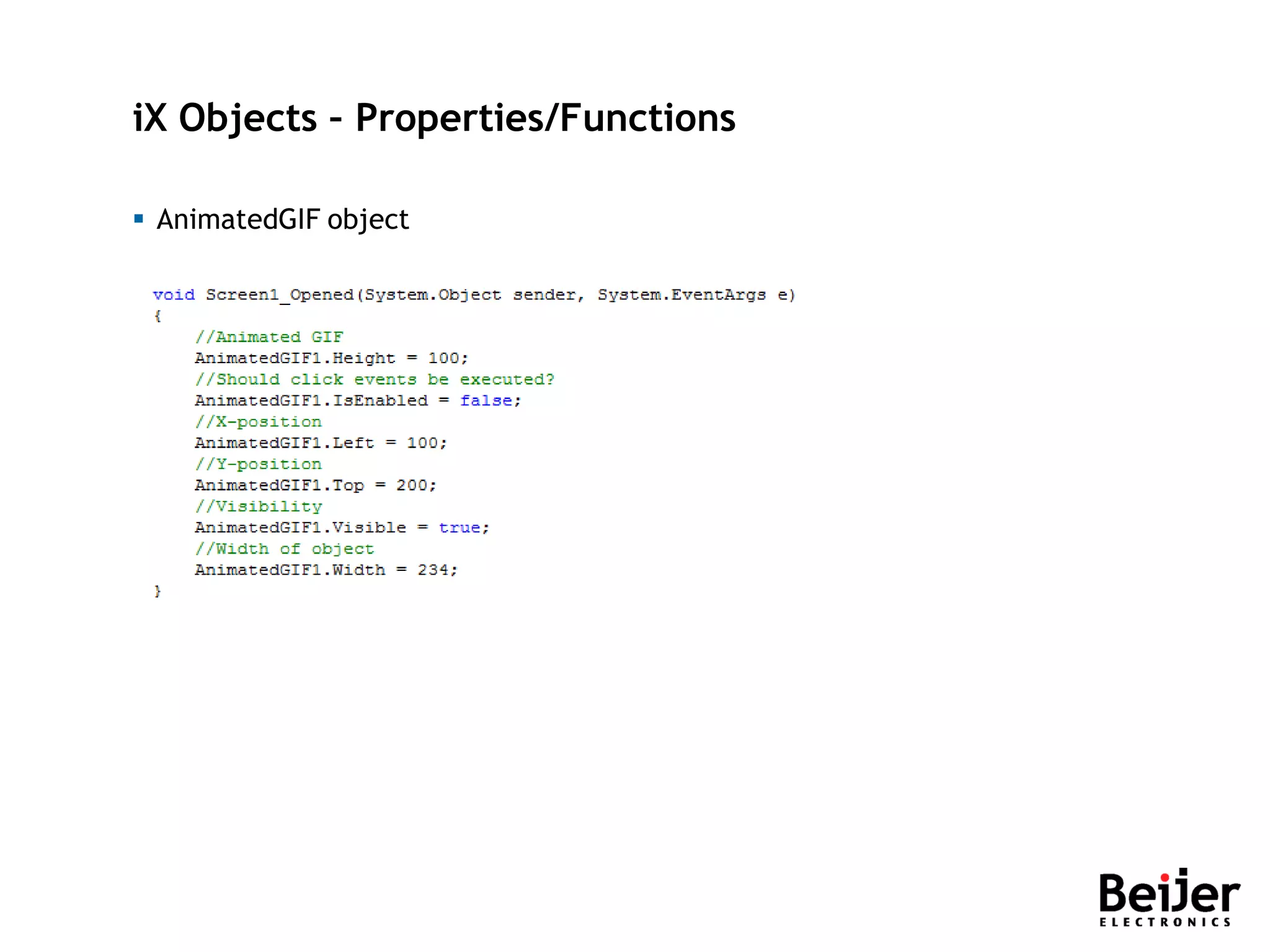

124. iX Objects – Properties/Functions
AnimatedGIF object

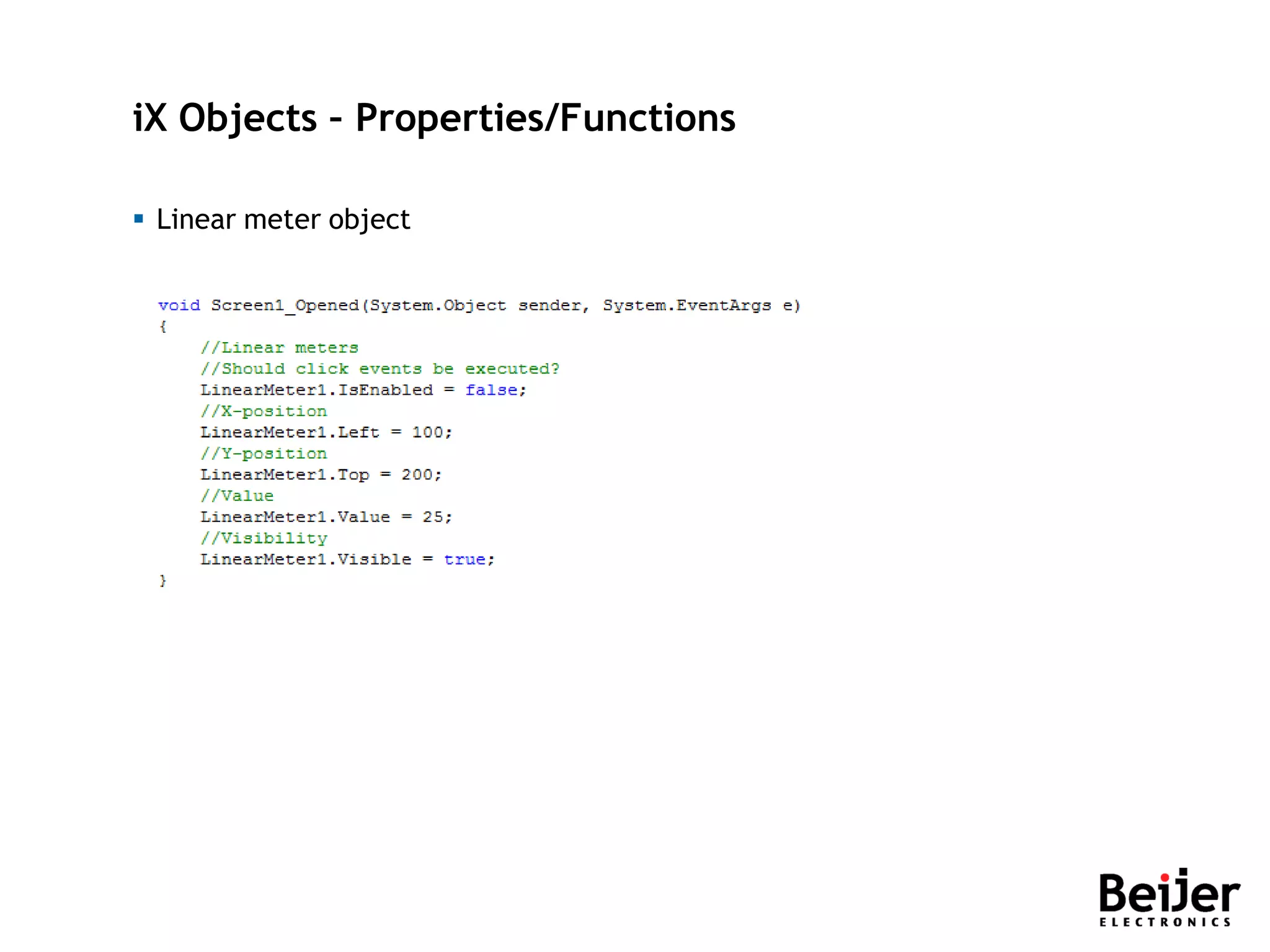

125. iX Objects – Properties/Functions
Linear meter object
126. iX Objects – Properties/Functions
Slider object

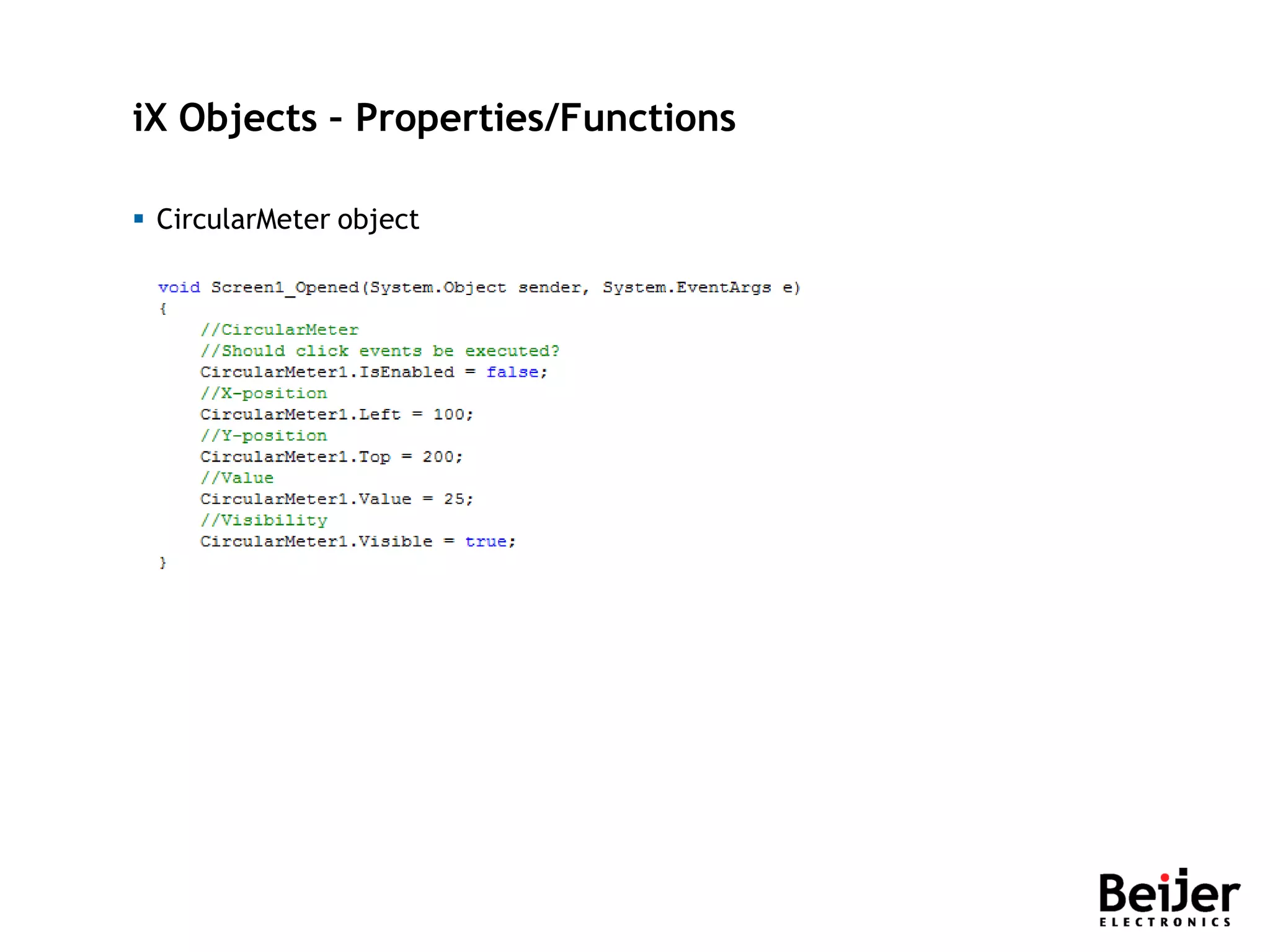

127. iX Objects – Properties/Functions
CircularMeter object

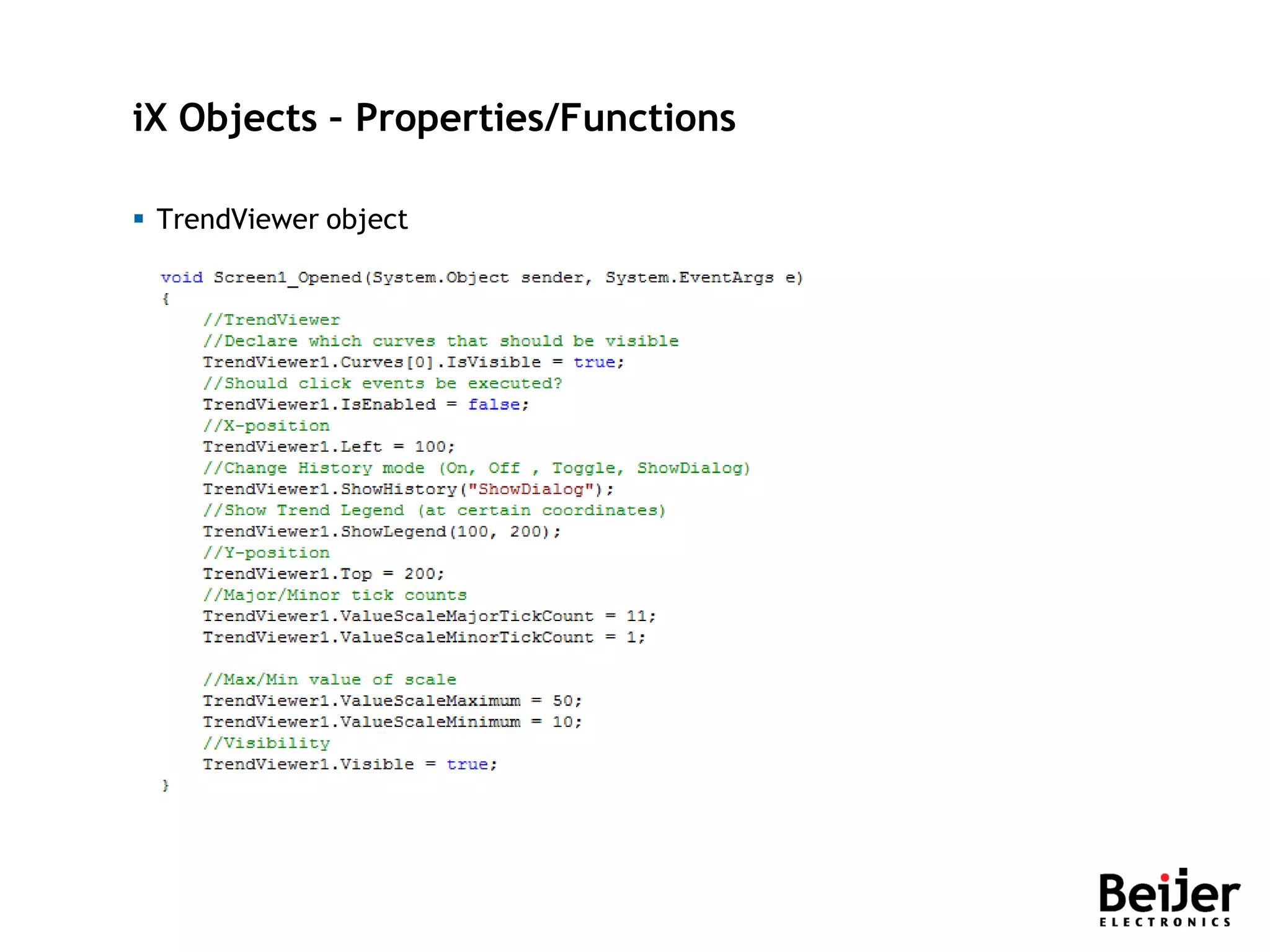

128. iX Objects – Properties/Functions
TrendViewer object

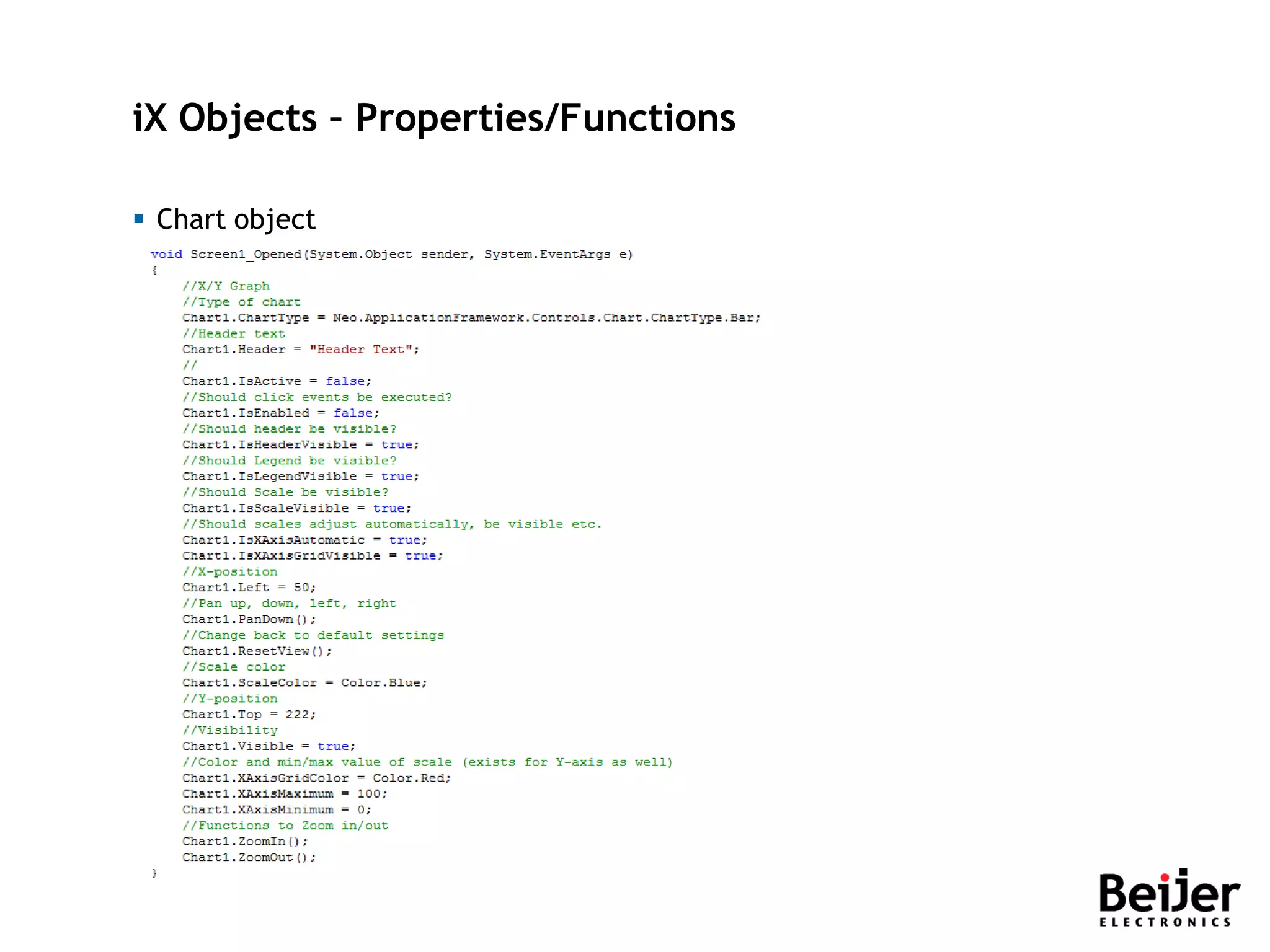

129. iX Objects – Properties/Functions
Chart object

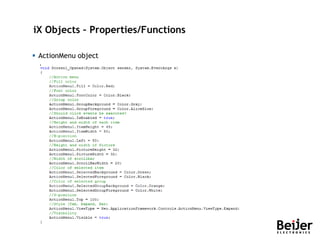

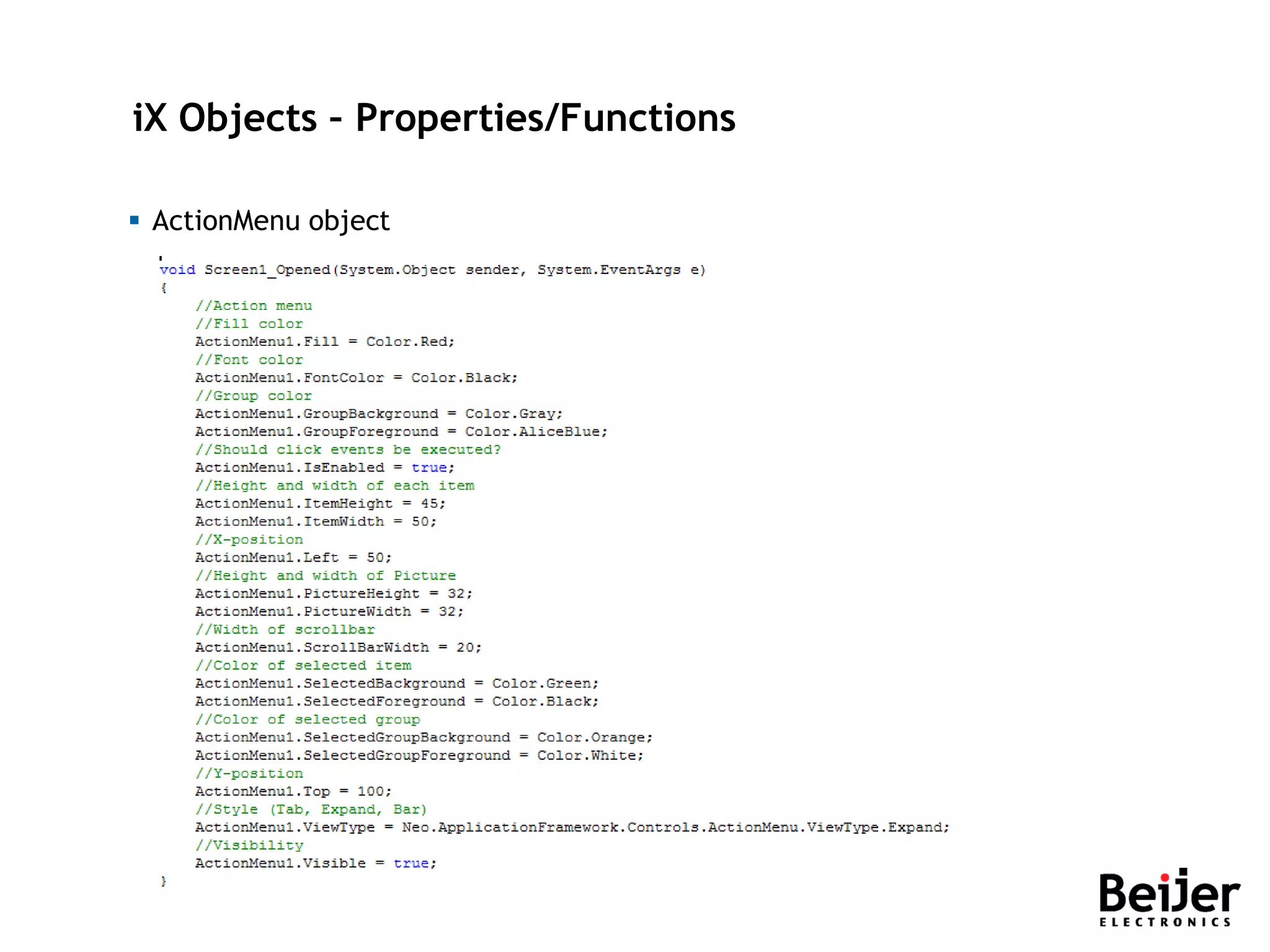

130. iX Objects – Properties/Functions
ActionMenu object
131. iX Objects – Properties/Functions

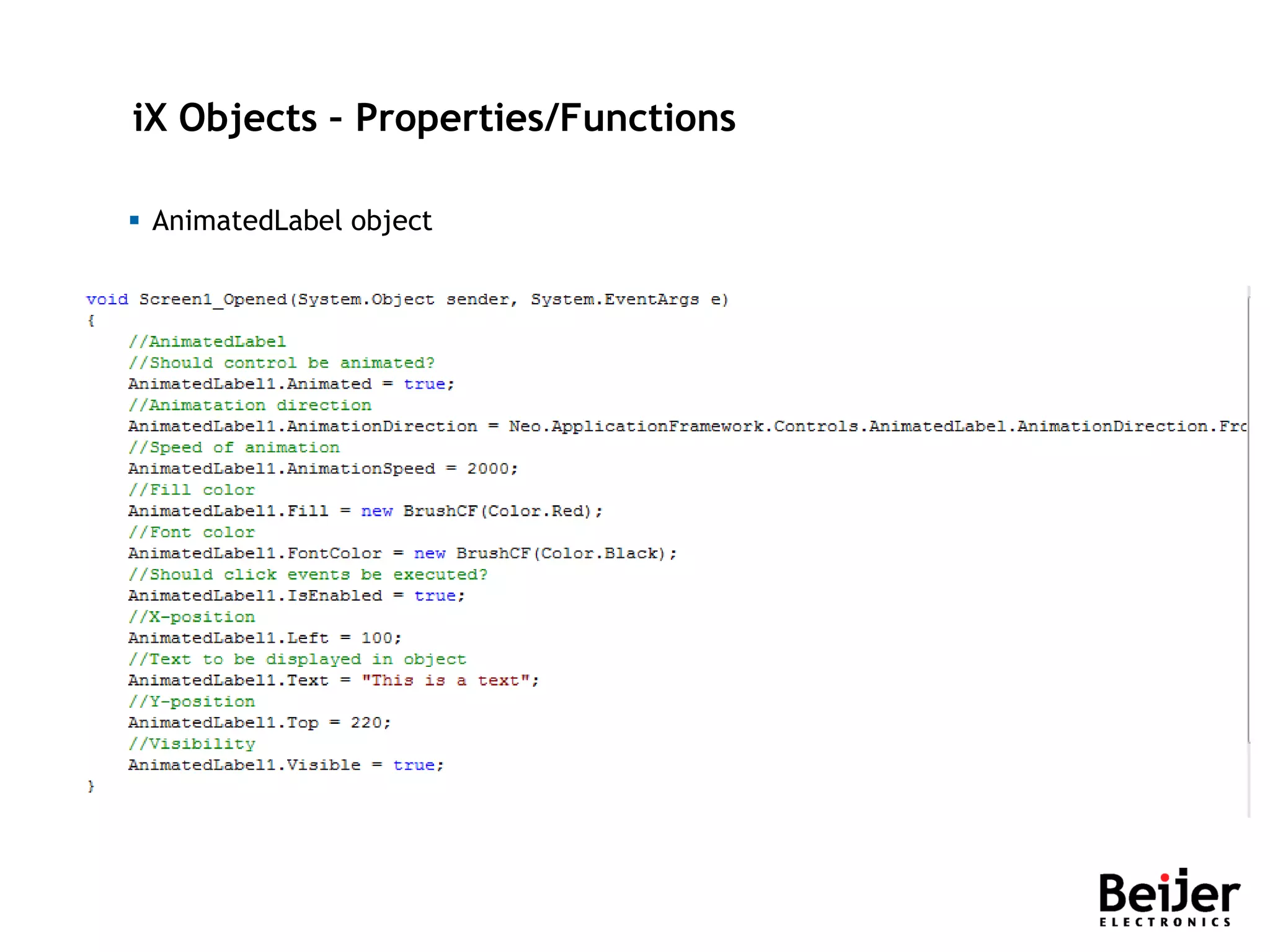

AnimatedLabel object

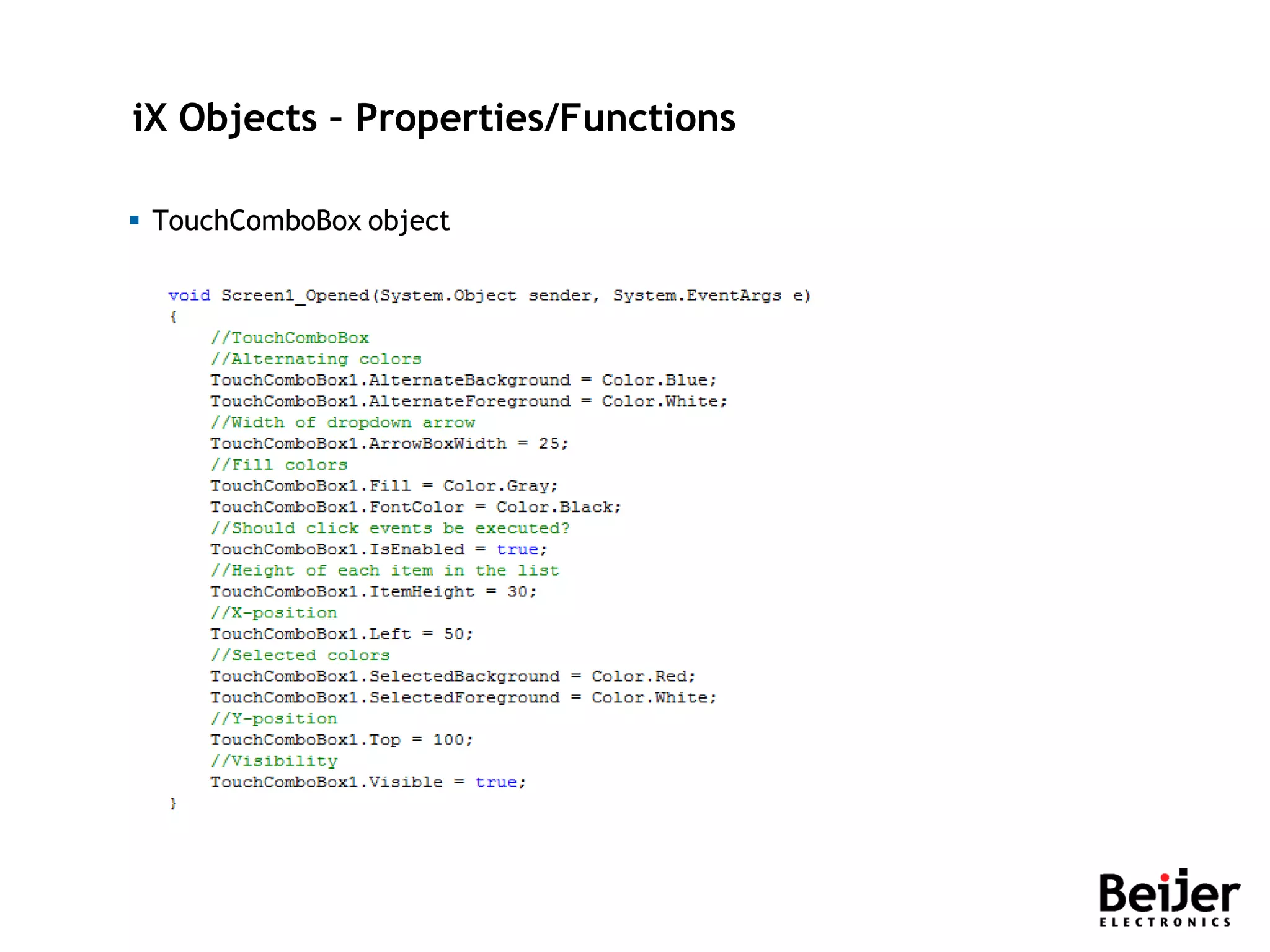

132. iX Objects – Properties/Functions
TouchComboBox object
133. iX Objects – Properties/Functions

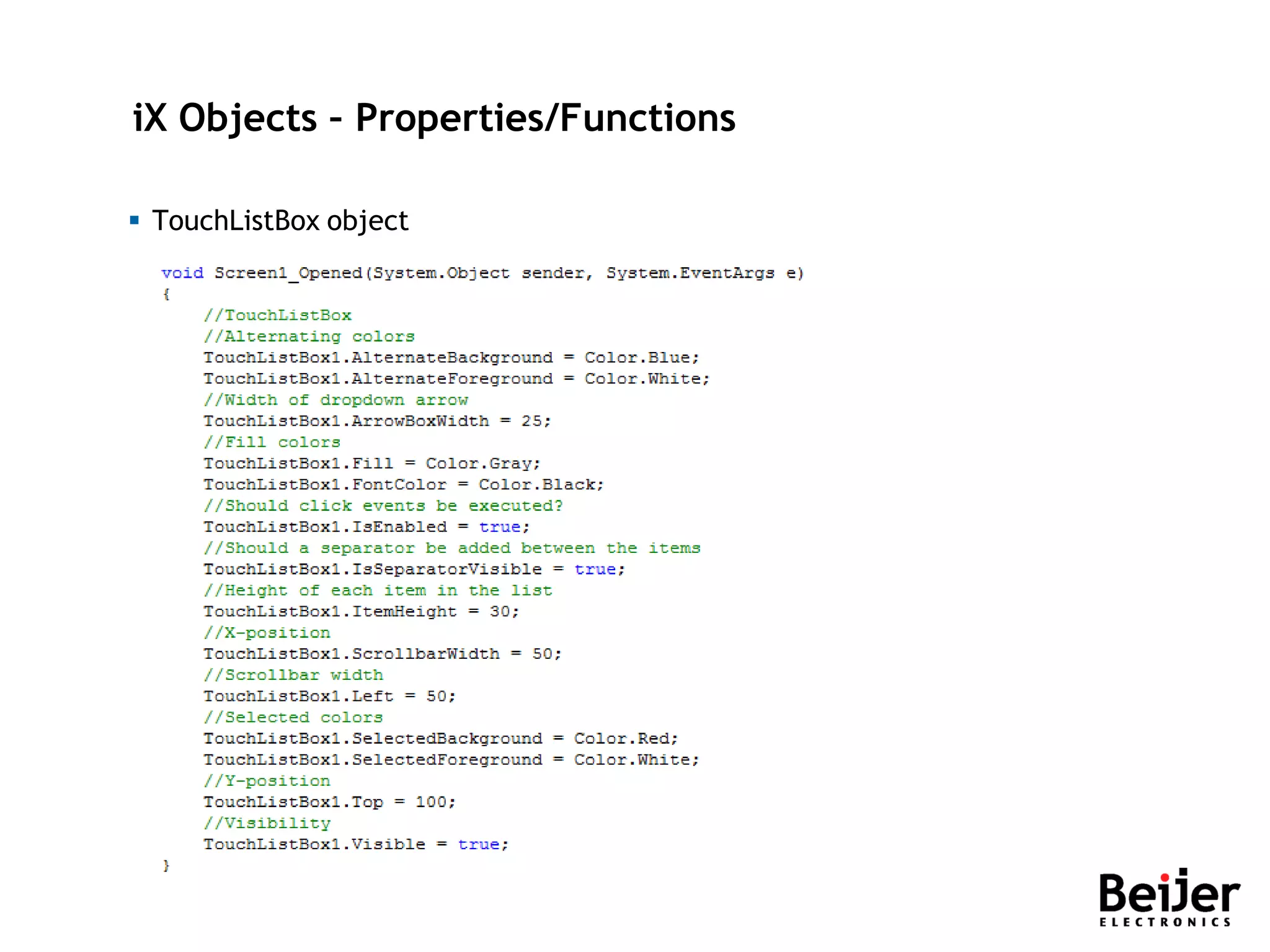

TouchListBox object
134. iX Objects – Properties/Functions

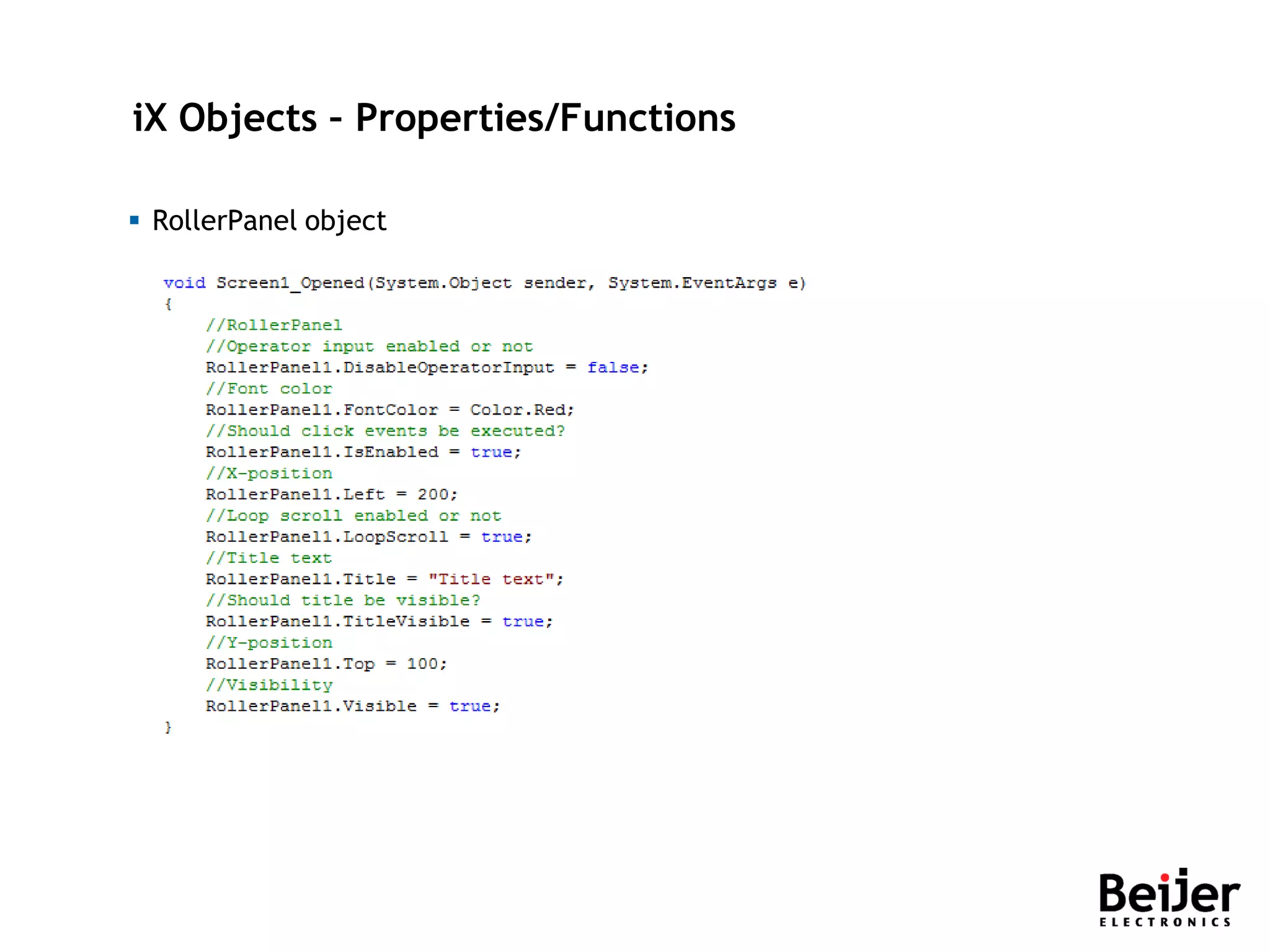

RollerPanel object
135. iX Objects – Properties/Functions

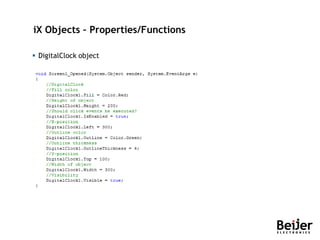

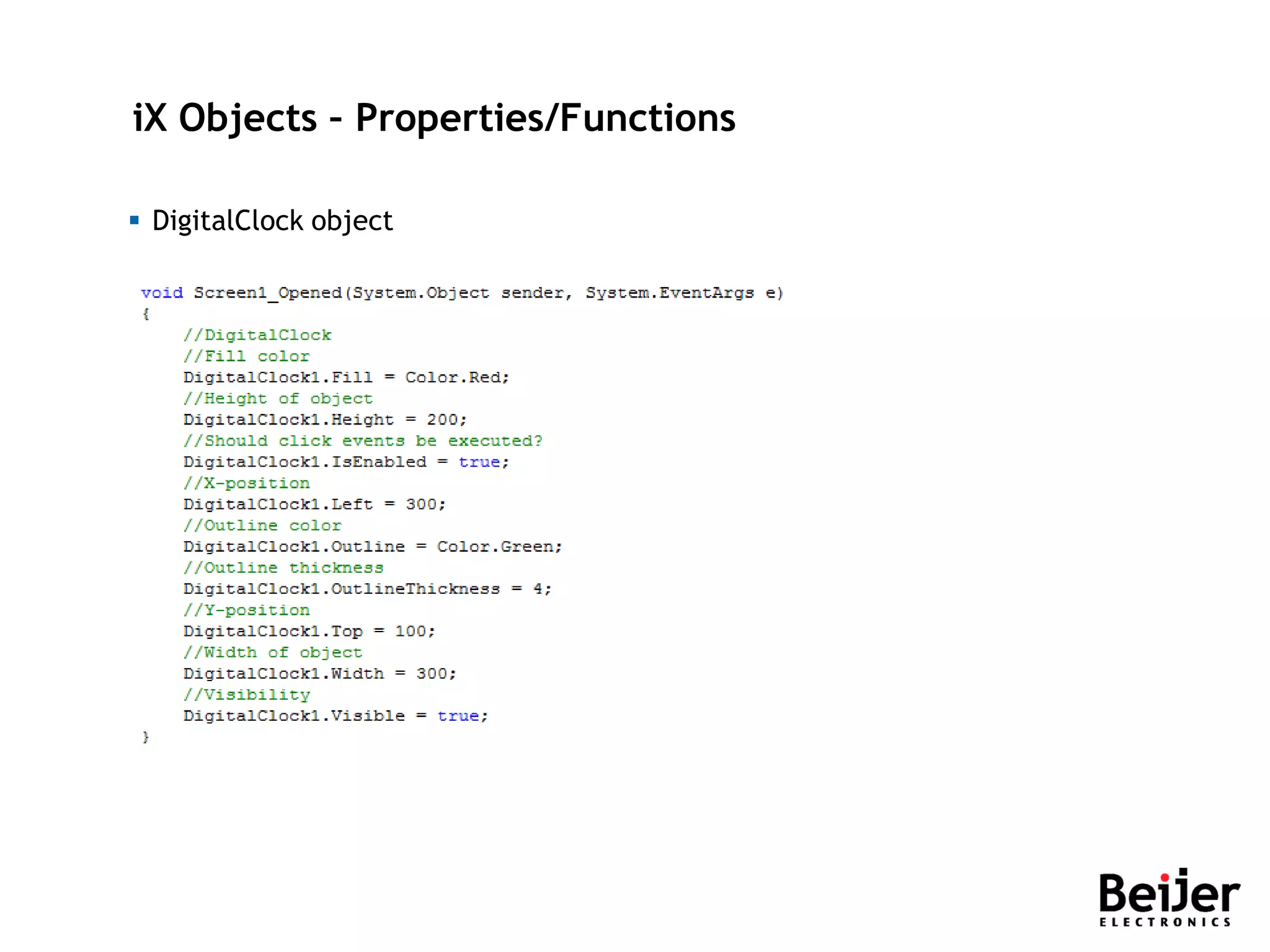

DigitalClock object
136. iX Objects – Properties/Functions

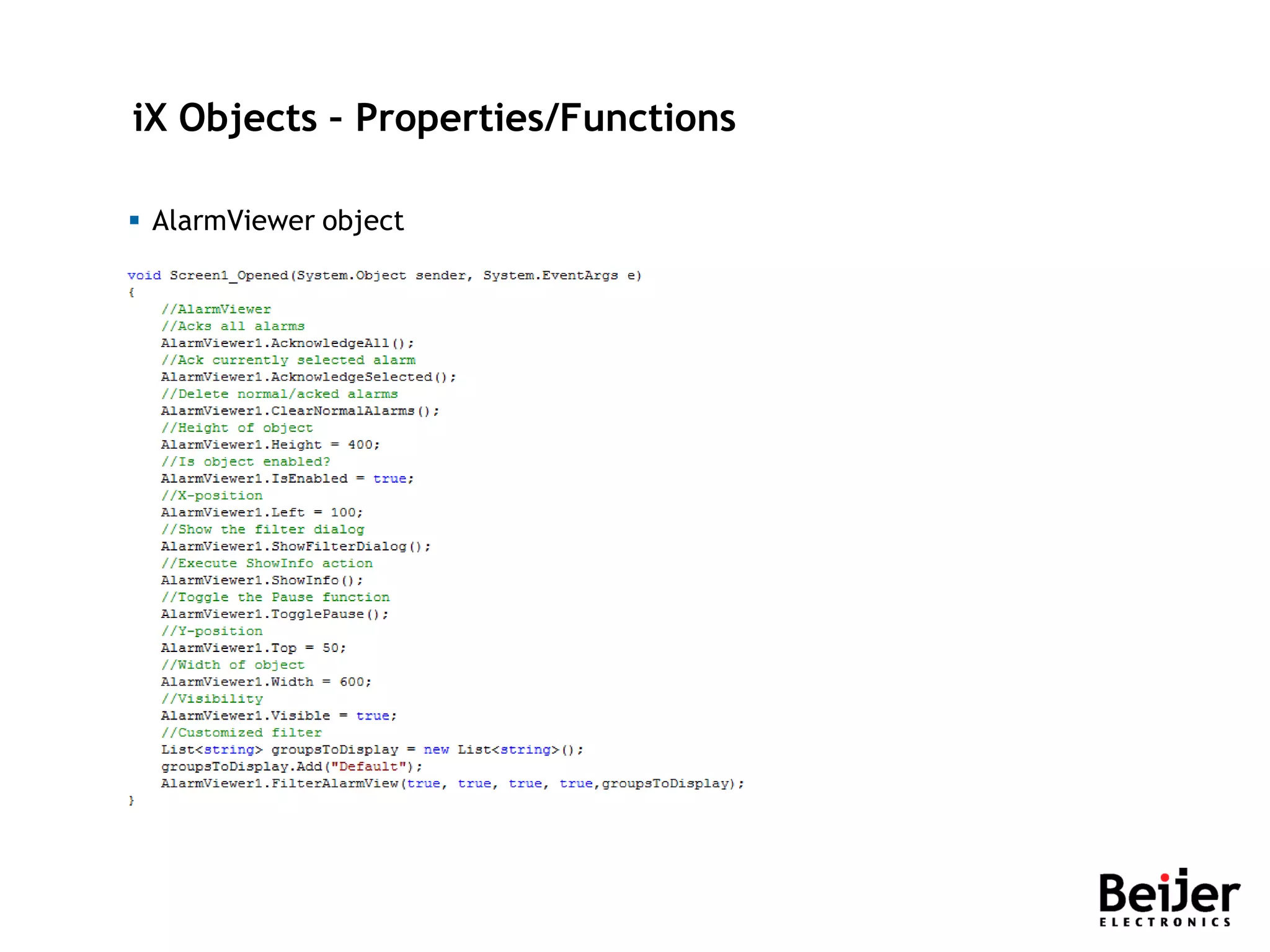

AlarmViewer object

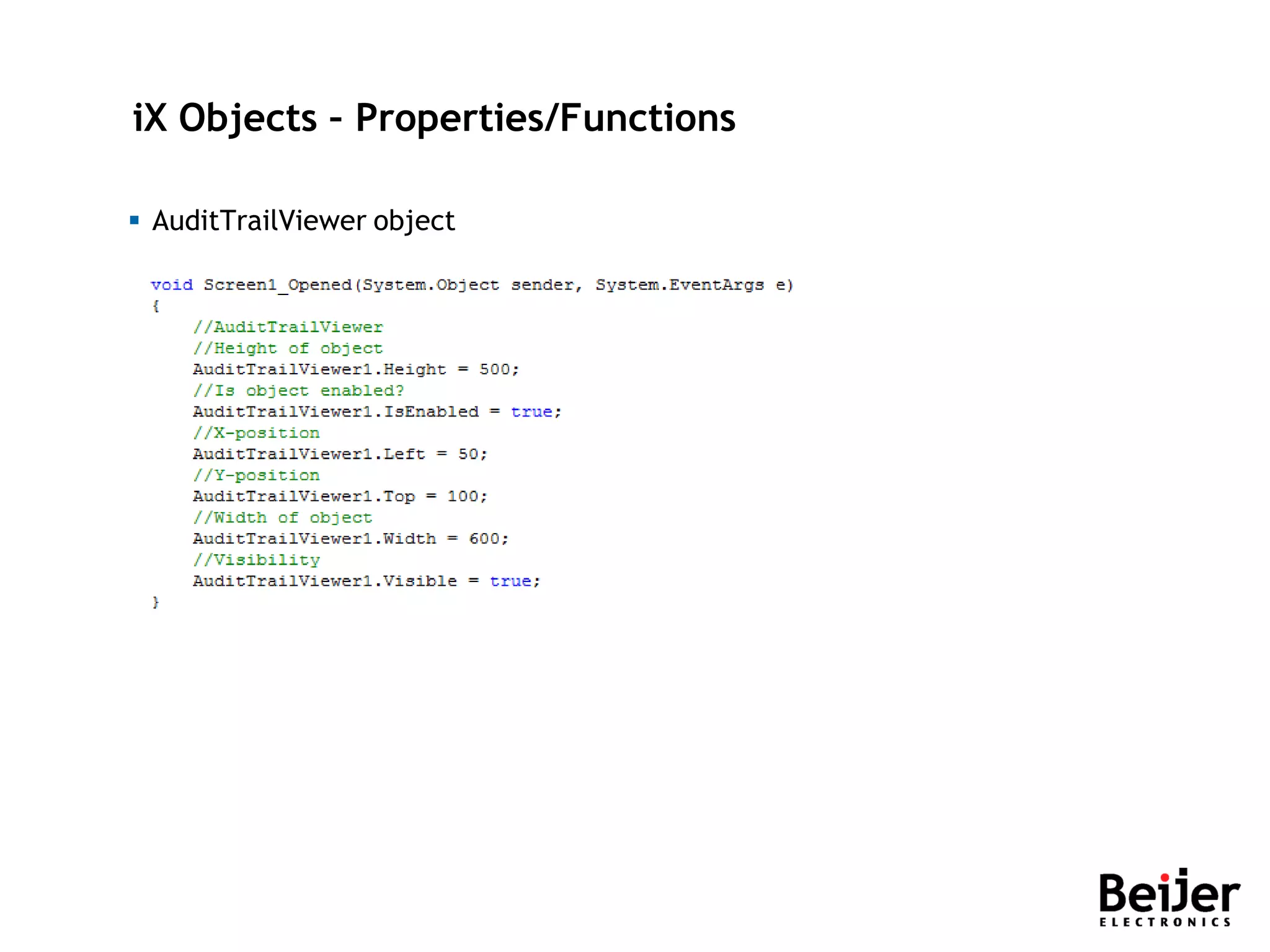

137. iX Objects – Properties/Functions
AuditTrailViewer object
138. iX Objects – Properties/Functions

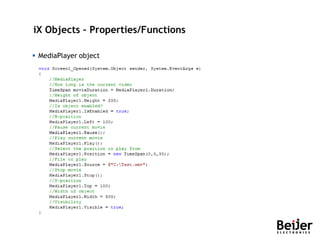

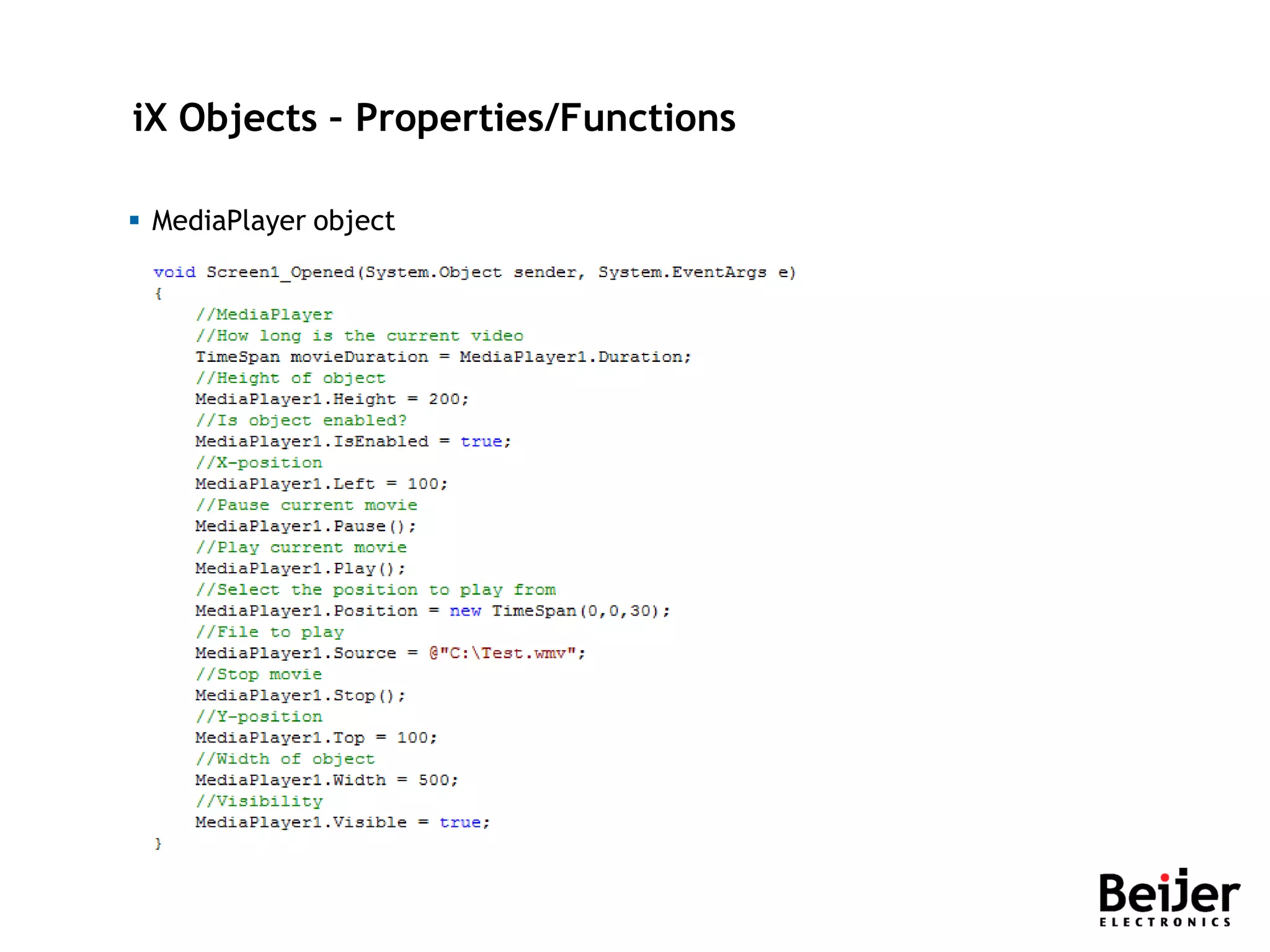

MediaPlayer object
139. iX Objects – Properties/Functions

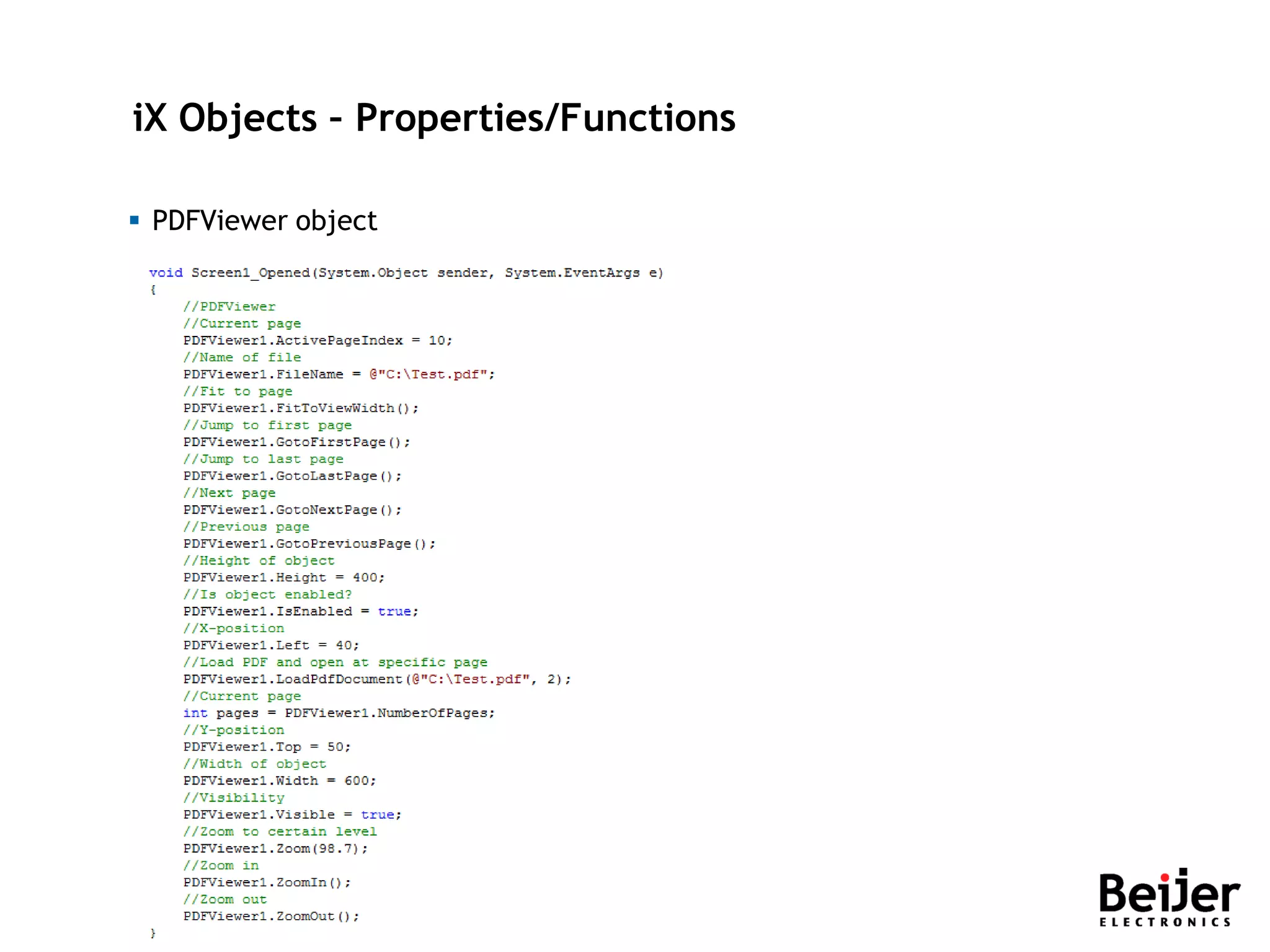

PDFViewer object

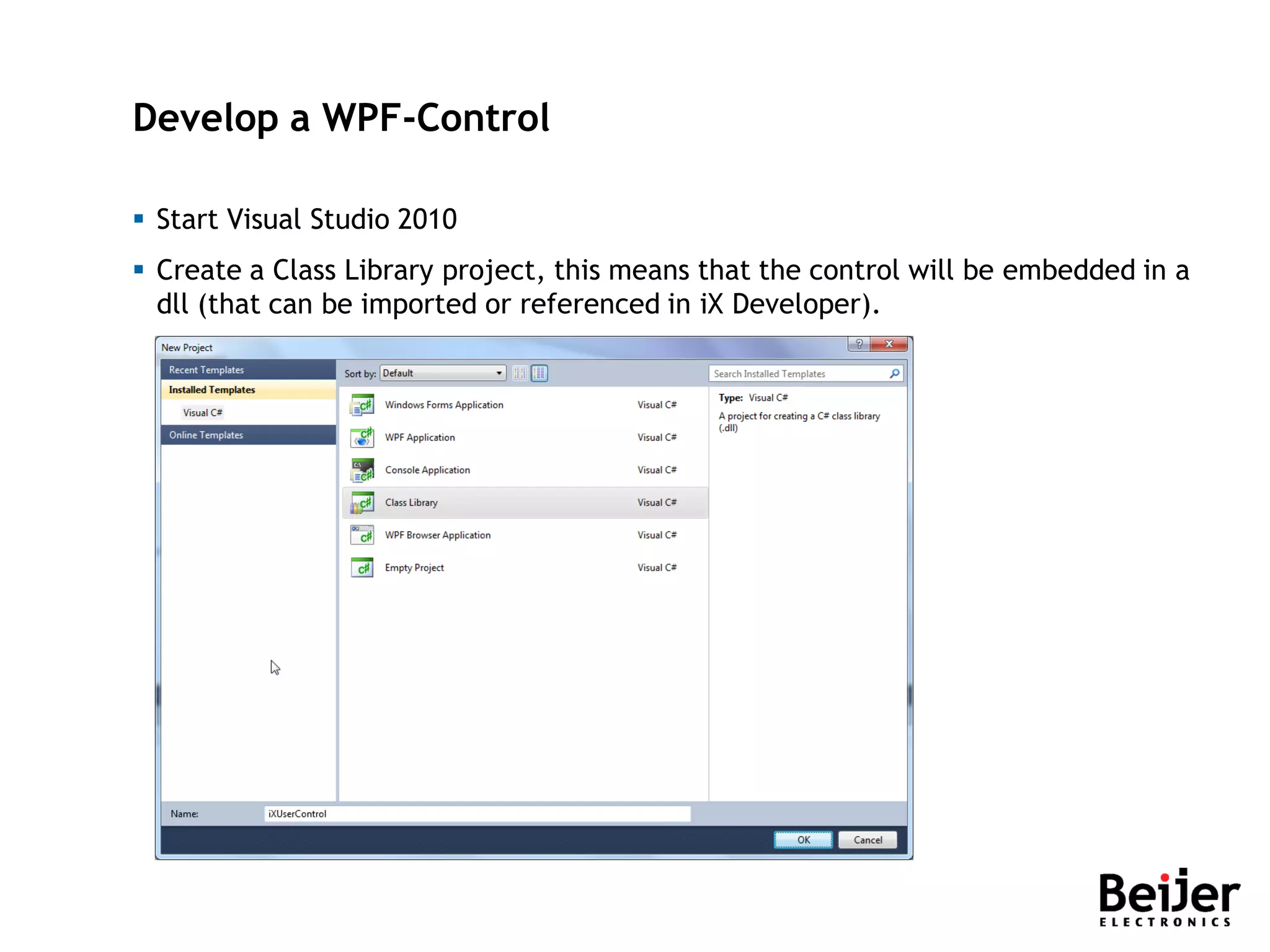

140. Develop a WPF-Control
Start Visual Studio 2010
Create a Class Library project, this means that the control will be embedded in a
dll (that can be imported or referenced in iX Developer).

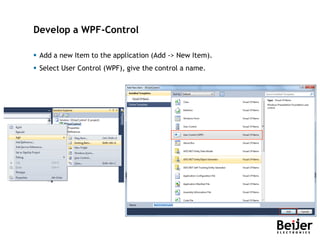

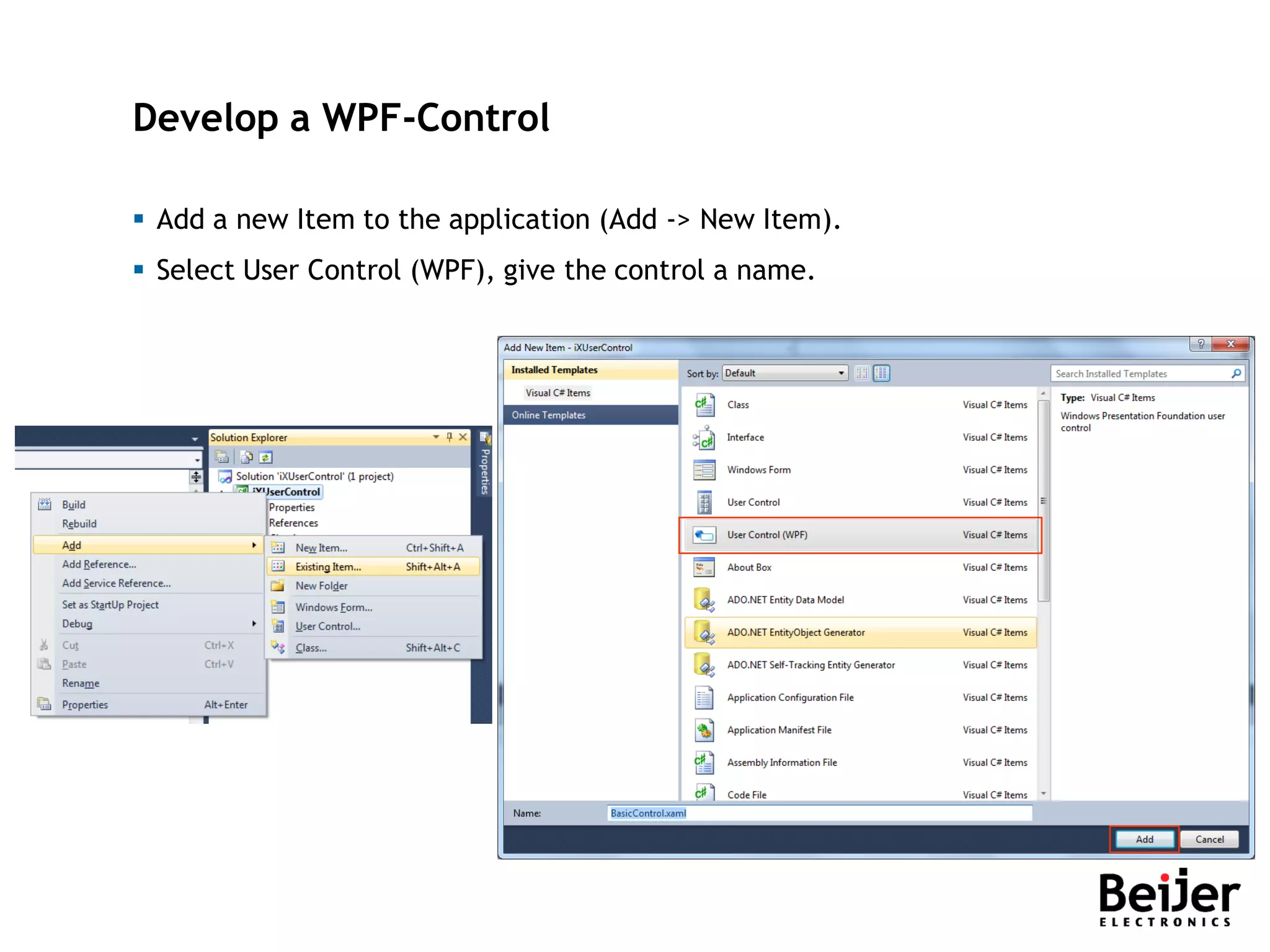

141. Develop a WPF-Control
Add a new Item to the application (Add -> New Item).
Select User Control (WPF), give the control a name.

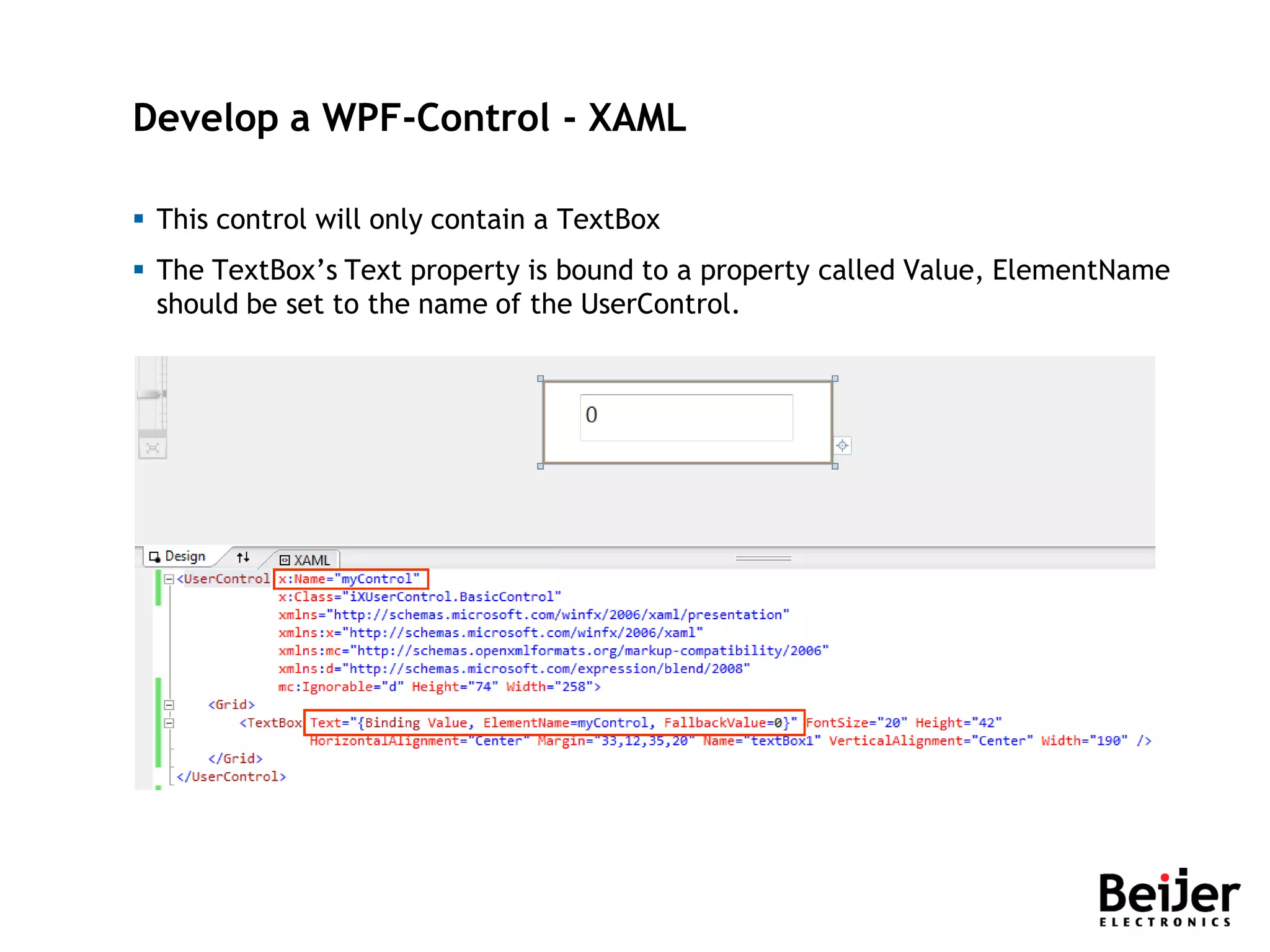

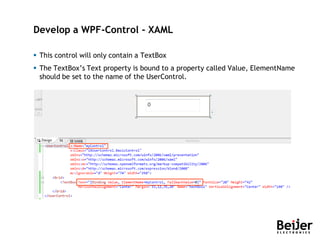

142. Develop a WPF-Control - XAML
This control will only contain a TextBox
The TextBox’s Text property is bound to a property called Value, ElementName
should be set to the name of the UserControl.

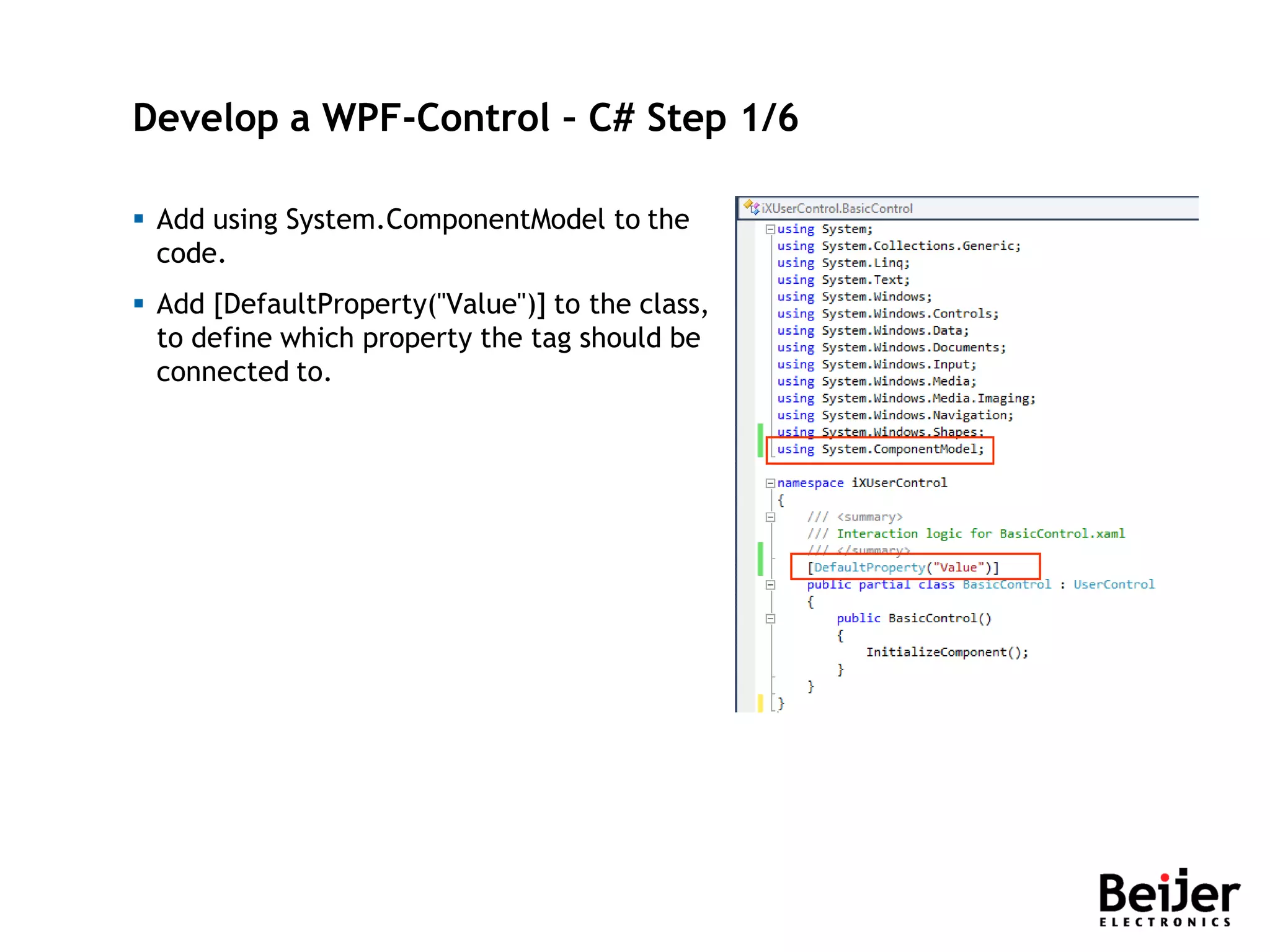

143. Develop a WPF-Control – C# Step 1/6
Add using System.ComponentModel to the
code.
Add [DefaultProperty("Value")] to the class,
to define which property the tag should be
connected to.

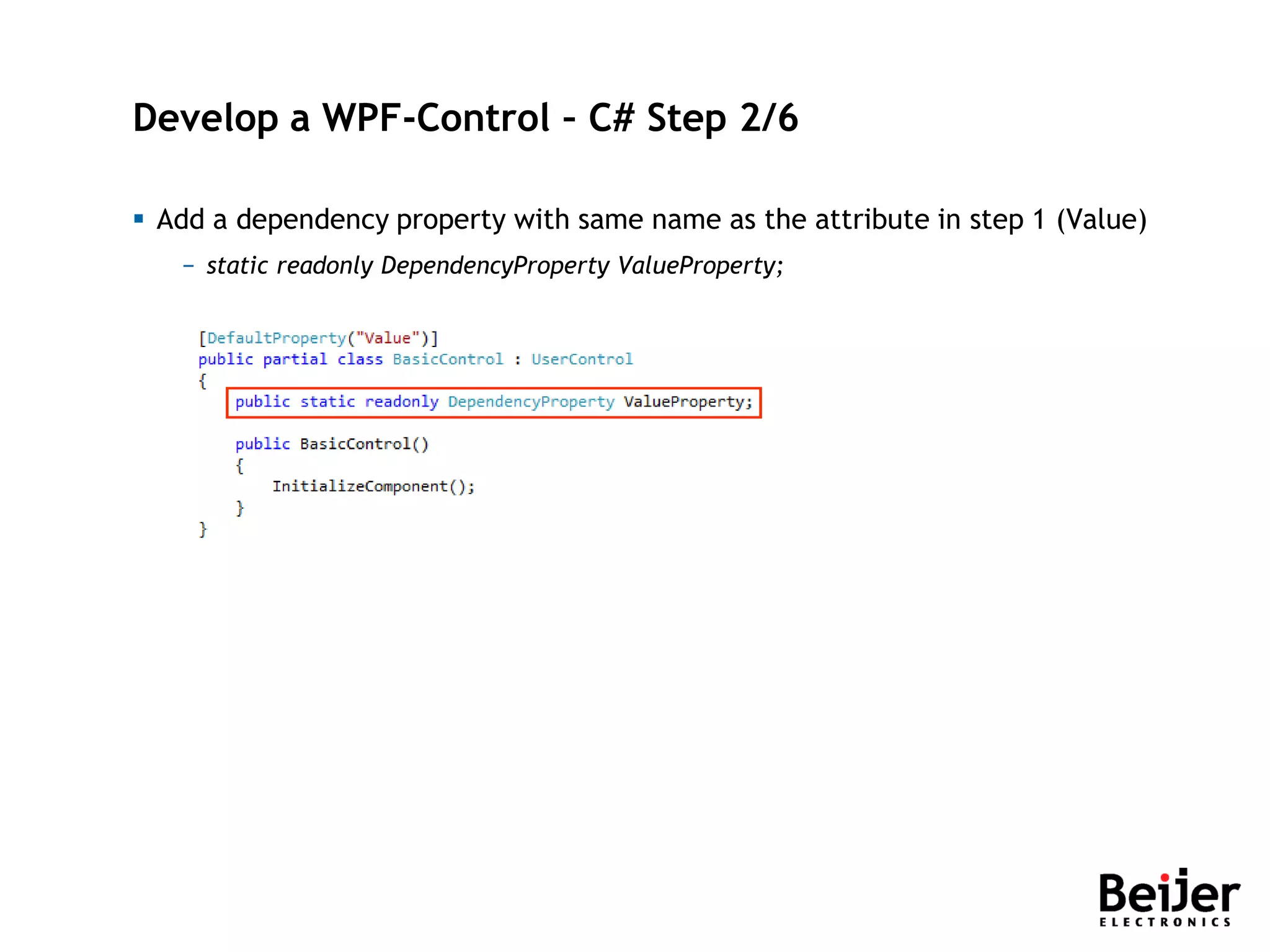

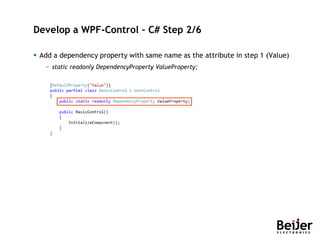

144. Develop a WPF-Control – C# Step 2/6
Add a dependency property with same name as the attribute in step 1 (Value)
− static readonly DependencyProperty ValueProperty;

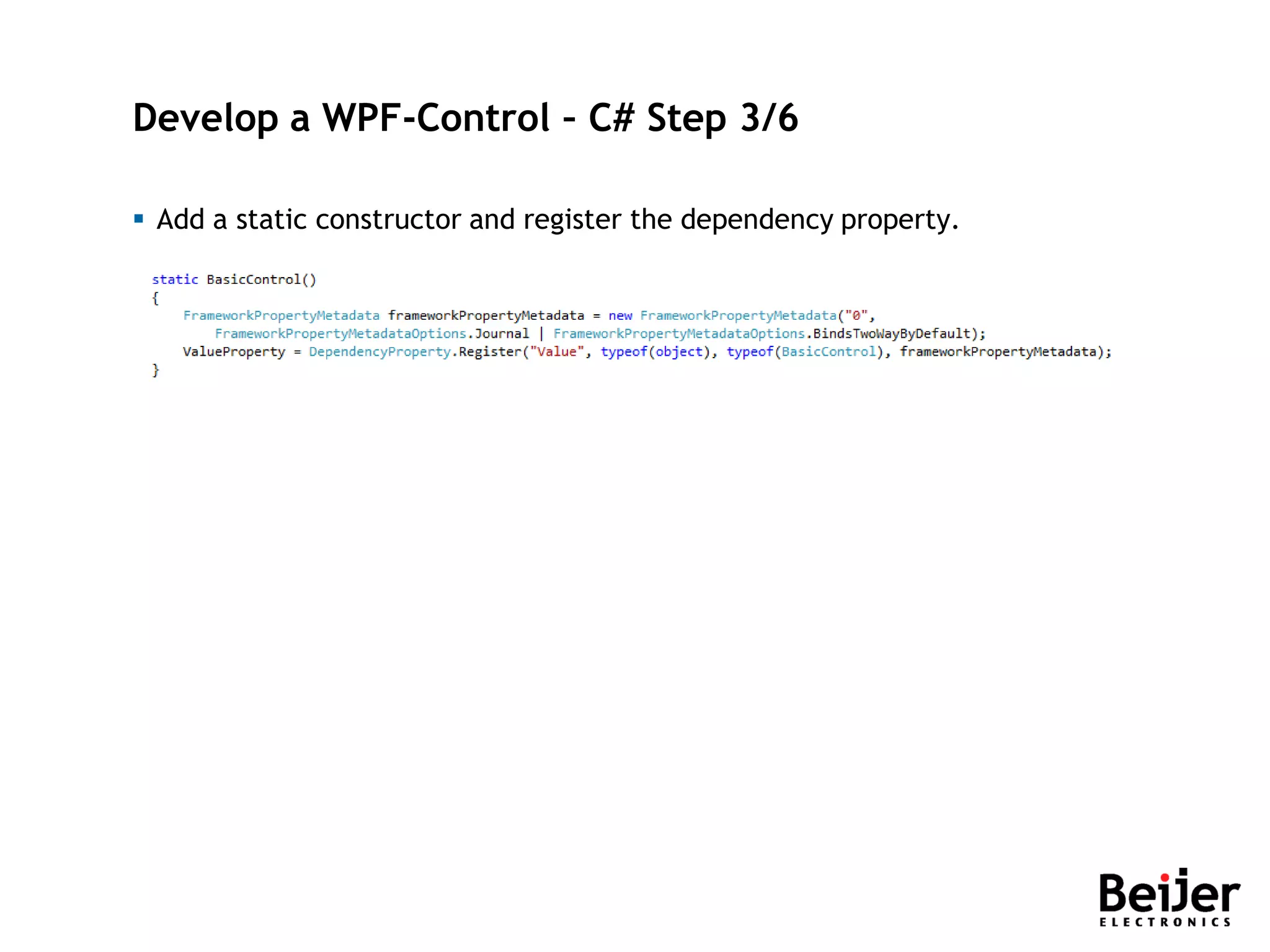

145. Develop a WPF-Control – C# Step 3/6

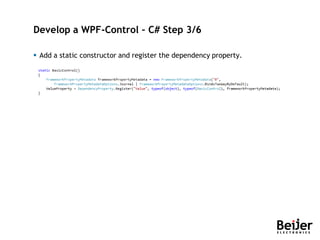

Add a static constructor and register the dependency property.

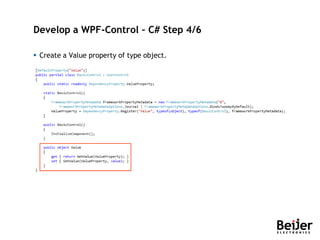

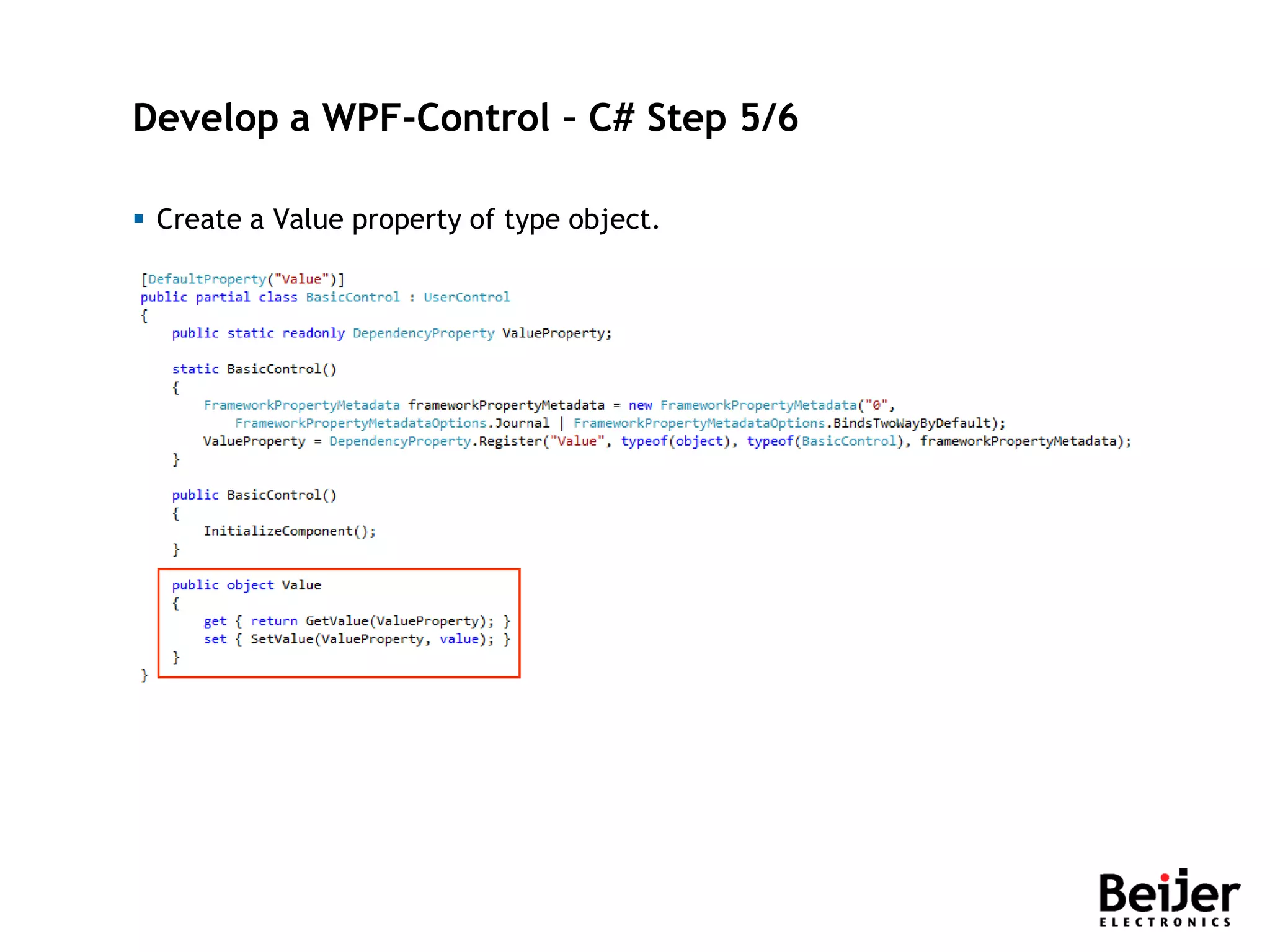

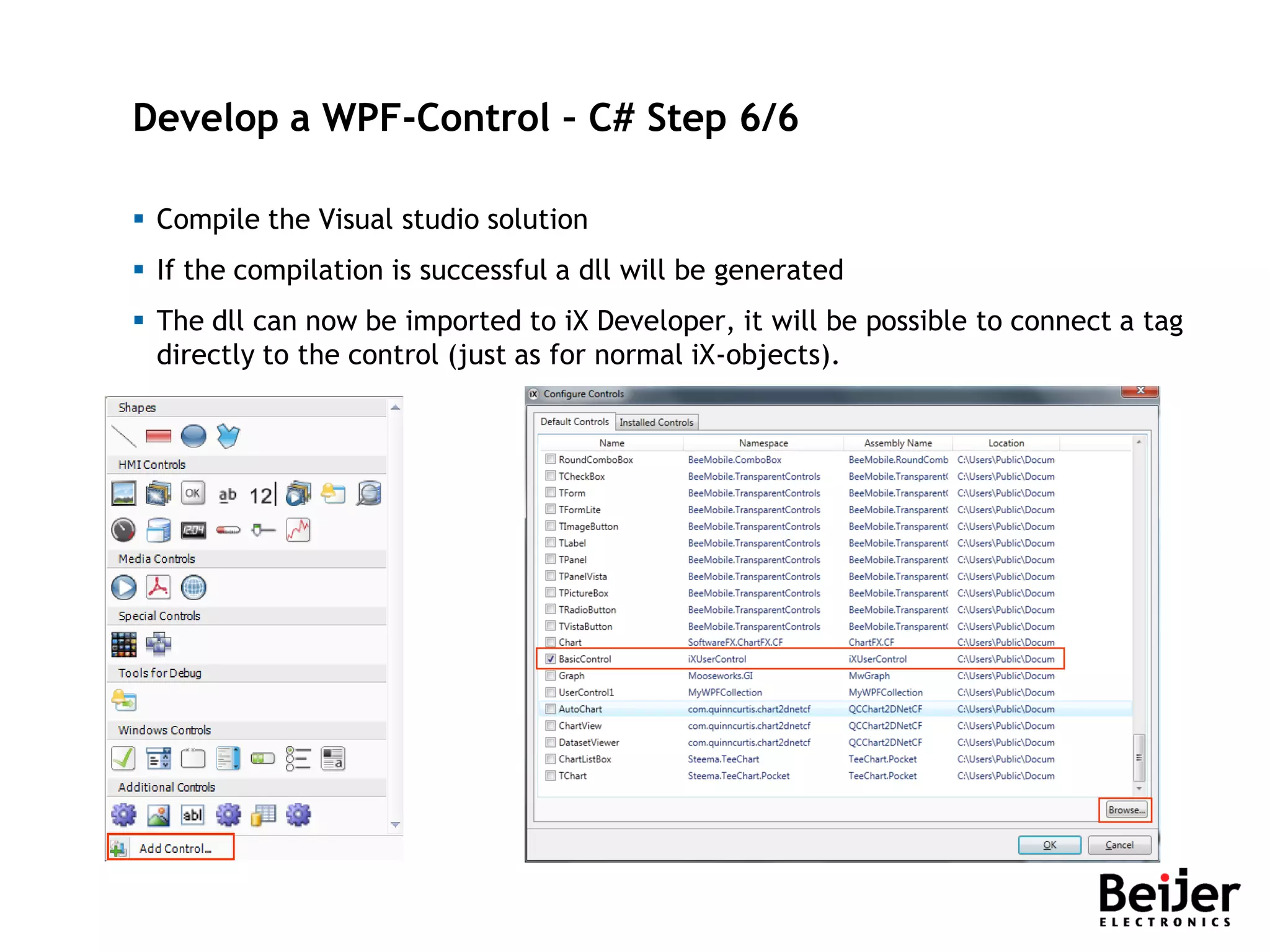

148. Develop a WPF-Control – C# Step 6/6
Compile the Visual studio solution
If the compilation is successful a dll will be generated
The dll can now be imported to iX Developer, it will be possible to connect a tag
directly to the control (just as for normal iX-objects).

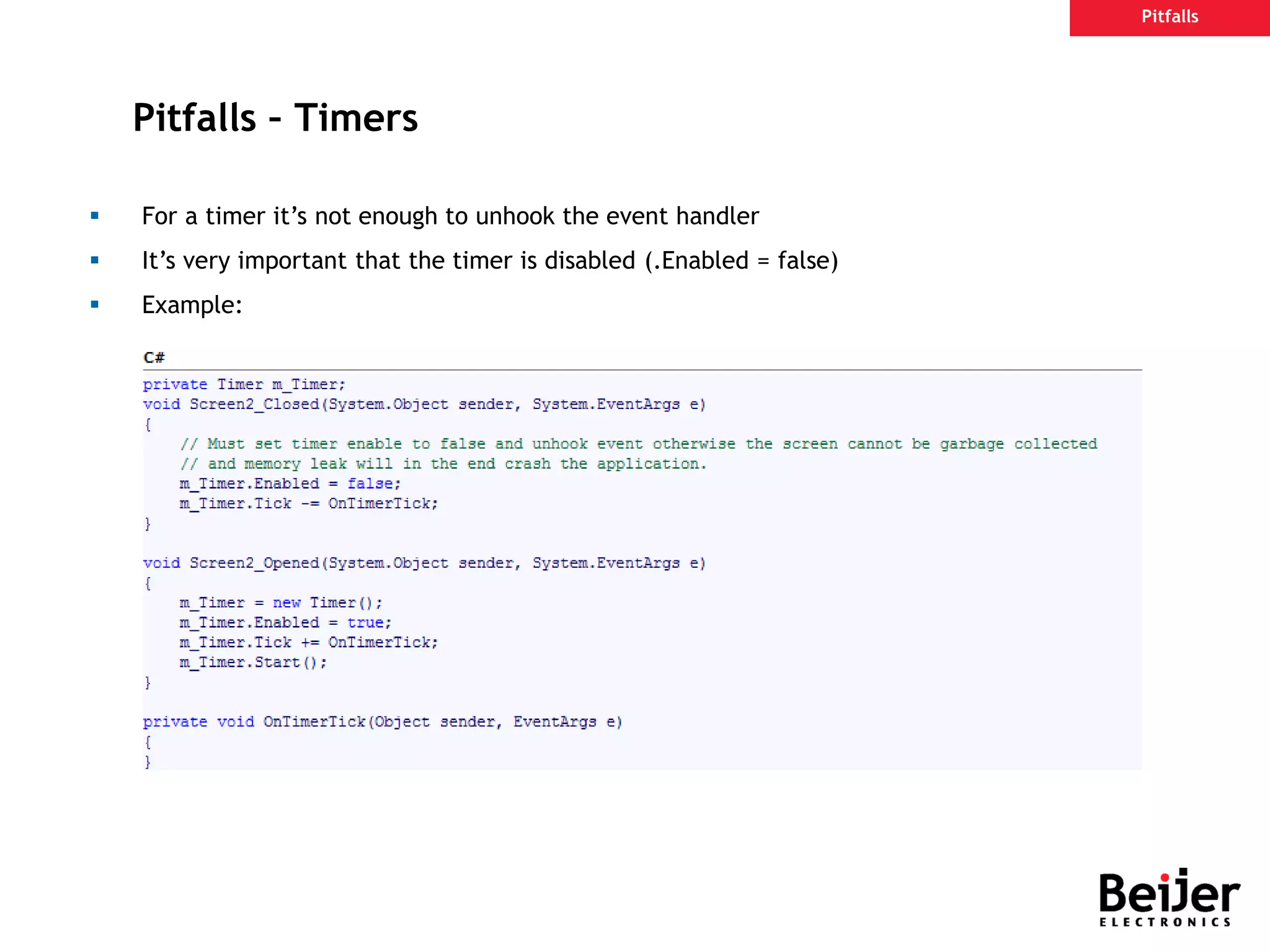

149. Pitfalls – Timers
For a timer it’s not enough to unhook the event handler
It’s very important that the timer is disabled (.Enabled = false)
Example:
Pitfalls

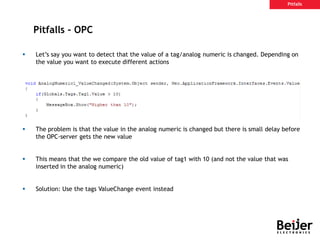

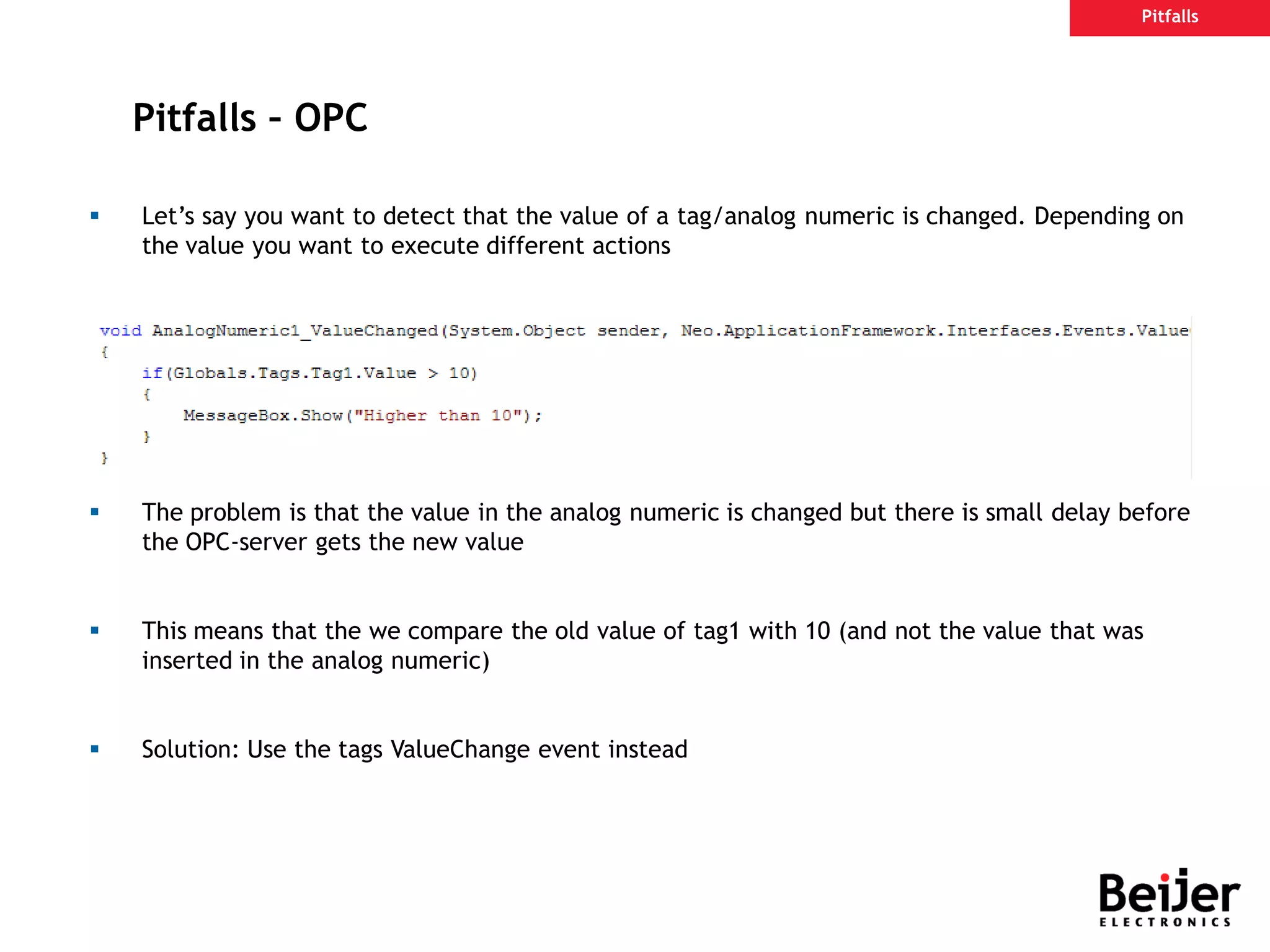

150. Pitfalls – OPC
Let’s say you want to detect that the value of a tag/analog numeric is changed. Depending on
the value you want to execute different actions
The problem is that the value in the analog numeric is changed but there is small delay before
the OPC-server gets the new value
This means that the we compare the old value of tag1 with 10 (and not the value that was
inserted in the analog numeric)
Solution: Use the tags ValueChange event instead
Pitfalls

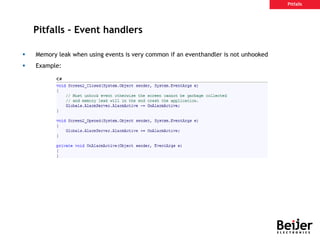

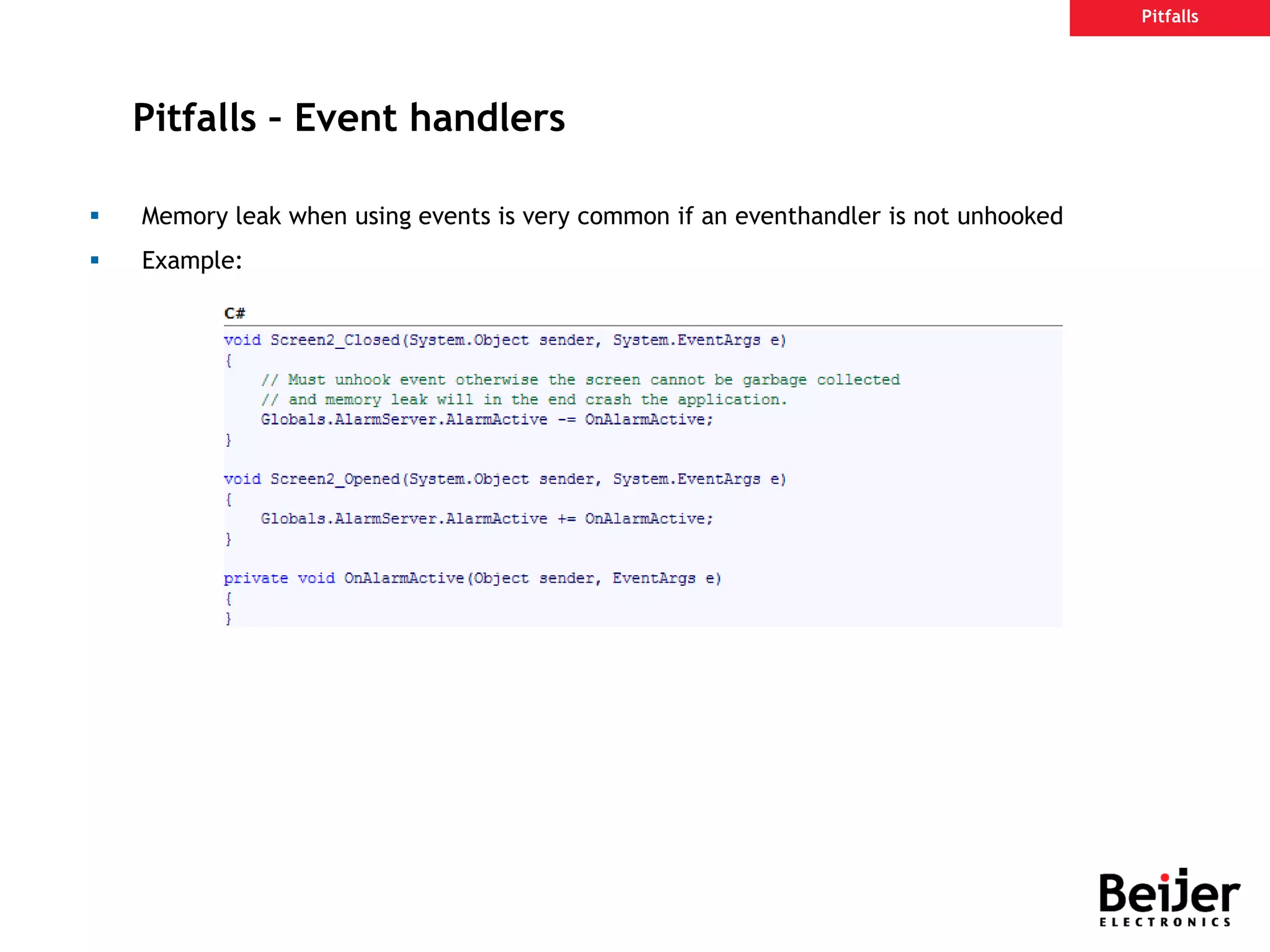

151. Pitfalls – Event handlers
Memory leak when using events is very common if an eventhandler is not unhooked
Example:
Pitfalls

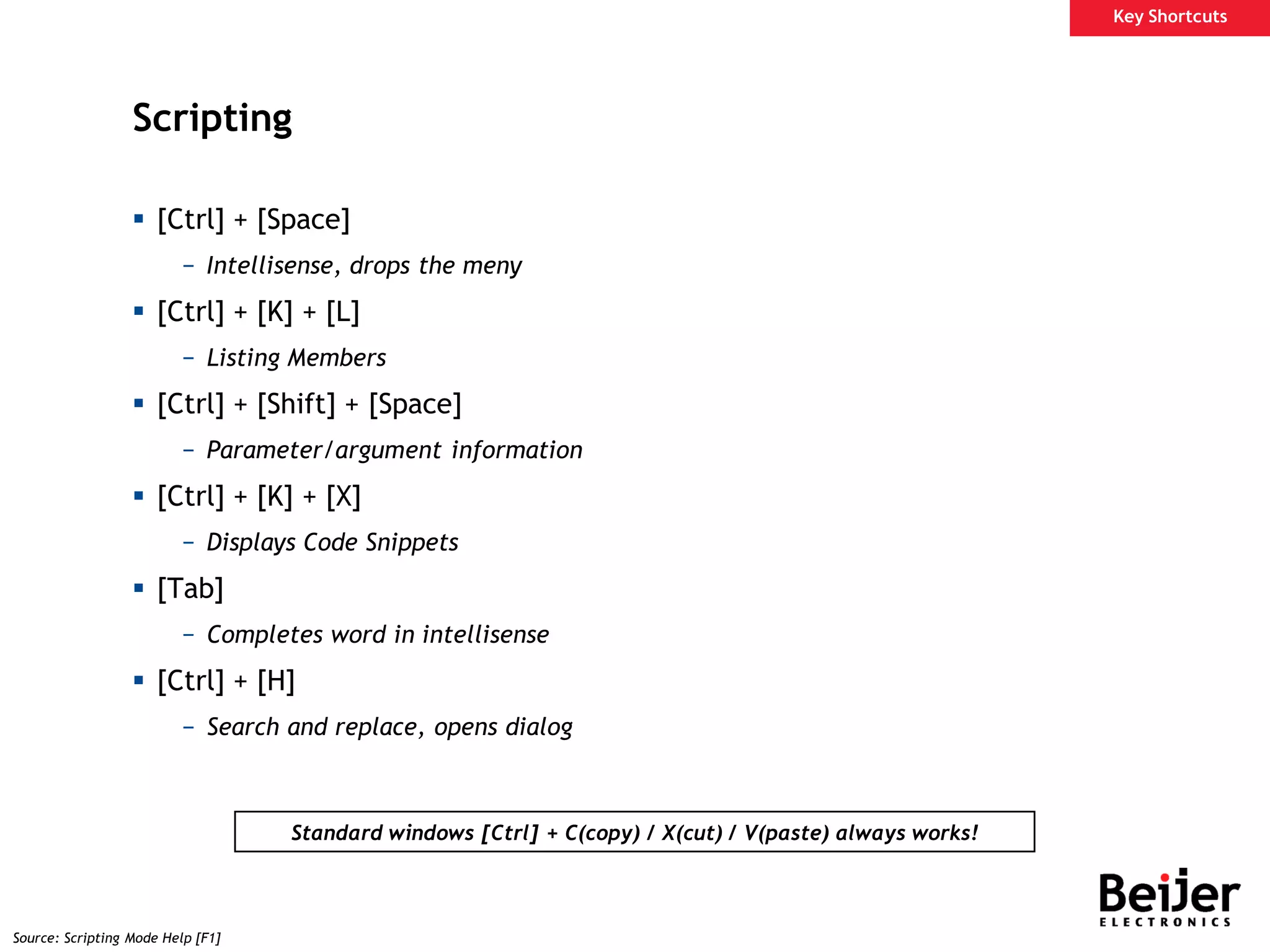

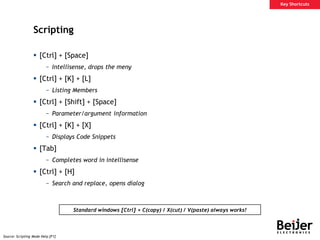

152. Scripting
[Ctrl] + [Space]
− Intellisense, drops the meny
[Ctrl] + [K] + [L]
− Listing Members
[Ctrl] + [Shift] + [Space]
− Parameter/argument information
[Ctrl] + [K] + [X]
− Displays Code Snippets
[Tab]
− Completes word in intellisense
[Ctrl] + [H]
− Search and replace, opens dialog
Standard windows [Ctrl] + C(copy) / X(cut) / V(paste) always works!
Source: Scripting Mode Help [F1]
Key Shortcuts

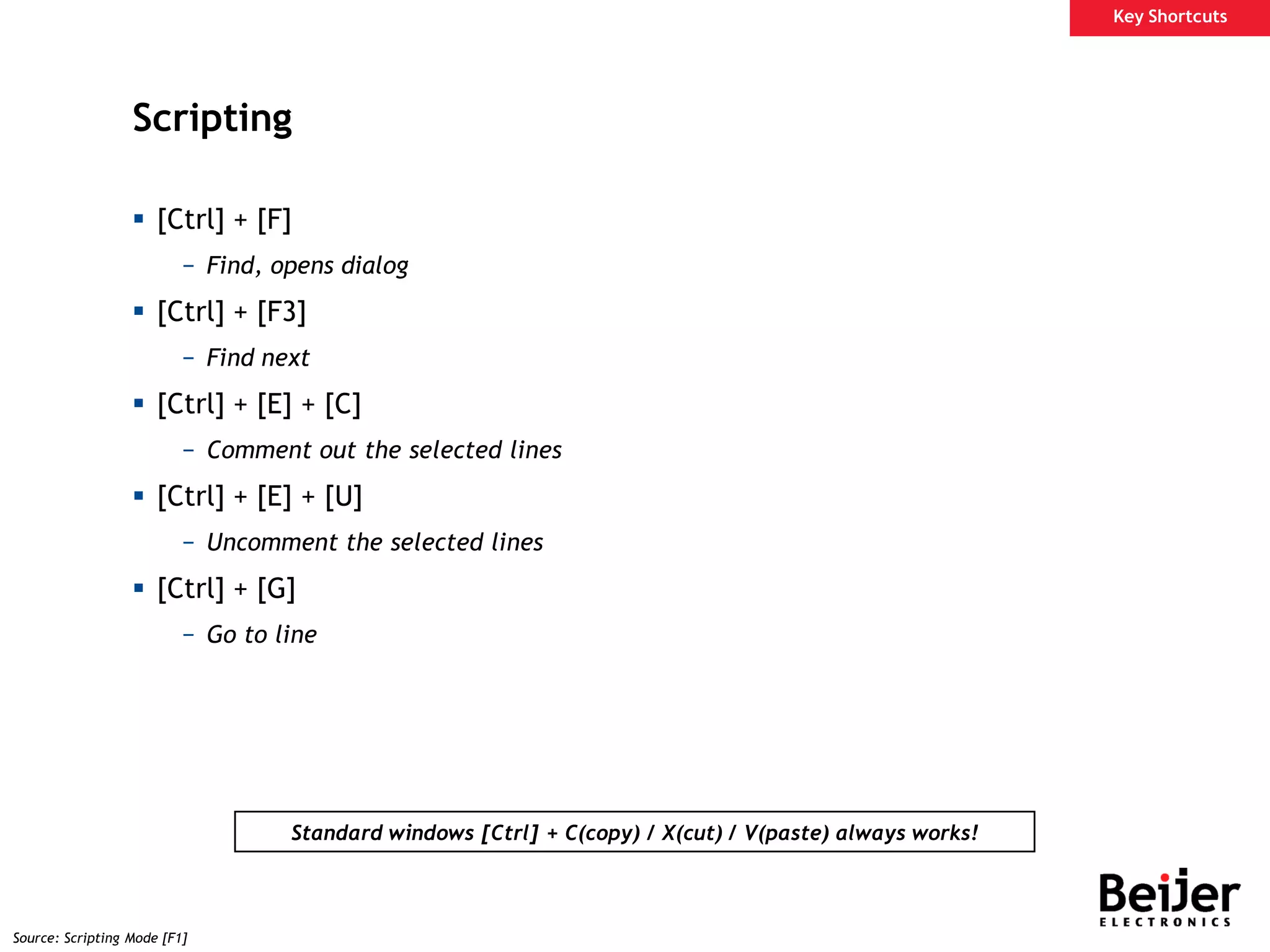

153. Scripting
[Ctrl] + [F]
− Find, opens dialog
[Ctrl] + [F3]
− Find next
[Ctrl] + [E] + [C]
− Comment out the selected lines
[Ctrl] + [E] + [U]
− Uncomment the selected lines
[Ctrl] + [G]
− Go to line
Standard windows [Ctrl] + C(copy) / X(cut) / V(paste) always works!
Source: Scripting Mode [F1]
Key Shortcuts

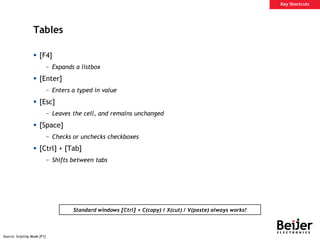

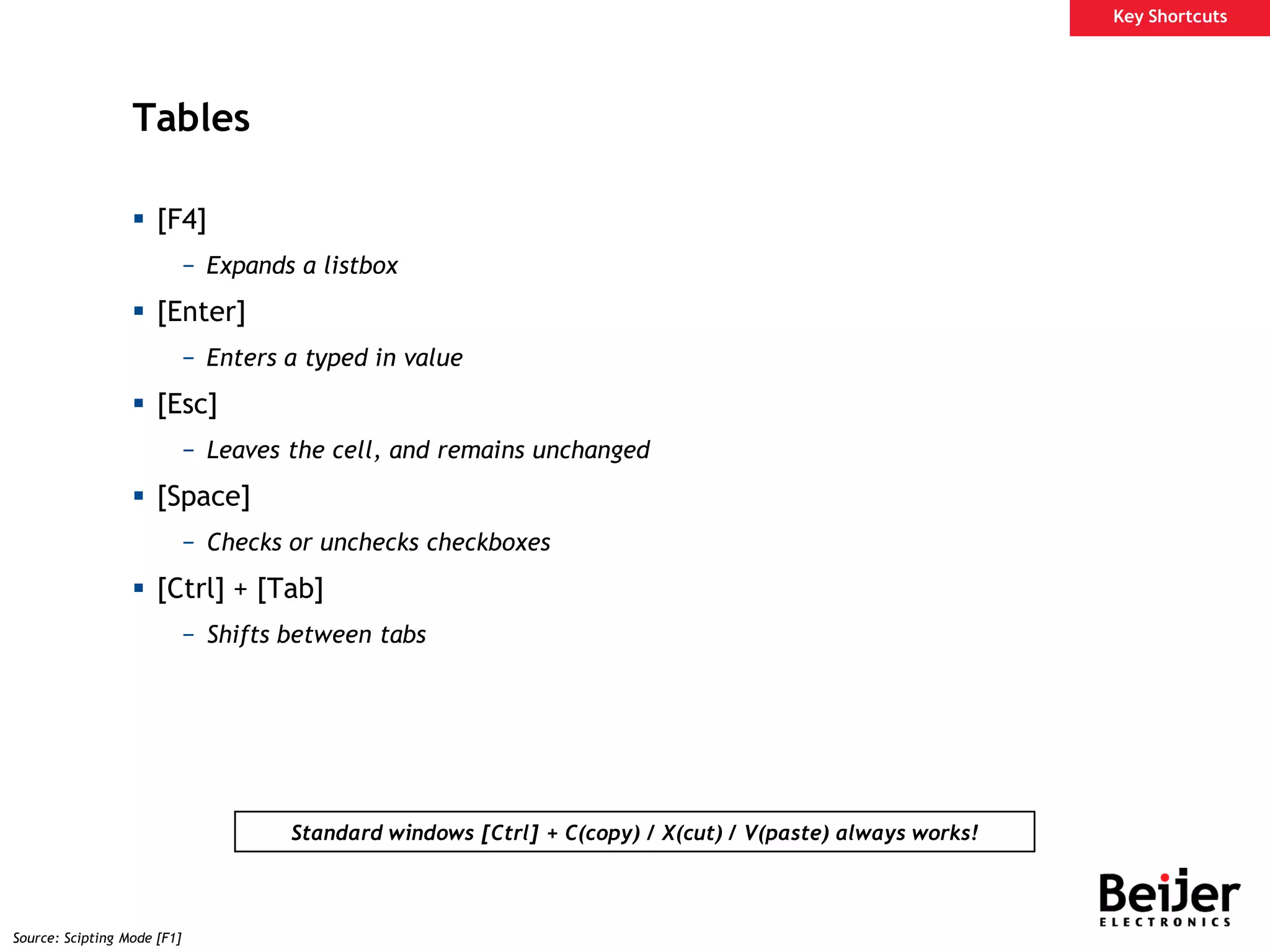

154. Tables
[F4]
− Expands a listbox
[Enter]
− Enters a typed in value
[Esc]
− Leaves the cell, and remains unchanged
[Space]
− Checks or unchecks checkboxes
[Ctrl] + [Tab]
− Shifts between tabs
Standard windows [Ctrl] + C(copy) / X(cut) / V(paste) always works!
Source: Scipting Mode [F1]
Key Shortcuts
