1. HYPERGLYCAEMIC AND
HYPOGLYCAEMIC
CRISES
A PRESENTATION BY DR. SOFOLA J.O.

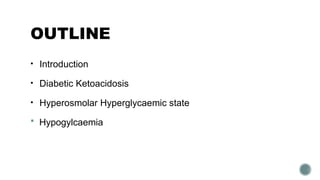

2. OUTLINE
• Introduction
• Diabetic Ketoacidosis
• Hyperosmolar Hyperglycaemic state
 Hypogylcaemia

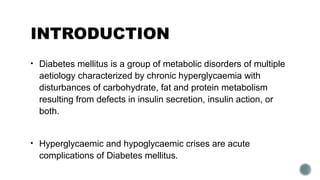

3. INTRODUCTION
• Diabetes mellitus is a group of metabolic disorders of multiple
aetiology characterized by chronic hyperglycaemia with
disturbances of carbohydrate, fat and protein metabolism
resulting from defects in insulin secretion, insulin action, or
both.
• Hyperglycaemic and hypoglycaemic crises are acute
complications of Diabetes mellitus.

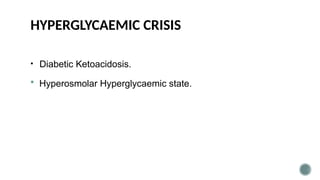

4. HYPERGLYCAEMIC CRISIS
• Diabetic Ketoacidosis.
 Hyperosmolar Hyperglycaemic state.

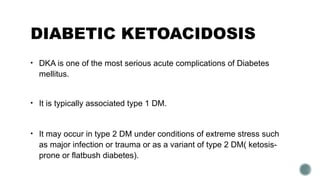

5. DIABETIC KETOACIDOSIS
• DKA is one of the most serious acute complications of Diabetes
mellitus.
• It is typically associated type 1 DM.
• It may occur in type 2 DM under conditions of extreme stress such
as major infection or trauma or as a variant of type 2 DM( ketosis-
prone or flatbush diabetes).

6. EPIDEMIOLOGY
• It is commoner in females.
• Commoner in non-whites.
 Mortality is higher in the elderly

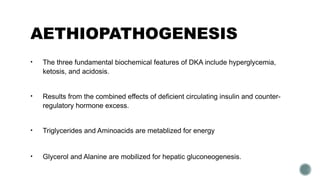

7. AETHIOPATHOGENESIS
• The three fundamental biochemical features of DKA include hyperglycemia,
ketosis, and acidosis.
• Results from the combined effects of deficient circulating insulin and counter-
regulatory hormone excess.
• Triglycerides and Aminoacids are metablized for energy
• Glycerol and Alanine are mobilized for hepatic gluconeogenesis.

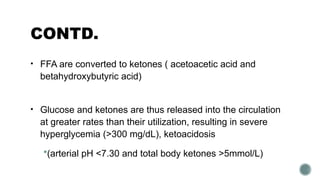

8. CONTD.
• FFA are converted to ketones ( acetoacetic acid and
betahydroxybutyric acid)
• Glucose and ketones are thus released into the circulation
at greater rates than their utilization, resulting in severe
hyperglycemia (>300 mg/dL), ketoacidosis
(arterial pH <7.30 and total body ketones >5mmol/L)

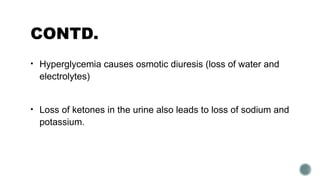

9. CONTD.
• Hyperglycemia causes osmotic diuresis (loss of water and
electrolytes)
• Loss of ketones in the urine also leads to loss of sodium and
potassium.

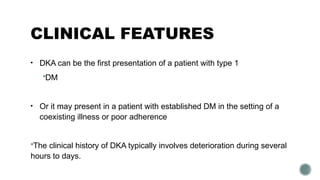

10. CLINICAL FEATURES
• DKA can be the first presentation of a patient with type 1
DM
• Or it may present in a patient with established DM in the setting of a
coexisting illness or poor adherence
The clinical history of DKA typically involves deterioration during several
hours to days.

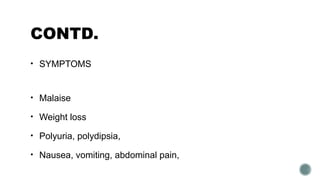

11. CONTD.
• SYMPTOMS
• Malaise
• Weight loss
• Polyuria, polydipsia,
• Nausea, vomiting, abdominal pain,

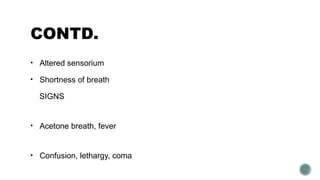

12. CONTD.
• Altered sensorium
• Shortness of breath
SIGNS
• Acetone breath, fever
• Confusion, lethargy, coma

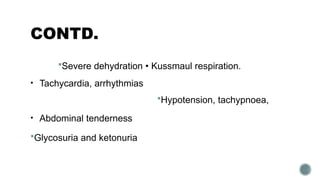

13. CONTD.
Severe dehydration • Kussmaul respiration.
• Tachycardia, arrhythmias
Hypotension, tachypnoea,
• Abdominal tenderness
Glycosuria and ketonuria

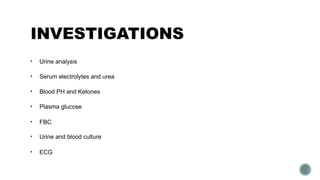

14. INVESTIGATIONS
• Urine analysis
• Serum electrolytes and urea
• Blood PH and Ketones
• Plasma glucose
• FBC
• Urine and blood culture
• ECG

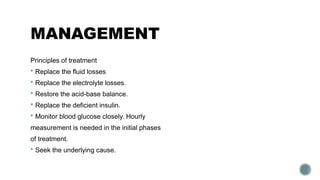

15. MANAGEMENT
Principles of treatment
 Replace the fluid losses
 Replace the electrolyte losses.
 Restore the acid-base balance.
 Replace the deficient insulin.
 Monitor blood glucose closely. Hourly
measurement is needed in the initial phases
of treatment.
 Seek the underlying cause.

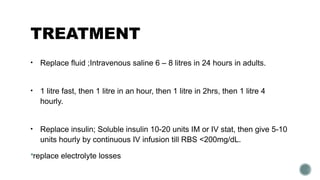

16. TREATMENT
• Replace fluid ;Intravenous saline 6 – 8 litres in 24 hours in adults.
• 1 litre fast, then 1 litre in an hour, then 1 litre in 2hrs, then 1 litre 4
hourly.
• Replace insulin; Soluble insulin 10-20 units IM or IV stat, then give 5-10
units hourly by continuous IV infusion till RBS <200mg/dL.
replace electrolyte losses

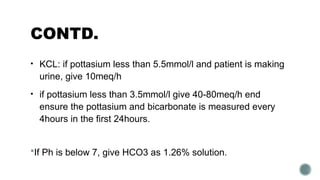

17. CONTD.
• KCL: if pottasium less than 5.5mmol/l and patient is making
urine, give 10meq/h
• if pottasium less than 3.5mmol/l give 40-80meq/h end
ensure the pottasium and bicarbonate is measured every
4hours in the first 24hours.
If Ph is below 7, give HCO3 as 1.26% solution.

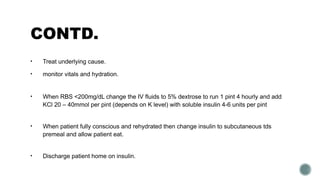

18. CONTD.
• Treat underlying cause.
• monitor vitals and hydration.
• When RBS <200mg/dL change the IV fluids to 5% dextrose to run 1 pint 4 hourly and add
KCl 20 – 40mmol per pint (depends on K level) with soluble insulin 4-6 units per pint
• When patient fully conscious and rehydrated then change insulin to subcutaneous tds
premeal and allow patient eat.
• Discharge patient home on insulin.

19. CONTD.
• FOLLOW UP
• After identifying cause of DKA put measures in place to
prevent recurrence.
Patient Education.

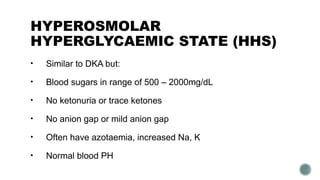

20. HYPEROSMOLAR
HYPERGLYCAEMIC STATE (HHS)
• Similar to DKA but:
• Blood sugars in range of 500 – 2000mg/dL
• No ketonuria or trace ketones
• No anion gap or mild anion gap
• Often have azotaemia, increased Na, K
• Normal blood PH

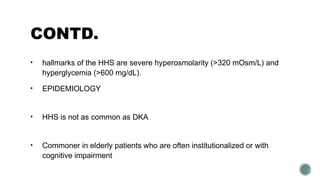

21. CONTD.
• hallmarks of the HHS are severe hyperosmolarity (>320 mOsm/L) and
hyperglycemia (>600 mg/dL).
• EPIDEMIOLOGY
• HHS is not as common as DKA
• Commoner in elderly patients who are often institutionalized or with
cognitive impairment

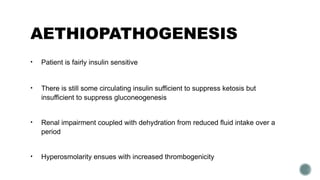

22. AETHIOPATHOGENESIS
• Patient is fairly insulin sensitive
• There is still some circulating insulin sufficient to suppress ketosis but
insufficient to suppress gluconeogenesis
• Renal impairment coupled with dehydration from reduced fluid intake over a
period
• Hyperosmolarity ensues with increased thrombogenicity

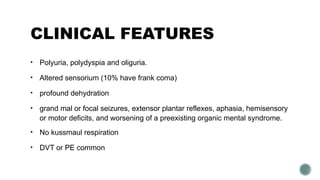

23. CLINICAL FEATURES
• Polyuria, polydyspia and oliguria.
• Altered sensorium (10% have frank coma)
• profound dehydration
• grand mal or focal seizures, extensor plantar reflexes, aphasia, hemisensory
or motor deficits, and worsening of a preexisting organic mental syndrome.
• No kussmaul respiration
• DVT or PE common

24. INVESTIGATIONS
• E/U/Cr
• Urinalysis
• Blood sugars
• Sepsis workup
• Plasma osmolarity, plasma pH
• ECG, CXR, D-dimer tests

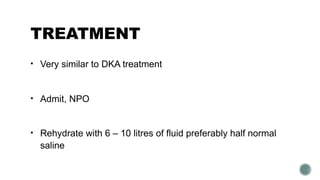

25. TREATMENT
• Very similar to DKA treatment
• Admit, NPO
• Rehydrate with 6 – 10 litres of fluid preferably half normal
saline

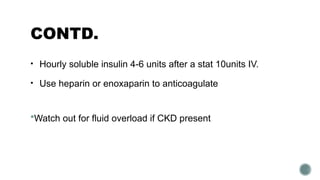

26. CONTD.
• Hourly soluble insulin 4-6 units after a stat 10units IV.
• Use heparin or enoxaparin to anticoagulate
Watch out for fluid overload if CKD present

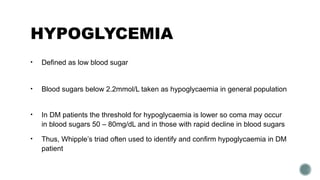

27. HYPOGLYCEMIA
• Defined as low blood sugar
• Blood sugars below 2.2mmol/L taken as hypoglycaemia in general population
• In DM patients the threshold for hypoglycaemia is lower so coma may occur
in blood sugars 50 – 80mg/dL and in those with rapid decline in blood sugars
• Thus, Whipple’s triad often used to identify and confirm hypoglycaemia in DM
patient

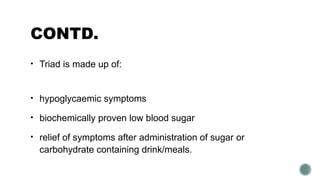

28. CONTD.
• Triad is made up of:
• hypoglycaemic symptoms
• biochemically proven low blood sugar
• relief of symptoms after administration of sugar or
carbohydrate containing drink/meals.

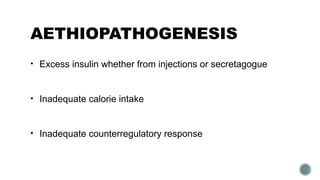

29. AETHIOPATHOGENESIS
• Excess insulin whether from injections or secretagogue
• Inadequate calorie intake
• Inadequate counterregulatory response

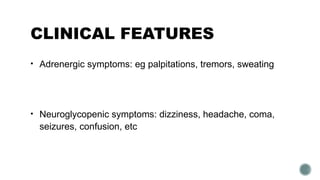

30. CLINICAL FEATURES
• Adrenergic symptoms: eg palpitations, tremors, sweating
• Neuroglycopenic symptoms: dizziness, headache, coma,
seizures, confusion, etc

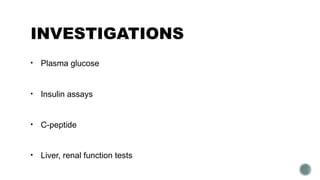

31. INVESTIGATIONS
• Plasma glucose
• Insulin assays
• C-peptide
• Liver, renal function tests

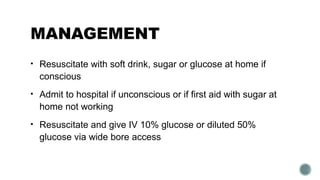

32. MANAGEMENT
• Resuscitate with soft drink, sugar or glucose at home if
conscious
• Admit to hospital if unconscious or if first aid with sugar at
home not working
• Resuscitate and give IV 10% glucose or diluted 50%
glucose via wide bore access

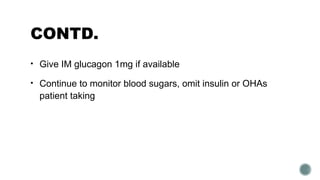

33. CONTD.
• Give IM glucagon 1mg if available
• Continue to monitor blood sugars, omit insulin or OHAs
patient taking

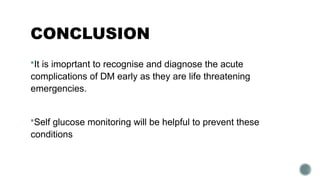

34. CONCLUSION
It is imoprtant to recognise and diagnose the acute
complications of DM early as they are life threatening
emergencies.
Self glucose monitoring will be helpful to prevent these
conditions
