1. How Transformers Are
Changing the Nature of
Deep Learning Models
Tom Michiels
Principal System Architect
Synopsys

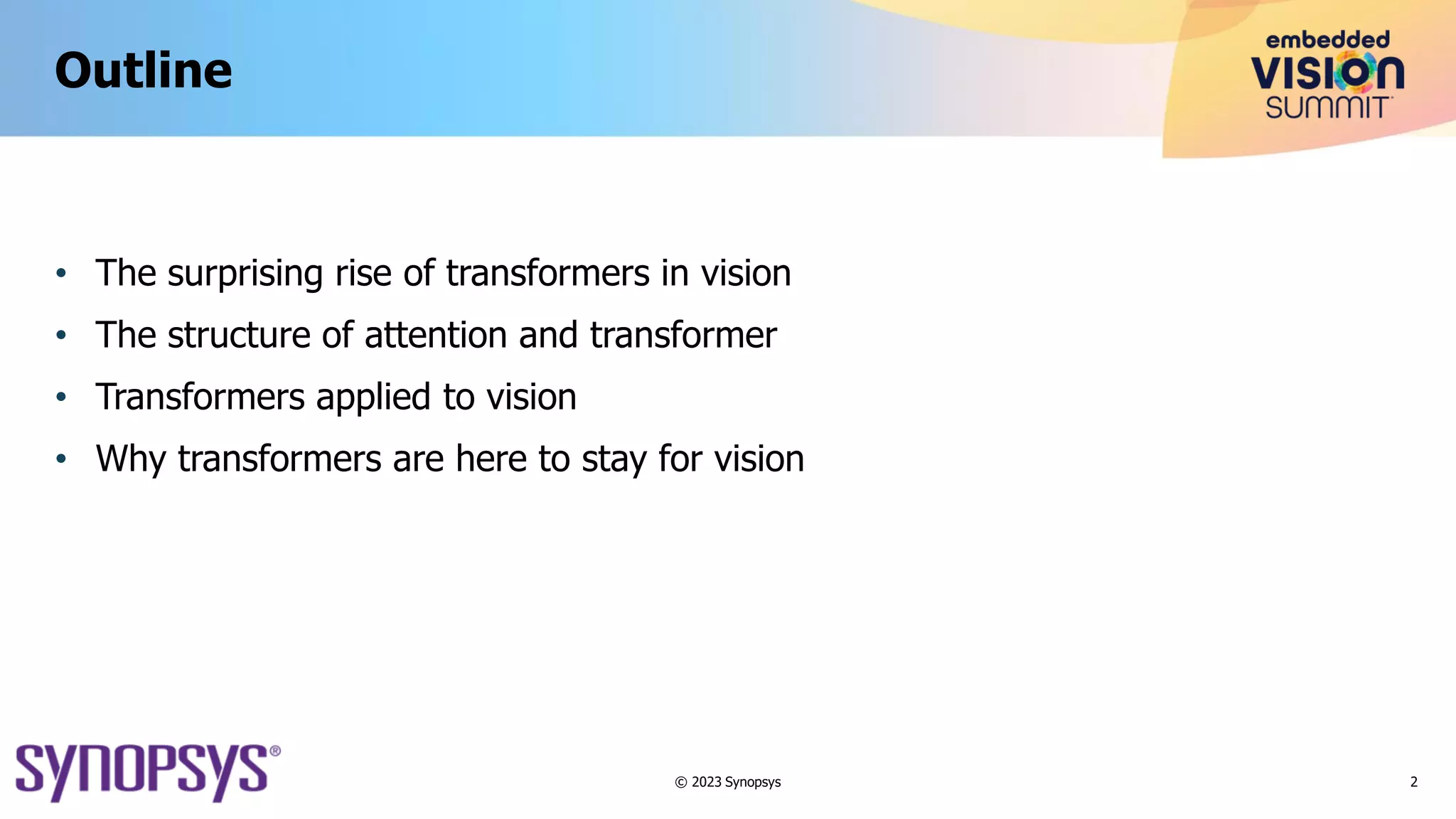

2. • The surprising rise of transformers in vision
• The structure of attention and transformer
• Transformers applied to vision
• Why transformers are here to stay for vision
Outline
© 2023 Synopsys 2

3. CNNs Dominating Vision Tasks Since 2012
2012 ... 2014 2015 2016 2017 2018 2019 2020 2021 2022
AlexNet VGG ResNet MobileNet V1 MobileNet V2
EfficientNet
MobileNet v3
Image Classification
© 2023 Synopsys 3

4. 2012 ... 2014
AlexNet VGG ResNet MobileNet V1 MobileNet V2
EfficientNet
MobileNet v3
RCNN
FRCNN
SSD
YOLOV2 Mask RCNN YoloV3
YoloV4/V5
EfficientDet
Object Detection
© 2023 Synopsys 4
2015 2016 2017 2018 2019 2020 2021 2022
CNNs Dominating Vision Tasks Since 2012

5. AlexNet VGG ResNet MobileNet V1 MobileNet V2
EfficientNet
MobileNet v3
RCNN
FRCNN
SSD
YOLOV2 Mask RCNN YoloV3
YoloV4/V5
EfficientDet
FCN
DeepLab
SegNet DSNet
Semantic Segmentation
© 2023 Synopsys 5
2012 ... 2014 2015 2016 2017 2018 2019 2020 2021 2022
CNNs Dominating Vision Tasks Since 2012

6. 2012 ... 2014
AlexNet VGG ResNet MobileNet V1 MobileNet V2
EfficientNet
MobileNet v3
RCNN
FRCNN
SSD
YOLOV2 Mask RCNN YoloV3
YoloV4/V5
EfficientDet
FCN
DeepLab
SegNet DSNet
DeeperLab
PFPN
EfficientPS
YoloP
Panoptic Vision
© 2023 Synopsys 6
2015 2016 2017 2018 2019 2020 2021 2022
CNNs Dominating Vision Tasks Since 2012

7. A Decade of CNN Development…
Residual
Connection
© 2023 Synopsys 7
Inverted Residual
Blocks

8. Beaten in Accuracy by Transformers
© 2023 Synopsys 8
Is this the real life ? Is this just fantasy ?
Transformer, a model designed for natural
language processing
… without any modifications applied to image patches,
beats the highly specialized CNNs in accuracy

9. Accuracy Records on ImageNet
9
© 2023 Synopsys
45%
50%
55%
60%
65%
70%
75%
80%
85%
90%
95%
11/2010 4/2012 8/2013 12/2014 5/2016 9/2017 2/2019 6/2020 10/2021 3/2023
Ancient
(classical CV)
Medieval
(CNNs)
Modern
(Transformers)
Sift+FV’s
AlexNet
VGG16
ResNet152
NasNet
Meta Pseudo Labels
(EfficientNet-L2)
ResNeXt-101
ViT-G/14 CoAtNet-7
CoCa (finetuned)
Model soups
State-of-the-art Top-1 Accuracy ImageNet, entering a new era?
50%
63.3%
74.4%
90.20%
90.88%
90.45%
90.98%
91.00%
78.57%

10. Transformers in Other Vision Tasks
10
© 2023 Synopsys
Semantic Segmentation on ADE20K Object Detection on COCO test-dev
0
10
20
30
40
50
60
70
11/2015 11/2017 11/2019 11/2021
0
10
20
30
40
50
60
70
04/2015 04/2017 04/2019 04/2021
Faster R-CNN
36.2
State-of-the-Art of other Vision tasks are dominated by transformers
58.7
SWIN-L
YOLOv4-P7
55.8
PSPNet
44.95
DRAN(ResNet-101)
46.1
SwinV2-G
59.9

11. But These State-of-the-Art Models Are Huge!
0
500
1000
1500
2000
2500
78.00%
80.00%
82.00%
84.00%
86.00%
88.00%
90.00%
92.00%
Is the state-of-the-art really relevant for embedded applications?
accuracy
© 2023 Synopsys 11
Number
of
parameters
(M)

12. Compact Transformers versus CNNs
12
© 2023 Synopsys
source MobileViTv3 https://arxiv.org/abs/2209.15159
Number of FLOPs

13. Mobile ViT: Small Mobile
(Paper by Apple, March 2022)
https://arxiv.org/pdf/2110.02178.pdf
2.3X
FLOPs
+1.5%
Accuracy
2.4X
Time
7.9X
Time
Inference Time (ms)
CPU/NNE = 8.1X
CPU/NNE = 2.5X
• Observations in paper
– On embedded devices (iPhone) MobileViT is slower than CNN based methods
– Because the AI accelerator on iPhone is not as optimized for transformers as it is for CNNs
– The authors expect that future AI accelerators will better support transformers
0.7X
Model
Size
© 2023 Synopsys 13

14. The Structure of Attention
and Transformer
© 2023 Synopsys 14

15. • Attention is all you need!(*)
• Bidirectional Encoder Representations from
Transformers
• A transformer is a deep learning model that uses
attention mechanism
• Transformers were primarily used for natural
language processing
• Translation
• Question answering
• Conversational AI
• Successful training of huge transformers
• MTM, GPT-3, T5, ALBERT, RoBERTa, T5, Switch
• Transformers are successfully applied in other
application domains with promising results for
embedded use
Bert and Transformers
(*) https://arxiv.org/abs/1706.03762
© 2023 Synopsys 15

16. Convolutions, Feed Forward, and
Multi-Head Attention
16
© 2023 Synopsys
1x1
Convolution
Add
3x3
Convolution
Add
CNN
Transformer
• The feed forward layer of the transformer
is identical to a 1x1 convolution
• In this part of the model, no information
is flowing between tokens/pixels
• Multi-head attention and 3x3 convolution
layers are the layers responsible for
mixing information between tokens/pixels

17. Convolutions as Hard-Coded Attention
Both Convolution and Attention Networks mix in features of other tokens/pixels
Convolution Attention
Convolutions mix in features from tokens based on fixed spatial location
Attention mix in features from tokens based on learned attention
© 2023 Synopsys 17

18. The Structure of a Transformer: Attention
Multi-Head Attention
Attention: Mix in features of other tokens
Is this the real life ?
Is
this
the
real
life
?
© 2023 Synopsys 18

19. The Structure of a Transformer: Attention
Multi-Head Attention
Attention: Mix in features of other tokens
© 2023 Synopsys 19

20. The Structure of a Transformer: Attention
NxN
matrix
N: number of tokens
Multi-Head Attention
© 2023 Synopsys 20

21. +
The Structure of a Transformer: Embedding
Embedding of input tokens and the positional encoding
Is this the real life ? Is this just fantasy ?
embedding vectors
position encoding
elementwise addition
© 2023 Synopsys 21

22. Applying Transformers to Vision Tasks
© 2023 Synopsys 22

23. Vision Transformers (ViT/L16 or ViT-G/14)
An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale(*)
Image is split into tiles
(*) https://arxiv.org/abs/2010.11929
Linear Projection
Multi-Head Attention
Feed Forward
Add & Norm
Add & Norm
+
Pixels in a tile are
flattened into tokens (vectors)
that feed in the transformer
N
x
Vision transformers are best-
known method for image
classification
They are beating convolutional
neural networks in accuracy
and training time, but not in
inference time
Position encoding
© 2023 Synopsys 23

24. Vision Transformer  Increasing Resolution
Linear Projection
Multi-Head Attention
Feed Forward
Add & Norm
Add & Norm
+
N
x
Position encoding
Attention matrix scales quadratically
with the number of patches
N x N matrix
Where N = the number
of tokens/patches
© 2023 Synopsys 24

25. Swin Transformers
Hierarchical Vision Transformer Using Shifted Windows (*)
Adaptation makes transformers
scale for larger images:
1. Shifted window attention
2. Patch-merging
State of the art for
• Object detection (COCO)
• Semantic segmentation
(ADE20K)
(*) https://arxiv.org/abs/2103.14030
© 2023 Synopsys 25
Patch-Merging

26. Action Classification with Transformers
Video Swin Transformer
https://arxiv.org/abs/2106.13230
Video Swin Transformers extend the (shifted)
window to three dimensions (2D spatial + time)
Today’s state of the art on Kinetics-400 and
Kinetics-600
© 2023 Synopsys 26

27. Object Detection with Transformers
27
© 2023 Synopsys
End-to-End Object Detection with Transformers (Facebook 2020)
https://arxiv.org/abs/2005.12872
DETR uses a CNN (ResNet-50) as a backbone
Off-the-shelf transformer encoder and decoder
Trained Object Queries retrieve possible candidates for objects

28. Training Vision Transformers
28
© 2023 Synopsys
• More data required to train a transformer to overcome the lack
of inductive bias of convolution
• Vision Transformers take significantly less training time than
comparable CNN’s
• Self-supervised Pre-Training for Vision Transformers
“cat”
Supervised learning Self-Supervised learning

29. Why Attention and Transformers
are Here to Stay for Vision

30. Inductive Bias of CNNs
Recognizing Cat Fur Recognizing a whole Cat
The inductive bias of a convolution, is more helpful
for recognizing low level features like cat fur than for
recognizing more complex objects like cats
Convolution use the same weights
for processing every pixel
© 2023 Synopsys 30

31. Inductive Bias of CNNs and Sensor Fusion
31
© 2023 Synopsys
Camera front Left Camera Front Camera Front Right Lidar TOP
• Many real-life applications use multiple sensors
• Transformers excel in sensor fusion
• The inductive bias of CNNs designed for grid-like
structures limits their effectiveness in sensor fusion
Fused in a single object

32. Panoptic Segmentation Using CNNs
Panoptic Segmentation combines predictions from both instance and semantic segmentation in a unified output
Image source: https://www.barnorama.com/wp-content/uploads/2016/12/03-Confusing-Pictures.jpg
Model Used: Detectron2 - COCO-PanopticSegmentation/panoptic_fpn_R_101_3x
© 2023 Synopsys
32
Panoptic
FPN_ResNet101_3x

33. Multimodal Transformers
LLaVA Language and
© 2023 Synopsys 33
User: What is unusual about this image?
LLaVA: The unusual aspect of the image is that
a man is ironing clothes on the back of a yellow
minivan while it is on the road. This is an
unconventional and unsafe place to perform
such an activity, as ironing clothes typically
requires a stable surface and appropriate
equipment. Ironing clothes in a moving vehicle
could lead to potential hazards for both the
person doing the ironing and other road users.
PN_ResNet101_3x
https://arxiv.org/pdf/2304.08485.pdf

34. How Much Intelligence Do We Need?
34
© 2023 Synopsys
Panoptic Segmentation Multi-modal language/vision
How much (artificial) intelligence is required for real-life applications?
User: What is unusual about this image?
LLaVA: The unusual aspect of the image is
that a man is ironing clothes on the back of
a yellow minivan while it is on the road. This
is an unconventional and unsafe place to
perform such an activity, as ironing clothes
typically requires a stable surface and
appropriate equipment. ….

35. • Attention-based networks outperform CNN-only networks on accuracy
• Highest accuracy required for high-end applications
• Models that combine vision transformers with convolutions are more efficient at
inference
• Examples: MobileViT(*), CoAtNet(**)
• Real-life vision: demands beyond CNN inductive bias
• Scene understanding needs common-sense knowledge that may not be
learned by vision alone
• Sensor fusion: complex geometrical mappings are ill-suited for CNN bias
Why Transformers Are Here to Stay in Vision
(*) https://arxiv.org/abs/2110.02178
(**) https://arxiv.org/abs/2106.04803v2
35
© 2023 Synopsys

36. • Transformers are deep learning models primarily used in the field of NLP
• Transformers lead to state-of-the-art results in other application domains of deep
learning like vision and speech
• They can be applied to other domains with surprisingly little modifications
• Models that combine attention and convolutions outperform convolutional
neural networks on vision tasks, even for small models
• Transformers and attention for vision applications are here to stay
• Real world applications require knowledge that is not easily captured with
convolutions
Summary
© 2023 Synopsys 36

37. Resources
Visit Synopsys Booth 309
• Partner demo: Visionary.ai True Night Vision SW ISP
• Meet with Synopsys executives and experts
• Discuss emerging neural network architectures like
transformers and vision/object detection for safety-critical
automotive SoCs
• Learn about the latest in practical technology to bring
visual intelligence into embedded systems, mobile apps,
cars, and PCs
Resources
ARC NPX6 NPU IP
www.synopsys.com/npx
© 2023 Synopsys 37
