This document provides instructions for using the Atoll ASP module to create scenarios for calculation and analysis. It describes choosing scenario settings like resolution and method, defining zones and templates, setting objectives and parameters, starting calculations, viewing results, and committing or rolling back results.

1. How to Use Atoll ASP
Module

2. Creating a Scenario
• Choose resolution, method, etc.

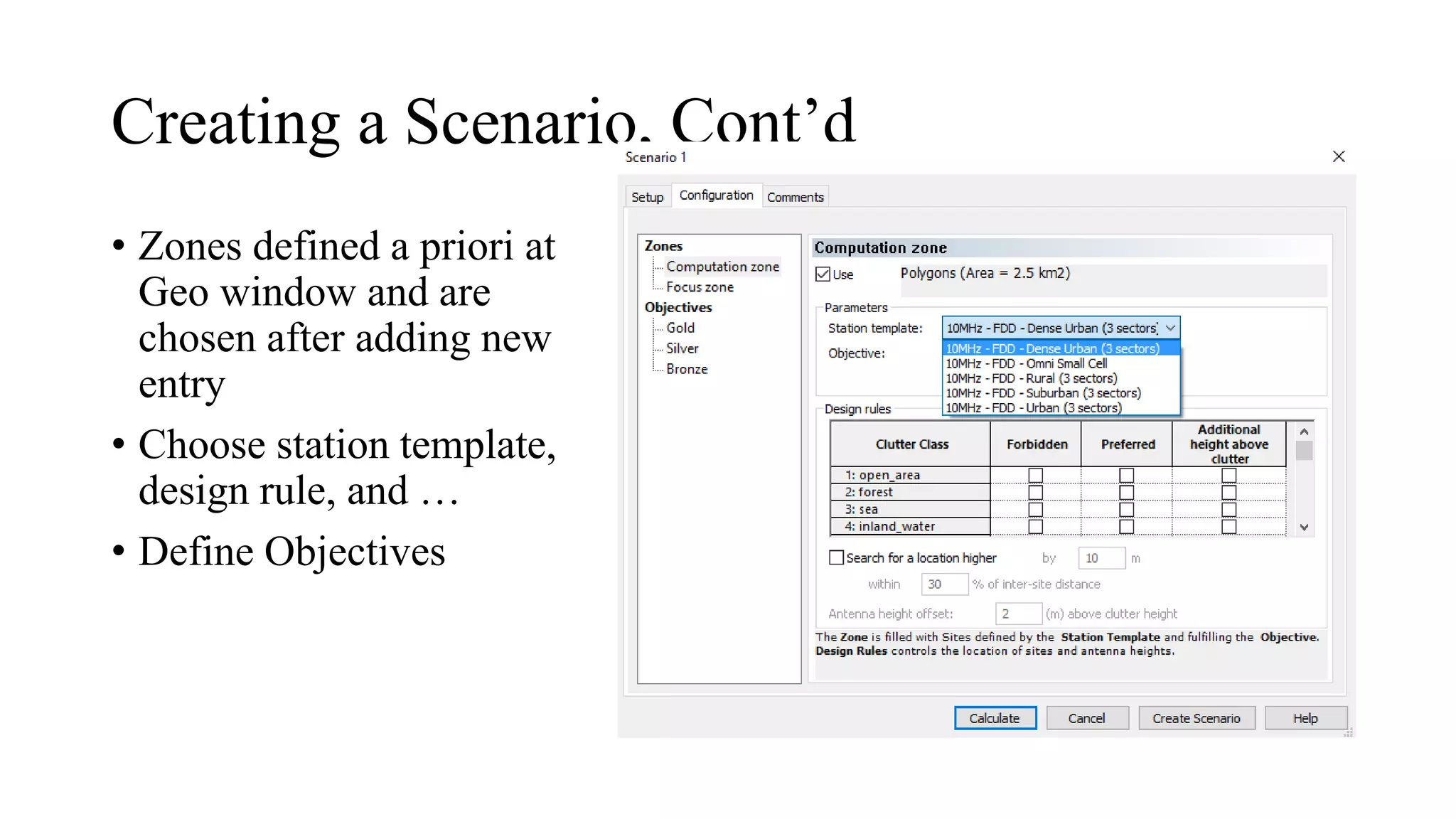

3. Creating a Scenario, Cont’d
• Zones defined a priori at
Geo window and are
chosen after adding new
entry
• Choose station template,
design rule, and …
• Define Objectives

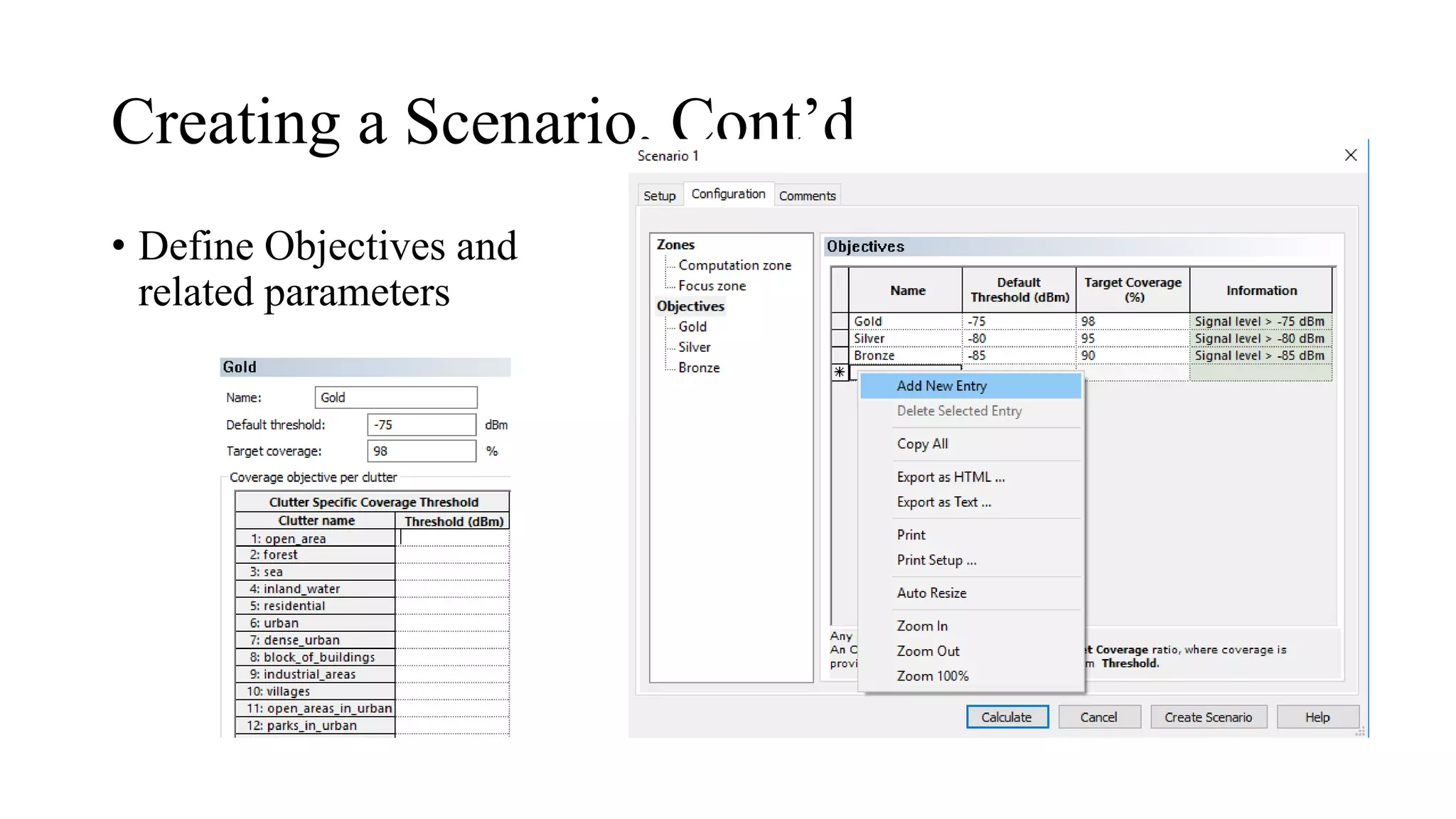

4. Creating a Scenario, Cont’d
• Define Objectives and
related parameters

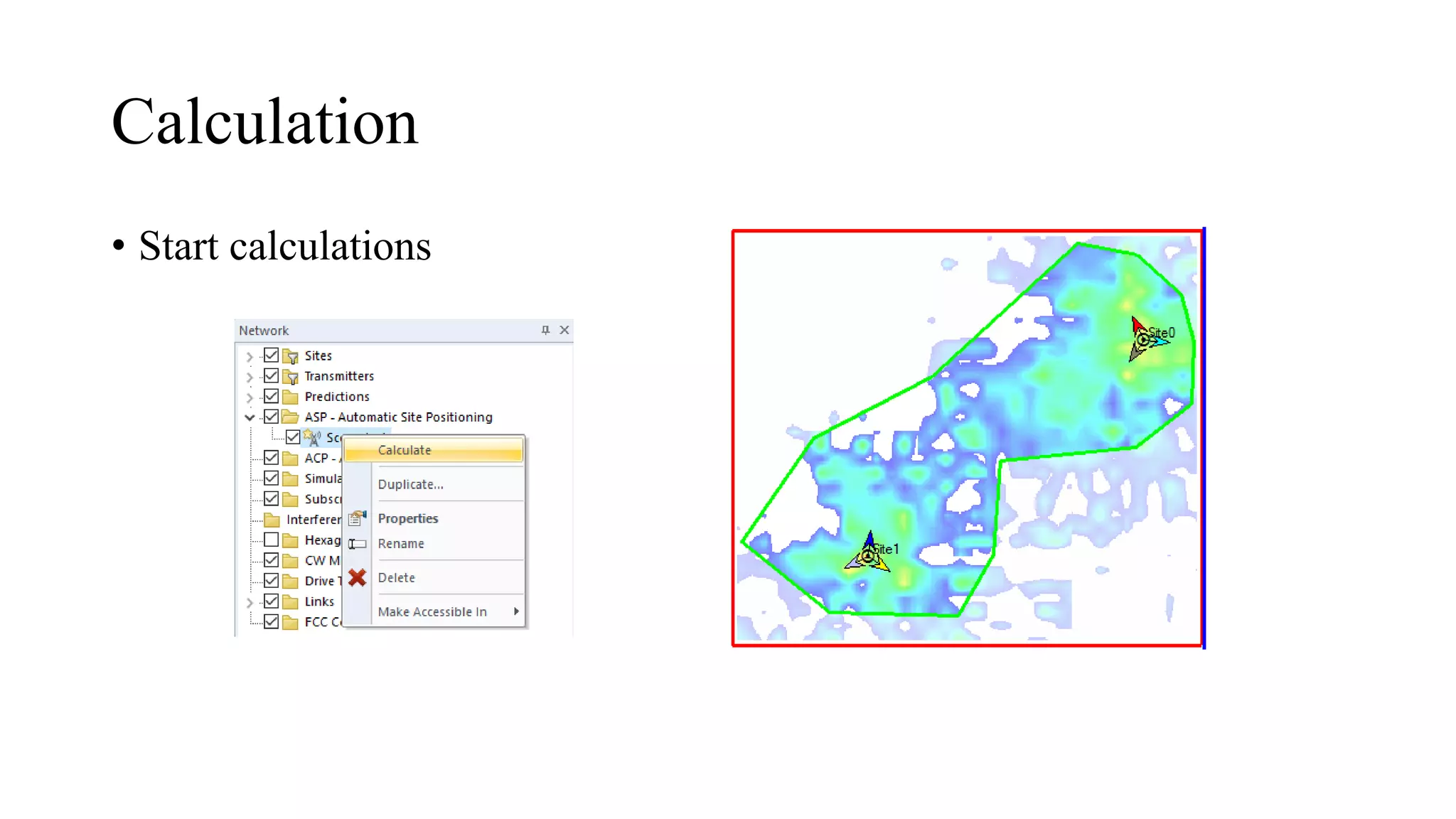

5. Calculation
• Start calculations

6. Results
• Open Result Properties

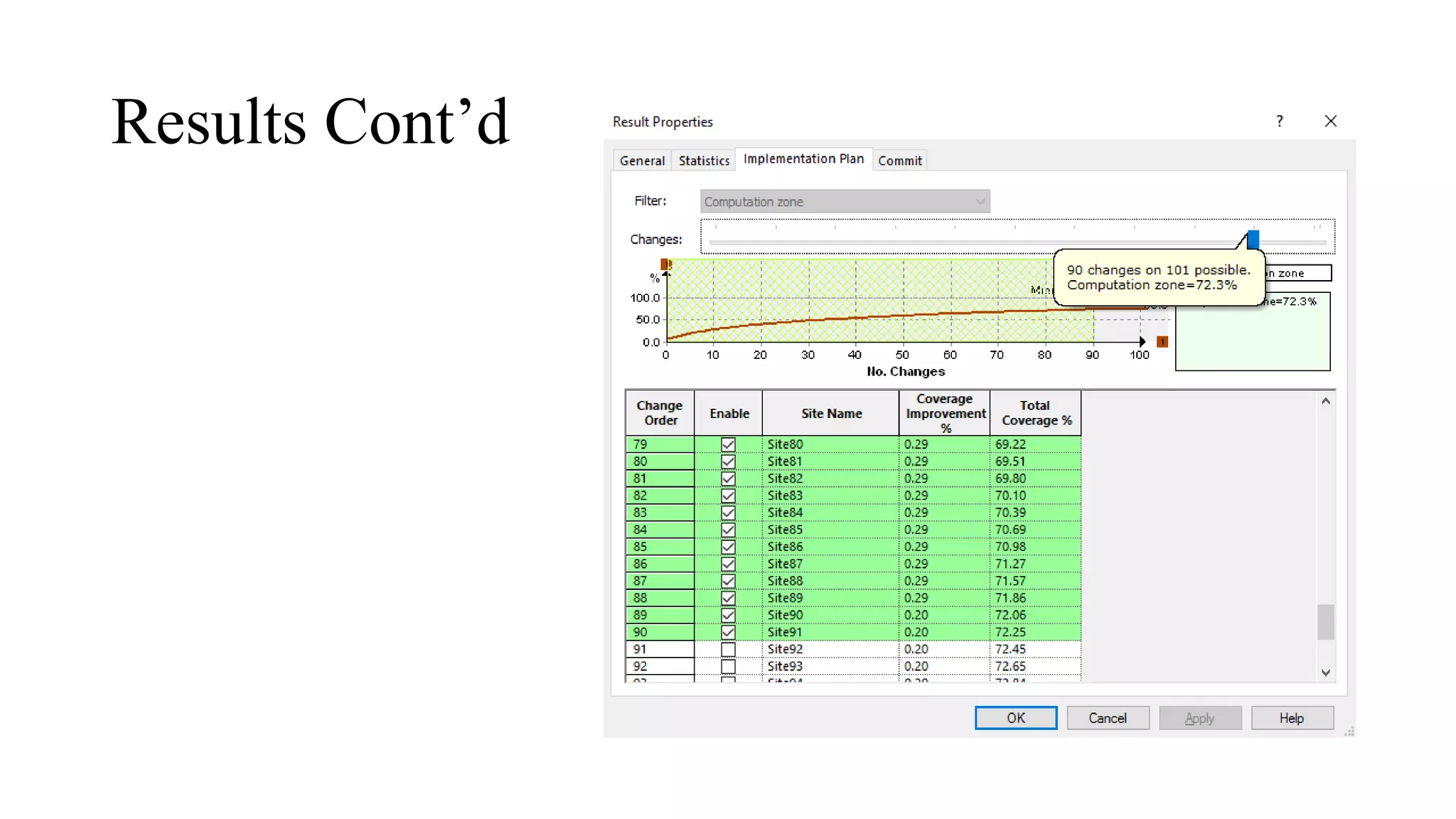

7. Results Cont’d

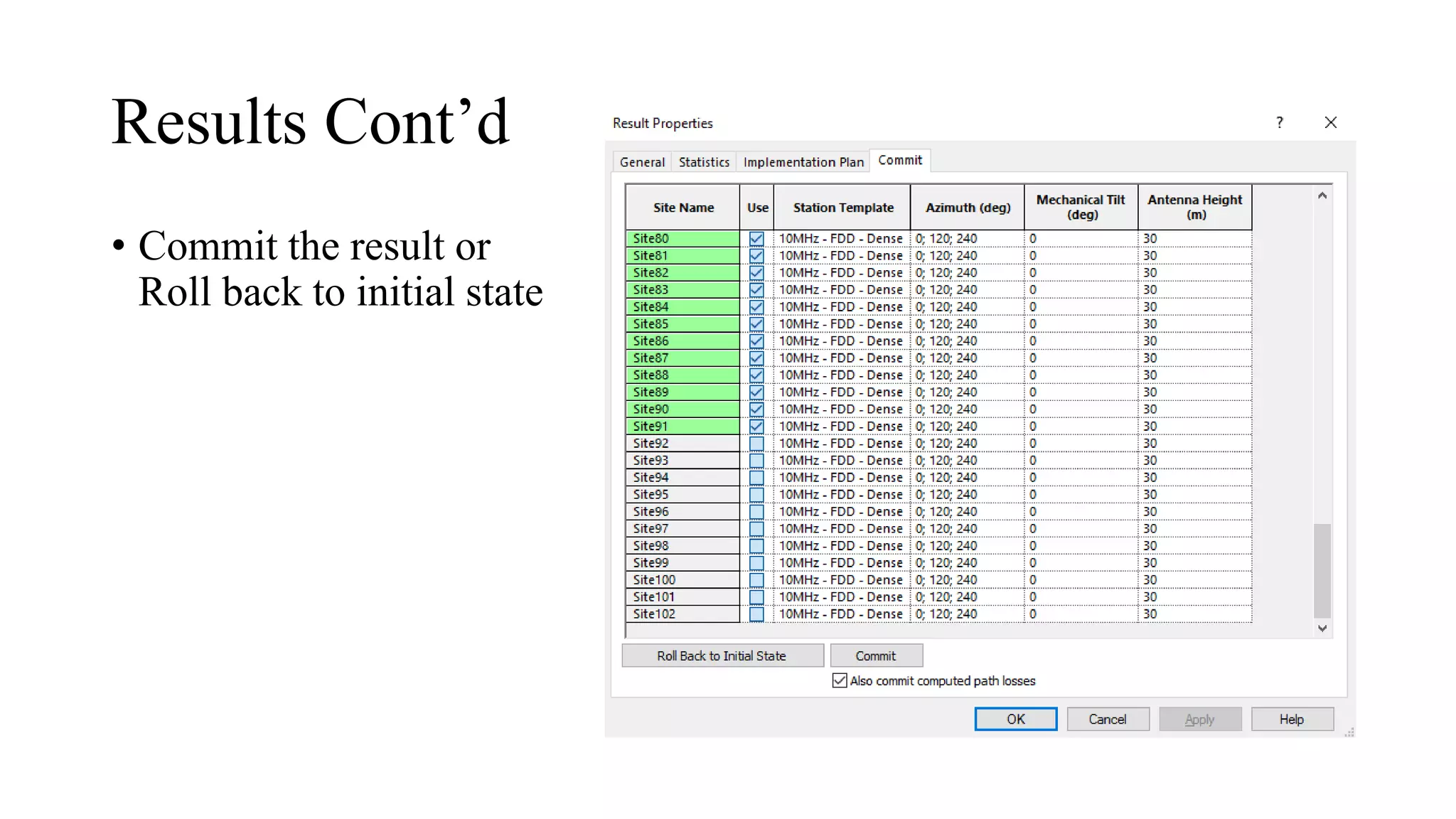

8. Results Cont’d
• Commit the result or
Roll back to initial state

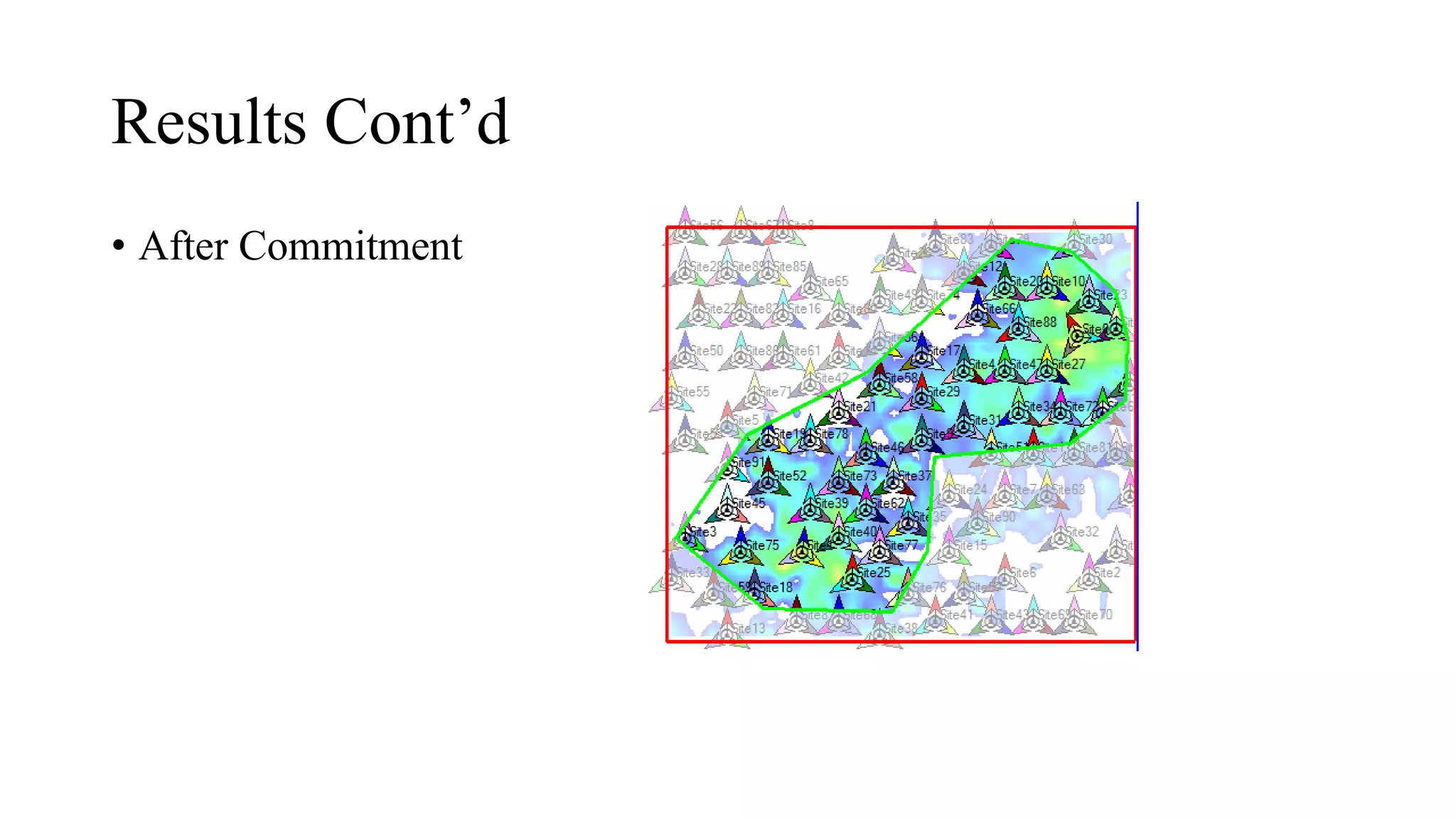

9. Results Cont’d
• After Commitment
