1. Blockchain Academy
A community for technologists looking to learn more
about crypto and Blockchain technology
Blockchain AcademyOded Noam Jan 25, 2018

2. How to Be a
Smart-Contract Engineer
Blockchain AcademyOded Noam Jan 26, 2018

3. Agenda
0.Background
1.What are Smart Contracts
2.How are They Different from Regular Software
3.Principles of Smart Contract Engineering

4. About Me

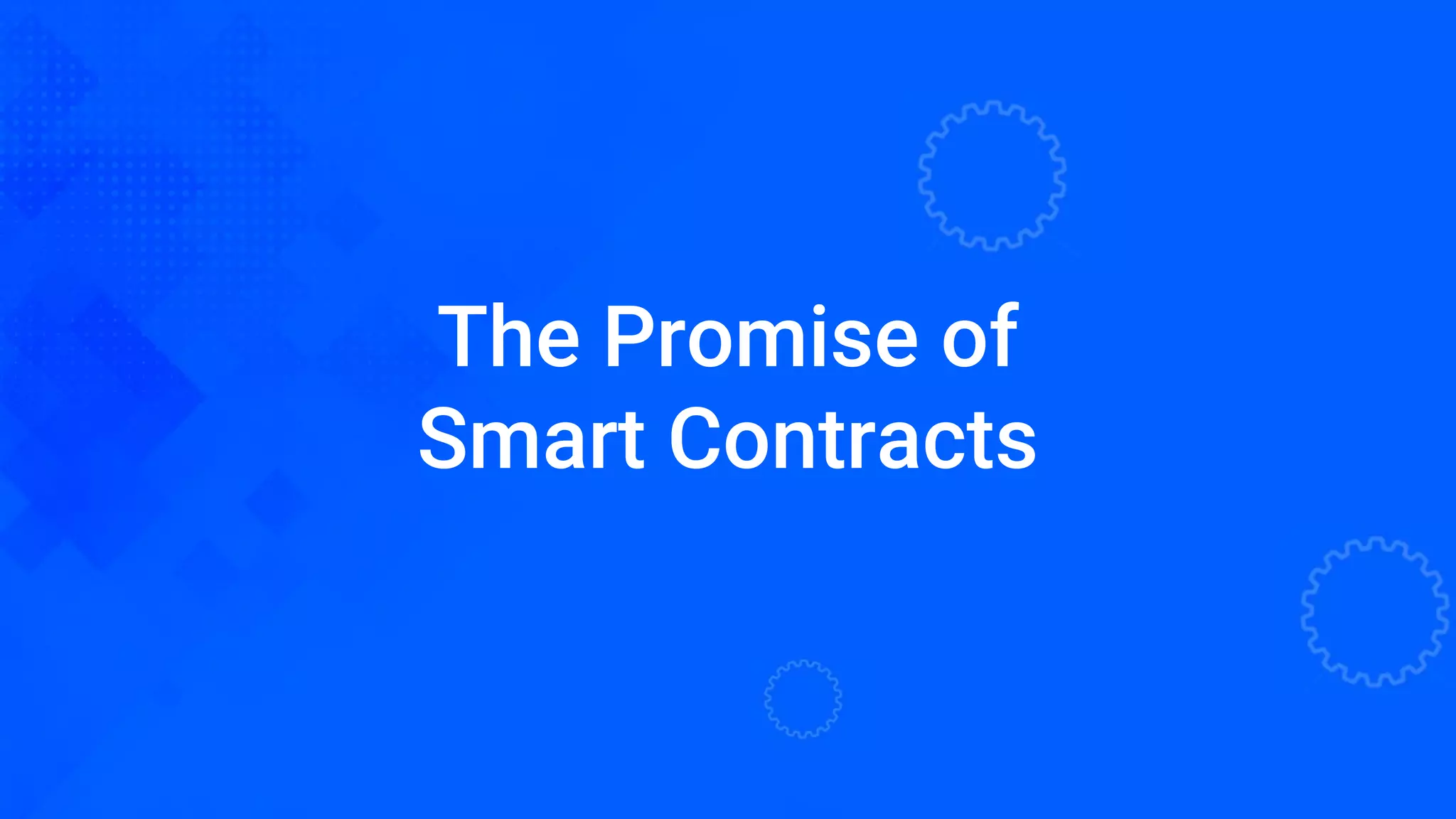

5. The Promise of
Smart Contracts

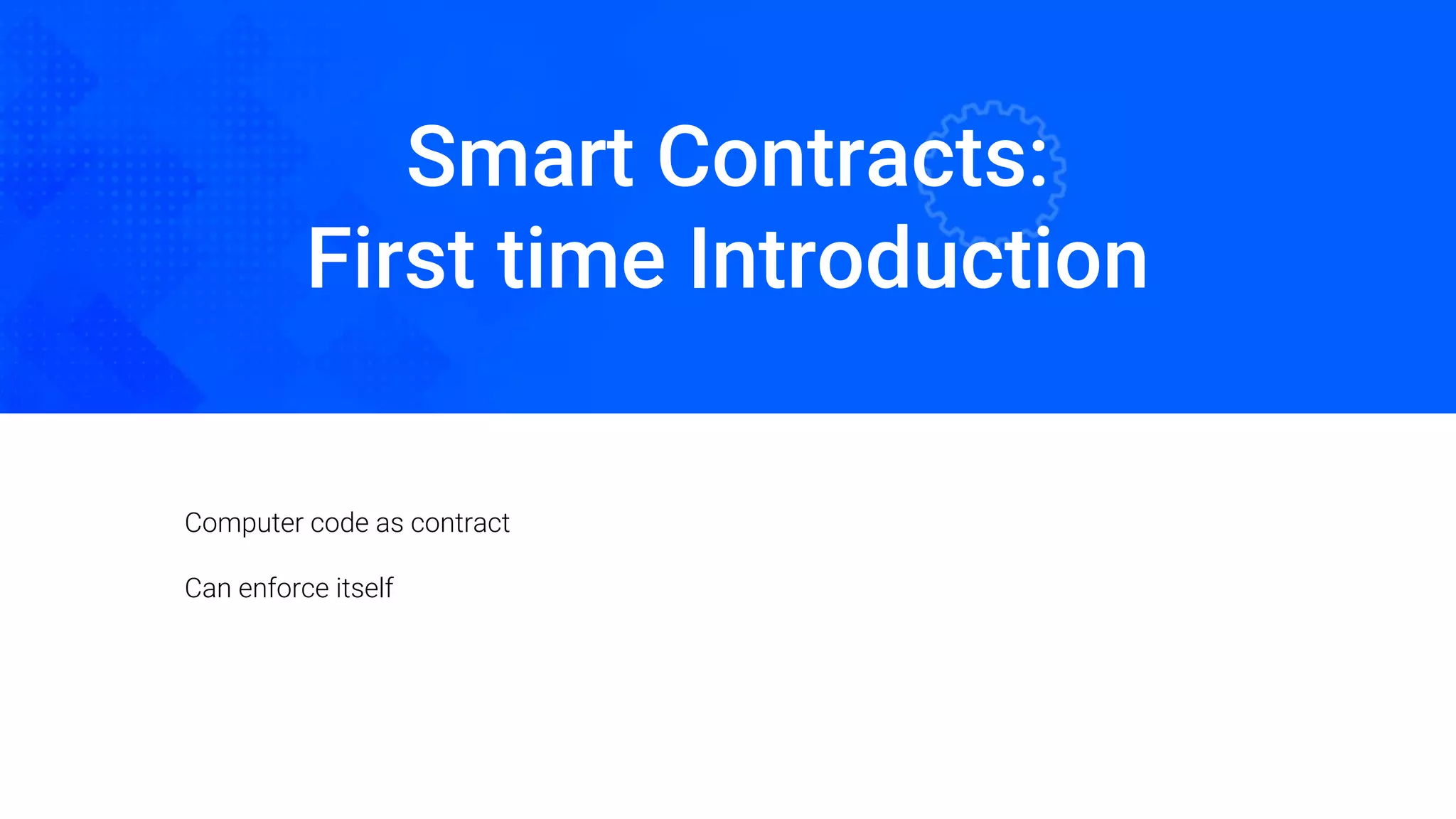

6. Smart Contracts:
First time Introduction
Computer code as contract
Can enforce itself

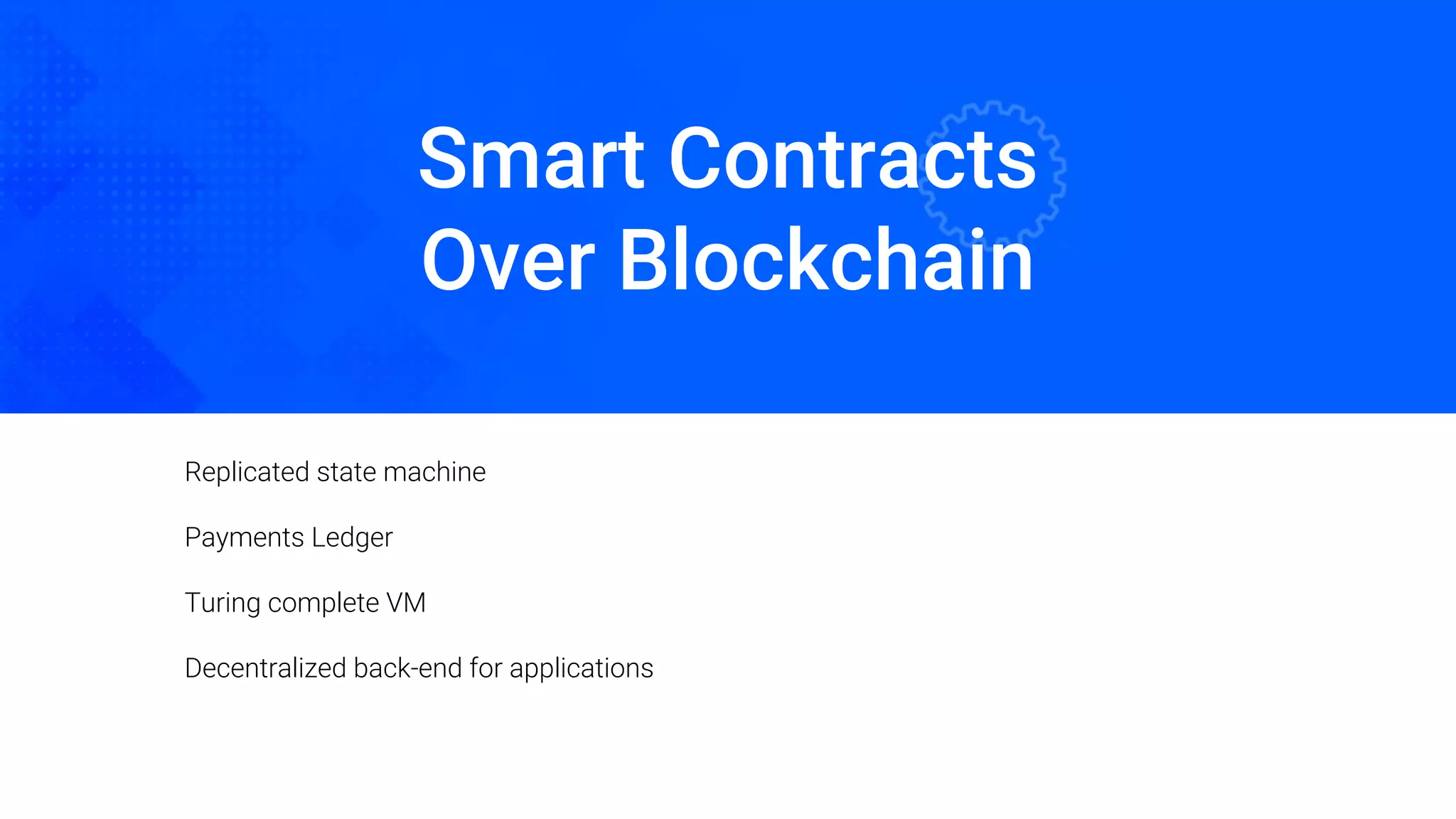

7. Smart Contracts
Over Blockchain
Oded Naom Blockchain Academy
Replicated state machine
Payments Ledger
Turing complete VM
Decentralized back-end for applications

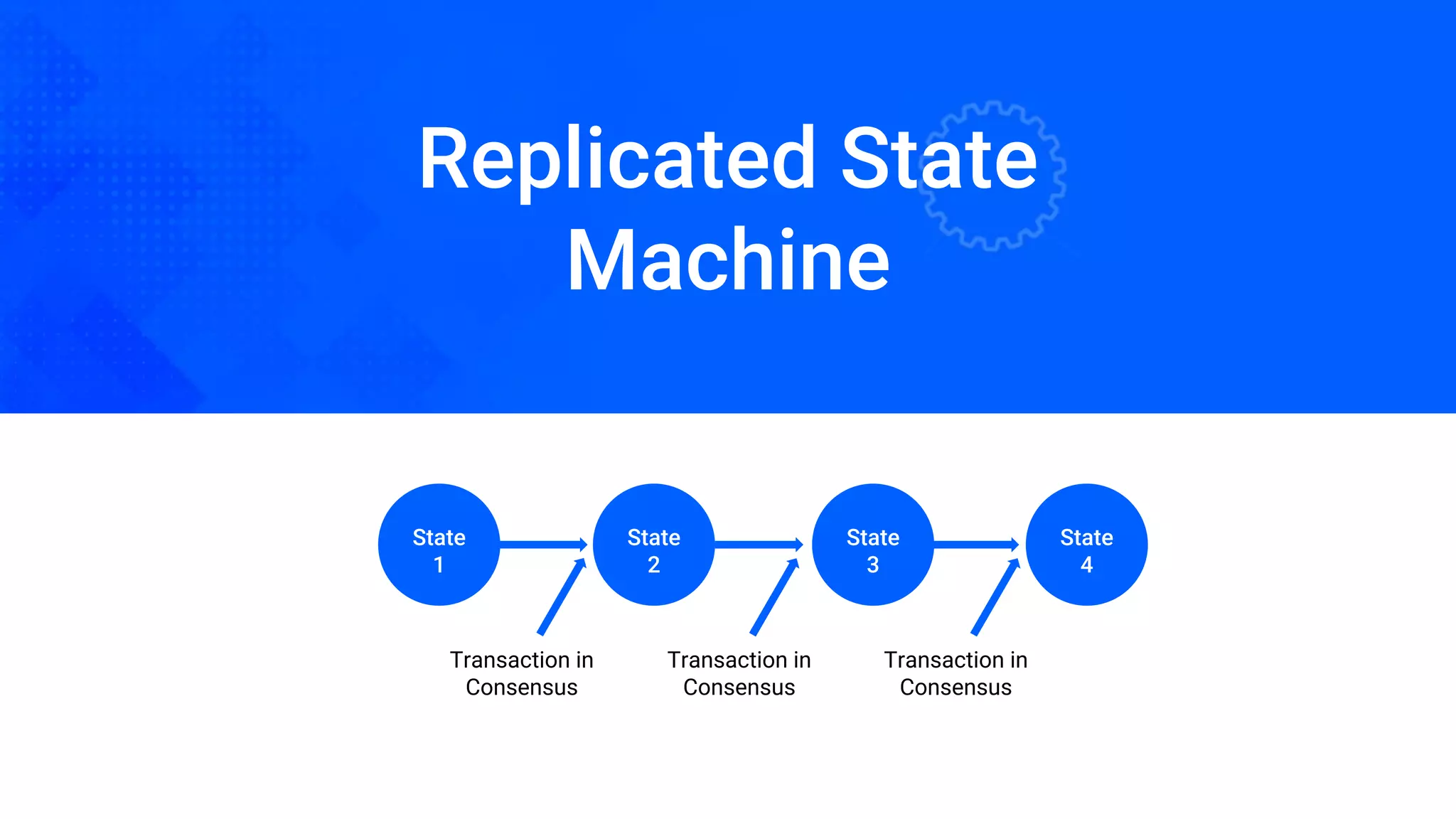

8. Replicated State
Machine
State
1
State
2
State
3
State
4
Transaction in
Consensus
Transaction in
Consensus
Transaction in
Consensus

9. But Why?

10. Why is the Internet so great?

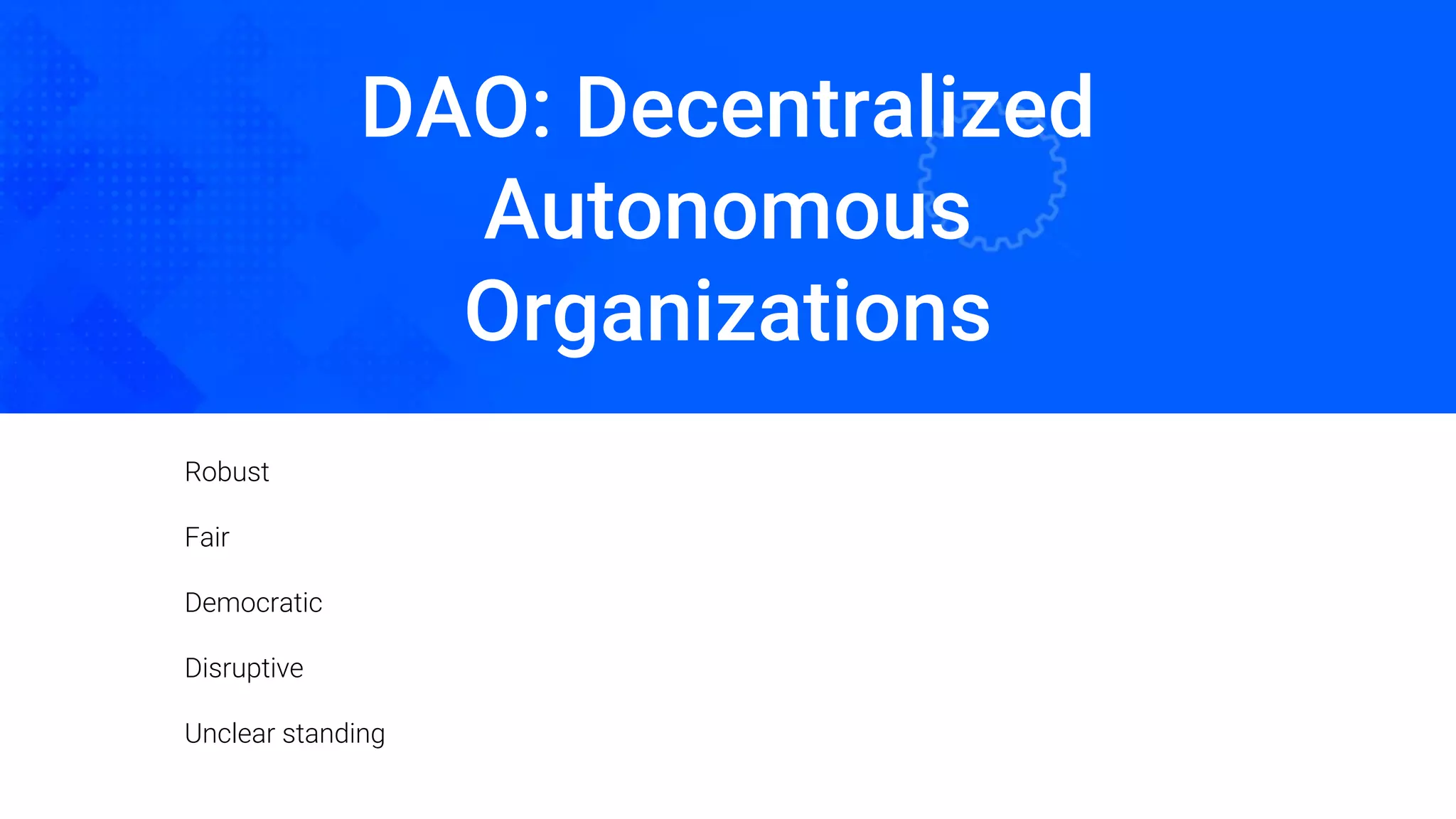

11. DAO: Decentralized
Autonomous
Organizations
Oded Naom Blockchain Academy
Robust
Fair
Democratic
Disruptive
Unclear standing

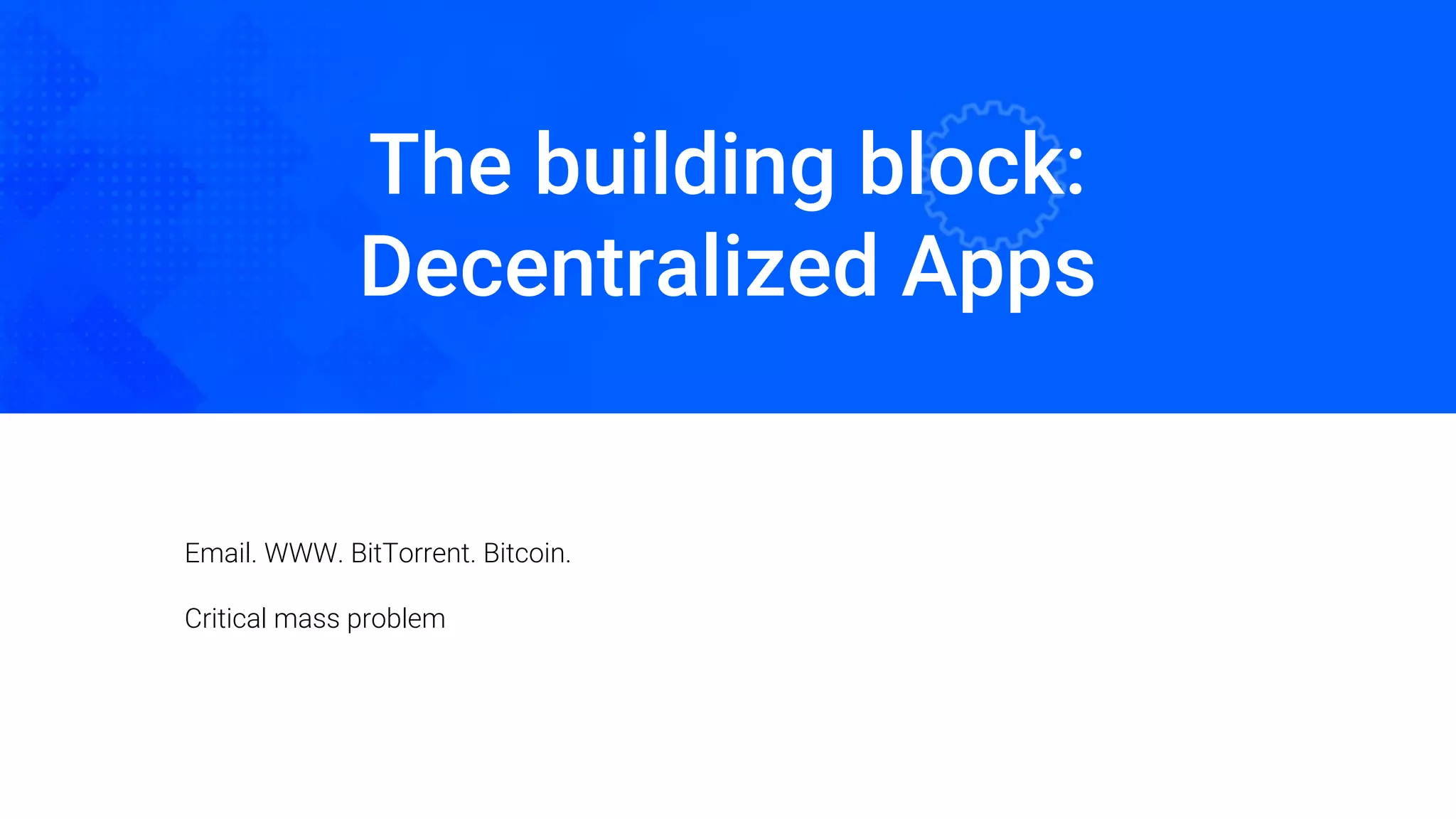

12. The building block:
Decentralized Apps
Oded Naom Blockchain Academy
Email. WWW. BitTorrent. Bitcoin.
Critical mass problem

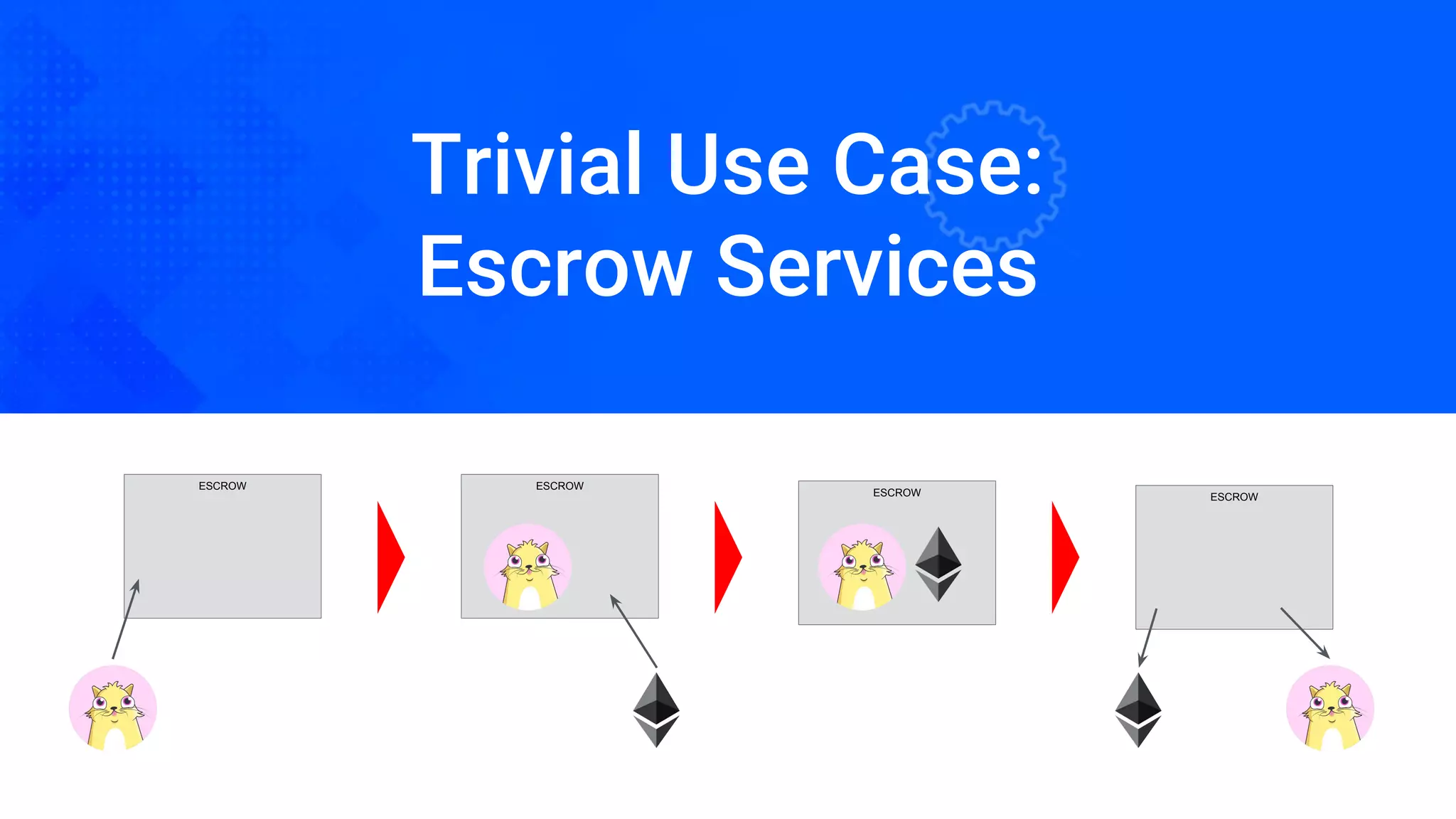

13. Trivial Use Case:
Escrow Services
ESCROW ESCROW
ESCROW ESCROW

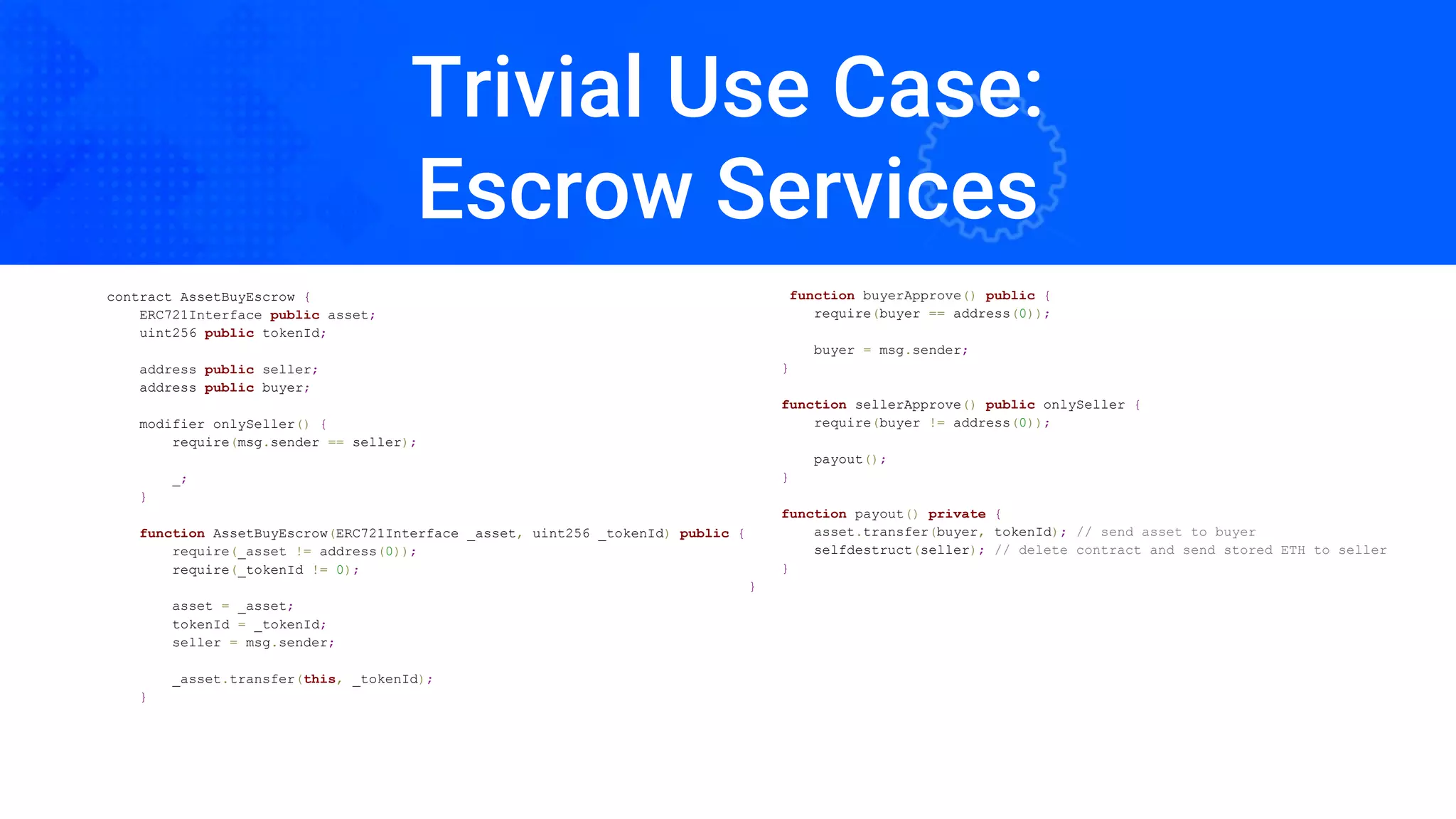

14. Trivial Use Case:
Escrow Services
contract AssetBuyEscrow {
ERC721Interface public asset;
uint256 public tokenId;
address public seller;
address public buyer;
modifier onlySeller() {
require(msg.sender == seller);
_;
}
function AssetBuyEscrow(ERC721Interface _asset, uint256 _tokenId) public {
require(_asset != address(0));
require(_tokenId != 0);
asset = _asset;
tokenId = _tokenId;
seller = msg.sender;
_asset.transfer(this, _tokenId);
}
function buyerApprove() public {
require(buyer == address(0));
buyer = msg.sender;
}
function sellerApprove() public onlySeller {
require(buyer != address(0));
payout();
}
function payout() private {
asset.transfer(buyer, tokenId); // send asset to buyer
selfdestruct(seller); // delete contract and send stored ETH to seller
}
}

15. Smart Contracts
Aren’t Software

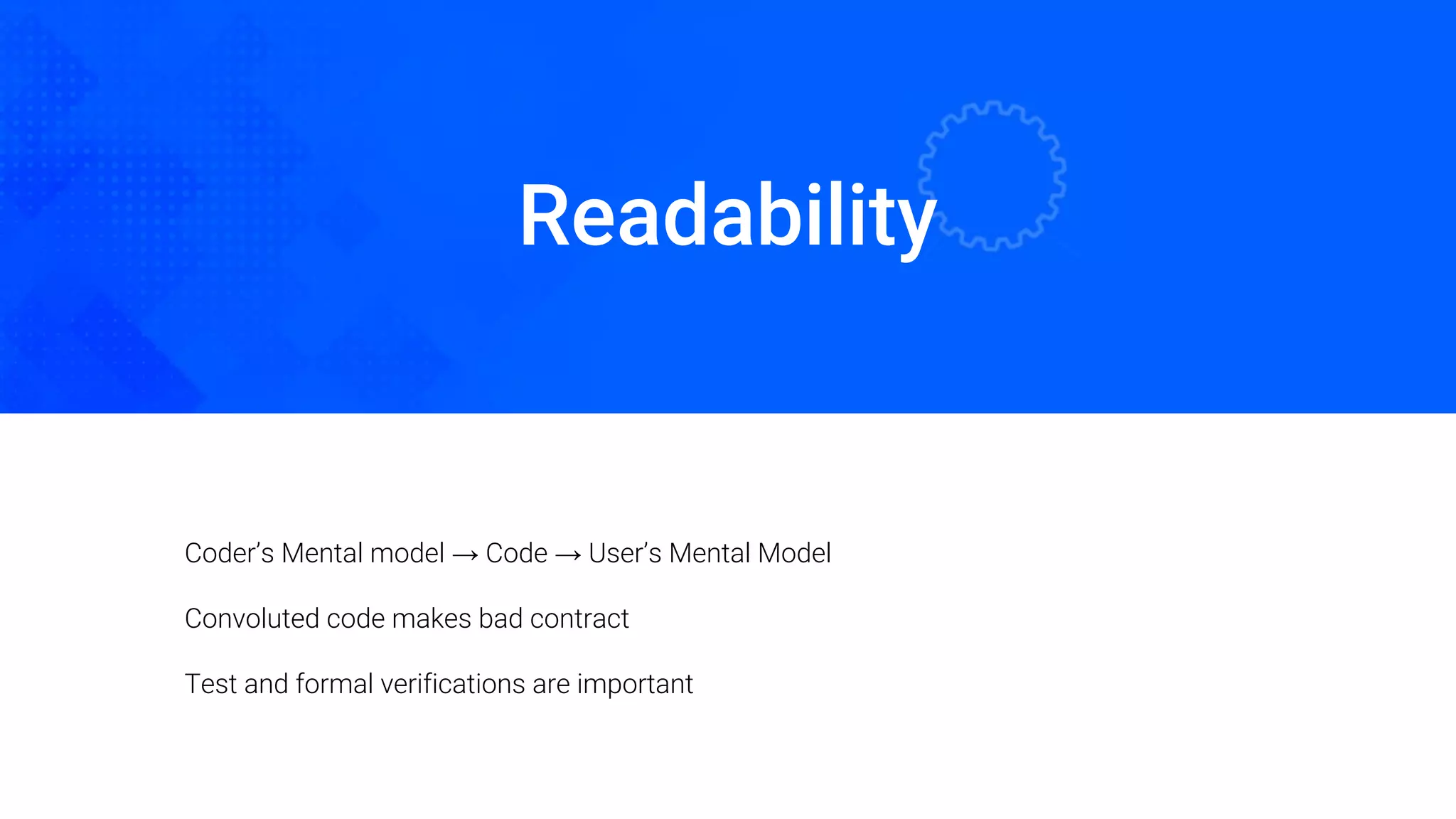

16. Readability
Oded Naom Blockchain Academy
Coder’s Mental model → Code → User’s Mental Model
Convoluted code makes bad contract
Test and formal verifications are important

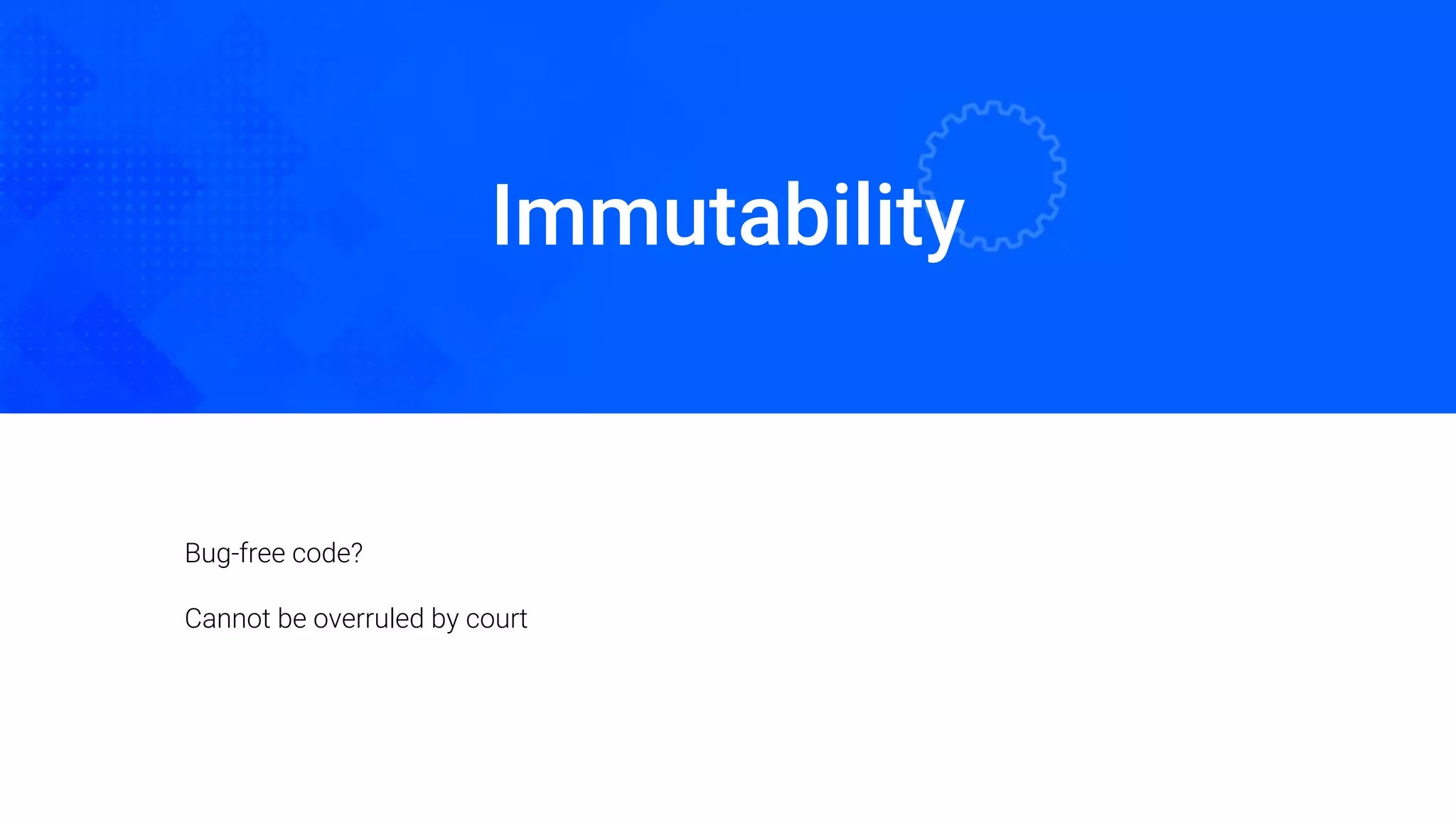

17. Immutability
Oded Naom Blockchain Academy
Bug-free code?
Cannot be overruled by court

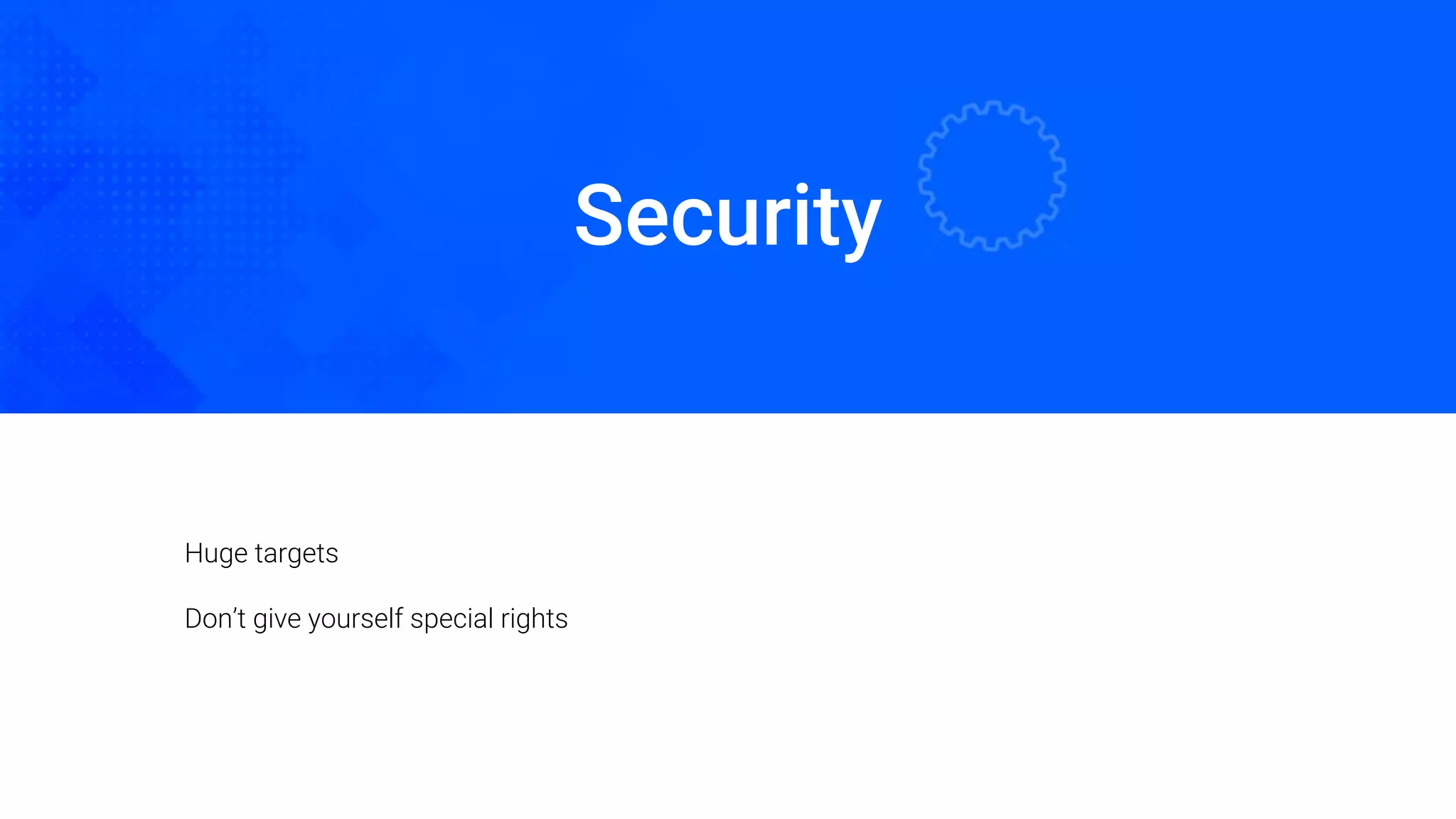

18. Security
Oded Naom Blockchain Academy
Huge targets
Don’t give yourself special rights

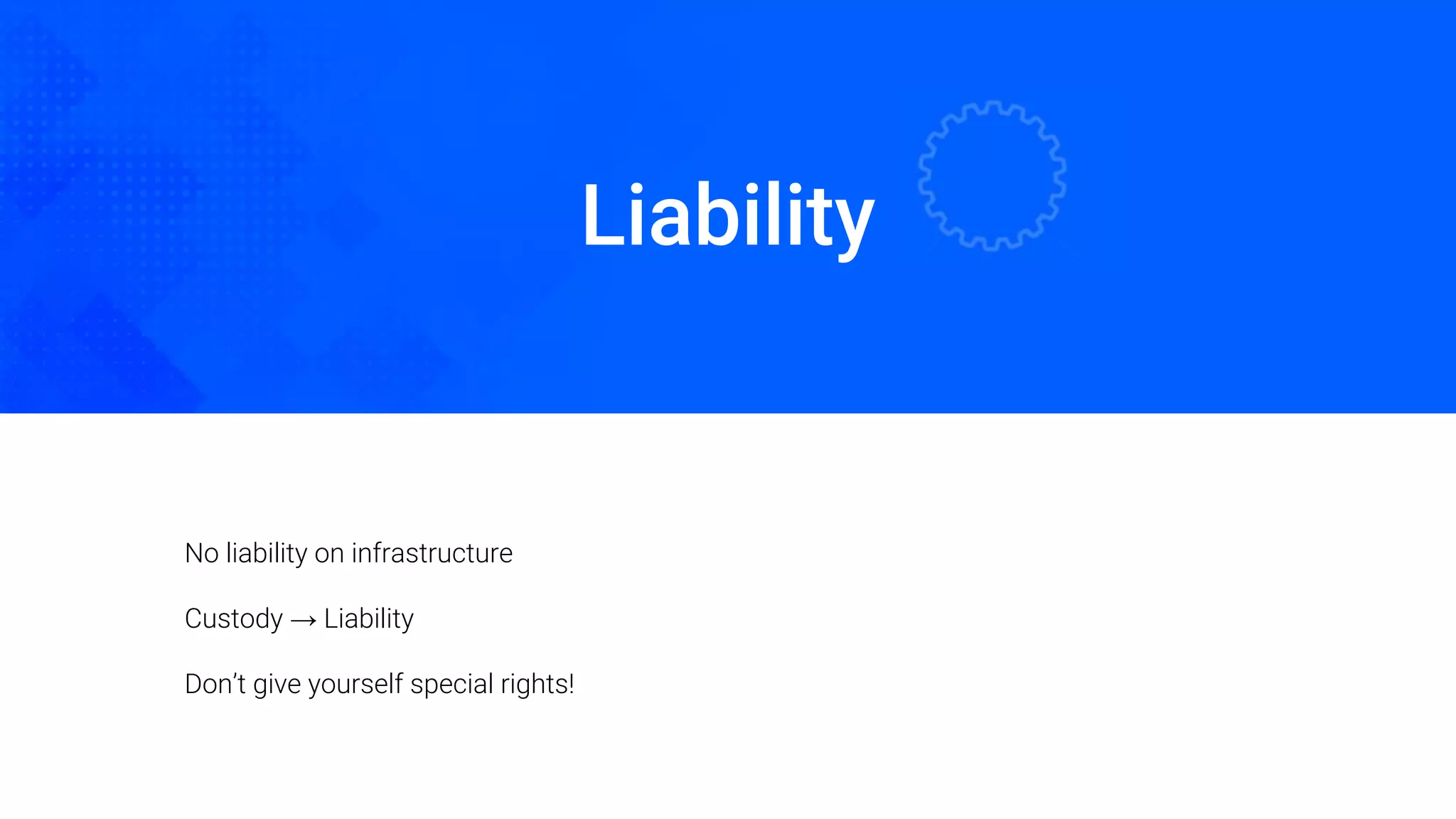

19. Liability
Oded Naom Blockchain Academy
No liability on infrastructure
Custody → Liability
Don’t give yourself special rights!

20. Principles of Smart
Contract Engineering

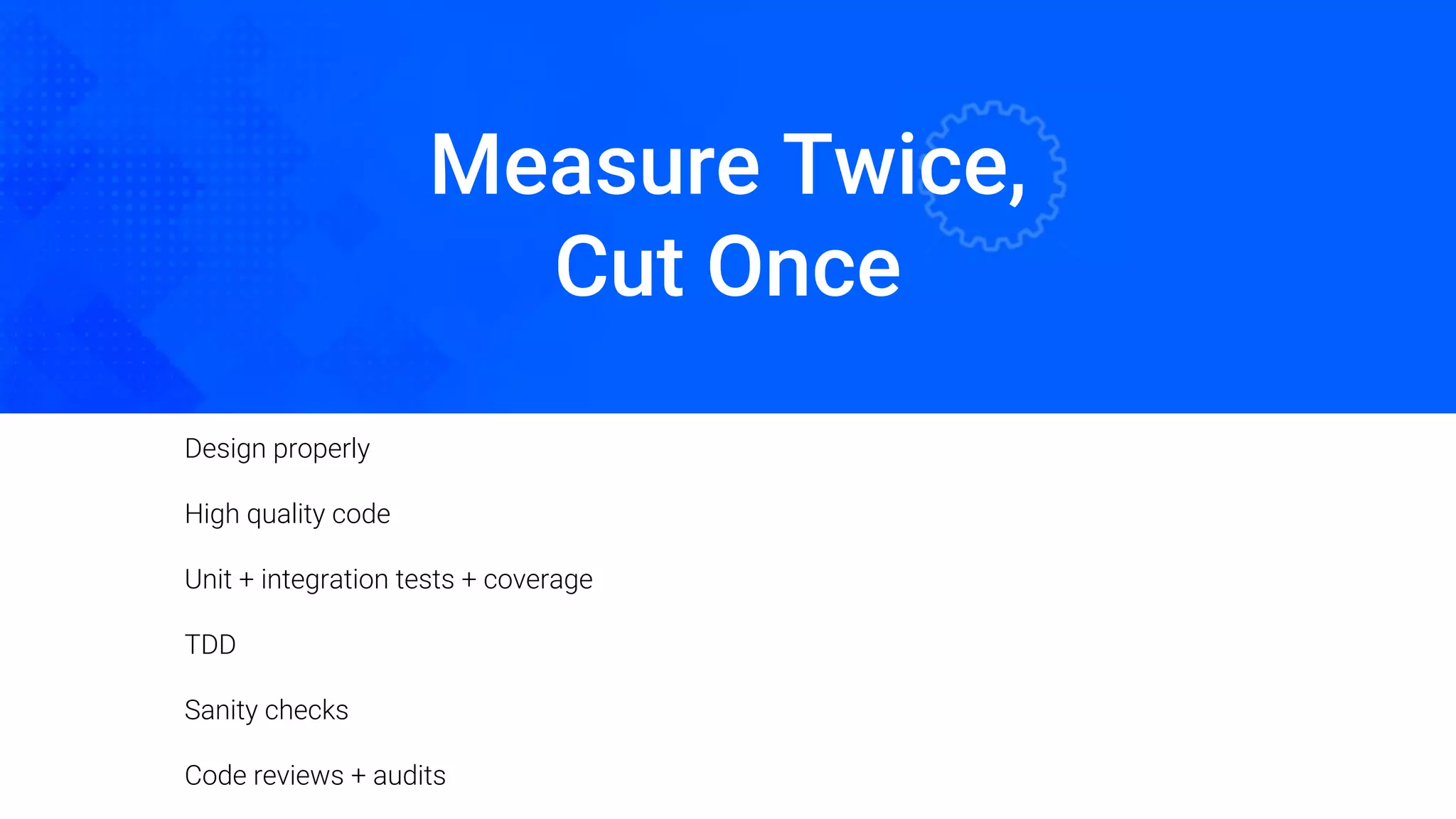

21. Measure Twice,
Cut Once
Oded Naom Blockchain Academy
Design properly
High quality code
Unit + integration tests + coverage
TDD
Sanity checks
Code reviews + audits

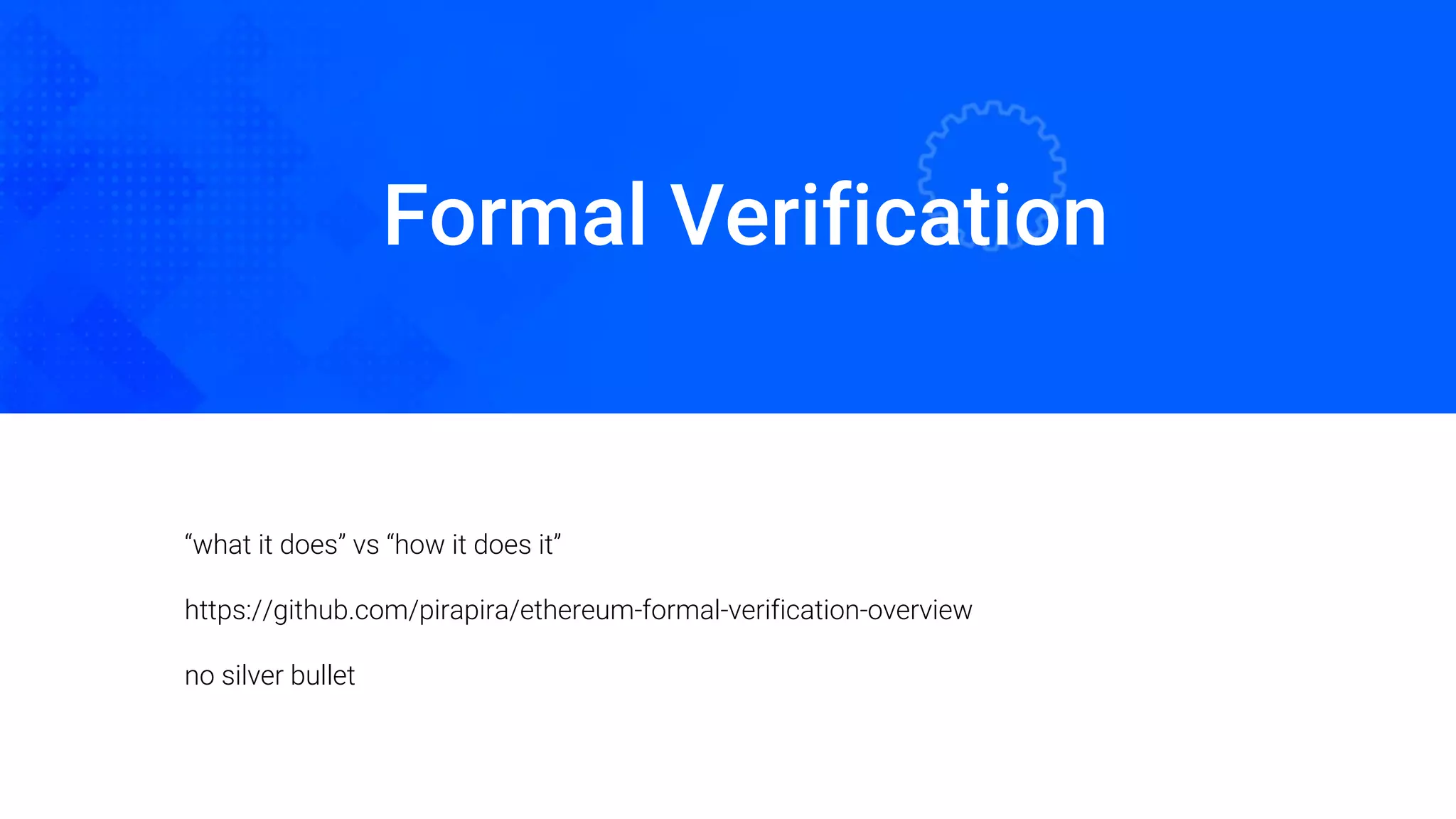

22. Formal Verification
Oded Naom Blockchain Academy
“what it does” vs “how it does it”
https://github.com/pirapira/ethereum-formal-verification-overview
no silver bullet

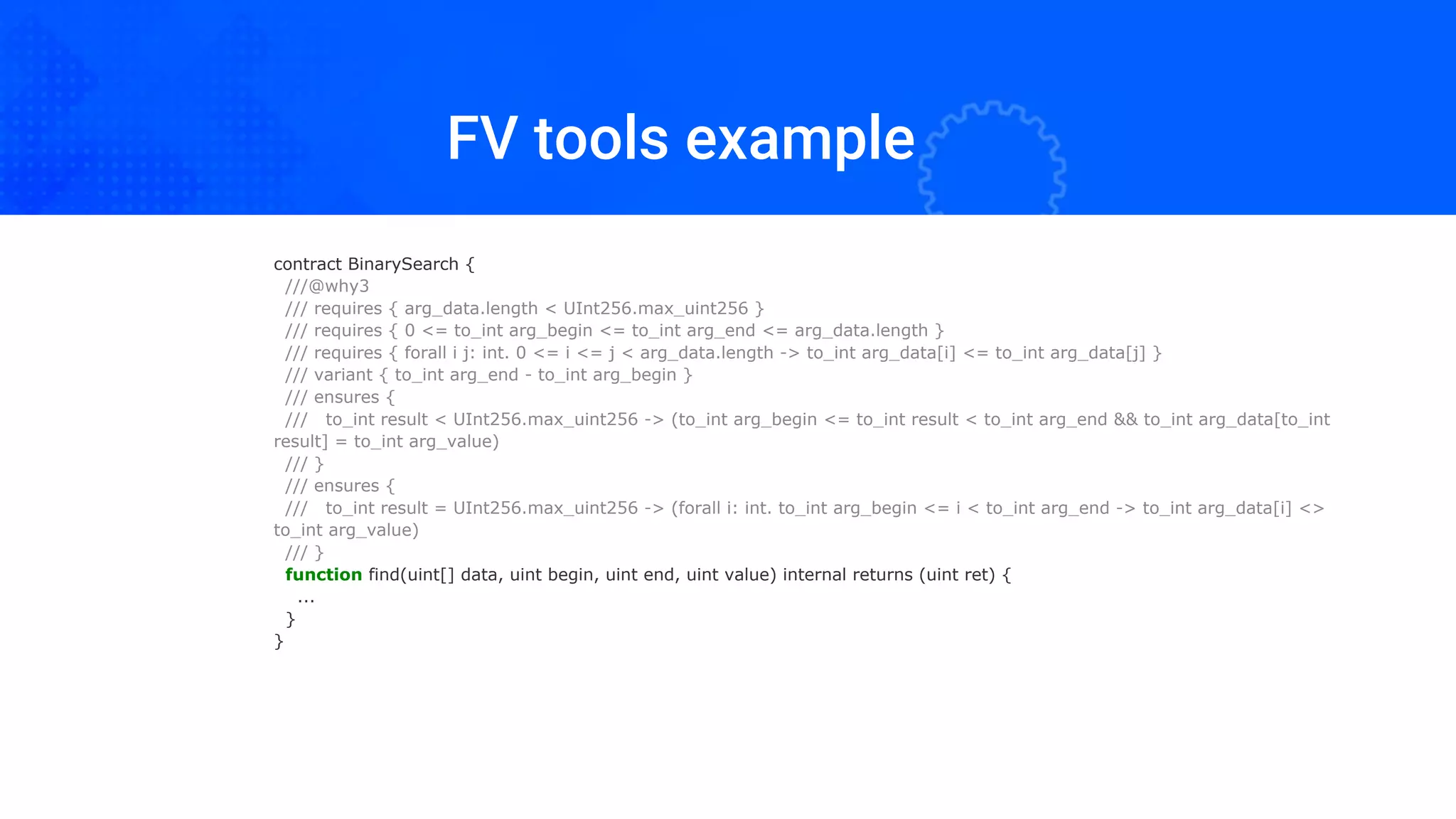

23. FV tools example
contract BinarySearch {
///@why3
/// requires { arg_data.length < UInt256.max_uint256 }
/// requires { 0 <= to_int arg_begin <= to_int arg_end <= arg_data.length }
/// requires { forall i j: int. 0 <= i <= j < arg_data.length -> to_int arg_data[i] <= to_int arg_data[j] }
/// variant { to_int arg_end - to_int arg_begin }
/// ensures {
/// to_int result < UInt256.max_uint256 -> (to_int arg_begin <= to_int result < to_int arg_end && to_int arg_data[to_int
result] = to_int arg_value)
/// }
/// ensures {
/// to_int result = UInt256.max_uint256 -> (forall i: int. to_int arg_begin <= i < to_int arg_end -> to_int arg_data[i] <>
to_int arg_value)
/// }
function find(uint[] data, uint begin, uint end, uint value) internal returns (uint ret) {
...
}
}

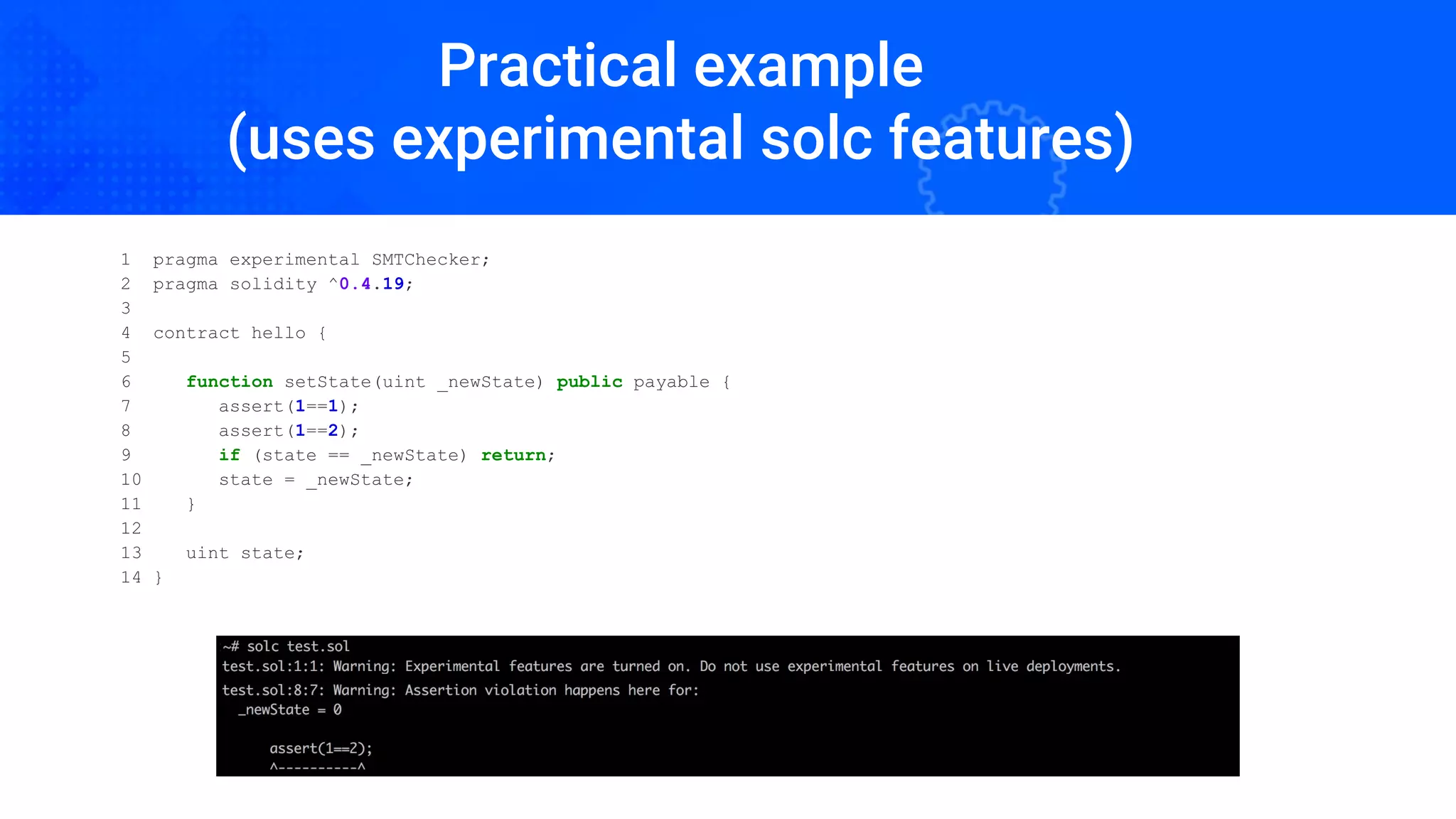

24. Practical example
(uses experimental solc features)
1 pragma experimental SMTChecker;
2 pragma solidity ^0.4.19;
3
4 contract hello {
5
6 function setState(uint _newState) public payable {
7 assert(1==1);
8 assert(1==2);
9 if (state == _newState) return;
10 state = _newState;
11 }
12
13 uint state;
14 }

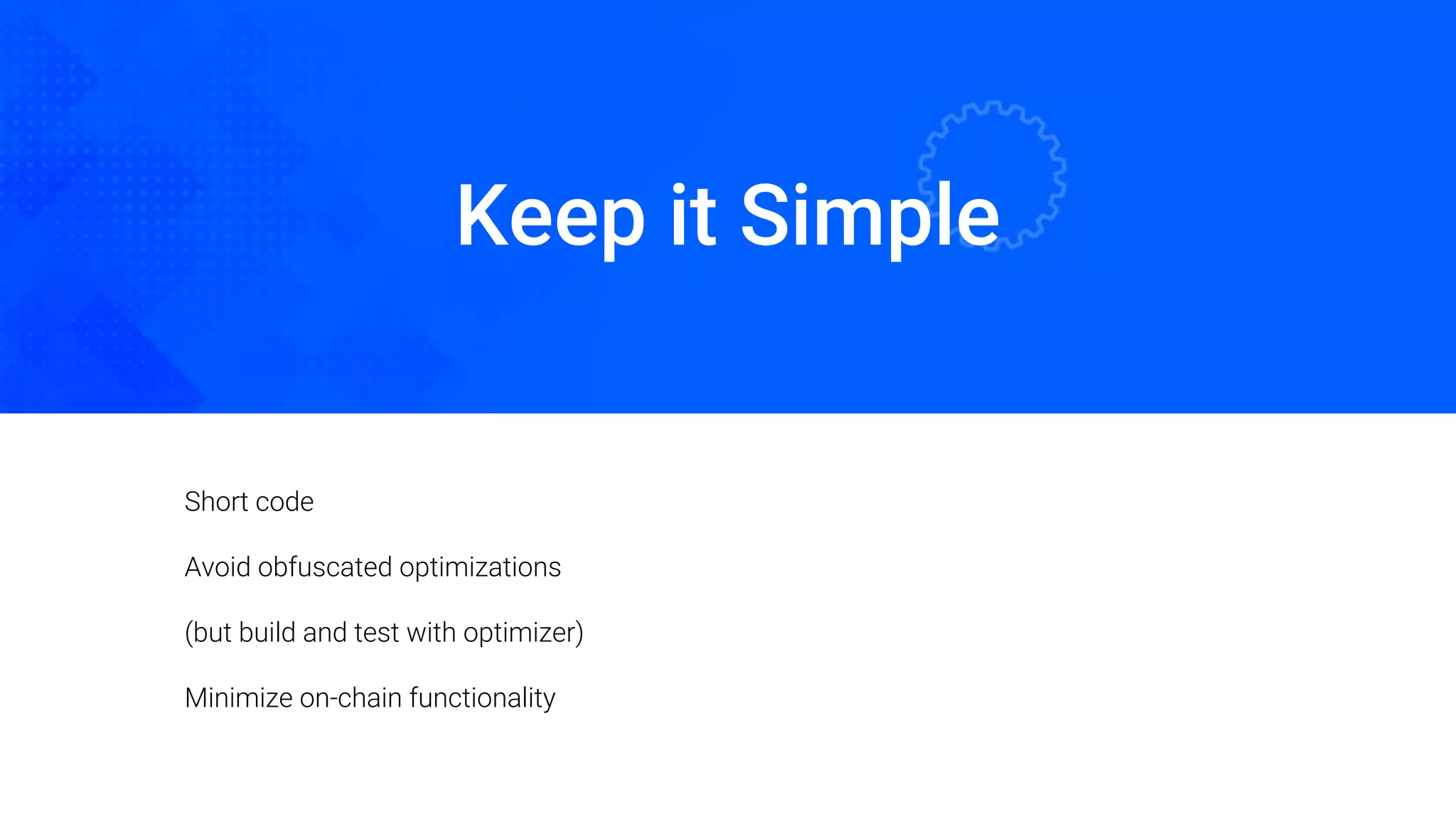

25. Keep it Simple
Oded Naom Blockchain Academy
Short code
Avoid obfuscated optimizations
(but build and test with optimizer)
Minimize on-chain functionality

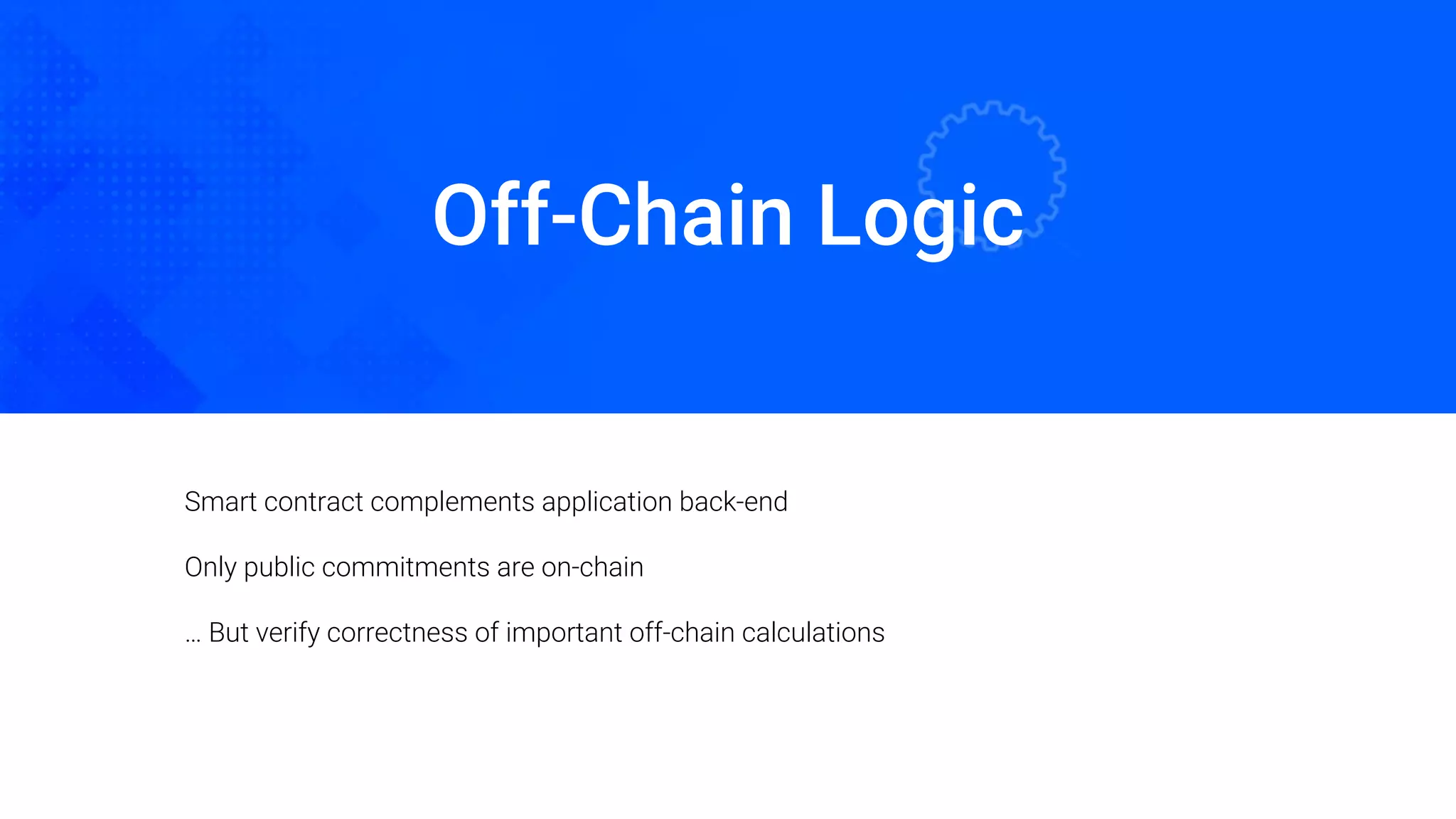

26. Off-Chain Logic
Oded Naom Blockchain Academy
Smart contract complements application back-end
Only public commitments are on-chain
… But verify correctness of important off-chain calculations

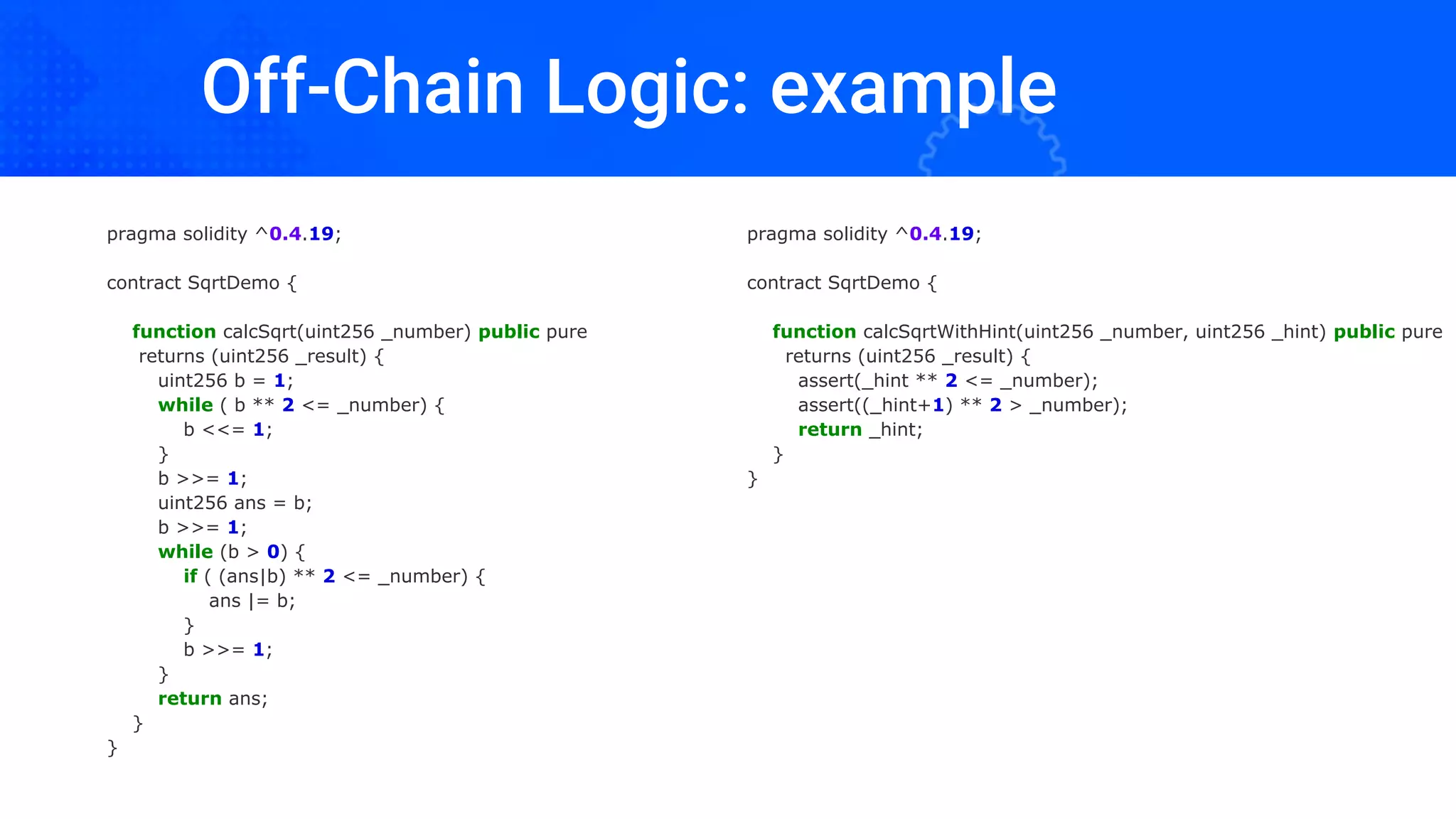

27. Off-Chain Logic: example
pragma solidity ^0.4.19;
contract SqrtDemo {
function calcSqrt(uint256 _number) public pure
returns (uint256 _result) {
uint256 b = 1;
while ( b ** 2 <= _number) {
b <<= 1;
}
b >>= 1;
uint256 ans = b;
b >>= 1;
while (b > 0) {
if ( (ans|b) ** 2 <= _number) {
ans |= b;
}
b >>= 1;
}
return ans;
}
}
pragma solidity ^0.4.19;
contract SqrtDemo {
function calcSqrtWithHint(uint256 _number, uint256 _hint) public pure
returns (uint256 _result) {
assert(_hint ** 2 <= _number);
assert((_hint+1) ** 2 > _number);
return _hint;
}
}

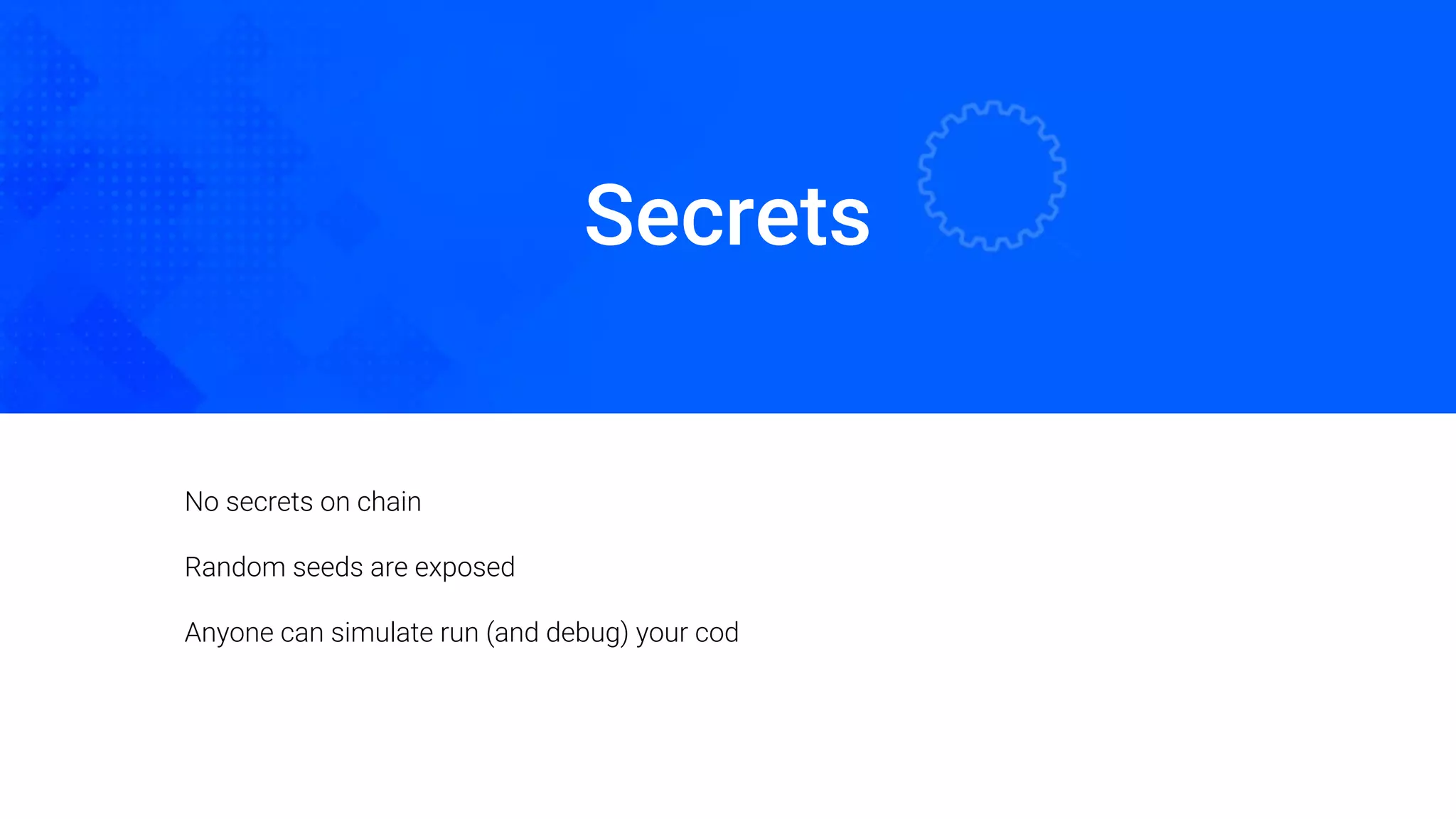

28. Secrets
Oded Naom Blockchain Academy
No secrets on chain
Random seeds are exposed
Anyone can simulate run (and debug) your cod

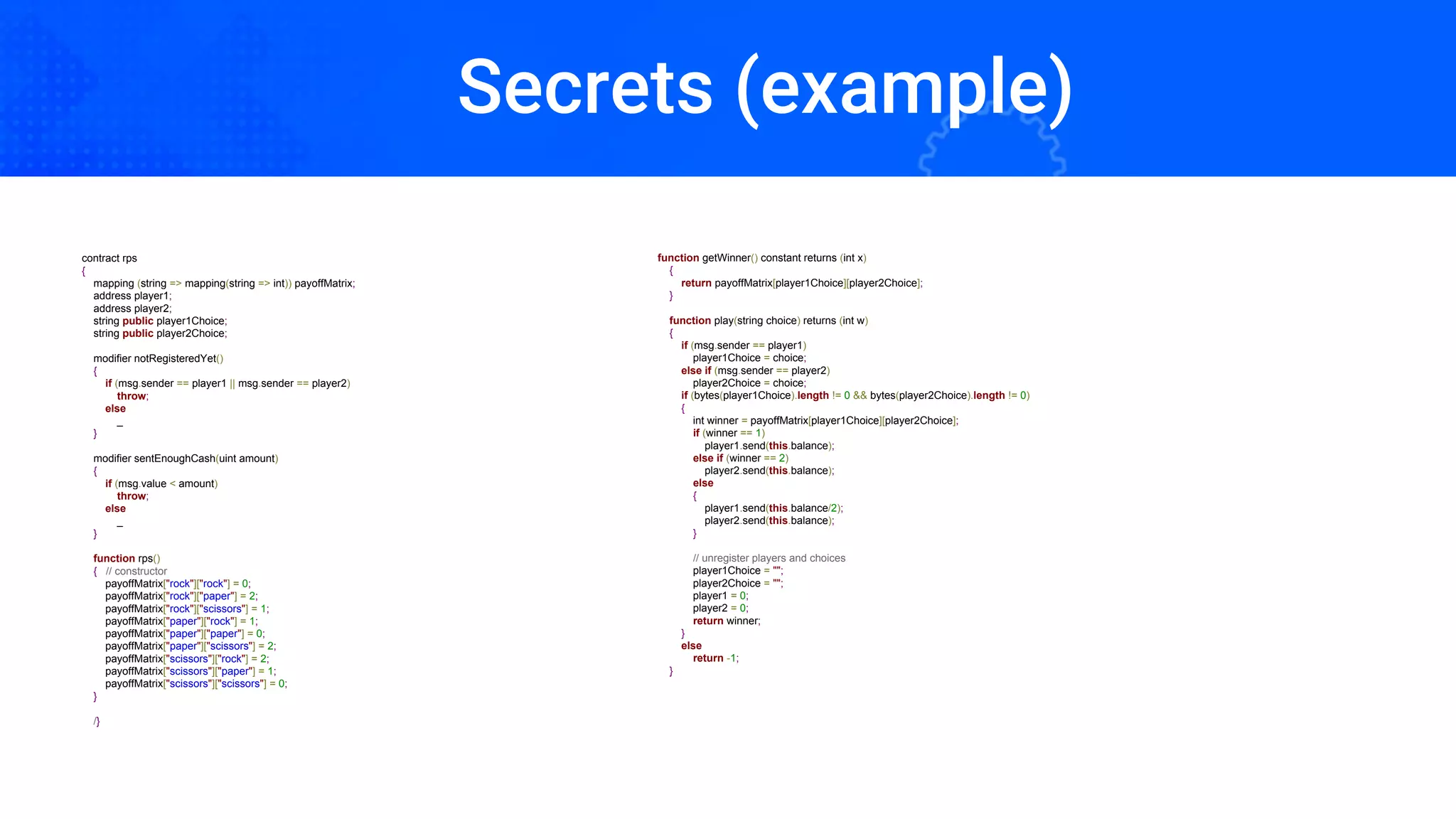

29. Secrets (example)
contract rps
{
mapping (string => mapping(string => int)) payoffMatrix;
address player1;
address player2;
string public player1Choice;
string public player2Choice;
modifier notRegisteredYet()
{
if (msg.sender == player1 || msg.sender == player2)
throw;
else
_
}
modifier sentEnoughCash(uint amount)
{
if (msg.value < amount)
throw;
else
_
}
function rps()
{ // constructor
payoffMatrix["rock"]["rock"] = 0;
payoffMatrix["rock"]["paper"] = 2;
payoffMatrix["rock"]["scissors"] = 1;
payoffMatrix["paper"]["rock"] = 1;
payoffMatrix["paper"]["paper"] = 0;
payoffMatrix["paper"]["scissors"] = 2;
payoffMatrix["scissors"]["rock"] = 2;
payoffMatrix["scissors"]["paper"] = 1;
payoffMatrix["scissors"]["scissors"] = 0;
}
/}
function getWinner() constant returns (int x)
{
return payoffMatrix[player1Choice][player2Choice];
}
function play(string choice) returns (int w)
{
if (msg.sender == player1)
player1Choice = choice;
else if (msg.sender == player2)
player2Choice = choice;
if (bytes(player1Choice).length != 0 && bytes(player2Choice).length != 0)
{
int winner = payoffMatrix[player1Choice][player2Choice];
if (winner == 1)
player1.send(this.balance);
else if (winner == 2)
player2.send(this.balance);
else
{
player1.send(this.balance/2);
player2.send(this.balance);
}
// unregister players and choices
player1Choice = "";
player2Choice = "";
player1 = 0;
player2 = 0;
return winner;
}
else
return -1;
}
Secrets (example)

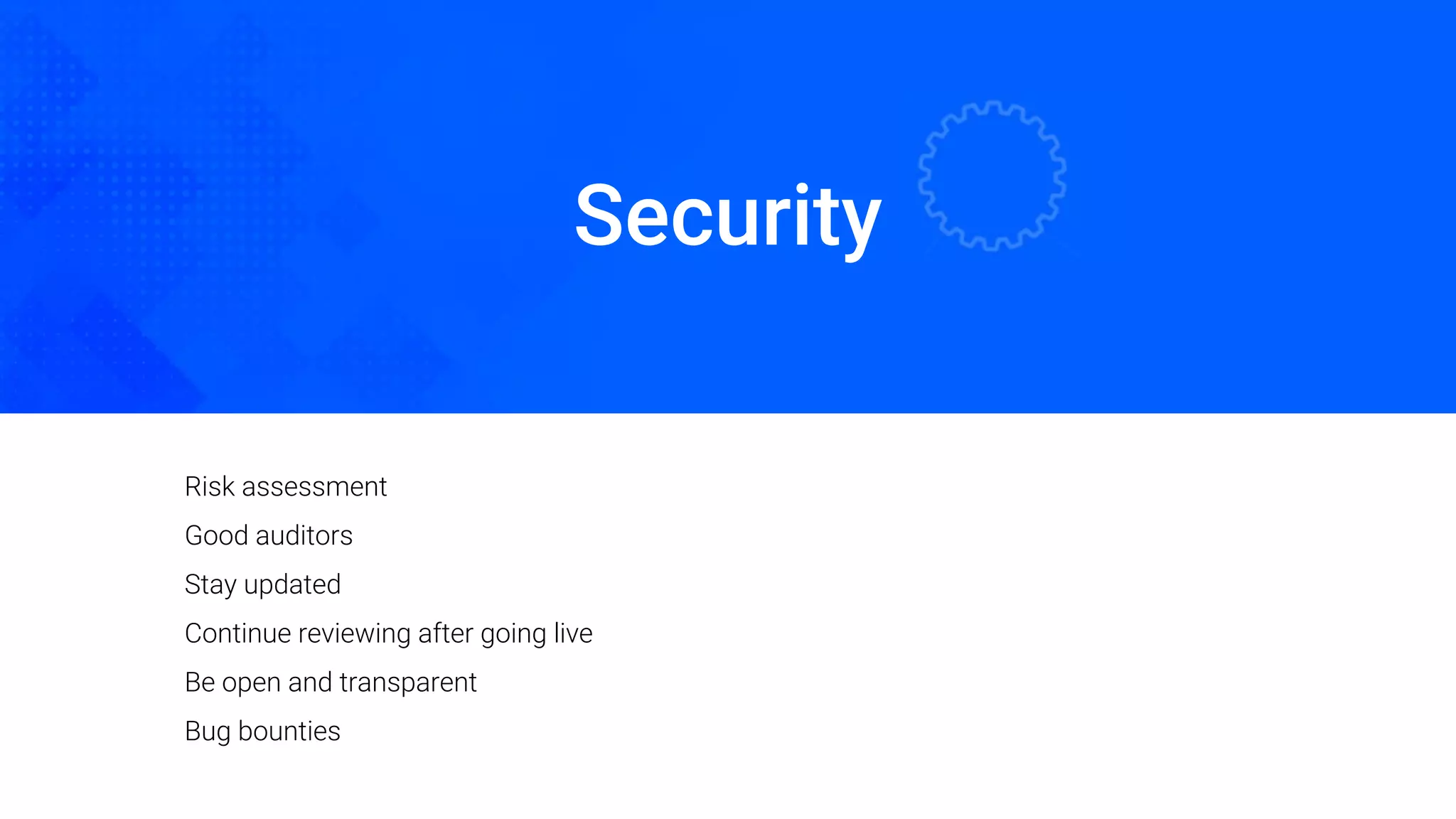

30. Security
Oded Naom Blockchain Academy
Risk assessment
Good auditors
Stay updated
Continue reviewing after going live
Be open and transparent
Bug bounties

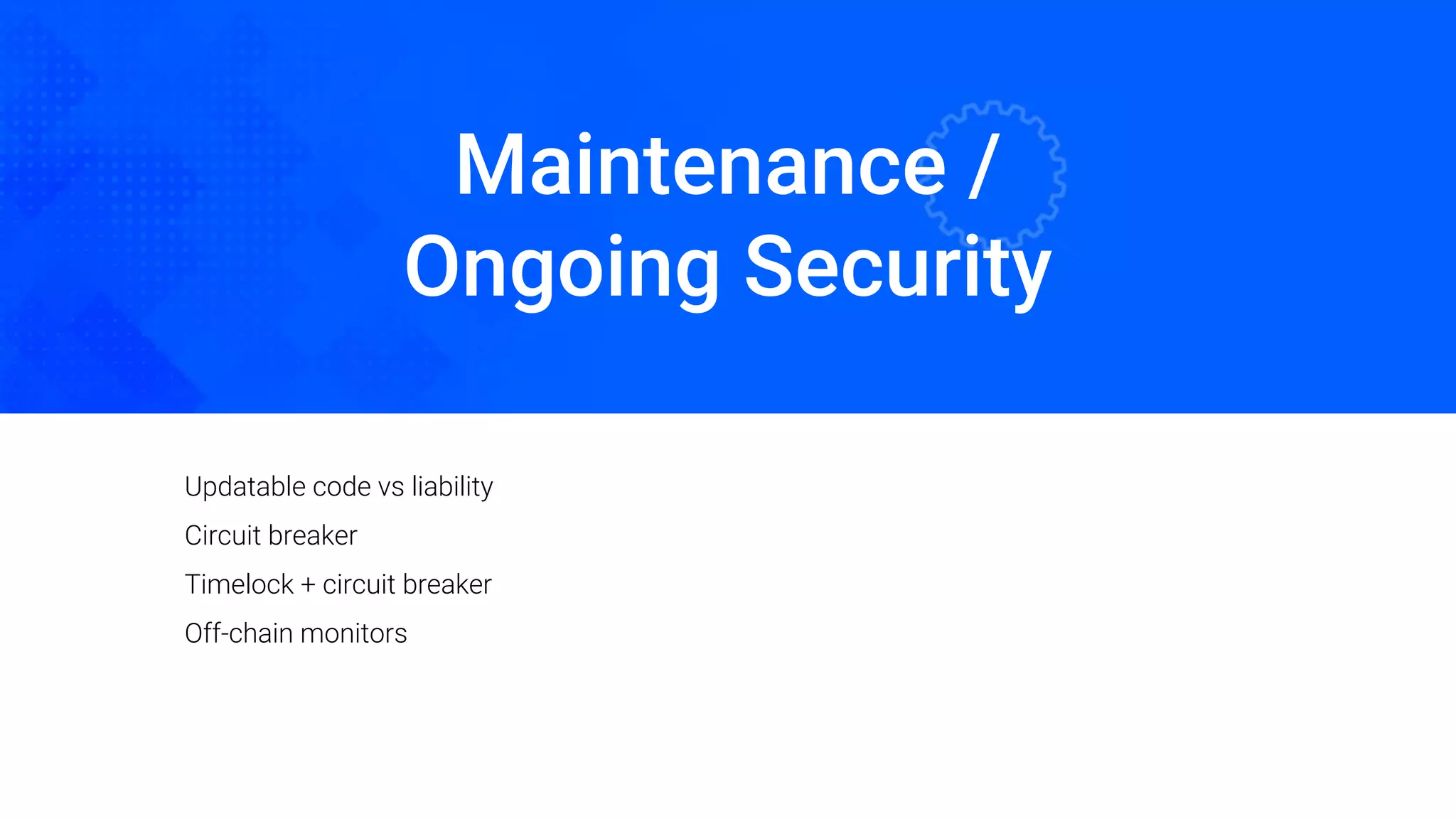

31. Maintenance /
Ongoing Security
Oded Naom Blockchain Academy
Updatable code vs liability
Circuit breaker
Timelock + circuit breaker
Off-chain monitors

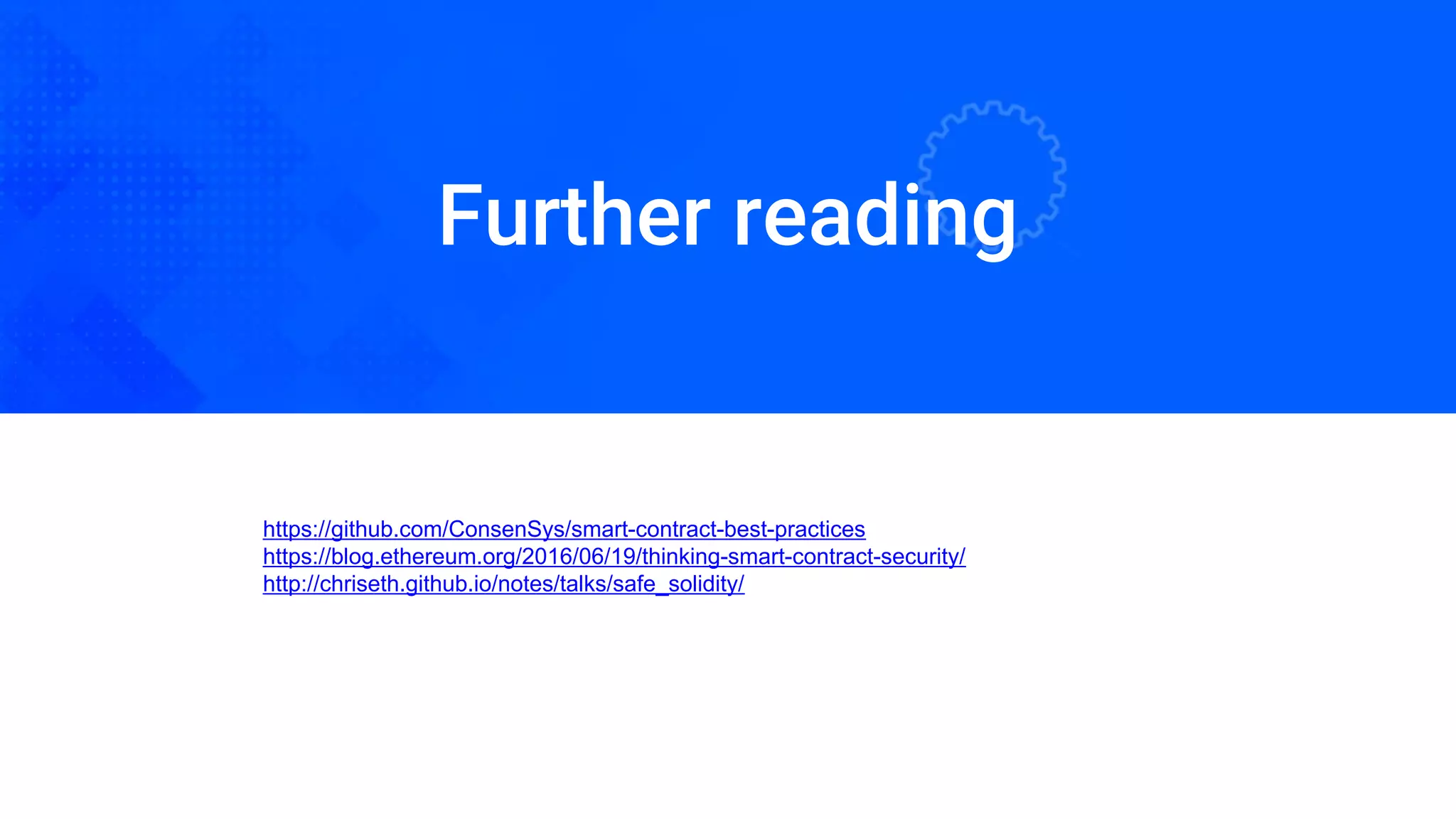

32. Further reading
https://github.com/ConsenSys/smart-contract-best-practices
https://blog.ethereum.org/2016/06/19/thinking-smart-contract-security/
http://chriseth.github.io/notes/talks/safe_solidity/
