1. Mining industry is an important economic pillar in South Africa. Relevant organizations
in South Africa require that mining production capacity should not be less than 50%
even during lock down, but the mining area must provide employees with a rigorous
screening and testing program to avoid potential risk.
Requirement
Maximize Business, Minimize Risk
Hikvision Temperature Screening in MINING
Solution Structure
The system can provide touch-free attendance, metal detection, temperature alarm
management and miner quantity control.
Entrance Control Area01
It is necessary to conduct temperature screening for employees at mining
entrances, as the first point of entrance.
Hikvision can supply temperature screening face recognition terminals for these
entrances. When employees arrive at work their temperatures can be rapidly
screened by these terminals. These terminals can generate attendance records
of the employees at the same time.
Solution Feature
Touch-Free Attendance
Temperature Screening
The terminal creates employee attendance records through face recognition,
which can avoid potential risk, as with traditional fingerprint scanning or card
swiping systems.
Mask Detection
Built-in thermal camera for temperature measurement, detects people with
abnormal temperatures while ensuring rapid people flow through these points.
The terminal alarms if a person is not wearing a mask and therefore helps to
reduce the risk of infection.
02 Working Area Inspection
For safety reasons, most mines will set up a metal detector unit at the working
section inspection area to prohibit miners from bringing metal items into the
shafts. It is also necessary to control the number of people working
underground to avoid potential risk during these special periods.
Hikvision can supply walk through metal detectors at these working section
inspection areas, which can detect body temperature and metal and trigger
immediate alarms.
Solution Feature
Real-Time Audio and Visual Alarm
Walk through metal detectors with thermal cameras can detect metal and body
temperature at the same time, it will generate real-time audio and visual alarms
when metal or abnormal temperatures are detected.
People Counting
The metal detector door has a people counter module, which can display the real-
time number of people. The manager can control the number of people operating
underground at any time.
Normal
Temperature
Elevated Skin-surface
Temperature
Temperature Screening Face Recognition Terminal
• Face identification, temperature screening & mask detection.
• Voice reminder if a person is not wearing a mask, and no-mask
entrance is prohibited.
• Face capacity: 50,000
• Temperature accuracy: ±0.5℃, range: 30~45℃
• Face Recognition Duration (1:N) ≤ 0.2s
• Face Recognition Distance: 0.5 - 1.5 m DS-K1T671TM-3XF
Stand Bracket (Optional)
• Material: SPCC
• Weight: 6.7 kg (14.8 lb.)
• Dimension (W × H × D): 98.5 mm × 1,342
mm × 225 mm (3.9" × 52.8" × 8.9")
DS-KAB671-B
Typical Application Normal Temperature Elevated Skin-surface
Temperature
• 18 independent detection zones, LCD screen
• Thermal camera resolution: 160 x 120
• Temperature range: 30~45℃
• Temperature accuracy: ±0.5℃ ISD-SMG318LT-F
Walk through Metal Detector
Detector light
People Counter
Metal Alarm Counter
Body Temperature
Temperature Alarm Counter
LCD Screen

2. In general, most of the employees in the mining area will work outside or
underground, only a few will work in the offices, so the reception can complete
the mission of the checking temperatures of people entering and leaving the
office building.
Hikvision can supply hand-held temperature screening devices, so that the staff
at reception can check all the employees or visitors entering and leaving the
building.

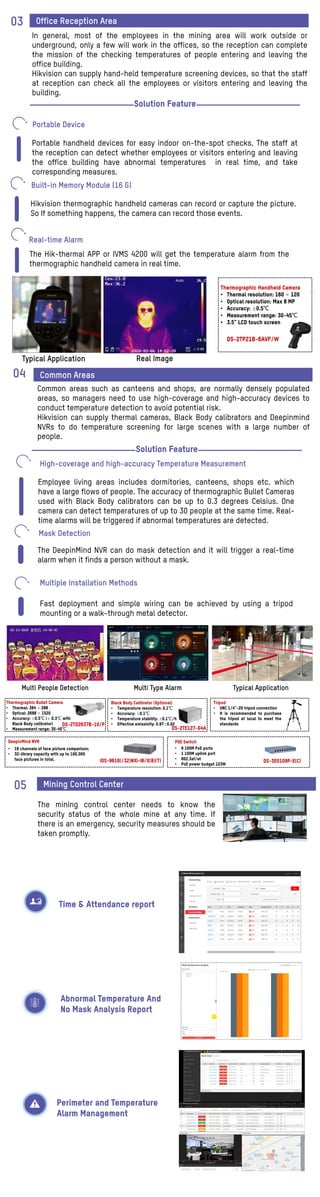

Office Reception Area03
Solution Feature
Portable Device
Portable handheld devices for easy indoor on-the-spot checks. The staff at
the reception can detect whether employees or visitors entering and leaving
the office building have abnormal temperatures in real time, and take
corresponding measures.
Built-in Memory Module (16 G)
Hikvision thermographic handheld cameras can record or capture the picture.
So If something happens, the camera can record those events.
Real-time Alarm
The Hik-thermal APP or IVMS 4200 will get the temperature alarm from the
thermographic handheld camera in real time.
04
Typical Application Real Image
Thermographic Handheld Camera
• Thermal resolution: 160 × 120
• Optical resolution: Max 8 MP
• Accuracy: ±0.5℃
• Measurement range: 30-45℃
• 3.5” LCD touch screen
DS-2TP21B-6AVF/W
Common Areas
Common areas such as canteens and shops, are normally densely populated
areas, so managers need to use high-coverage and high-accuracy devices to
conduct temperature detection to avoid potential risk.
Hikvision can supply thermal cameras, Black Body calibrators and Deepinmind
NVRs to do temperature screening for large scenes with a large number of
people.
Solution Feature
High-coverage and high-accuracy Temperature Measurement
Employee living areas includes dormitories, canteens, shops etc. which
have a large flows of people. The accuracy of thermographic Bullet Cameras
used with Black Body calibrators can be up to 0.3 degrees Celsius. One
camera can detect temperatures of up to 30 people at the same time. Real-
time alarms will be triggered if abnormal temperatures are detected.
Mask Detection
The DeepinMind NVR can do mask detection and it will trigger a real-time
alarm when it finds a person without a mask.
Multiple Installation Methods
Fast deployment and simple wiring can be achieved by using a tripod
mounting or a walk-through metal detector.
Multi People Detection Multi Type Alarm Typical Application
Thermographic Bullet Camera
• Thermal: 384 × 288；
• Optical: 2688 × 1520；
• Accuracy: ±0.5℃ (± 0.3℃ with
Black Body calibrator)
• Measurement range: 30-45℃
Black Body Calibrator (Optional)
• Temperature resolution: 0.1℃
• Accuracy: ±0.1℃
• Temperature stability: ±0.1℃/h
• Effective emissivity: 0.97±0.02DS-2TD2637B-10/P
DS-2TE127-G4A
DeepinMind NVR
iDS-9616(/32)NXI-I8/X(B)(T)
• 16 channels of face picture comparison;
• 32-library capacity with up to 100,000
face pictures in total.
POE Switch
DS-3E0109P-E(C)
• 8 100M PoE ports
• 1 100M uplink port
• 802.3af/at
• PoE power budget 123W
Tripod
• UNC 1/4”-20 tripod connection
• It is recommended to purchase
the tripod at local to meet the
standards
05 Mining Control Center
The mining control center needs to know the
security status of the whole mine at any time. If
there is an emergency, security measures should be
taken promptly.
Time & Attendance report
Abnormal Temperature And
No Mask Analysis Report
Perimeter and Temperature
Alarm Management
