This document discusses a temperature screening and people monitoring solution for banks that includes: 1) Temperature screening devices at bank entrances and exits to detect abnormal temperatures in real-time and trigger alarms. 2) People counting cameras to monitor and limit occupancy levels by counting the number of people entering and exiting. 3) Additional features like mask detection, access control, and remote monitoring and alarm management from a control center.

1. Banking is a big part of our lives, this means a safe, efficient, and
smart solution is needed for banking. Temperature measurement
and people density monitoring management are necessary.
Requirement
The system can provide customer flow and temperature alarm management, both the bank’s HQ and
multiple branches can be managed in one system.
Solution Structure
Portable Device
When people enter the building, their temperatures
can immediately be scanned by the security
personnel and therefore greatly reduce the security
risk of the bank.
Drivers and passengers temperatures can be checked without having to get out of their vehicles.
Security personnel can determine whether they have abnormal temperatures in real time and take
corresponding measures.
Bank HQ Building Entrance01
Solution Feature
Real-time Abnormal Temperature Alarm
A lot of Hikvision temperature screening devices have built-in audio alarms for when it detects
abnormal temperatures.
Metal Detection Function
Hikvision walk-through metal detector can also do temperature screening with the built-in
temperature screening camera.
Abnormal Temperature alarm
Hikvision MinMoe temperature screening terminal can measure human body temperatures and
trigger an Abnormal Temperature alarm.
Bank HQ Office Area02
Solution Feature
Employees in the building are required to take temperature
measurements, mask tests, and attendance checks. Therefore,
a solution that can achieve these three functions simultaneously
is very necessary.
Typical Application Real Image
Thermographic Handheld Camera
• Thermal resolution: 160 × 120;
• Optical resolution: Max 8 MP;
• Accuracy: ±0.5℃
• Measurement range: 30-45℃
• 3.5” LCD touch screen
DS-2TP21B-6AVF/W
Mask Detection Alarm
Hikvision MinMoe temperature screening terminal can also do mask detection and it will trigger an
alarm when it detects a person without a mask.
Access Control & Time Attendance Management
Hikvision MinMoe temperature screening terminals can do no-touch face identification while the
employee is still wearing a mask. This terminal can therefore also be used time & attendance at the
same time.
MinMoe Temperature Screening Terminal
• Face capacity: 50,000
• Temperature accuracy: ±0.5°C, range:
30~45°C
• Face Recognition Duration(1:N) ≤0.2s
• Face Recognition Distance: 0.5m - 1.5m
Monitoring Tablet
• 7“ Touch-Screen Android
Indoor Station
• Display resolution: 1024 * 600
• Wi-Fi 802.11b/g/n
• Abnormal temperature alarm
DS-K1T671TM-3XF DS-KC001
POE switch
• L2 unmanaged
• 10/100M RJ45 PoE ports, 1x
10/100M RJ45 uplink port
• 802.3af/at, PoE standards
• Up to 300m long distance
transmission, 6KV surge protection
DS-3E0109P-E(C)
People Density Management
The people counting camera can do a live display of the number of people entering and leaving
each entrance.
Bank Branch Entrance03
Solution Feature
Temperatures of people entering the bank must also be taken and
the number of people in the branch needs to be limited in order to
prevent close contact due to high density.
High Accuracy & Efficient Temperature Measurement
The accuracy of the thermographic Bullet Camera used with the Blackbody calibrator can be up to
0.3 degrees Celsius and one camera can detect the temperature of up to 30 people at a time.
People with abnormal temperatures will trigger real-time alarms.
Mask Detection Alarm
The DeepinMind NVR can also do mask detection and it will trigger an alarm when it finds a person
without a mask in real time.
Multi People Detection Multi Type Alarm Typical Application
Thermographic Bullet Camera
• Thermal: 384 × 288 ；
• Optical: 2688 × 1520 ；
• Accuracy: ±0.5 (± 0.3 with℃ ℃
blackbody calibrator)
• Measurement range: 30-45℃
Blackbody Calibrator (Optional)
• Temperature resolution: 0.1℃
• Accuracy: ±0.1℃
• Temperature stability: ±0.1 /h℃
• Effective emissivity: 0.97±0.02DS-2TD2637B-10/P
DS-2TE127-G4A
DeepinMind NVR
iDS-9616(/32)NXI-I8/X(B)(T)
• 16 channels of face picture comparison;
• 32-library capacity with up to 100,000
face pictures in total.
POE Switch
DS-3E0109P-E(C)
• 8 100M PoE ports
• 1 100M uplink port
• 802.3af/at
• PoE power budget 123W
Tripod
• UNC 1/4”-20 tripod connection
• It is recommended to purchase
the tripod at local to meet the
standards DS-2907ZJ
DeepinView Camera
• Max. Resolution: 2688 × 1520;
• Wide Dynamic Range: 140 Db
• Smart detect: entering/exiting counting (track
30 targets simultaneously)
People Counting Camera
• Optical: 1920 × 1080, 1280 × 720;
• Colorful image
• 2 mm unified lens
• Installation height from 1.9 to 6 metersiDS-2CD7146G0-IZS
DS-2CD6825G0/C-IS
Control Center04
Solution Feature
The monitoring center needs to know the security status of the
whole bank at any time. If there is an emergency, security
measures should be taken immediately.
Alarm Management
Abnormal Temperature Report
No-Mask Analysis Report
People Counting ReportTime Attendance Report
• 18 independent detection zones, LCD screen
• Thermal camera resolution: 160 x 120
• Temperature range: 30~45℃
• Temperature accuracy: ±0.5℃
ISD-SMG318LT-F
Walk-through Metal Detector
Detector light People Counter
Metal Alarm Counter
Body Temperature
Temperature Alarm Counter
LCD Screen

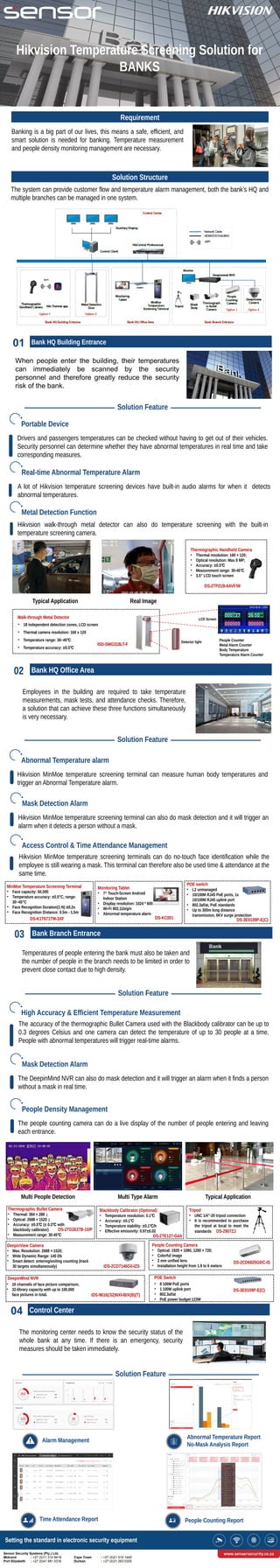

Hikvision Temperature Screening Solution for
BANKS
