This document proposes a solution for high image compression to address issues with large file sizes from high resolution cameras on smartphones. It introduces a new Jpeg SBS technology that can highly compress images while maintaining good image quality and small file sizes. It also presents an Advanced PNG format that provides even higher compression rates while keeping very high image quality. Sample photos demonstrate the compression achieved by each technique. The document outlines the benefits of these compression technologies for reducing costs, data usage, and improving user experience with respect to uploading and sharing photos.

1. Solution for
High Image Compression
April 15, 2014
Konan Graphics

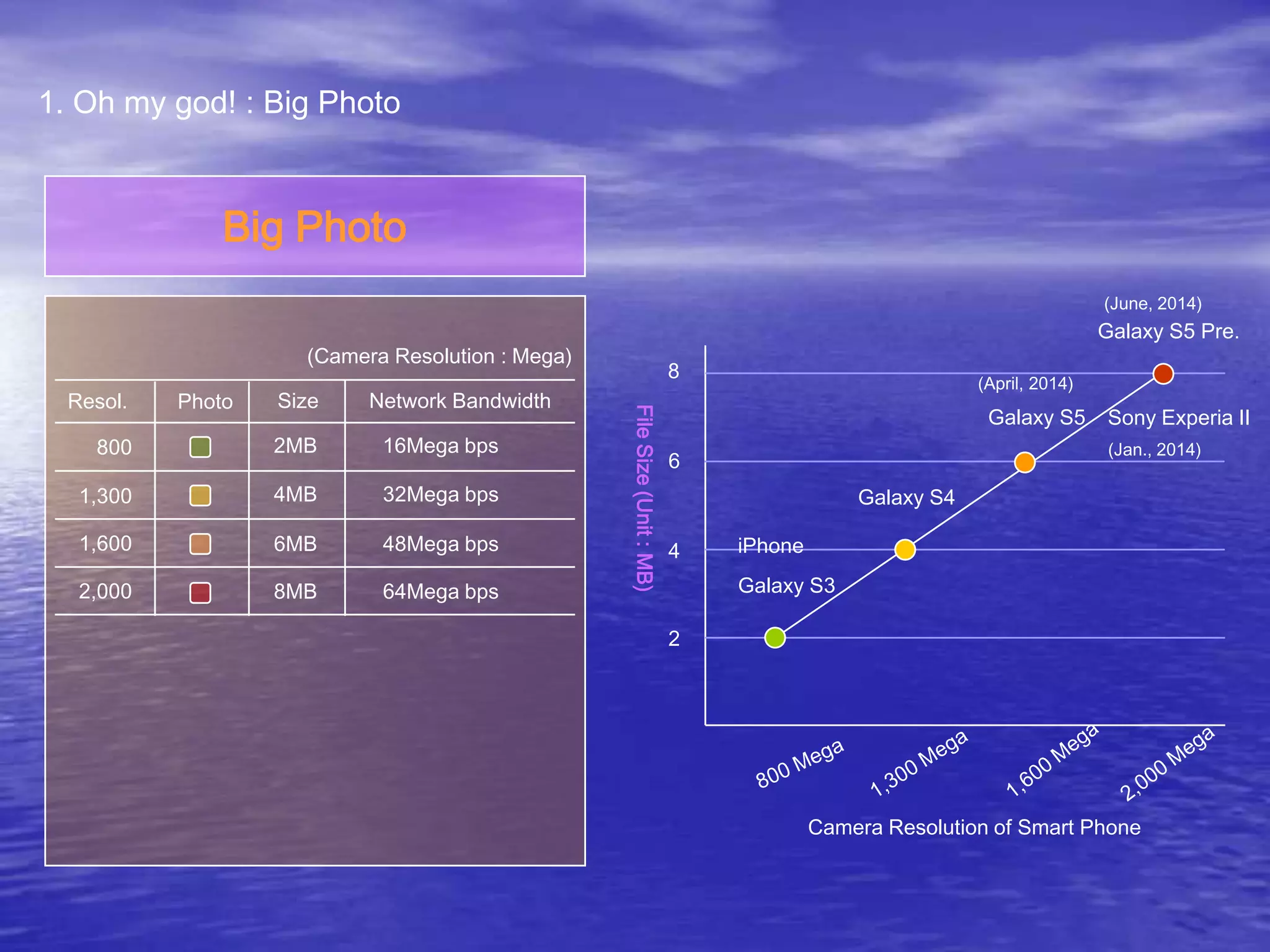

2. 1. Oh my god! : Big Photo
Camera Resolution of Smart Phone
FileSize(Unit:MB) 2
4
6
8
Galaxy S4
Galaxy S5
Galaxy S5 Pre.
Galaxy S3
2MB 16Mega bps
4MB 32Mega bps
6MB 48Mega bps
8MB 64Mega bps
Photo Size Network Bandwidth
(April, 2014)
(June, 2014)
Big Photo
Resol.
800
1,300
1,600
2,000
(Camera Resolution : Mega)
Sony Experia II
(Jan., 2014)
iPhone

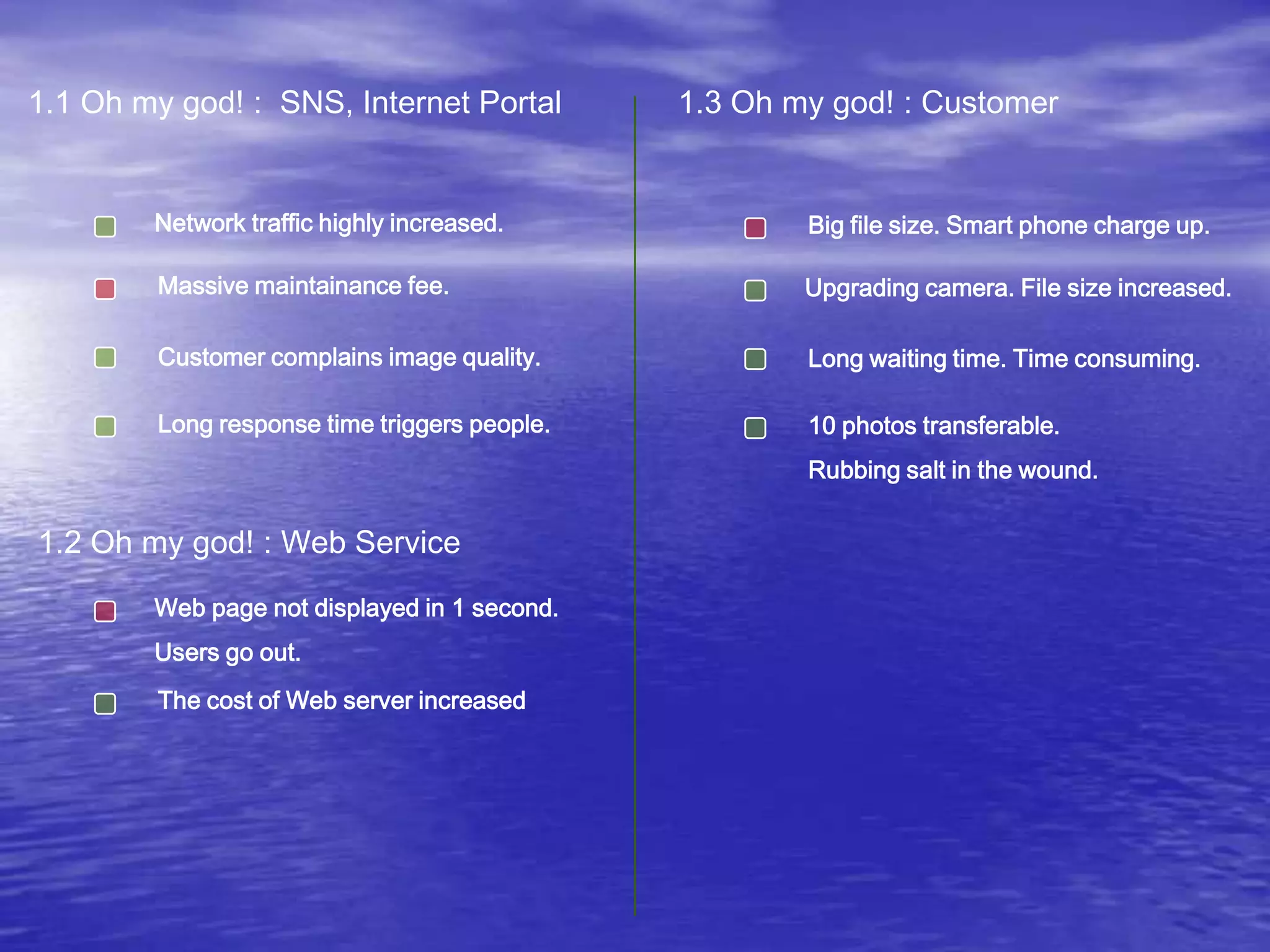

3. 1.1 Oh my god! : SNS, Internet Portal
Customer complains image quality.
Network traffic highly increased.
Massive maintainance fee.
Long response time triggers people.
1.3 Oh my god! : Customer
Long waiting time. Time consuming.
Upgrading camera. File size increased.
Big file size. Smart phone charge up.
10 photos transferable.
Rubbing salt in the wound.
1.2 Oh my god! : Web Service
Web page not displayed in 1 second.
Users go out.
The cost of Web server increased

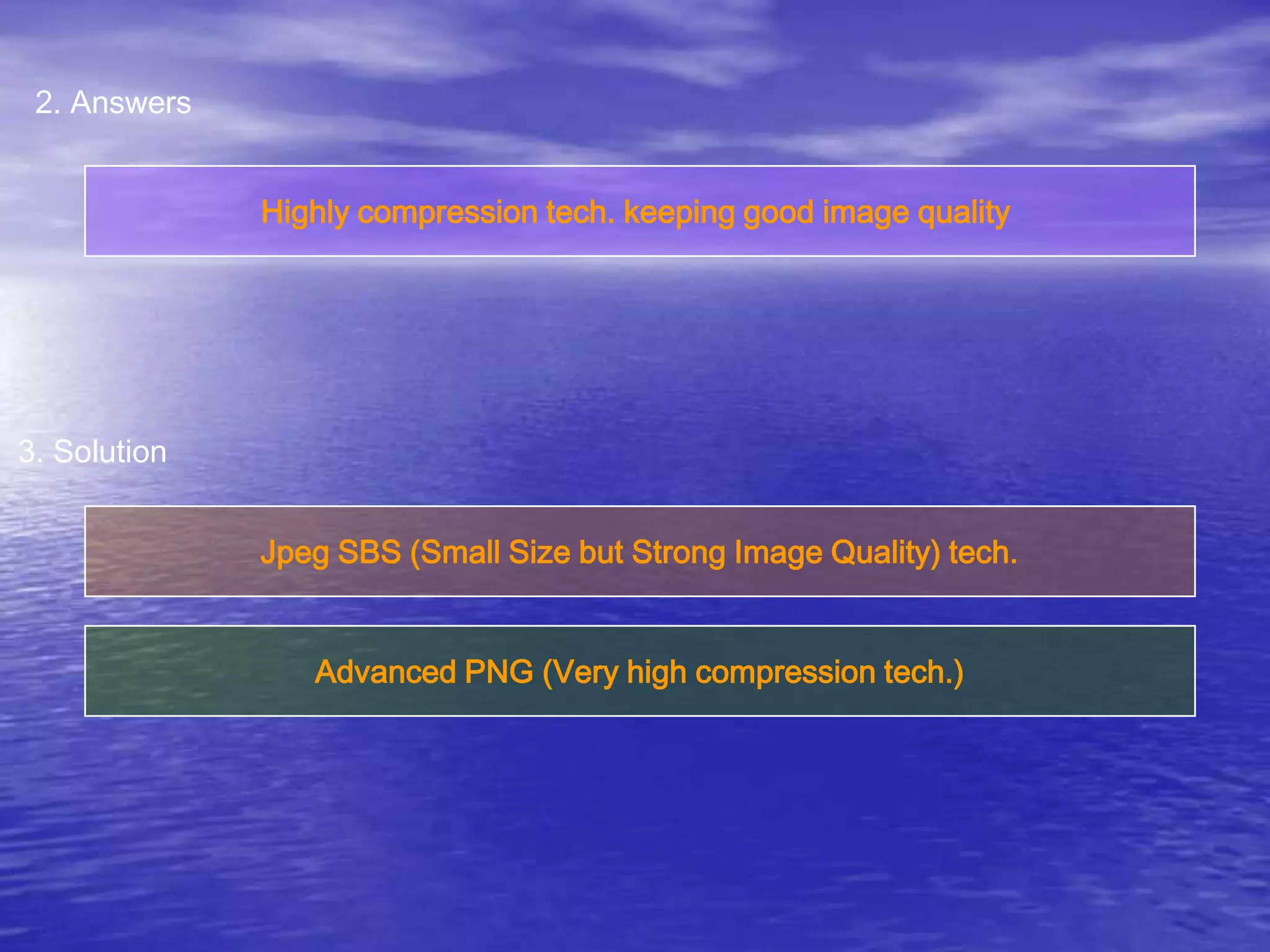

4. 2. Answers
Highly compression tech. keeping good image quality
Jpeg SBS (Small Size but Strong Image Quality) tech.
3. Solution
Advanced PNG (Very high compression tech.)

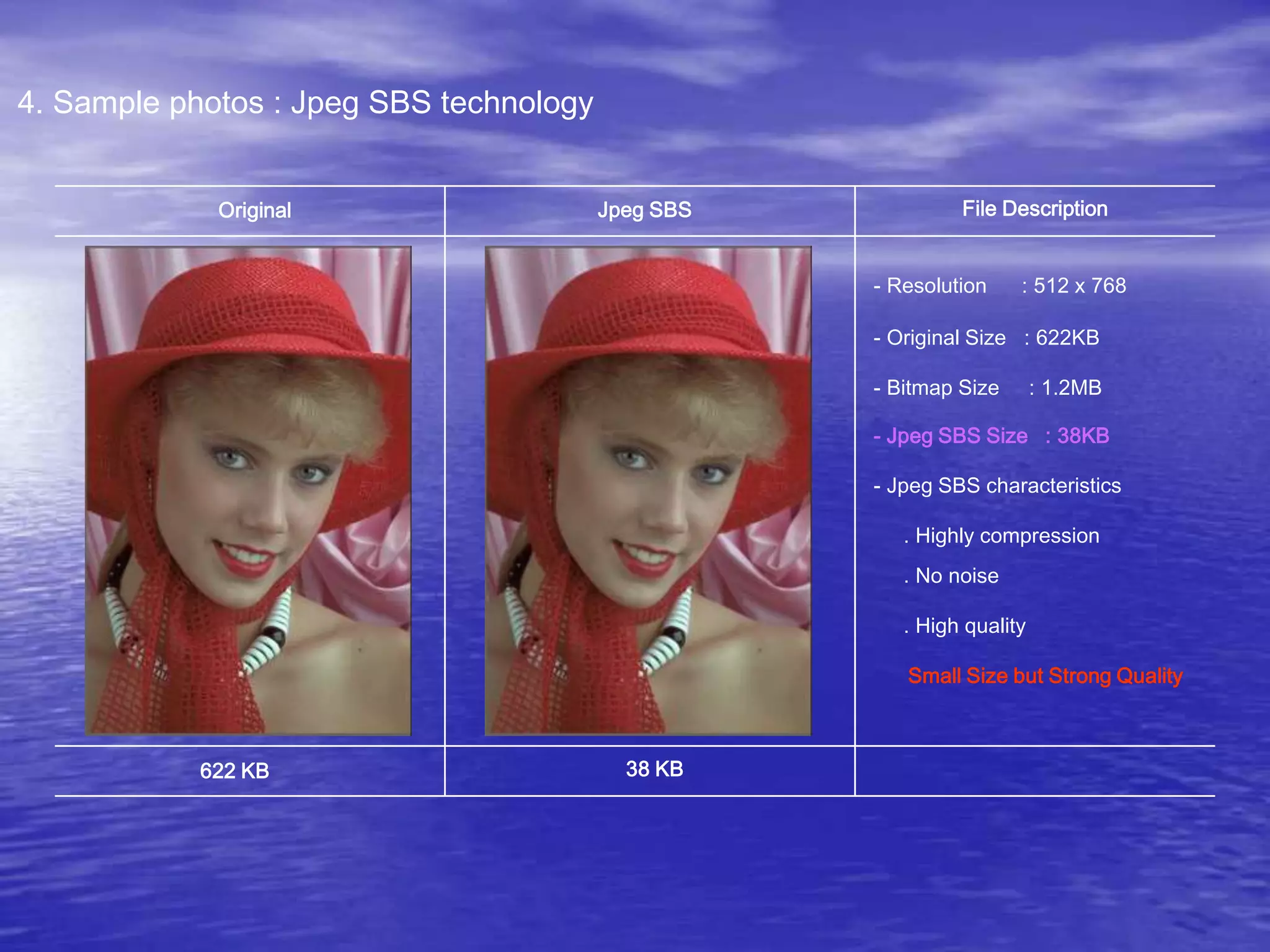

5. 4. Sample photos : Jpeg SBS technology
Original Jpeg SBS
622 KB 38 KB
File Description
- Resolution : 512 x 768
- Original Size : 622KB
- Jpeg SBS Size : 38KB
- Jpeg SBS characteristics
. Highly compression
. No noise
. High quality
- Bitmap Size : 1.2MB
Small Size but Strong Quality

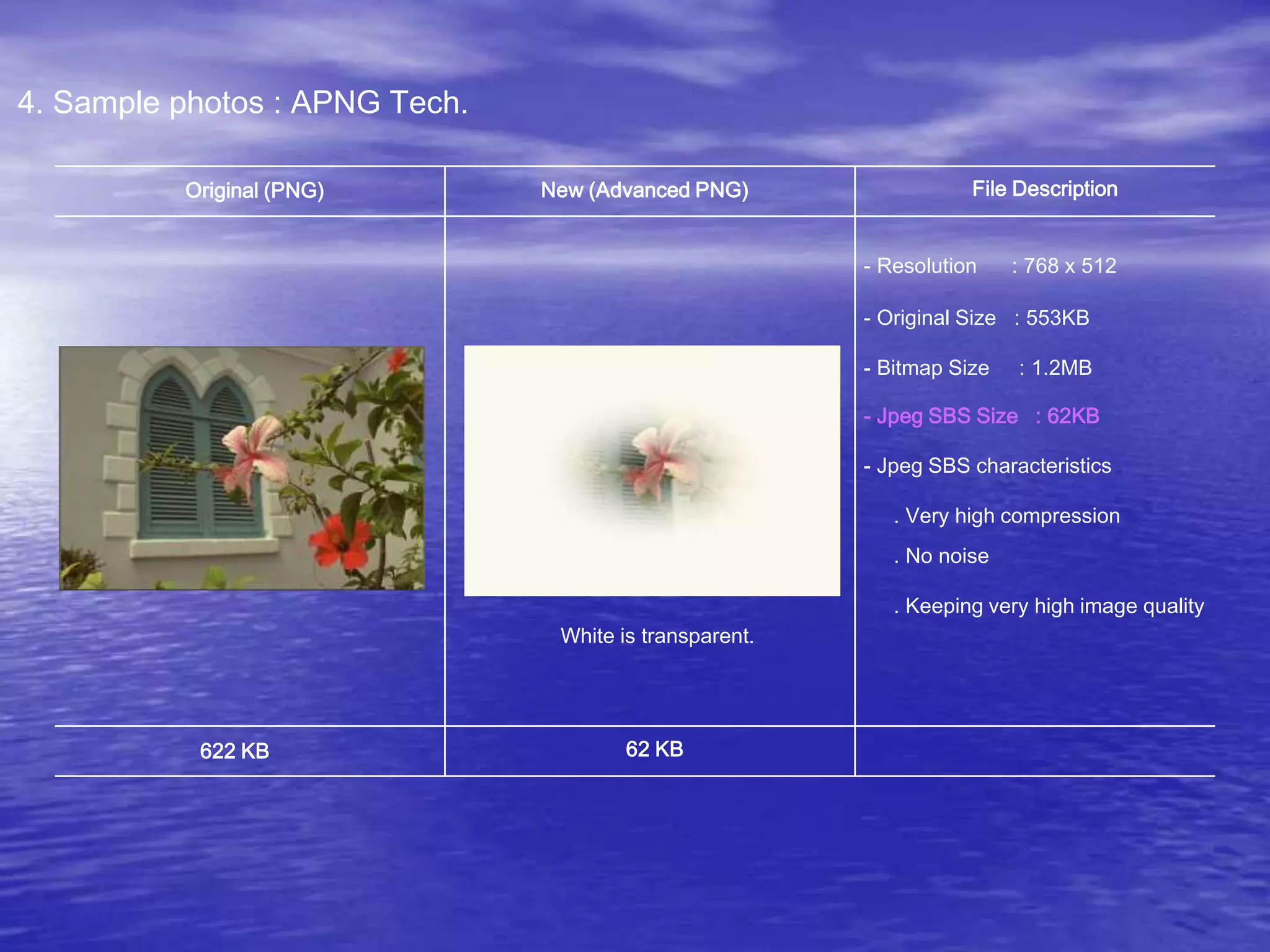

6. Original (PNG) New (Advanced PNG)
622 KB 62 KB
File Description
- Resolution : 768 x 512
- Original Size : 553KB
- Jpeg SBS Size : 62KB
- Jpeg SBS characteristics
. Very high compression
. No noise
. Keeping very high image quality
- Bitmap Size : 1.2MB
White is transparent.
4. Sample photos : APNG Tech.

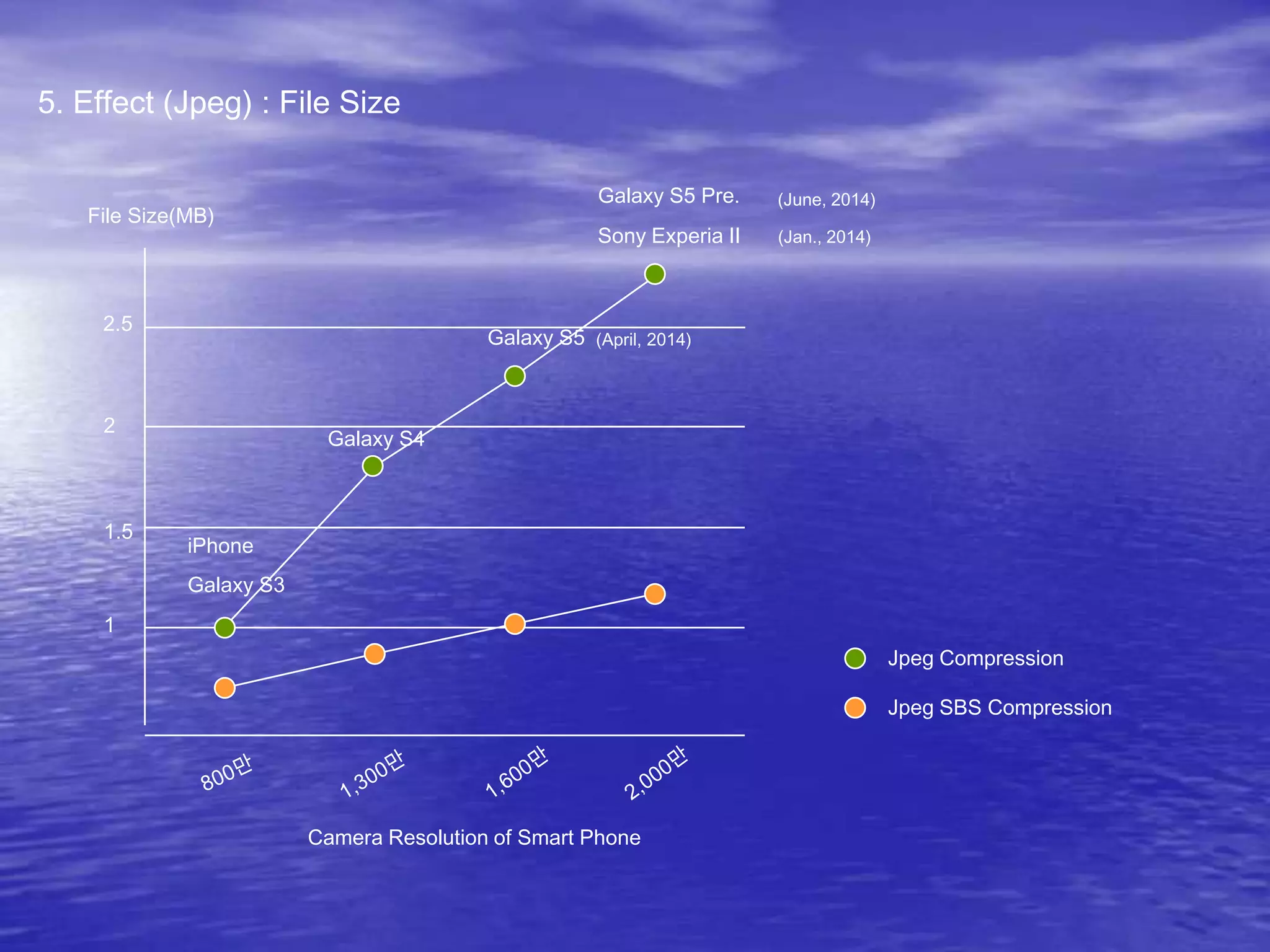

7. 5. Effect (Jpeg) : File Size
Camera Resolution of Smart Phone
1
1.5
2
2.5
Galaxy S4
Galaxy S5
Galaxy S5 Pre.
Sony Experia II
Galaxy S3
(April, 2014)
(June, 2014)
File Size(MB)
Jpeg Compression
Jpeg SBS Compression
iPhone
(Jan., 2014)

8. 5. Effect (Jpeg 기준) : Cost Savings – SNS, Internet Portal
Network fee (10,000 users) per year
Resolution
800
1,300
1,600
2,000
80
144
184
224
Jpeg Compression
Jpeg SBS Compression
Network Bandwidth
32
64
80
96
Comm. Charge (Unit : 10,00,000 USD)
14.4
25.9
33.1
40.3
58
115
144
173
① Remarks : 1G bps – 15,000 USD per month.
② Compression rate of APNG format is very high compared to PNG format.
The effect is much more effective.

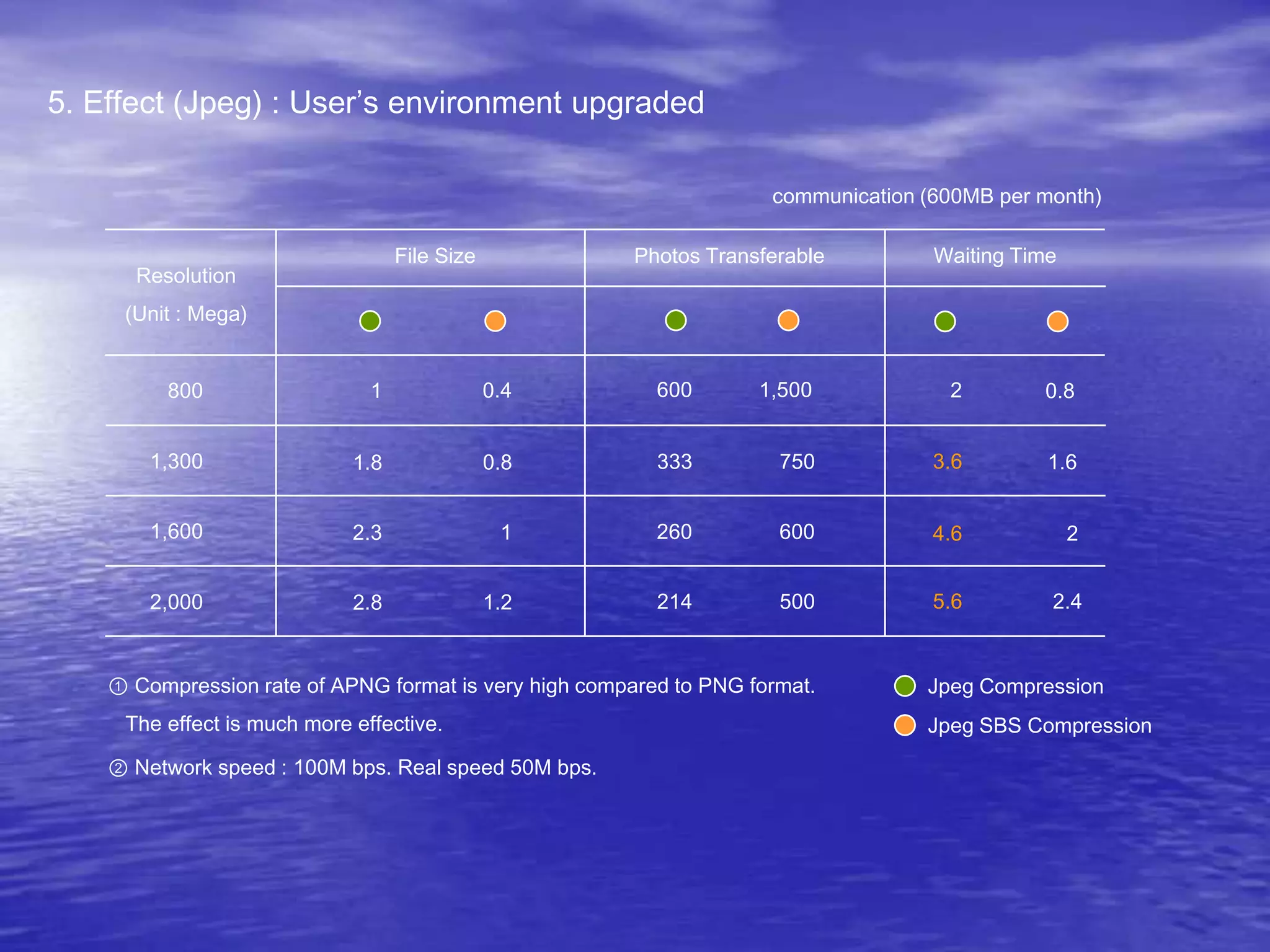

9. 5. Effect (Jpeg) : User’s environment upgraded
communication (600MB per month)
Resolution
(Unit : Mega)
800
1,300
1,600
2,000
1
1.8
2.3
2.8
Jpeg Compression
Jpeg SBS Compression
File Size
0.4
0.8
1
1.2
Photos Transferable
600
333
260
214
1,500
750
600
500
① Compression rate of APNG format is very high compared to PNG format.
The effect is much more effective.
Waiting Time
2
3.6
4.6
5.6
0.8
1.6
2
2.4
② Network speed : 100M bps. Real speed 50M bps.
