1. HBase Client API
(for webapps?)
Nick Dimiduk
Seattle Scalability Meetup
2013-03-27
1

2. 2

3. 3

4. What are my choices?
switch (technology) {
case ‘ ’:
...
case ‘ ’:
...
case ‘ ’:
...
}
4

5. Apache HBase
5

6. Java client Interfaces
• Configuration holds details where to find the cluster and tunable
settings. Roughly equivalent to JDBC connection string.
• HConnection represents connections to to the cluster.
• HBaseAdmin handles DDL operations (create, list, drop, alter, &c.)
• HTablePool connection pool for table handles.
• HTable (HTableInterface) is a handle on a single HBase table.
Send "commands" to the table (Put, Get, Scan, Delete, Increment)
6

7. Java client Example
public static final byte[] TABLE_NAME = Bytes.toBytes("twits");
public static final byte[] TWITS_FAM = Bytes.toBytes("twits");
public static final byte[] USER_COL = Bytes.toBytes("user");
public static final byte[] TWIT_COL = Bytes.toBytes("twit");
private HTablePool pool = new HTablePool();
https://github.com/hbaseinaction/twitbase/blob/master/src/main/java/HBaseIA/TwitBase/hbase/TwitsDAO.java#L23-L30
7

8. Java client Example
private static class Twit {
private Twit(Result r) {
this(
r.getColumnLatest(TWITS_FAM, USER_COL).getValue(),
Arrays.copyOfRange(r.getRow(), Md5Utils.MD5_LENGTH,
Md5Utils.MD5_LENGTH + longLength),
r.getColumnLatest(TWITS_FAM, TWIT_COL).getValue());
}
private Twit(byte[] user, byte[] dt, byte[] text) {
this(
Bytes.toString(user),
new DateTime(-1 * Bytes.toLong(dt)),
Bytes.toString(text));
}
https://github.com/hbaseinaction/twitbase/blob/master/src/main/java/HBaseIA/TwitBase/hbase/TwitsDAO.java#L129-L143
8

9. Java client Example
private static Get mkGet(String user, DateTime dt) {
Get g = new Get(mkRowKey(user, dt));
g.addColumn(TWITS_FAM, USER_COL);
g.addColumn(TWITS_FAM, TWIT_COL);
return g;
}
https://github.com/hbaseinaction/twitbase/blob/master/src/main/java/HBaseIA/TwitBase/hbase/TwitsDAO.java#L60-L65
9

10. Ruby, Python client Interface
10

11. Ruby, Python client Interface
Jyth on
JRu by,
: '(
11

12. Thrift client Interface
1. Generate bindings
2. Run a “Gateway” between clients and cluster
3. ... profit? code!
w rite
12

13. HBase Cluster
HBase Clients
Sidebar: Architecture Recap
13

14. Thrift
Gateway HBase Cluster
Thrift Clients
Thrift Architecture
14

15. Thrift client Interface
• Thrift gateway exposes a client to RegionServers
• stateless :D
• ... except for scanners :'(
15

16. Thrift client Example
transport = TSocket.TSocket(host, port)
transport = TTransport.TBufferedTransport(transport)
protocol = TBinaryProtocol.TBinaryProtocol(transport)
client = Hbase.Client(protocol)
transport.open()
https://github.com/hbaseinaction/twitbase.py/blob/master/TwitBase.py#L17-L21
16

17. Thrift client Example
columns = ['info:user','info:name','info:email']
scanner = client.scannerOpen('users', '', columns)
row = client.scannerGet(scanner)
while row:
yield user_from_row(row[0])
row = scannerGet(scanner)
client.scannerClose(scanner)
https://github.com/hbaseinaction/twitbase.py/blob/master/TwitBase.py#L33-L39
17

18. Thrift client Example
def user_from_row(row):
user = {}
for col,cell in row.columns.items():
user[col[5:]] = cell.value
return "<User: {user}, {name}, {email}>".format(**user)
https://github.com/hbaseinaction/twitbase.py/blob/master/TwitBase.py#L26-L30
18

19. REST client Interface
1. Stand up a "REST Gateway" between your application and the cluster
2. HTTP verbs translate (roughly) into table commands
3. decent support for basic DDL, HTable operations
19

20. HBase Cluster
REST
REST Clients
Gateway
REST Architecture
20

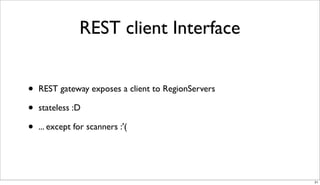

21. REST client Interface
• REST gateway exposes a client to RegionServers
• stateless :D
• ... except for scanners :'(
21

22. REST client Example
$ curl -H "Accept: application/json" http://host:port/
{
"table": [ {
"name": "followers"
}, {
"name": "twits"
}, {
"name": "users"
}
]
}
22

23. REST client Example
$ curl -H ... http://host:port/table/row [/family:qualifier]
{
"Row": [
{
"key": "VGhlUmVhbE1U",
"Cell": [
{
"$": "c2FtdWVsQGNsZW1lbnMub3Jn",
"column": "aW5mbzplbWFpbA==",
"timestamp": 1338701491422
},
{
"$": "TWFyayBUd2Fpbg==",
"column": "aW5mbzpuYW1l",
"timestamp": 1338701491422
},
]
} ] }
23

24. REST client Example
<Rows>
<Row key="VGhlUmVhbE1U">
<Cells>
<Cell column="aW5mbzplbWFpbA==" timestamp="1338701491422">
c2FtdWVsQGNsZW1lbnMub3Jn
</Cell>
<Cell ...>
...
</Cells>
</Row>
</Rows>
24

25. Beyond Apache
25

26. asynchbase
• Asynchronous non-blocking interface.
• Inspired by Twisted Python.
• Partial implementation of HTableInterface.
• HBaseClient provides entry-point to data.
https://github.com/OpenTSDB/asynchbase
http://tsunanet.net/~tsuna/asynchbase/api/org/hbase/async/HBaseClient.html
26

27. asynchbase
UpdateResult
object
output to
=> [next state] 3
/
Interpret
input => [this state] response
=> [error state]
Exception
Boolean
Put response
UpdateFailed
Exception
27

28. asynchbase Example
final Scanner scanner = client.newScanner(TABLE_NAME);
scanner.setFamily(INFO_FAM);
scanner.setQualifier(PASSWORD_COL);
ArrayList<ArrayList<KeyValue>> rows = null;
ArrayList<Deferred<Boolean>> workers = new ArrayList<Deferred<Boolean>>();
while ((rows = scanner.nextRows(1).joinUninterruptibly()) != null) {
for (ArrayList<KeyValue> row : rows) {
KeyValue kv = row.get(0);
byte[] expected = kv.value();
String userId = new String(kv.key());
PutRequest put = new PutRequest(
TABLE_NAME, kv.key(), kv.family(),
kv.qualifier(), mkNewPassword(expected));
Deferred<Boolean> d = client.compareAndSet(put, expected)
.addCallback(new InterpretResponse(userId))
.addCallbacks(new ResultToMessage(), new FailureToMessage())
.addCallback(new SendMessage());
workers.add(d);
}
}
https://github.com/hbaseinaction/twitbase-async/blob/master/src/main/java/HBaseIA/TwitBase/AsyncUsersTool.java#L151-L173
28

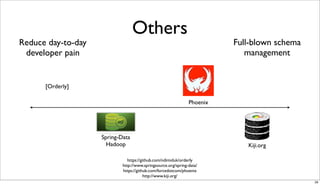

29. Others
Reduce day-to-day Full-blown schema
developer pain management
[Orderly]
Phoenix
Spring-Data
Hadoop Kiji.org
https://github.com/ndimiduk/orderly
http://www.springsource.org/spring-data/
https://github.com/forcedotcom/phoenix
http://www.kiji.org/
29

30. Apache Futures
• Protobuf wire messages (0.96)
• C client (TBD, HBASE-1015)
• HBase Types (TBD, HBASE-8089)
30

31. So, Webapps?
http://www.amazon.com/Back-Point-Rapiers/dp/B0000271GC
31

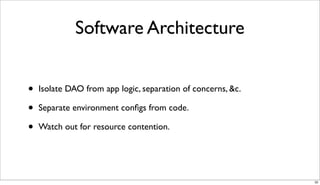

32. Software Architecture
• Isolate DAO from app logic, separation of concerns, &c.
• Separate environment configs from code.
• Watch out for resource contention.
32

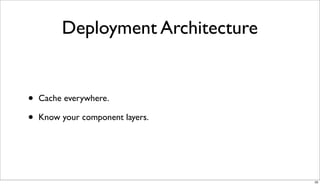

33. Deployment Architecture
• Cache everywhere.
• Know your component layers.
33

34. HBase Warts
• Know thy (HBase) version 0.{92,94,96} !
• long-running client bug (HBASE-4805).
• Gateway APIs only as up to date as the people before you require.
• REST API particularly unpleasant for “Web2.0” folk.
34
