1. Advantech
Class I, Division II Certified
Product Offerings
For Hazardous Location Application

2. AGENDA
 Class I, Division 2 Certificate
Introduction
 Target Market
 Advantech Offerings
- Key selling features
 Application Stories

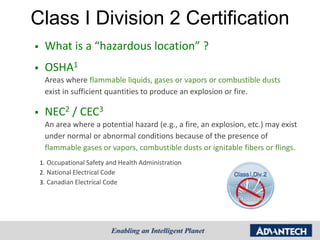

3. Class I Division 2 Certification
 What is a “hazardous location” ?
 OSHA1
Areas where flammable liquids, gases or vapors or combustible dusts
exist in sufficient quantities to produce an explosion or fire.
 NEC2 / CEC3
An area where a potential hazard (e.g., a fire, an explosion, etc.) may exist
under normal or abnormal conditions because of the presence of
flammable gases or vapors, combustible dusts or ignitable fibers or flings.
1. Occupational Safety and Health Administration
2. National Electrical Code
3. Canadian Electrical Code

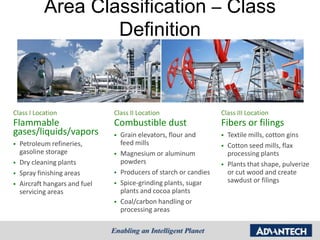

4. Area Classification – Class
Definition
Class I Location Class II Location Class III Location
Flammable Combustible dust Fibers or filings
gases/liquids/vapors  Grain elevators, flour and  Textile mills, cotton gins
 Petroleum refineries, feed mills  Cotton seed mills, flax
gasoline storage  Magnesium or aluminum processing plants
 Dry cleaning plants powders  Plants that shape, pulverize
 Spray finishing areas  Producers of starch or candies or cut wood and create
 Aircraft hangars and fuel  Spice-grinding plants, sugar sawdust or filings
servicing areas plants and cocoa plants
 Coal/carbon handling or
processing areas

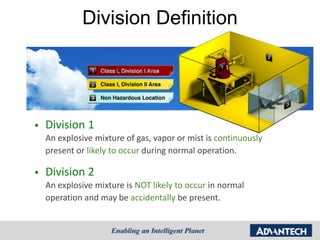

5. Division Definition
 Division 1
An explosive mixture of gas, vapor or mist is continuously
present or likely to occur during normal operation.
 Division 2
An explosive mixture is NOT likely to occur in normal
operation and may be accidentally be present.

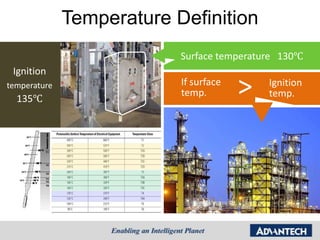

6. Temperature Definition
Surface temperature 130℃
Ignition
temperature
135℃
If surface
temp. > Ignition
temp.

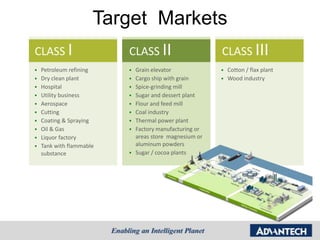

7. Target Markets
CLASS I CLASS II CLASS III
 Petroleum refining  Grain elevator  Cotton / flax plant
 Dry clean plant  Cargo ship with grain  Wood industry
 Hospital  Spice-grinding mill
 Utility business  Sugar and dessert plant
 Aerospace  Flour and feed mill
 Cutting  Coal industry
 Coating & Spraying  Thermal power plant
 Oil & Gas  Factory manufacturing or
 Liquor factory areas store magnesium or
 Tank with flammable aluminum powders
substance  Sugar / cocoa plants

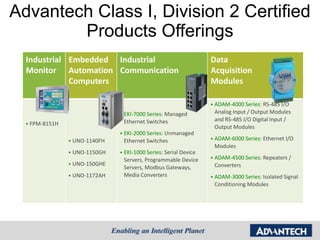

8. Advantech Class I, Division 2 Certified
Products Offerings
Industrial Embedded Industrial Data
Monitor Automation Communication Acquisition
Computers Modules
 ADAM-4000 Series: RS-485 I/O
 EKI-7000 Series: Managed Analog Input / Output Modules
Ethernet Switches and RS-485 I/O Digital Input /
 FPM-8151H
Output Modules
 EKI-2000 Series: Unmanaged
 UNO-1140FH Ethernet Switches  ADAM-6000 Series: Ethernet I/O
Modules
 UNO-1150GH  EKI-1000 Series: Serial Device
Servers, Programmable Device  ADAM-4500 Series: Repeaters /
 UNO-150GHE Converters
Servers, Modbus Gateways,
 UNO-1172AH Media Converters  ADAM-3000 Series: Isolated Signal
>
Conditioning Modules

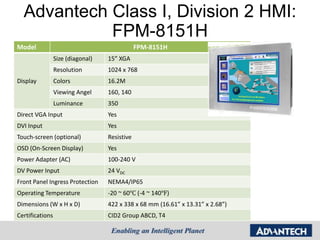

9. Advantech Class I, Division 2 HMI:
FPM-8151H
Model FPM-8151H
Size (diagonal) 15” XGA
Resolution 1024 x 768
Display Colors 16.2M
Viewing Angel 160, 140
Luminance 350
Direct VGA Input Yes
DVI Input Yes
Touch-screen (optional) Resistive
OSD (On-Screen Display) Yes
Power Adapter (AC) 100-240 V
DV Power Input 24 VDC
Front Panel Ingress Protection NEMA4/IP65
Operating Temperature -20 ~ 60℃ (-4 ~ 140℉)
Dimensions (W x H x D) 422 x 338 x 68 mm (16.61” x 13.31” x 2.68”)
Certifications CID2 Group ABCD, T4

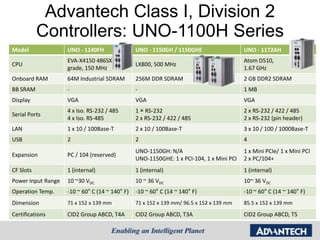

10. Advantech Class I, Division 2
Controllers: UNO-1100H Series
Model UNO - 1140FH UNO - 1150GH / 1150GHE UNO - 1172AH
EVA-X4150 486SX Atom D510,
CPU LX800, 500 MHz
grade, 150 MHz 1.67 GHz
Onboard RAM 64M Industrial SDRAM 256M DDR SDRAM 2 GB DDR2 SDRAM
BB SRAM - - 1 MB
Display VGA VGA VGA
4 x Iso. RS-232 / 485 1 × RS-232 2 x RS-232 / 422 / 485
Serial Ports
4 x Iso. RS-485 2 x RS-232 / 422 / 485 2 x RS-232 (pin header)
LAN 1 x 10 / 100Base-T 2 x 10 / 100Base-T 3 x 10 / 100 / 1000Base-T
USB 2 2 4
UNO-1150GH: N/A 1 x Mini PCIe/ 1 x Mini PCI
Expansion PC / 104 (reserved)
UNO-1150GHE: 1 x PCI-104, 1 x Mini PCI 2 x PC/104+
CF Slots 1 (internal) 1 (internal) 1 (internal)
Power Input Range 10 ~30 VDC 10 ~ 36 VDC 10~ 36 VDC
Operation Temp. -10 ~ 60° C (14 ~ 140° F) -10 ~ 60° C (14 ~ 140° F) -10 ~ 60° C (14 ~ 140° F)
Dimension 71 x 152 x 139 mm 71 x 152 x 139 mm/ 96.5 x 152 x 139 mm 85.5 x 152 x 139 mm
Certifications CID2 Group ABCD, T4A CID2 Group ABCD, T3A CID2 Group ABCD, T5

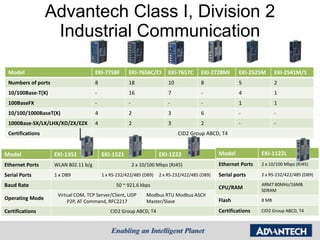

11. Advantech Class I, Division 2
Industrial Communication
Model EKI-7758F EKI-7656C/CI EKI-7657C EKI-2728MI EKI-2525M EKI-2541M/S
Numbers of ports 8 18 10 8 5 2
10/100Base-T(X) - 16 7 - 4 1
100BaseFX - - - - 1 1
10/100/1000BaseT(X) 4 2 3 6 - -
1000Base-SX/LX/LHX/XD/ZX/EZX 4 2 3 2 - -
Certifications CID2 Group ABCD, T4
Model EKI-1351 EKI-1521 EKI-1222 Model EKI-1122L
Ethernet Ports WLAN 802.11 b/g 2 x 10/100 Mbps (RJ45) Ethernet Ports 2 x 10/100 Mbps (RJ45)
Serial Ports 1 x DB9 1 x RS-232/422/485 (DB9) 2 x RS-232/422/485 (DB9) Serial ports 2 x RS-232/422/485 (DB9)
Baud Rate 50 ~ 921.6 kbps ARM7 80MHz/16MB
CPU/RAM SDRAM
Virtual COM, TCP Server/Client, UDP Modbus RTU Modbus ASCII
Operating Mode Flash 8 MB
P2P, AT Command, RFC2217 Master/Slave
Certifications CID2 Group ABCD, T4 Certifications CID2 Group ABCD, T4

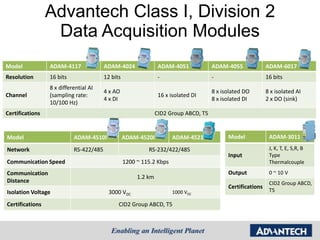

12. Advantech Class I, Division 2
Data Acquisition Modules
Model ADAM-4117 ADAM-4024 ADAM-4051 ADAM-4055 ADAM-6017
Resolution 16 bits 12 bits - - 16 bits
8 x differential AI
4 x AO 8 x isolated DO 8 x isolated AI
Channel (sampling rate: 16 x isolated DI
4 x DI 8 x isolated DI 2 x DO (sink)
10/100 Hz)
Certifications CID2 Group ABCD, T5
Model ADAM-4510I ADAM-4520I ADAM-4521 Model ADAM-3011
Network RS-422/485 RS-232/422/485 J, K, T, E, S,R, B
Input Type
Communication Speed 1200 ~ 115.2 Kbps Thermalcouple
Communication Output 0 ~ 10 V
1.2 km
Distance CID2 Group ABCD,
Certifications
Isolation Voltage 3000 VDC 1000 VDC T5
Certifications CID2 Group ABCD, T5

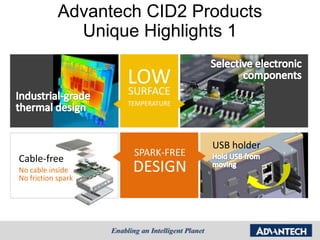

13. Advantech CID2 Products
Unique Highlights 1
LOW
SURFACE
TEMPERATURE
USB holder
SPARK-FREE
Cable-free
No cable inside DESIGN
No friction spark

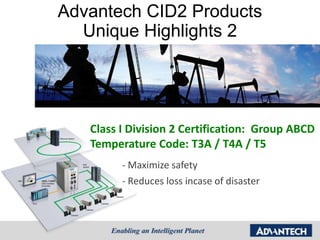

14. Advantech CID2 Products
Unique Highlights 2
Class I Division 2 Certification: Group ABCD
Temperature Code: T3A / T4A / T5
- Maximize safety
- Reduces loss incase of disaster

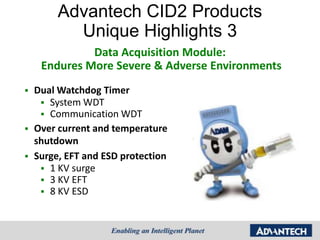

15. Advantech CID2 Products
Unique Highlights 3
Data Acquisition Module:
Endures More Severe & Adverse Environments
 Dual Watchdog Timer
 System WDT
 Communication WDT
 Over current and temperature
shutdown
 Surge, EFT and ESD protection
 1 KV surge
 3 KV EFT
 8 KV ESD

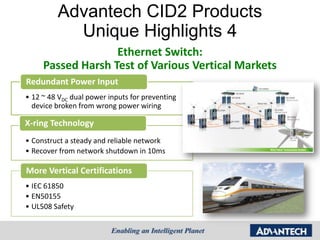

16. Advantech CID2 Products
Unique Highlights 4
Ethernet Switch:
Passed Harsh Test of Various Vertical Markets
Redundant Power Input
• 12 ~ 48 VDC dual power inputs for preventing
device broken from wrong power wiring
X-ring Technology
• Construct a steady and reliable network
• Recover from network shutdown in 10ms
More Vertical Certifications
• IEC 61850
• EN50155
• UL508 Safety

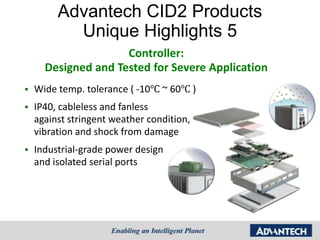

17. Advantech CID2 Products
Unique Highlights 5
Controller:
Designed and Tested for Severe Application
 Wide temp. tolerance ( -10℃ ~ 60℃ )
 IP40, cableless and fanless
against stringent weather condition,
vibration and shock from damage
 Industrial-grade power design
and isolated serial ports

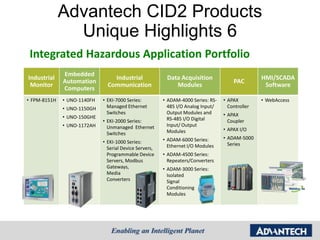

18. Advantech CID2 Products
Unique Highlights 6
Integrated Hazardous Application Portfolio
Embedded
Industrial Industrial Data Acquisition HMI/SCADA
Automation PAC
Monitor Communication Modules Software
Computers
• FPM-8151H • UNO-1140FH • EKI-7000 Series: • ADAM-4000 Series: RS- • APAX • WebAccess
• UNO-1150GH Managed Ethernet 485 I/O Analog Input/ Controller
Switches Output Modules and • APAX
• UNO-150GHE RS-485 I/O Digital
• EKI-2000 Series: Coupler
• UNO-1172AH Unmanaged Ethernet Input/ Output
Modules • APAX I/O
Switches
• ADAM-6000 Series: • ADAM-5000
• EKI-1000 Series: Series
Serial Device Servers, Ethernet I/O Modules
Programmable Device • ADAM-4500 Series:
Servers, Modbus Repeaters/Converters
Gateways, • ADAM-3000 Series:
Media Isolated
Converters Signal
Conditioning
Modules

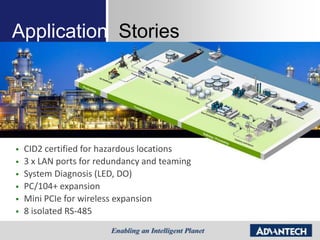

19. Application Stories
 CID2 certified for hazardous locations
 3 x LAN ports for redundancy and teaming
 System Diagnosis (LED, DO)
 PC/104+ expansion
 Mini PCIe for wireless expansion
 8 isolated RS-485

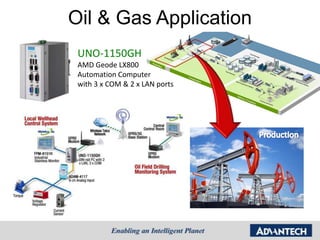

20. Oil & Gas Application
UNO-1150GH
AMD Geode LX800
Automation Computer
with 3 x COM & 2 x LAN ports

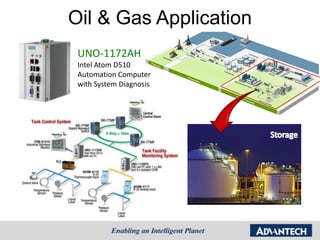

21. Oil & Gas Application
UNO-1172AH
Intel Atom D510
Automation Computer
with System Diagnosis

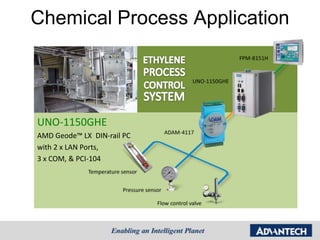

22. Chemical Process Application
UNO-1150GHE
AMD Geode™ LX DIN-rail PC
with 2 x LAN Ports,
3 x COM, & PCI-104

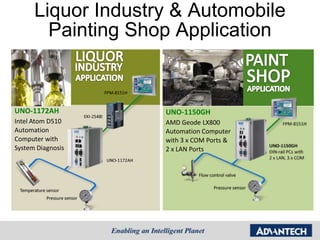

23. Liquor Industry & Automobile
Painting Shop Application
UNO-1172AH UNO-1150GH
Intel Atom D510 AMD Geode LX800
Automation Automation Computer
Computer with with 3 x COM Ports &
System Diagnosis 2 x LAN Ports
