The ISS-7000 is an integrated internet billing solution designed for medium to large-sized hotels, capable of supporting 500 simultaneous users and up to 6000 local accounts. It acts as an access controller that offers advanced security and network management, simplifying the setup for internet access across various devices while ensuring easy billing and user account management. The system features IP plug and play technology, supports multiple operating systems, and includes customizable billing options to enhance guest experience and service provider efficiency.

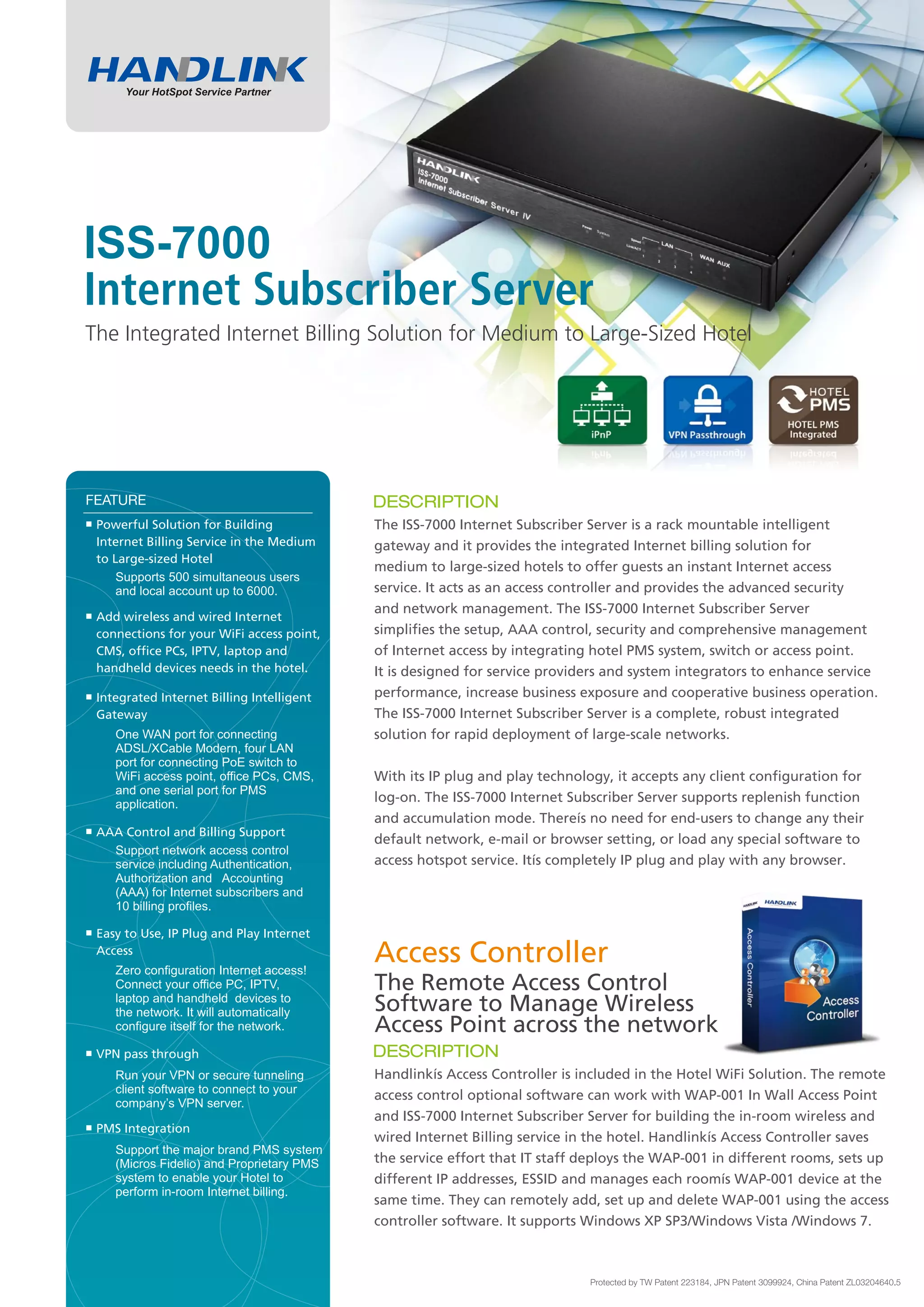

1. ISS-7000
The Integrated Internet Billing Solution for Medium to Large-Sized Hotel
Powerful Solution for Building The ISS-7000 Internet Subscriber Server is a rack mountable intelligent
Internet Billing Service in the Medium gateway and it provides the integrated Internet billing solution for
to Large-sized Hotel
medium to large-sized hotels to offer guests an instant Internet access
Supports 500 simultaneous users
and local account up to 6000. service. It acts as an access controller and provides the advanced security
and network management. The ISS-7000 Internet Subscriber Server
Add wireless and wired Internet
connections for your WiFi access point, simplifies the setup, AAA control, security and comprehensive management
CMS, office PCs, IPTV, laptop and of Internet access by integrating hotel PMS system, switch or access point.
handheld devices needs in the hotel. It is designed for service providers and system integrators to enhance service
Integrated Internet Billing Intelligent performance, increase business exposure and cooperative business operation.
Gateway The ISS-7000 Internet Subscriber Server is a complete, robust integrated
One WAN port for connecting solution for rapid deployment of large-scale networks.
ADSL/XCable Modern, four LAN
port for connecting PoE switch to
WiFi access point, office PCs, CMS, With its IP plug and play technology, it accepts any client configuration for
and one serial port for PMS
application.
log-on. The ISS-7000 Internet Subscriber Server supports replenish function
and accumulation mode. There’s no need for end-users to change any their
AAA Control and Billing Support
default network, e-mail or browser setting, or load any special software to
Support network access control
service including Authentication, access hotspot service. It’s completely IP plug and play with any browser.
Authorization and Accounting
(AAA) for Internet subscribers and
10 billing profiles.
Easy to Use, IP Plug and Play Internet
Access
Zero configuration Internet access!
Access Controller
Connect your office PC, IPTV, The Remote Access Control
laptop and handheld devices to
the network. It will automatically Software to Manage Wireless
configure itself for the network. Access Point across the network
VPN pass through
Run your VPN or secure tunneling Handlink’s Access Controller is included in the Hotel WiFi Solution. The remote
client software to connect to your
access control optional software can work with WAP-001 In Wall Access Point
company’s VPN server.
and ISS-7000 Internet Subscriber Server for building the in-room wireless and
PMS Integration
wired Internet Billing service in the hotel. Handlink’s Access Controller saves
Support the major brand PMS system
(Micros Fidelio) and Proprietary PMS the service effort that IT staff deploys the WAP-001 in different rooms, sets up
system to enable your Hotel to different IP addresses, ESSID and manages each room’s WAP-001 device at the
perform in-room Internet billing.
same time. They can remotely add, set up and delete WAP-001 using the access
controller software. It supports Windows XP SP3/Windows Vista /Windows 7.

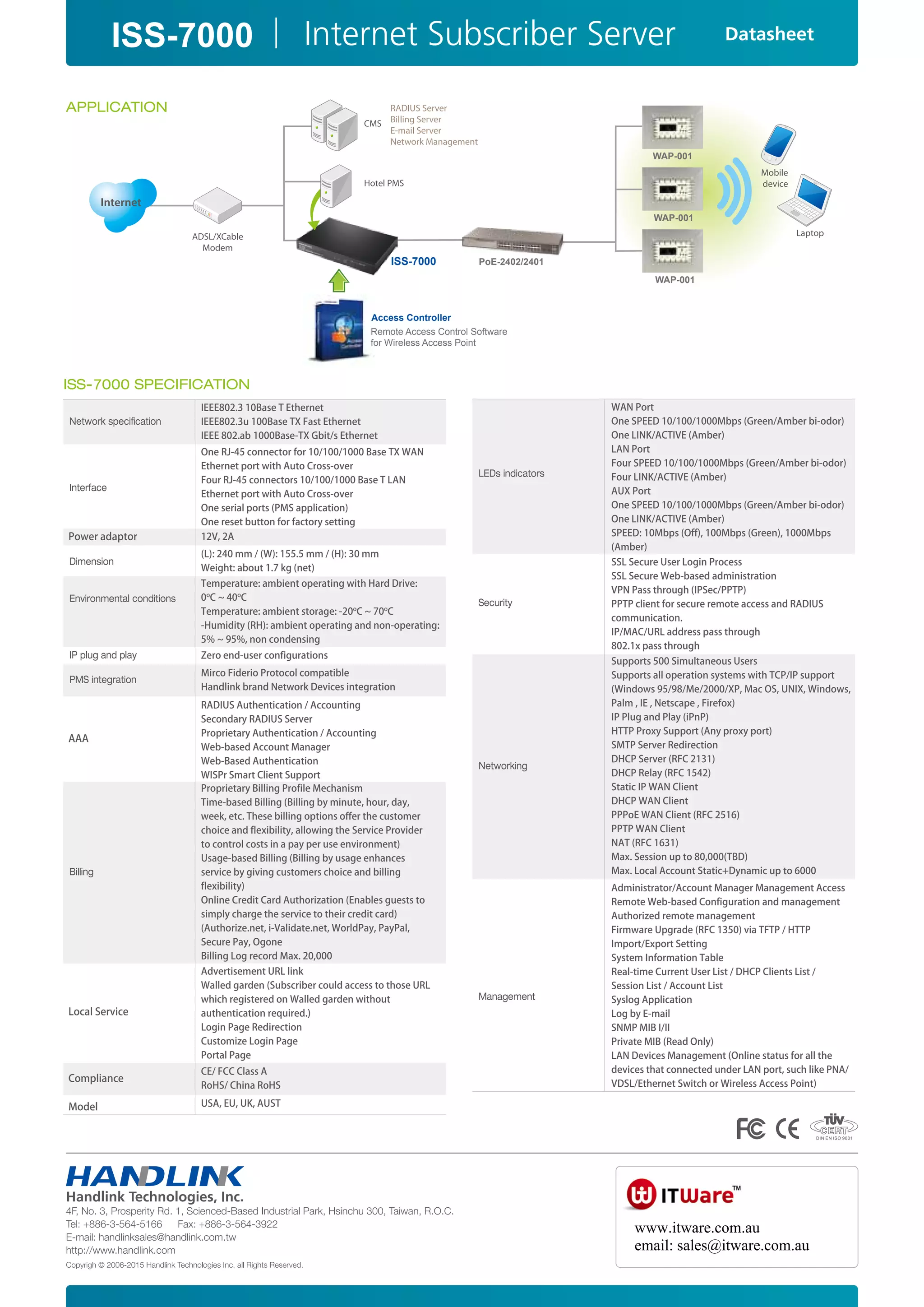

2. ISS-7000
WAP-001
WAP-001
ISS-7000 PoE-2402/2401
WAP-001
Access Controller
Remote Access Control Software
for Wireless Access Point
7
IEEE802.3 10Base T Ethernet WAN Port
IEEE802.3u 100Base TX Fast Ethernet One SPEED 10/100/1000Mbps (Green/Amber bi-odor)
IEEE 802.ab 1000Base-TX Gbit/s Ethernet One LINK/ACTIVE (Amber)
One RJ-45 connector for 10/100/1000 Base TX WAN LAN Port
Ethernet port with Auto Cross-over Four SPEED 10/100/1000Mbps (Green/Amber bi-odor)
Four RJ-45 connectors 10/100/1000 Base T LAN Four LINK/ACTIVE (Amber)
Ethernet port with Auto Cross-over AUX Port
One serial ports (PMS application) One SPEED 10/100/1000Mbps (Green/Amber bi-odor)
One reset button for factory setting One LINK/ACTIVE (Amber)
Power adaptor 12V, 2A SPEED: 10Mbps (Off), 100Mbps (Green), 1000Mbps
(Amber)
(L): 240 mm / (W): 155.5 mm / (H): 30 mm
SSL Secure User Login Process
Weight: about 1.7 kg (net)
SSL Secure Web-based administration
Temperature: ambient operating with Hard Drive:
VPN Pass through (IPSec/PPTP)
0ºC ~ 40ºC
PPTP client for secure remote access and RADIUS
Temperature: ambient storage: -20ºC ~ 70ºC
communication.
-Humidity (RH): ambient operating and non-operating:
IP/MAC/URL address pass through
5% ~ 95%, non condensing
802.1x pass through
Zero end-user configurations
Supports 500 Simultaneous Users
Mirco Fiderio Protocol compatible Supports all operation systems with TCP/IP support
Handlink brand Network Devices integration (Windows 95/98/Me/2000/XP, Mac OS, UNIX, Windows,
RADIUS Authentication / Accounting Palm , IE , Netscape , Firefox)
Secondary RADIUS Server IP Plug and Play (iPnP)
Proprietary Authentication / Accounting HTTP Proxy Support (Any proxy port)
AAA
Web-based Account Manager SMTP Server Redirection
Web-Based Authentication DHCP Server (RFC 2131)
WISPr Smart Client Support DHCP Relay (RFC 1542)
Proprietary Billing Profile Mechanism Static IP WAN Client
Time-based Billing (Billing by minute, hour, day, DHCP WAN Client
week, etc. These billing options offer the customer PPPoE WAN Client (RFC 2516)
choice and flexibility, allowing the Service Provider PPTP WAN Client
to control costs in a pay per use environment) NAT (RFC 1631)
Usage-based Billing (Billing by usage enhances Max. Session up to 80,000(TBD)
service by giving customers choice and billing Max. Local Account Static+Dynamic up to 6000
flexibility) Administrator/Account Manager Management Access
Online Credit Card Authorization (Enables guests to Remote Web-based Configuration and management
simply charge the service to their credit card) Authorized remote management
(Authorize.net, i-Validate.net, WorldPay, PayPal, Firmware Upgrade (RFC 1350) via TFTP / HTTP
Secure Pay, Ogone Import/Export Setting
Billing Log record Max. 20,000 System Information Table
Advertisement URL link Real-time Current User List / DHCP Clients List /
Walled garden (Subscriber could access to those URL Session List / Account List
which registered on Walled garden without Syslog Application
Local Service authentication required.) Log by E-mail
Login Page Redirection SNMP MIB I/II
Customize Login Page Private MIB (Read Only)
Portal Page LAN Devices Management (Online status for all the
CE/ FCC Class A devices that connected under LAN port, such like PNA/
Compliance VDSL/Ethernet Switch or Wireless Access Point)
RoHS/ China RoHS
Model USA, EU, UK, AUST
