1. Hackware v2.7: IoT Special
Hackware Quiz
The important thing in Hackware is not triumph, but the struggle; the essential thing is not
to have conquered but to have learned well. To spread these principles is to build up a
strong and more valiant and, above all, more creative and generous community !
Brahim HAMADI CHAREF
(Adapted from Pierre de Coubertin)

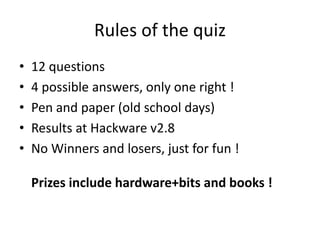

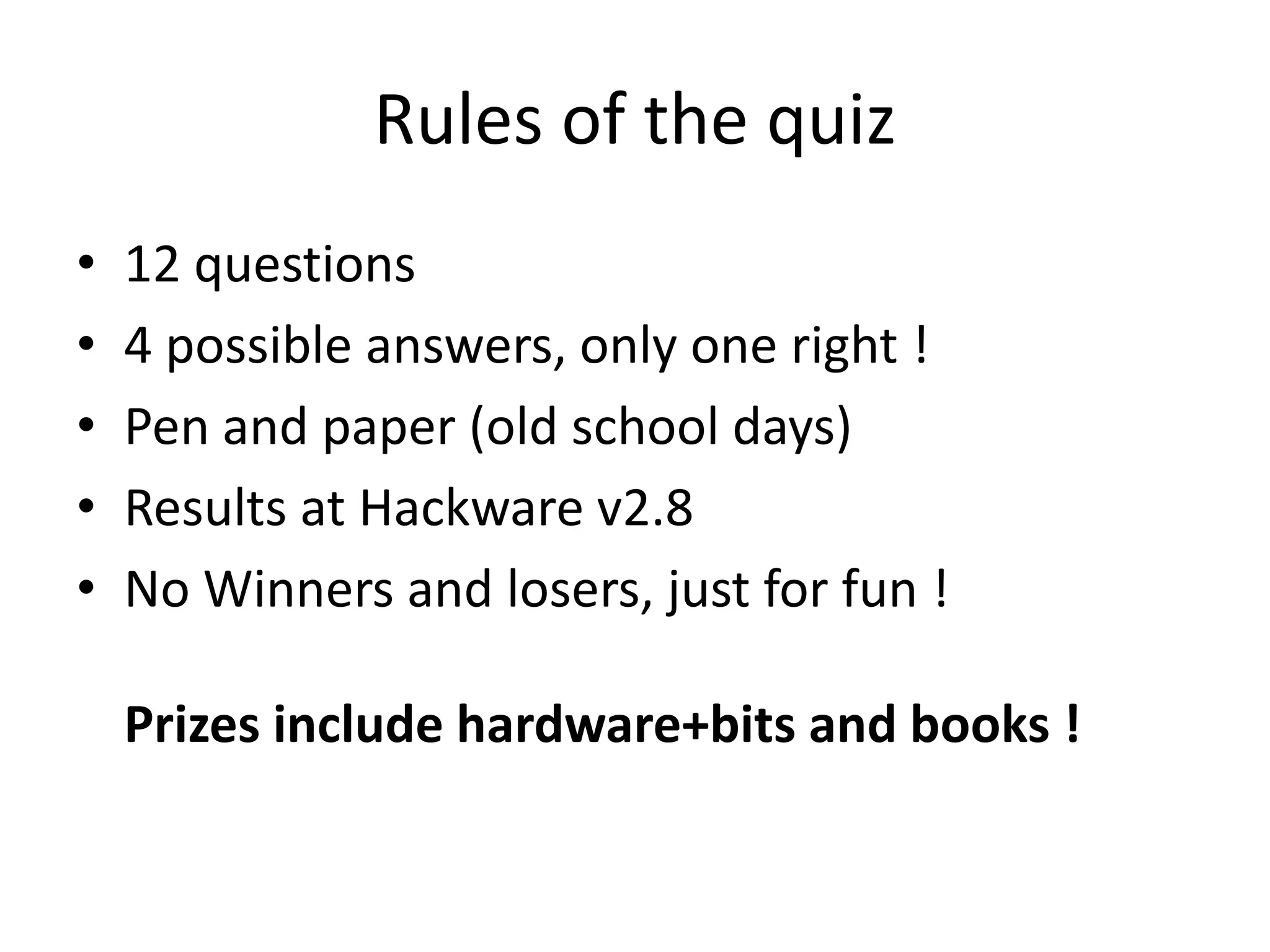

2. Rules of the quiz
• 12 questions
• 4 possible answers, only one right !
• Pen and paper (old school days)
• Results at Hackware v2.8
• No Winners and losers, just for fun !
Prizes include hardware+bits and books !

3. Electronics

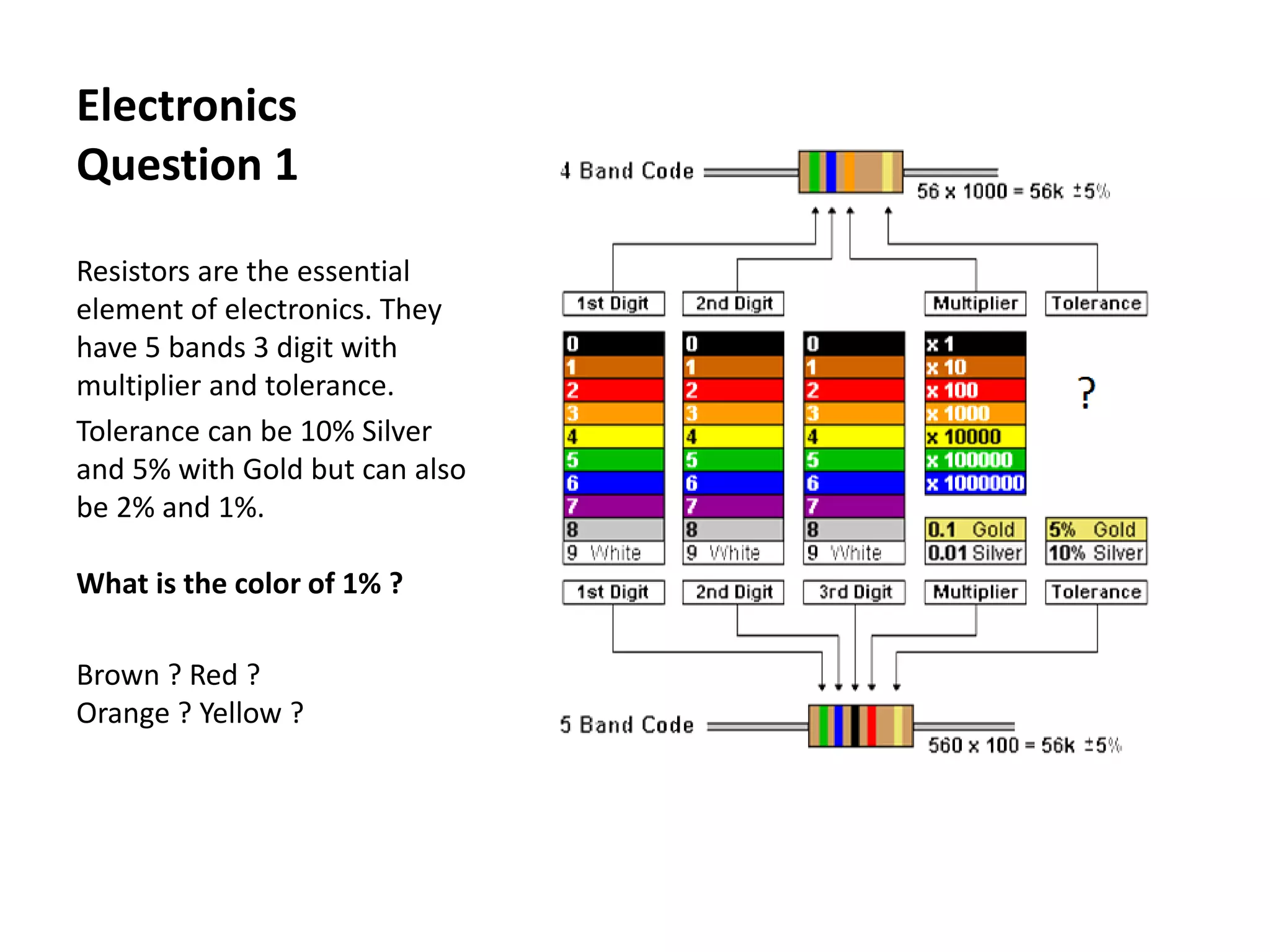

Question 1
Resistors are the essential
element of electronics. They
have 5 bands 3 digit with
multiplier and tolerance.
Tolerance can be 10% Silver
and 5% with Gold but can also
be 2% and 1%.
What is the color of 1% ?
Brown ? Red ?
Orange ? Yellow ?

4. USD100 EU100
FREE MYR100
FPGA
Question 2
Vivado Design Suite is a
software suite produced by
Xilinx for synthesis and
analysis of HDL designs,
superseding Xilinx ISE with
additional features for system
on a chip development and
high-level synthesis.
Field-Programmable Gate
Arrays (FPGAs) are know to be
expensive, development
boards are getting cheaper
but this tool is

5. Electronics

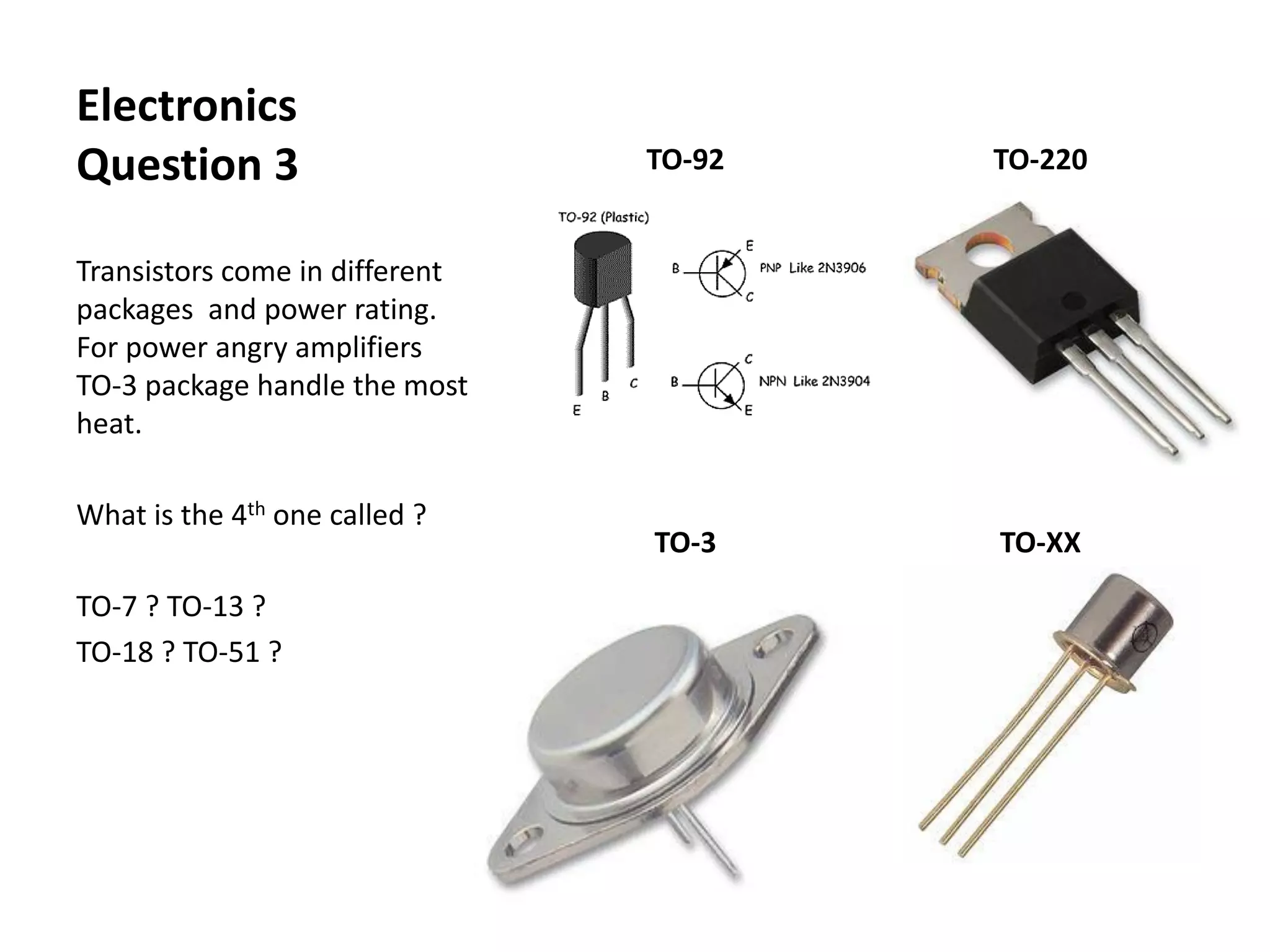

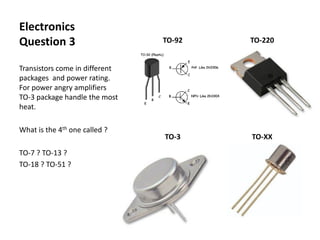

Question 3
Transistors come in different
packages and power rating.
For power angry amplifiers
TO-3 package handle the most
heat.
What is the 4th one called ?
TO-7 ? TO-13 ?
TO-18 ? TO-51 ?
TO-92 TO-220
TO-3 TO-XX

6. FPGA

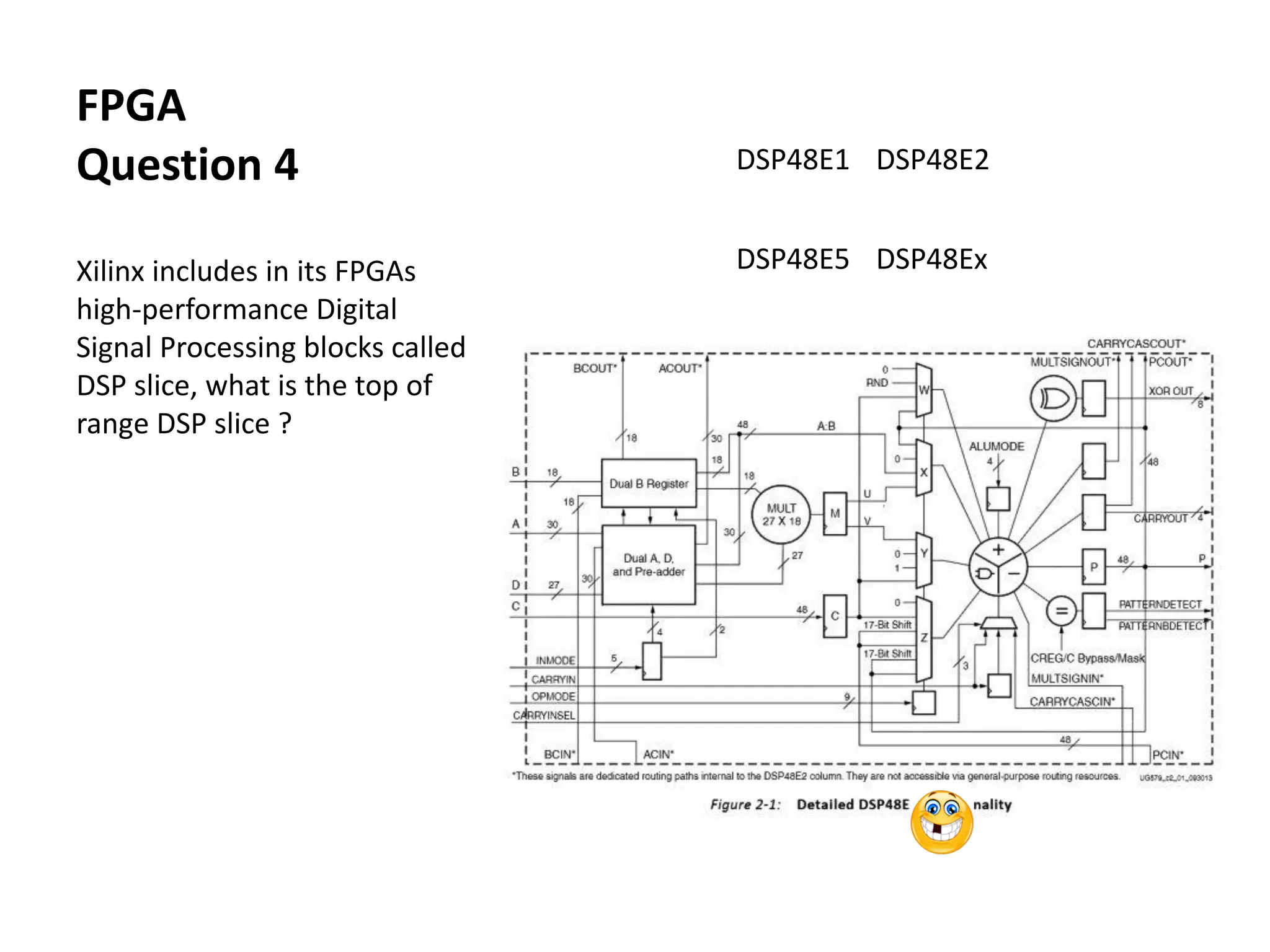

Question 4
Xilinx includes in its FPGAs
high-performance Digital
Signal Processing blocks called
DSP slice, what is the top of
range DSP slice ?
DSP48E1 DSP48E2
DSP48E5 DSP48Ex

7. Electronics
Question 5
In electromagnetism and
electronics, inductance is the
property of an electrical
conductor by which a change
in current through it induces
an electromotive force.
Its Standard Unit is in
Johnny Henry
Harry Terry

8. Electronics

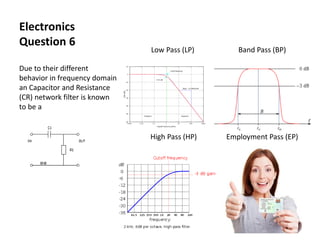

Question 6

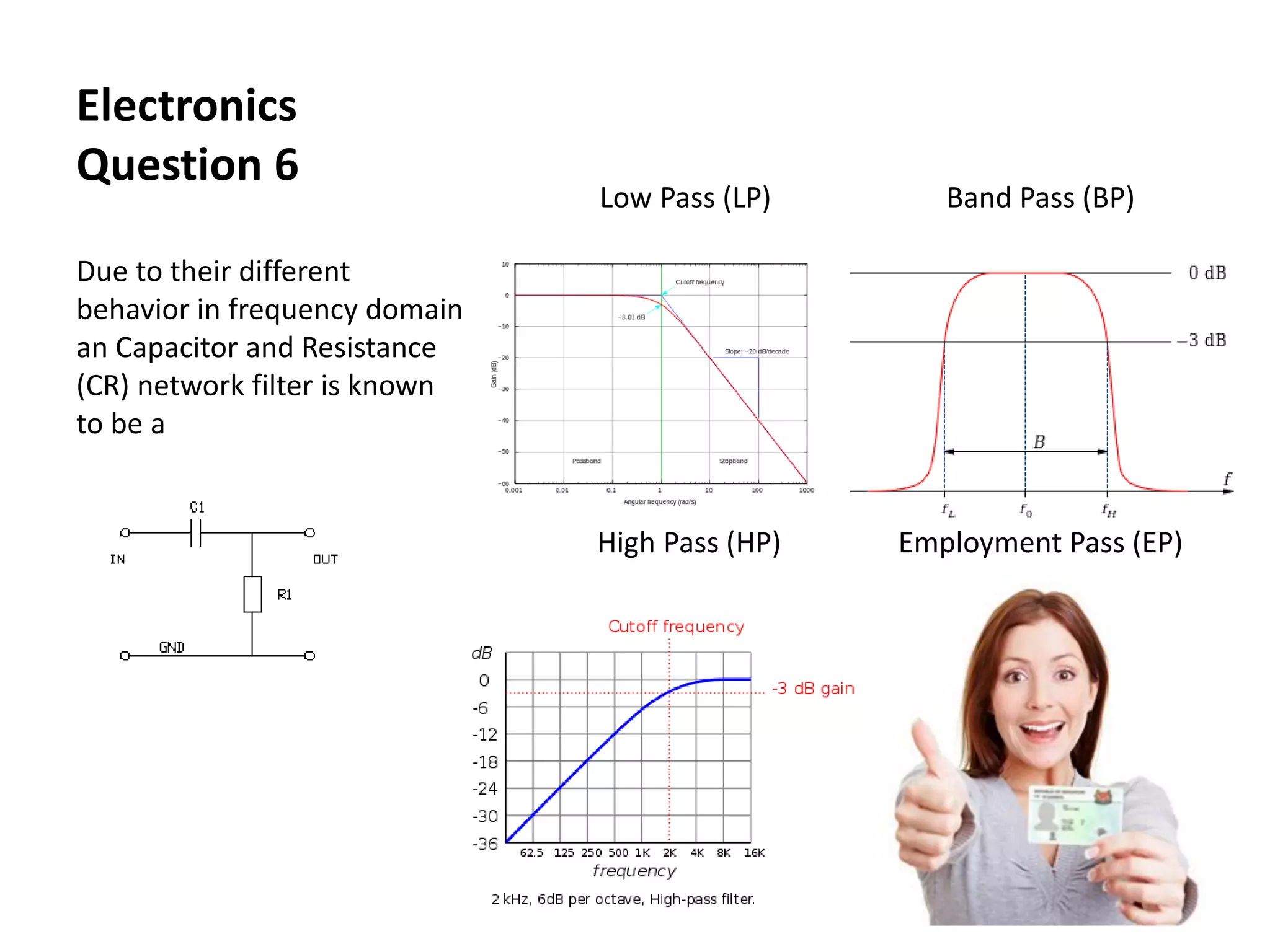

Due to their different
behavior in frequency domain
an Capacitor and Resistance
(CR) network filter is known
to be a
Low Pass (LP) Band Pass (BP)
High Pass (HP) Employment Pass (EP)

9. Spartan 7 Virtex 7
Kintex 7 Artix 7
FPGA

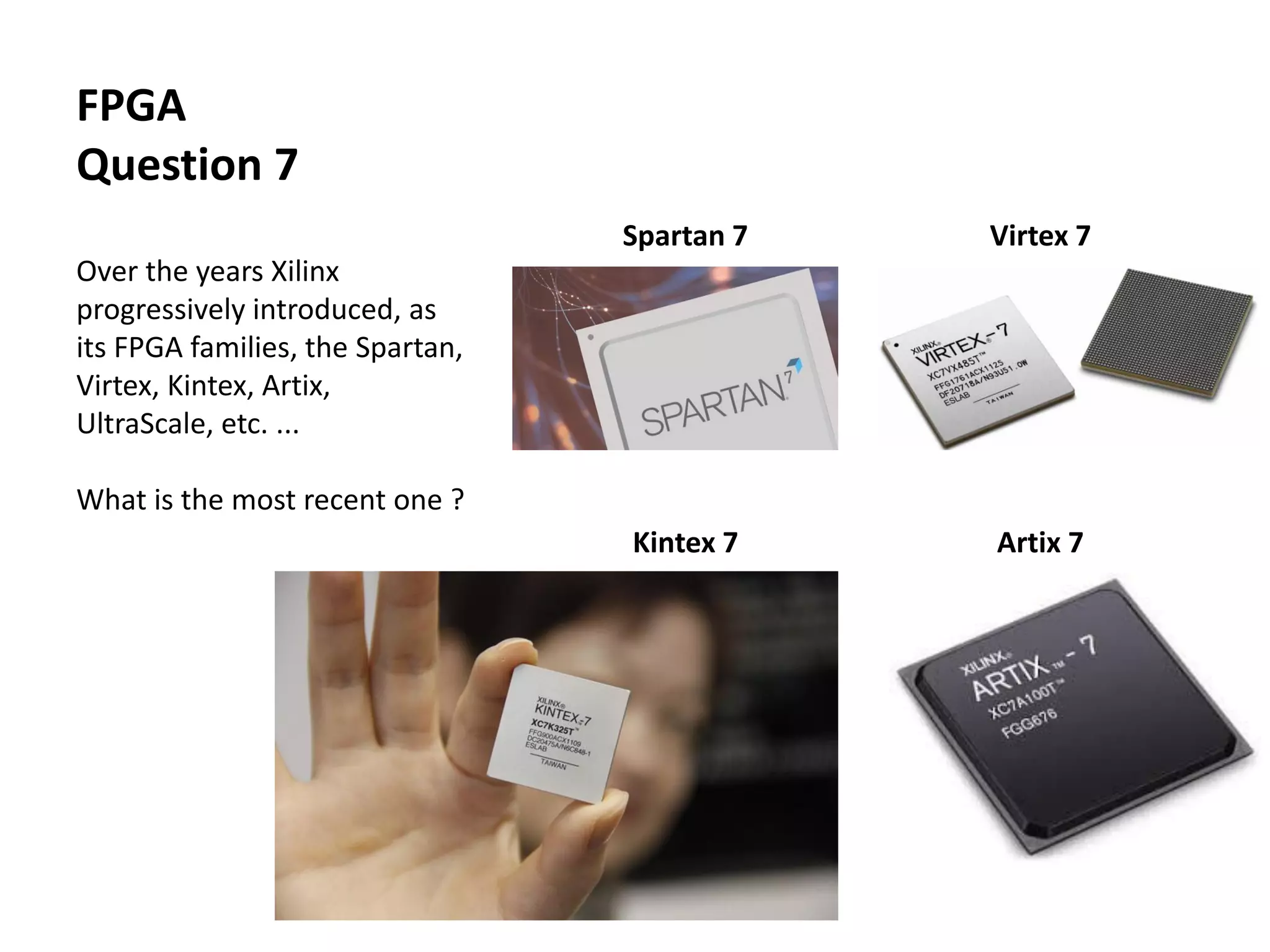

Question 7
Over the years Xilinx
progressively introduced, as
its FPGA families, the Spartan,
Virtex, Kintex, Artix,
UltraScale, etc. ...
What is the most recent one ?

10. Electronics

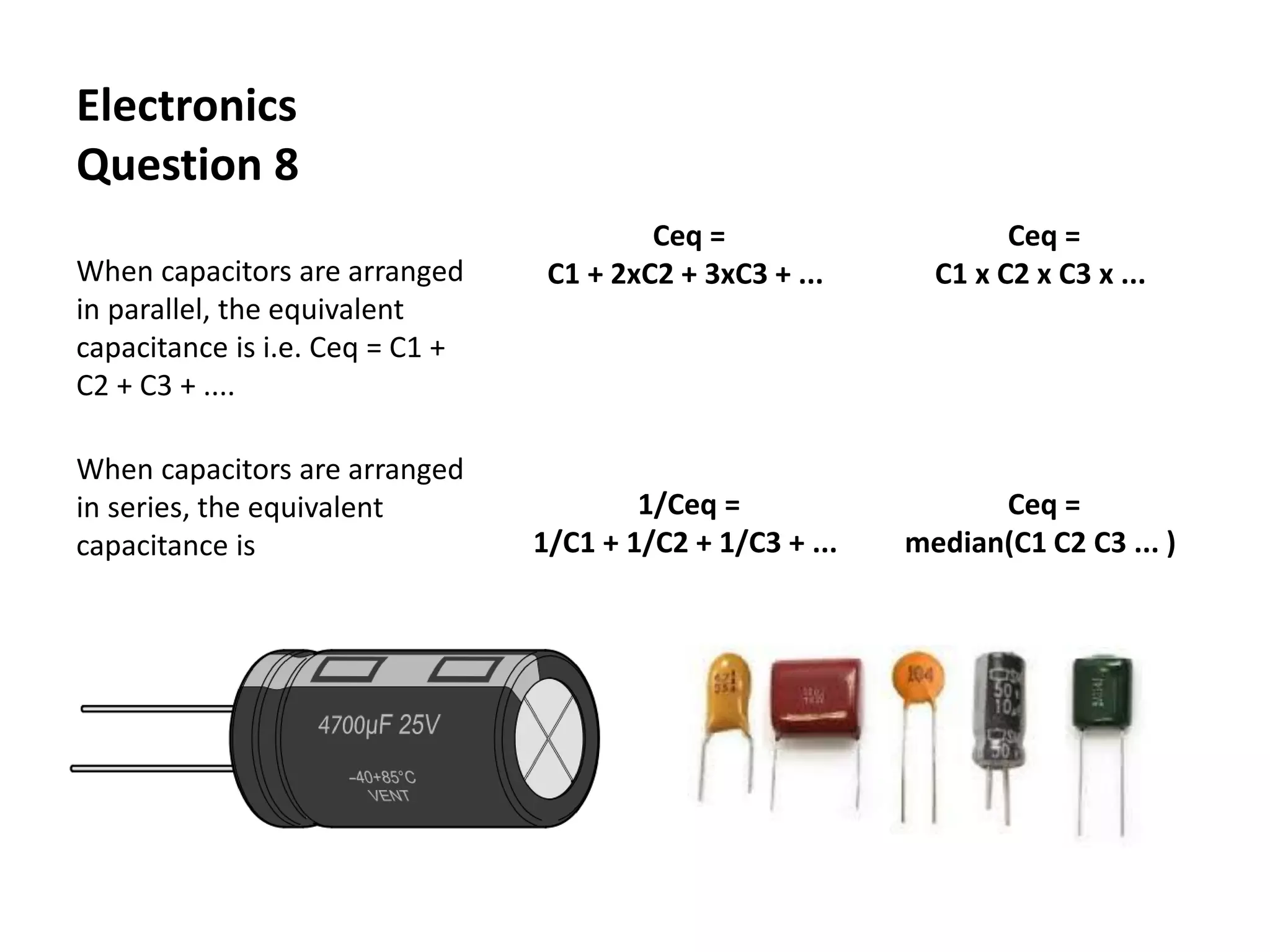

Question 8
When capacitors are arranged
in parallel, the equivalent
capacitance is i.e. Ceq = C1 +
C2 + C3 + ....
When capacitors are arranged
in series, the equivalent
capacitance is
Ceq =
C1 + 2xC2 + 3xC3 + ...
Ceq =
C1 x C2 x C3 x ...
1/Ceq =
1/C1 + 1/C2 + 1/C3 + ...
Ceq =
median(C1 C2 C3 ... )

11. Hardware

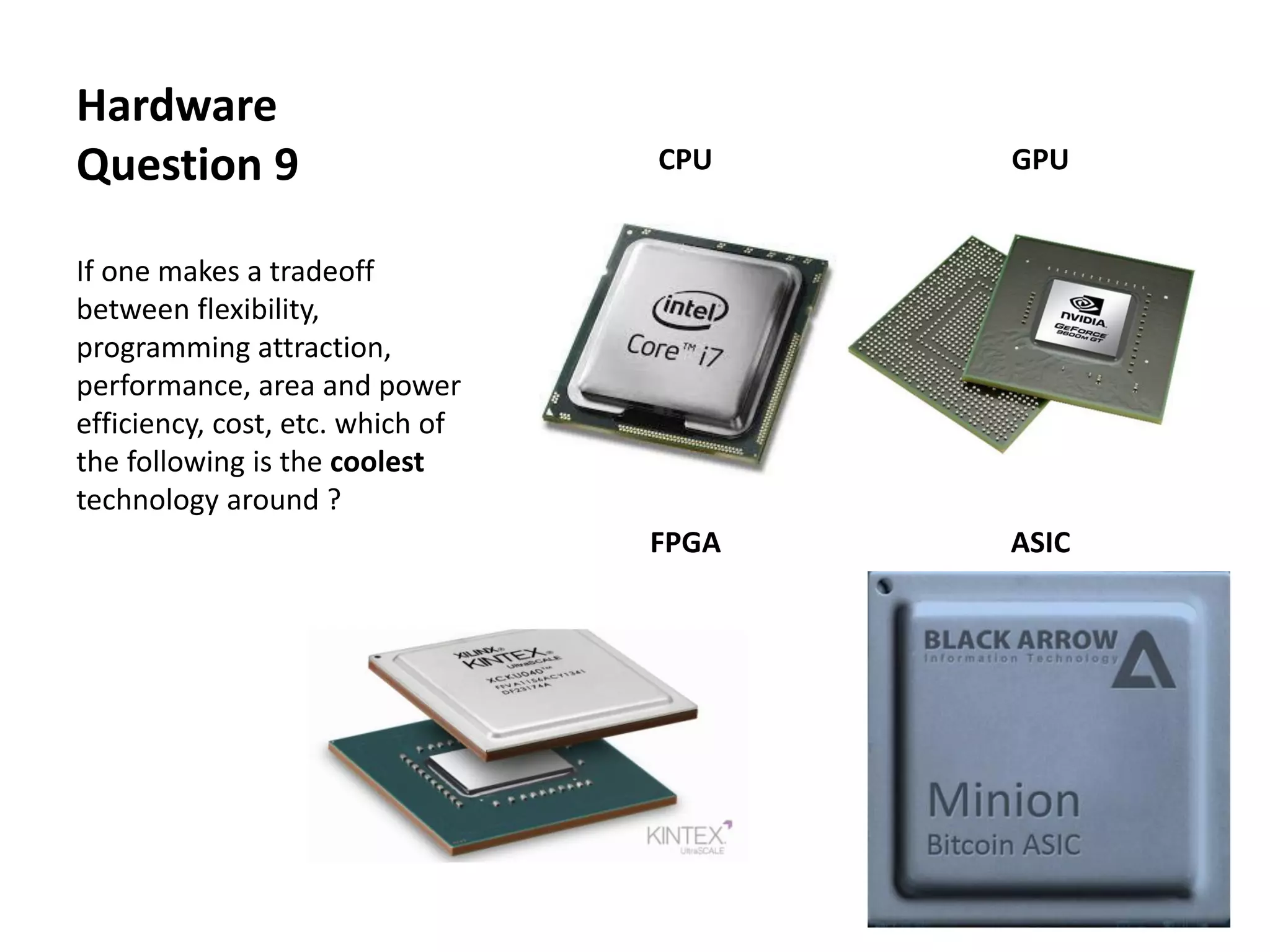

Question 9
If one makes a tradeoff
between flexibility,
programming attraction,
performance, area and power
efficiency, cost, etc. which of
the following is the coolest
technology around ?
CPU GPU
FPGA ASIC

12. IoT
Question 10
IoT is the hot topic ... to give
and idea of the scale ... 18.6
billion microcontrollers were
shipped in 2014, and 10.4
billion RFID tags in 2016 ...
How many billions of IoT
devices by 2020 ?
50 billion No-one knows !
256 billion 1 trillion

13. IoT

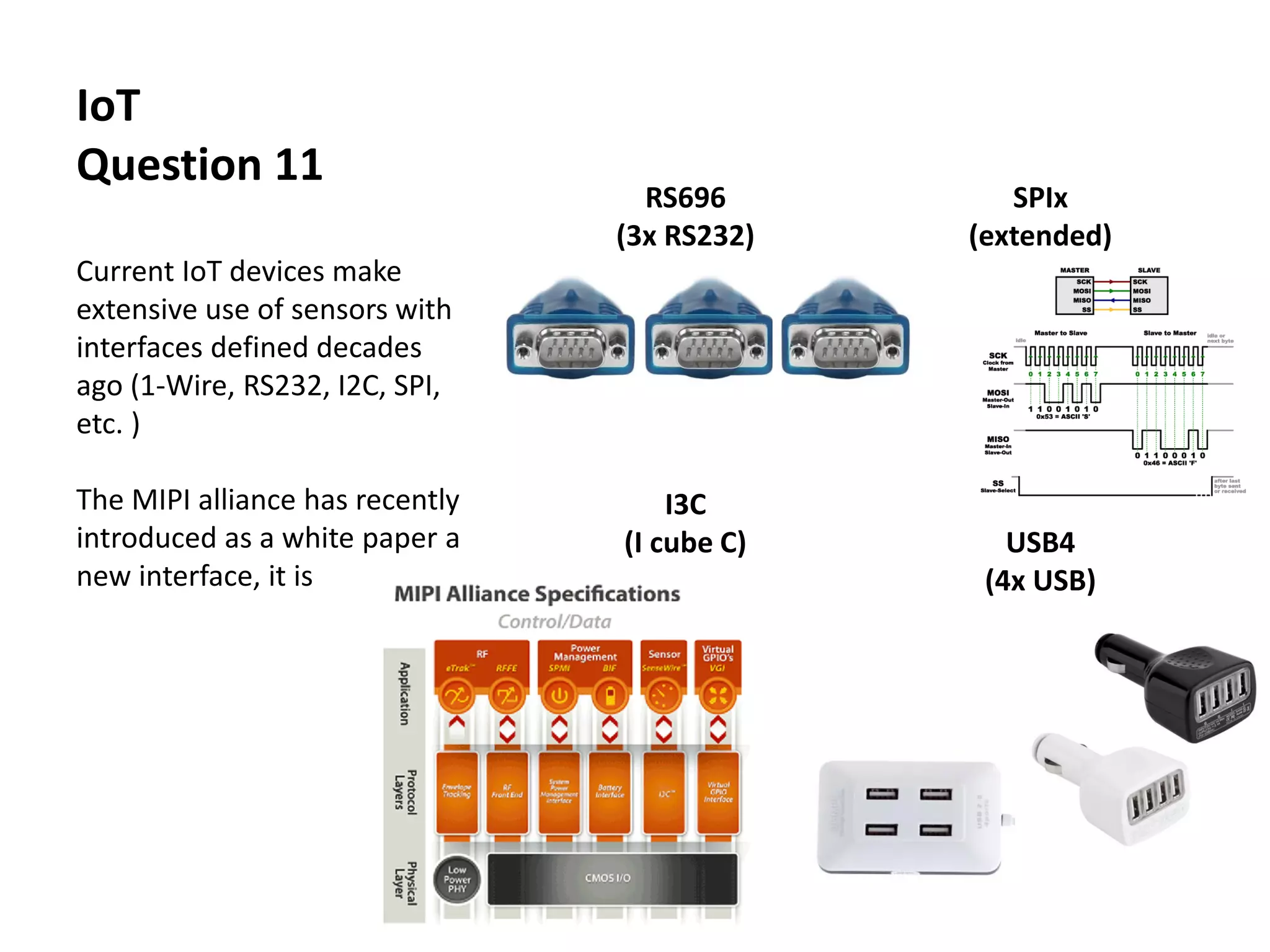

Question 11
Current IoT devices make
extensive use of sensors with
interfaces defined decades
ago (1-Wire, RS232, I2C, SPI,
etc. )
The MIPI alliance has recently
introduced as a white paper a
new interface, it is
RS696
(3x RS232)
SPIx
(extended)
I3C
(I cube C) USB4
(4x USB)

14. IoT
Question 12
At a recent IoT talk with
UnaBiz the Unashield was
presented. Inquires were
made for its price.
So how much it is ?
SG$ 20 !! Free !!
SG$65 SG$ 100

15. Electronics

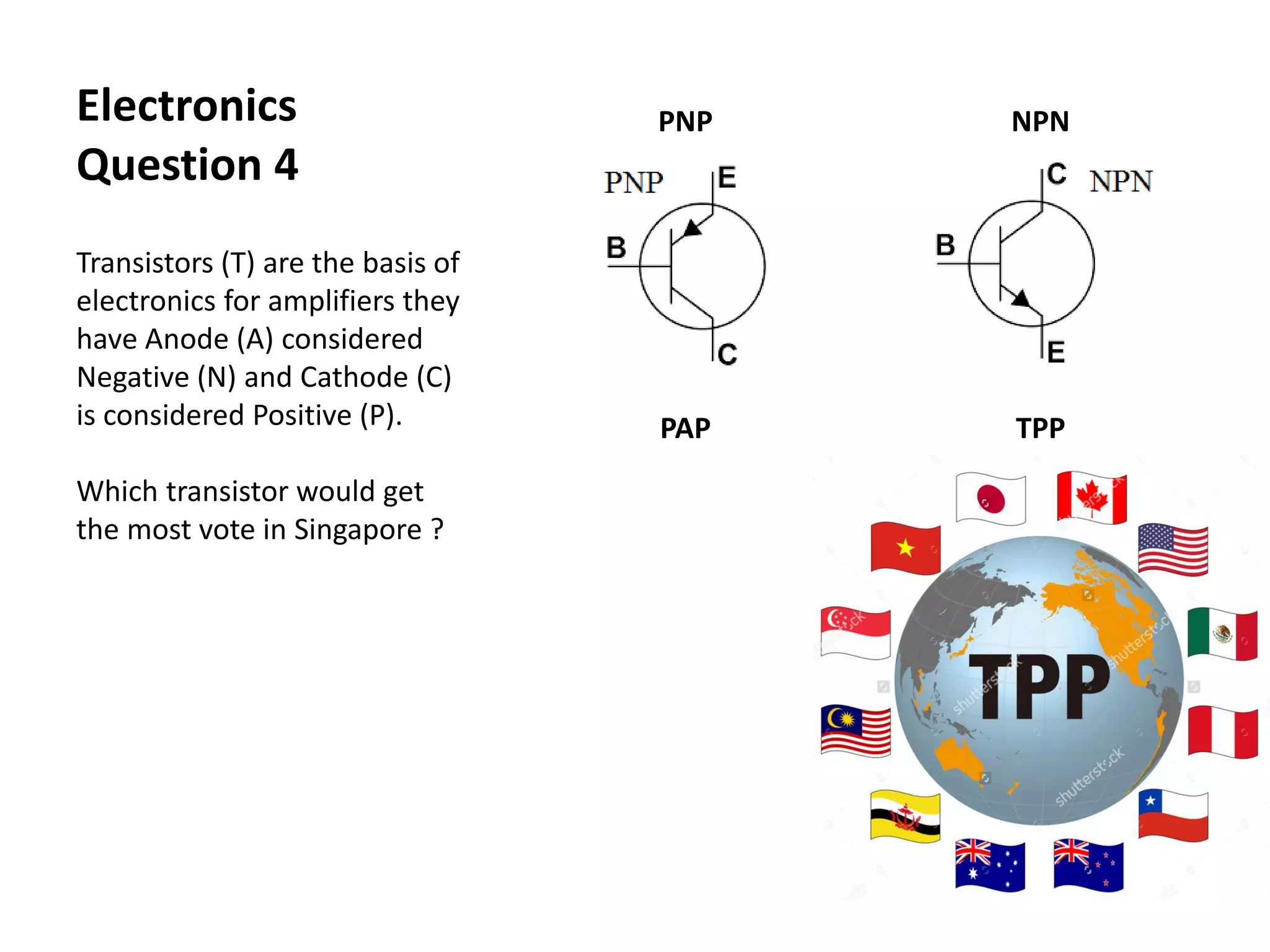

Question 4
Transistors (T) are the basis of
electronics for amplifiers they
have Anode (A) considered
Negative (N) and Cathode (C)
is considered Positive (P).
Which transistor would get
the most vote in Singapore ?
PNP NPN
PAP TPP
