Slides to support a series of videos in the "Hacking JavaScript" Series, which demonstrate how to use browser dev tools to 'hack' and manipulate and test JavaScript Games and Applications from the browser dev tools console.
See related blog post:
http://blog.eviltester.com/2016/12/hacking-javascript-games-cellular.html
We will Hack This Game:
- http://compendiumdev.co.uk/apps/games/ca/ca_v1.html
Videos In this Series:
- Change Colour of Cells
- https://youtu.be/gWnvKQOb2yc
- Change Colour Automatically
- https://youtu.be/hfE99d4Slck
- Create a Glider Invasion
- https://youtu.be/CeOzcn7pBQY
- Change Size of the World
- https://youtu.be/lLnyNP33S_Q
- Create a Randomly Generated World
- https://youtu.be/uZv2s5QjPps
- History Of The Game of Life
- https://youtu.be/H1rMF7SnGn8
---

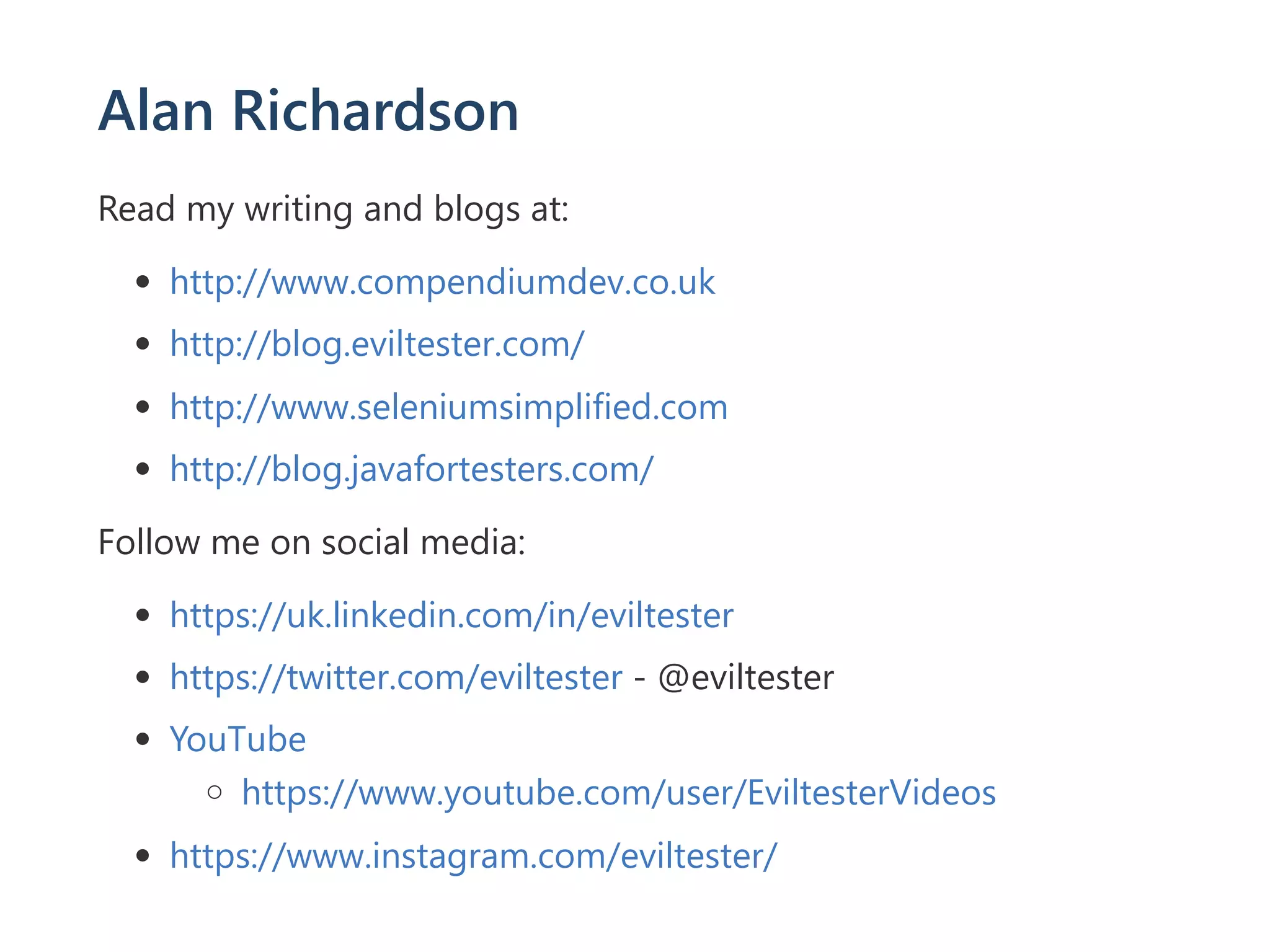

# Alan Richardson
Read my writing and blogs at:
- http://www.compendiumdev.co.uk
- http://blog.eviltester.com/
- http://www.seleniumsimplified.com
- http://blog.javafortesters.com/
Follow me on social media:
- https://uk.linkedin.com/in/eviltester
- https://twitter.com/eviltester - @eviltester
- [YouTube](http://www.youtube.com/subscription_center?add_user=EvilTesterVideos)
- https://www.youtube.com/user/EviltesterVideos
- https://www.instagram.com/eviltester/
---

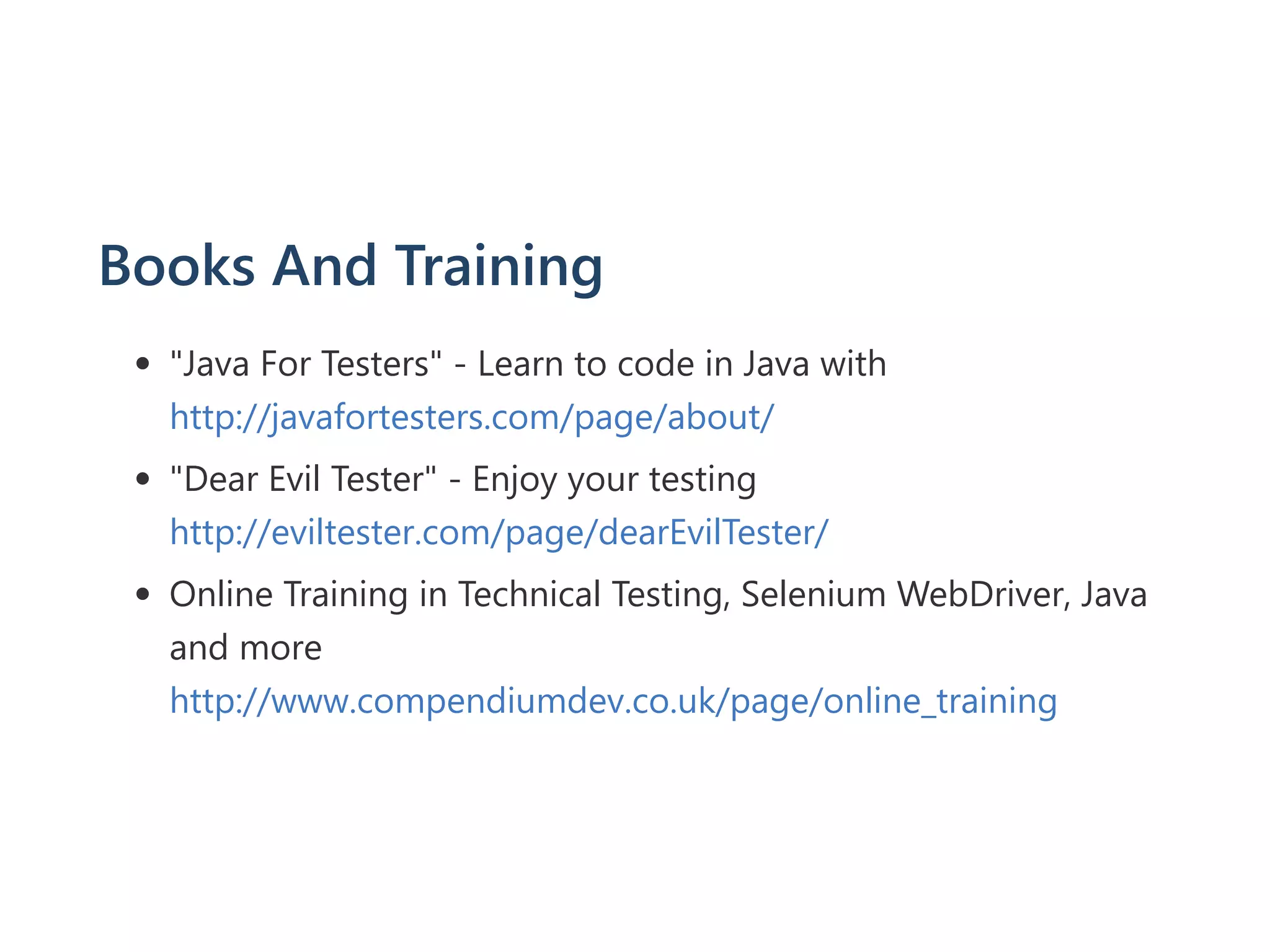

# Books And Training
- "Java For Testers" - Learn to code in Java with http://javafortesters.com/page/about/
- "Dear Evil Tester" - Enjoy your testing http://eviltester.com/page/dearEvilTester/
- Online Training in Technical Testing, Selenium WebDriver, Java and more http://www.compendiumdev.co.uk/page/online_training

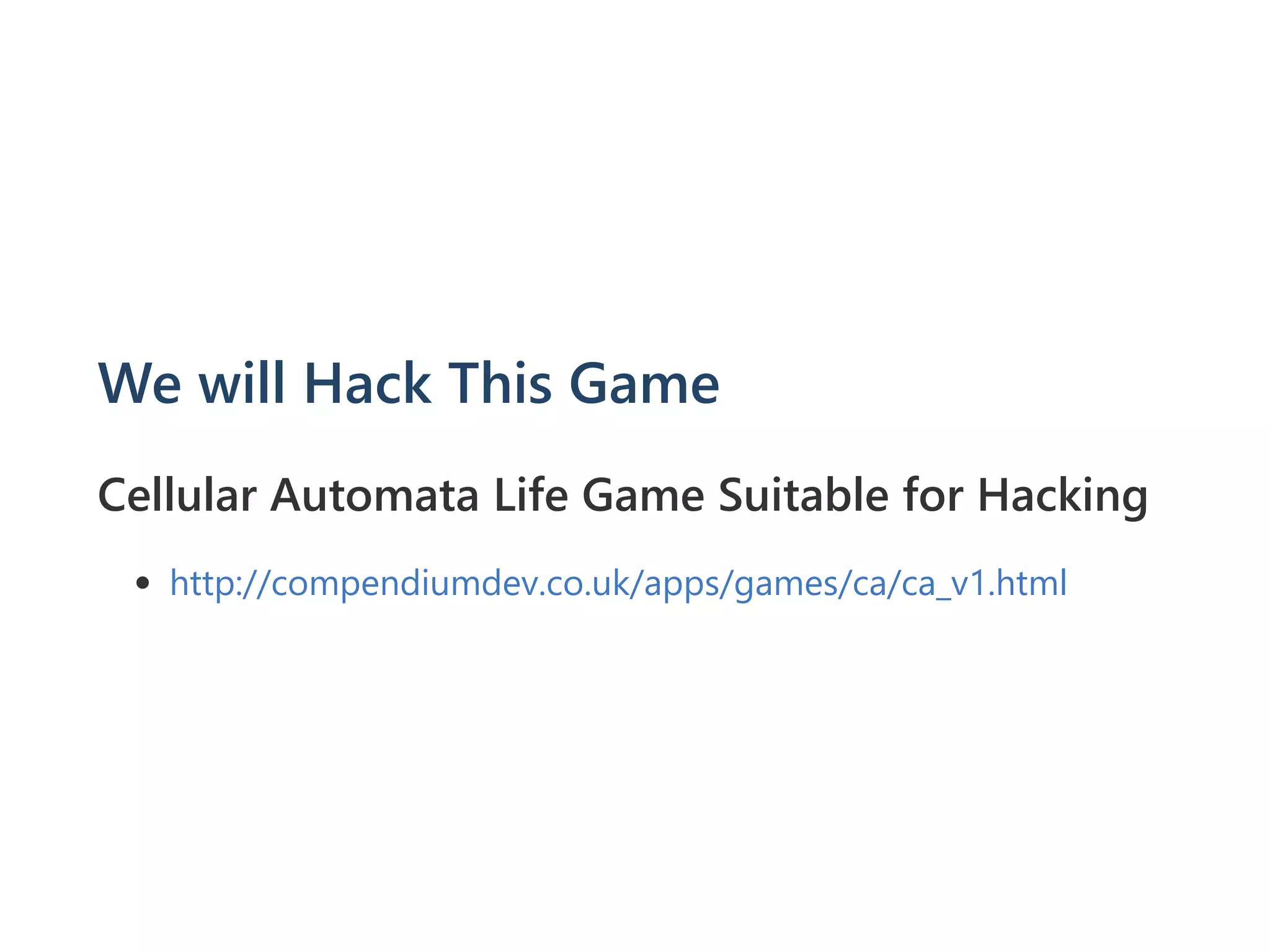

2. We will Hack This Game
Cellular Automata Life Game Suitable for Hacking
http://compendiumdev.co.uk/apps/games/ca/ca_v1.html

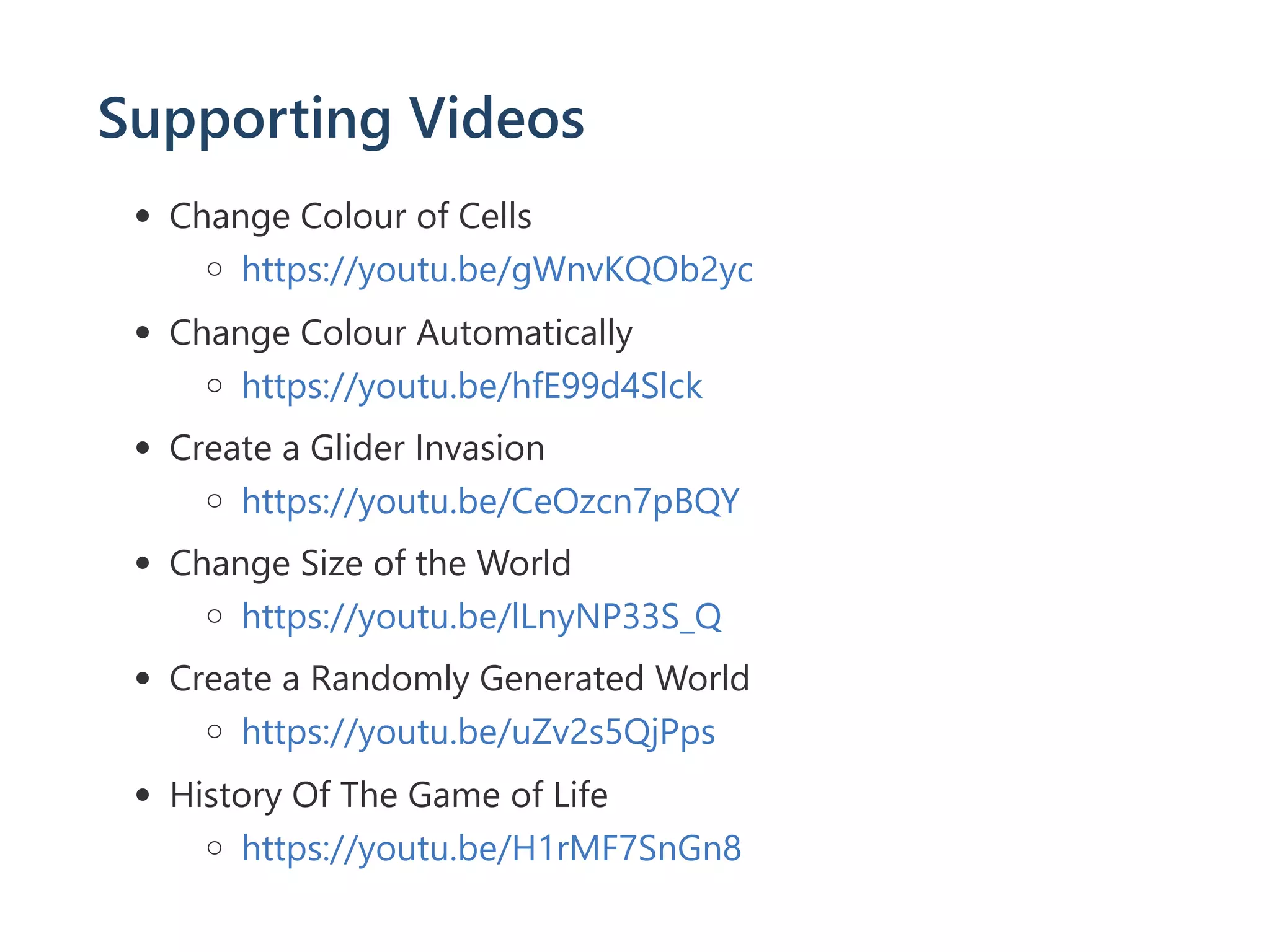

3. Supporting Videos

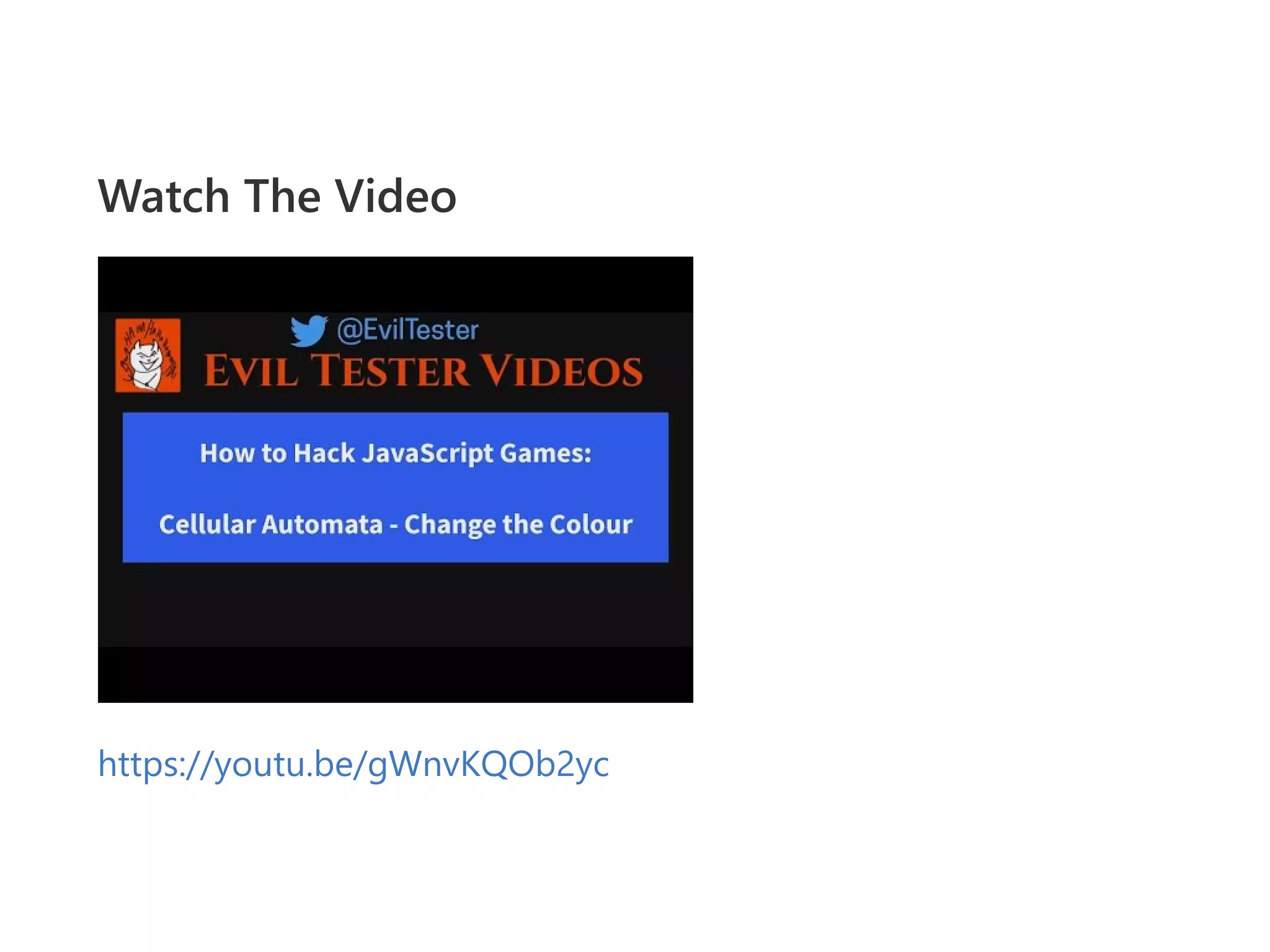

Change Colour of Cells
https://youtu.be/gWnvKQOb2yc
Change Colour Automatically
https://youtu.be/hfE99d4Slck

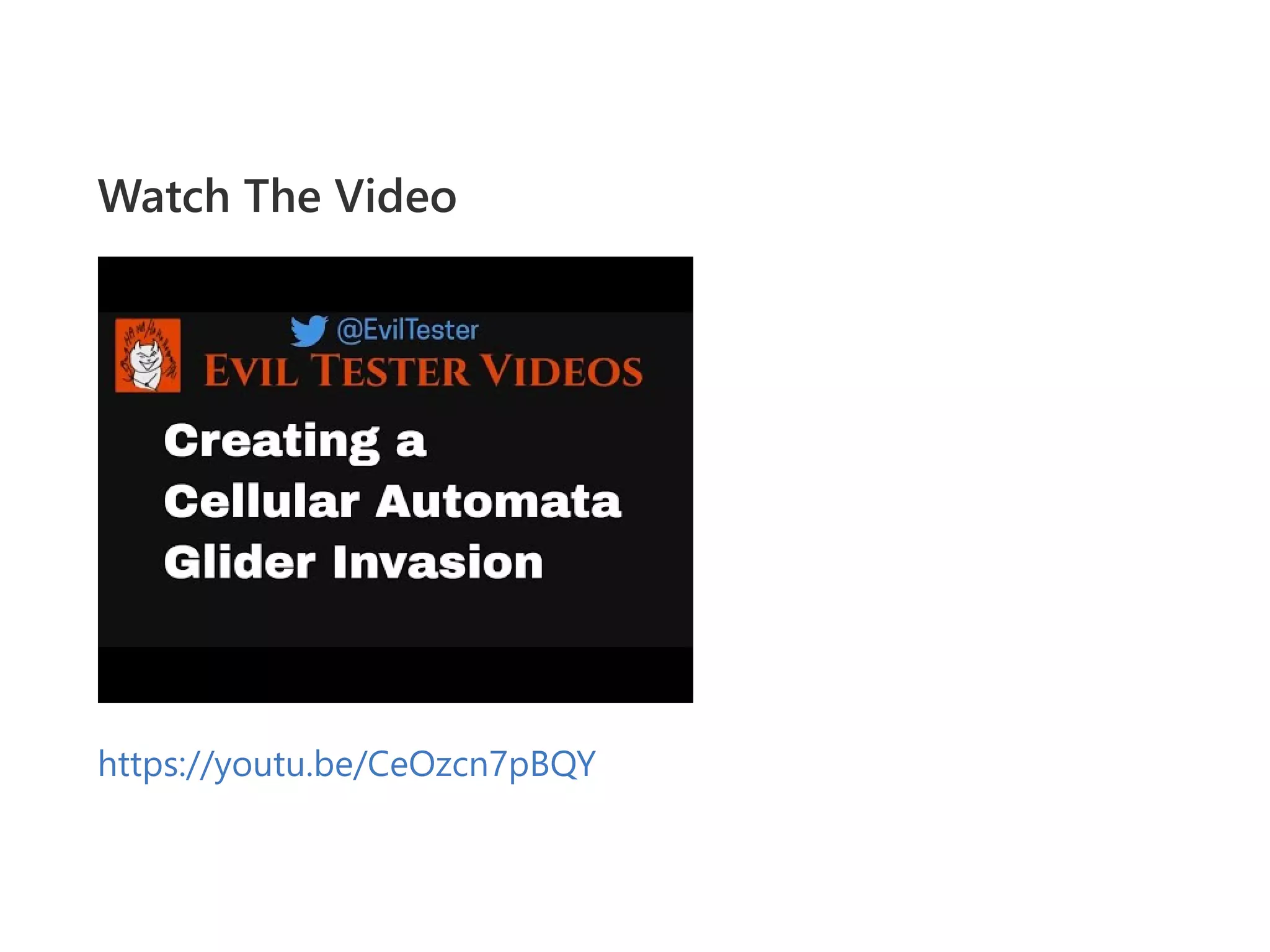

Create a Glider Invasion
https://youtu.be/CeOzcn7pBQY
Change Size of the World
https://youtu.be/lLnyNP33S_Q
Create a Randomly Generated World
https://youtu.be/uZv2s5QjPps
History Of The Game of Life
https://youtu.be/H1rMF7SnGn8
Bonus: Making Text With Cellular Automata
https://youtu.be/YAgBeG53lVI

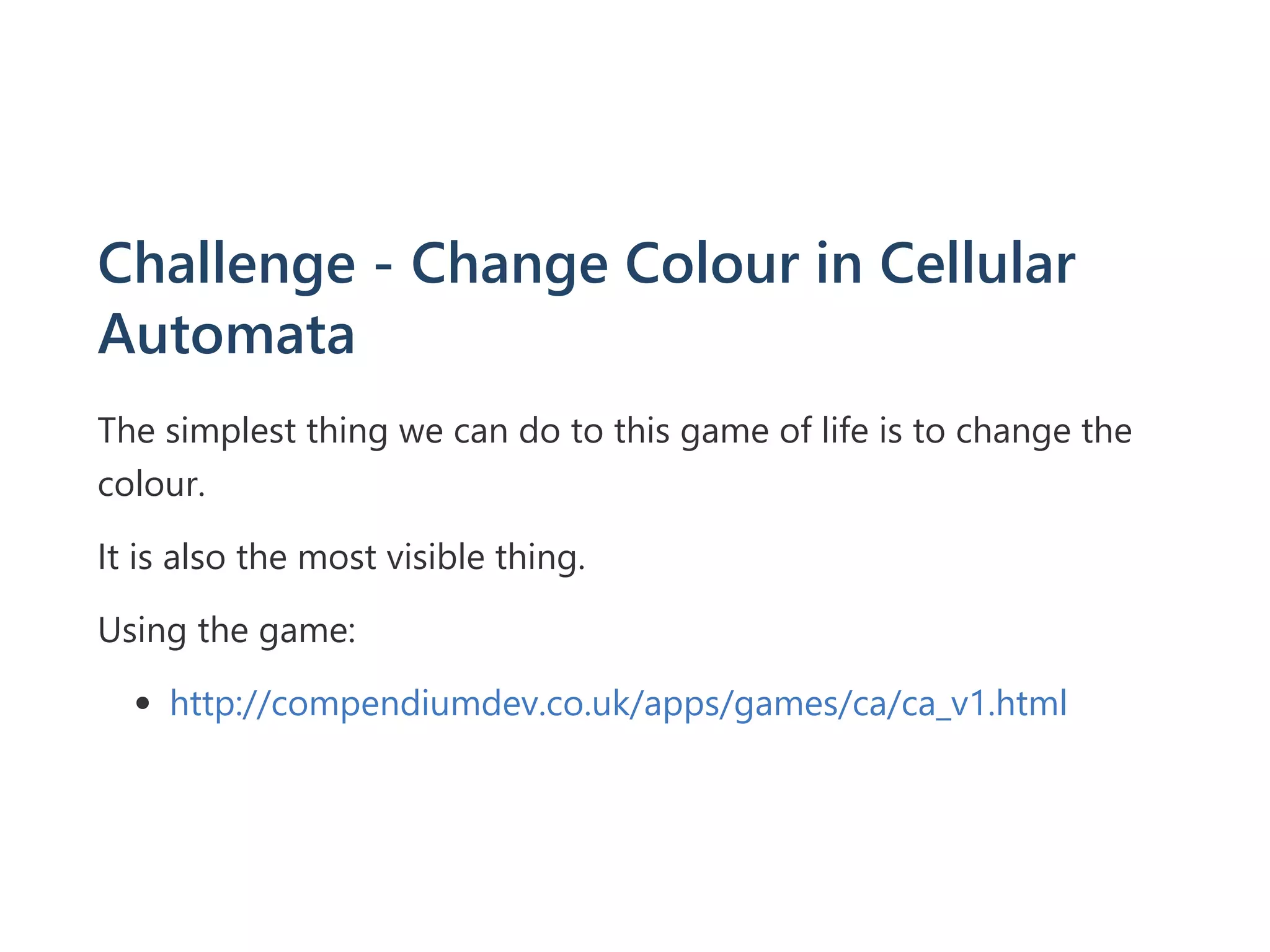

4. Challenge ‐ Change Colour in Cellular
Automata
The simplest thing we can do to this game of life is to change the
colour.
It is also the most visible thing.
Using the game:
http://compendiumdev.co.uk/apps/games/ca/ca_v1.html

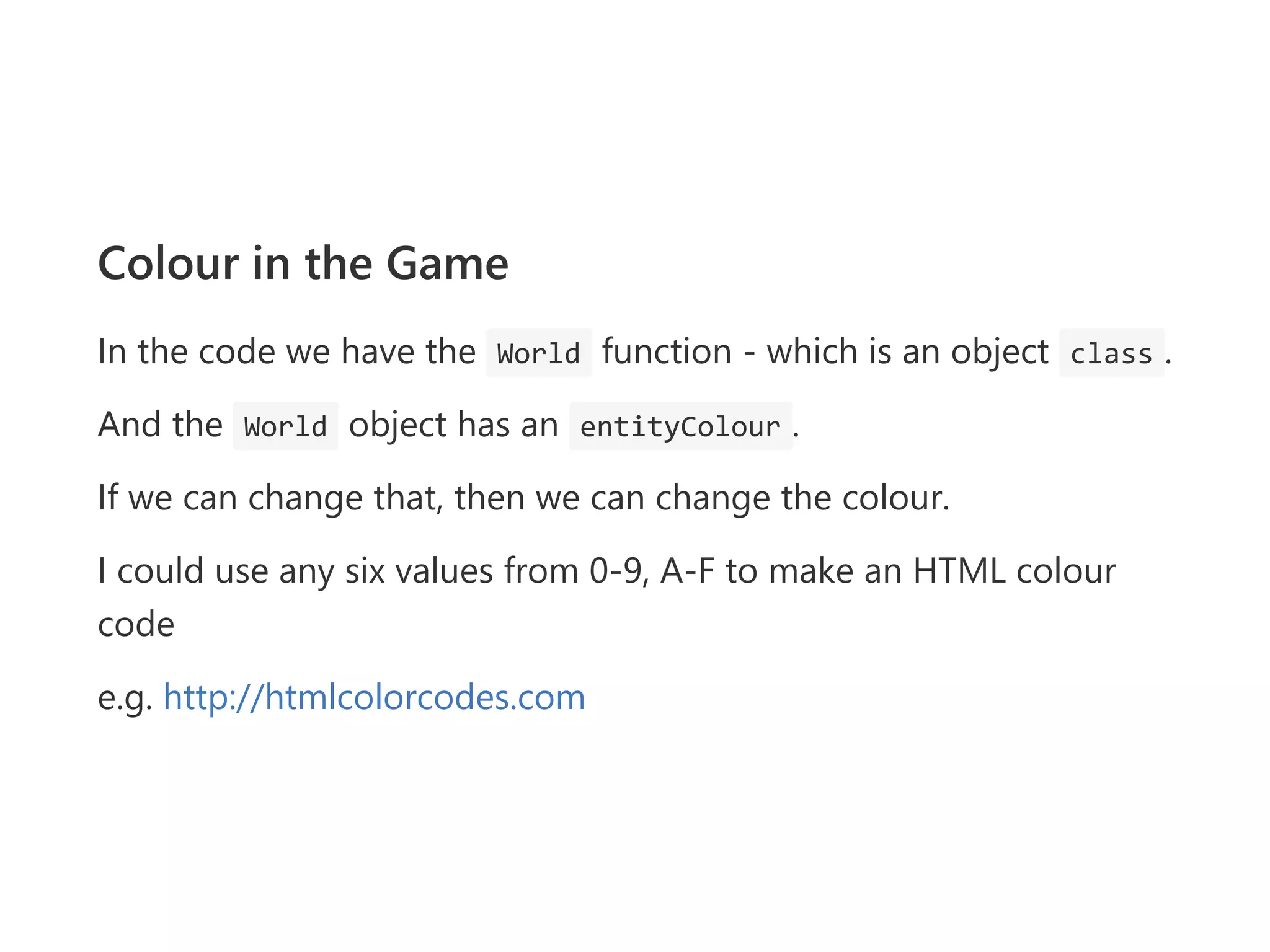

5. Colour in the Game
In the code we have the World function ‐ which is an object class .
And the World object has an entityColour .
If we can change that, then we can change the colour.
I could use any six values from 0‐9, A‐F to make an HTML colour
code
e.g. http://htmlcolorcodes.com

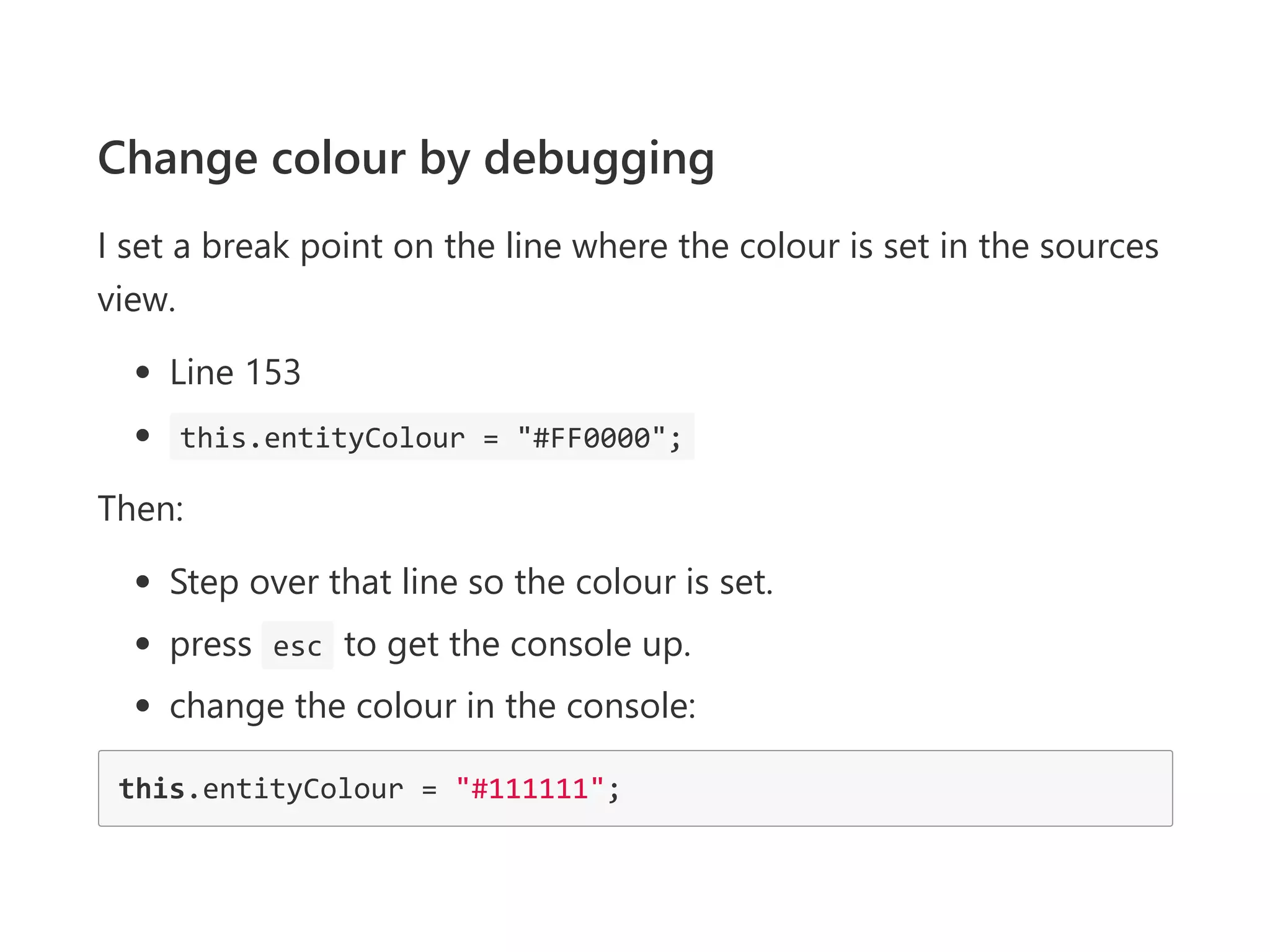

6. Change colour by debugging
I set a break point on the line where the colour is set in the sources
view.
Line 153
this.entityColour = "#FF0000";
Then:
Step over that line so the colour is set.
press esc to get the console up.
change the colour in the console:
this.entityColour = "#111111";

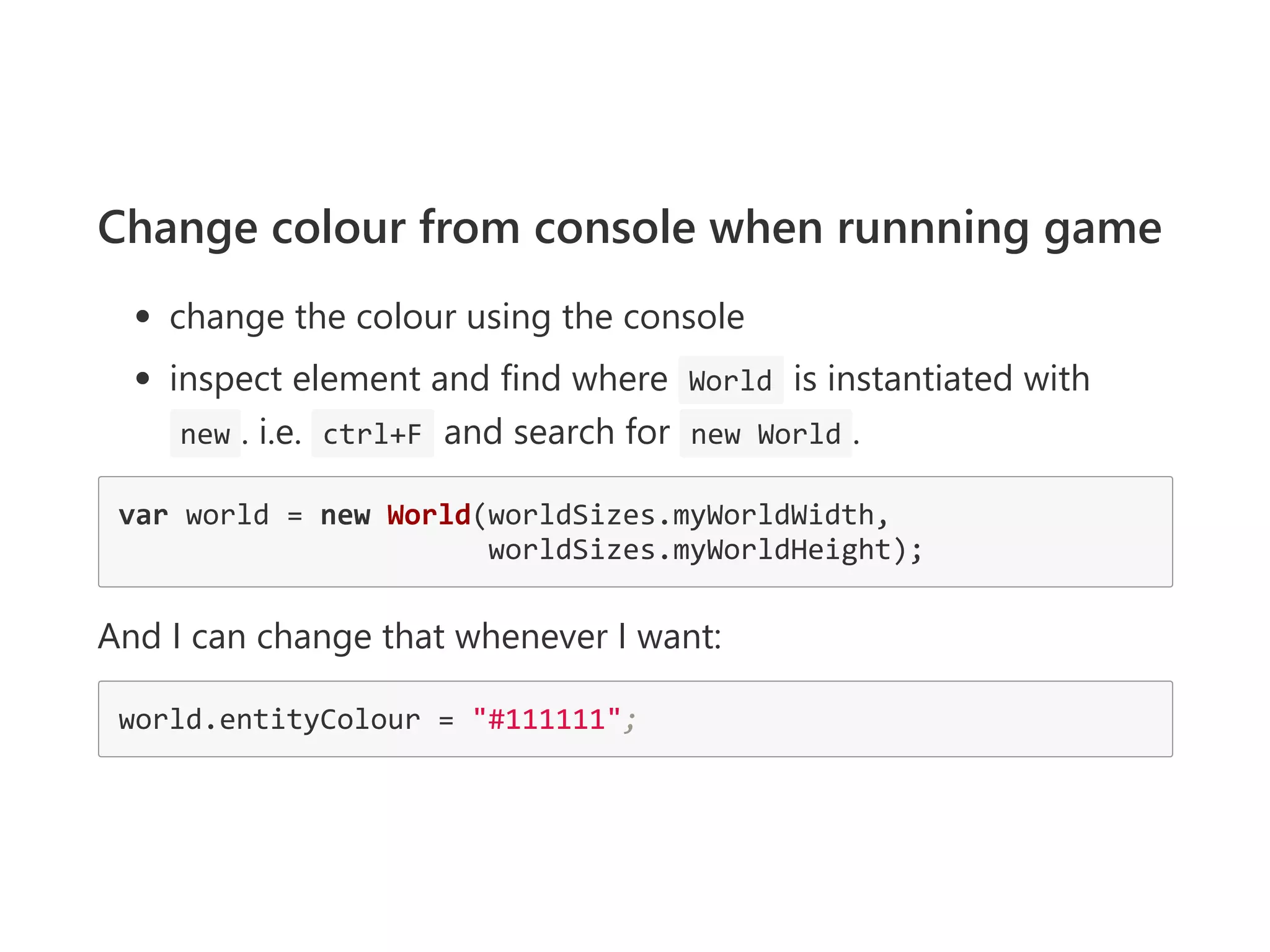

7. Change colour from console when runnning game
change the colour using the console
inspect element and find where World is instantiated with
new . i.e. ctrl+F and search for new World .
var world = new World(worldSizes.myWorldWidth,
worldSizes.myWorldHeight);
And I can change that whenever I want:
world.entityColour = "#111111";

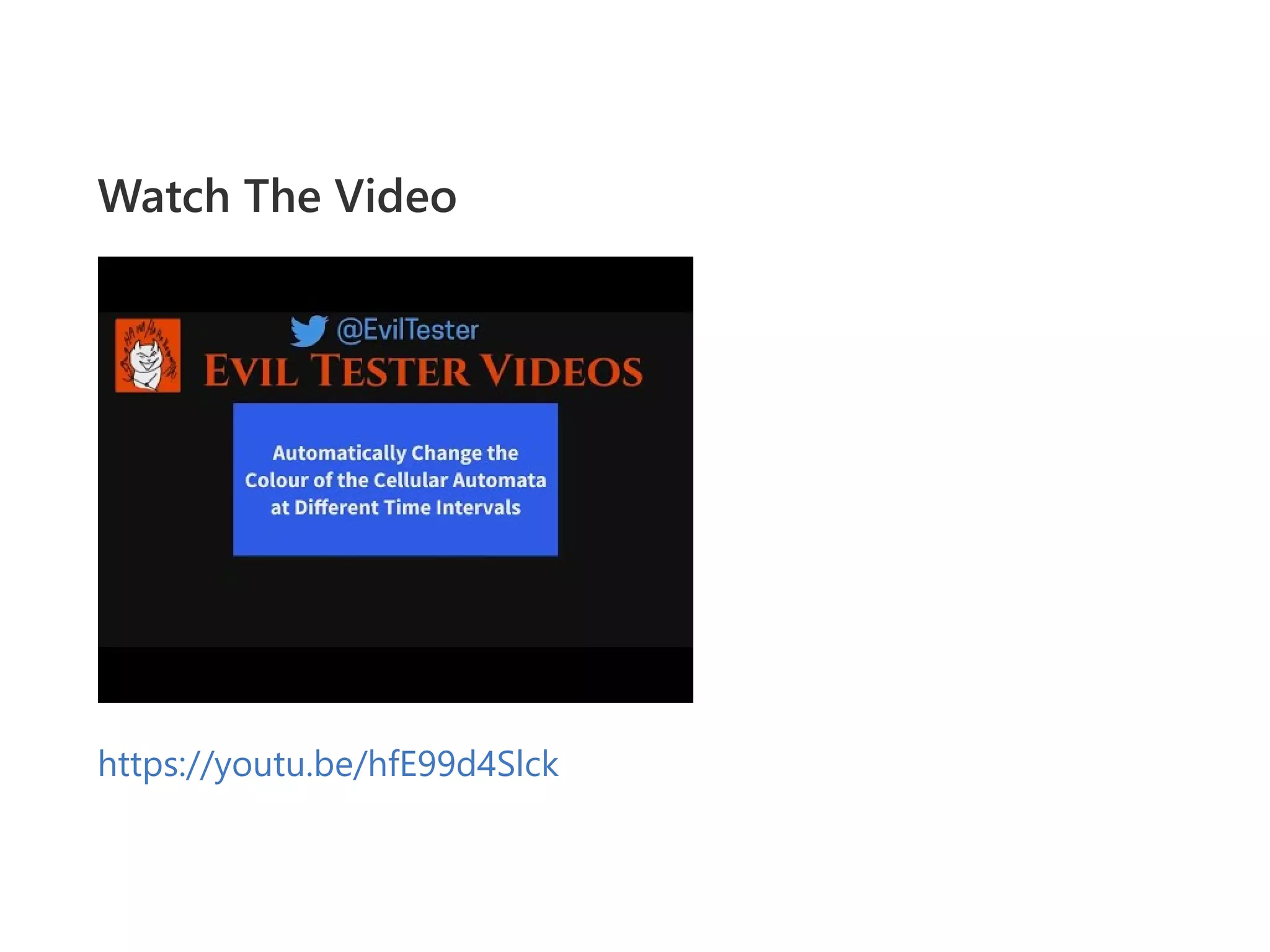

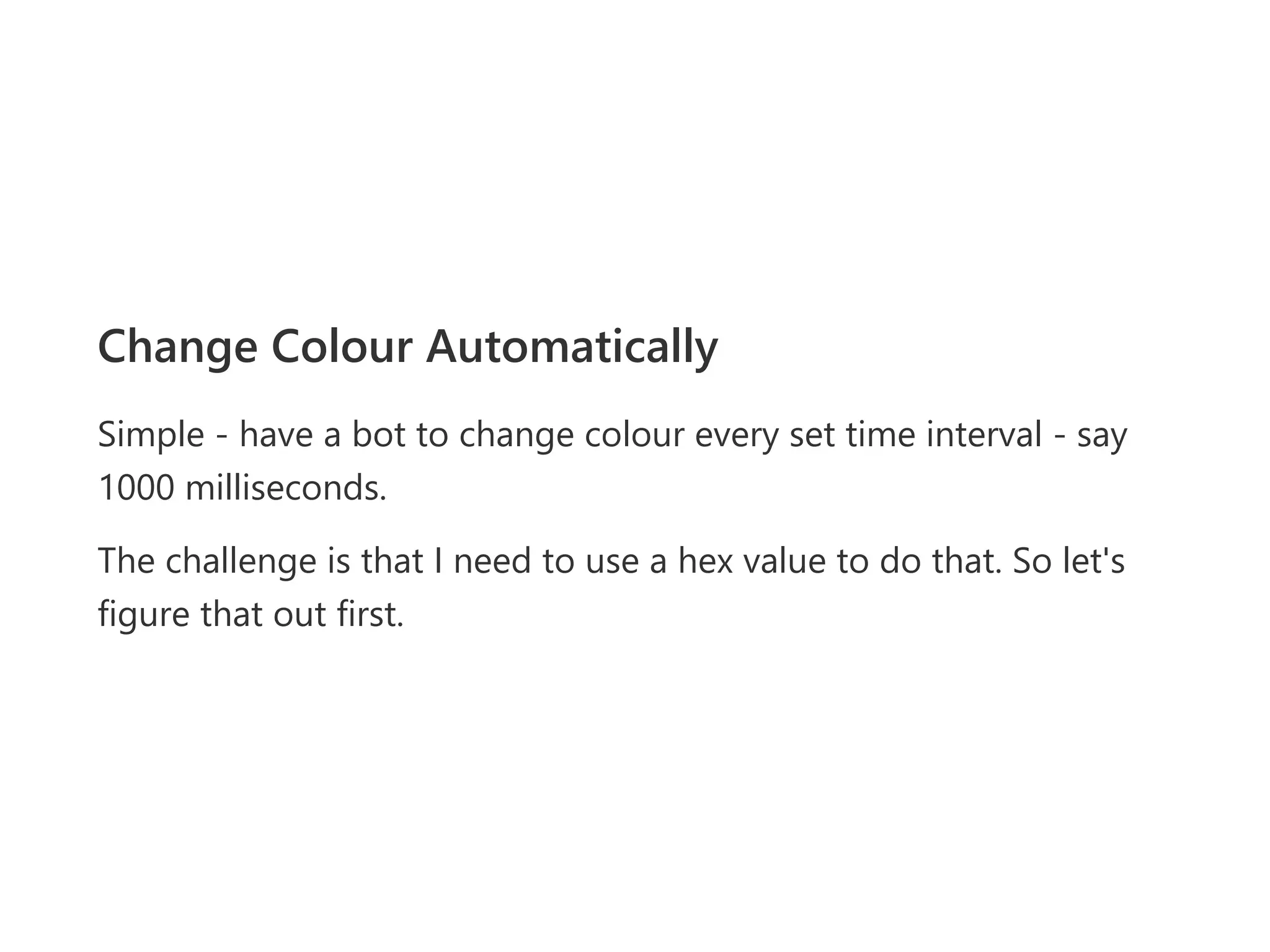

9. Change Colour Automatically
Simple ‐ have a bot to change colour every set time interval ‐ say
1000 milliseconds.
The challenge is that I need to use a hex value to do that. So let's
figure that out first.

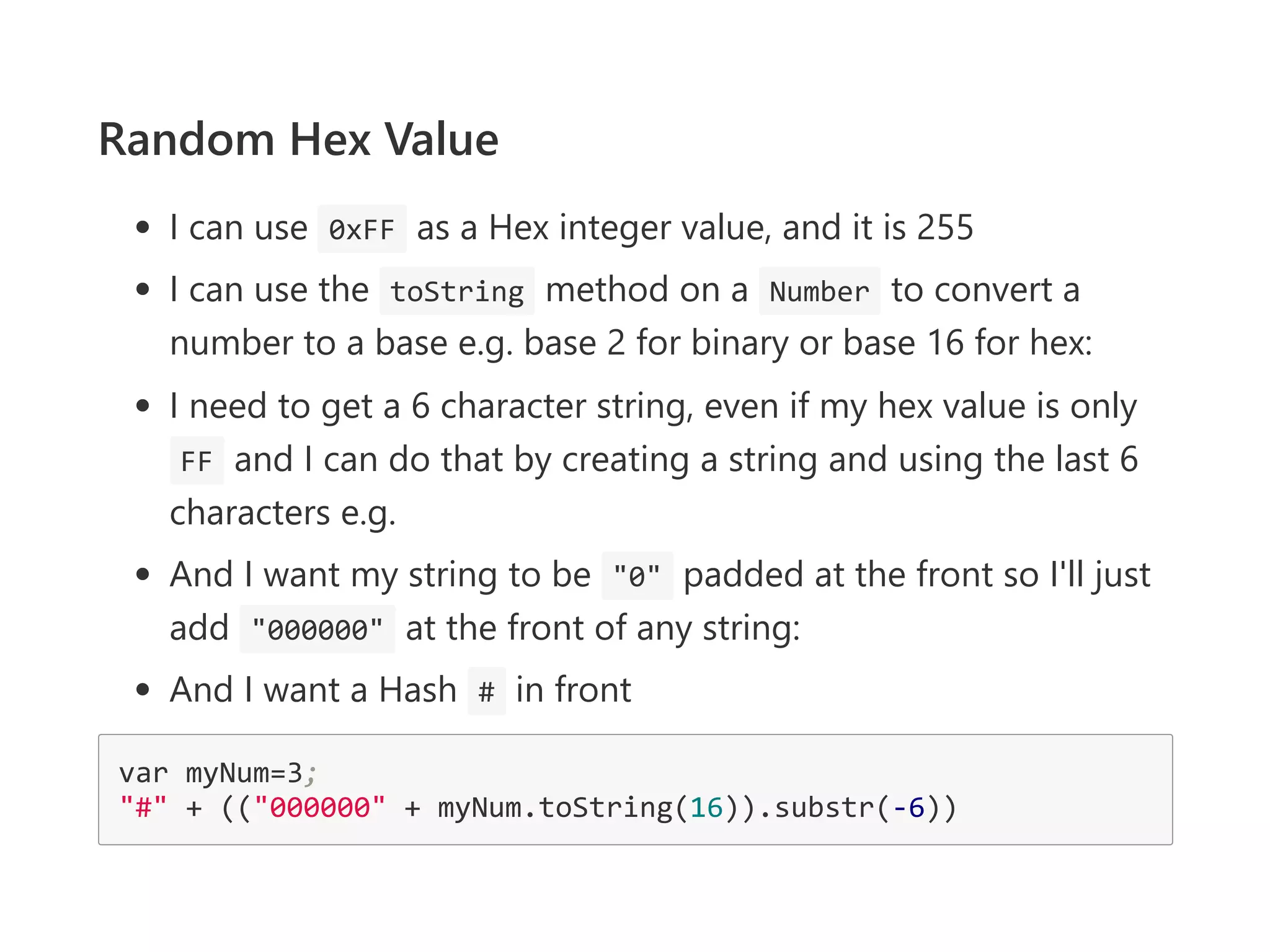

10. Random Hex Value
I can use 0xFF as a Hex integer value, and it is 255
I can use the toString method on a Number to convert a
number to a base e.g. base 2 for binary or base 16 for hex:
I need to get a 6 character string, even if my hex value is only
FF and I can do that by creating a string and using the last 6
characters e.g.
And I want my string to be "0" padded at the front so I'll just
add "000000" at the front of any string:
And I want a Hash # in front
var myNum=3;
"#" + (("000000" + myNum.toString(16)).substr(‐6))

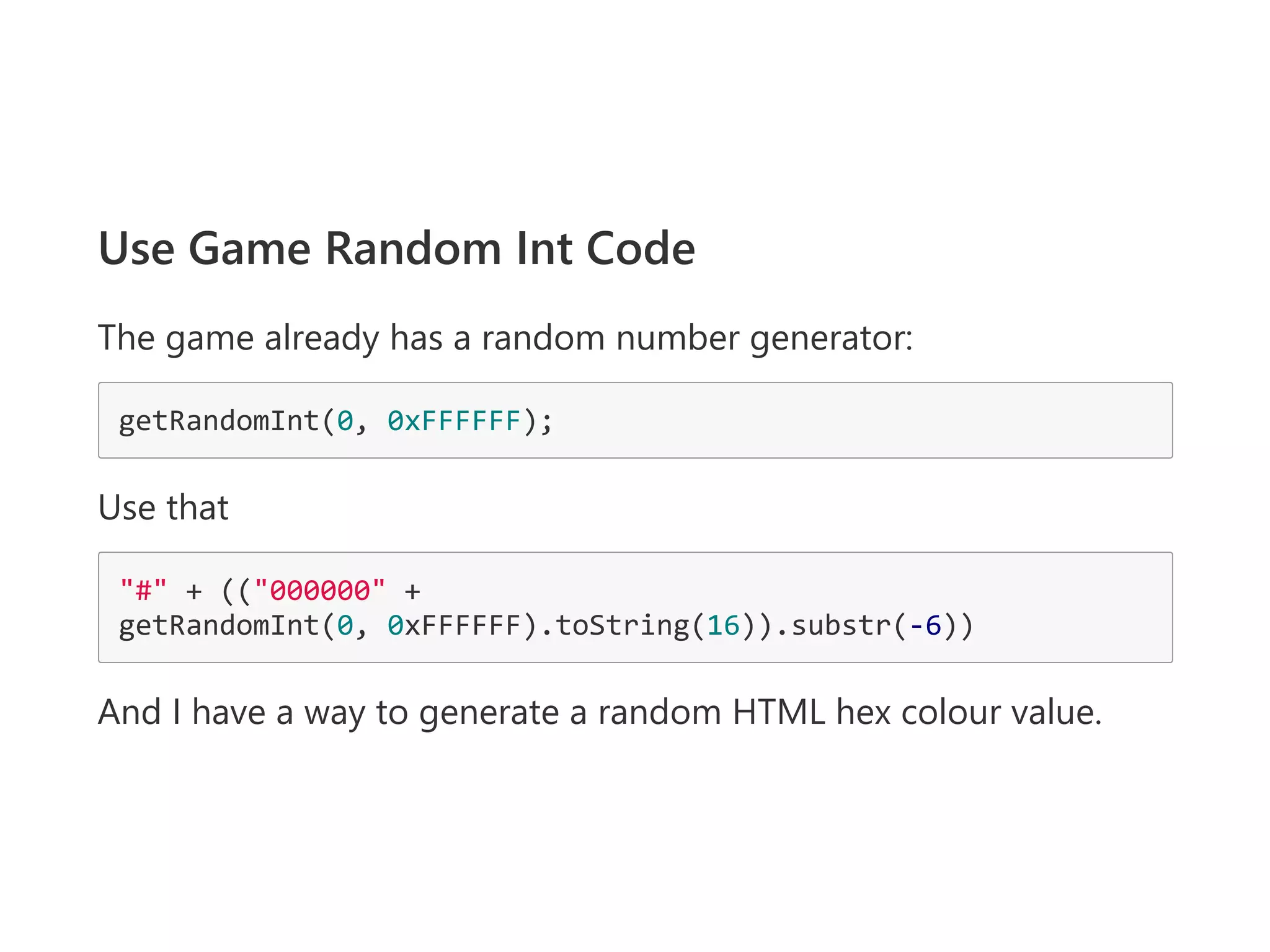

11. Use Game Random Int Code
The game already has a random number generator:
getRandomInt(0, 0xFFFFFF);
Use that
"#" + (("000000" +
getRandomInt(0, 0xFFFFFF).toString(16)).substr(‐6))
And I have a way to generate a random HTML hex colour value.

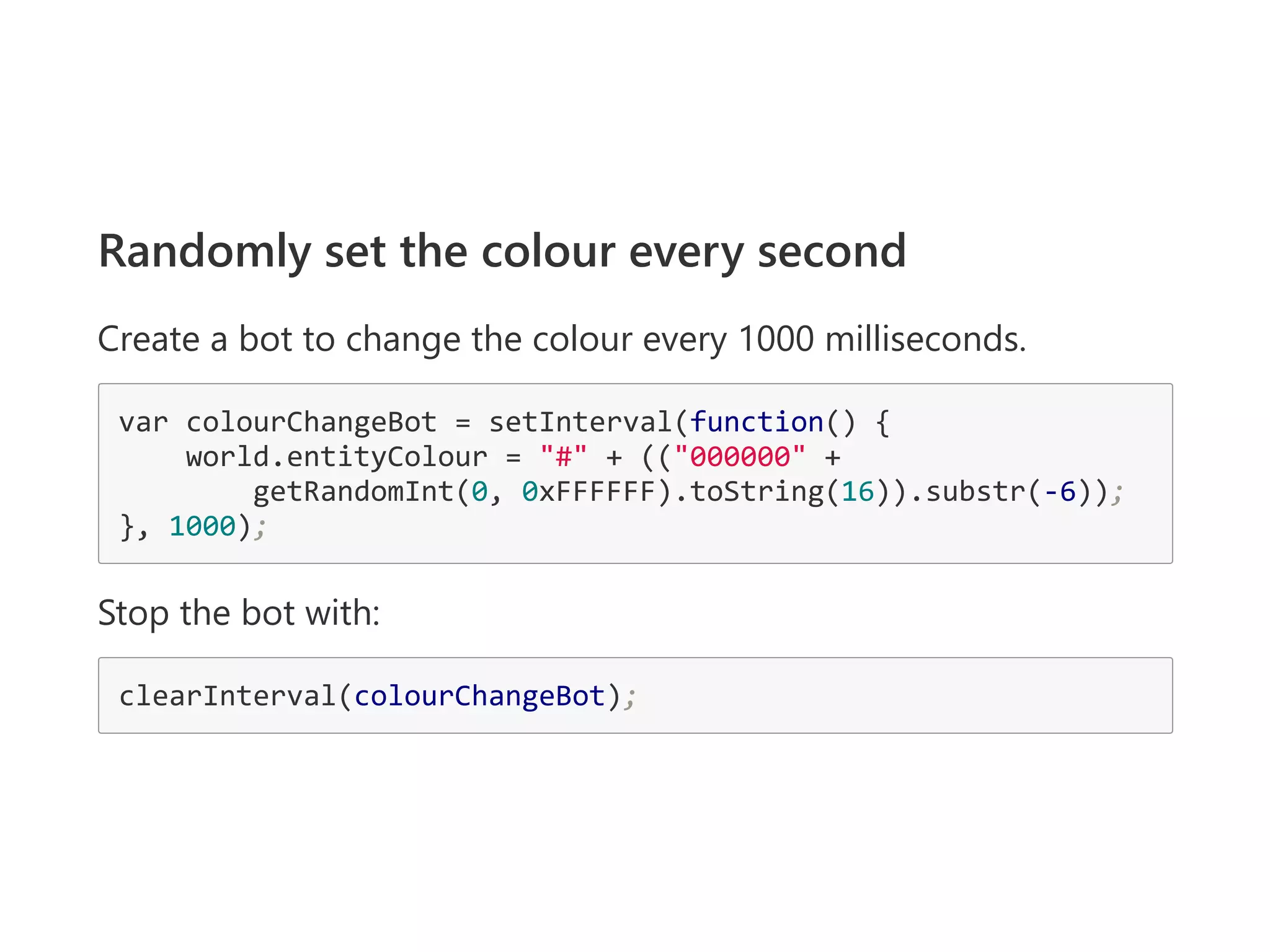

12. Randomly set the colour every second
Create a bot to change the colour every 1000 milliseconds.
var colourChangeBot = setInterval(function() {
world.entityColour = "#" + (("000000" +
getRandomInt(0, 0xFFFFFF).toString(16)).substr(‐6));
}, 1000);
Stop the bot with:
clearInterval(colourChangeBot);

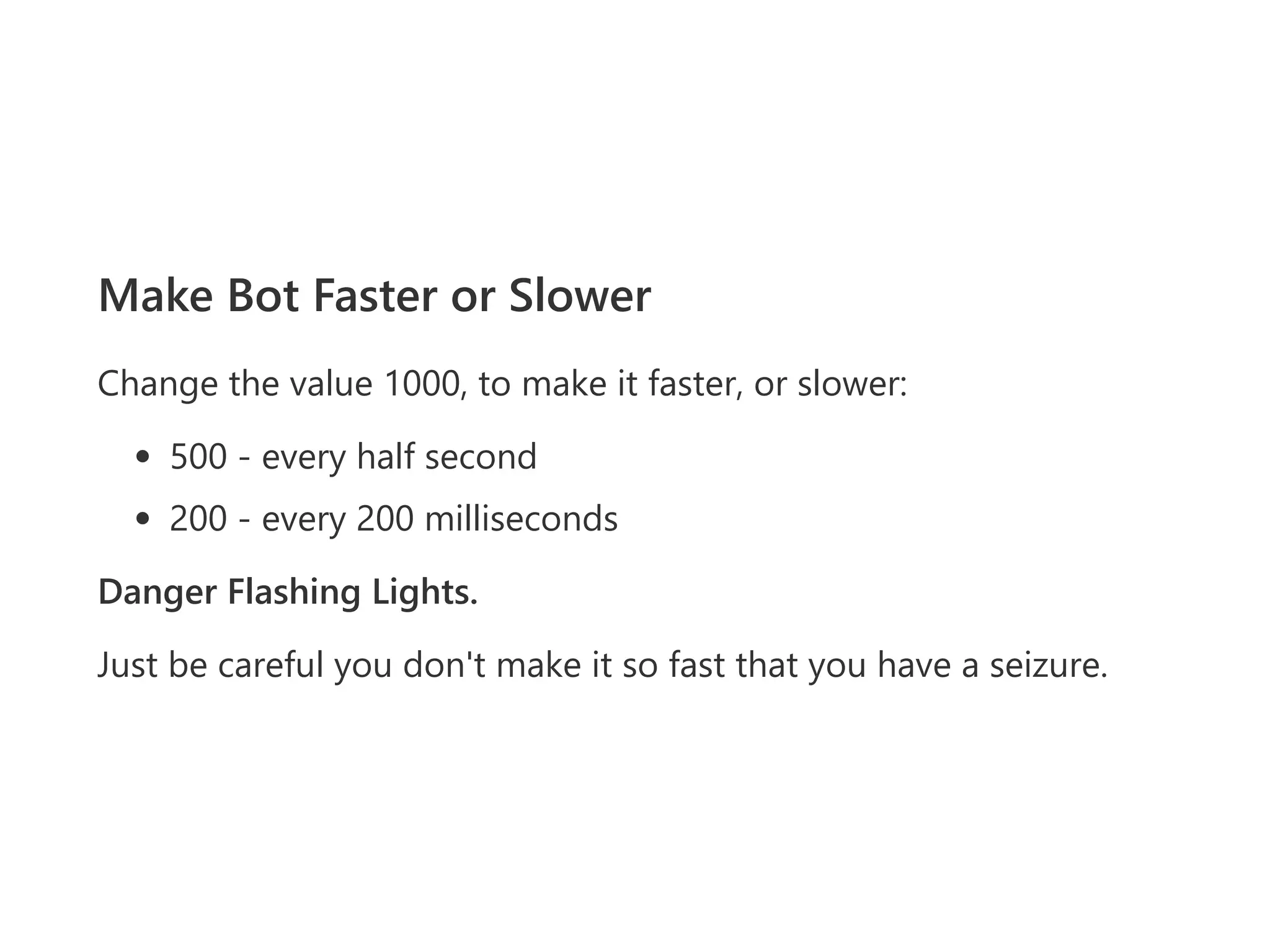

13. Make Bot Faster or Slower
Change the value 1000, to make it faster, or slower:
500 ‐ every half second
200 ‐ every 200 milliseconds
Danger Flashing Lights.
Just be careful you don't make it so fast that you have a seizure.

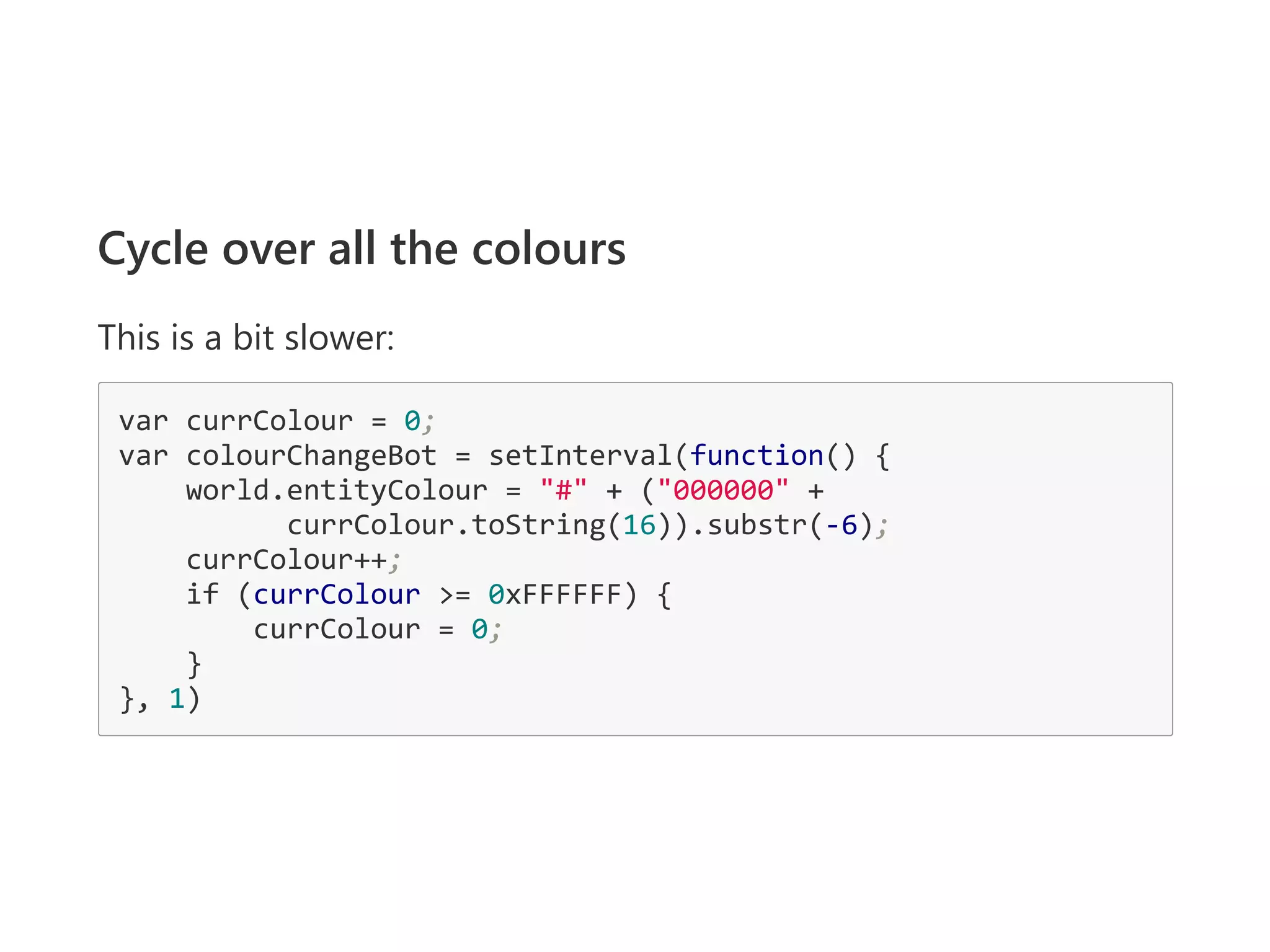

14. Cycle over all the colours
This is a bit slower:
var currColour = 0;
var colourChangeBot = setInterval(function() {
world.entityColour = "#" + ("000000" +
currColour.toString(16)).substr(‐6);
currColour++;
if (currColour >= 0xFFFFFF) {
currColour = 0;
}
}, 1)

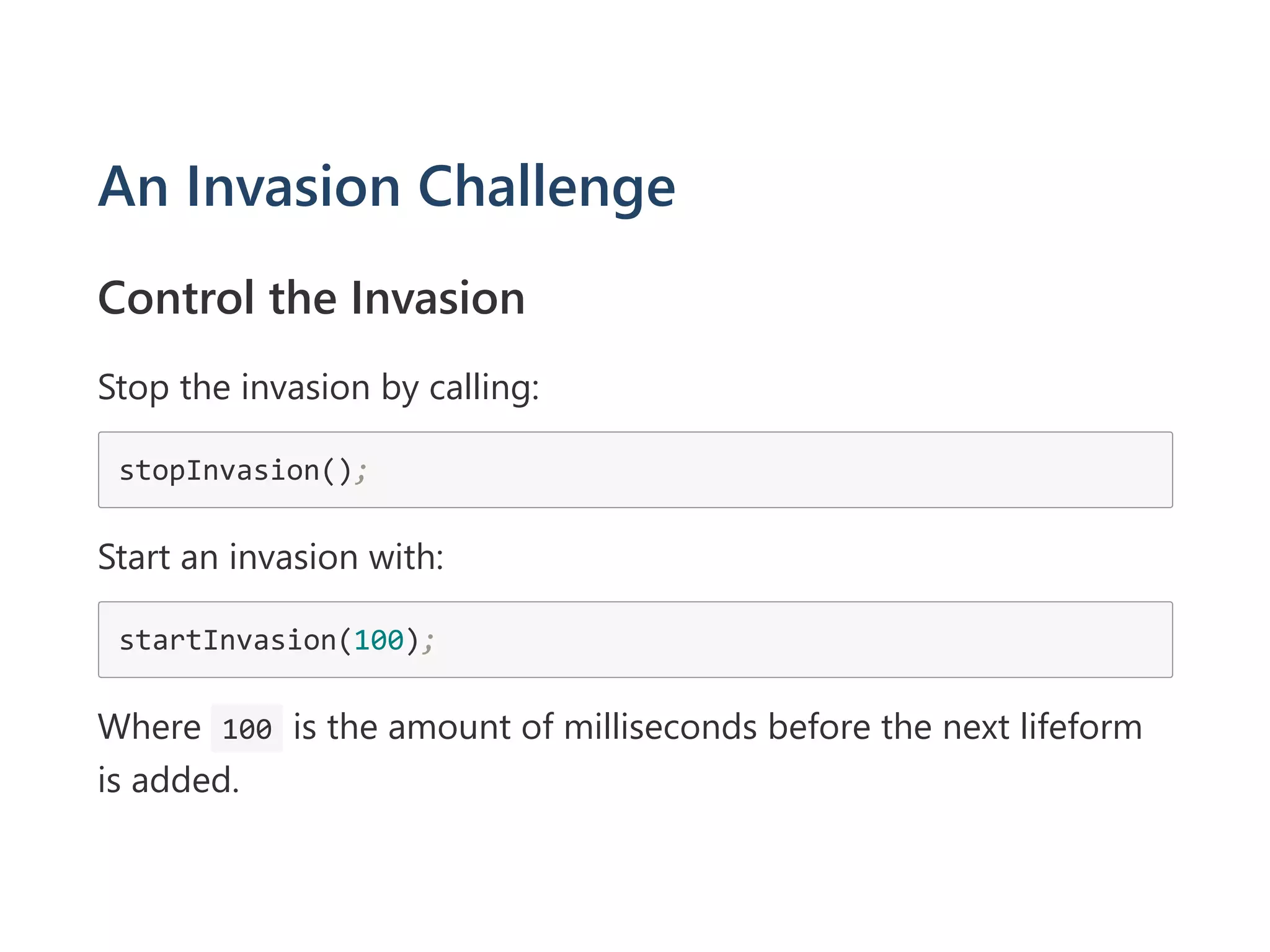

17. An Invasion Challenge
Control the Invasion
Stop the invasion by calling:
stopInvasion();
Start an invasion with:
startInvasion(100);
Where 100 is the amount of milliseconds before the next lifeform
is added.

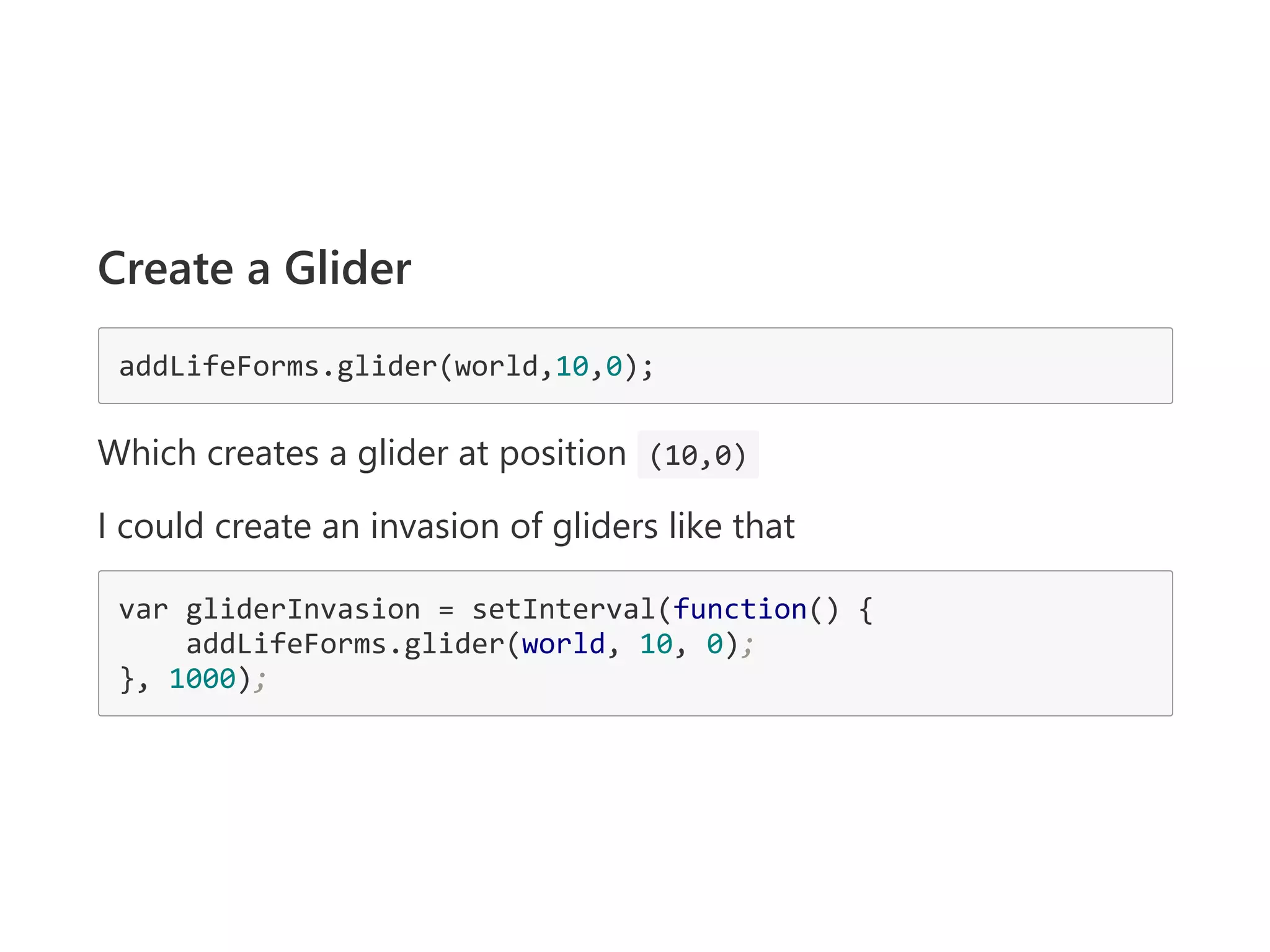

18. Create a Glider
addLifeForms.glider(world,10,0);
Which creates a glider at position (10,0)
I could create an invasion of gliders like that
var gliderInvasion = setInterval(function() {
addLifeForms.glider(world, 10, 0);
}, 1000);

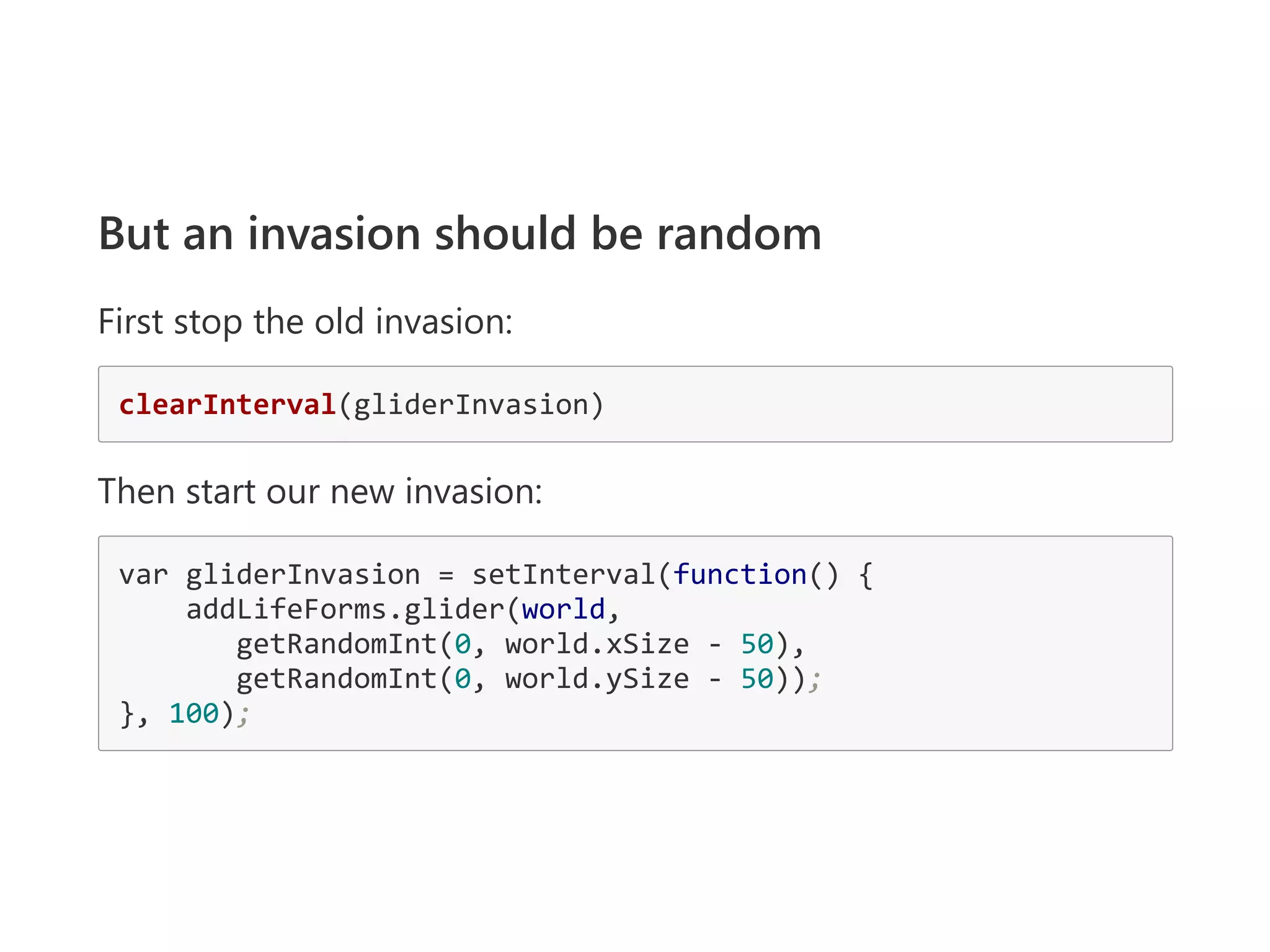

19. But an invasion should be random
First stop the old invasion:
clearInterval(gliderInvasion)
Then start our new invasion:
var gliderInvasion = setInterval(function() {
addLifeForms.glider(world,
getRandomInt(0, world.xSize ‐ 50),
getRandomInt(0, world.ySize ‐ 50));
}, 100);
21. Change World Size
One of the challenges in the Cellular Automata game is changing
the world size.
There is a clue in the game code, because we know that it does
some resizing when we change the window size.
worldSizes.calculateScales();
And...
var world = new World(
worldSizes.myWorldWidth,
worldSizes.myWorldHeight);

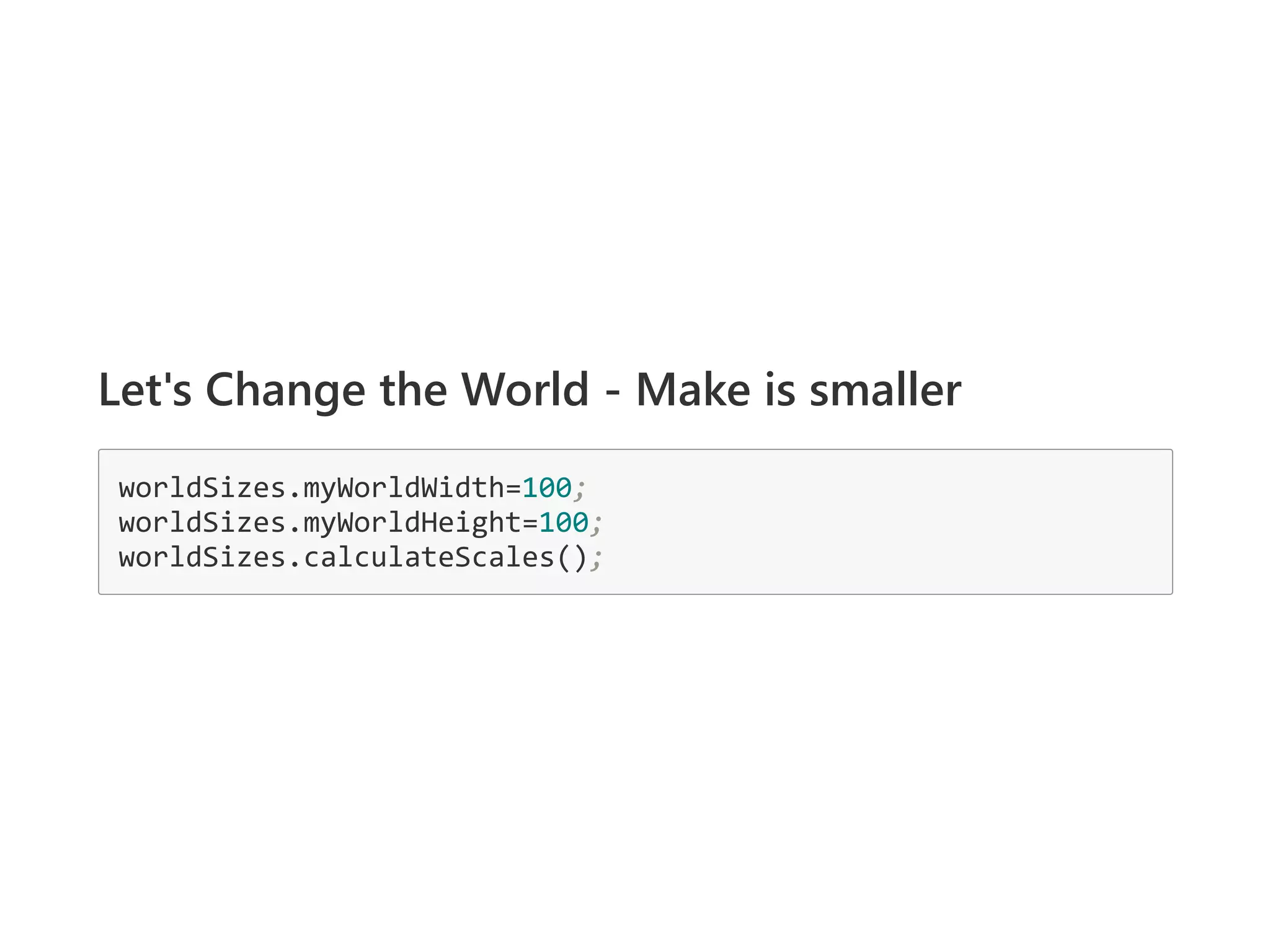

22. Let's Change the World ‐ Make is smaller
worldSizes.myWorldWidth=100;
worldSizes.myWorldHeight=100;
worldSizes.calculateScales();

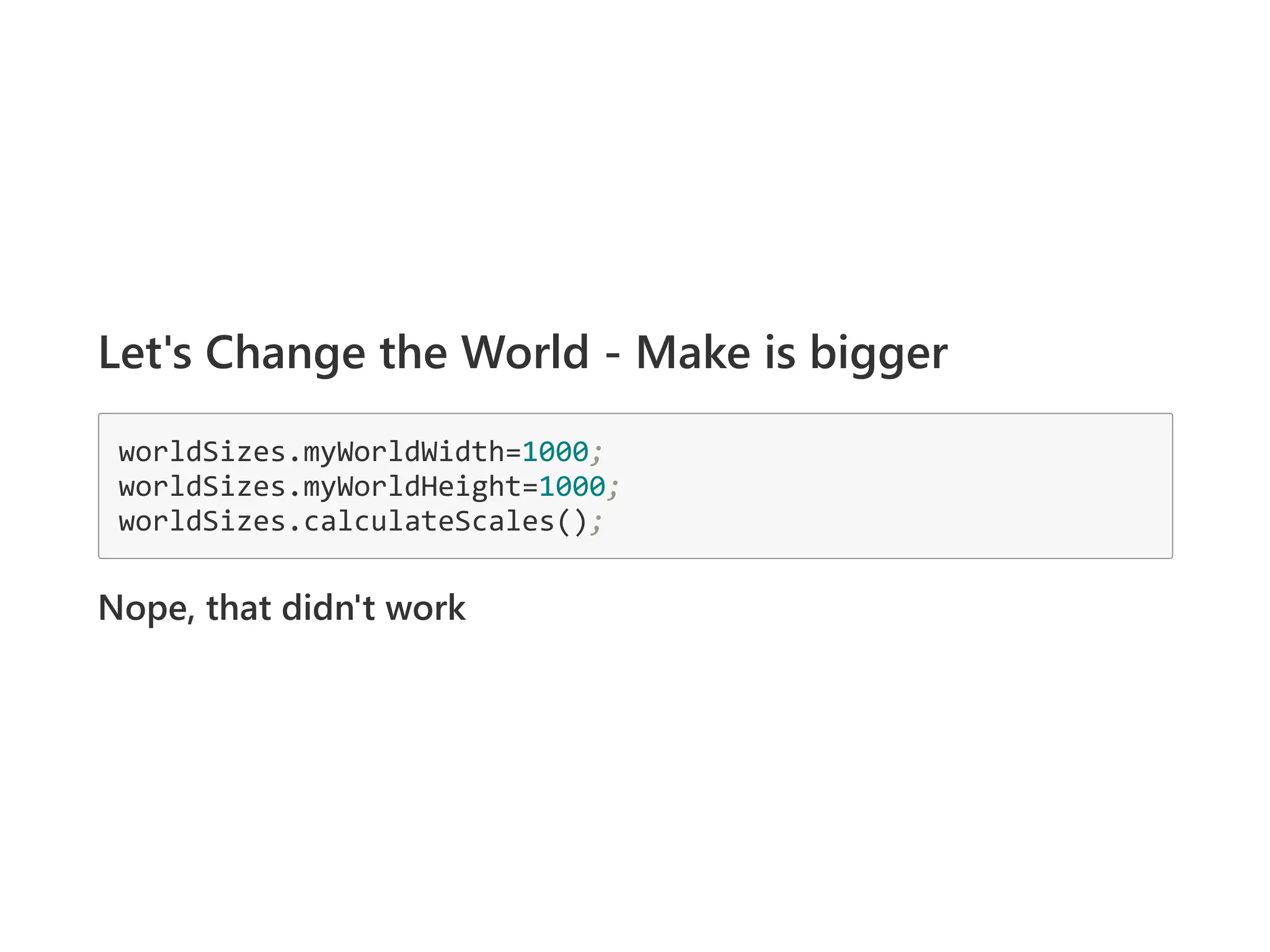

23. Let's Change the World ‐ Make is bigger
worldSizes.myWorldWidth=1000;
worldSizes.myWorldHeight=1000;
worldSizes.calculateScales();
Nope, that didn't work
24. Let's Change the World ‐ Make is bigger
tell the world that it is bigger
worldSizes.myWorldWidth=1000;
worldSizes.myWorldHeight=1000;
world.xSize=1000; world.ySize=1000;
worldSizes.calculateScales();
That worked ‐ and its a little slower now, because thats 1000 x 1000
grid, which is 1,000,000 ﴾1 million﴿ cells!
25. Simulate ZX‐81
The ZX‐81 had a resolution of 64x48, and it was black and white, so
let's simulate that.
worldSizes.myWorldWidth=64; worldSizes.myWorldHeight=48;
world.xSize=worldSizes.myWorldWidth;
world.ySize=worldSizes.myWorldHeight;
world.entityColour="#000000";
worldSizes.calculateScales();
And slow it down:
stopInvasion();
stopGame();
startGame(1000);
startInvasion(3000);

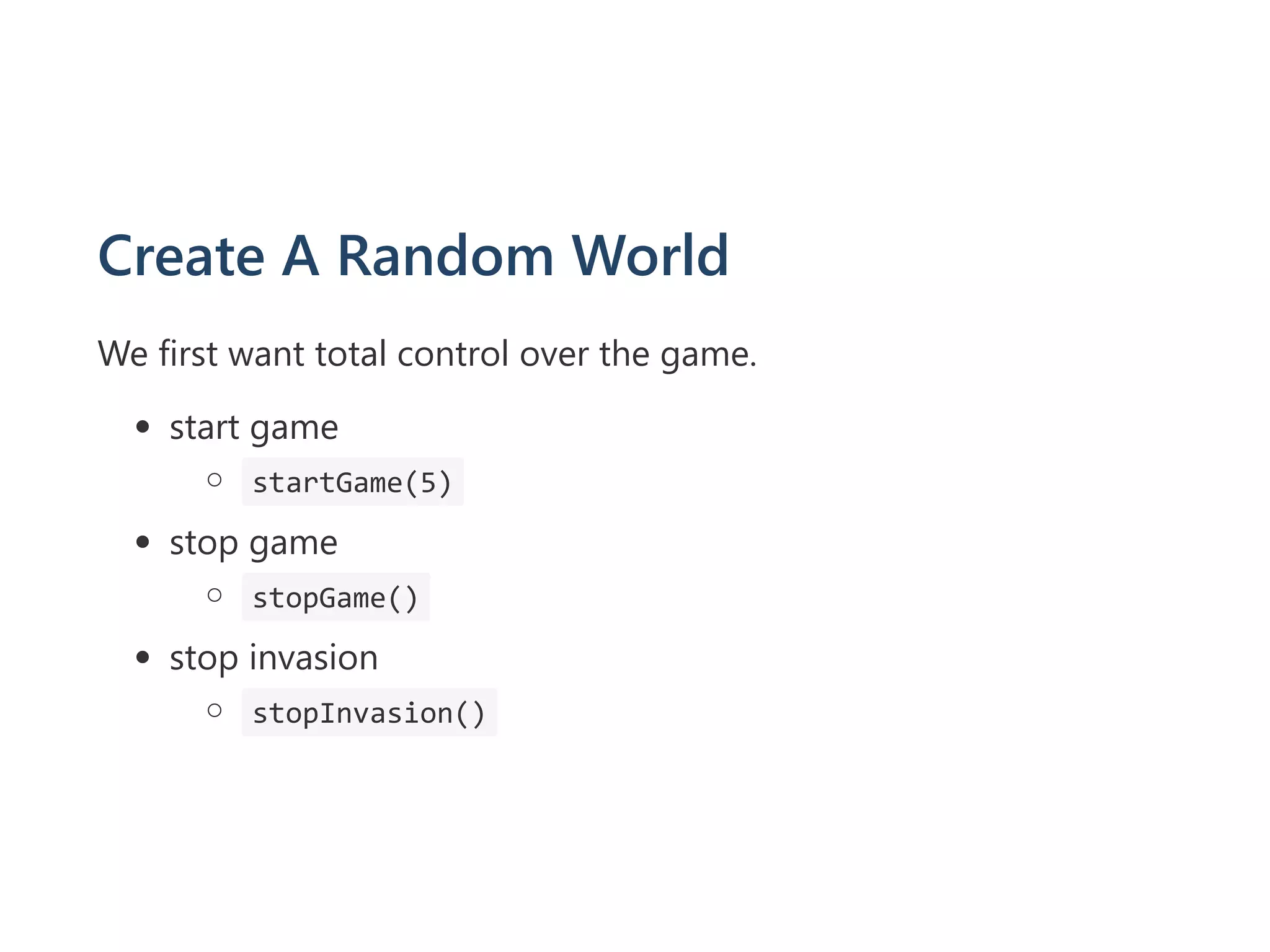

27. Create A Random World
We first want total control over the game.
start game
startGame(5)
stop game
stopGame()
stop invasion
stopInvasion()

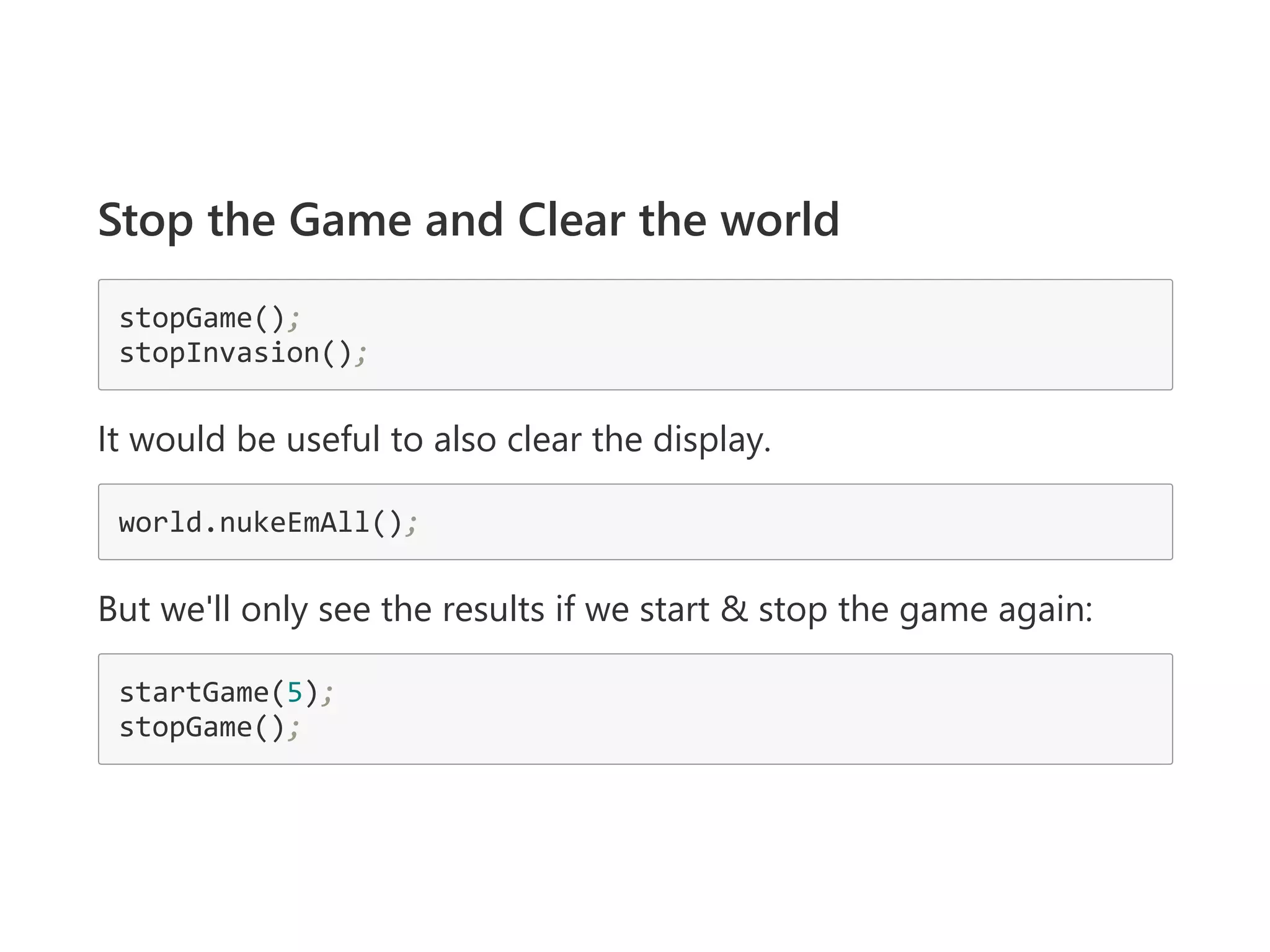

28. Stop the Game and Clear the world
stopGame();
stopInvasion();
It would be useful to also clear the display.
world.nukeEmAll();
But we'll only see the results if we start & stop the game again:
startGame(5);
stopGame();
29. Randomly generate stuff
Reset the population:
world.population = [];
I'll add items in a loop, and create 100 of them:
for(var itemLoop=0; itemLoop < 100; itemLoop++){
world.addToPopulation(new LifeForm().move(0,
getRandomInt(0, world.xSize),
getRandomInt(0, world.ySize)));
}
Start the game, we should see the results:
startGame(5);
100 might not actually be big enough, you might need to create
more for a viable world.

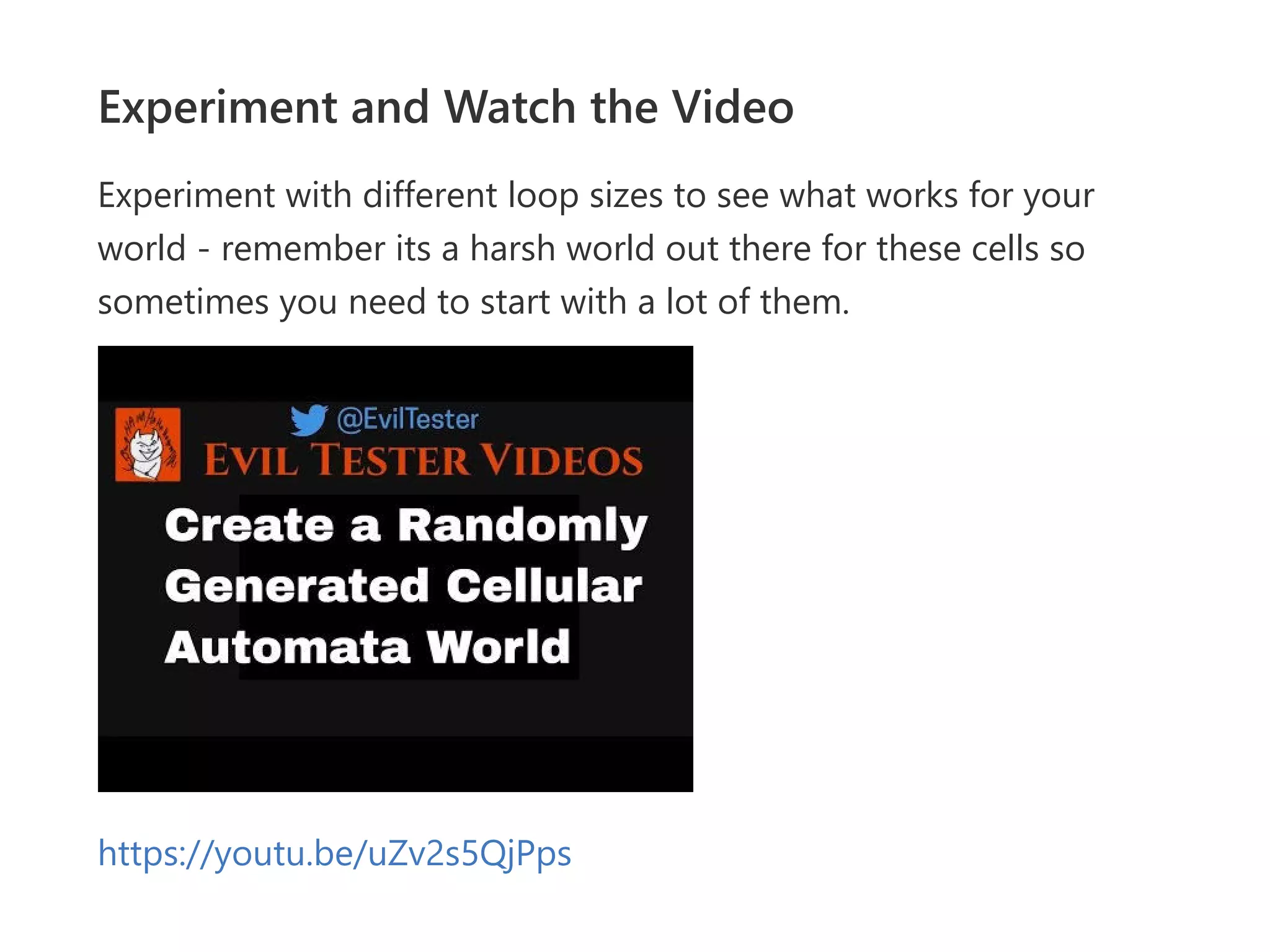

30. Experiment and Watch the Video
Experiment with different loop sizes to see what works for your
world ‐ remember its a harsh world out there for these cells so
sometimes you need to start with a lot of them.
https://youtu.be/uZv2s5QjPps

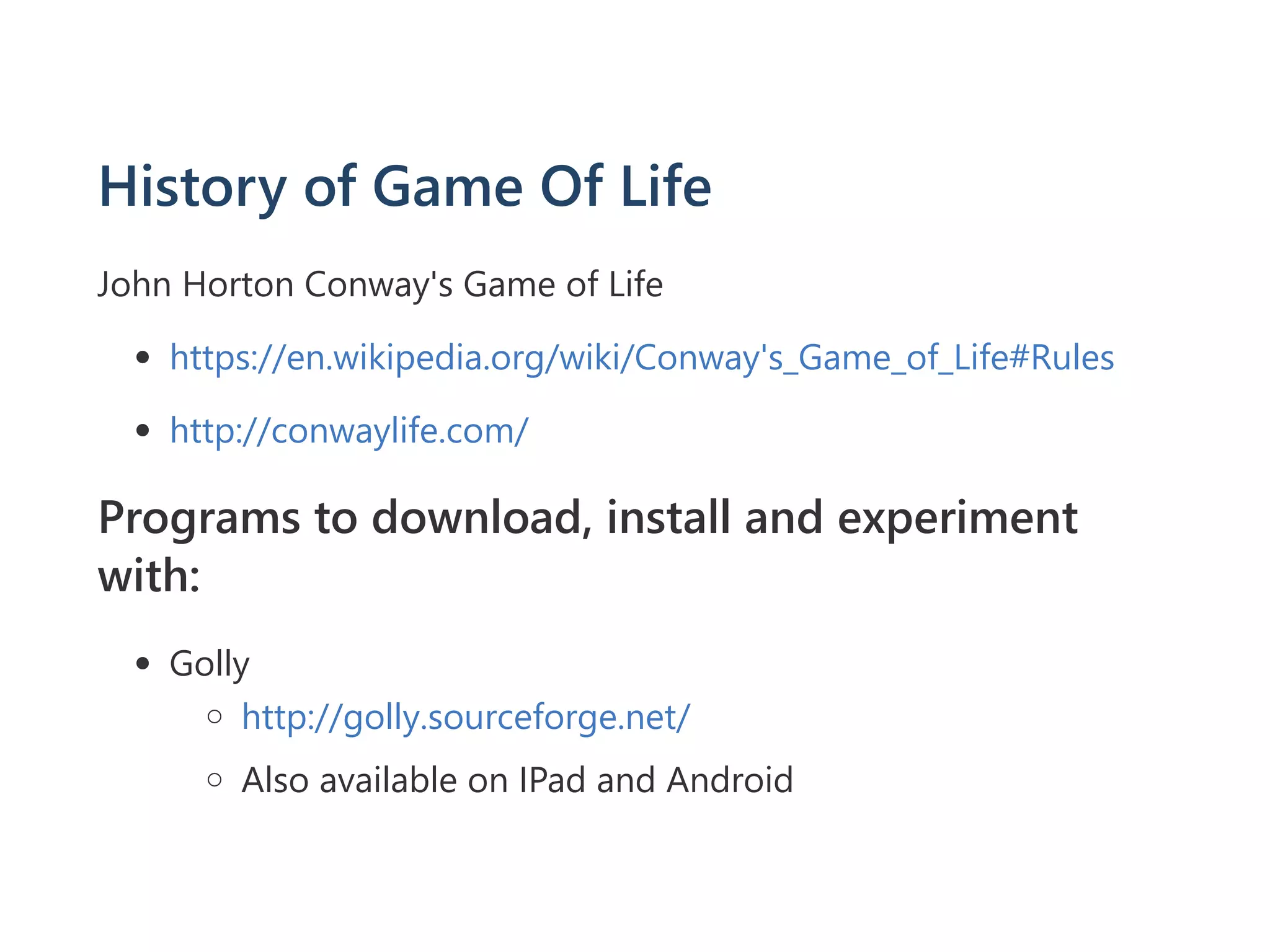

31. History of Game Of Life
John Horton Conway's Game of Life
https://en.wikipedia.org/wiki/Conway%27s_Game_of_Life#Rule
s
http://conwaylife.com/
Programs to download, install and experiment
with:
Golly
http://golly.sourceforge.net/
Also available on IPad and Android

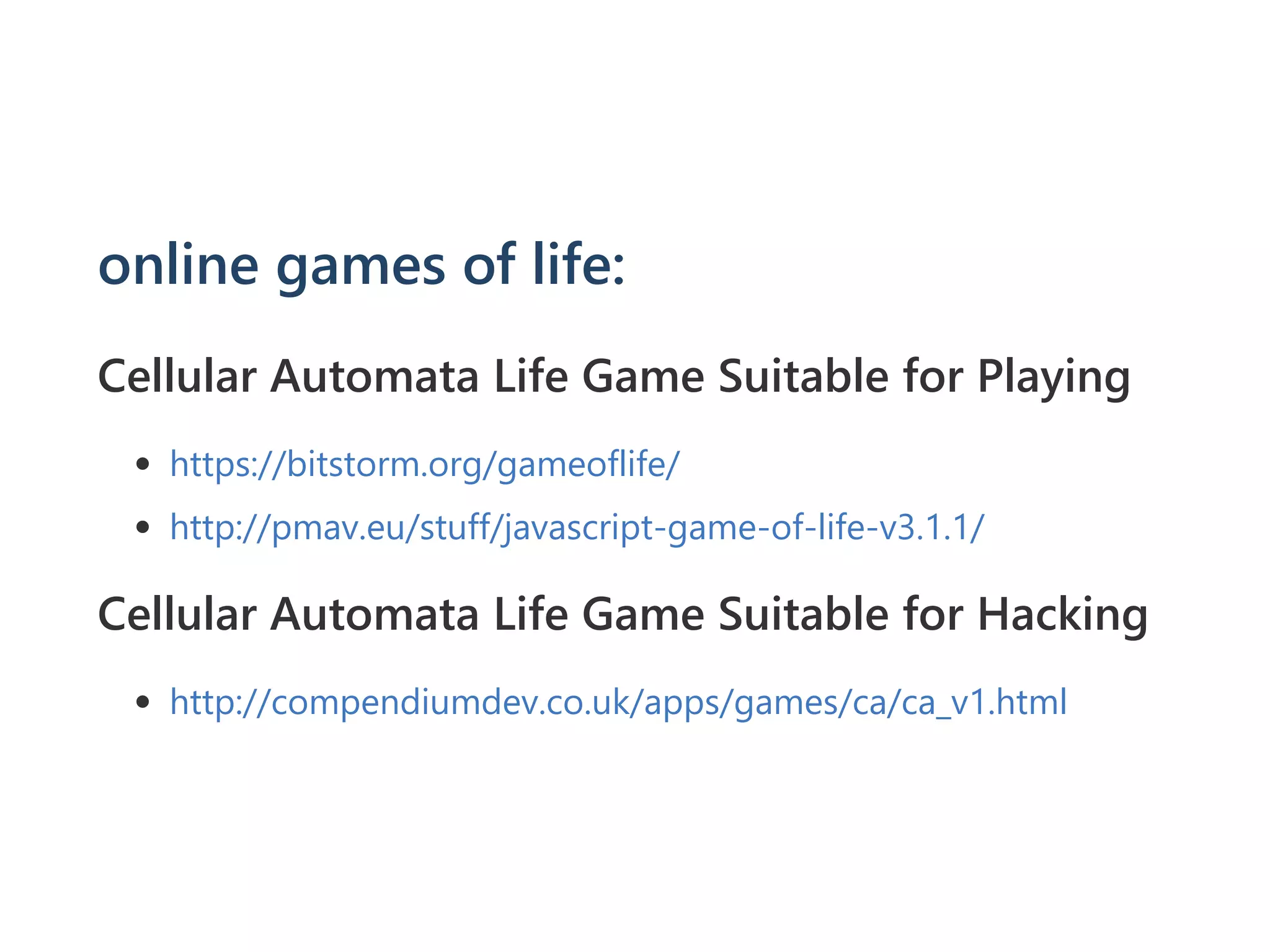

32. online games of life:
Cellular Automata Life Game Suitable for Playing
https://bitstorm.org/gameoflife/
http://pmav.eu/stuff/javascript‐game‐of‐life‐v3.1.1/
Cellular Automata Life Game Suitable for Hacking
http://compendiumdev.co.uk/apps/games/ca/ca_v1.html

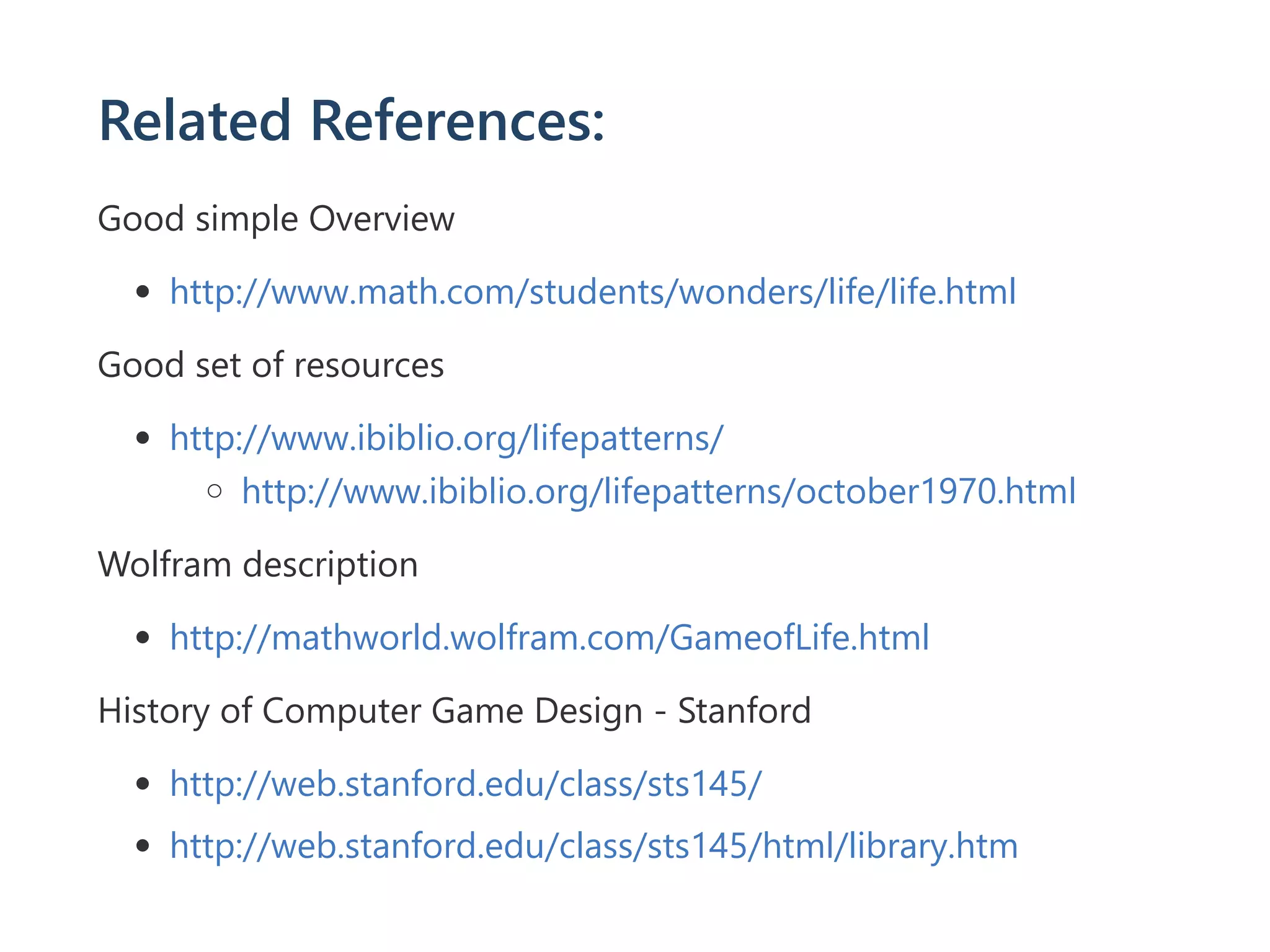

33. Related References:
Good simple Overview
http://www.math.com/students/wonders/life/life.html
Good set of resources
http://www.ibiblio.org/lifepatterns/
http://www.ibiblio.org/lifepatterns/october1970.html
Wolfram description
http://mathworld.wolfram.com/GameofLife.html
History of Computer Game Design ‐ Stanford
http://web.stanford.edu/class/sts145/
http://web.stanford.edu/class/sts145/html/library.htm

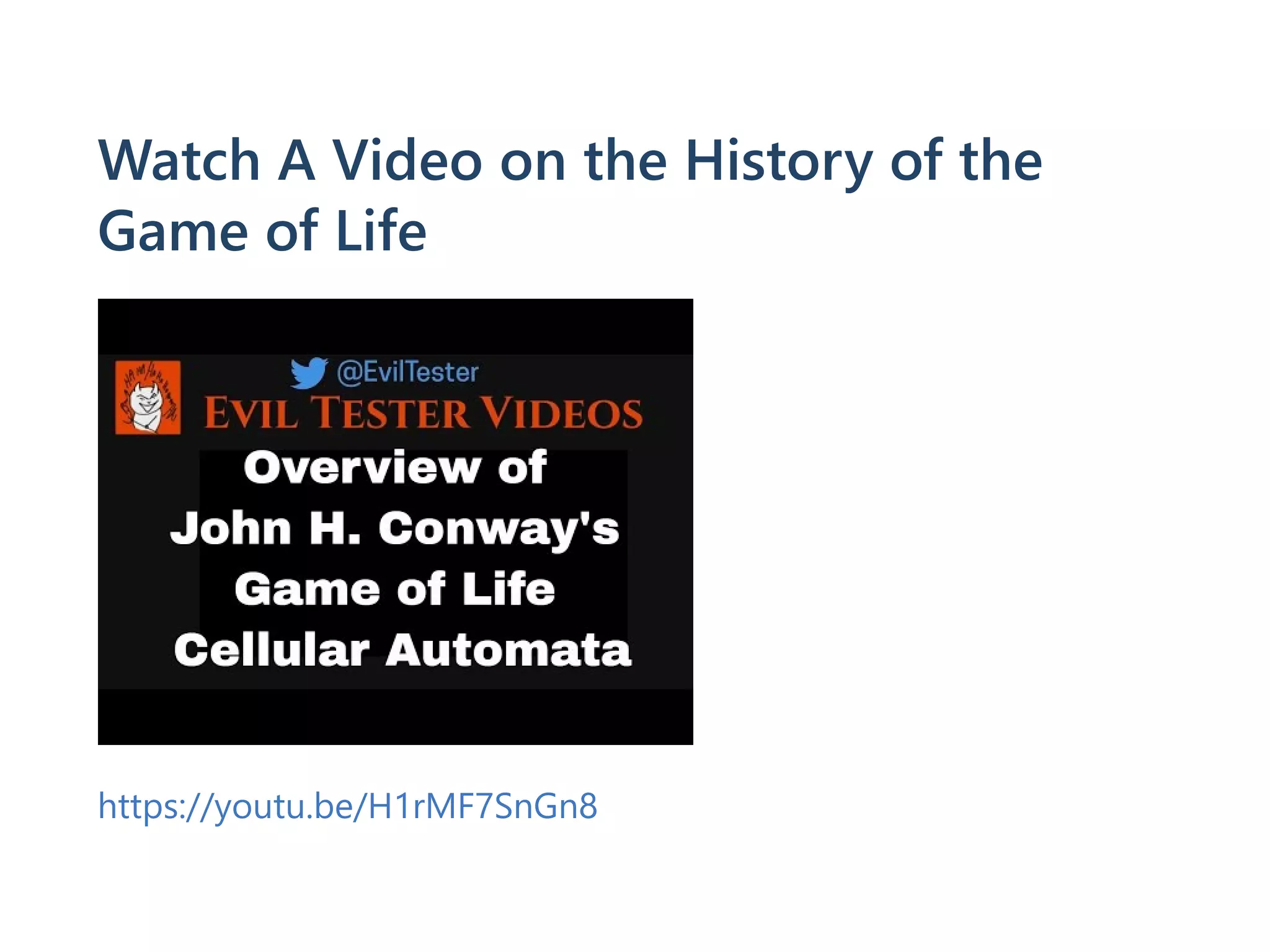

35. Watch A Video on the History of the
Game of Life
https://youtu.be/H1rMF7SnGn8
36. Other Contributions
Danny Dainton experimented with the Game of life and created a
'text' image.
https://twitter.com/DannyDainton/status/789499155785842688
And he has released thecode for it on github.
https://github.com/DannyDainton/Cellular_Automata_Hacking
37.
38. How to Create Text
I took a different approach to Danny for the text creation:
I thought it would be easier to write text to the screen
scrape the pixels
add the pixels as blocks to the world
39. First Write the Text
// stop the world and clear the world and screen
stopInvasion();
stopGame();
world.population = [];
clearCanvas();
// plot the text we want
context.font = "14px verdana";
context.strokeStyle="#FF0000";
// kerning hack
// http://stackoverflow.com/questions/8952909/letter‐spacing‐in‐canva
var padding = String.fromCharCode(8202)+String.fromCharCode(8202
context.strokeText("Thank".split("").join(padding), 0, 15);
context.strokeText("You".split("").join(padding), 0, 30);
context.strokeText("Danny".split("").join(padding), 0, 45);
40. Then get the pixels and add them to the world
var imageData = context.getImageData(0,0,200,60);
var scale=4; // less than 4 and it will evolve
var imageX=0;var imageY=0;
for (var i=0;i<imageData.data.length;i+=4)
{
if(imageData.data[i]!==0 ||
imageData.data[i+1]!==0 ||
imageData.data[i+1] !== 0){
addLifeForms.block(world, imageX*scale,imageY*scale);
}
imageX++;
if(imageX>=200){
imageX=0;
imageY++;
}
}
Then startGame(5);
41. Uses?
We could use this for image generation, just with the canvas.
resize canvas
create a border
plot text that shows the size
save the image
And we could create custom sized images for testing.
42. Resize Canvas
canvas.width=500;
canvas.height=500;
Create a Border
context.rect(0,0,canvas.width, canvas.height);
context.stroke();
Add Text
context.font = "80px verdana";
var padding = String.fromCharCode(8202)+
String.fromCharCode(8202);
context.strokeText("500px".split("").join(padding), 0, 80);
context.strokeText("500px".split("").join(padding), 0, 160);
43. Watch A Bonus Video ‐ Create Text For
Cellular Automata
https://youtu.be/YAgBeG53lVI
44. What can you do with it?
Experiment and see what you come up with
45. Alan Richardson
Read my writing and blogs at:
http://www.compendiumdev.co.uk
http://blog.eviltester.com/
http://www.seleniumsimplified.com
http://blog.javafortesters.com/
Follow me on social media:
https://uk.linkedin.com/in/eviltester
https://twitter.com/eviltester ‐ @eviltester
YouTube
https://www.youtube.com/user/EviltesterVideos
https://www.instagram.com/eviltester/
46. Books And Training
"Java For Testers" ‐ Learn to code in Java with
http://javafortesters.com/page/about/
"Dear Evil Tester" ‐ Enjoy your testing
http://eviltester.com/page/dearEvilTester/
Online Training in Technical Testing, Selenium WebDriver, Java
and more
http://www.compendiumdev.co.uk/page/online_training
