The H-1 wagon is designed for versatility, accommodating up to nine passengers for various business and leisure uses. It features a spacious, comfortable interior with customizable seating, advanced safety systems including dual airbags, and efficient engine options for performance and fuel economy. The vehicle emphasizes modern design and reliability, making it suitable for both city transportation and long journeys.

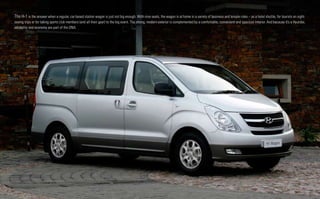

2. The H-1 is the answer when a regular, car-based station wagon is just not big enough. With nine seats, the wagon is at home in a variety of business and leisure roles – as a hotel shuttle, for tourists on sight-
seeing trips or for taking sports club members (and all their gear) to the big event. The strong, modern exterior is complemented by a comfortable, convenient and spacious interior. And because it’s a Hyundai,
reliability and economy are part of the DNA.

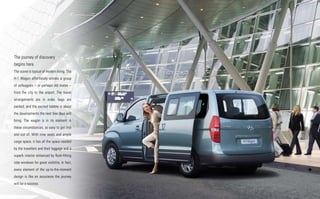

3. The journey of discovery
begins here
The scene is typical of modern living. The
H-1 Wagon effortlessly whisks a group
of colleagues – or perhaps old mates –
from the city to the airport. The travel
arrangements are in order, bags are
packed, and the excited babble is about
the developments the next few days will
bring. The wagon is in its element in
these circumstances, so easy to get into
and out of. With nine seats and ample
cargo space, it has all the space needed
by the travellers and their luggage and a
superb interior enhanced by flush-fitting
side windows for great visibility. In fact,
every element of the up-to-the-moment
design is like an assurance the journey
will be a success.

4. Multi-purpose seating
Clever design allows the seats to be
tipped up, slid or reclined. Whatever the
circumstances, there’s certain to be a
combination to suit your requirements.
Power window controls
Typical of the attention to detail, the
driver’s door arm rest neatly incorporates
the switches for the powered window
lifts and rear view mirror adjusters.
Multi-switch panel
Dual air bags
There are more neat design touches on
The driver and front seat passenger in the H-1 Wagon can be reassured by the
the fascia panel housing the controls for
fitment of twin air bags. In a serious accident, the safety devices instantly inflate
the fog lights and rheostat.
to help protect the seat occupants from injury.
No need to get hot and bothered
The powerful air conditioning system
has been re-engineered in order to in-
corporate roof mounted air vents each
side for the added comfort of passen-
gers seated in the rear.

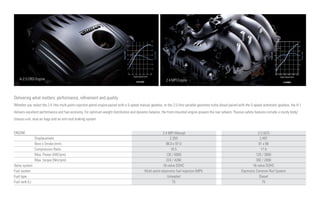

5. A-2.5 CRDi Engine 2.4 MPI Engine
Delivering what matters: performance, refinement and quality
Whether you select the 2.4-litre multi-point injection petrol engine paired with a 5-speed manual gearbox, or the 2.5-litre variable geometry turbo diesel paired with the 5-speed automatic gearbox, the H-1
delivers excellent performance and fuel economy. For optimum weight distribution and dynamic balance, the front-mounted engine powers the rear wheels. Passive safety features include a sturdy body/
chassis unit, dual air bags and an anti-lock braking system.
ENGINE 2.4 MPI Manual 2.5 VGTi
Displacement 2,359 2,497
Bore x Stroke (mm) 88.0 x 97.0 91 x 96
Compression Ratio 10.5 17.6
Max. Power (kW/rpm) 126 / 6000 120 / 3800
Max. torque (Nm/rpm) 224 / 4200 392 / 2000
Valve system 16-valve DOHC 16-valve DOHC
Fuel system Multi-point electronic fuel injection (MPI) Electronic Common Rail System
Fuel type Unleaded Diesel
Fuel tank (L) 75 75

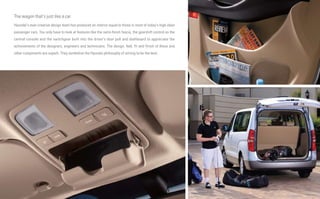

6. The wagon that's just like a car
Hyundai's ever-creative design team has produced an interior equal to those in most of today's high class
passenger cars. You only have to look at features like the satin-finish fascia, the gearshift control on the
central console and the switchgear built into the driver's door pull and dashboard to appreciate the
achievements of the designers, engineers and technicians. The design, feel, fit and finish of these and
other components are superb. They symbolise the Hyundai philosophy of aiming to be the best.

7. WHEELS & TYRES 2.4 MPI Manual 2.5 VGTi
Wheel Alloy Rim 6.5J x 16” Alloy Rim 6.5J x 16”
Tyre 215 / 70 R16” 215 / 70 R16”
Spare tyre Full size Full size
BRAKES
General 4-Wheel electronic, 4-Channel sensor with ABS and EBD 4-Wheel electronic, 4-Channel sensor with ABS and EBD
Front brake system 300mm ventilated disc 300mm ventilated disc
Rear brake system 324mm solid disc 324mm solid disc

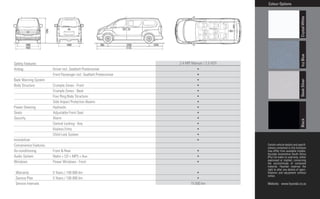

8. Colour Options
Crystal White
Icy Blue
Safety Features 2.4 MPI Manual / 2.5 VGTi
Airbag Driver incl. Seatbelt Pretensioner •
Front Passenger incl. Seatbelt Pretensioner •
Back Warning System •
Sleek Silver
Body Structure Crumple Zones - Front •
Crumple Zones - Back •
Four Ring Body Structure •
Side Impact Protection Beams •
Power Steering Hydraulic •
Seats Adjustable Front Seat •
Security Alarm •
Black
Central Locking - Key •
Keyless Entry •
Child Lock System •
Immobilizer •
Convenience Features Certain vehicle details and specifi-
cations contained in this brochure
Air-conditioning Front & Rear • may differ from available models.
Hyundai Automotive South Africa
Audio System Radio + CD + MP3 + Aux • (Pty) Ltd make no warranty, either
expressed or implied, concerning
Windows Power Windows - Front • the verisimilitude of contained
material. Hyundai reserves the
right to alter any details of speci-
Warranty 5 Years / 150 000 km • fications and equipment without
notice.
Service Plan 5 Years / 100 000 km •
Service Intervals 15 000 km Website: www.hyundai.co.za
