This document provides the technical specifications for the new Renault Clio Estate, including dimensions and measurements of the vehicle and boot/cargo area, engine options and their specifications, standard wheel and tire fitments, braking systems, and performance metrics like top speed and acceleration times. Details are given for petrol and diesel engine variants with power ratings ranging from 75 to 90hp, 5-speed manual transmission, and standard safety and driver assistance features.

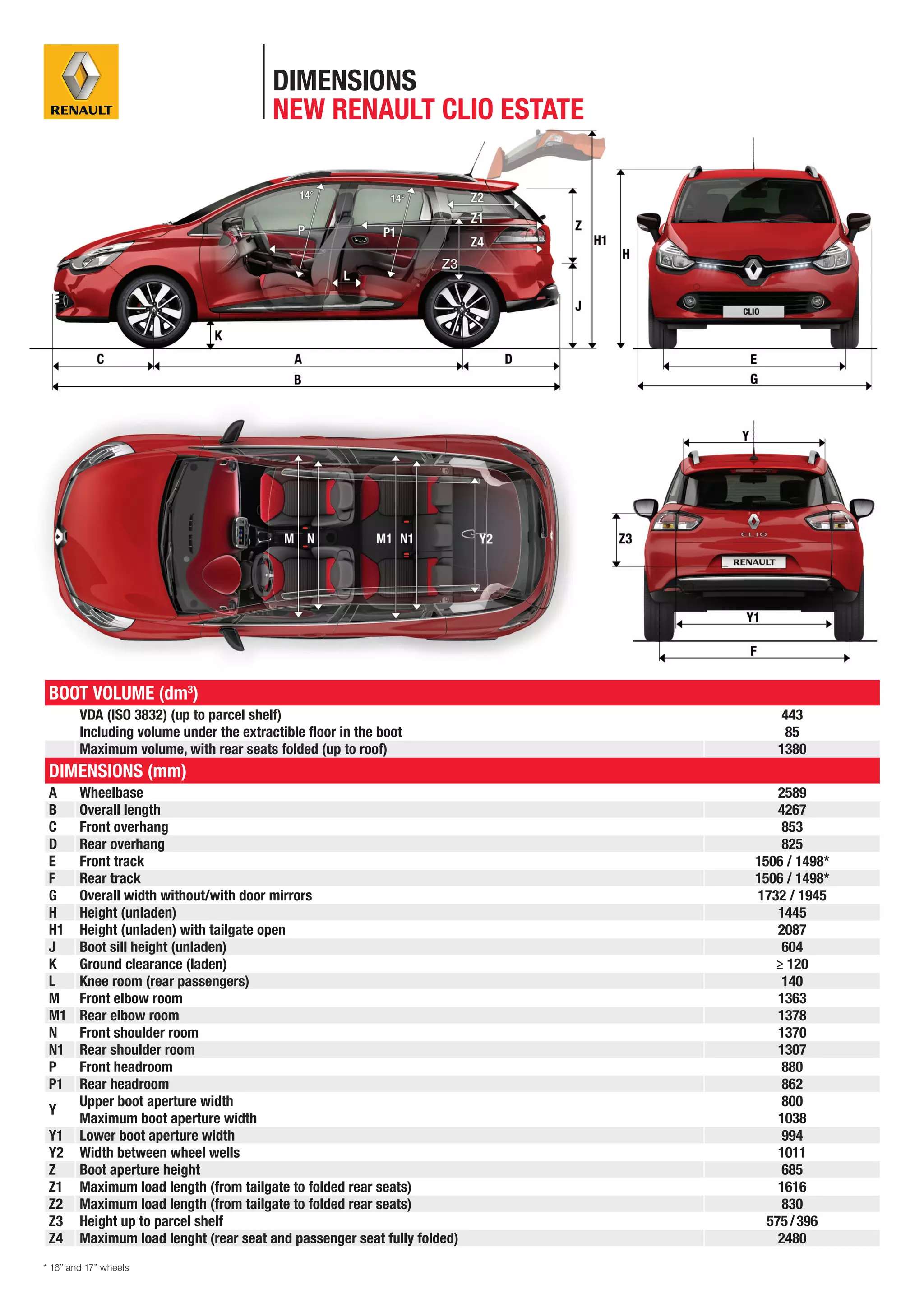

1. DIMENSIONS
NEW RENAULT CLIO ESTATE
BOOT VOLUME (dm3)
VDA (ISO 3832) (up to parcel shelf) 443
Including volume under the extractible floor in the boot 85
Maximum volume, with rear seats folded (up to roof) 1380
DIMENSIONS (mm)
A Wheelbase 2589
B Overall length 4267
C Front overhang 853
D Rear overhang 825
E Front track 1506 / 1498*
F Rear track 1506 / 1498*
G Overall width without/with door mirrors 1732 / 1945
H Height (unladen) 1445
H1 Height (unladen) with tailgate open 2087
J Boot sill height (unladen) 604
K Ground clearance (laden) ≥ 120
L Knee room (rear passengers) 140
M Front elbow room 1363
M1 Rear elbow room 1378
N Front shoulder room 1370
N1 Rear shoulder room 1307
P Front headroom 880
P1 Rear headroom 862
Upper boot aperture width 800
Y
Maximum boot aperture width 1038
Y1 Lower boot aperture width 994
Y2 Width between wheel wells 1011
Z Boot aperture height 685
Z1 Maximum load length (from tailgate to folded rear seats) 1616
Z2 Maximum load length (from tailgate to folded rear seats) 830
Z3 Height up to parcel shelf 575 / 396
Z4 Maximum load lenght (rear seat and passenger seat fully folded) 2480
* 16” and 17” wheels

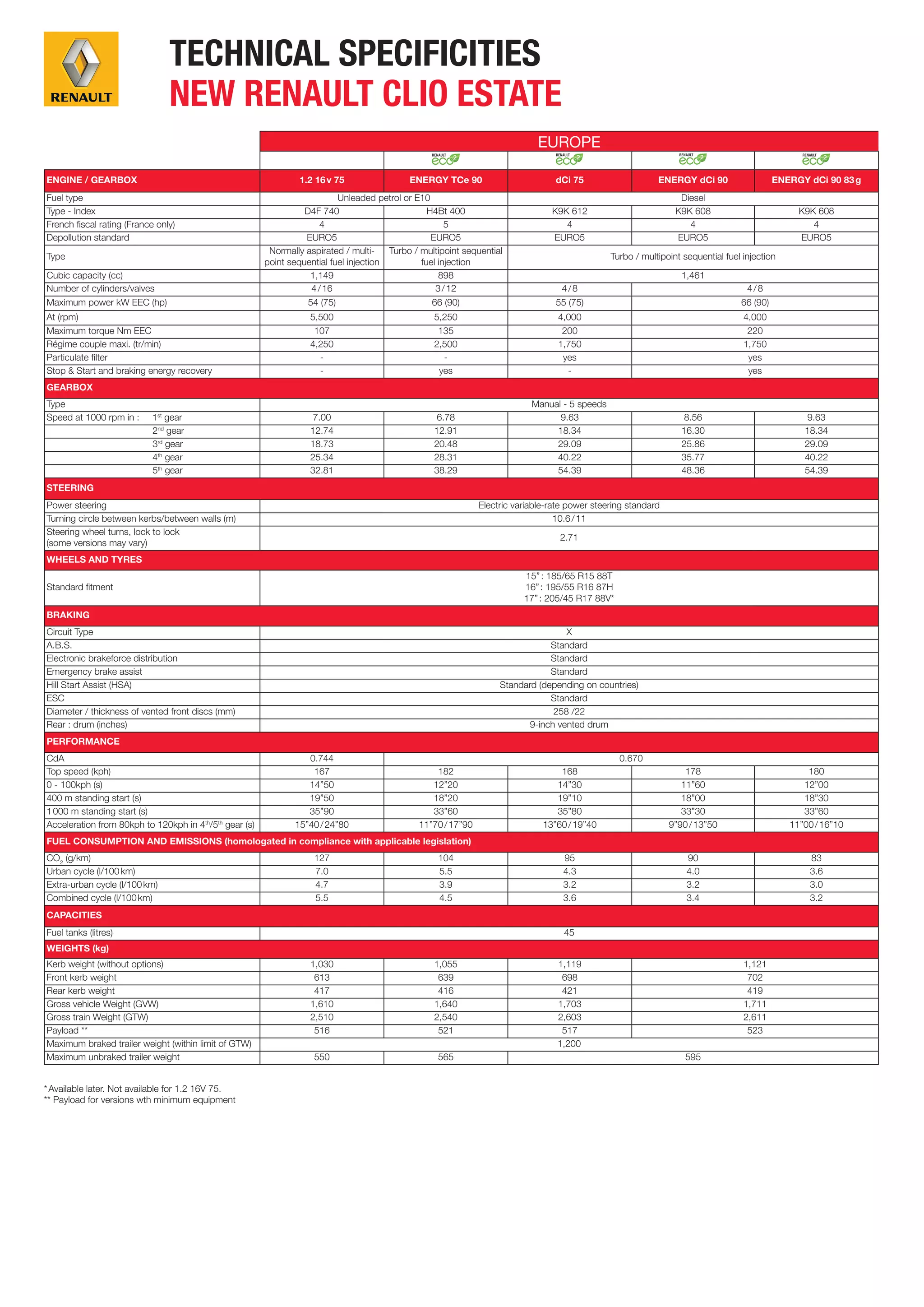

2. TECHNICAL SPECIFICITIES
NEW RENAULT CLIO ESTATE
EUROPE
ENGINE / GEARBOX 1.2 16 v 75 ENERGY TCe 90 dCi 75 ENERGY dCi 90 ENERGY dCi 90 83 g
Fuel type Unleaded petrol or E10 Diesel
Type - Index D4F 740 H4Bt 400 K9K 612 K9K 608 K9K 608
French fiscal rating (France only) 4 5 4 4 4
Depollution standard EURO5 EURO5 EURO5 EURO5 EURO5
Normally aspirated / multi- Turbo / multipoint sequential
Type Turbo / multipoint sequential fuel injection
point sequential fuel injection fuel injection
Cubic capacity (cc) 1,149 898 1,461
Number of cylinders/valves 4 / 16 3 / 12 4/8 4/8
Maximum power kW EEC (hp) 54 (75) 66 (90) 55 (75) 66 (90)
At (rpm) 5,500 5,250 4,000 4,000
Maximum torque Nm EEC 107 135 200 220
Régime couple maxi. (tr/min) 4,250 2,500 1,750 1,750
Particulate filter - - yes yes
Stop & Start and braking energy recovery - yes - yes
GEARBOX
Type Manual - 5 speeds
Speed at 1000 rpm in : 1st gear 7.00 6.78 9.63 8.56 9.63
2nd gear 12.74 12.91 18.34 16.30 18.34
3rd gear 18.73 20.48 29.09 25.86 29.09
4th gear 25.34 28.31 40.22 35.77 40.22
5th gear 32.81 38.29 54.39 48.36 54.39
STEERING
Power steering Electric variable-rate power steering standard
Turning circle between kerbs/between walls (m) 10.6 / 11
Steering wheel turns, lock to lock
2.71
(some versions may vary)
WHEELS AND TYRES
15” : 185/65 R15 88T
Standard fitment 16” : 195/55 R16 87H
17” : 205/45 R17 88V*
BRAKING
Circuit Type X
A.B.S. Standard
Electronic brakeforce distribution Standard
Emergency brake assist Standard
Hill Start Assist (HSA) Standard (depending on countries)
ESC Standard
Diameter / thickness of vented front discs (mm) 258 /22
Rear : drum (inches) 9-inch vented drum
PERFORMANCE
CdA 0.744 0.670
Top speed (kph) 167 182 168 178 180
0 - 100kph (s) 14”50 12”20 14”30 11”60 12”00
400 m standing start (s) 19”50 18”20 19”10 18”00 18”30
1 000 m standing start (s) 35”90 33”60 35”80 33”30 33”60
Acceleration from 80kph to 120kph in 4th/5th gear (s) 15”40 / 24”80 11”70 / 17”90 13”60 / 19”40 9”90 / 13”50 11”00 / 16”10
FUEL CONSUMPTION AND EMISSIONS (homologated in compliance with applicable legislation)
CO2 (g/km) 127 104 95 90 83
Urban cycle (l/100 km) 7.0 5.5 4.3 4.0 3.6
Extra-urban cycle (l/100 km) 4.7 3.9 3.2 3.2 3.0
Combined cycle (l/100 km) 5.5 4.5 3.6 3.4 3.2
CAPACITIES
Fuel tanks (litres) 45
WEIGHTS (kg)
Kerb weight (without options) 1,030 1,055 1,119 1,121
Front kerb weight 613 639 698 702
Rear kerb weight 417 416 421 419
Gross vehicle Weight (GVW) 1,610 1,640 1,703 1,711
Gross train Weight (GTW) 2,510 2,540 2,603 2,611
Payload ** 516 521 517 523
Maximum braked trailer weight (within limit of GTW) 1,200
Maximum unbraked trailer weight 550 565 595
* Available later. Not available for 1.2 16V 75.
** Payload for versions wth minimum equipment
