The document promotes the Hyundai ix35, highlighting its design, comfort, and technology features to create an intuitive driving experience. It details various models and specifications, including engine performance, fuel consumption, interior customization, and safety features. The ix35 aims to offer a stylish and ergonomic automotive solution that enhances the urban driving experience.

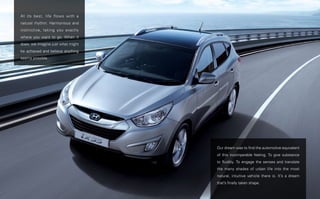

2. At its best, life flows with a
natural rhythm. Harmonious and
instinctive, taking you exactly
where you want to go. When it
does, we imagine just what might
be achieved and believe anything
seems possible.
Our dream was to find the automotive equivalent
of this incomparable feeling. To give substance
to fluidity. To engage the senses and translate
the many shades of urban life into the most
natural, intuitive vehicle there is. It’s a dream
that’s finally taken shape.

3. Close your eyes and your ideal car is conjured up. One that doesn’t just take you places, but conveys you with flair and
grace. That looks like it’s moving forward even when it’s standing still. The ix35 is a synthesis of flawless, cutting-edge
design, embodying style in every curve. Sporty and powerful, yet, refined and relaxed. Its hexagonal radiator grille exuding
strength, just as its sloping tail gate, oversize rear bumper and aggressive, low-slung stance convey purpose and
sophistication. Your vision of a car, in three dimensions.

4. The most precious environment is one that you respond to naturally. Ergonomic, tactile, easy on the
eye, one like the ix35. A space that mirrors your stylish self. On the R 2.0 Diesel AWD the
panoramic sunroof lets the light in and allows your spirit to soar. All seats come with a height-
adjustable headrest, so you can find the most comfortable driving position.
The most important things are the most personal. So the ix35 allows you to customise the interior
just the way you like it. Set the monitor to provide information such as distance to empty, average
speed or average fuel consumption. On the large screen display, play music any way you want - CD,
radio, or from iPod, MP3 or USB memory storage devices.

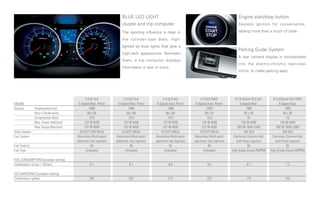

5. BLUE LED LIGHT Engine start/stop button
cluster and trip computer Keyless ignition for convenience,
The sporting influence is clear in adding more than a touch of style.
the cylinder-type dials, high-
lighted by blue lights that give a
Parking Guide System
high-tech appearance. Between
A rear camera display is incorporated
them, a trip computer displays
into the electro-chromic rear-view
information in text or icons.
mirror, to make parking easy.
2.0 GL 4x2 2.0 GLS 4x2 2.0 GLS 4x2 2.4 GLS AWD R 2.0 Diesel GLS 4x2 R 2.0 Diesel GLS AWD
ENGINE 5-Speed Man. Petrol 5-Speed Man. Petrol 6-Speed Auto. Petrol 6-Speed Auto. Petrol 6-Speed Man 6-Speed Auto
General Displacement (cc) 1998 1998 1998 2359 1995 1995
Bore x Stroke (mm) 86 x 86 86 x 86 86 x 86 88 x 97 84 x 90 84 x 90
Compression Ratio 10.5 10.5 10.5 10.5 16 16
Max. Power (kW/rpm) 122 @ 6200 122 @ 6200 122 @ 6200 130 @ 6000 130 @ 4000 130 @ 4000
Max Torque (Nm/rpm) 197 @ 4600 197 @ 4600 197 @ 4600 227 @ 4000 383 @ 1800~2500 392 @ 1800~2500
Valve System D-CVVT (16V MLA) D-CVVT (MLA) D-CVVT (MLA) D-CVVT (MLA) 16V HLA 16V HLA
Fuel System Returnless Multi-point Returnless Multi-point Returnless Multi-point Returnless Multi-point Electronic Common Rail Electronic Common Rail
electronic fuel injection electronic fuel injection electronic fuel injection electronic fuel injection with Piezo injectors with Piezo injectors
Fuel Tank (L) 55 55 55 55 55 55
Fuel Type Unleaded Unleaded Unleaded Unleaded High Grade Diesel (50PPM) High Grade Diesel (50PPM)
FUEL CONSUMPTION (European testing)
Combination (Litres / 100 km) 8.7 8.7 8.9 9.5 6.7 7.3
CO2 EMISSIONS (European testing)
Combination (g/km) 207 207 213 227 175 192

6. Comfort all the way
Find the driving position that suits you best. With front/
back sliding range increased by a full 40mm, and more
height range too, even someone as tall as 192cm will be
Luggage space
seated comfortably. However far you’re going, you’ll be Increased luggage space,
travelling in complete comfort. An electric power lumber courtesy of an increased rear
support is built into the driver’s seat. Easily adjustable of overhang and redesigned
course, thanks to conveniently located switches. rear wheel suspension.

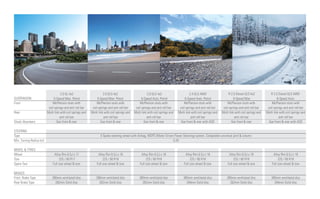

7. 2.0 GL 4x2 2.0 GLS 4x2 2.0 GLS 4x2 2.4 GLS AWD R 2.0 Diesel GLS 4x2 R 2.0 Diesel GLS AWD
SUSPENSION 5-Speed Man. Petrol 5-Speed Man. Petrol 6-Speed Auto. Petrol 6-Speed Auto. Petrol 6-Speed Man 6-Speed Auto
Front McPherson stuts with McPherson stuts with McPherson stuts with McPherson stuts with McPherson stuts with McPherson stuts with
coil springs and anti roll bar coil springs and anti roll bar coil springs and anti roll bar coil springs and anti roll bar coil springs and anti roll bar coil springs and anti roll bar
Rear Multi link with coil springs and Multi link with coil springs and Multi link with coil springs and Multi link with coil springs and Multi link with coil springs and Multi link with coil springs and
anti roll bar anti roll bar anti roll bar anti roll bar anti roll bar anti roll bar
Shock Absorbers Gas front & rear Gas front & rear Gas front & rear Gas front & rear with ASD Gas front & rear Gas front & rear with ASD
STEERING
Type 4 Spoke steering wheel with Airbag, MDPS (Motor Driven Power Steering) system, Collapsible universal joint & column
Min. Turning Radius (m) 5.29
WHEEL & TYRES
Wheel Alloy Rim 6.5J x 17 Alloy Rim 6.5J x 18 Alloy Rim 6.5J x 18 Alloy Rim 6.5J x 18 Alloy Rim 6.5J x 18 Alloy Rim 6.5J x 18
Tyre 225 / 60 R17 225 / 60 R18 225 / 60 R18 225 / 60 R18 225 / 60 R18 225 / 60 R18
Spare Tyre Full size wheel & tyre Full size wheel & tyre Full size wheel & tyre Full size wheel & tyre Full size wheel & tyre Full size wheel & tyre
BRAKES
Front Brake Type 280mm ventilated disc 280mm ventilated disc 280mm ventilated disc 300mm ventilated disc 280mm ventilated disc 300mm ventilated disc
Rear Brake Type 262mm Solid disc 262mm Solid disc 262mm Solid disc 284mm Solid disc 262mm Solid disc 284mm Solid disc

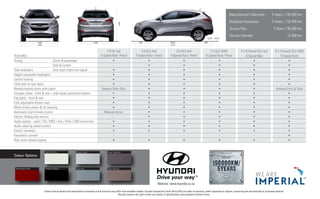

8. Manufacturer’s Warranty 5 Years / 150 000 km
Roadside Assistance 5 Years / 150 000 km
1,655
Service Plan 5 Years / 90 000 km
Service Intervals 15 000 km
unit : mm
1,585 1,586 880 2,640 890
1,820 4,410
2.0 GL 4x2 2.0 GLS 4x2 2.0 GLS 4x2 2.4 GLS AWD R 2.0 Diesel GLS 4x2 R 2.0 Diesel GLS AWD
FEATURES 5-Speed Man. Petrol 5-Speed Man. Petrol 6-Speed Auto. Petrol 6-Speed Auto. Petrol 6-Speed Man 6-Speed Auto
Airbag Driver & passenger • • • • • •
Side & curtain - • • • • •
Side indicators One touch triple turn signal • • • • • •
Height adjustable headlights • • • • • •
Central locking • • • • • •
Child lock on rear doors • • • • • •
Remote keyless entry with alarm Keyless Entry Only • • • • Keyless Entry & Start
Crumple zones - front & rear + side impact protection beams • • • • • •
Fog lights - front & rear • • • • • •
Fully adjustable drivers seat • • • • • •
Motor driven power & tilt steering • • • • • •
Automatic dual climate control Manual Aircon • • • • •
Electric folding side mirrors - • • • • •
Audio system - radio / CD / MP3 / Aux / iPod / USB connection • • • • • •
Audio steering wheel control • • • • • •
Electric windows • • • • • •
Panoramic sunroof - - - - - •
Rear view camera display • • • • • •
Vanilla White Sleek Silver Gray Titanium
Colour Options
Remington Red Phantom Black Blue Ice Silky Bronze
Website: www.hyundai.co.za
Certain vehicle details and specifications contained in this brochure may differ from available models. Hyundai Automotive South Africa (Pty) Ltd make no warranty, either expressed or implied, concerning the verisimilitude of contained material.
Hyundai reserves the right to alter any details of specifications and equipment without notice.
