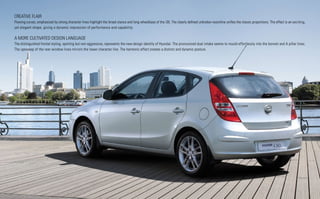

2. CREATIVE FLAIR
Flowing curves, emphasized by strong character lines highlight the broad stance and long wheelbase of the i30. The clearly defined unbroken waistline unifies the classic proportions. The effect is an exciting,
yet elegant shape, giving a dynamic impression of performance and capability.
A MORE CULTIVATED DESIGN LANGUAGE
The distinguished frontal styling, sporting but non-aggressive, represents the new design identity of Hyundai. The pronounced dual intake seems to mould effortlessly into the bonnet and A pillar lines.
The upsweep of the rear window lines mirrors the lower character line. The harmonic effect creates a distinct and dynamic posture.

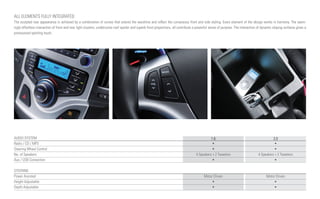

3. ALL ELEMENTS FULLY INTEGRATED
The sculpted rear appearance is achieved by a combination of curves that extend the waistline and reflect the curvaceous front and side styling. Every element of the design works in harmony. The seem-
ingly effortless interaction of front and rear light clusters, unobtrusive roof spoiler and superb front proportions, all contribute a powerful sense of purpose. The interaction of dynamic sloping surfaces gives a
pronounced sporting touch.
AUDIO SYSTEM 1.6 2.0
Radio / CD / MP3 • •
Steering Wheel Control • •
No. of Speakers 4 Speakers + 2 Tweeters 4 Speakers + 2 Tweeters
Aux / USB Connection • •
STEERING
Power Assisted Motor Driven Motor Driven
Height Adjustable • •
Depth Adjustable • •

4. DYNAMIC REFINEMENT
The long wheelbase and generous width of the i30, combined with
Hyundai’s acknowledged skill in interior space packaging have produced
an interior fully focused upon class-leading comfort, functionality and
practicality. Dynamic refinement has been applied to every aspect,
including air management, the light airy ambience, seating comfort and
intuitive ergonomics.
THE BENEFITS OF DYNAMIC REFINEMENT
The i30 was conceived from the beginning as a driver’s car. The clarity of
the instruments, tilt and telescope steering wheel, supportive sporty seats
and optimal gearshift positioning are all evidence of this. For extra clarity,
LCD technology has been used for the central info display and the instru-
ment panel mounted display and warning lights. Generous directional air
vents ensure optimum interior air distribution. The interior trim, with special
attention to the upholstery fabrics and materials has produced an elegant and
fresh, highly “European” interior
THE IDEAL INTEGRATED INTERIOR
The i30’s dimensions at 4,245 mm long, 1,765 mm wide and 1,480 mm high, fully meet current C-segment expecta-
tions. In addition, the long wheelbase of 2,650 mm offers superior inside spaciousness. The extra space
allowed the designers to optimize every aspect. The result is increased freedom of movement, optimal seat and
instrument positioning, and increased comfort. Both front and rear head and legroom are well above the accepted
average. Adaptability throughout every i30 has 60/40 split folding rear seats which fold whenever required for added
storage, functionality and practicality without compromising on safety and comfort. The i30 offers rear seat passengers
fully contoured support, increased legroom over most rivals and excellent cabin air management. For the driver, height
adjustable seats and lumbar support could not be more easily placed or operated. With excellent legroom, drivers
can enjoy the ride in a very comfortable setting.
SEATING TO INSPIRE SUPERLATIVES
A car that offers above average sporting appeal must also provide the REAR SPACE WITH THE CAPACITY TO CONVINCE
supportive seating to enjoy it. The front seats and contoured rear seats of The i30 matches above average occupant space with generous, easy access luggage capacity. A useful and fully
the i30 provide long distance comfort and support. Attention has been paid useable 885 mm length, 820 mm width and 1,040 mm height in the luggage area gives an impressive 340 litres load
not only to the form, with orthopaedic design input, but also to the stitch- volume with the rear seats upright. With the rear seats folded flat, the load space length is increased to 1,141 mm
ing and use of superior materials. The result is seating comfort designed to increasing the load volume to 1,250 litres. As in any Hyundai, the utility and convenience in the i30 has not been
meet and match the highest European ideals. overlooked with a standard luggage cover and a restraining net.

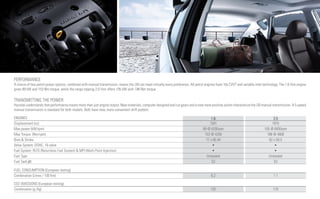

5. PERFORMANCE
A choice of two petrol power options, combined with manual transmission, means the i30 can meet virtually every preference. All petrol engines have 16v CVVT and variable inlet technology. The 1.6 litre engine
gives 89 kW and 153 Nm torque, while the range topping 2.0 litre offers 105 kW with 186 Nm torque.
TRANSMITTING THE POWER
Hyundai understands that performance means more than just engine output. New materials, computer designed and cut gears and a new more positive action characterize the i30 manual transmission. A 5-speed
manual transmission is standard for both models. Both have new, more convenient shift pattern.
ENGINES 1.6 2.0
Displacement (cc) 1591 1975
Max power (kW/rpm) 89 @ 6200rpm 105 @ 6000rpm
Max Torque (Nm/rpm) 153 @ 4200 186 @ 4600
Bore & Stroke 77 x 85.44 82 x 93.5
Valve System: DOHC, 16 valve • •
Fuel System: RLFS (Returnless Fuel System) & MPI (Multi Point Injection) • •
Fuel Type Unleaded Unleaded
Fuel Tank (l) 53 53
FUEL CONSUMPTION (European testing)
Combination (Litres / 100 Km) 6.2 7.1
CO2 EMISSIONS (European testing)
Combination (g /kg) 152 170

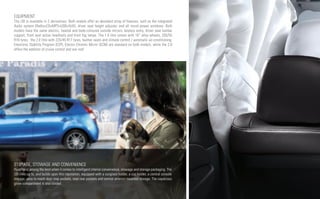

6. EQUIPMENT
The i30 is available in 2 derivatives. Both models offer an abundant array of features, such as the integrated
Audio system (Radio+CD+MP3+USB+AUX), driver seat height adjuster, and all round power windows. Both
models have the same electric, heated and body-coloured outside mirrors, keyless entry, driver seat lumbar
support, front seat active headrests and front fog lamps. The 1.6 litre comes with 16” alloy wheels, 205/55
R16 tyres, the 2.0 litre with 225/45 R17 tyres, leather seats and climate control / automatic air-conditioning.
Electronic Stability Program (ESP), Electro Chromic Mirror (ECM) are standard on both models, while the 2.0
offers the addition of cruise control and sun roof.
STORAGE, STOWAGE AND CONVENIENCE
Hyundai is among the best when it comes to intelligent interior convenience, stowage and storage packaging. The
i30 lives up to, and builds upon this reputation, equipped with a sunglass holder, a cup holder, a central console
storage, easy to reach door map pockets, seat rear pockets and central armrest mounted storage. The capacious
glove compartment is also cooled.

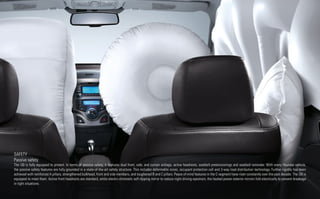

7. SAFETY
Passive safety
The i30 is fully equipped to protect. In terms of passive safety, it features dual front, side, and curtain airbags, active headrests, seatbelt pretensionings and seatbelt reminder. With every Hyundai vehicle,
the passive safety features are fully grounded in a state-of-the-art safety structure. This includes deformable zones, occupant protection cell and 3-way load distribution technology. Further rigidity has been
achieved with reinforced A pillars, strengthened bulkhead, front and side members, and toughened B and C pillars. Peace of mind features in the C-segment have risen constantly over the past decade. The i30 is
equipped to meet them. Active front headrests are standard, while electro chromatic self-dipping mirror to reduce night driving eyestrain, the heated power exterior mirrors fold electrically to prevent breakage
in tight situations.

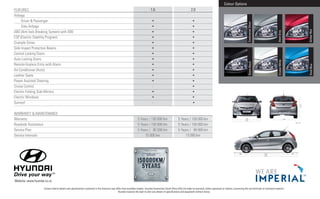

8. Colour Options
FEATURES 1.6 2.0
Airbags
Driver & Passenger • •
Continental SIlver
Side Airbags • •
Amber Red
ABS (Anti-lock Breaking System) with EBD • •
Steel Grey
ESP (Electric Stability Program) • •
Crumple Zones • •
Side Impact Protection Beams • •
Central Locking Doors • •
Auto Locking Doors • •
Crystal White
Stone Black
Remote Keyless Entry with Alarm • •
Vivid Blue
Air-Conditioner (Auto) • •
Leather Seats • •
Power Assisted Steering • •
Cruise Control - •
Electric Folding Side Mirrors • •
Electric Windows • •
Sunroof - •
1,480
WARRANTY & MAINTENANCE
Warranty 5 Years / 150 000 km 5 Years / 150 000 km 1,546
1,775
1,544
Roadside Assistance 5 Years / 150 000 km 5 Years / 150 000 km
unit : mm
Service Plan 5 Years / 90 000 km 5 Years / 90 000 km
Service Intervals 15 000 km 15 000 km
865 2,650 720
4,245
