1. Guvnor
Jervis Liu

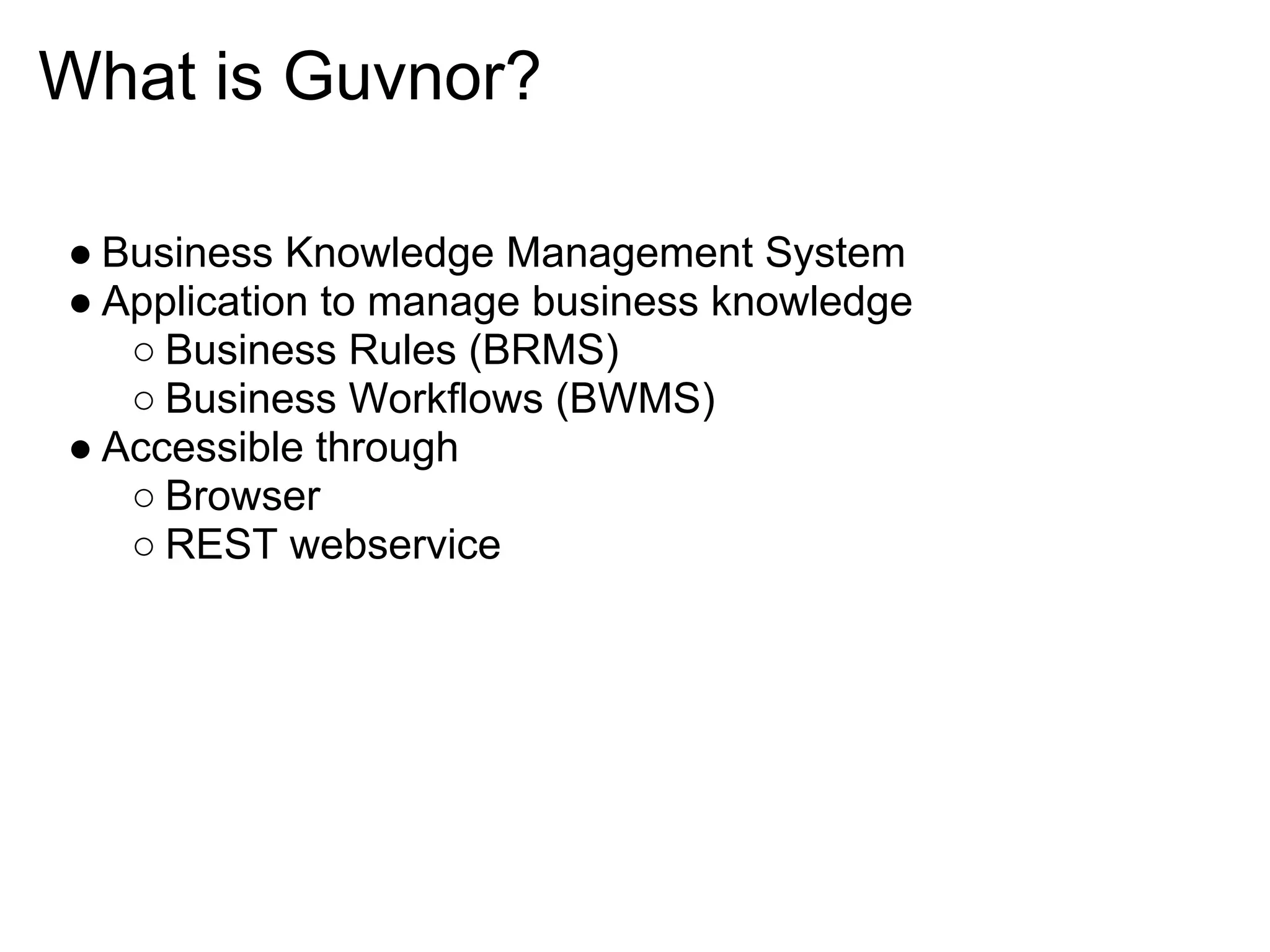

2. What is Guvnor?
● Business Knowledge Management System
● Application to manage business knowledge
○ Business Rules (BRMS)
○ Business Workflows (BWMS)
● Accessible through
○ Browser
○ REST webservice

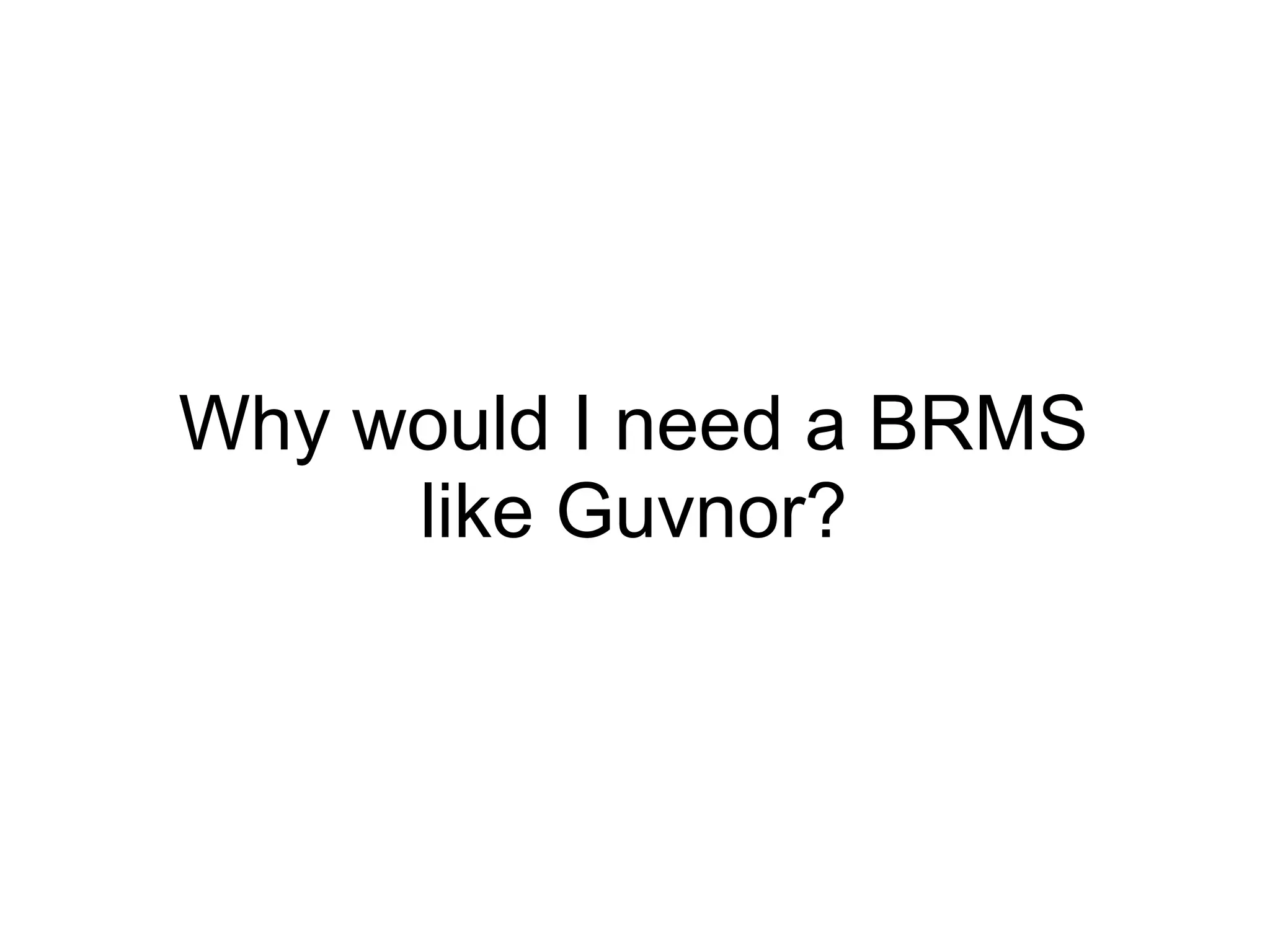

3. Why would I need a BRMS
like Guvnor?

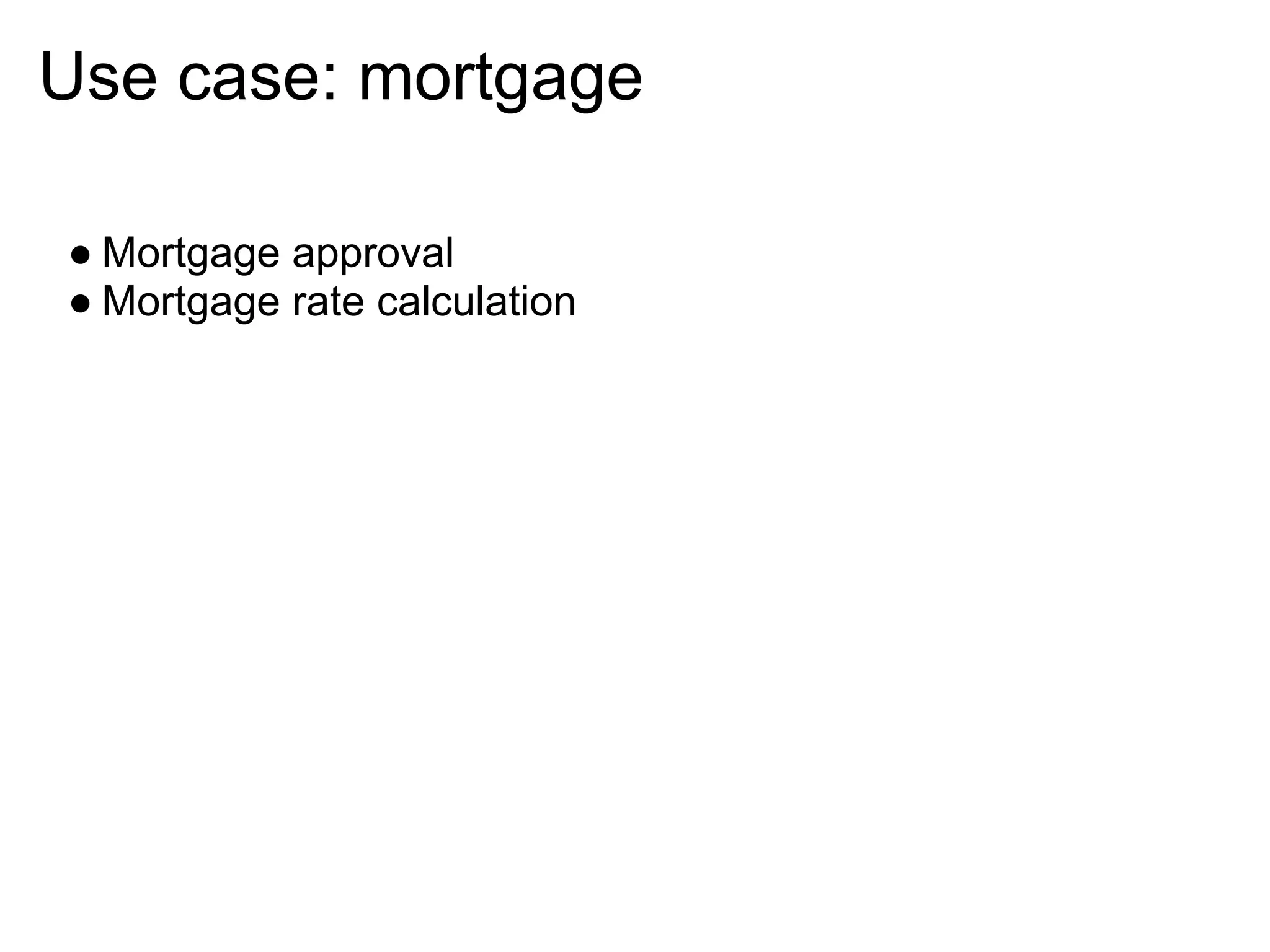

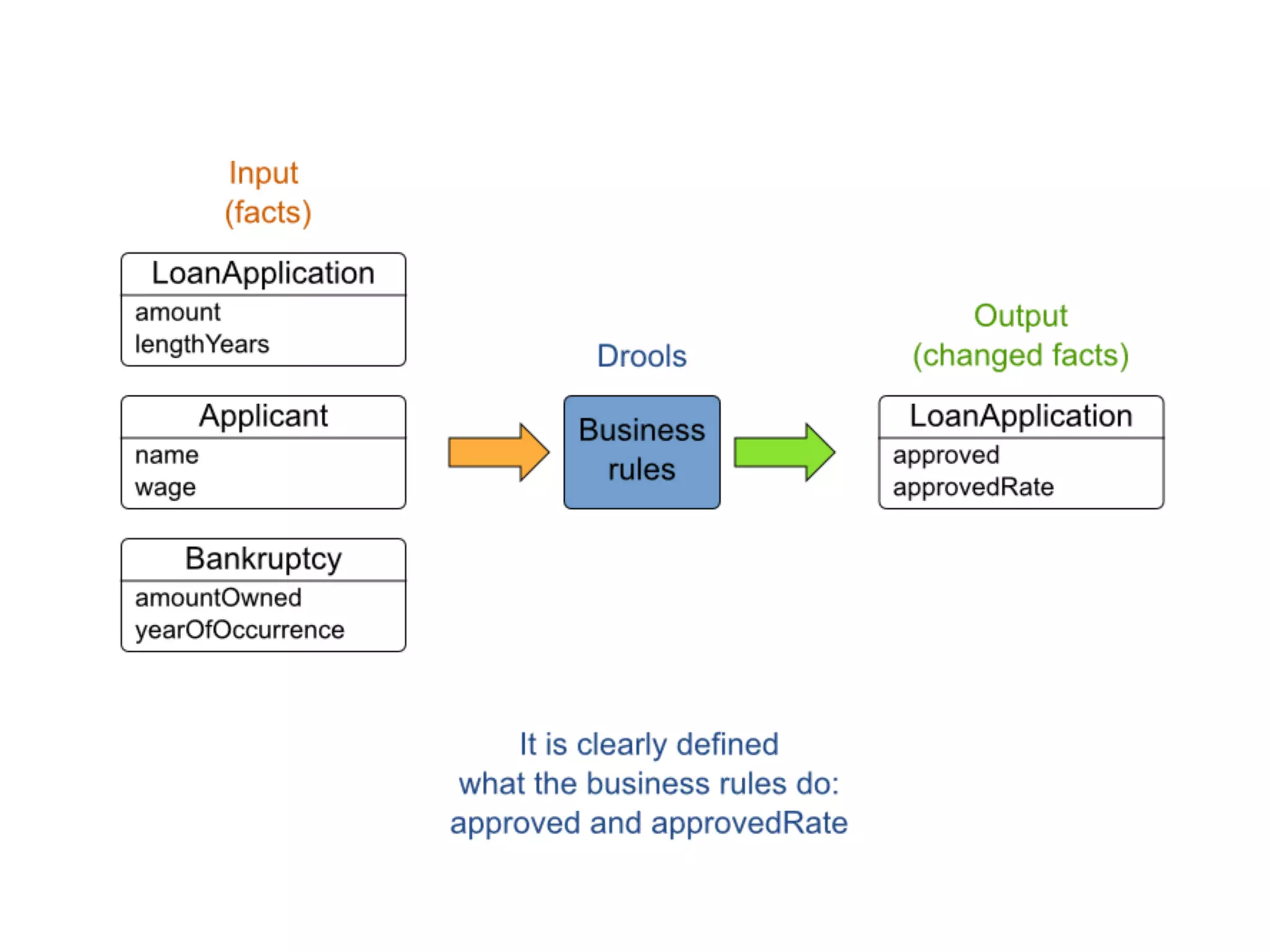

4. Use case: mortgage
● Mortgage approval
● Mortgage rate calculation

6. Diploma
Computer science
+
Economics
+
Medicine
John Unfindable Smith
Programmers are not domain experts

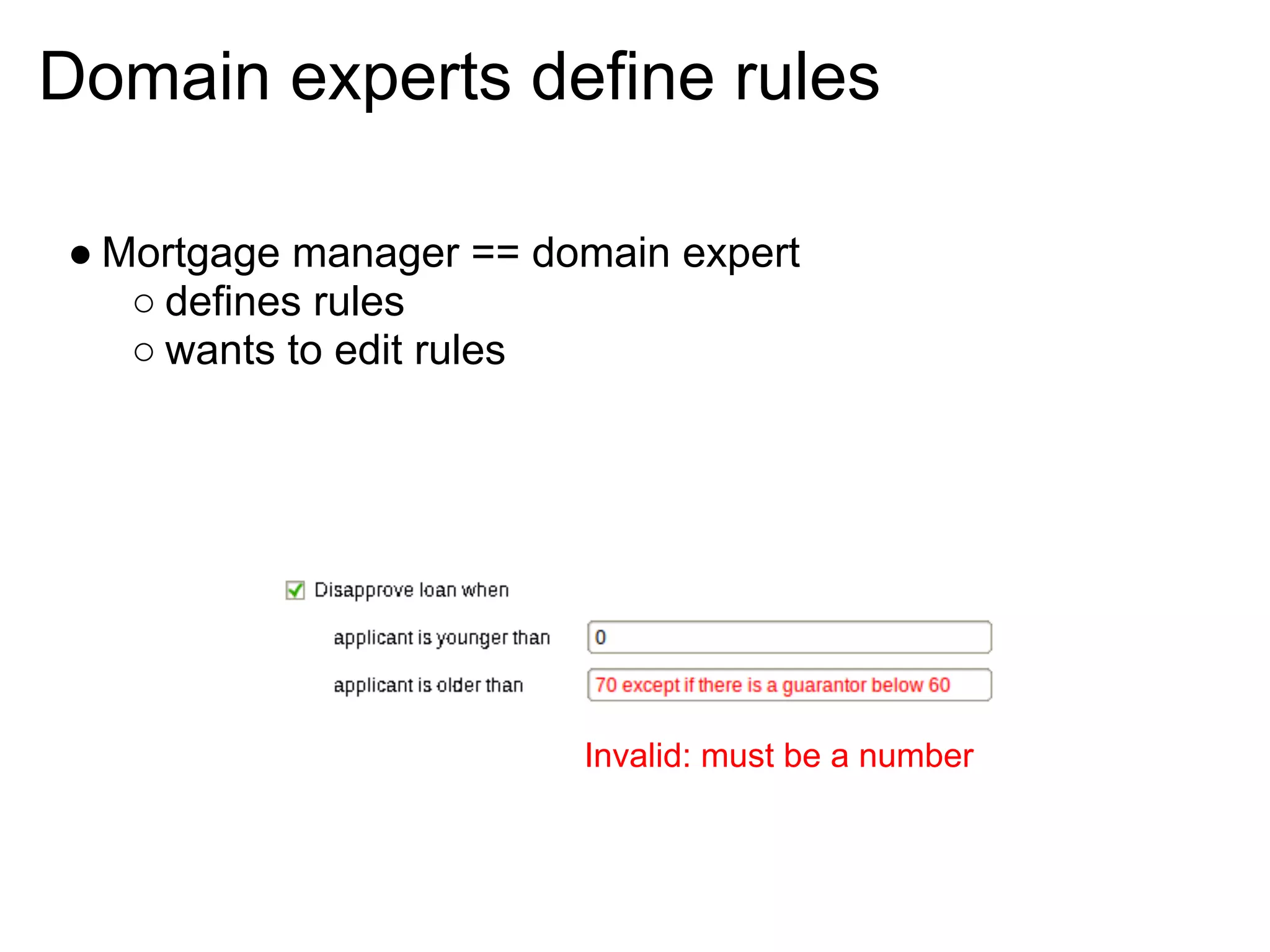

7. Domain experts define rules
● Mortgage manager == domain expert
○ defines rules
○ wants to edit rules
Invalid: must be a number

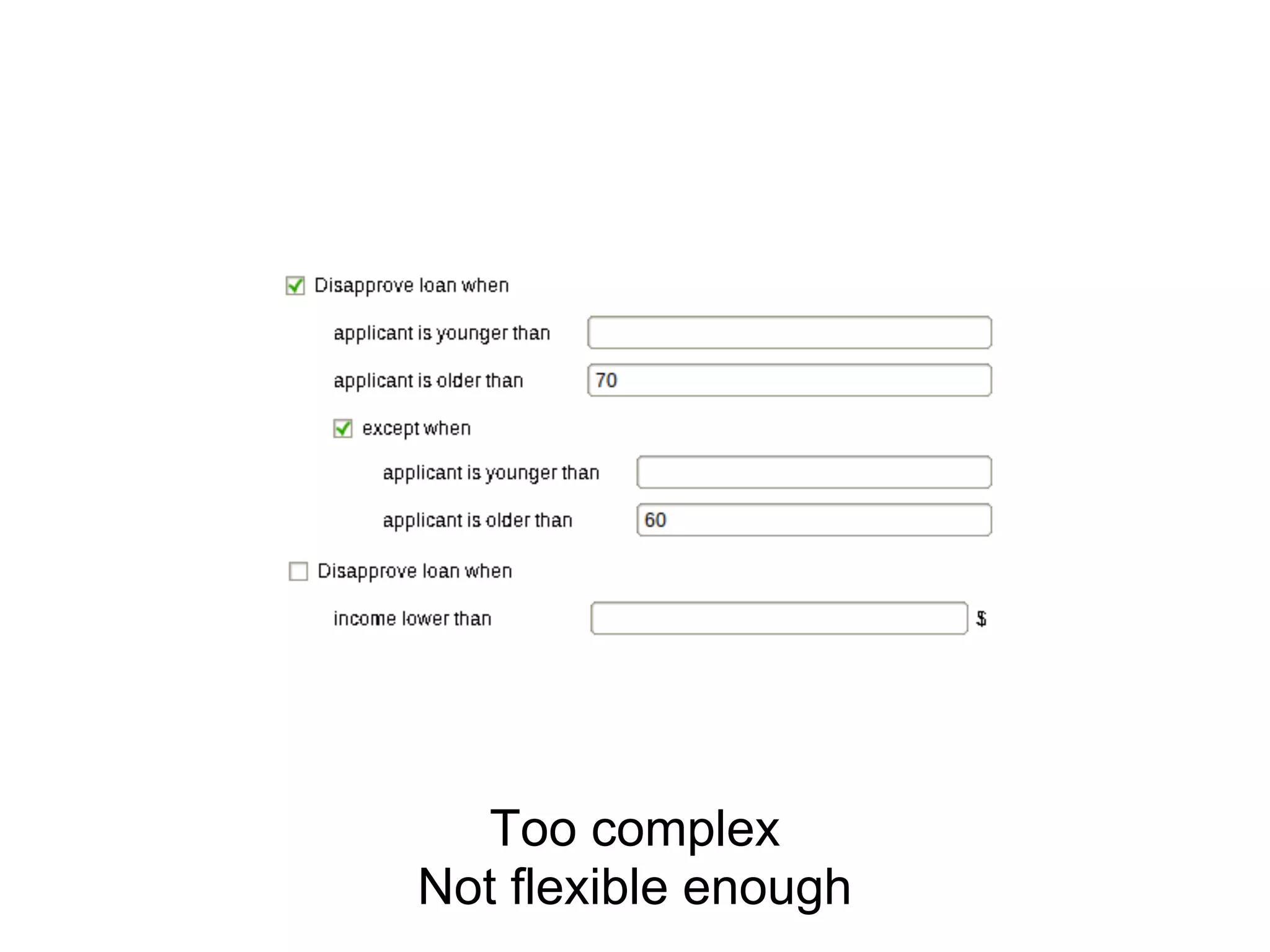

8. Too complex
Not flexible enough

9. when house near Fukushima
then ...
when guarantor invested in
Lehman Brothers stock
then ...

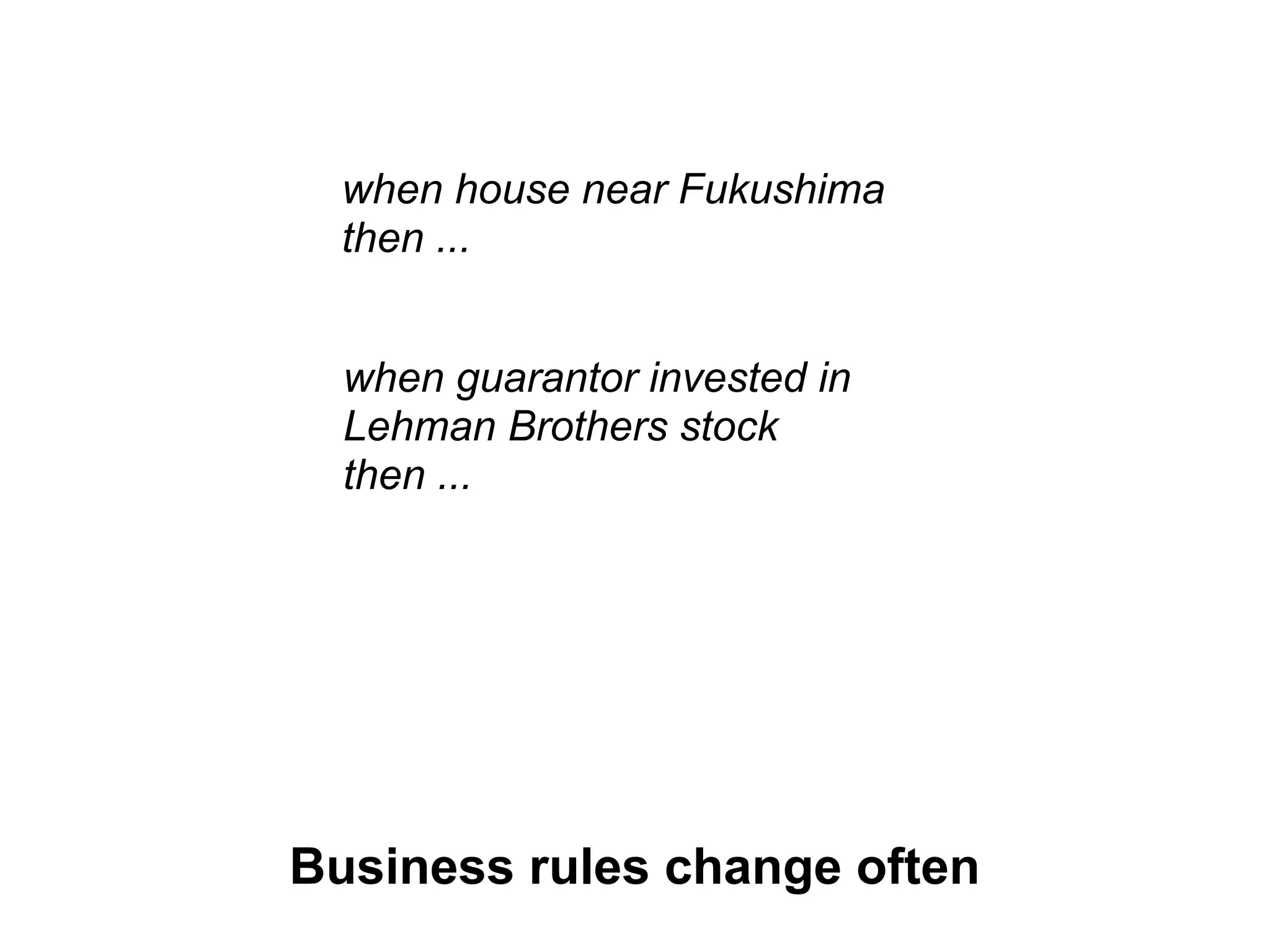

Business rules change often

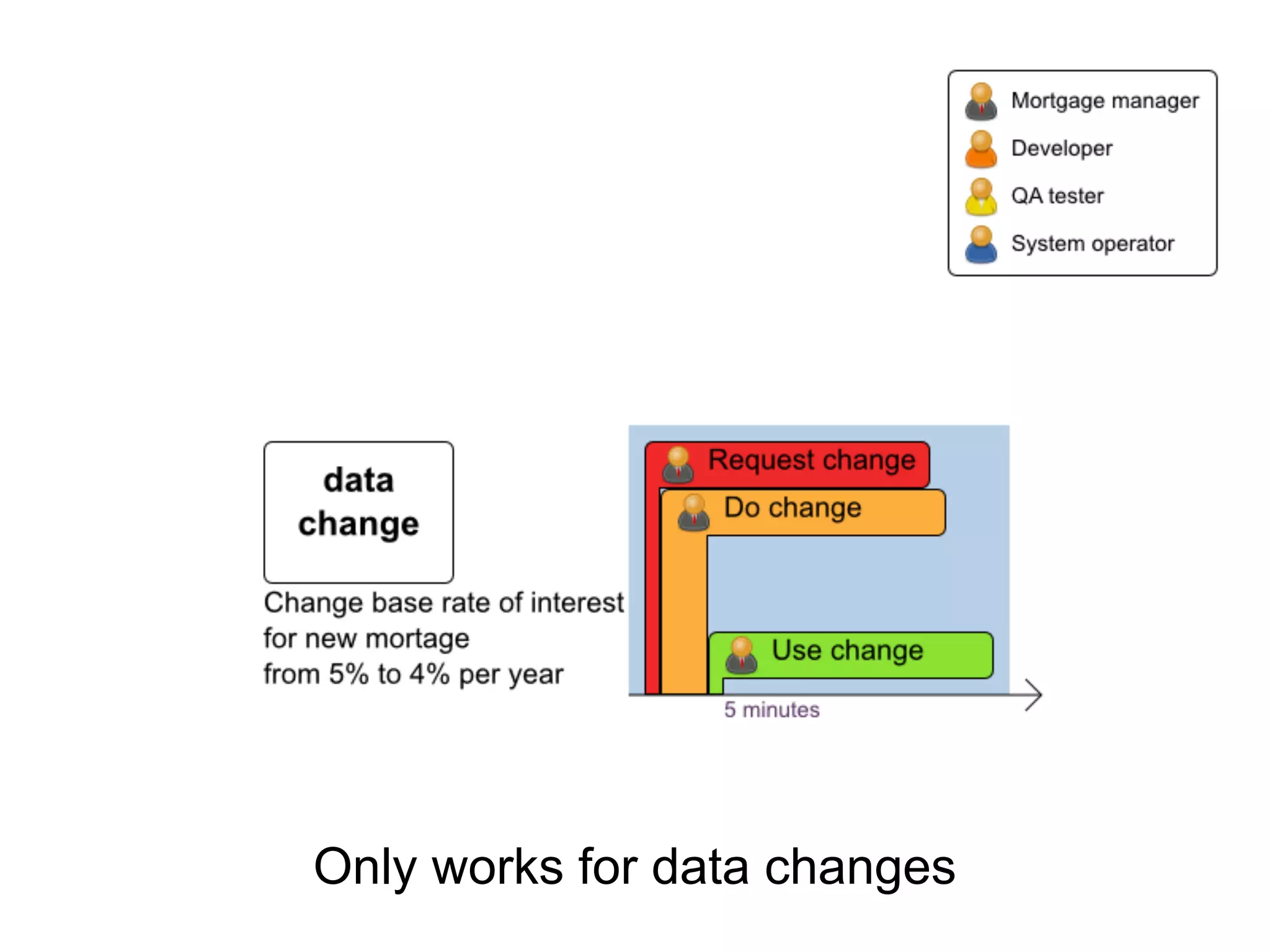

10. Only works for data changes

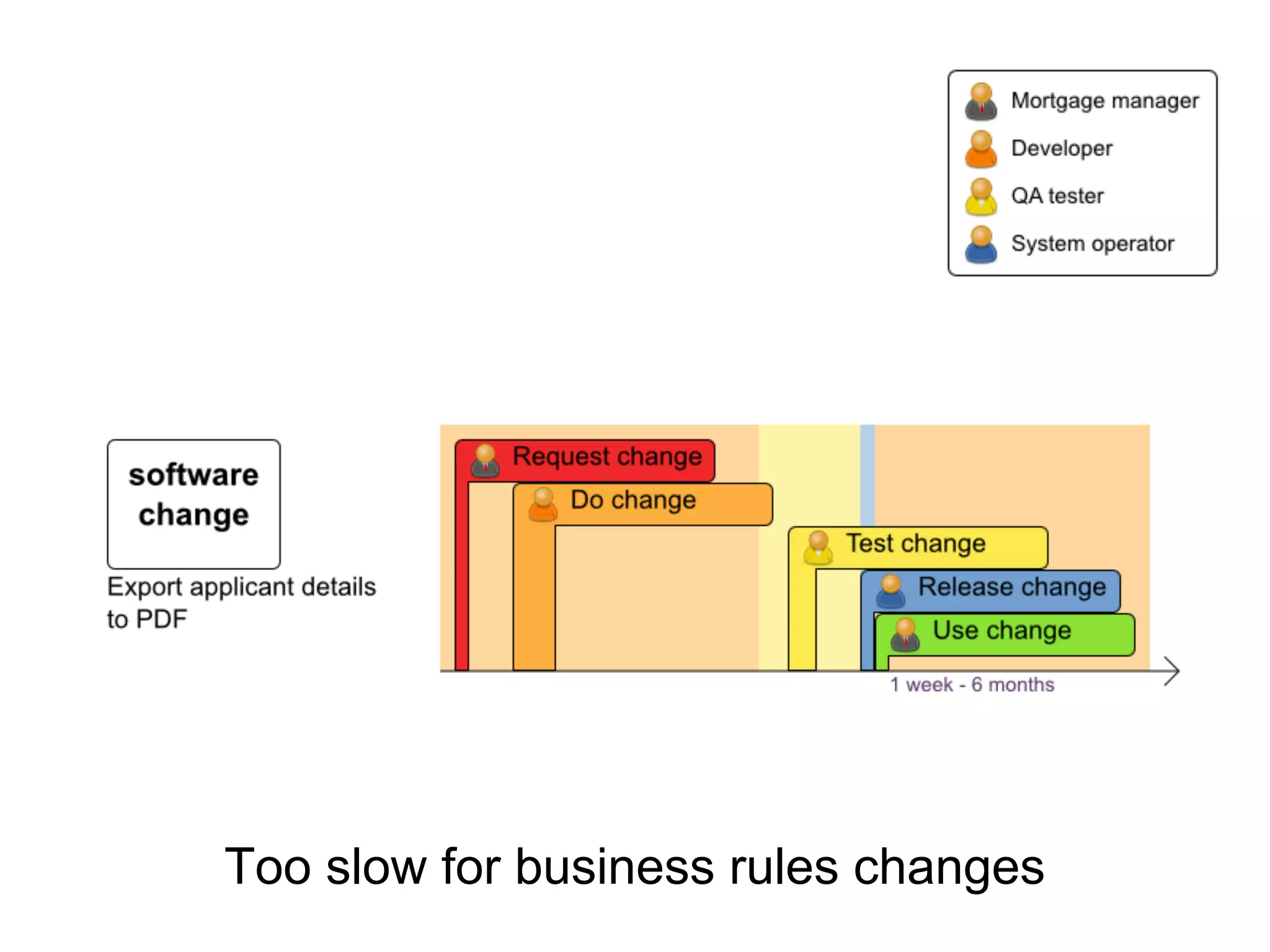

11. Too slow for business rules changes

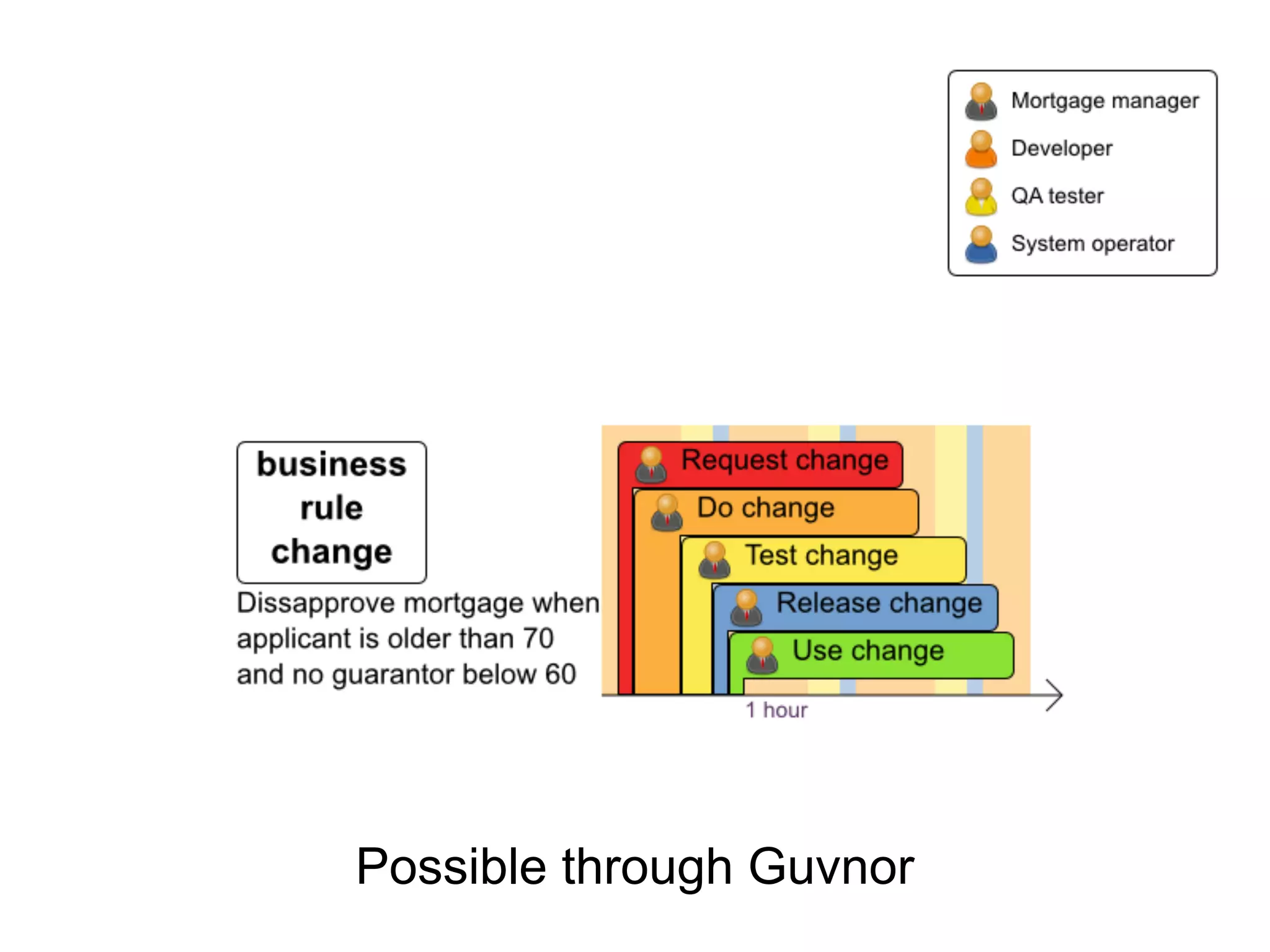

12. Possible through Guvnor

13. How do I define my data
model?

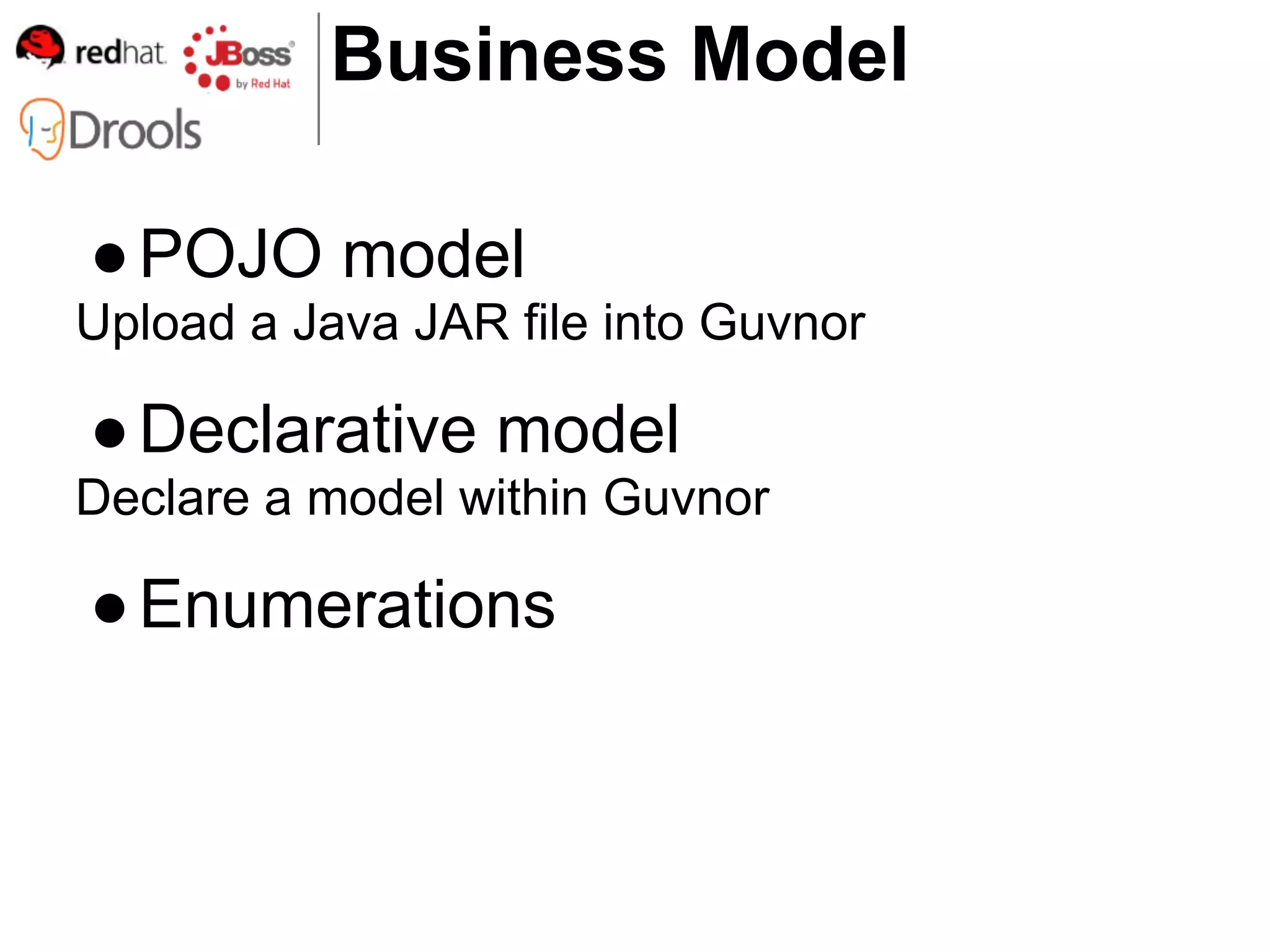

14. Business Model
● POJO model
Upload a Java JAR file into Guvnor
● Declarative model
Declare a model within Guvnor
● Enumerations

15. Business Model
POJO Model

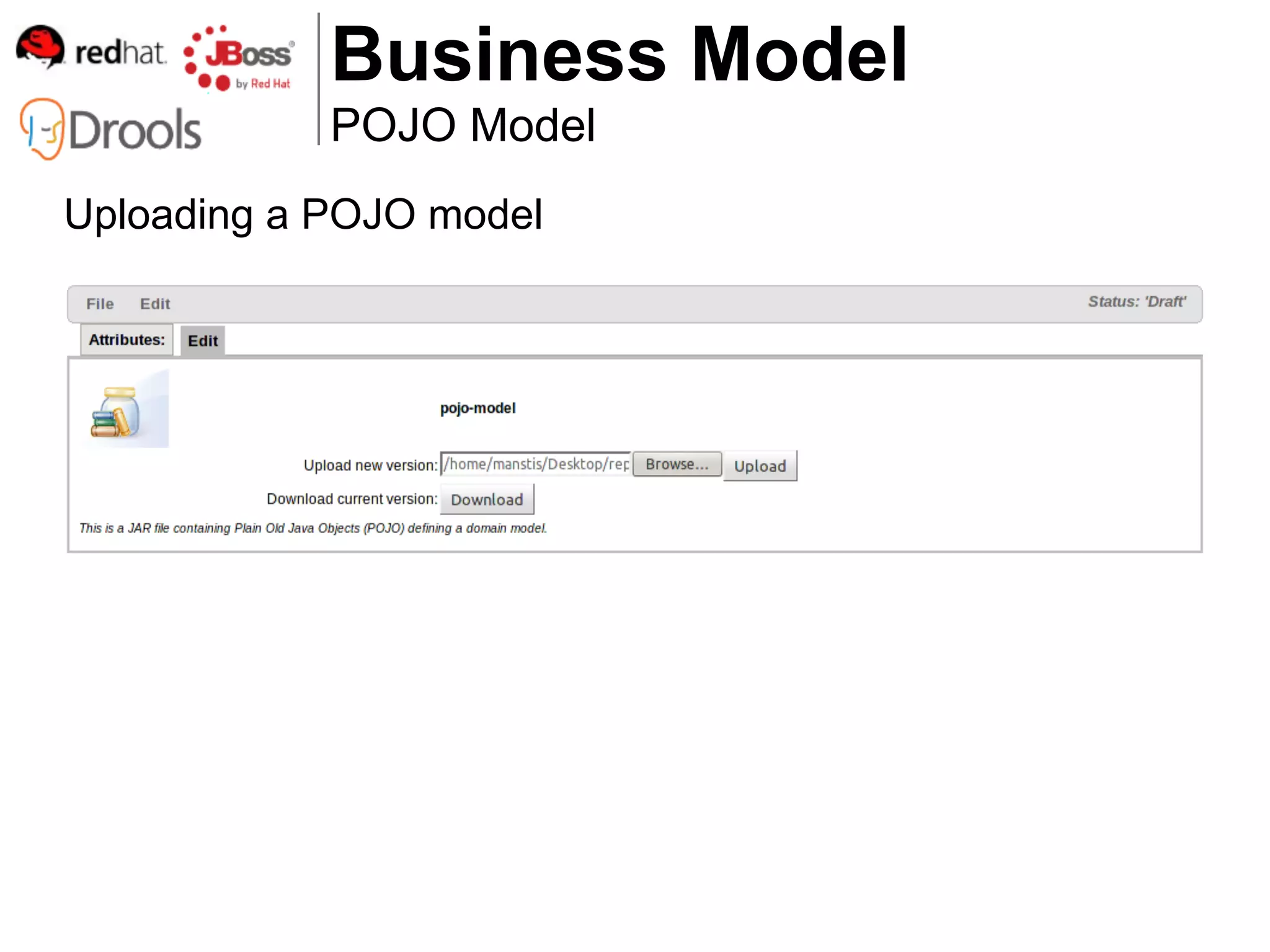

Uploading a POJO model

16. Business Model
Declarative model

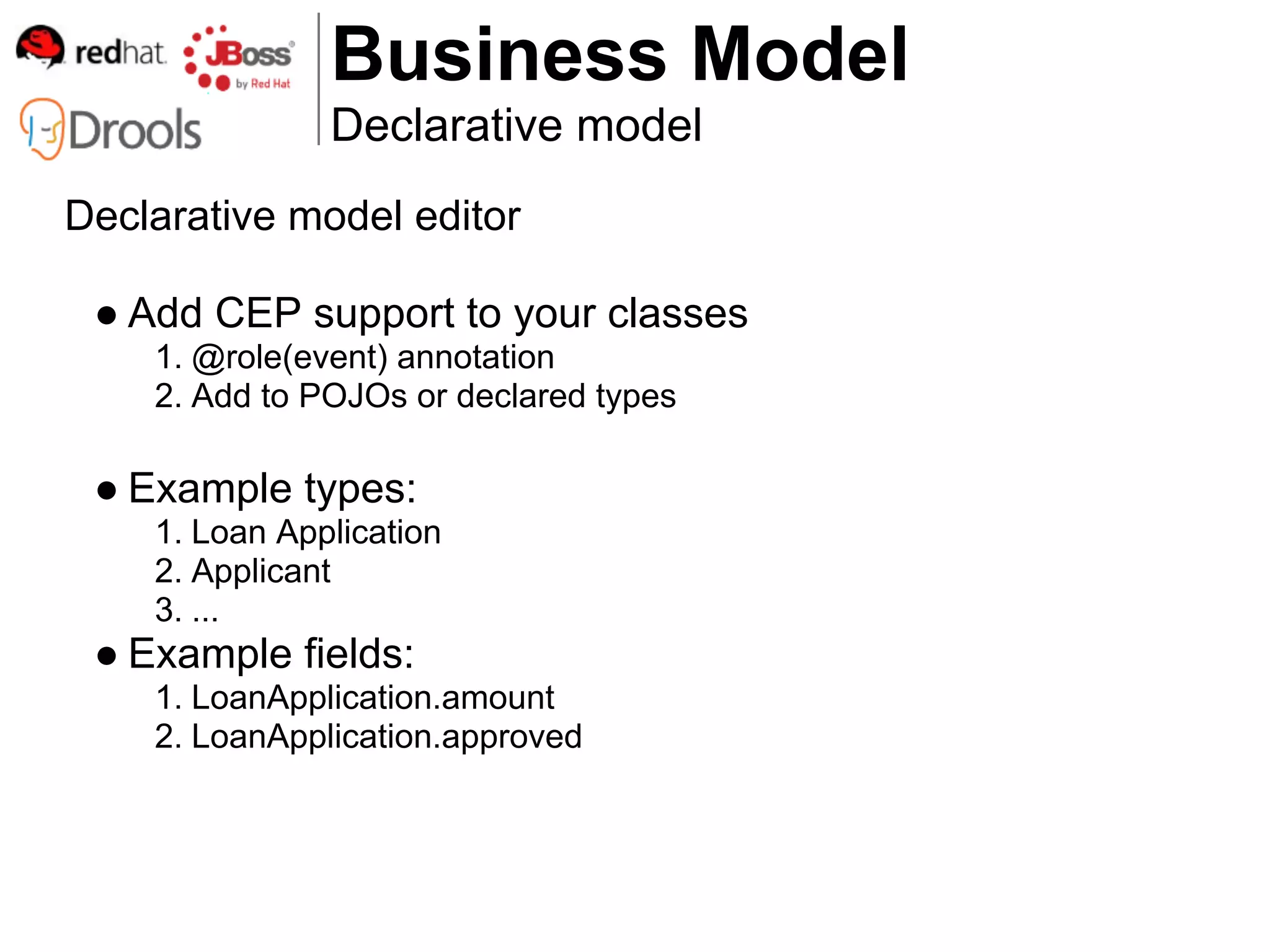

Declarative model editor
● Add CEP support to your classes
1. @role(event) annotation
2. Add to POJOs or declared types
● Example types:
1. Loan Application
2. Applicant
3. ...
● Example fields:
1. LoanApplication.amount
2. LoanApplication.approved

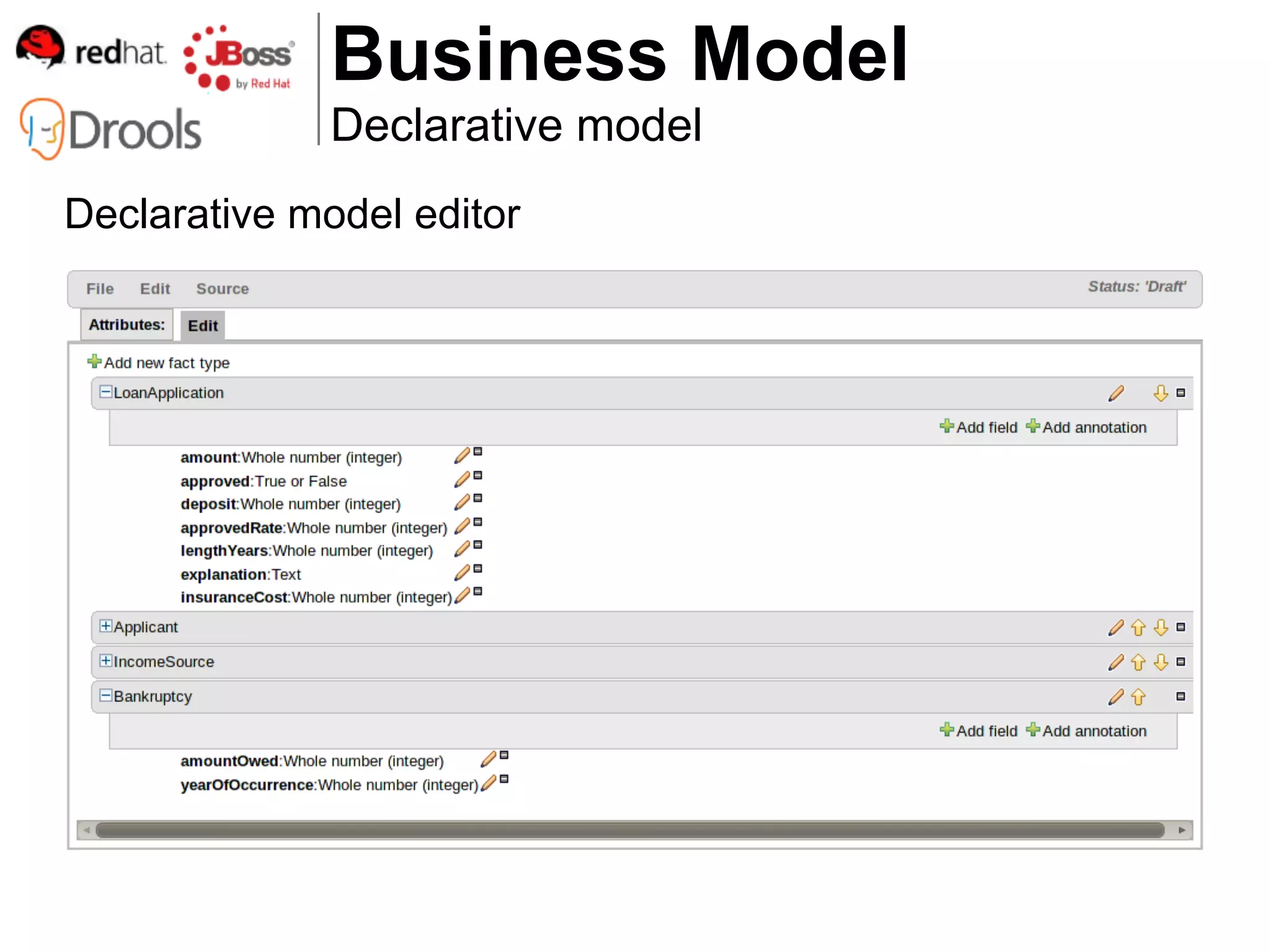

17. Business Model
Declarative model
Declarative model editor

18. Business Model
Declarative model

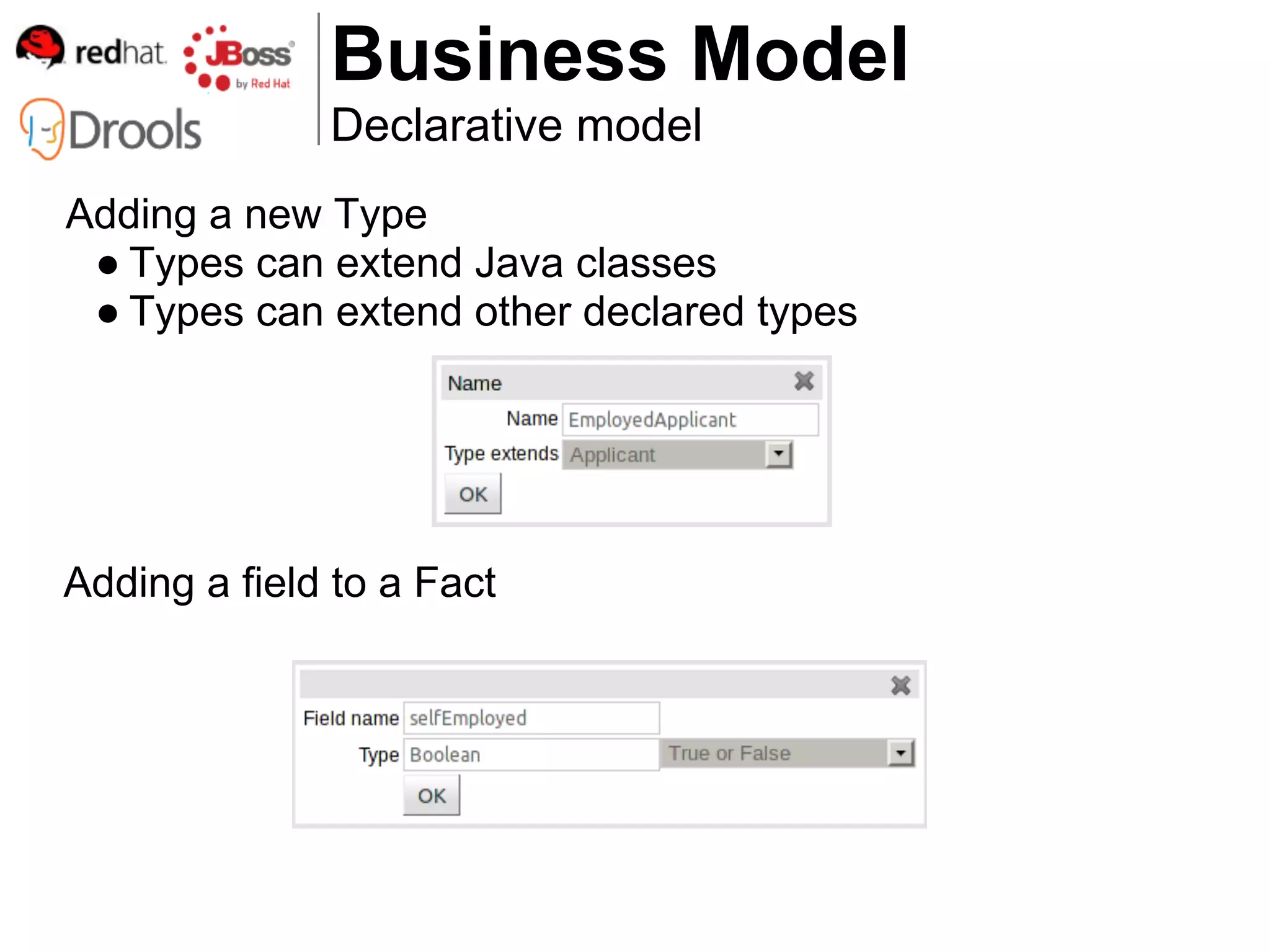

Adding a new Type
● Types can extend Java classes
● Types can extend other declared types
Adding a field to a Fact

19. Business Model

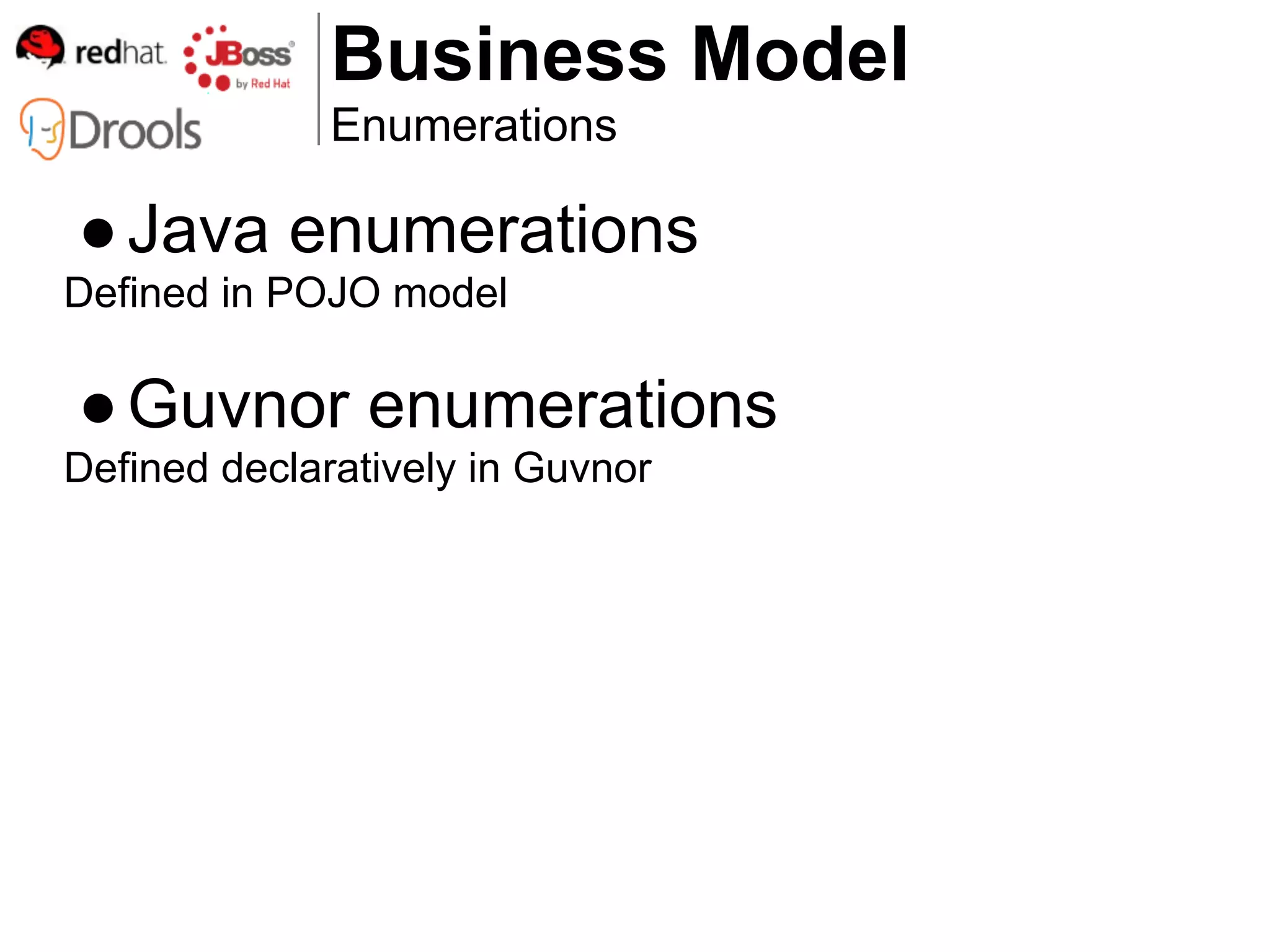

Enumerations
● Java enumerations
Defined in POJO model
● Guvnor enumerations
Defined declaratively in Guvnor

20. Business Model
Enumerations

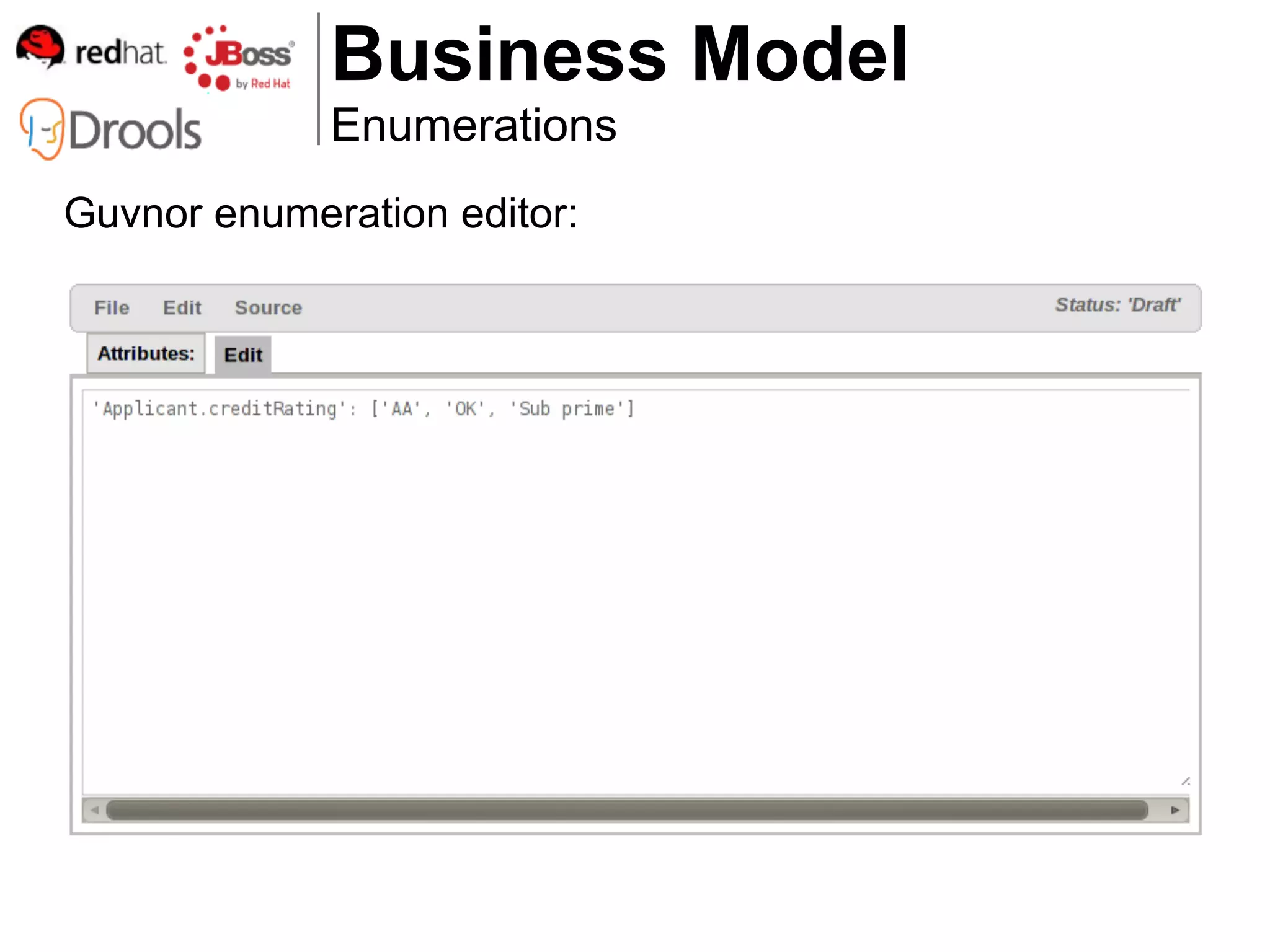

Guvnor enumeration editor:

21. Business Model
Enumerations
Guvnor enumerations:
● Restrict any domain field
● Dependent enumerations
● Pull content from external source

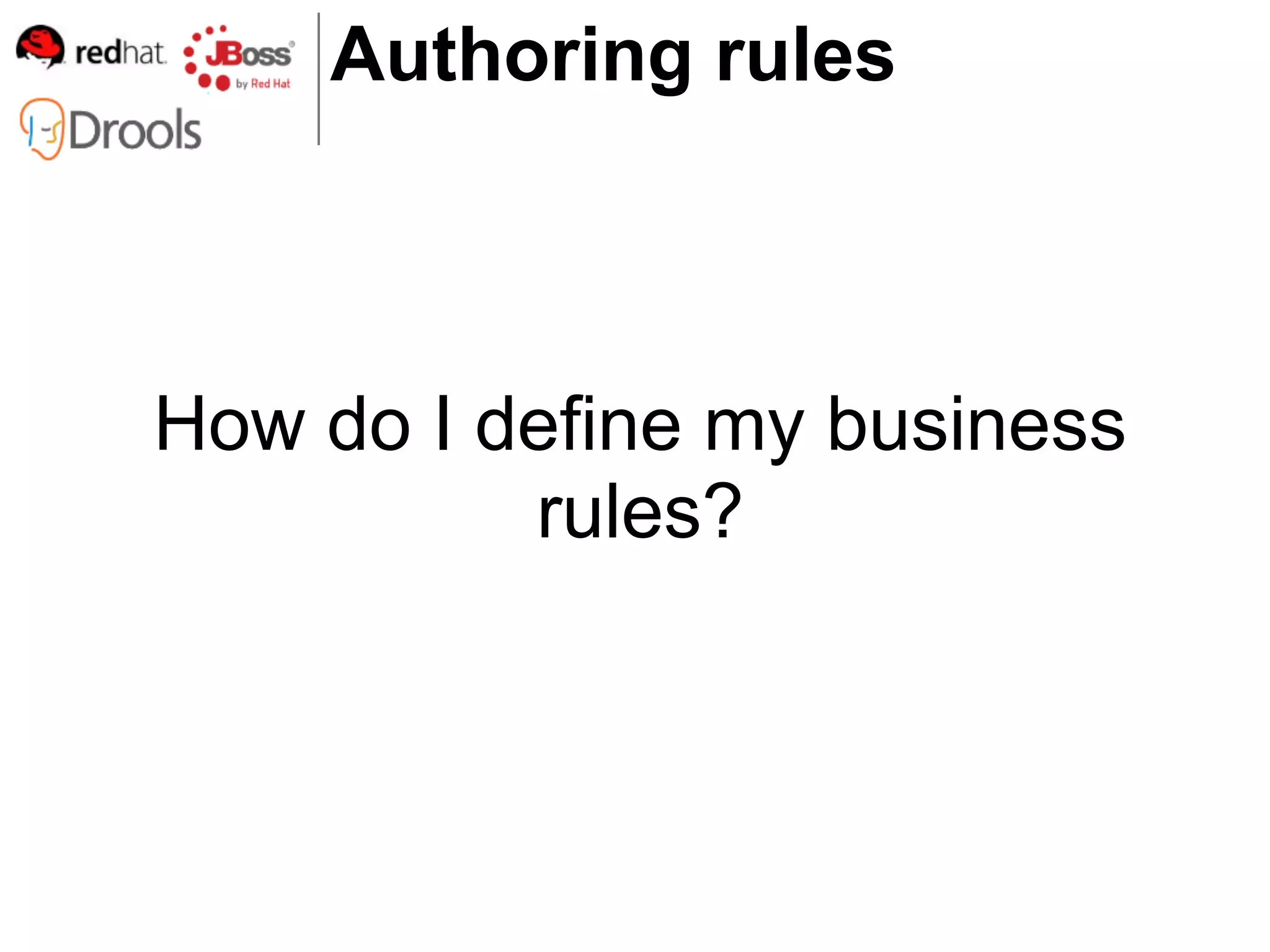

22. Authoring rules
How do I define my business
rules?

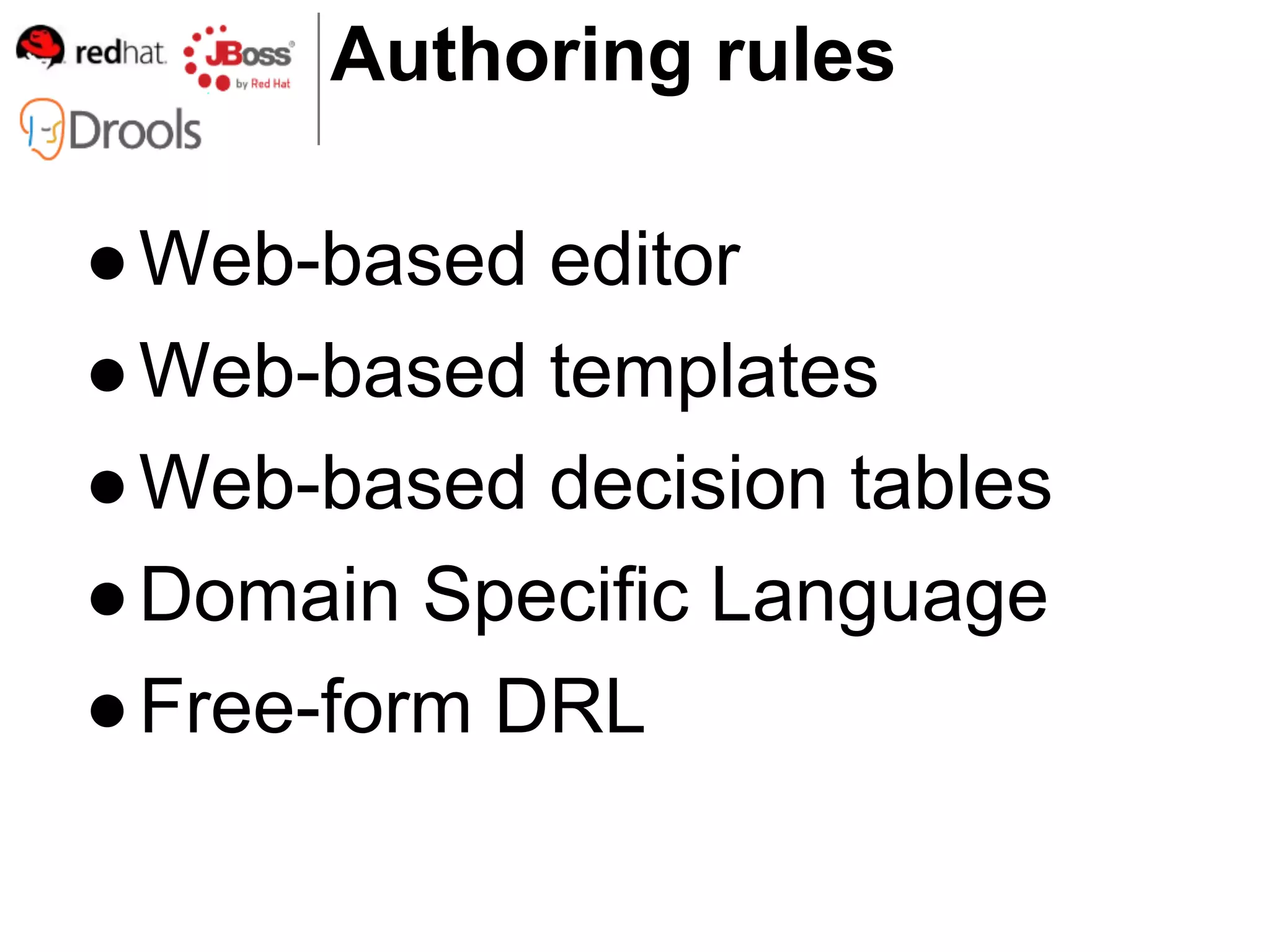

23. Authoring rules
● Web-based editor
● Web-based templates
● Web-based decision tables
● Domain Specific Language
● Free-form DRL

24. Authoring rules
Web-based editor

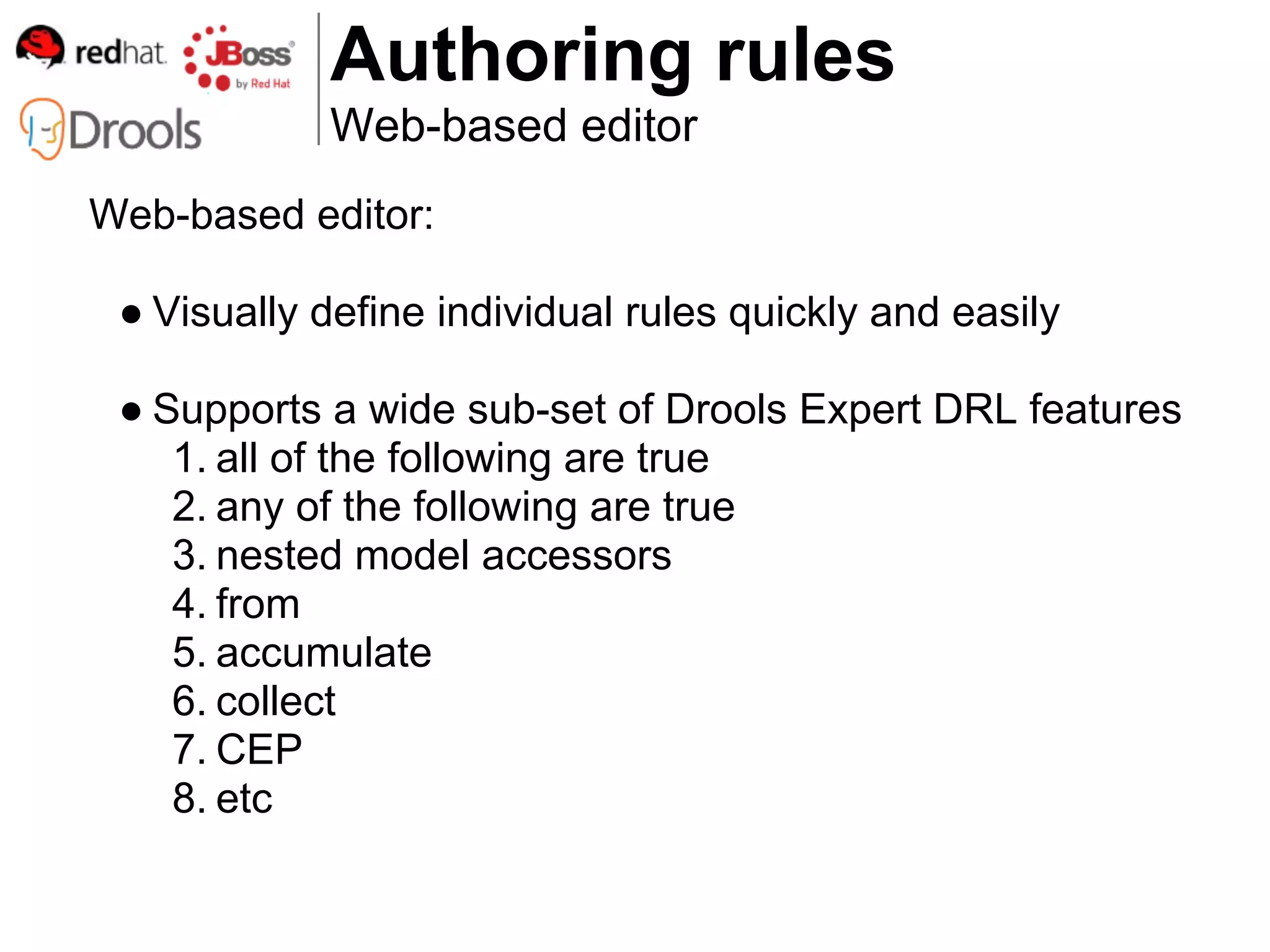

Web-based editor:
● Visually define individual rules quickly and easily
● Supports a wide sub-set of Drools Expert DRL features
1. all of the following are true
2. any of the following are true
3. nested model accessors
4. from
5. accumulate
6. collect
7. CEP
8. etc

25. Authoring rules

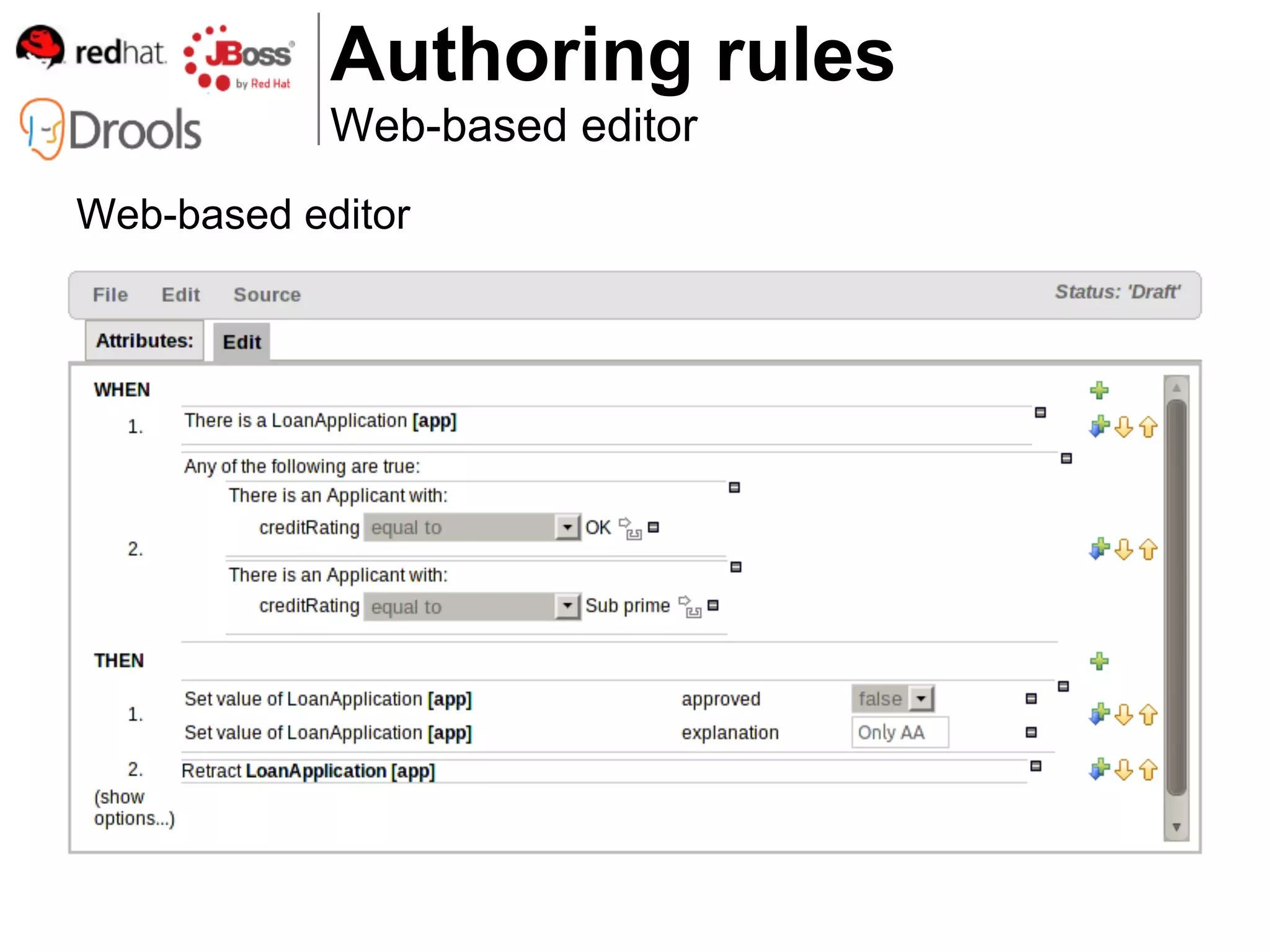

Web-based editor
Web-based editor

26. Authoring rules

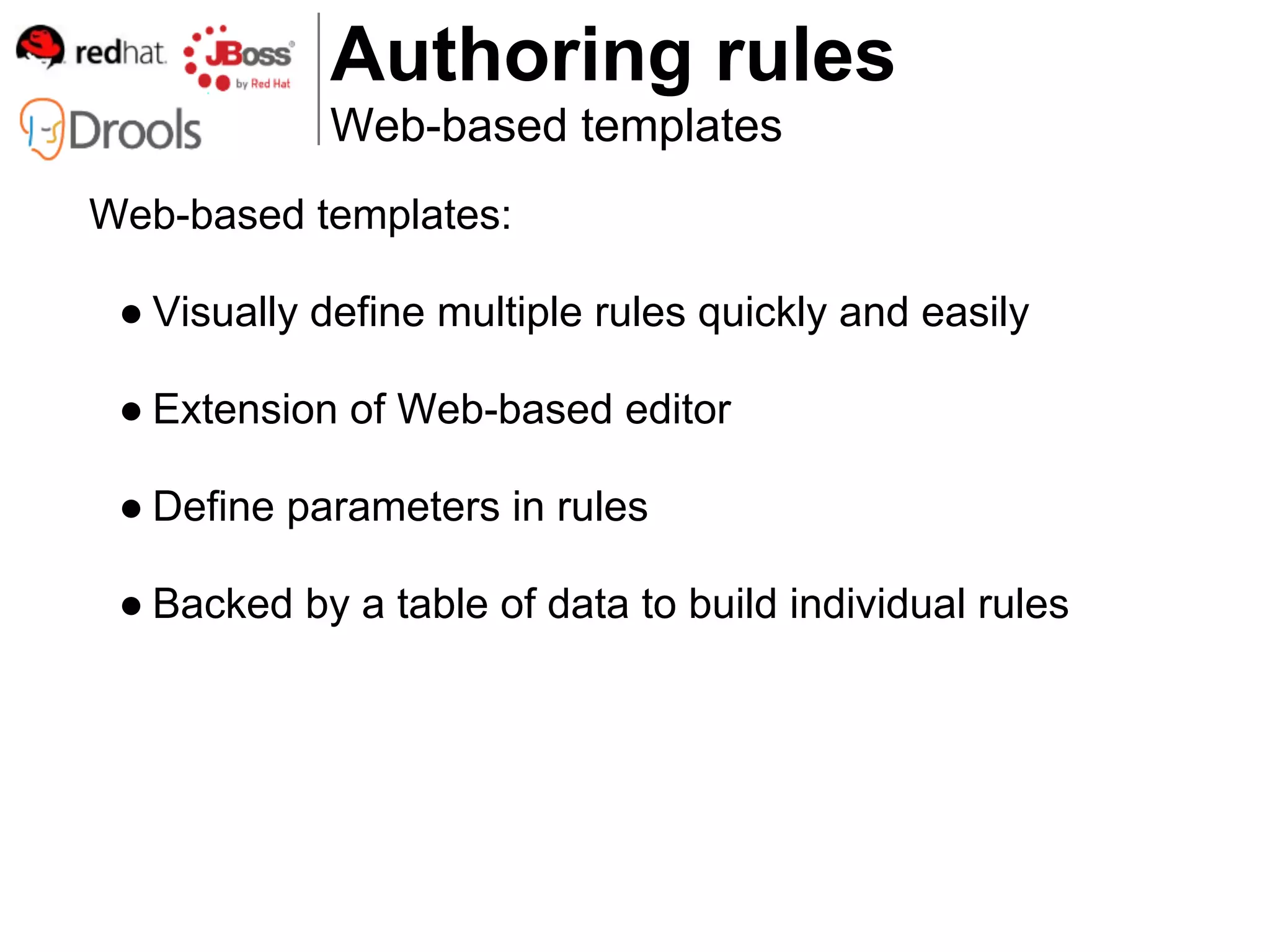

Web-based templates
Web-based templates:
● Visually define multiple rules quickly and easily
● Extension of Web-based editor
● Define parameters in rules
● Backed by a table of data to build individual rules

27. Authoring rules
Web-based templates
Web-based templates (editor)

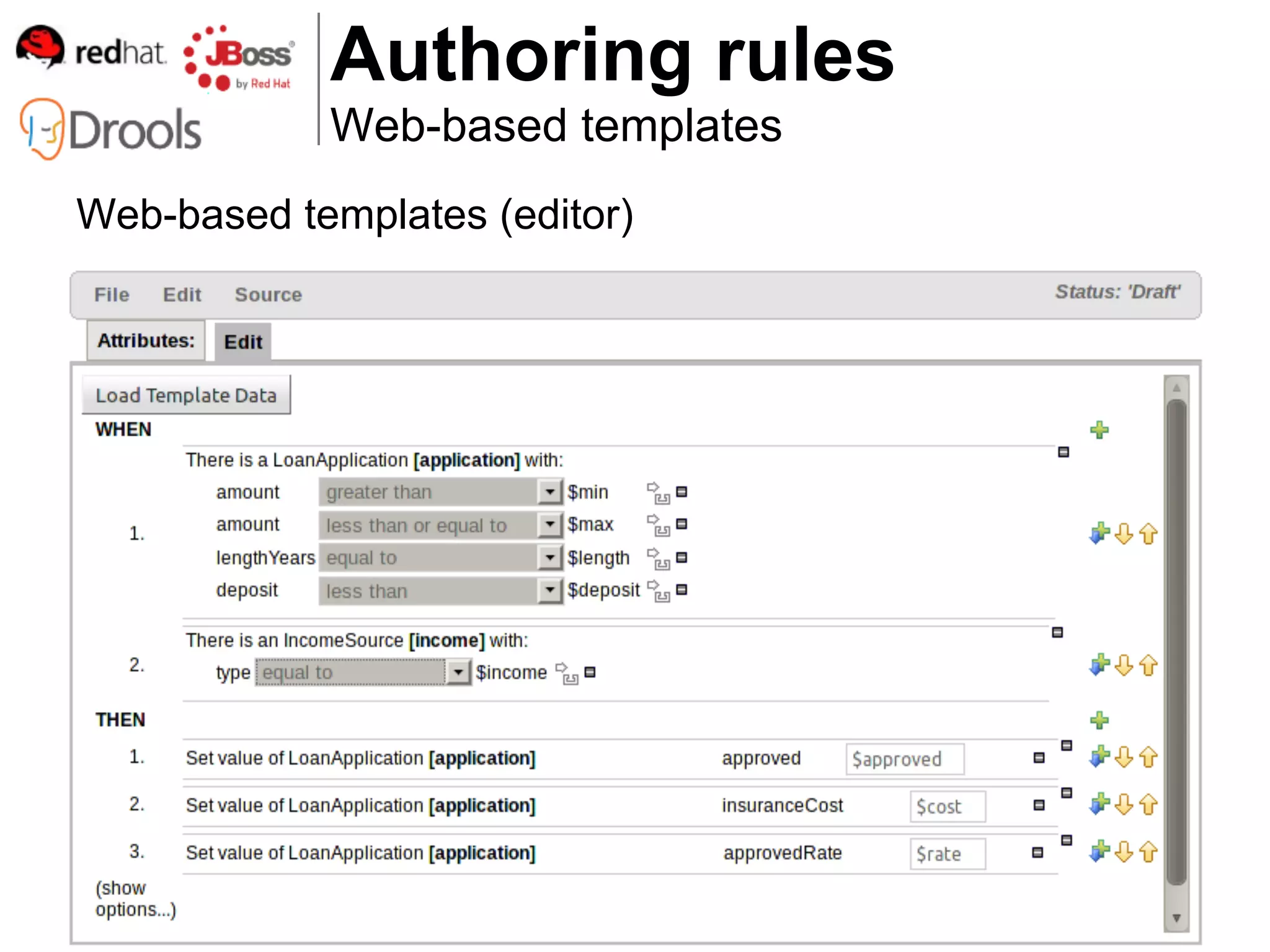

28. Authoring rules
Web-based templates

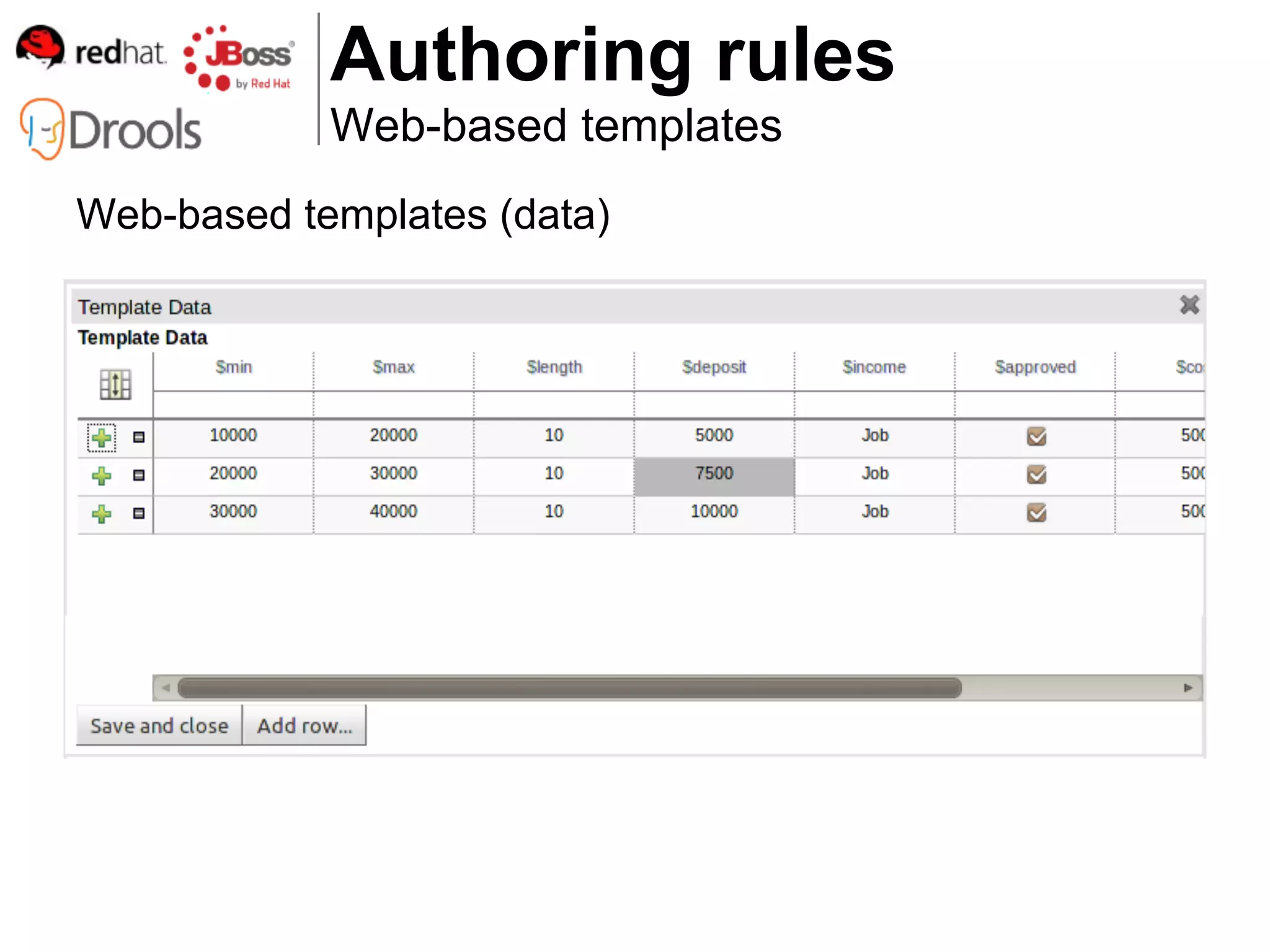

Web-based templates (data)

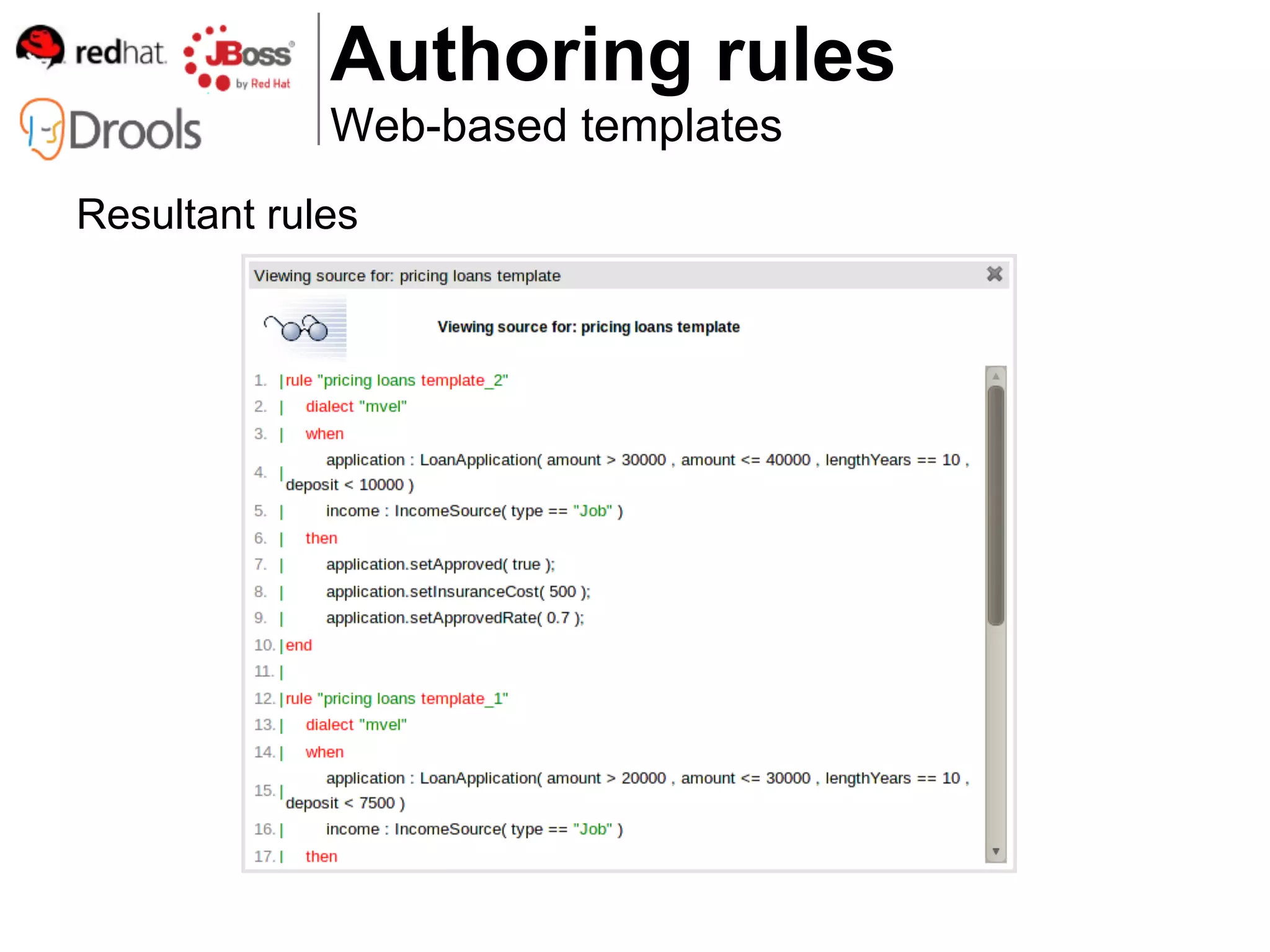

29. Authoring rules
Web-based templates
Resultant rules

30. Authoring rules
Web-based decision tables

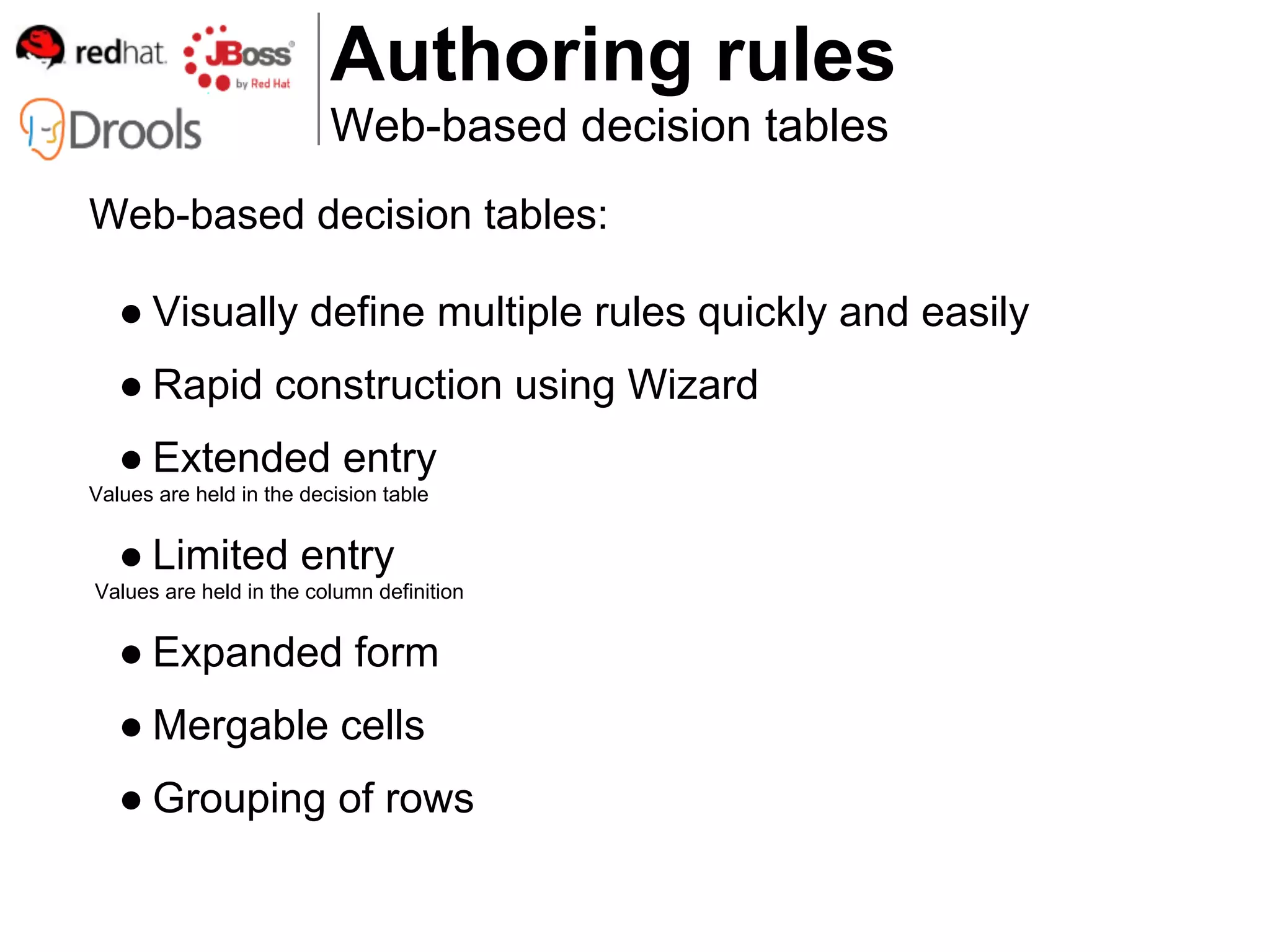

Web-based decision tables:
● Visually define multiple rules quickly and easily
● Rapid construction using Wizard
● Extended entry
Values are held in the decision table
● Limited entry
Values are held in the column definition
● Expanded form
● Mergable cells
● Grouping of rows

31. Authoring rules
Web-based decision tables

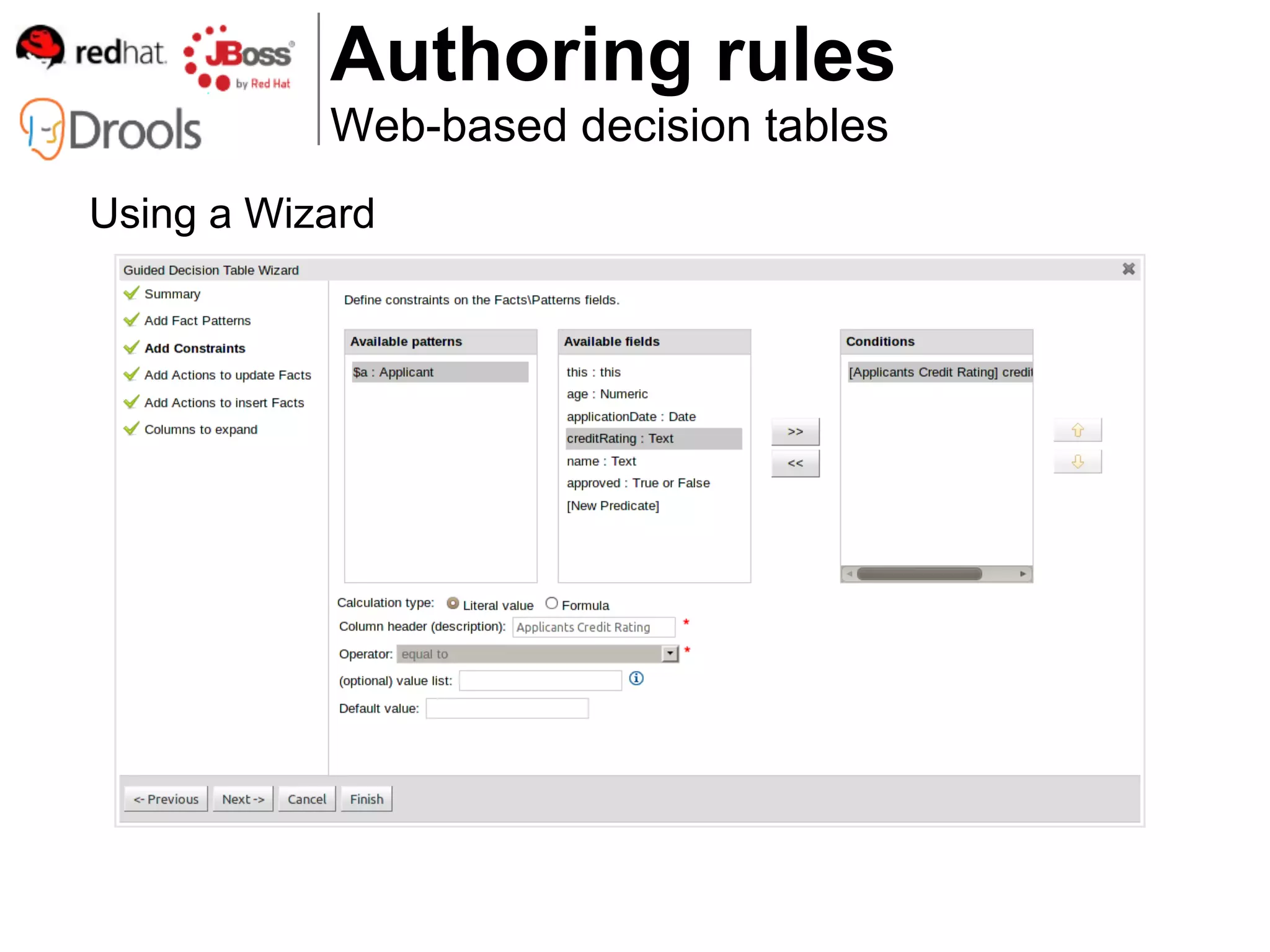

Using a Wizard

32. Authoring rules
Web-based decision tables

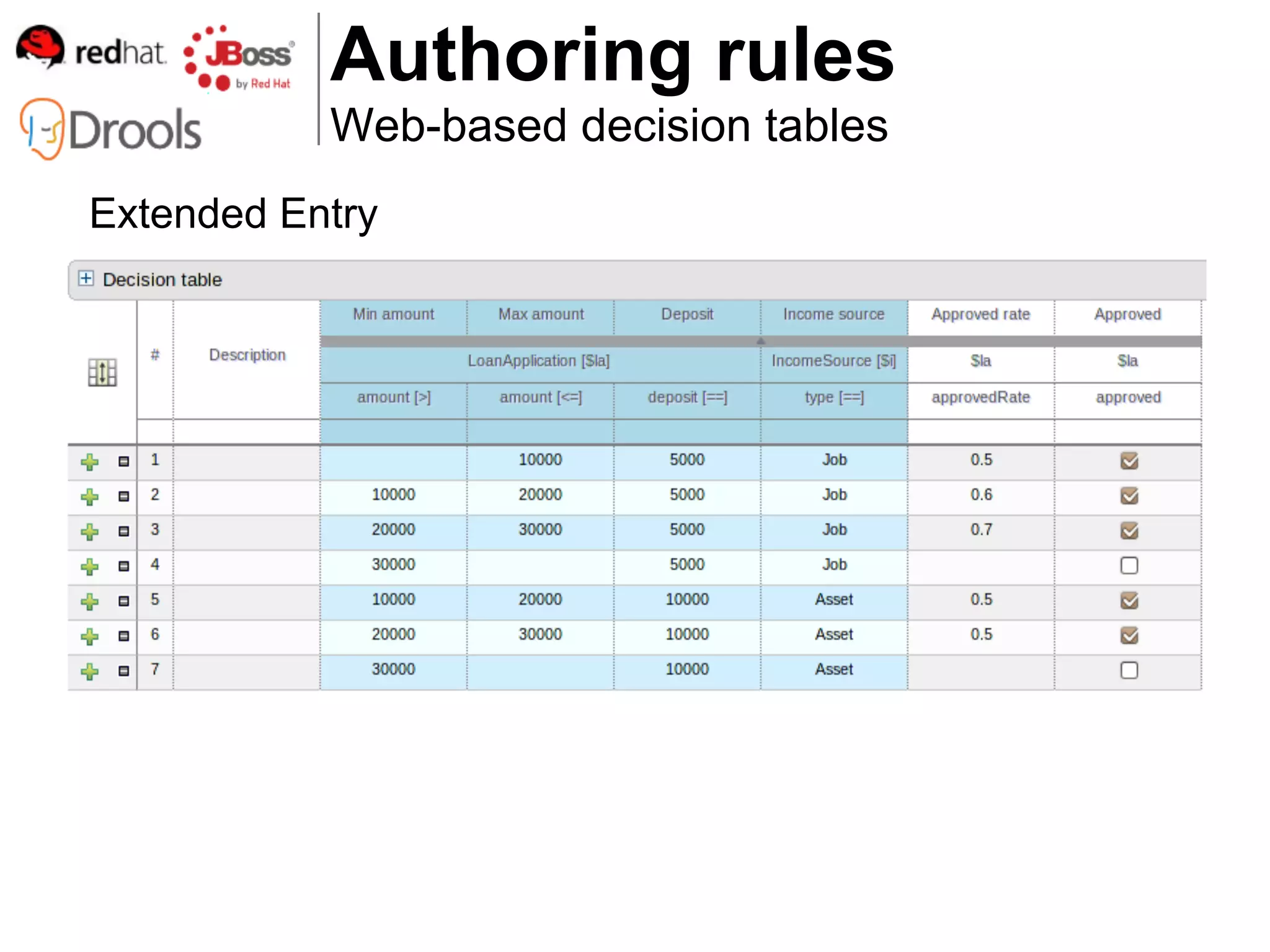

Extended Entry

33. Authoring rules

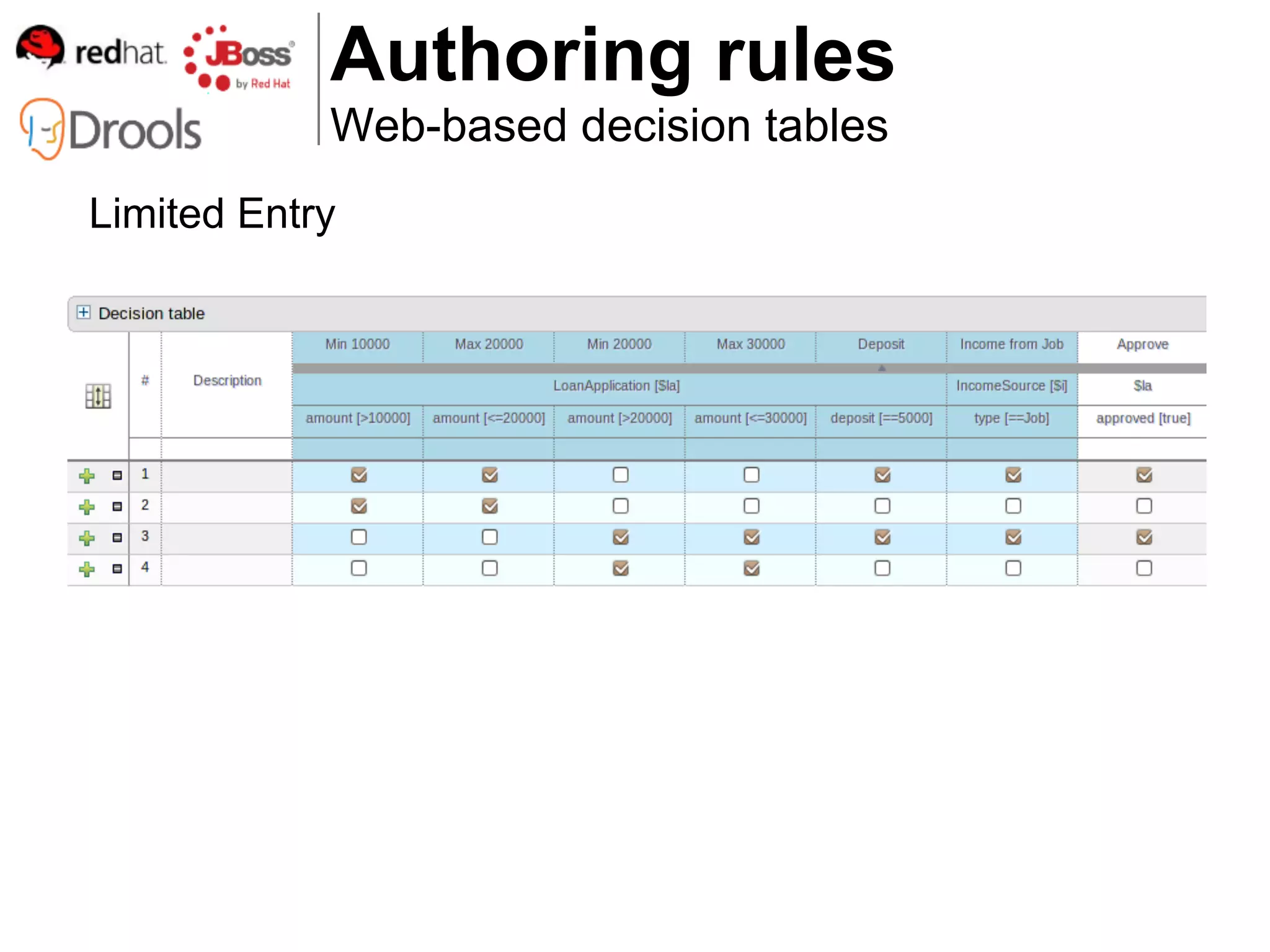

Web-based decision tables
Limited Entry

34. Authoring rules
Web-based decision tables

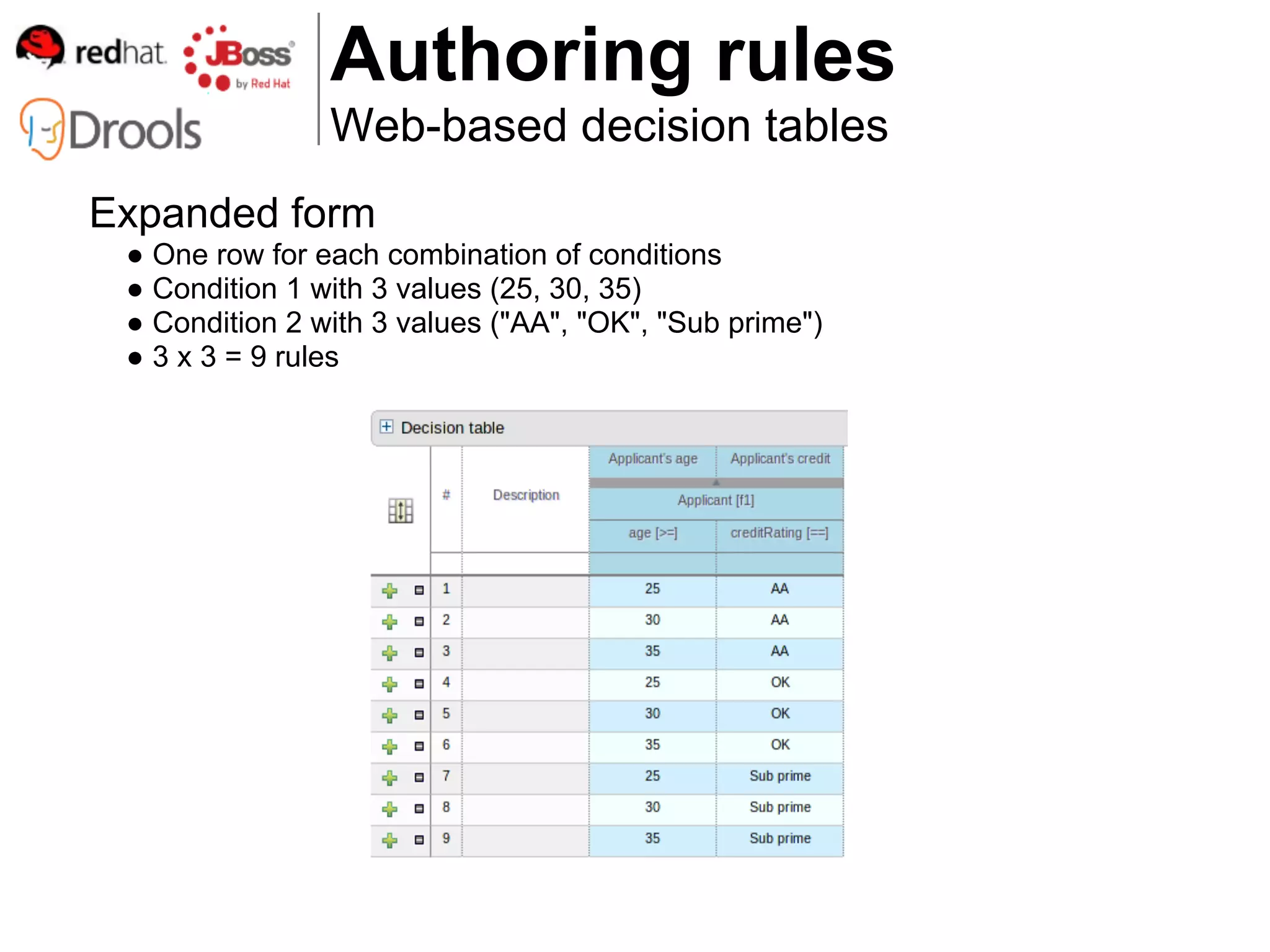

Expanded form
● One row for each combination of conditions
● Condition 1 with 3 values (25, 30, 35)
● Condition 2 with 3 values ("AA", "OK", "Sub prime")
● 3 x 3 = 9 rules

35. Authoring rules
Web-based decision tables
Merging cells
Grouping cells

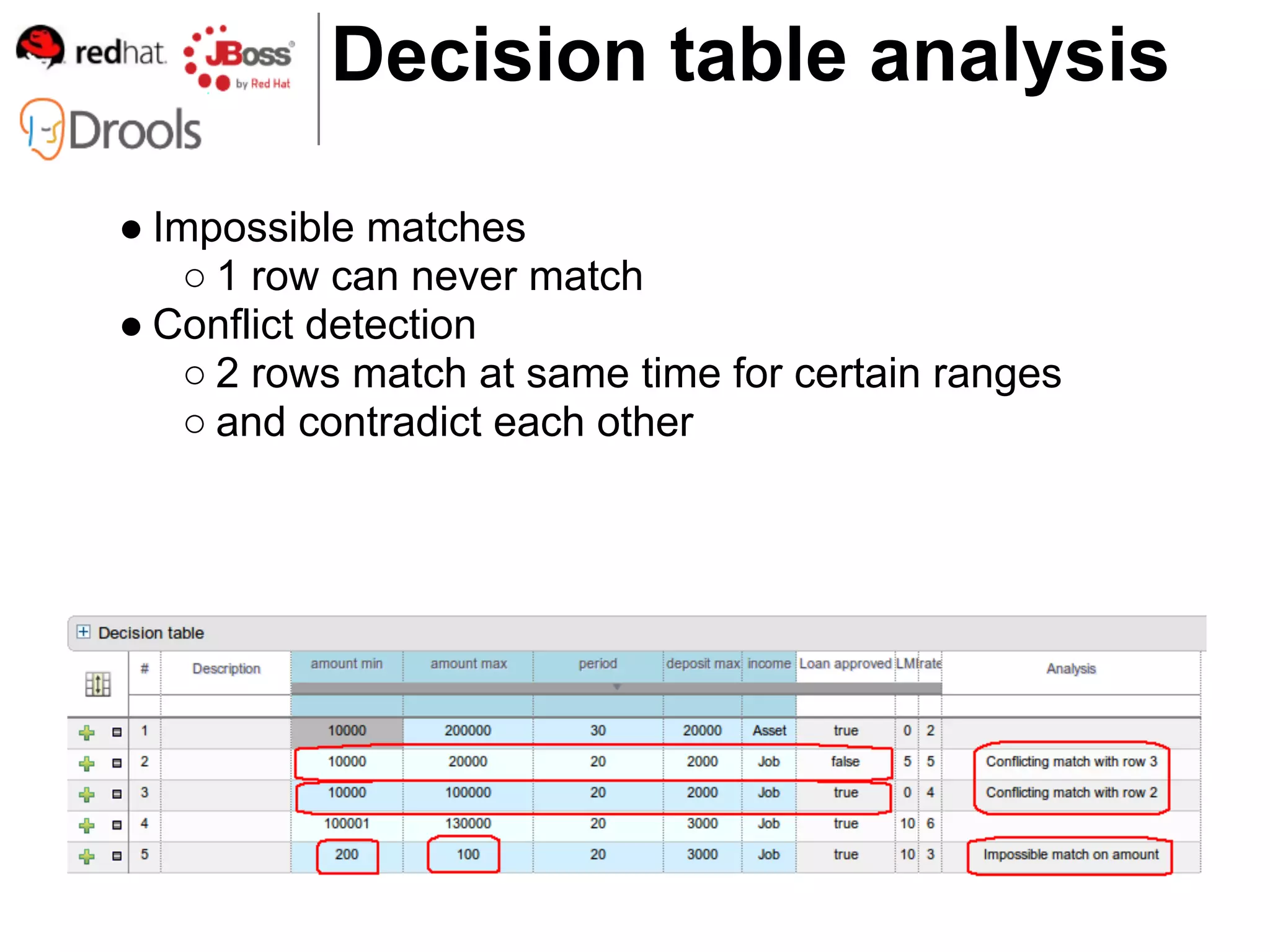

36. Decision table analysis
● Impossible matches
○ 1 row can never match
● Conflict detection
○ 2 rows match at same time for certain ranges
○ and contradict each other

37. Authoring rules
Web-based decision tables
Resultant rules

38. Authoring rules
Domain Specific Language

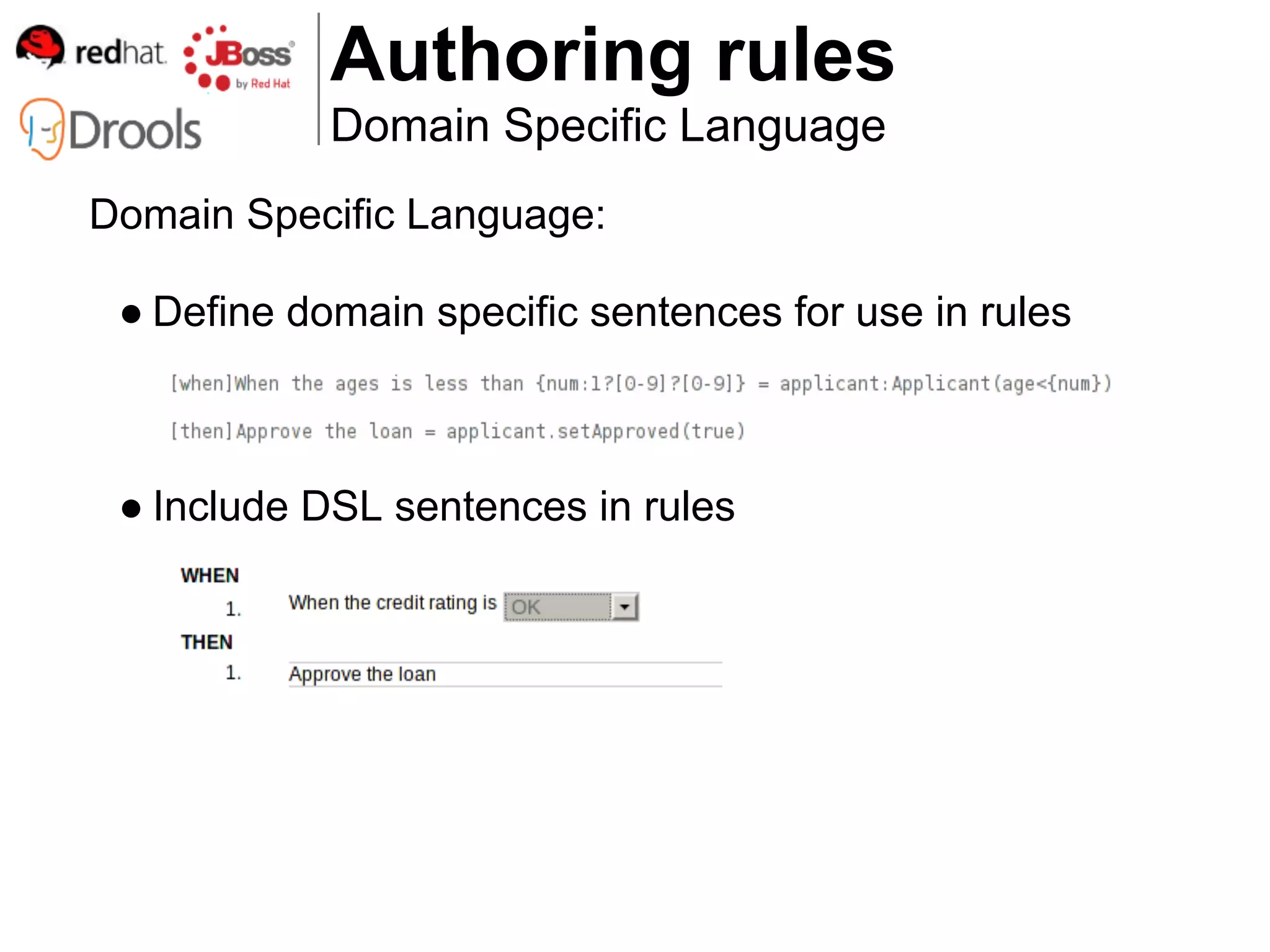

Domain Specific Language:
● Define domain specific sentences for use in rules
● Include DSL sentences in rules

39. Authoring rules

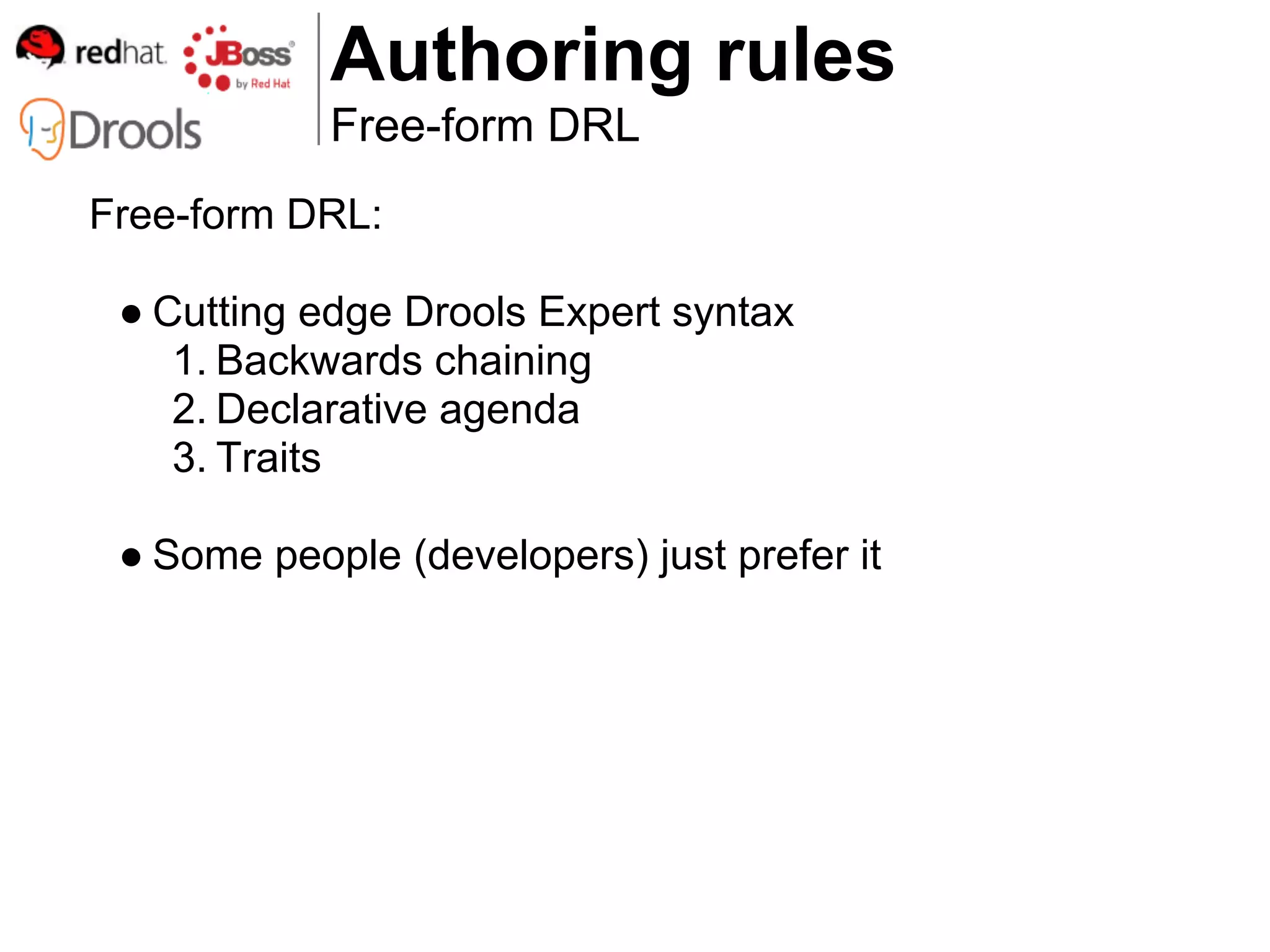

Free-form DRL
Free-form DRL:
● Cutting edge Drools Expert syntax
1. Backwards chaining
2. Declarative agenda
3. Traits
● Some people (developers) just prefer it

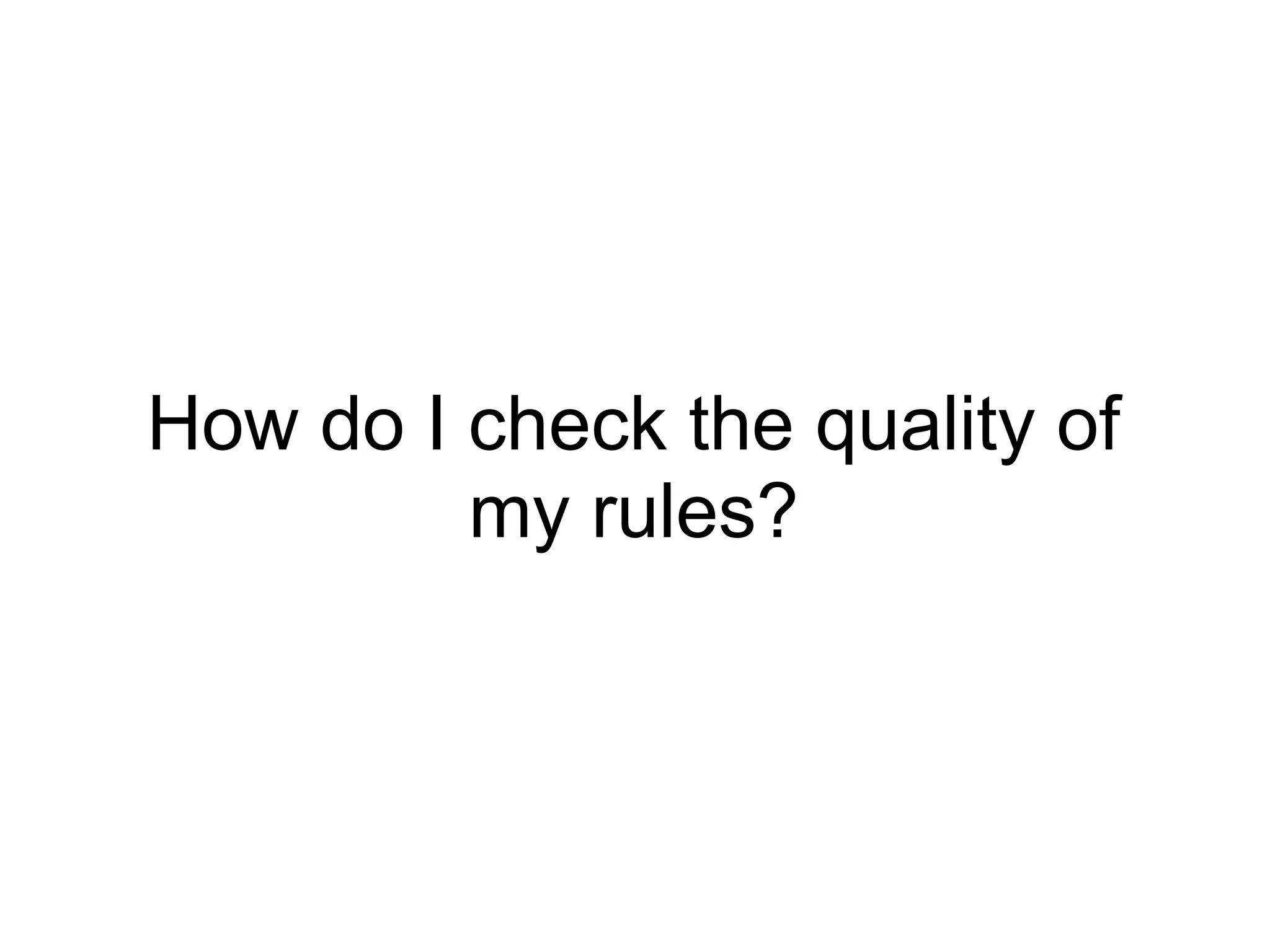

40. How do I check the quality of
my rules?

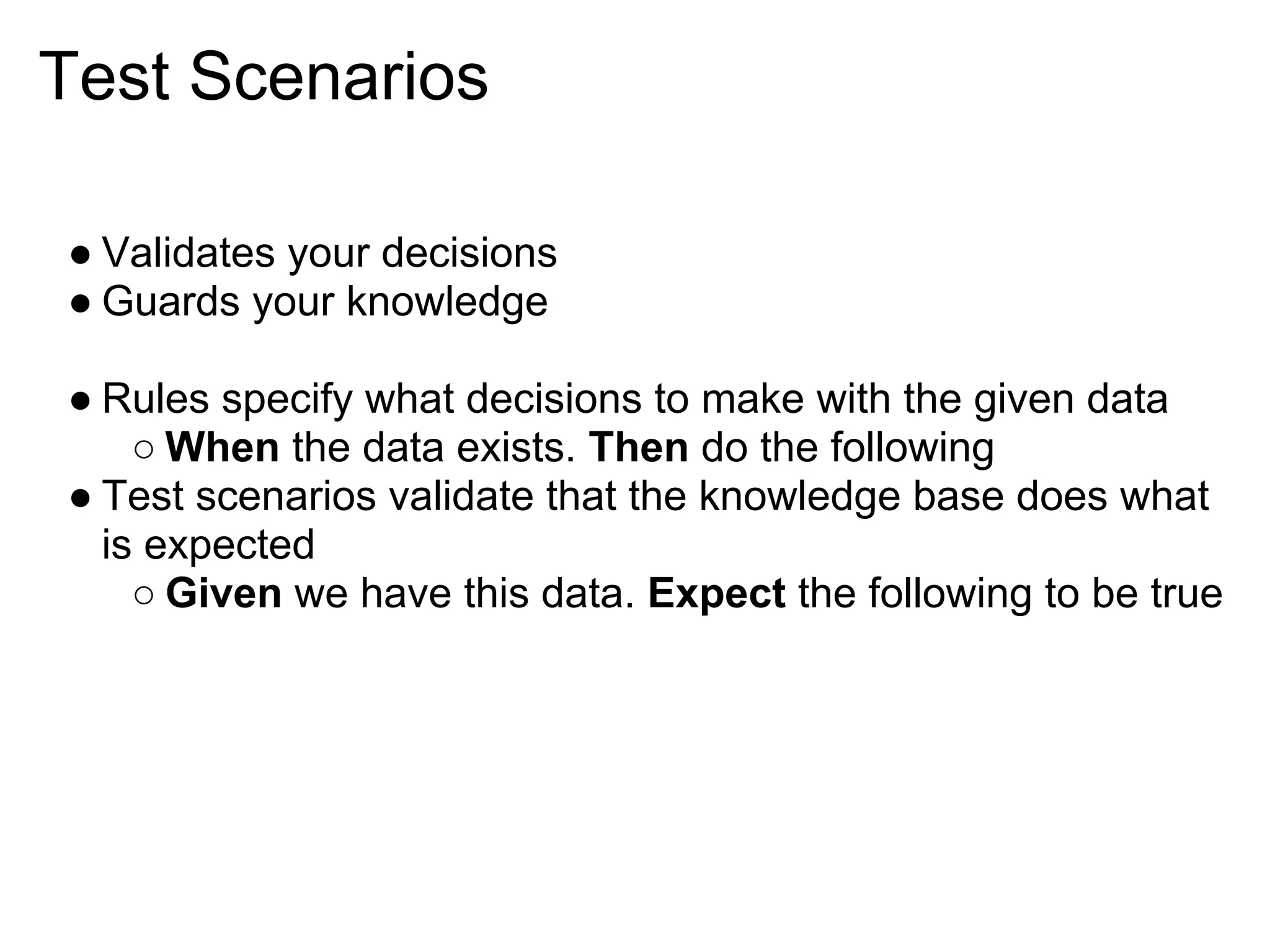

41. Test Scenarios
● Validates your decisions
● Guards your knowledge
● Rules specify what decisions to make with the given data
○ When the data exists. Then do the following
● Test scenarios validate that the knowledge base does what
is expected
○ Given we have this data. Expect the following to be true

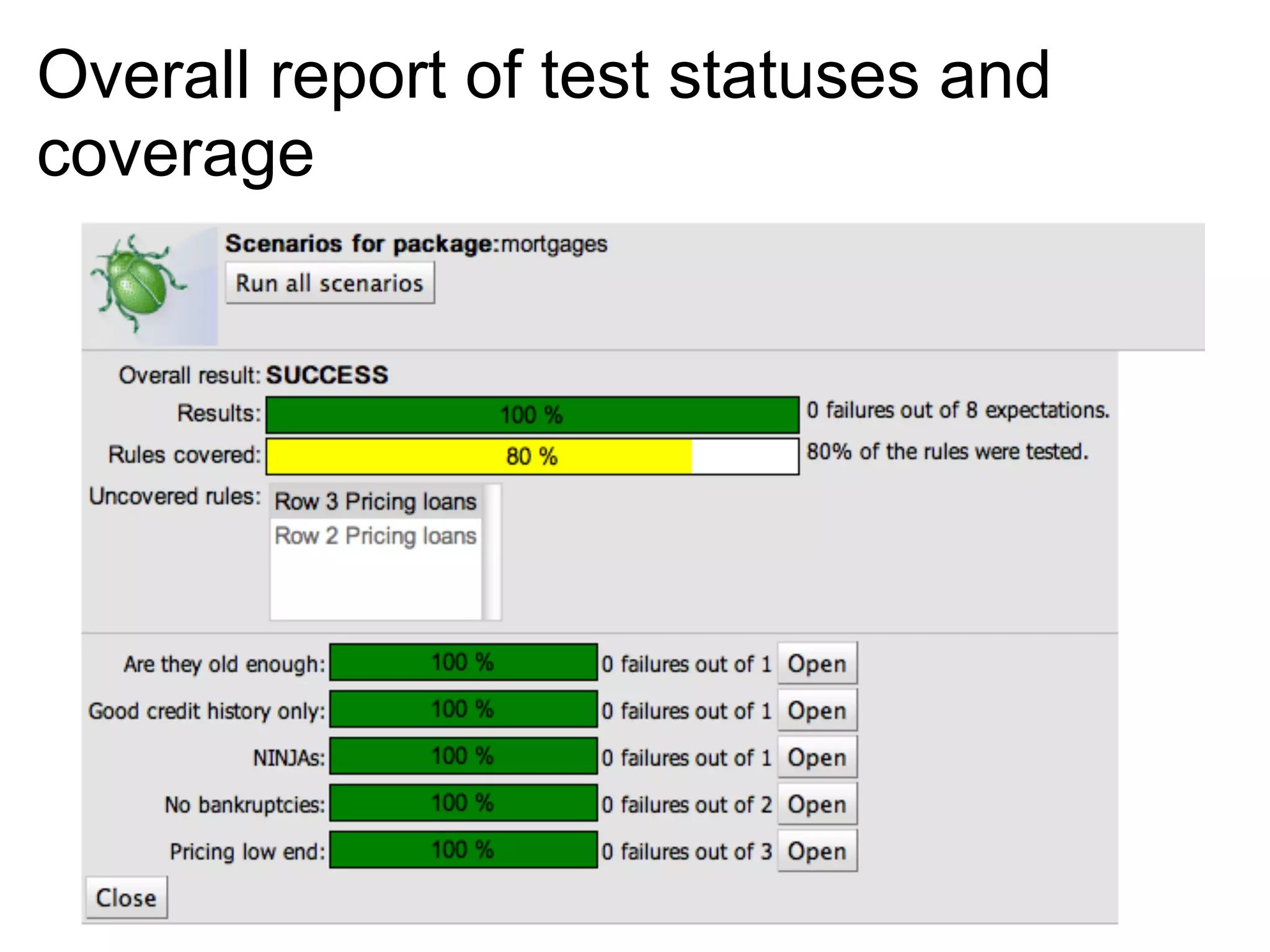

42. Overall report of test statuses and
coverage

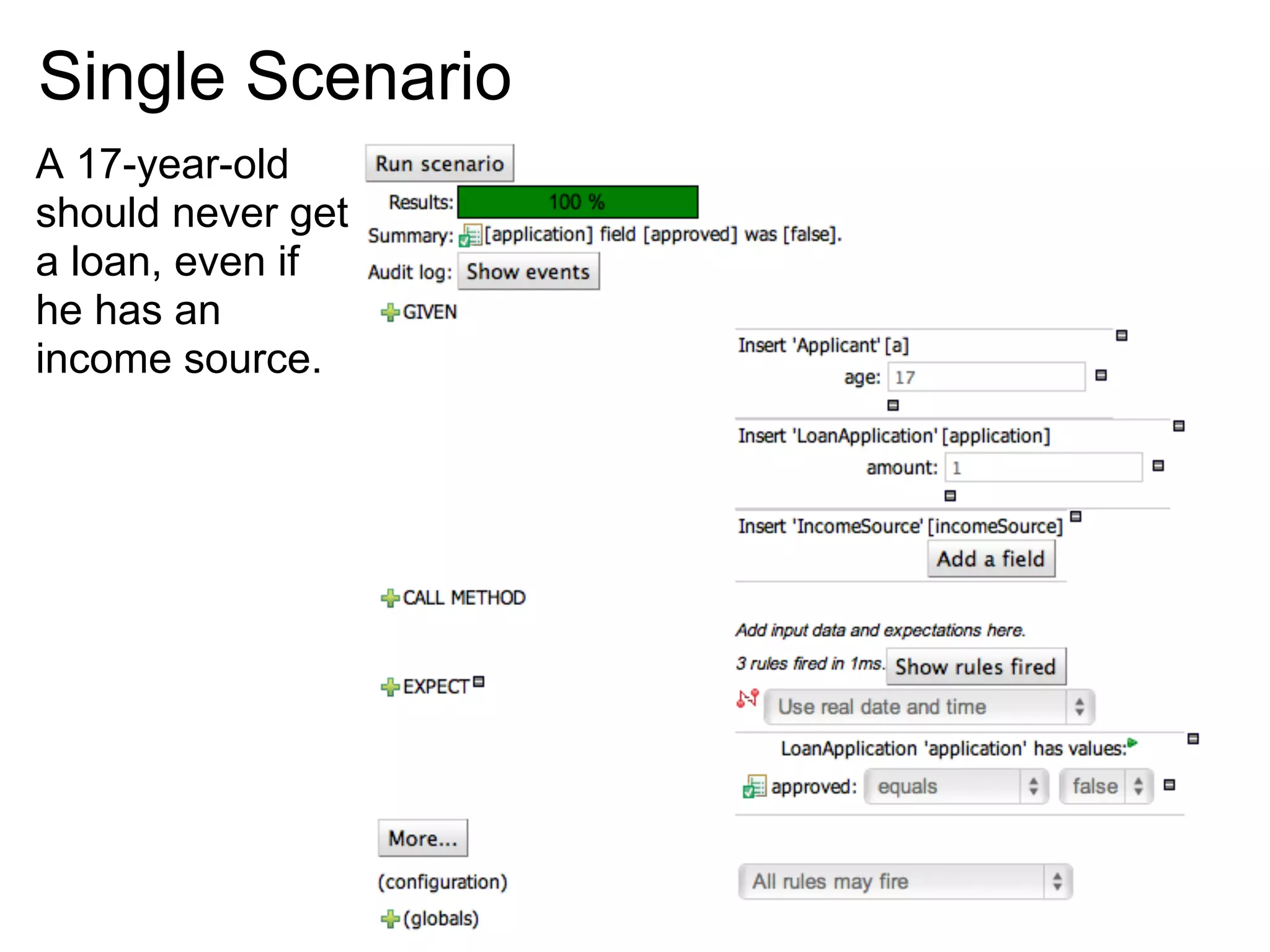

43. Single Scenario
A 17-year-old
should never get
a loan, even if
he has an
income source.

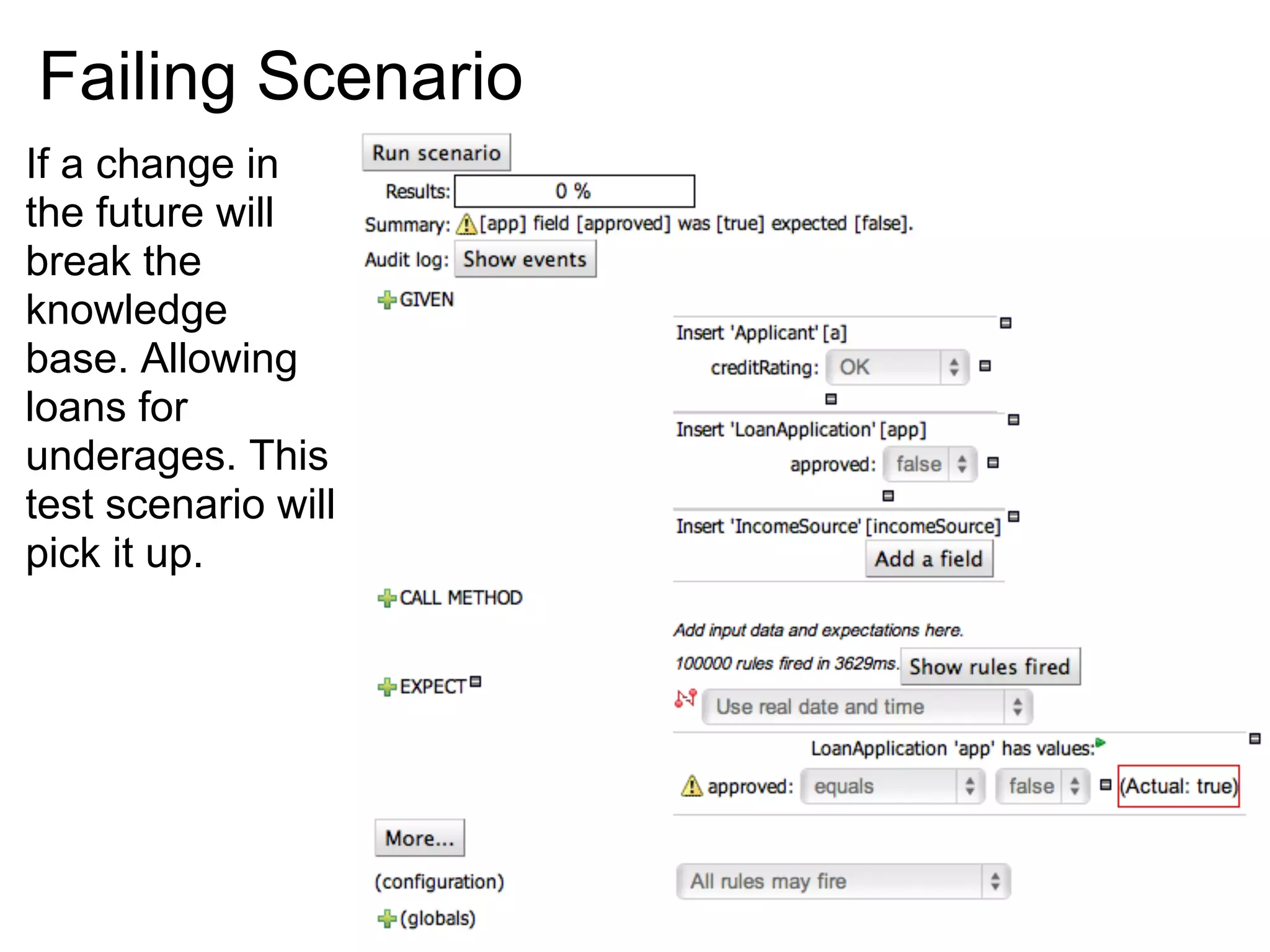

44. Failing Scenario
If a change in
the future will
break the
knowledge
base. Allowing
loans for
underages. This
test scenario will
pick it up.

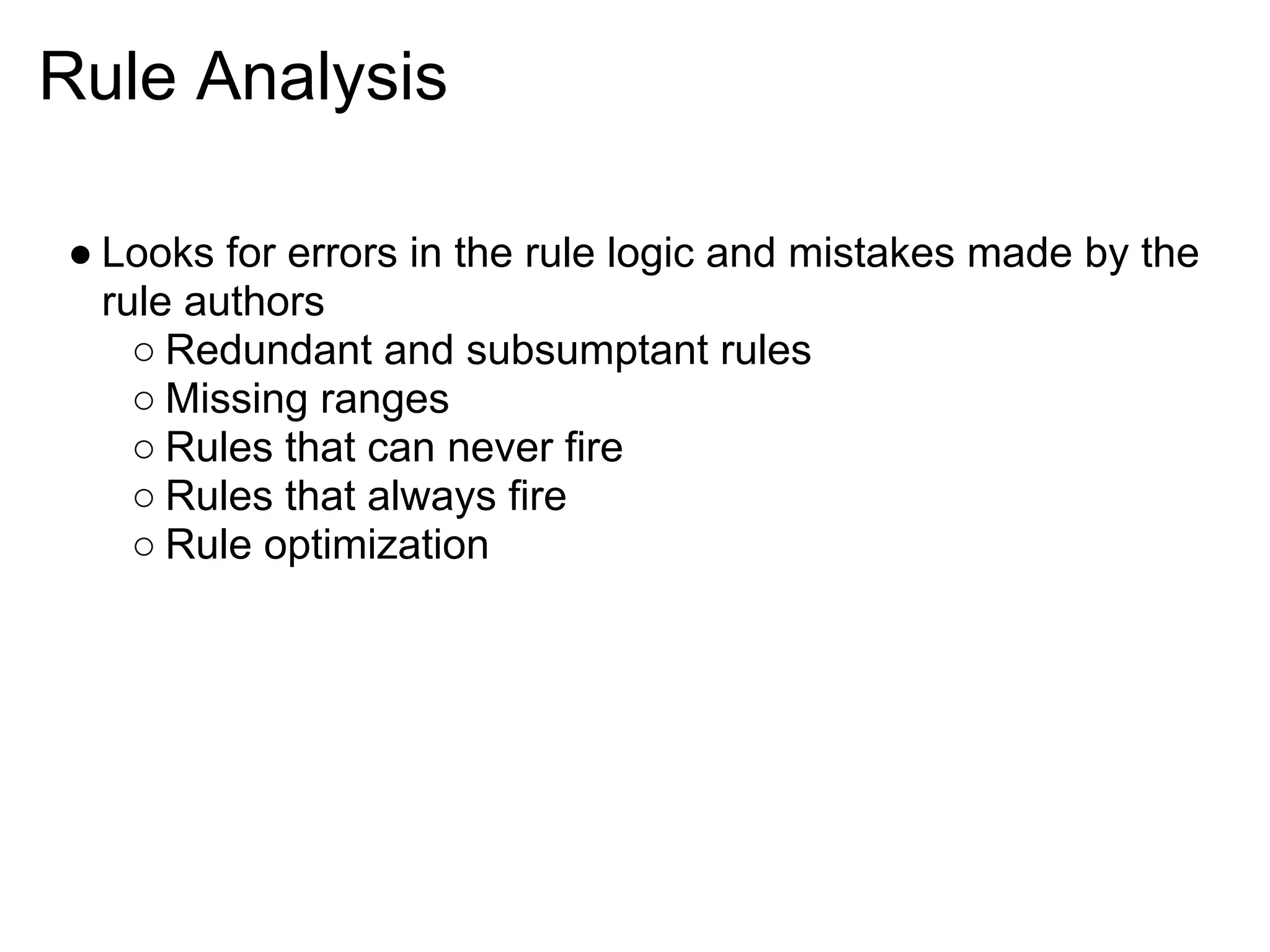

45. Rule Analysis
● Looks for errors in the rule logic and mistakes made by the
rule authors
○ Redundant and subsumptant rules
○ Missing ranges
○ Rules that can never fire
○ Rules that always fire
○ Rule optimization

46. Rule Analysis

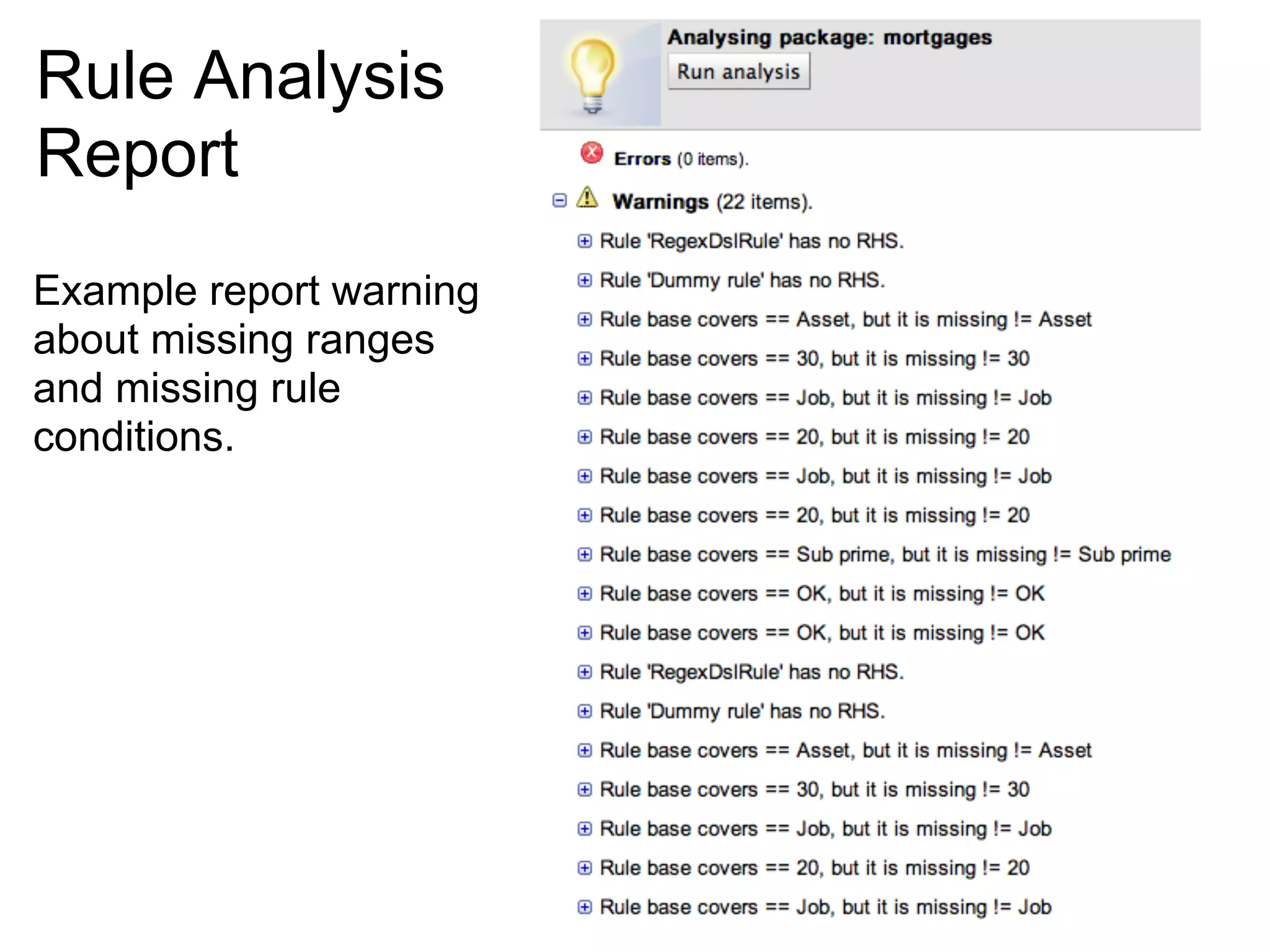

Report
Example report warning
about missing ranges
and missing rule
conditions.

47. How do I define workflows?

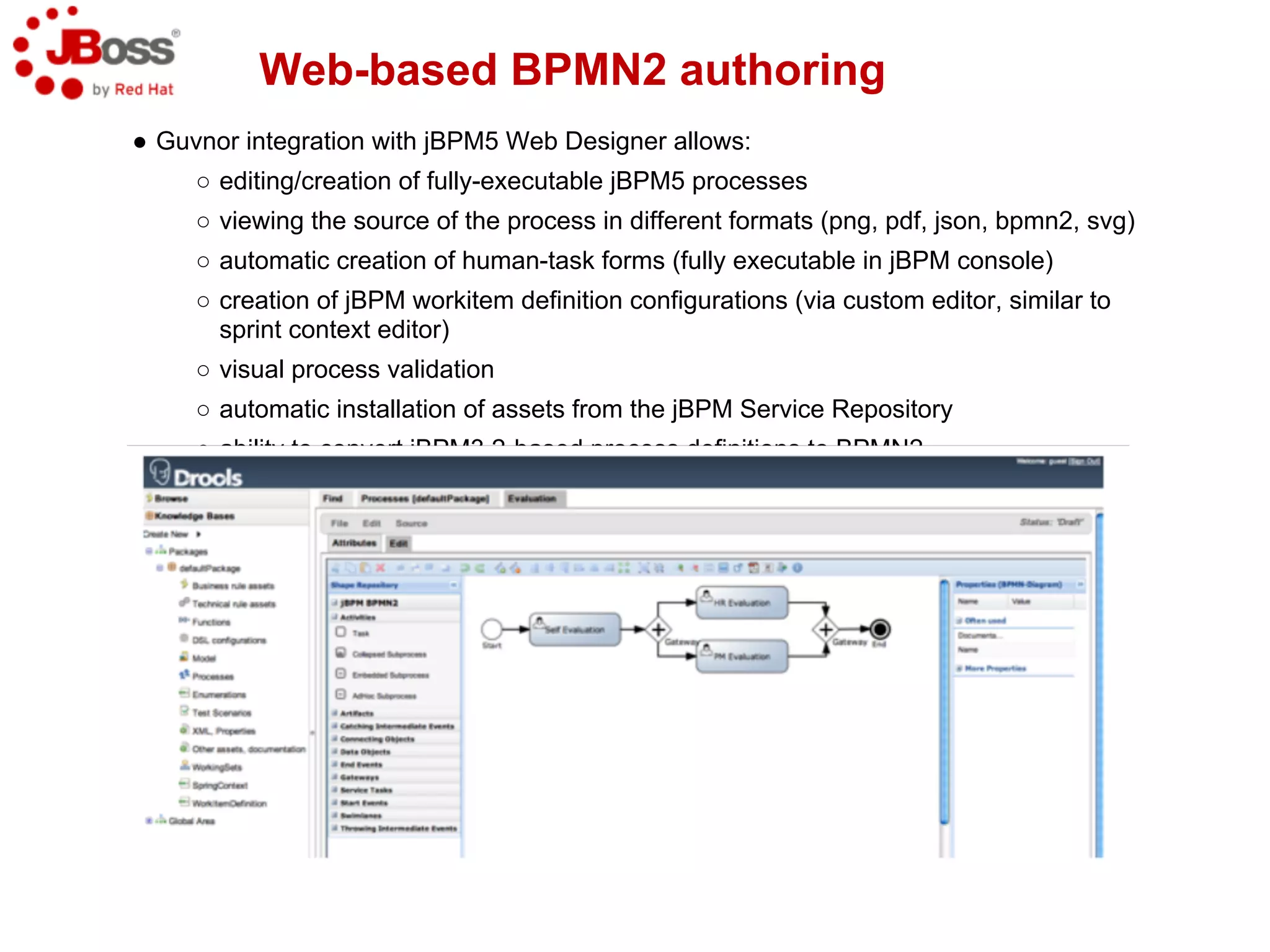

48. Web-based BPMN2 authoring
● Guvnor integration with jBPM5 Web Designer allows:
○ editing/creation of fully-executable jBPM5 processes
○ viewing the source of the process in different formats (png, pdf, json, bpmn2, svg)
○ automatic creation of human-task forms (fully executable in jBPM console)
○ creation of jBPM workitem definition configurations (via custom editor, similar to
sprint context editor)
○ visual process validation
○ automatic installation of assets from the jBPM Service Repository
○ ability to convert jBPM3.2-based process definitions to BPMN2

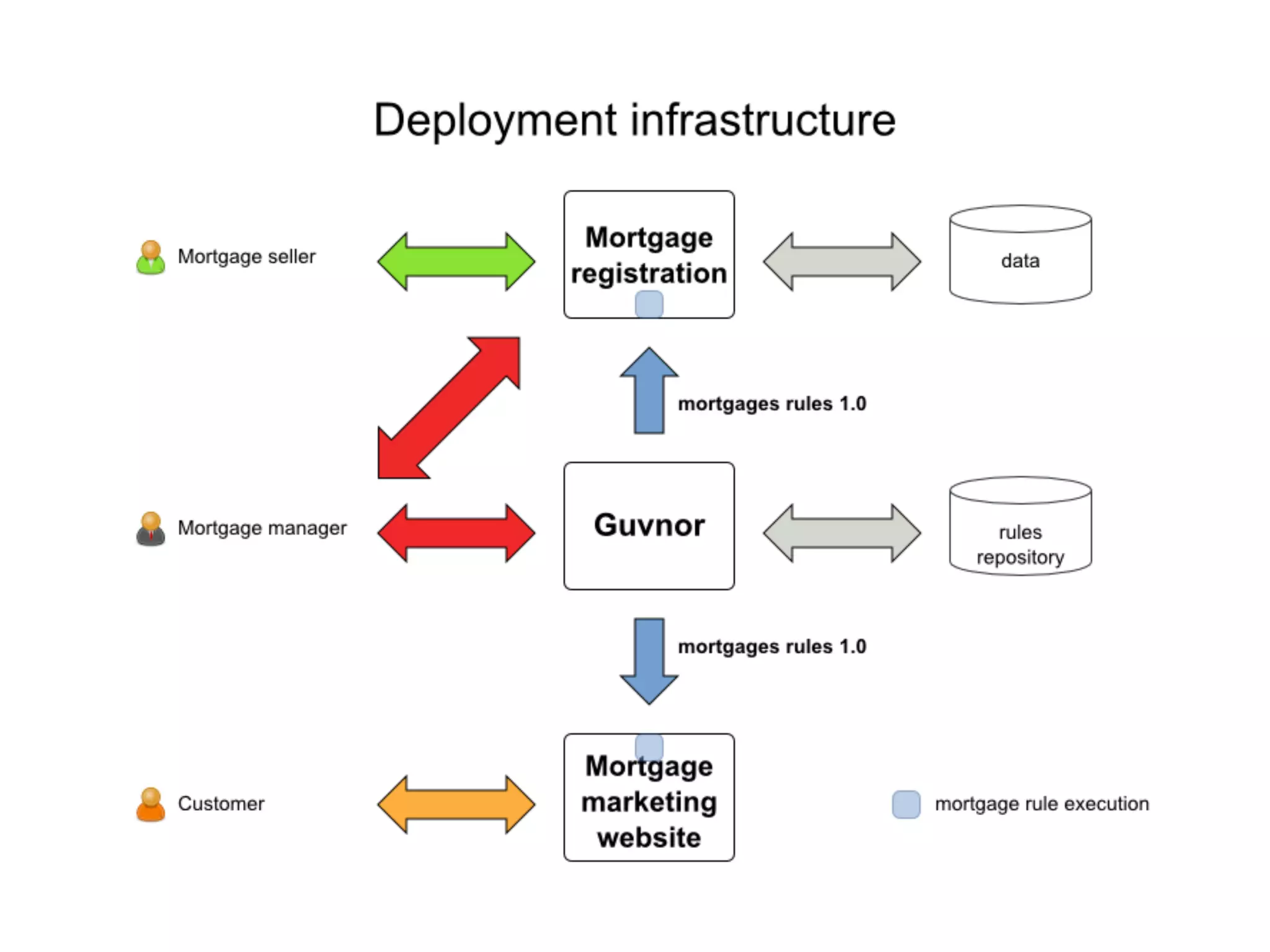

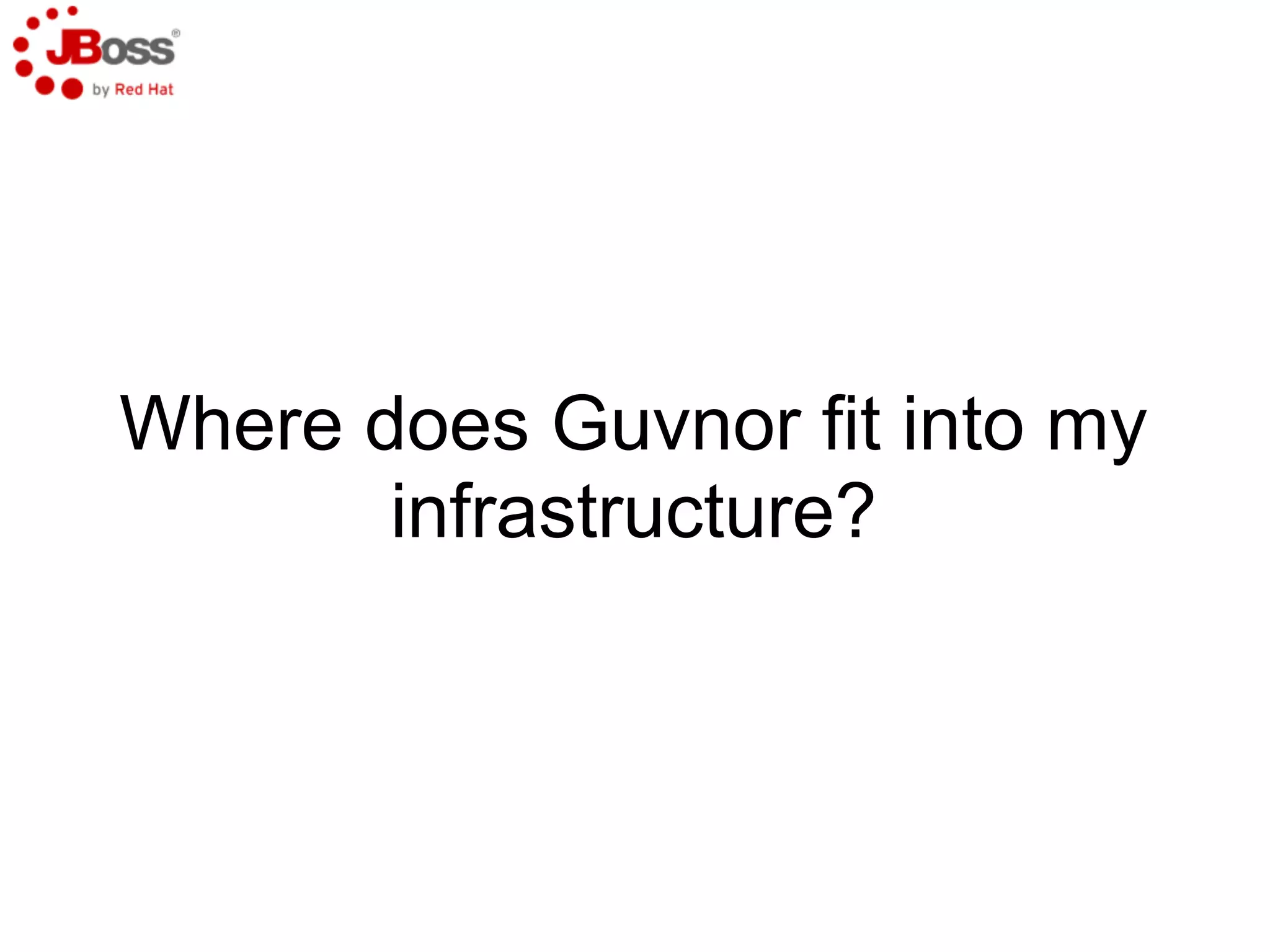

49. Where does Guvnor fit into my
infrastructure?

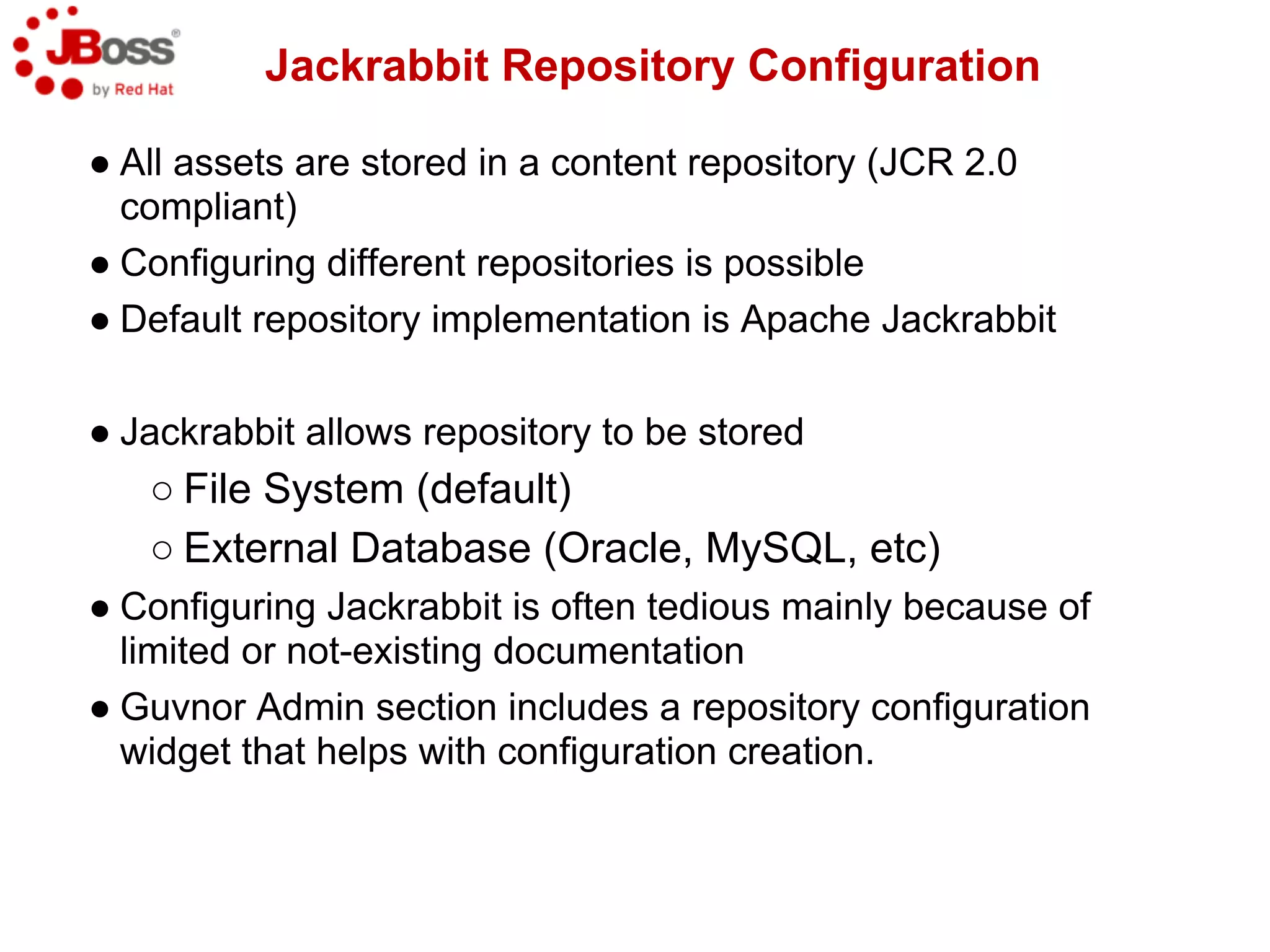

51. Jackrabbit Repository Configuration
● All assets are stored in a content repository (JCR 2.0
compliant)
● Configuring different repositories is possible
● Default repository implementation is Apache Jackrabbit
● Jackrabbit allows repository to be stored
○ File System (default)
○ External Database (Oracle, MySQL, etc)
● Configuring Jackrabbit is often tedious mainly because of
limited or not-existing documentation
● Guvnor Admin section includes a repository configuration
widget that helps with configuration creation.

52. Jackrabbit Repo. Configuration (2)

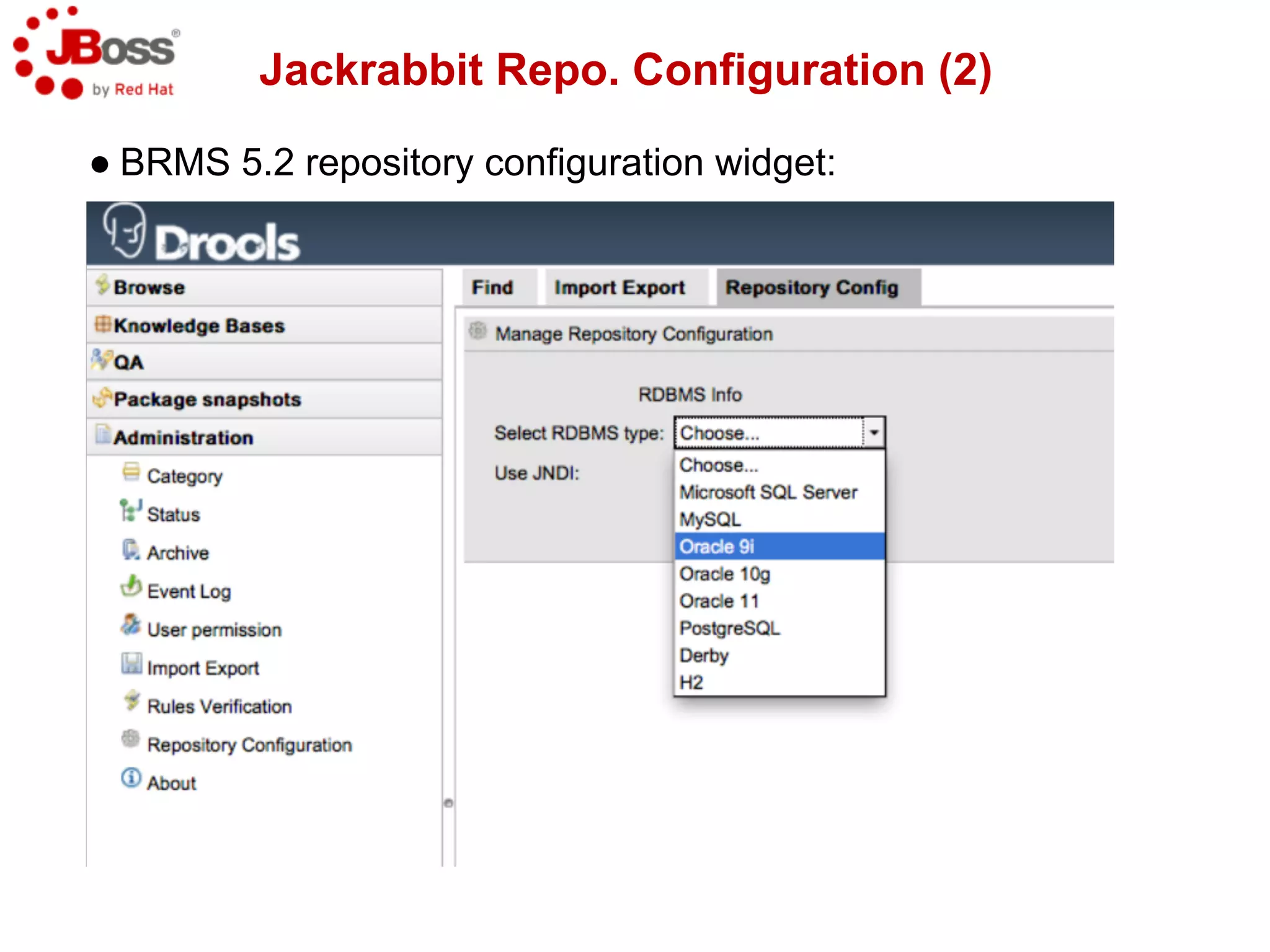

● BRMS 5.2 repository configuration widget:

53. Jackrabbit Repo. Configuration (3)

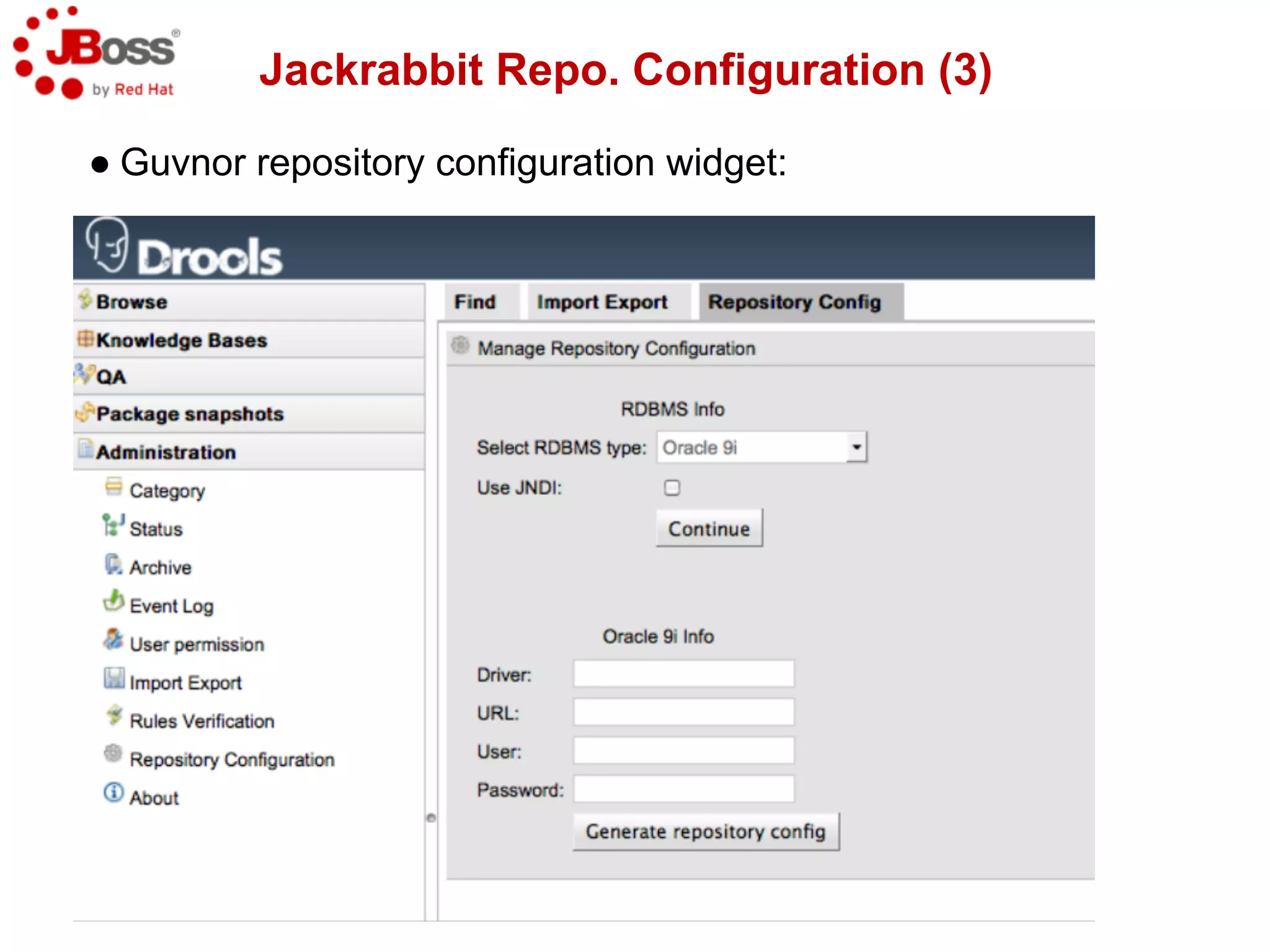

● Guvnor repository configuration widget:

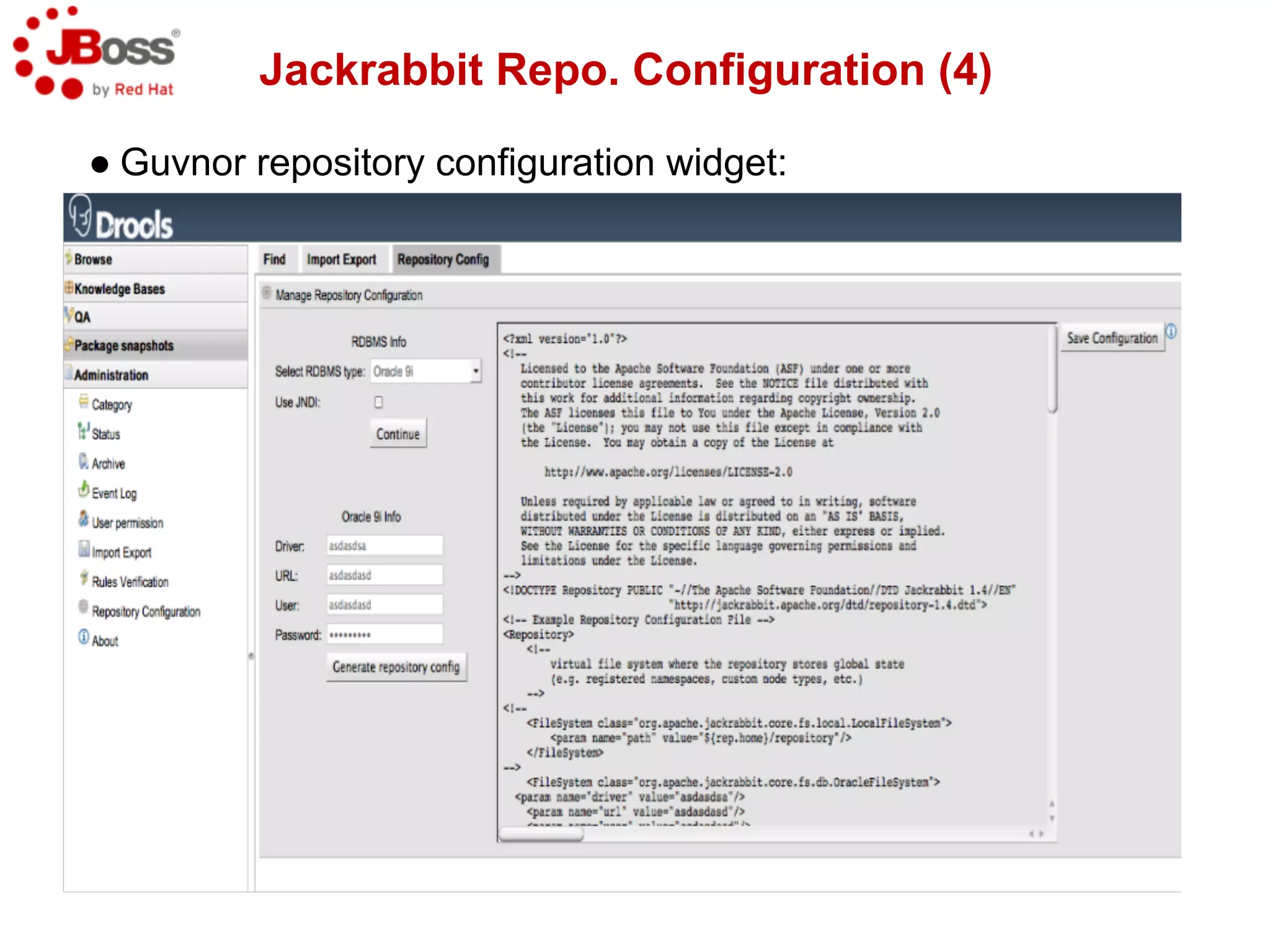

54. Jackrabbit Repo. Configuration (4)
● Guvnor repository configuration widget:

55. How do I release the
knowledge?

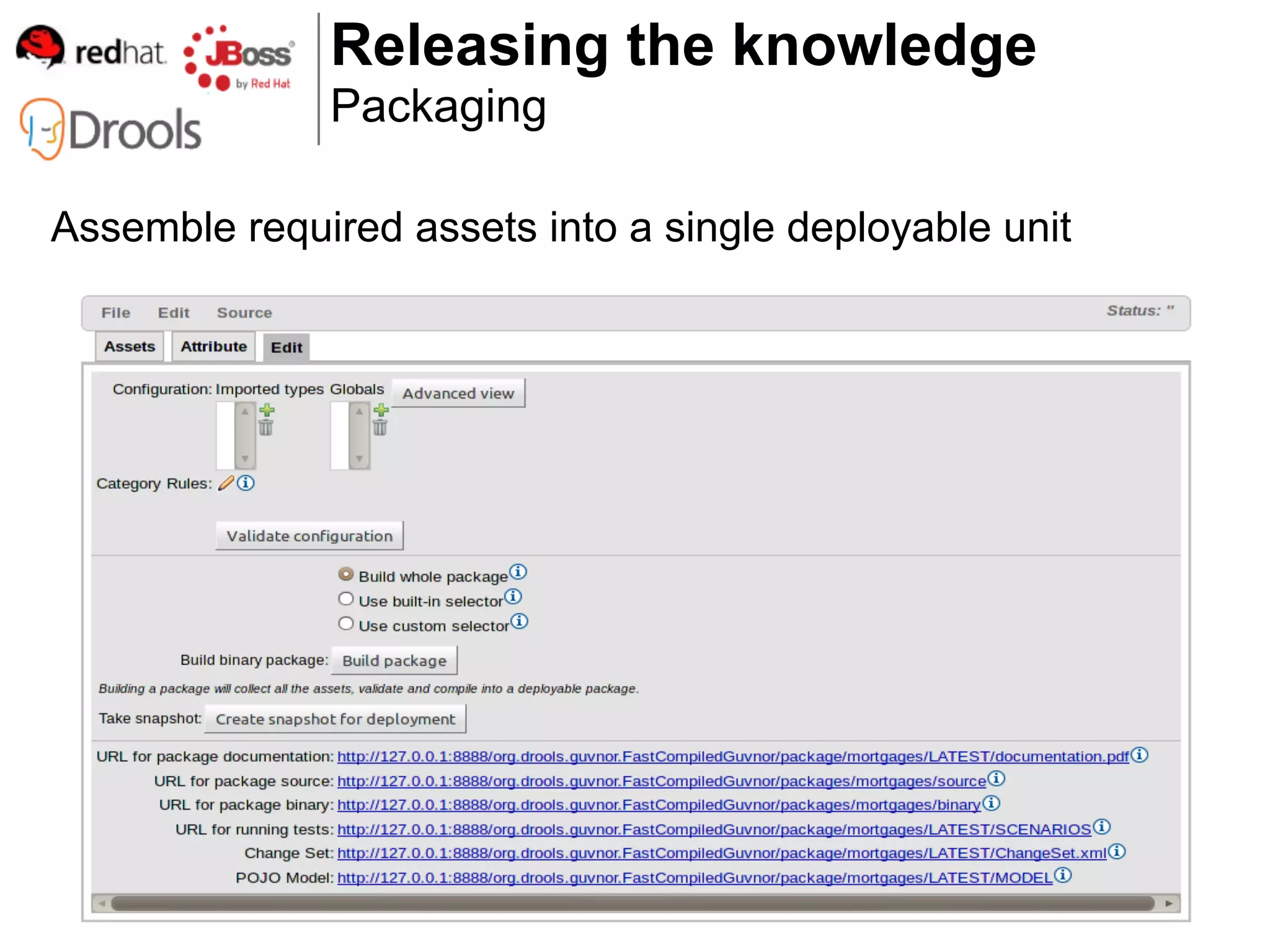

56. Releasing the knowledge
Packaging
Assemble required assets into a single deployable unit

57. Releasing the knowledge

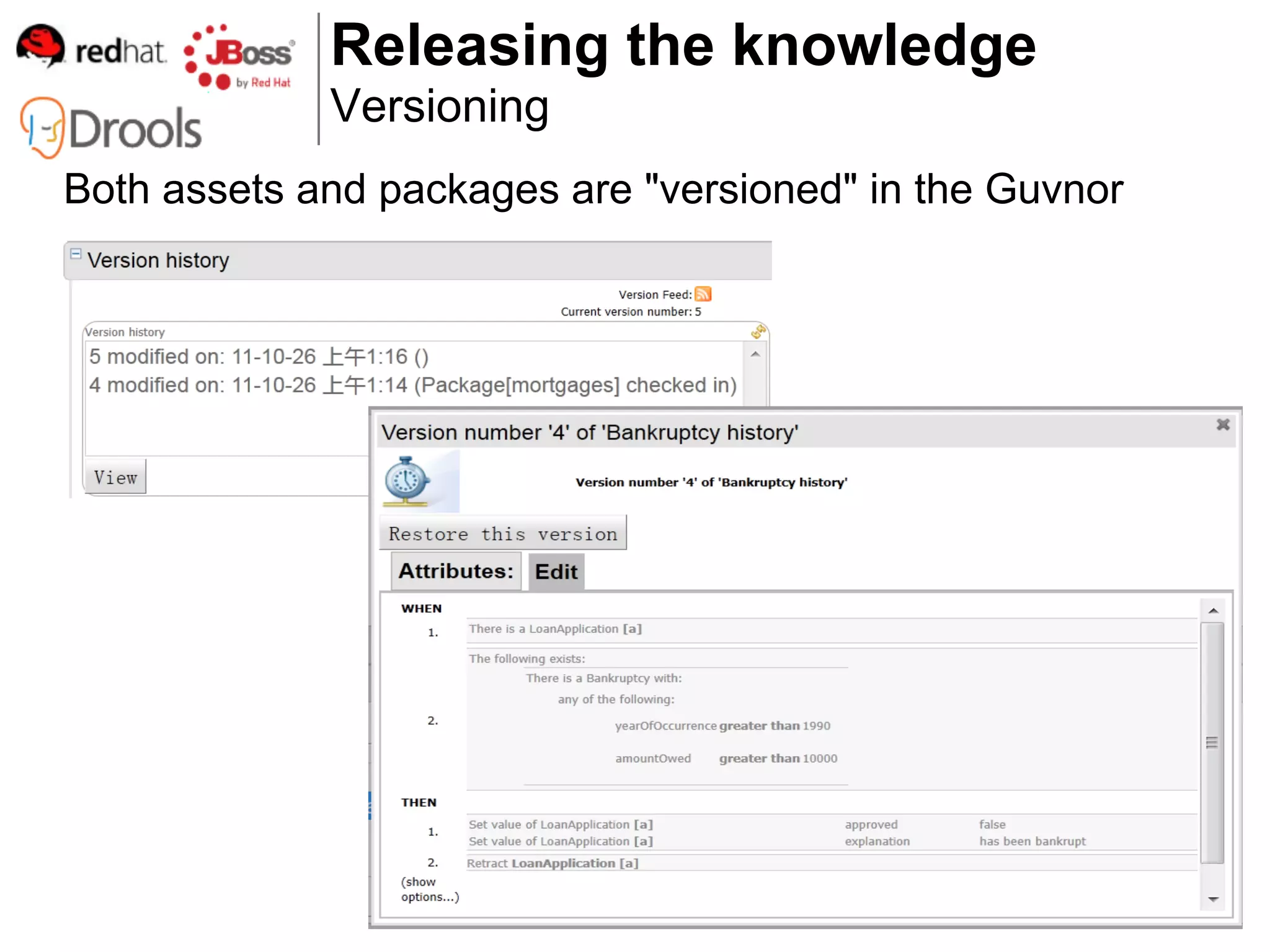

Versioning
Both assets and packages are "versioned" in the Guvnor

58. Releasing the knowledge

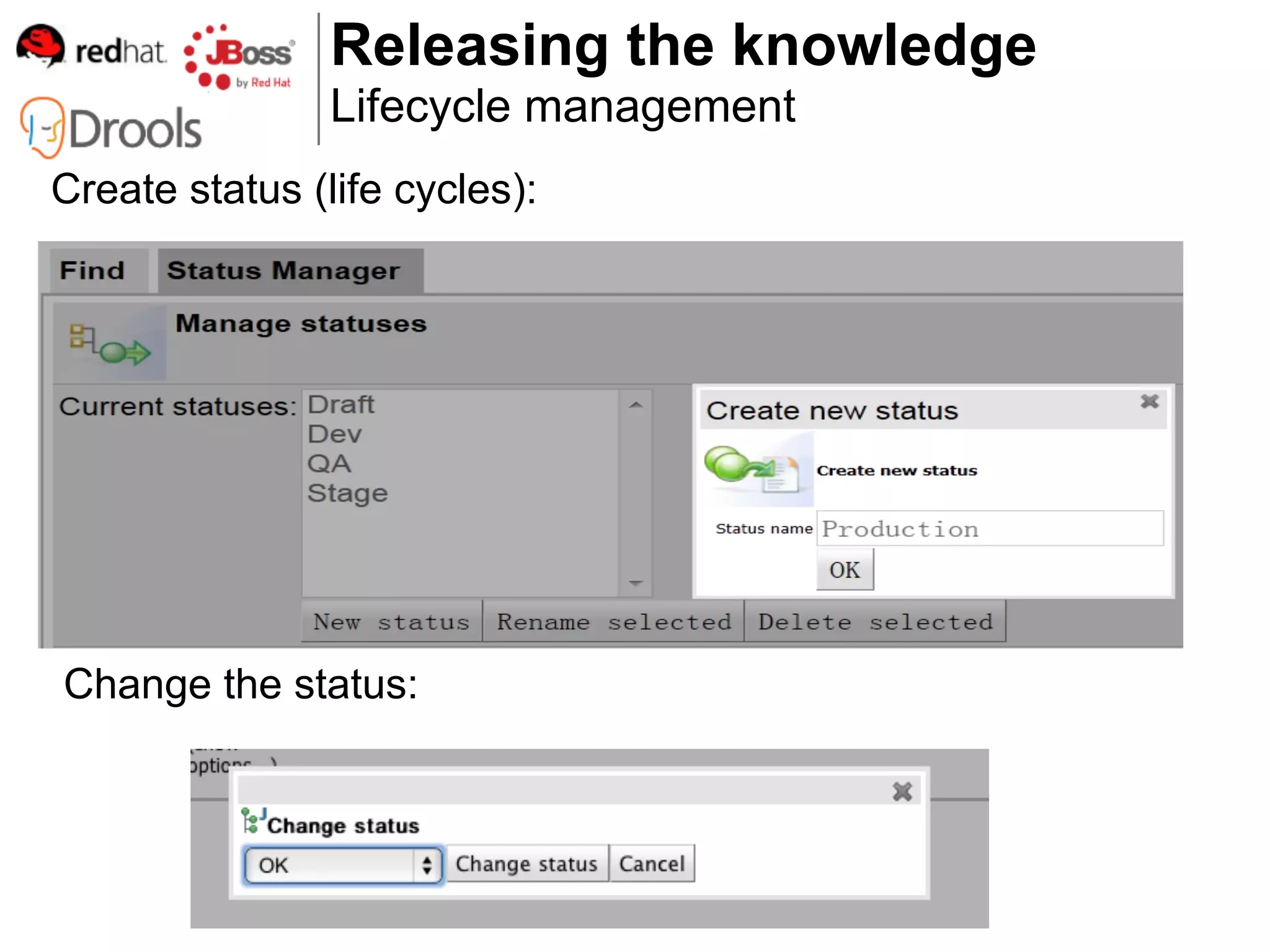

Lifecycle management
Create status (life cycles):
Change the status:

59. How do I use the knowledge?

60. Using the knowledge

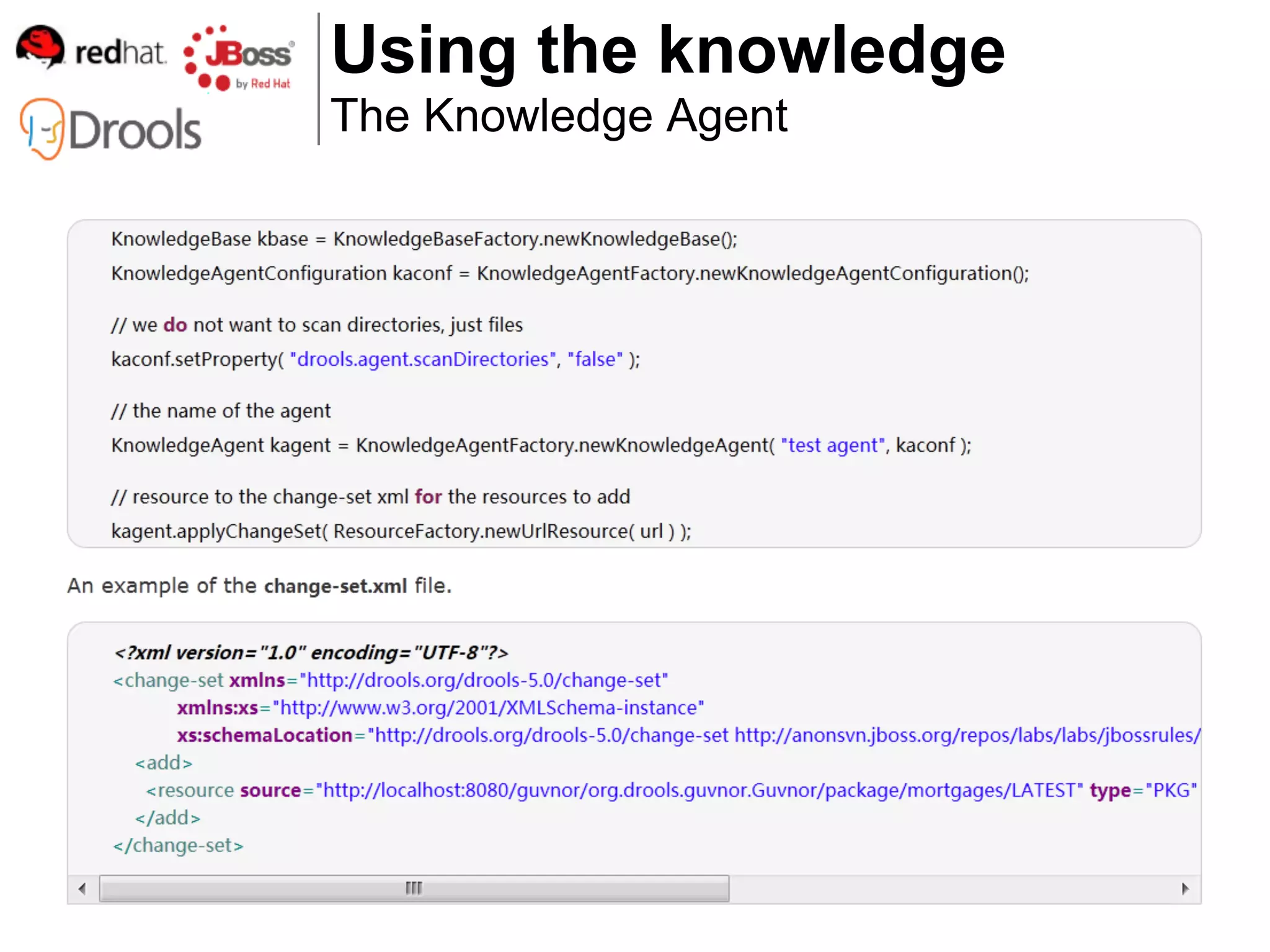

The Knowledge Agent

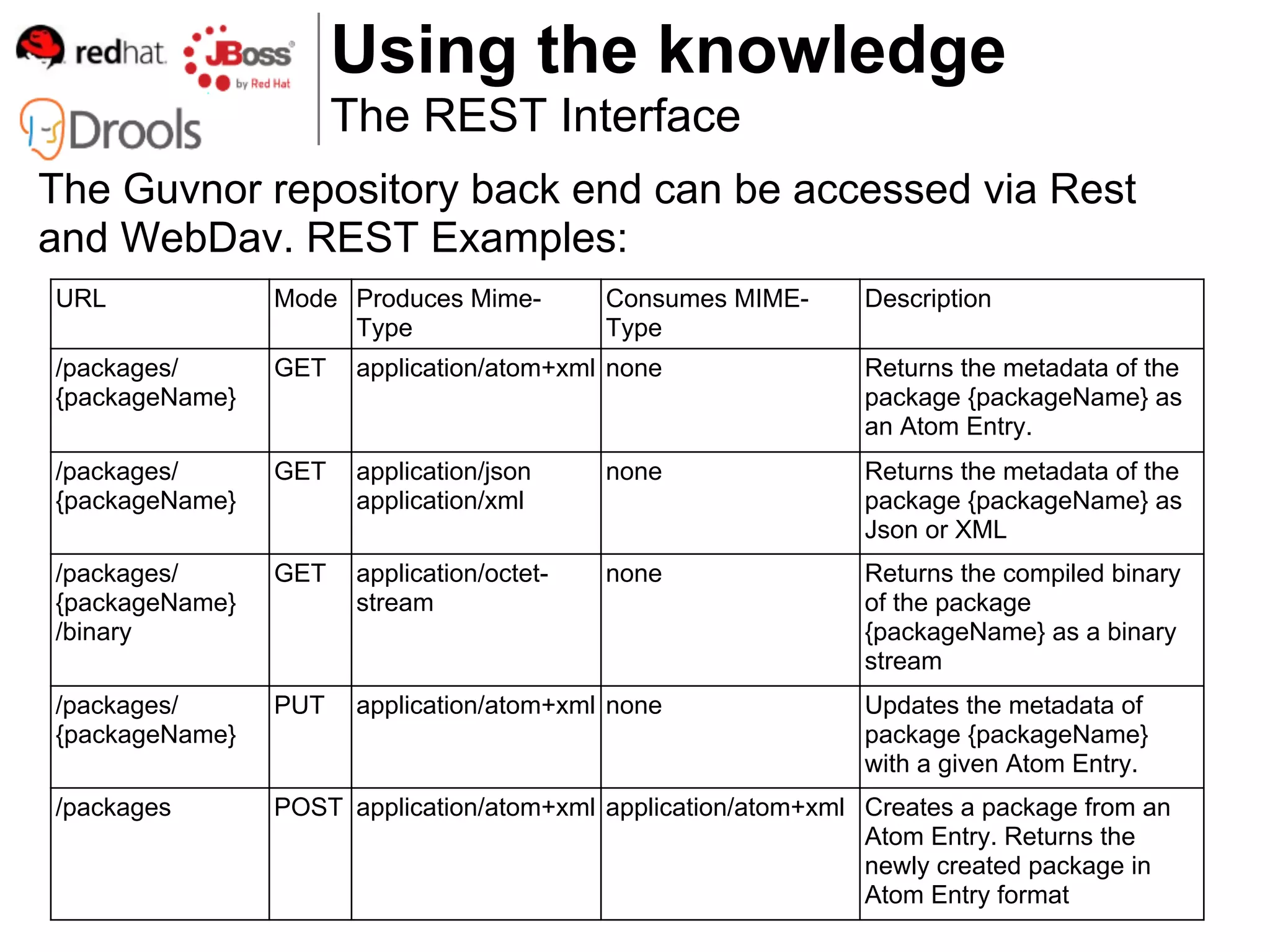

61. Using the knowledge
The REST Interface
The Guvnor repository back end can be accessed via Rest
and WebDav. REST Examples:
URL Mode Produces Mime- Consumes MIME- Description
Type Type
/packages/ GET application/atom+xml none Returns the metadata of the
{packageName} package {packageName} as
an Atom Entry.
/packages/ GET application/json none Returns the metadata of the
{packageName} application/xml package {packageName} as
Json or XML
/packages/ GET application/octet- none Returns the compiled binary
{packageName} stream of the package
/binary {packageName} as a binary
stream
/packages/ PUT application/atom+xml none Updates the metadata of
{packageName} package {packageName}
with a given Atom Entry.
/packages POST application/atom+xml application/atom+xml Creates a package from an
Atom Entry. Returns the
newly created package in
Atom Entry format

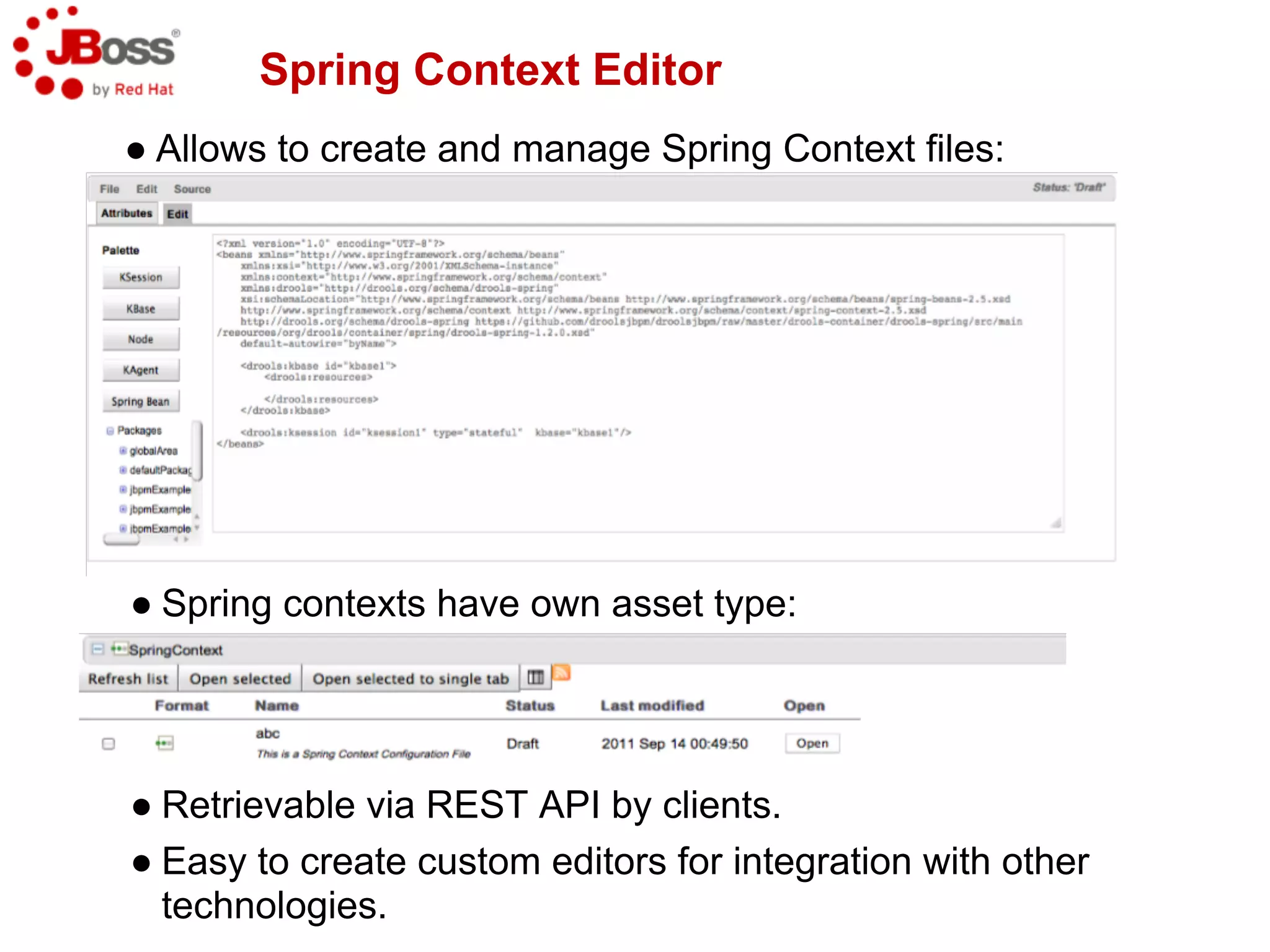

62. Spring Context Editor
● Allows to create and manage Spring Context files:
● Spring contexts have own asset type:
● Retrievable via REST API by clients.
● Easy to create custom editors for integration with other
technologies.

63. Embeddable Asset Editors
● Guvnor provides a set of Editors to author assets
● Asset format determines the Editor used
● Some existing editors:
○ Guided Rule Editor
○ DRL Editor
○ DSL Editor
○ Decision Table Editor
○ Spring Context Editor
○ jBPM5 Workitem Definition Editor
○ ...
● Guvnor also has the ability to embed asset editors in client
applications

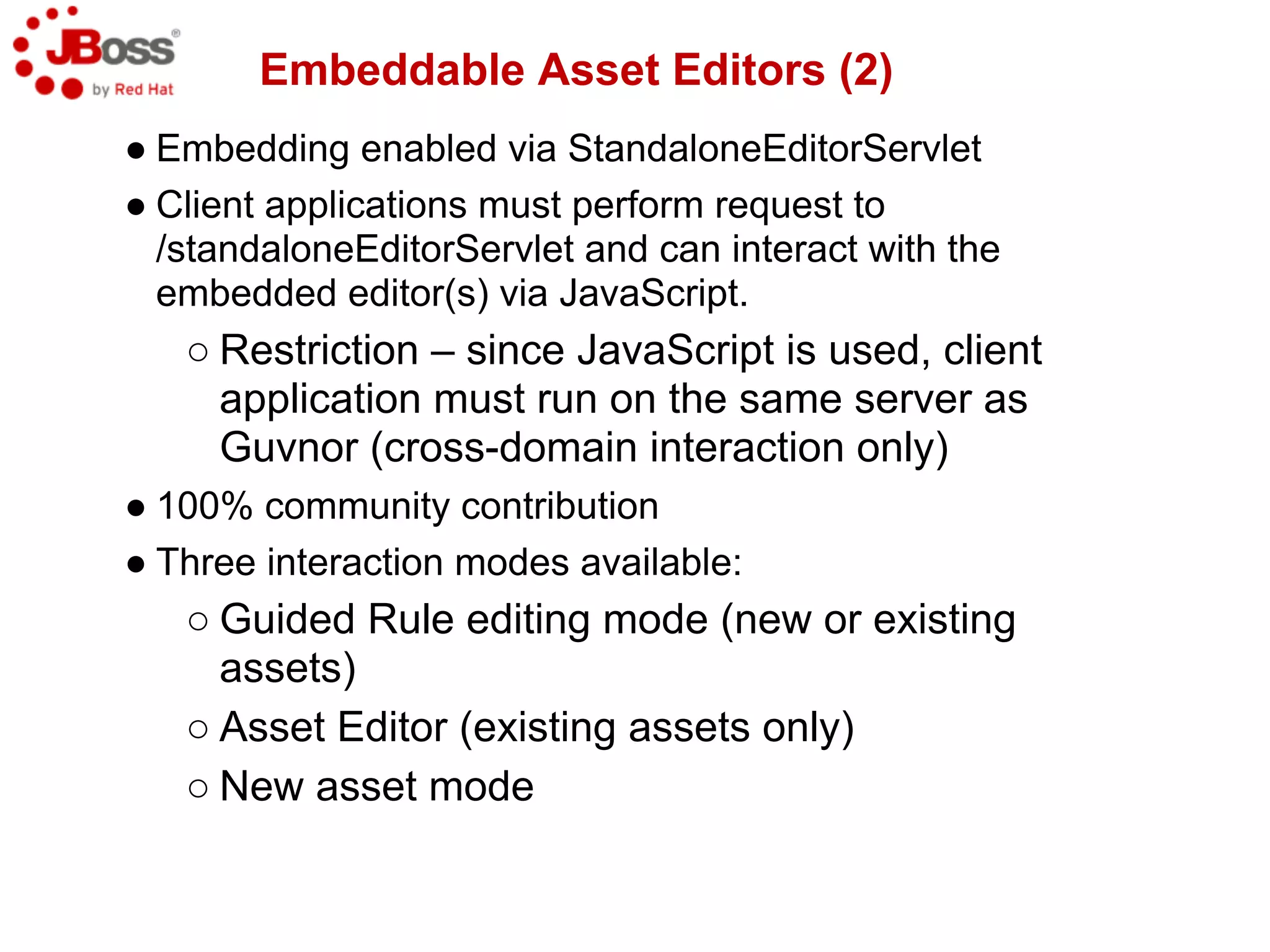

64. Embeddable Asset Editors (2)
● Embedding enabled via StandaloneEditorServlet
● Client applications must perform request to
/standaloneEditorServlet and can interact with the
embedded editor(s) via JavaScript.
○ Restriction – since JavaScript is used, client
application must run on the same server as
Guvnor (cross-domain interaction only)
● 100% community contribution
● Three interaction modes available:
○ Guided Rule editing mode (new or existing
assets)
○ Asset Editor (existing assets only)
○ New asset mode

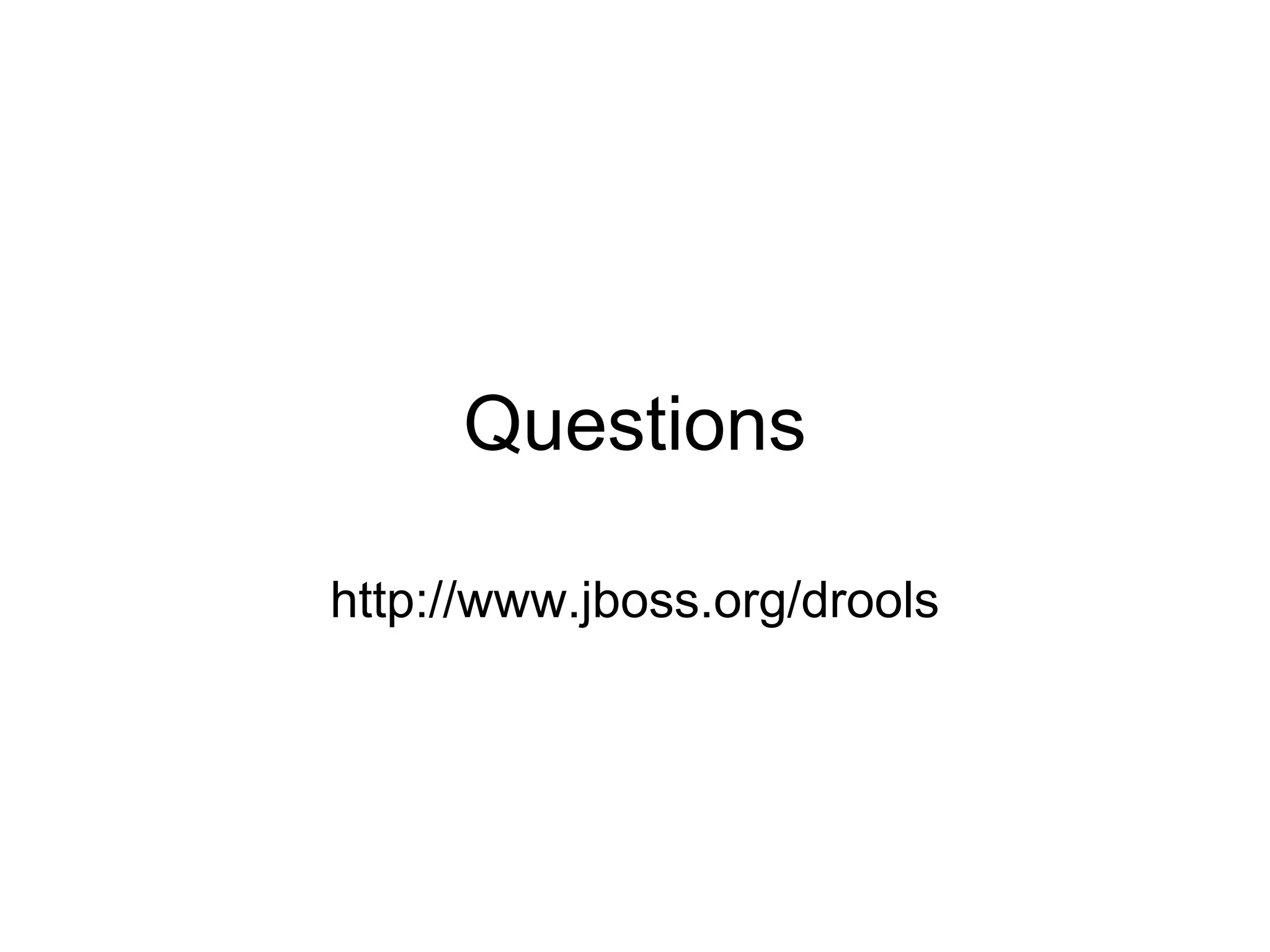

65. Questions
