This document provides specifications for an AC 1 Ph 8060 TENV motor with a voltage of 230V, speed of 3130 rpm, and no gearbox. Key specifications include a rating of 3126.6 rpm at 2.6lb-in of torque drawing 0.72 amps of current. Charts show torque and efficiency at varying speeds both when cold and hot, with maximum efficiency of 61.8%. Start/stall conditions draw 1.37 amps at 2.2 lb-in of torque.

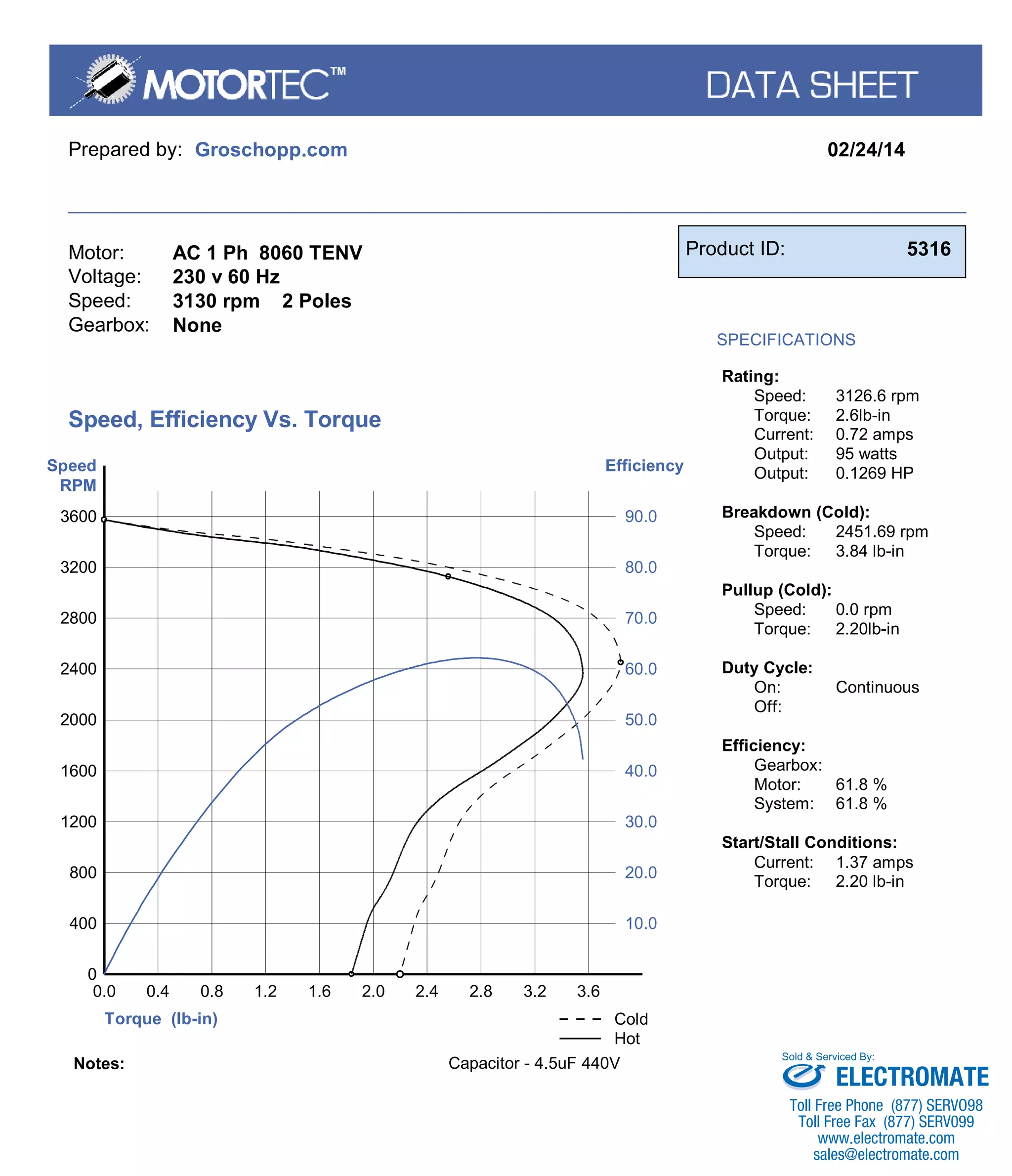

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
AC 1 Ph 8060 TENV
230 v 60 Hz
3130 rpm 2 Poles
None
Product ID: 5316
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
3126.6 rpm
2.6lb-in
0.72 amps
95 watts
0.1269 HP
Breakdown (Cold):
Speed:
Torque:
2451.69 rpm
3.84 lb-in
Pullup (Cold):
Speed:
Torque:
0.0 rpm
2.20lb-in
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
61.8 %
61.8 %
Start/Stall Conditions:
Current:
Torque:
1.37 amps
2.20 lb-in
Torque (lb-in)
Speed
RPM
Efficiency
400
0
0.0
0.4
800
0.8
1200
1.2
1600
1.6
2000
2.0
2400
2.4
2800
2.8
3200
3.2
3600
3.6
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes: Capacitor - 4.5uF 440V
