1. GREEN CODE LAB
CHALLENGE 2015
Subject

2. GREEN CODE LAB
CHALLENGE 2015
Subject

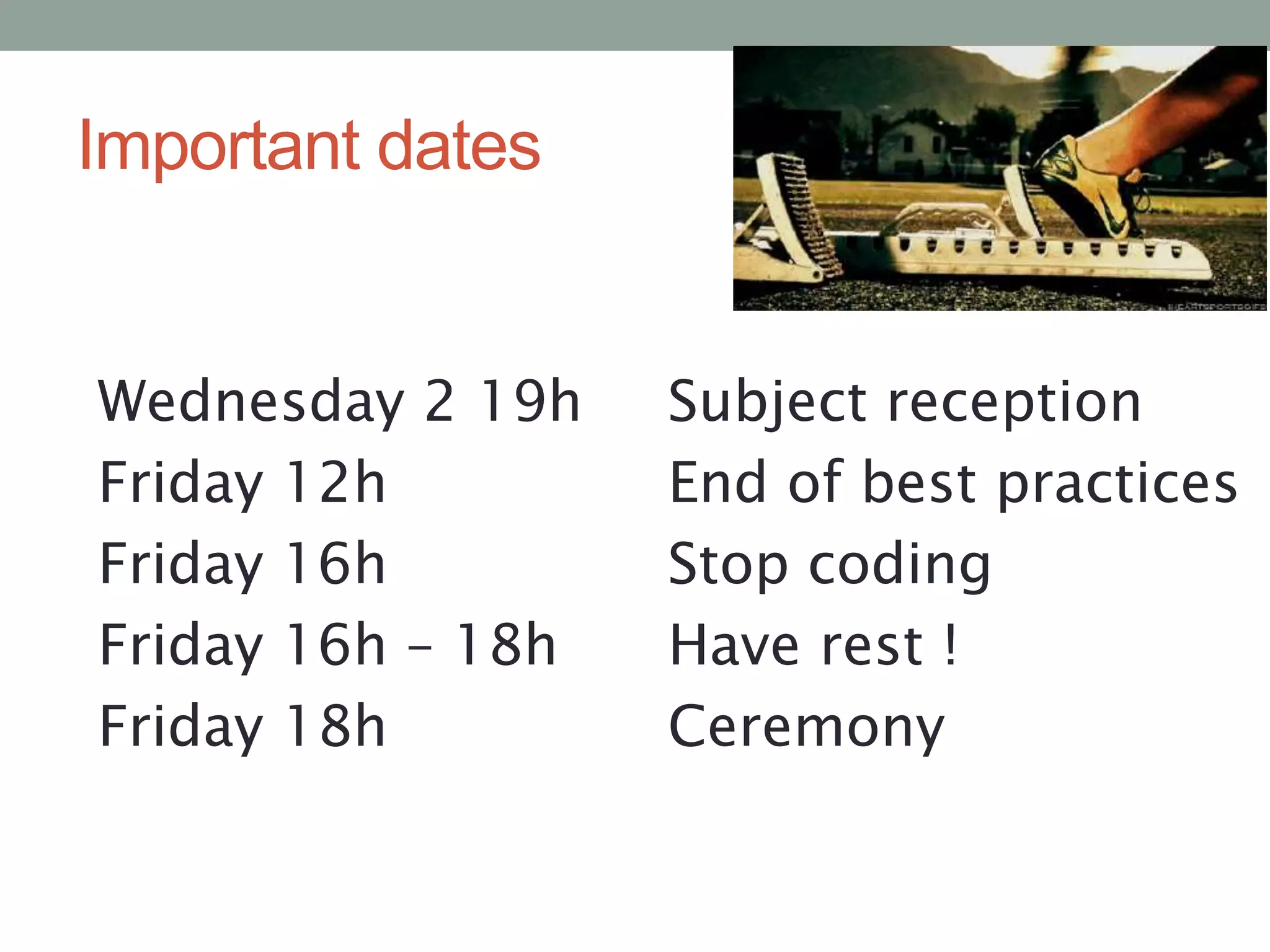

3. Important dates
Wednesday 2 19h
Friday 12h
Friday 16h
Friday 16h – 18h
Friday 18h
Subject reception
End of best practices
Stop coding
Have rest !
Ceremony

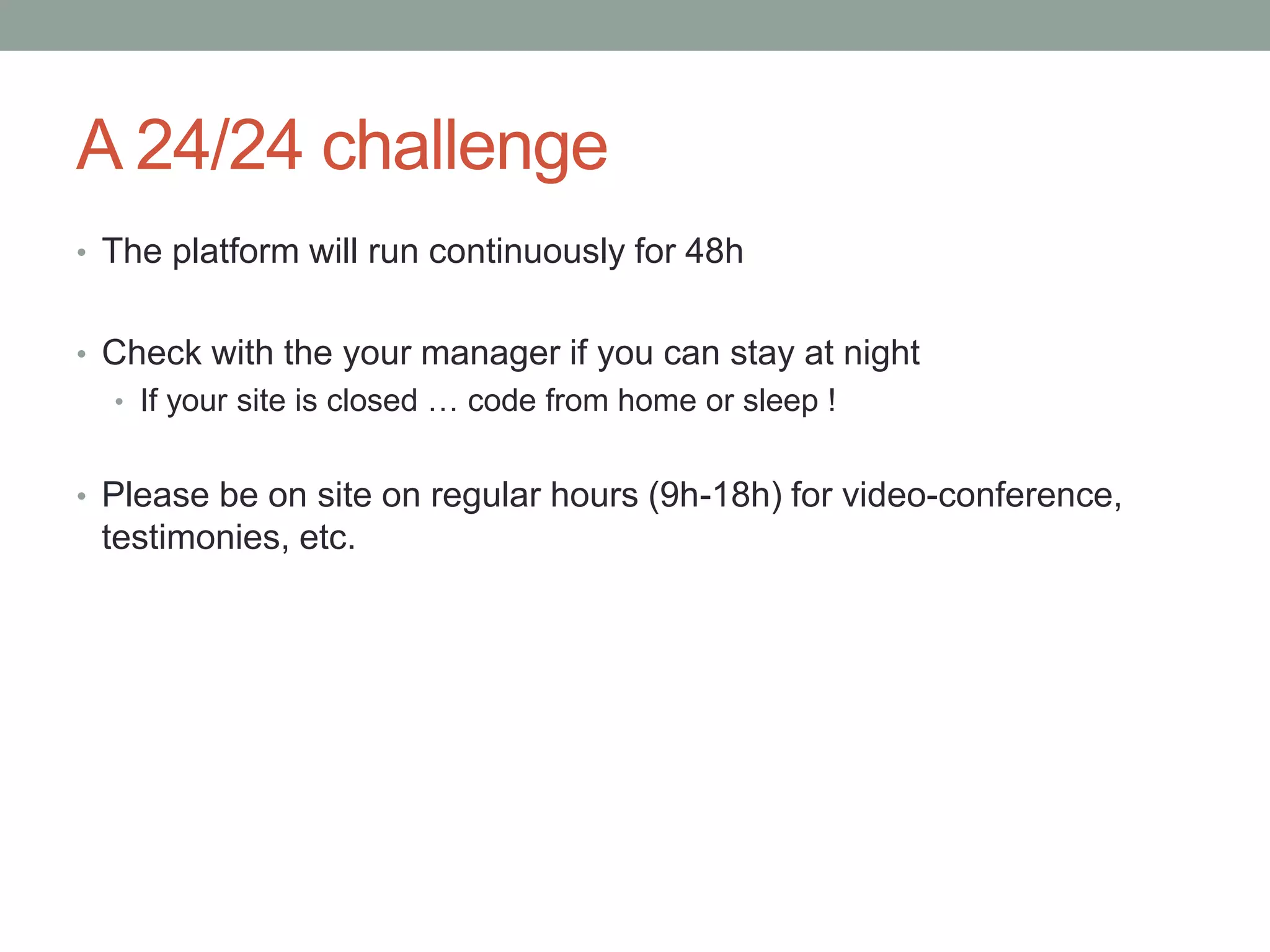

4. A 24/24 challenge
• The platform will run continuously for 48h
• Check with the your manager if you can stay at night
• If your site is closed … code from home or sleep !
• Please be on site on regular hours (9h-18h) for video-conference,
testimonies, etc.

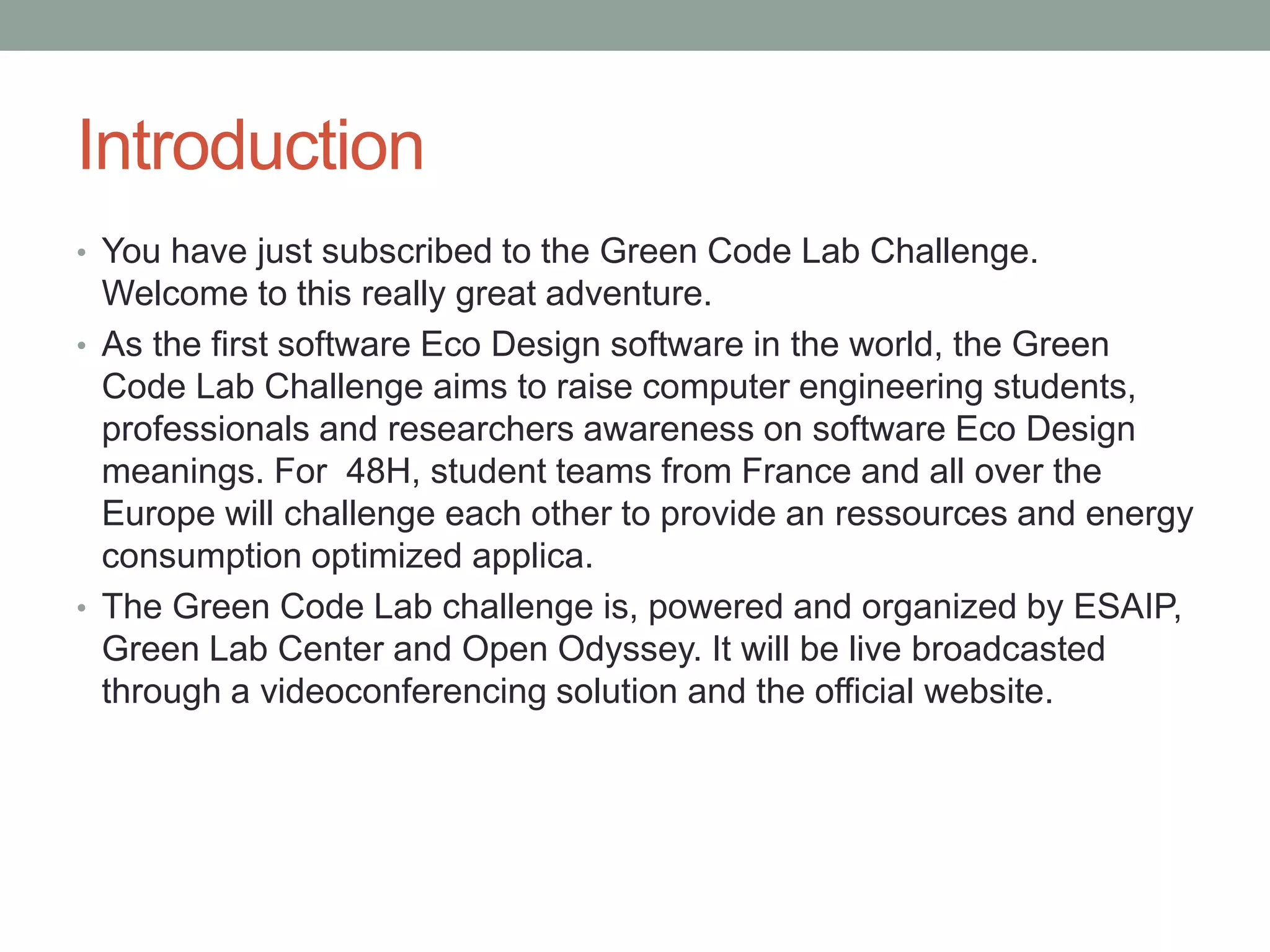

5. Introduction
• You have just subscribed to the Green Code Lab Challenge.
Welcome to this really great adventure.
• As the first software Eco Design software in the world, the Green
Code Lab Challenge aims to raise computer engineering students,
professionals and researchers awareness on software Eco Design
meanings. For 48H, student teams from France and all over the
Europe will challenge each other to provide an ressources and energy
consumption optimized applica.
• The Green Code Lab challenge is, powered and organized by ESAIP,
Green Lab Center and Open Odyssey. It will be live broadcasted
through a videoconferencing solution and the official website.

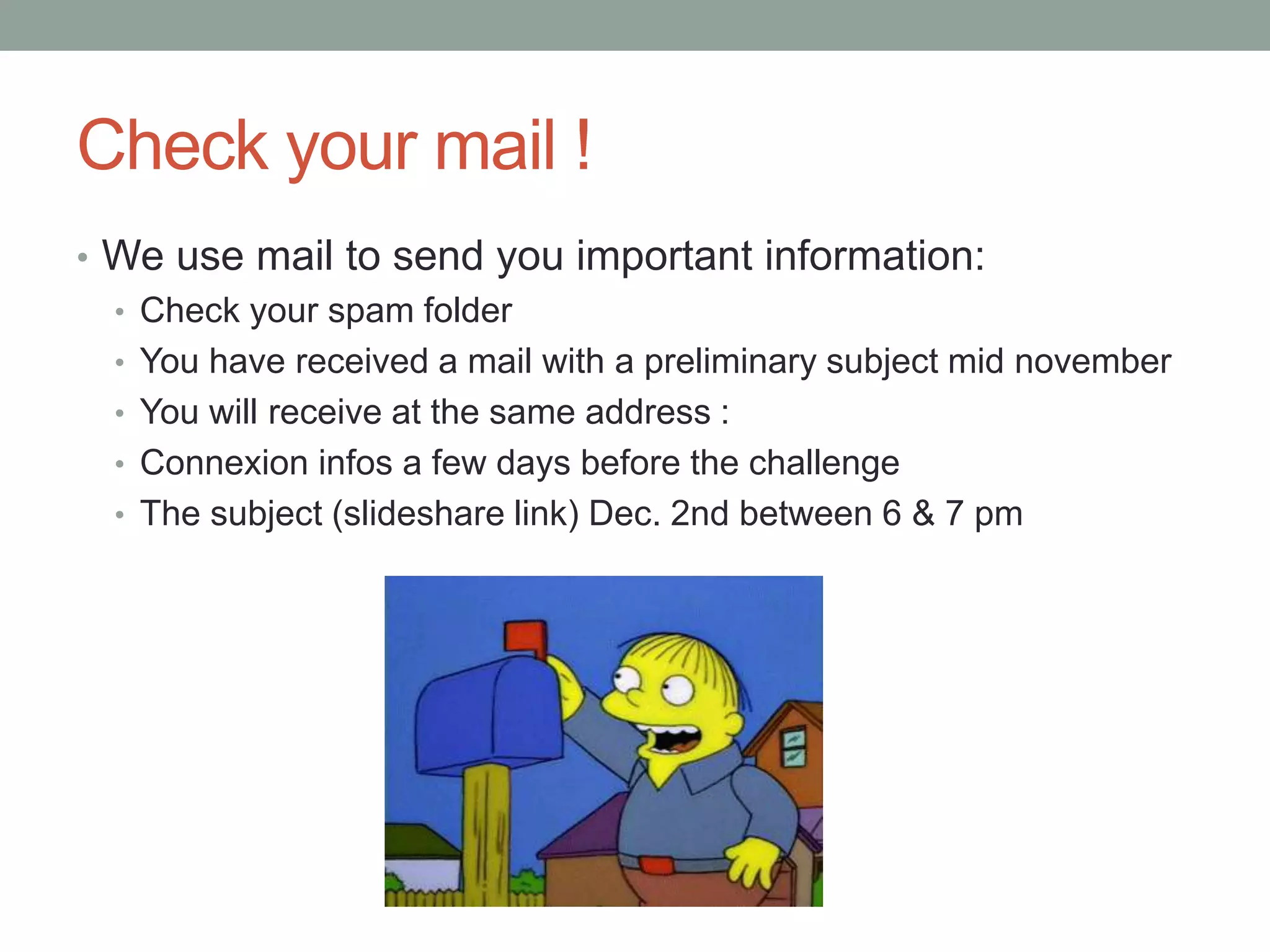

6. Check your mail !
• We use mail to send you important information:
• Check your spam folder
• You have received a mail with a preliminary subject mid november
• You will receive at the same address :
• Connexion infos a few days before the challenge
• The subject (slideshare link) Dec. 2nd between 6 & 7 pm

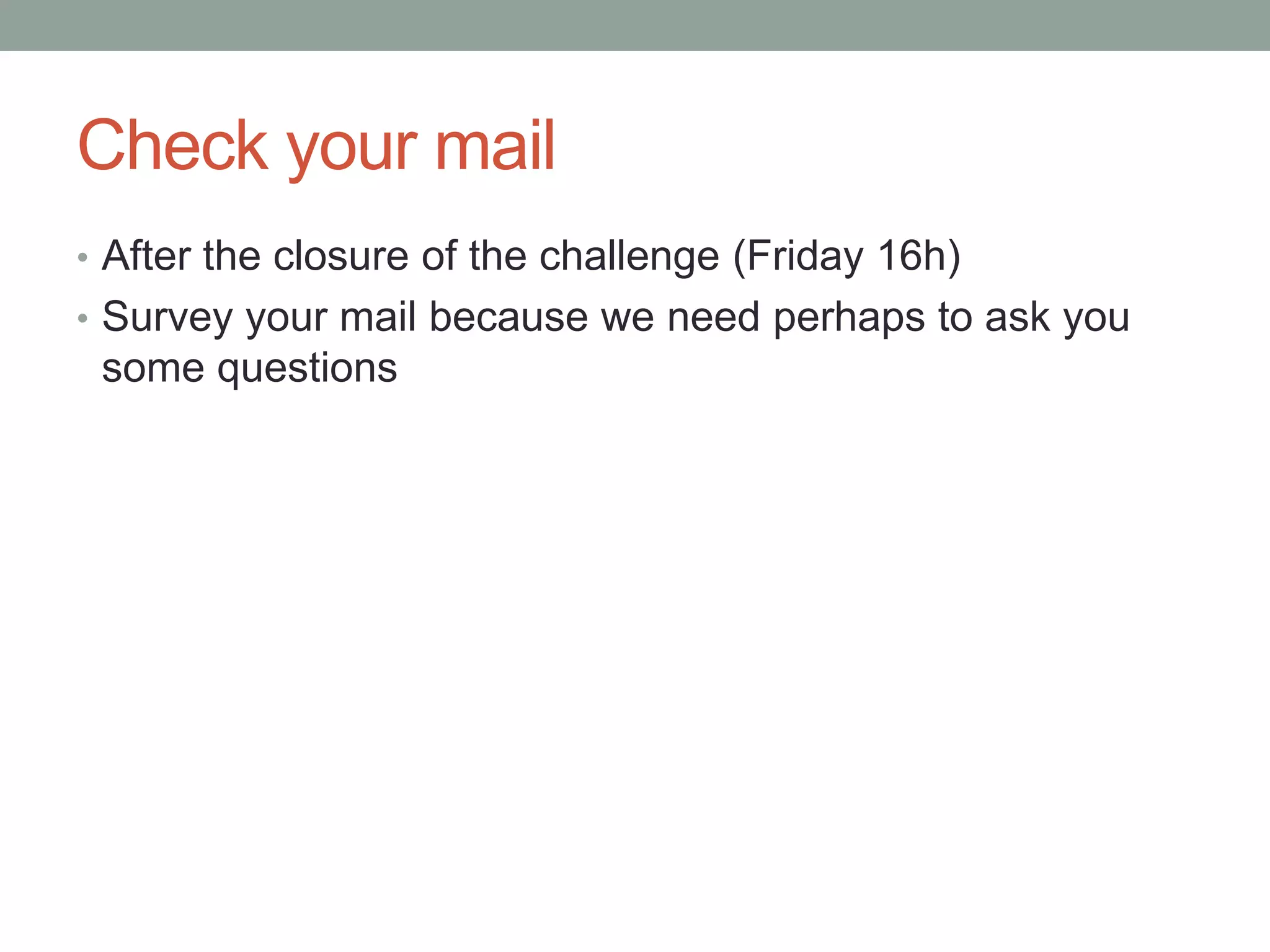

7. Check your mail
• After the closure of the challenge (Friday 16h)
• Survey your mail because we need perhaps to ask you
some questions

8. The tech team
• To help you they provide there tools and skills

9. GREEN CODE LAB
CHALLENGE 2015
Subject

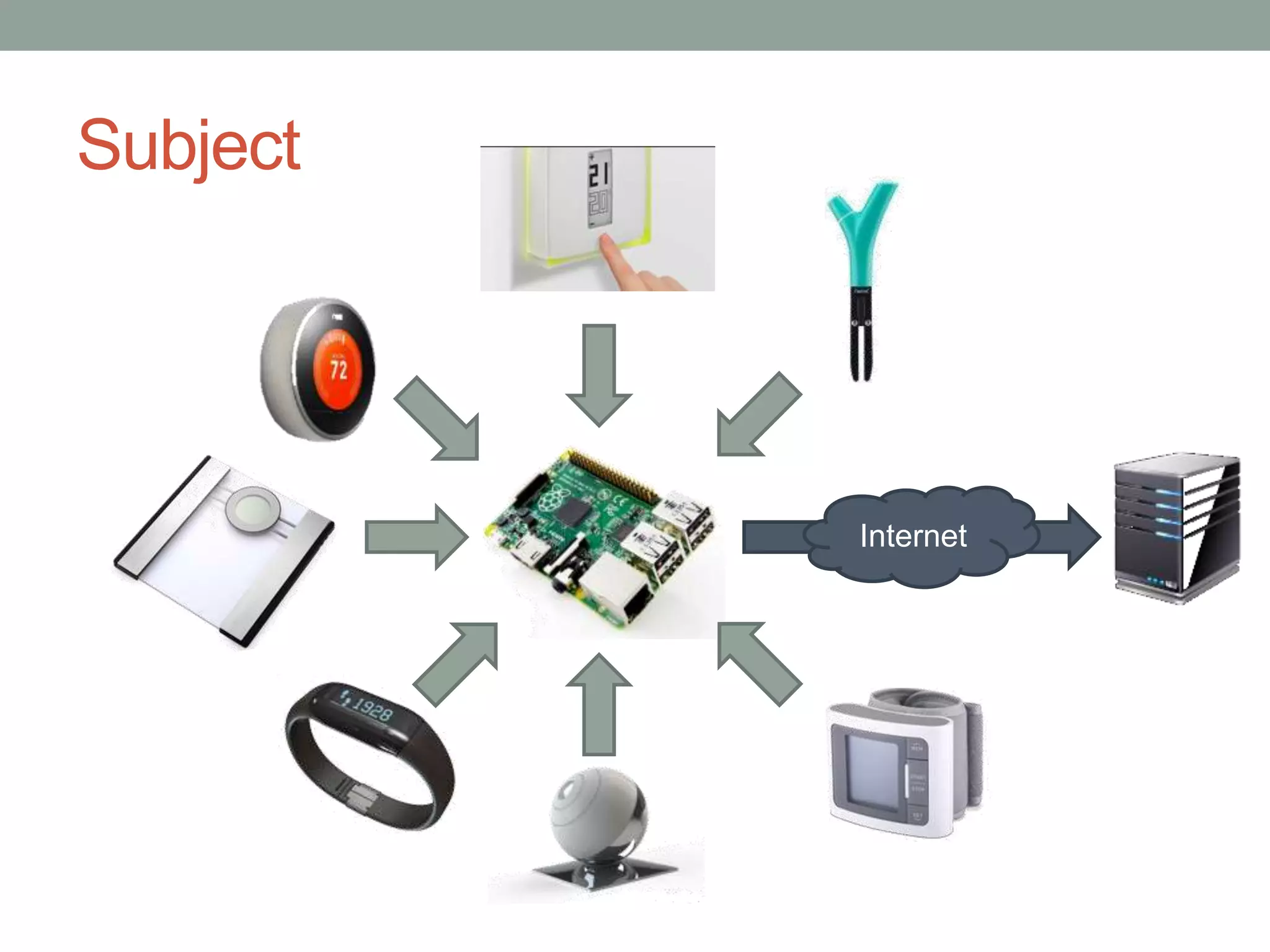

10. Subject
Internet

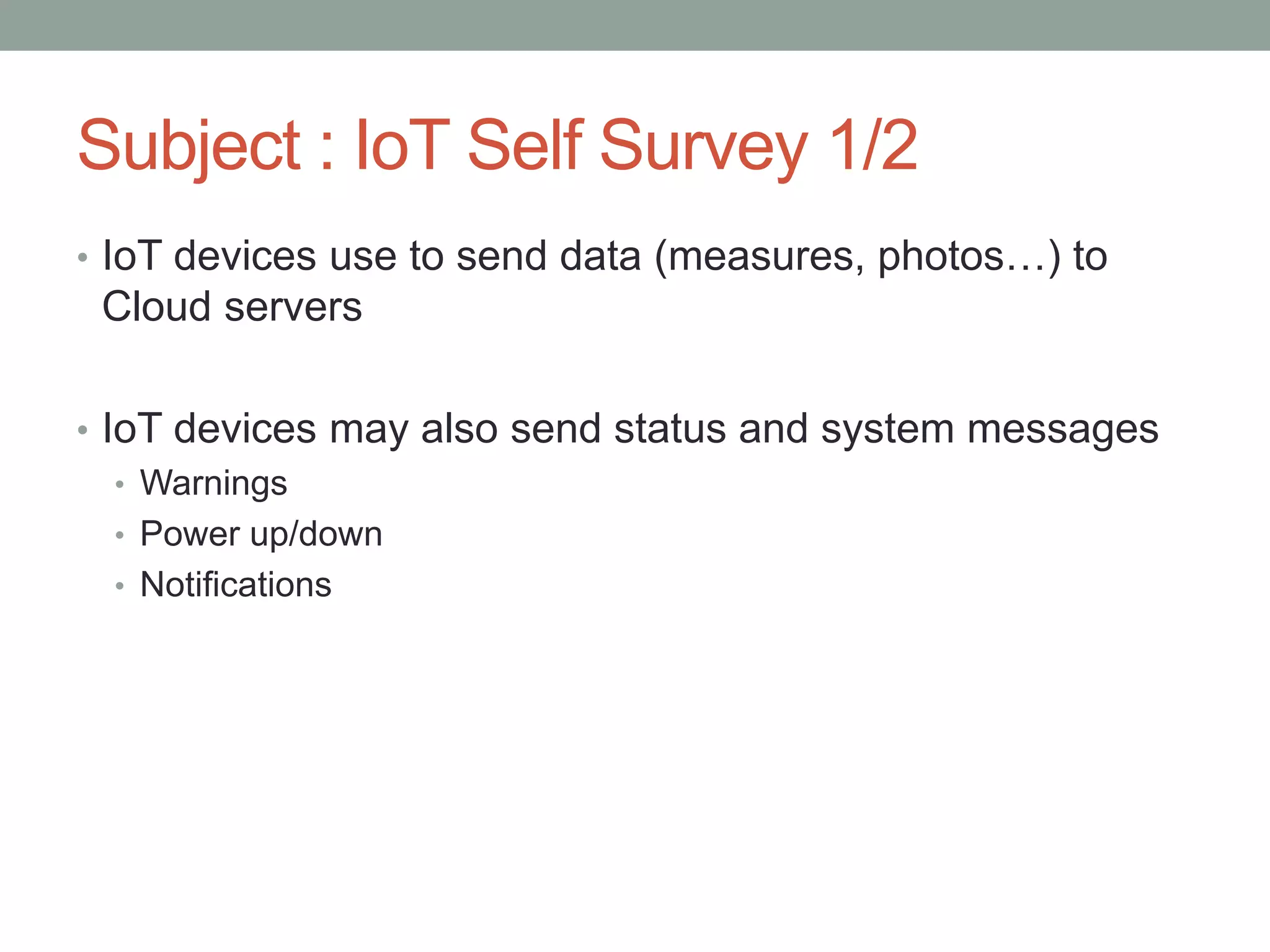

11. Subject : IoT Self Survey 1/2
• IoT devices use to send data (measures, photos…) to
Cloud servers
• IoT devices may also send status and system messages
• Warnings
• Power up/down
• Notifications

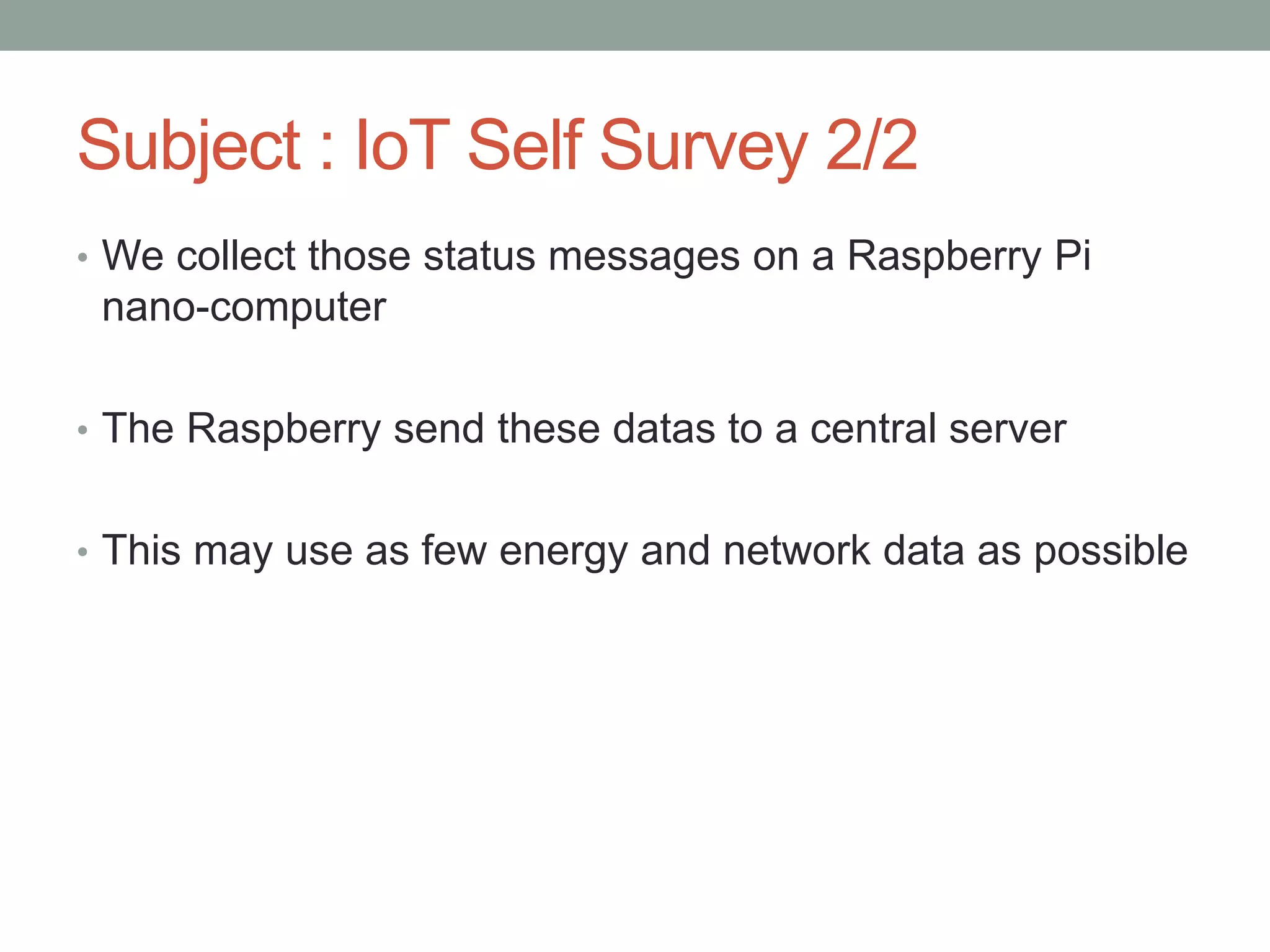

12. Subject : IoT Self Survey 2/2
• We collect those status messages on a Raspberry Pi
nano-computer
• The Raspberry send these datas to a central server
• This may use as few energy and network data as possible

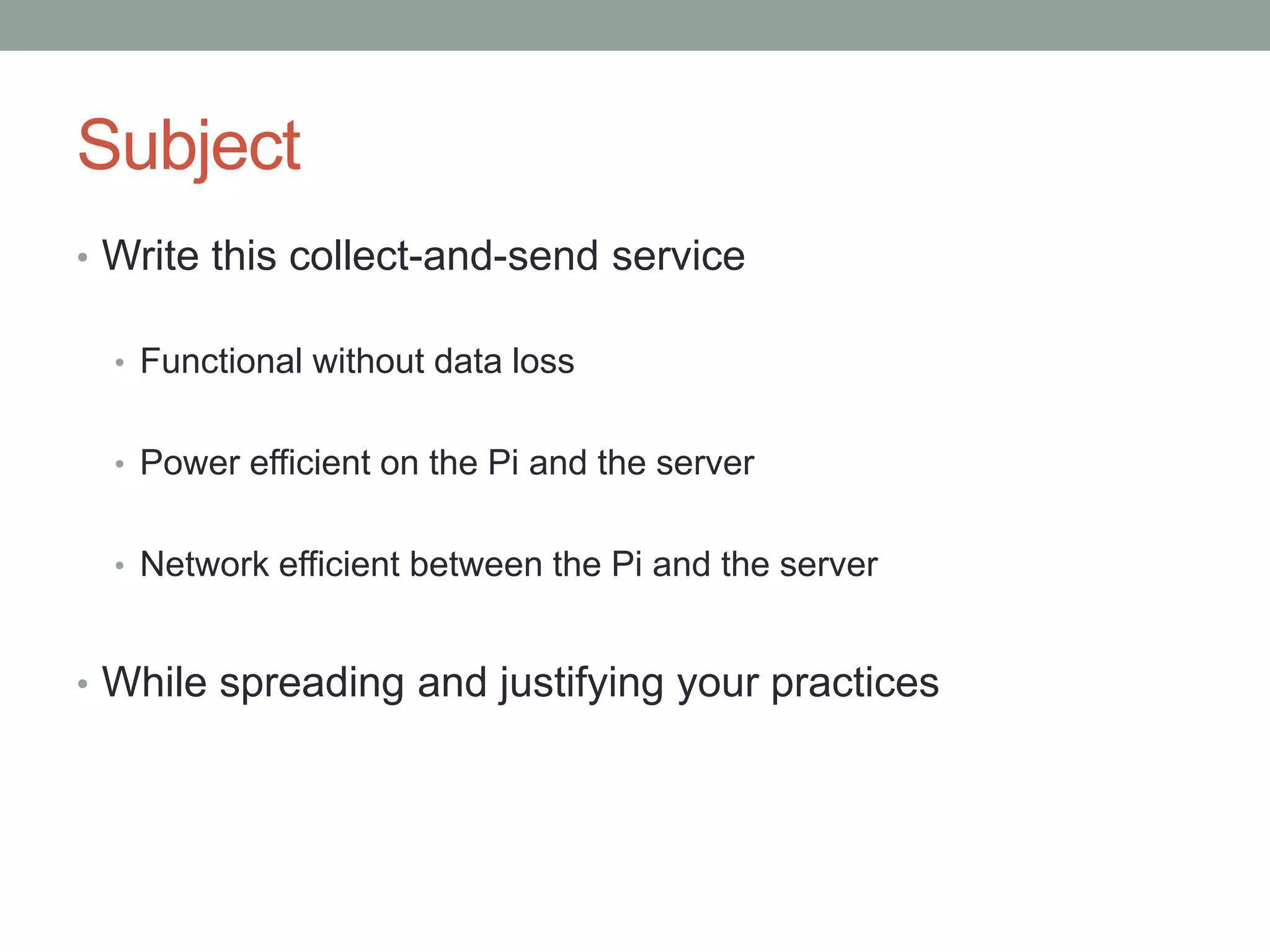

13. Subject
• Write this collect-and-send service
• Functional without data loss
• Power efficient on the Pi and the server
• Network efficient between the Pi and the server
• While spreading and justifying your practices

14. GREEN CODE LAB
CHALLENGE 2015
Needed dev environment & hotline

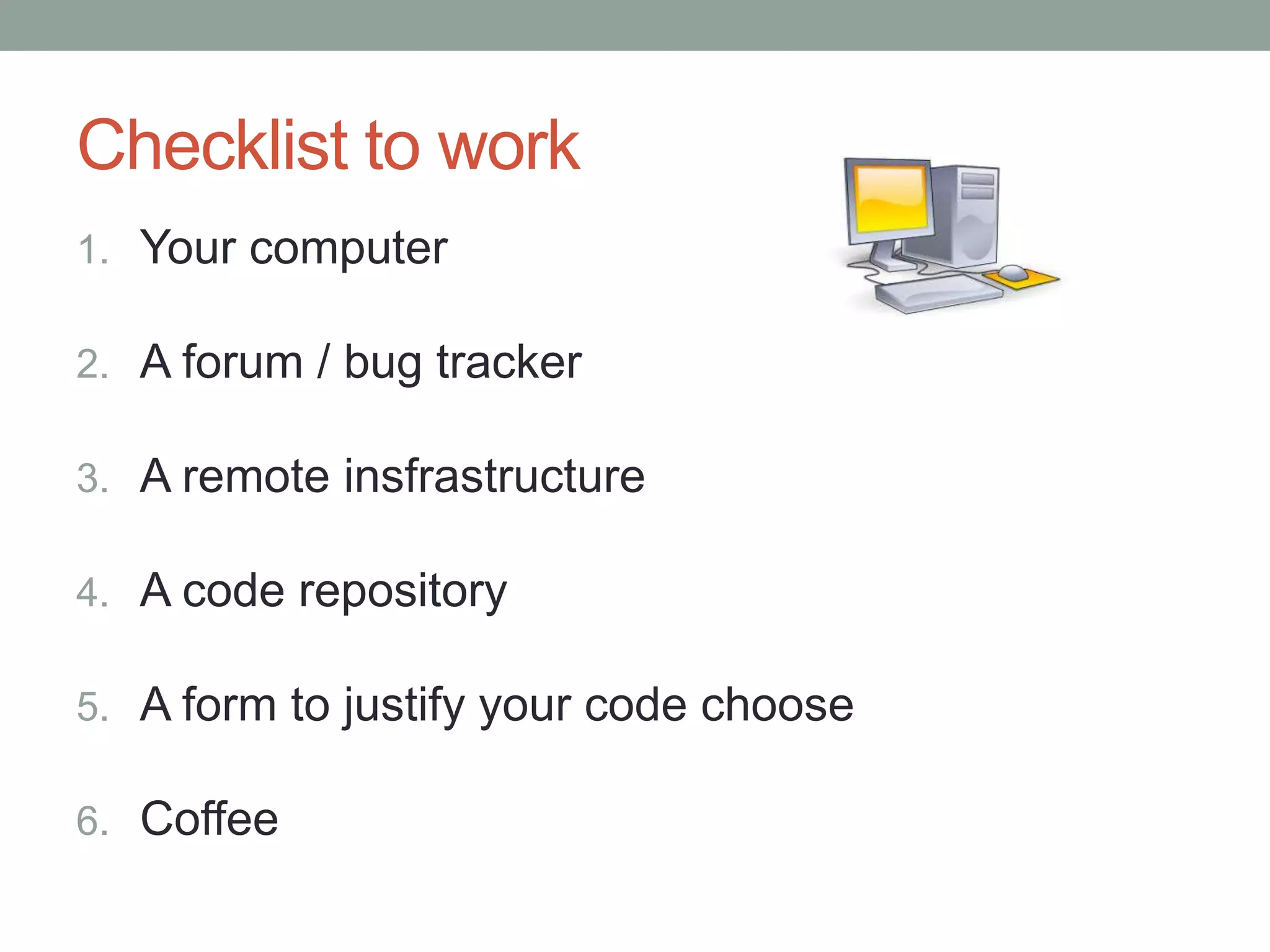

15. 1. Your computer
2. A forum / bug tracker
3. A remote insfrastructure
4. A code repository
5. A form to justify your code choose
6. Coffee
Checklist to work

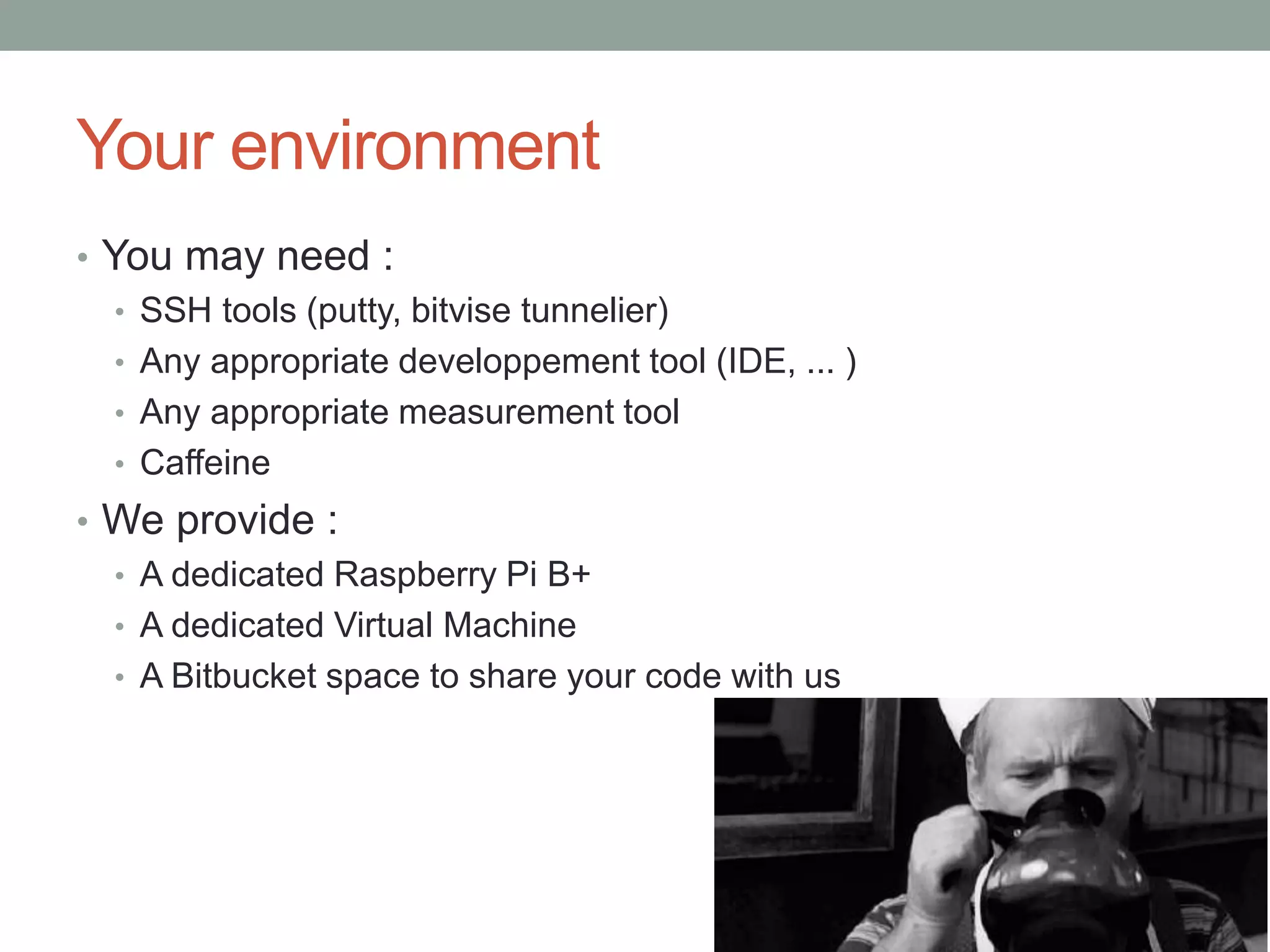

16. Your environment
• You may need :
• SSH tools (putty, bitvise tunnelier)
• Any appropriate developpement tool (IDE, ... )
• Any appropriate measurement tool
• Caffeine
• We provide :
• A dedicated Raspberry Pi B+
• A dedicated Virtual Machine
• A Bitbucket space to share your code with us

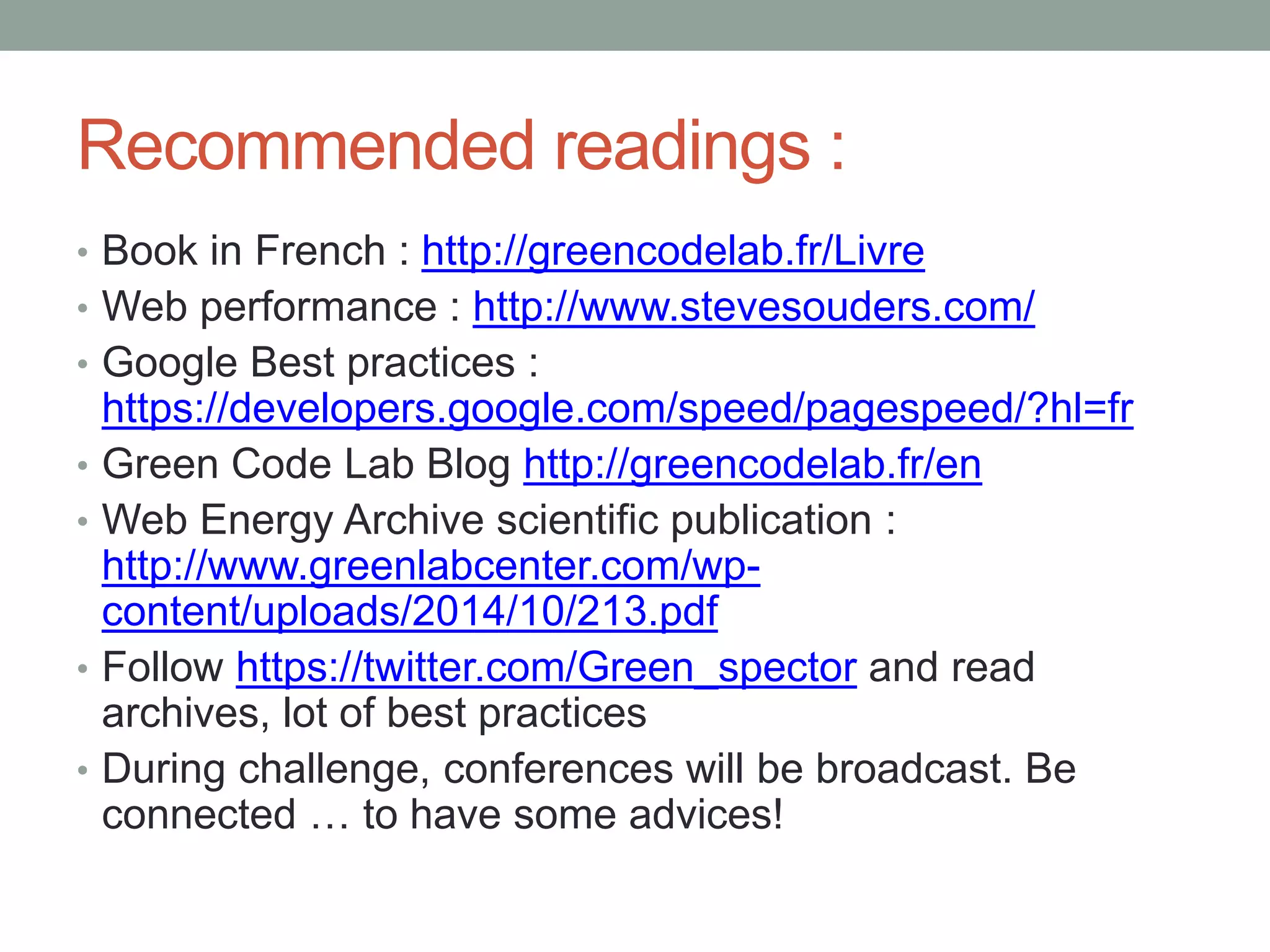

17. Recommended readings :
• Book in French : http://greencodelab.fr/Livre
• Web performance : http://www.stevesouders.com/
• Google Best practices :
https://developers.google.com/speed/pagespeed/?hl=fr
• Green Code Lab Blog http://greencodelab.fr/en
• Web Energy Archive scientific publication :
http://www.greenlabcenter.com/wp-
content/uploads/2014/10/213.pdf
• Follow https://twitter.com/Green_spector and read
archives, lot of best practices
• During challenge, conferences will be broadcast. Be
connected … to have some advices!

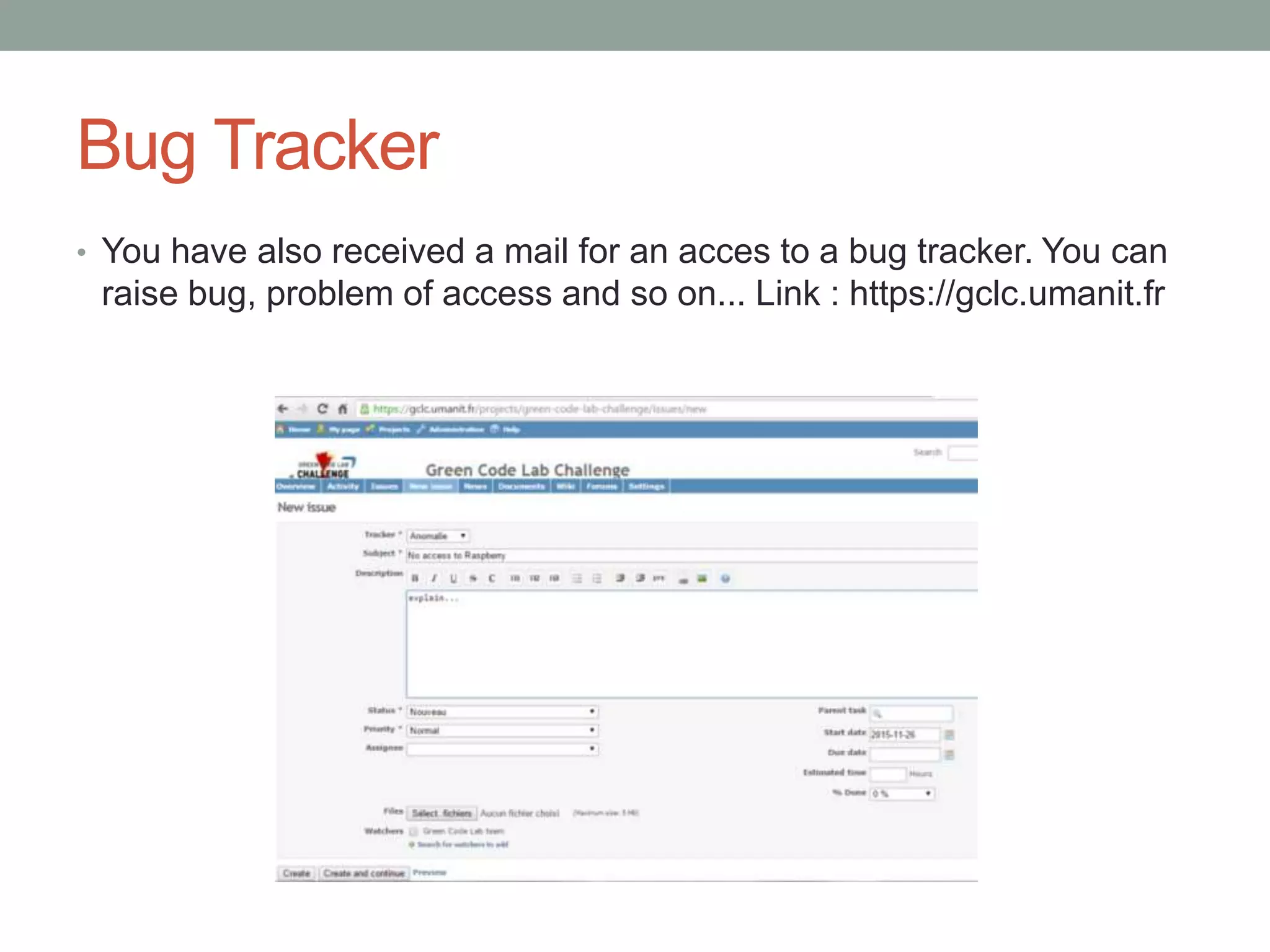

18. Bug Tracker
• You have also received a mail for an acces to a bug tracker. You can
raise bug, problem of access and so on... Link : https://gclc.umanit.fr

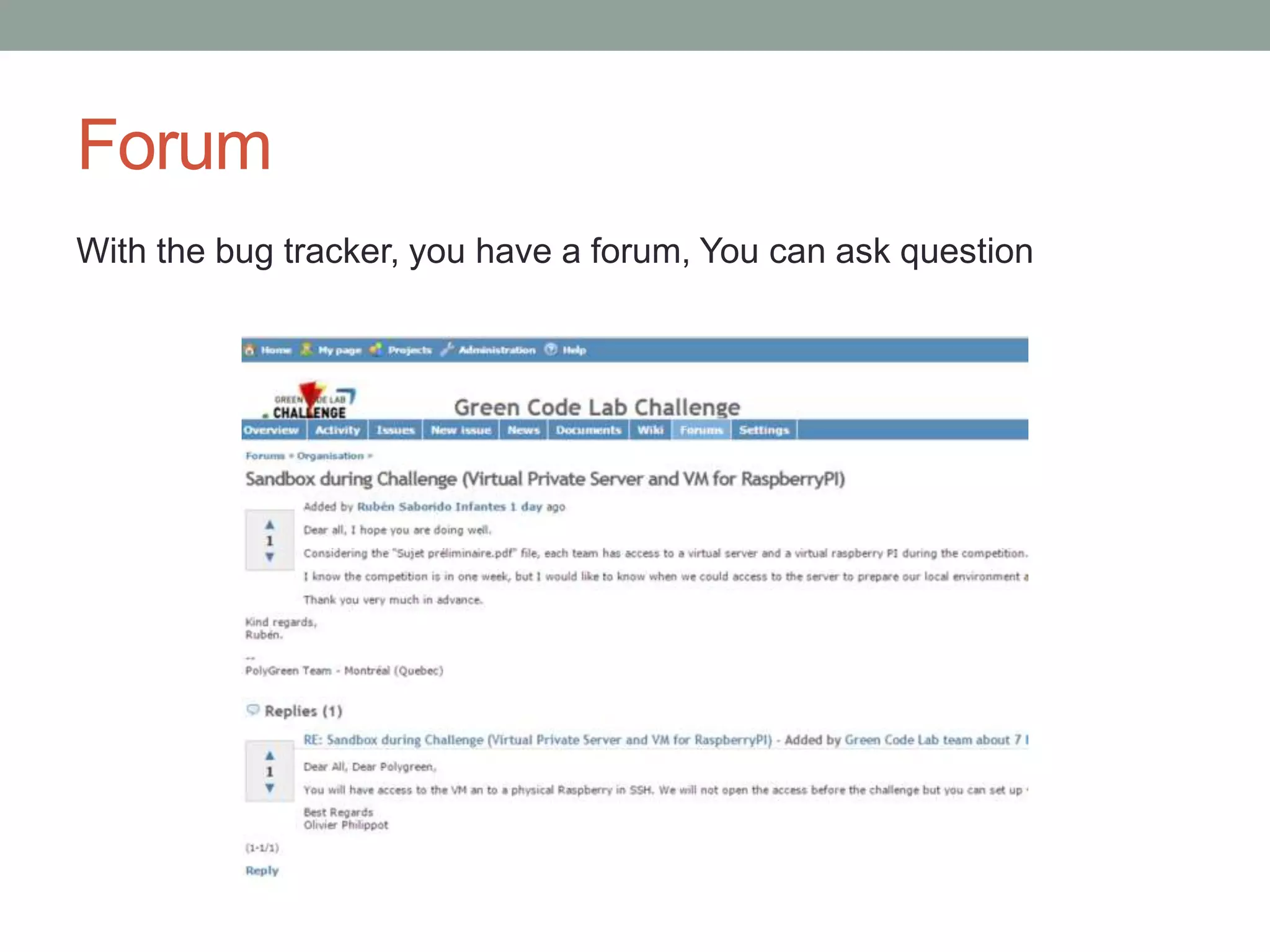

19. Forum
With the bug tracker, you have a forum, You can ask question

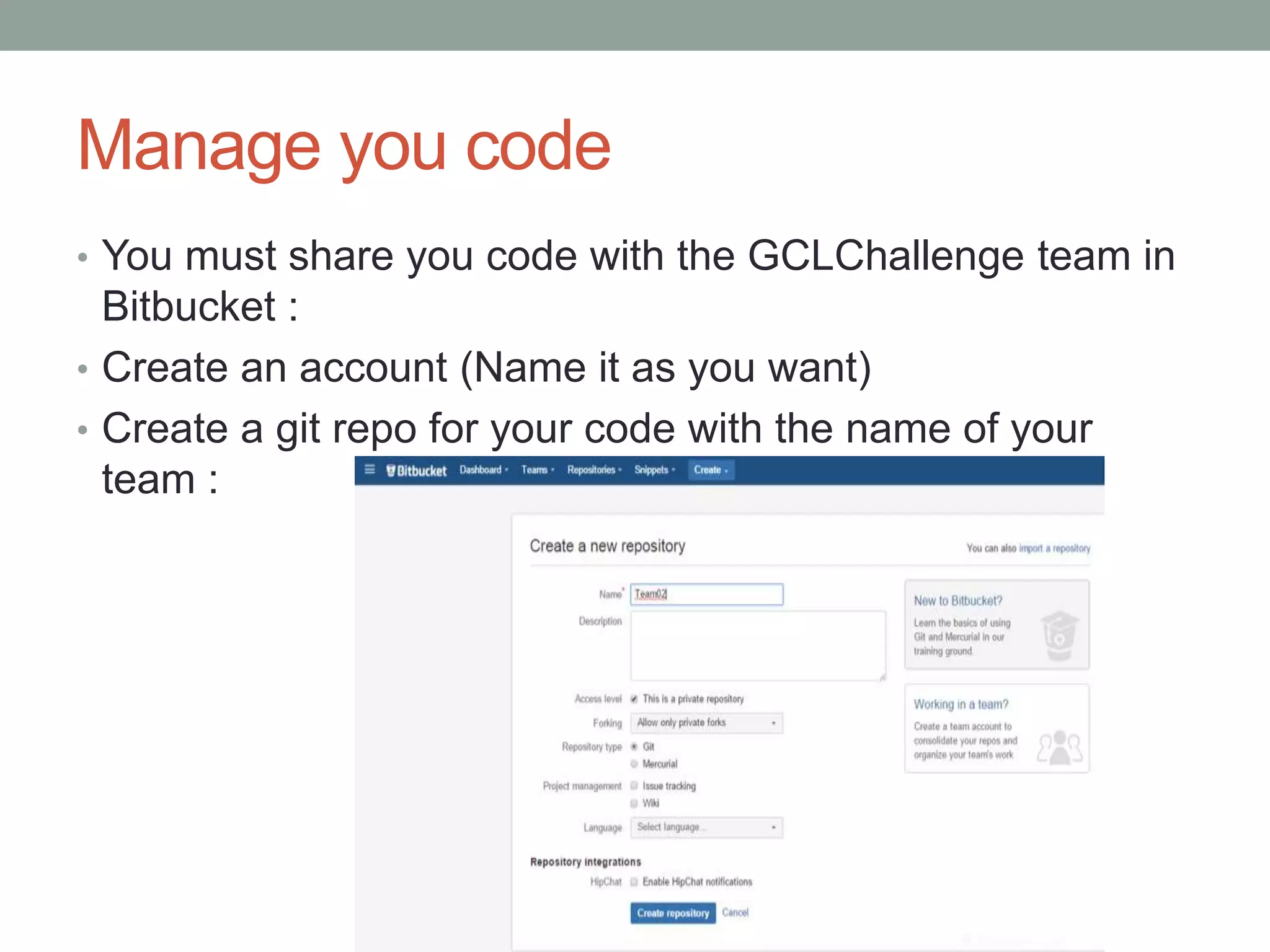

20. Manage you code
• You must share you code with the GCLChallenge team in
Bitbucket :
• Create an account (Name it as you want)
• Create a git repo for your code with the name of your
team :

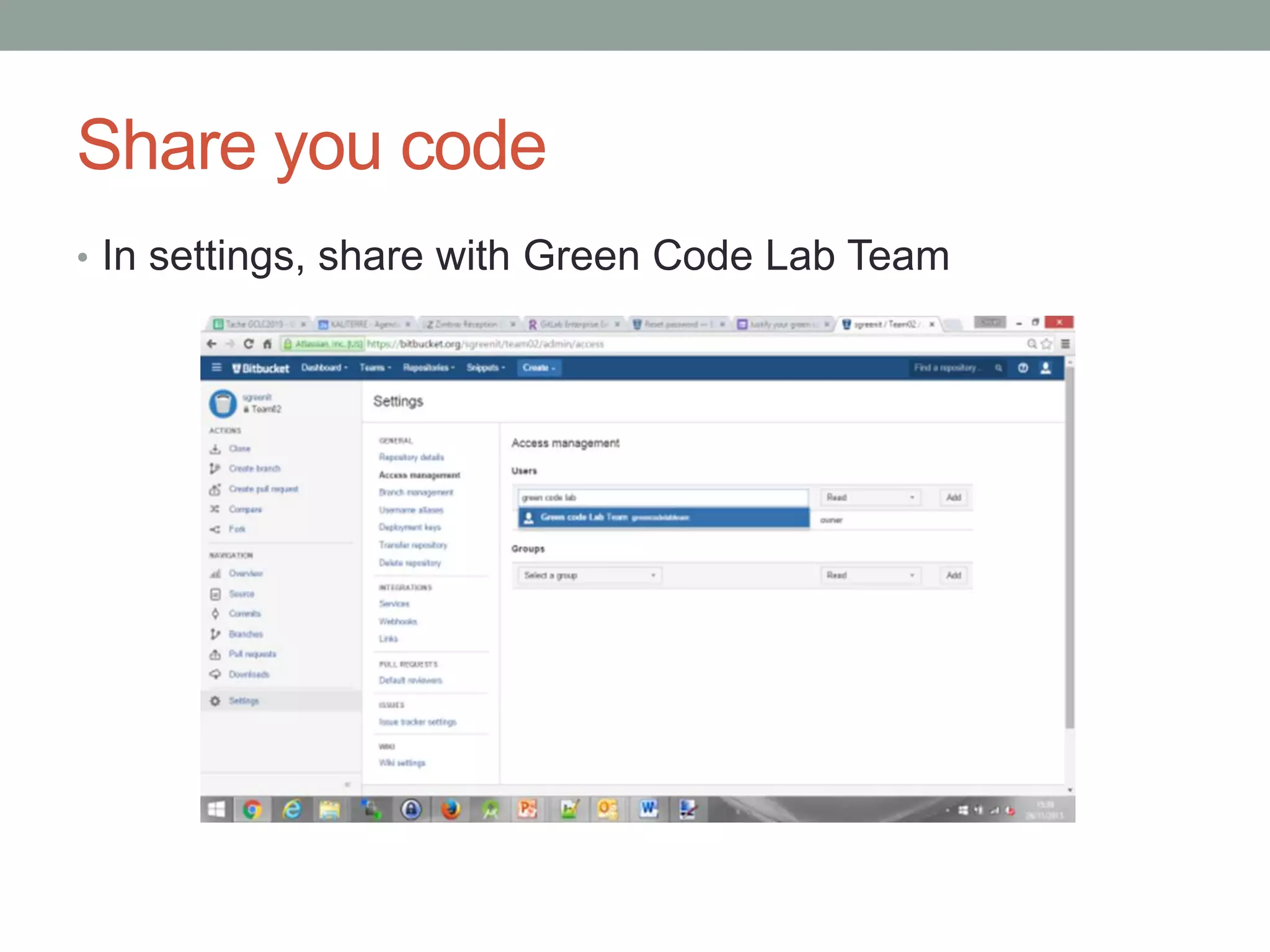

21. Share you code
• In settings, share with Green Code Lab Team

22. GREEN CODE LAB
CHALLENGE 2015
Platform

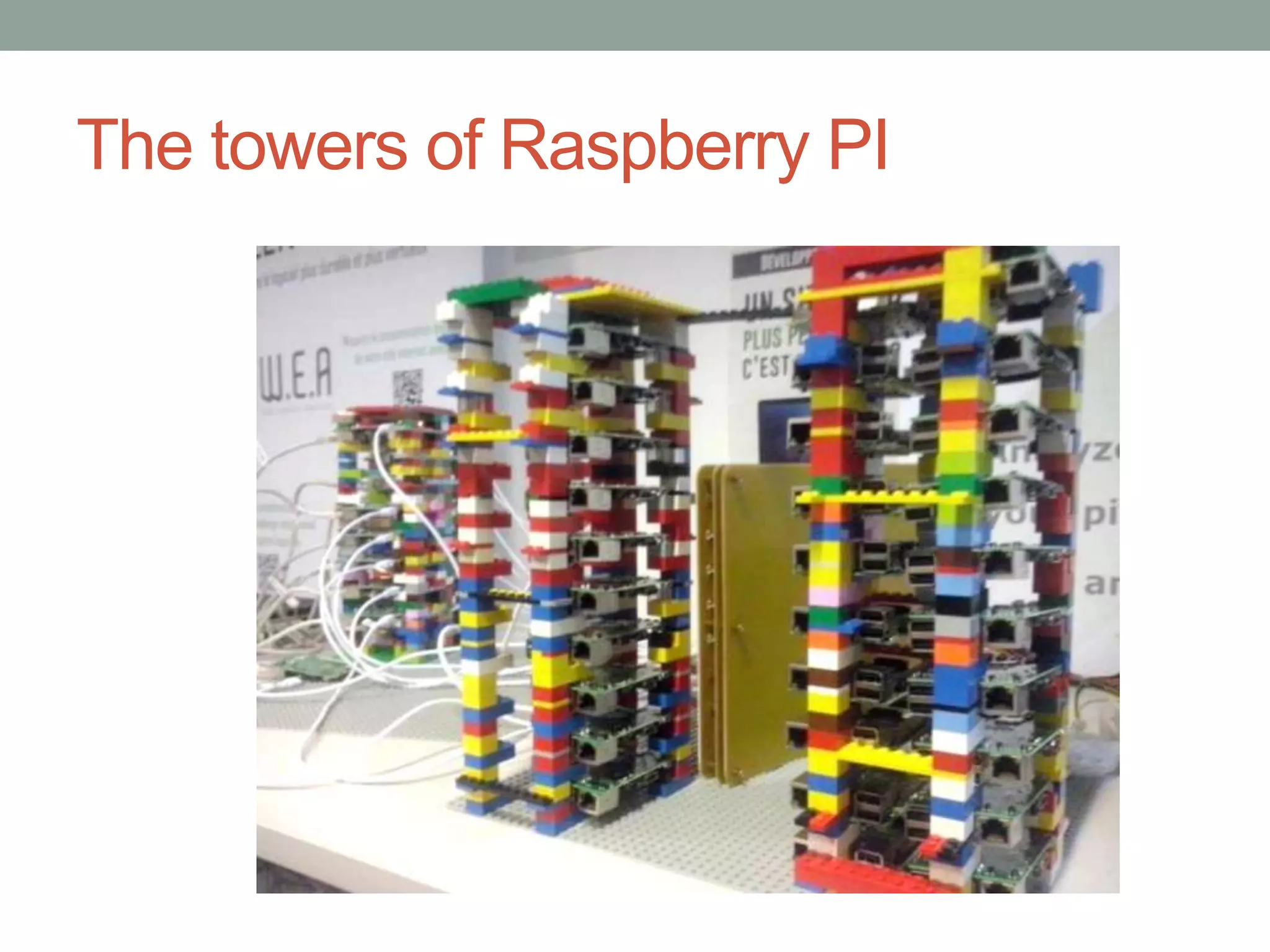

23. The towers of Raspberry PI

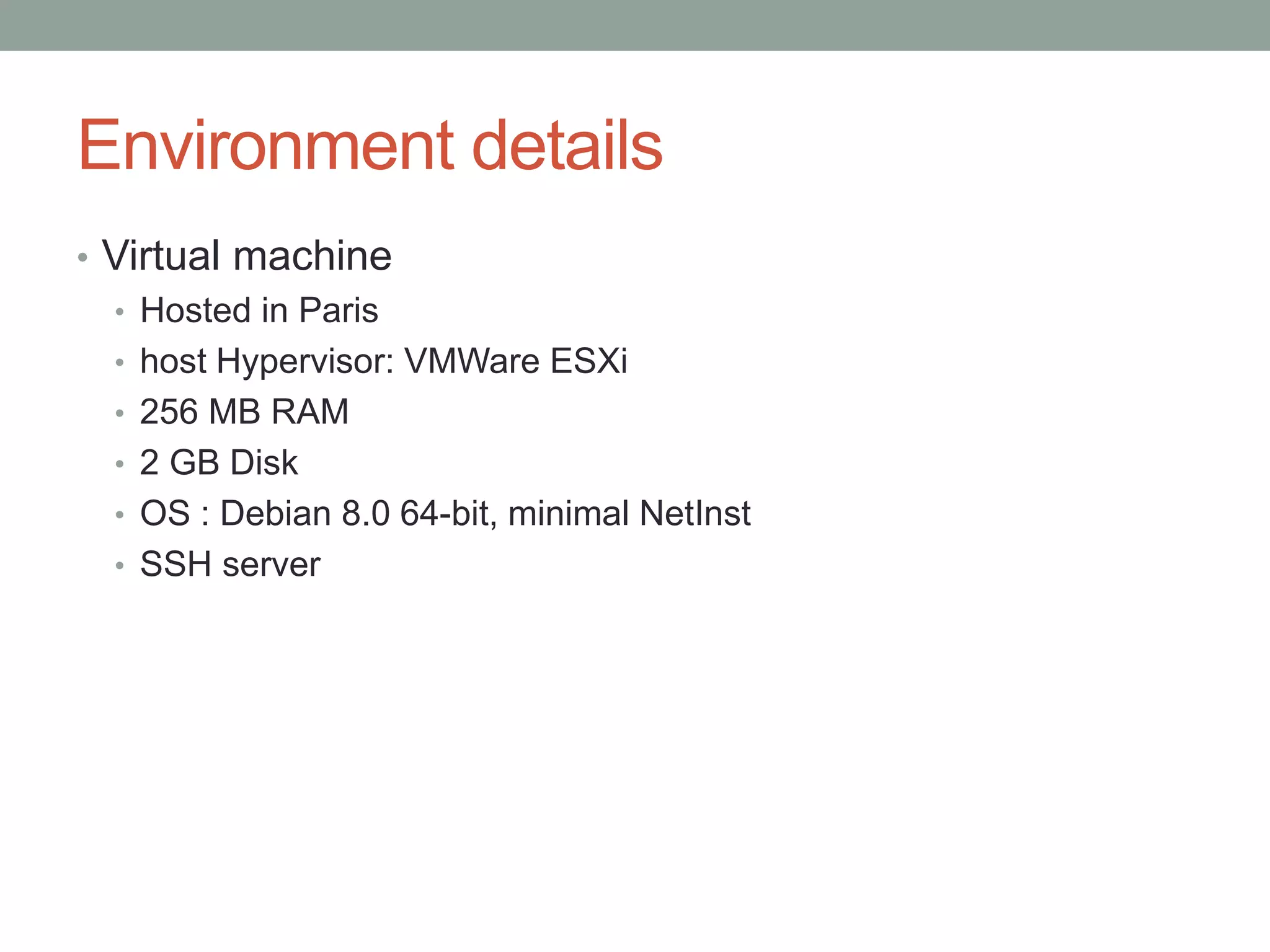

24. Environment details
• Virtual machine
• Hosted in Paris
• host Hypervisor: VMWare ESXi
• 256 MB RAM
• 2 GB Disk
• OS : Debian 8.0 64-bit, minimal NetInst
• SSH server

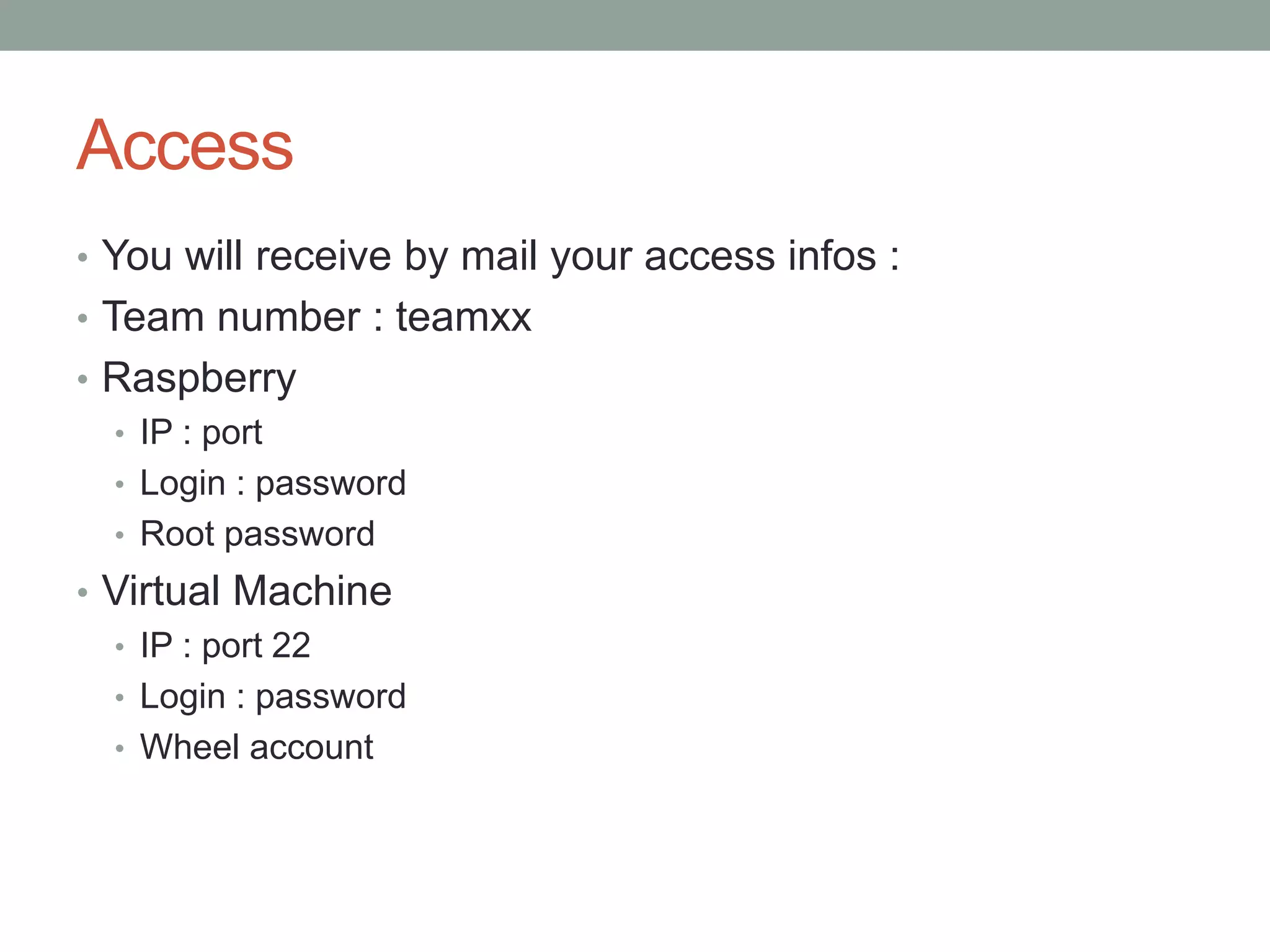

25. Access
• You will receive by mail your access infos :
• Team number : teamxx
• Raspberry
• IP : port
• Login : password
• Root password
• Virtual Machine
• IP : port 22
• Login : password
• Wheel account

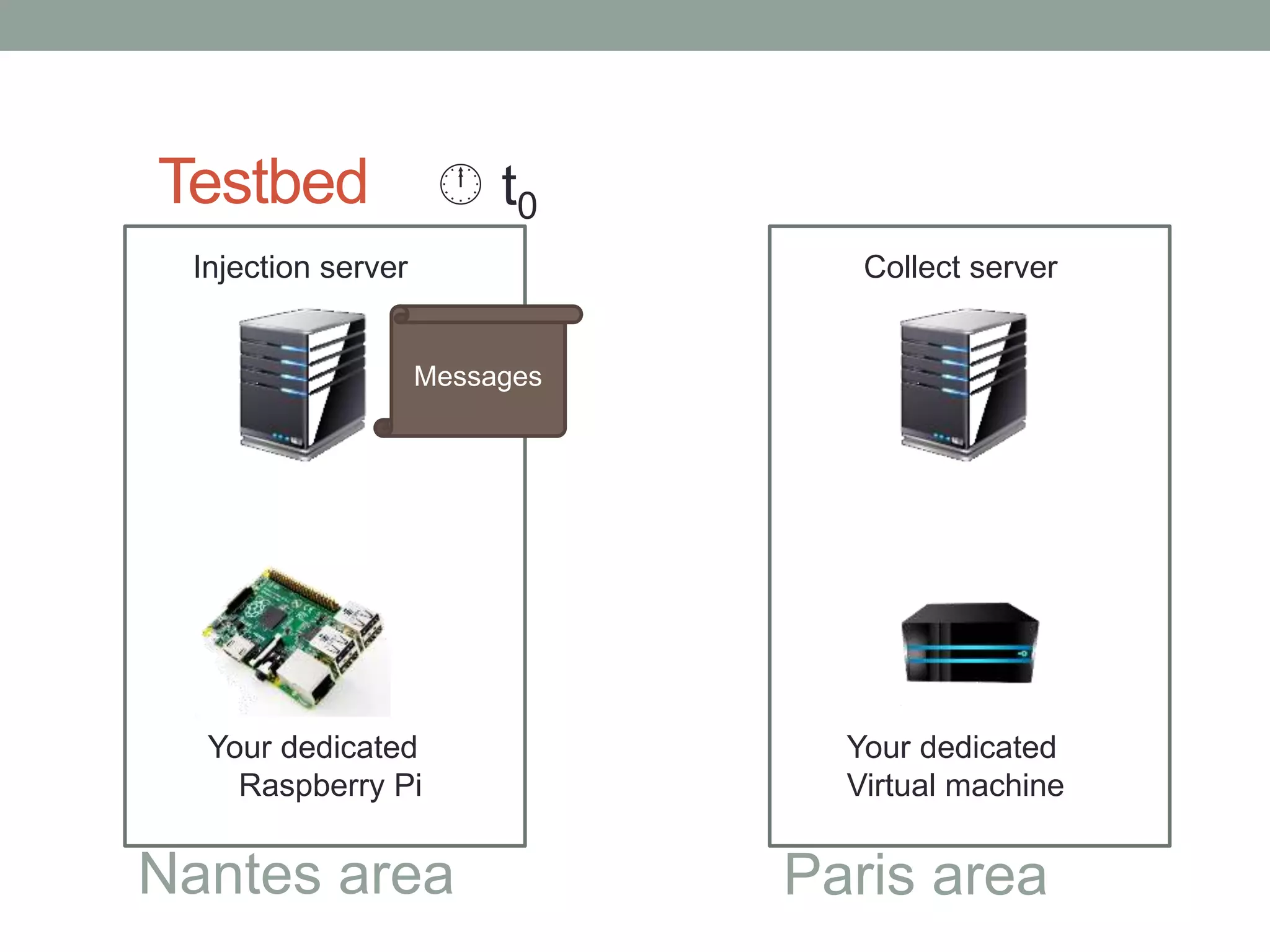

26. Testbed
Injection server
Your dedicated
Raspberry Pi
Your dedicated
Virtual machine
Collect server
Nantes area Paris area
Messages
 t0

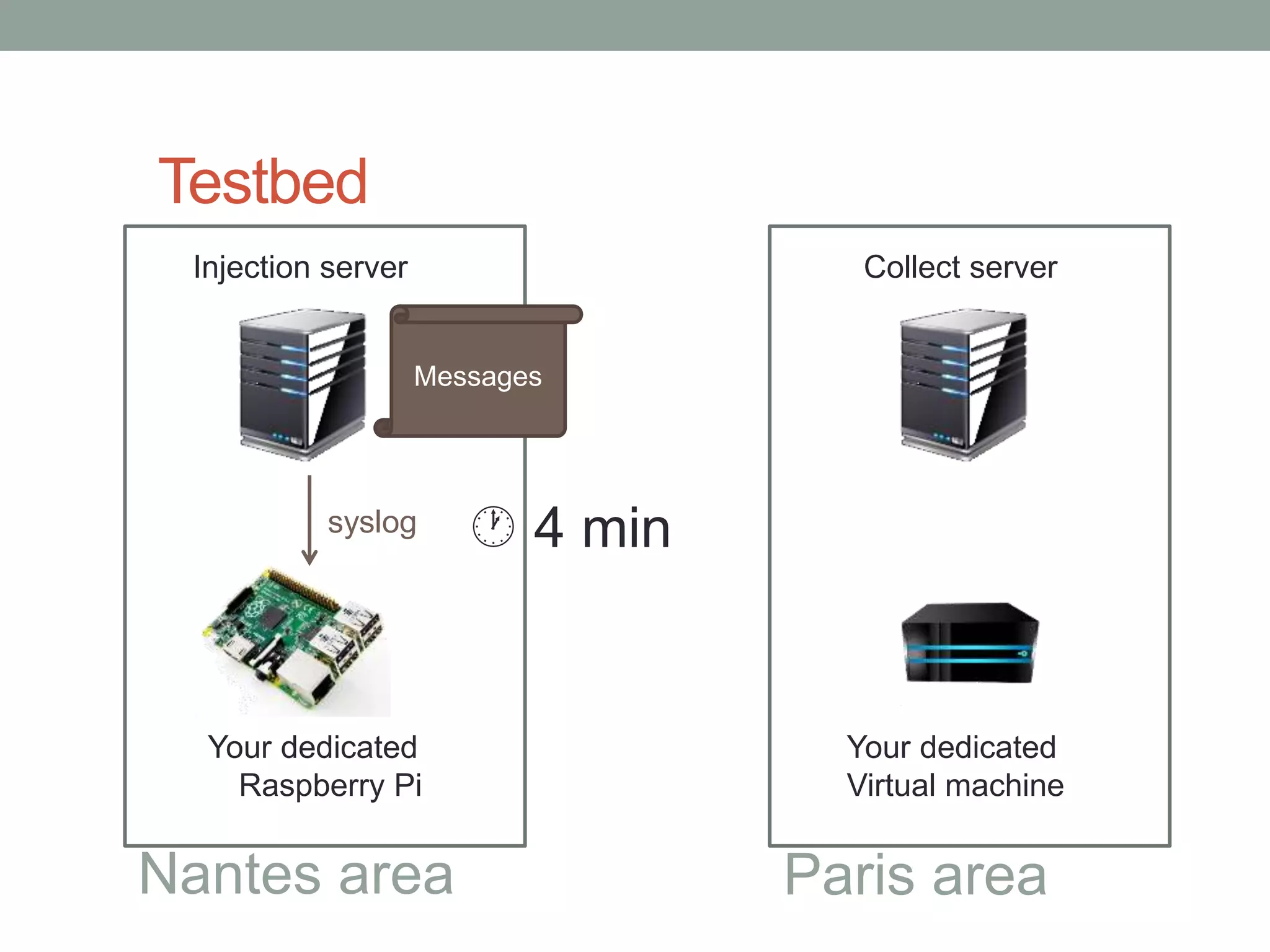

27. Testbed
Injection server
Your dedicated
Raspberry Pi
Your dedicated
Virtual machine
Collect server
Nantes area Paris area
Messages
syslog  4 min

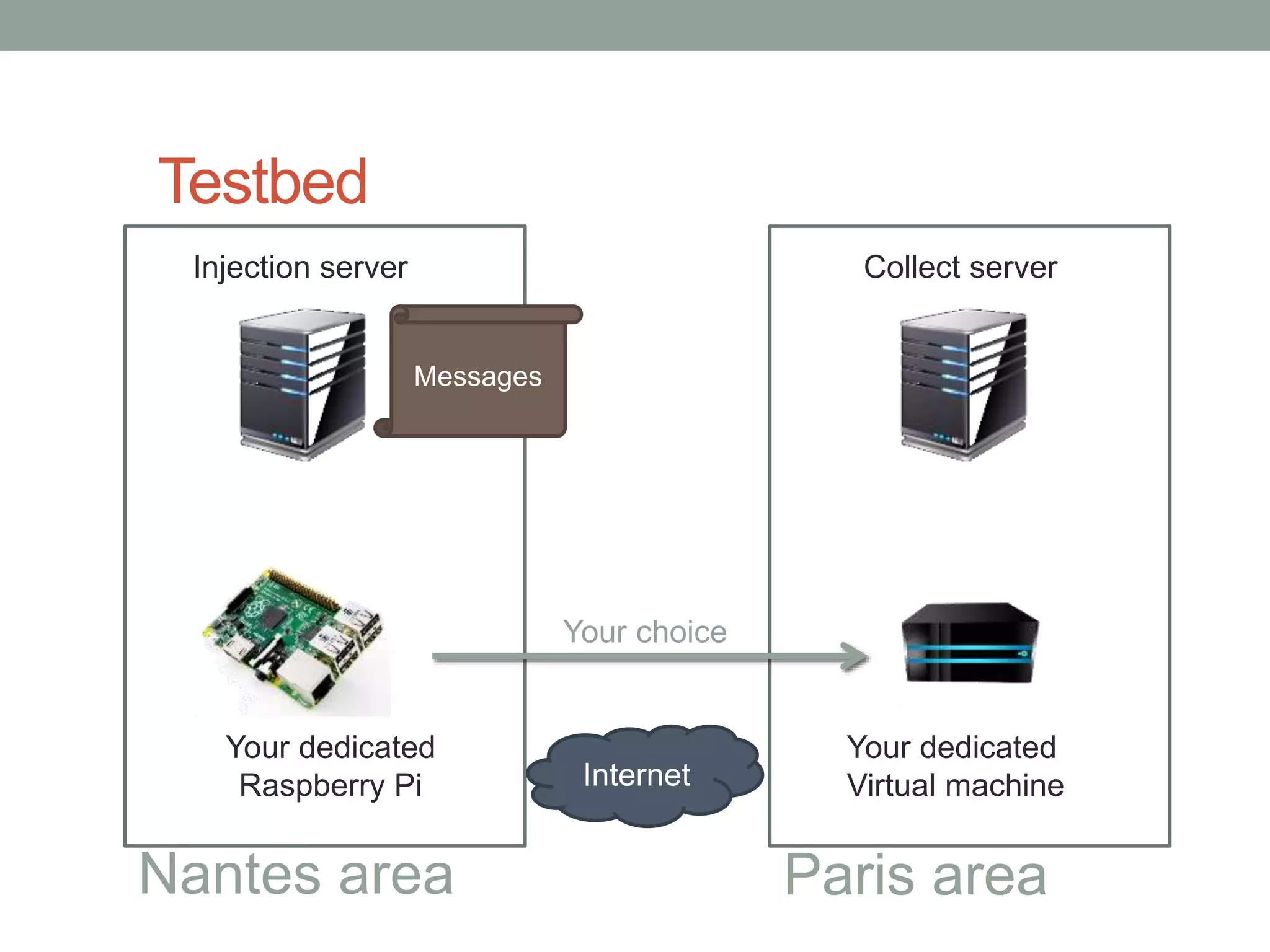

28. Testbed
Injection server
Your dedicated
Raspberry Pi
Your dedicated
Virtual machine
Collect server
Nantes area Paris area
Messages
Your choice
Internet

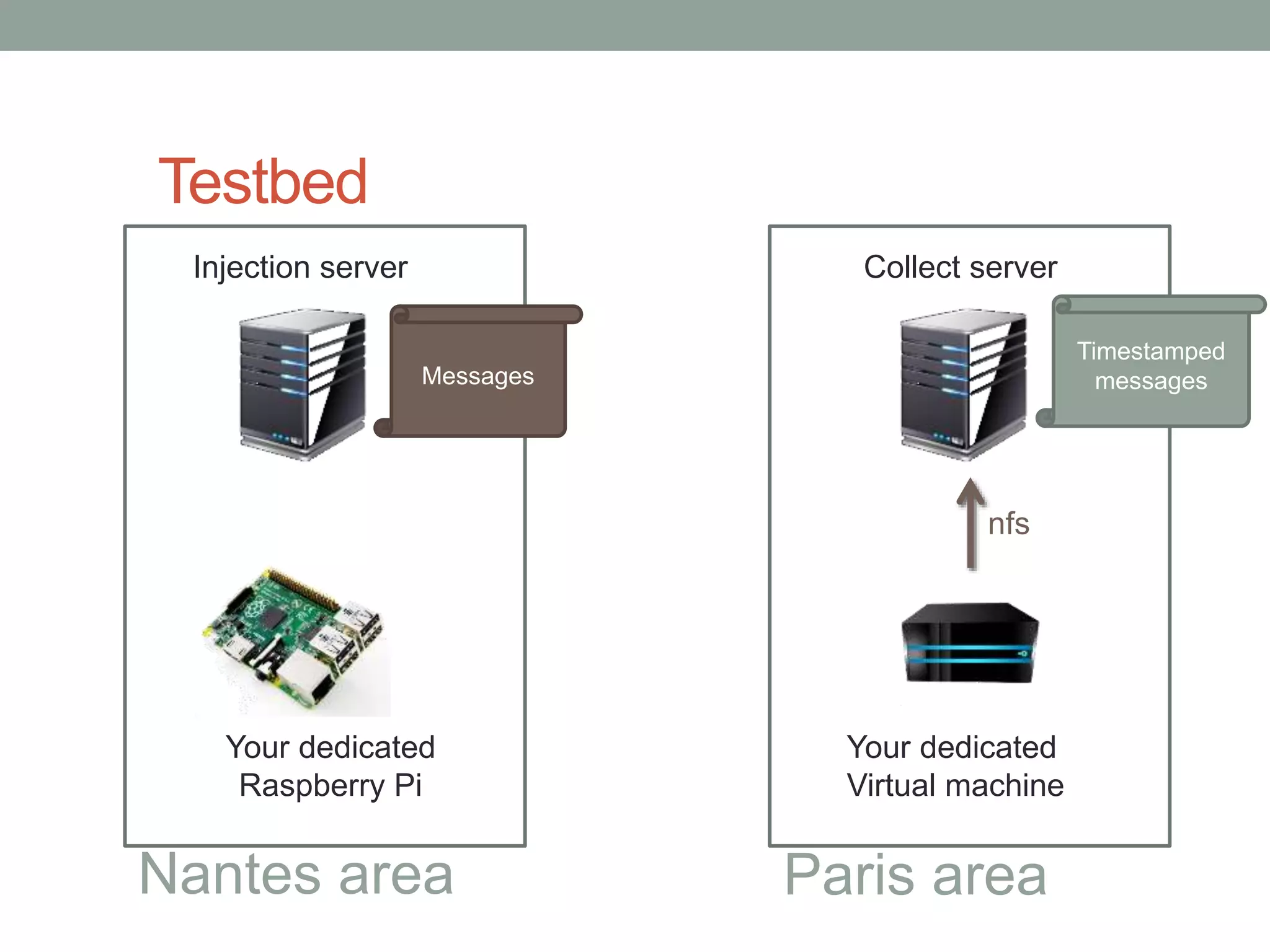

29. Testbed
Injection server
Your dedicated
Raspberry Pi
Your dedicated
Virtual machine
Collect server
Nantes area Paris area
Messages
nfs
Timestamped
messages

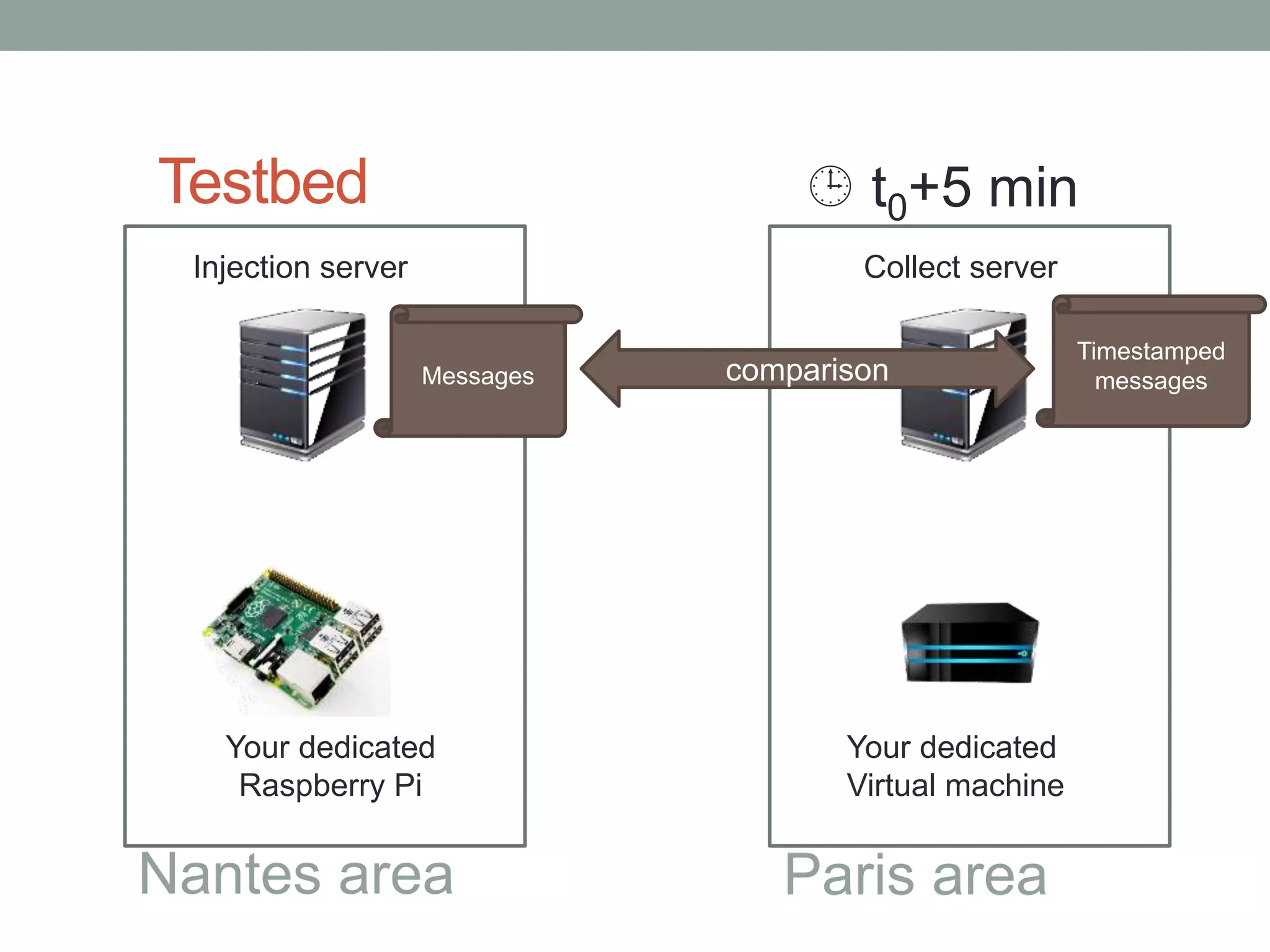

30. Testbed
Injection server
Your dedicated
Raspberry Pi
Your dedicated
Virtual machine
Collect server
Nantes area Paris area
Messages
Timestamped
messagescomparison
 t0+5 min

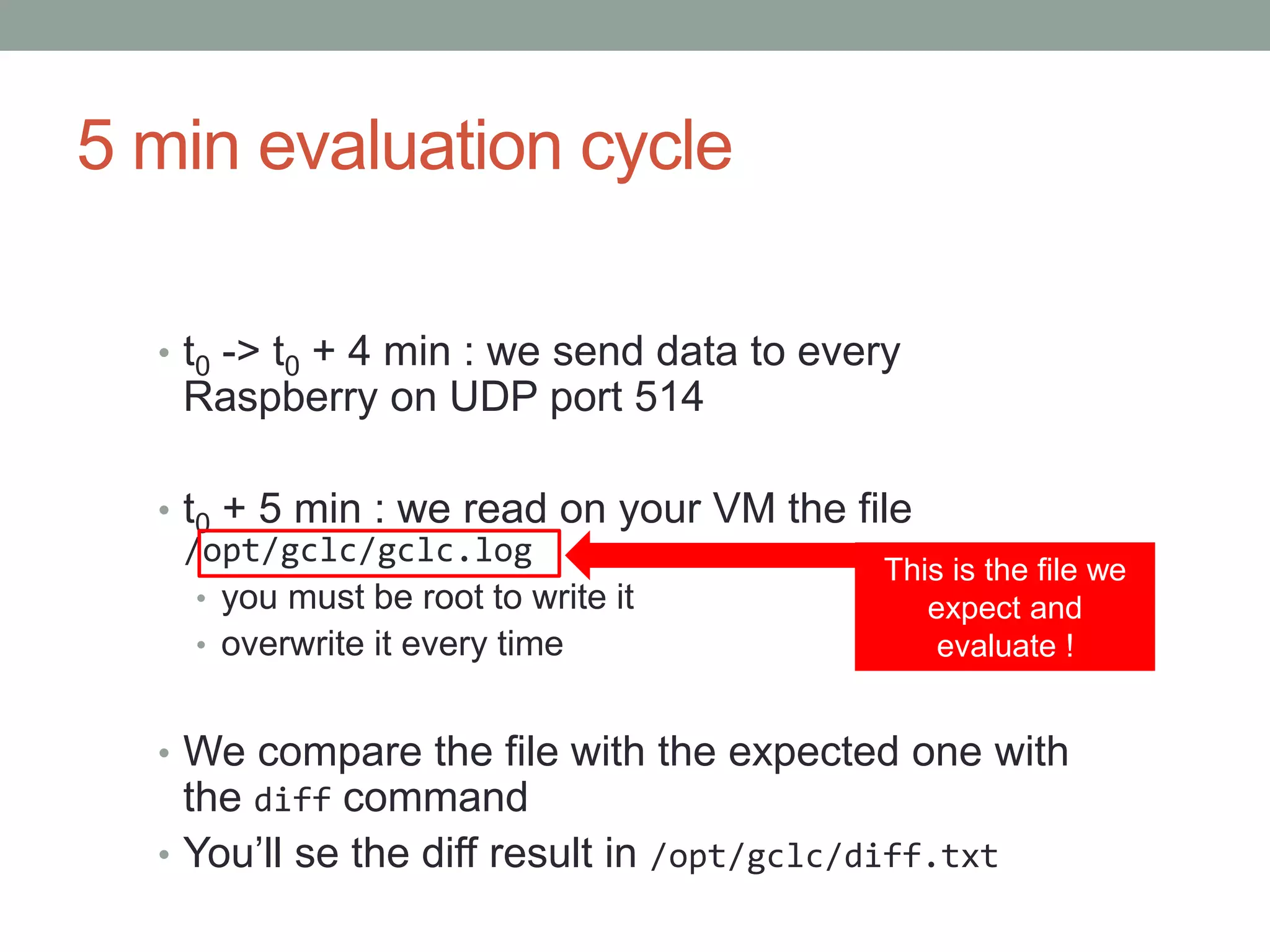

31. 5 min evaluation cycle
• t0 -> t0 + 4 min : we send data to every
Raspberry on UDP port 514
• t0 + 5 min : we read on your VM the file
/opt/gclc/gclc.log
• you must be root to write it
• overwrite it every time
• We compare the file with the expected one with
the diff command
• You’ll se the diff result in /opt/gclc/diff.txt
This is the file we
expect and
evaluate !

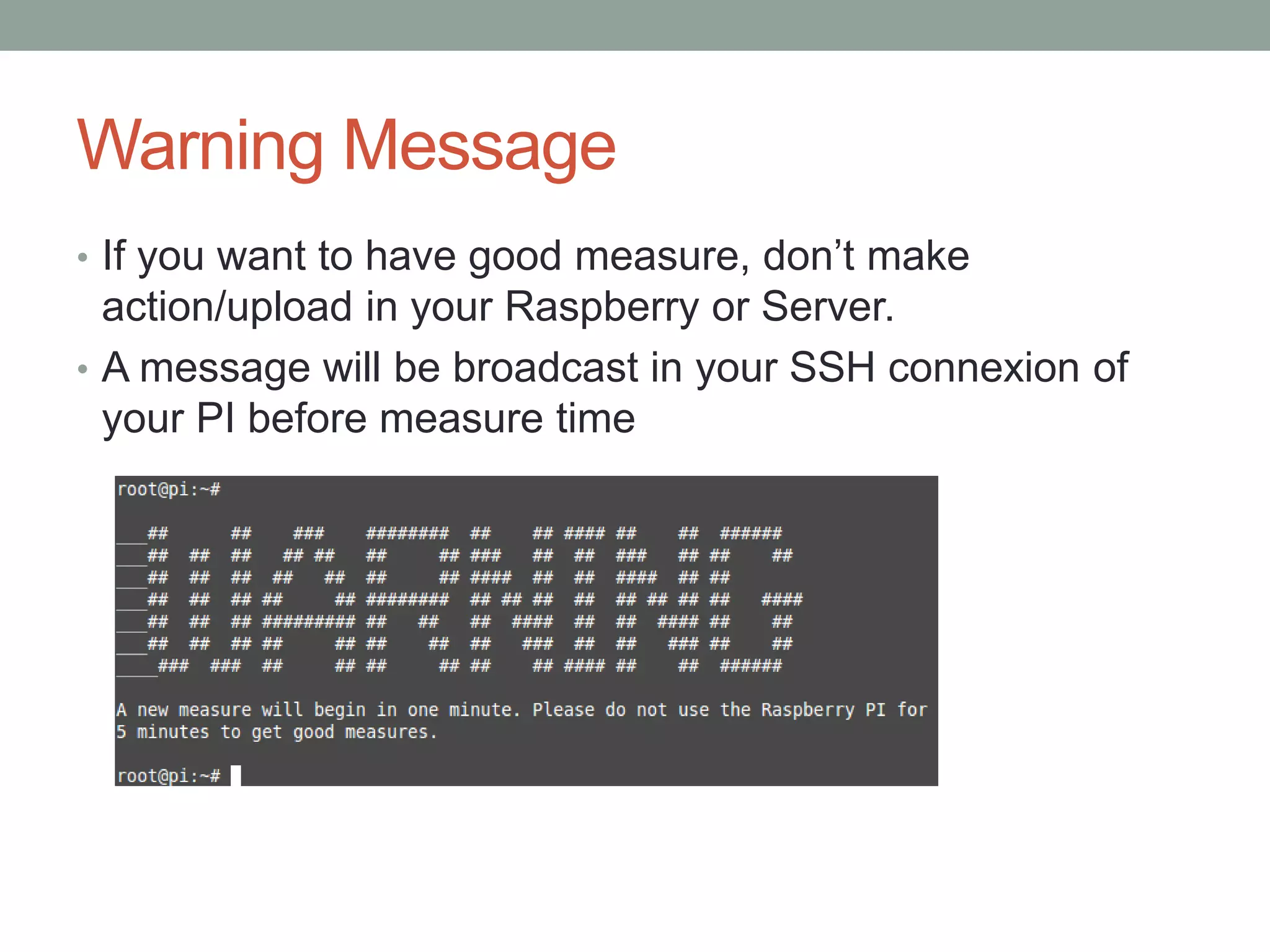

32. Warning Message
• If you want to have good measure, don’t make
action/upload in your Raspberry or Server.
• A message will be broadcast in your SSH connexion of
your PI before measure time

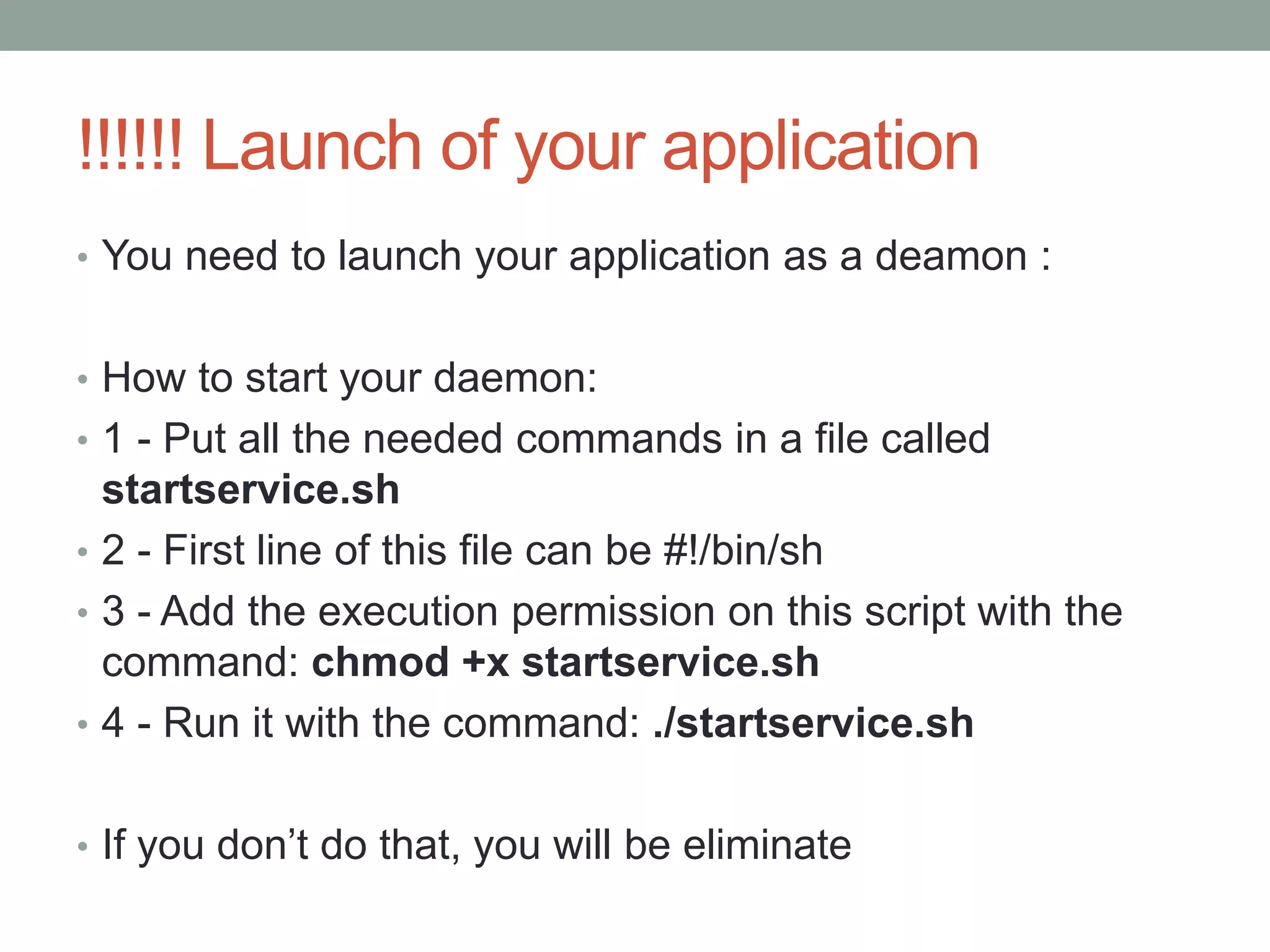

33. !!!!!! Launch of your application
• You need to launch your application as a deamon :
• How to start your daemon:
• 1 - Put all the needed commands in a file called
startservice.sh
• 2 - First line of this file can be #!/bin/sh
• 3 - Add the execution permission on this script with the
command: chmod +x startservice.sh
• 4 - Run it with the command: ./startservice.sh
• If you don’t do that, you will be eliminate

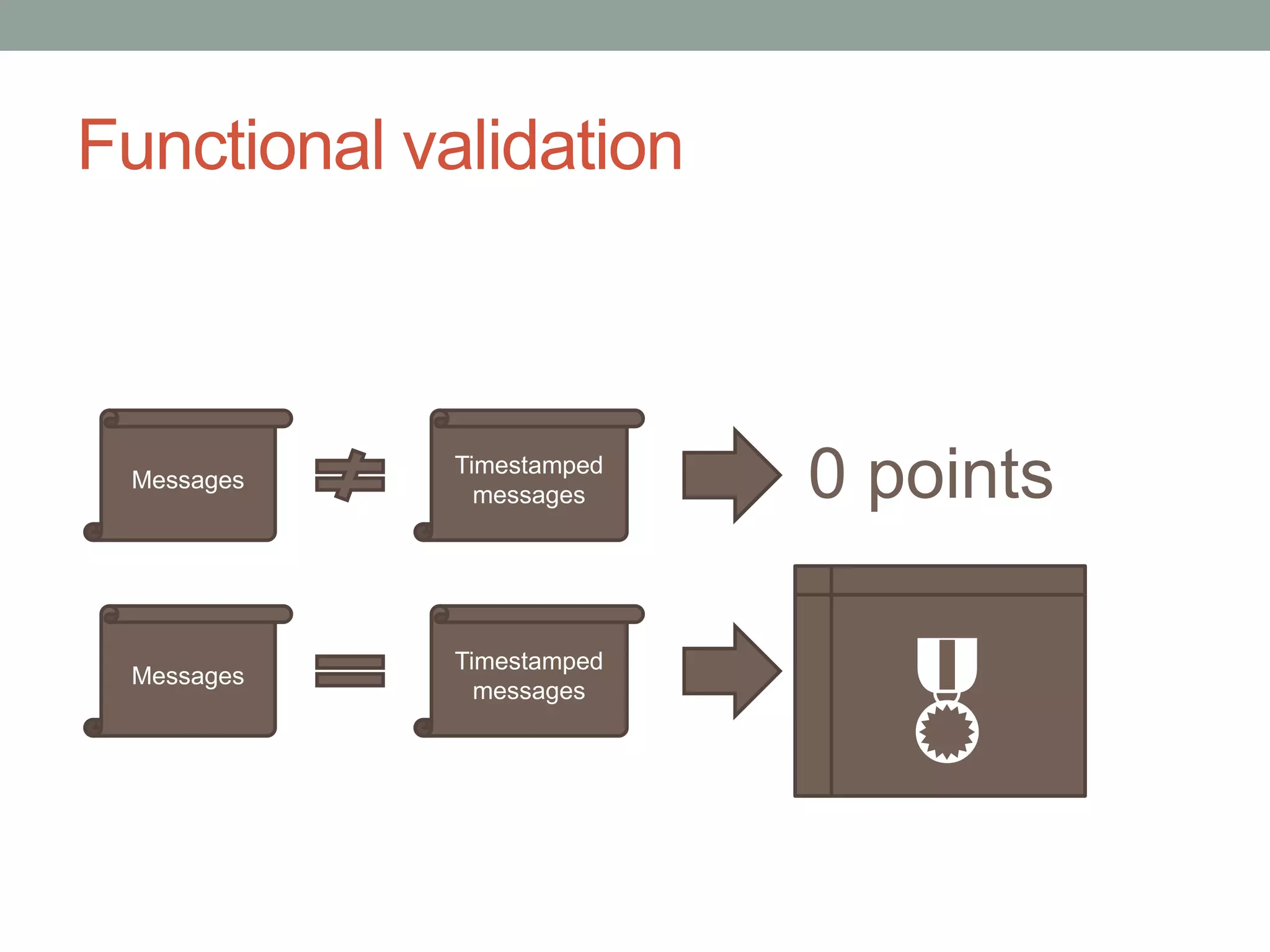

34. Functional validation
Messages
Timestamped
messages
Messages
Timestamped
messages
0 points


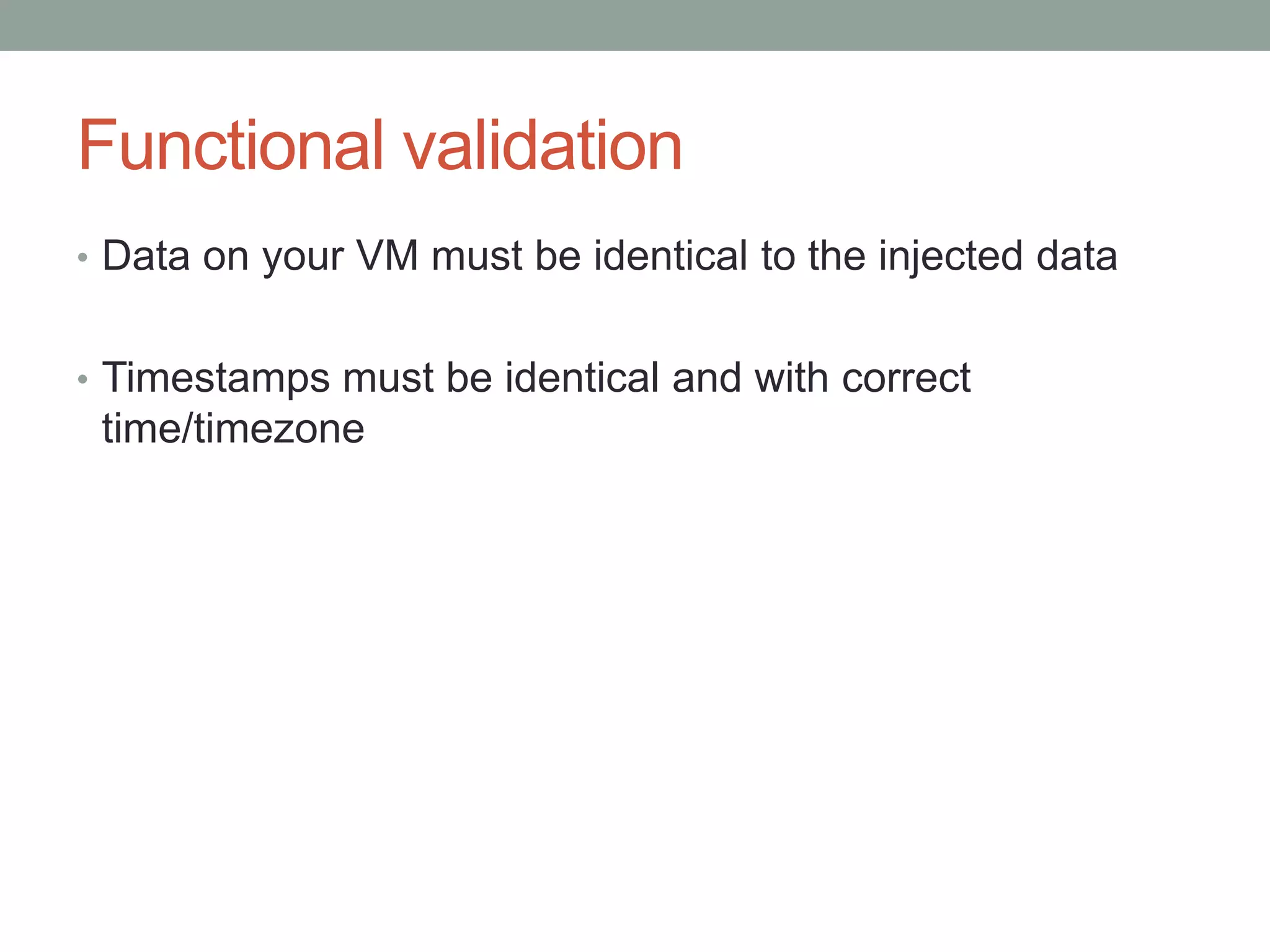

35. Functional validation
• Data on your VM must be identical to the injected data
• Timestamps must be identical and with correct
time/timezone

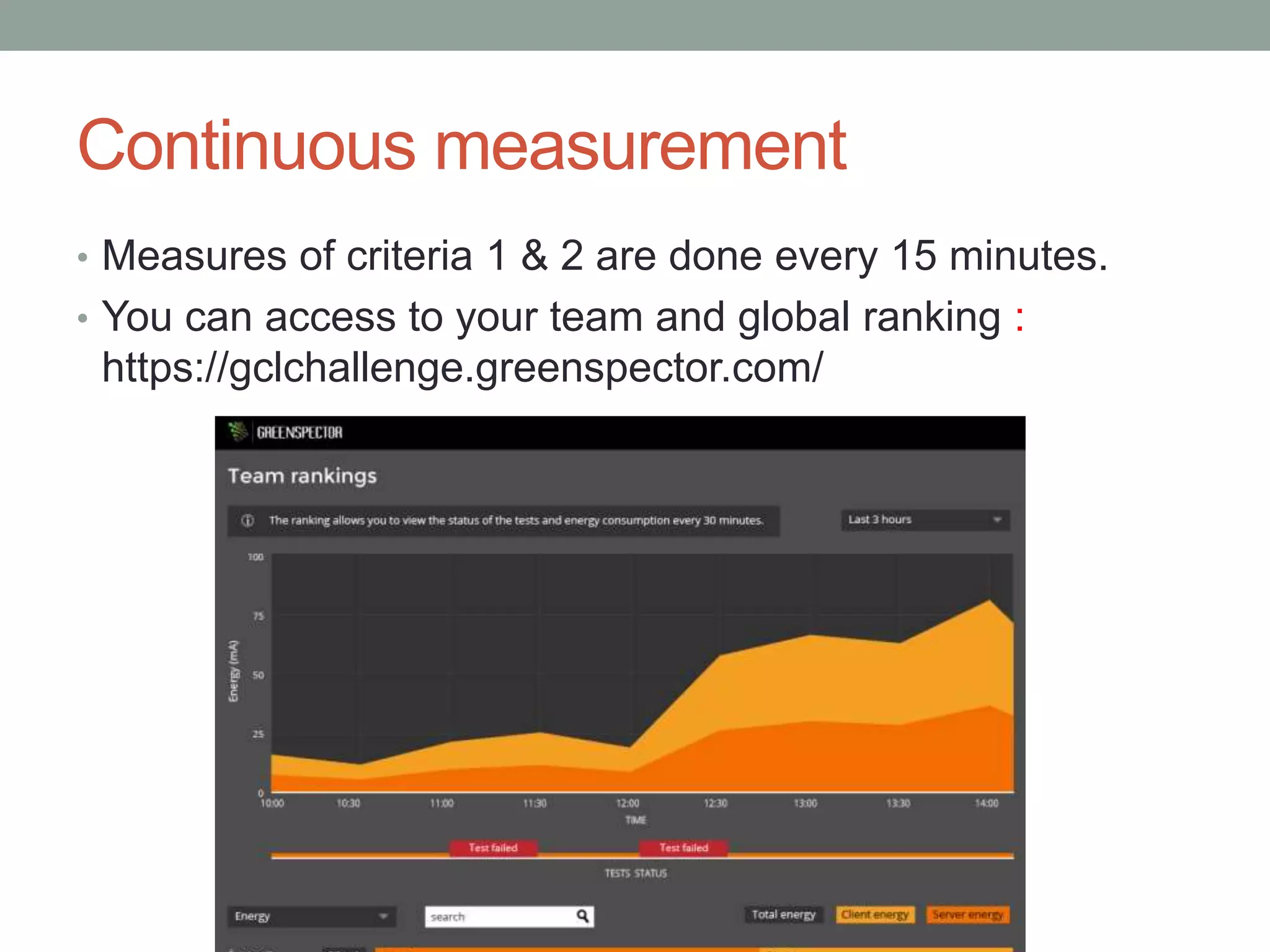

36. Continuous measurement
• Measures of criteria 1 & 2 are done every 15 minutes.
• You can access to your team and global ranking :
https://gclchallenge.greenspector.com/

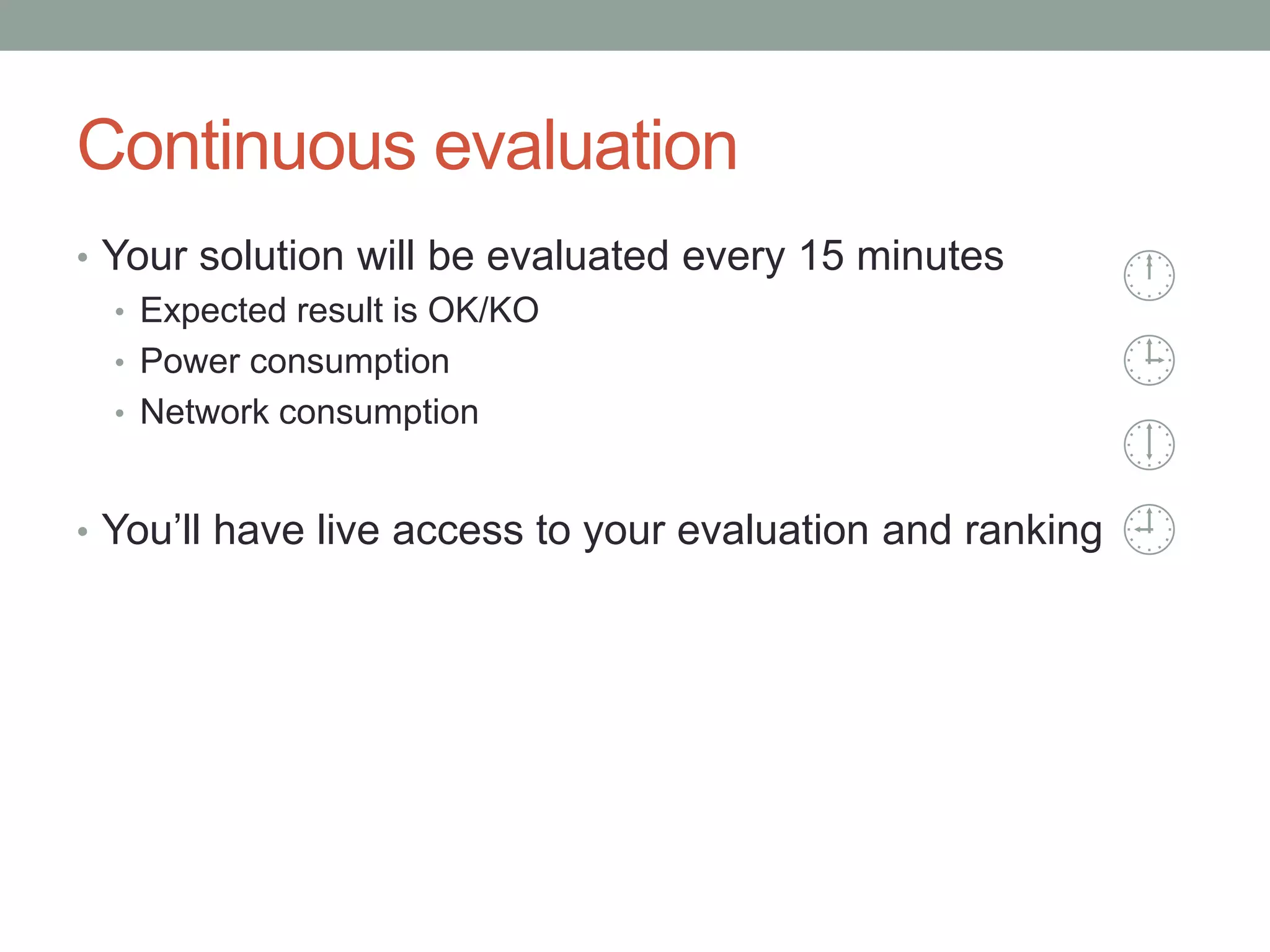

37. Continuous evaluation
• Your solution will be evaluated every 15 minutes
• Expected result is OK/KO
• Power consumption
• Network consumption
• You’ll have live access to your evaluation and ranking





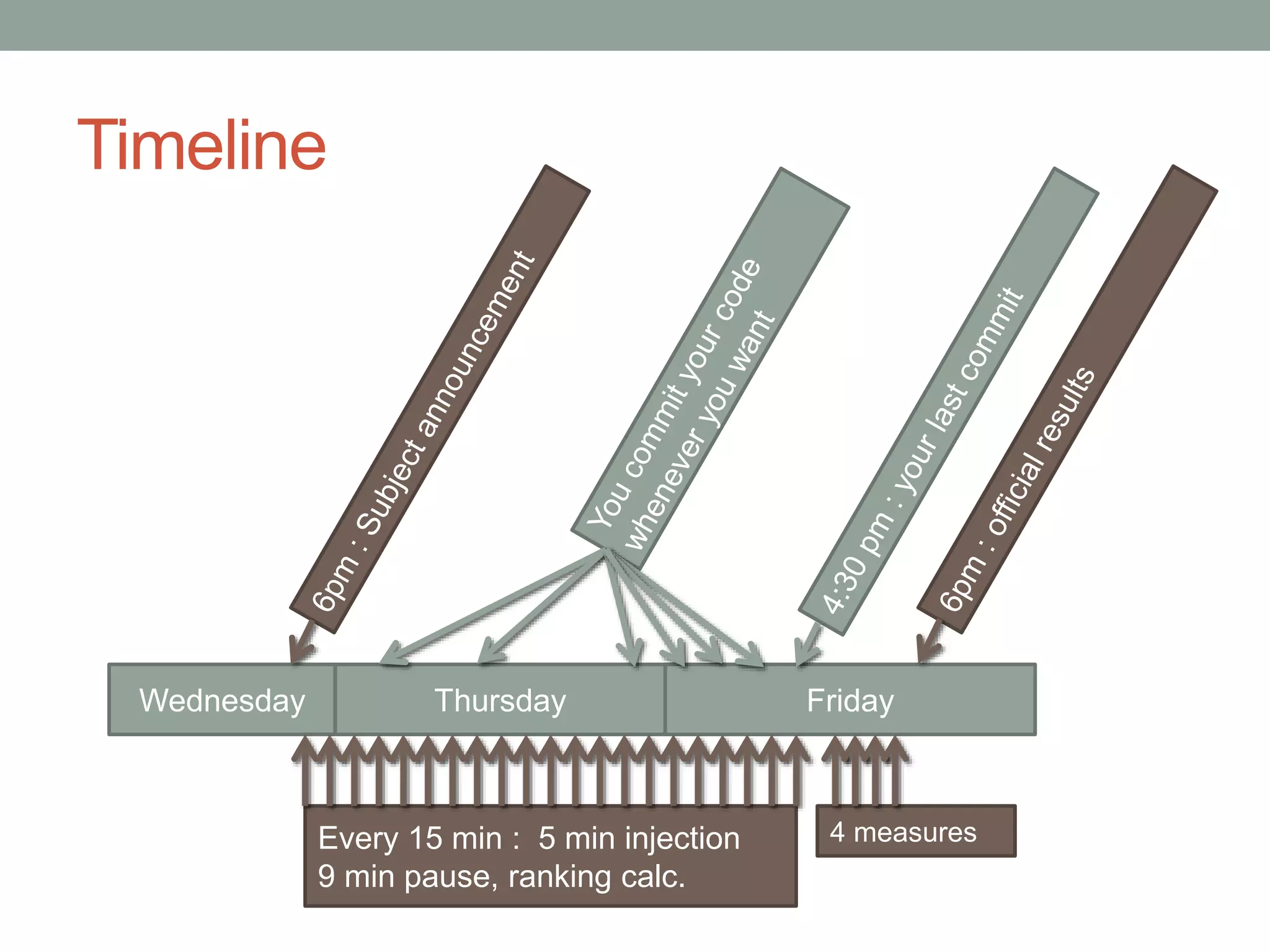

38. Timeline
Wednesday FridayThursday
Every 15 min : 5 min injection
9 min pause, ranking calc.
4 measures

39. GREEN CODE LAB
CHALLENGE 2015
Evaluation

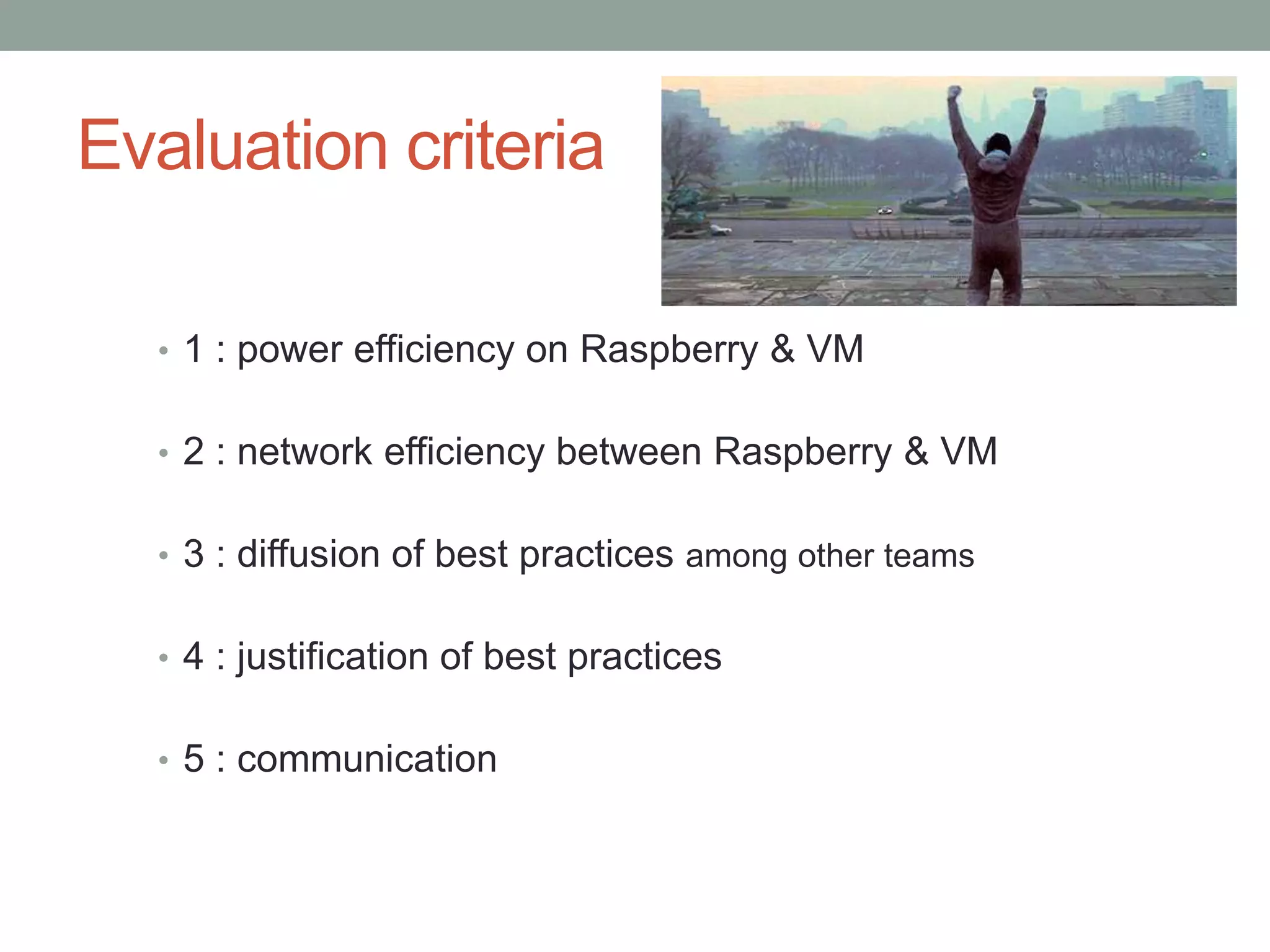

40. Evaluation criteria
• 1 : power efficiency on Raspberry & VM
• 2 : network efficiency between Raspberry & VM
• 3 : diffusion of best practices among other teams
• 4 : justification of best practices
• 5 : communication

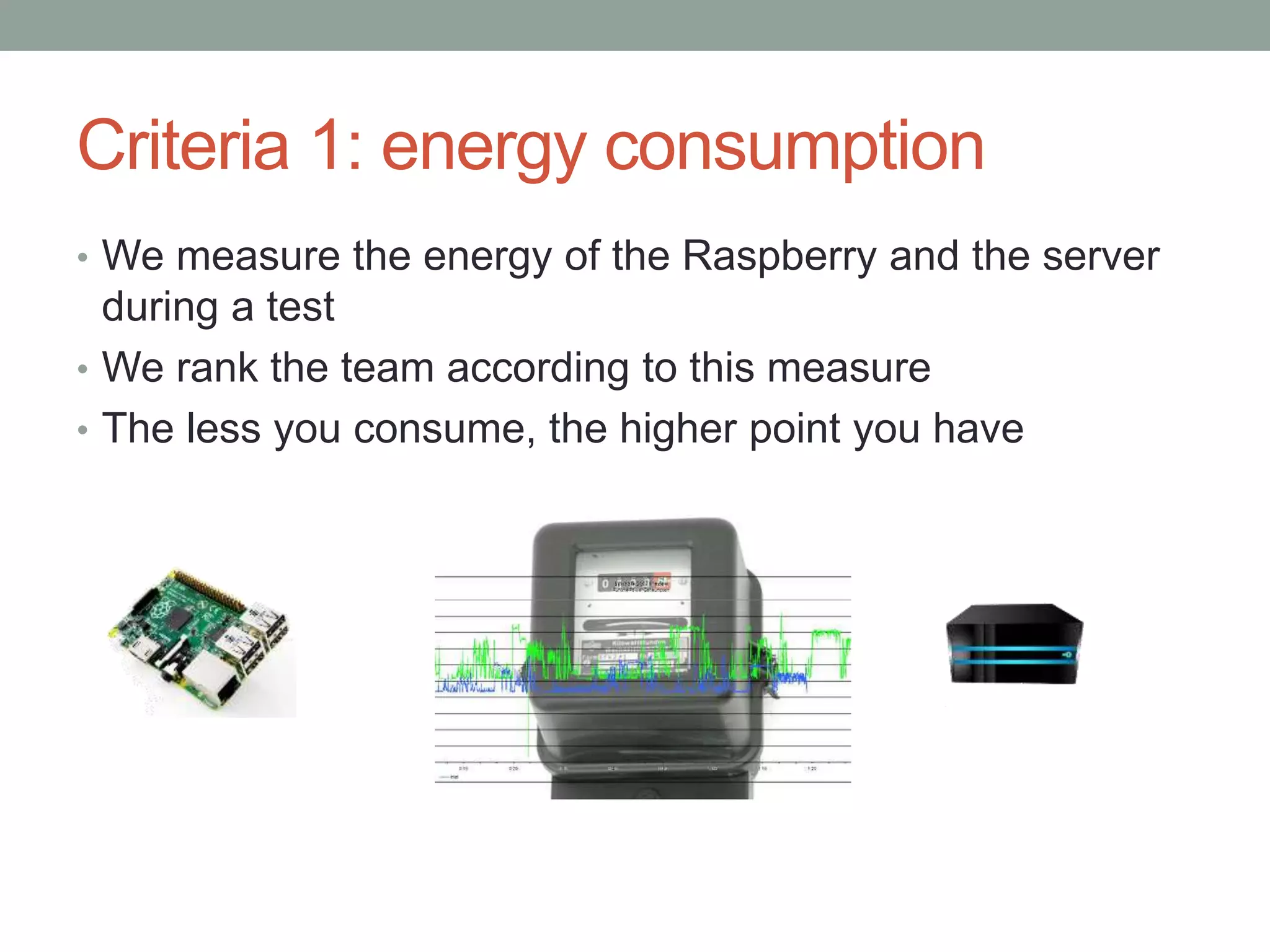

41. Criteria 1: energy consumption
• We measure the energy of the Raspberry and the server
during a test
• We rank the team according to this measure
• The less you consume, the higher point you have

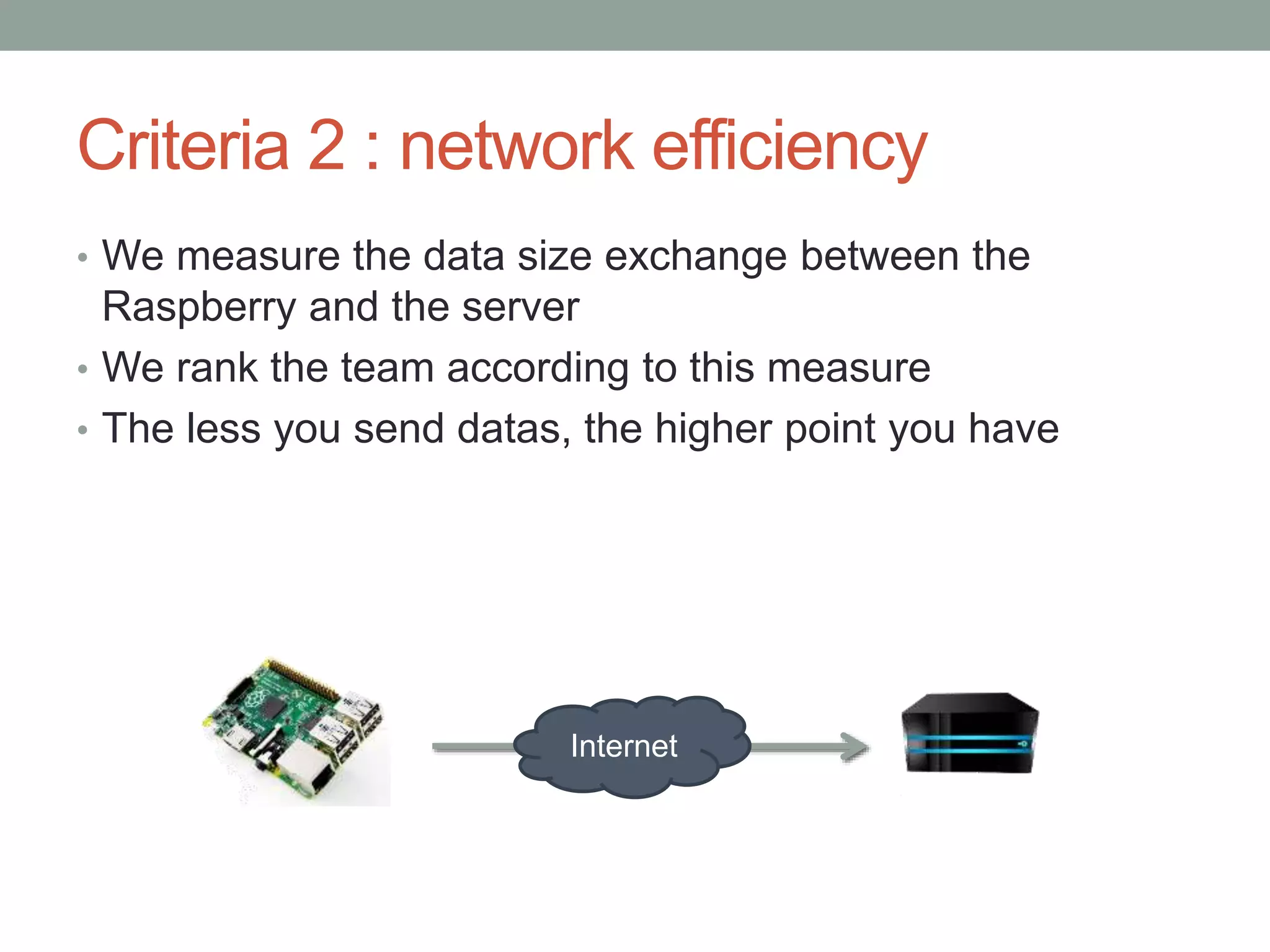

42. Criteria 2 : network efficiency
• We measure the data size exchange between the
Raspberry and the server
• We rank the team according to this measure
• The less you send datas, the higher point you have
Internet

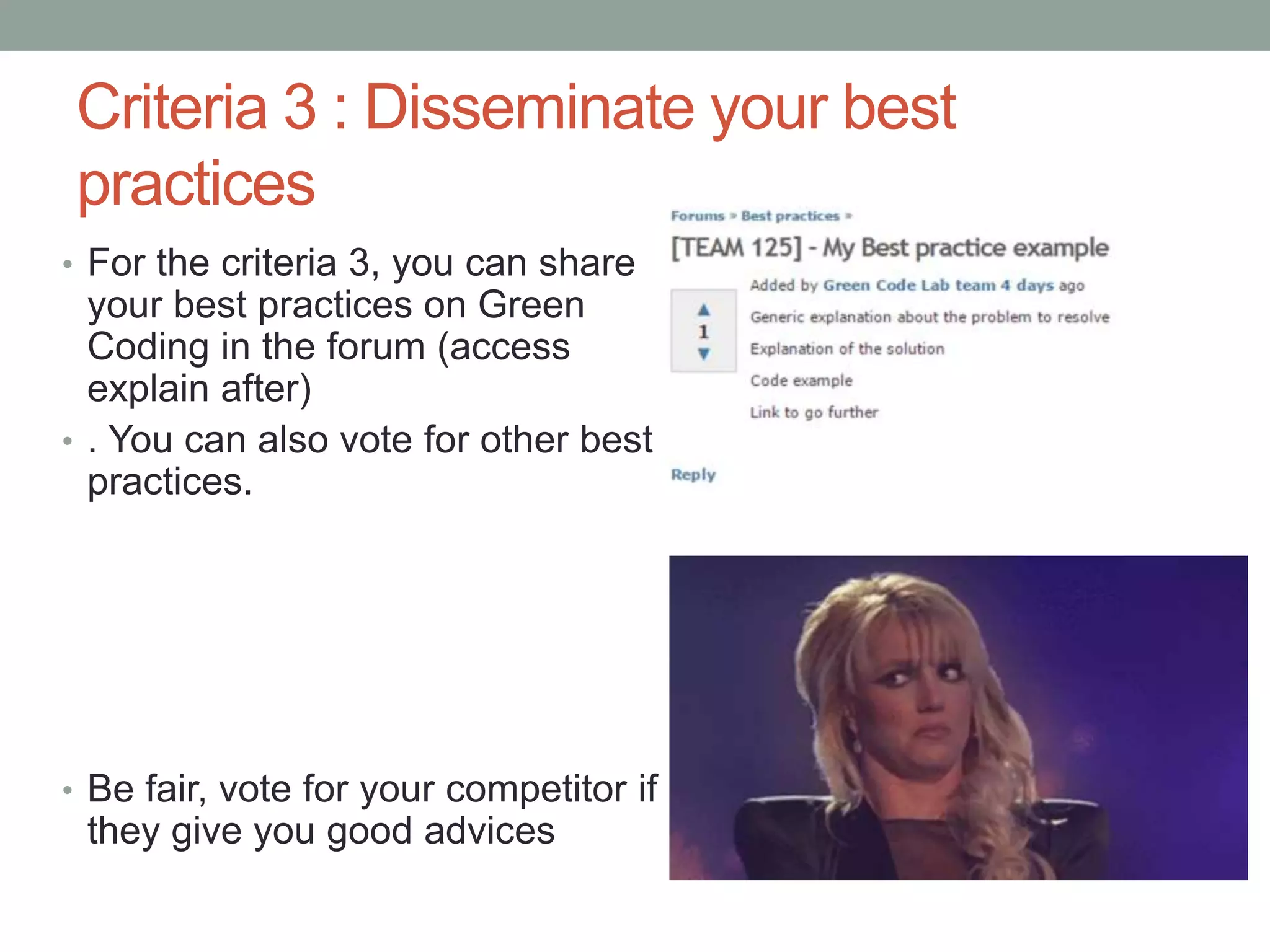

43. Criteria 3 : Disseminate your best
practices
• For the criteria 3, you can share
your best practices on Green
Coding in the forum (access
explain after)
• . You can also vote for other best
practices.
• Be fair, vote for your competitor if
they give you good advices

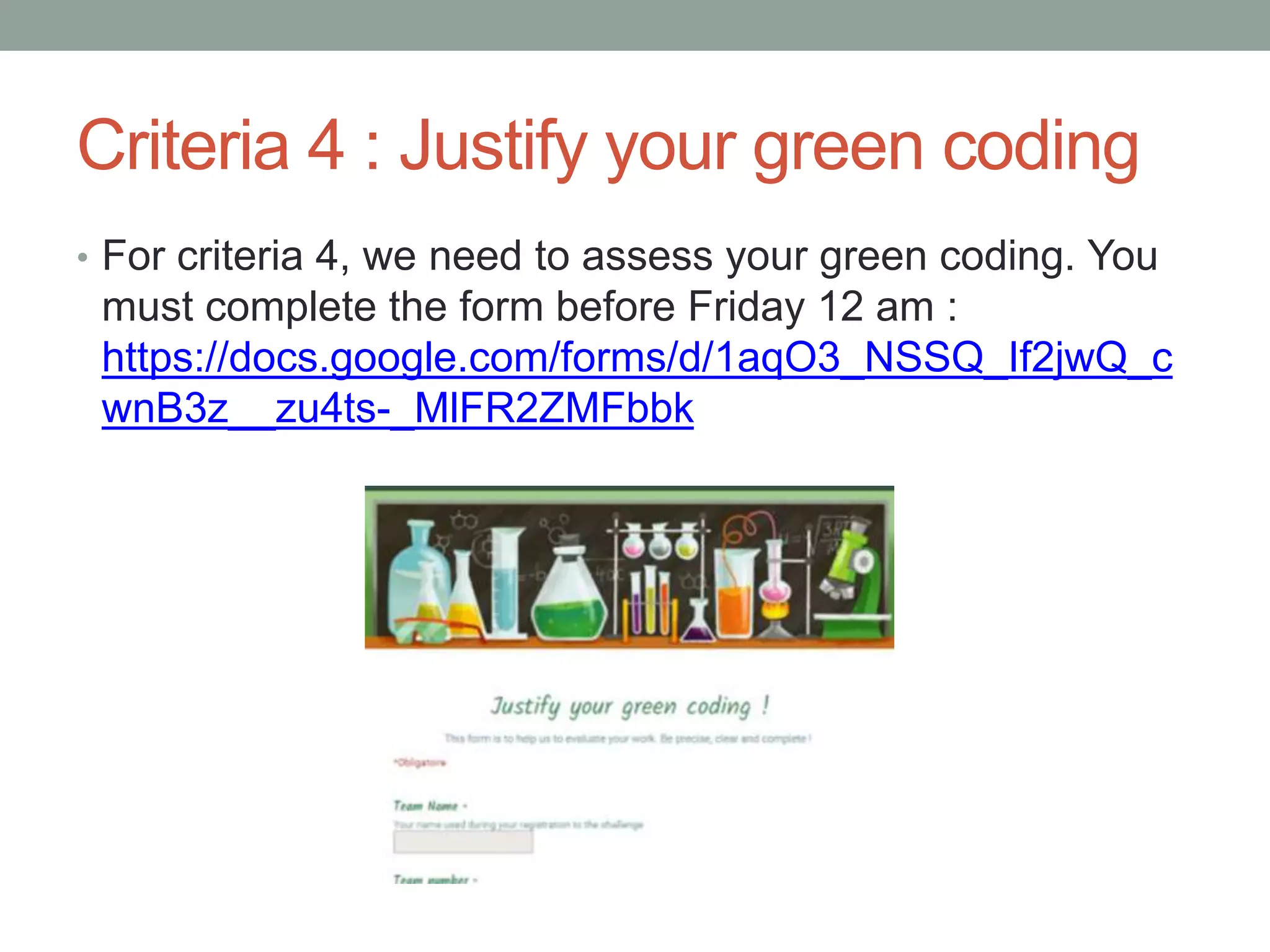

44. Criteria 4 : Justify your green coding
• For criteria 4, we need to assess your green coding. You
must complete the form before Friday 12 am :
https://docs.google.com/forms/d/1aqO3_NSSQ_If2jwQ_c
wnB3z__zu4ts-_MlFR2ZMFbbk

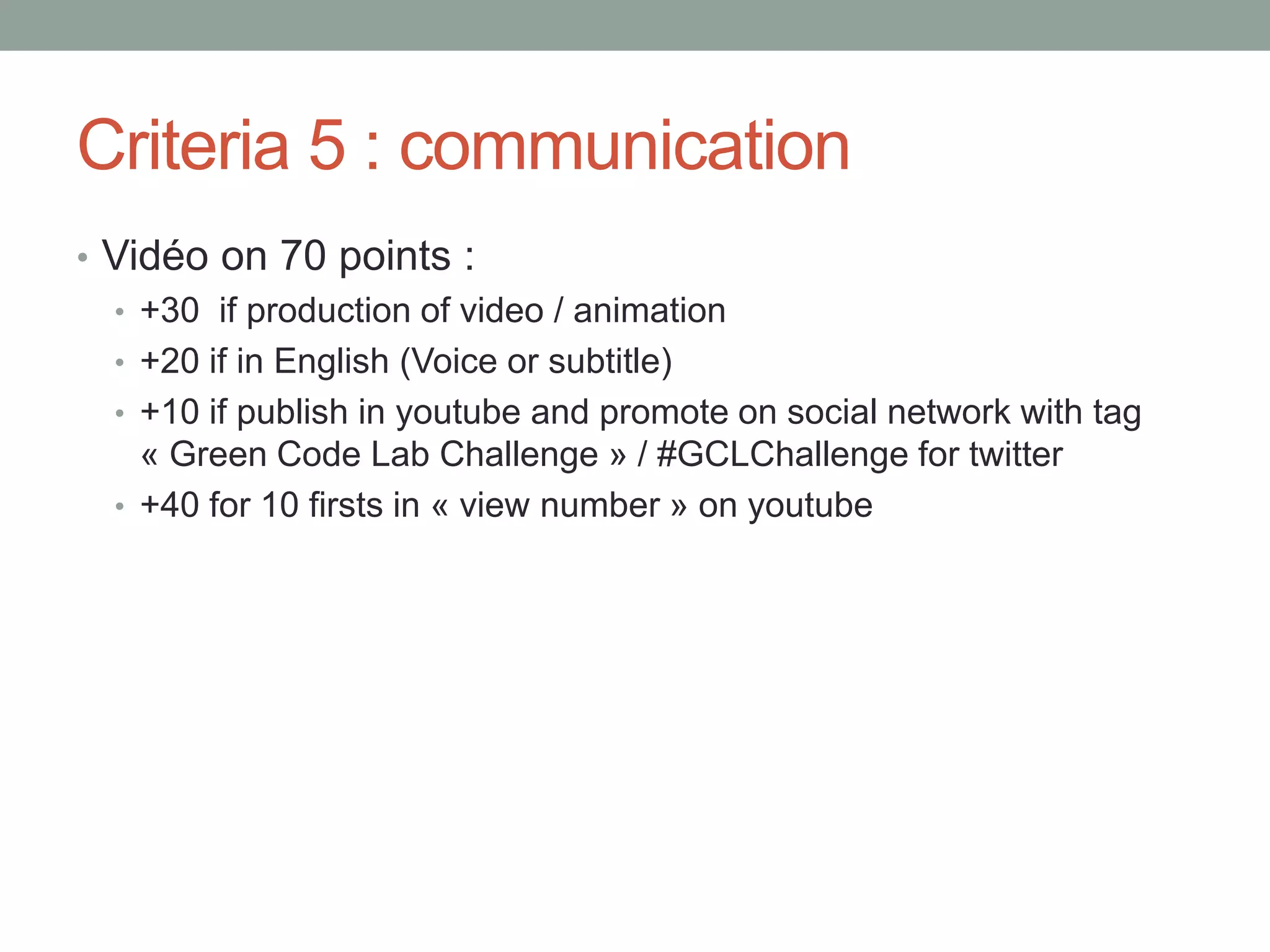

45. Criteria 5 : communication
• Vidéo on 70 points :
• +30 if production of video / animation
• +20 if in English (Voice or subtitle)
• +10 if publish in youtube and promote on social network with tag
« Green Code Lab Challenge » / #GCLChallenge for twitter
• +40 for 10 firsts in « view number » on youtube

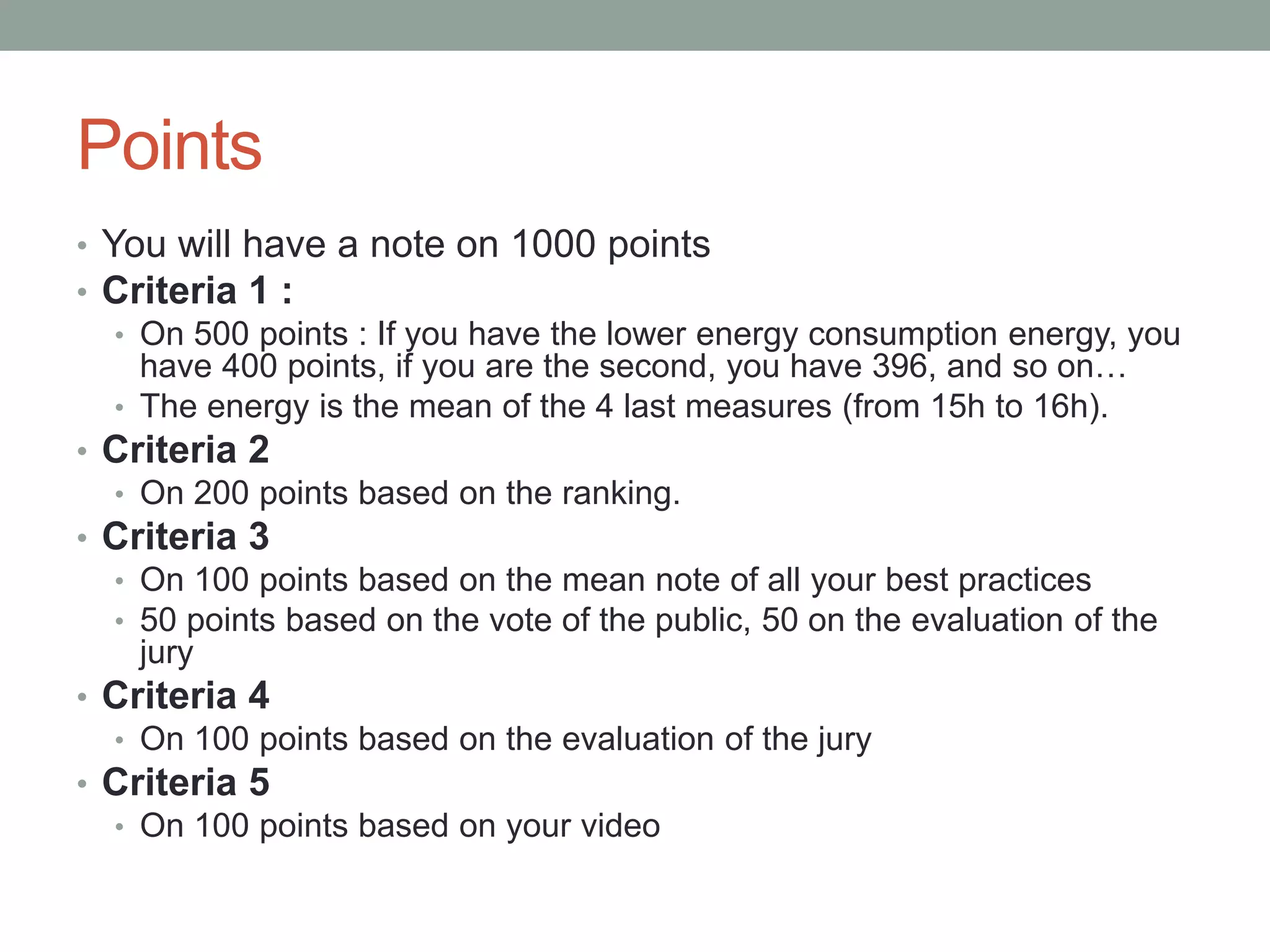

46. Points
• You will have a note on 1000 points
• Criteria 1 :
• On 500 points : If you have the lower energy consumption energy, you
have 400 points, if you are the second, you have 396, and so on…
• The energy is the mean of the 4 last measures (from 15h to 16h).
• Criteria 2
• On 200 points based on the ranking.
• Criteria 3
• On 100 points based on the mean note of all your best practices
• 50 points based on the vote of the public, 50 on the evaluation of the
jury
• Criteria 4
• On 100 points based on the evaluation of the jury
• Criteria 5
• On 100 points based on your video

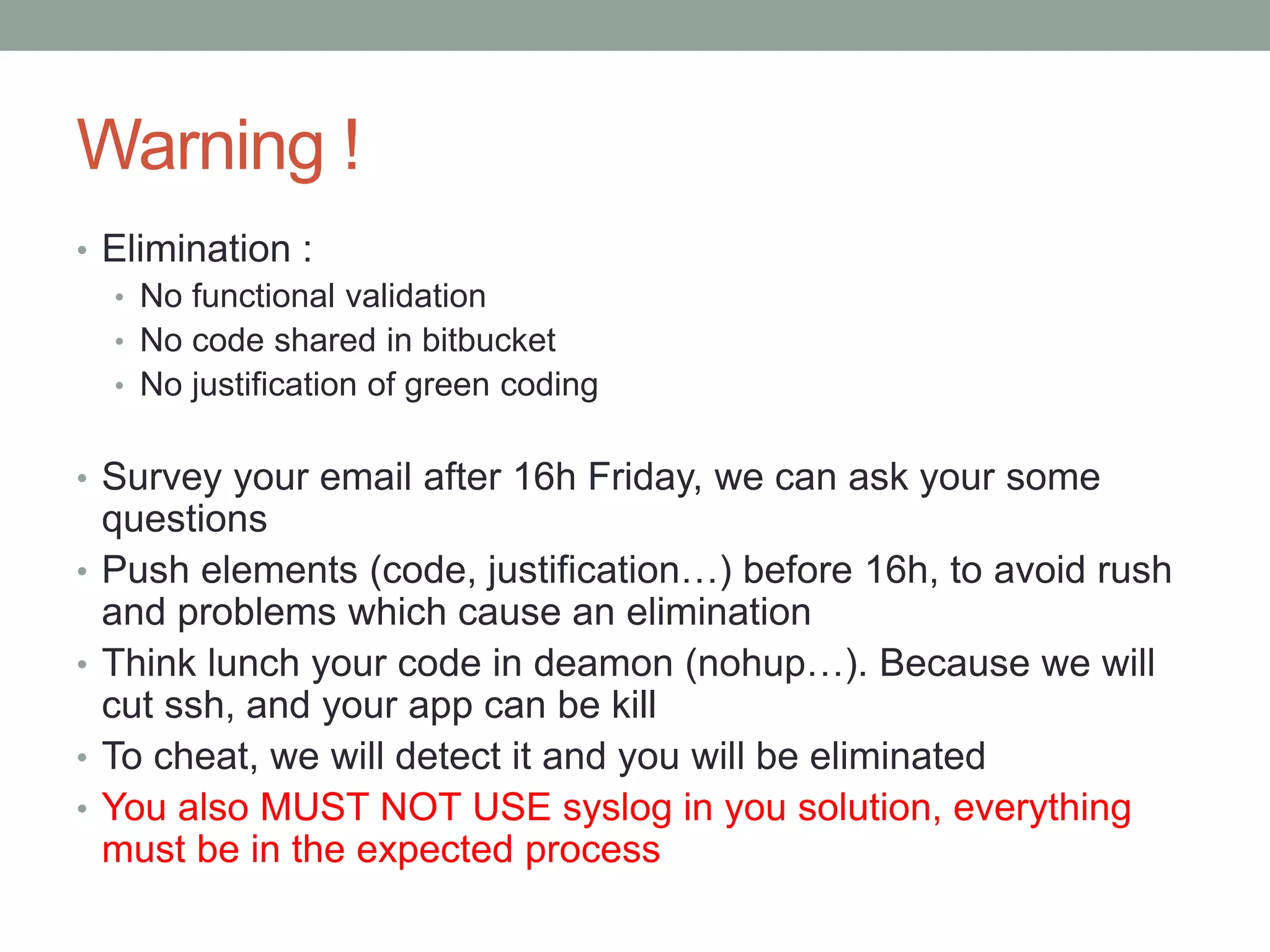

47. Warning !
• Elimination :
• No functional validation
• No code shared in bitbucket
• No justification of green coding
• Survey your email after 16h Friday, we can ask your some
questions
• Push elements (code, justification…) before 16h, to avoid rush
and problems which cause an elimination
• Think lunch your code in deamon (nohup…). Because we will
cut ssh, and your app can be kill
• To cheat, we will detect it and you will be eliminated
• You also MUST NOT USE syslog in you solution, everything
must be in the expected process

48. GREEN CODE LAB
CHALLENGE 2015
Syslog insights

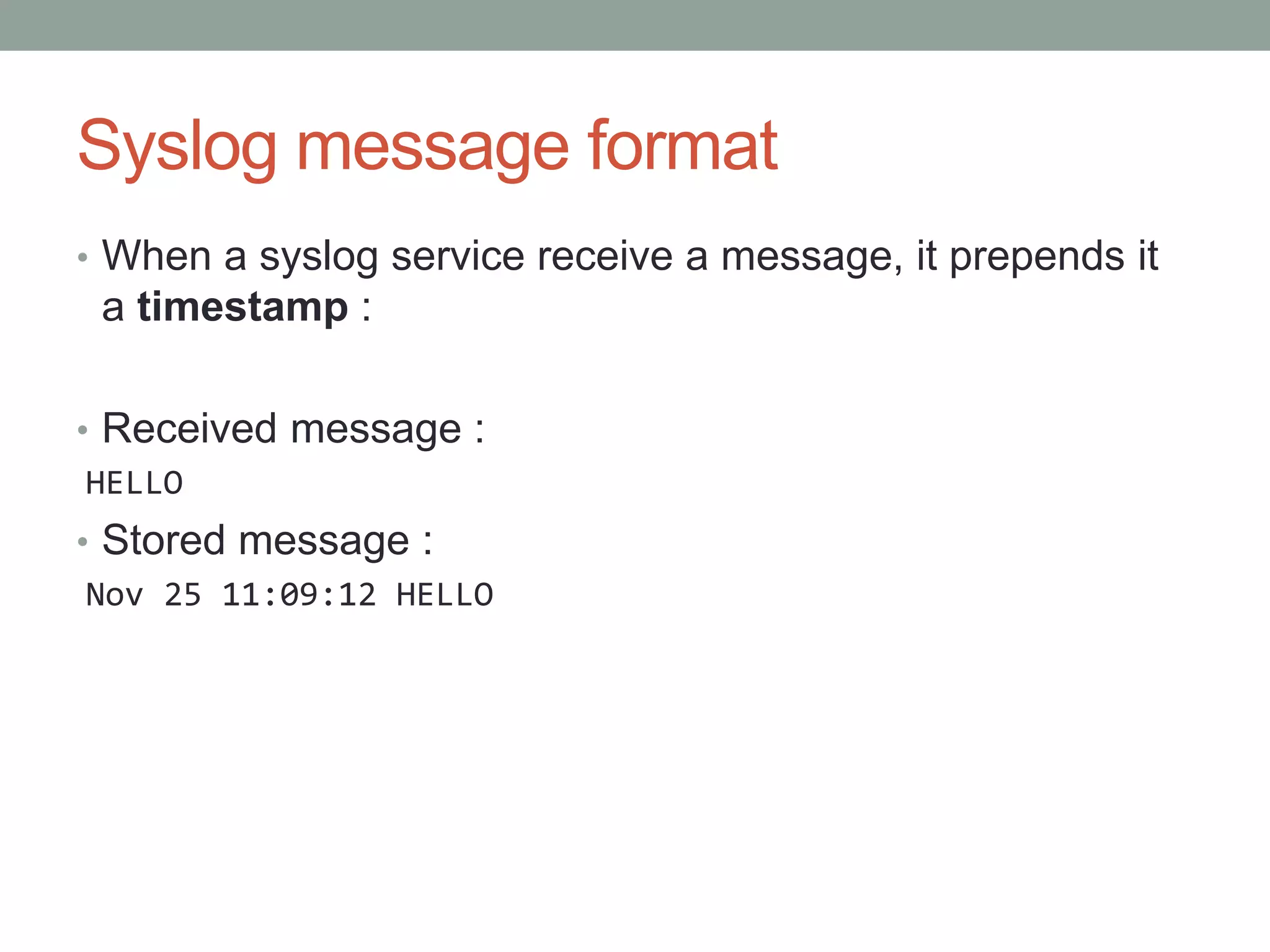

49. Syslog message format
• When a syslog service receive a message, it prepends it
a timestamp :
• Received message :
HELLO
• Stored message :
Nov 25 11:09:12 HELLO

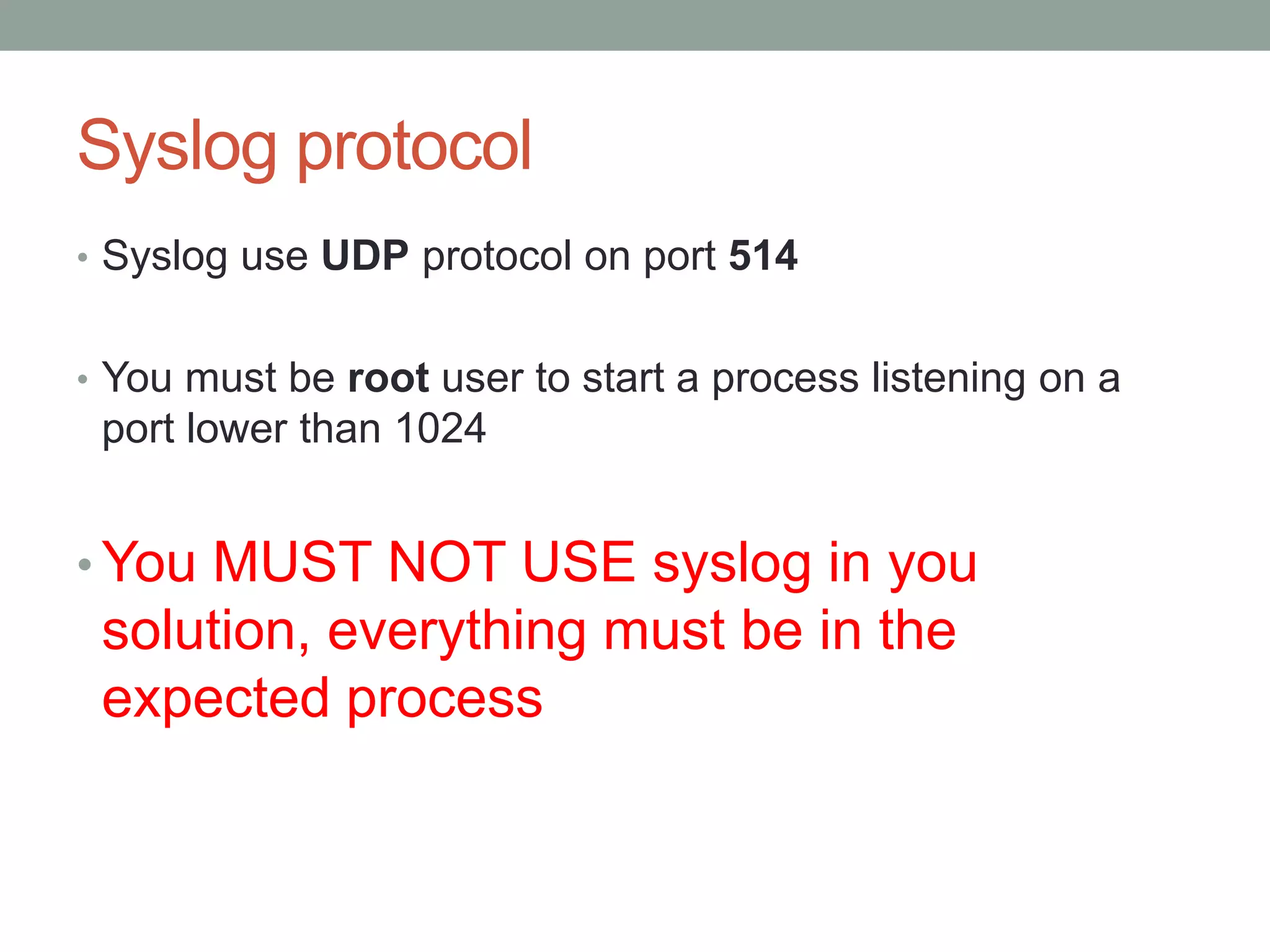

50. Syslog protocol
• Syslog use UDP protocol on port 514
• You must be root user to start a process listening on a
port lower than 1024
• You MUST NOT USE syslog in you
solution, everything must be in the
expected process

51. Linux environment
• Many IoT devices use Linux, because it’s a versatile and
efficient OS, even on small devices.

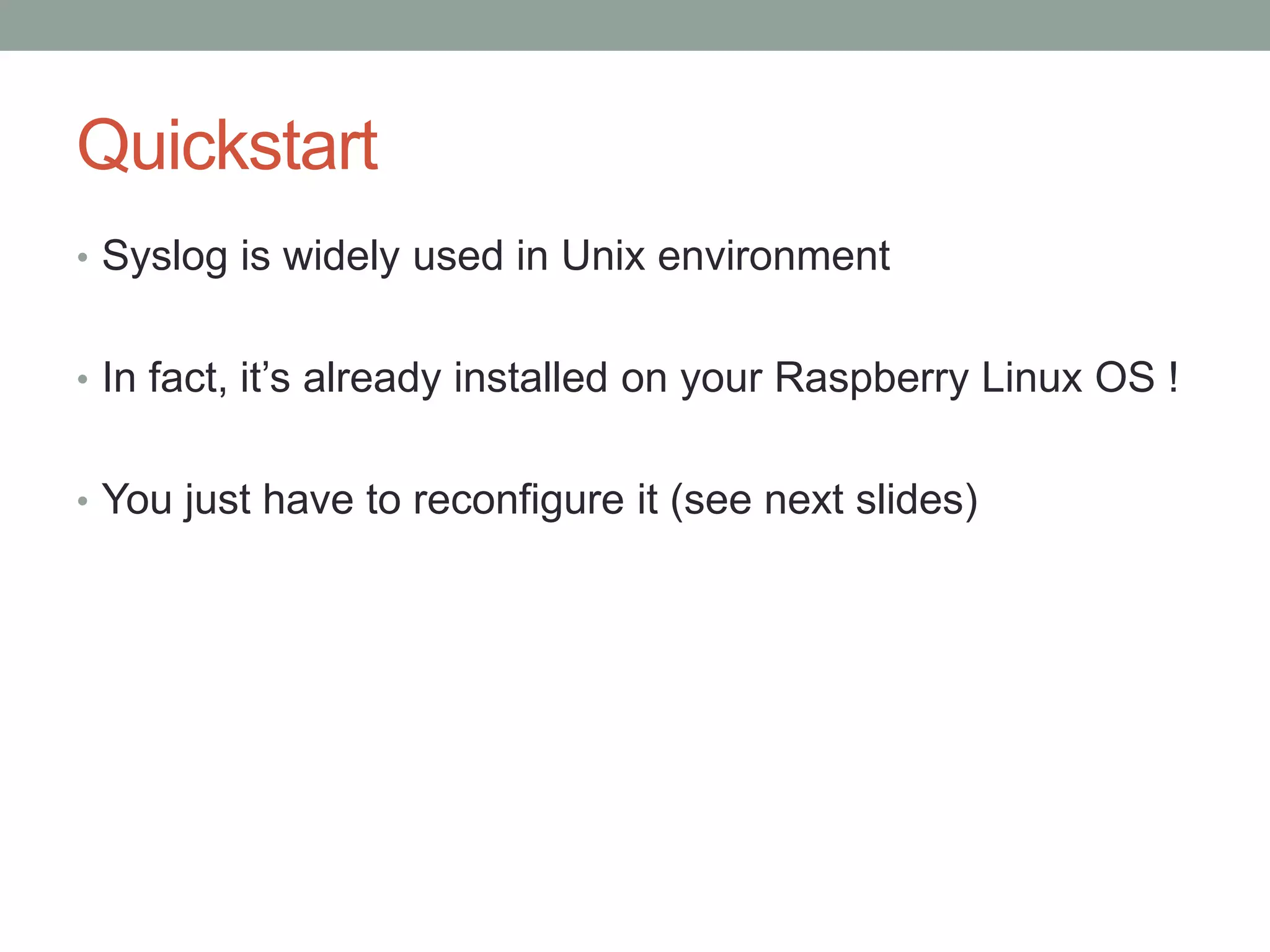

52. Quickstart
• Syslog is widely used in Unix environment
• In fact, it’s already installed on your Raspberry Linux OS !
• You just have to reconfigure it (see next slides)

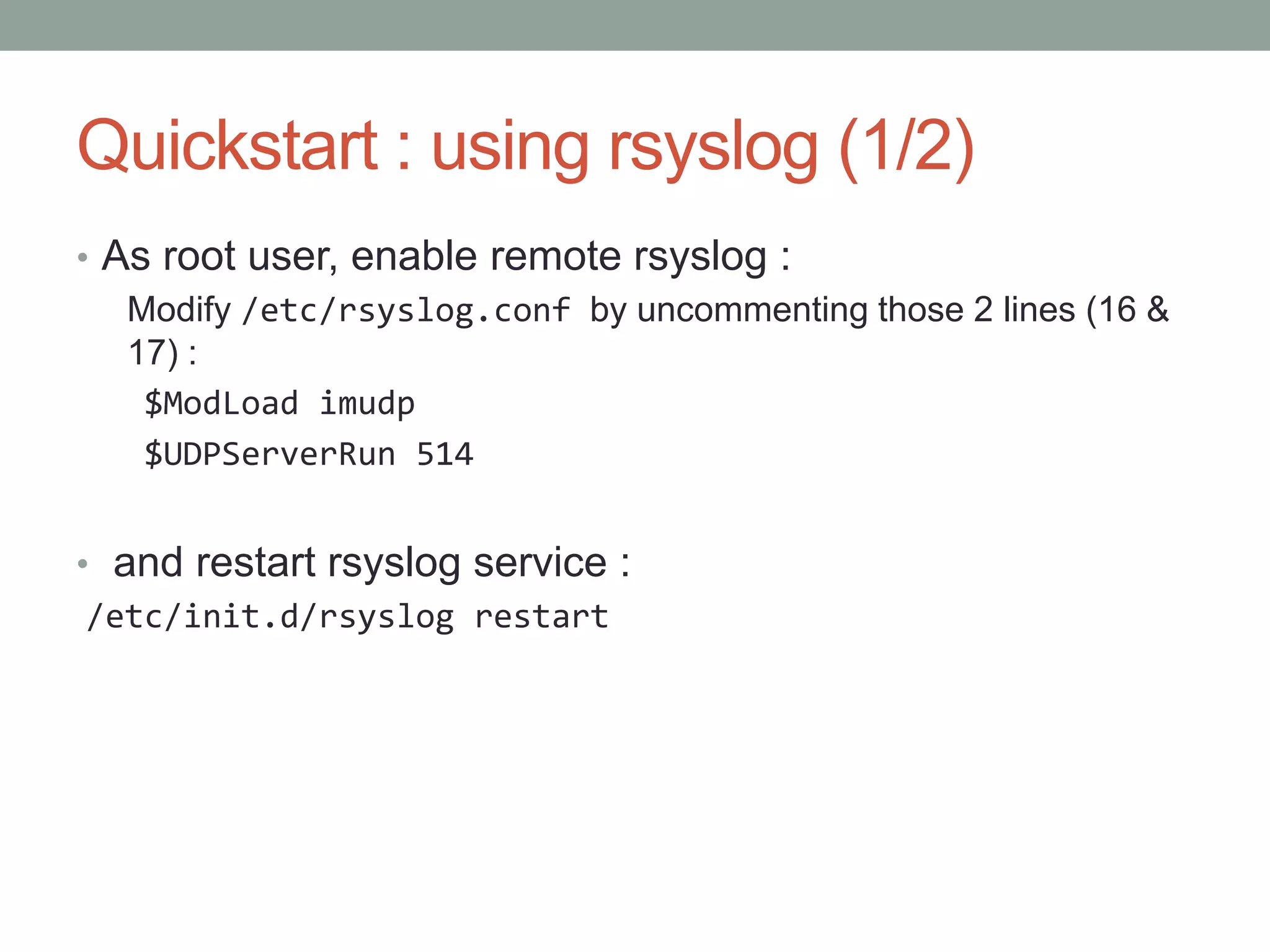

53. Quickstart : using rsyslog (1/2)
• As root user, enable remote rsyslog :
Modify /etc/rsyslog.conf by uncommenting those 2 lines (16 &
17) :
$ModLoad imudp
$UDPServerRun 514
• and restart rsyslog service :
/etc/init.d/rsyslog restart

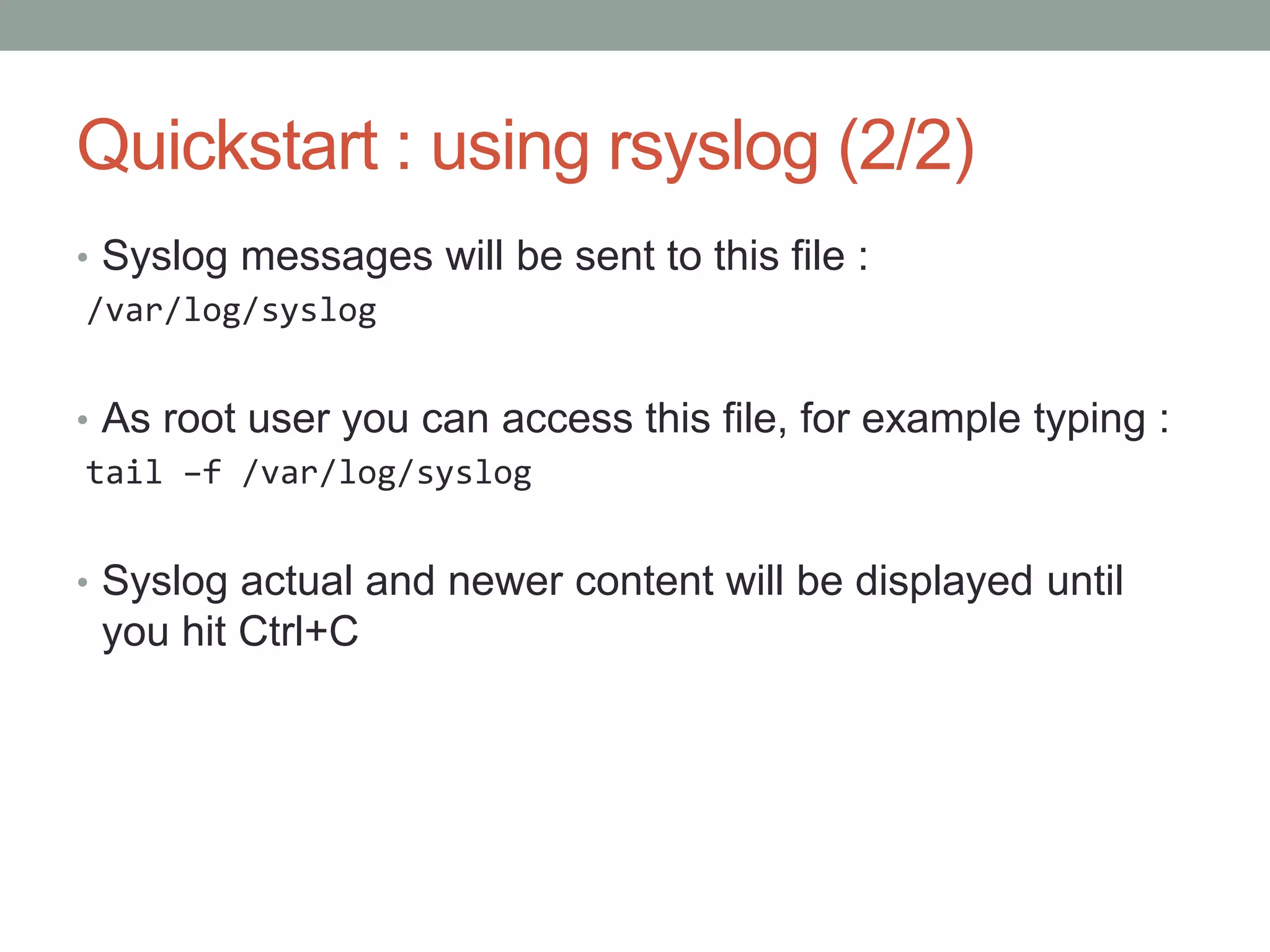

54. Quickstart : using rsyslog (2/2)
• Syslog messages will be sent to this file :
/var/log/syslog
• As root user you can access this file, for example typing :
tail –f /var/log/syslog
• Syslog actual and newer content will be displayed until
you hit Ctrl+C

55. GREEN CODE LAB
CHALLENGE 2015
Hints

56. Advice 1 : Avoid Tunnel Effect
• Push on the infrastructure your code regularely
• Have functionnal application

57. Advice 2 : Have fun, don’t suffer
You are here to learn, to discover eco-design, to have fun

58. Advice 3 : Don’t cheat
• We will detected every intrusion test, cheat… and you will
be eliminated

59. Advice 4 : Organization and agility

60. GO !
