The document discusses techniques for optimizing Symfony application responses using HTTP caching with Varnish tags, focusing on automating the tagging of responses and cache invalidation. It covers various implementation strategies such as using event listeners to generate resource identifiers and manage cache efficiently. Performance benchmarking is also detailed, with results showing significant improvements in response times when appropriate caching strategies are employed.

1. Going to production on
a Raspberry Pi with
varnish tags

2. Who am I?
Jérémy DERUSSÉ
Web Technical Leader
AptusHealth
@jderusse

3. How to get fast responses
from a Symfony application?
you can't

4. How to get fast responses
from a Symfony application?your backend
you can't

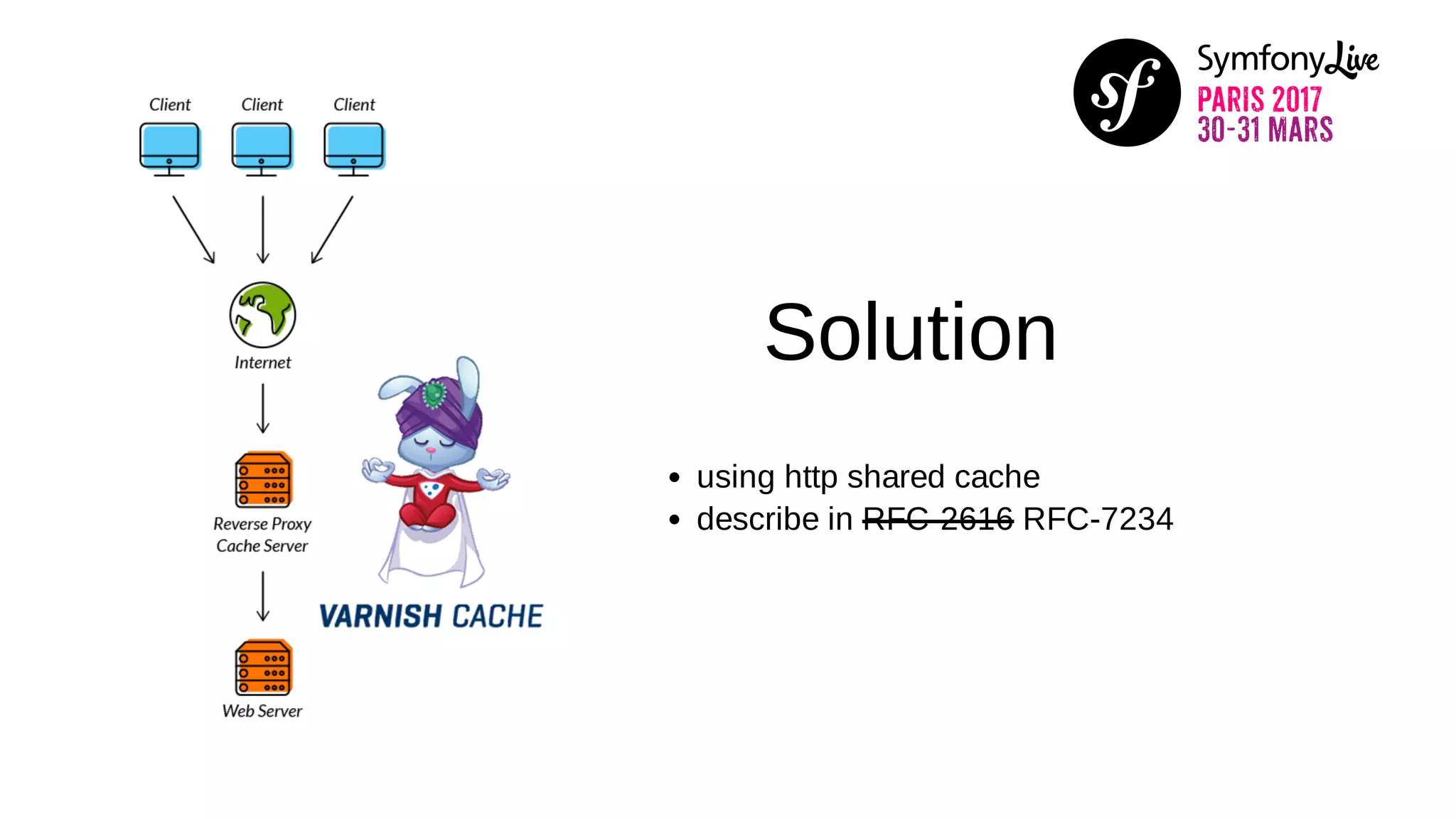

5. Solution
using http shared cache
describe in RFC-2616 RFC-7234

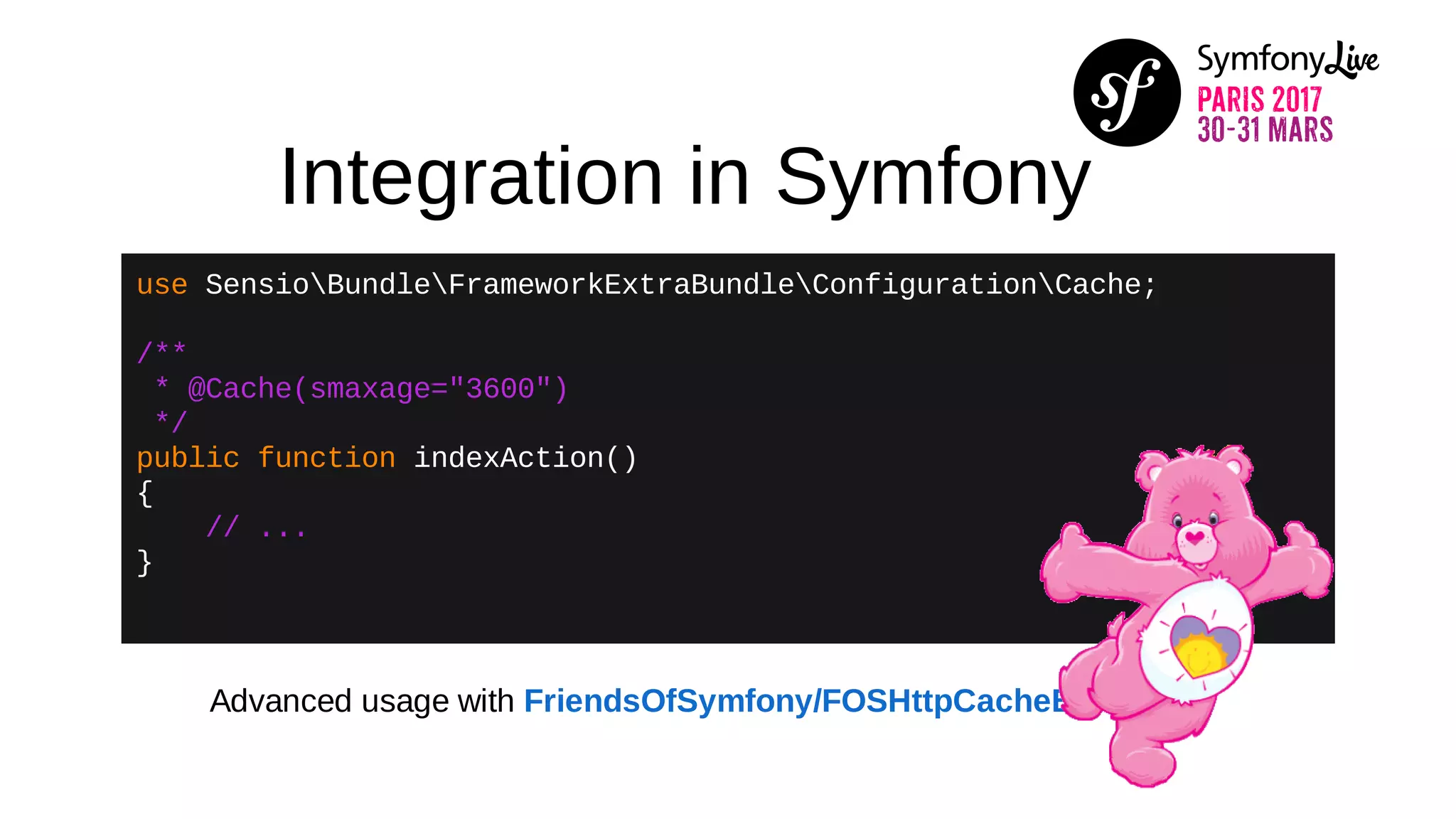

6. Integration in Symfony
use SensioBundleFrameworkExtraBundleConfigurationCache;
/**
* @Cache(smaxage="3600")
*/
public function indexAction()
{
// ...
}
Advanced usage with FriendsOfSymfony/FOSHttpCacheBundle

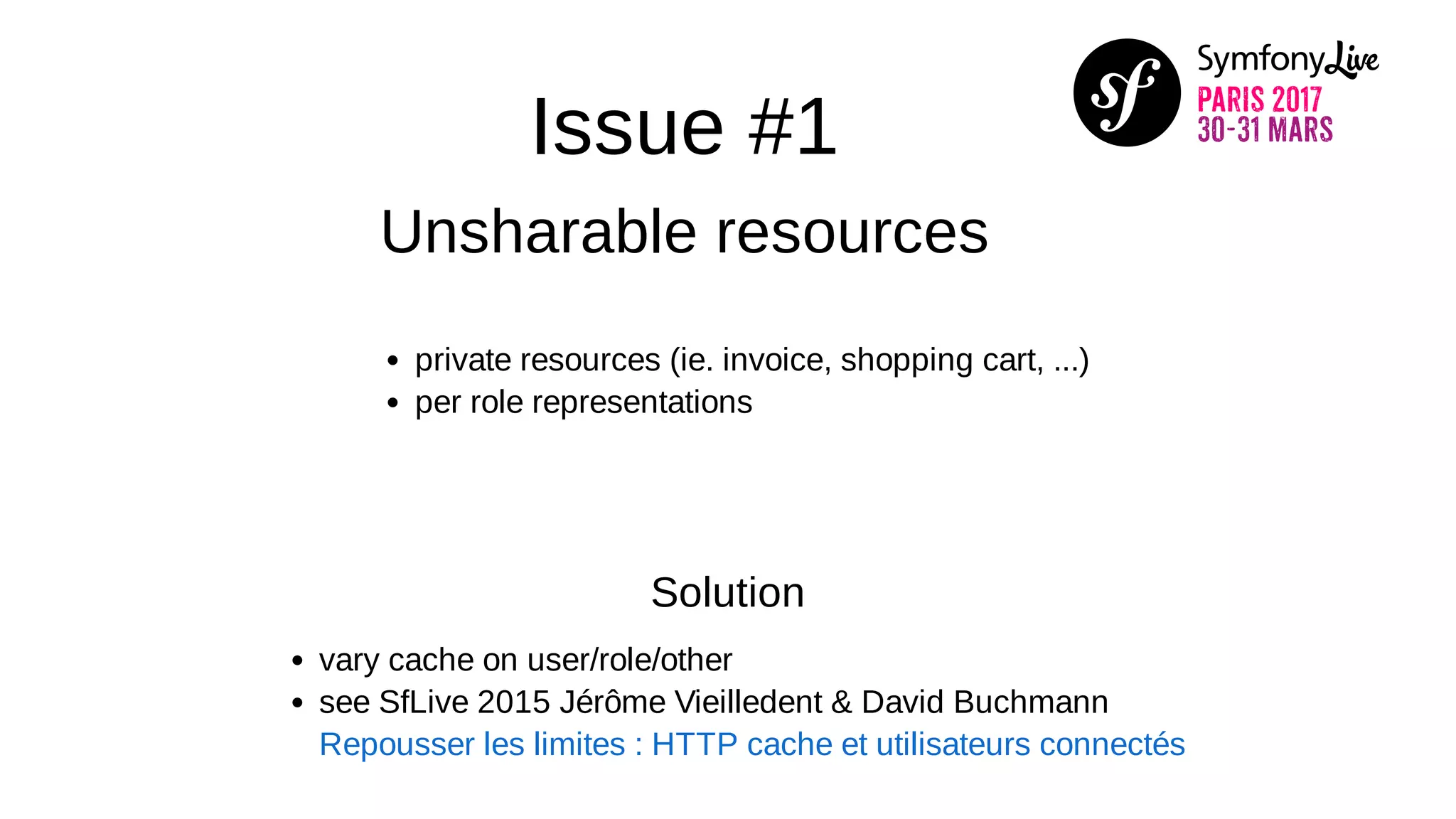

7. Issue #1
Unsharable resources
private resources (ie. invoice, shopping cart, ...)
per role representations
Solution
vary cache on user/role/other
see SfLive 2015 Jérôme Vieilledent & David Buchmann
Repousser les limites : HTTP cache et utilisateurs connectés

8. Issue #2
Cache invalidation
“ There are only two hard things in Computer Science: cache
invalidation and naming things.
Phil Karlton

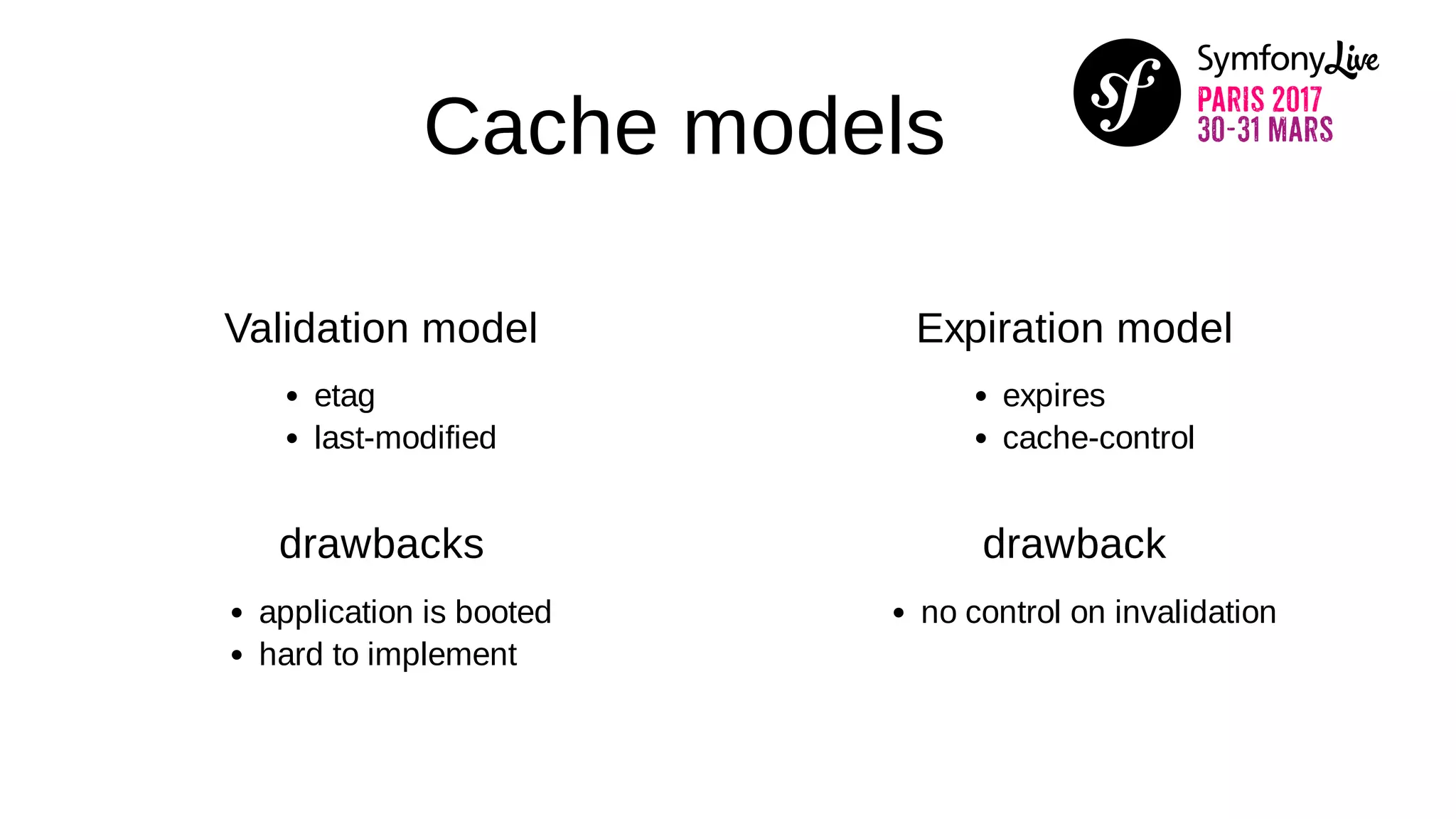

9. Cache models
Validation model
etag
last-modified
drawbacks
application is booted
hard to implement
Expiration model
expires
cache-control
drawback
no control on invalidation

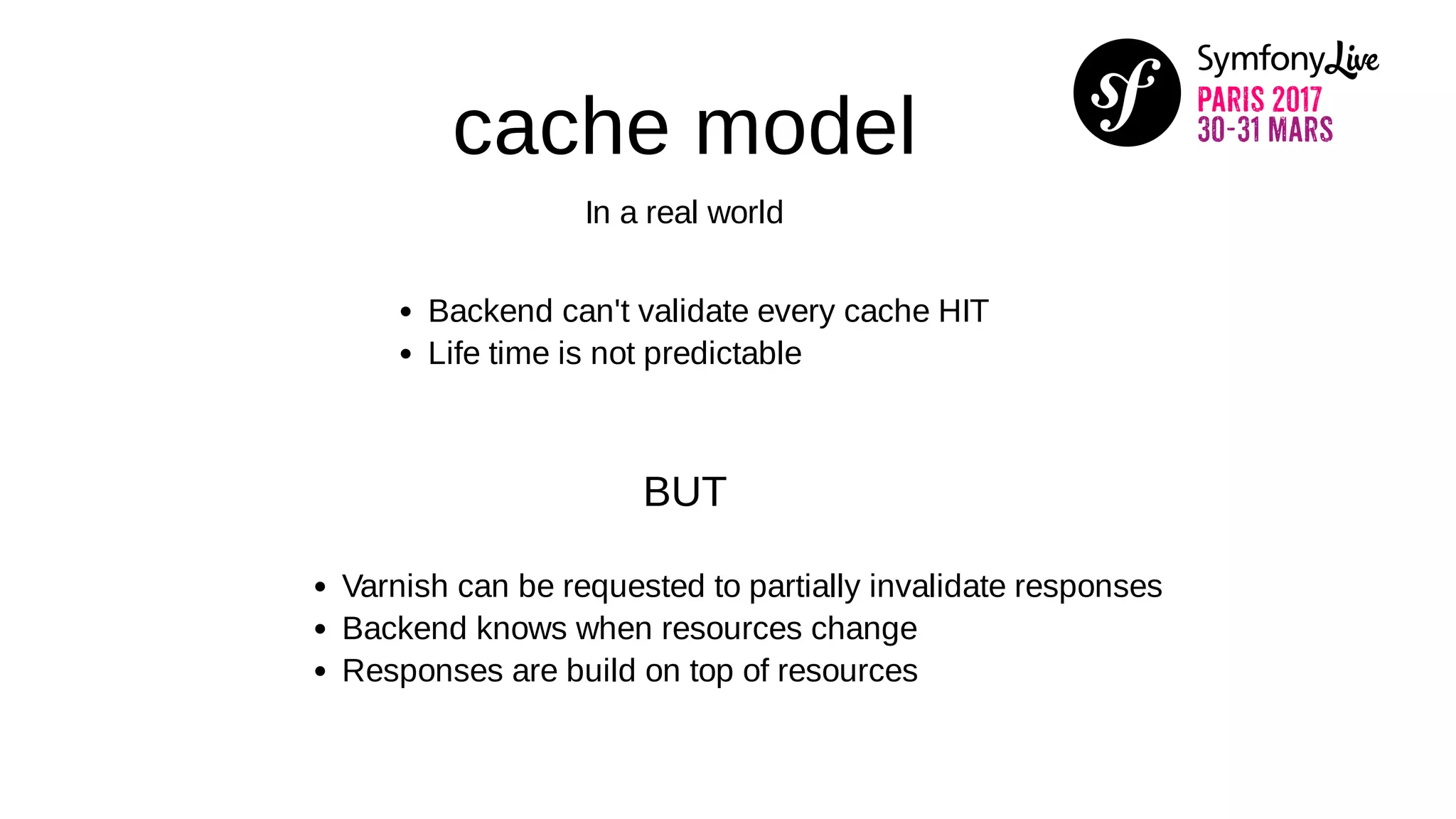

10. cache model
In a real world
Backend can't validate every cache HIT
Life time is not predictable
BUT
Varnish can be requested to partially invalidate responses
Backend knows when resources change
Responses are build on top of resources

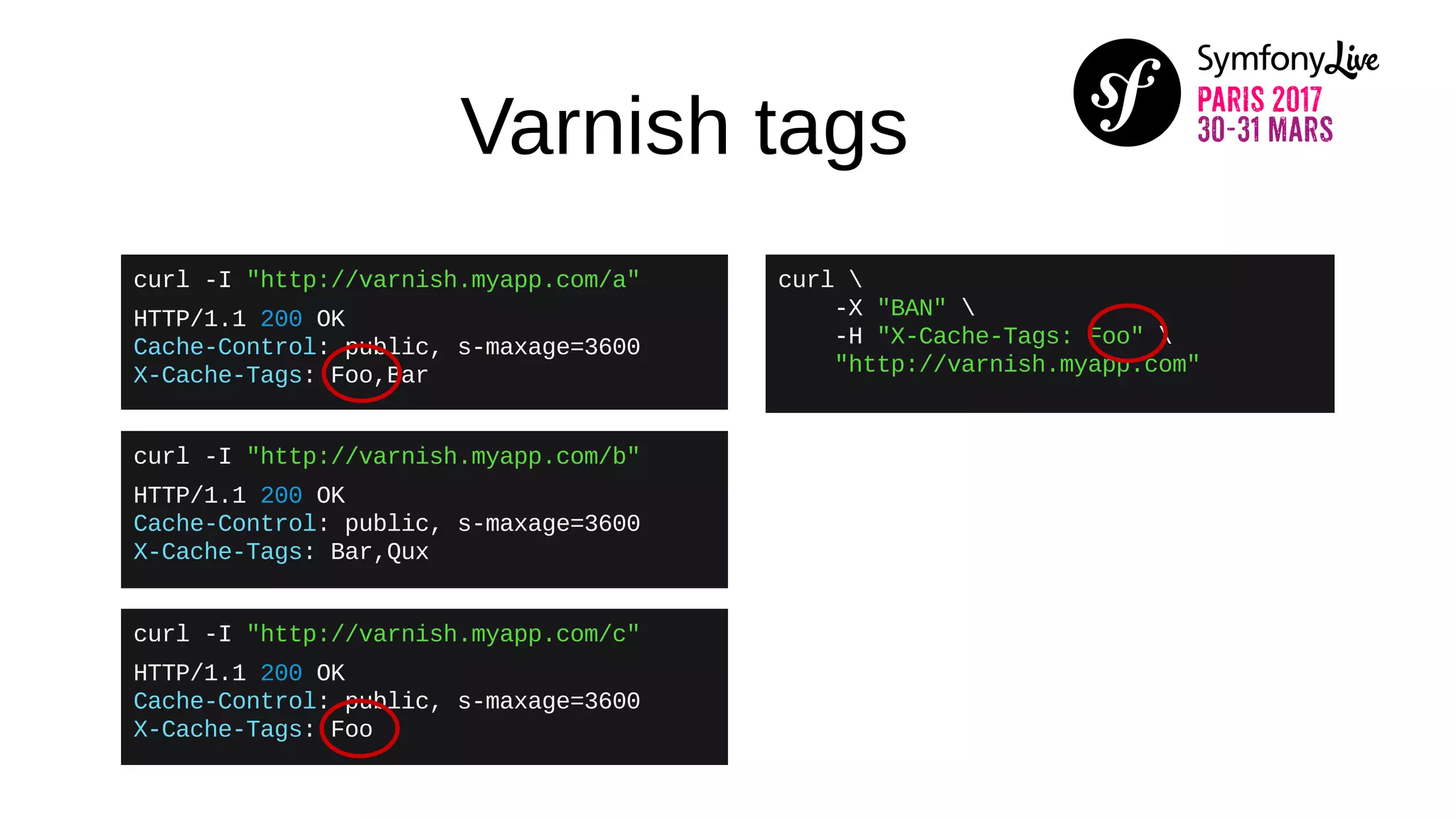

11. curl -I "http://varnish.myapp.com/c"
curl -I "http://varnish.myapp.com/b"
curl -I "http://varnish.myapp.com/a"
HTTP/1.1 200 OK
Cache-Control: public, s-maxage=3600
X-Cache-Tags: Foo,Bar
HTTP/1.1 200 OK
Cache-Control: public, s-maxage=3600
X-Cache-Tags: Foo
Varnish tags
curl
-X "BAN"
-H "X-Cache-Tags: Foo"
"http://varnish.myapp.com"
HTTP/1.1 200 OK
Cache-Control: public, s-maxage=3600
X-Cache-Tags: Bar,Qux

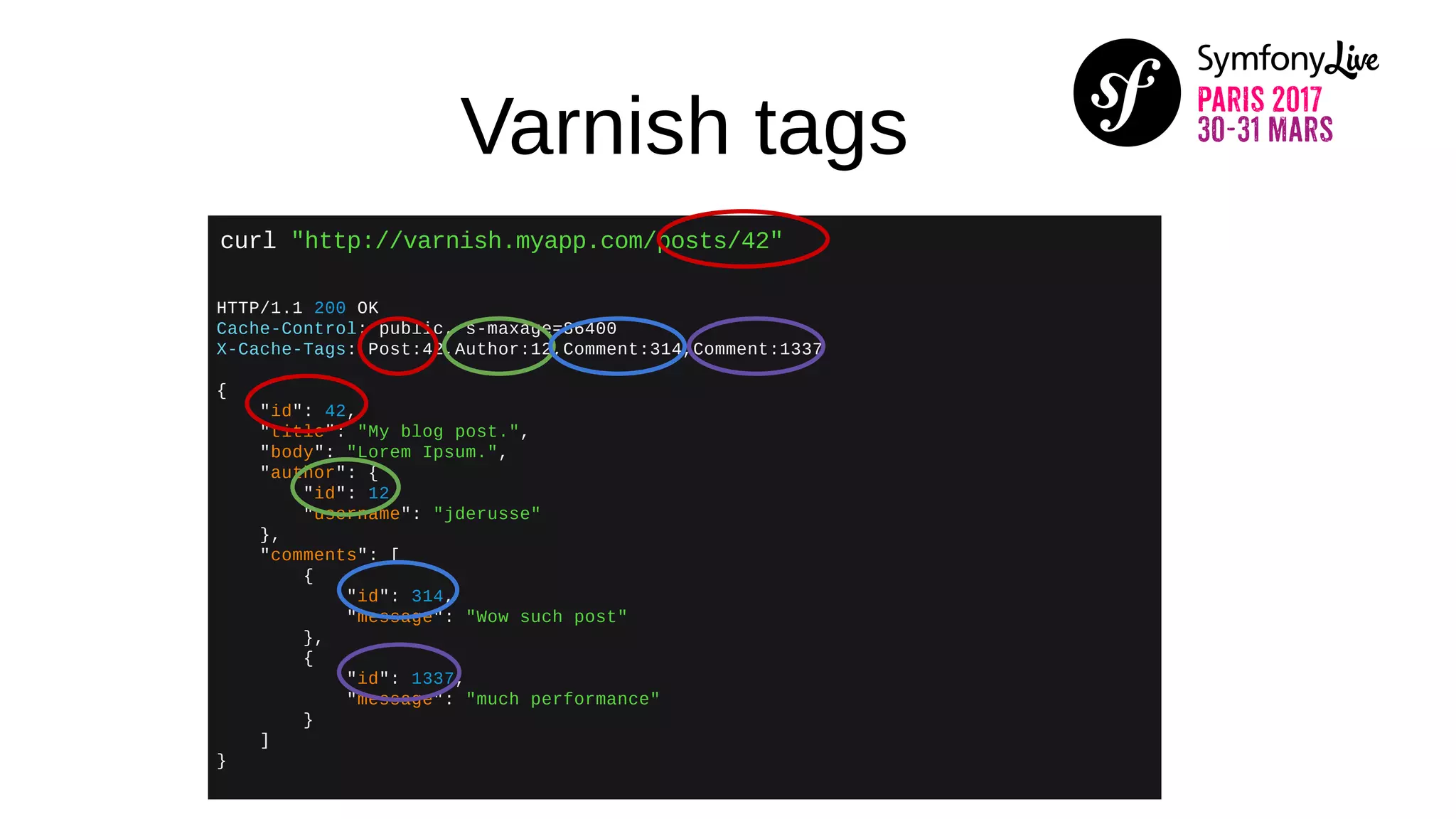

12. Varnish tags
curl "http://varnish.myapp.com/posts/42"
HTTP/1.1 200 OK
Cache-Control: public, s-maxage=86400
X-Cache-Tags: Post:42,Author:12,Comment:314,Comment:1337
{
"id": 42,
"title": "My blog post.",
"body": "Lorem Ipsum.",
"author": {
"id": 12,
"username": "jderusse"
},
"comments": [
{
"id": 314,
"message": "Wow such post"
},
{
"id": 1337,
"message": "much performance"
}
]
}

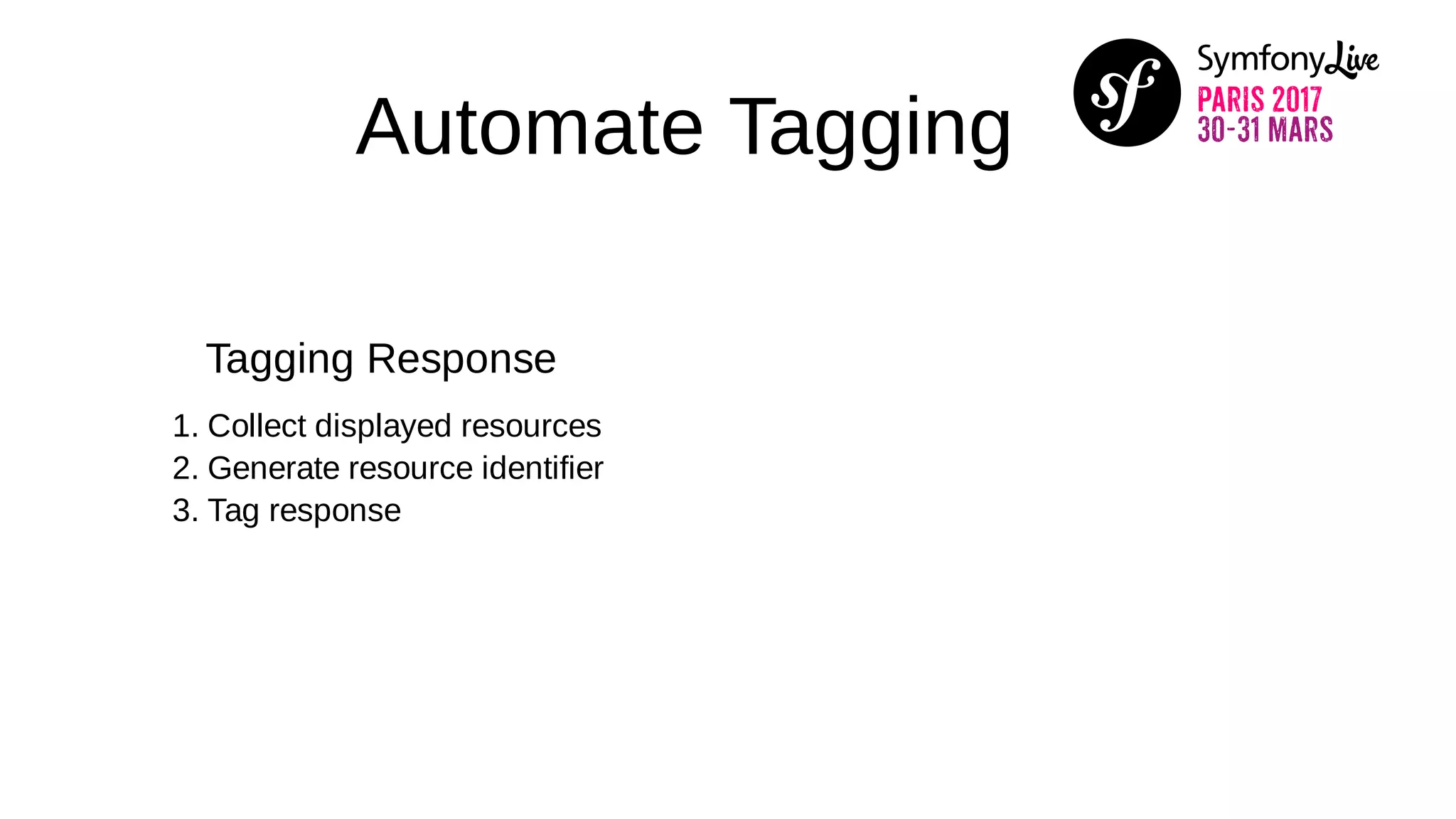

13. Automate Tagging
Tagging Response
1. Collect displayed resources
2. Generate resource identifier
3. Tag response

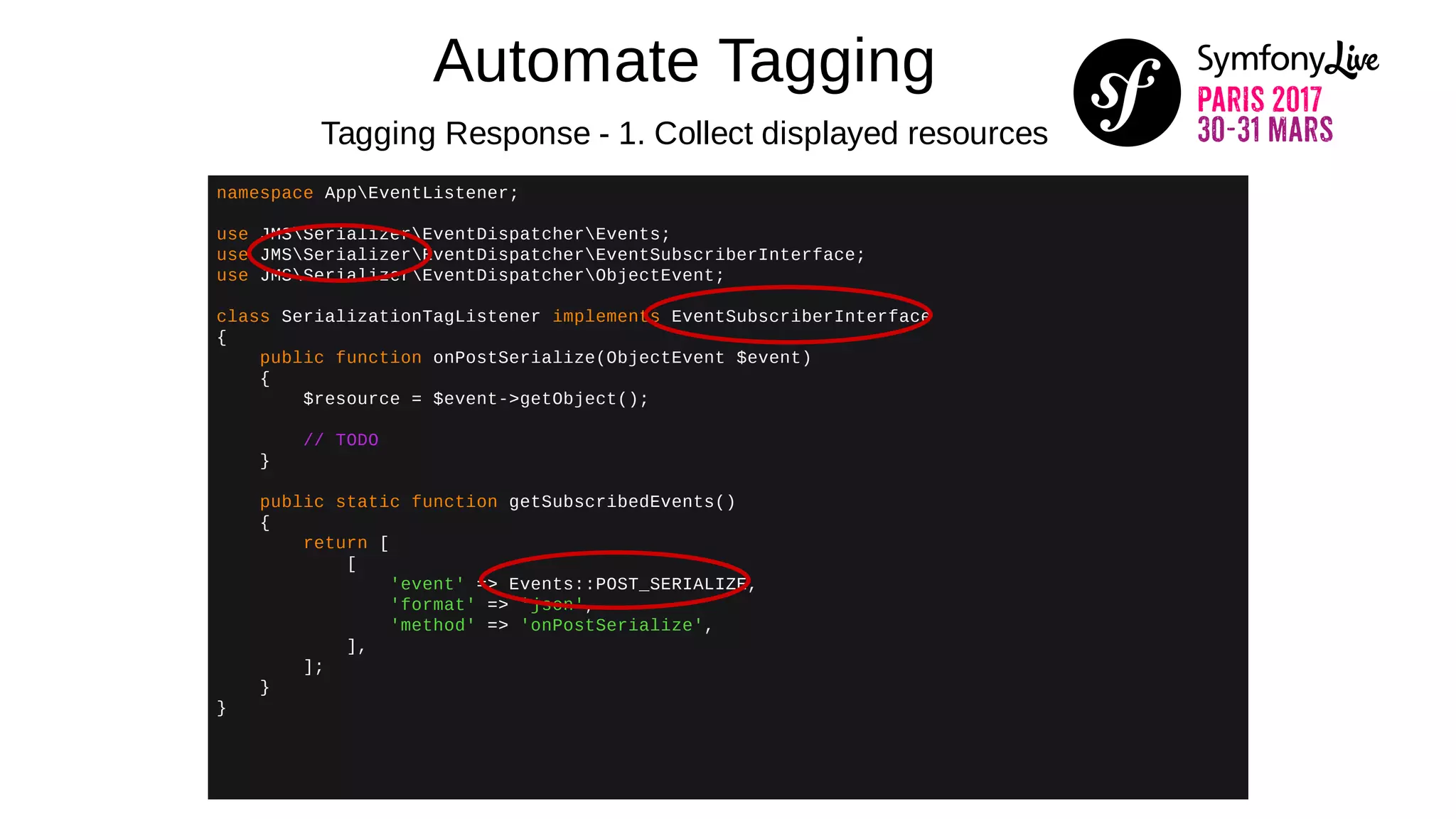

14. Automate Tagging
Tagging Response - 1. Collect displayed resources
namespace AppEventListener;
use JMSSerializerEventDispatcherEvents;
use JMSSerializerEventDispatcherEventSubscriberInterface;
use JMSSerializerEventDispatcherObjectEvent;
class SerializationTagListener implements EventSubscriberInterface
{
public function onPostSerialize(ObjectEvent $event)
{
$resource = $event->getObject();
// TODO
}
public static function getSubscribedEvents()
{
return [
[
'event' => Events::POST_SERIALIZE,
'format' => 'json',
'method' => 'onPostSerialize',
],
];
}
}

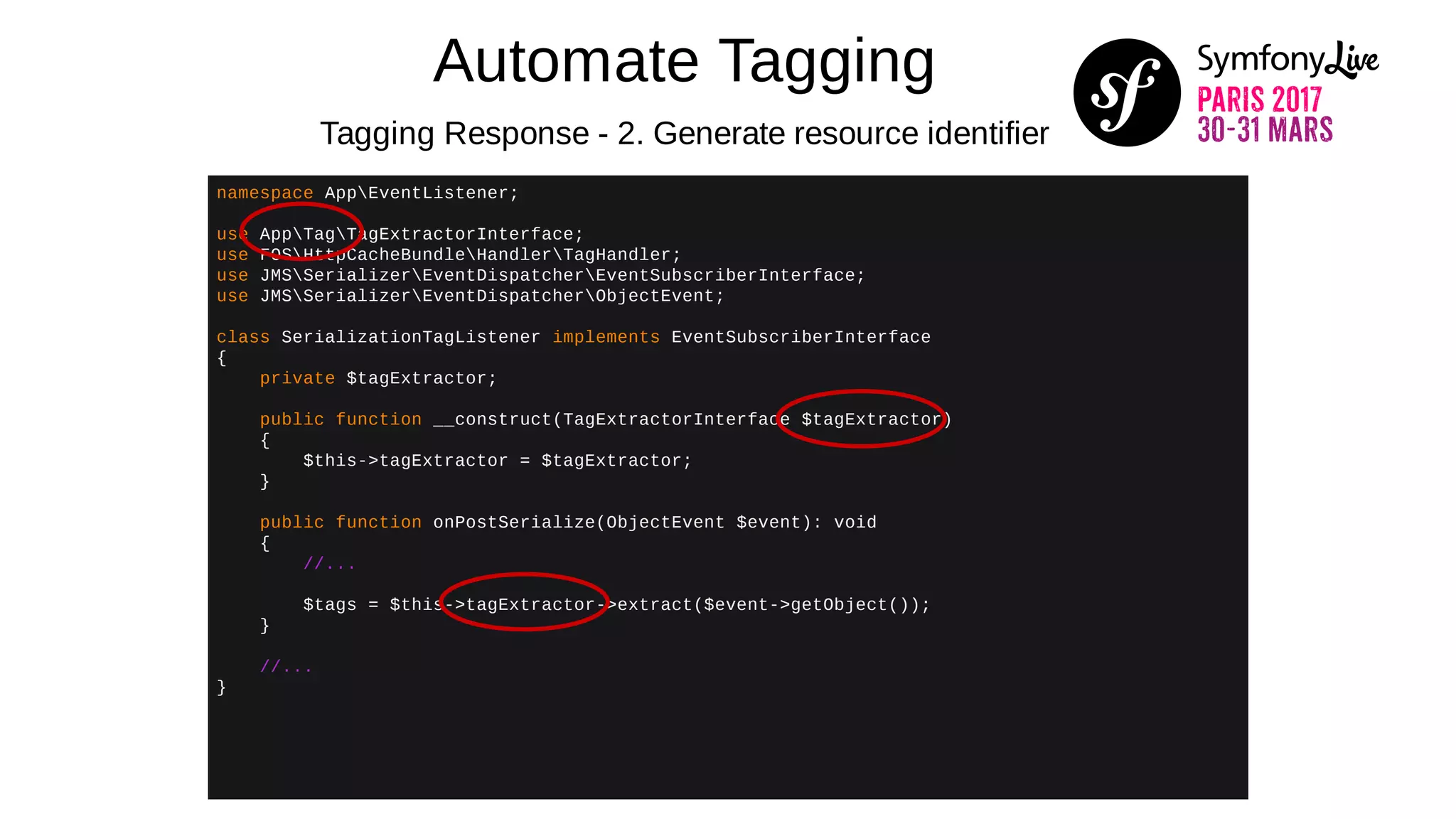

15. Automate Tagging
Tagging Response - 2. Generate resource identifier
namespace AppEventListener;
use AppTagTagExtractorInterface;
use FOSHttpCacheBundleHandlerTagHandler;
use JMSSerializerEventDispatcherEventSubscriberInterface;
use JMSSerializerEventDispatcherObjectEvent;
class SerializationTagListener implements EventSubscriberInterface
{
private $tagExtractor;
public function __construct(TagExtractorInterface $tagExtractor)
{
$this->tagExtractor = $tagExtractor;
}
public function onPostSerialize(ObjectEvent $event): void
{
//...
$tags = $this->tagExtractor->extract($event->getObject());
}
//...
}

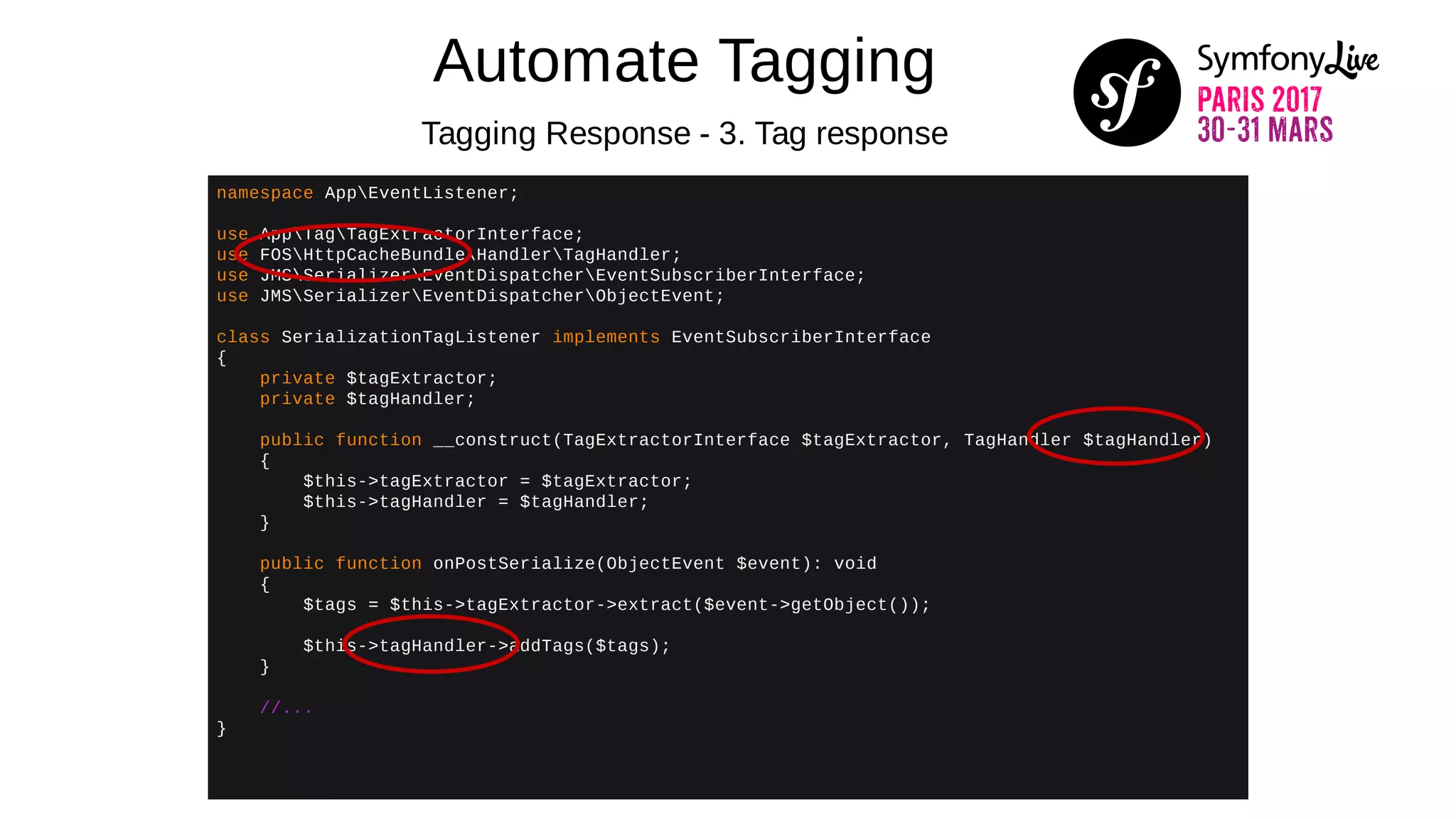

16. Automate Tagging
Tagging Response - 3. Tag response
namespace AppEventListener;
use AppTagTagExtractorInterface;
use FOSHttpCacheBundleHandlerTagHandler;
use JMSSerializerEventDispatcherEventSubscriberInterface;
use JMSSerializerEventDispatcherObjectEvent;
class SerializationTagListener implements EventSubscriberInterface
{
private $tagExtractor;
private $tagHandler;
public function __construct(TagExtractorInterface $tagExtractor, TagHandler $tagHandler)
{
$this->tagExtractor = $tagExtractor;
$this->tagHandler = $tagHandler;
}
public function onPostSerialize(ObjectEvent $event): void
{
$tags = $this->tagExtractor->extract($event->getObject());
$this->tagHandler->addTags($tags);
}
//...
}

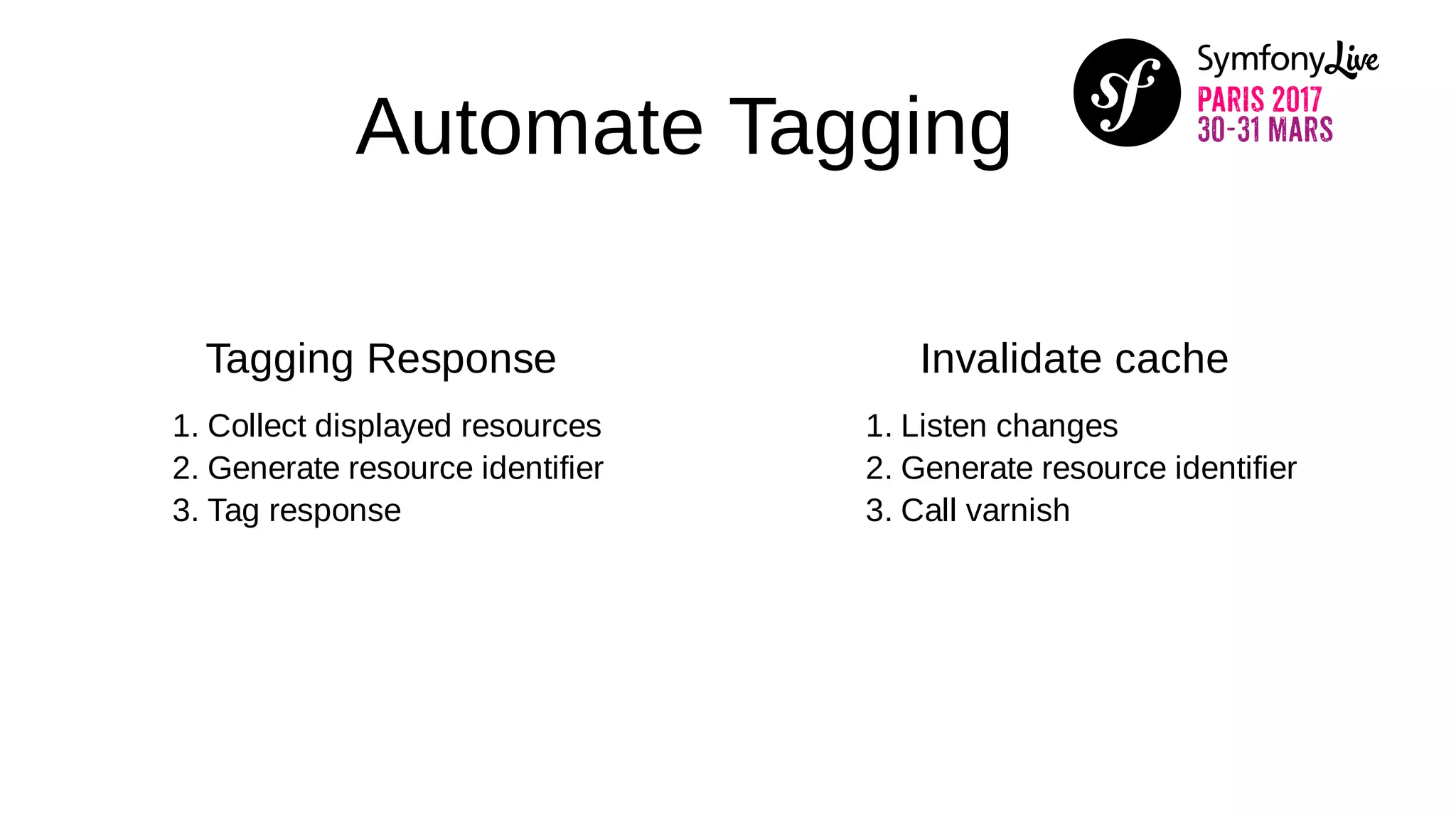

17. Automate Tagging
Tagging Response
1. Collect displayed resources
2. Generate resource identifier
3. Tag response
Invalidate cache
1. Listen changes
2. Generate resource identifier
3. Call varnish

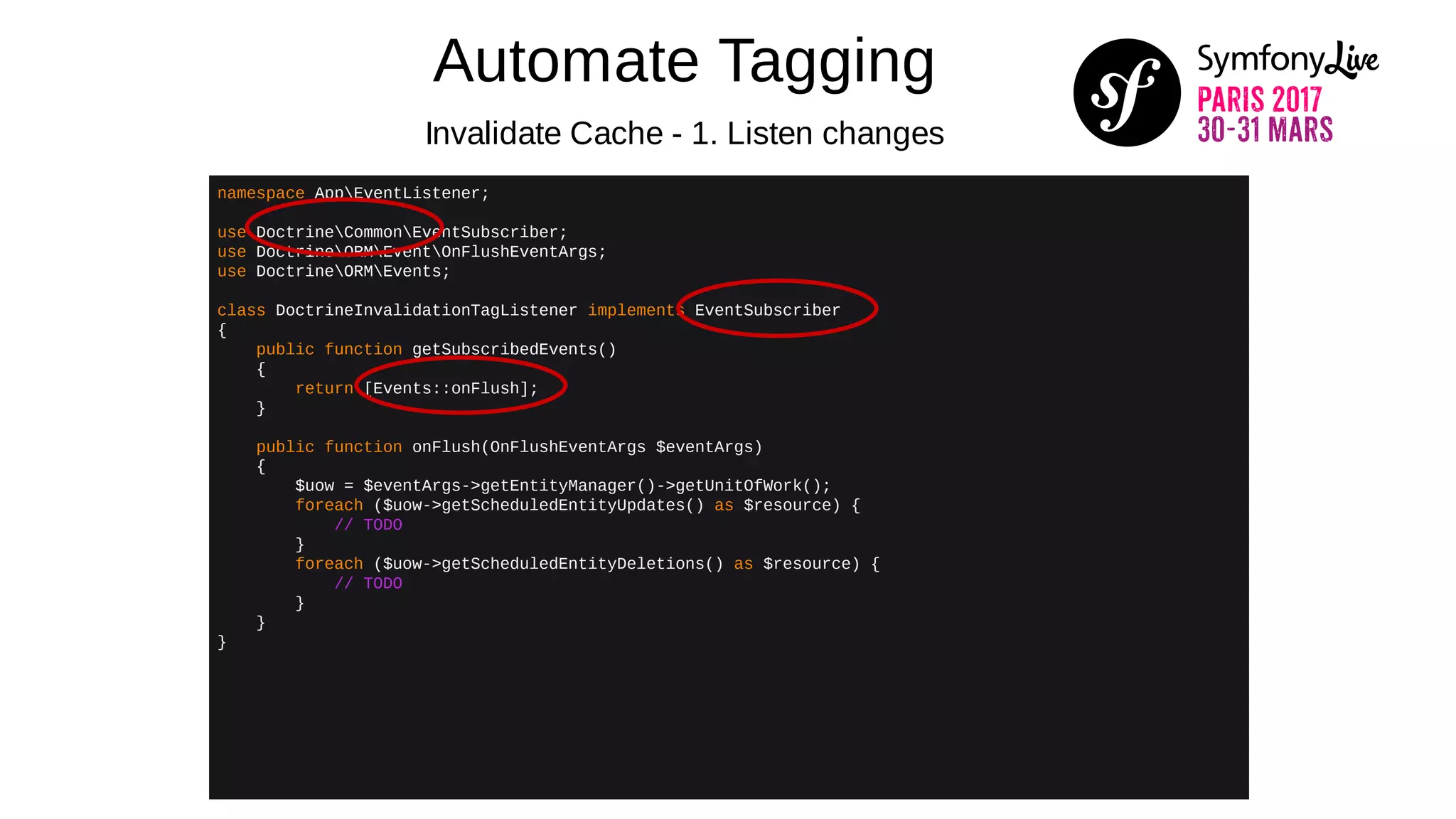

18. Automate Tagging
Invalidate Cache - 1. Listen changes
namespace AppEventListener;
use DoctrineCommonEventSubscriber;
use DoctrineORMEventOnFlushEventArgs;
use DoctrineORMEvents;
class DoctrineInvalidationTagListener implements EventSubscriber
{
public function getSubscribedEvents()
{
return [Events::onFlush];
}
public function onFlush(OnFlushEventArgs $eventArgs)
{
$uow = $eventArgs->getEntityManager()->getUnitOfWork();
foreach ($uow->getScheduledEntityUpdates() as $resource) {
// TODO
}
foreach ($uow->getScheduledEntityDeletions() as $resource) {
// TODO
}
}
}

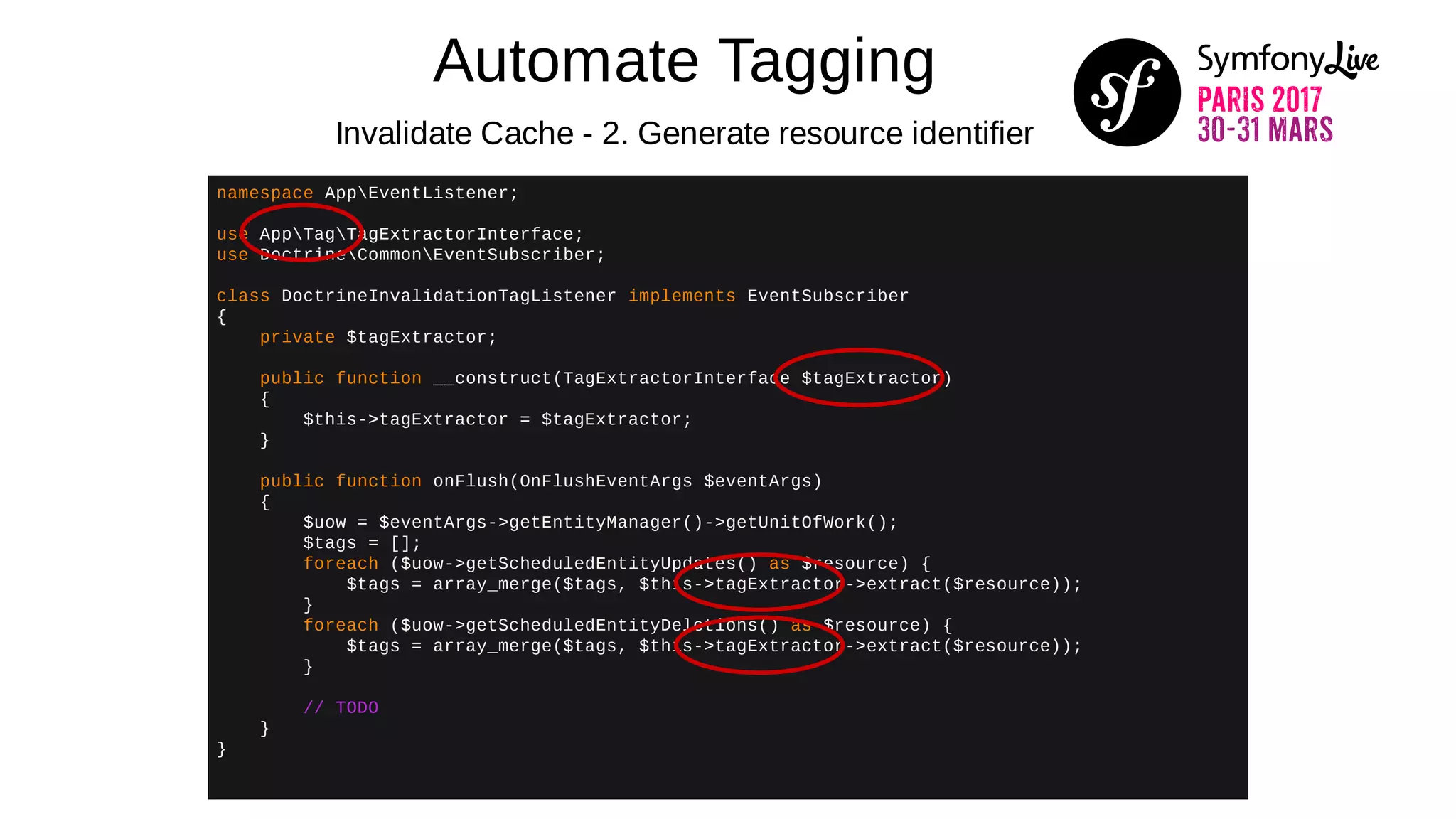

19. Automate Tagging
Invalidate Cache - 2. Generate resource identifier
namespace AppEventListener;
use AppTagTagExtractorInterface;
use DoctrineCommonEventSubscriber;
class DoctrineInvalidationTagListener implements EventSubscriber
{
private $tagExtractor;
public function __construct(TagExtractorInterface $tagExtractor)
{
$this->tagExtractor = $tagExtractor;
}
public function onFlush(OnFlushEventArgs $eventArgs)
{
$uow = $eventArgs->getEntityManager()->getUnitOfWork();
$tags = [];
foreach ($uow->getScheduledEntityUpdates() as $resource) {
$tags = array_merge($tags, $this->tagExtractor->extract($resource));
}
foreach ($uow->getScheduledEntityDeletions() as $resource) {
$tags = array_merge($tags, $this->tagExtractor->extract($resource));
}
// TODO
}
}

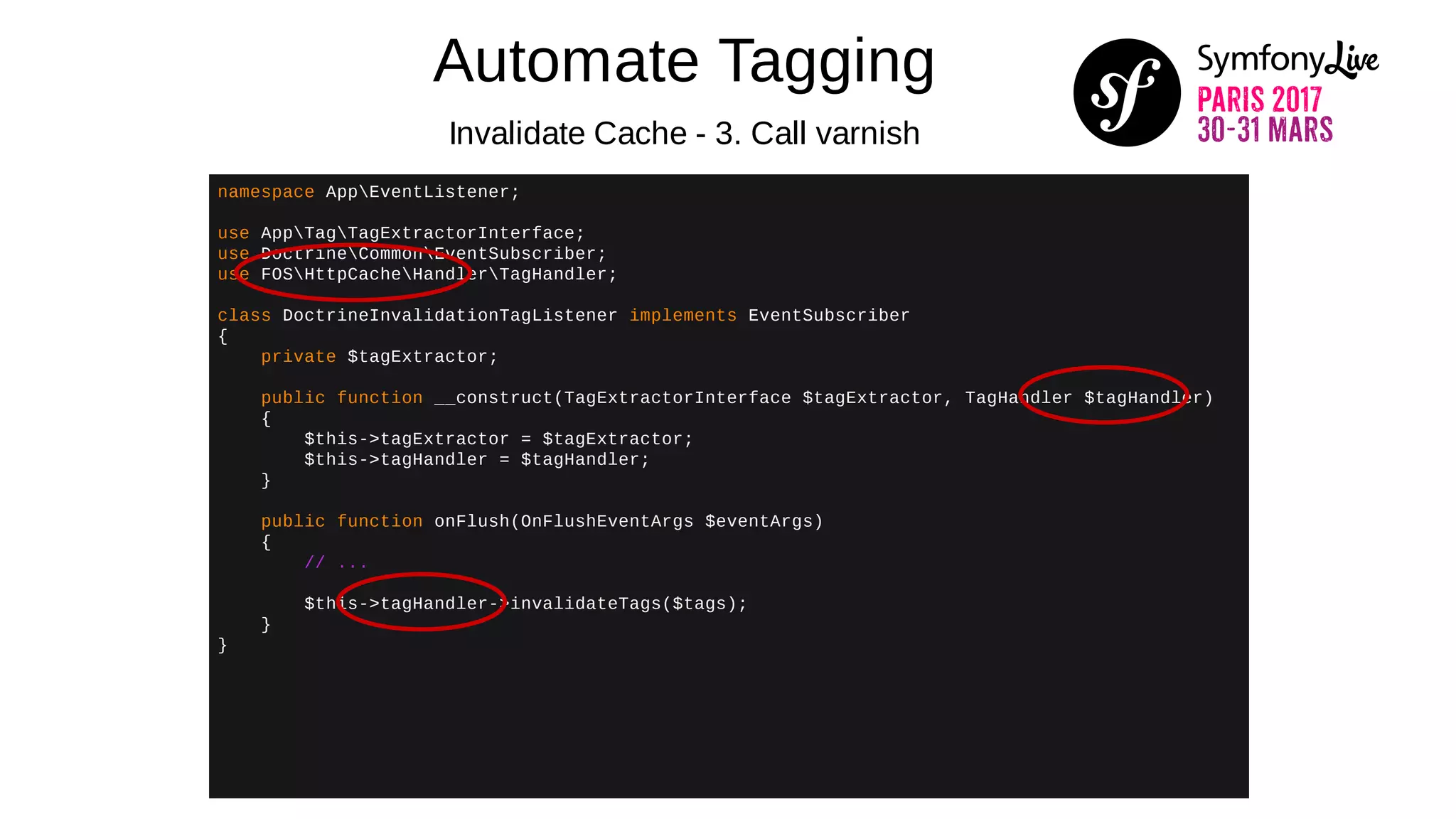

20. Automate Tagging
Invalidate Cache - 3. Call varnish
namespace AppEventListener;
use AppTagTagExtractorInterface;
use DoctrineCommonEventSubscriber;
use FOSHttpCacheHandlerTagHandler;
class DoctrineInvalidationTagListener implements EventSubscriber
{
private $tagExtractor;
public function __construct(TagExtractorInterface $tagExtractor, TagHandler $tagHandler)
{
$this->tagExtractor = $tagExtractor;
$this->tagHandler = $tagHandler;
}
public function onFlush(OnFlushEventArgs $eventArgs)
{
// ...
$this->tagHandler->invalidateTags($tags);
}
}

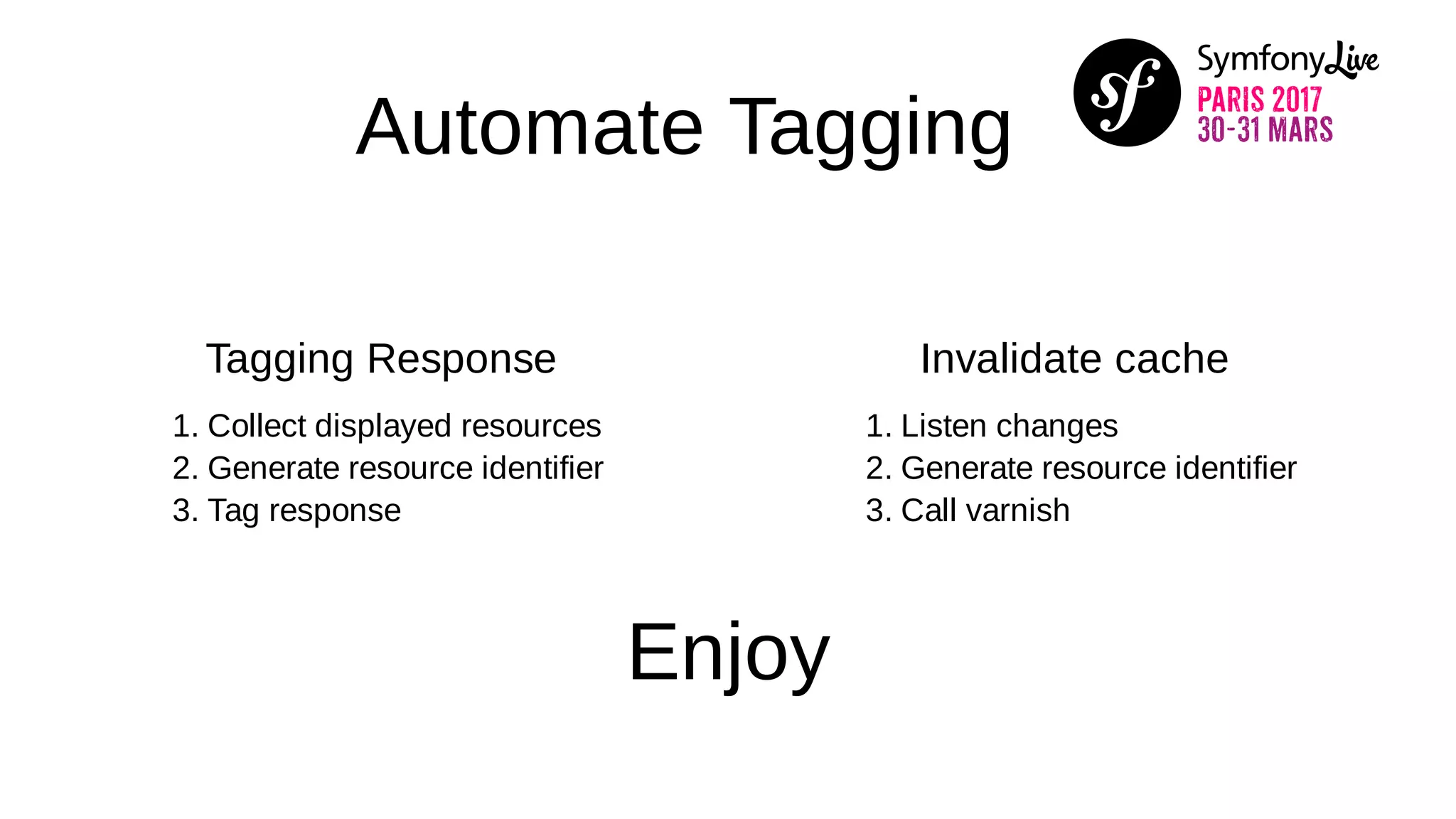

21. Automate Tagging
Tagging Response
1. Collect displayed resources
2. Generate resource identifier
3. Tag response
Invalidate cache
1. Listen changes
2. Generate resource identifier
3. Call varnish
Enjoy

22. Silver bullet?
Works well when
HIT >> MISS
Read >> Write
Application knows resources used to build
response
Drawback
Operations are not Atomic
Backend handles writes
Backend knows infrastructure
It slows writes

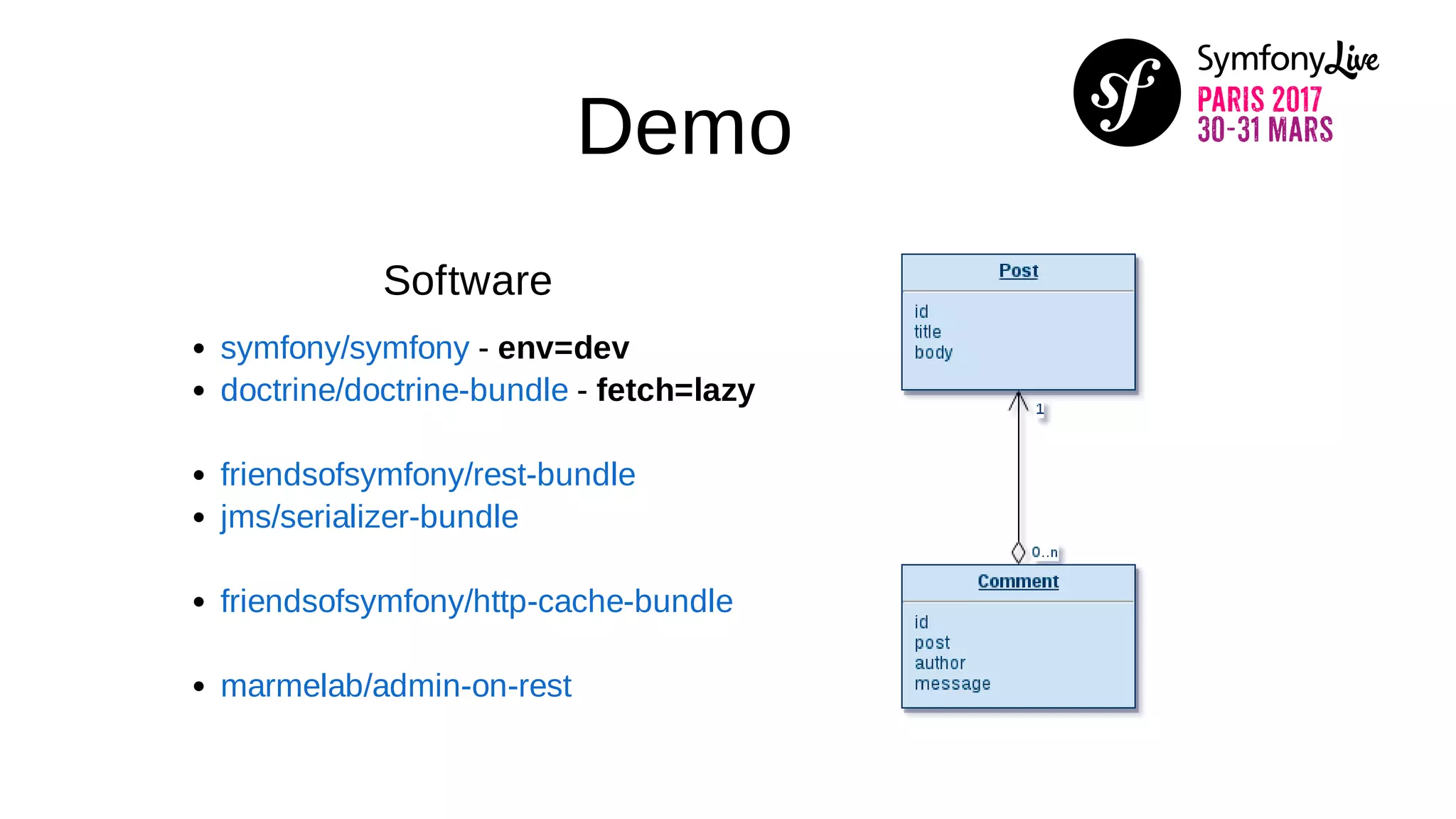

23. Demo
Software
- env=dev
- fetch=lazy
symfony/symfony
doctrine/doctrine-bundle
friendsofsymfony/rest-bundle
jms/serializer-bundle
friendsofsymfony/http-cache-bundle
marmelab/admin-on-rest

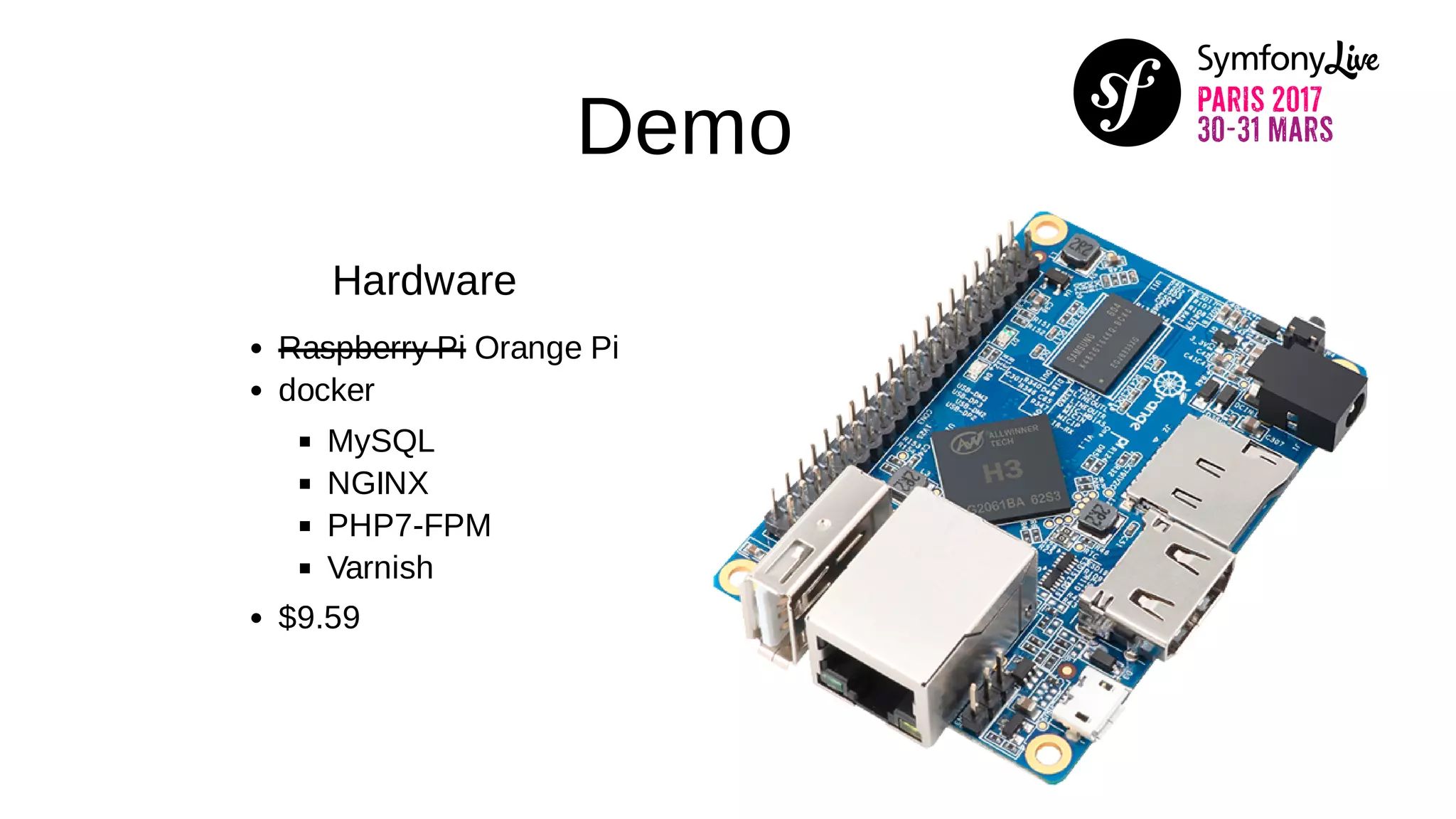

24. Demo
Hardware
Raspberry Pi Orange Pi
docker
MySQL
NGINX
PHP7-FPM
Varnish
$9.59

25. Demo

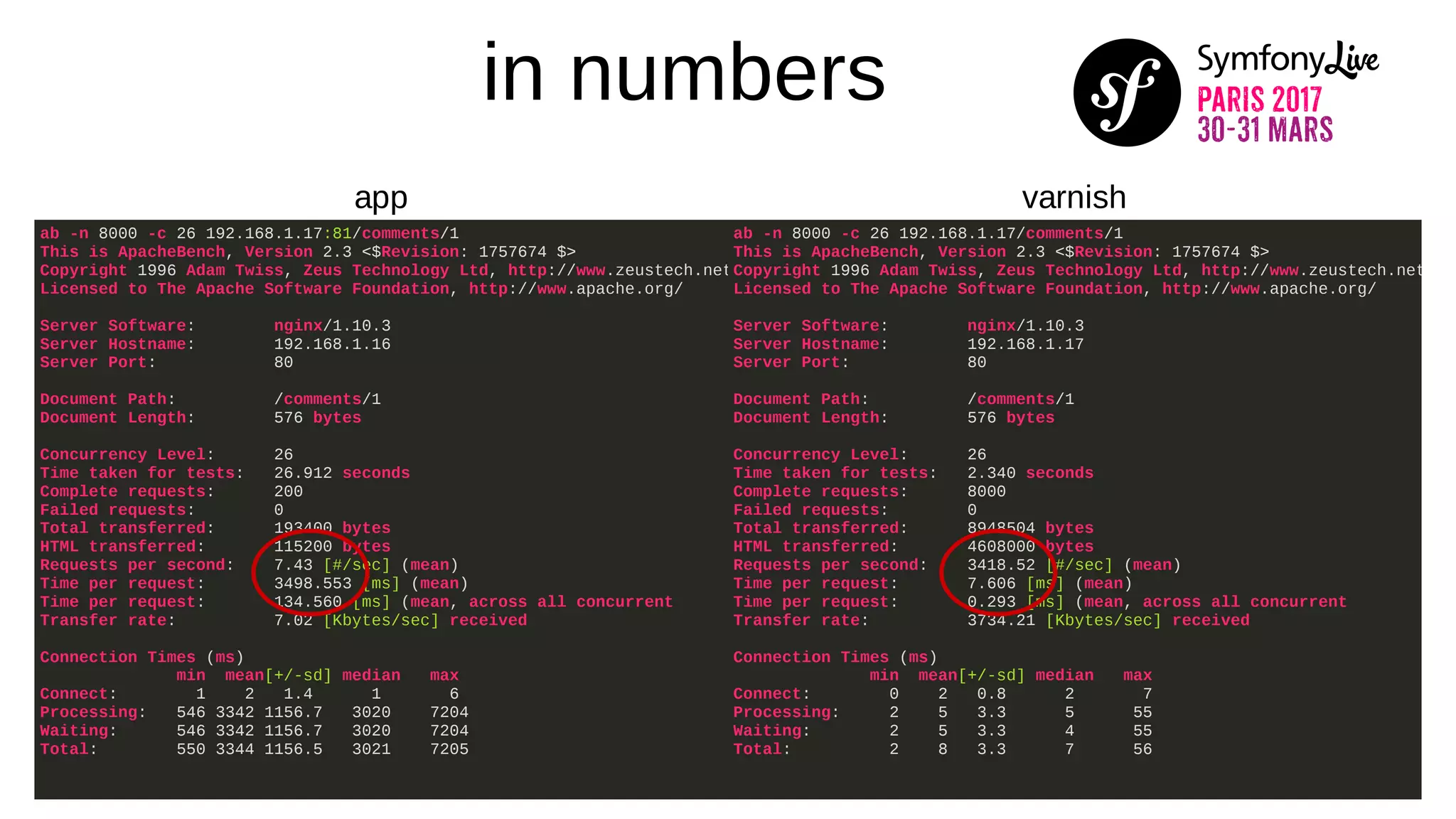

26. ab -n 8000 -c 26 192.168.1.17:81/comments/1
This is ApacheBench, Version 2.3 <$Revision: 1757674 $>
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net
Licensed to The Apache Software Foundation, http://www.apache.org/
Server Software: nginx/1.10.3
Server Hostname: 192.168.1.16
Server Port: 80
Document Path: /comments/1
Document Length: 576 bytes
Concurrency Level: 26
Time taken for tests: 26.912 seconds
Complete requests: 200
Failed requests: 0
Total transferred: 193400 bytes
HTML transferred: 115200 bytes
Requests per second: 7.43 [#/sec] (mean)
Time per request: 3498.553 [ms] (mean)
Time per request: 134.560 [ms] (mean, across all concurrent
Transfer rate: 7.02 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 2 1.4 1 6
Processing: 546 3342 1156.7 3020 7204
Waiting: 546 3342 1156.7 3020 7204
Total: 550 3344 1156.5 3021 7205
in numbers
ab -n 8000 -c 26 192.168.1.17/comments/1
This is ApacheBench, Version 2.3 <$Revision: 1757674 $>
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net
Licensed to The Apache Software Foundation, http://www.apache.org/
Server Software: nginx/1.10.3
Server Hostname: 192.168.1.17
Server Port: 80
Document Path: /comments/1
Document Length: 576 bytes
Concurrency Level: 26
Time taken for tests: 2.340 seconds
Complete requests: 8000
Failed requests: 0
Total transferred: 8948504 bytes
HTML transferred: 4608000 bytes
Requests per second: 3418.52 [#/sec] (mean)
Time per request: 7.606 [ms] (mean)
Time per request: 0.293 [ms] (mean, across all concurrent
Transfer rate: 3734.21 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 2 0.8 2 7
Processing: 2 5 3.3 5 55
Waiting: 2 5 3.3 4 55
Total: 2 8 3.3 7 56
app varnish
