GraphQL distribution

•

2 likes•765 views

Distributing GraphQL API using API gateway and CDNs to the whole world including very distant countries in Africa. Talk taken on #GraphQLEU

Software

Copyright © 2017 iflix. All rights reserved.1
In global scale
GRAPHQL API DISTRIBUTION

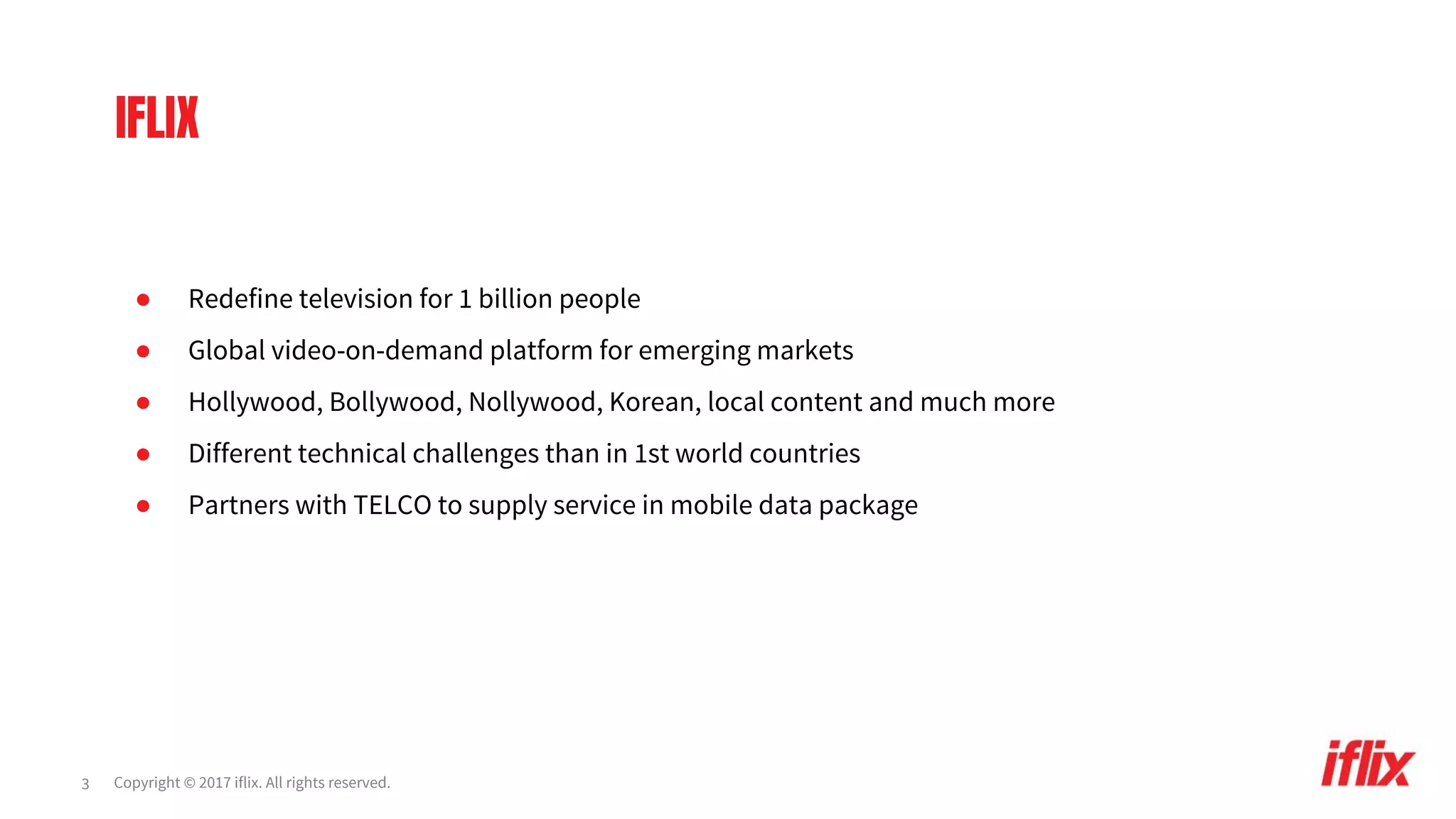

Copyright © 2017 iflix. All rights reserved.3
● Redefine television for 1 billion people
● Global video-on-demand platform for emerging markets
● Hollywood, Bollywood, Nollywood, Korean, local content and much more
● Different technical challenges than in 1st world countries
● Partners with TELCO to supply service in mobile data package
IFLIX

Copyright © 2017 iflix. All rights reserved.4

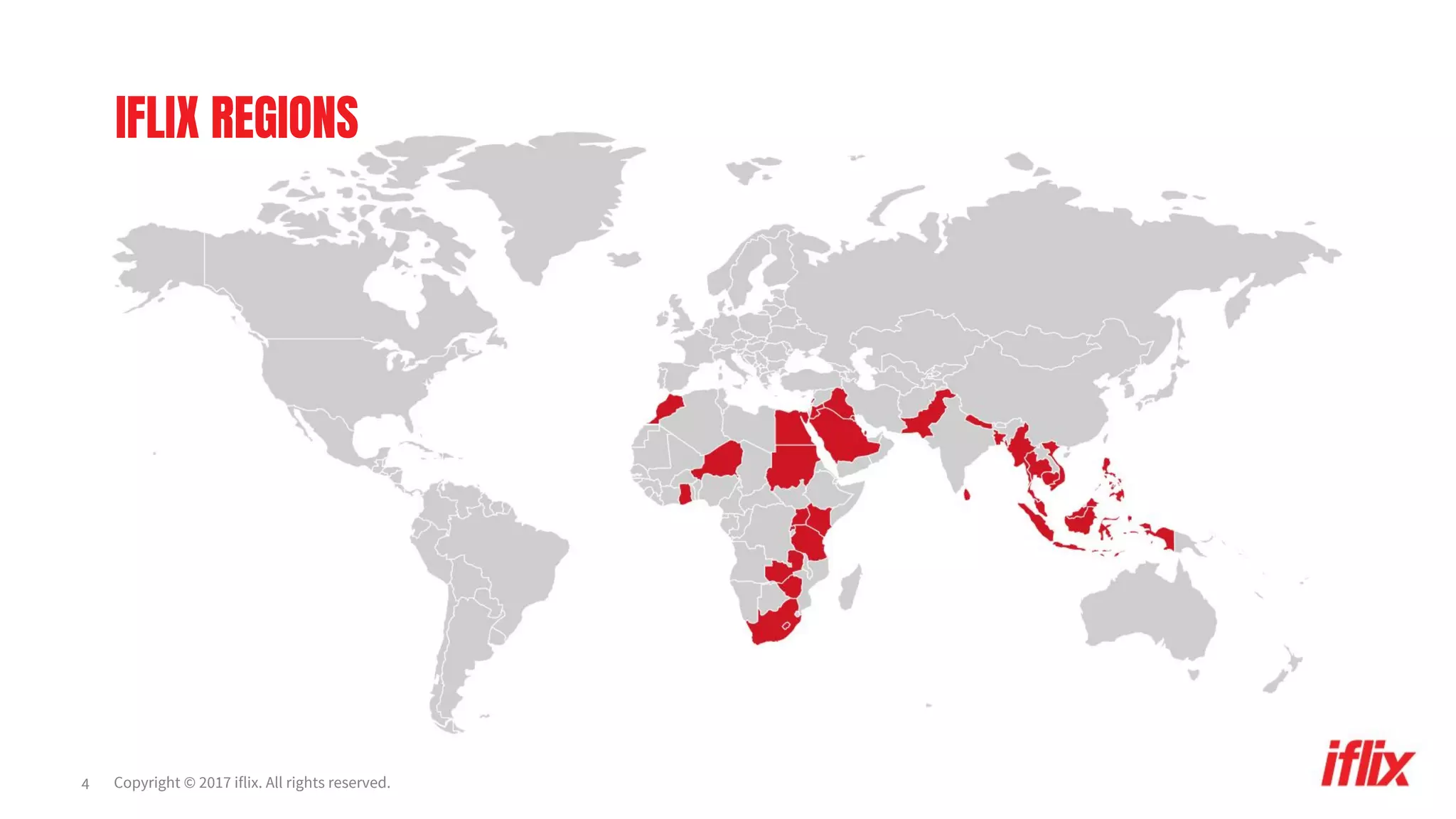

IFLIX REGIONS

Copyright © 2017 iflix. All rights reserved.5
WHERE IS THE CATCH?

Copyright © 2017 iflix. All rights reserved.6
IFLIX REGIONS

Copyright © 2017 iflix. All rights reserved.7

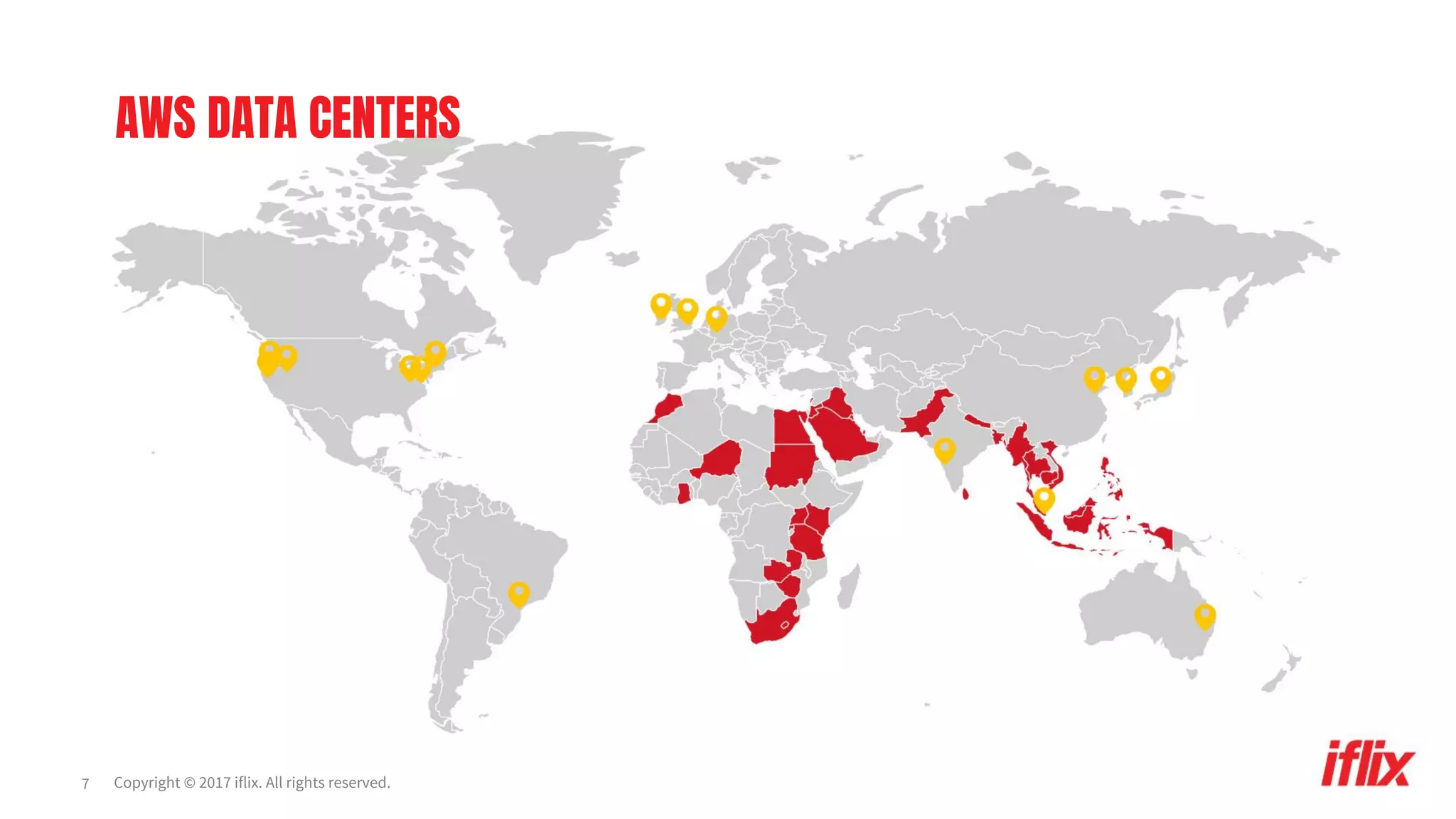

AWS DATA CENTERS

Copyright © 2017 iflix. All rights reserved.8

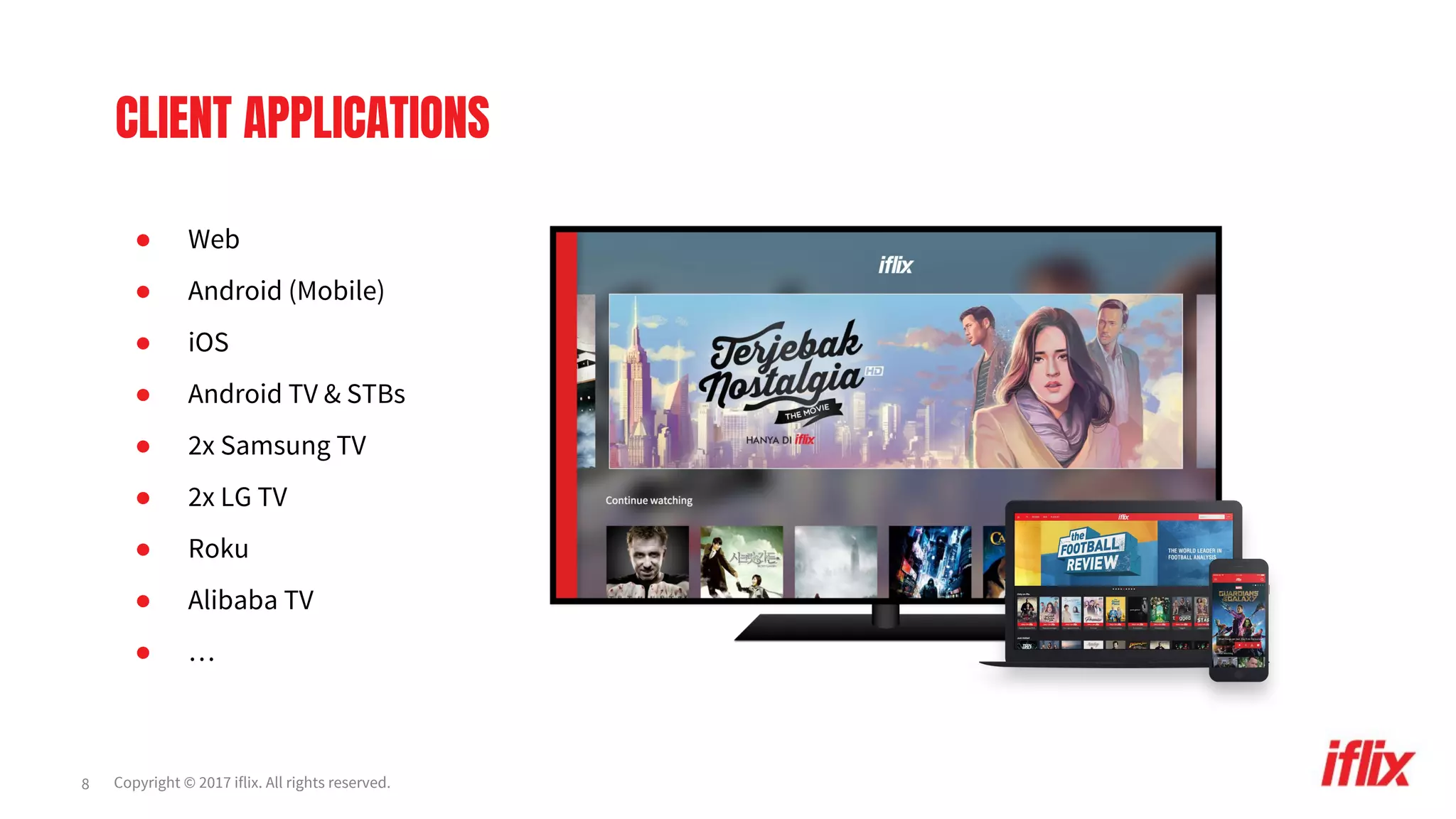

CLIENT APPLICATIONS
● Web
● Android (Mobile)
● iOS
● Android TV & STBs
● 2x Samsung TV
● 2x LG TV
● Roku
● Alibaba TV
● …

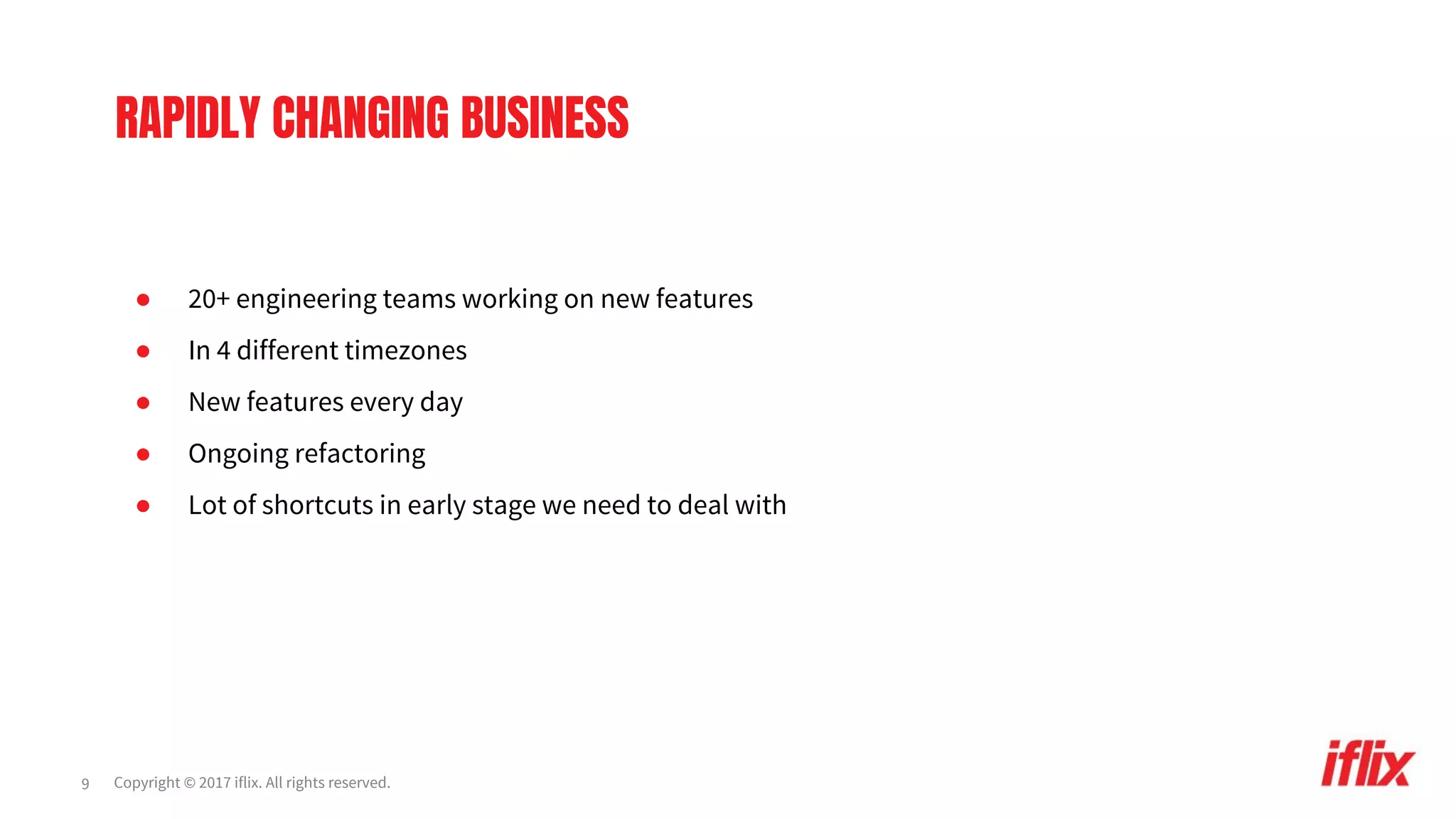

Copyright © 2017 iflix. All rights reserved.9
● 20+ engineering teams working on new features
● In 4 different timezones
● New features every day
● Ongoing refactoring
● Lot of shortcuts in early stage we need to deal with
RAPIDLY CHANGING BUSINESS

Copyright © 2017 iflix. All rights reserved.10

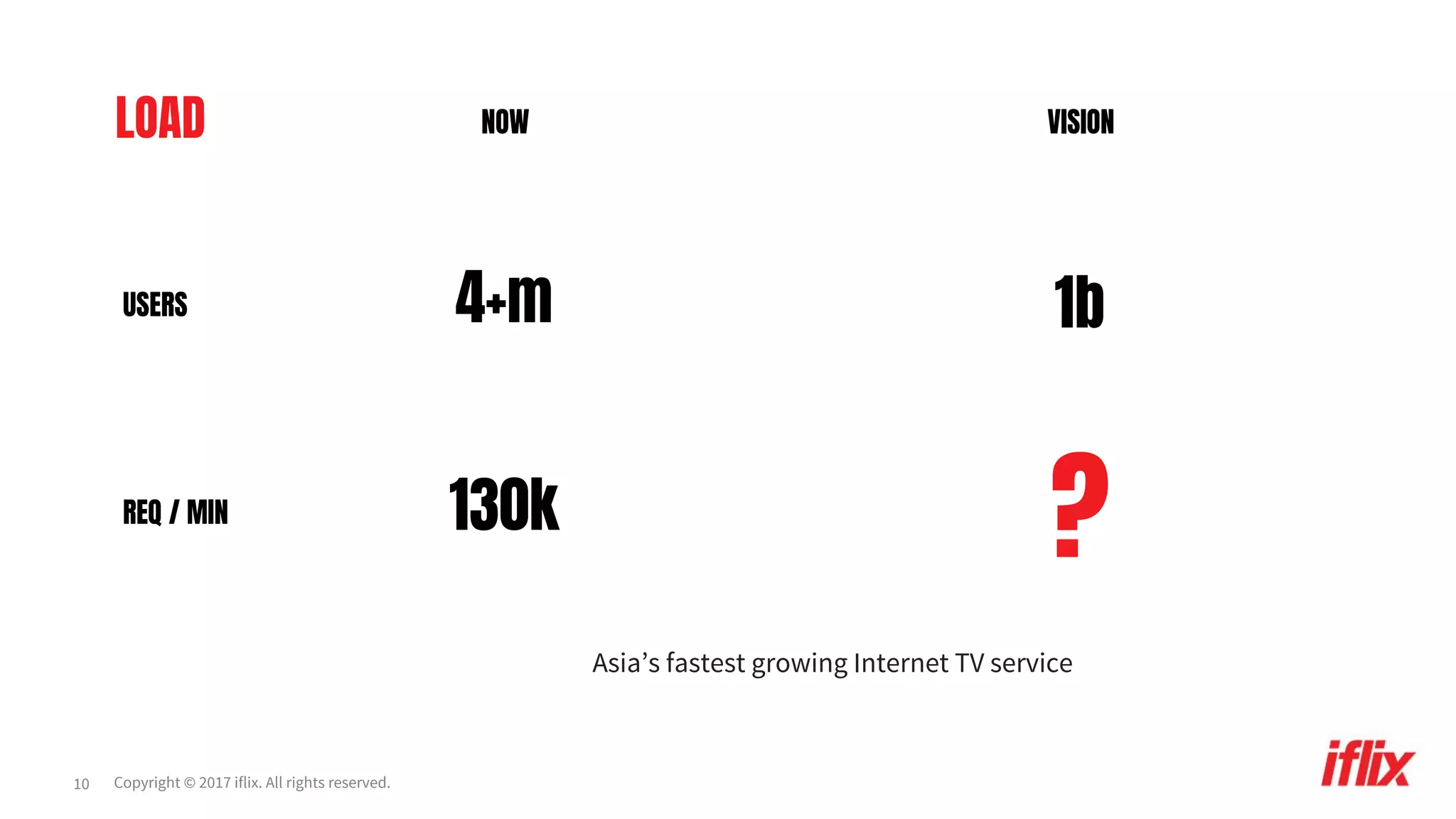

LOAD
130k
4+m
Asia’s fastest growing Internet TV service
NOW
?
1b
VISION
USERS
REQ / MIN

Copyright © 2017 iflix. All rights reserved.11

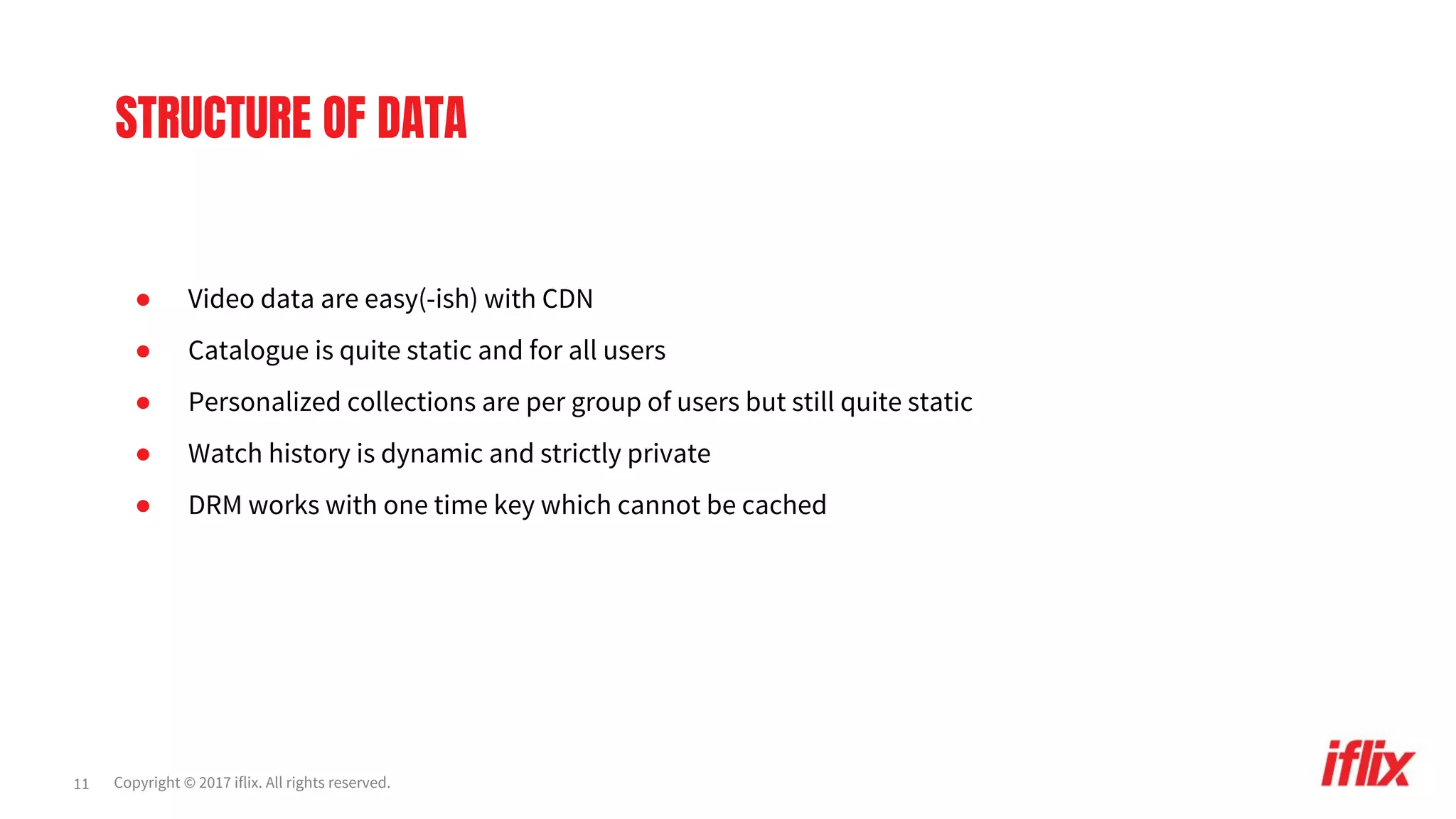

● Video data are easy(-ish) with CDN
● Catalogue is quite static and for all users
● Personalized collections are per group of users but still quite static
● Watch history is dynamic and strictly private
● DRM works with one time key which cannot be cached
STRUCTURE OF DATA

Copyright © 2017 iflix. All rights reserved.12
LET’S DO IT!

Copyright © 2017 iflix. All rights reserved.13

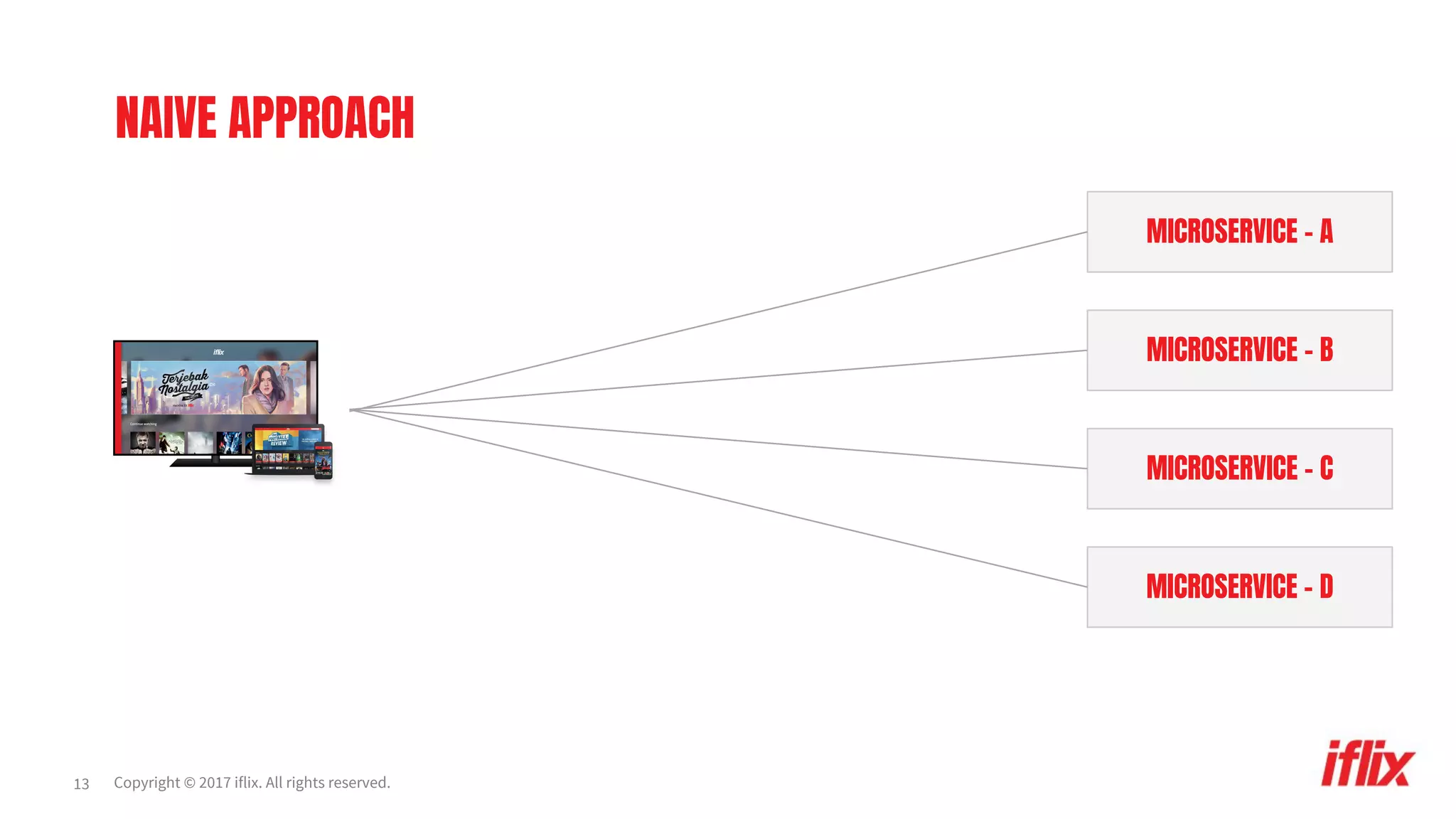

NAIVE APPROACH
MICROSERVICE - A
MICROSERVICE - B
MICROSERVICE - C
MICROSERVICE - D

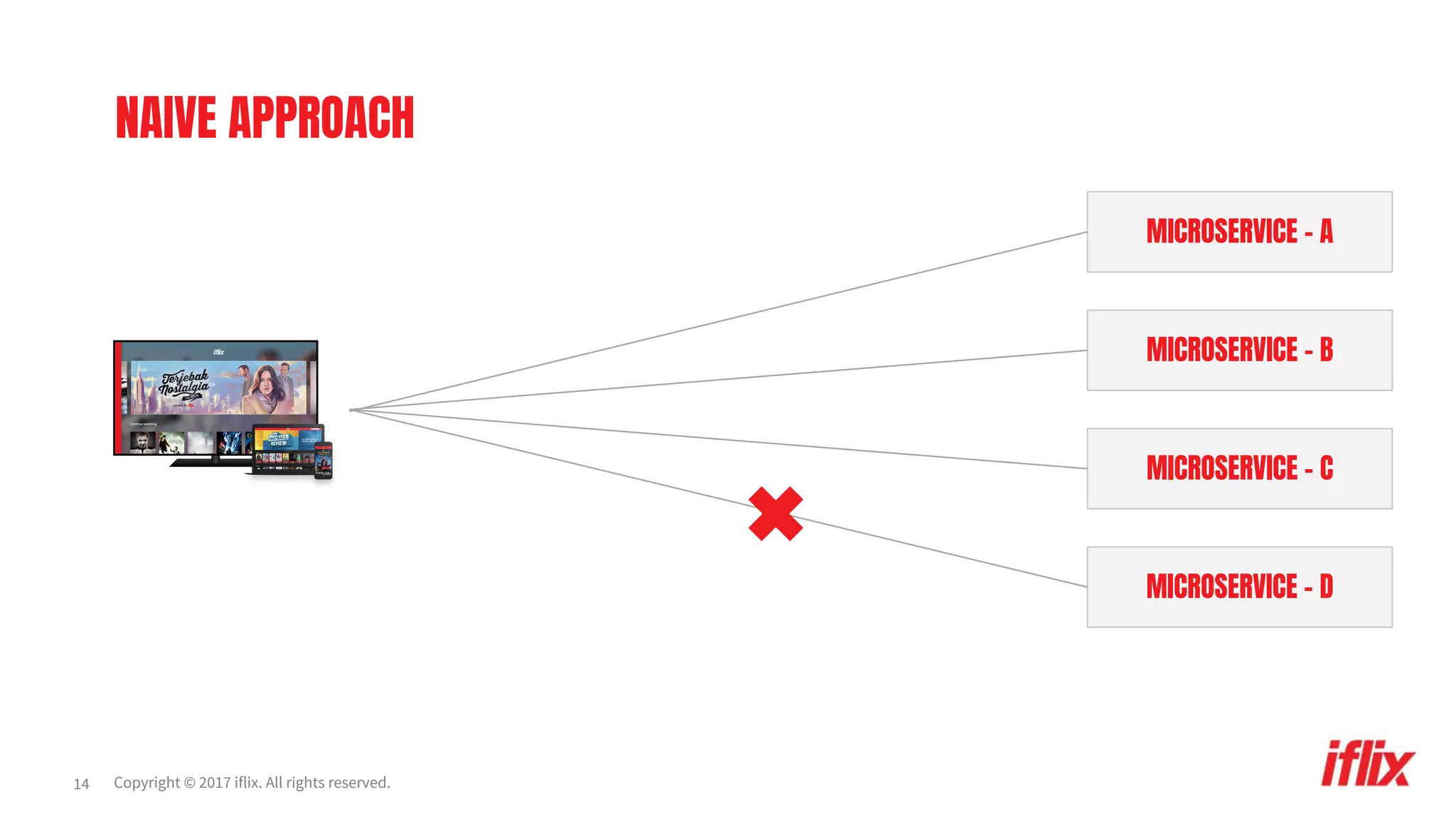

Copyright © 2017 iflix. All rights reserved.14
NAIVE APPROACH
MICROSERVICE - A
MICROSERVICE - B
MICROSERVICE - C
MICROSERVICE - D

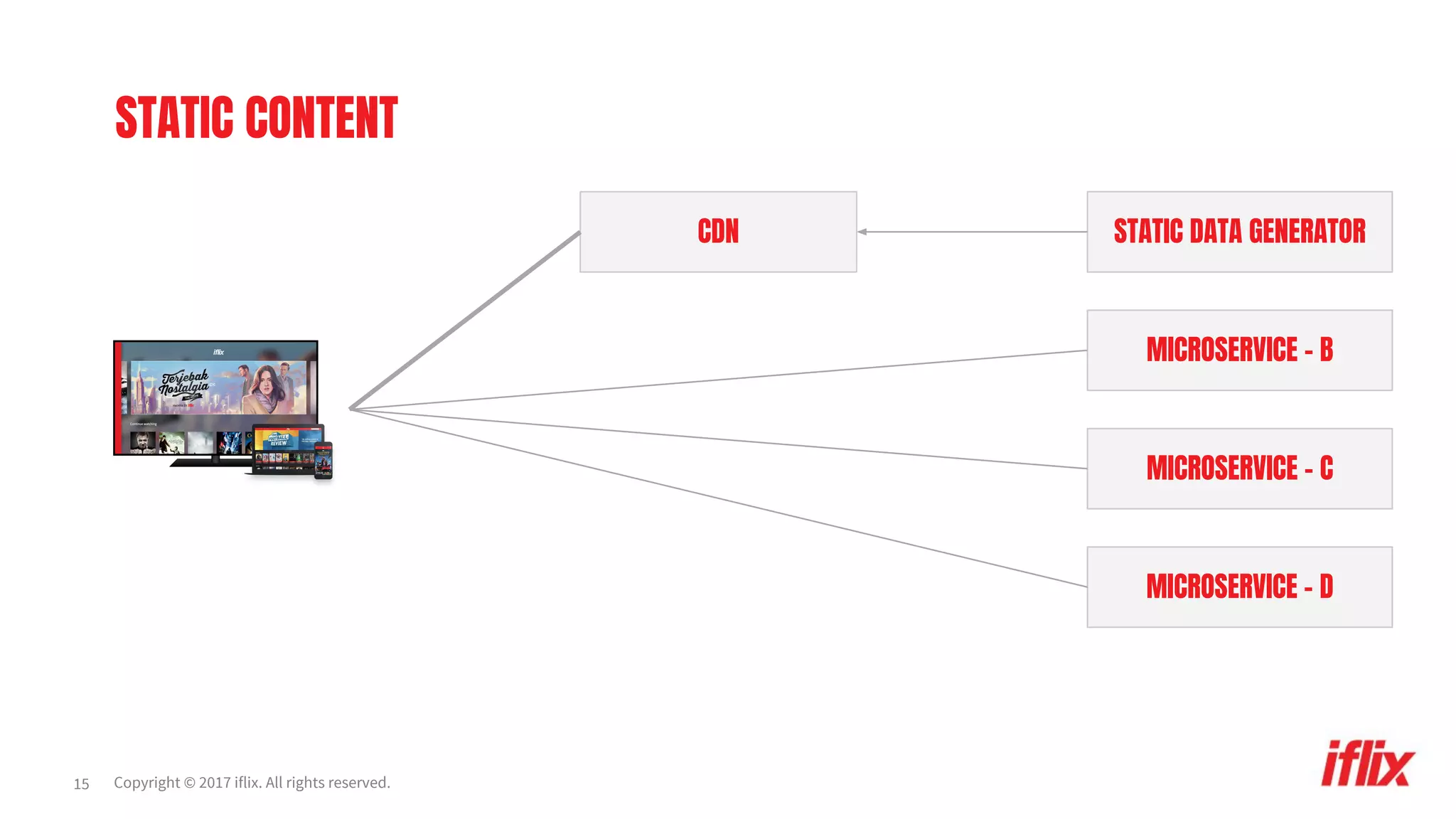

Copyright © 2017 iflix. All rights reserved.15
STATIC CONTENT
CDN
MICROSERVICE - B
MICROSERVICE - C
MICROSERVICE - D
STATIC DATA GENERATOR

Copyright © 2017 iflix. All rights reserved.16
STATIC CONTENT
CDN
MICROSERVICE - B
MICROSERVICE - C
MICROSERVICE - D
STATIC DATA GENERATOR
distance from user

Copyright © 2017 iflix. All rights reserved.17
LAST MILE
SCALABILITY
FLEXIBILITY
MAINTAINABILITY

Copyright © 2017 iflix. All rights reserved.18
LAST MILE GOOD
SCALABILITY
FLEXIBILITY
MAINTAINABILITY

Copyright © 2017 iflix. All rights reserved.19
LAST MILE GOOD
SCALABILITY EXCELLENT
FLEXIBILITY
MAINTAINABILITY

Copyright © 2017 iflix. All rights reserved.20

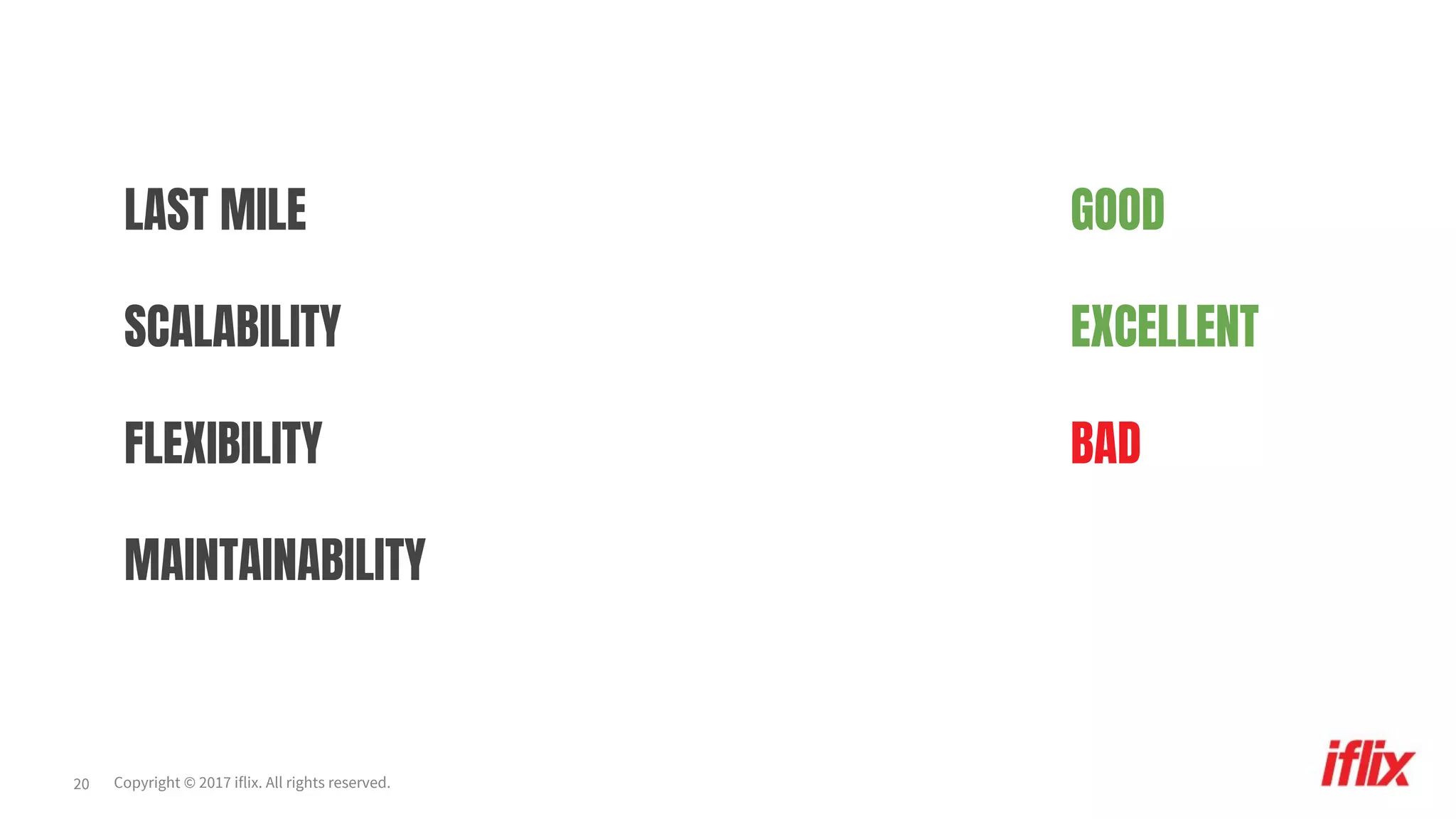

LAST MILE GOOD
SCALABILITY EXCELLENT
FLEXIBILITY BAD
MAINTAINABILITY

Copyright © 2017 iflix. All rights reserved.21
LAST MILE GOOD
SCALABILITY EXCELLENT
FLEXIBILITY BAD
MAINTAINABILITY BAD

Copyright © 2017 iflix. All rights reserved.

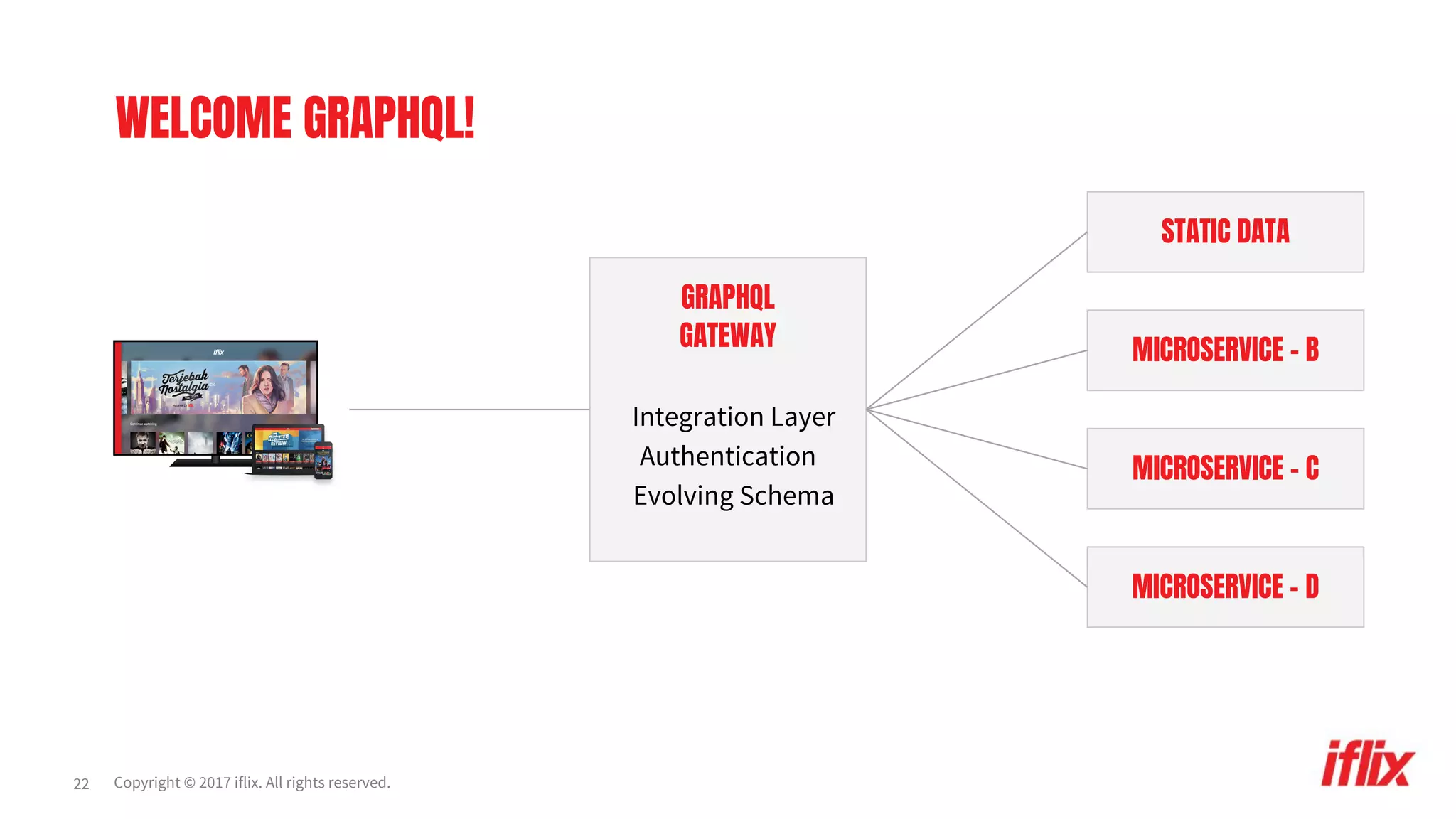

GRAPHQL
GATEWAY
Integration Layer
Authentication
Evolving Schema
22
WELCOME GRAPHQL!
STATIC DATA
MICROSERVICE - B
MICROSERVICE - C
MICROSERVICE - D

Copyright © 2017 iflix. All rights reserved.
GRAPHQL
GATEWAY
Integration Layer
Authentication
Evolving Schema
23

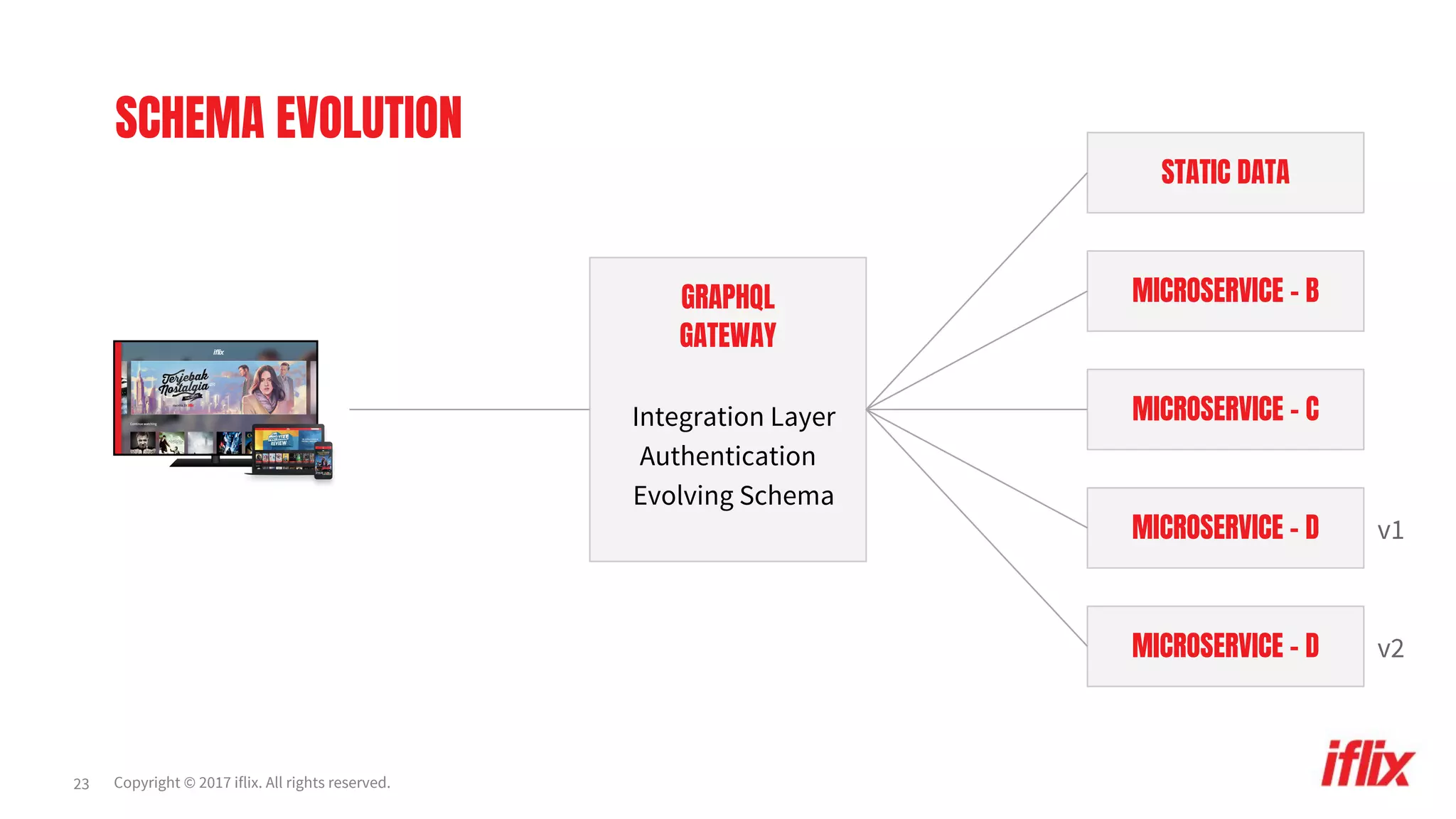

SCHEMA EVOLUTION
STATIC DATA
MICROSERVICE - B
MICROSERVICE - C
MICROSERVICE - D
MICROSERVICE - D
v1
v2

Copyright © 2017 iflix. All rights reserved.
GRAPHQL
GATEWAY
Integration Layer
Authentication
Evolving Schema
24

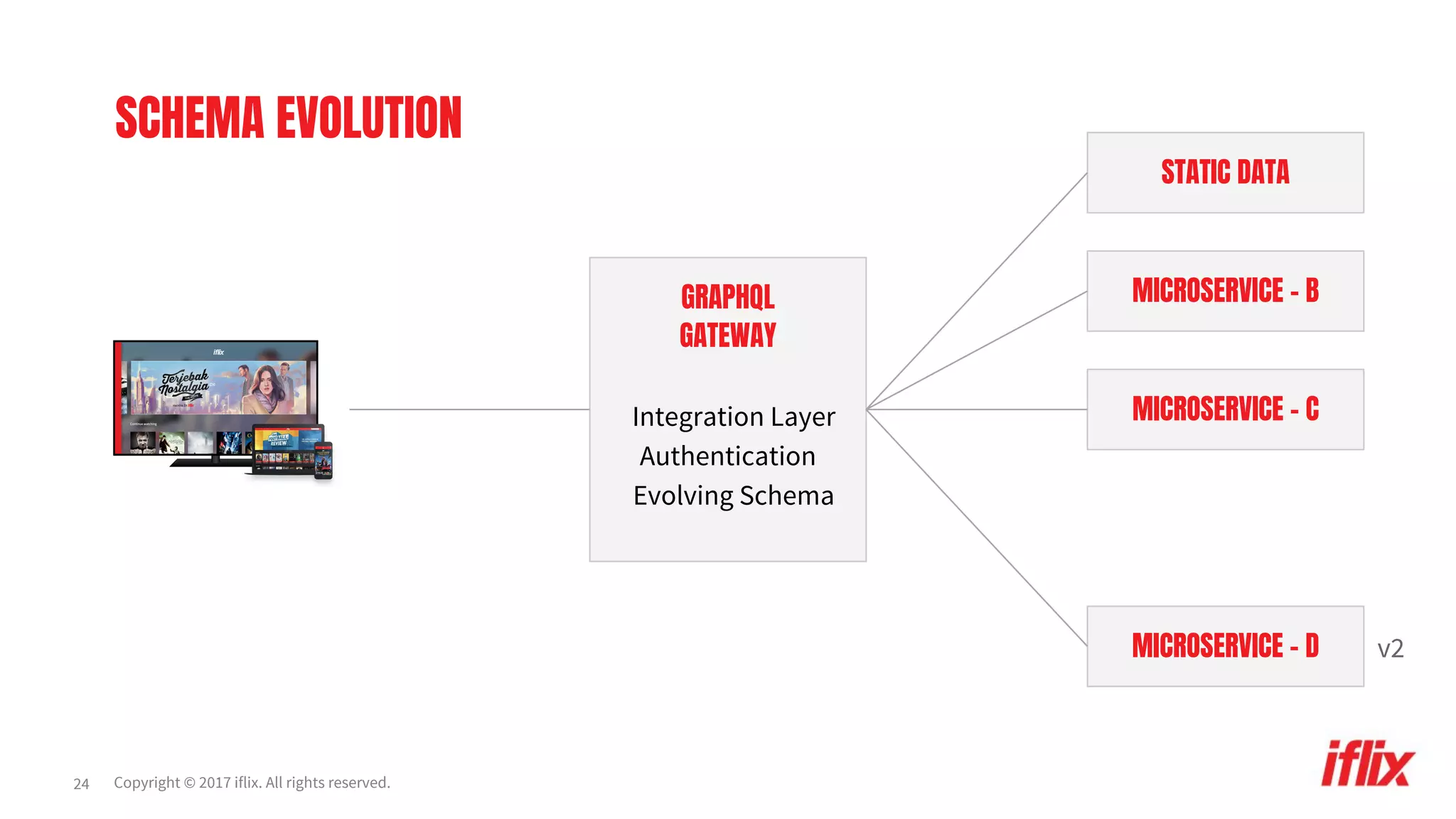

SCHEMA EVOLUTION
STATIC DATA
MICROSERVICE - B
MICROSERVICE - C
MICROSERVICE - D v2

Copyright © 2017 iflix. All rights reserved.25
LAST MILE
SCALABILITY
FLEXIBILITY
MAINTAINABILITY

Copyright © 2017 iflix. All rights reserved.26
LAST MILE BAD
SCALABILITY
FLEXIBILITY
MAINTAINABILITY

Copyright © 2017 iflix. All rights reserved.27

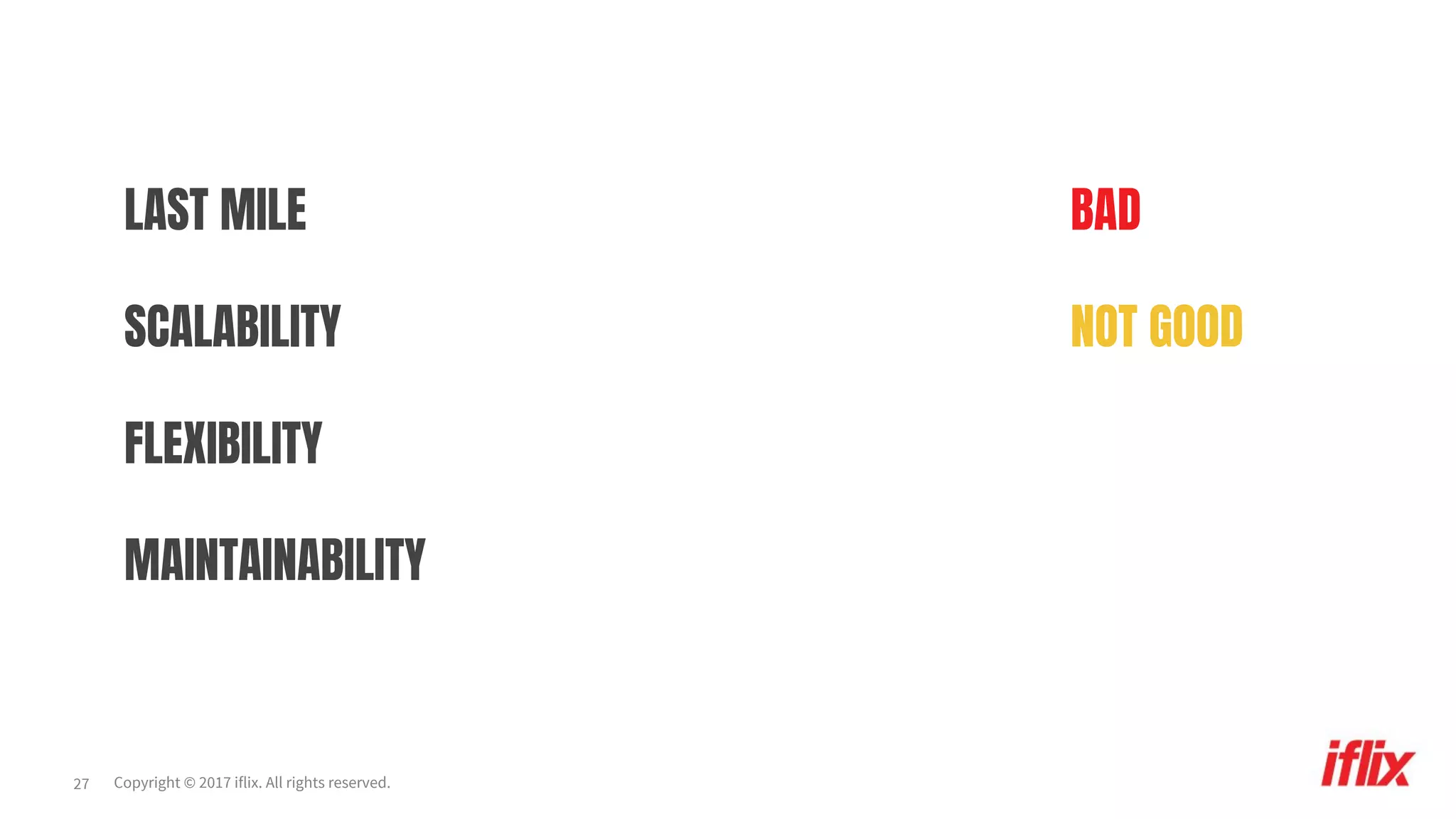

LAST MILE BAD
SCALABILITY NOT GOOD
FLEXIBILITY
MAINTAINABILITY

Copyright © 2017 iflix. All rights reserved.28

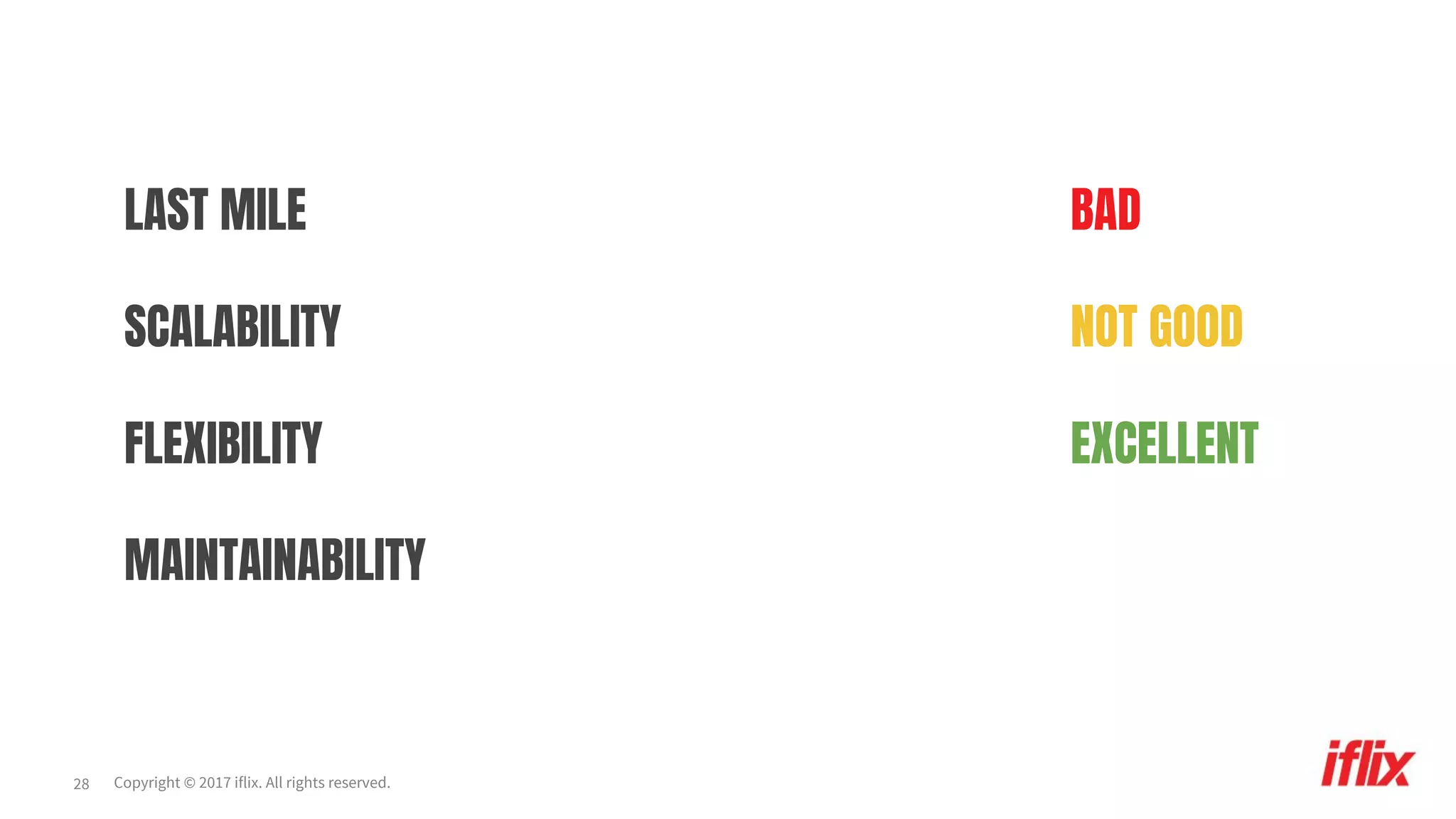

LAST MILE BAD
SCALABILITY NOT GOOD
FLEXIBILITY EXCELLENT
MAINTAINABILITY

Copyright © 2017 iflix. All rights reserved.29

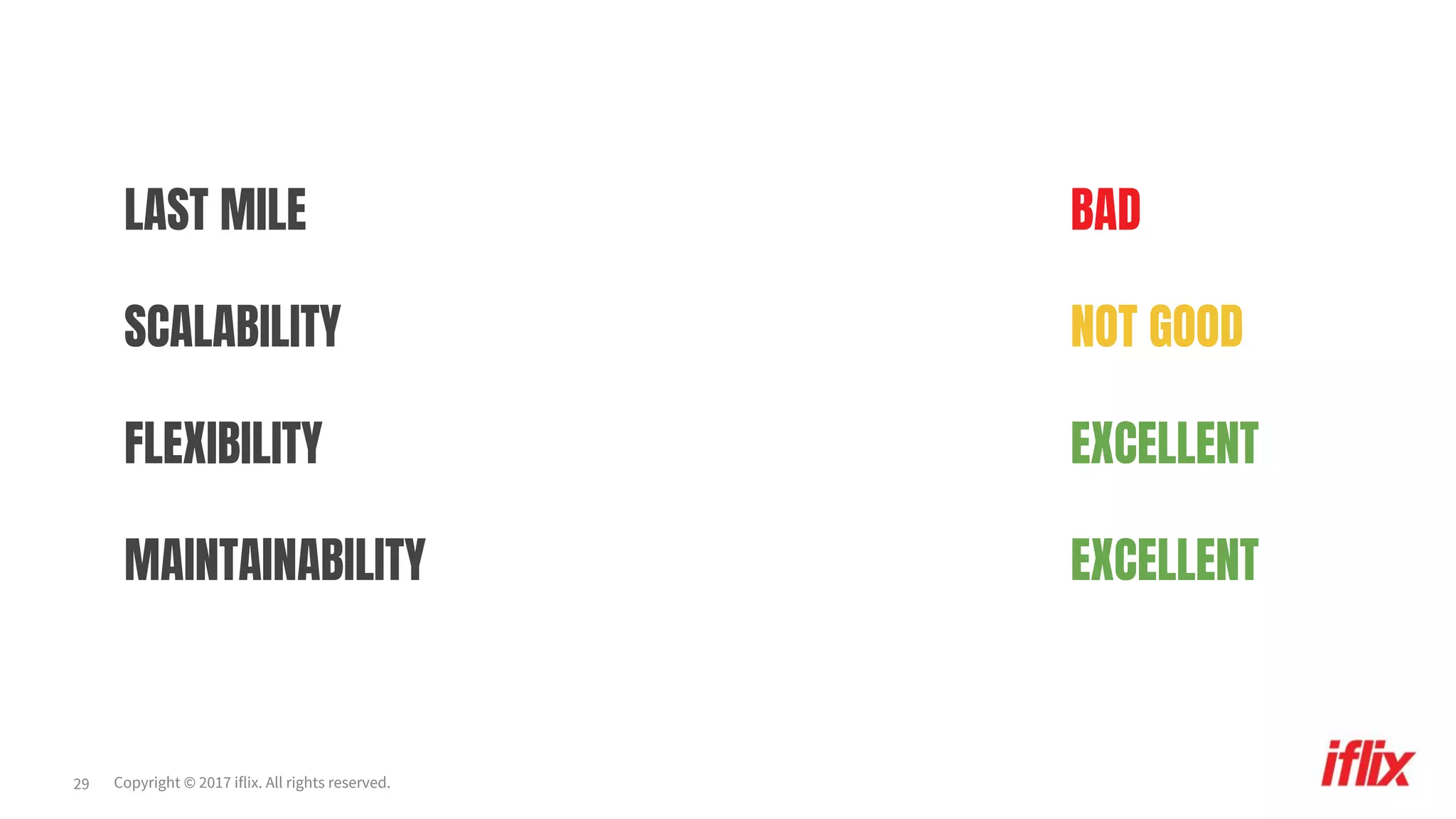

LAST MILE BAD
SCALABILITY NOT GOOD
FLEXIBILITY EXCELLENT
MAINTAINABILITY EXCELLENT

Copyright © 2017 iflix. All rights reserved.30
● Bring data as close to user as possible
● Caching
● Infrastructure independent
● Docker + Kubernetes
● TELCO partners
LAST MILE
GRAPHQL
GATEWAY

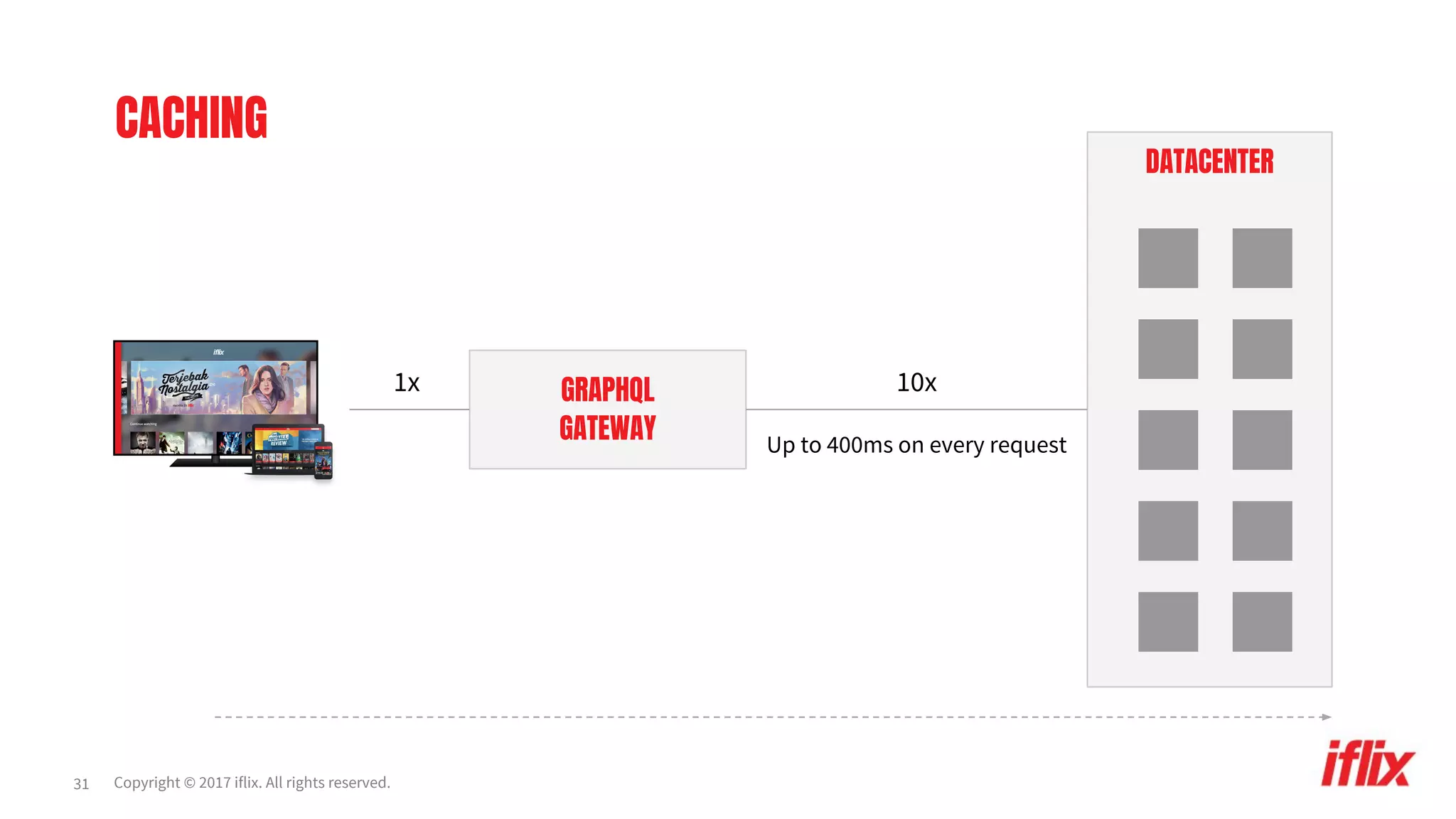

Copyright © 2017 iflix. All rights reserved.
GRAPHQL
GATEWAY
31
CACHING
DATACENTER
1x 10x
Up to 400ms on every request

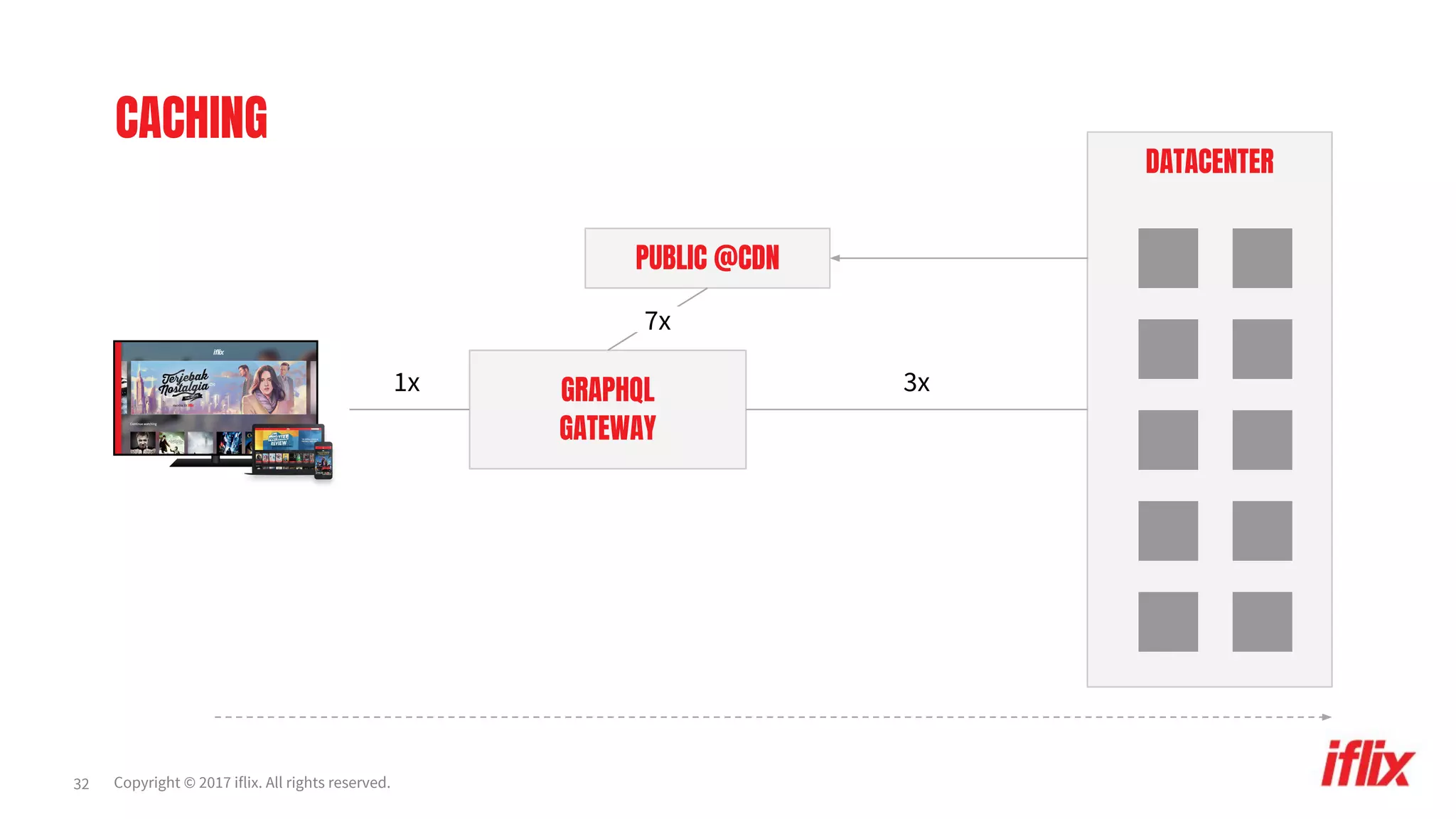

Copyright © 2017 iflix. All rights reserved.
PUBLIC @CDN
GRAPHQL
GATEWAY
32
CACHING
DATACENTER
1x 3x
7x

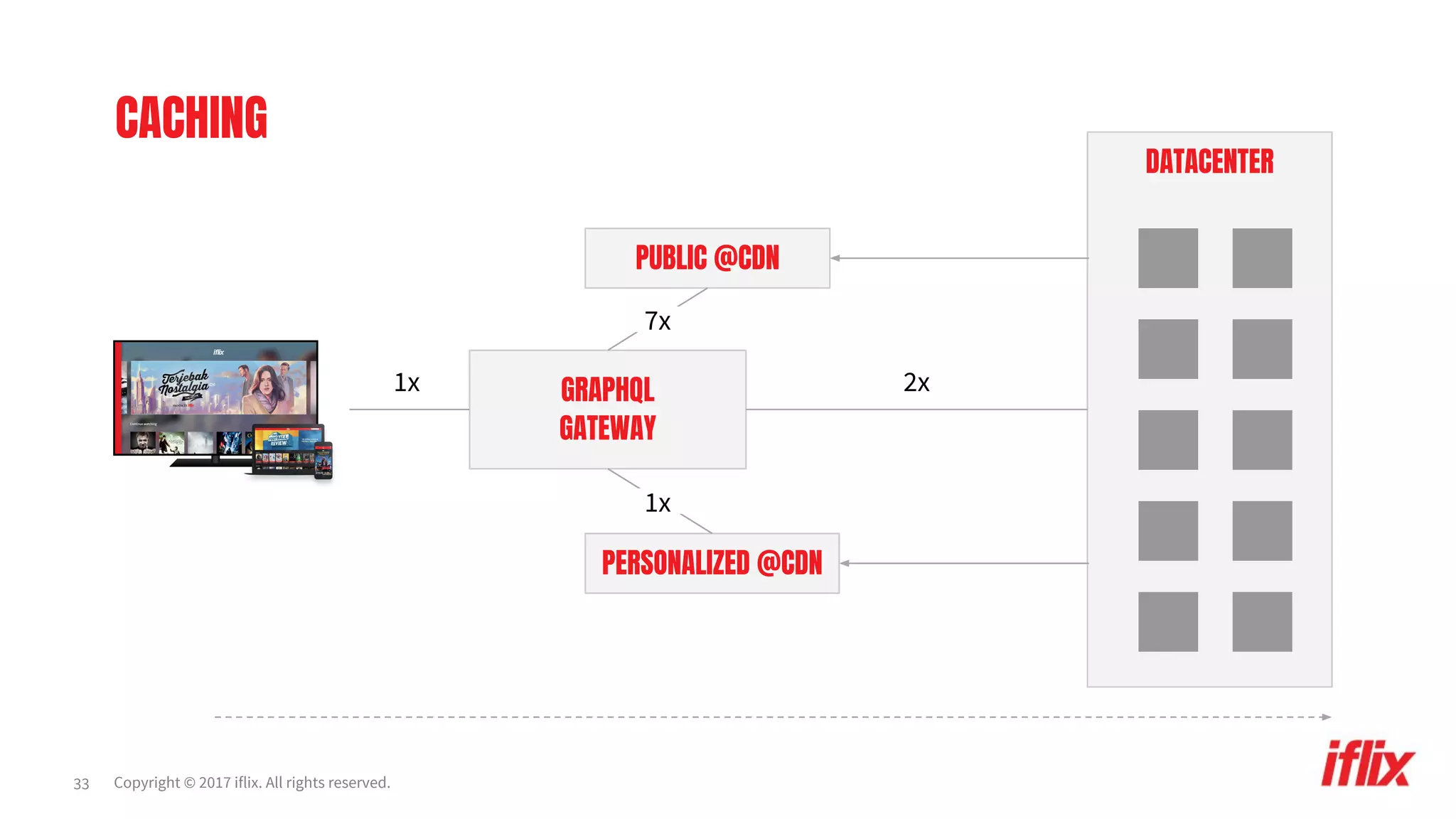

Copyright © 2017 iflix. All rights reserved.
GRAPHQL
GATEWAY
33
CACHING
DATACENTER
1x 2x
PUBLIC @CDN
7x
PERSONALIZED @CDN
1x

Copyright © 2017 iflix. All rights reserved.
GRAPHQL
GATEWAY
34
CACHING
DATACENTER
1x 1x
PUBLIC @CDN
7x
PERSONALIZED @CDN
1x
1x Private

Copyright © 2017 iflix. All rights reserved.
GRAPHQL
GATEWAY
35
CACHING
DATACENTER
1x 1x
PUBLIC @CDN
7x
PERSONALIZED @CDN
1x
1x Private

Copyright © 2017 iflix. All rights reserved.36
LAST MILE
SCALABILITY
FLEXIBILITY
MAINTAINABILITY

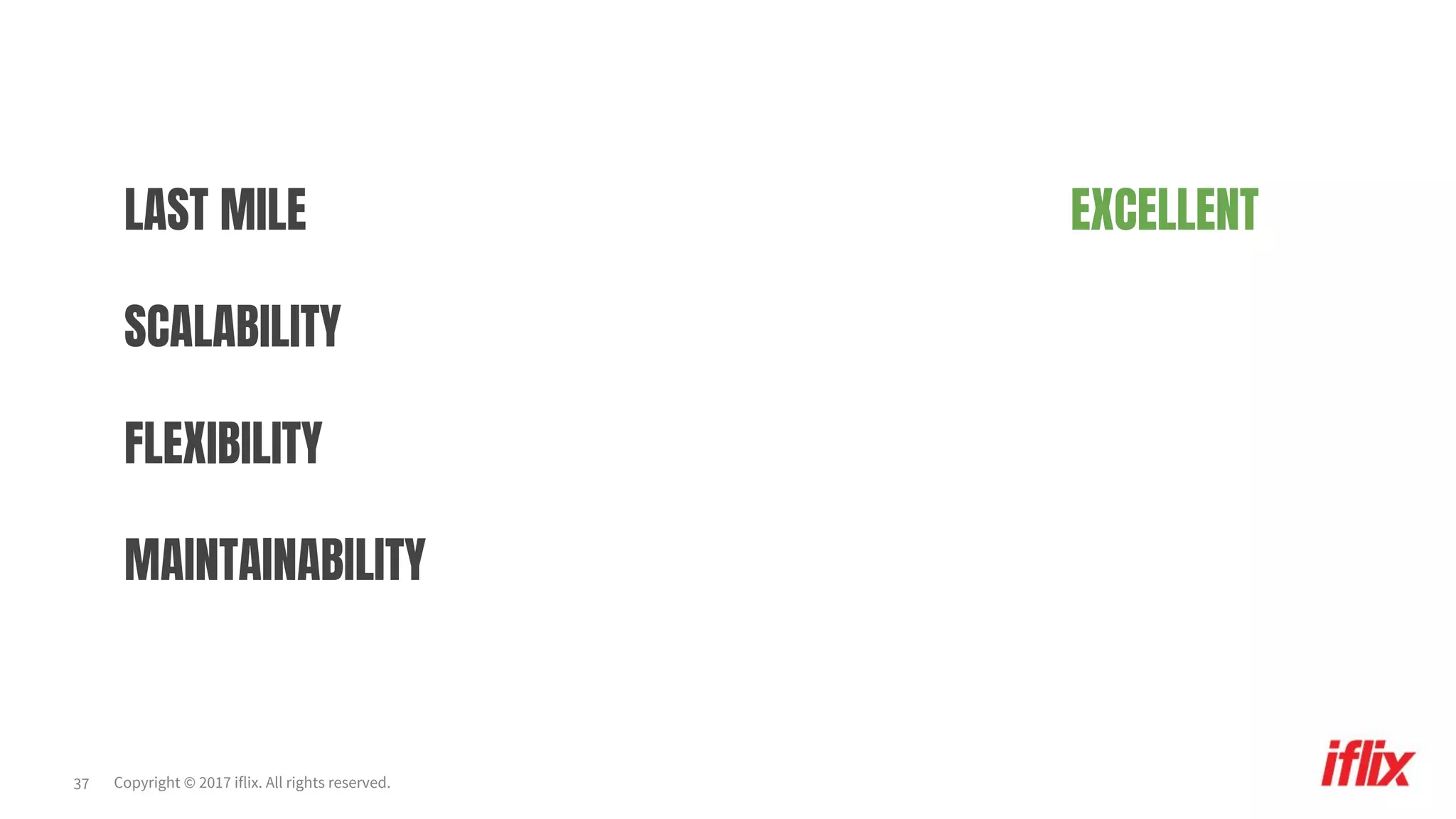

Copyright © 2017 iflix. All rights reserved.37
LAST MILE EXCELLENT
SCALABILITY
FLEXIBILITY
MAINTAINABILITY

Copyright © 2017 iflix. All rights reserved.38

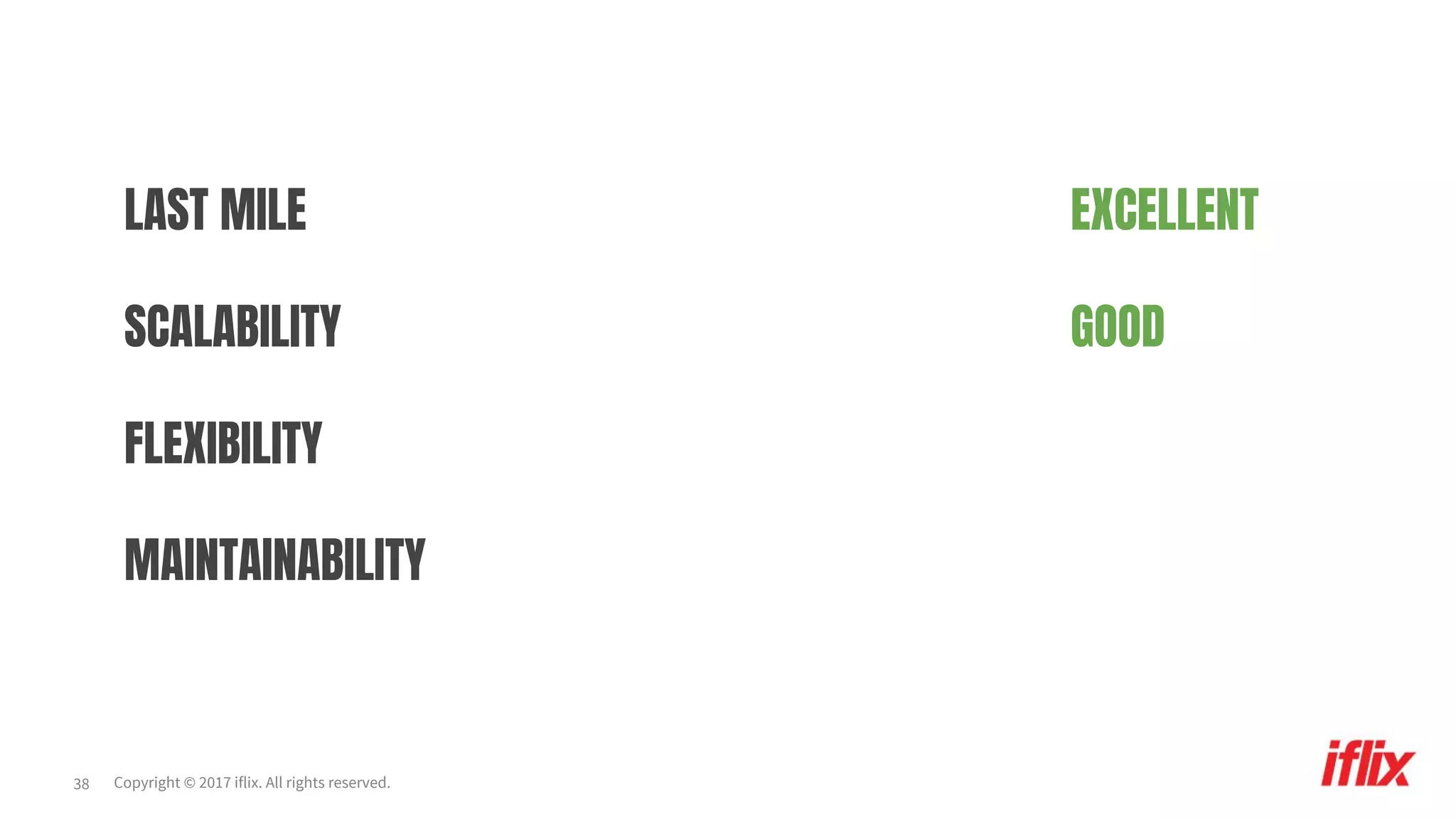

LAST MILE EXCELLENT
SCALABILITY GOOD
FLEXIBILITY
MAINTAINABILITY

Copyright © 2017 iflix. All rights reserved.39

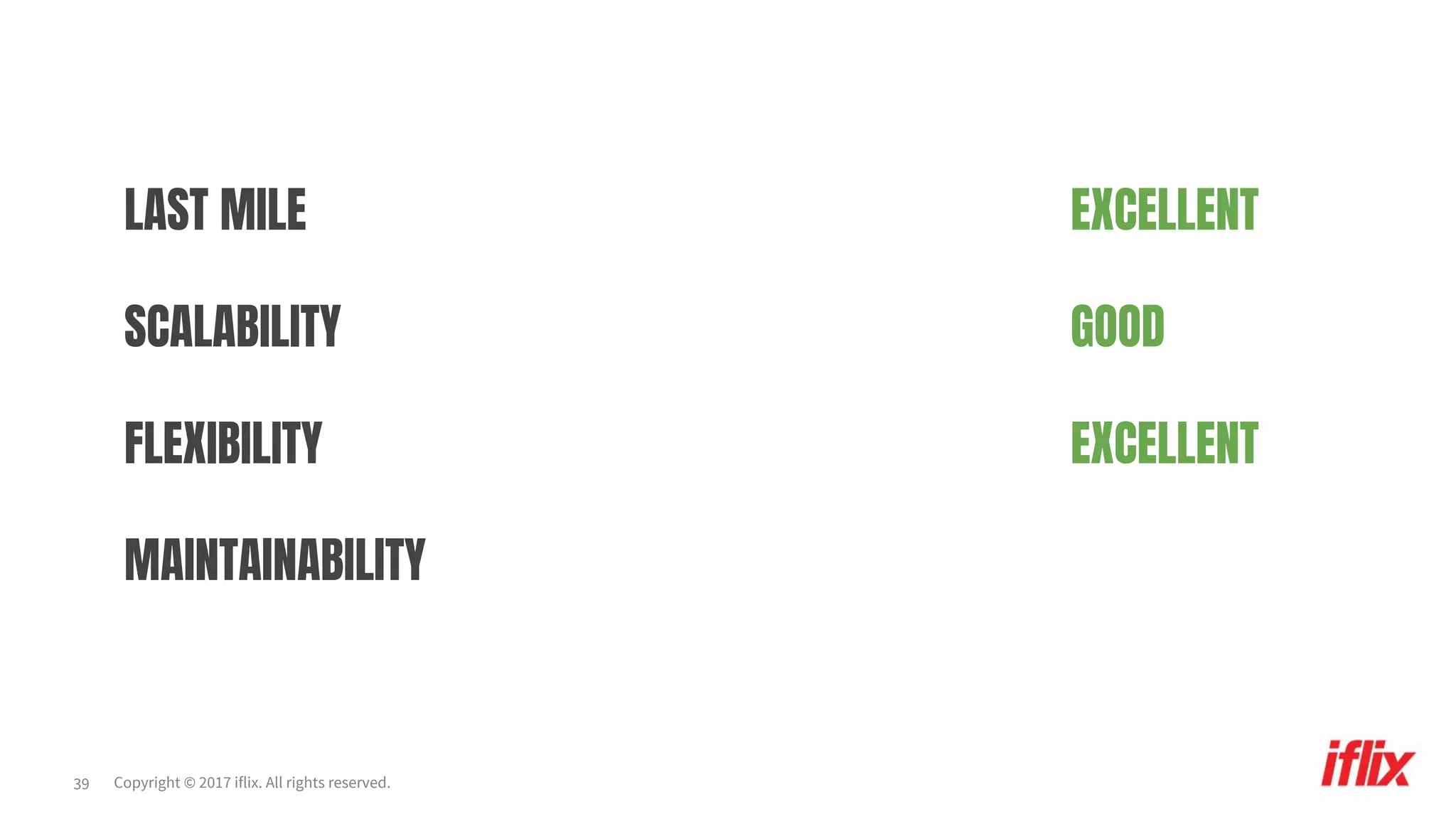

LAST MILE EXCELLENT
SCALABILITY GOOD
FLEXIBILITY EXCELLENT
MAINTAINABILITY

Copyright © 2017 iflix. All rights reserved.40

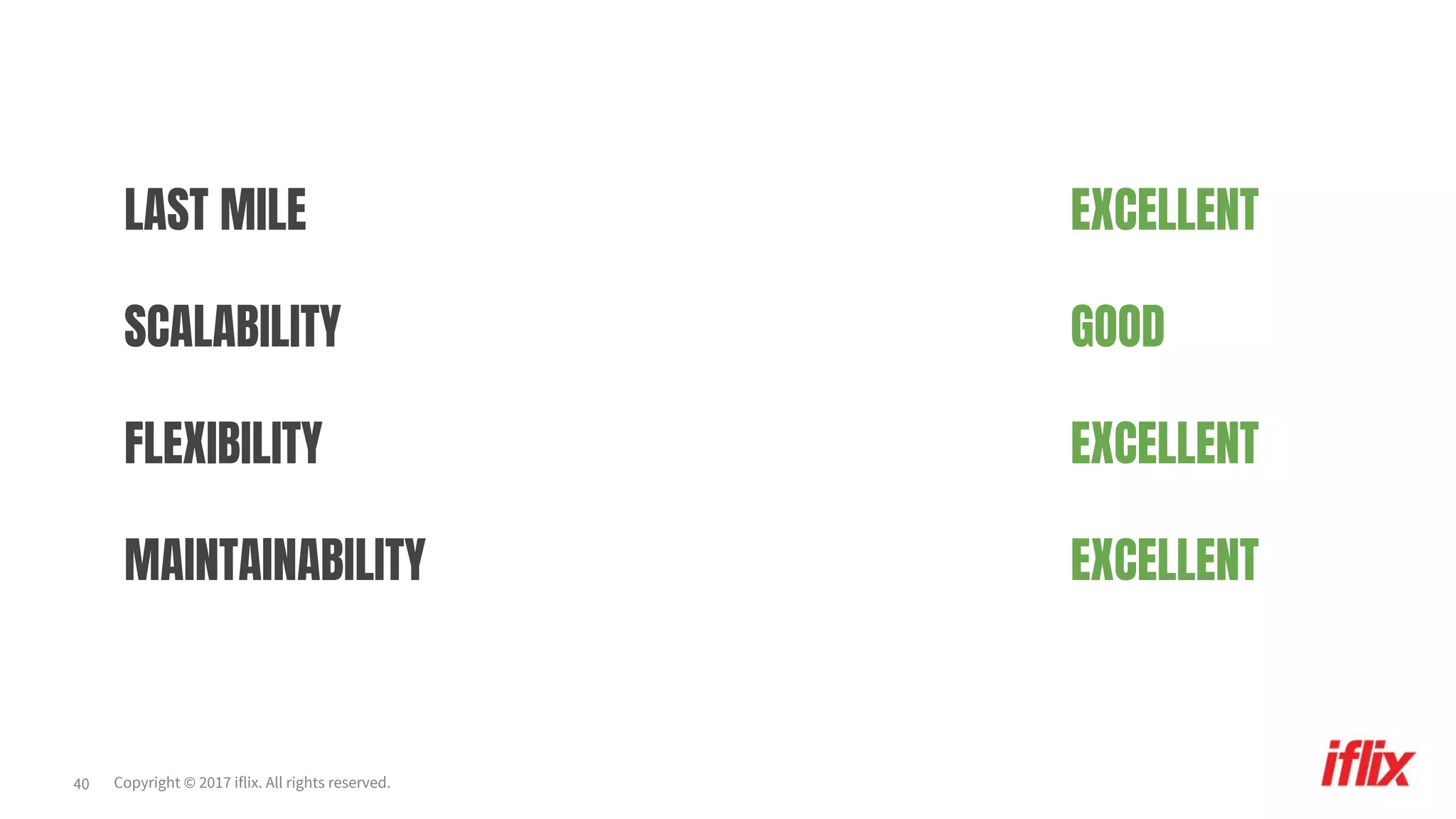

LAST MILE EXCELLENT
SCALABILITY GOOD
FLEXIBILITY EXCELLENT
MAINTAINABILITY EXCELLENT

Copyright © 2017 iflix. All rights reserved.
GRAPHQL
GATEWAY
41

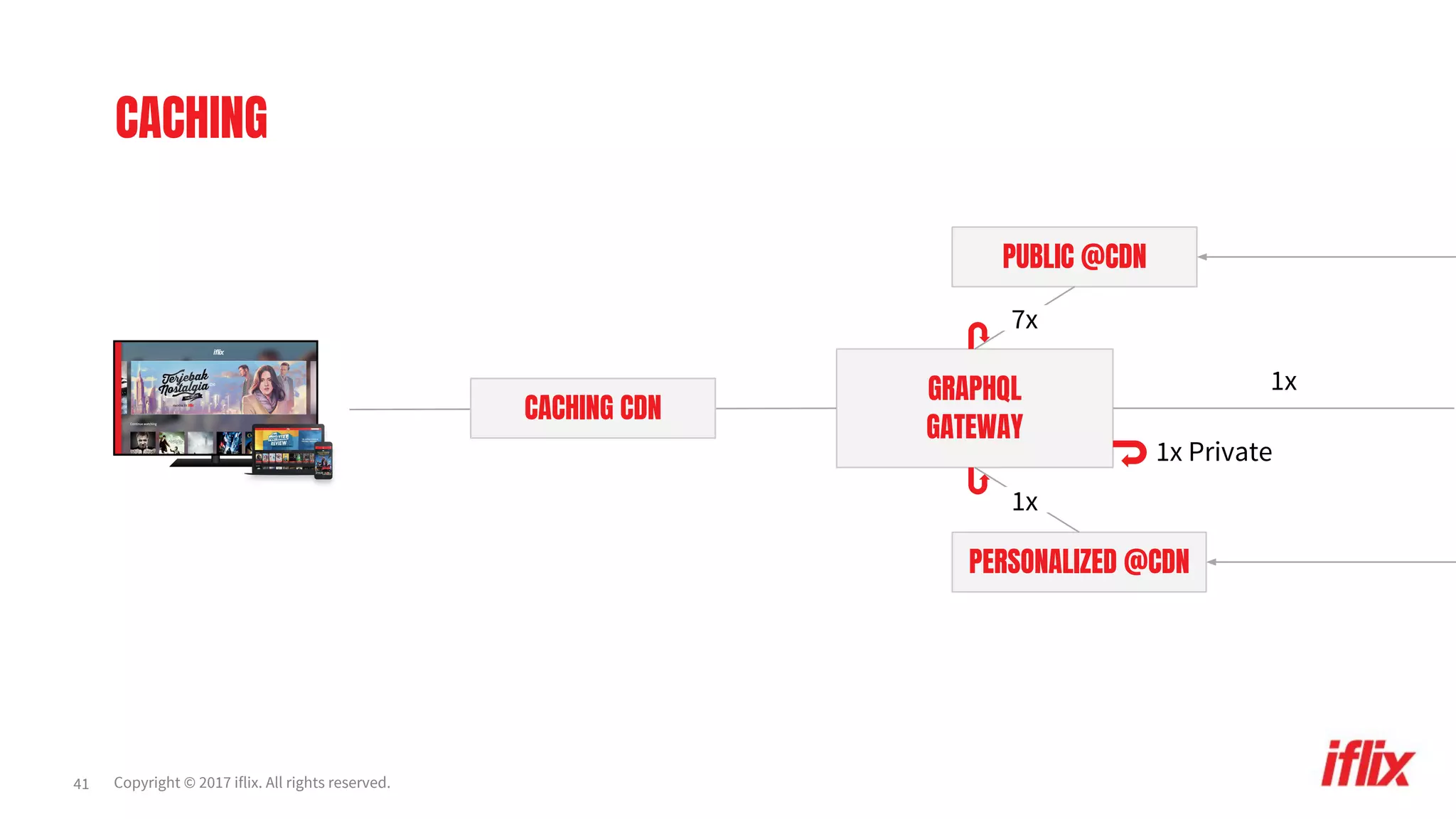

CACHING
1x
PUBLIC @CDN
7x
PERSONALIZED @CDN
1x
1x Private
CACHING CDN

Copyright © 2017 iflix. All rights reserved.42

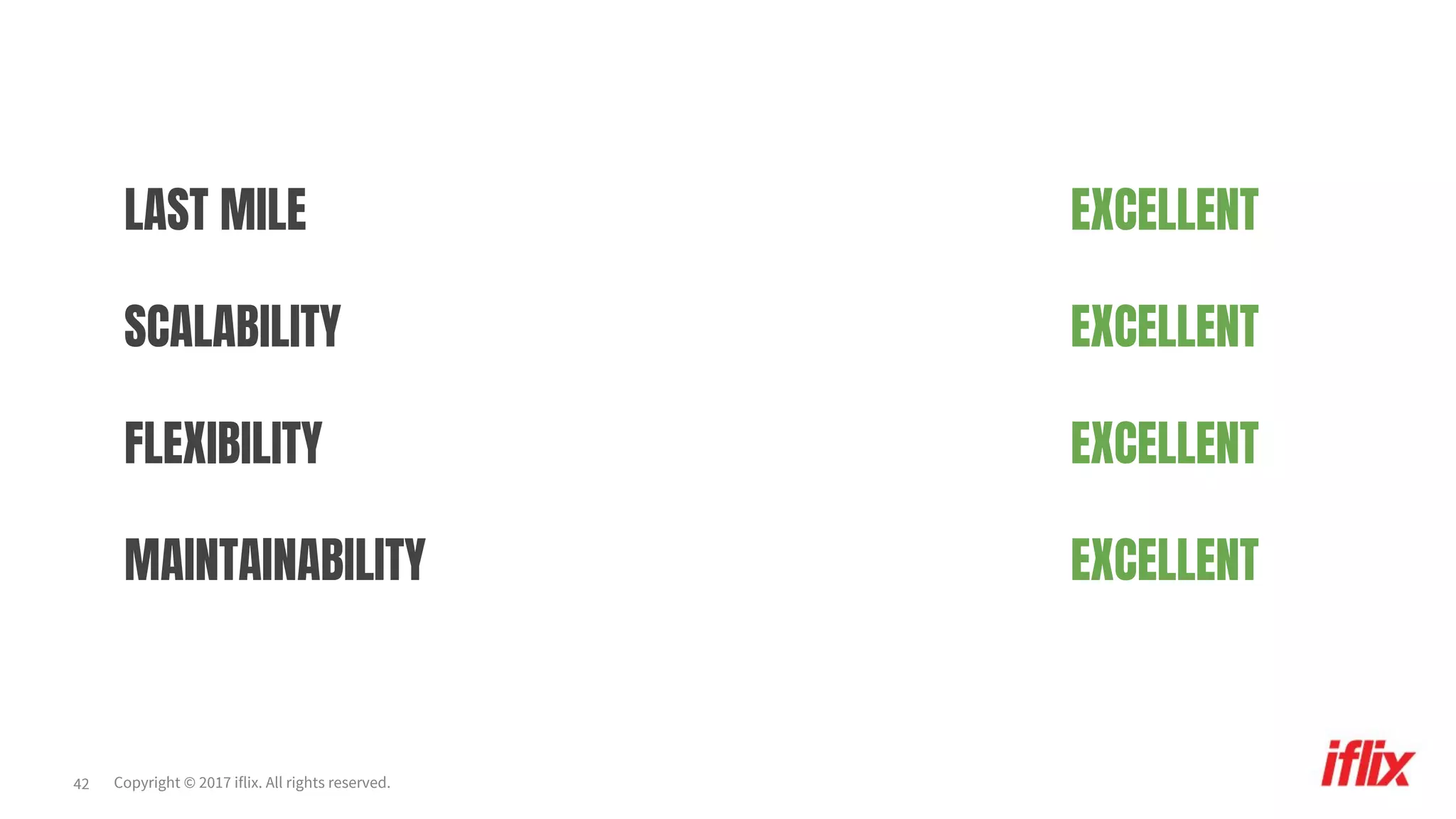

LAST MILE EXCELLENT
SCALABILITY EXCELLENT
FLEXIBILITY EXCELLENT
MAINTAINABILITY EXCELLENT

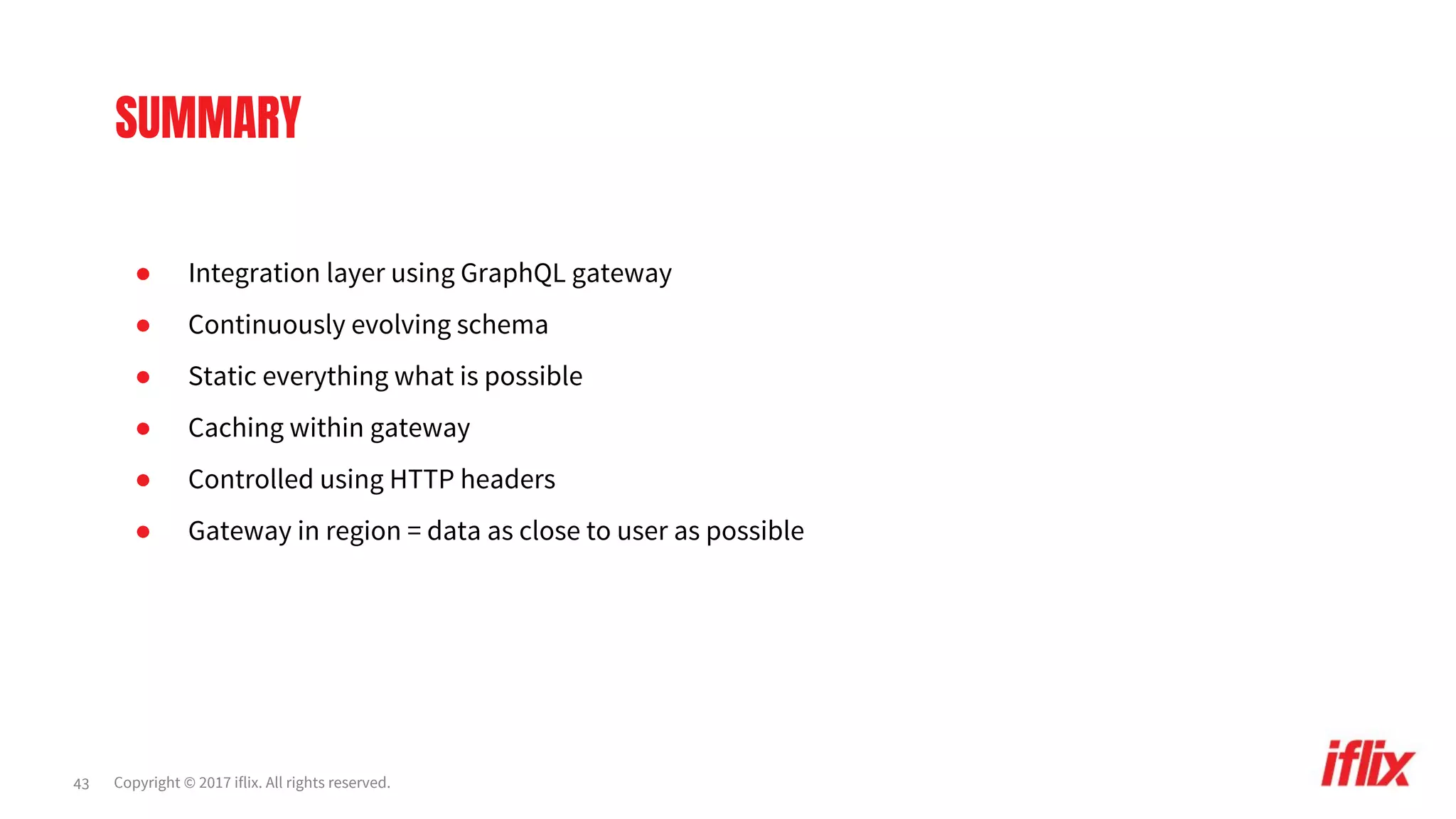

Copyright © 2017 iflix. All rights reserved.43
● Integration layer using GraphQL gateway
● Continuously evolving schema
● Static everything what is possible
● Caching within gateway
● Controlled using HTTP headers
● Gateway in region = data as close to user as possible
SUMMARY

Copyright © 2017 iflix. All rights reserved.
● jakubriedl.com
● @jakubriedl
● jakubriedl
● jakubriedl
● @jakubriedl
44
GET IN TOUCH
