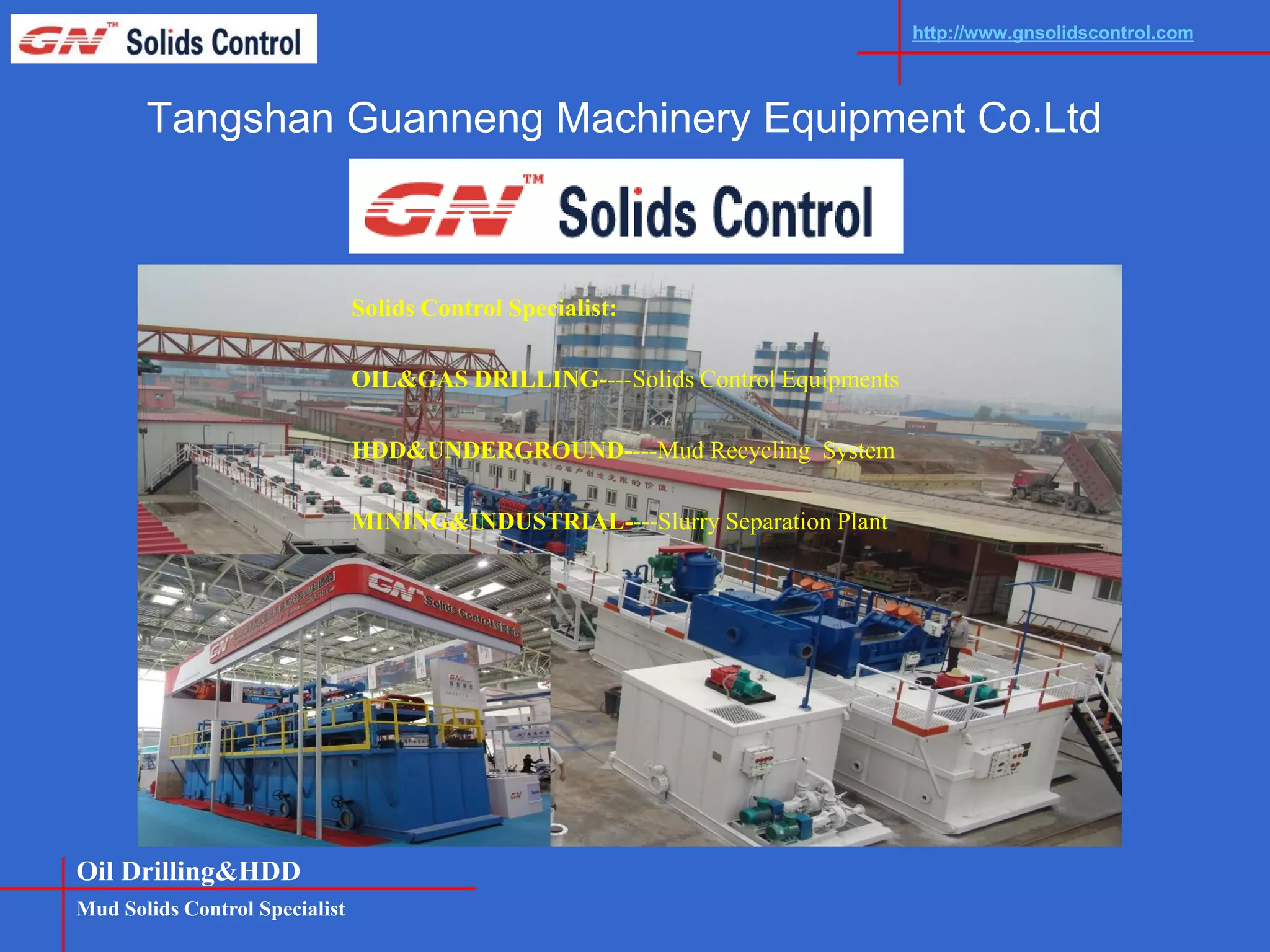

Tangshan Guanneng Machinery Equipment Co.Ltd

Solids Control Specialist:

OIL&GAS DRILLING----Solids Control Equipments

HDD&UNDERGROUND----Mud Recycling System

MINING&INDUSTRIAL----Slurry Separation Plant

Oil Drilling&HDD
Mud Solids Control Specialist


Ⅰ、GN Profile
Tangshan Guanneng Machinery Equipment Co., Ltd. (Short Name: GN Solids Control )Is a China
leading manufacturer specializing in complete line equipment for:
OIL&GAS DRILLING----Solids Control Equipment
MINING&INDUSTRIAL----Slurry Separation Plant

Powerful Technology: GN is a fast developing company which was established in 2007.With large
investment, and partnership with Southwest Petroleum University, GN has become 1 of about 10
China manufacturers who can design and manufacture all the equipment for a complete solids control
system. All our major engineers have more than 10 years experience.GN chief engineer Dr.Lai has
designed more than 150 sets customized system in his 15 years experience. As an ISO 9001:2000
certified company, GN annual manufacturing capacity is 60 sets various system for Oil&Gas
Drilling,HDD & Underground,or Mining & Industry.

Globalized Market: GN has established agency in over 10 countries around the world and exported
to more than 20 overseas countries : India, Indonesia, Kazakhstan ,Russia, UAE, Libya, Brazil,
Morocco ,Kuwait, Brazil, Canada, USA, Thailand, Australian, Korea, Turkey , Mongolia, Singapore
etc. Many repeated customers proved our reliable service.

Oil Drilling&HDD


Ⅱ. GN Products

1. Fluids Processing System. 10. Shear Pump
2. Shale Shaker 11. Submersible Slurry Pump
3. Vacuum Degasser 12. Mud Agitator
4. Mud Cleaner 13. Mud Gun
5. Desander 14. Mud Gas Separator
6. Desilter 15. Flare Ignition Device
7. Decanting Centrifuge 16. Mud Tank
8. Jet Mud Mixer 17. Shaker Screens
9. Sand Pump 18. Spare Parts

Oil Drilling&HDD


1. Fluids Processing System :GN design and make Fluids Processing System for
OIL&GAS DRILLING----Solids Control System
MINING&INDUSTRIAL----Slurry Separation System

Oil Drilling&HDD


1. Fluids Processing System

Oil Drilling&HDD


2-1. Linear motion shale shaker: ZS linear motion shale shaker absorbed advanced tech at home
and abroad ,and integrated GN own design. GN complete series shale shaker can meet
customers’ variable demand. Clients feedback proved the advantages of this kind of shaker: high
G-force, wide screen area, compressed structure, cost-effective, etc., It’s general performance
standard is superior than other domestic brand shaker, close to world famous brand

Oil Drilling&HDD


2-1. GNZS series Linear Motion Shale Shaker

Model GNZS83-3 GNZS63-3 GNZS70-3 GNZS83-2
Vibrating Mode Linear Motion
Motor Power 2×1.8/1.72KW 2×1.5KW 2×1.5KW 2×1.3KW
Vibrating Strength ≤7.0G(Adjustable) ≤7.0G(Adjustable) ≤7.0G(Adjustable) ≤6.5G
Double Amplitude 5.5~6.0mm
Treating Capacity 140m3/h 120m3/h 120m3/h 80m3/h
615GPM 528GPM 528GPM 352GPM
Deck Adjustment -1°~5° -1°~5° -1°~5° 0°~3°
Power 380V/50HZ,460V/60HZ
Screen area 2.7m2 2.4m2 2.2m2 1.8m2
Shaker Screen 830×1080mm×3 630×1250mm×3 700×1050mm×3 830×1080mm×2
(40~250meshes) (40~250meshes) (40~250meshes) (40~250meshes)
Weight 1880kg 1680kg 1580kg 1300kg
Remarks Treating capacity test from mud: 1.2g/cm3density & viscosity 45s

Oil Drilling&HDD


2-2. Balanced elliptical shale shaker: GNPS series balanced elliptical shale shaker is the
fourth
generation patented shale shaker introduced by GN and Southwest Petroleum University. It is the top
advanced shale shaker in the world.

● In 2009,This Shaker research project got approval from National Technology Commission and gets
the “National Technology Progress” Award.
● GNPS balanced elliptical shale shaker designed from uneven diameter principle, and applied patent
successfully; comparing with oversea famous companies’ even diameter principle, both theoretically
and practically, GN patented shaker is better.
● For treating the oil drilling fluids, the balanced elliptical motion shaker is 20%-30% bigger then linear
motion shaker, discharging speed is 10%-20% faster; For resisting the “screen stuck”, “screen paste”
“horseshoe effect” ,the balanced elliptical motion shaker is much more effective.

Oil Drilling&HDD


2-2. GNPS series Balanced Elliptical Motion Shale Shaker
Model GNPS70-3S GNPS70-3L GNPS70-4S GNPS70-4L

Vibrating Mode Balanced Elliptical Motion
Motor Power 1.1+2.2Kw 1.3+3.6 Kw 1.5+2.5Kw 1.8+3.6 Kw
Vibrating ≤7.0G(Adjustable) ≤7.0G(Adjustable) ≤7.0G(Adjustable) ≤7.0G(Adjustable)
Strength
Double 6.0~7.0mm
Amplitude
Treating 160m3/h 160m3/h 200m3/h 200m3/h
Capacity 704GPM 704GPM 880GPM 880GPM
Deck -1°~5°
Adjustment
Power 380V/50HZ,460V/60HZ
Screen Area 2.2m2 2.2m2 2.94m2 2.94m2
Shaker Screen 700×1050mm×3 700×1050mm×3 700×1050mm×4 700×1050mm×4
(40~250meshes) (40~250meshes) (40~250meshes) (40~250meshes)
Remarks 1、Treating capacity test from mud:1.2g/cm3density & viscosity 45s & 40 mesh。
2、“S” stands for short motor ，“L” stands for long motor

Oil Drilling&HDD


3. Vacuum Degasser
ZCQ series vacuum degasser is a special equipment to get rid of invaded gas, can wipe off the
invading gas soon, play important role on recalling drilling mud proportion, keeping drilling mud
performance. At the same time, it can also be an agitator with big power, suitable for variable
kinds of drilling fluids purification system

Oil Drilling&HDD


3. ZCQ series Vacuum Degasser

Model ZCQ240 ZCQ270 ZCQ300 ZCQ360

Main diameter 700mm 800mm 900mm 1000mm

Capacity ≤240m3/h ≤270m3/h ≤300m3/h ≤360m3/h

Vacuum 0.030~0.045Mpa 0.030~0.050Mpa 0.030~0.055Mpa 0.040~0.065Mpa

Ratio 1.68 1.68 1.68 1.72

Efficiency ≥95% ≥95% ≥95% ≥95%

Motor power 15KW 22KW 30KW 37KW

Vacuum Power 2.2KW 3KW 4KW 7.5KW

Rotary speed 860r/min 870r/min 876r/min 880r/min

Dimension 1750×860×1500mm 2000×1000×1670mm 2250×1330×1650mm 2400×1500×1850mm


Oil Drilling&HDD


4. Mud Cleaner
GNZJ&GNPJ series mud cleaner is the second and third phase solids control equipments, combined
desander cones, desilter cones and a under fluids shale shaker together, its structure is compressed,
small size, powerful function, is the ideal choice of second and third class solids control equipments

Oil Drilling&HDD


4. GNZJ &GNPJ series Mud Cleaner

Model GNPJ70-4 GNPJ70-3 GNZJ63-3 GNZJ83-2 GNTJ60

Treating 120~360m3/h 120~270m3/h 120~240m3/h 60~180m3/h ≤60 m3/h
Capacity 528~1584GPM 528~1180GPM 528~1056GPM 264~792GPM ≤264GPM

Desilter cones 4"(10~20ea) 4"(10~18ea) 4"(10~16ea) 4"(4~10ea) 4"(≤4ea)

Desander cones 12"(1~3ea) 10"(1~3ea) 10"(1~2ea) 10"(1~2ea) 8"(1ea)

Inlet Diameter 125~150mm 125~150mm 125~150mm 100~125mm 75~100mm

Outlet Diameter 200mm 200mm 200mm 150~200mm 125~150mm

Matching pump 45~75KW 45~55KW 45~55KW 30~45KW 15~30KW

Matching Shaker GNPS70-4 GNPS70-3 GNZS63-3 GNZS83-2 GNTS60

Shaker Motor 3.6+2.27kw 1.3+3.6kw 2×1.5kw 2×1.3kw 0.5kw

Screen Area 2.95m2 2.2m2 2.4m2 1.8m2 1.0m2

Remarks Cones numbers decide the treating capacity,cone numbers and size are customized
4" desilter cones =12~15m3/h,
8“ desander cone=40~60m3/h 10” desander cone≤90m3/h； 12“ desander cone≤120m3/h

Oil Drilling&HDD


5. Desander
ZQJ series desander is the second phase solids control equipment in well drilling, the general
cones are8”, 10”, and 12”, mainly separate 47~76μm particle out. According to customers’
treating capacity requirements, choose different quantity cones.GN also provide desander
without under fluids shaker.

Oil Drilling&HDD


5. ZQJ series De-sander
Model ZQJ200S ZQJ250S ZQJ300S ZQJ200 ZQJ250 ZQJ300

Screen Area 1.0m2(600×1600mm) No Bottom Shaker
Capacity ≤120m3/h ≤180m3/h ≤240m3/h ≤120m3/h ≤180m3/h ≤240GPM
≤528GPM ≤792GPM ≤1056GPM ≤528GPM ≤792GPM ≤1056GPM
Cone size 8" 10" 12" 8" 10" 12"
Cone number 1-2 1-2 1-2 1-2 1-2 1-2
Pressure 0.15~0.35Mpa 0.15~0.35Mpa 0.15~0.35Mpa 0.15~0.35Mpa 0.15~0.35Mpa 0.15~0.35Mpa
Inlet Size 75-100mm 100- 150mm 150-200mm 75- 100mm 100- 150mm 150-200mm
Outlet Size 125- 150mm 150-200mm 200-250mm 125-150mm 150mm-200mm 200-250mm
Particles Separation Size:47-76μm
Screen area 1.0m2(600×1600mm) No Shaker

Oil Drilling&HDD


6. Desilter
ZQJ series desilter is the third phase solids control equipments in well drilling mud system, the
usual cones are 4”, 5”, and 6”. Used to separate 15~47μm particle out. According to clients’
treating capacity requirements choose different quantity cones.

Oil Drilling&HDD


6. ZQJ series Desilter

Model ZQJ100S ZQJ100
Capacity 30-180m3/h 30-180m3/h
132-792GPM 132-792GPM
Cone size 4" 4"
Cone number 2-12 2-12
Pressure 0.25~0.4Mpa 0.25~0.4Mpa
Matching pump SB4×3-12(11kw) SB4×3-12(11kw)
SB5×4-13(30kw) SB5×4-13(30kw)
SB6×5-13(37kw) SB6×5-13(37kw)
SB8×6-13(55kw) SB8×6-13(55kw)
Inlet Size 75mm-150 75mm-150
Outlet Size 125mm-200 125mm-200
Separation size 15-47μm
Screen area 1.0m2(600×1600mm) No Shaker

Oil Drilling&HDD


7. Decanting Centrifuge
LWF series decanting centrifuge is the fourth phase solids control equipment in well drilling mud
system. Using decanter principle to separate suspension liquid. According to rotary speed can be
called middle speed decanting centrifuge, high speed decanting centrifuge, and high speed variable
frequency decanting centrifuge, mainly separate 2~7μm particle out

Oil Drilling&HDD


7. Decanting Centrifuge
(Customization is Available)

Model LWF LWF GLW GLW-V
450×842N 450×1000N 355×1250N 355×1250N

Drum diameter 450mm 450mm 355mm 355mm

Drum length 842mm 1000mm 1250mm 1250mm

Rotary Speed 1800r/min 1800r/min 3200r/min 0~3200r/min
(Variable Speed)
Separation factor 815 815 2035 ≤2035

Separation point 5~7μm 5~7μm 2~5μm 2 μm(Max)

Main power 22kw-4p 30kw-4p 30kw-4p 37kw-4p

Assistant power 5.5kw-4p 7.5kw-4p 7.5kw-4p 7.5kw-4p

Max capacity ≤40m3/h(176GPM) ≤60m3/h(264GPM) ≤40m3/h(176GPM) ≤40m3/h(176GPM)

Oil Drilling&HDD


8. Jet Mud Mixer
Jet mud mixer is for adding chemicals to weight mud and mixing the mud in the tank to keep the balance of the
drilling mud.

Oil Drilling&HDD


8. SLH series Jet mud mixer

SLH150-50 SLH150-40 SLH150-35 SLH100
Model

Matching Pump SB8×6-13(55kw) SB6×5-13(45kw) SB5×4-13(30kw) SB4×3-11(15kw)

Capacity 240m3/h(1056GPM) 180m3/h(792GPM) 120m3/h(528GPM) 60m3/h(264GPM)

Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa

Inlet 150mm 150mm 150mm 100mm

Nozzle caliber 50mm 40mm 35mm 30mm

Hopper 750×750mm 750×750mm 600×600mm 500×500mm
dimension
Burden speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min

Density ≤2.8g/cm3 ≤2.4g/cm3 ≤2.0g/cm3 ≤1.5g/cm3

Viscosity ≤120s ≤120s ≤80s ≤60s

Oil Drilling&HDD


9. Sand Pump
SB series sand pump gives power to desander, desilter and jet mud mixer. It can be assistant pump
of mud pump to be well head feeding pump. The specifications designation take matched
equipments in consideration, to make sure all equipments can work best, almost parts can be
replaced, the pump is easy to be maintained, little bearing coupling leakage, reliable working
operation, long use life, etc.

Oil Drilling&HDD


SB series Sand Pump

Model Flow Lift Power Speed Efficiency
SB8×6-14 320m3/h 40m 75KW 1450r/min 65%
SB8×6-13 290m3/h 35m 55KW 1450r/min 64%
SB8×6-12 270m3/h 28m 45KW 1450r/min 64%
SB6×5-14 200m3/h 40m 55KW 1450r/min 62%
SB6×5-13 180m3/h 35m 45KW 1450r/min 60%
SB6×5-12 160m3/h 30m 37KW 1450r/min 62%
SB5×4-14 120m3/h 40m 37KW 1450r/min 56%
SB5×4-13 90m3/h 40m 30KW 1450r/min 56%
SB4×3-13 60 m3/h 27m 15 KW 1450r/min 51%
SB4×3-12 60m3/h 20m 11KW 1450r/min 54%
SB4×3-11 40m3/h 20m 7.5KW 1450r/min 49%
SB3×2-13 32.5 m3/h 31m 11 KW 1450r/min 39%
SB3×2-11 30m3/h 23m 7.5 KW 1450r/min 42%

Oil Drilling&HDD


10. Shear Pump
Model Flow Lift Motor Power Speed Weight

JQB6545 120m3/h 45m 55KW 1450r/min 980kg

JQB6535 100m3/h 35m 37KW 1450r/min 800kg

Oil Drilling&HDD


11. Submersible Slurry Pump
YZ series submersible slurry pump is with structure of vertical
single stage and single suction overhung centrifugal pump, it
is made of abrasion-resistant alloy, it can convey medium
with high concentration particles. There is no bearing and
Gland Seal between impeller and pump body, so it is
maintenance-free and high temperature resistance, it is the
ideal equipment to provide impetus for desander, desilter and centrifuge

Oil Drilling&HDD


11. YZ series Submersible Slurry Pump Technical Parameters

Flow Lift Speed Efficiency Match motor
Model
m3/h (m) (r/min) (%) (KW)
50YZ50-20 40 22 1450 r/min 41% 7.5Kw
60 18 1450 r/min 48%
80YZ40-10 40 10.5 960 r/min 47% 3Kw
80YZ50-10 50 14.3 960 r/min 35% 7.5Kw
60 14 960 r/min 40%
80YZ80-20 80 21 1450 r/min 55% 11Kw
80YZ80-20B 80 13.4 1450 r/min 51% 7.5Kw

100YZ100-30 100 31 1450 r/min 54% 22 Kw
120 28 1450 r/min 56%
100YZ160- 164 26 1450 r/min 50% 30Kw
38B
150YZ250- 240 24 1450 r/min 50% 37 Kw
40B
150YZ250- 270 30 1450 r/min 51% 45 Kw
40A

Oil Drilling&HDD


12. Mud Agitator
JBQ series mud agitator adopted turbo and worm gearing-down, it have the merits of larger
torque transmission, operation steady, work reliable. It has two kinds of installation method,
horizontal and vertical. Common model is JBQ5.5、JBQ7.5、JBQ11and JBQ15, also we can
design and produce according to customer’s requirements.

Oil Drilling&HDD


12. JBQ series Mud Agitator Technical Parameters

Agitator Model JBQ5.5 JBQ7.5 JBQ11 JBQ15

Motor Power 5.5KW(7.5hp) 7.5KW(10hp) 11KW(15hp) 15KW(20hp)

Impeller Speed 60/72RPM 60/72RPM 60/72RPM 60/72RPM

Impeller Dia(Single) 600mm 850mm 950mm 1050mm

Up:750mm Up:850mm Up:950mm
Impeller Dia(Double) N/A
Down:650mm Down:700mm Down:750mm

Ration 25:1 25:1 25:1 25:1

Dimension (L*W*H) 870*600*480mm 906*600*480mm 1075*650*525mm 1170*720*565mm

Electric Specs 380V/50HZ Or 460V/60HZ Or Customized

Shaft Length According to tank inner depth

Explosion Proof motor
Remarks Shaft stabilizer Available
Impeller Dia Customization Available

Oil Drilling&HDD


13. Mud Gun
NJQ series mud gun is the professional tool to prevent the mud precipitation in drilling mud
circulation system. The impetus of mud gun can come from either mud pump or jet mud
mixer. With simple structure, flexible operation, easy using, it is the ideal equipment to
prevent the mud precipitation in solids control system.

Oil Drilling&HDD


13. NJQ series Mud Gun Technical Parameters

Model NJQ50-3 NJQ80-3

Diameter 2＂（φ50） 3＂（φ80）

Valve ID & pressure 50mm/3.2MPa 80mm/3.2MPa

Interface size 2＂ 3＂

Work pressure ≤1.6MPa ≤1.6MPa

Nozzle number 3 3

Rotation angle 120° 120°

Remarks With manual rotation or no With manual rotation or no

Oil Drilling&HDD


14. Mud Gas Separator
ZYQ series mud gas separator is the professional equipment to process the gas
cut drilling mud..The proportion and viscosity of the gas cut mud will emerge large
deviation, it can not meet the requirement of drilling. More seriously, it will result in
kick, even blowout accident occurred. Mud gas separator combined with ignition
device can be used to process the gas-cut drilling mud effectively and timely.
ZYQ series mud gas separator is divided into manual-control and auto-control
according to the operation method.

Oil Drilling&HDD


14. ZYQ series Mud gas separator

Model ZYQ800 ZYQ1000 ZYQ1200

Main body diameter 800mm 1000mm 1200mm

Capcacity 180~260m3/h 240~320m3/h 260~380m3/h

Inlet pipe 5" 5" 5"

Output pipe 6" 8" 10"

Gas discharge pipe 6" 8" 8"

Weight 1600kg 2000kg 2500kg

Dimensions 1900×1900×5700mm 2000×2000×5860mm 2200×2200×6634mm

Oil Drilling&HDD


15. Flare Ignition Device
YDP series ignition device is an environment-
friendly electric device for igniting gas
discharged from Mud gas separator etc.

Model YPD-20/3

Torch diameter DN200mm

Burner height 3m

Power supply DC and AC

AC input voltage 220V

Ignition voltage 16KV

Ignition 100～
frequency 1000times/minute
Battery type JP-HSE-5-6

Oil Drilling&HDD


16. Mud Tank, Water Tank, Oil Tank
We can design and manufacture mud tank, water tank and oil tank of FG,ZG,YG type according
to the customer’s requirements. The tank body is structured of panel or Wall on the tank,
walkway and stairs is made of skid-proof steel sheet and galvanized steel sheet produced by
professional manufacturers; the guard rail is made of square tube, with Barrier-free and folding
structure, stable inserting and connecting. There is water pipe line to clean the tank and
equipments; We can make standard sand proof and rain-proof shed ,and we can set heater pipe
line in the tank.

Oil Drilling&HDD


17. Shaker Screens
GN adopt particular screen production technology, using materials of SS304 or SS316 for wire mesh, we
provide replacement screens according to API RP 13C.For following brand shakers :Derrick, Brandt, MI- Swaco etc.

Oil Drilling&HDD


Oil Drilling&HDD


18. Spare Parts:
Desilter cones Desander cones

Unions

Oil Drilling&HDD


Rig Mats

Pipe Rack

Oil Drilling&HDD


Ⅲ. Contact GN
Solids Control Specialist
*Oil Gas Drilling Mud Equipments
*HDD Mud Recycling System
*Slurry Separation And More

Contact:
Company name:Tangshan Guanneng Machinery Equipment Co.ltd
HQ Address: No.166 West Ringroad, Tangshan, China 063000
Tel: +86-315-7062282 +86-315-8082667
Fax: +86-315-5281900 +86-315-5281600
Email: Sales@gnsolidscontrol.com
Website:
http://www.gnsolidscontrol.com (English)
http://www.tsgnjx.com (Chinese)
http://ru.gnsolidscontrol.com (Russian)

Oil Drilling&HDD

Gn brochure

Recommended

Recommended

More Related Content

What's hot

What's hot (6)

Viewers also liked

Viewers also liked (7)

Similar to Gn brochure

Similar to Gn brochure (20)

Recently uploaded

Recently uploaded (20)

Gn brochure
