Enhance Kubernetes CI/CD Pipelines with GitLab & Open Source

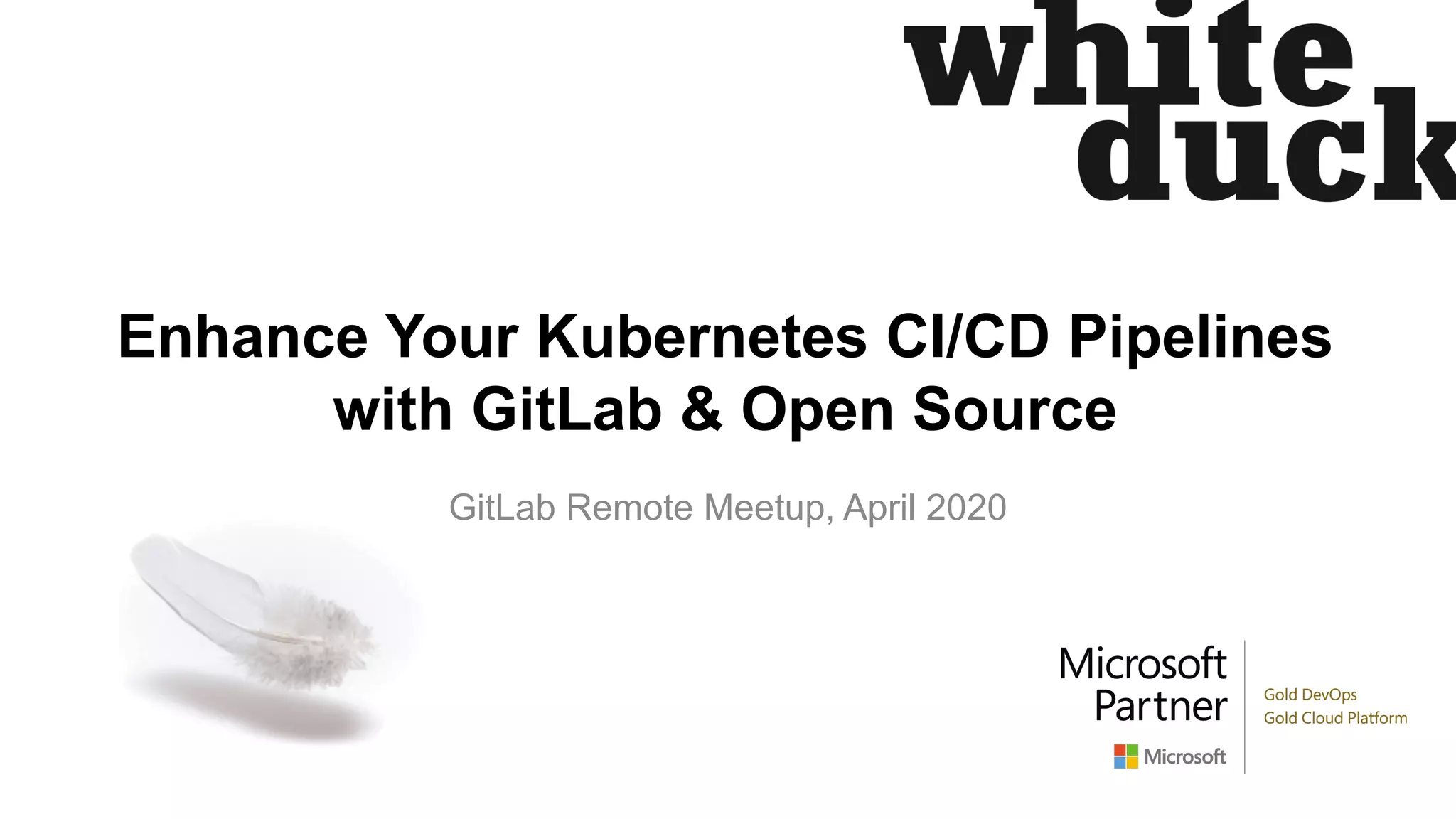

- 1. Enhance Your Kubernetes CI/CD Pipelines with GitLab & Open Source GitLab Remote Meetup, April 2020

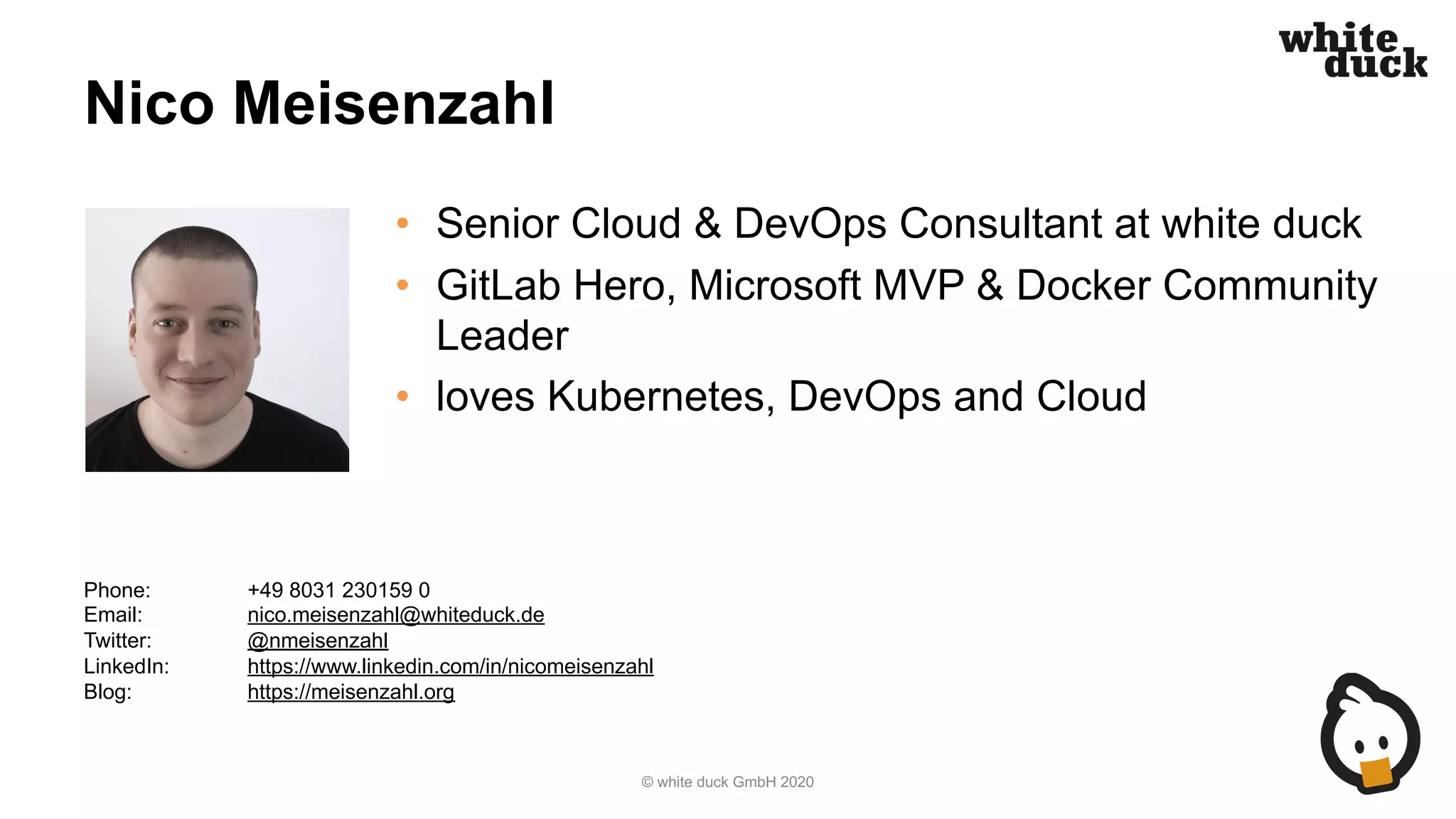

- 2. Nico Meisenzahl • Senior Cloud & DevOps Consultant at white duck • GitLab Hero, Microsoft MVP & Docker Community Leader • loves Kubernetes, DevOps and Cloud © white duck GmbH 2020 Phone: +49 8031 230159 0 Email: nico.meisenzahl@whiteduck.de Twitter: @nmeisenzahl LinkedIn: https://www.linkedin.com/in/nicomeisenzahl Blog: https://meisenzahl.org

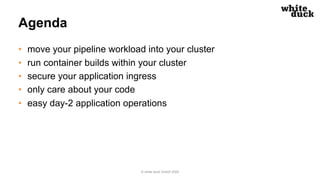

- 3. Agenda • move your pipeline workload into your cluster • run container builds within your cluster • secure your application ingress • only care about your code • easy day-2 application operations © white duck GmbH 2020
- 4. GITLAB RUNNER KUBERNETES EXECUTOR Move your pipeline workload into your cluster © white duck GmbH 2020
- 5. Kubernetes executor • allows you to • containerize your pipeline workload • share your compute and scale your pipelines • needs to be deployed in your Kubernetes Cluster • automatable Helm deployment • runs a pod per job • prepare → creates pod with build and service containers • pre-build → clones repo, restore cache, download artifacts • build → user build steps • post-build → creates caches and upload artifacts © white duck GmbH 2020
- 6. Demo: Pipeline configuration • containerized pipeline configuration • Kubernetes executor in action! • https://gitlab.com/gitlab-commit-demo/containerized-appdeploy-sample © white duck GmbH 2020
- 7. KANIKO Run container builds within your cluster © white duck GmbH 2020
- 8. Image builds on Kubernetes with Kaniko • image builds without the need of any privileges or dependencies • disadvantages of Docker-in-Docker • exposing Docker socket • mounting /var/lib/docker • privileged mode • runs as container • http://gcr.io/kaniko-project/executor • use build caching to speed up your pipeline • layer caching (layers get pushed to a registry) • base image caching (local mount point) © white duck GmbH 2020

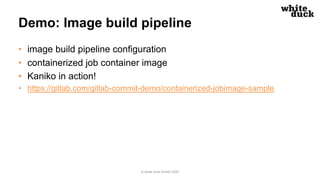

- 9. Demo: Image build pipeline • image build pipeline configuration • containerized job container image • Kaniko in action! • https://gitlab.com/gitlab-commit-demo/containerized-jobimage-sample © white duck GmbH 2020

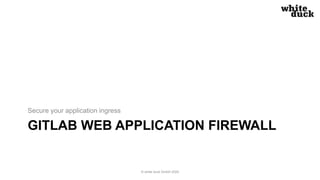

- 10. GITLAB WEB APPLICATION FIREWALL Secure your application ingress © white duck GmbH 2020
- 11. Secure your applications • GitLab Web Application Firewall finds and tracks • SQL/code injection • cross-site scripting • local/remote file inclusion • … • threat monitoring dashboard within your project • is based on Kubernetes Nginx Ingress and modsecurity module • OWASP (Open Web Application Security Project) Core Rule Set • blocking or detection-only mode © white duck GmbH 2020
- 12. Demo: Secure your application ingress • GitLab Web Application Firewall in action! • https://gitlab.com/gitlab-commit-demo/secure-ingress-sample © white duck GmbH 2020
- 13. GITLAB SERVERLESS Only care about your code © white duck GmbH 2020
- 14. Only care about your business logic • only care about your code • Function-as-a-Service (FaaS) powered by GitLab and open source • based on Knative, Kaniko and Istio • supports Go, NodeJS & Ruby • C#, PHP, Python via OpenFaaS integration • any other language via containerized serverless application • multi-cloud support • auto-scaling with scale to zero © white duck GmbH 2020
- 15. Demo: Only care about your code • configuration details • GitLab Serverless in action! • https://gitlab.com/gitlab-commit-demo/serverless-sample © white duck GmbH 2020
- 16. MONITORING & LOGGING & TRACING Easy Day-2 Application Operations © white duck GmbH 2020

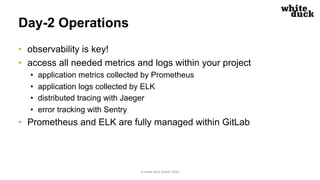

- 17. Day-2 Operations • observability is key! • access all needed metrics and logs within your project • application metrics collected by Prometheus • application logs collected by ELK • distributed tracing with Jaeger • error tracking with Sentry • Prometheus and ELK are fully managed within GitLab © white duck GmbH 2020
- 18. Demo: Monitoring & Tracing • Environment Deployment overview • Elasticsearch integration • Prometheus integration • https://gitlab.com/gitlab-commit-demo/ops-sample © white duck GmbH 2020

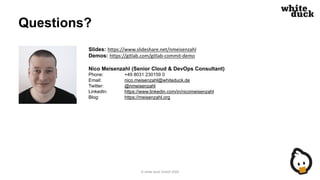

- 19. Questions? Slides: https://www.slideshare.net/nmeisenzahl Demos: https://gitlab.com/gitlab-commit-demo Nico Meisenzahl (Senior Cloud & DevOps Consultant) Phone: +49 8031 230159 0 Email: nico.meisenzahl@whiteduck.de Twitter: @nmeisenzahl LinkedIn: https://www.linkedin.com/in/nicomeisenzahl Blog: https://meisenzahl.org © white duck GmbH 2020
