This document discusses Git and version control. It begins with an introduction to Git, explaining that Git is a version control system that allows developers to work collaboratively by storing code and tracking changes. It then covers why Git is needed, the basic Git commands, common Git rules and best practices, and Git flow for managing branches.

1. Git - 🐘

2. Topics 💬
1. What is GIT ?
2. Why GIT is needed?
3. GIT Basic
4. GIT Rules
○ Do
○ Don’t
5. GIT flow
2

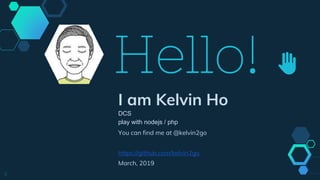

3. Hello! ✋
I am Kelvin Ho
DCS
play with nodejs / php
You can find me at @kelvin2go
https://github.com/kelvin2go
March, 2019
3

4. What is GIT ? 👼
The introduction of GIT
- Control system
- Version control system
- Distributed version control system
1

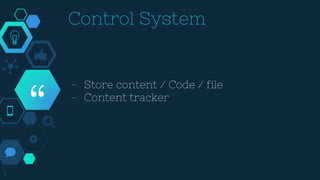

5. “
5
Control System
- Store content / Code / file
- Content tracker

6. “
6
Version Control
System
- Allow developer add code in parallel
- Keep history of changes
- Git provide branches, merges,
comparing

7. Distributed Version
Control System
- Decentralized but centralized
- Git has remote repo (which is
same as everyone)
- Every develop has own local
repo
- All develop have a copy of the
code
7

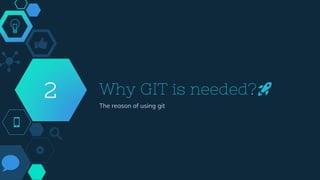

8. Why GIT is needed?🚀
The reason of using git
2

9. “
9
Why Git is needed?
- The life before ({date}.zip, ftp, mess... )
- Flexibility
- Allow different working Env ☝
- Allow different developers works on
same project (add / changing code)
- Peer reviews
- Adding / revert version of the project
- 70% dev (stackoverflow), Basic
standard of code sharing

10. “
10
Why Git is needed? (2)
- Performance
- Fast comparing commit
- Security (user / ssh / code transmit)
- continuous integration
- automated test
- https://about.gitlab.com/product/conti
nuous-integration/

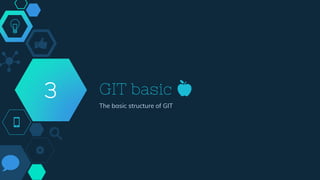

11. GIT basic 🍎
The basic structure of GIT
3

12. “
12
GIT basic
- Git clone
- Git pull
- Git status
- Git add
- Git checkout
- Git commit -m
- Git push
Demo: https://github.com/kelvin2go?tab=repositories
Short cuts: https://github.com/kelvin2go/basic_init/blob/master/.bashrc#L15

13. “
13

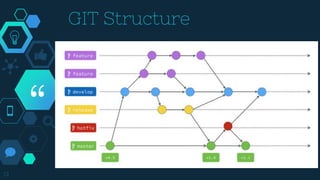

GIT Structure

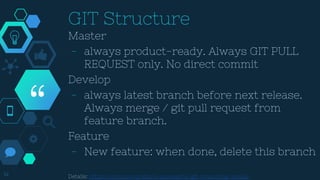

14. “
14
GIT Structure
Master
- always product-ready. Always GIT PULL
REQUEST only. No direct commit
Develop
- always latest branch before next release.
Always merge / git pull request from
feature branch.
Feature
- New feature: when done, delete this branch
Details: https://nvie.com/posts/a-successful-git-branching-model/

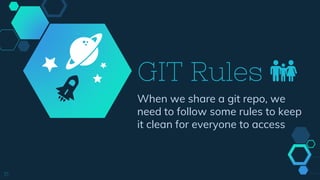

15. GIT Rules 👪
When we share a git repo, we
need to follow some rules to keep
it clean for everyone to access
15

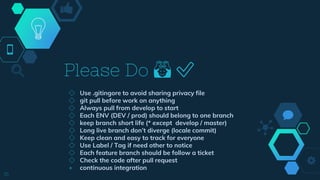

16. ◇ Use .gitingore to avoid sharing privacy file
◇ git pull before work on anything
◇ Always pull from develop to start
◇ Each ENV (DEV / prod) should belong to one branch
◇ keep branch short life (* except develop / master)
◇ Long live branch don’t diverge (locale commit)
◇ Keep clean and easy to track for everyone
◇ Use Label / Tag if need other to notice
◇ Each feature branch should be follow a ticket
◇ Check the code after pull request
+ continuous integration
Please Do 🙆 ✅
16

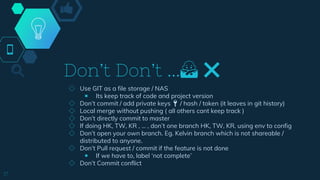

17. Don’t Don’t ...🙅 ❌
◇ Use GIT as a file storage / NAS
￭ Its keep track of code and project version
◇ Don’t commit / add private keys 🔑 / hash / token (it leaves in git history)
◇ Local merge without pushing ( all others cant keep track )
◇ Don’t directly commit to master
◇ If doing HK, TW, KR , … , don’t one branch HK, TW, KR. using env to config
◇ Don’t open your own branch. Eg. Kelvin branch which is not shareable /
distributed to anyone.
◇ Don’t Pull request / commit if the feature is not done
￭ If we have to, label ‘not complete’
◇ Don’t Commit conflict
17

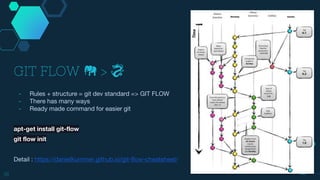

18. GIT FLOW 🐘 > 🐉
- Rules + structure = git dev standard => GIT FLOW
- There has many ways
- Ready made command for easier git
apt-get install git-flow
git flow init
Detail : https://danielkummer.github.io/git-flow-cheatsheet/
18

19. Feature : the feature going add on develop
每一個 task 一條feature 用完 Merge 就 delete feature branch
1. Start: git flow feature start MYFEATURE
2. git add / git commit
3. done: git flow feature publish MYFEATURE
4. make a pull request
5. after merge, remove feature branch
feature/{new}
19

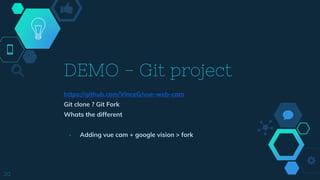

20. https://github.com/VinceG/vue-web-cam
Git clone ? Git Fork
Whats the different
- Adding vue cam + google vision > fork
DEMO - Git project
20

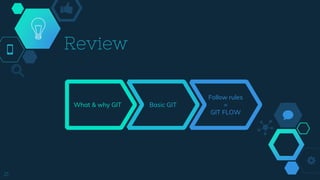

21. Review
What & why GIT Basic GIT
Follow rules
=
GIT FLOW
21

22. Thanks!
Any questions?
◇ @kelvin2go
Github https://github.com/kelvin2go
Web https://kelvinho.js.org
22

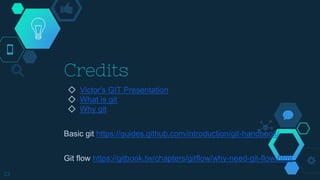

23. Credits
◇ Victor's GIT Presentation
◇ What is git
◇ Why git
Basic git https://guides.github.com/introduction/git-handbook/
Git flow https://gitbook.tw/chapters/gitflow/why-need-git-flow.html
23
