1. © 2016 VMware Inc. All rights reserved.
Liviu Cismaru
Date
GDPR Main Requirements
Liviu Cismaru
2017

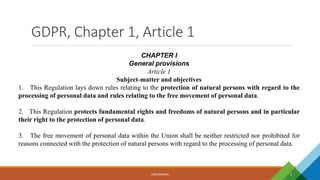

2. GDPR, Chapter 1, Article 1
CONFIDENTIAL 2
CHAPTER I
General provisions
Article 1
Subject-matter and objectives
1. This Regulation lays down rules relating to the protection of natural persons with regard to the
processing of personal data and rules relating to the free movement of personal data.
2. This Regulation protects fundamental rights and freedoms of natural persons and in particular
their right to the protection of personal data.
3. The free movement of personal data within the Union shall be neither restricted nor prohibited for
reasons connected with the protection of natural persons with regard to the processing of personal data.

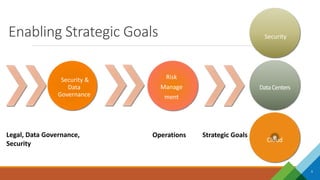

3. Enabling Strategic Goals
3
Security
DataCenters
Cloud
Strategic Goals
Risk
Manage
ment
Operations
Security &
Data
Governance
Legal, Data Governance,
Security

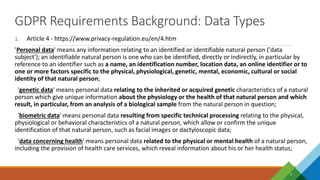

4. GDPR Requirements Background: Data Types
4
1. Article 4 - https://www.privacy-regulation.eu/en/4.htm
’Personal data' means any information relating to an identified or identifiable natural person ('data
subject'); an identifiable natural person is one who can be identified, directly or indirectly, in particular by
reference to an identifier such as a name, an identification number, location data, an online identifier or to
one or more factors specific to the physical, physiological, genetic, mental, economic, cultural or social
identity of that natural person;
'genetic data' means personal data relating to the inherited or acquired genetic characteristics of a natural
person which give unique information about the physiology or the health of that natural person and which
result, in particular, from an analysis of a biological sample from the natural person in question;
'biometric data' means personal data resulting from specific technical processing relating to the physical,
physiological or behavioral characteristics of a natural person, which allow or confirm the unique
identification of that natural person, such as facial images or dactyloscopic data;
'data concerning health' means personal data related to the physical or mental health of a natural person,
including the provision of health care services, which reveal information about his or her health status;

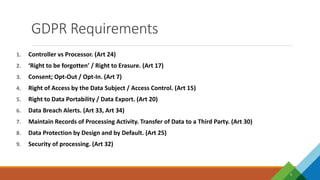

5. GDPR Requirements
5
1. Controller vs Processor. (Art 24)
2. ‘Right to be forgotten’ / Right to Erasure. (Art 17)
3. Consent; Opt-Out / Opt-In. (Art 7)
4. Right of Access by the Data Subject / Access Control. (Art 15)
5. Right to Data Portability / Data Export. (Art 20)
6. Data Breach Alerts. (Art 33, Art 34)
7. Maintain Records of Processing Activity. Transfer of Data to a Third Party. (Art 30)
8. Data Protection by Design and by Default. (Art 25)
9. Security of processing. (Art 32)

6. GDPR Requirements –
Controller vs Processor
6
1. Controller = the natural or legal person, public authority, agency or other body which, alone or
jointly with others, determines the purposes and means of the processing of personal data.
2. Processor = a natural or legal person, public authority, agency or other body which processes
personal data on behalf of the controller.

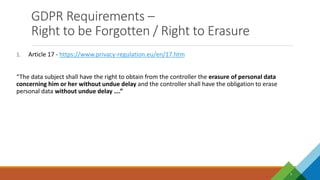

7. GDPR Requirements –
Right to be Forgotten / Right to Erasure
7
1. Article 17 - https://www.privacy-regulation.eu/en/17.htm
“The data subject shall have the right to obtain from the controller the erasure of personal data
concerning him or her without undue delay and the controller shall have the obligation to erase
personal data without undue delay ….”

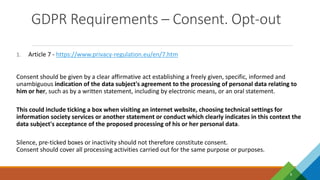

8. GDPR Requirements – Consent. Opt-out
8
1. Article 7 - https://www.privacy-regulation.eu/en/7.htm
Consent should be given by a clear affirmative act establishing a freely given, specific, informed and
unambiguous indication of the data subject's agreement to the processing of personal data relating to
him or her, such as by a written statement, including by electronic means, or an oral statement.
This could include ticking a box when visiting an internet website, choosing technical settings for
information society services or another statement or conduct which clearly indicates in this context the
data subject's acceptance of the proposed processing of his or her personal data.
Silence, pre-ticked boxes or inactivity should not therefore constitute consent.
Consent should cover all processing activities carried out for the same purpose or purposes.

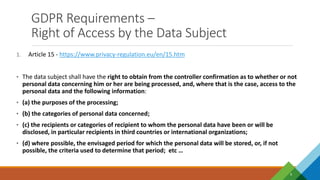

9. GDPR Requirements –
Right of Access by the Data Subject
9
1. Article 15 - https://www.privacy-regulation.eu/en/15.htm
• The data subject shall have the right to obtain from the controller confirmation as to whether or not
personal data concerning him or her are being processed, and, where that is the case, access to the
personal data and the following information:
• (a) the purposes of the processing;
• (b) the categories of personal data concerned;
• (c) the recipients or categories of recipient to whom the personal data have been or will be
disclosed, in particular recipients in third countries or international organizations;
• (d) where possible, the envisaged period for which the personal data will be stored, or, if not
possible, the criteria used to determine that period; etc …

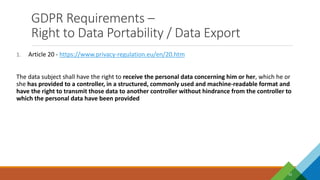

10. GDPR Requirements –
Right to Data Portability / Data Export
10
1. Article 20 - https://www.privacy-regulation.eu/en/20.htm
The data subject shall have the right to receive the personal data concerning him or her, which he or
she has provided to a controller, in a structured, commonly used and machine-readable format and
have the right to transmit those data to another controller without hindrance from the controller to
which the personal data have been provided

11. GDPR Requirements – Data Breach Alerts
11
1. Article 33 - https://www.privacy-regulation.eu/en/33.htm
2. Article 34 - https://www.privacy-regulation.eu/en/34.htm
In the case of a personal data breach, the controller shall without undue delay and, where feasible,
not later than 72 hours after having become aware of it, notify the personal data breach to the
supervisory authority …

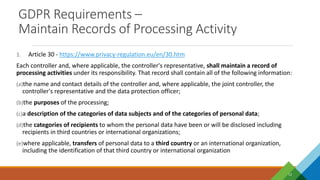

12. GDPR Requirements –
Maintain Records of Processing Activity
12
1. Article 30 - https://www.privacy-regulation.eu/en/30.htm
Each controller and, where applicable, the controller's representative, shall maintain a record of
processing activities under its responsibility. That record shall contain all of the following information:
(a)the name and contact details of the controller and, where applicable, the joint controller, the
controller's representative and the data protection officer;
(b)the purposes of the processing;
(c)a description of the categories of data subjects and of the categories of personal data;
(d)the categories of recipients to whom the personal data have been or will be disclosed including
recipients in third countries or international organizations;
(e)where applicable, transfers of personal data to a third country or an international organization,
including the identification of that third country or international organization

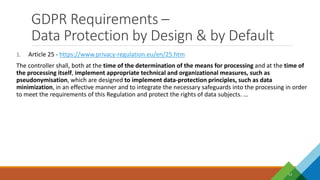

13. GDPR Requirements –
Data Protection by Design & by Default
13
1. Article 25 - https://www.privacy-regulation.eu/en/25.htm
The controller shall, both at the time of the determination of the means for processing and at the time of
the processing itself, implement appropriate technical and organizational measures, such as
pseudonymisation, which are designed to implement data-protection principles, such as data
minimization, in an effective manner and to integrate the necessary safeguards into the processing in order
to meet the requirements of this Regulation and protect the rights of data subjects. …

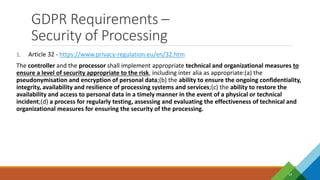

14. GDPR Requirements –
Security of Processing
14
1. Article 32 - https://www.privacy-regulation.eu/en/32.htm
The controller and the processor shall implement appropriate technical and organizational measures to
ensure a level of security appropriate to the risk, including inter alia as appropriate:(a) the
pseudonymisation and encryption of personal data;(b) the ability to ensure the ongoing confidentiality,
integrity, availability and resilience of processing systems and services;(c) the ability to restore the
availability and access to personal data in a timely manner in the event of a physical or technical
incident;(d) a process for regularly testing, assessing and evaluating the effectiveness of technical and
organizational measures for ensuring the security of the processing.

15. Data Governance

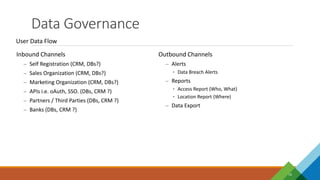

16. Data Governance
16
User Data Flow
Inbound Channels
– Self Registration (CRM, DBs?)
– Sales Organization (CRM, DBs?)
– Marketing Organization (CRM, DBs?)
– APIs i.e. oAuth, SSO. (DBs, CRM ?)
– Partners / Third Parties (DBs, CRM ?)
– Banks (DBs, CRM ?)
Outbound Channels
– Alerts
• Data Breach Alerts
– Reports
• Access Report (Who, What)
• Location Report (Where)
– Data Export

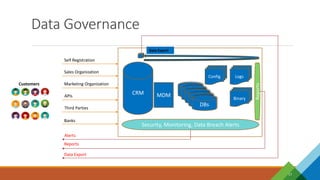

17. Data Governance
17
Self Registration
Sales Organization
Marketing Organization
APIs
Third Parties
Banks
CRM MDM
DBs
DBs
DBs
DBs
DBs
LogsConfig
Binary
Security, Monitoring, Data Breach Alerts
Reports
Customers
Alerts
Reports
Data Export
Data Export

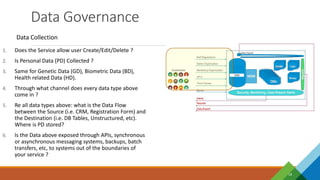

18. Data Governance
18
Data Collection
1. Does the Service allow user Create/Edit/Delete ?
2. Is Personal Data (PD) Collected ?
3. Same for Genetic Data (GD), Biometric Data (BD),
Health related Data (HD).
4. Through what channel does every data type above
come in ?
5. Re all data types above: what is the Data Flow
between the Source (i.e. CRM, Registration Form) and
the Destination (i.e. DB Tables, Unstructured, etc).
Where is PD stored?
6. Is the Data above exposed through APIs, synchronous
or asynchronous messaging systems, backups, batch
transfers, etc, to systems out of the boundaries of
your service ?
CRM

19. Data Governance
19
Consent
1. Does the Service allow the user to Opt Out and Opt In
within a reasonable time interval ?
2. Does your Service rely on any central / external Opt
Out / Opt In system ?
3. Does your Service provide access to VMware's TOS
(Terms of Services) agreement ?
CRM

20. Data Governance
20
Anonymization & Pseudonymization
1. Does the Service convert PD into anonymized or
pseudonymized data ?
2. If Anomymization, describe. Source, Destination ?
3. If Pseudonymization, describe. Source, Destination ?
CRM

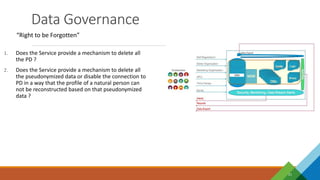

21. Data Governance
21
“Right to be Forgotten”
1. Does the Service provide a mechanism to delete all
the PD ?
2. Does the Service provide a mechanism to delete all
the pseudonymized data or disable the connection to
PD in a way that the profile of a natural person can
not be reconstructed based on that pseudonymized
data ?
CRM

22. Data Governance

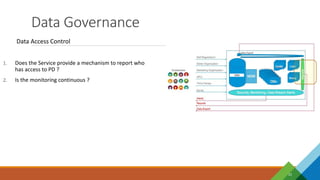

22
Data Access Control
1. Does the Service provide a mechanism to report who
has access to PD ?
2. Is the monitoring continuous ?
CRM

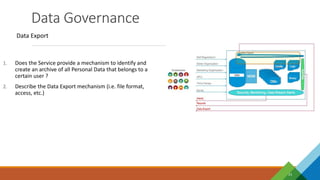

23. Data Governance
23
Data Export
1. Does the Service provide a mechanism to identify and
create an archive of all Personal Data that belongs to a
certain user ?
2. Describe the Data Export mechanism (i.e. file format,
access, etc.)
CRM

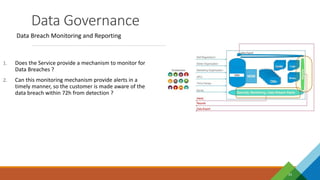

24. Data Governance
24
Data Breach Monitoring and Reporting
1. Does the Service provide a mechanism to monitor for
Data Breaches ?
2. Can this monitoring mechanism provide alerts in a
timely manner, so the customer is made aware of the
data breach within 72h from detection ?
CRM

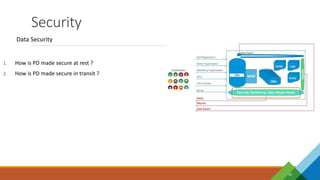

25. Security

26. Security
26
Data Security
1. How is PD made secure at rest ?
2. How is PD made secure in transit ? CRM

27. Risk Management

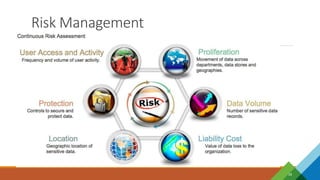

28. Risk Management
28
Subtitle is Arial 18 pt

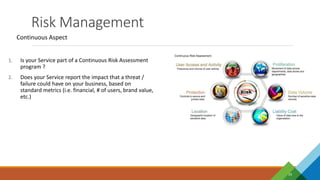

29. Risk Management
29
Continuous Aspect
1. Is your Service part of a Continuous Risk Assessment
program ?
2. Does your Service report the impact that a threat /
failure could have on your business, based on
standard metrics (i.e. financial, # of users, brand value,
etc.)

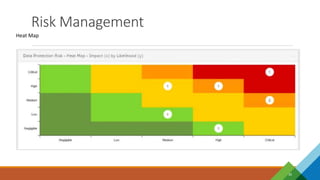

30. Risk Management
30
Heat Map

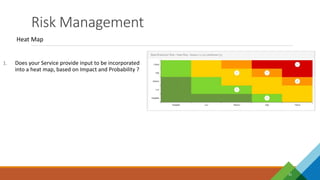

31. Risk Management
31
Heat Map
1. Does your Service provide input to be incorporated
into a heat map, based on Impact and Probability ?

32. Thank You
