GCCP Session.pptx
- 1. Training Session Google CloudCareer Practitioners Pathway
- 2. So, What’s theCloud Anyway? Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program
- 3. On-demand self-service No human intervention needed toget resources Broad network access Access from anywhere Resource pooling Provider shares resources to consumers Rapid elasticity Get more resources quickly as needed Measured service Pay only for what you consume Cloud computing has five fundamental characteristics Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program
- 4. Every company isa data company Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program
- 5. ● CPU, memory,storage, and networking is provided as a service. ● The user needs to manage the OS and the application. ● The platform is a managed service. ● All the user provides is the application. ● The platform and software is provided as a service to the user. ● The user supplies the data. Infrastructure as a service (IaaS) Platform as a service (PaaS) Software as a service (SaaS) IaaS versus PaaS versus SaaS Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program
- 6. Copyright Google LLC.For educational purposes in accordance with the terms of use set forth on the program Google Cloud PoPs and Network Edge point of presence Equiano (PT, NG, ZA) 2021 Dunant (US, FR) 2020 SJC (JP, HK, SG) 2013 JGA-S (GU, AU) 2019 Indigo (SG, ID, AU) 2019 Havfrue (US, IE, DK) 2019 Monet (US, BR) 2017 Junior (Rio, Santos) 2018 Tannat (BR, UY, AR) 2018 Curie (CL, US) 2019 Faster (US, JP, TW) 2016 PLCN (US, TW) 2020 Unity (US, JP) 2010 Grace Hopper (US, UK, ES) 2022 Network
- 7. Compute App Engine Google Kubernetes Engine (GKE) Compute Engine Cloud Functions Cloud Run GoogleCloud offers a range of compute services Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

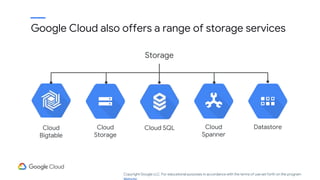

- 8. Storage Cloud SQL Cloud Storage Cloud Bigtable Cloud Spanner Datastore Google Cloudalso offers a range of storage services Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

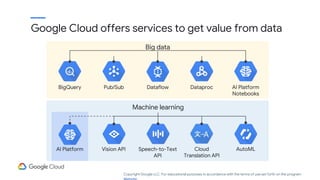

- 9. Vision API Speech-to-Text API Cloud TranslationAPI AI Platform Big data Pub/Sub Dataflow Dataproc BigQuery AI Platform Notebooks Machine learning AutoML Google Cloud offers services to get value from data Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program
- 10. Start with aSolid Platform Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

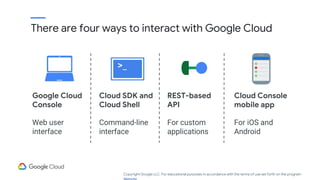

- 11. Google Cloud Console Web user interface >_ CloudSDK and Cloud Shell Command-line interface Cloud Console mobile app For iOS and Android REST-based API For custom applications There are four ways to interact with Google Cloud Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

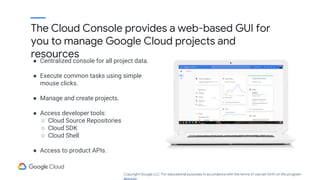

- 12. The Cloud Consoleprovides a web-based GUI for you to manage Google Cloud projects and resources ● Centralized console for all project data. ● Execute common tasks using simple mouse clicks. ● Manage and create projects. ● Access developer tools: ○ Cloud Source Repositories ○ Cloud SDK ○ Cloud Shell ● Access to product APIs. Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

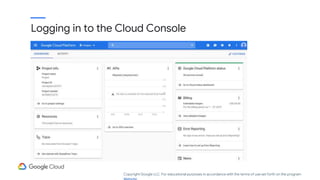

- 13. Logging in tothe Cloud Console Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

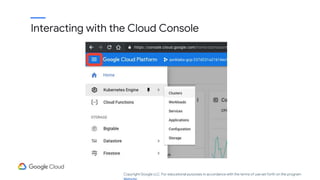

- 14. Interacting with theCloud Console Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

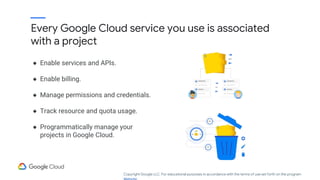

- 15. Every Google Cloudservice you use is associated with a project ● Enable services and APIs. ● Enable billing. ● Manage permissions and credentials. ● Track resource and quota usage. ● Programmatically manage your projects in Google Cloud. Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

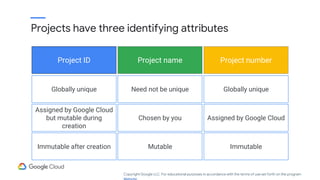

- 16. Project ID Projectname Project number Globally unique Need not be unique Globally unique Assigned by Google Cloud but mutable during creation Chosen by you Assigned by Google Cloud Immutable after creation Mutable Immutable Projects have three identifying attributes Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

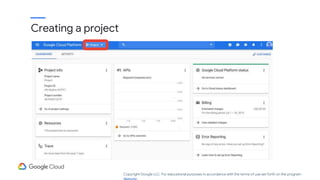

- 17. http://www.console.google.com Creating a project CopyrightGoogle LLC. For educational purposes in accordance with the terms of use set forth on the program
- 18. Creating a project CopyrightGoogle LLC. For educational purposes in accordance with the terms of use set forth on the program
- 19. Billing account paysfor project resources. A billing account is linked to zero or more projects. Accounts are charged automatically, invoiced monthly, or invoiced at the threshold limit. Sub accounts can be used for separate billing for projects. Cloud Storage VMs Cloud APIs BigQuery Cloud Network How billing works Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

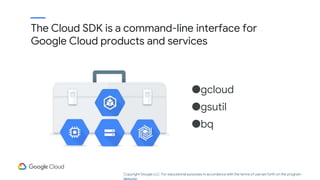

- 20. ●gcloud ●gsutil ●bq The Cloud SDKis a command-line interface for Google Cloud products and services Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

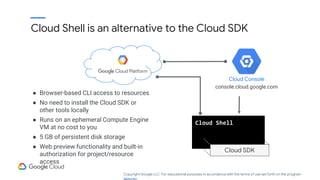

- 21. ● Browser-based CLIaccess to resources ● No need to install the Cloud SDK or other tools locally ● Runs on an ephemeral Compute Engine VM at no cost to you ● 5 GB of persistent disk storage ● Web preview functionality and built-in authorization for project/resource access Cloud Shell console.cloud.google.com Cloud SDK Cloud Console Cloud Shell is an alternative to the Cloud SDK Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program
- 22. Starting Cloud Shell CopyrightGoogle LLC. For educational purposes in accordance with the terms of use set forth on the program
- 23. The Cloud Consoleand Cloud Shell Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

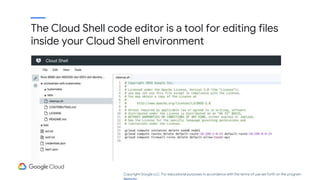

- 24. The Cloud Shellcode editor is a tool for editing files inside your Cloud Shell environment Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program
- 25. Manage Google Cloudservices from your Android or iOS device Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program
- 26. Cloud SQL Cloud Spanner Datastore Cloud Bigtable BigQuery Cloud Storage Is yourdata structured? ? No Is your workload analytics? ? No No Is your data relational? ? Yes Do you need updates or low latency? ? Do you need horizontal scalability? ? No Yes Yes Yes No Yes What type of storage will meet my needs best? Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program
- 27. GCP Security &IAM Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

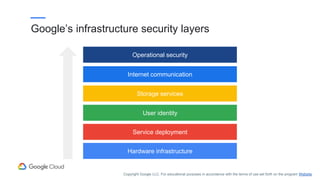

- 28. Hardware infrastructure Service deployment Useridentity Storage services Internet communication Operational security Google’s infrastructure security layers Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program Website.

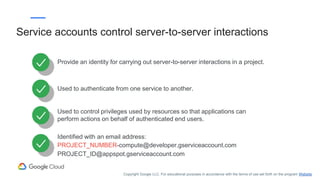

- 29. Provide an identityfor carrying out server-to-server interactions in a project. Used to authenticate from one service to another. Used to control privileges used by resources so that applications can perform actions on behalf of authenticated end users. Identified with an email address: PROJECT_NUMBER-compute@developer.gserviceaccount.com PROJECT_ID@appspot.gserviceaccount.com Service accounts control server-to-server interactions Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program Website.

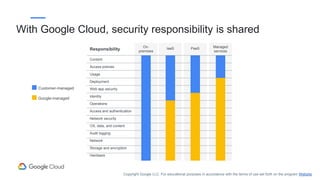

- 30. PaaS On- premises IaaS Content Access policies Usage Deployment Web appsecurity Identity Operations Access and authentication Network security OS, data, and content Audit logging Network Storage and encryption Hardware Managed services Responsibility Google-managed Customer-managed With Google Cloud, security responsibility is shared Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program Website.
- 31. Data access isalmost always the customer’s responsibility Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program Website.

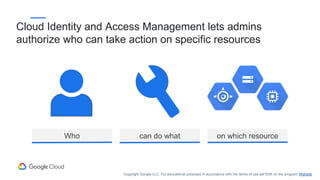

- 32. Who can dowhat on which resource Cloud Identity and Access Management lets admins authorize who can take action on specific resources Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program Website.

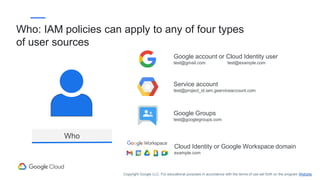

- 33. Service account test@project_id.iam.gserviceaccount.com Google accountor Cloud Identity user test@gmail.com test@example.com Cloud Identity or Google Workspace domain example.com Google Groups test@googlegroups.com Who: IAM policies can apply to any of four types of user sources Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program Website. Who

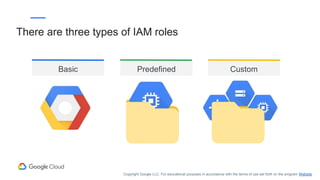

- 34. Basic Predefined Custom Thereare three types of IAM roles Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program Website.

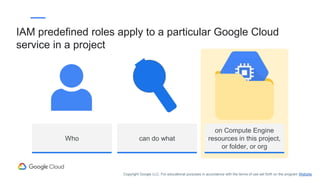

- 35. Who can dowhat on Compute Engine resources in this project, or folder, or org IAM predefined roles apply to a particular Google Cloud service in a project Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program Website.
- 36. ✔ compute.instances.delete ✔ compute.instances.get ✔compute.instances.list ✔ compute.instances.setMachineType ✔ compute.instances.start ✔ compute.instances.stop . . . InstanceAdmin role project_a Google Group IAM predefined roles offer more fine-grained permissions on particular services Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program Website.

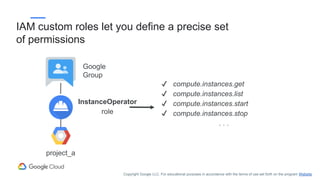

- 37. ✔ compute.instances.get ✔ compute.instances.list ✔compute.instances.start ✔ compute.instances.stop . . . InstanceOperator role project_a Google Group IAM custom roles let you define a precise set of permissions Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program Website.
- 38. Google Network Copyright GoogleLLC. For educational purposes in accordance with the terms of use set forth on the program

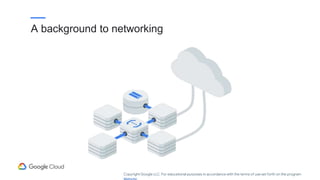

- 39. A background tonetworking Copyright Google LLC. For educational purposes in accordance with the terms of use set forth on the program

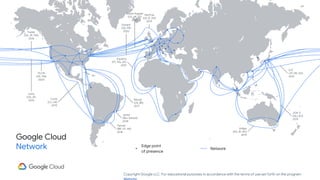

- 40. Copyright Google LLC.For educational purposes in accordance with the terms of use set forth on the program Google Cloud Network Edge point of presence Equiano (PT, NG, ZA) 2021 Dunant (US, FR) 2020 SJC (JP, HK, SG) 2013 JGA-S (GU, AU) 2019 Indigo (SG, ID, AU) 2019 Havfrue (US, IE, DK) 2019 Monet (US, BR) 2017 Junior (Rio, Santos) 2018 Tannat (BR, UY, AR) 2018 Curie (CL, US) 2019 Faster (US, JP, TW) 2016 PLCN (US, TW) 2020 Unity (US, JP) 2010 Grace Hopper (US, UK, ES) 2022 Network
- 41. Last Date forCode Redemption is extended 9th December, 10:00PM

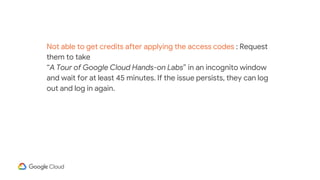

- 42. Not able toget credits after applying the access codes : Request them to take “A Tour of Google Cloud Hands-on Labs” in an incognito window and wait for at least 45 minutes. If the issue persists, they can log out and log in again.
- 43. Tier 3 35+& <50 Participants complete the Cloud Engineering Learning Path 35 Rewards Tier 2 >50+ & <70 Participants complete Cloud Engineering Learning Path 50 Rewards Tier 1 70+ Participants Complete Cloud Engineering Learning Path 70 Rewards
- 44. Last Date forcompleting Pathway is extended 21st December, 10:00PM
- 45. 1) Try connectingin some time, we are hopeful that you will be able to perform the labs as the traffic reduces. 2) Alternatively, find another lab that you can perform in the meantime. High traffic on the Skill Boosts Platform! You might face challenges while performing some labs :(
- 46. What to doif you face issues with CSB? dscsupport@qwiklabs.com
- 47.
Editor's Notes
- #3 Welcome to So, What’s the Cloud Anyway?, I’m ________________.
- #4 Cloud computing has five fundamental characteristics: First, computing resources are on-demand and self-service. Cloud-computing customers use an automated interface and get the processing power, storage, and network they need, without the typical complex configurations required when building physical servers. Second, resources are accessible over a network from any location. Providers allocate resources to consumers from a large pool, allowing them to benefit from economies of scale. The resources exist in multiple locations all over the world, you just have to decide the available geographic location you wish to utilize. Resources are elastic. If you need more resources you can get them rapidly. And when you need less, you can scale back. Finally, you pay only for what you use or reserve, as you go. If you stop using resources, you simply stop paying.
- #5 Google believes that, in the future, every company—regardless of size or industry—will differentiate itself from its competitors through technology. Largely, that technology will be in the form of software. Great software is centered on data. Therefore, every company is, or will become, a data company. Google Cloud provides a wide variety of services for managing and getting value from data at scale.
- #6 With infrastructure as a service, the service provides the underlying architecture for you to run servers. The resources to run are provided, but it’s up to the user to manage the operating system and application. Platform as a service takes it one step further. Now the entire environment will be managed for you the user, and all that is required of you is to manage your applications. The operating system layer will be managed as part of the service. For Software as a service, the infrastructure, platform, and software is managed for you. All that’s required is that you bring your data to the system. A few commercial examples of SaaS include SAP and Salesforce.
- #7 Google’s data centers around the world are interconnected by the Google network, which, by some publicly available estimates, carries as much as 40% of the world’s internet traffic every day. This is the largest network of its kind on Earth, and it continues to grow. It’s designed to provide the highest possible throughput and the lowest possible latencies for applications. The network interconnects with the public internet at more than 90 internet exchanges and more than 110 points of presence worldwide. When an internet user sends traffic to a Google resource, Google responds to the user's request from an Edge Network location that will provide the lowest delay or latency. Google’s edge caching network places content close to end users to minimize latency. Applications in Google Cloud can take advantage of this edge network too.
- #8 Google Cloud’s products and services can be broadly categorized as Compute, Storage, Big Data, and Machine Learning. Leveraging compute can include virtual machines via Compute Engine, running Docker containers in a managed platform using Google Kubernetes Engine, deploying applications in a managed platform like App Engine, running event-based serverless code using Cloud Functions, or running stateless containers as a managed service like Cloud Run.
- #9 A variety of managed storage options are available as well. For unstructured storage there’s Cloud Storage, for managed relational databases there’s Cloud SQL or Cloud Spanner, and for NoSQL, there are options like Datastore or Cloud Bigtable.
- #10 Managed services dealing with big data and machine learning are available as well.
- #11 Hi, I’m ______. Welcome to the module Start with a Solid Platform.
- #12 There are four ways you can interact with Google Cloud, and we’ll talk about each in turn: the Cloud Console, the Cloud SDK and Cloud Shell, APIs, and the Cloud Console mobile app.
- #13 The Cloud Console serves as a centralized console for all of your project data, and lets you execute common tasks using simple mouse clicks with no need to remember commands or avoid typos. When you use the Cloud Console, the resources that you create are done so in the context of a specific project. You can create multiple projects, so you can use projects to separate your work in whatever way makes sense for you. For example, you might start a new project if you want to make sure only certain team members can access the resources in that project, while all team members can continue to access resources in another project. The Cloud Console is also great for developers. Cloud Source Repositories provides Git version control to support collaborative development of any application or service. The Cloud SDK is a set of command-line tools for Google Cloud. You can run these tools interactively or in your automated scripts. Cloud Shell also provides you with command-line access to your cloud resources directly from your browser, but without having to install the Cloud SDK or other tools on your system. The utilities you need are always available, up to date and fully authenticated when you need them. The Cloud SDK and Cloud Shell will be discussed in more detail later in this module. The Cloud SDK includes client libraries that enable you to easily create and manage resources. Google Cloud client libraries expose APIs for two main purposes. App APIs provide access to services and admin APIs offer functionality for resource management.
- #14 From a browser, go to console.cloud.google.com. If you haven’t already logged into your Google account, the system will prompt you to enter your credentials. After you log in, the Cloud Console will display the details of your default project.
- #15 All Google Cloud services are accessible through the simple menu button in the top-left corner. You can pin frequently used services to this menu.
- #16 Projects are the basis for enabling and using Google Cloud services, like managing APIs, enabling billing, adding and removing collaborators, and enabling other Google services. Each project is a separate account, and each resource belongs to exactly one. Projects can have different owners and users. They’re billed separately, and they’re managed separately. Resource Manager provides ways for you to programmatically manage your projects in Google Cloud. You can access Resource Manager through an RPC API or REST API. With these APIs, you can get a list of all projects associated with an account, create new projects, update existing projects, and delete projects. You can also undelete, or recover, projects that you want to restore.
- #17 Each Google Cloud project has a name and project ID that you assign. The project ID is a permanent, unchangeable identifier, and it has to be unique across Google Cloud. While a Project ID will be generated automatically, you can edit it. However, this must be done while creating the new project though as it cannot be modified afterwards. In general, project IDs are made to be human-readable strings, and you’ll use them frequently to refer to projects. On the other hand, project names are for your convenience, and you can change them. Note though that you can’t reuse the project name of a deleted project. Google Cloud also assigns each of your projects a unique project number, and you’ll see it displayed to you in various contexts, but using it is mostly outside the scope of this course. As you work with Google Cloud, you'll use these identifiers in certain command lines and API calls.
- #18 To create a project, click on the name of the current project in the upper left portion of the screen.
- #19 A list of all current projects will be displayed. Select the New Project option on the right-hand side. When the New Project screen is displayed, give your project a name. You have the option to use the auto-generated project ID, or create your own by clicking the Edit option. Project IDs must be globally unique. Select the appropriate billing account and organization and then click Create.
- #20 Billing in Google Cloud is set up at the Google Cloud project level. When you define a Google Cloud project, you link a billing account to it. This billing account is where you will configure all your billing information, including your payment option. You can link your billing account to zero or more projects. Projects that you don’t link to any billing account can only use free Google Cloud services. Your billing account can be charged automatically and invoiced every month, or at every threshold limit. You can separate project billings by setting up billing subaccounts. Some Google Cloud customers who resell Google Cloud services use sub accounts for each of their own clients.
- #21 The Cloud SDK is a set of command-line tools that you can download and install onto a computer of your choice and use to manage resources and applications hosted on Google Cloud. The gcloud ***gee cloud*** CLI manages authentication, local configuration, developer workflow, and interactions with Google Cloud APIs. Gsutil ***gee ess util*** provides command line access to manage Cloud Storage buckets and objects. bq *** bee cue*** allows you to run queries and manipulate datasets, tables, and entities in BigQuery through the command line.
- #22 Using Cloud Shell, you can manage your projects and resources easily without having to install the Cloud SDK or other tools locally. The Cloud SDK command-line tools and other utilities are always available, up to date, and fully authenticated. Your Cloud Shell virtual machine is ephemeral, which means that it will be stopped whenever you stop using it interactively, and it’ll be restarted when you re-enter Cloud Shell. You get five gigabytes of persistent disk storage that is reattached for you every time a new Cloud Shell session is started. Cloud Shell provides web preview functionality and built-in authorization for access to Cloud Console projects and resources.
- #23 To start Cloud Shell, click on the Activate Cloud Shell icon in the upper right side of the screen.
- #24 The Cloud Shell terminal will appear on the lower portion of the window. Options, including launching the Cloud Shell code editor and opening Cloud Shell in a new page, can be performed using the tool bar on the upper right corner of Cloud Shell.
- #25 The Cloud Shell code editor is a tool for editing files inside your Cloud Shell environment in real time within the web browser. This tool is extremely convenient when working with code-first applications or container-based workloads, because you can edit files easily without the need to download and upload changes. You can also use text editors from the Cloud Shell command prompt.
- #26 The Cloud Console mobile app is available for iOS and Android and offers many capabilities. It allows you to stay connected to the cloud and check billing, status, and critical issues. To see the health of your service at a glance, you can create your own custom dashboard showing key metrics such as CPU usage, network usage, requests per second, server errors, and more. You can take action to address issues directly from your device such as rolling back a bad release, stopping or restarting a virtual machine, searching logs or even connecting to a virtual machine via SSH. The monitoring functionality allows you to view and respond to to incidents, errors, and logging. If you need to, you can even access Cloud Shell to perform any gcloud operation.
- #39 Welcome to So, What’s the Cloud Anyway?, I’m ________________.
- #40 Computers communicate with each other on a network. The computers in a single location, like an office, are connected on a local area network (LAN). Multiple locations can have their LANs connected to a wide area network, or WAN. Most networks today are connected to the internet, enabling millions of personal computers, servers, smartphones, and other devices to communicate, and provide and consume IT services.
- #41 Since around 2004, Google has been a leader in building out fast, powerful, high-quality cloud infrastructure. Google’s high-quality private network connects regional locations to more than 100 global network points of presence close to users. Google Cloud also uses state-of-the-art software-defined networking and distributed systems technologies to host and deliver services around the world. When every millisecond of latency counts, Google ensures that content is delivered with the highest throughput. https://cloud.google.com/about/locations/
- #43 encourage community to learn by breaking the content into parts. Not rush at the last minute : 1. Will not help understanding what they learnt 2. Some labs are expected to close with everyone following the course at the last minute Do not reach CSB for CDL related queries or queries on project related issues in later stage
