FZ-PCB Technology Co., Ltd. is a privately owned PCB manufacturer founded in June 2002 with facilities covering 32,000 square meters. It produces over 420,000 square meters annually of double and multi-layer PCBs. The company has a board of directors and specialized departments for marketing, production, purchasing, accounting, planning, quality control, and customer service. It employs advanced equipment for PCB fabrication and inspection and supplies PCBs to customers within 1-4 weeks depending on layer counts and order volumes.

1. 飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.
FZ-PCB----Your PCB Partner
飞卓创展科技有限公司
FZ-PCB TECHNOLOGY CO.,LTD

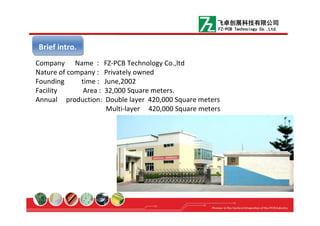

2. Company Name : FZ-PCB Technology Co.,ltd
Nature of company : Privately owned
Founding time : June,2002
Facility Area : 32,000 Square meters.
Annual production: Double layer 420,000 Square meters
Multi-layer 420,000 Square meters
Brief intro.Brief intro.
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

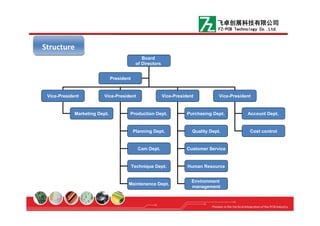

3. StructureStructure
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.
Board
of Directors
Vice-President Vice-President Vice-President Vice-President
President
Marketing Dept. Production Dept. Purchasing Dept.. Account Dept..
Planning Dept.
Cam Dept.
Technique Dept.
Maintenance Dept.
Quality Dept.
Customer Service
Human Resource
Environment
management
Cost control

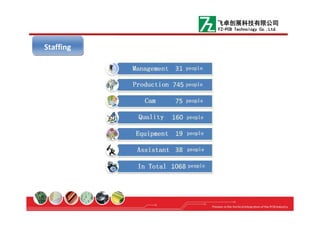

4. StaffingStaffing
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

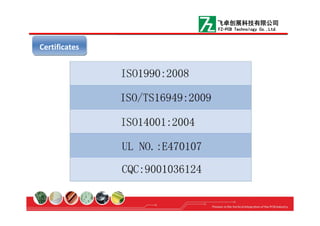

5. CertificatesCertificates
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

6. 7S7S
We established 7S management council, and compiled
the manual designating the standard and mission. We treat
7S as a way to manage the production scene and require
our workshop to implement everyday.
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

7. Main CustomerMain Customer
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

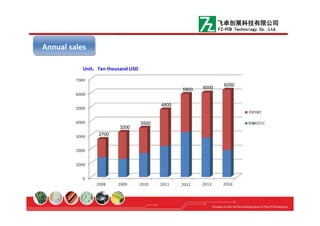

8. Annual salesAnnual sales
2700
3200
3500
4800
5900 6000
6200
Unit：Ten thousand USD
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

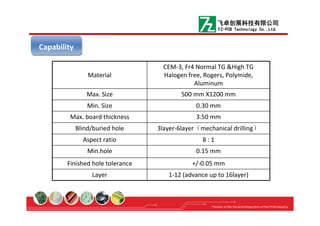

9. CapabilityCapability
Material
CEM-3, Fr4 Normal TG &High TG
Halogen free, Rogers, Polymide,
Aluminum
Max. Size 500 mm X1200 mm
Min. Size 0.30 mm
Max. board thickness 3.50 mm
Blind/buried hole 3layer-6layer（mechanical drilling）
Aspect ratio 8 : 1
Min.hole 0.15 mm
Finished hole tolerance +/-0.05 mm
Layer 1-12 (advance up to 16layer)
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

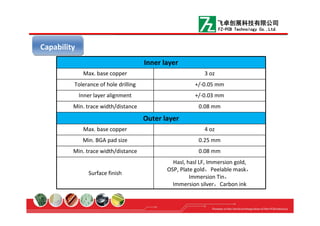

10. Inner layer
Max. base copper 3 oz
Tolerance of hole drilling +/-0.05 mm
Inner layer alignment +/-0.03 mm
Min. trace width/distance 0.08 mm
Outer layer
Max. base copper 4 oz
Min. BGA pad size 0.25 mm
Min. trace width/distance 0.08 mm
Surface finish
Hasl, hasl LF, Immersion gold,
OSP, Plate gold，Peelable mask，
Immersion Tin，
Immersion silver，Carbon ink
CapabilityCapability
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

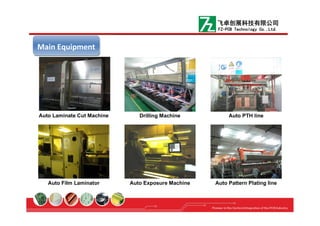

11. Main EquipmentMain Equipment
Auto Laminate Cut Machine Drilling Machine Auto PTH line
Auto Film Laminator Auto Exposure Machine Auto Pattern Plating line
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

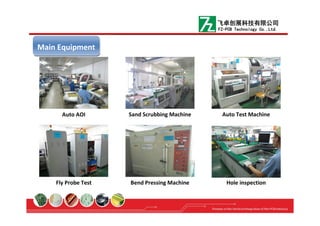

12. Auto AOI Sand Scrubbing Machine Auto Test Machine
Fly Probe Test Bend Pressing Machine Hole inspection
Main EquipmentMain Equipment
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

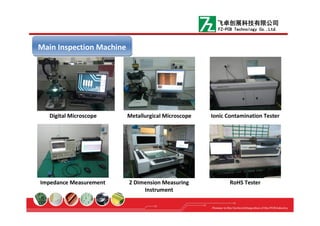

13. Main Inspection MachineMain Inspection Machine
Ionic Contamination Tester
Impedance Measurement 2 Dimension Measuring
Instrument
RoHS Tester
Digital Microscope Metallurgical Microscope
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

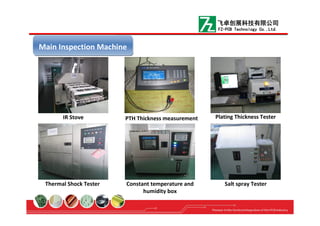

14. IR Stove PTH Thickness measurement Plating Thickness Tester
Constant temperature and
humidity box
Thermal Shock Tester Salt spray Tester
Main Inspection MachineMain Inspection Machine
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

15. Raw material supplier
Shengyi (SY) FR-4(Normal、Medium &High TG)
Kingboard (KB) FR-4
Nanya FR-4
UNIPLUS FR-4(Normal、Medium &High TG)
PANASONIC CEM-3
Ink supplier
Kuangshun Green and other colors
Taiyo Green、White
Taiwan Onstatic Green solder mask ink、Legend ink
MaterialMaterial
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

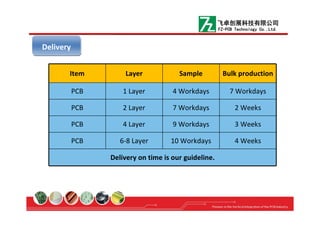

16. Item Layer Sample Bulk production
PCB 1 Layer 4 Workdays 7 Workdays
PCB 2 Layer 7 Workdays 2 Weeks
PCB 4 Layer 9 Workdays 3 Weeks
PCB 6-8 Layer 10 Workdays 4 Weeks
Delivery on time is our guideline.
DeliveryDelivery
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

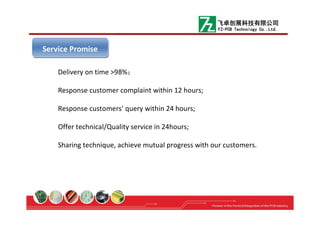

17. Delivery on time >98%；
Response customer complaint within 12 hours;
Response customers’ query within 24 hours;
Offer technical/Quality service in 24hours;
Sharing technique, achieve mutual progress with our customers.
Service PromiseService Promise
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

18. FZ-PCB has very good partnership with UPS and DHL, that make it possible you can
get the lowest rates of UPS or DHL at any time. Surely, if you would like to ship the
goods by sea or air cargo from Shenzhen or Hong Kong, it will be also available and
convenient.
• 2-3 working days to USA
• 3-5 working to Europe
Packaging of PCB delivered to you is also strictly regulated and controlled through our
specific requirements. Labeling of boxes and PCB stacks, ESD-and MSD-control. We take
care of everything for you.
Logistics & DeliveriesLogistics & Deliveries
飞卓创展科技有限公司
FZ-PCB Technology Co.,Ltd.

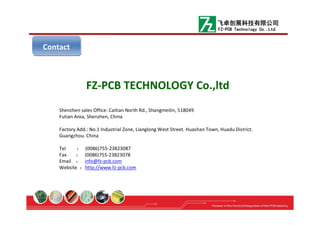

19. FZ-PCB TECHNOLOGY Co.,ltd
Shenzhen sales Office: Caitian North Rd., Shangmeilin, 518049
Futian Area, Shenzhen, China
Factory Add.: No.1 Industrial Zone, Lianglong West Street. Huashan Town, Huadu District.
Guangzhou. China
Tel ： (0086)755-23823087
Fax ： (0086)755-23823078
Email ： info@fz-pcb.com
Website ：http://www.fz-pcb.com
