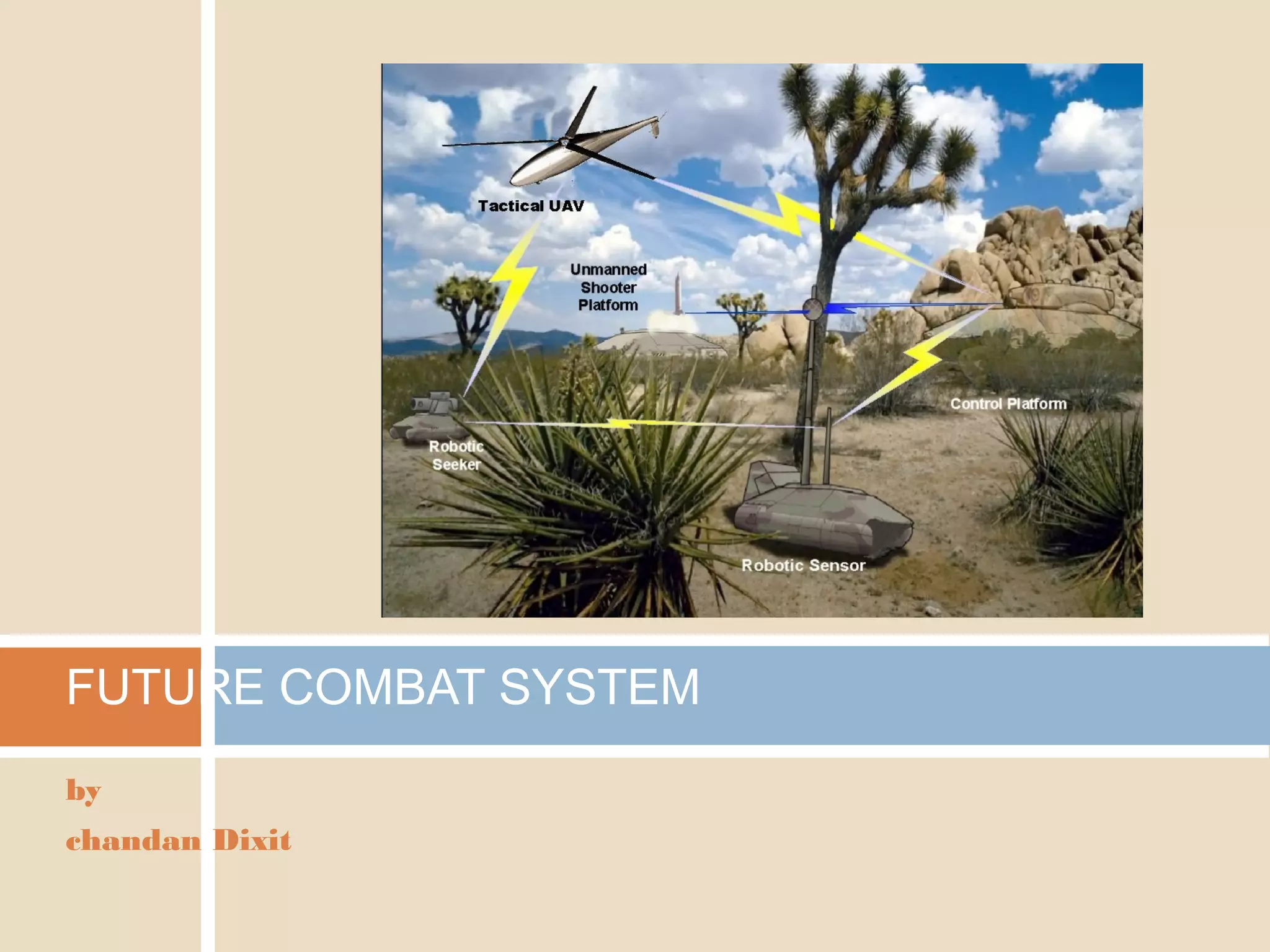

1. by
chandan Dixit
FUTURE COMBAT SYSTEM

2. FCS A SYSTEM OF NEXT
GENERATION ARMED FORCE
 FCS program now drives the modernization of
the Army and many of its procurement
expenditures. It consists of an integrated
family of advanced, networked combat and
sustainment systems; unmanned ground and
air vehicles; and unattended sensors and
munitions intended to equip the Army‘s new
transformational modular combat brigades.
 This is a network programming system that
network of UAV, UGV,ACS,FFV.

3. Unmanned aerial vehicle
Unmanned Aircraft System(UAS) is an aircraft that flies
without a human crew on board the aircraft
Fly autonomously based on pre-programmed flight plans using more complex
dynamic automation systems
Military UAV perform reconnaissance as well as attack missions.
Logistics – UAV specifically designed for cargo and logistics operation

4. UAV classification
They can also be categories in terms of range/altitude and the following has
been advanced as relevant at such industry events as Unmanned Systems
forum:
 Handheld 2,000 ft (600 m) altitude, about 2 km range
 Close 5,000 ft (1,500 m) altitude, up to 10 km range
 MALE (medium altitude, long endurance) up to 30,000 ft (9,000 m) and
range over 200 km
 HALE (high altitude, long endurance) over 30,000 ft and indefinite range
 HYPERSONIC high-speed, supersonic (Mach 1-5) or hypersonic (Mach 5+)
50,000 ft (15,200 m) or suborbital altitude, range over 200 km
 ORBITAL low earth orbit (Mach 25+)
 CIS Lunar Earth-Moon transfer

5. Aegis Combat System
The Aegis Combat System is an integrated naval weapons
system (ACS) is an advanced command and control (Command
and Decision) and Weapon Control System (WCS)
 That uses powerful computers and radars to track and guide
weapons to destroy
enemy targets
 The ACS is composed of the Aegis Weapon System (AWS), the fast-
reaction component of the Aegis Anti-Aircraft Warfare (AAW) capability

6. Features of ACS
 The Aegis Combat System is controlled by an advanced, automatic detect-
and-track, multi-function three-dimensional
passive electronically scanned array radar, the SPY-1. Known as "the
Shield of the Fleet",
 The SPY high-powered (six megawatt) radar is able to perform search,
tracking, and missile guidance functions simultaneously with a track
capacity of well over 100 targets at more than 100 nautical miles (190 km).
 the Standard missiles through a radio frequency (RF)
uplink using the AN/SPY-1 radar for midcourse
guidance of the missile
 The Aegis Ballistic Missile Defense System program
is intended to enable the Aegis system to act in a Sea-
based Ballistic Missile Defense function

7. Multifunctional Utility/Logistics
and Equipment vehicle
 The Multifunctional Utility/Logistics and Equipment Vehicle is a Unmanned
Ground Vehicle (UGV) that will support dismounted and air assault
operations
 The MULE is sling-loadable under military rotorcraft and features a
common chassis
 The MULE's unique, highly advanced 6x6 independent articulated
suspension, coupled with in-hub motors powering each wheel, provides
extreme mobility in complex terrain, far exceeding that of vehicles utilizing
more conventional suspension systems.

8. Armed Robotic Vehicle
 MULE Vehicle (ARV-A-L) (XM1219) will feature an integrated
weapons and reconnaissance, surveillance, and target
acquisition (RSTA) package to support the dismounted infantry’s
efforts to locate and destroy enemy platforms and positions. The
ARV-A-L will support both anti-tank and anti-personnel weapons
platforms that will be remotely operated by network linked
Soldiers.
 The Countermine MULE Vehicle (MULE-CM) (XM1218) would
provide the capability to detect, mark, and neutralize anti-tank
mines
 The XM1217 was canceled in December 2009 along with the
XM1218. It would have been able to haul 1,900 to 2,400 pounds
of equipment.

9. Mine Detection ,Transport, reconnaissance, surveillance, and target
acquisition
From top to bottom:XM1218, XM1217, XM1219

10. Future Force Warrior
Future Force Warrior(FFW) is a advanced
technology demonstration project that is
part of the Future Combat Systems
project.The FFW project seeks to create a
lightweight, fully integrated infantryman
combat system concept envisions the
radical use of technologies such as
nanotechnology, powered exoskeletons,
and magnetorheological fluid-based body
armor to provide the infantry with
significantly higher force multiplier than
the opposing force
Air Warrior and Warrior

11. FFW FIVE KEY FEATURES
 The FFW project aims to help protect the soldier by
providing full-body bullet and fragmentation protection.
 The technologies to help reduce the soldier's fighting
load and power requirements and improving the soldier's
protection.
 WarfighterPhysiological Status MonitorSubsystem
 Airwarrior ensemble, with the product intended to
provide life support, ballistic protection, and nuclear,
biological, and chemical (NBC) protection in mission
modules.
 The Weapon Subsystem is of light weight ,powerful
ammunition

12. Unmanned ground vehicle
 Unmanned Ground Vehicle is a lightweight, man portable Ground Vehicle
(UGV) capable of conducting military operations in urban terrain, tunnels,
sewers, and caves. The SUGV aids in the performance of manpower-
intensive or high-risk functions (i.e. urban Intelligence, Surveillance, and
Reconnaissance (ISR) missions, chemical/Toxic Industrial Chemicals (TIC),
Toxic Industrial Materials (TIM), reconnaissance, etc.).
 Working to minimize Soldiers' exposure directly to hazards, the UGV's
modular design allows multiple payloads to be integrated in a plug-and-play
fashion.

13. Relation between combat systems
 Work as continuous
pattern
 Form a network
 All having its own
importance in their field
 All system multi dollars
project
 Economically high to
developing country
Unmanned ground
Naval combat
Unmanned Ariel
Multiple & logistic
Future warrior

14. QUERY ?
