AMESim software can be used to simulate subsea oil and gas systems. It allows modeling of hydraulic power units, valves, actuators, accumulators, umbilicals, pipelines and other components. The software uses multi-domain modeling libraries to simulate dynamic behavior and optimize performance. System simulations can be run to analyze recovery time, emergency shutdown response and other scenarios. AMESim also enables closed-loop control system modeling and integration with other simulation tools.

1. AMESim’s role in Oil and Gas Industry

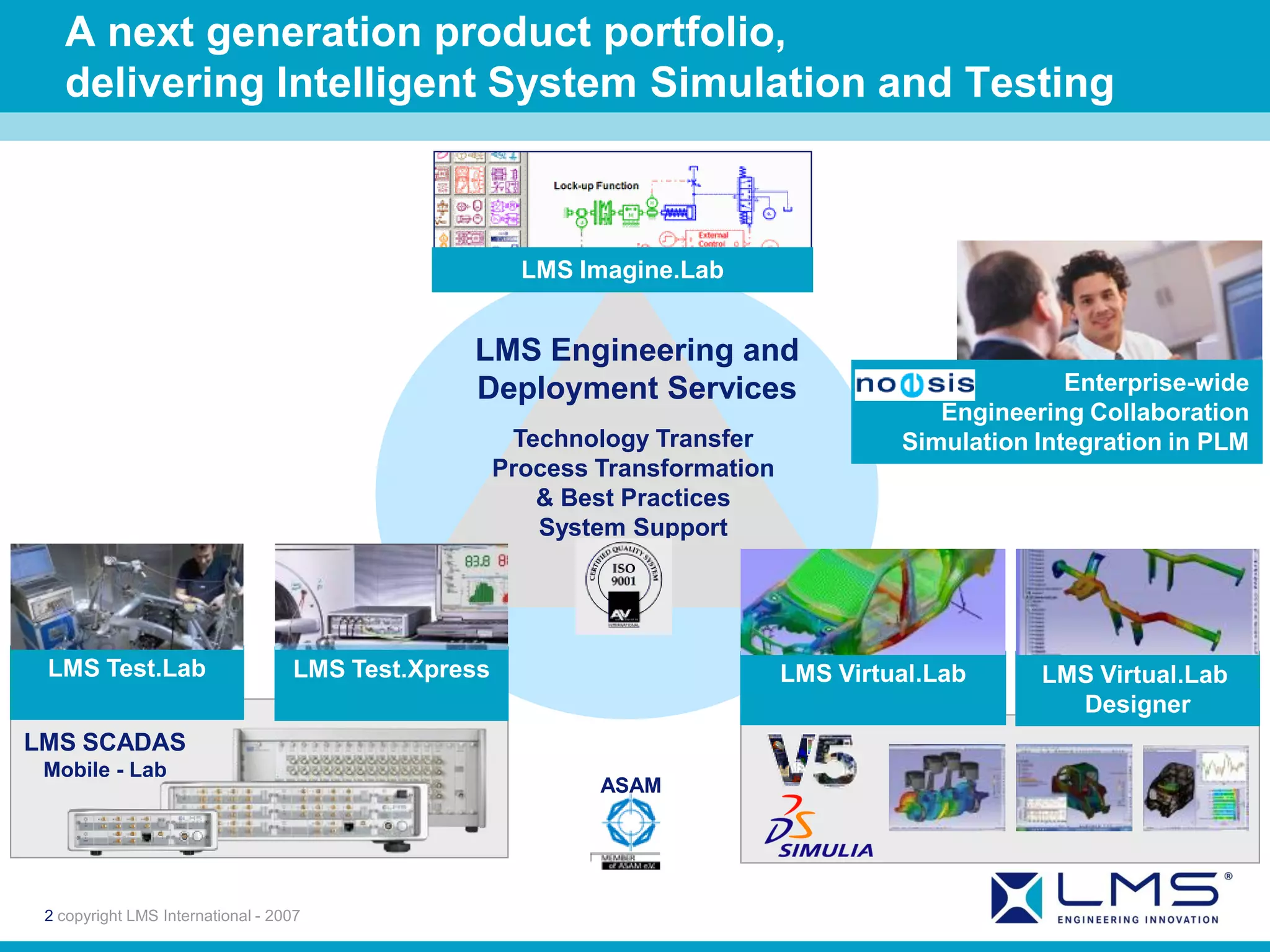

2. A next generation product portfolio,
delivering Intelligent System Simulation and Testing
LMS Imagine.Lab
LMS Engineering and
Deployment Services Enterprise-wide
Engineering Collaboration
Technology Transfer Simulation Integration in PLM
Process Transformation
& Best Practices
System Support
LMS Test.Lab LMS Test.Xpress LMS Virtual.Lab LMS Virtual.Lab
Designer
LMS SCADAS
Mobile - Lab
ASAM
2 copyright LMS International - 2007

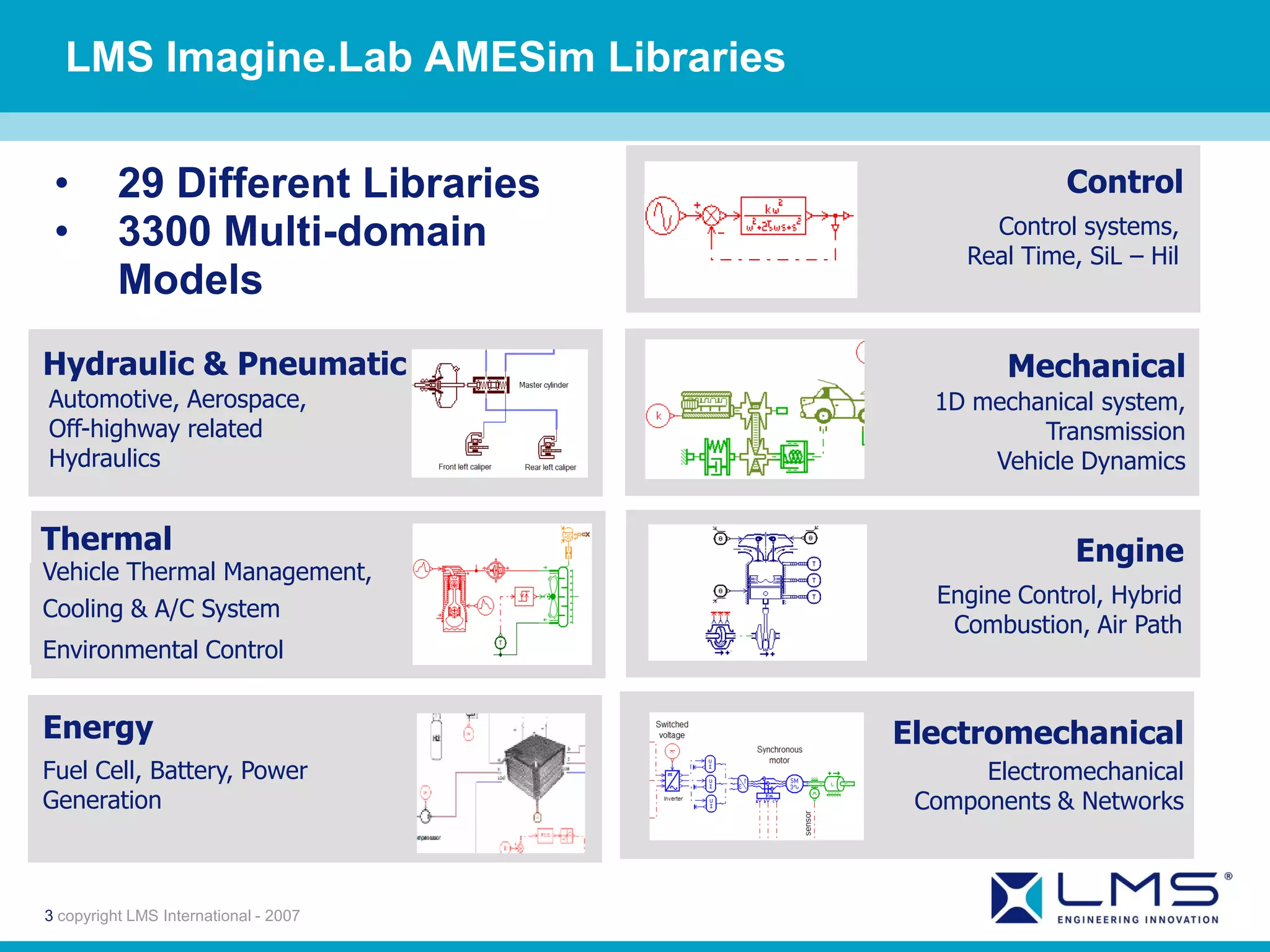

3. LMS Imagine.Lab AMESim Libraries
• 29 Different Libraries Control
• 3300 Multi-domain Control systems,
Real Time, SiL – Hil
Models
Hydraulic & Pneumatic Mechanical
Automotive, Aerospace, 1D mechanical system,
Off-highway related Transmission
Hydraulics Vehicle Dynamics
Thermal Engine
Vehicle Thermal Management,
Engine Control, Hybrid
Cooling & A/C System
Combustion, Air Path
Environmental Control
Energy Electromechanical
Fuel Cell, Battery, Power Electromechanical
Generation Components & Networks
3 copyright LMS International - 2007

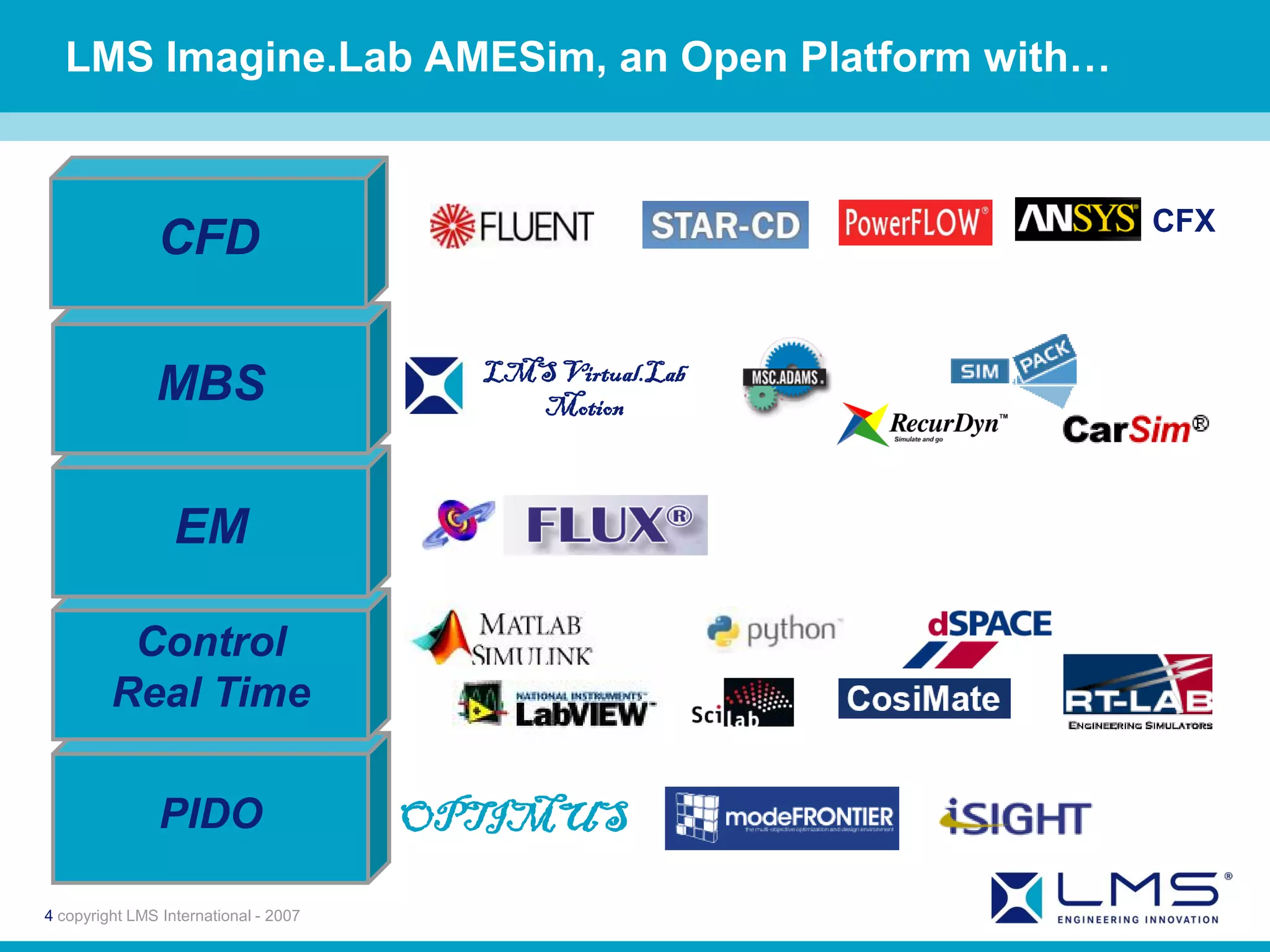

4. LMS Imagine.Lab AMESim, an Open Platform with…
CFX
CFD
LMS Virtual.Lab
MBS Motion
EM
Control
Real Time
PIDO OPTIMUS
4 copyright LMS International - 2007

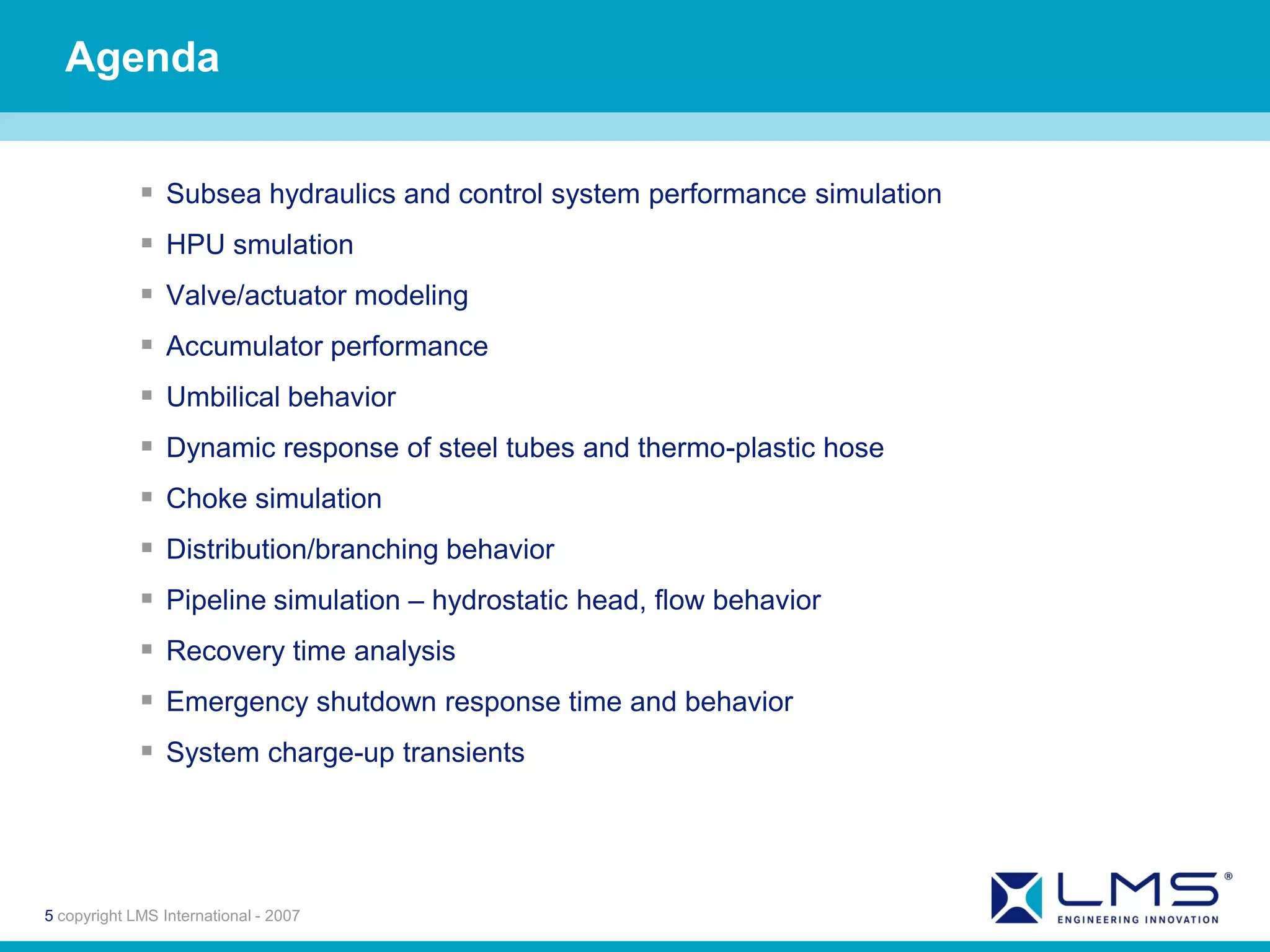

5. Agenda
 Subsea hydraulics and control system performance simulation
 HPU smulation
 Valve/actuator modeling
 Accumulator performance
 Umbilical behavior
 Dynamic response of steel tubes and thermo-plastic hose
 Choke simulation
 Distribution/branching behavior
 Pipeline simulation – hydrostatic head, flow behavior
 Recovery time analysis
 Emergency shutdown response time and behavior
 System charge-up transients
5 copyright LMS International - 2007

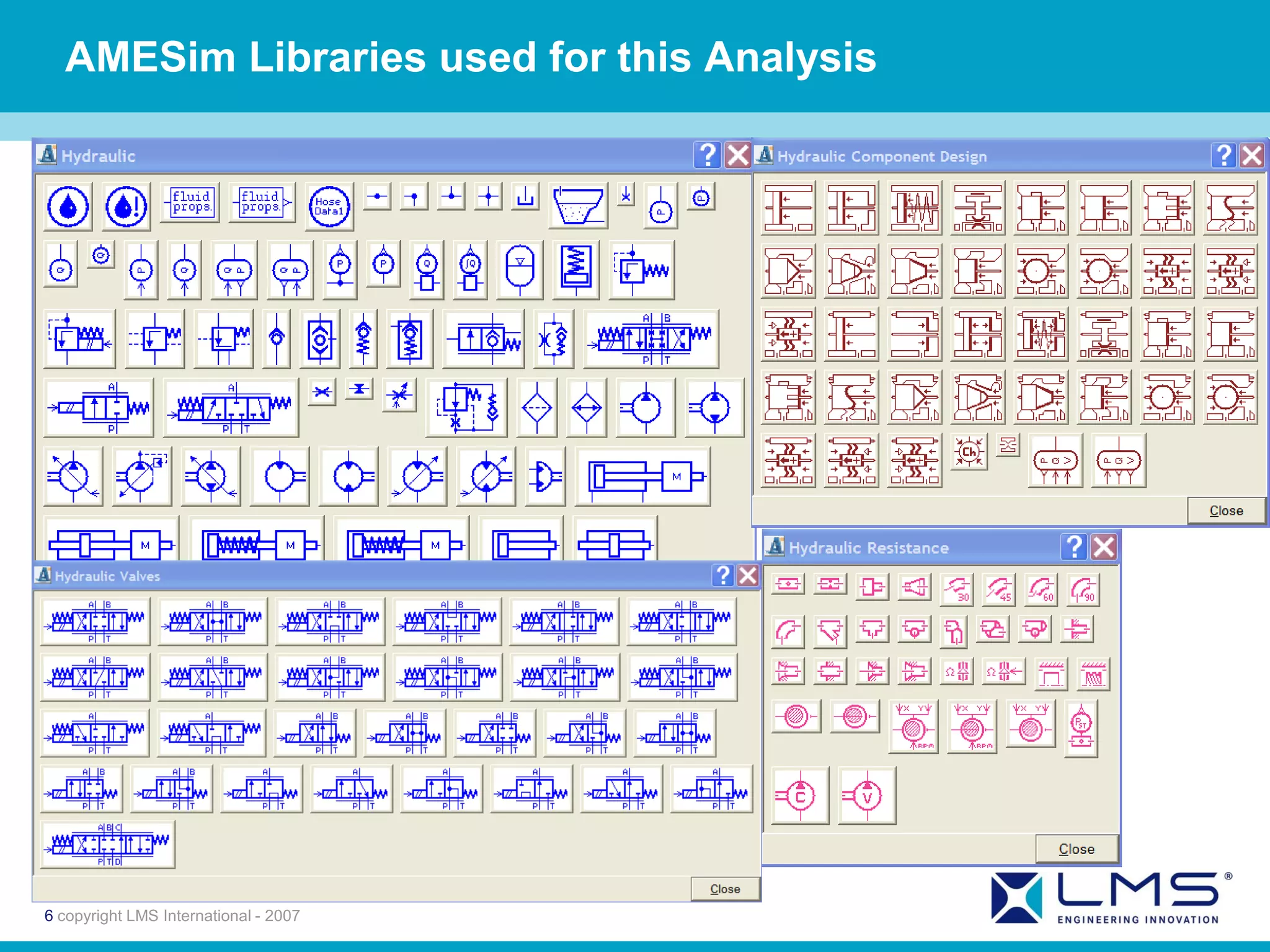

6. AMESim Libraries used for this Analysis
6 copyright LMS International - 2007

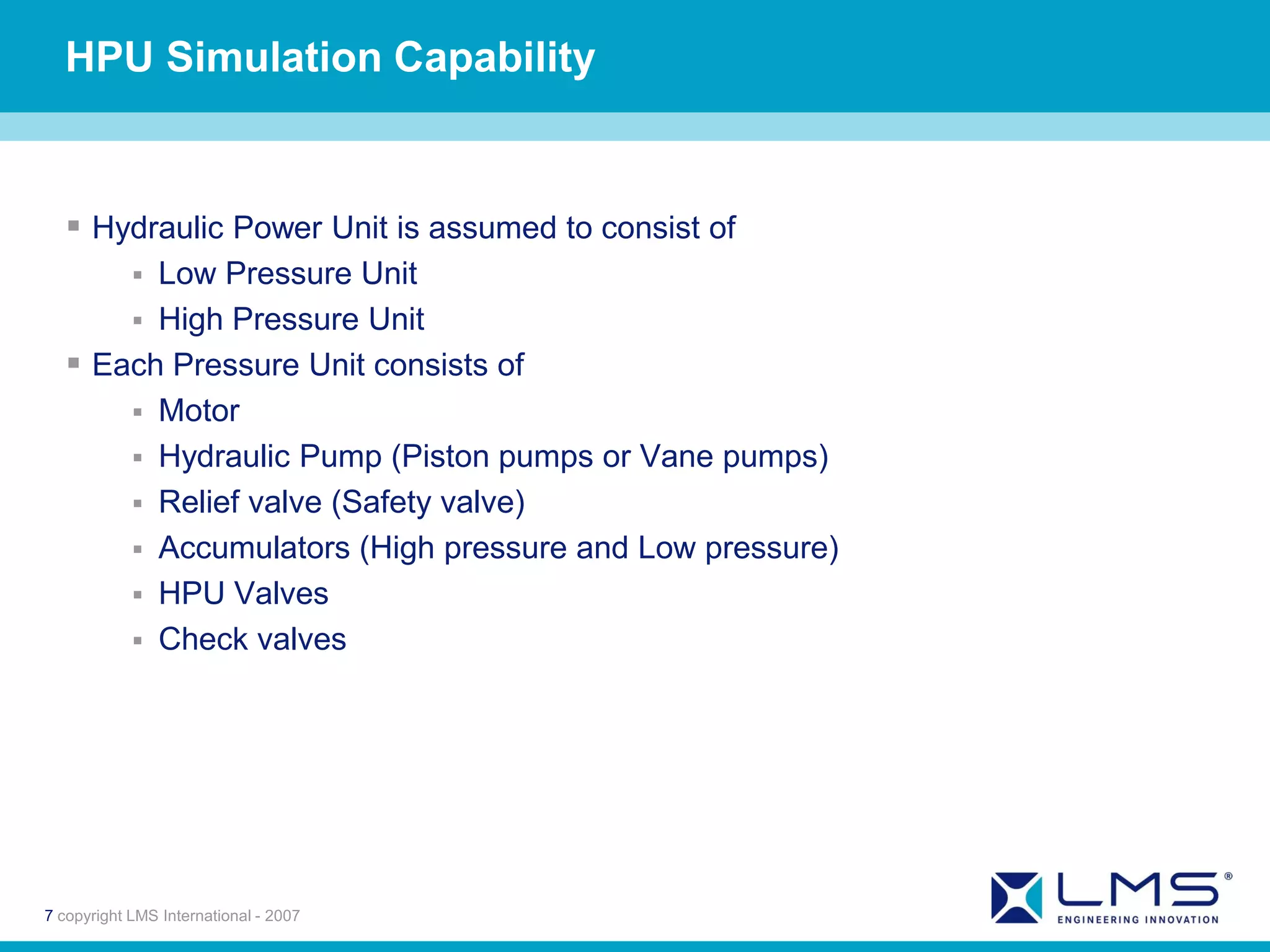

7. HPU Simulation Capability
 Hydraulic Power Unit is assumed to consist of

Low Pressure Unit
 High Pressure Unit
 Each Pressure Unit consists of
 Motor
 Hydraulic Pump (Piston pumps or Vane pumps)
 Relief valve (Safety valve)
 Accumulators (High pressure and Low pressure)
 HPU Valves
 Check valves
7 copyright LMS International - 2007

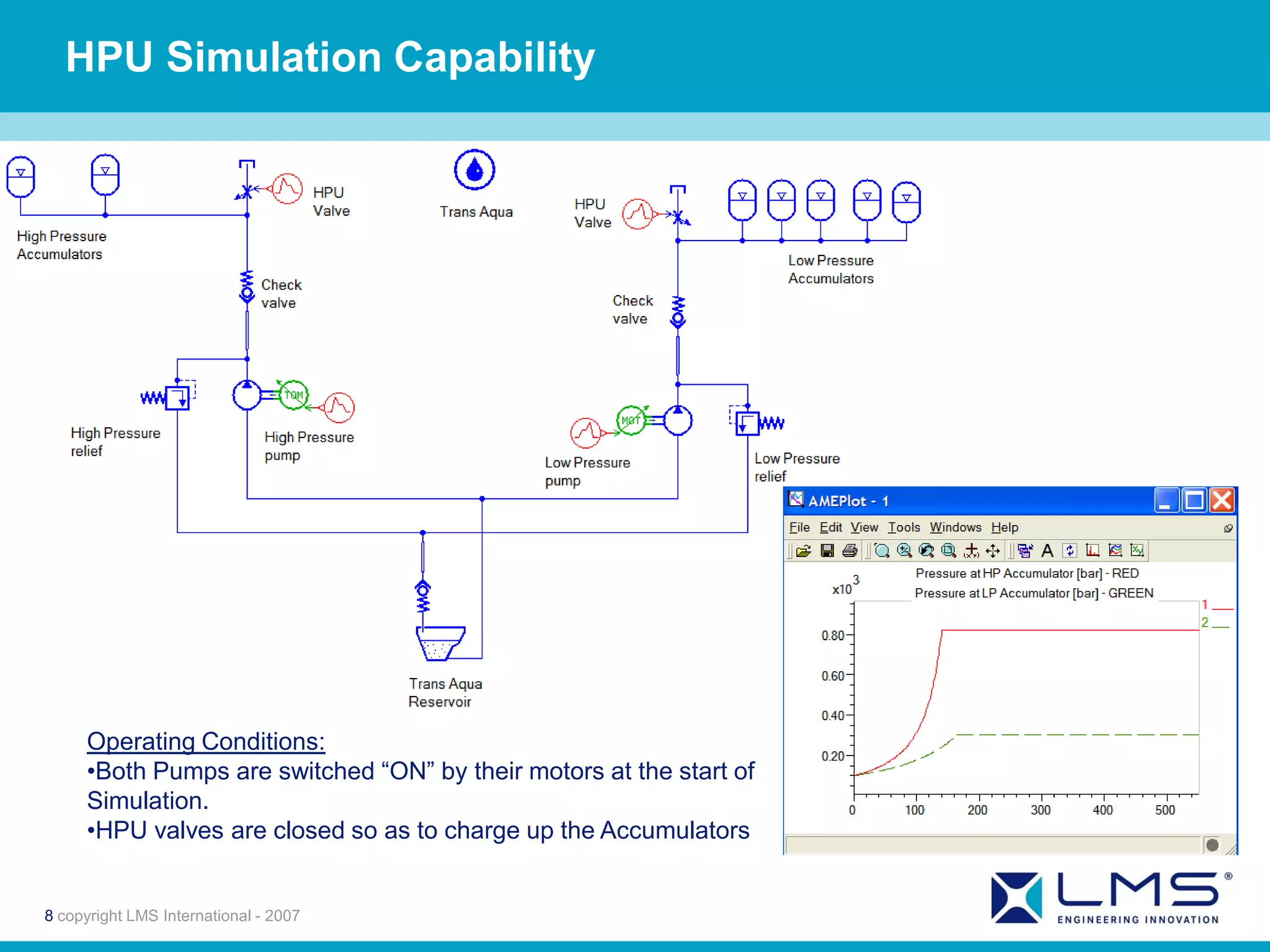

8. HPU Simulation Capability
Operating Conditions:
•Both Pumps are switched “ON” by their motors at the start of
Simulation.
•HPU valves are closed so as to charge up the Accumulators
8 copyright LMS International - 2007

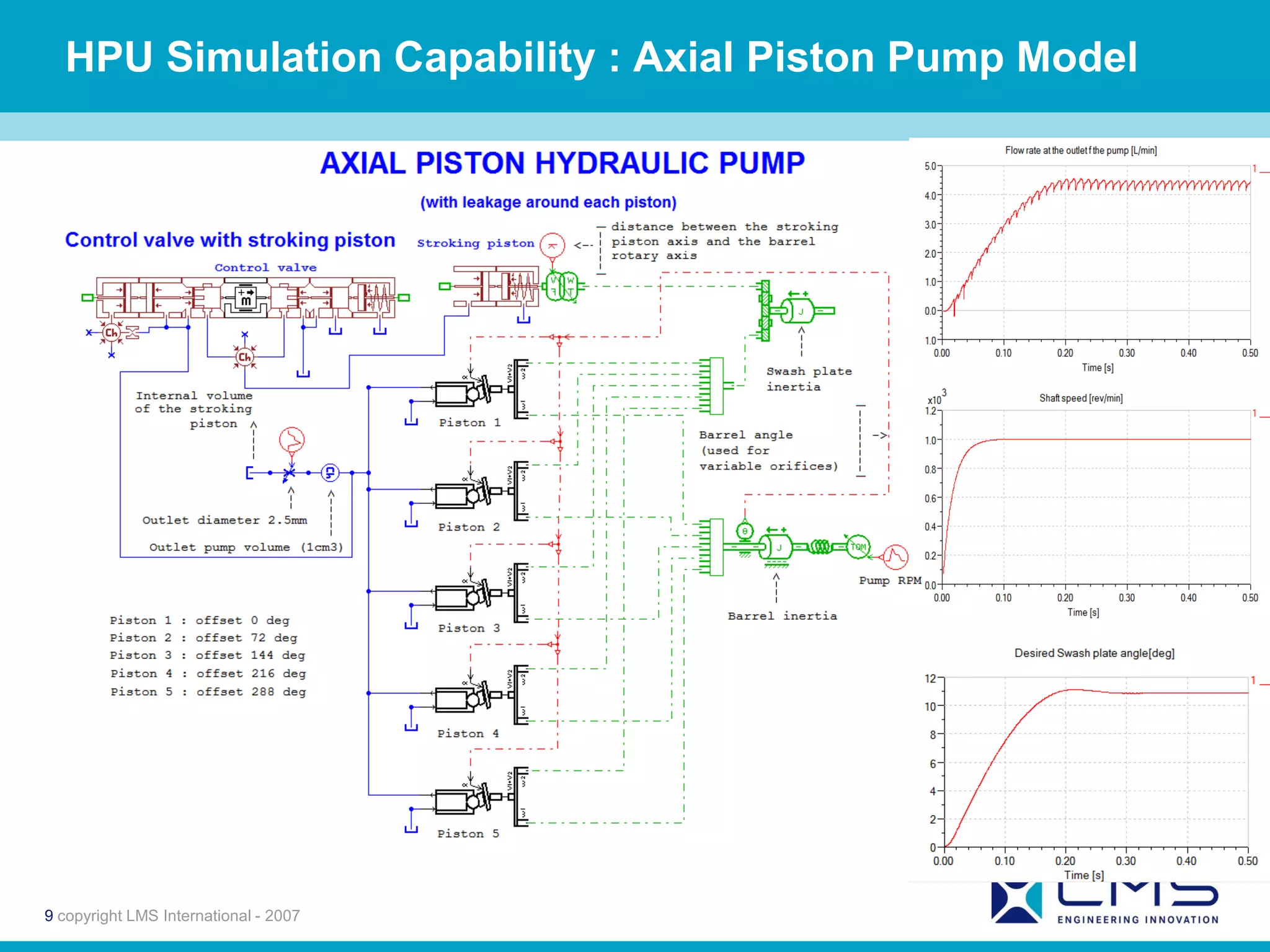

9. HPU Simulation Capability : Axial Piston Pump Model
Pressure feedback
9 copyright LMS International - 2007

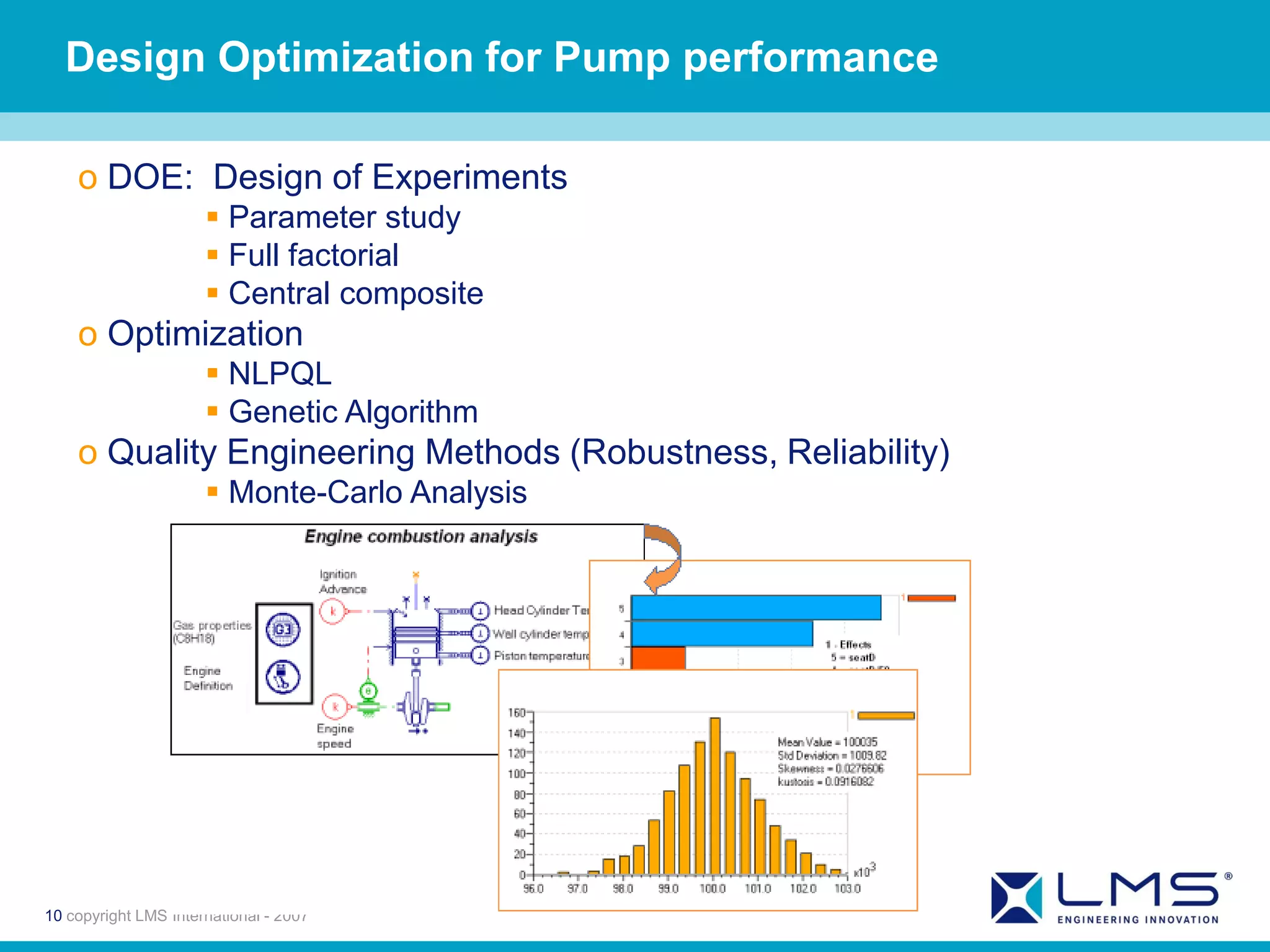

10. Design Optimization for Pump performance
o DOE: Design of Experiments
 Parameter study
 Full factorial
 Central composite
o Optimization
 NLPQL
 Genetic Algorithm
o Quality Engineering Methods (Robustness, Reliability)
 Monte-Carlo Analysis
10 copyright LMS International - 2007

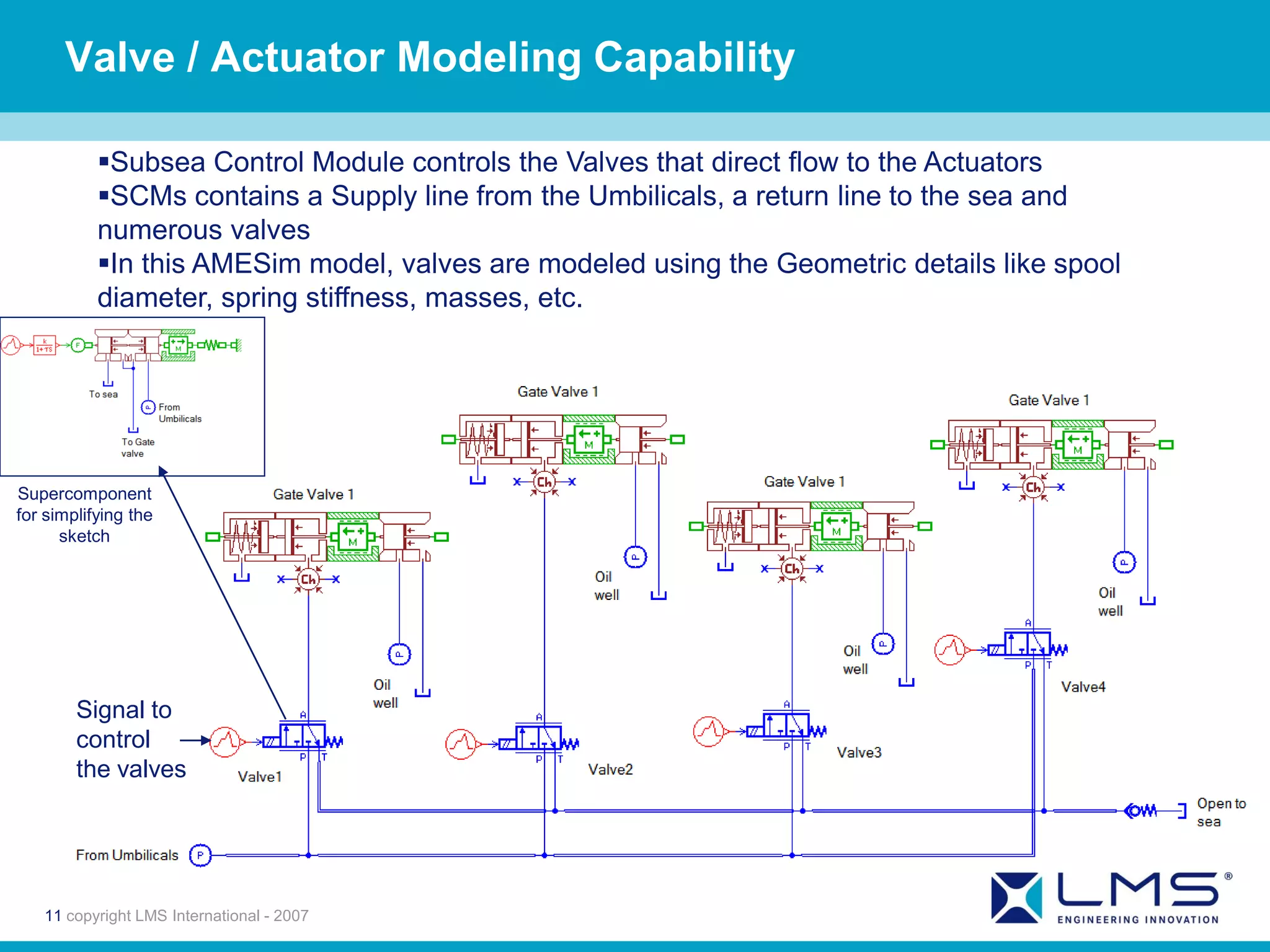

11. Valve / Actuator Modeling Capability
Subsea Control Module controls the Valves that direct flow to the Actuators
SCMs contains a Supply line from the Umbilicals, a return line to the sea and
numerous valves
In this AMESim model, valves are modeled using the Geometric details like spool
diameter, spring stiffness, masses, etc.
Supercomponent
for simplifying the
sketch
Signal to
control
the valves
11 copyright LMS International - 2007

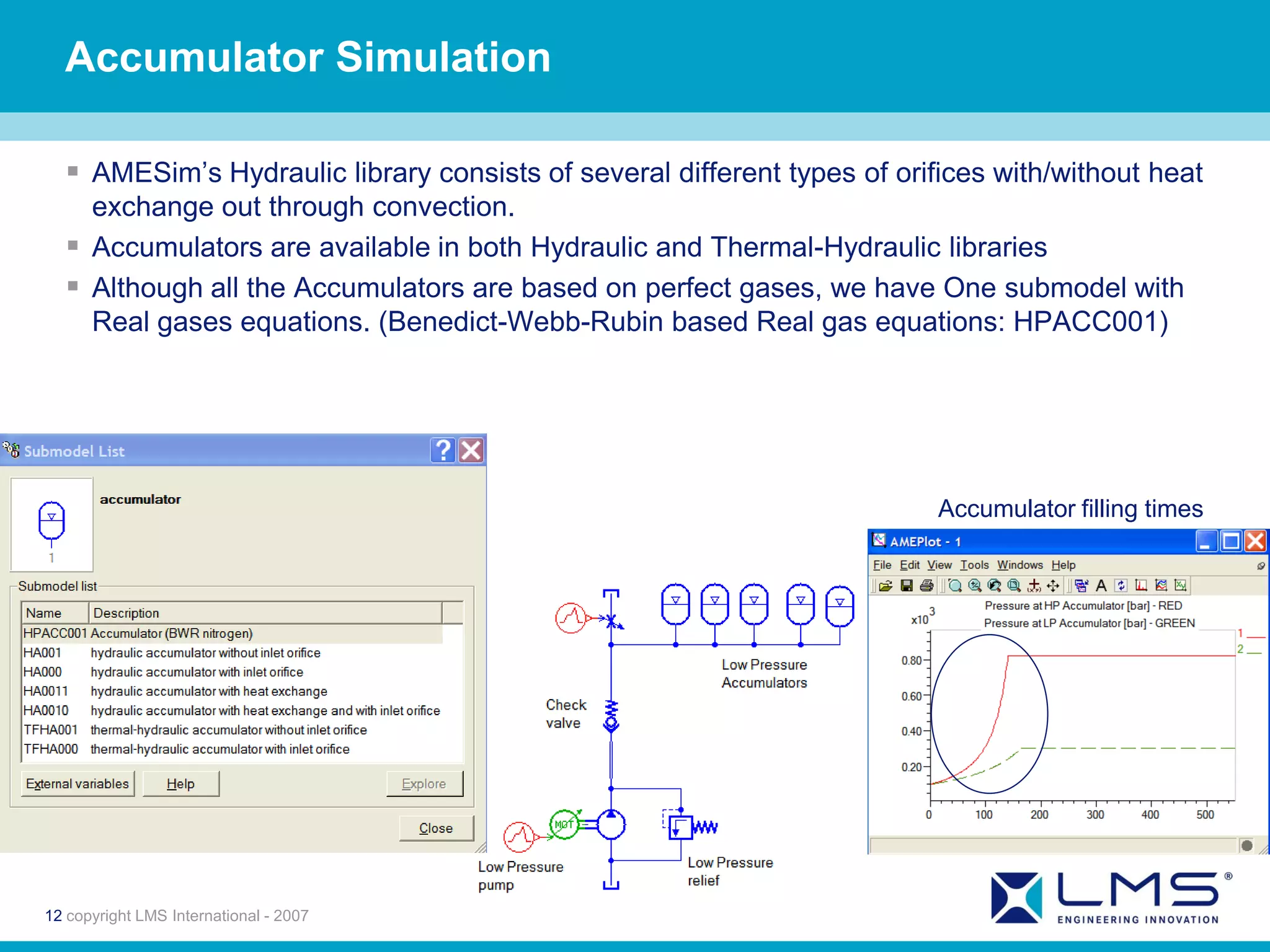

12. Accumulator Simulation
 AMESim’s Hydraulic library consists of several different types of orifices with/without heat
exchange out through convection.
 Accumulators are available in both Hydraulic and Thermal-Hydraulic libraries
 Although all the Accumulators are based on perfect gases, we have One submodel with
Real gases equations. (Benedict-Webb-Rubin based Real gas equations: HPACC001)
Accumulator filling times
12 copyright LMS International - 2007

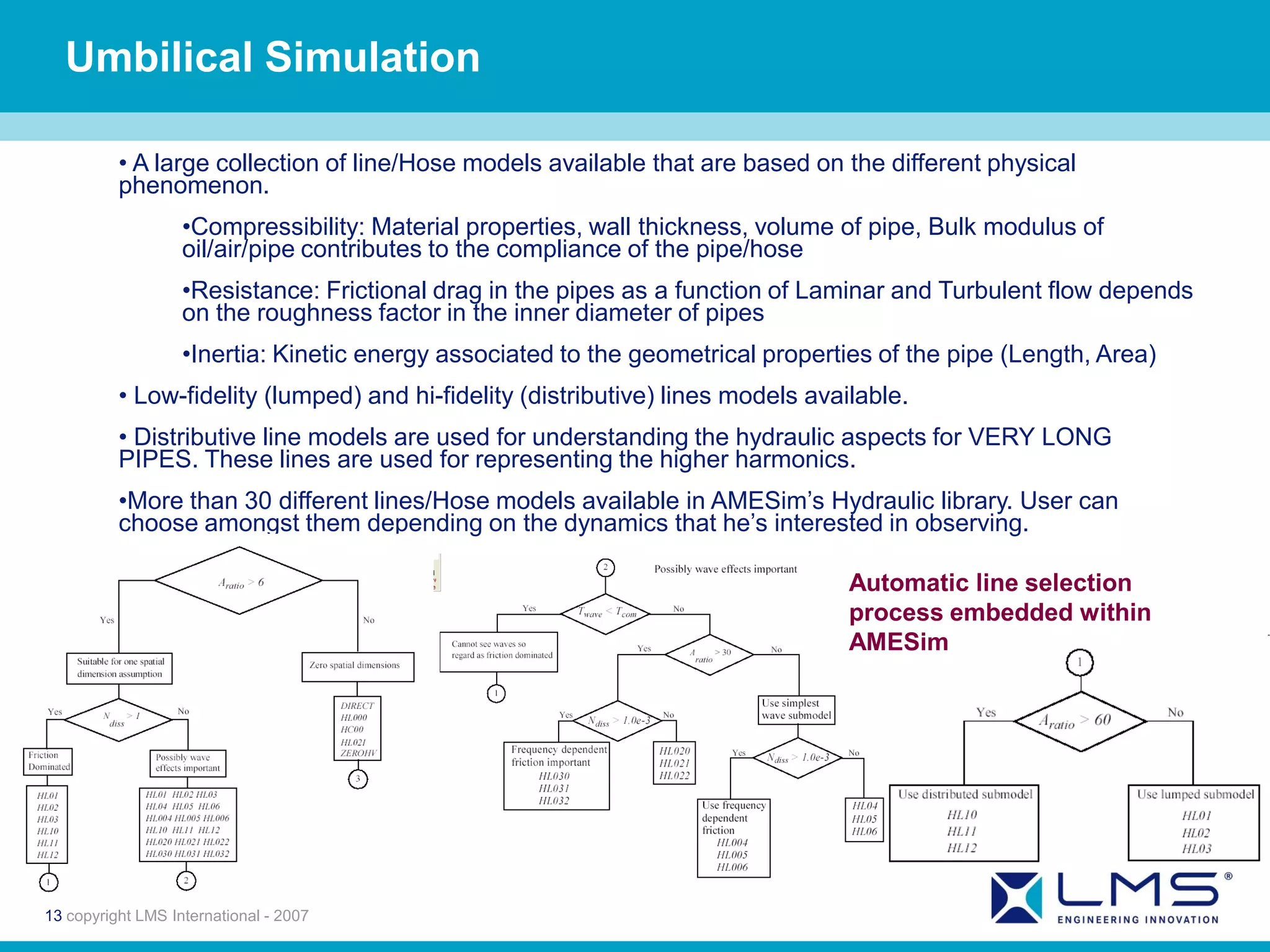

13. Umbilical Simulation
• A large collection of line/Hose models available that are based on the different physical
phenomenon.
•Compressibility: Material properties, wall thickness, volume of pipe, Bulk modulus of
oil/air/pipe contributes to the compliance of the pipe/hose
•Resistance: Frictional drag in the pipes as a function of Laminar and Turbulent flow depends
on the roughness factor in the inner diameter of pipes
•Inertia: Kinetic energy associated to the geometrical properties of the pipe (Length, Area)
• Low-fidelity (lumped) and hi-fidelity (distributive) lines models available.
• Distributive line models are used for understanding the hydraulic aspects for VERY LONG
PIPES. These lines are used for representing the higher harmonics.
•More than 30 different lines/Hose models available in AMESim’s Hydraulic library. User can
choose amongst them depending on the dynamics that he’s interested in observing.
Automatic line selection
process embedded within
AMESim
13 copyright LMS International - 2007

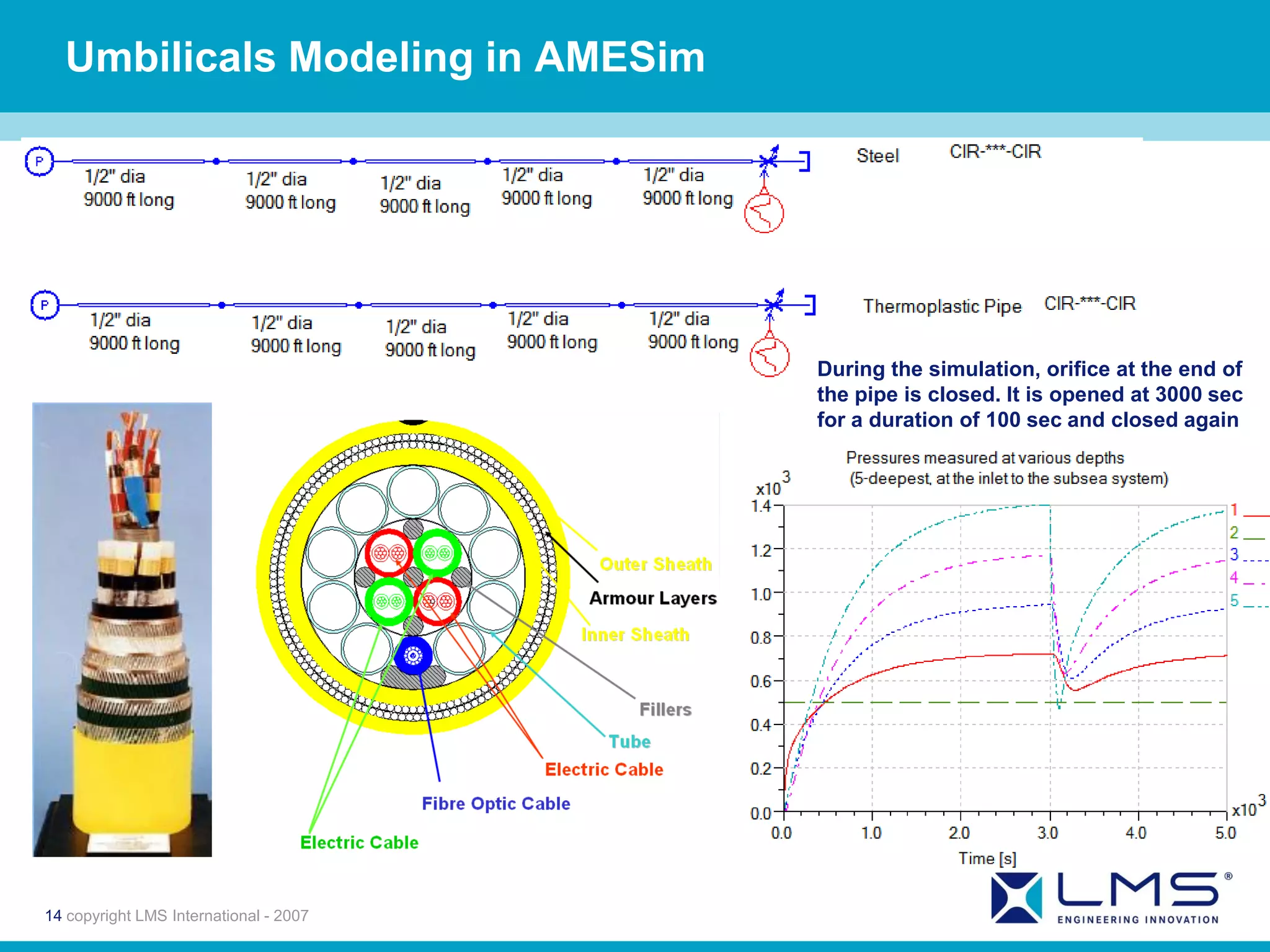

14. Umbilicals Modeling in AMESim
During the simulation, orifice at the end of
the pipe is closed. It is opened at 3000 sec
for a duration of 100 sec and closed again
14 copyright LMS International - 2007

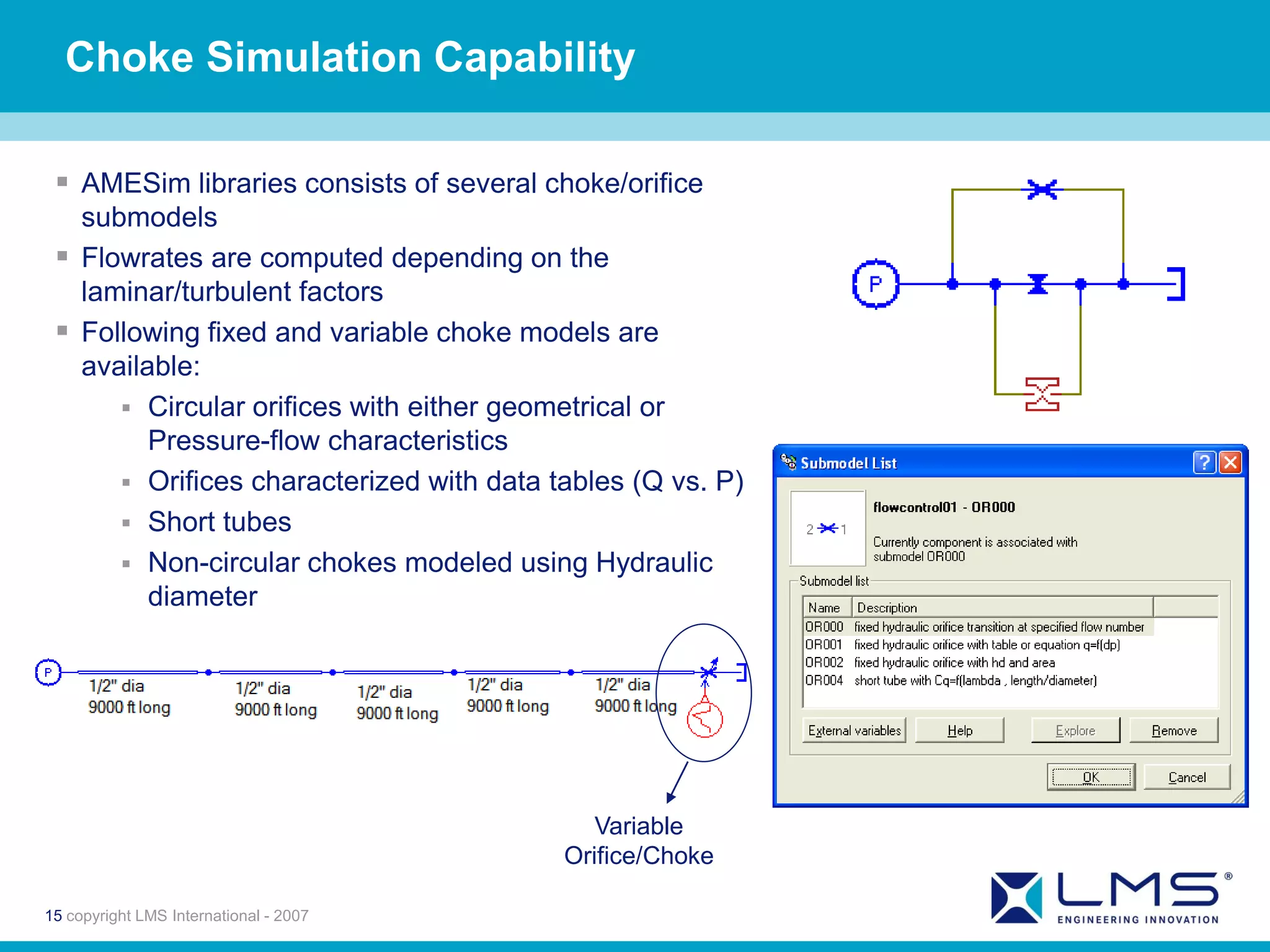

15. Choke Simulation Capability
 AMESim libraries consists of several choke/orifice
submodels
 Flowrates are computed depending on the
laminar/turbulent factors
 Following fixed and variable choke models are
available:
 Circular orifices with either geometrical or
Pressure-flow characteristics
 Orifices characterized with data tables (Q vs. P)
 Short tubes
 Non-circular chokes modeled using Hydraulic
diameter
Variable
Orifice/Choke
15 copyright LMS International - 2007

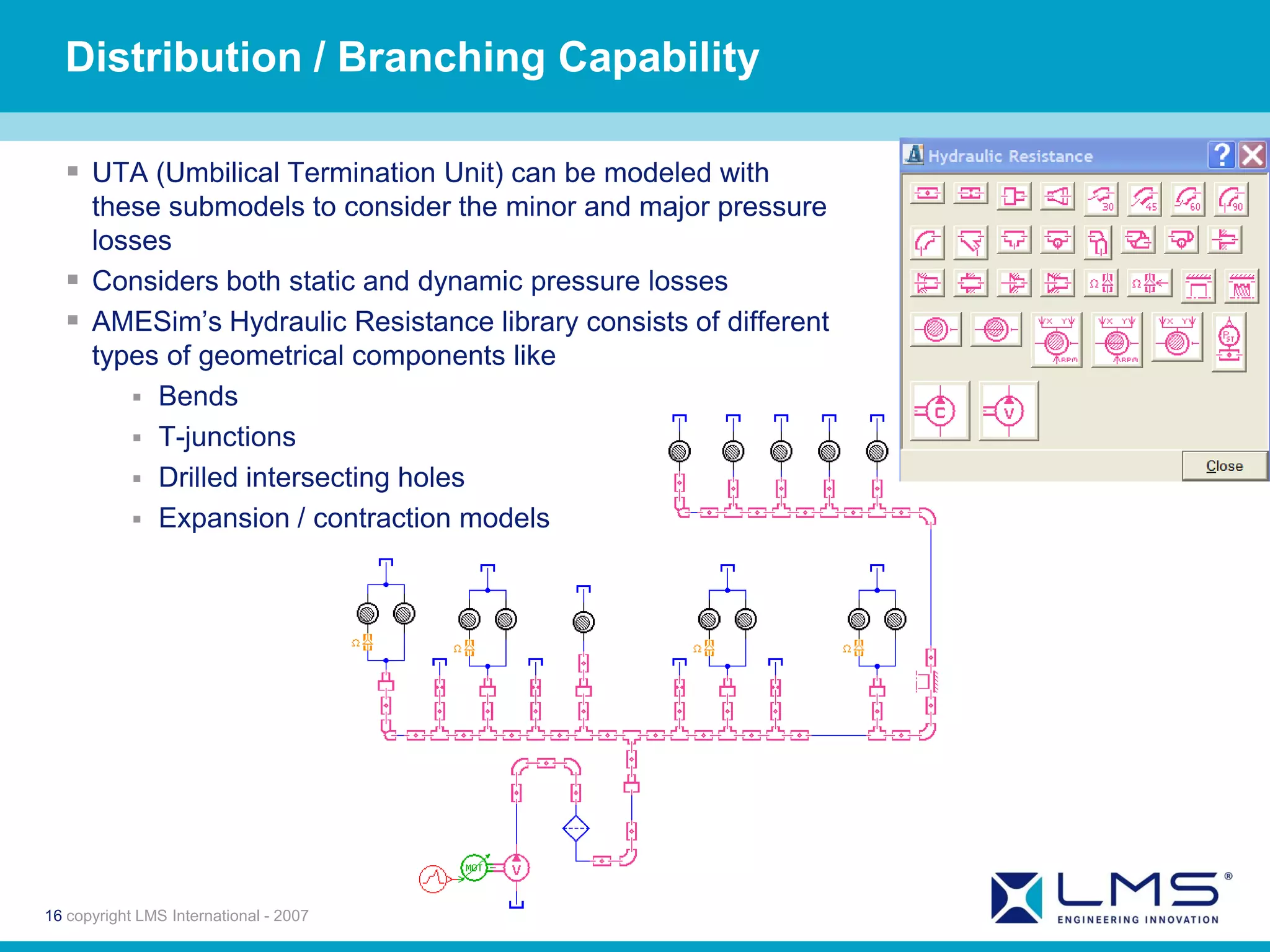

16. Distribution / Branching Capability
 UTA (Umbilical Termination Unit) can be modeled with
these submodels to consider the minor and major pressure
losses
 Considers both static and dynamic pressure losses
 AMESim’s Hydraulic Resistance library consists of different
types of geometrical components like
 Bends
 T-junctions
 Drilled intersecting holes
 Expansion / contraction models
16 copyright LMS International - 2007

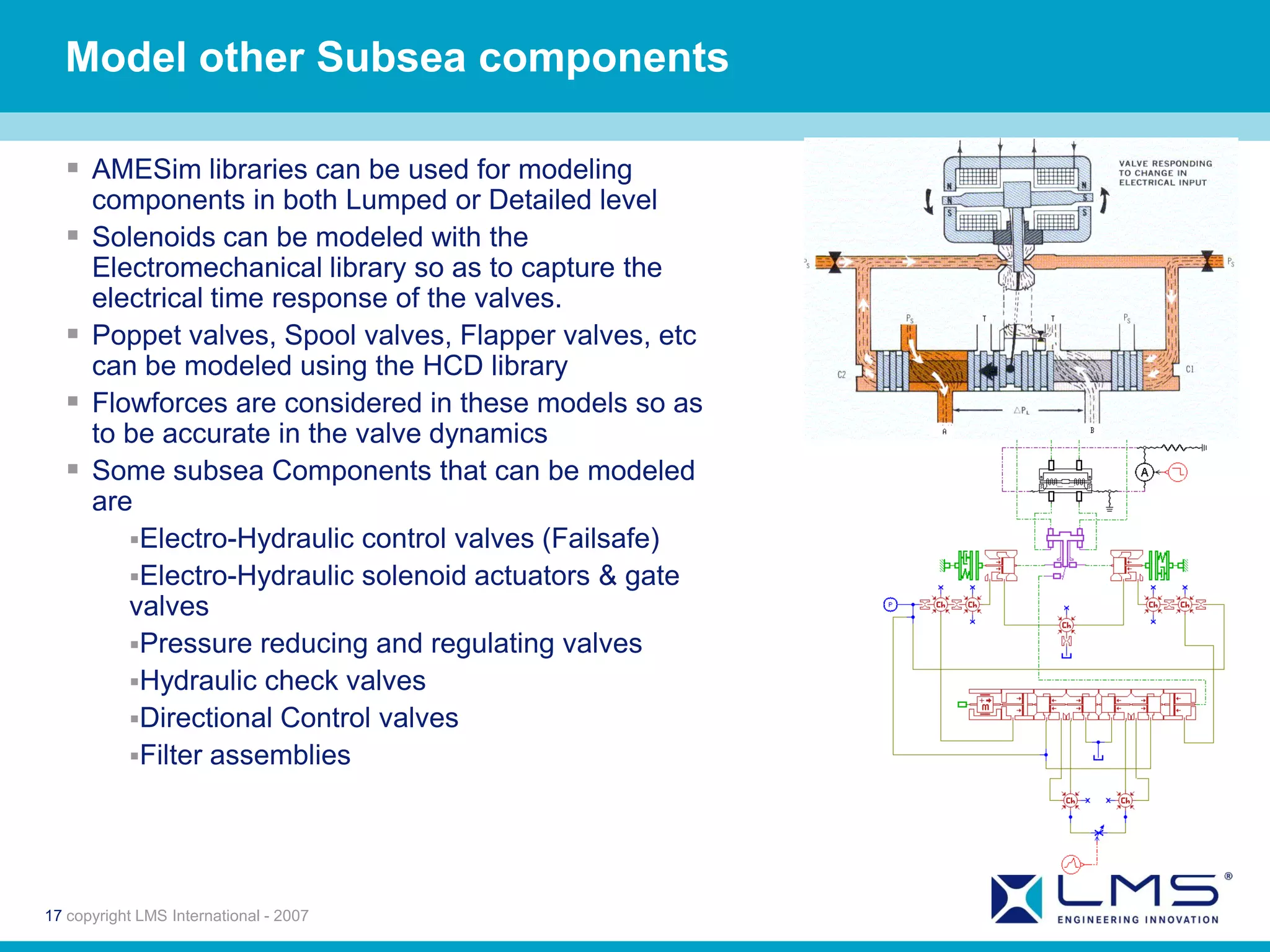

17. Model other Subsea components
 AMESim libraries can be used for modeling
components in both Lumped or Detailed level
 Solenoids can be modeled with the
Electromechanical library so as to capture the
electrical time response of the valves.
 Poppet valves, Spool valves, Flapper valves, etc
can be modeled using the HCD library
 Flowforces are considered in these models so as
to be accurate in the valve dynamics
 Some subsea Components that can be modeled
are
Electro-Hydraulic control valves (Failsafe)
Electro-Hydraulic solenoid actuators & gate
valves
Pressure reducing and regulating valves
Hydraulic check valves
Directional Control valves
Filter assemblies
17 copyright LMS International - 2007

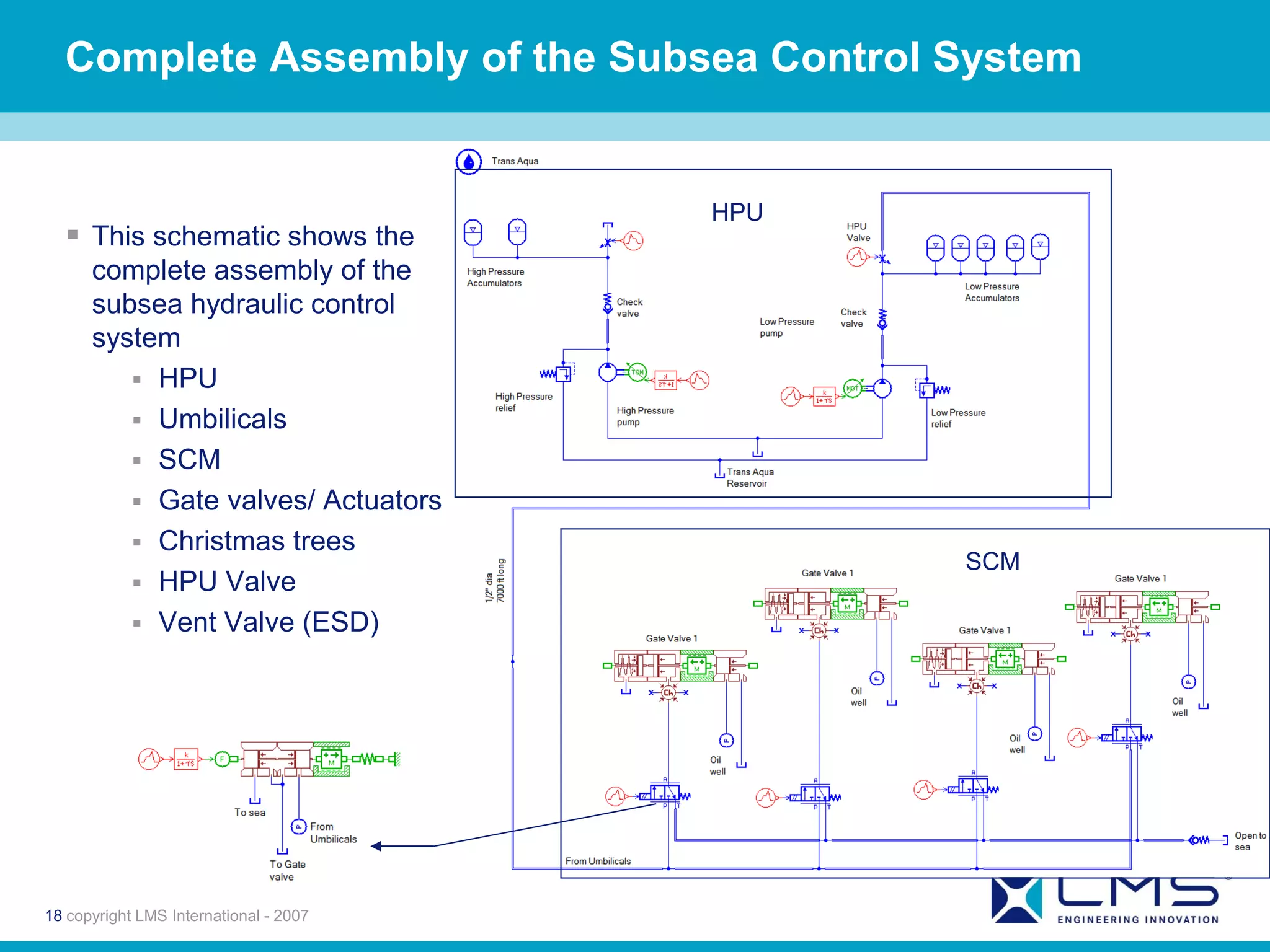

18. Complete Assembly of the Subsea Control System
HPU
 This schematic shows the
complete assembly of the
subsea hydraulic control
system
 HPU
 Umbilicals
 SCM
 Gate valves/ Actuators
 Christmas trees
SCM
 HPU Valve
 Vent Valve (ESD)
18 copyright LMS International - 2007

19. Hydrostatic Head Modeling Capability
 AMESim hydraulic line models compute the
hydrostatic head depending on the angle of
inclination of the pipe, depth of the pipe and
the oil property
 Distributive line model show the pressures at
the intermediate nodes in a line
 Units can be changed on independent
properties.
Hydrostatic pressure = density * gravity *
height (@7000 ft)
= 176 bar
19 copyright LMS International - 2007

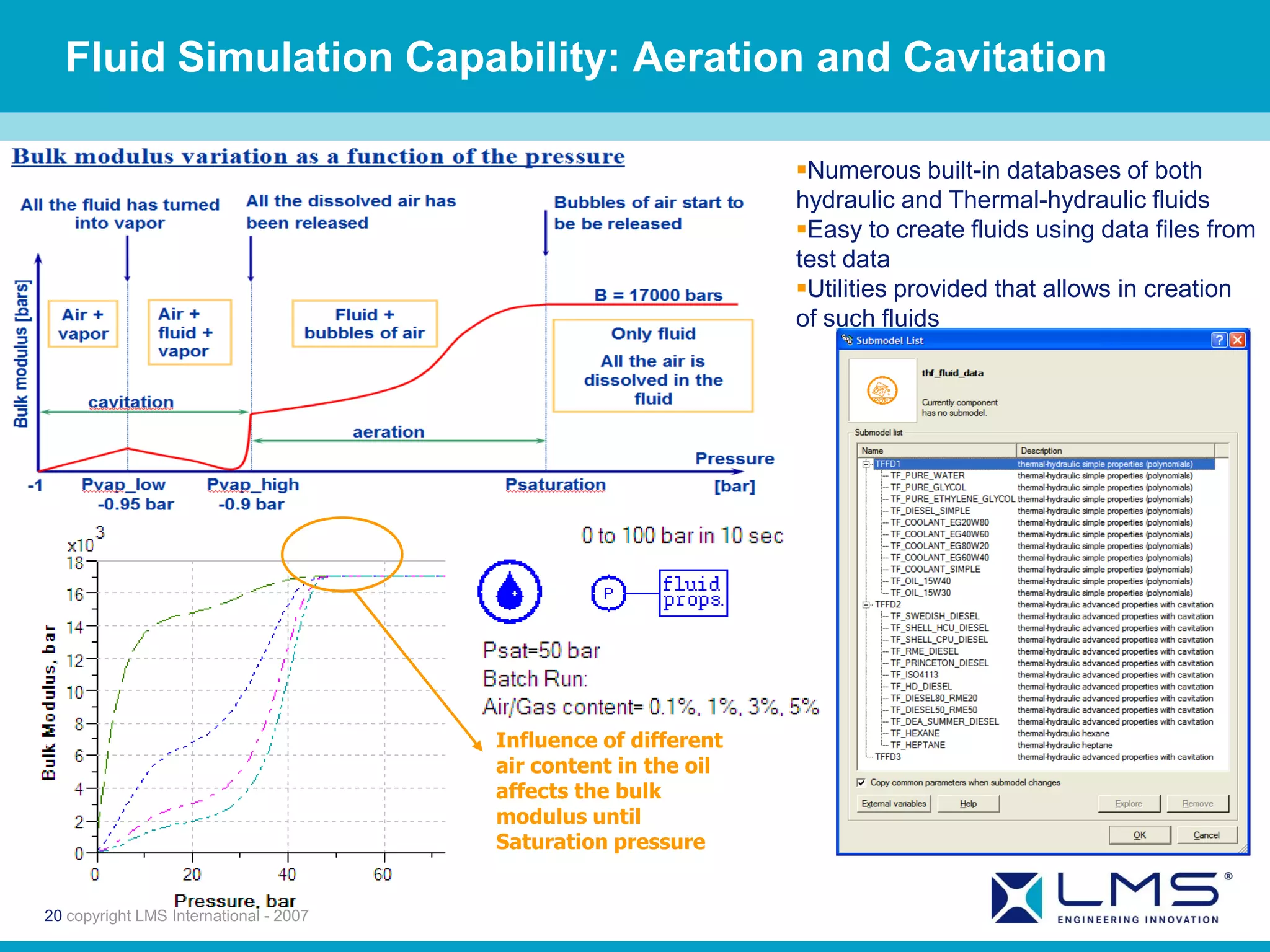

20. Fluid Simulation Capability: Aeration and Cavitation
Numerous built-in databases of both
hydraulic and Thermal-hydraulic fluids
Easy to create fluids using data files from
test data
Utilities provided that allows in creation
Bulk modulus [bars] of such fluids
0%
0.1 %
2%
10 %
Influence of different
air content in the oil
affects the bulk
modulus until
Saturation pressure
20 copyright LMS International - 2007

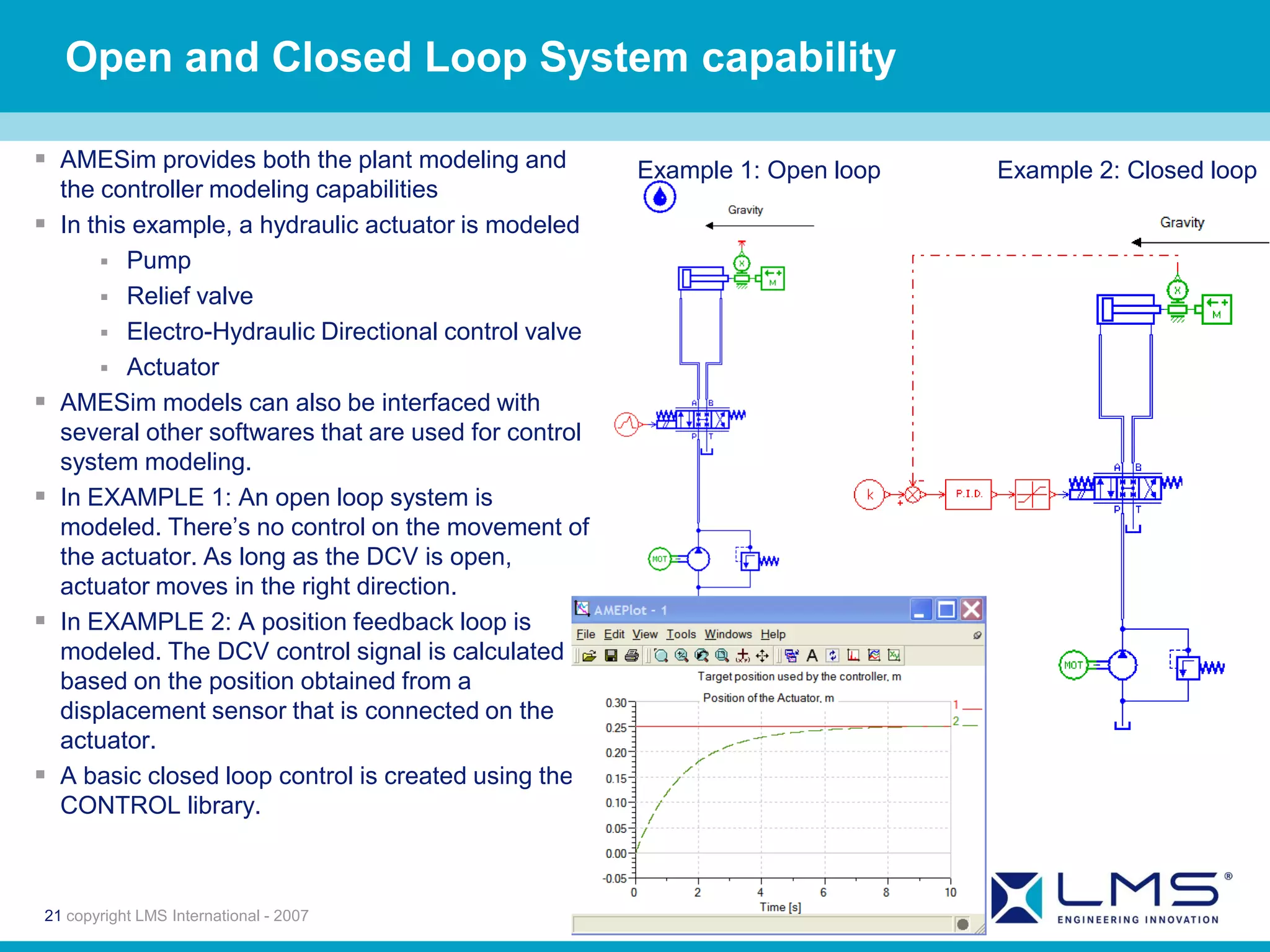

21. Open and Closed Loop System capability
 AMESim provides both the plant modeling and Example 1: Open loop Example 2: Closed loop
the controller modeling capabilities
 In this example, a hydraulic actuator is modeled
 Pump
 Relief valve
 Electro-Hydraulic Directional control valve
 Actuator
 AMESim models can also be interfaced with
several other softwares that are used for control
system modeling.
 In EXAMPLE 1: An open loop system is
modeled. There’s no control on the movement of
the actuator. As long as the DCV is open,
actuator moves in the right direction.
 In EXAMPLE 2: A position feedback loop is
modeled. The DCV control signal is calculated
based on the position obtained from a
displacement sensor that is connected on the
actuator.
 A basic closed loop control is created using the
CONTROL library.
21 copyright LMS International - 2007

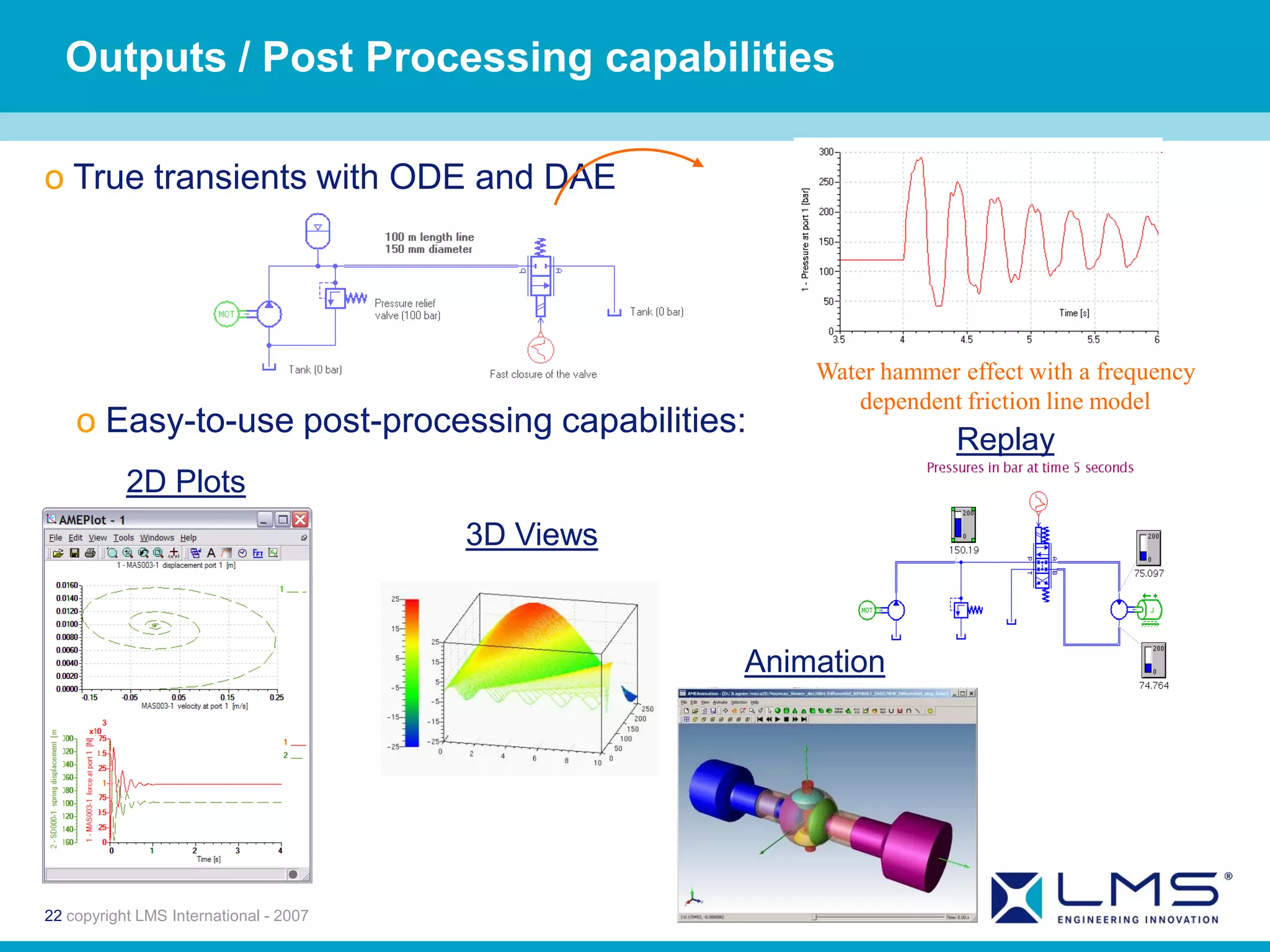

22. Outputs / Post Processing capabilities
o True transients with ODE and DAE
Water hammer effect with a frequency
dependent friction line model
o Easy-to-use post-processing capabilities:
Replay
2D Plots
3D Views
Animation
22 copyright LMS International - 2007

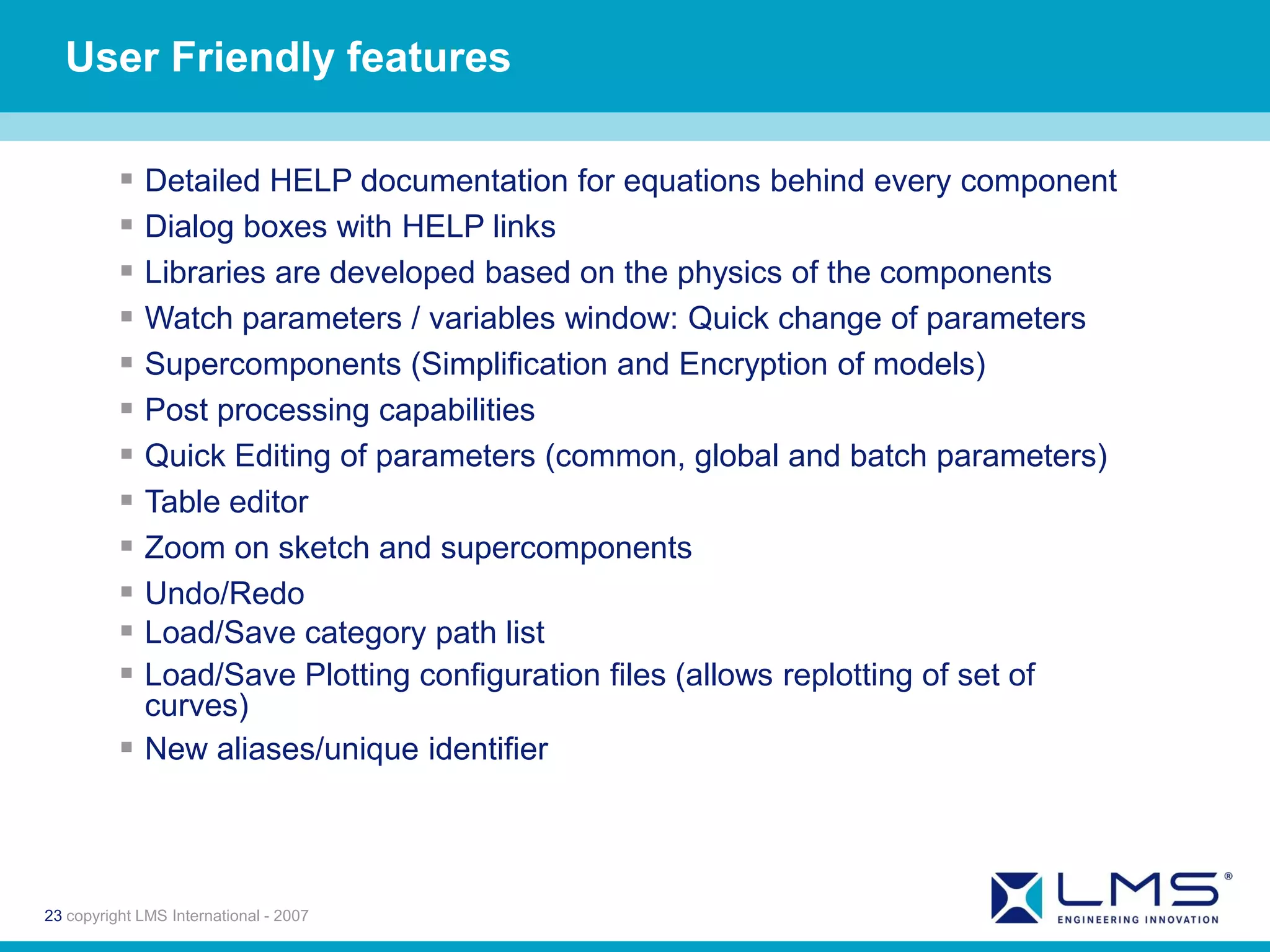

23. User Friendly features
 Detailed HELP documentation for equations behind every component
 Dialog boxes with HELP links
 Libraries are developed based on the physics of the components
 Watch parameters / variables window: Quick change of parameters
 Supercomponents (Simplification and Encryption of models)
 Post processing capabilities
 Quick Editing of parameters (common, global and batch parameters)
 Table editor
 Zoom on sketch and supercomponents
 Undo/Redo
 Load/Save category path list
 Load/Save Plotting configuration files (allows replotting of set of
curves)
 New aliases/unique identifier
23 copyright LMS International - 2007

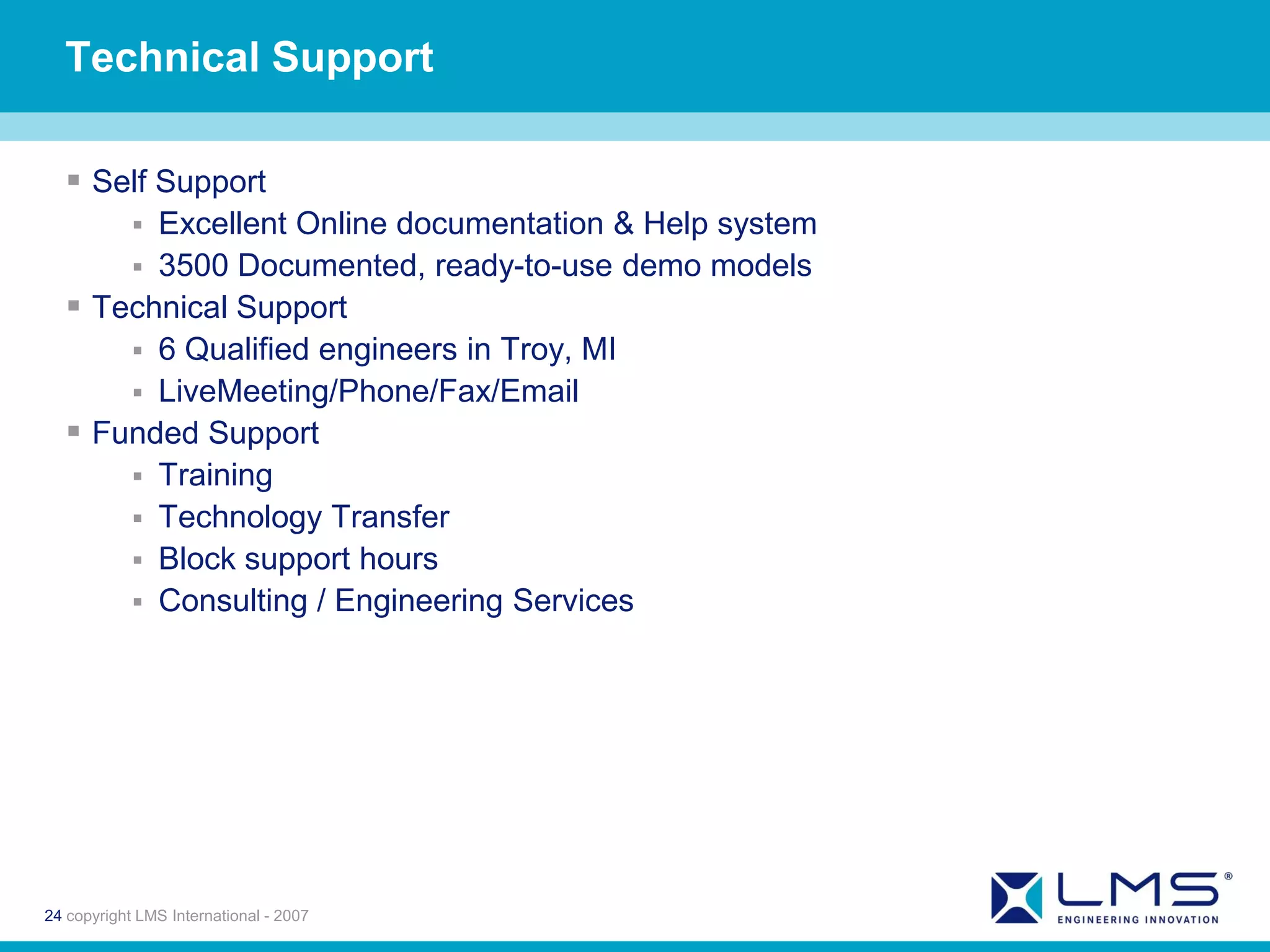

24. Technical Support
 Self Support

Excellent Online documentation & Help system
 3500 Documented, ready-to-use demo models
 Technical Support
 6 Qualified engineers in Troy, MI
 LiveMeeting/Phone/Fax/Email
 Funded Support
 Training
 Technology Transfer
 Block support hours
 Consulting / Engineering Services
24 copyright LMS International - 2007

25. Thank you
