This document lists and describes various functions and codes for a Doosan HM-630 machine tool. Some of the functions include stopping the program or spindle, changing tooling or pallets automatically, controlling cooling systems and cleaning functions, and calling or ending subprograms. The codes start with letters like M or numbers and activate different axes, speeds, orientations, and optional stop functions. Some functions are currently inactive and marked in gray.

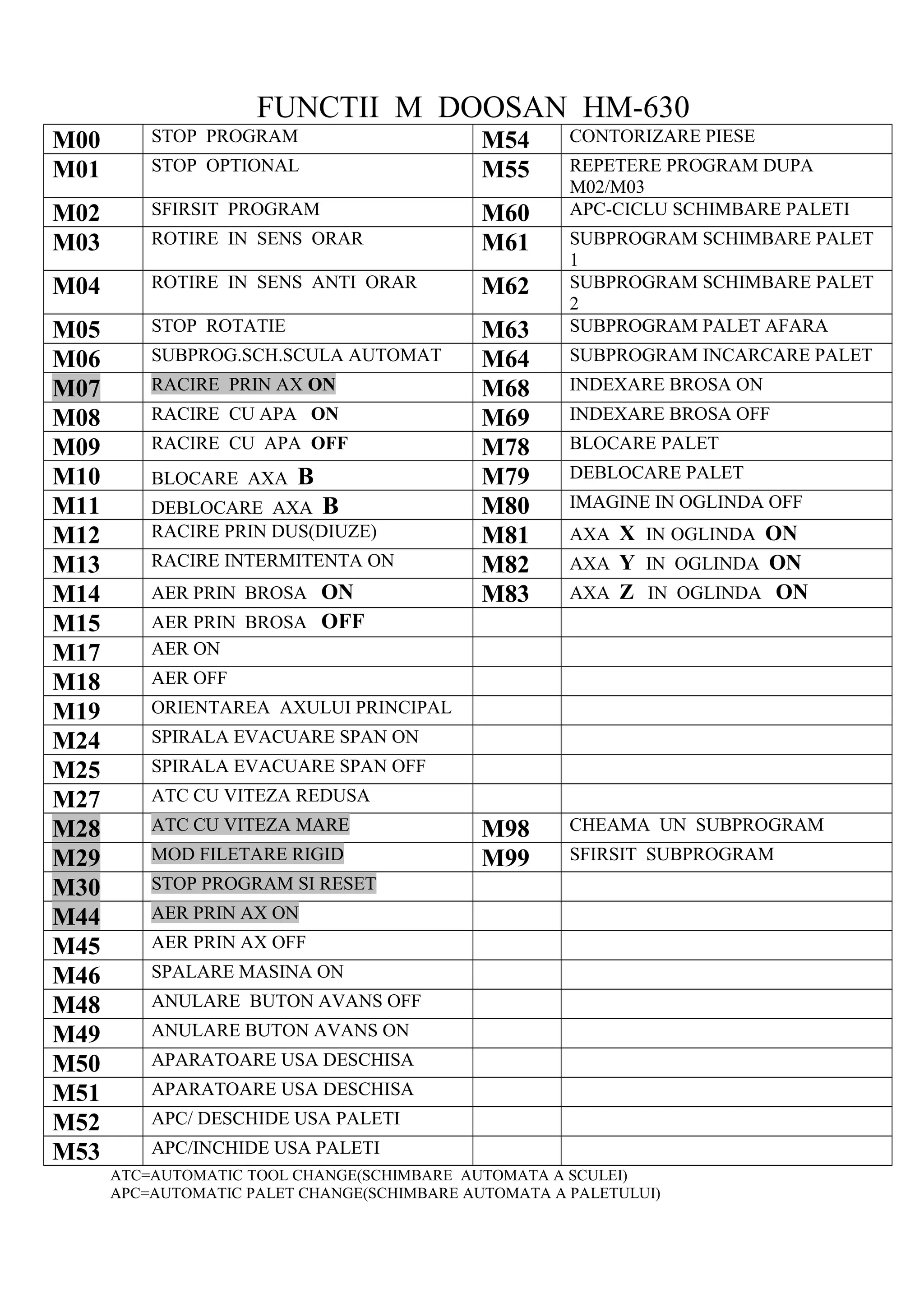

1. FUNCTII M DOOSAN HM-630
M00 STOP PROGRAM M54 CONTORIZARE PIESE
M01 STOP OPTIONAL M55 REPETERE PROGRAM DUPA
M02/M03
M02 SFIRSIT PROGRAM M60 APC-CICLU SCHIMBARE PALETI
M03 ROTIRE IN SENS ORAR M61 SUBPROGRAM SCHIMBARE PALET
1
M04 ROTIRE IN SENS ANTI ORAR M62 SUBPROGRAM SCHIMBARE PALET
2
M05 STOP ROTATIE M63 SUBPROGRAM PALET AFARA
M06 SUBPROG.SCH.SCULA AUTOMAT M64 SUBPROGRAM INCARCARE PALET
M07 RACIRE PRIN AX ON M68 INDEXARE BROSA ON
M08 RACIRE CU APA ON M69 INDEXARE BROSA OFF
M09 RACIRE CU APA OFF M78 BLOCARE PALET
M10 BLOCARE AXA B M79 DEBLOCARE PALET
M11 DEBLOCARE AXA B M80 IMAGINE IN OGLINDA OFF
M12 RACIRE PRIN DUS(DIUZE) M81 AXA X IN OGLINDA ON
M13 RACIRE INTERMITENTA ON M82 AXA Y IN OGLINDA ON
M14 AER PRIN BROSA ON M83 AXA Z IN OGLINDA ON
M15 AER PRIN BROSA OFF
M17 AER ON
M18 AER OFF
M19 ORIENTAREA AXULUI PRINCIPAL
M24 SPIRALA EVACUARE SPAN ON
M25 SPIRALA EVACUARE SPAN OFF
M27 ATC CU VITEZA REDUSA
M28 ATC CU VITEZA MARE M98 CHEAMA UN SUBPROGRAM
M29 MOD FILETARE RIGID M99 SFIRSIT SUBPROGRAM
M30 STOP PROGRAM SI RESET
M44 AER PRIN AX ON
M45 AER PRIN AX OFF
M46 SPALARE MASINA ON
M48 ANULARE BUTON AVANS OFF
M49 ANULARE BUTON AVANS ON
M50 APARATOARE USA DESCHISA
M51 APARATOARE USA DESCHISA
M52 APC/ DESCHIDE USA PALETI
M53 APC/INCHIDE USA PALETI
ATC=AUTOMATIC TOOL CHANGE(SCHIMBARE AUTOMATA A SCULEI)
APC=AUTOMATIC PALET CHANGE(SCHIMBARE AUTOMATA A PALETULUI)

3. *FUNCTIILE MARCATE CU GRI NU SUNT ACTIVE
