Frontend for developers

Frontend for Developers
HTML for WebApps

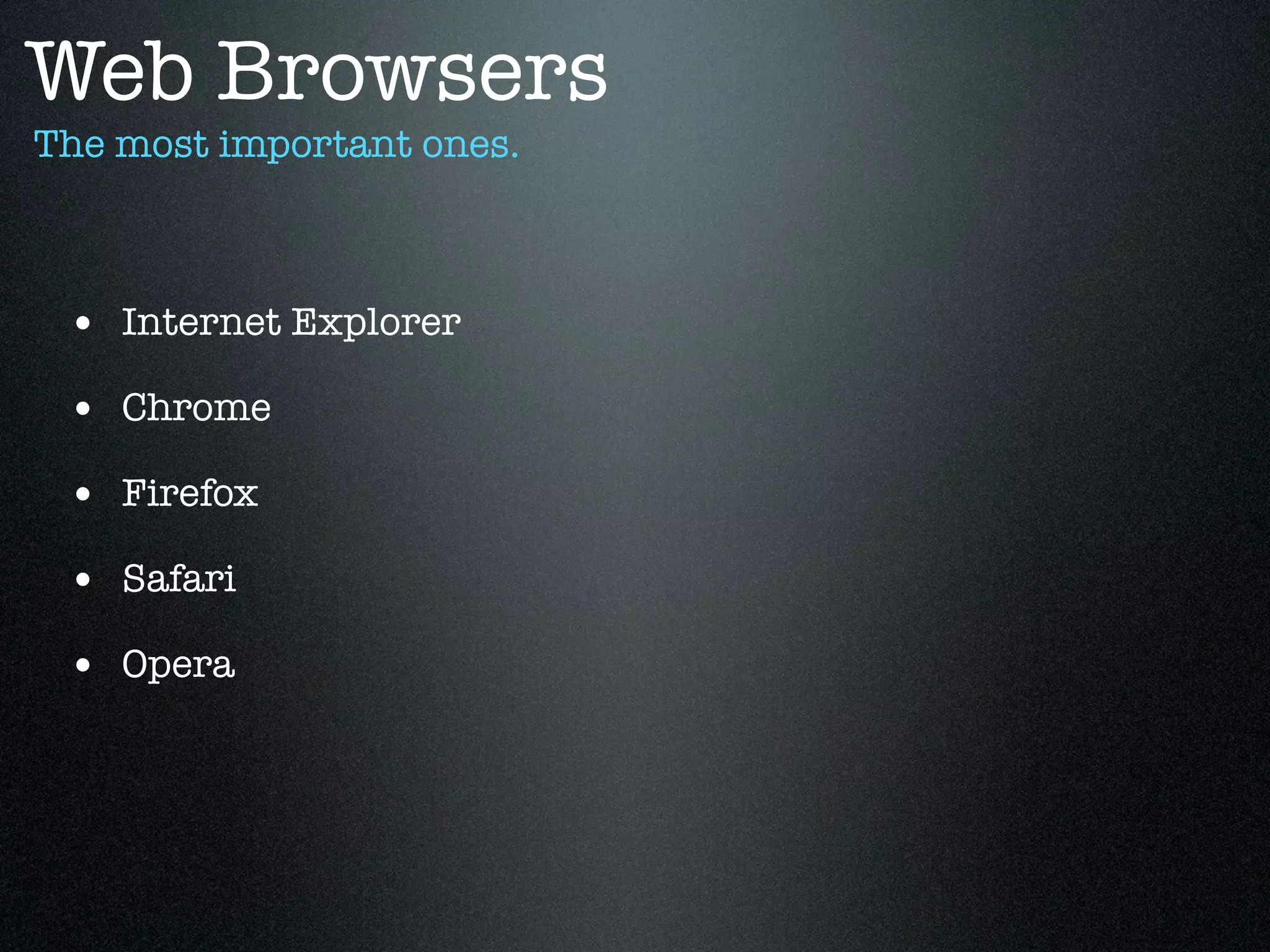

Web Browsers
The most important ones.

• Internet Explorer
• Chrome
• Firefox
• Safari
• Opera

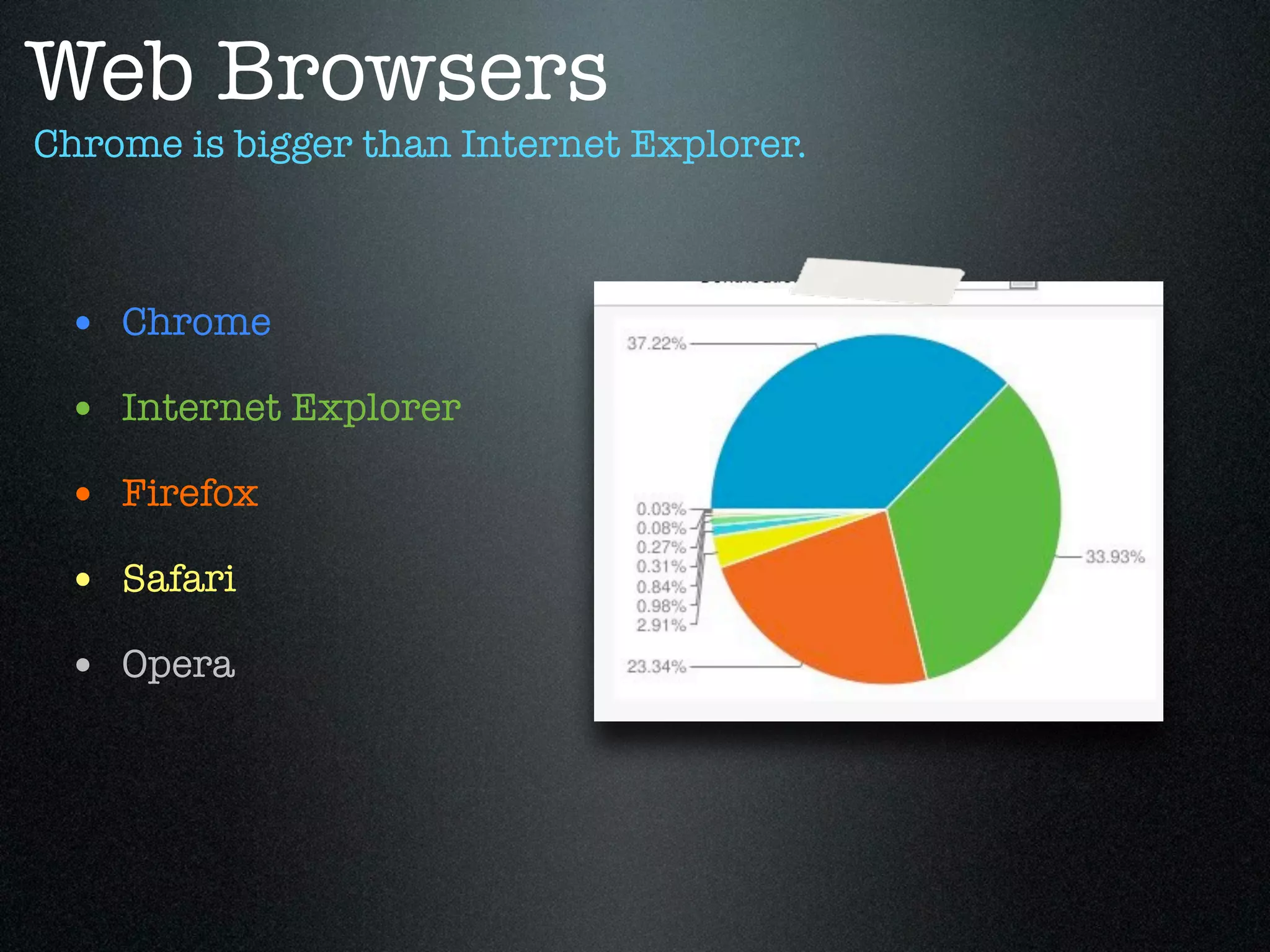

Web Browsers
Chrome is bigger than Internet Explorer.

• Chrome
• Internet Explorer
• Firefox
• Safari
• Opera

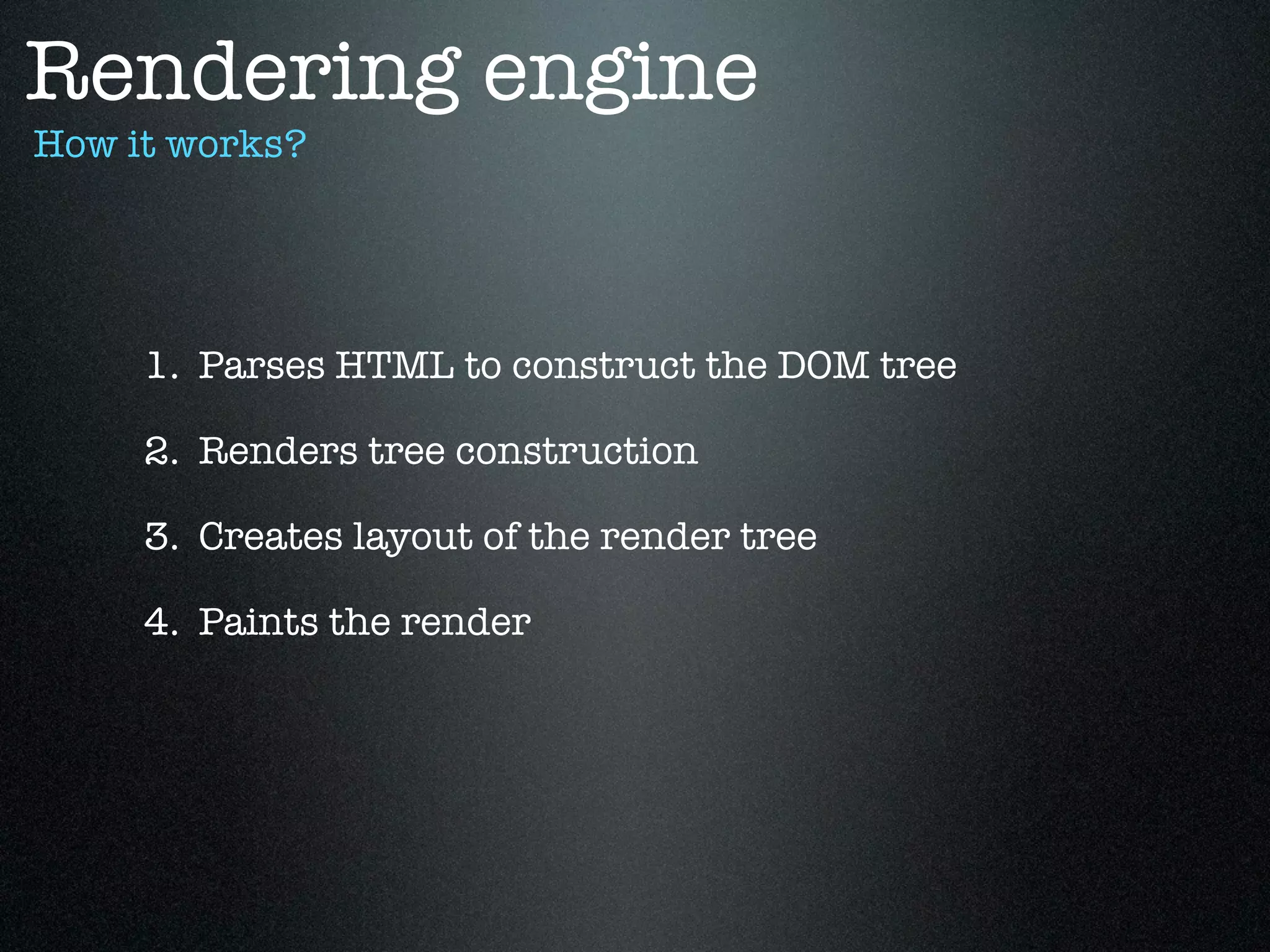

Rendering engine
How it works?

1. Parses HTML to construct the DOM tree

2. Renders tree construction

3. Creates layout of the render tree

4. Paints the render

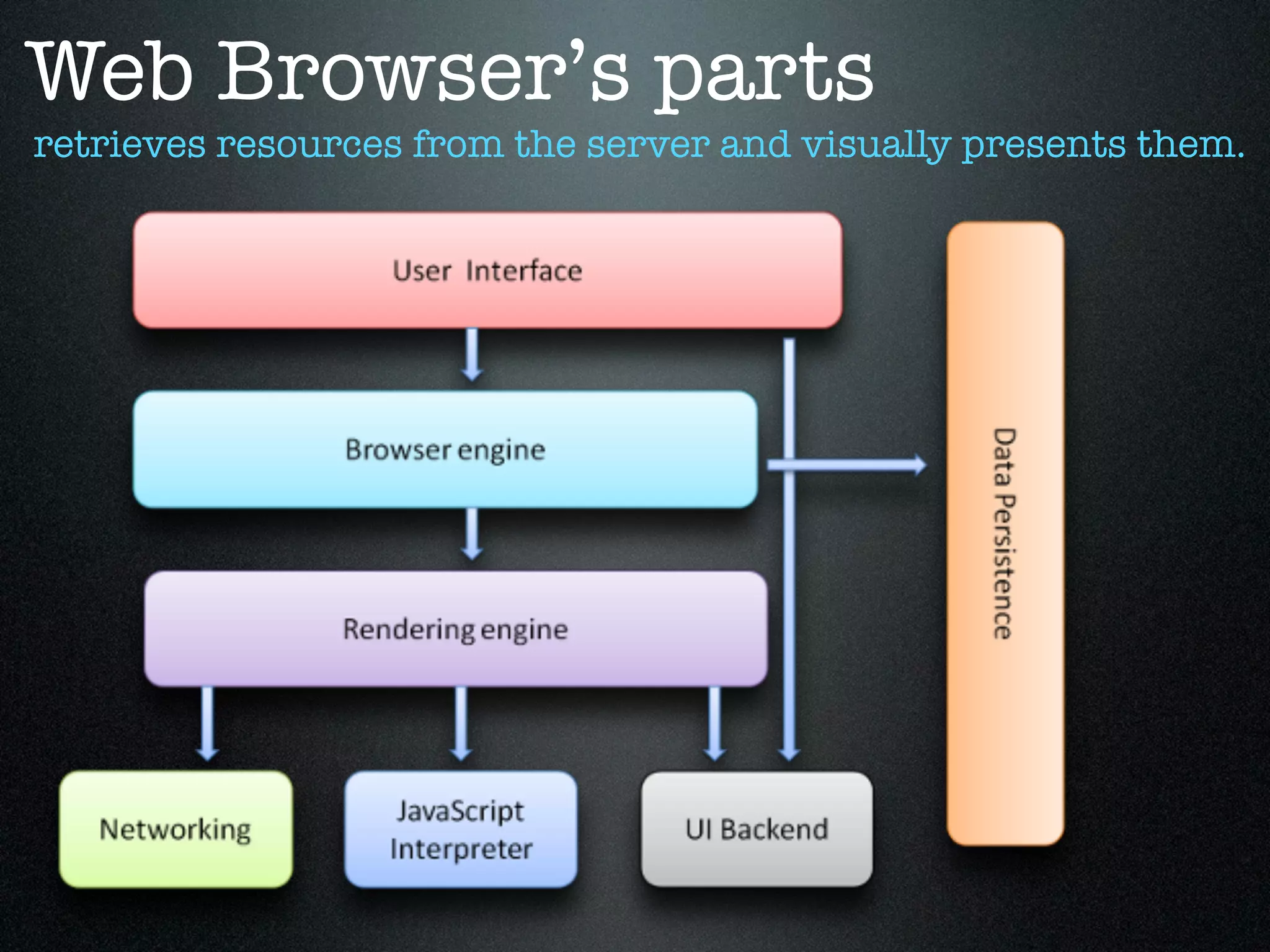

Web Browser’s parts
retrieves resources from the server and visually presents them.

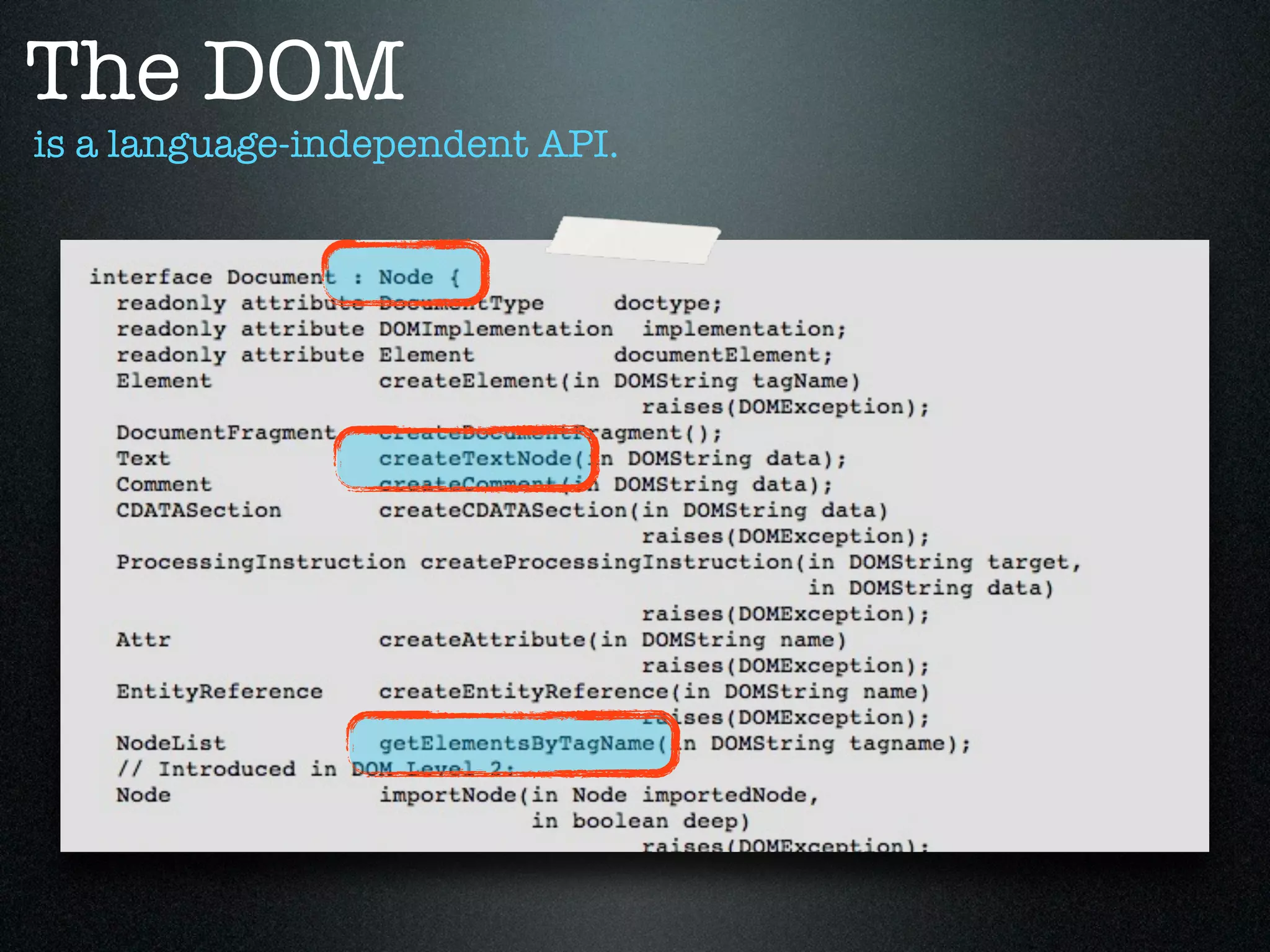

The DOM
is a language-independent API.

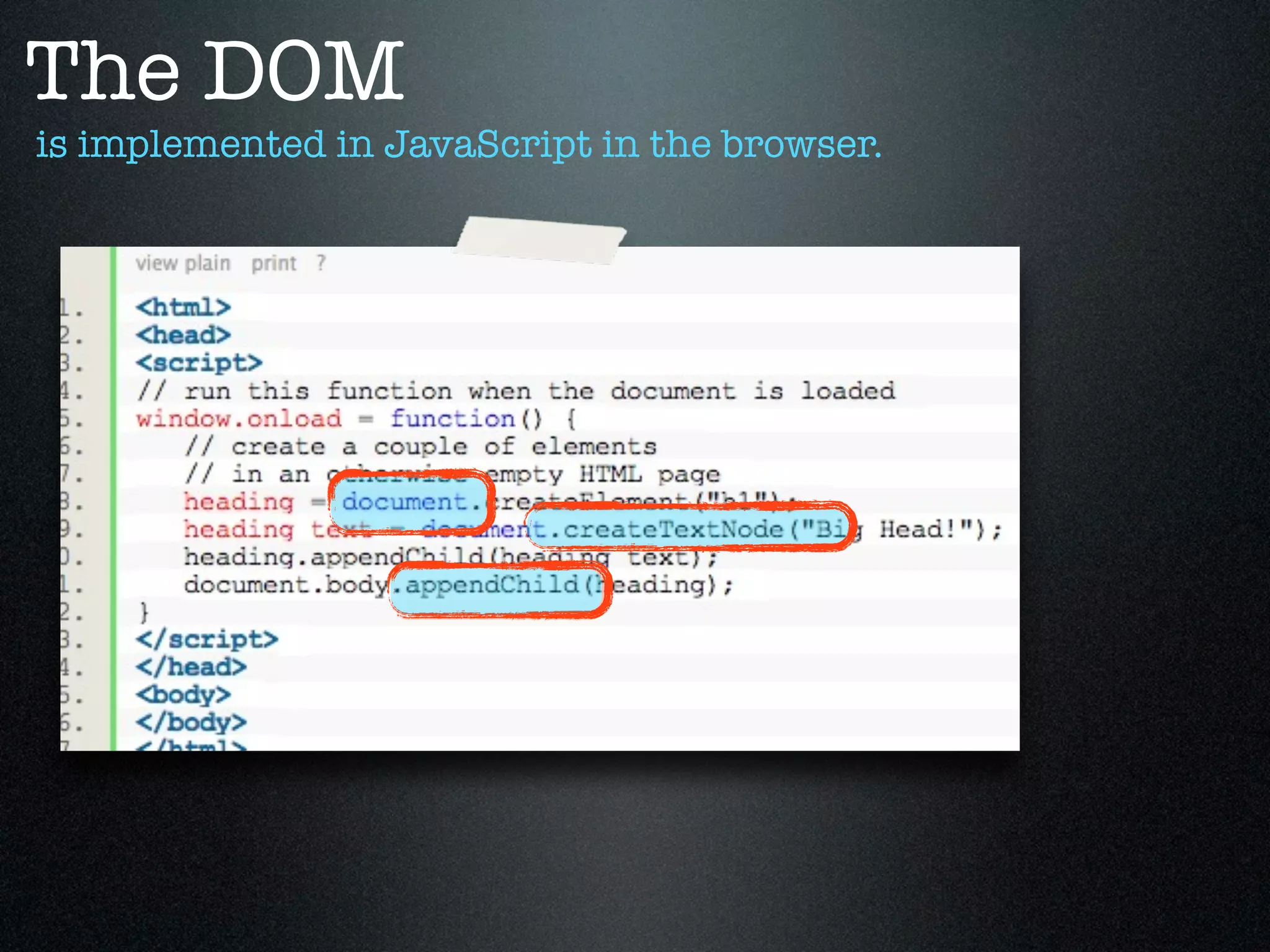

The DOM
is implemented in JavaScript in the browser.

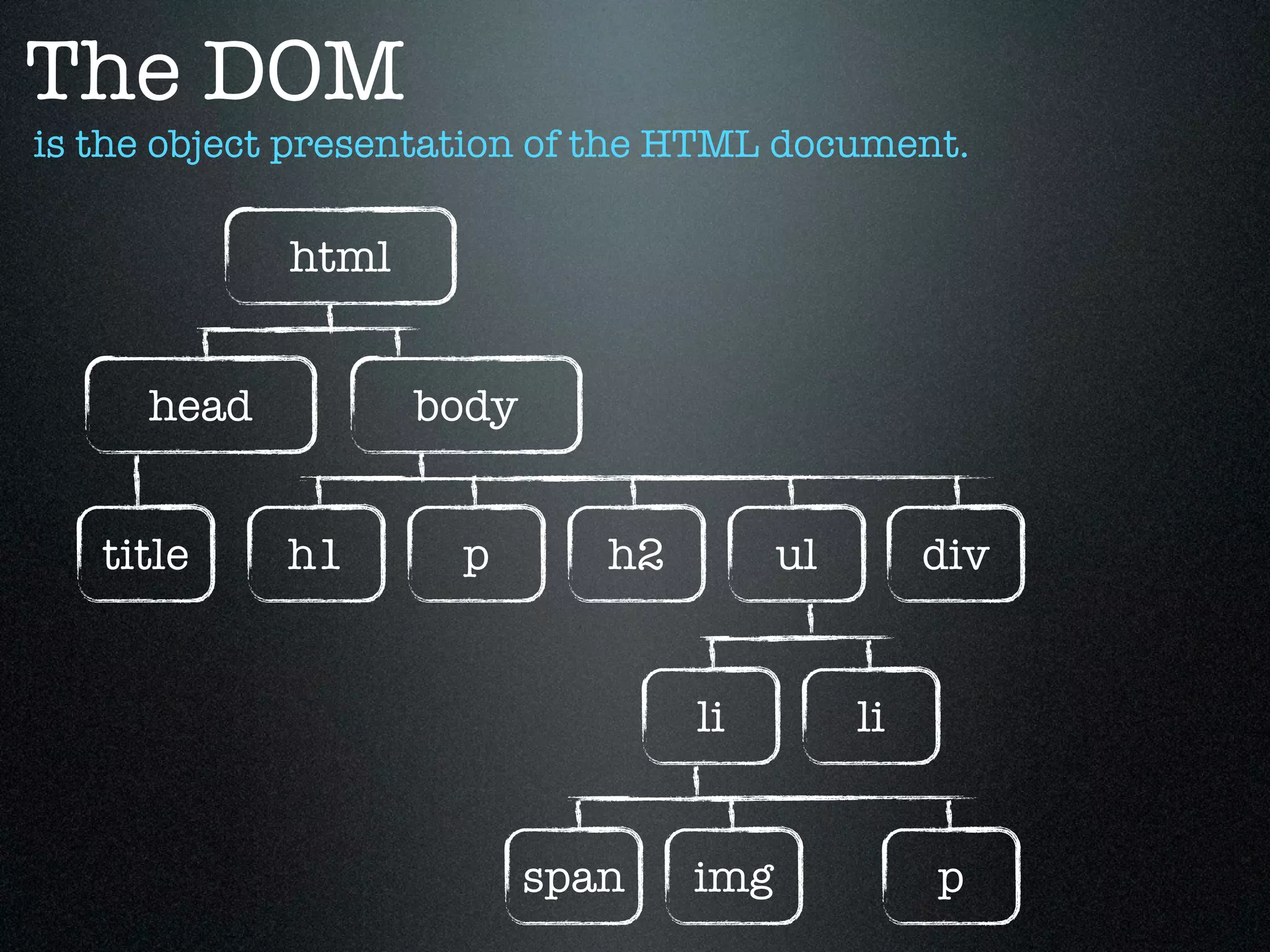

The DOM
is the object presentation of the HTML document.

html

head body

title h1 p h2 ul div

li li

span img p

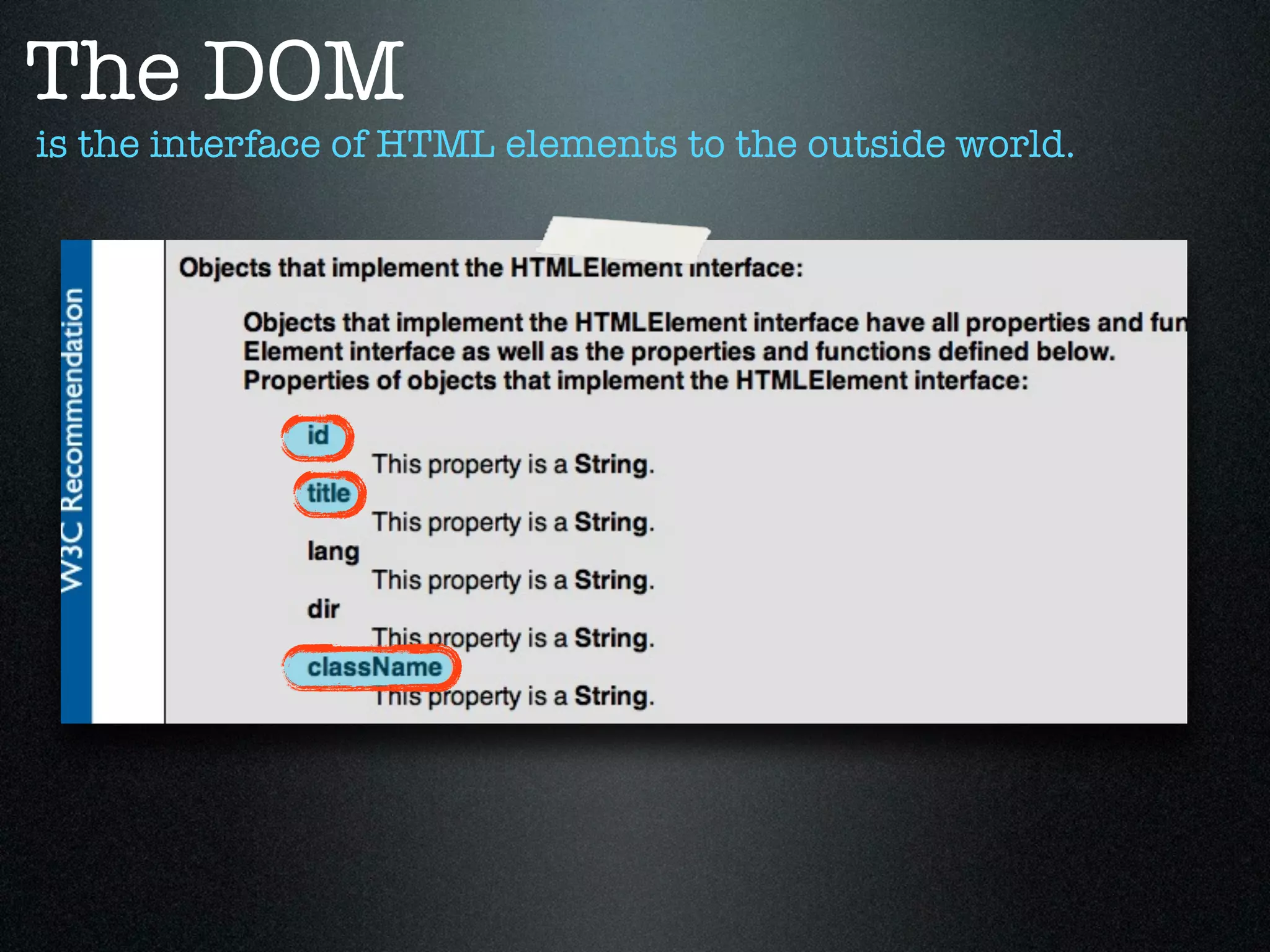

The DOM
is the interface of HTML elements to the outside world.

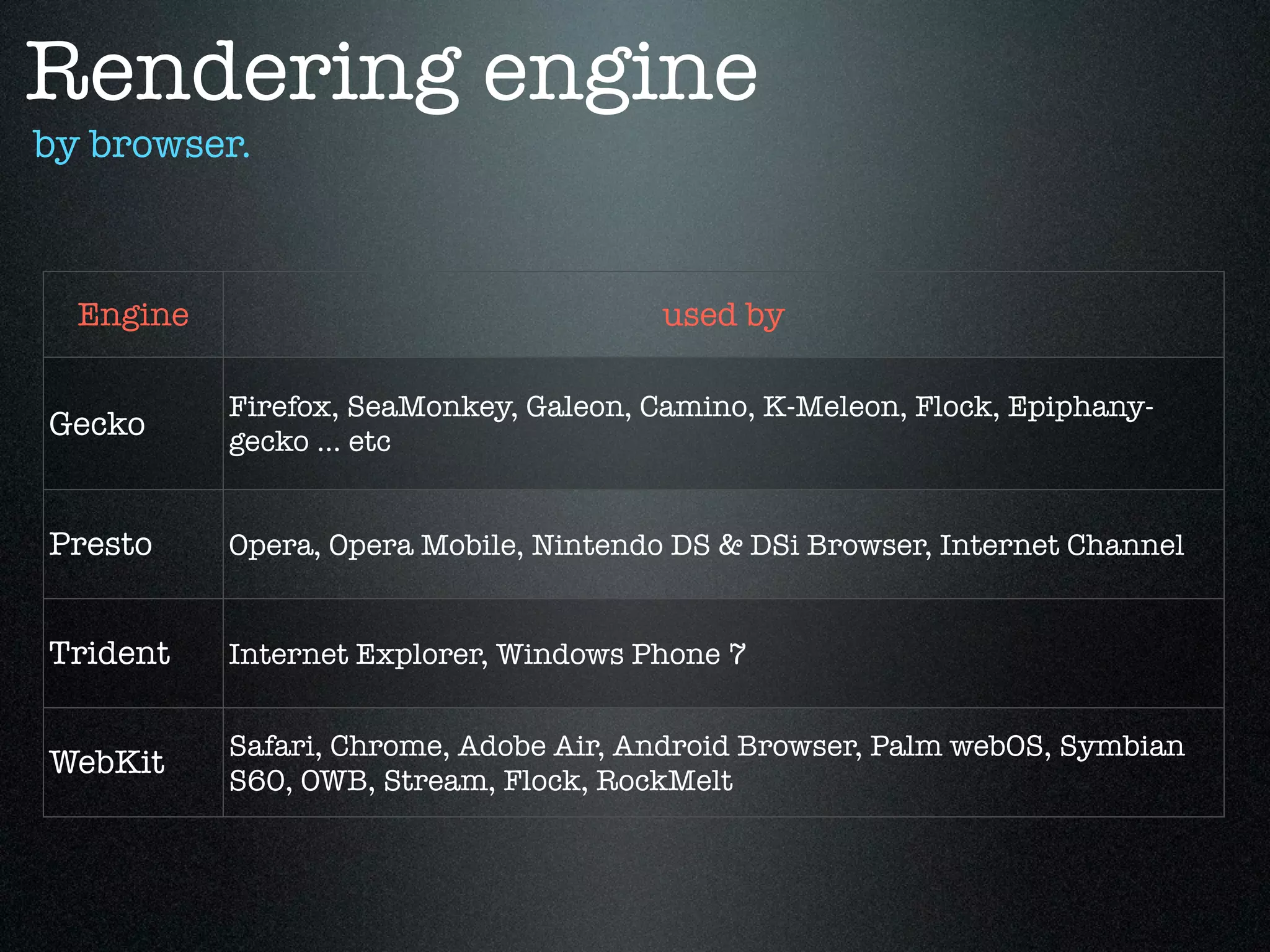

Rendering engine
by browser.

Engine used by

Firefox, SeaMonkey, Galeon, Camino, K-Meleon, Flock, Epiphany-
Gecko gecko ... etc

Presto Opera, Opera Mobile, Nintendo DS & DSi Browser, Internet Channel

Trident Internet Explorer, Windows Phone 7

Safari, Chrome, Adobe Air, Android Browser, Palm webOS, Symbian
WebKit
S60, OWB, Stream, Flock, RockMelt

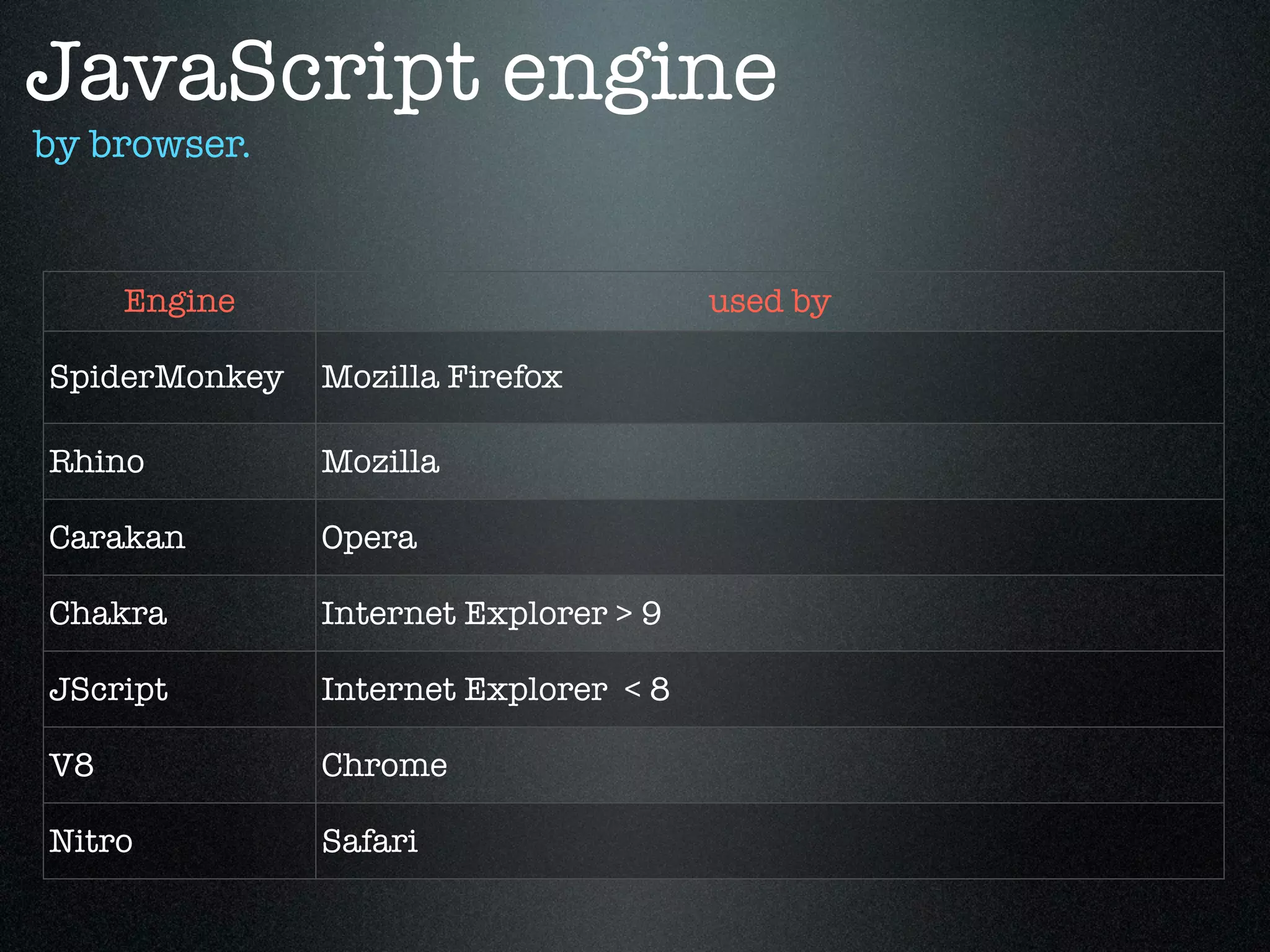

JavaScript engine
by browser.

Engine used by

SpiderMonkey Mozilla Firefox

Rhino Mozilla

Carakan Opera

Chakra Internet Explorer > 9

JScript Internet Explorer < 8

V8 Chrome

Nitro Safari

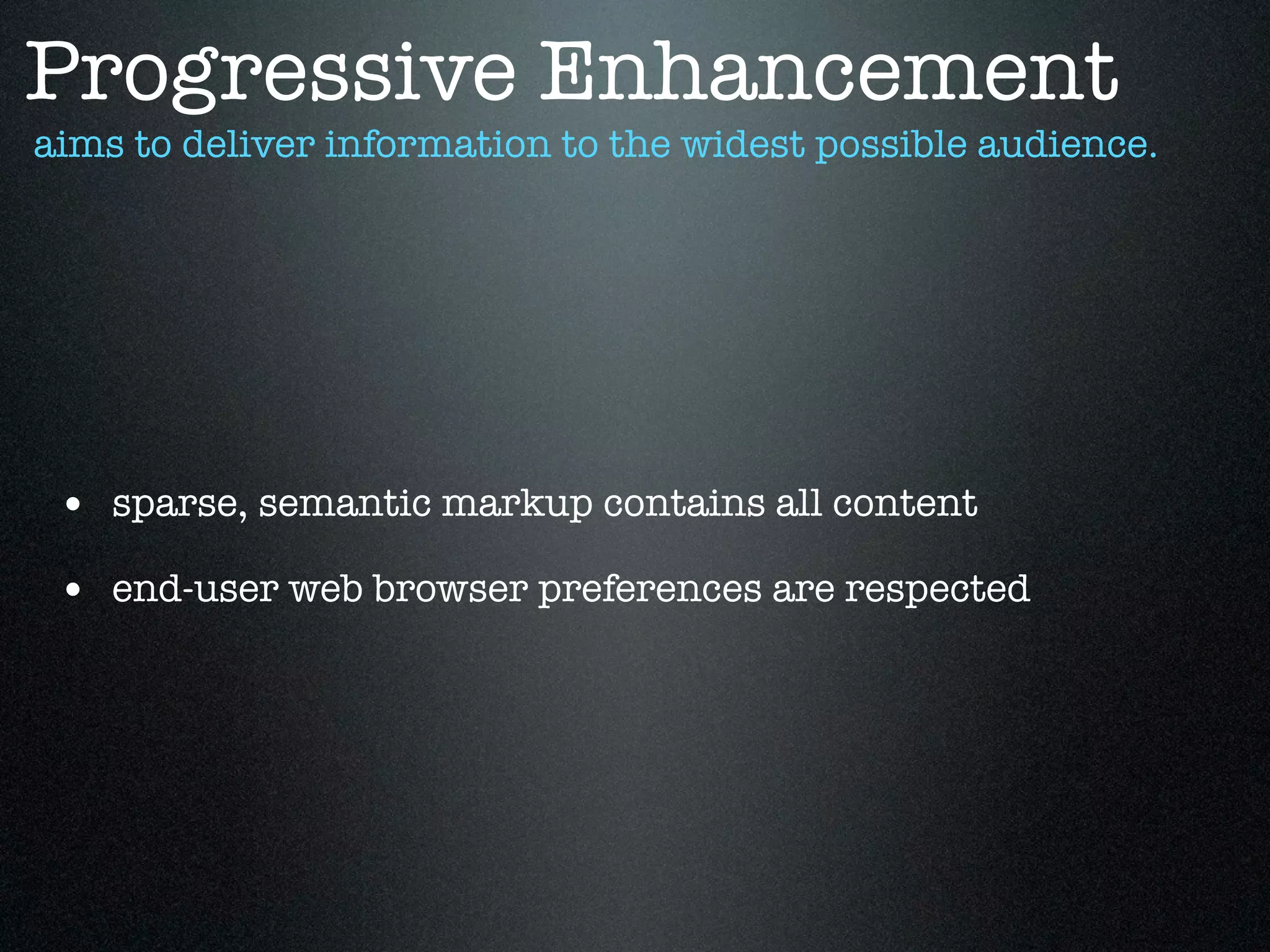

Progressive Enhancement
aims to deliver information to the widest possible audience.

• sparse, semantic markup contains all content
• end-user web browser preferences are respected

basic content should be accessible to all web browsers.

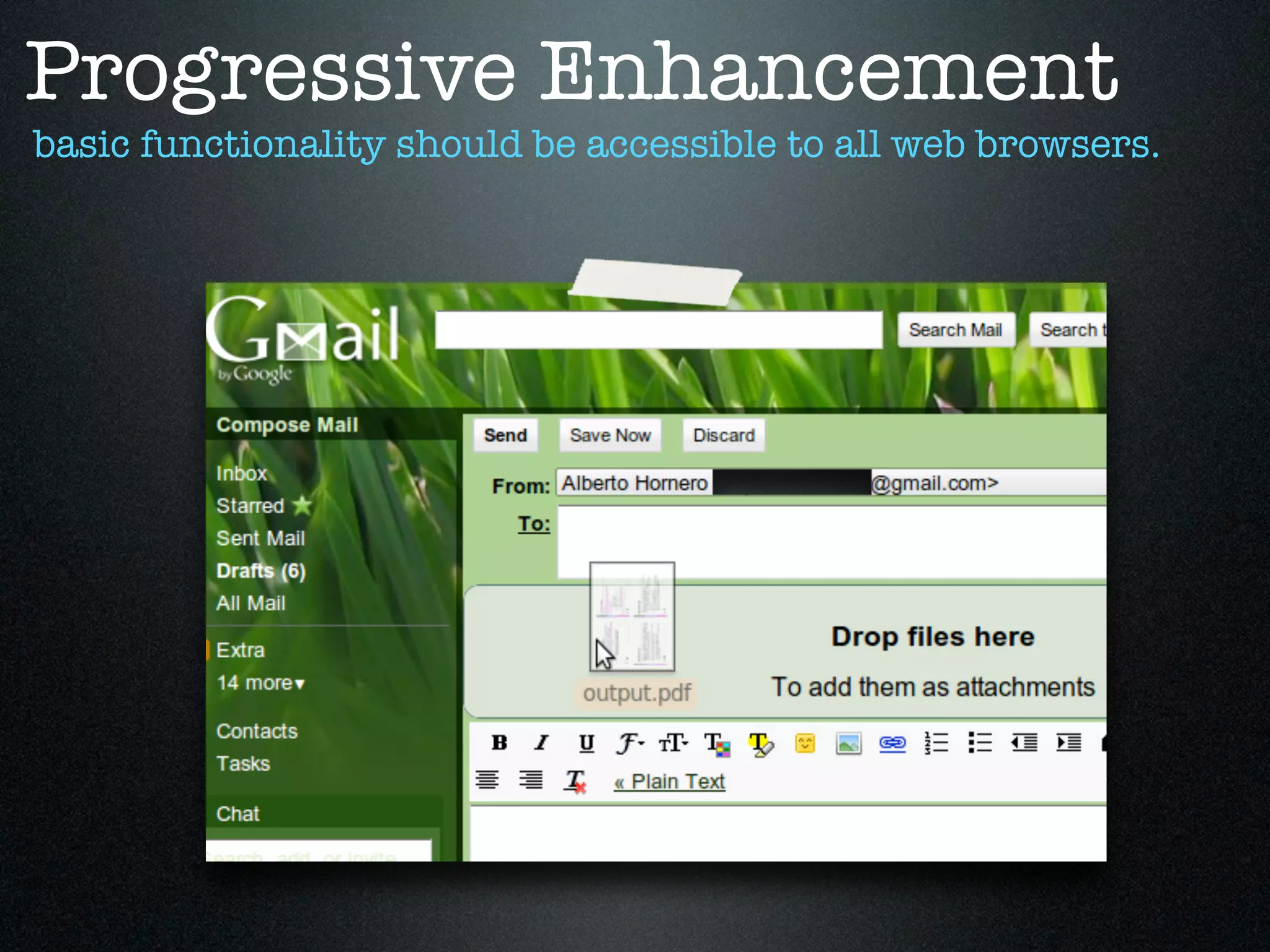

basic functionality should be accessible to all web browsers.

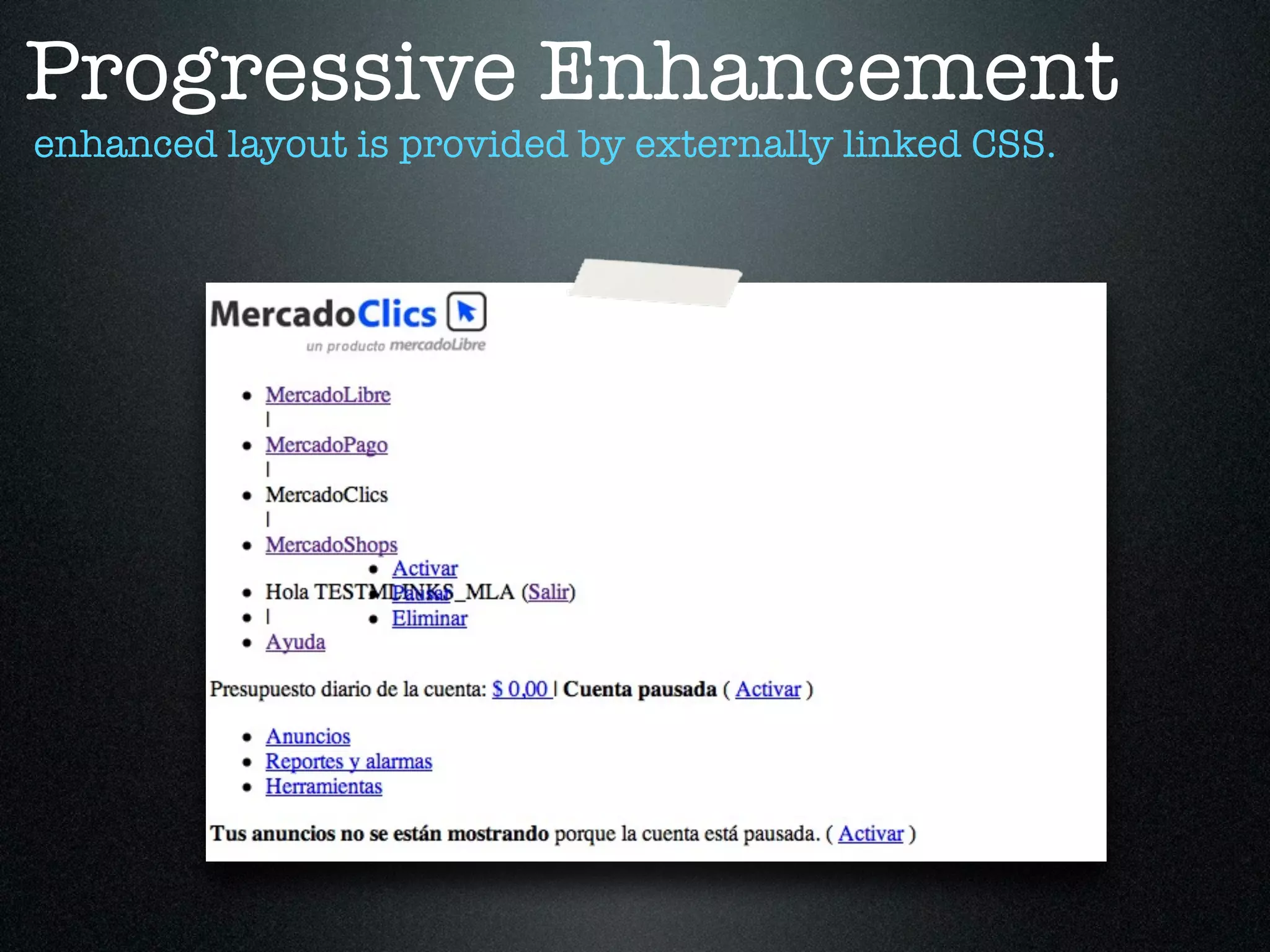

enhanced layout is provided by externally linked CSS.

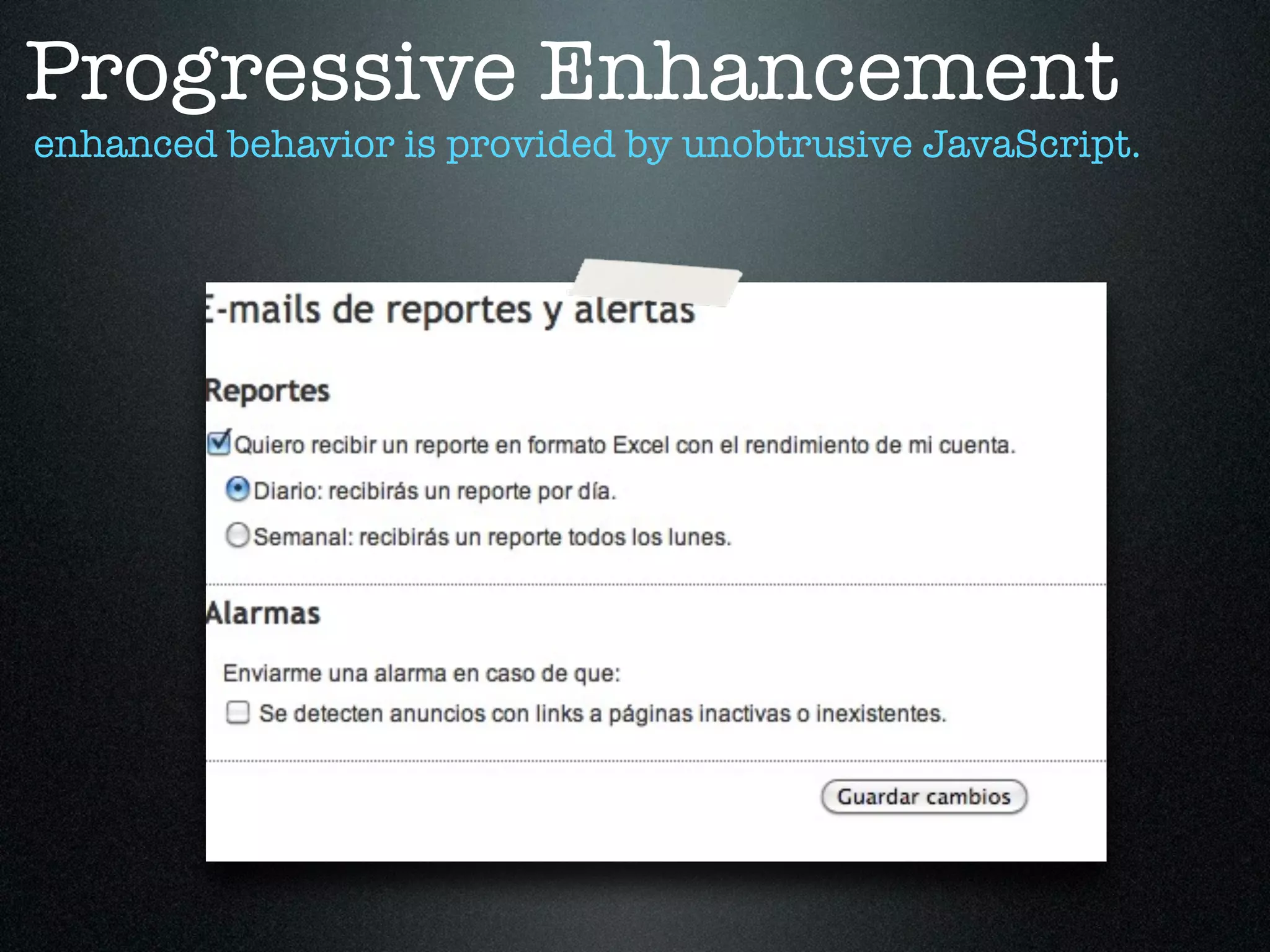

enhanced behavior is provided by unobtrusive JavaScript.

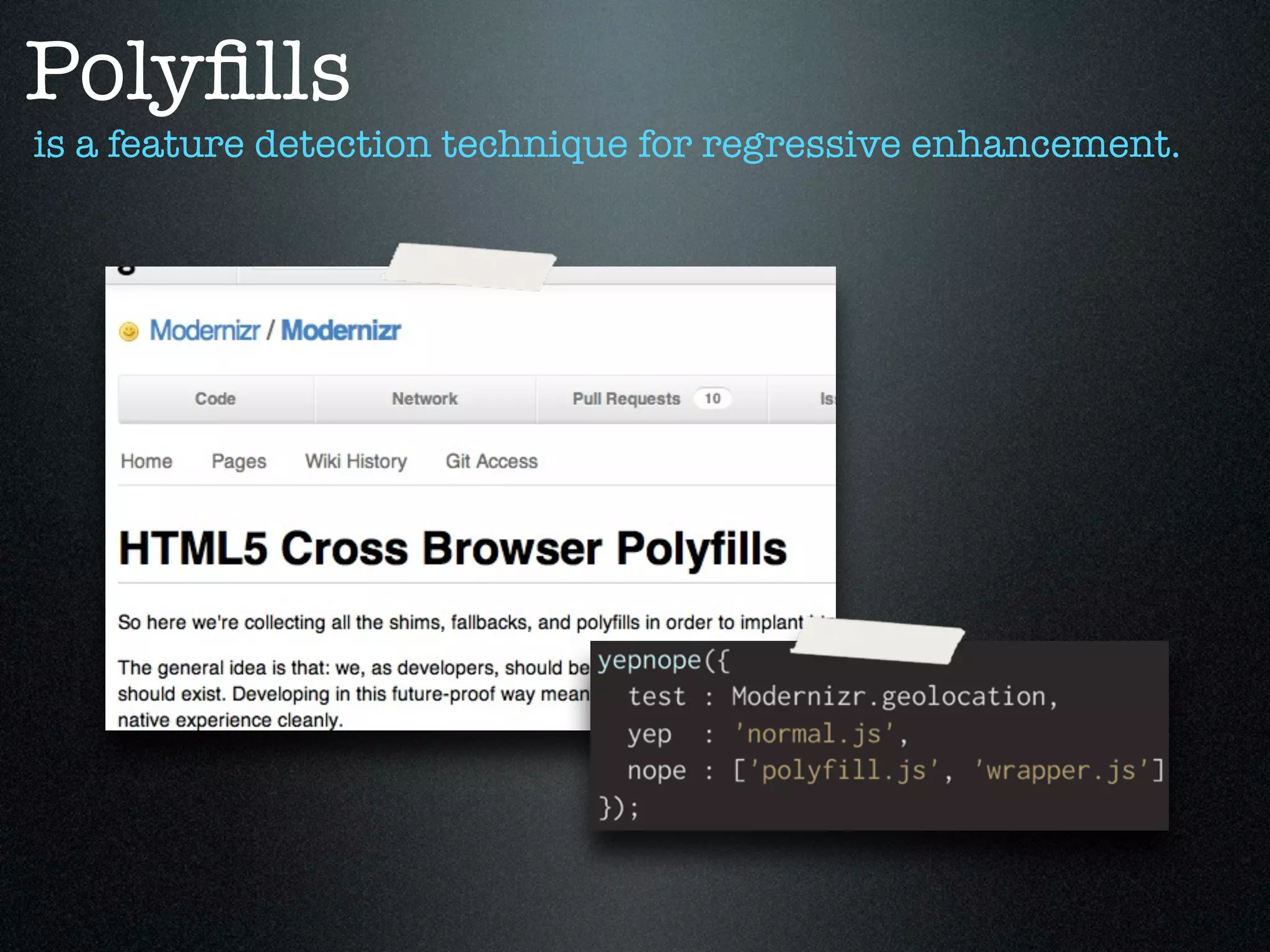

Polyﬁlls
is a feature detection technique for regressive enhancement.

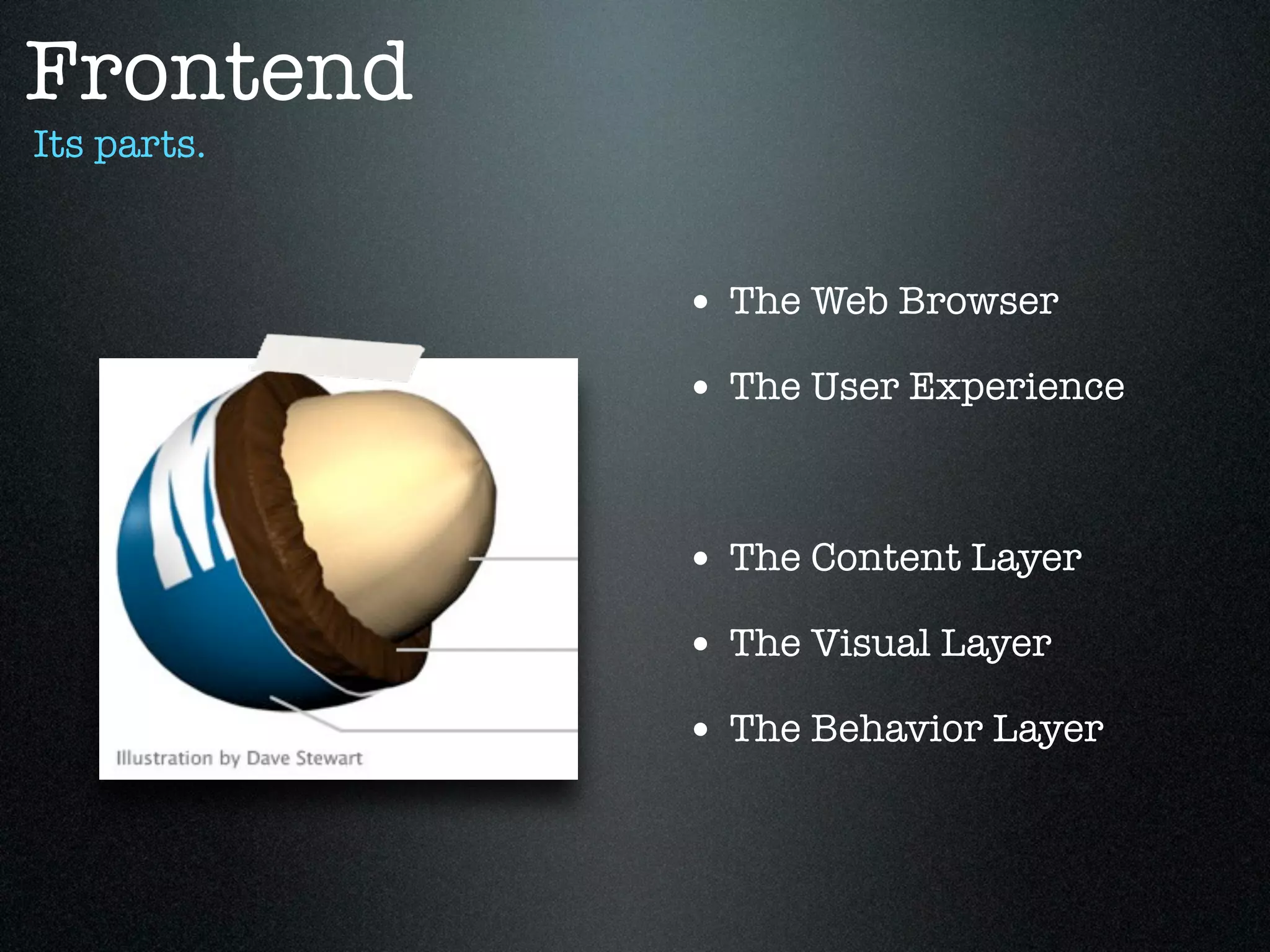

Frontend
Its parts.

• The Web Browser
• The User Experience

• The Content Layer
• The Visual Layer
• The Behavior Layer

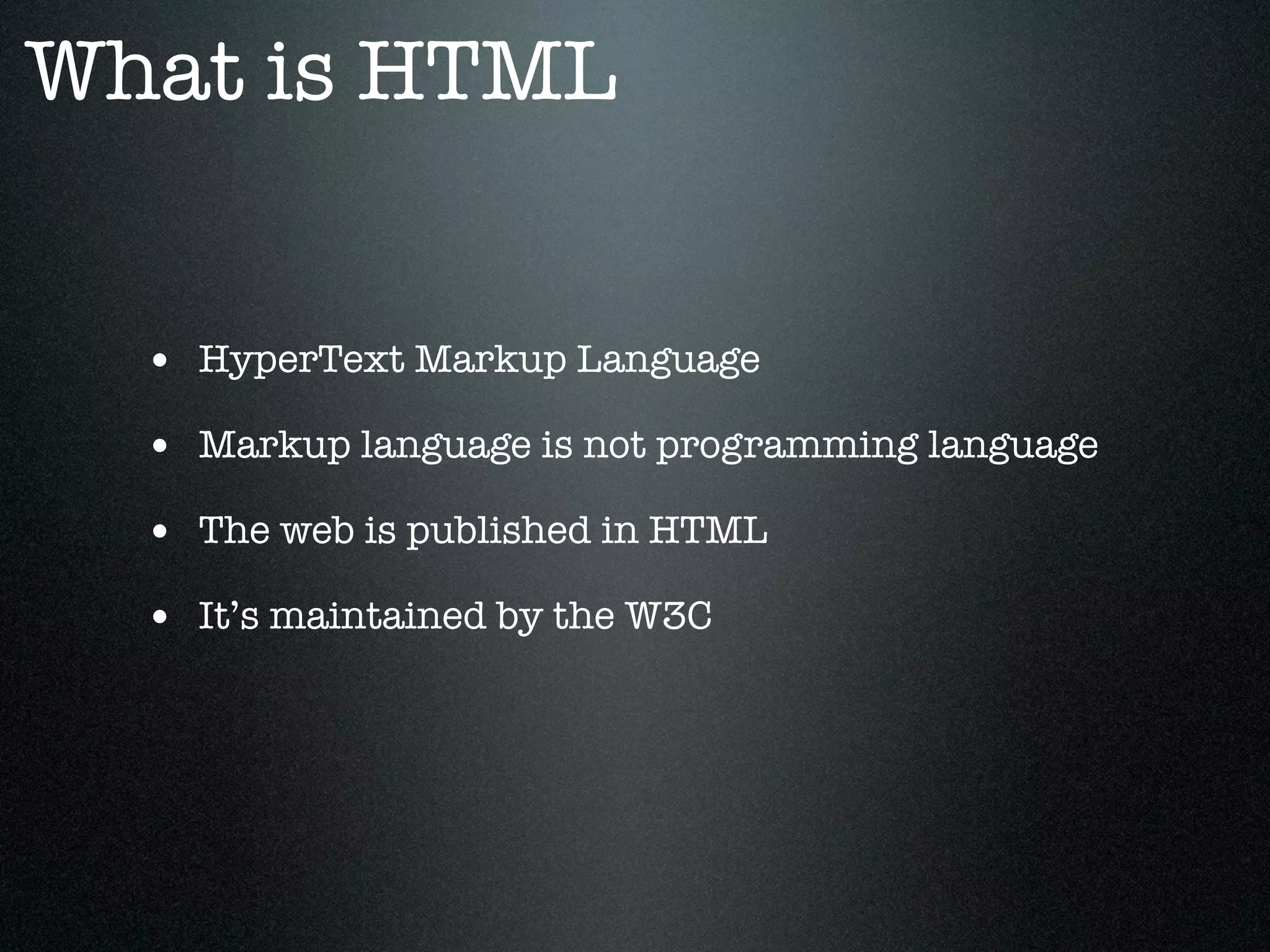

What is HTML

• HyperText Markup Language
• Markup language is not programming language
• The web is published in HTML
• It’s maintained by the W3C

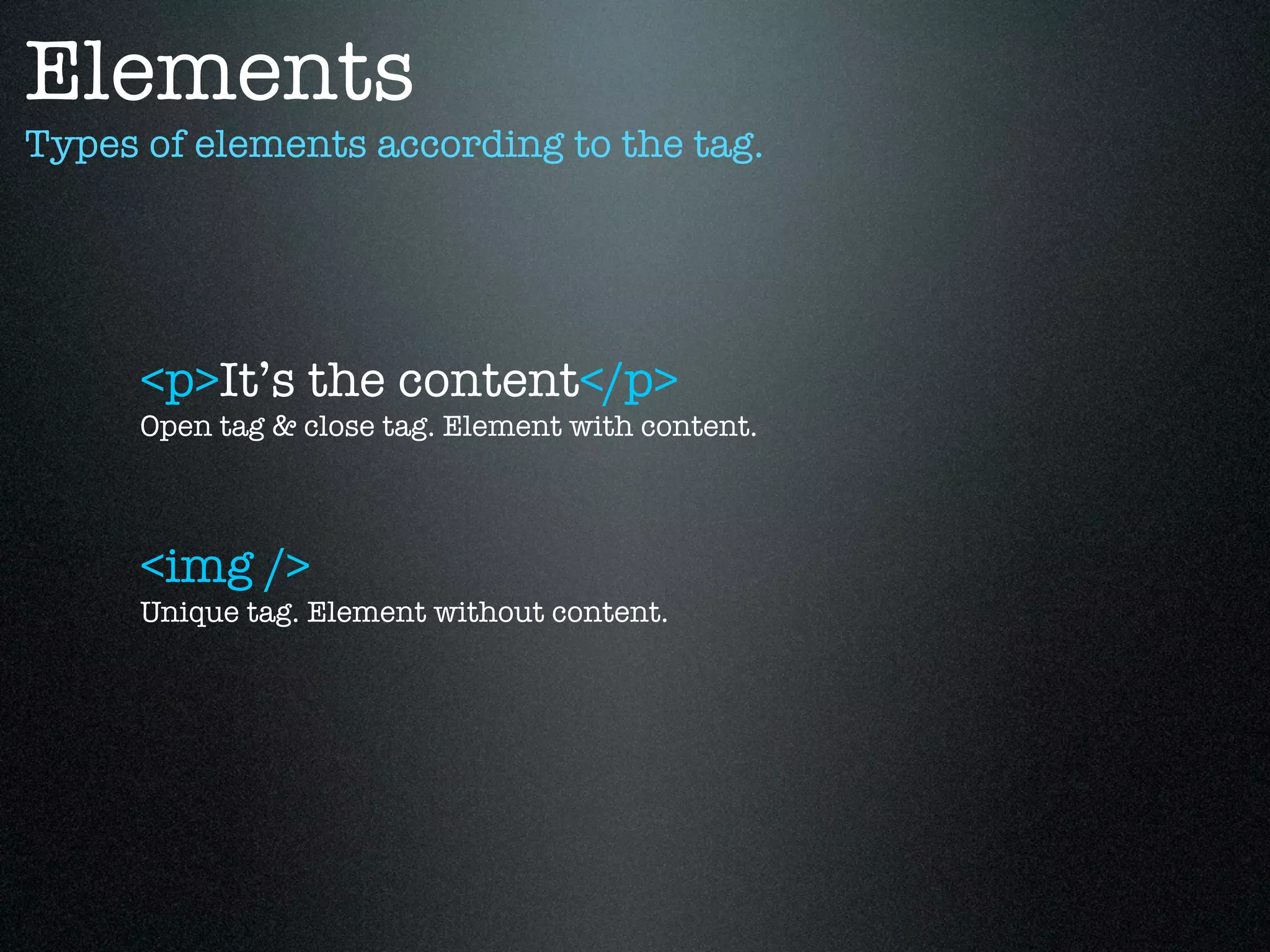

Elements
Types of elements according to the tag.

<p>It’s the content</p>
Open tag & close tag. Element with content.

<img />
Unique tag. Element without content.

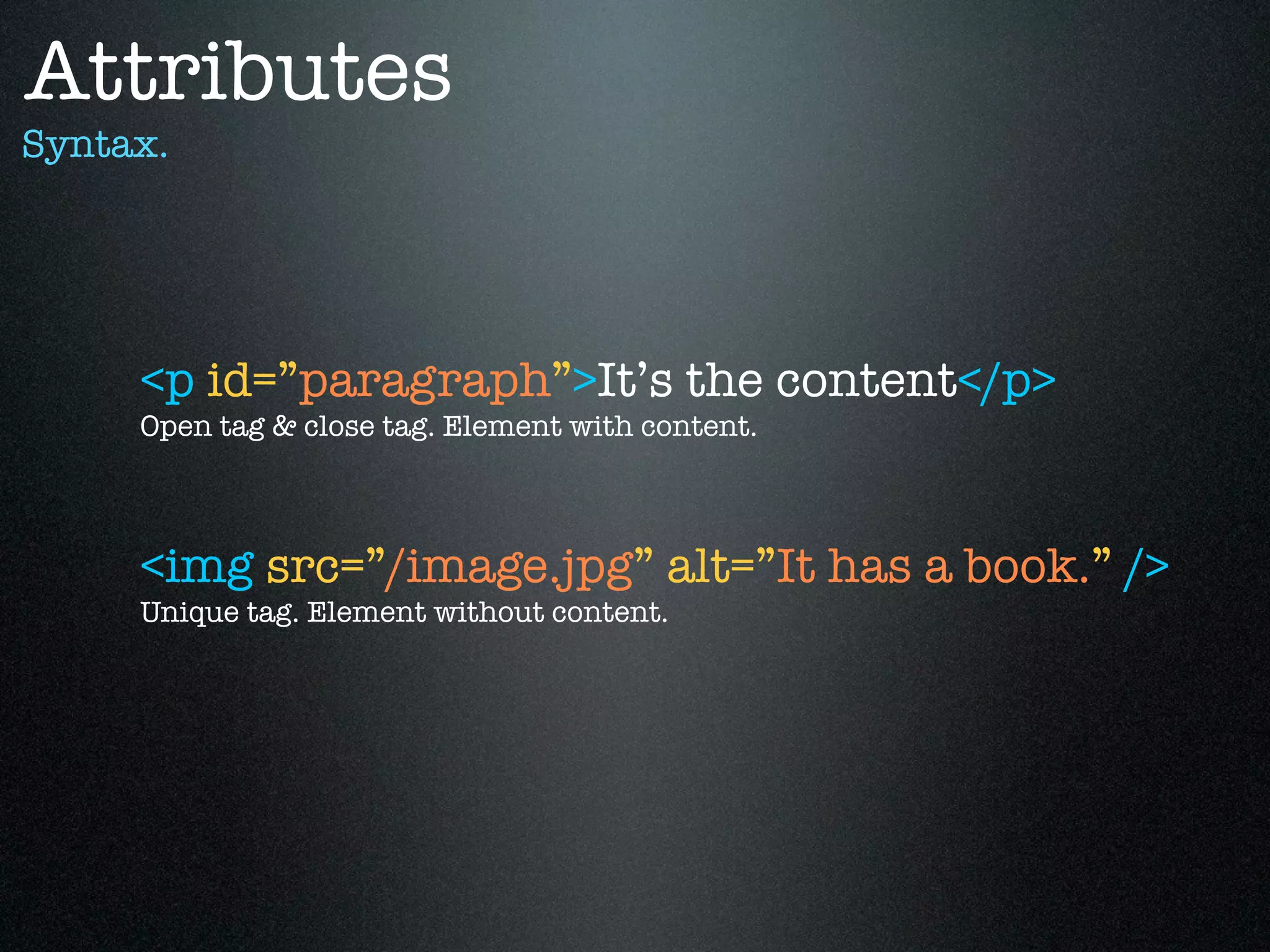

Attributes
Syntax.

<p id=”paragraph”>It’s the content</p>
Open tag & close tag. Element with content.

<img src=”/image.jpg” alt=”It has a book.” />
Unique tag. Element without content.

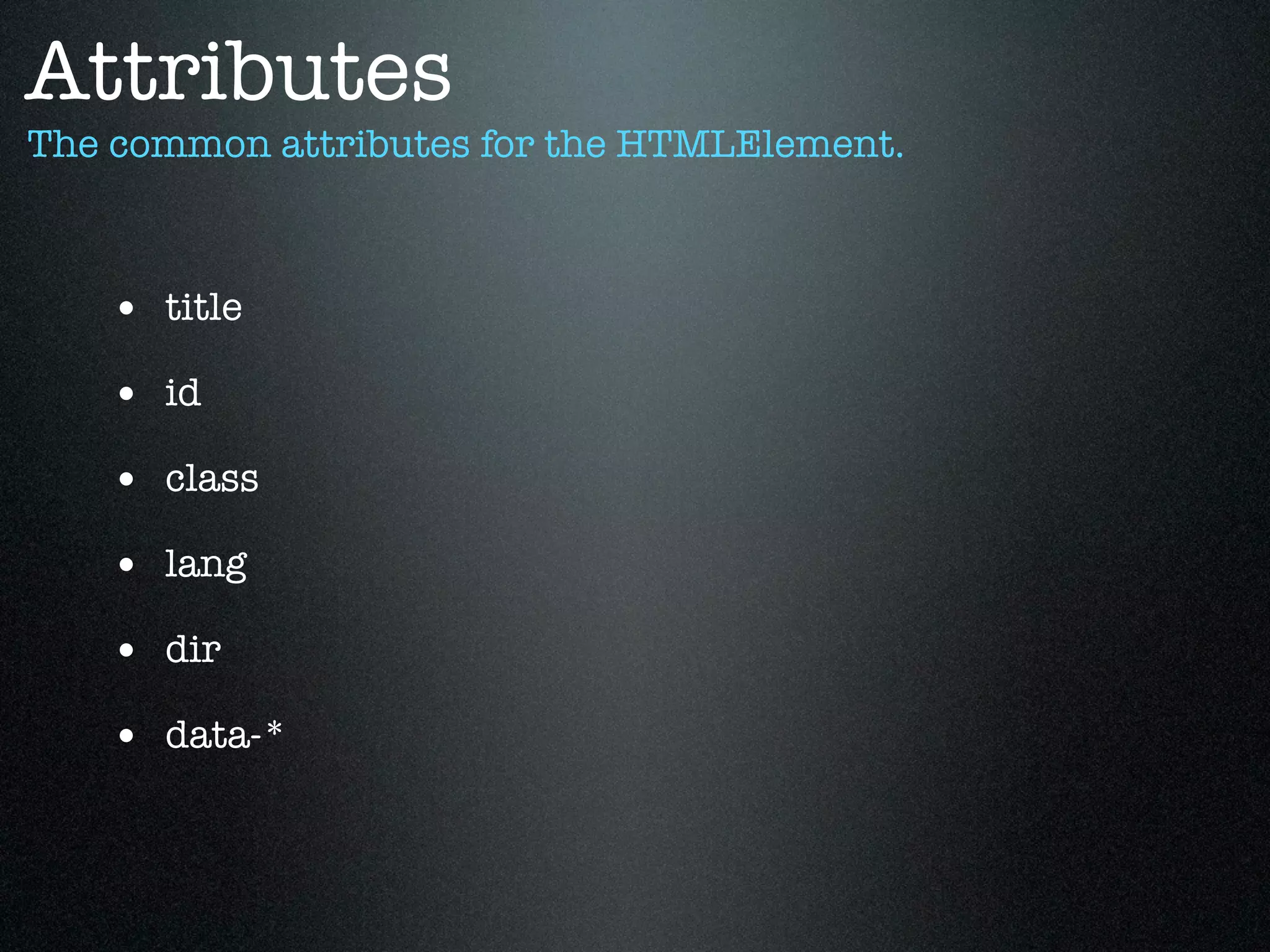

Attributes
The common attributes for the HTMLElement.

• title
• id
• class
• lang
• dir
• data-*

Reserved
Characters
Entities

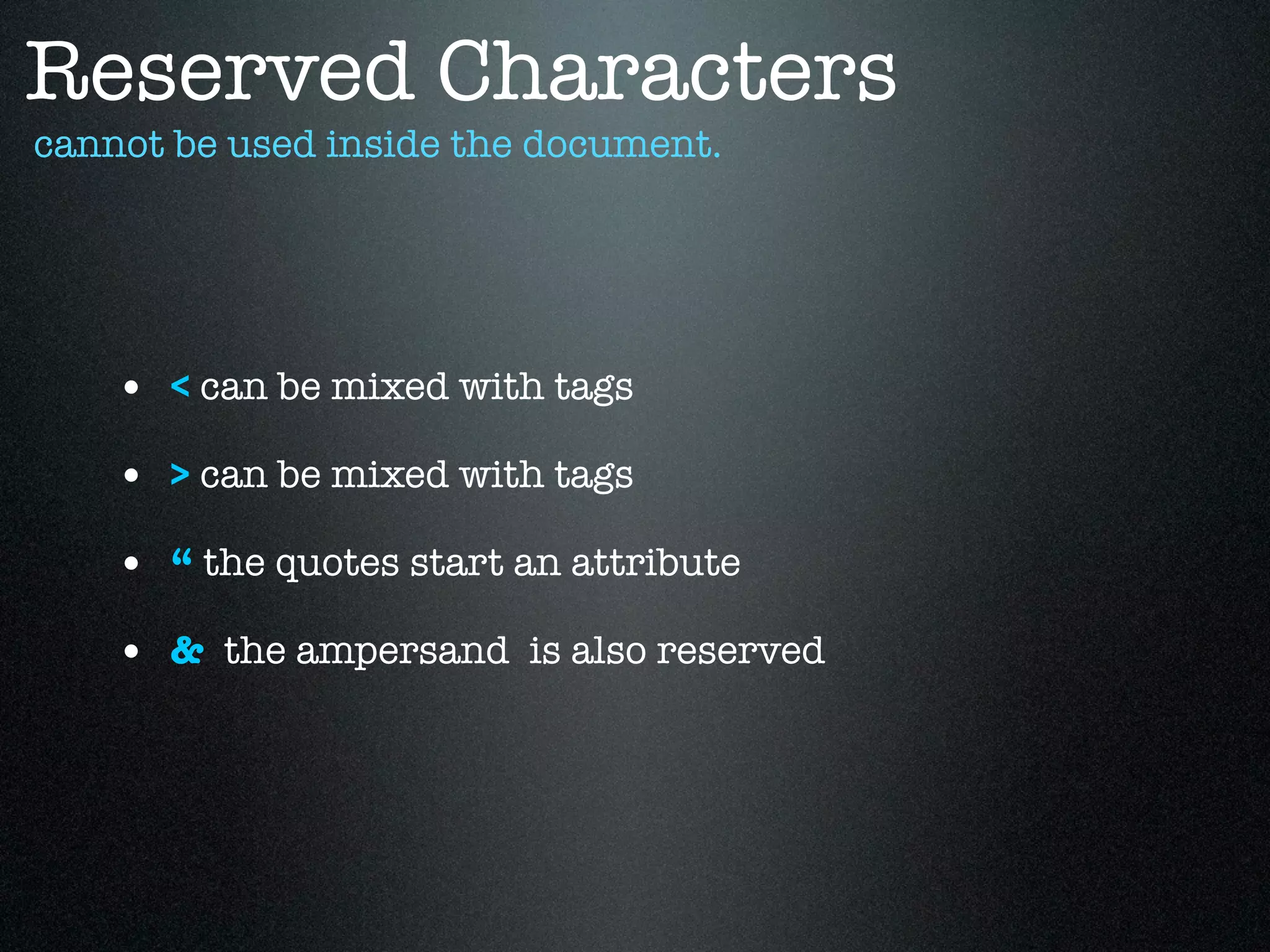

Reserved Characters
cannot be used inside the document.

• < can be mixed with tags
• > can be mixed with tags
• “ the quotes start an attribute
• & the ampersand is also reserved

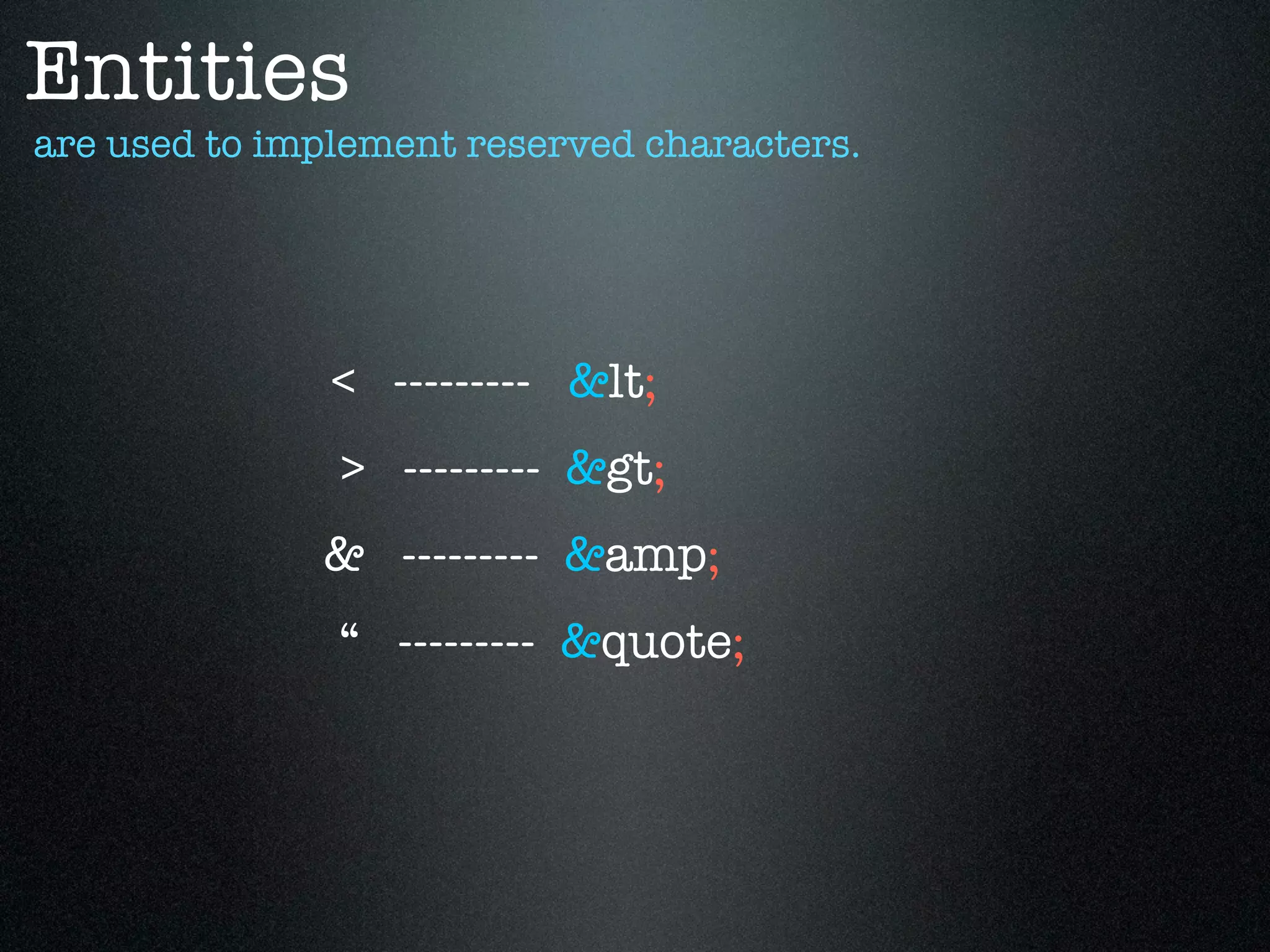

Entities
are used to implement reserved characters.

< --------- <
> --------- >
& --------- &
“ --------- &quote;

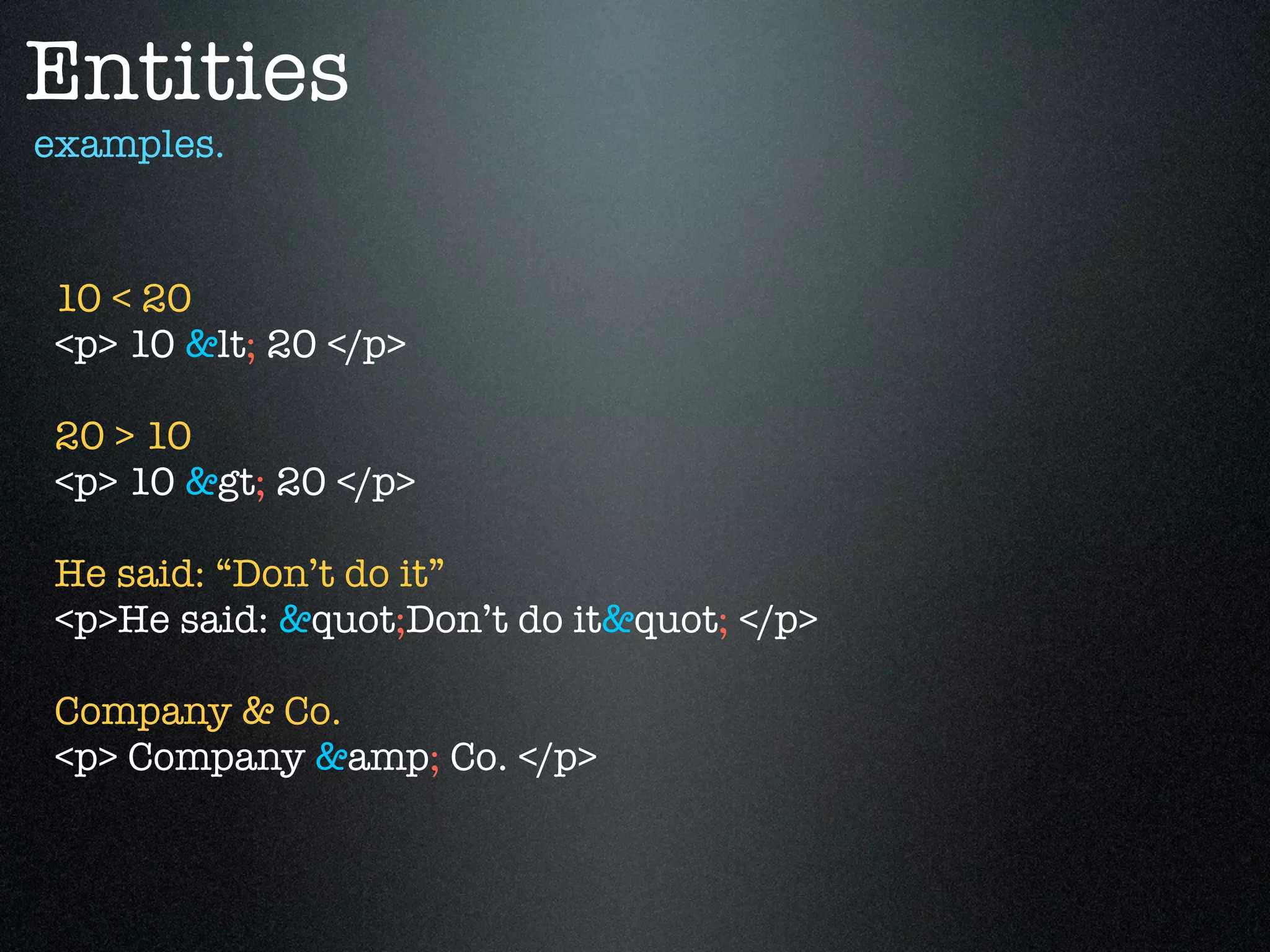

Entities
examples.

10 < 20
<p> 10 < 20 </p>

20 > 10
<p> 10 > 20 </p>

He said: “Don’t do it”
<p>He said: "Don’t do it" </p>

Company & Co.
<p> Company & Co. </p>

The Structure
html, head & body

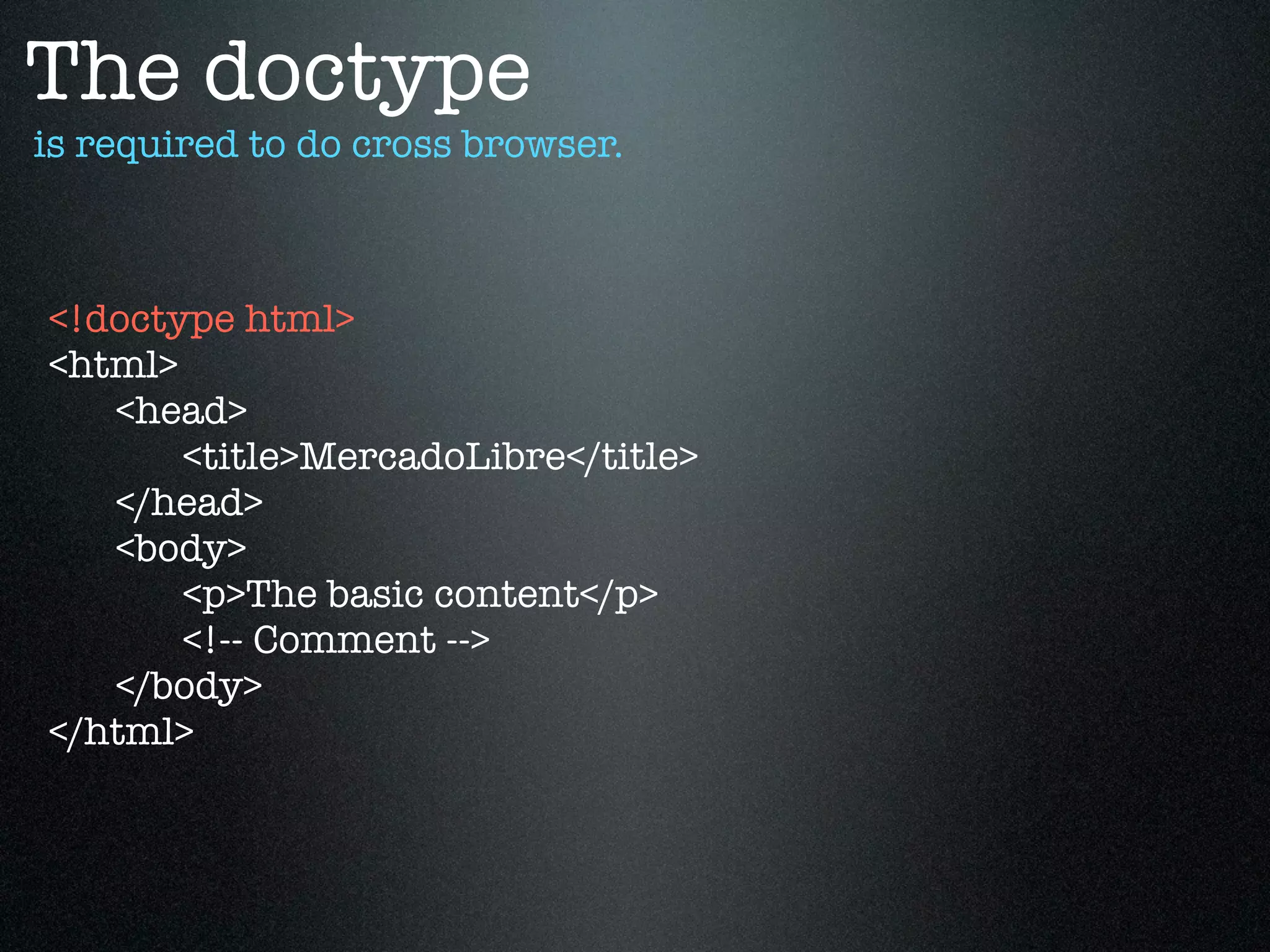

The doctype
is required to do cross browser.

<!doctype html>
<html>
<head>
<title>MercadoLibre</title>
</head>
<body>
<p>The basic content</p>

</body>
</html>

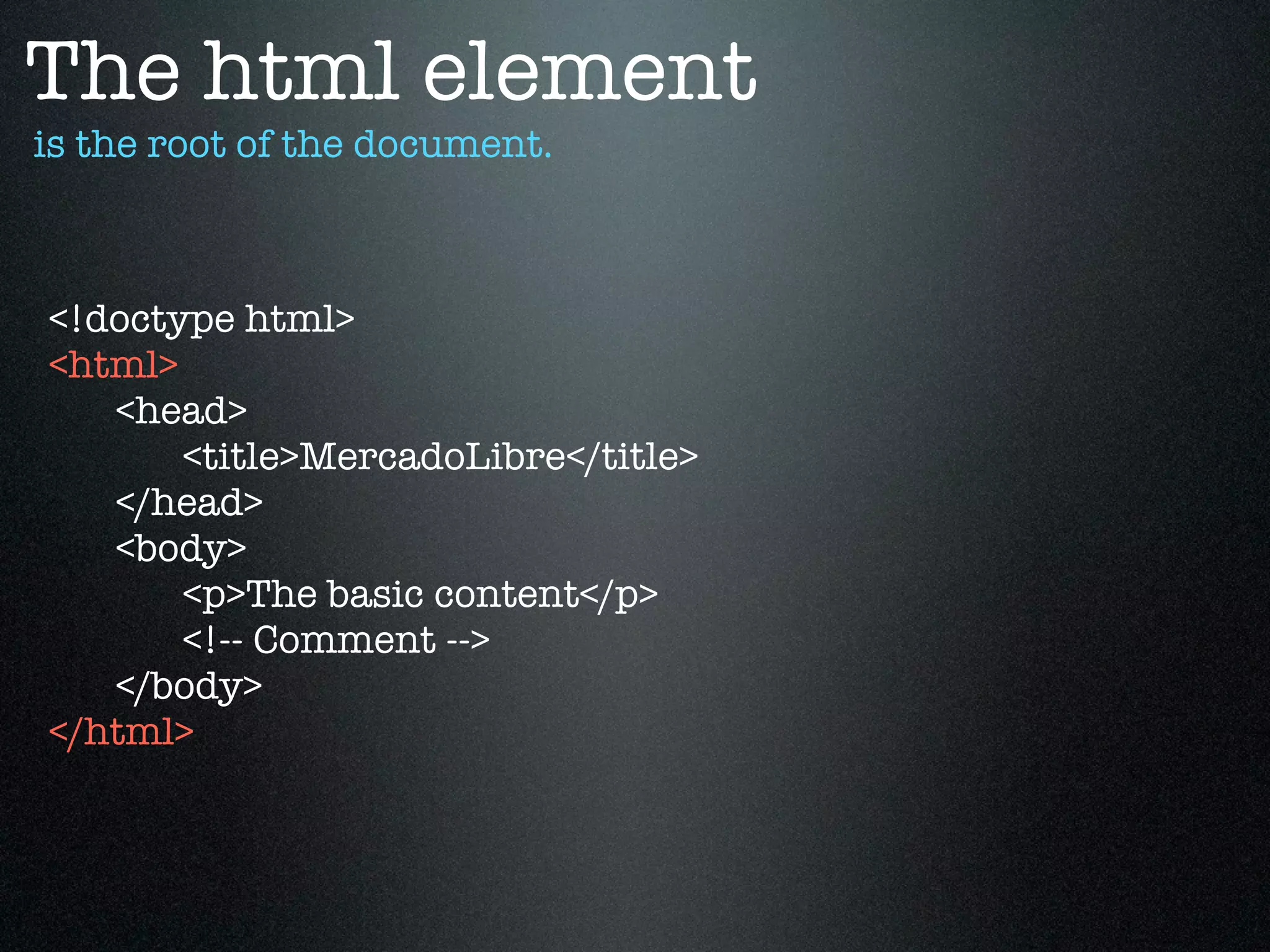

The html element
is the root of the document.

<!doctype html>
<html>
<head>
</head>
<body>

</body>
</html>

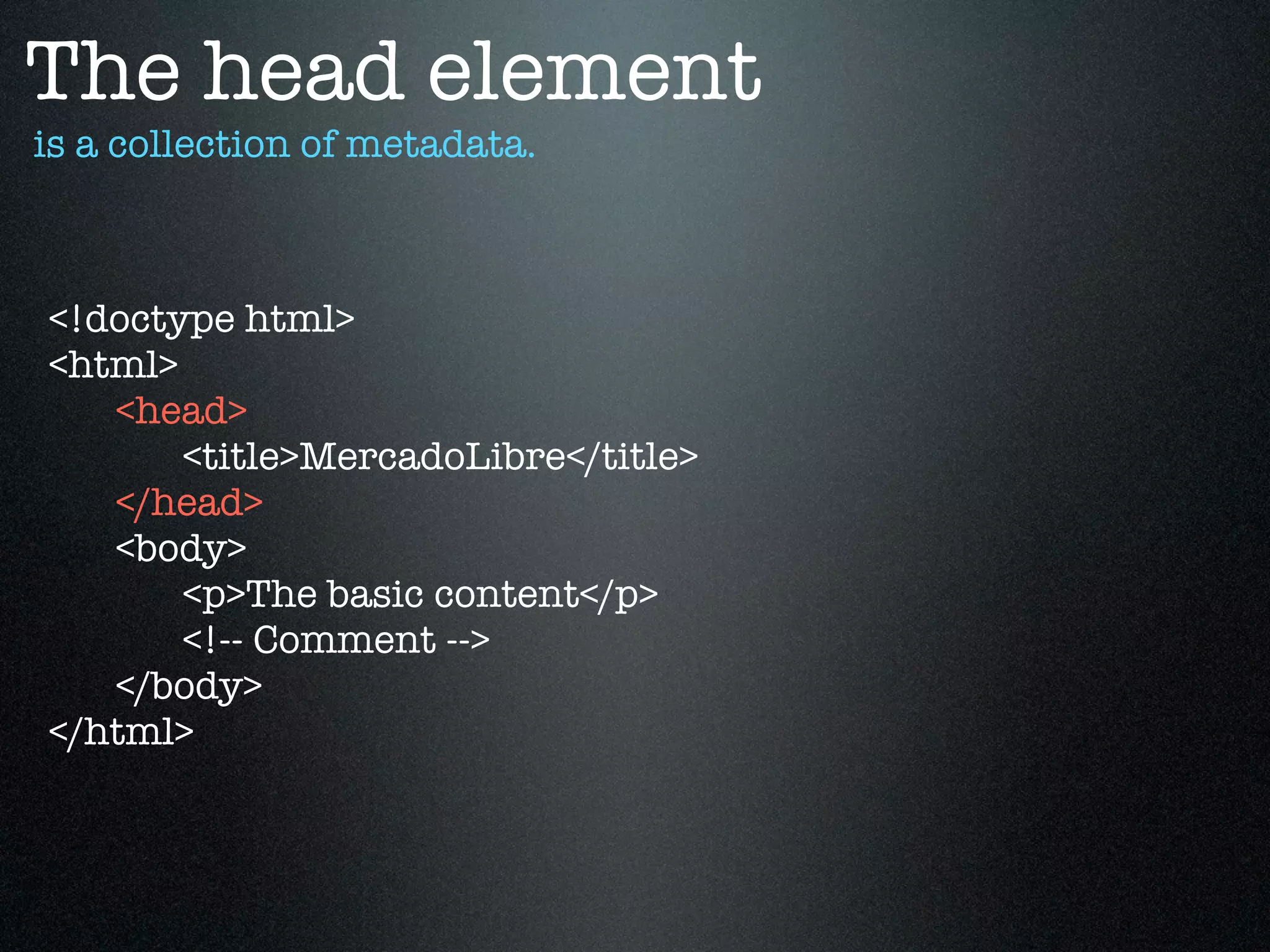

The head element
is a collection of metadata.

<!doctype html>
<html>
<head>
</head>
<body>

</body>
</html>

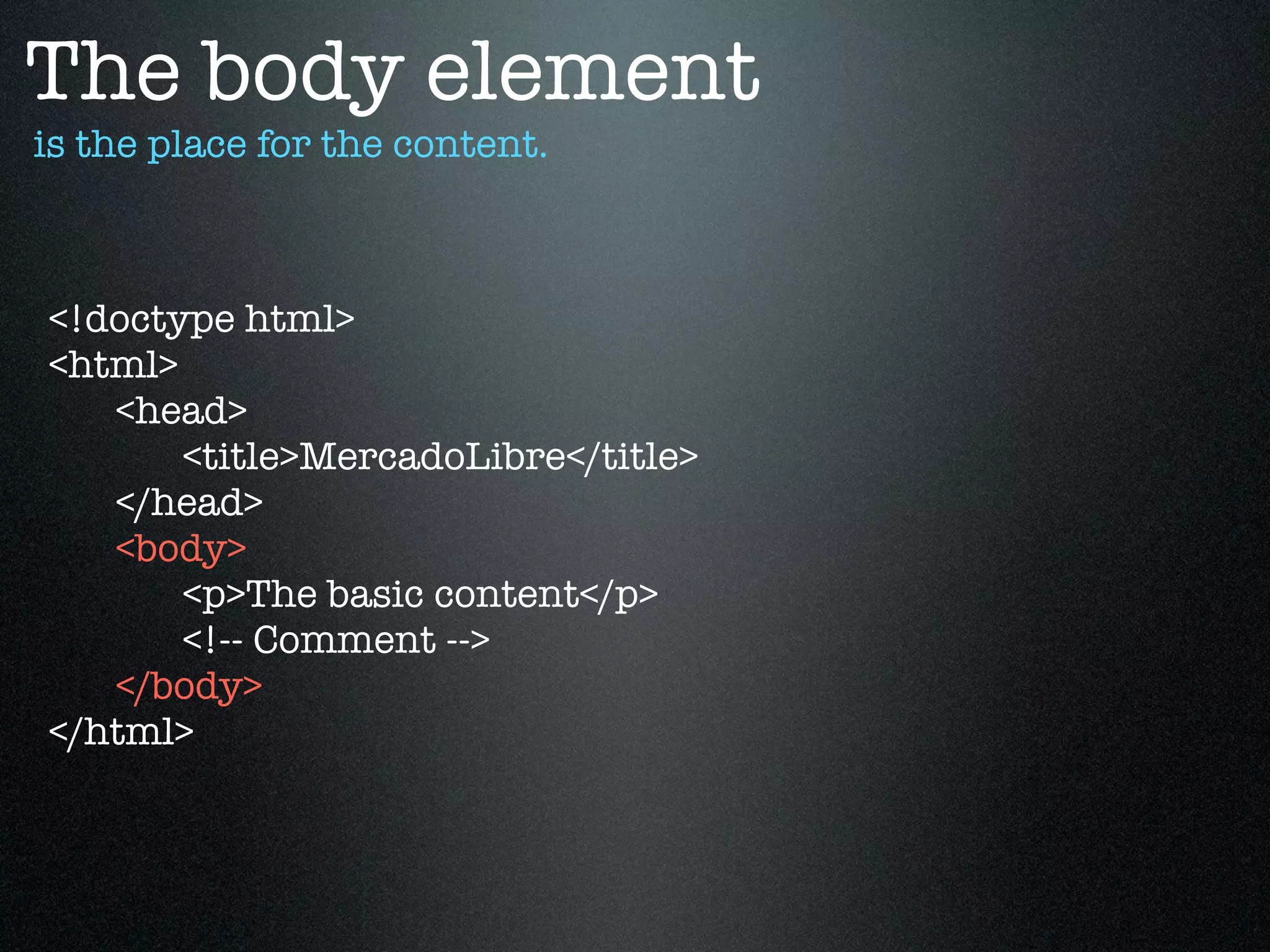

The body element
is the place for the content.

<!doctype html>
<html>
<head>
</head>
<body>

</body>
</html>

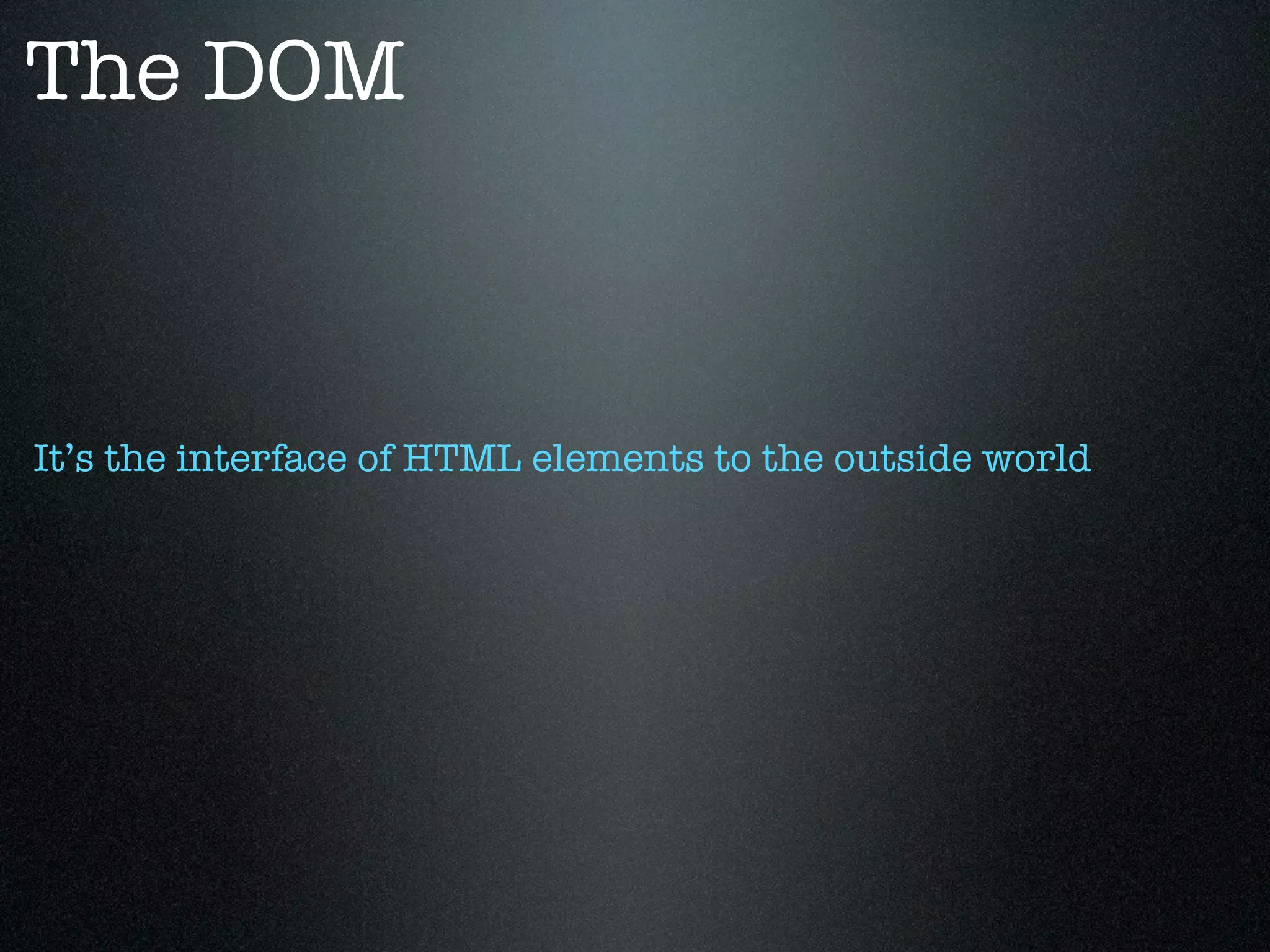

The DOM

It’s the interface of HTML elements to the outside world

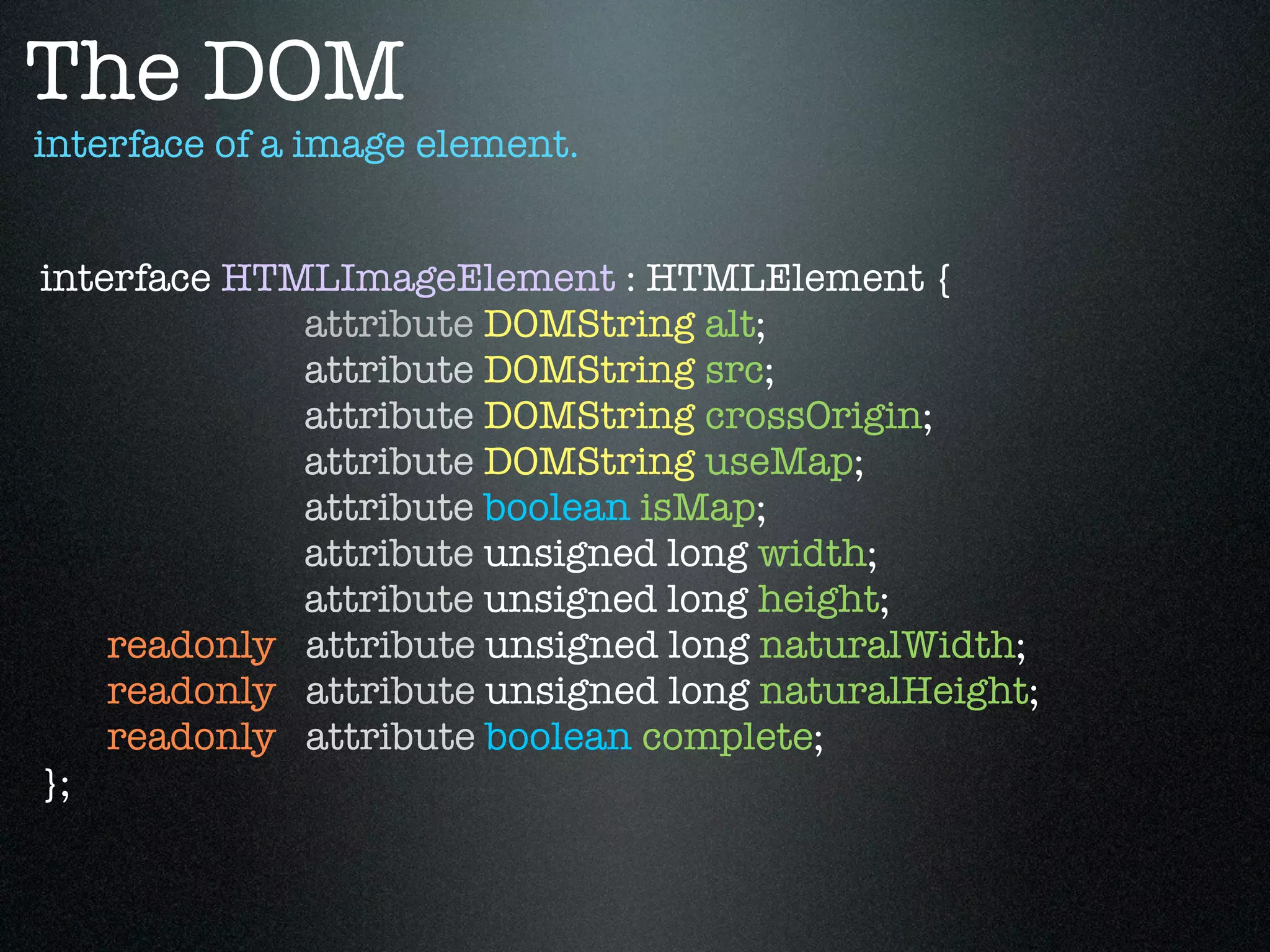

The DOM
interface of a image element.

interface HTMLImageElement : HTMLElement {
attribute DOMString alt;
attribute DOMString src;
attribute DOMString crossOrigin;
attribute DOMString useMap;
attribute boolean isMap;
attribute unsigned long width;
attribute unsigned long height;
readonly attribute unsigned long naturalWidth;
readonly attribute unsigned long naturalHeight;
readonly attribute boolean complete;
};

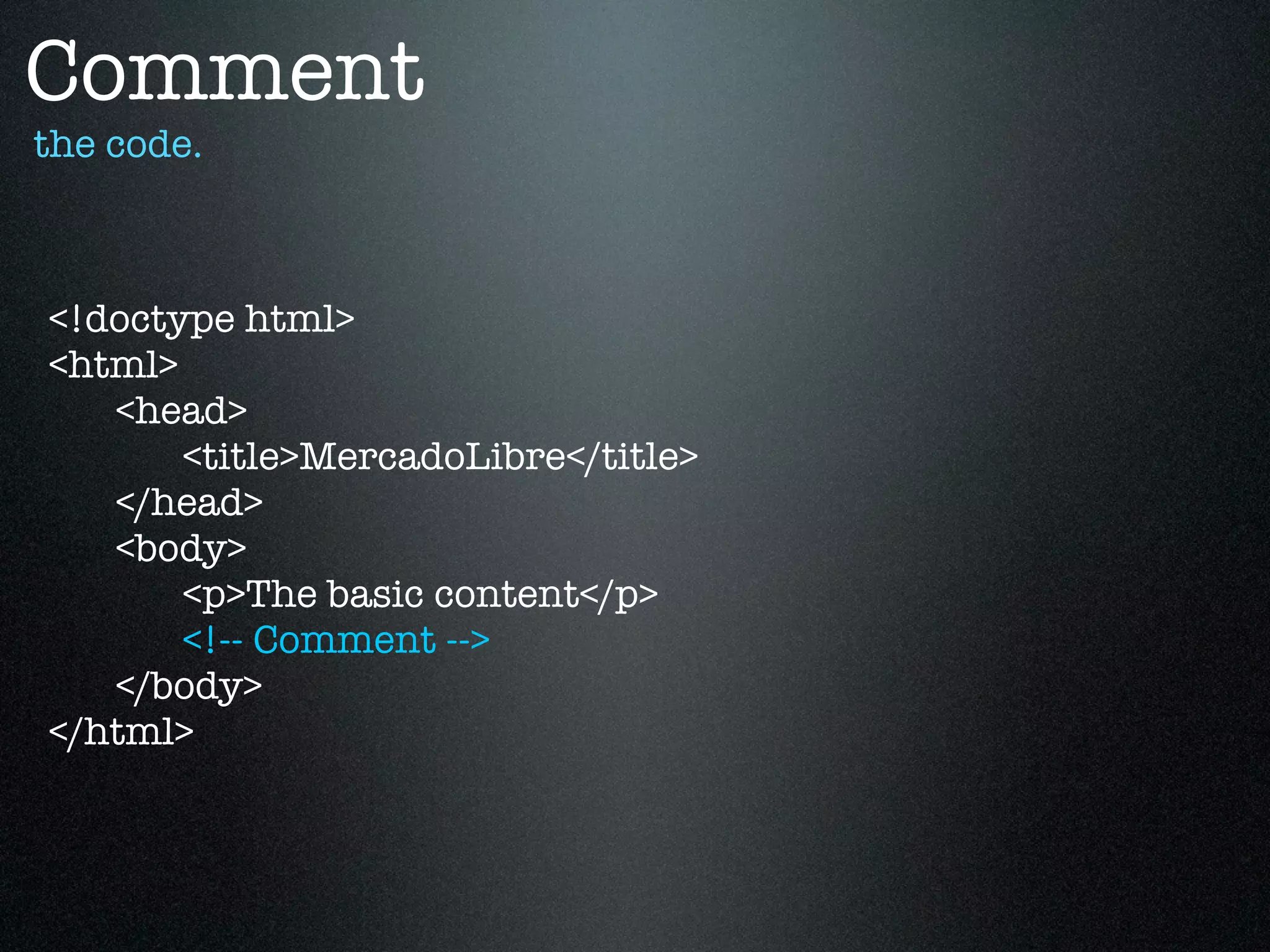

Comment
the code.

<!doctype html>
<html>
<head>
</head>
<body>

</body>
</html>

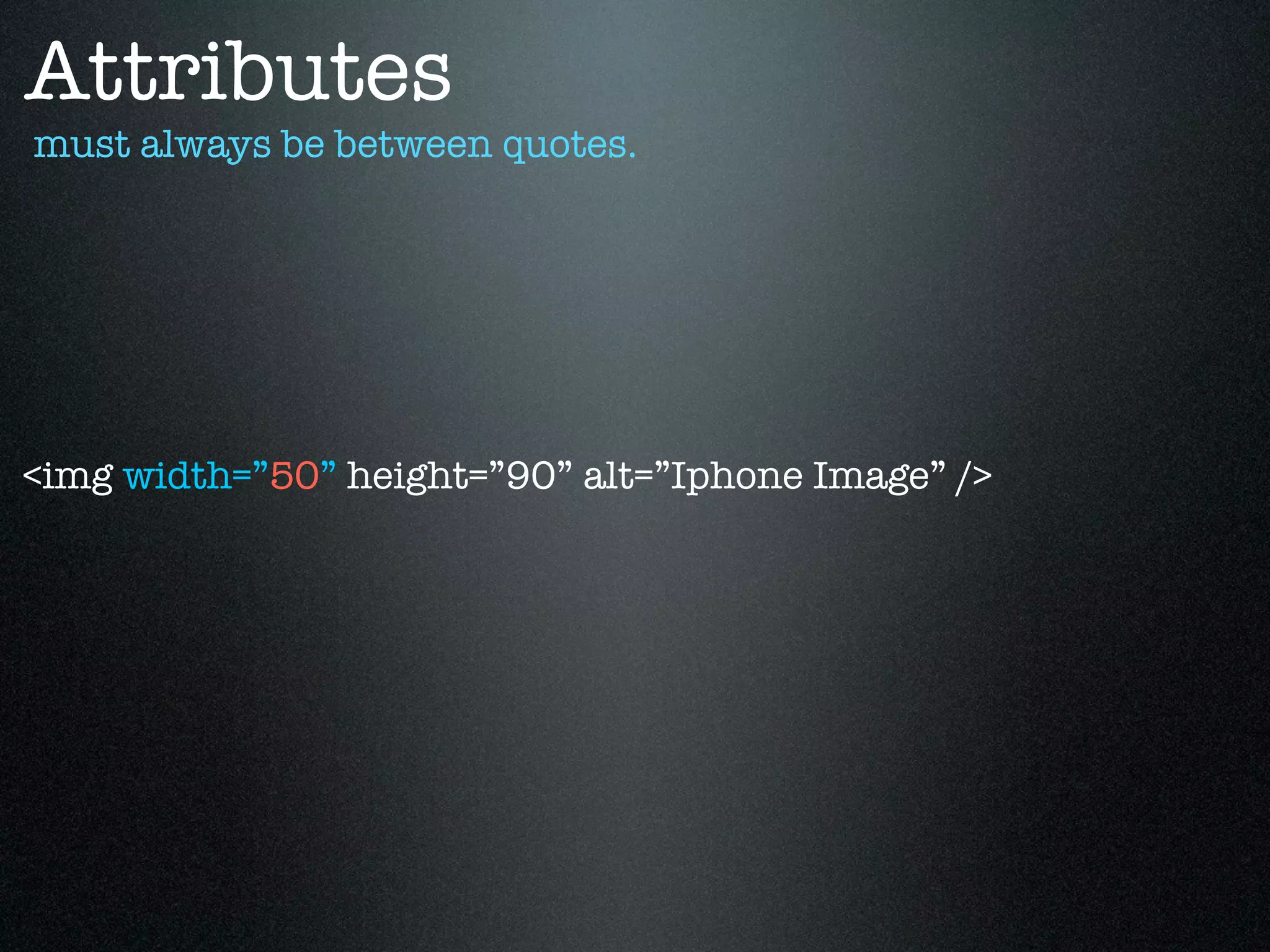

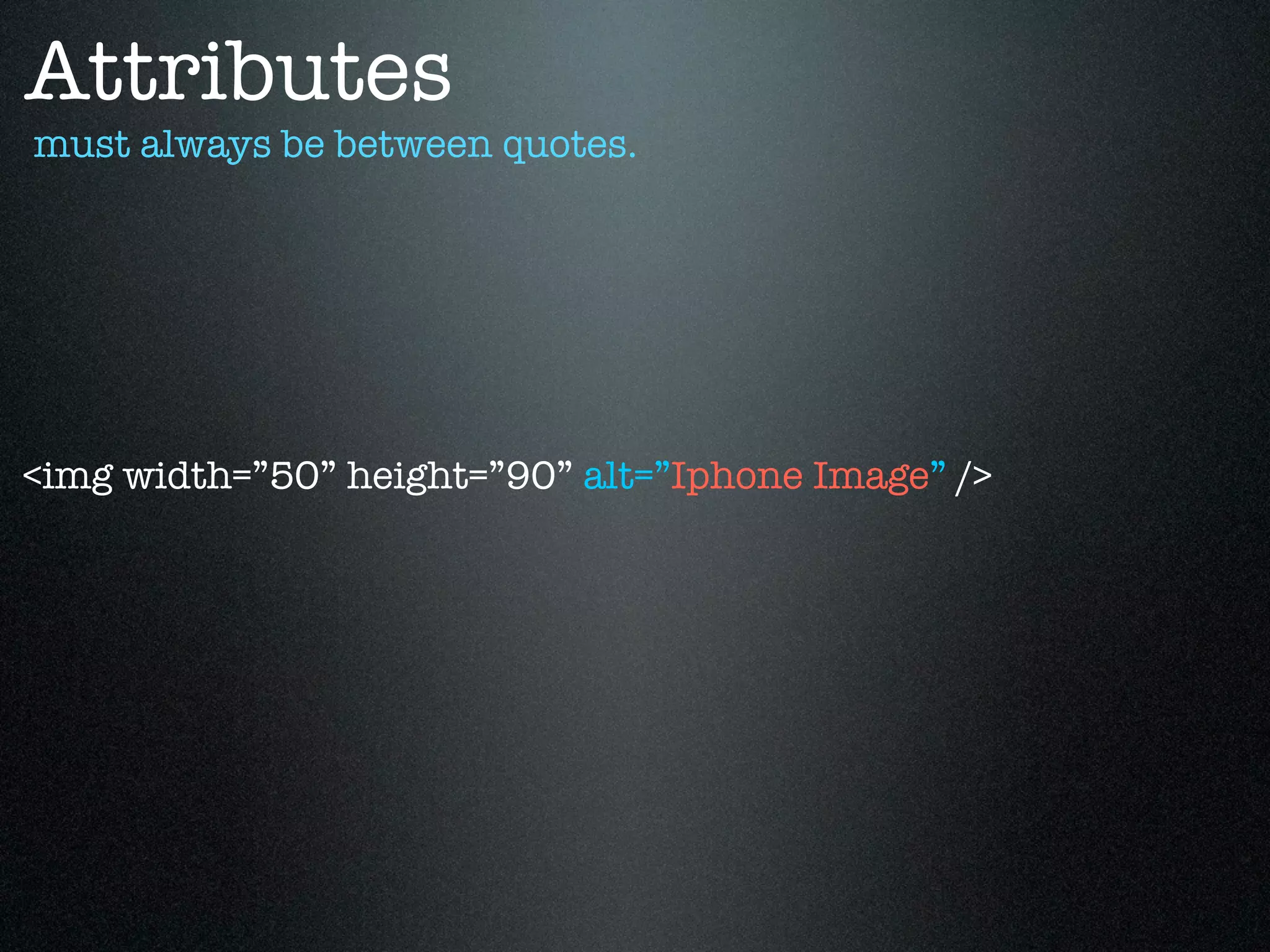

Attributes
must always be between quotes.

<img width=”50” height=”90” alt=”Iphone Image” />

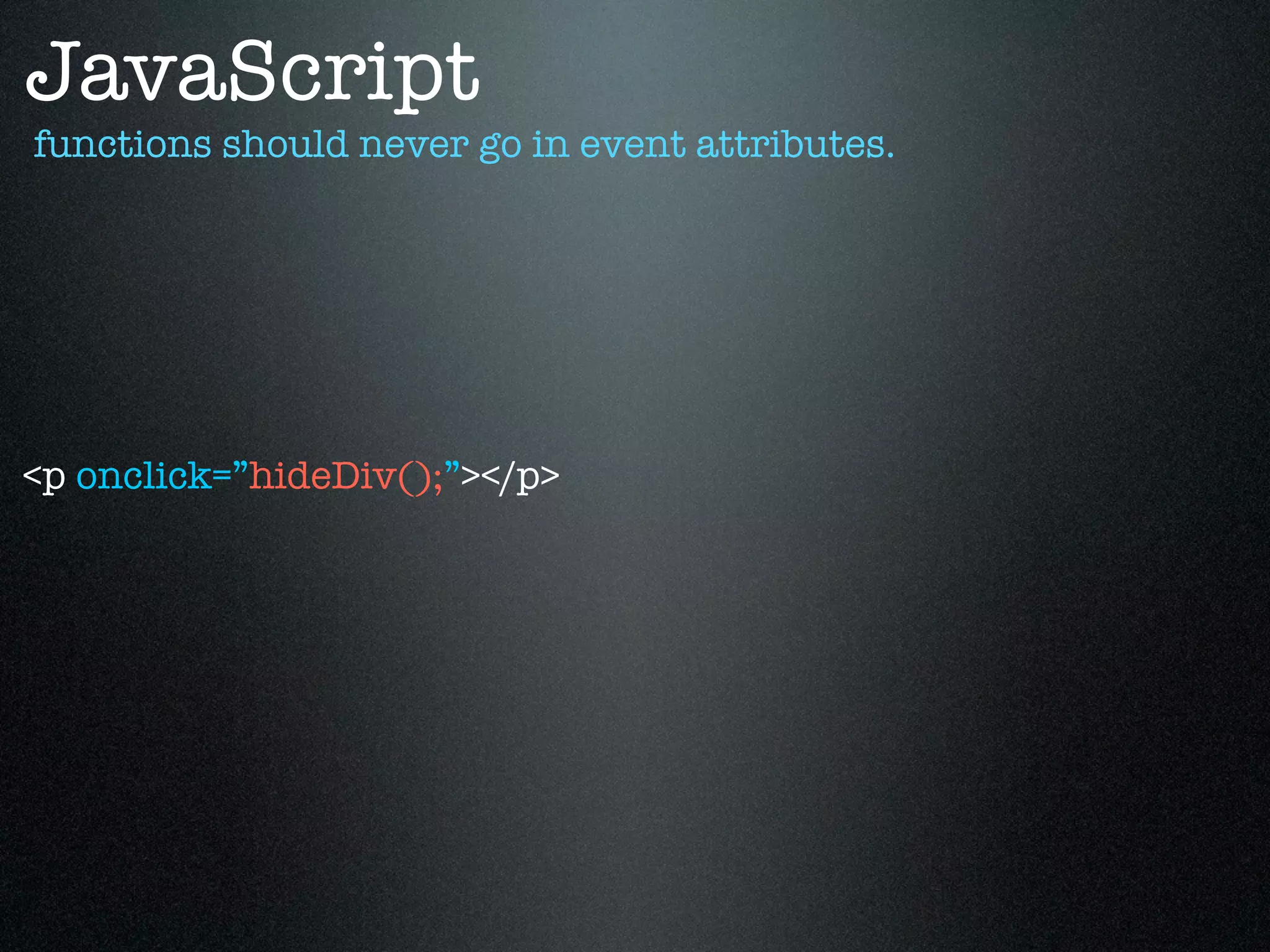

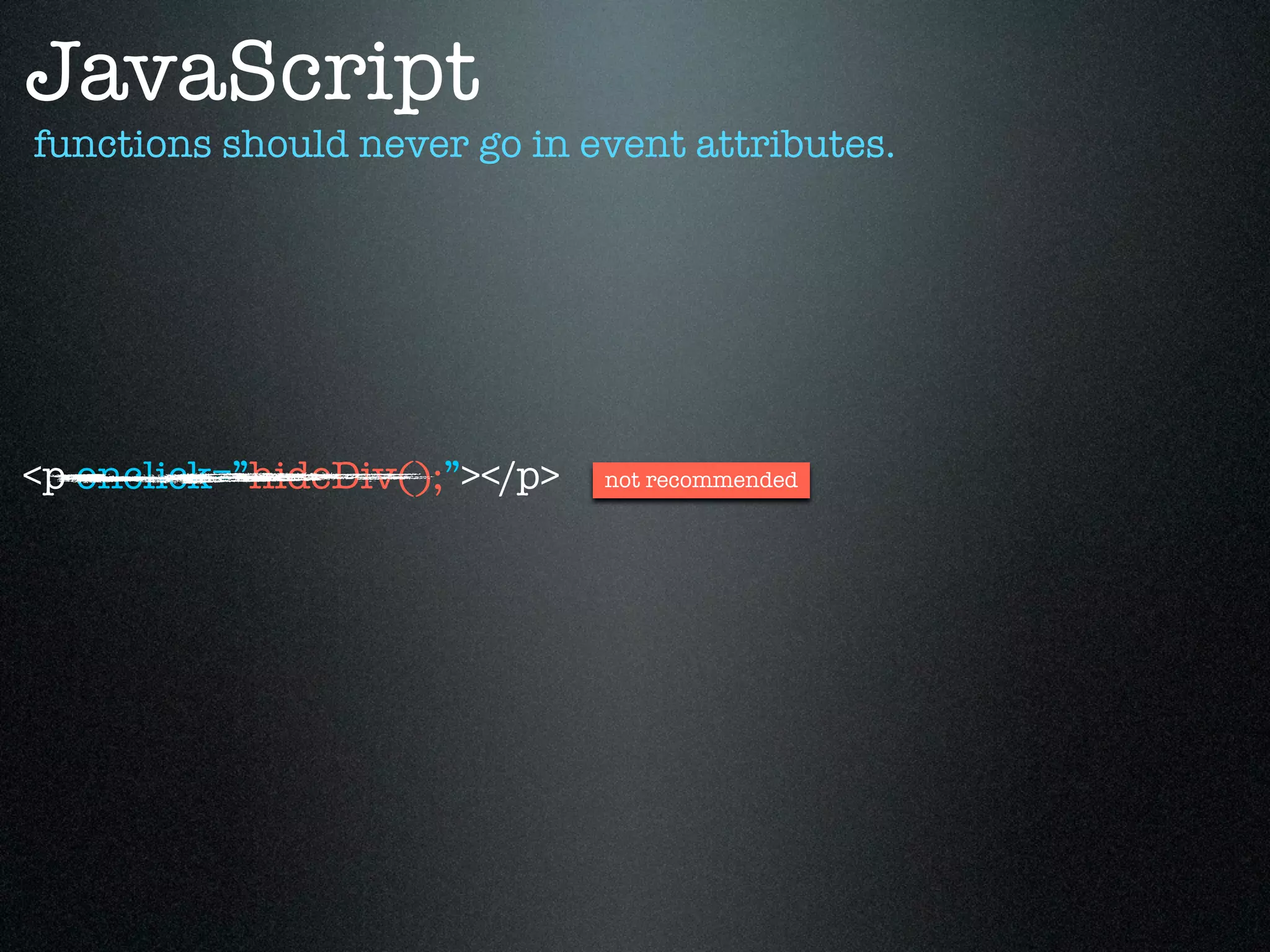

JavaScript
functions should never go in event attributes.

<p onclick=”hideDiv();”></p>

JavaScript

<p onclick=”hideDiv();”></p> not recommended

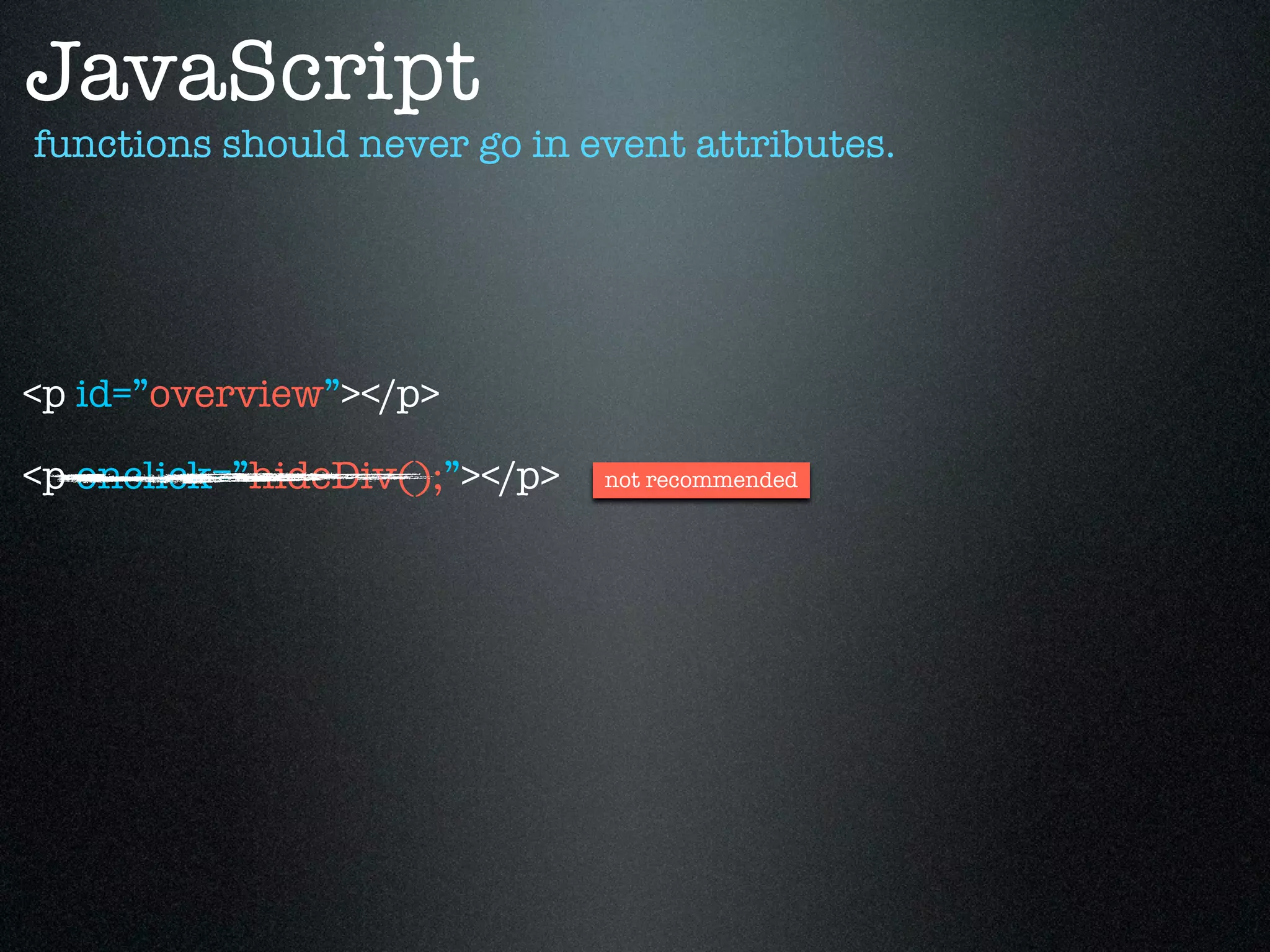

JavaScript

<p id=”overview”></p>

<p onclick=”hideDiv();”></p> not recommended

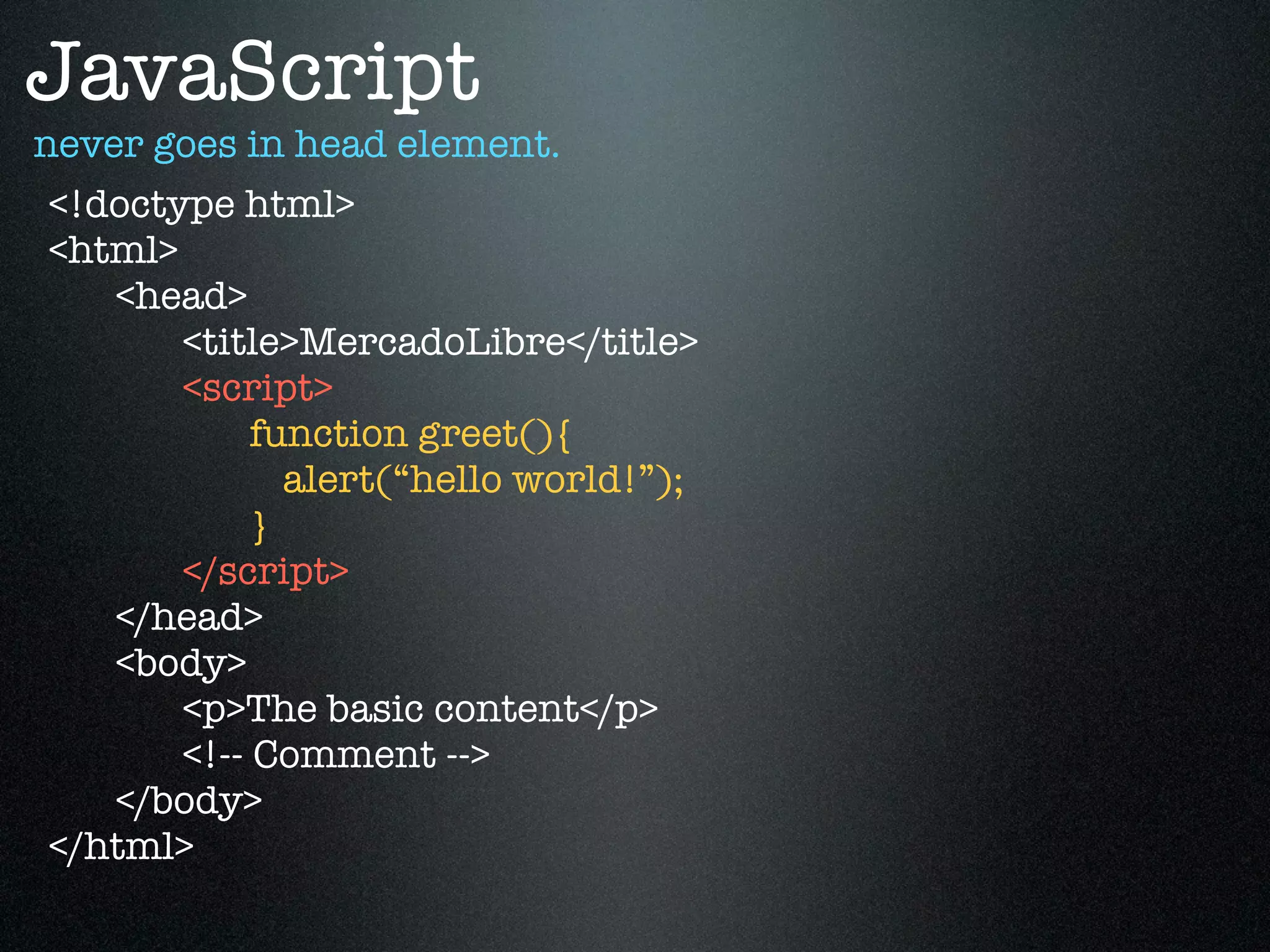

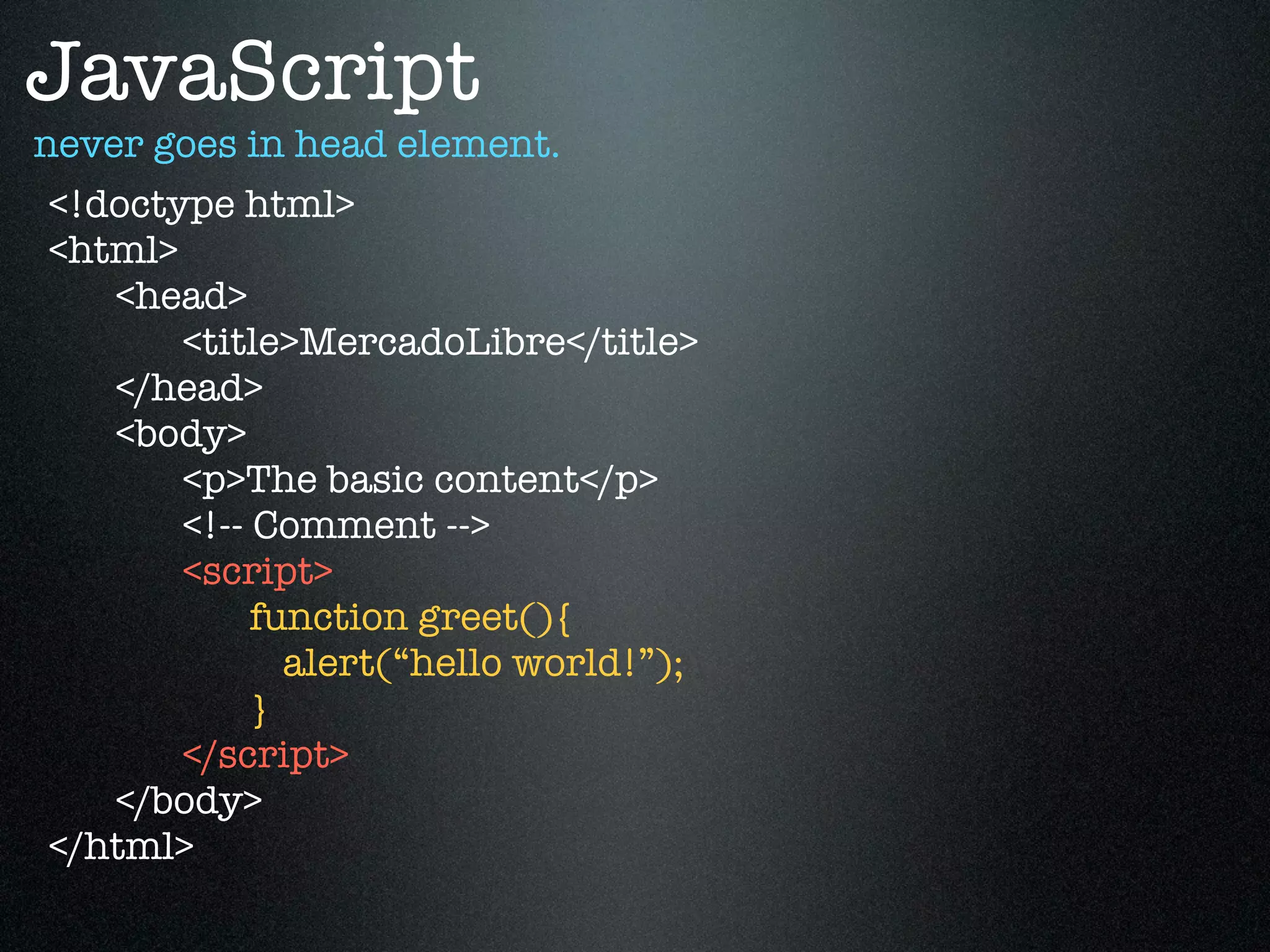

JavaScript
never goes in head element.
<!doctype html>
<html>
<head>
<script>
function greet(){
alert(“hello world!”);
}
</script>
</head>
<body>

</body>
</html>

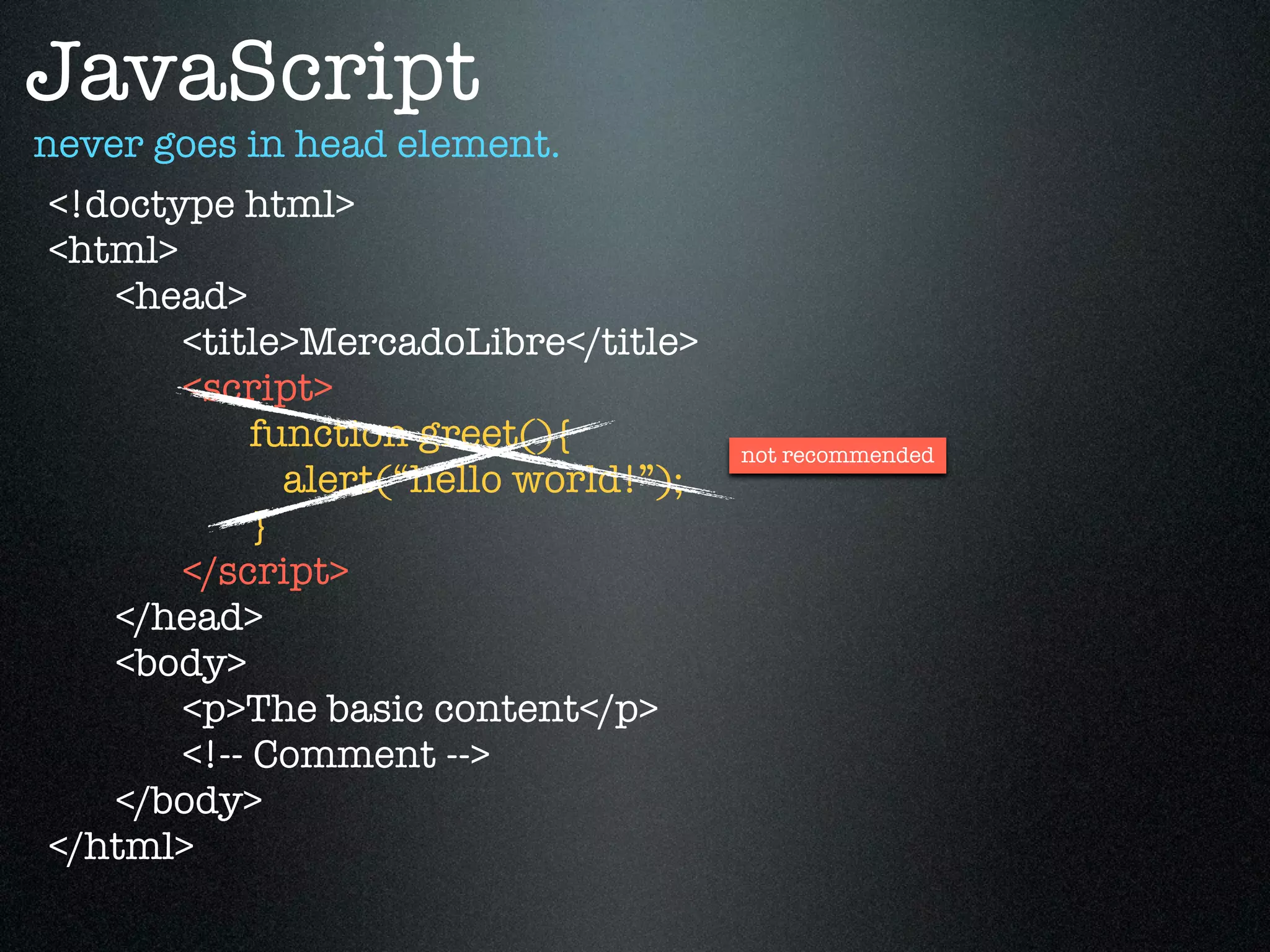

JavaScript
<!doctype html>
<html>
<head>
<script>
function greet(){ not recommended
}
</script>
</head>
<body>

</body>
</html>

JavaScript
<!doctype html>
<html>
<head>
</head>
<body>

<script>
function greet(){
}
</script>
</body>
</html>

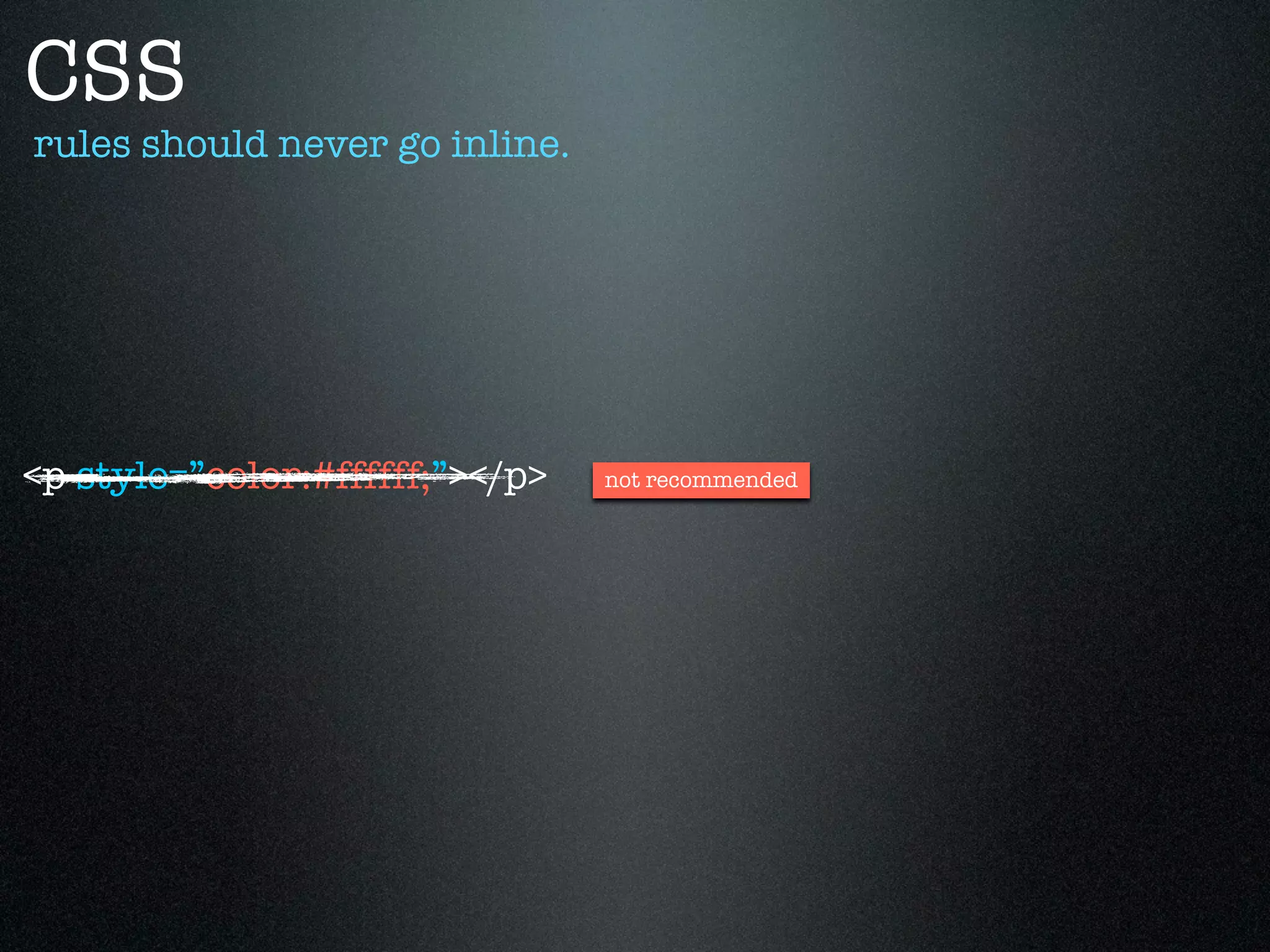

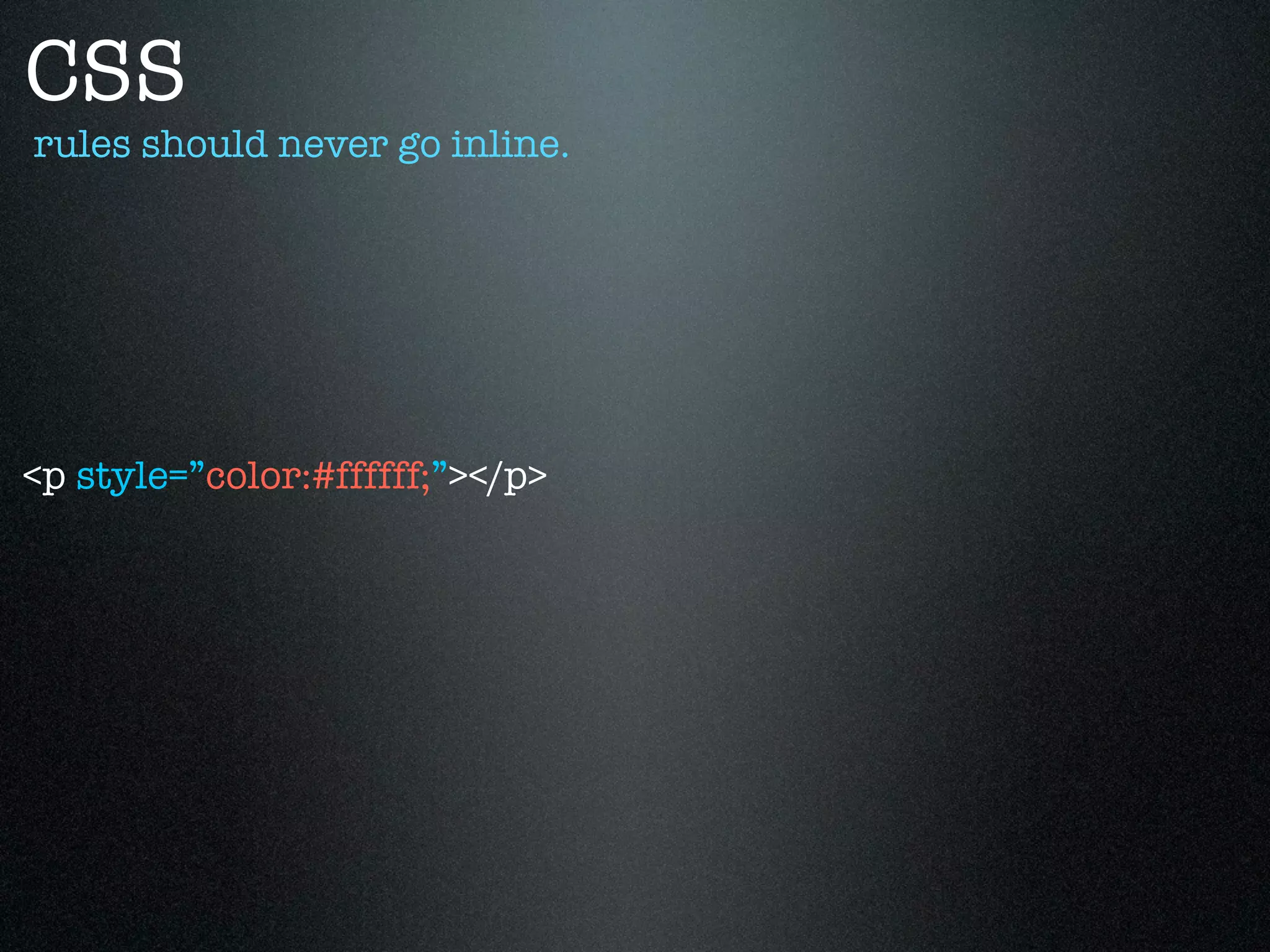

CSS
rules should never go inline.

<p style=”color:#ffffff;”></p>

CSS

<p style=”color:#ffffff;”></p> not recommended

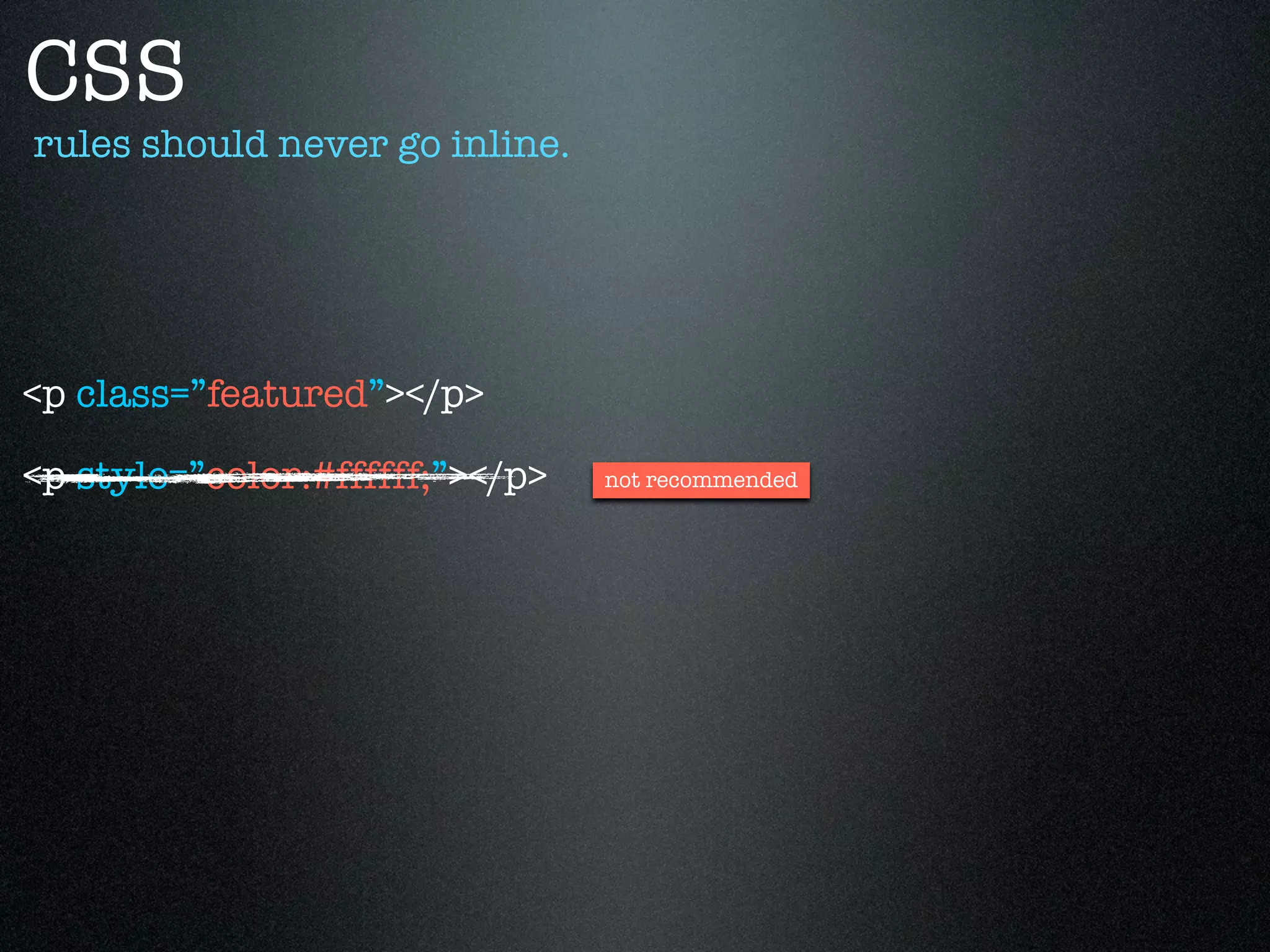

CSS

<p class=”featured”></p>

<p style=”color:#ffffff;”></p> not recommended

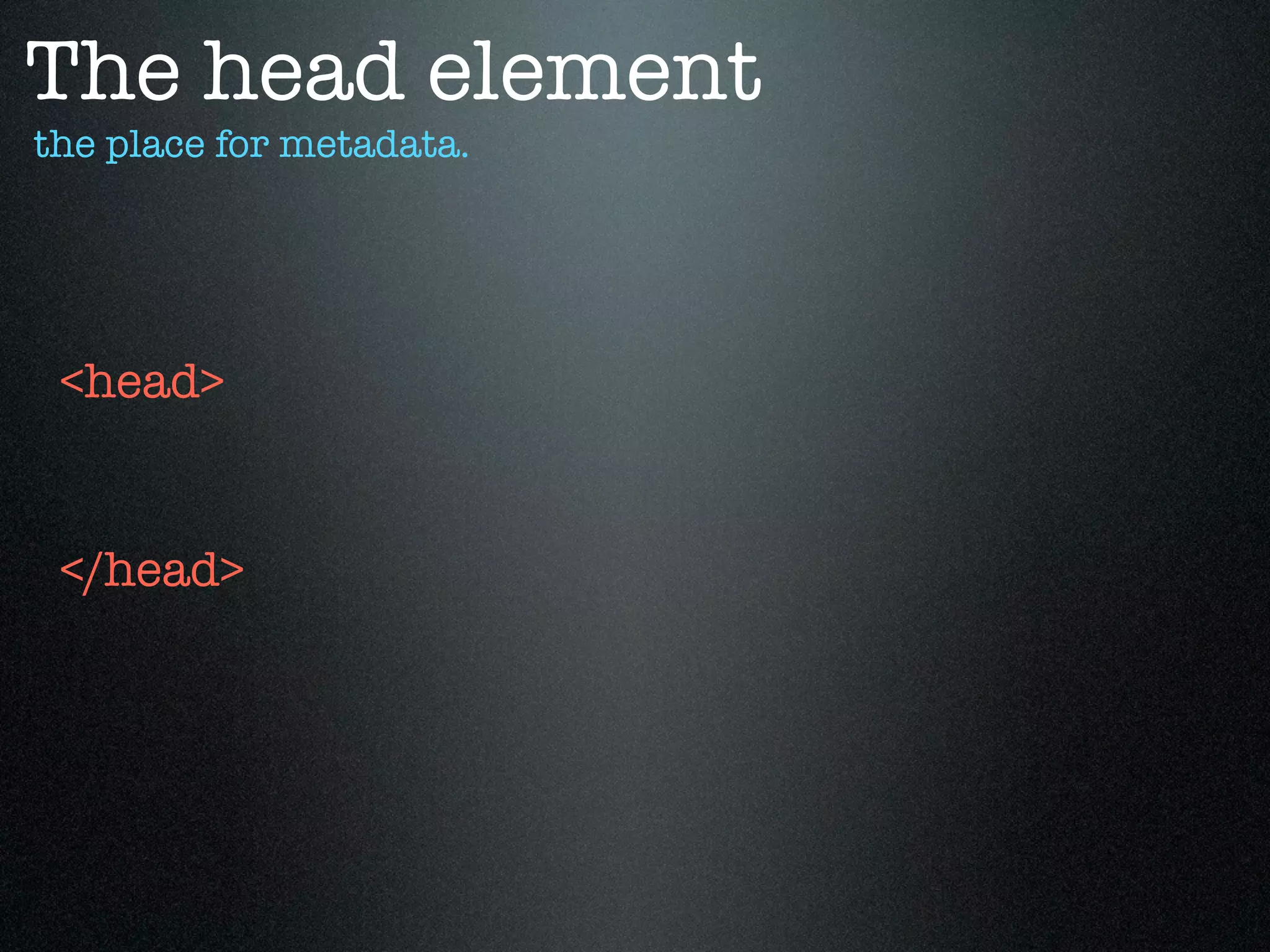

The head element
the place for metadata.

<head>

</head>

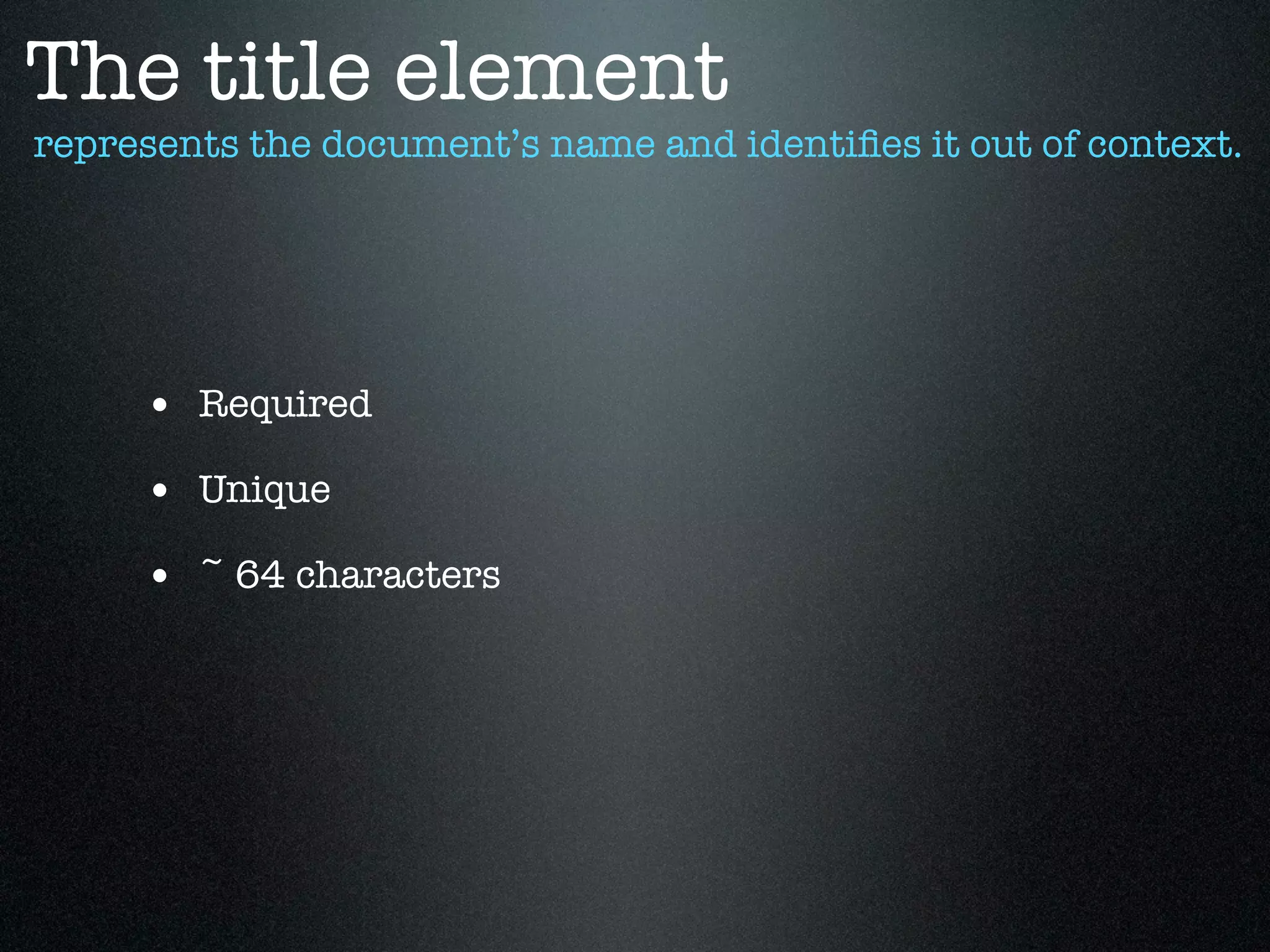

The title element
represents the document’s name and identiﬁes it out of context.

• Required
• Unique
• ~ 64 characters

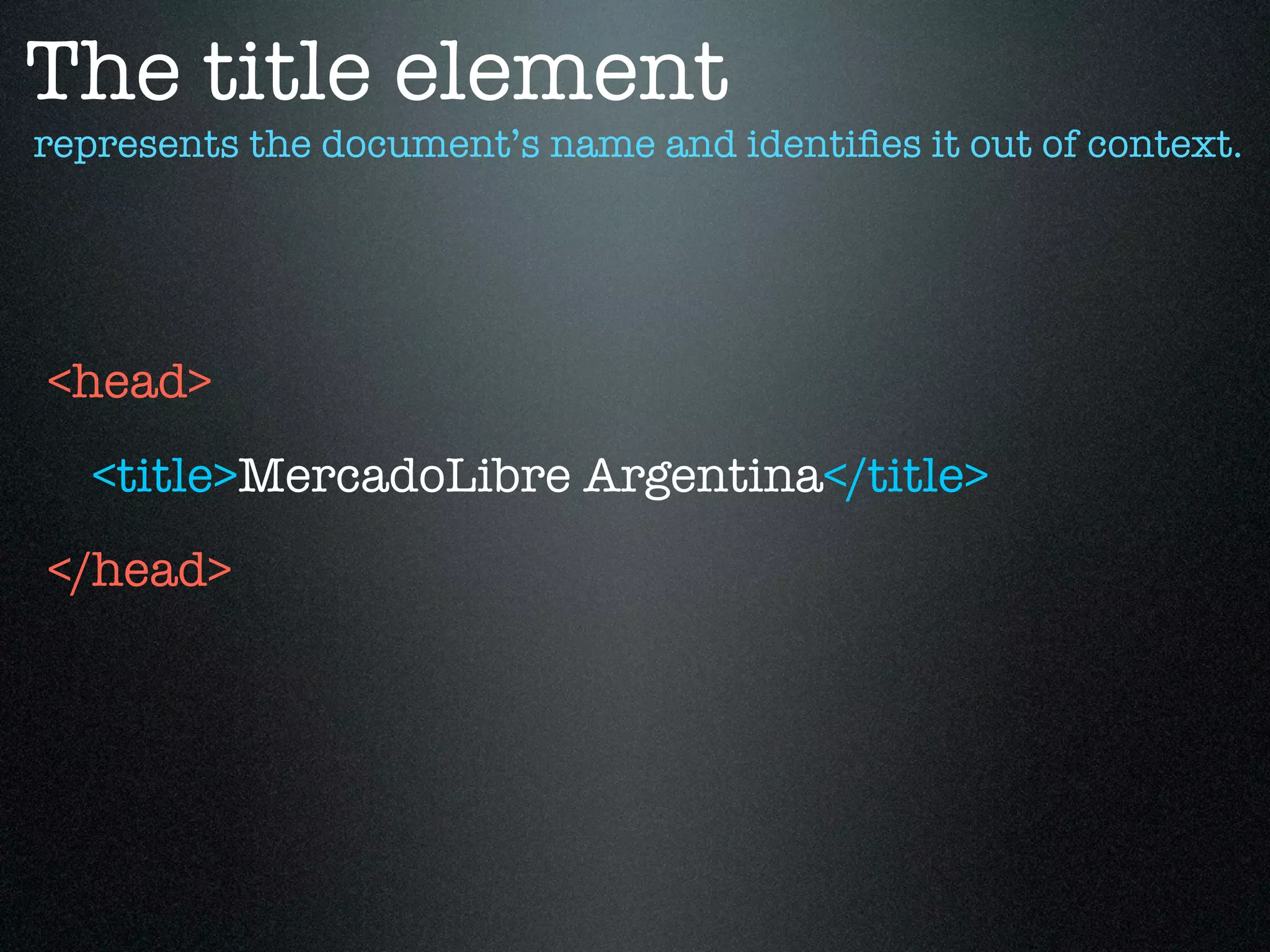

The title element
represents the document’s name and identiﬁes it out of context.

<head>
<title>MercadoLibre Argentina</title>
</head>

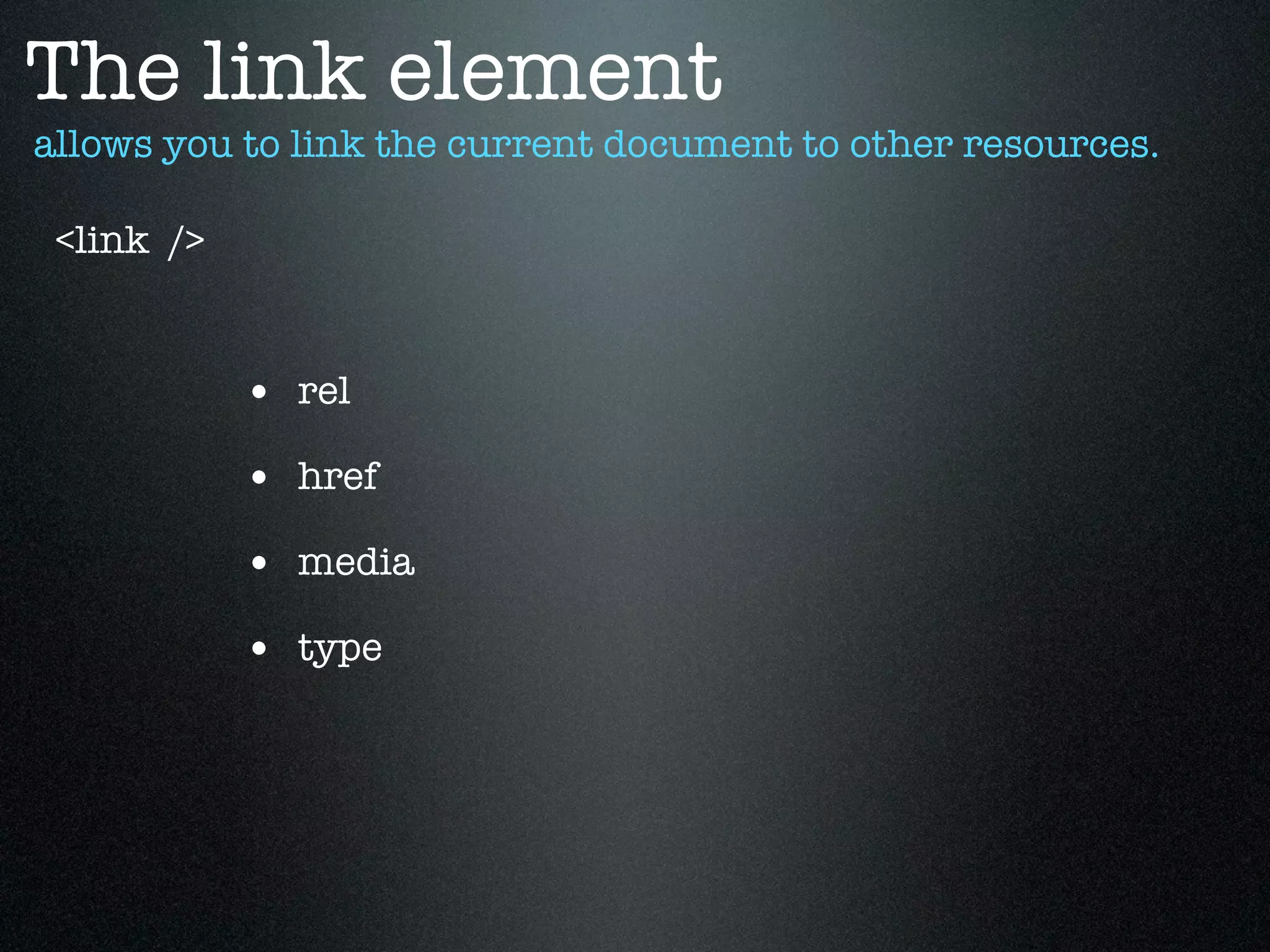

The link element
allows you to link the current document to other resources.

<link />

• rel
• href
• media
• type

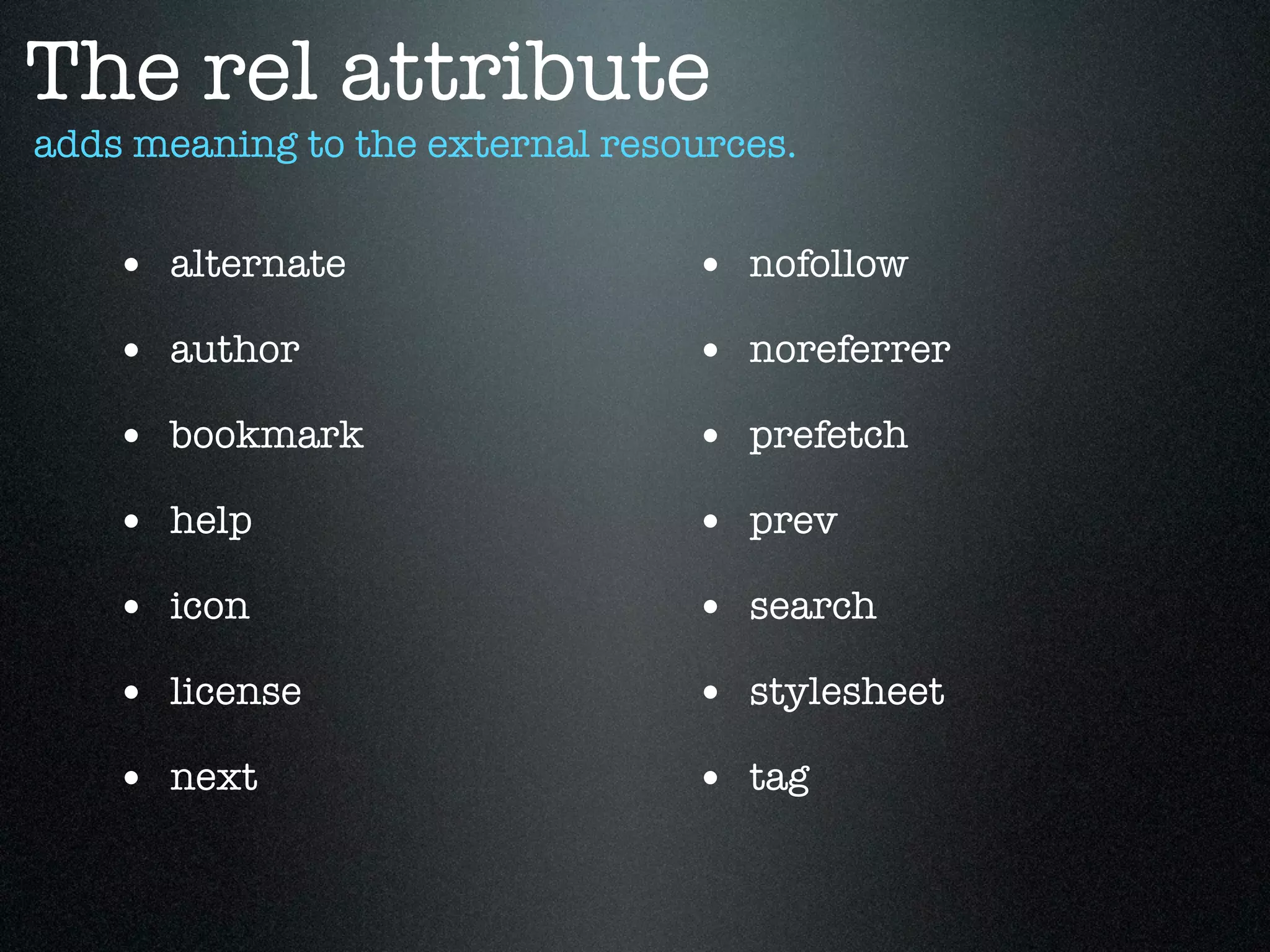

The rel attribute
adds meaning to the external resources.

• alternate • nofollow
• author • noreferrer
• bookmark • prefetch
• help • prev
• icon • search
• license • stylesheet
• next • tag

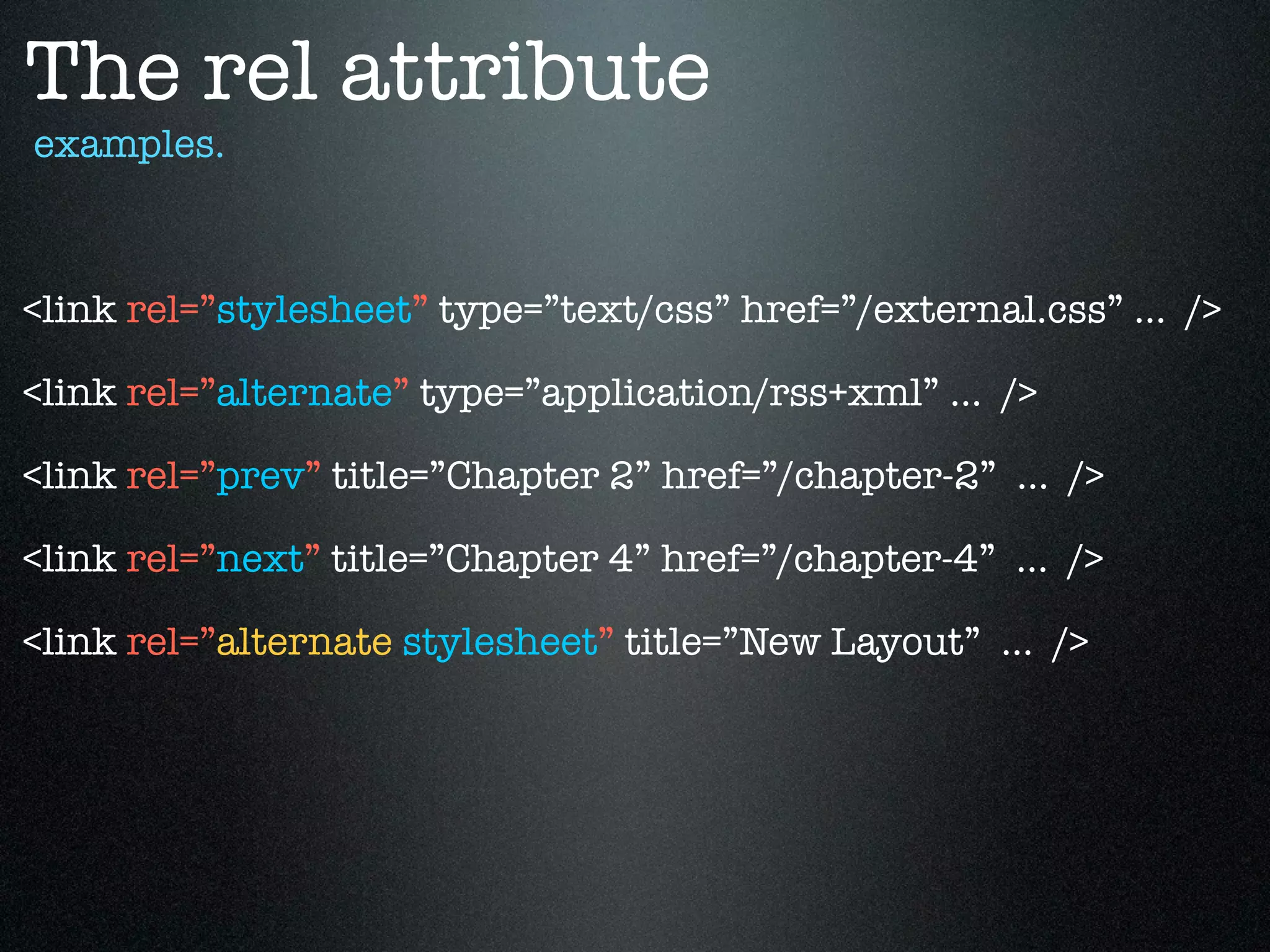

The rel attribute
examples.

<link rel=”stylesheet” type=”text/css” href=”/external.css” ... />

<link rel=”alternate” type=”application/rss+xml” ... />

<link rel=”prev” title=”Chapter 2” href=”/chapter-2” ... />

<link rel=”next” title=”Chapter 4” href=”/chapter-4” ... />

<link rel=”alternate stylesheet” title=”New Layout” ... />

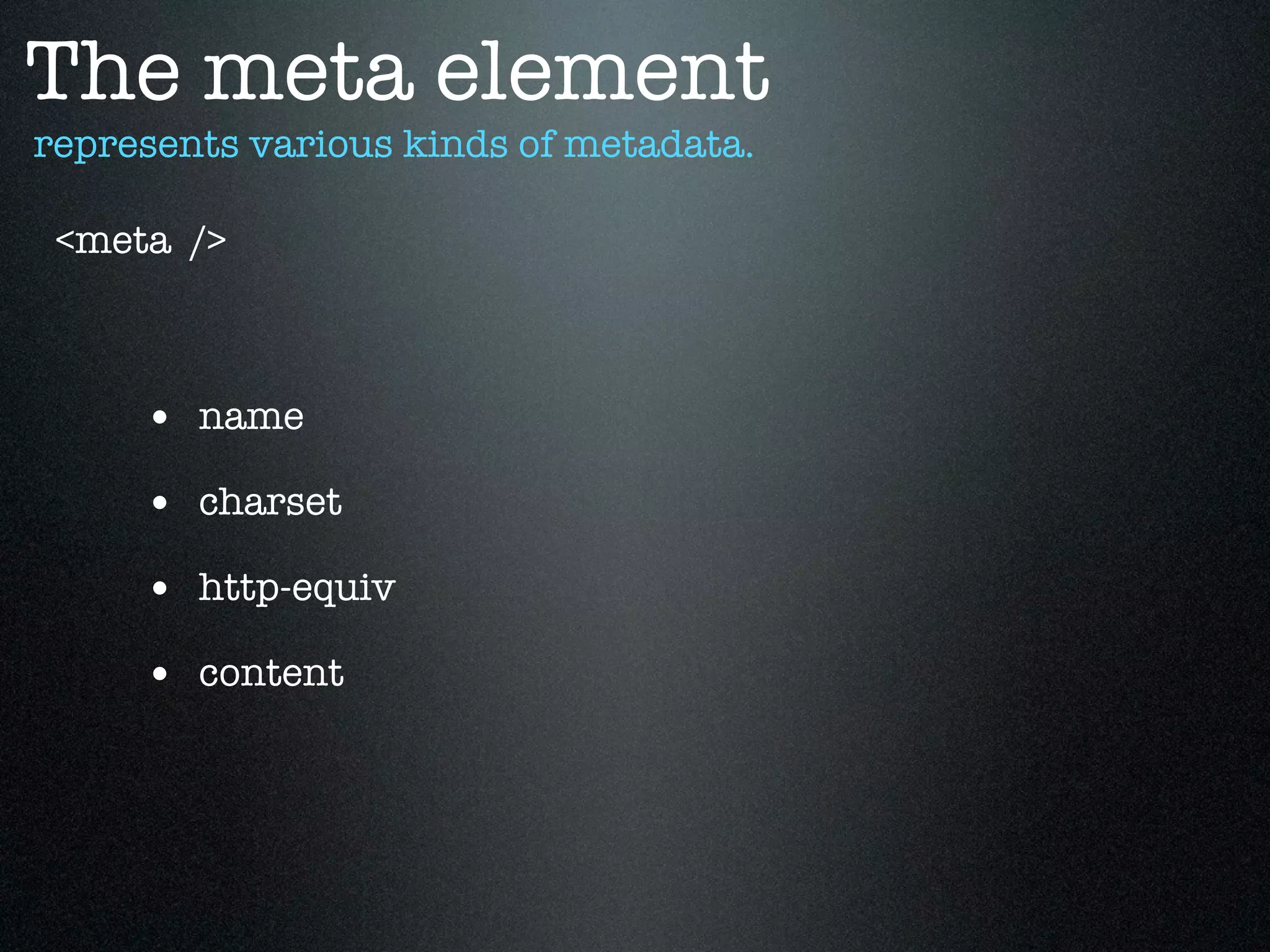

The meta element
represents various kinds of metadata.

<meta />

• name
• charset
• http-equiv
• content

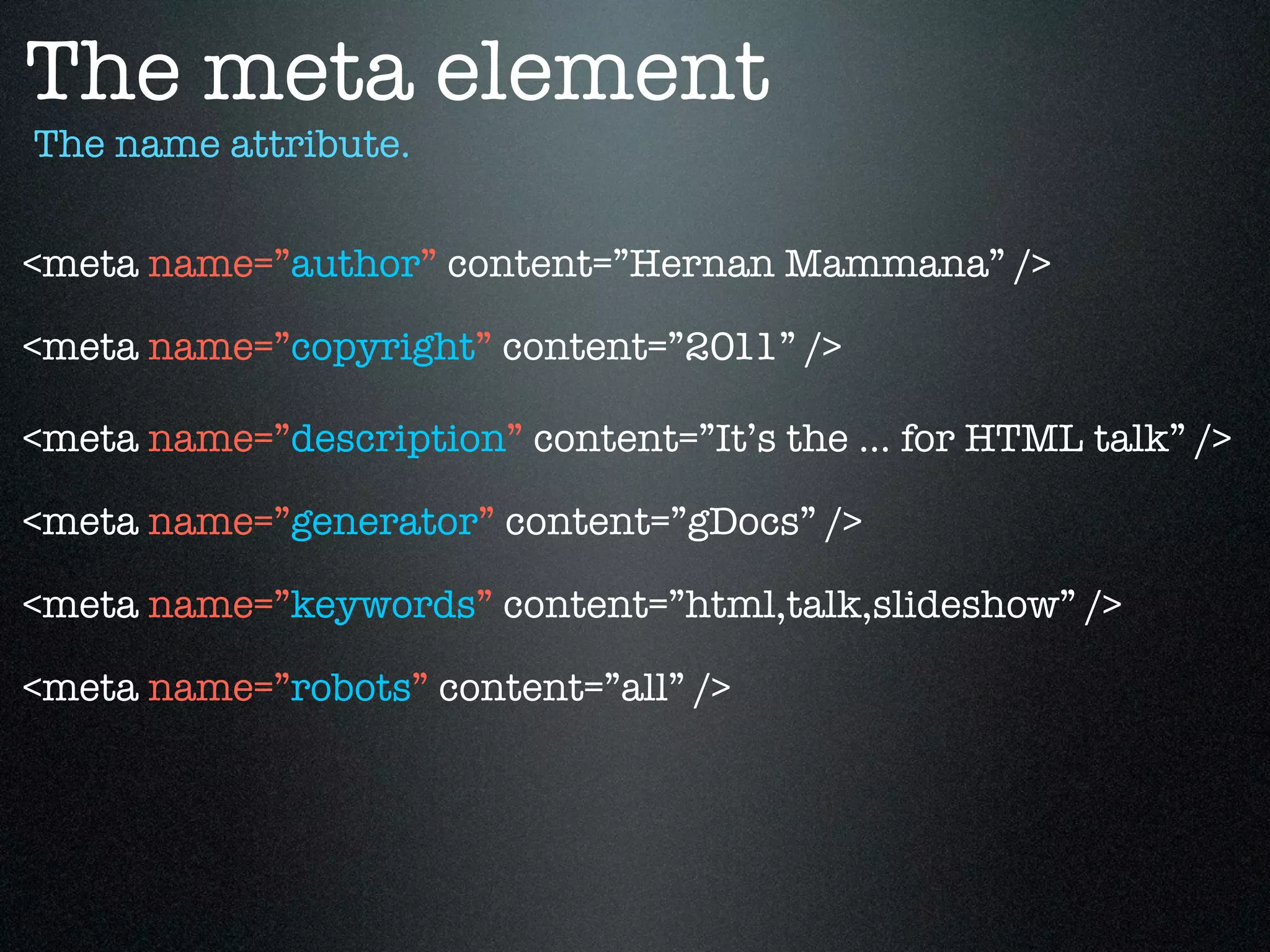

The meta element
The name attribute.

<meta name=”author” content=”Hernan Mammana” />

<meta name=”copyright” content=”2011” />

<meta name=”description” content=”It’s the ... for HTML talk” />

<meta name=”generator” content=”gDocs” />

<meta name=”keywords” content=”html,talk,slideshow” />

<meta name=”robots” content=”all” />

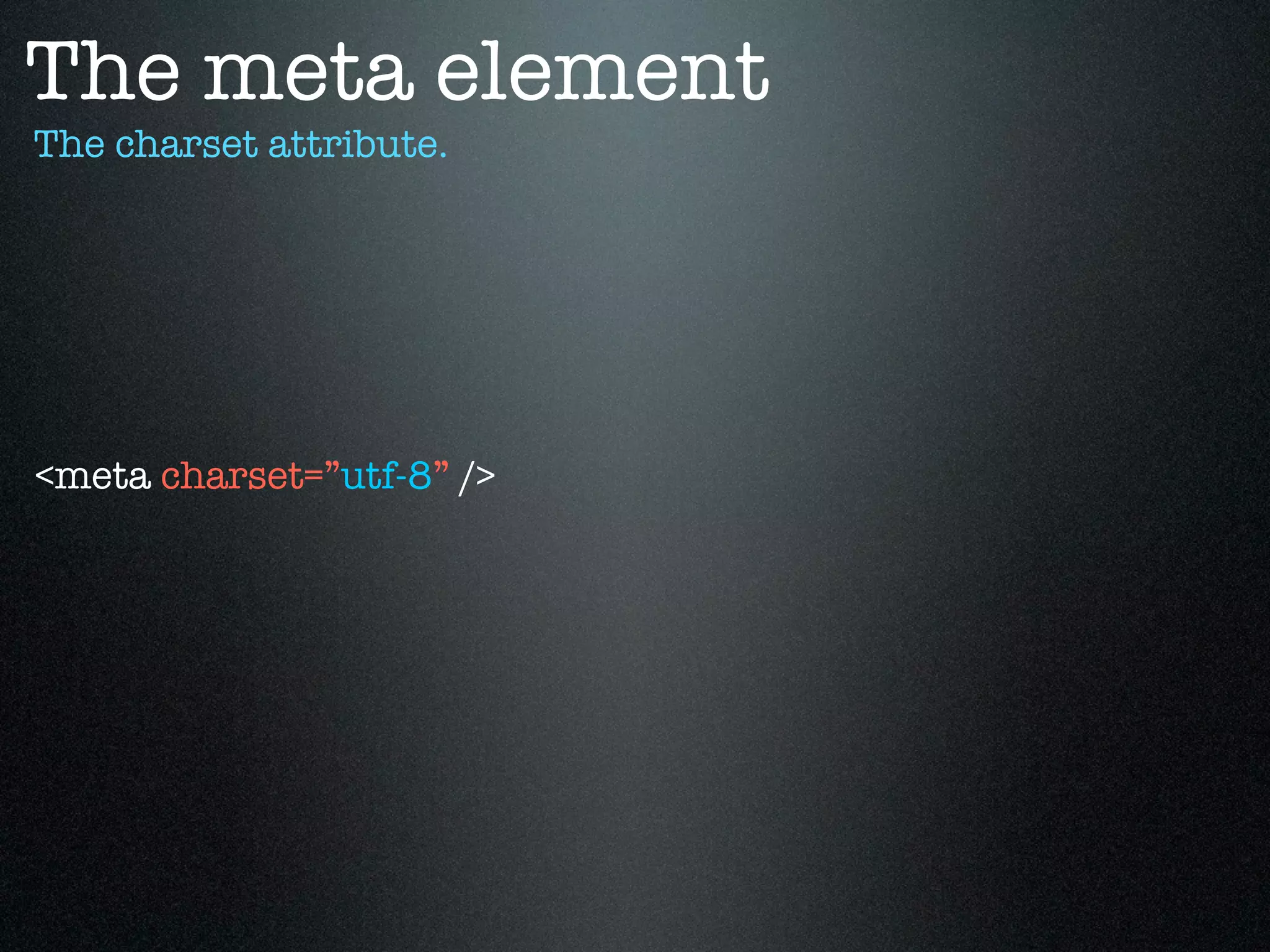

The meta element
The charset attribute.

<meta charset=”utf-8” />

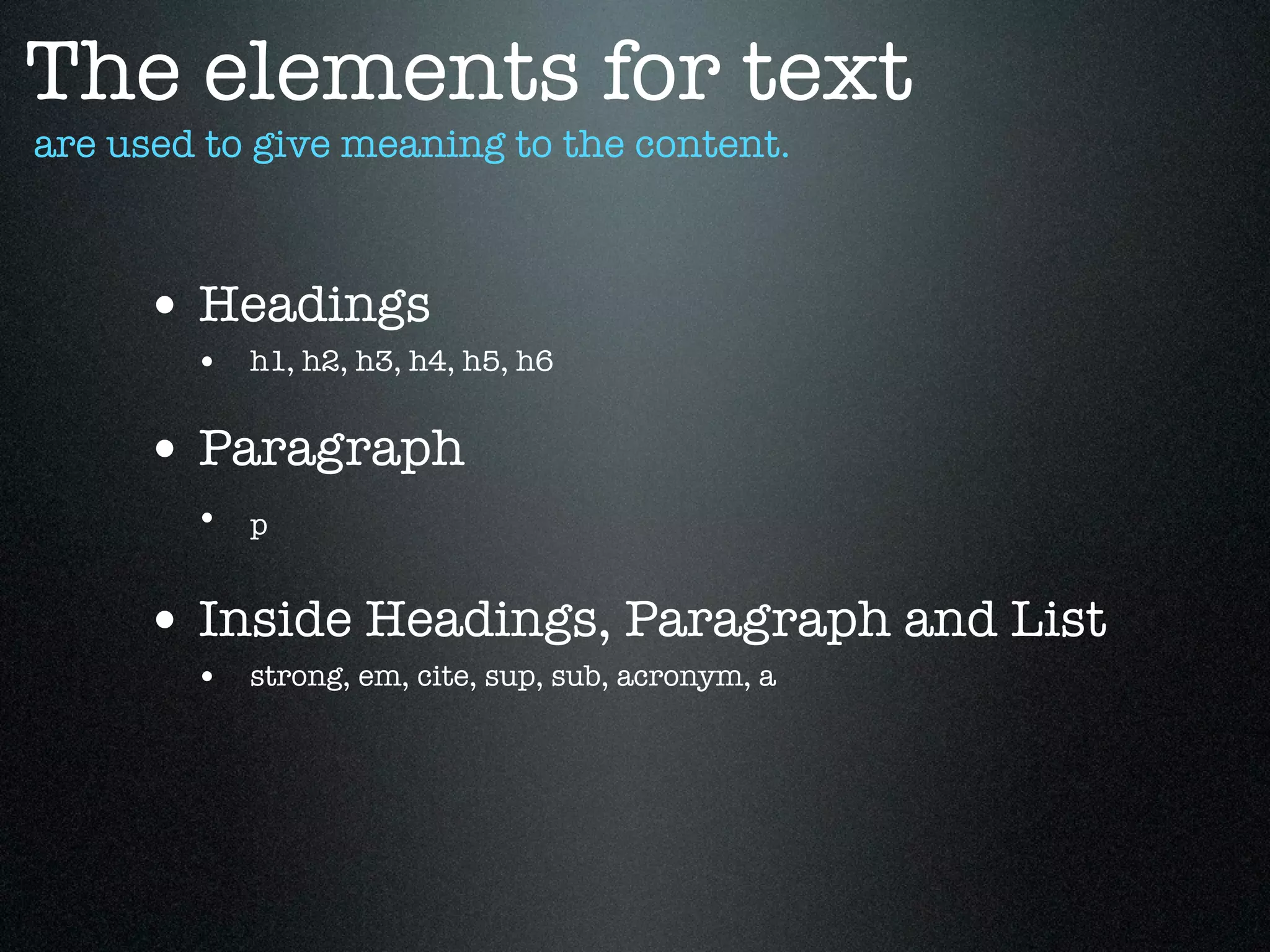

The elements for text
are used to give meaning to the content.

• Headings
• h1, h2, h3, h4, h5, h6

• Paragraph
• p

• Inside Headings, Paragraph and List
• strong, em, cite, sup, sub, acronym, a

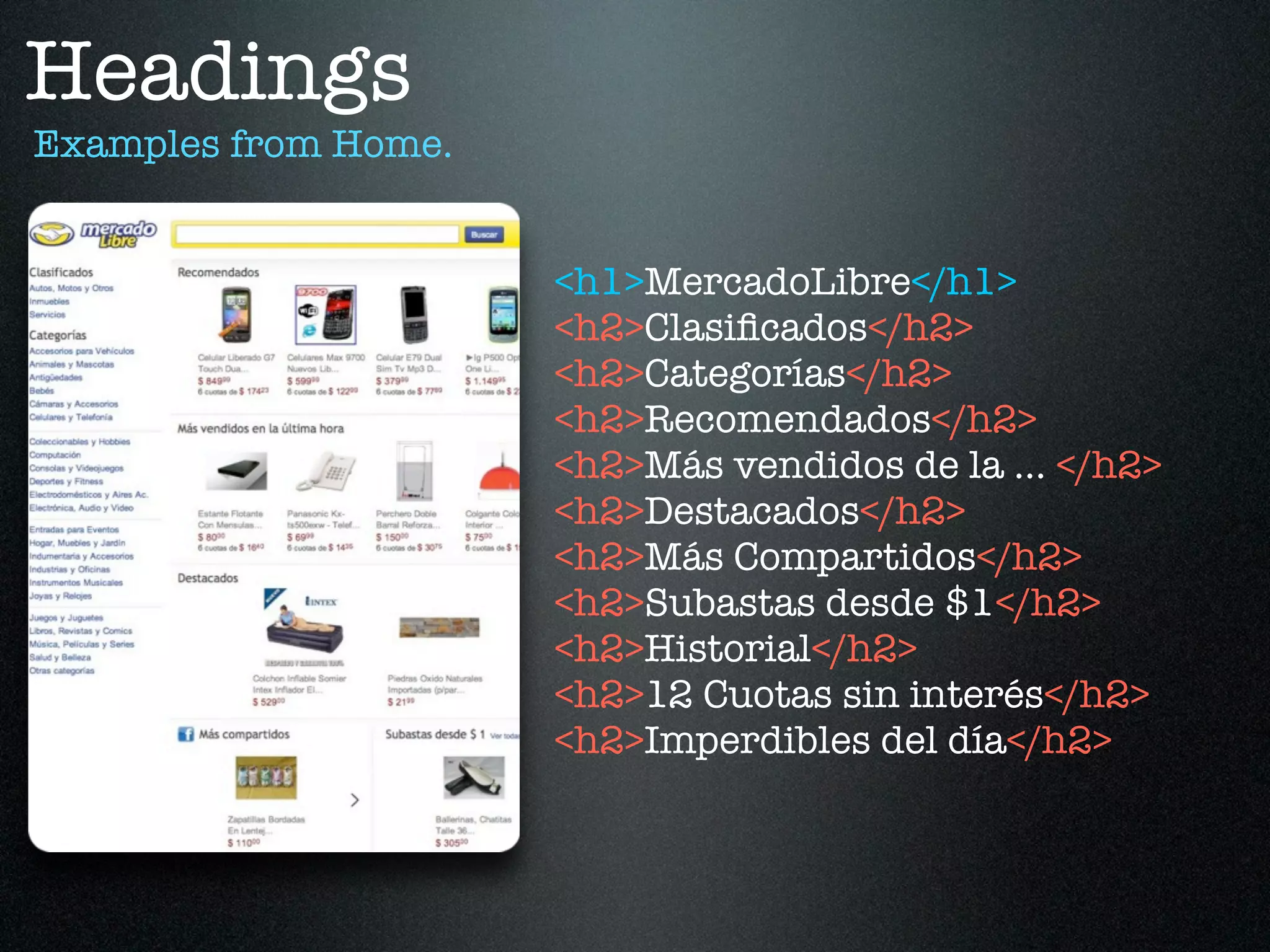

Headings
Examples from Home.

<h1>MercadoLibre</h1>
<h2>Clasiﬁcados</h2>
<h2>Categorías</h2>
<h2>Recomendados</h2>
<h2>Más vendidos de la ... </h2>
<h2>Destacados</h2>
<h2>Más Compartidos</h2>
<h2>Subastas desde $1</h2>
<h2>Historial</h2>
<h2>12 Cuotas sin interés</h2>
<h2>Imperdibles del día</h2>

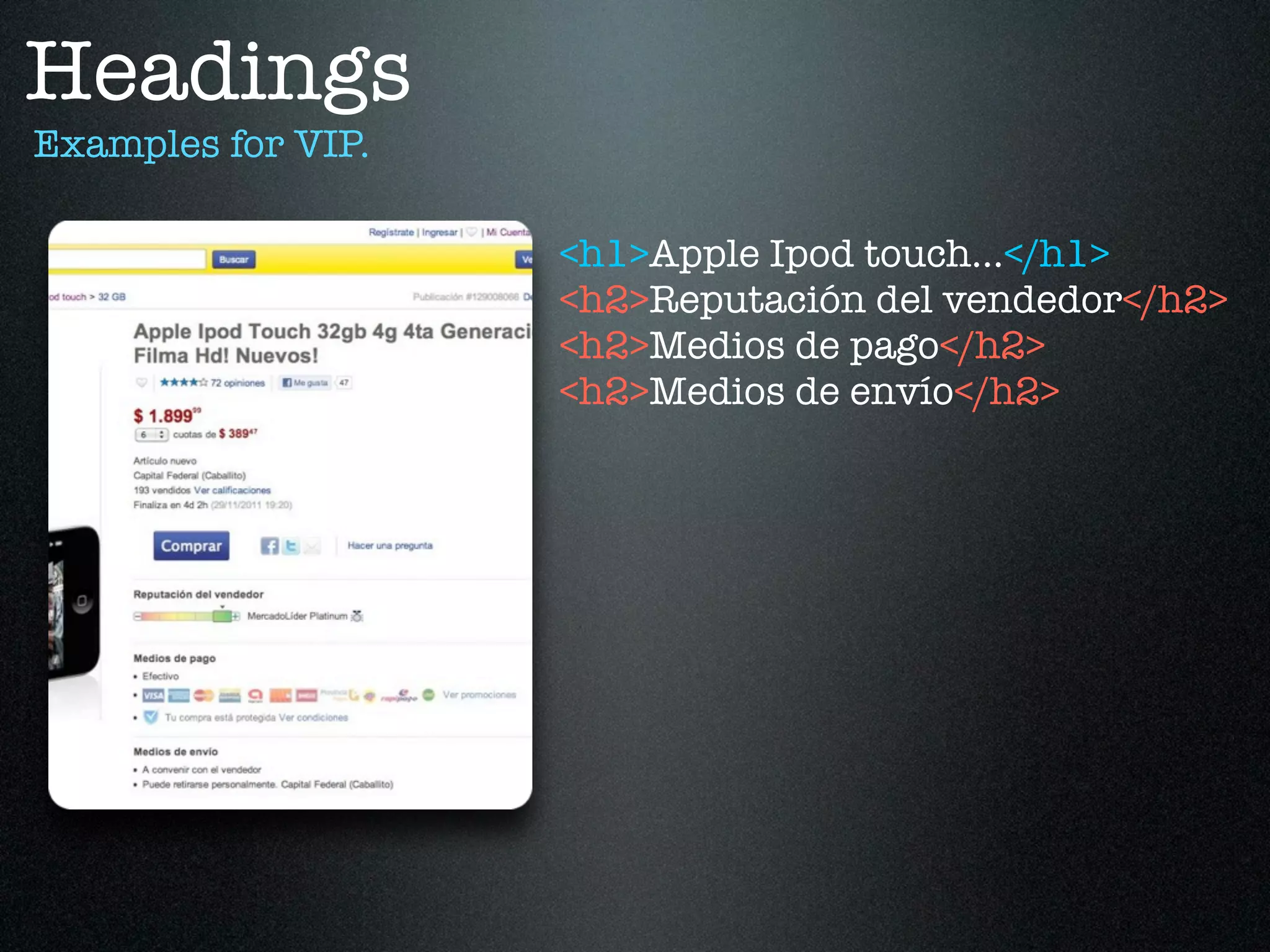

Headings
Examples for VIP.

<h1>Apple Ipod touch...</h1>
<h2>Reputación del vendedor</h2>
<h2>Medios de pago</h2>
<h2>Medios de envío</h2>

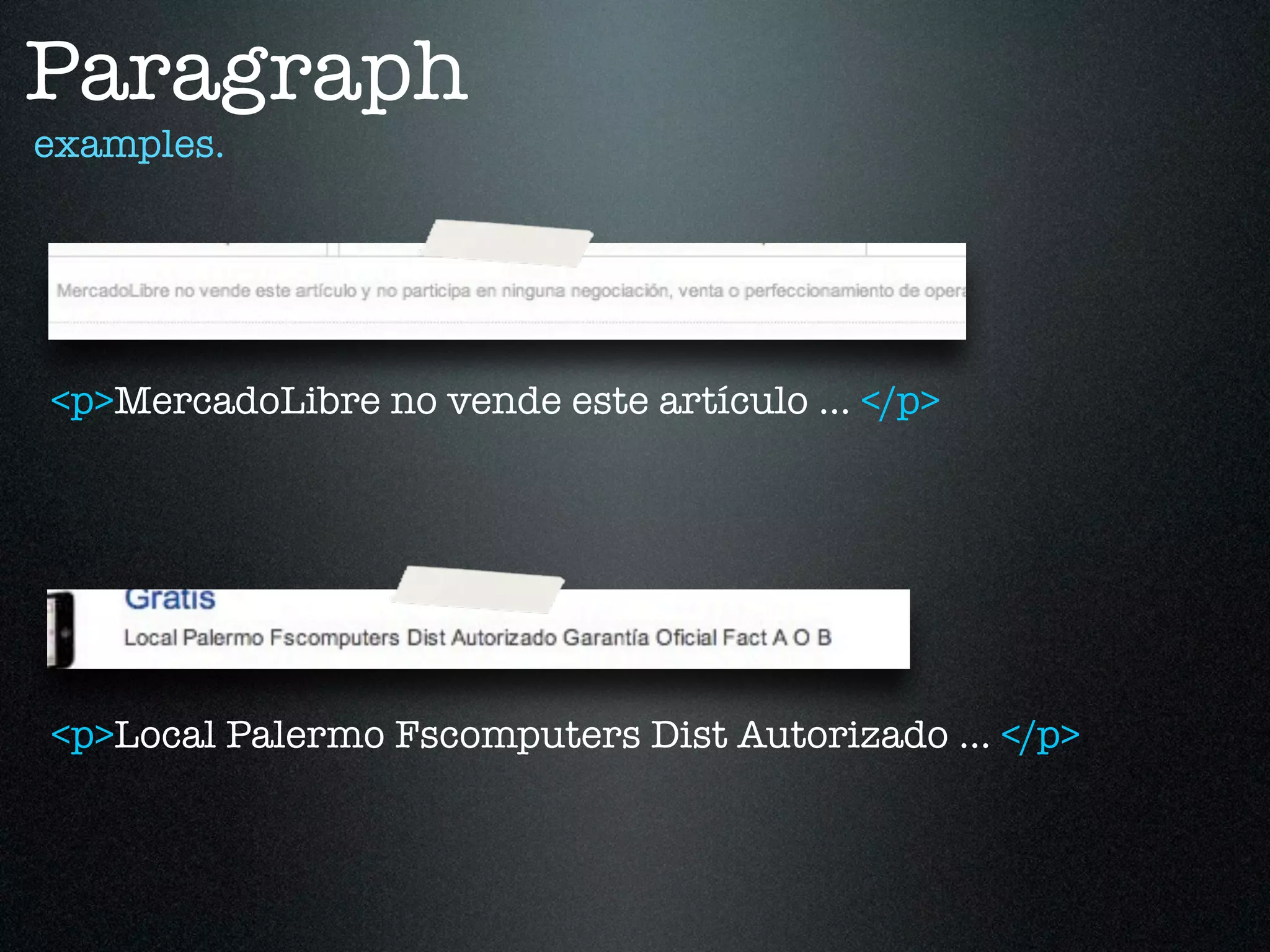

Paragraph
examples.

<p>MercadoLibre no vende este artículo ... </p>

<p>Local Palermo Fscomputers Dist Autorizado ... </p>

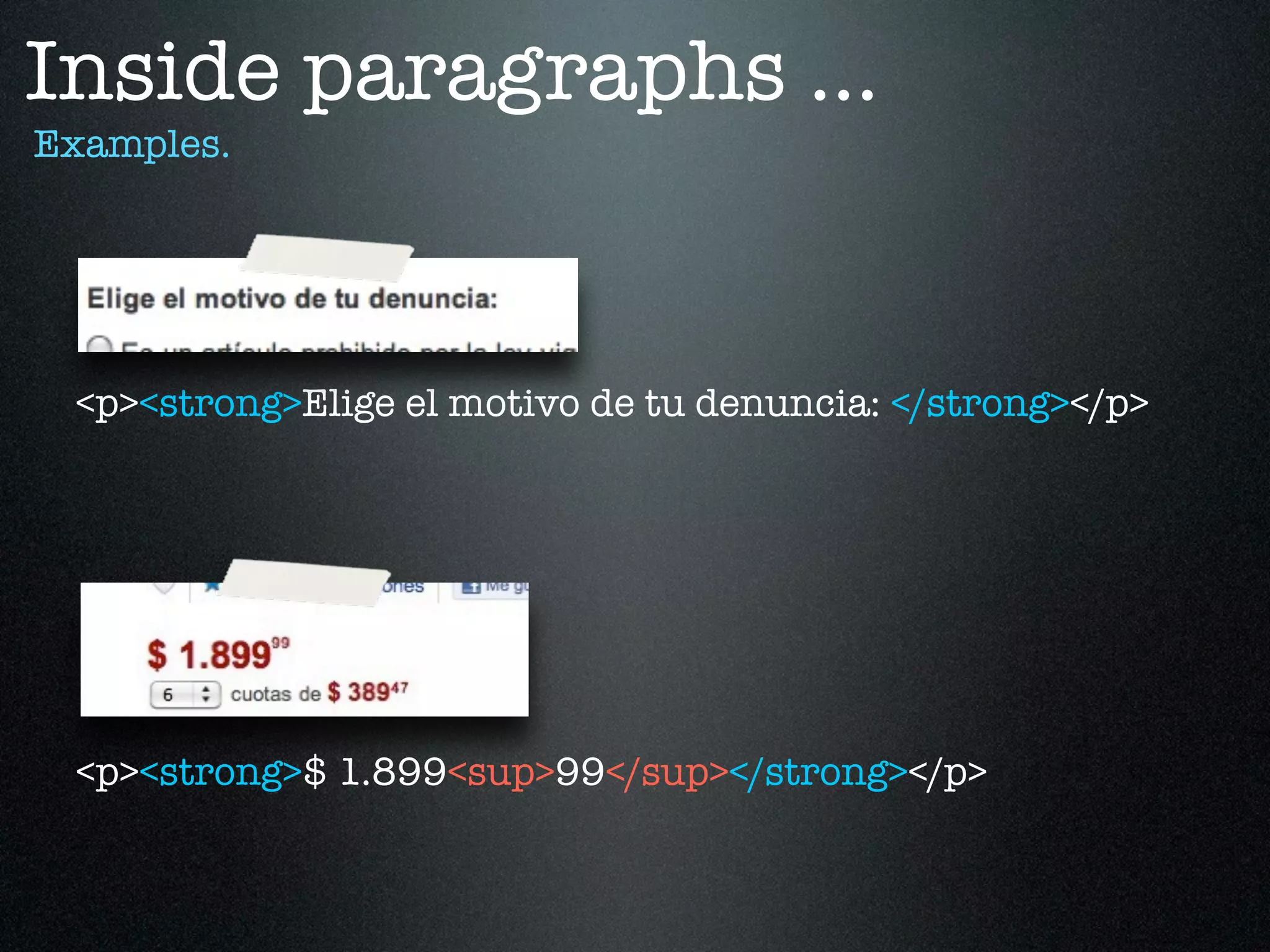

Inside paragraphs ...
Examples.

<p><strong>Elige el motivo de tu denuncia: </strong></p>

<p><strong>$ 1.899<sup>99</sup></strong></p>

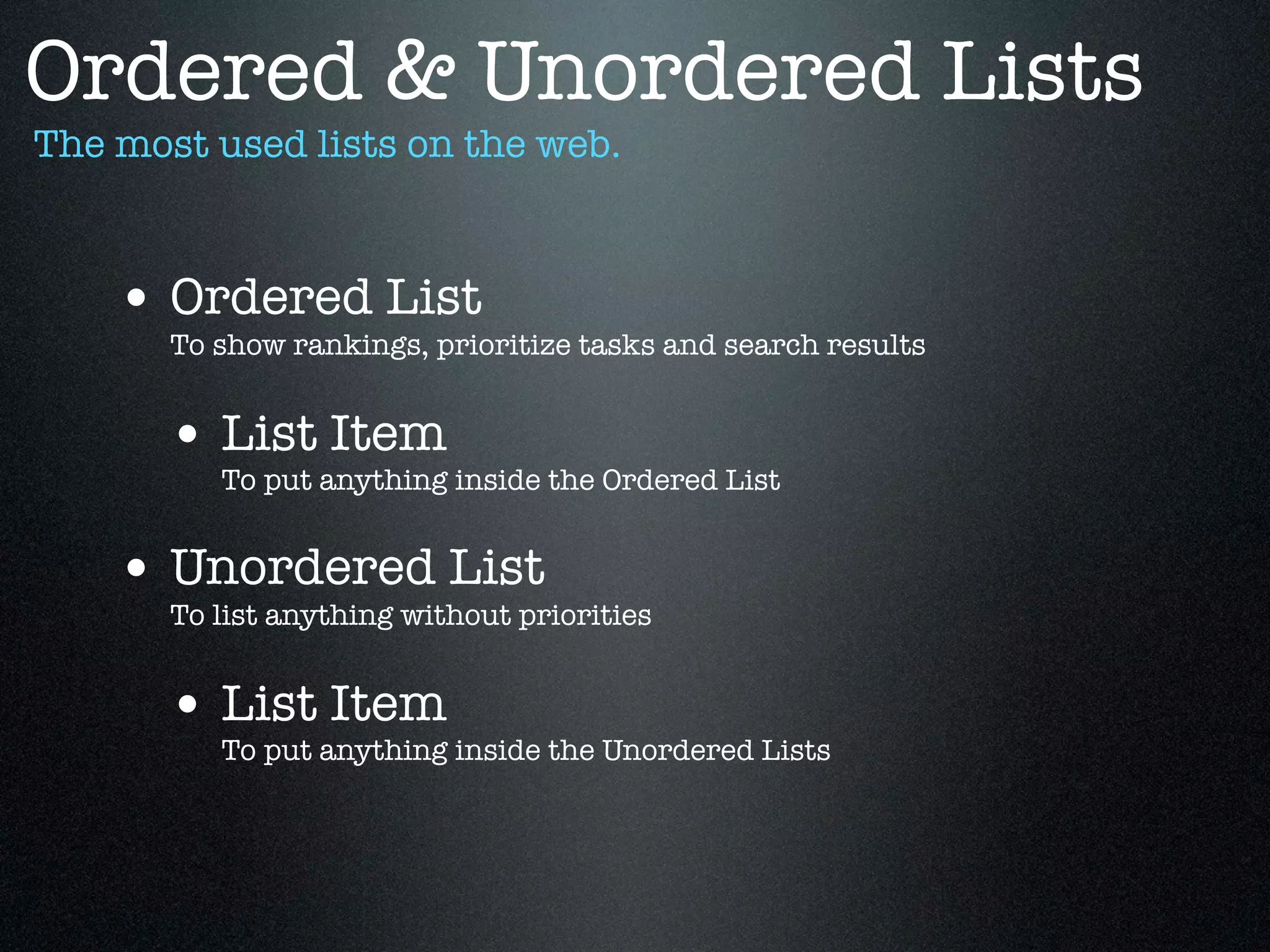

Ordered & Unordered Lists
The most used lists on the web.

• Ordered List
To show rankings, prioritize tasks and search results

• List Item
To put anything inside the Ordered List

• Unordered List
To list anything without priorities

• List Item
To put anything inside the Unordered Lists

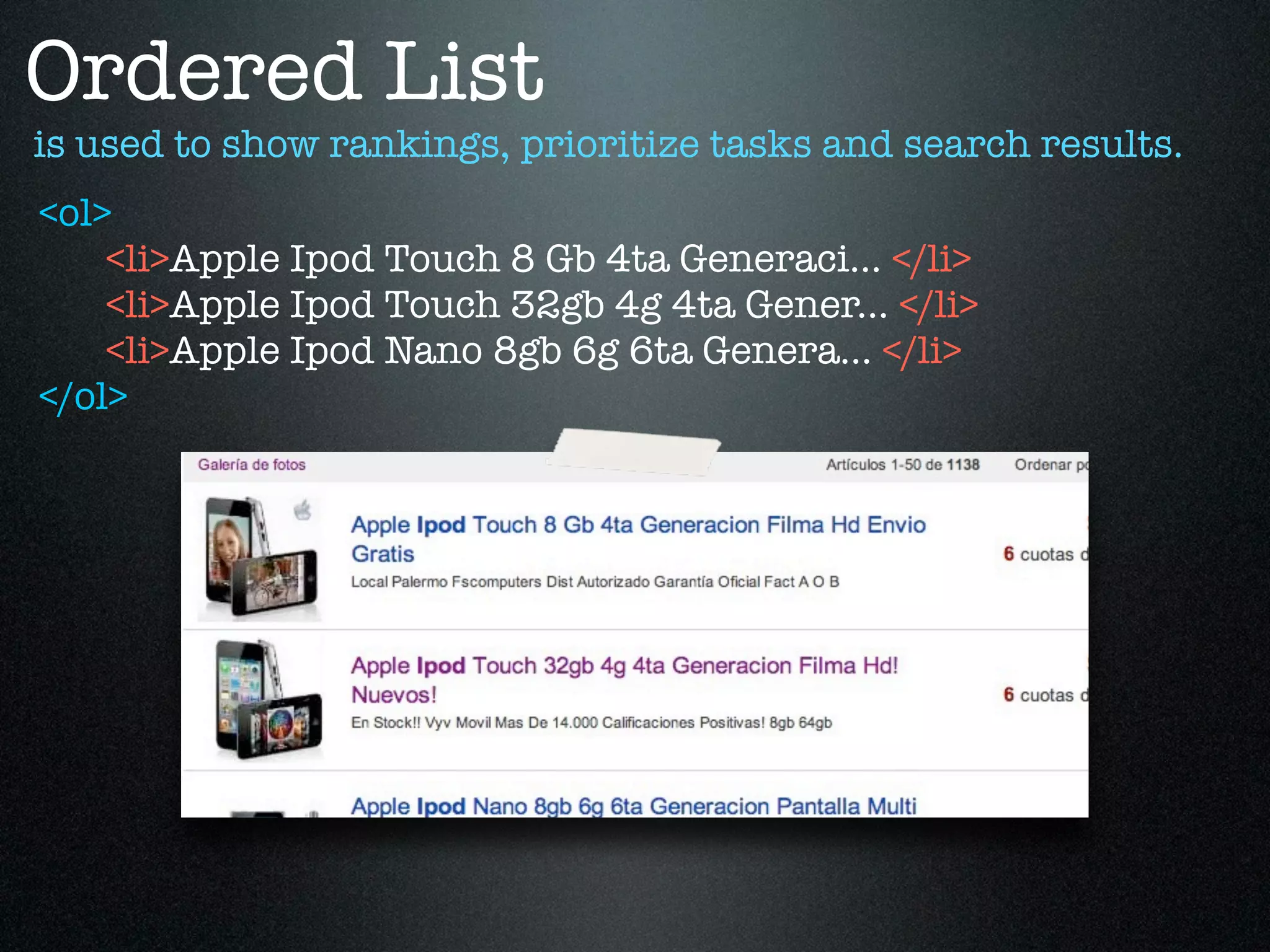

Ordered List
is used to show rankings, prioritize tasks and search results.
<ol>
<li>Apple Ipod Touch 8 Gb 4ta Generaci... </li>
<li>Apple Ipod Touch 32gb 4g 4ta Gener... </li>
<li>Apple Ipod Nano 8gb 6g 6ta Genera... </li>
</ol>

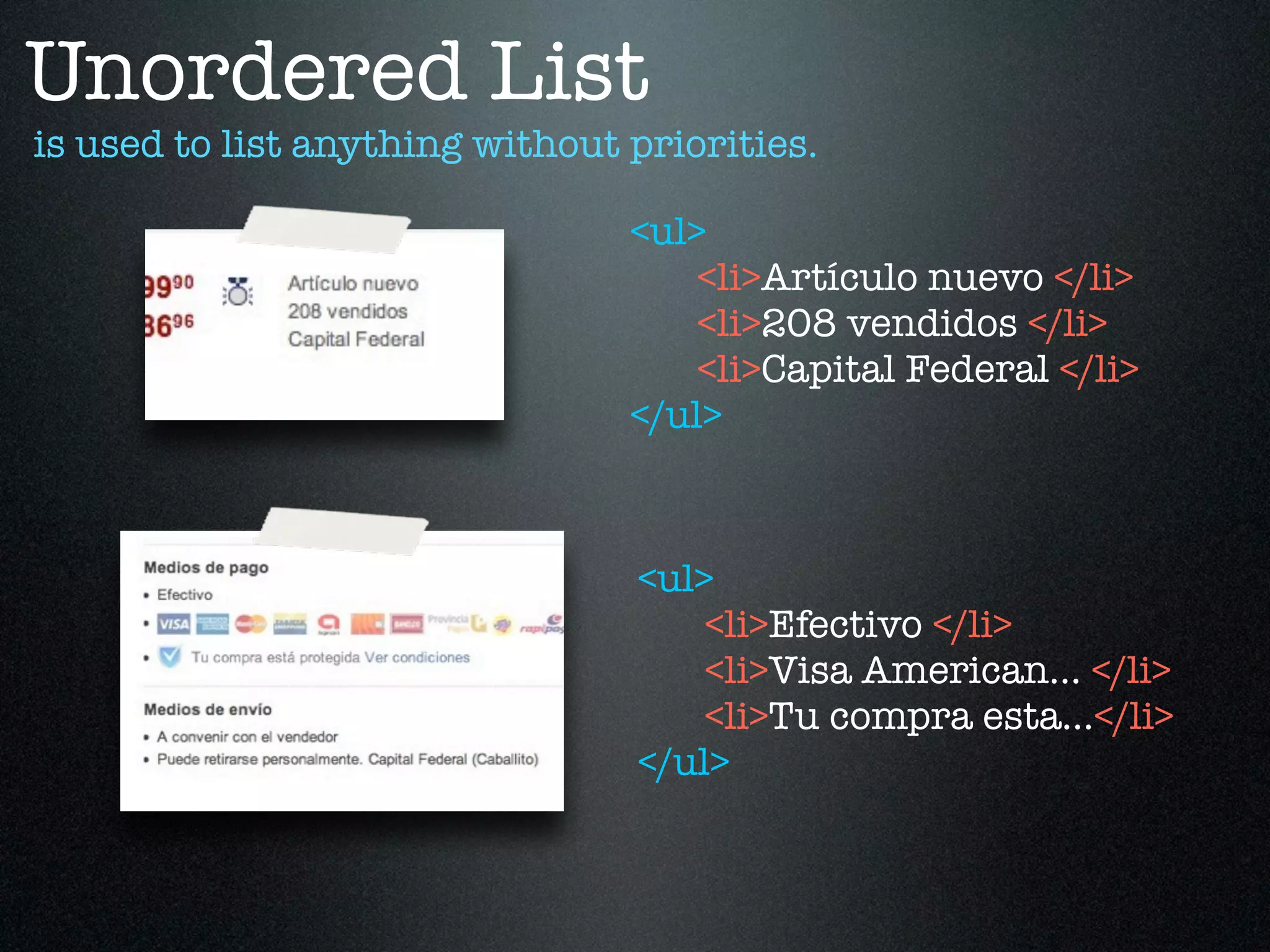

Unordered List
is used to list anything without priorities.

<ul>
<li>Artículo nuevo </li>
<li>208 vendidos </li>
<li>Capital Federal </li>
</ul>

<ul>
<li>Efectivo </li>
<li>Visa American... </li>
<li>Tu compra esta...</li>
</ul>

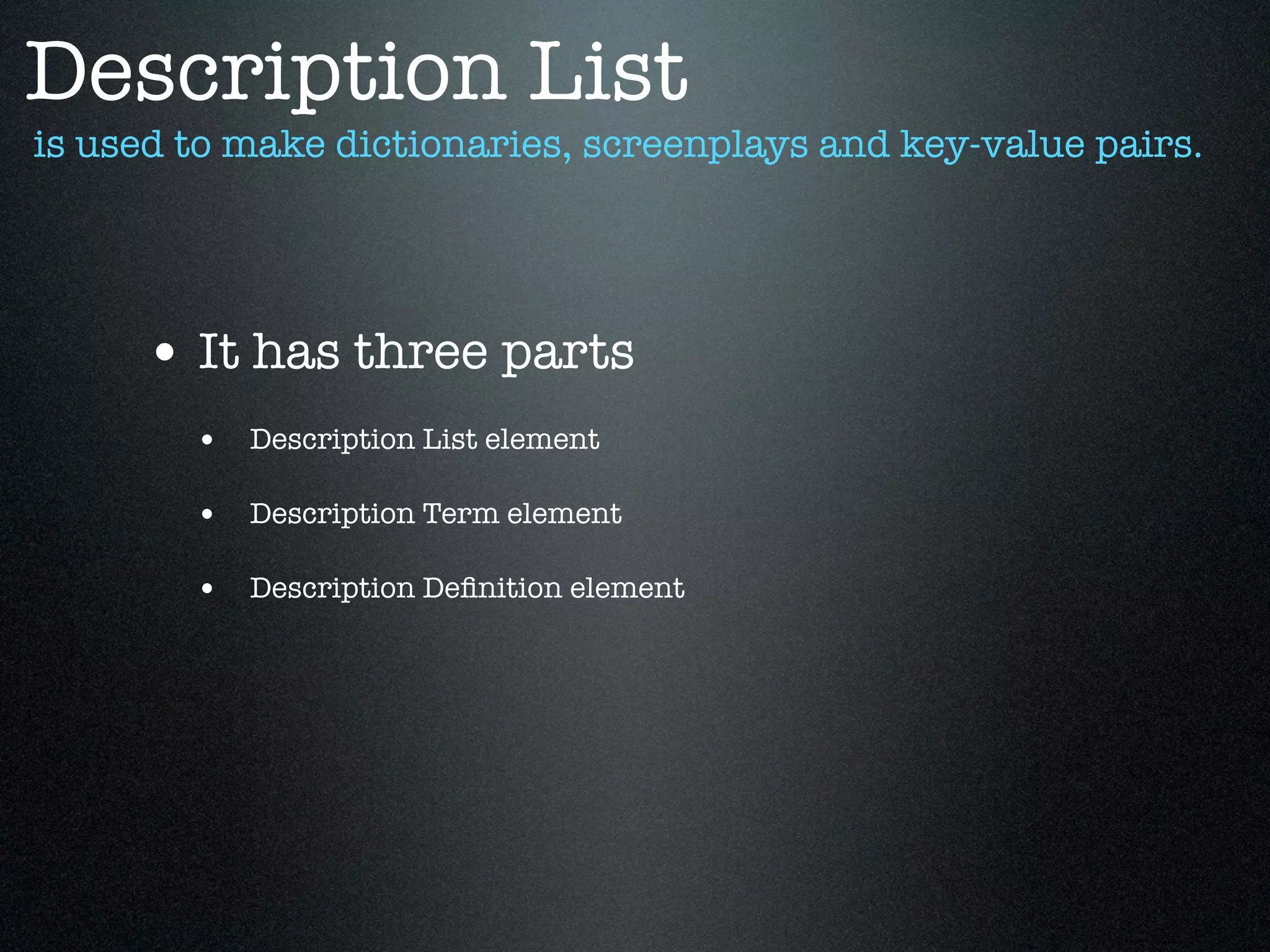

Description List
is used to make dictionaries, screenplays and key-value pairs.

• It has three parts
• Description List element

• Description Term element

• Description Deﬁnition element

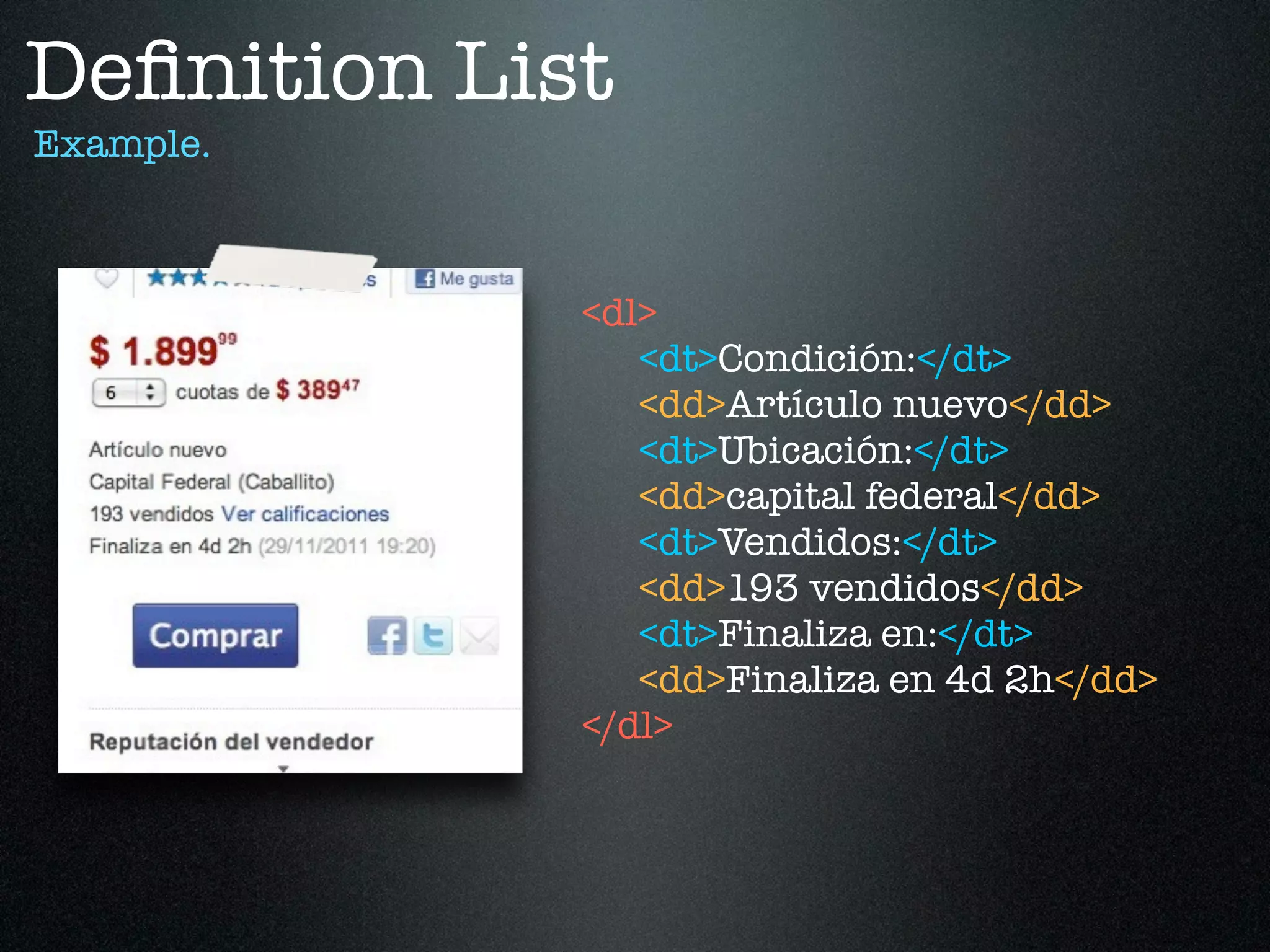

Deﬁnition List
Example.

<dl>

<dt>Condición:</dt>

<dd>Artículo nuevo</dd>

<dt>Ubicación:</dt>
<dd>capital federal</dd>
<dt>Vendidos:</dt>
<dd>193 vendidos</dd>
<dt>Finaliza en:</dt>
<dd>Finaliza en 4d 2h</dd>
</dl>

Table
To organize the
data

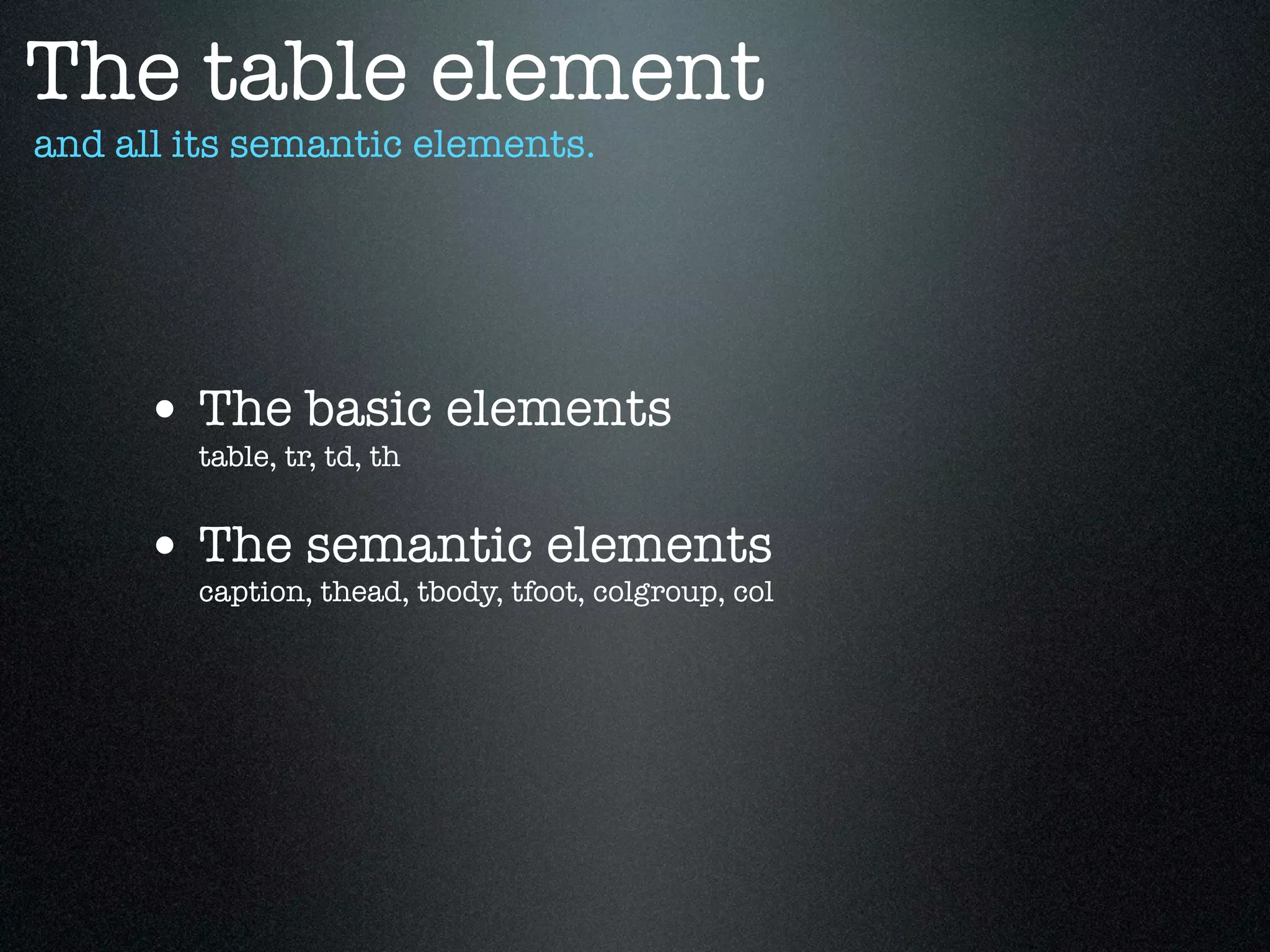

The table element
and all its semantic elements.

• The basic elements
table, tr, td, th

• The semantic elements
caption, thead, tbody, tfoot, colgroup, col

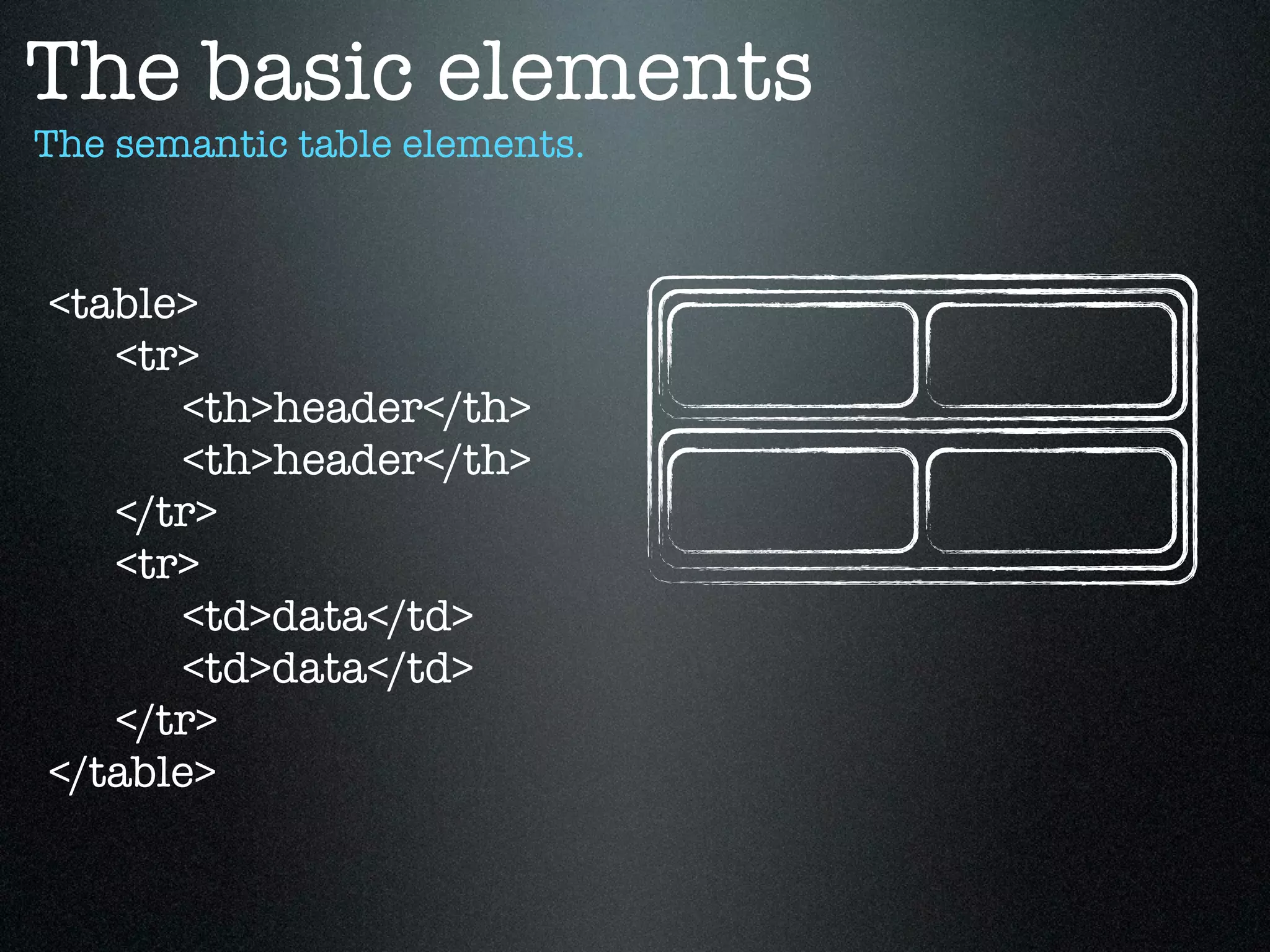

The basic elements
The semantic table elements.

<table>
<tr>
<th>header</th>
<th>header</th>
</tr>
<tr>
<td>data</td>
<td>data</td>
</tr>
</table>

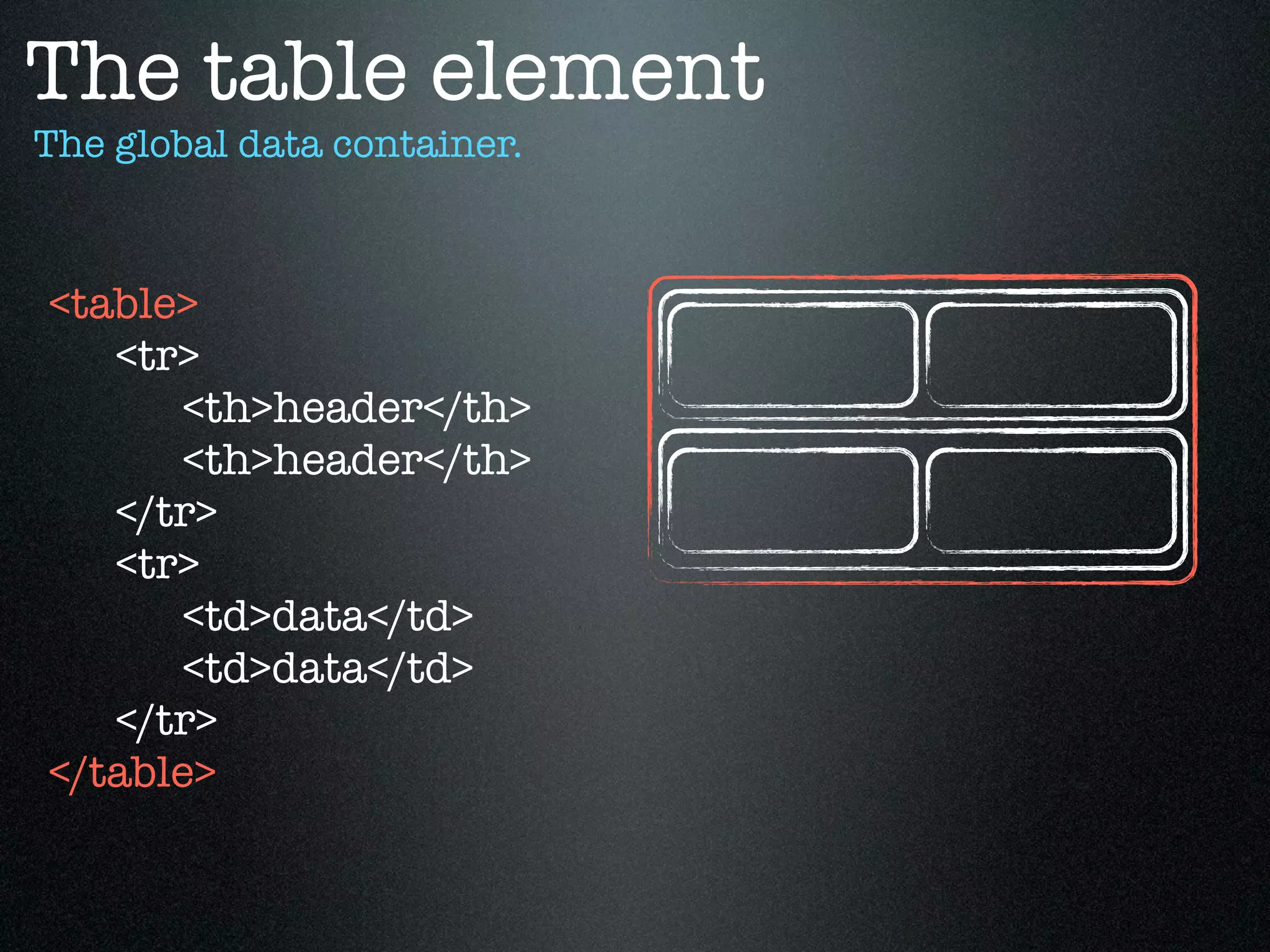

The table element
The global data container.

<table>
<tr>
<th>header</th>
<th>header</th>
</tr>
<tr>
<td>data</td>
<td>data</td>
</tr>
</table>

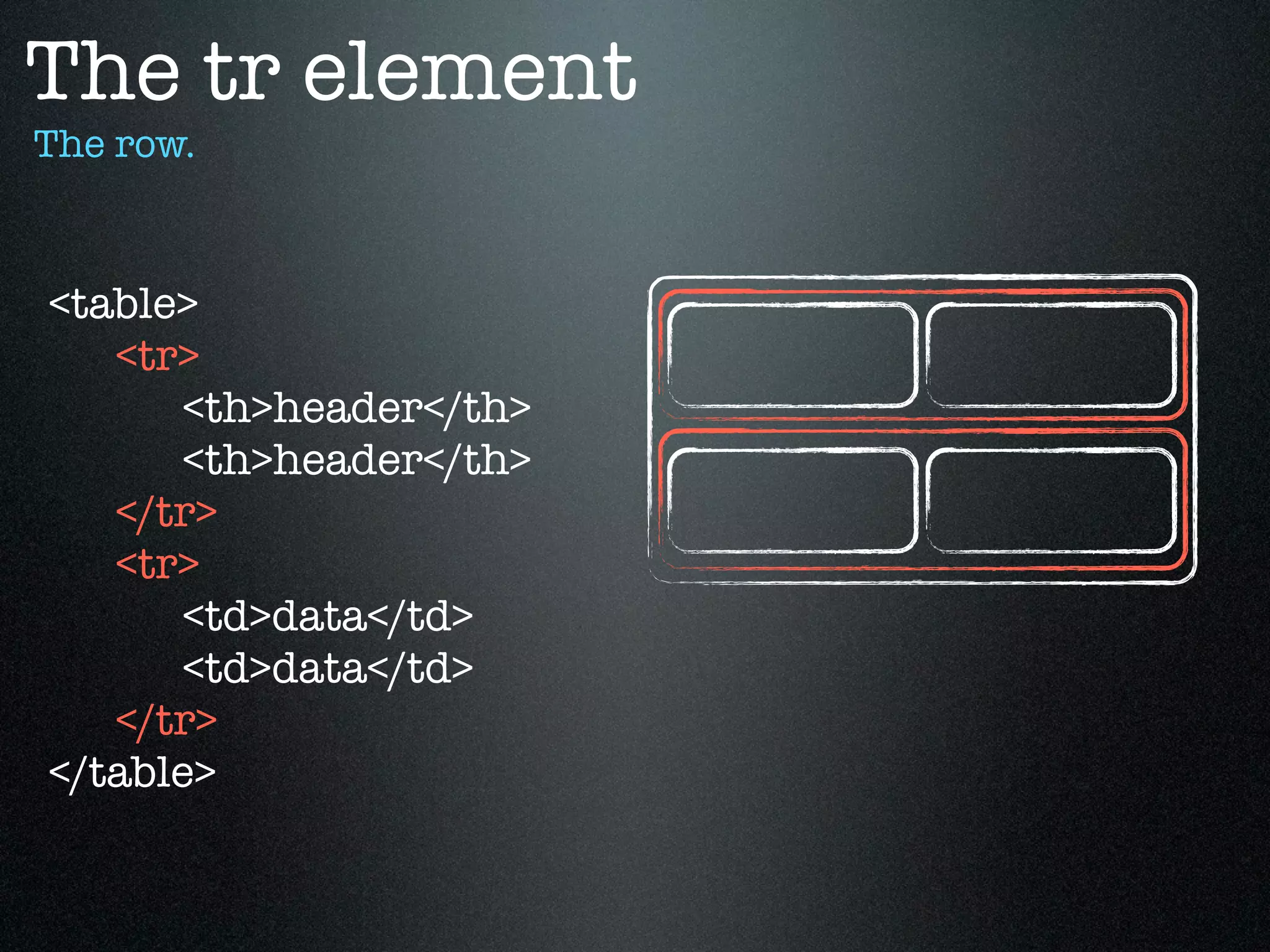

The tr element
The row.

<table>
<tr>
<th>header</th>
<th>header</th>
</tr>
<tr>
<td>data</td>
<td>data</td>
</tr>
</table>

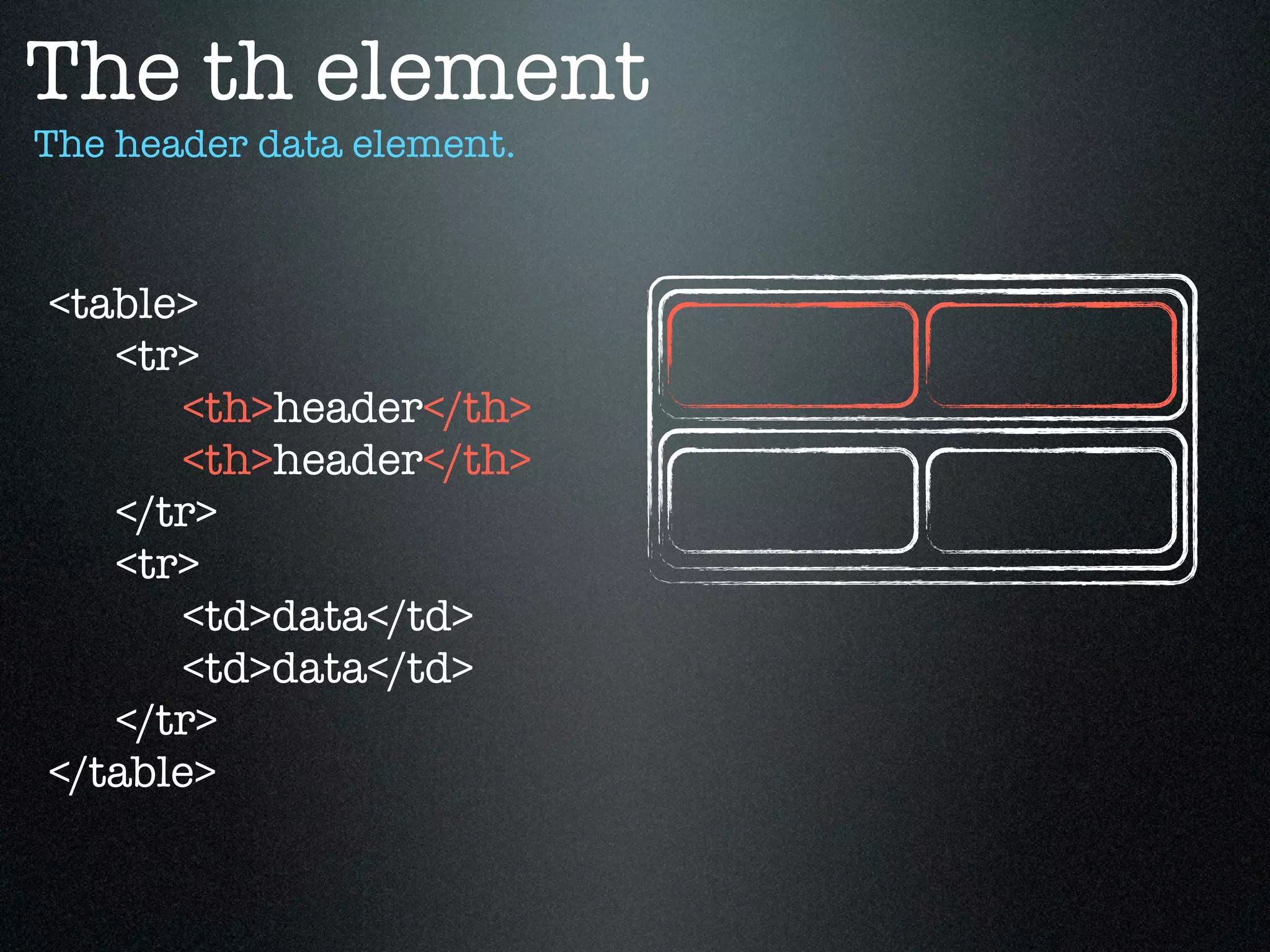

The th element
The header data element.

<table>
<tr>
<th>header</th>
<th>header</th>
</tr>
<tr>
<td>data</td>
<td>data</td>
</tr>
</table>

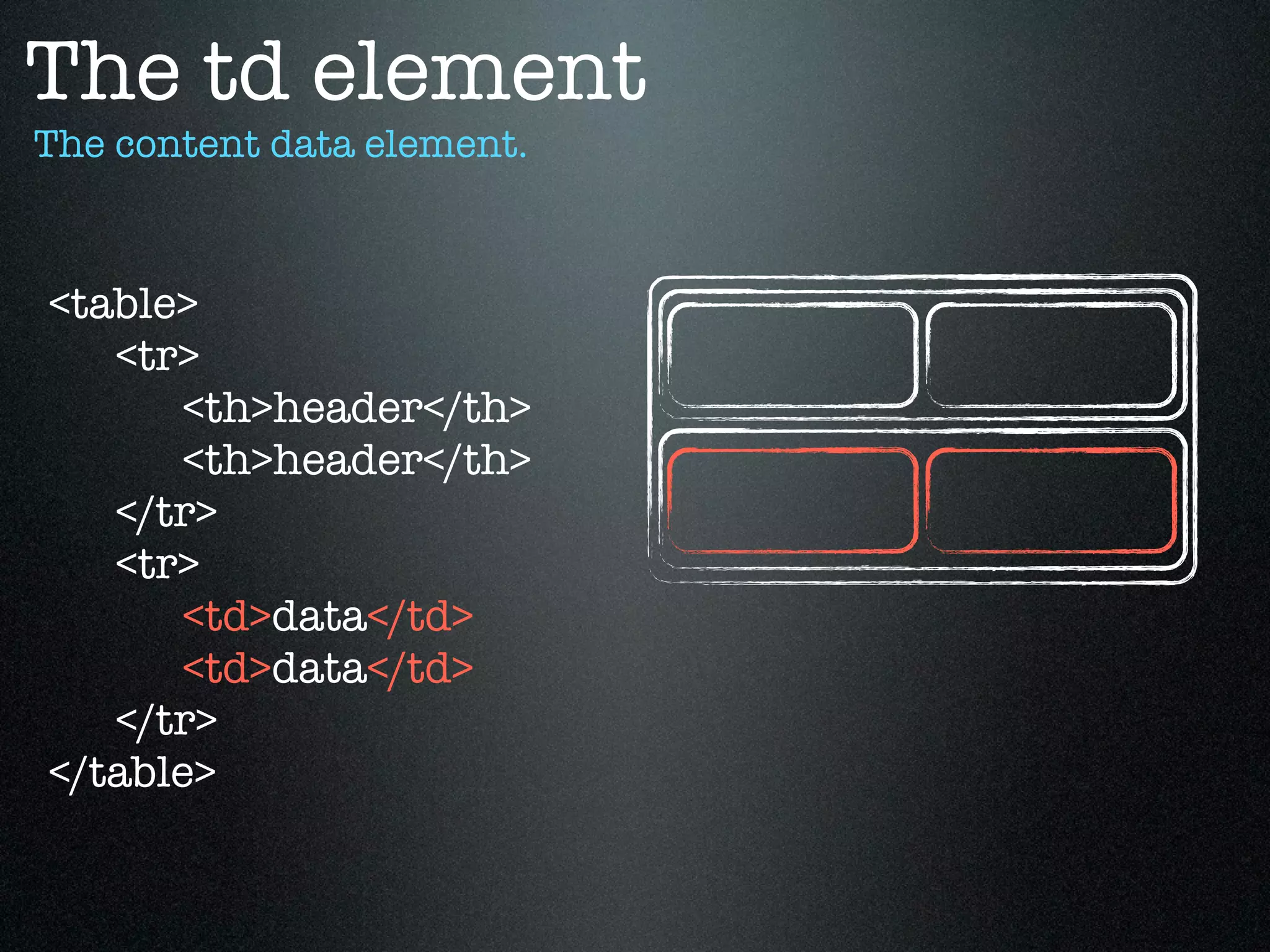

The td element
The content data element.

<table>
<tr>
<th>header</th>
<th>header</th>
</tr>
<tr>
<td>data</td>
<td>data</td>
</tr>
</table>

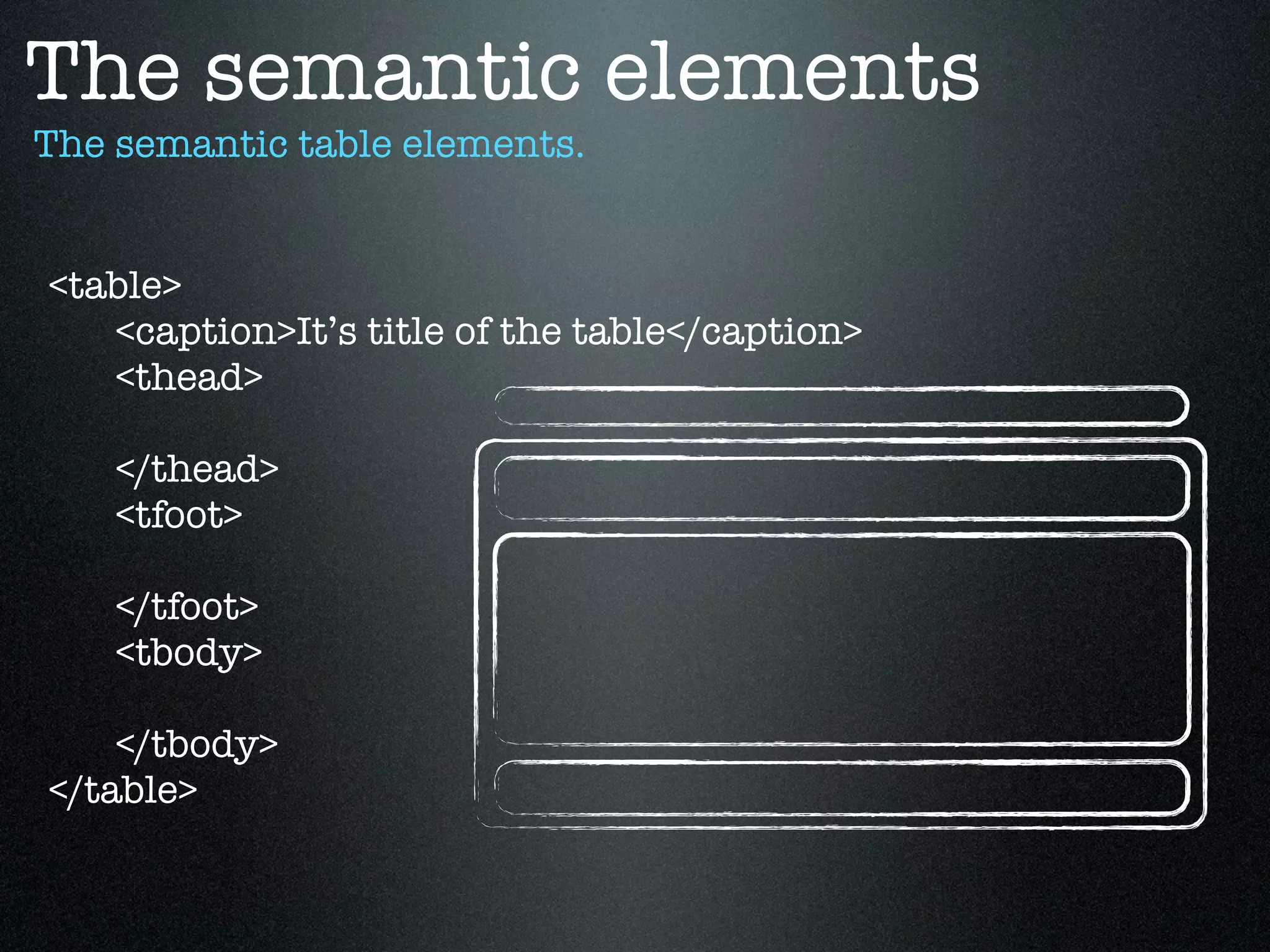

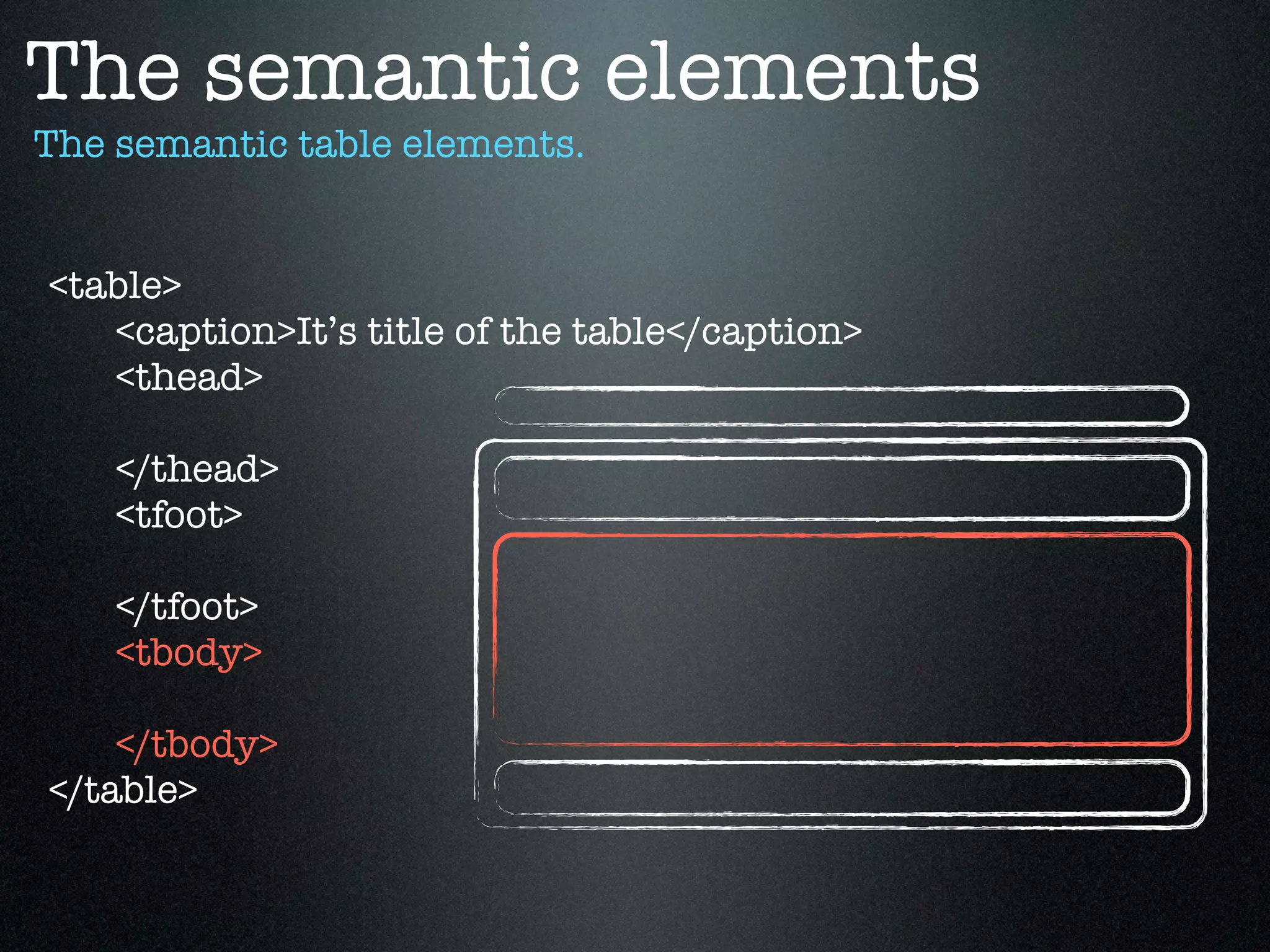

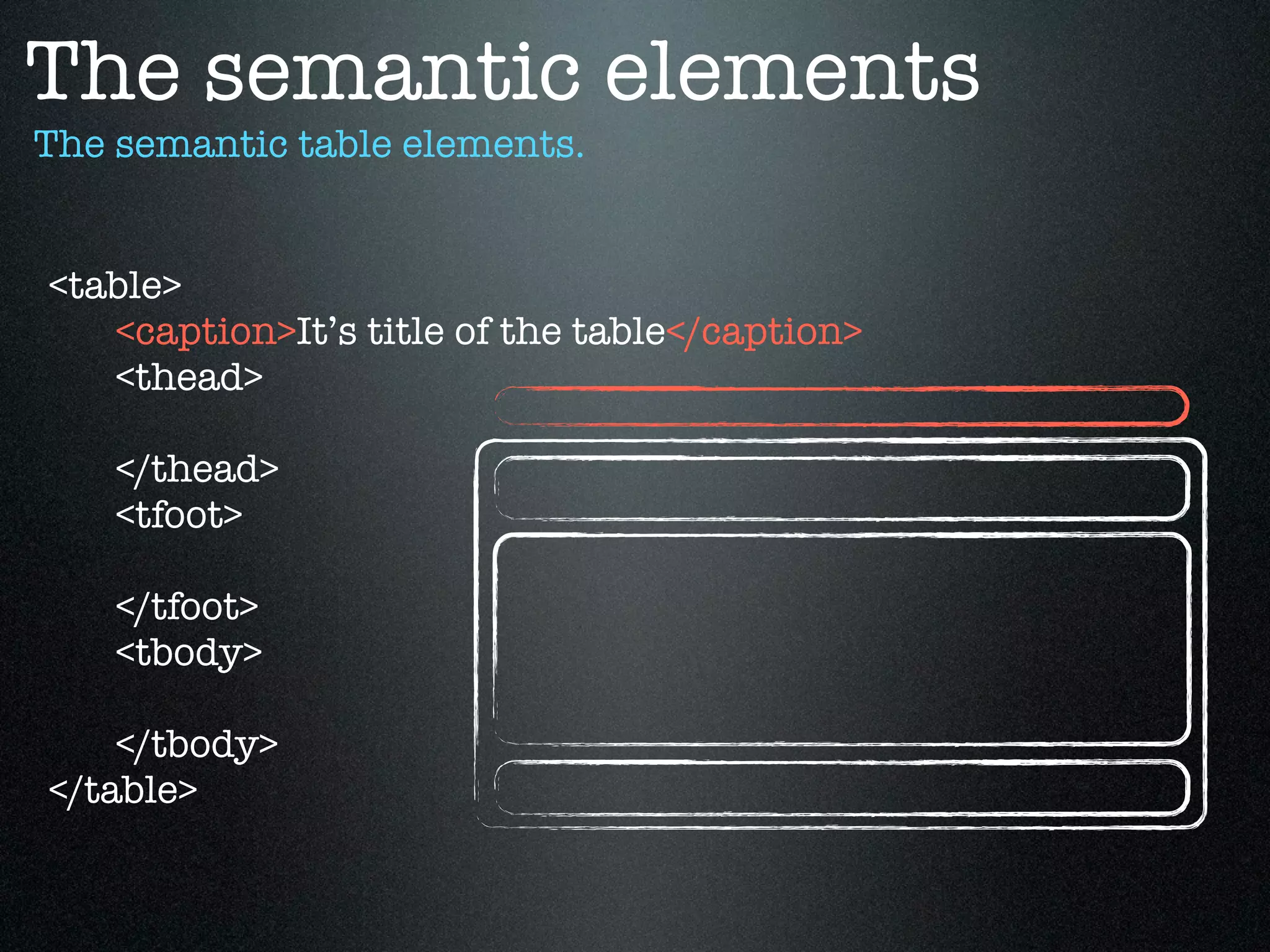

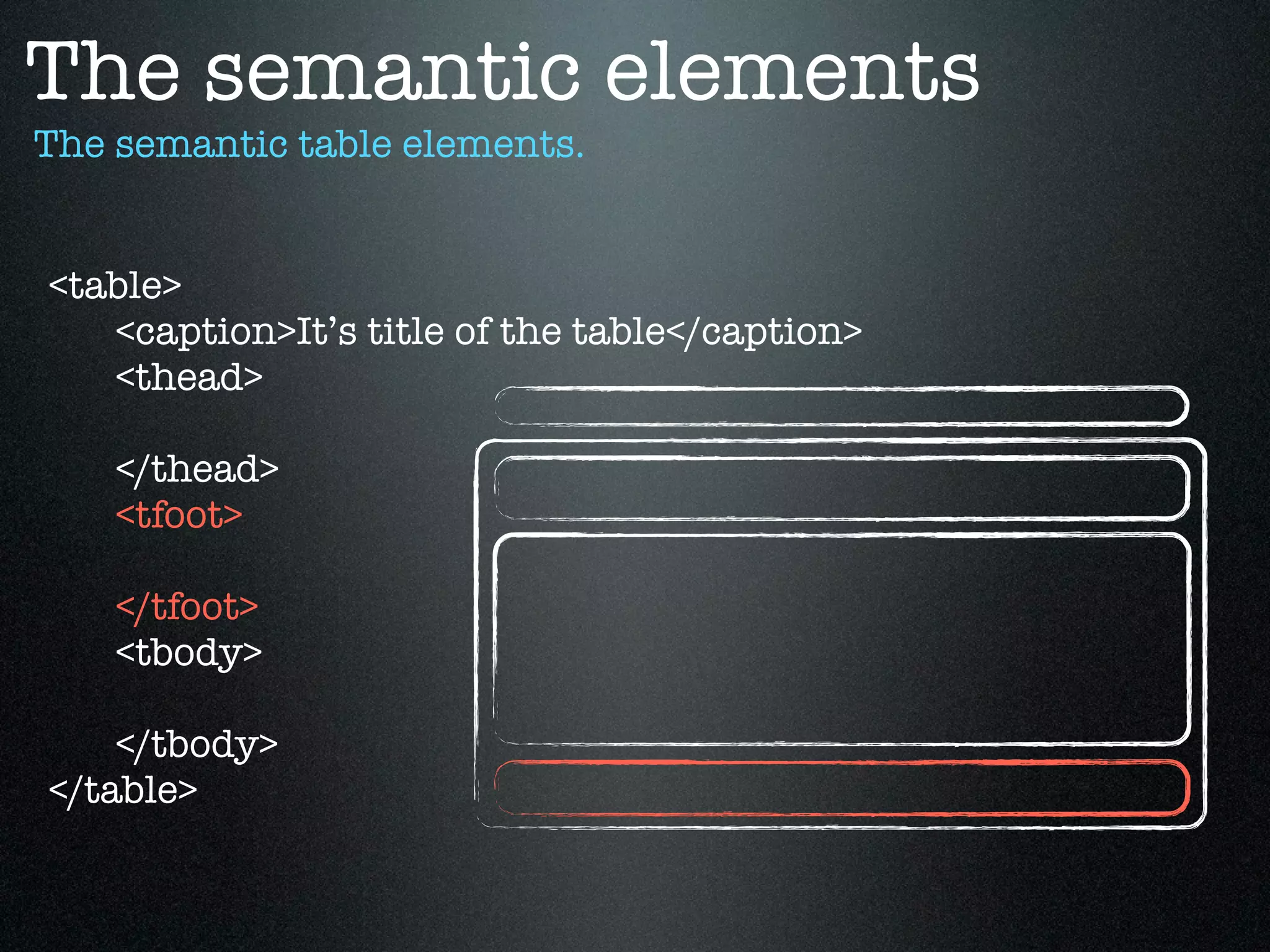

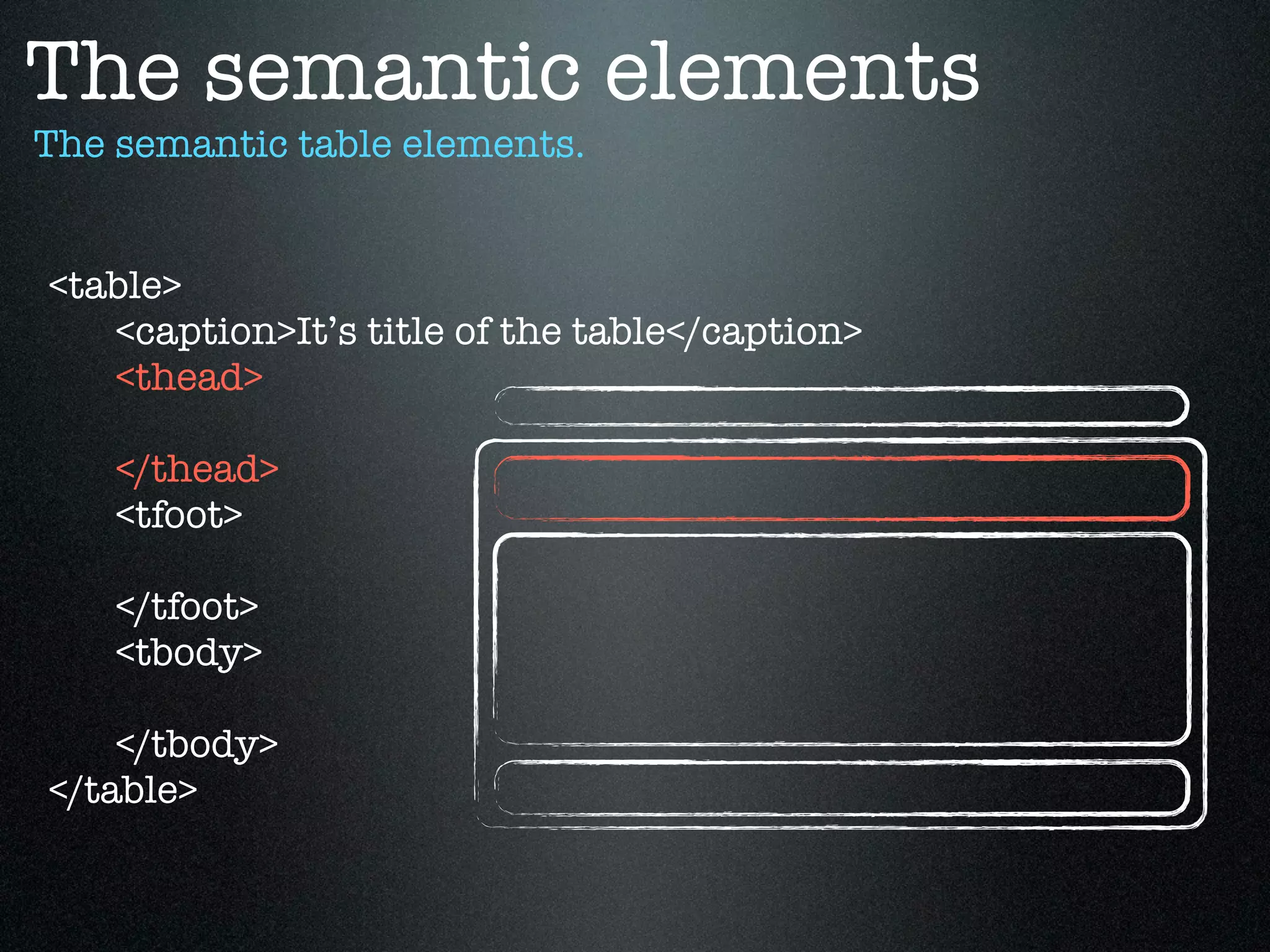

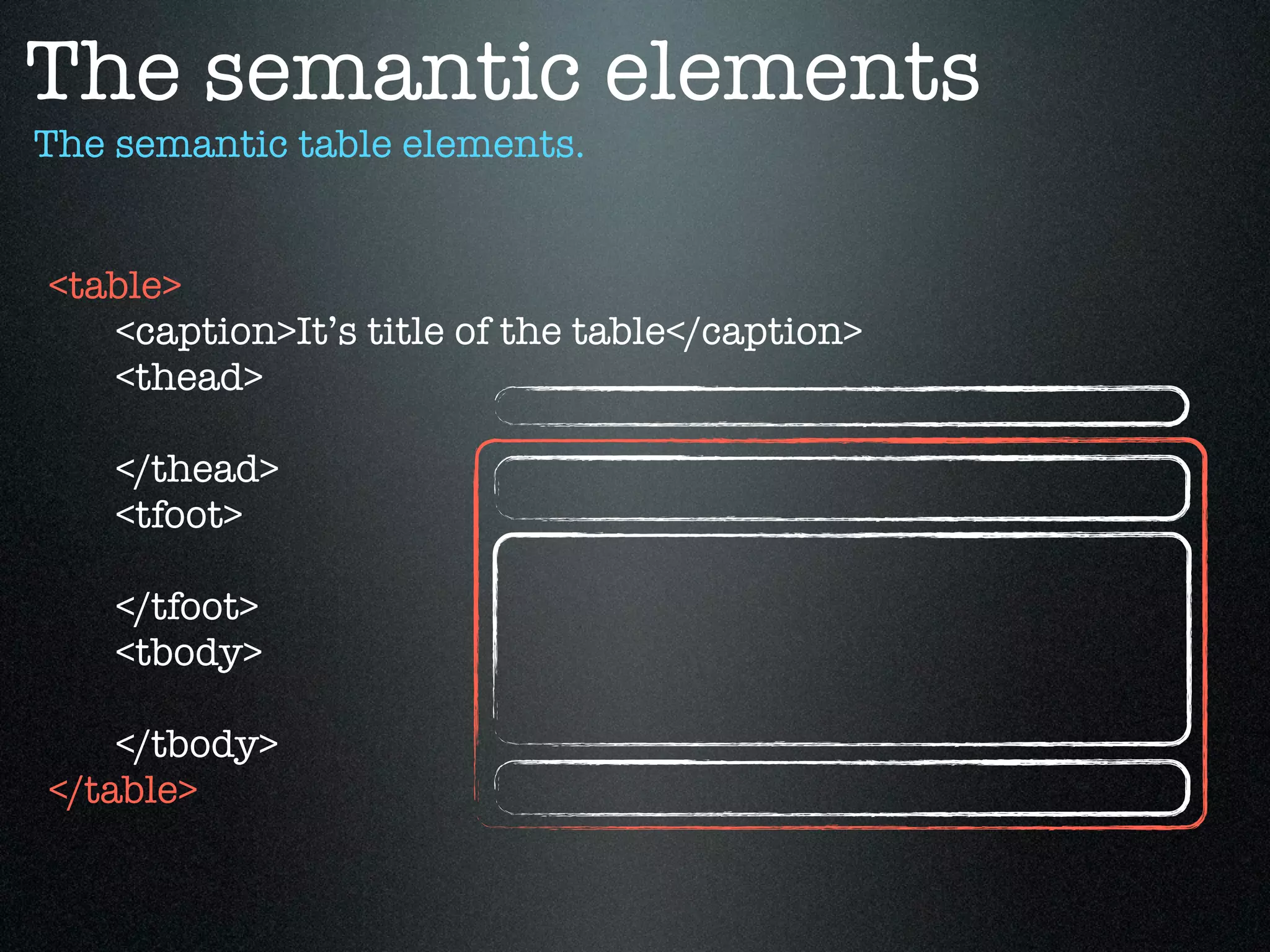

The semantic elements

<table>
<caption>It’s title of the table</caption>
<thead>

</thead>
<tfoot>

</tfoot>
<tbody>

</tbody>
</table>

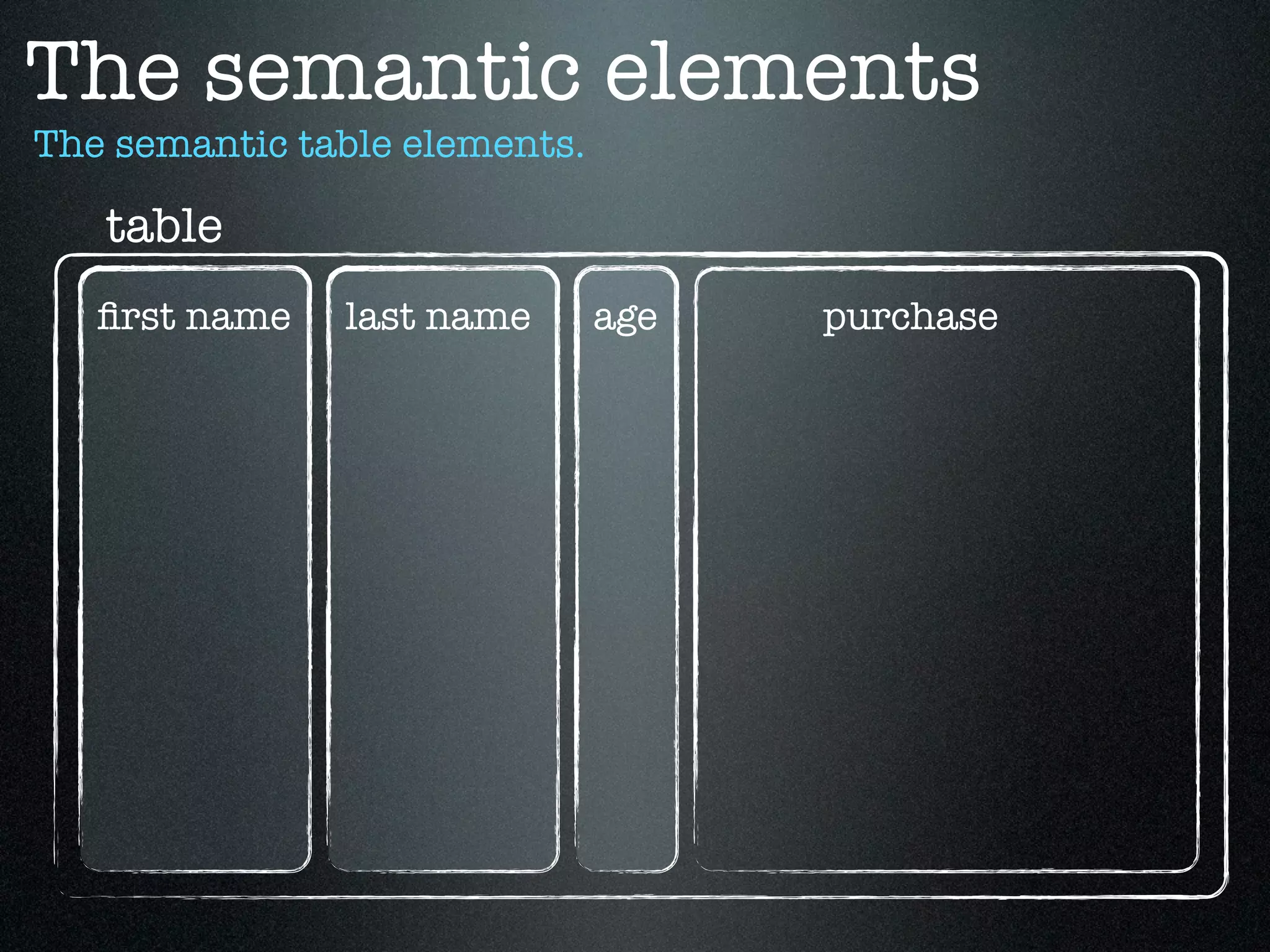

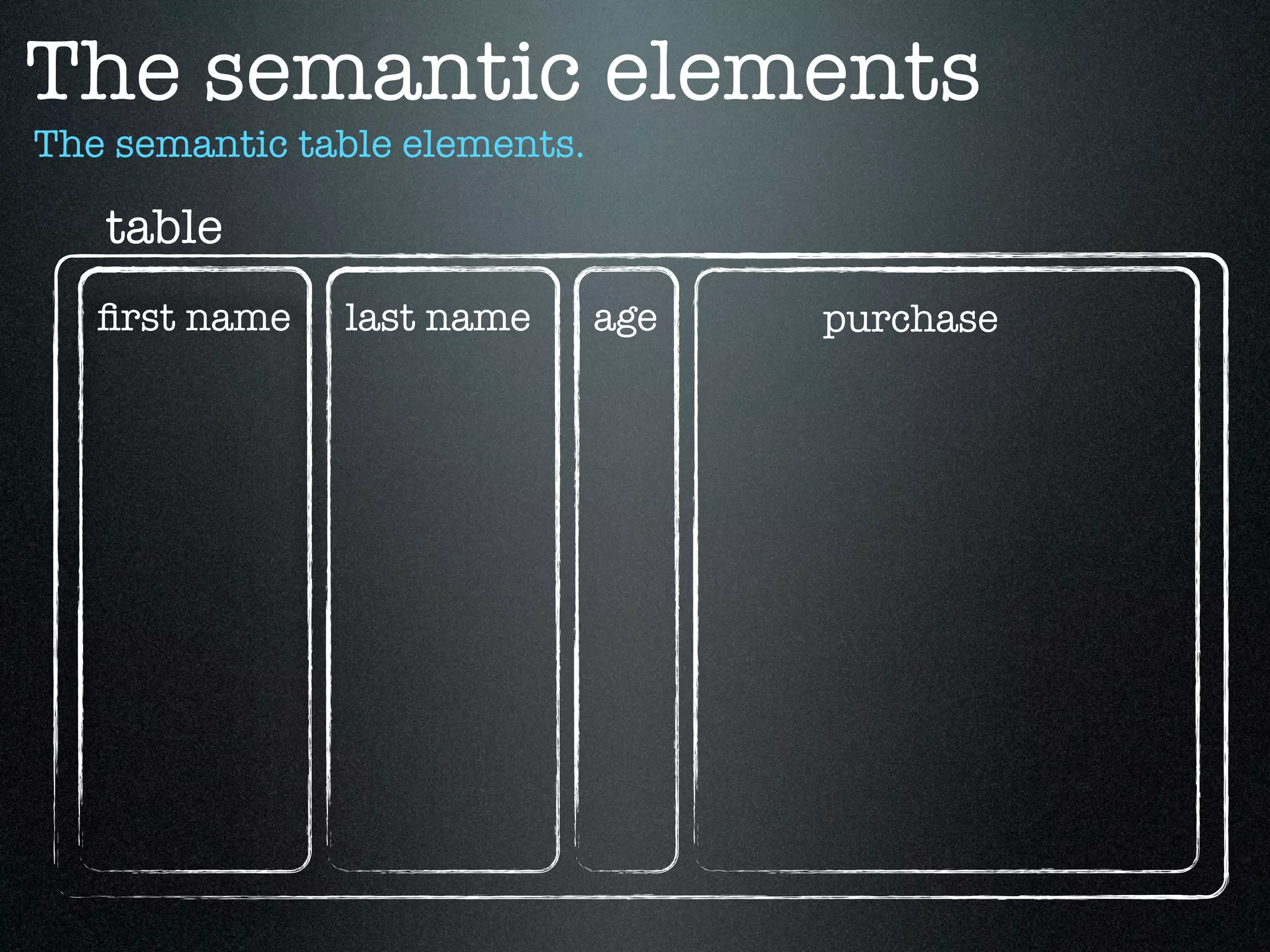

table
ﬁrst name last name age purchase

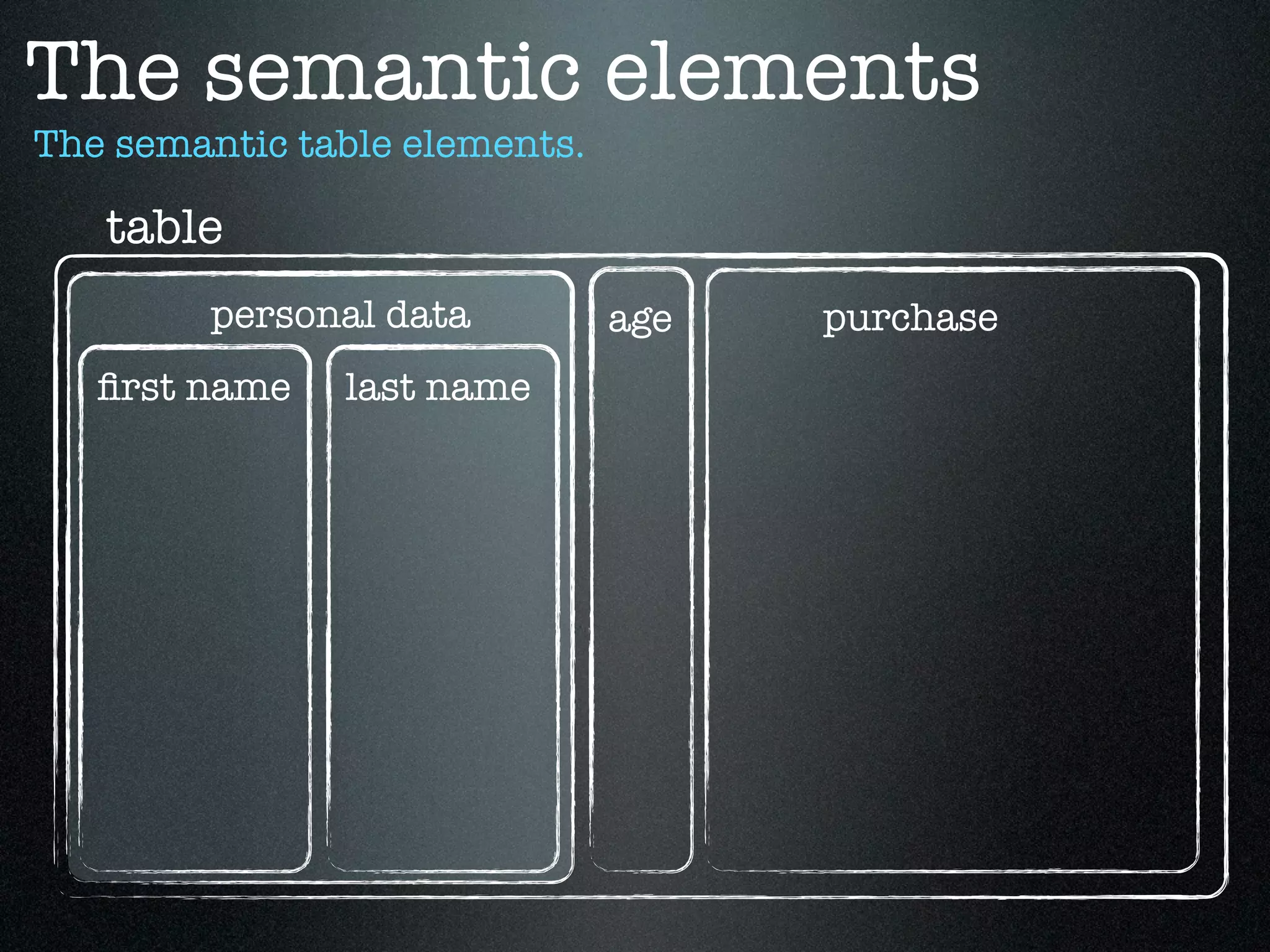

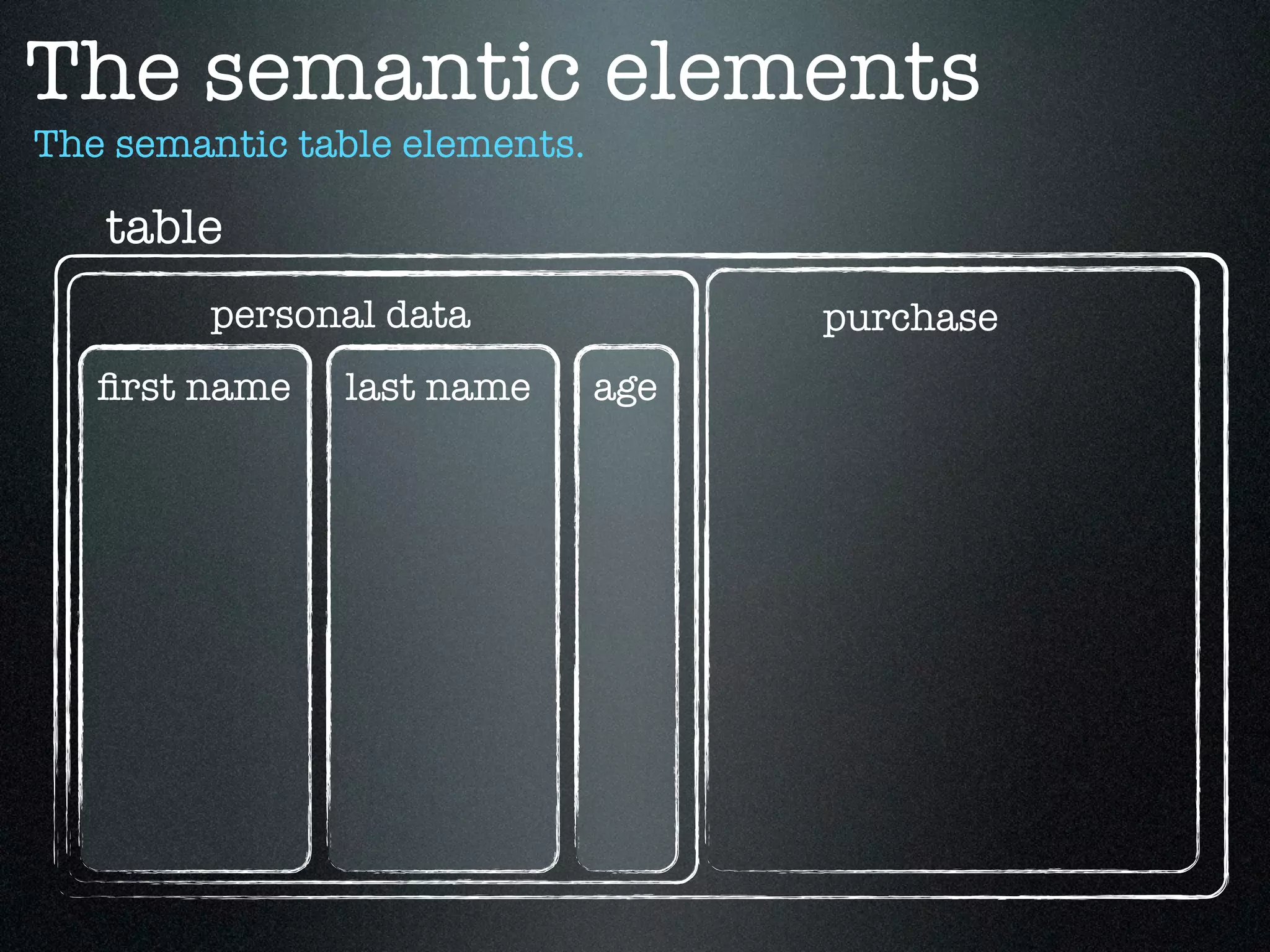

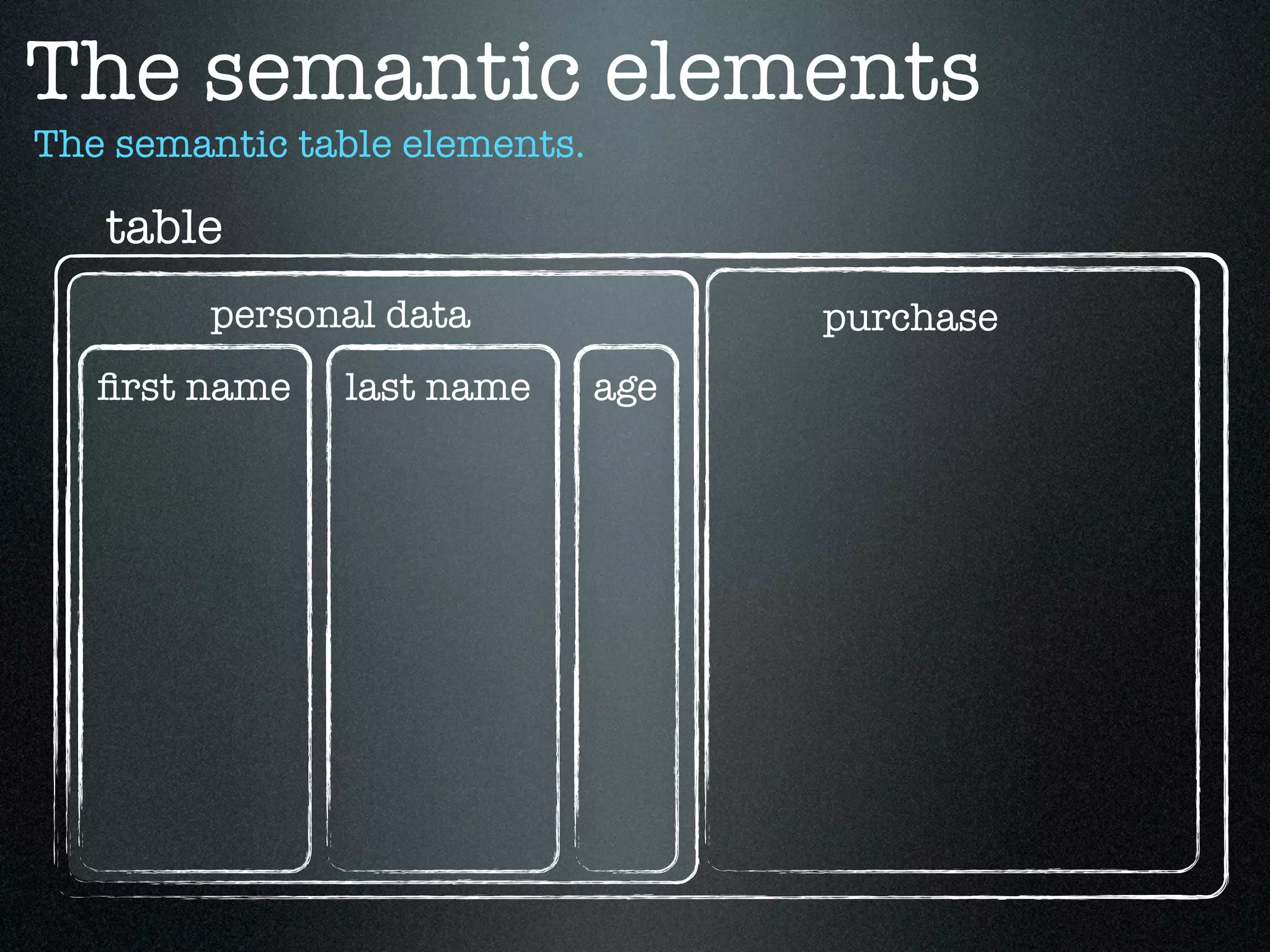

table
personal data purchase
ﬁrst name last name age

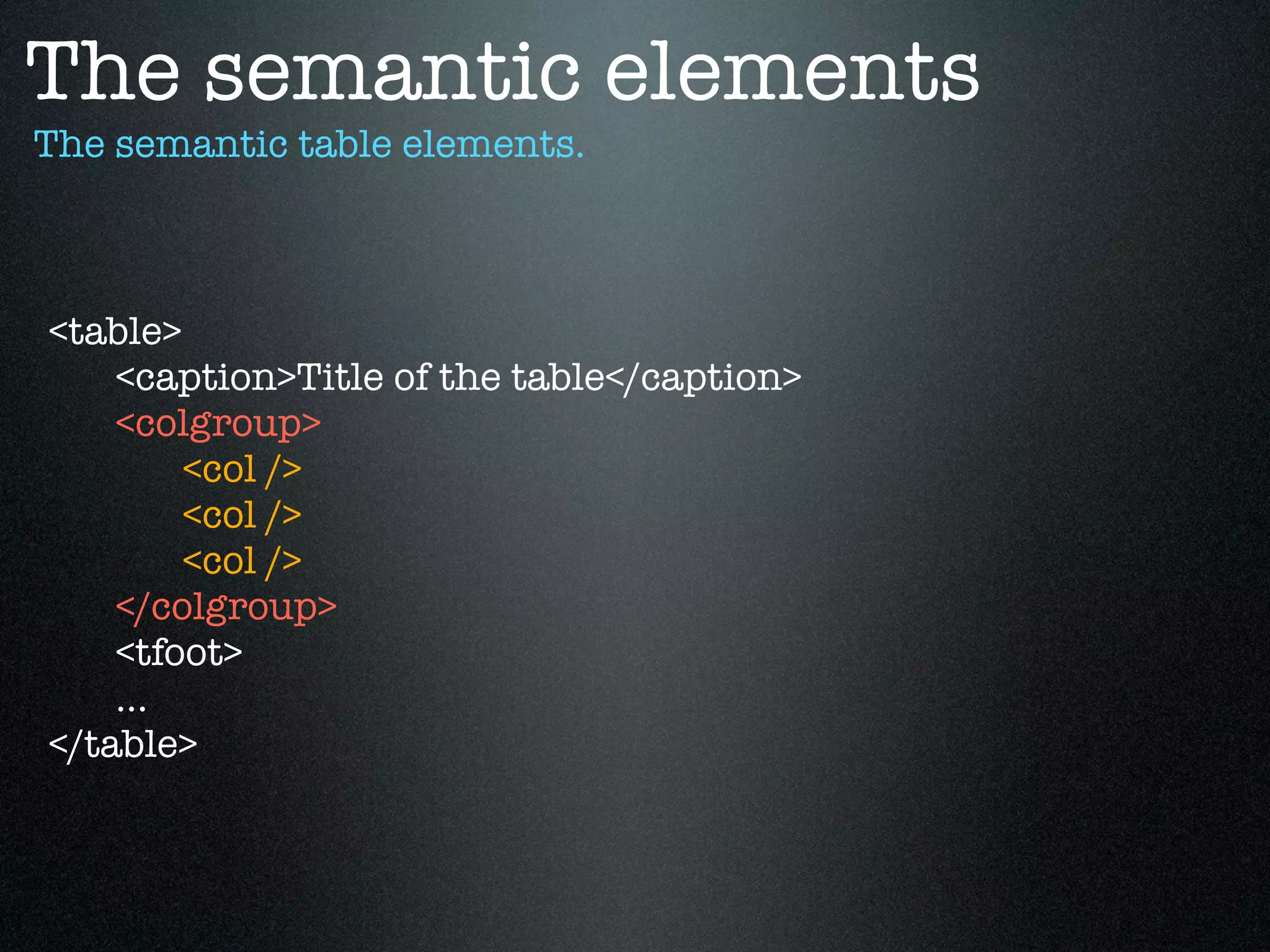

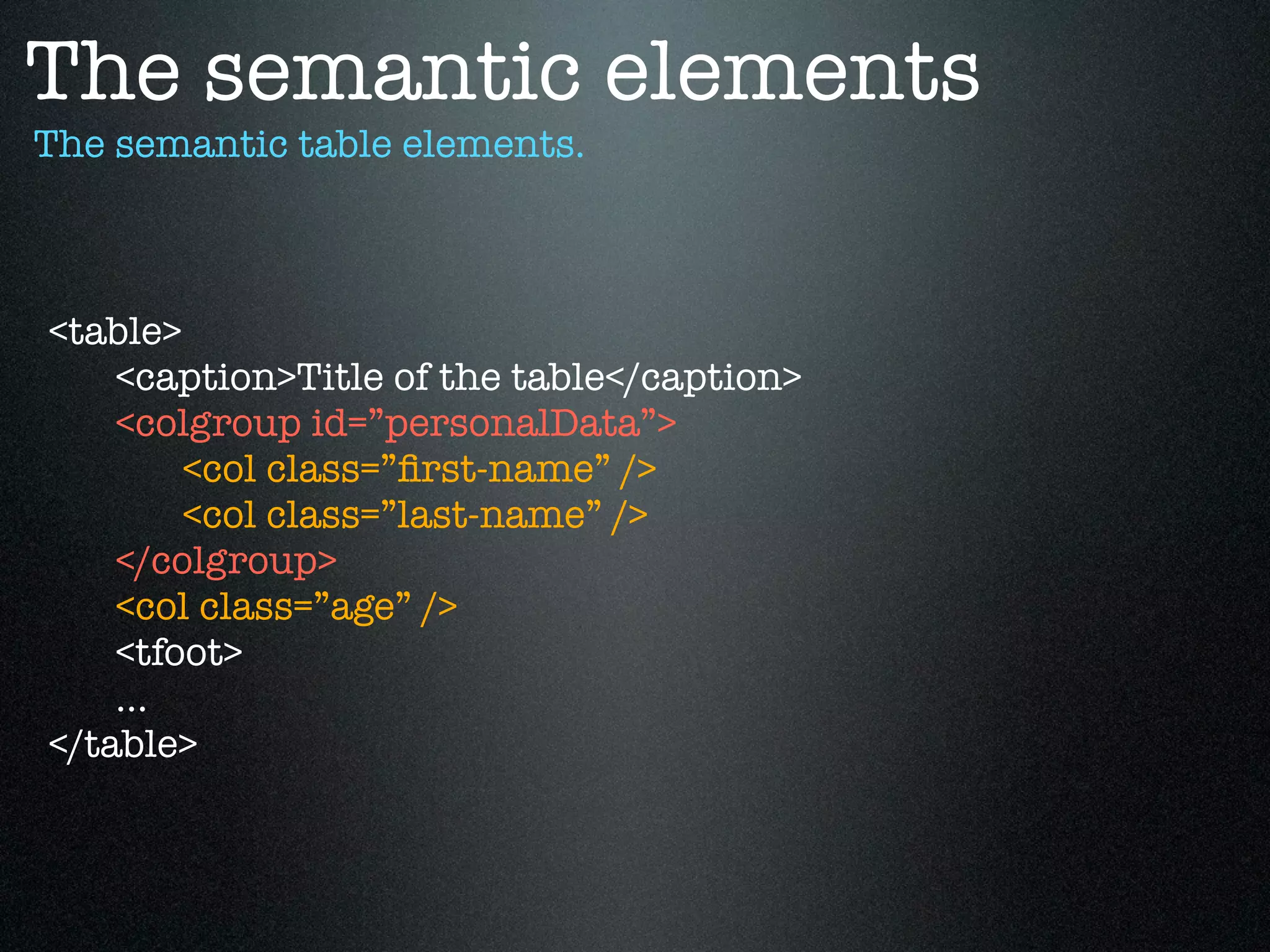

<table>
<caption>Title of the table</caption>
<colgroup>
<col />
<col />
<col />
</colgroup>
<tfoot>
...
</table>


table
personal data age purchase
ﬁrst name last name

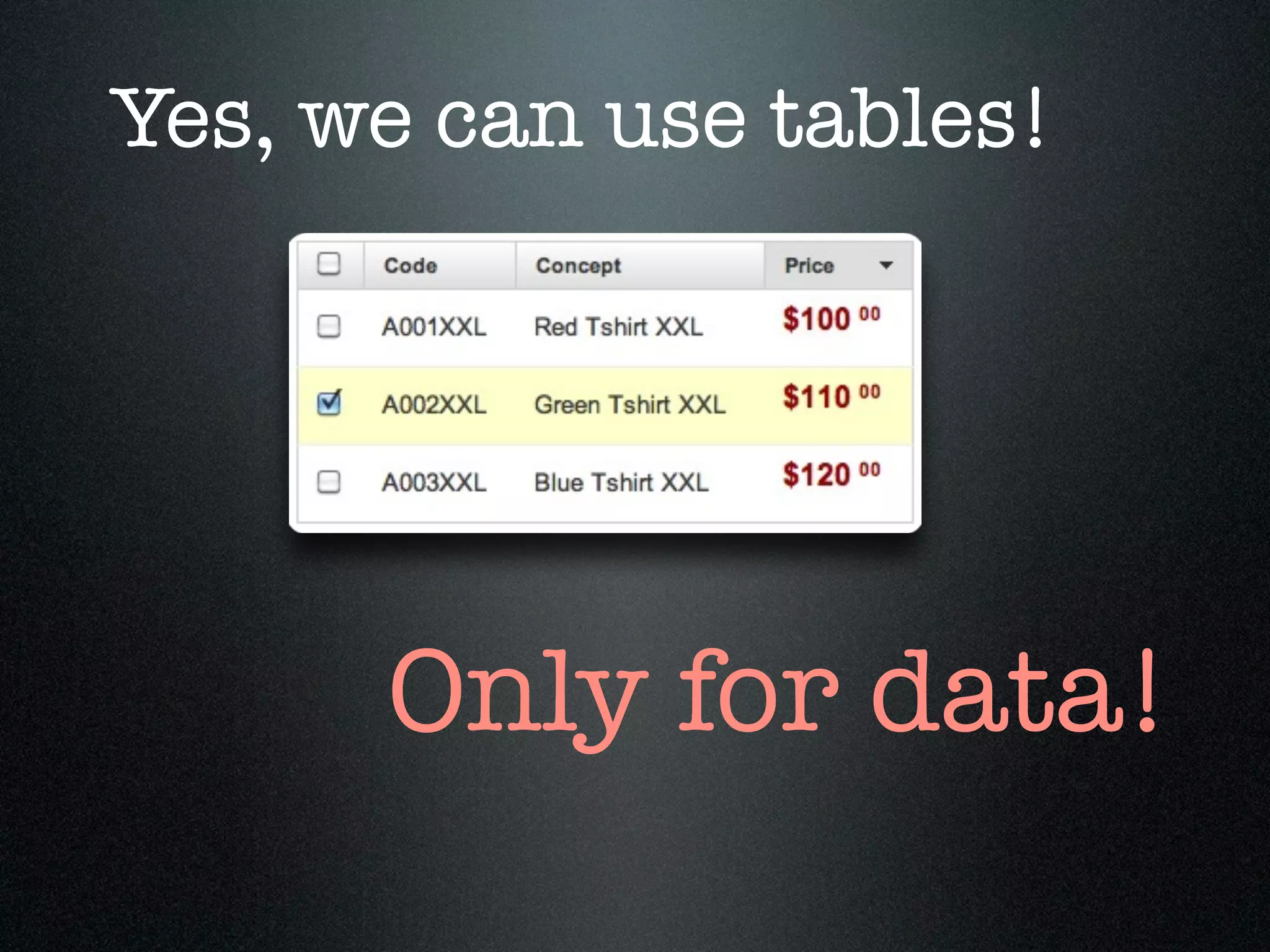

Yes, we can use tables!

Only for data!

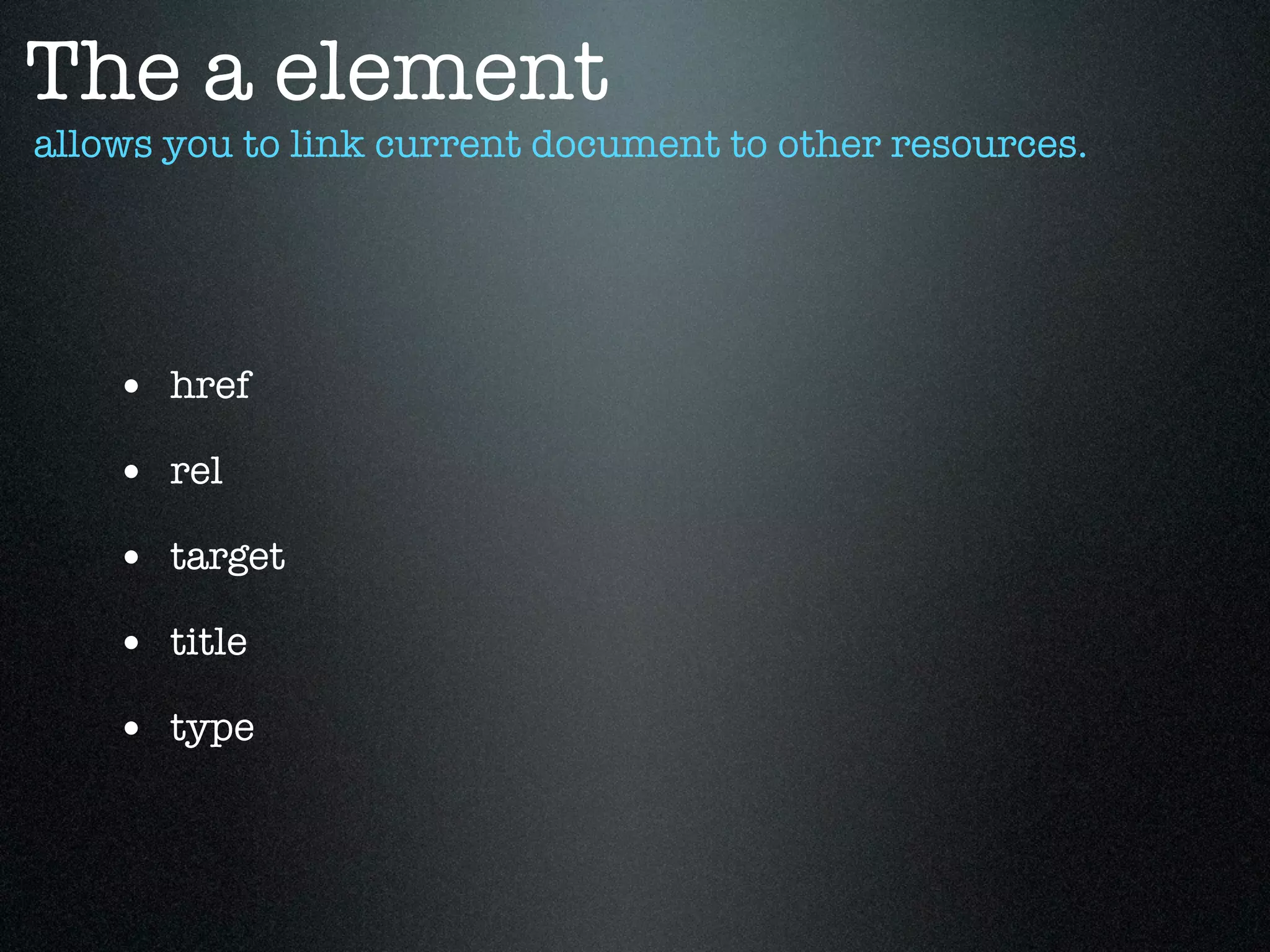

The a element
allows you to link current document to other resources.

• href
• rel
• target
• title
• type

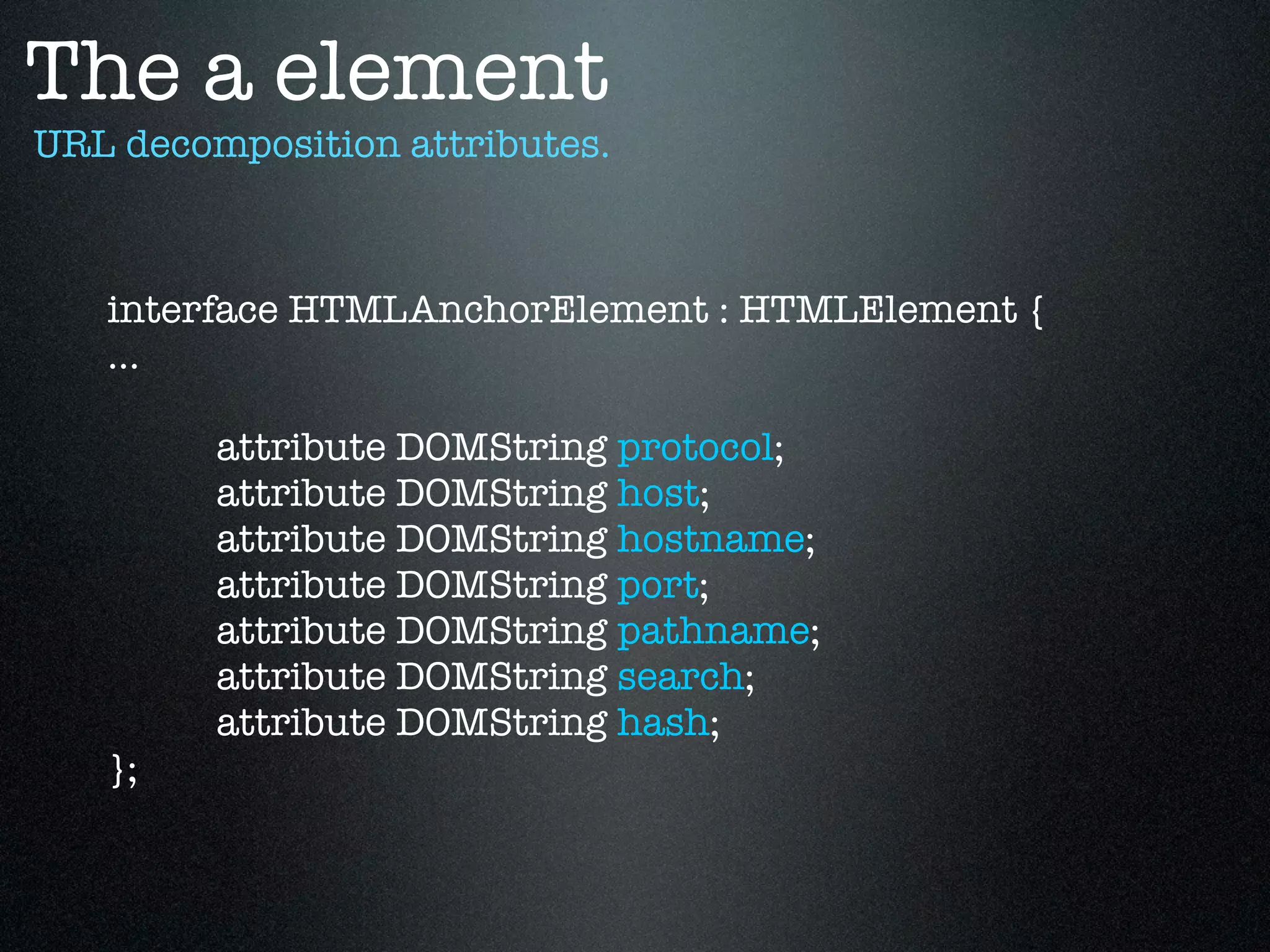

The a element
URL decomposition attributes.

interface HTMLAnchorElement : HTMLElement {
...

attribute DOMString protocol;
attribute DOMString host;
attribute DOMString hostname;
attribute DOMString port;
attribute DOMString pathname;
attribute DOMString search;
attribute DOMString hash;
};

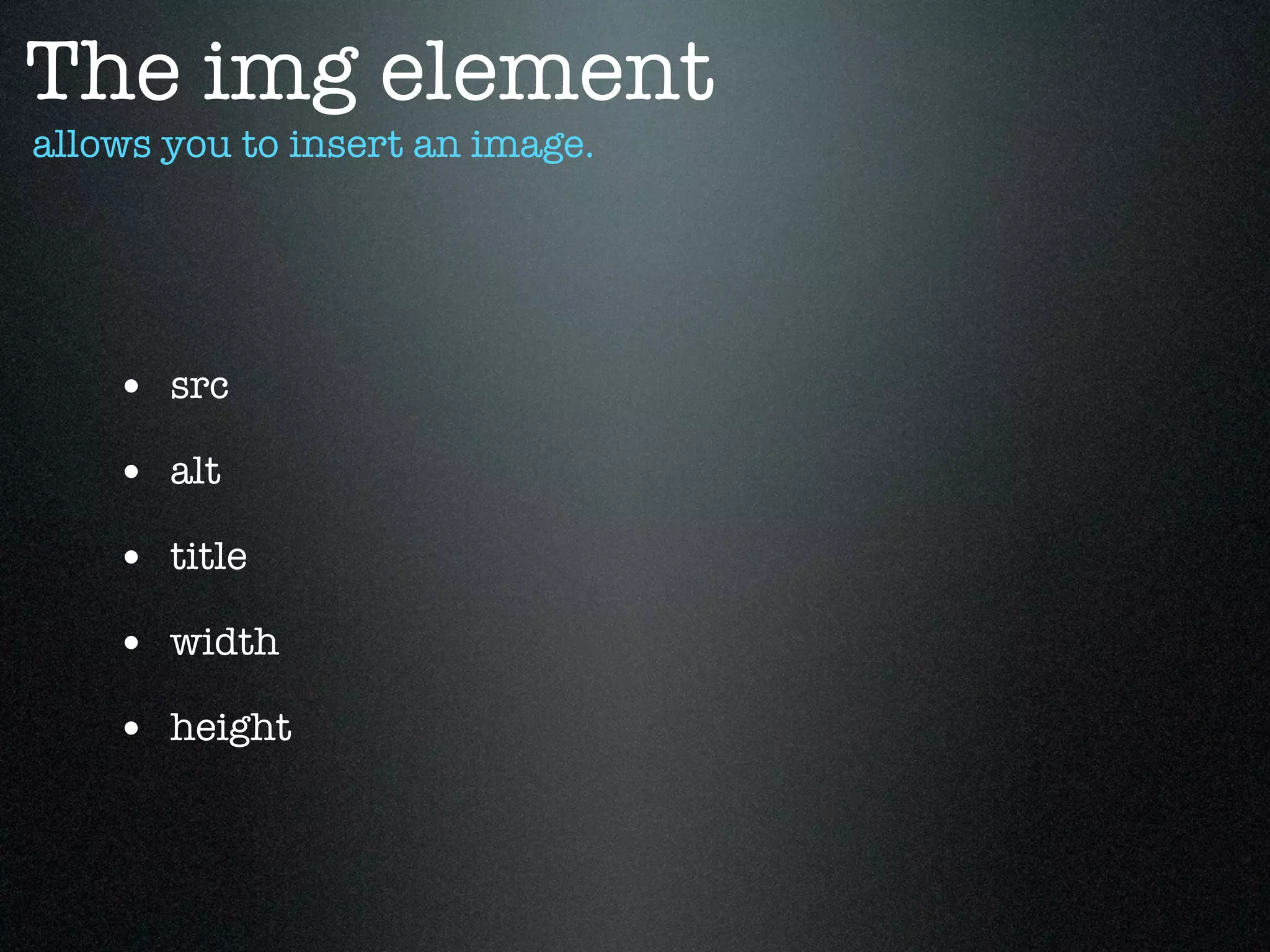

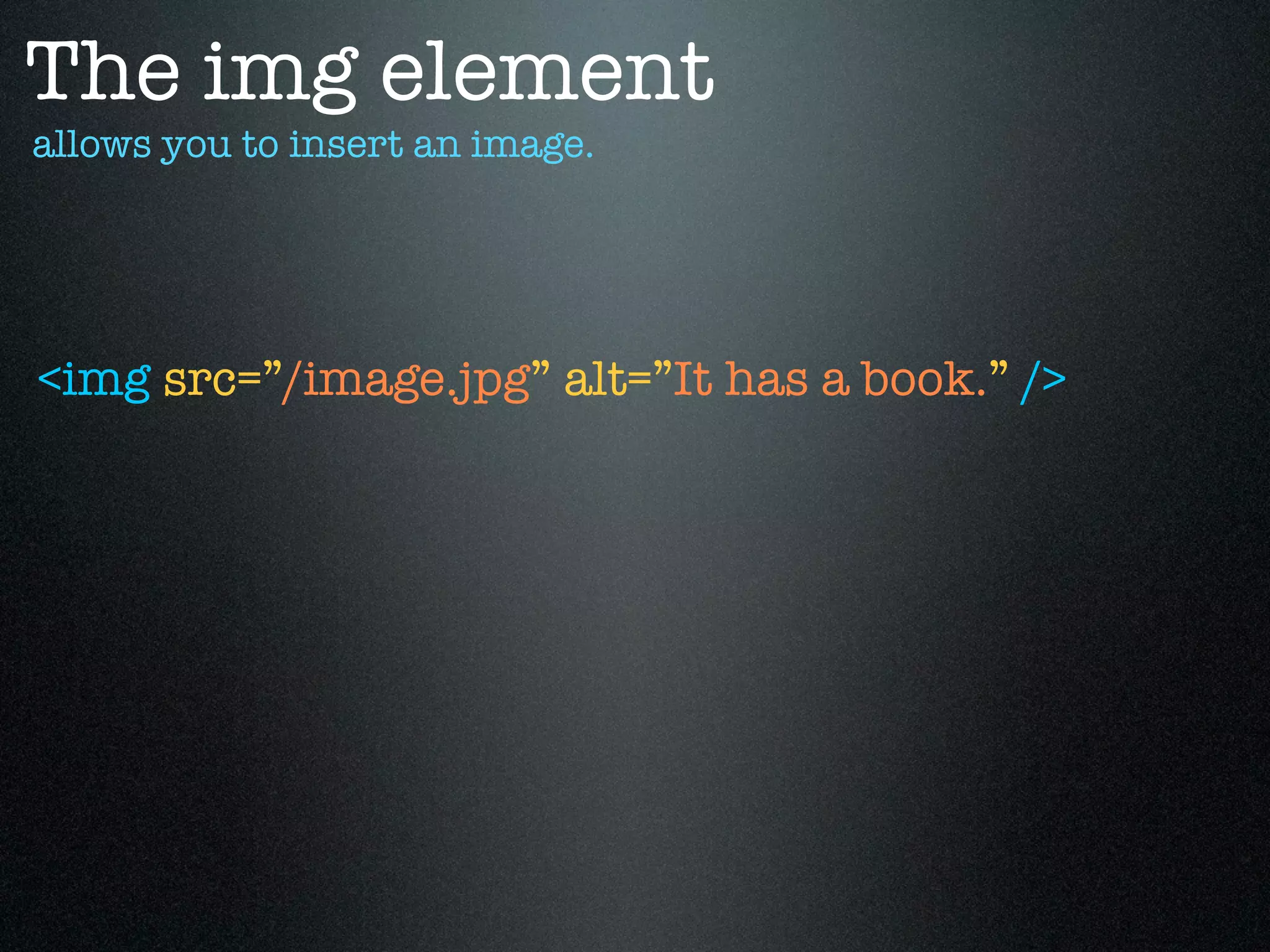

The img element
allows you to insert an image.

• src
• alt
• title
• width
• height

The img element
allows you to insert an image.

<img src=”/image.jpg” alt=”It has a book.” />

Forms
Getting the user’s
data

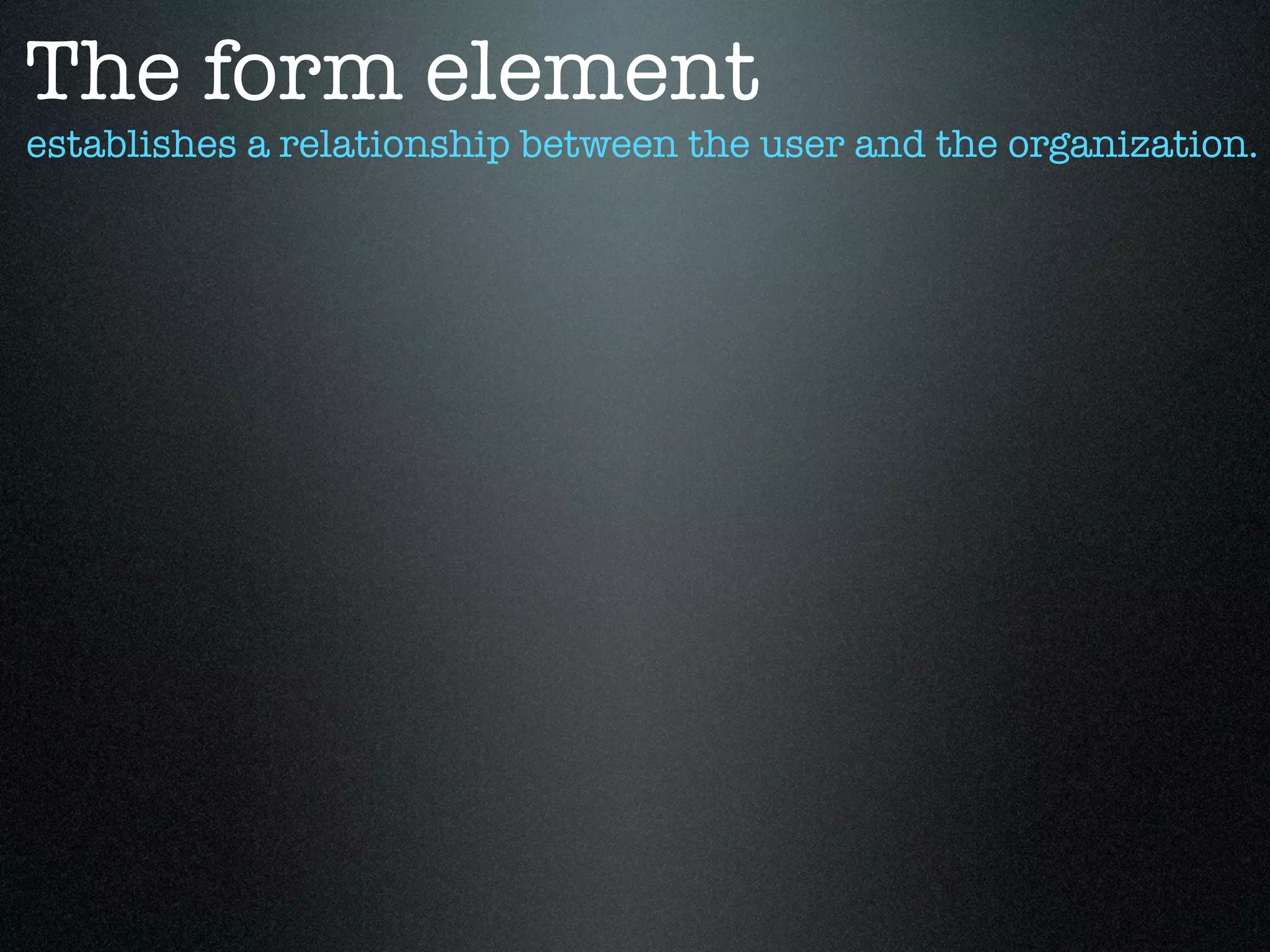

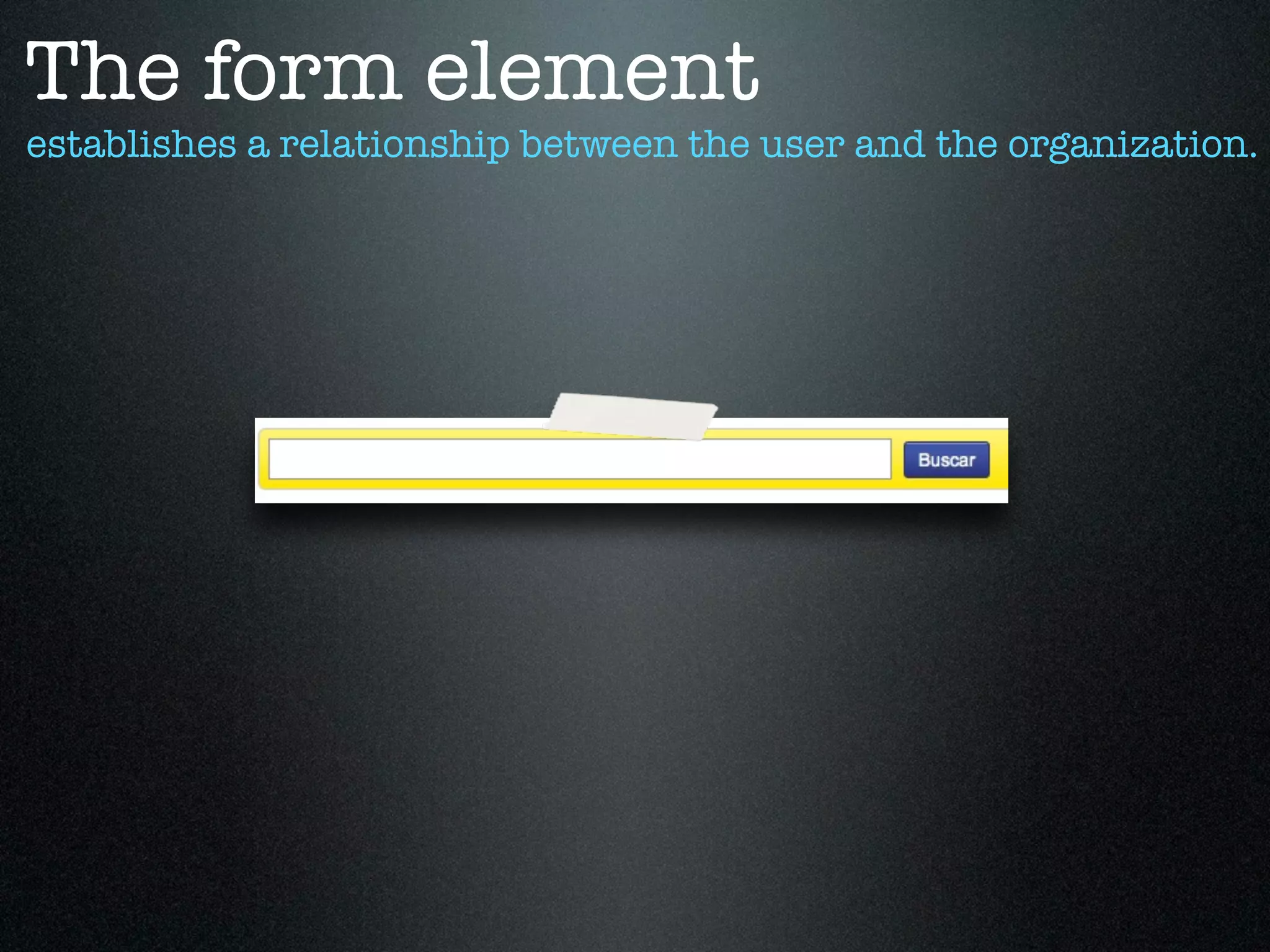

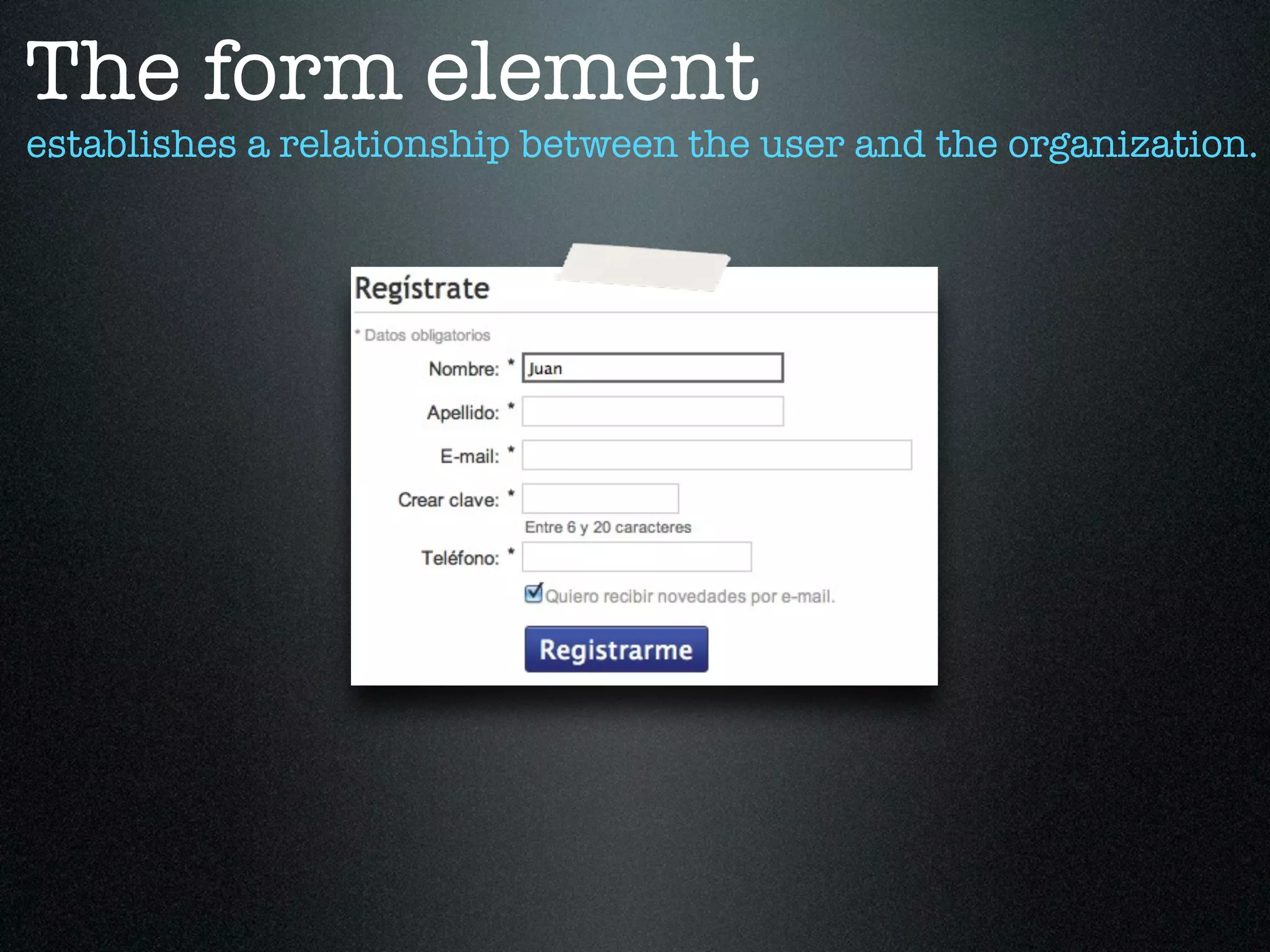

The form element
establishes a relationship between the user and the organization.

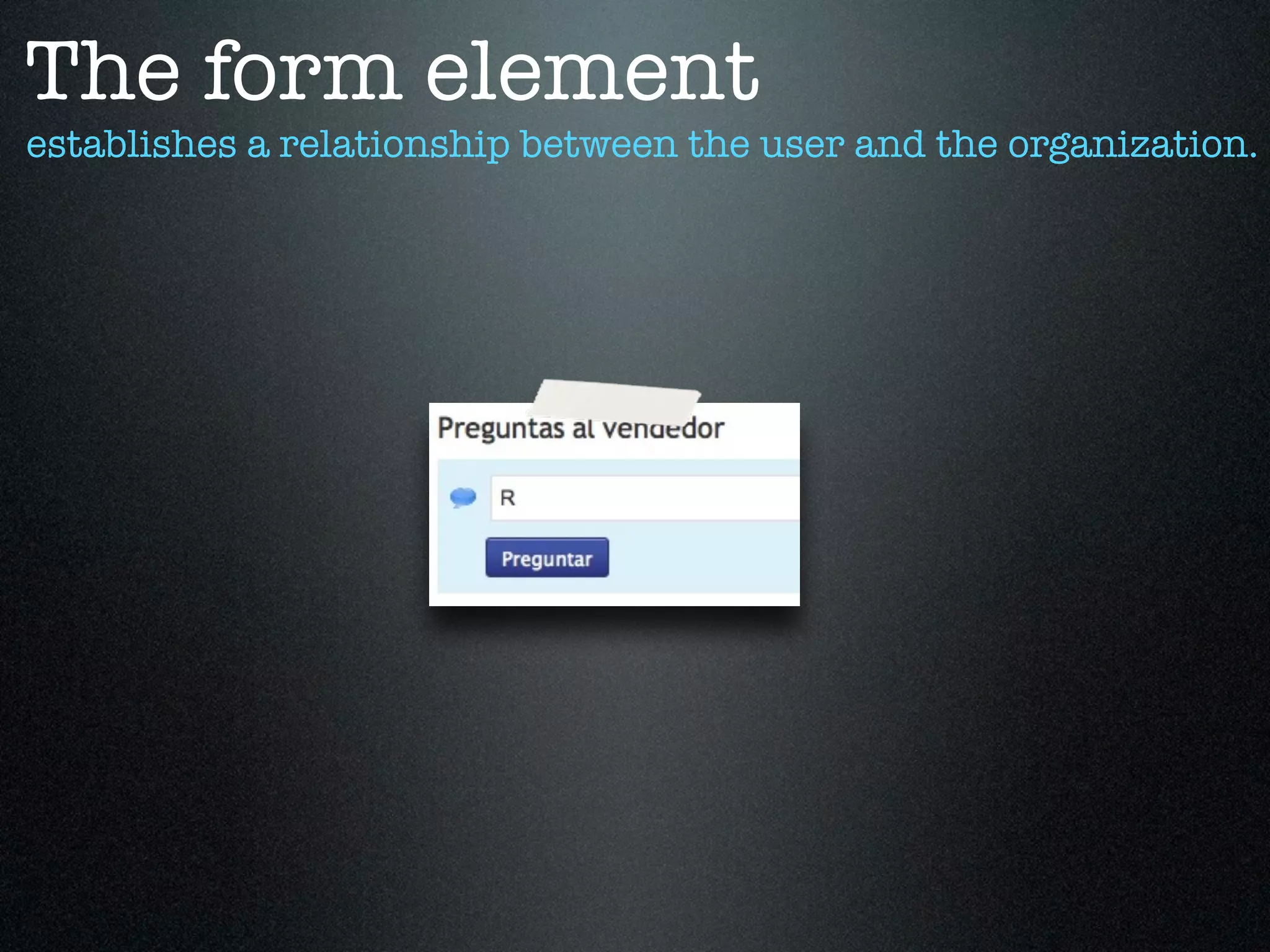

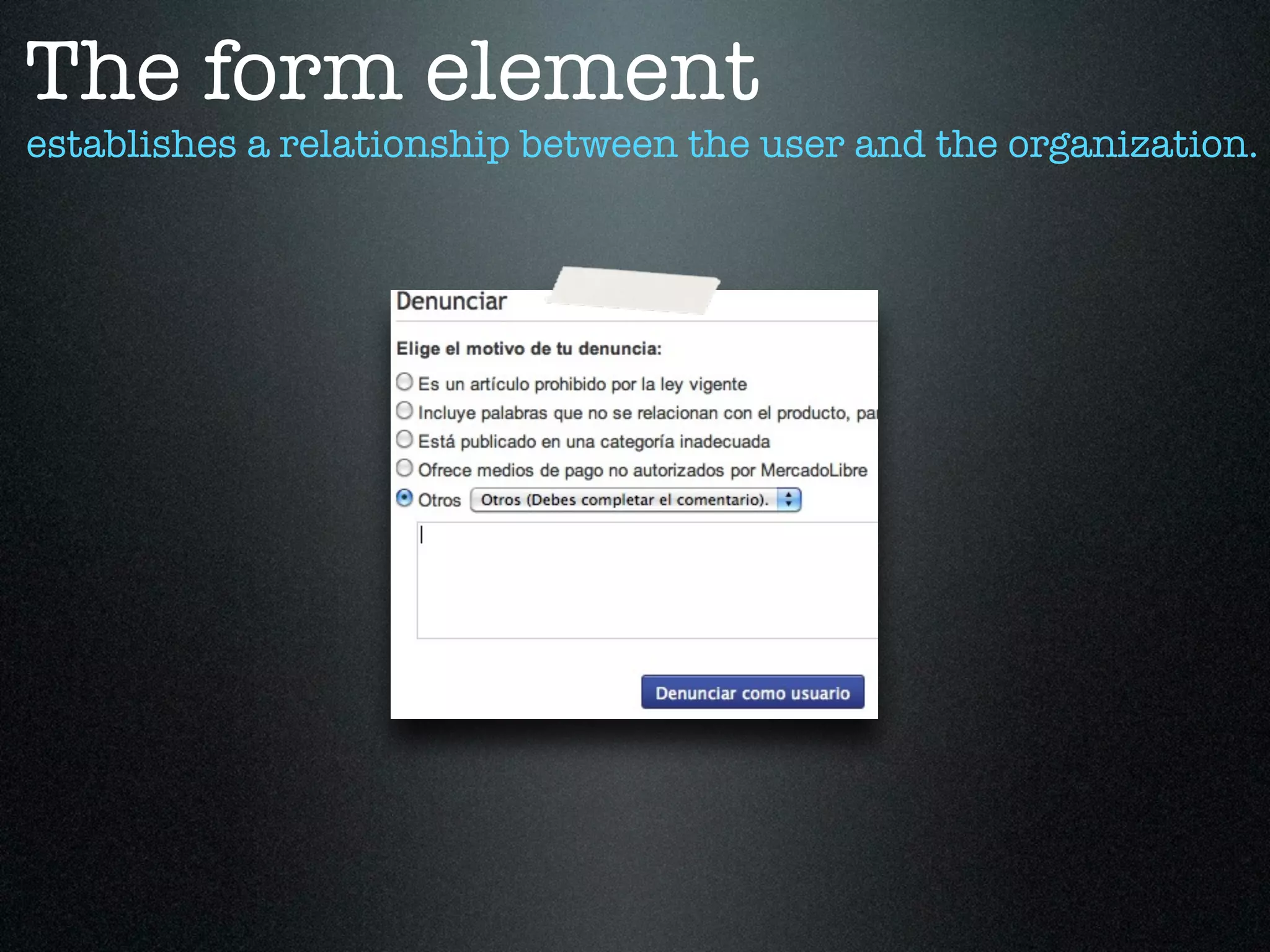

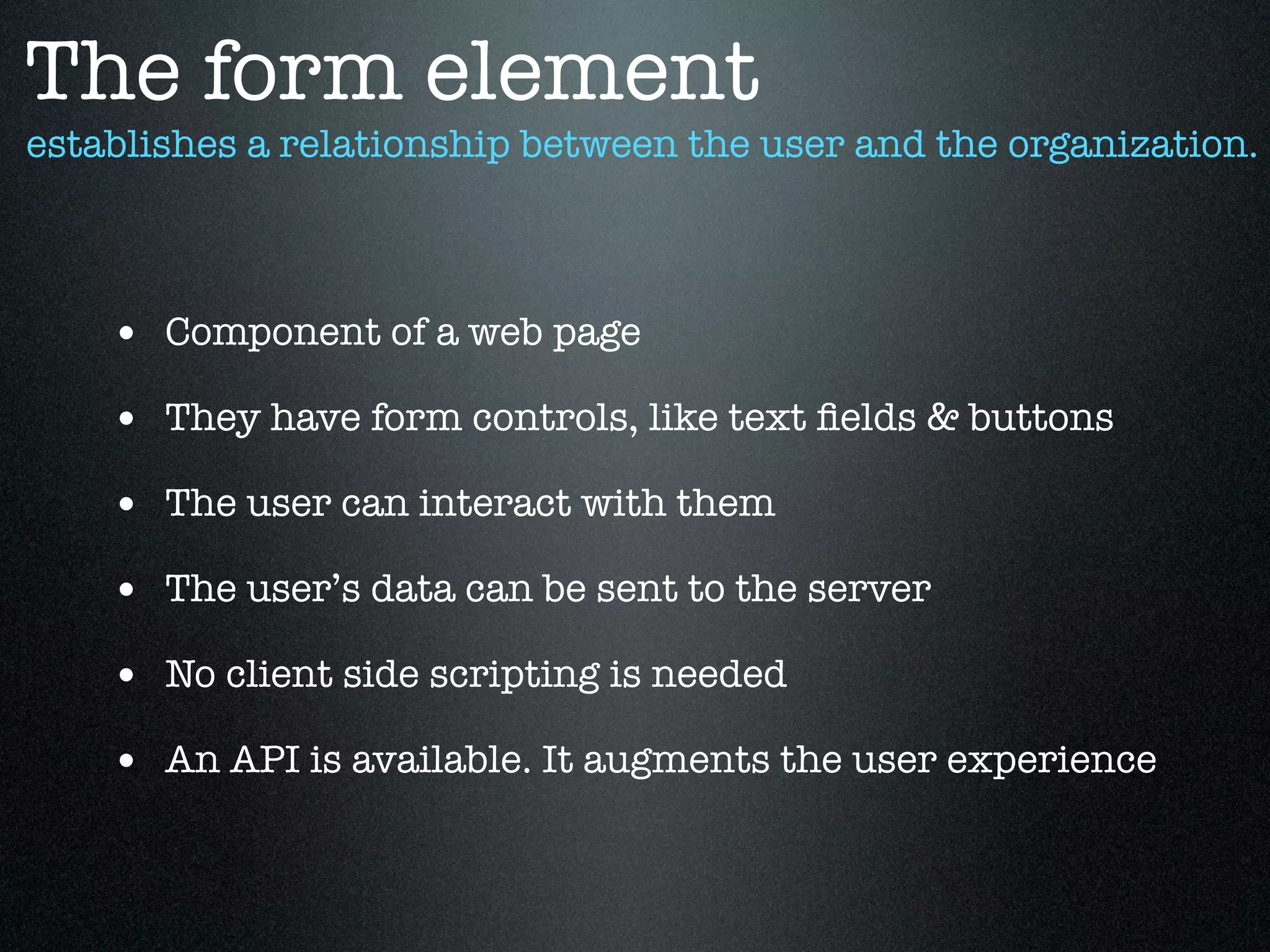

The form element
establishes a relationship between the user and the organization.

• Component of a web page
• They have form controls, like text ﬁelds & buttons
• The user can interact with them
• The user’s data can be sent to the server
• No client side scripting is needed
• An API is available. It augments the user experience

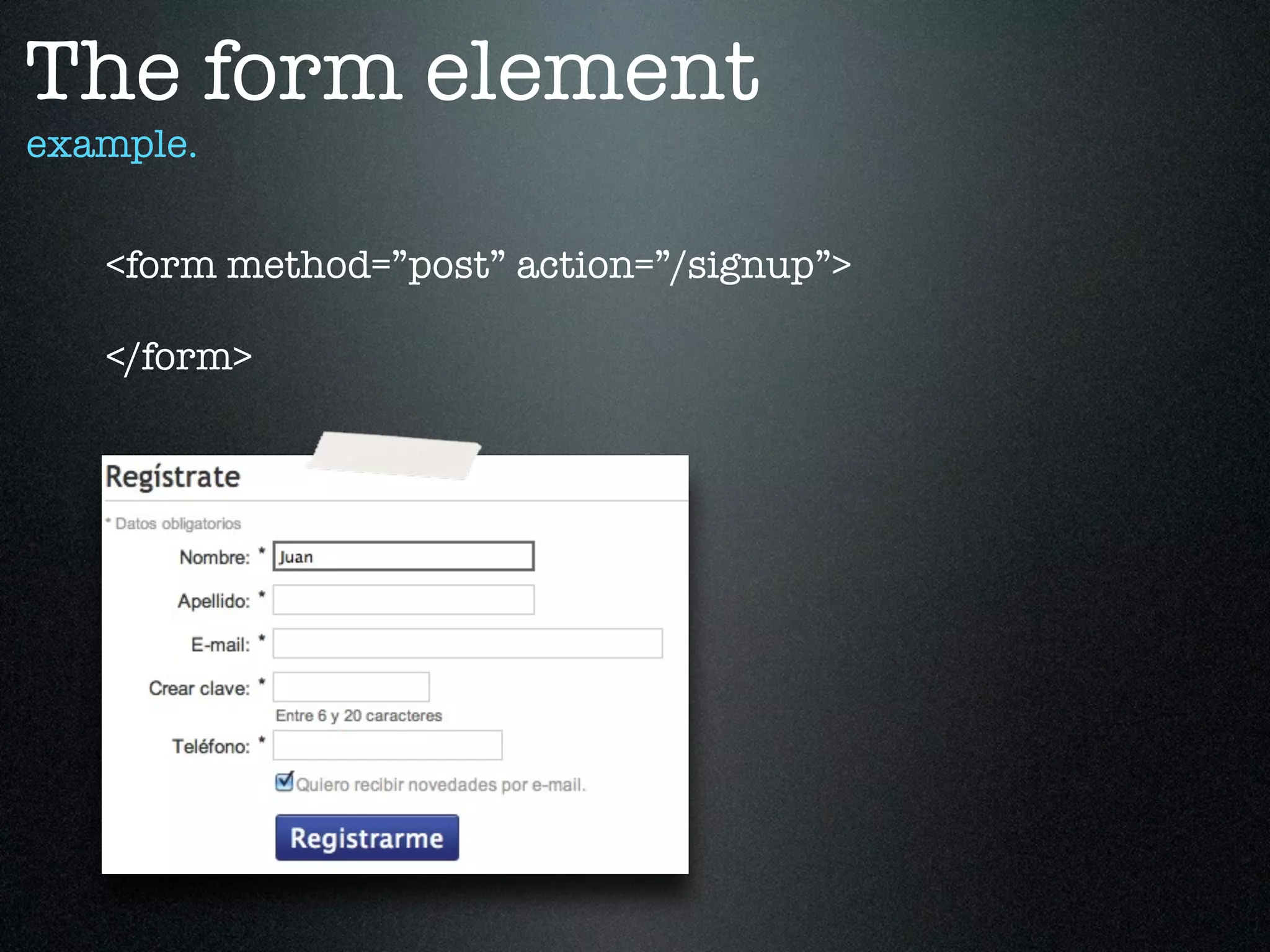

The form element
example.

<form method=”post” action=”/signup”>

</form>

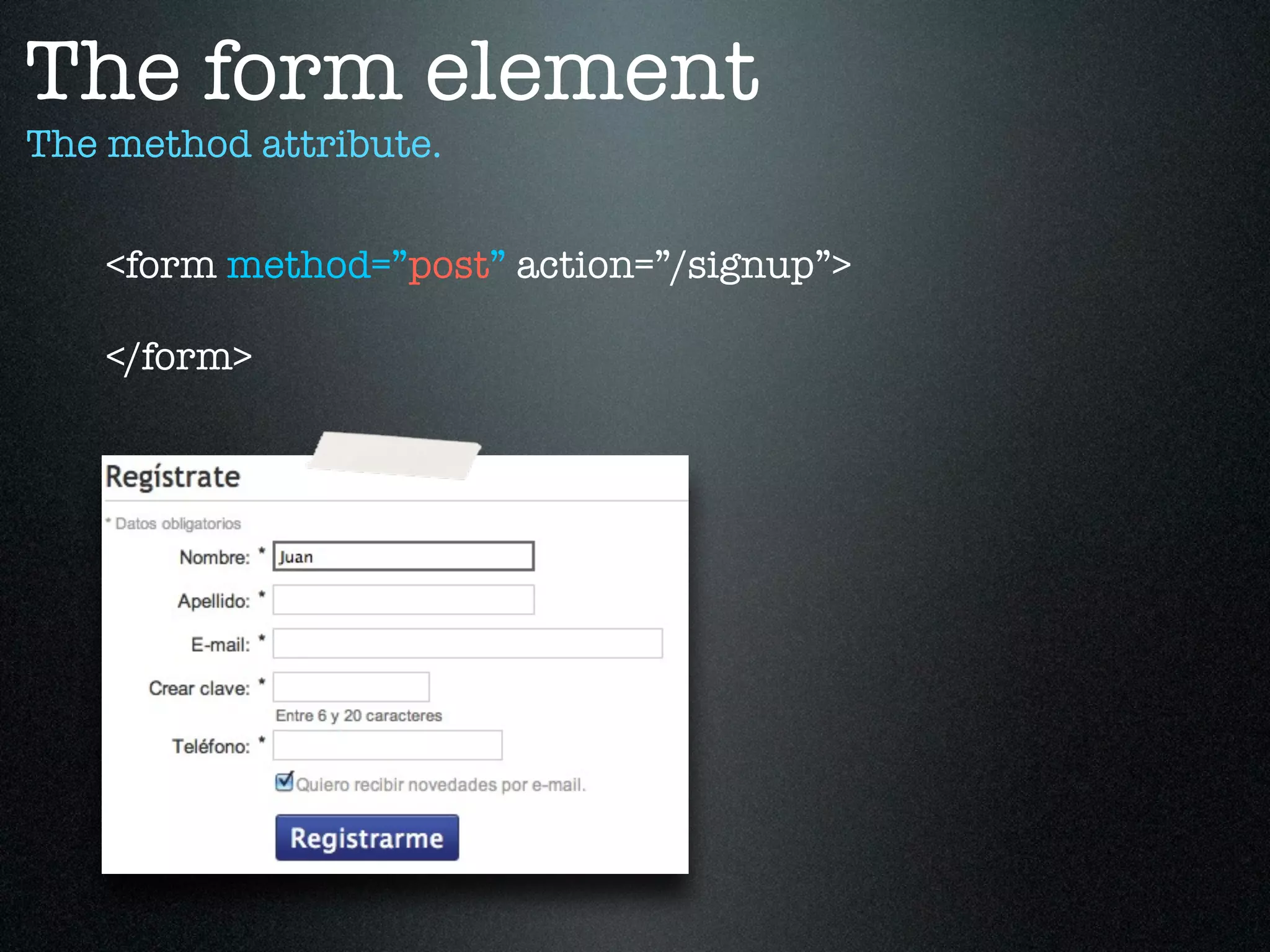

The form element
The method attribute.


</form>

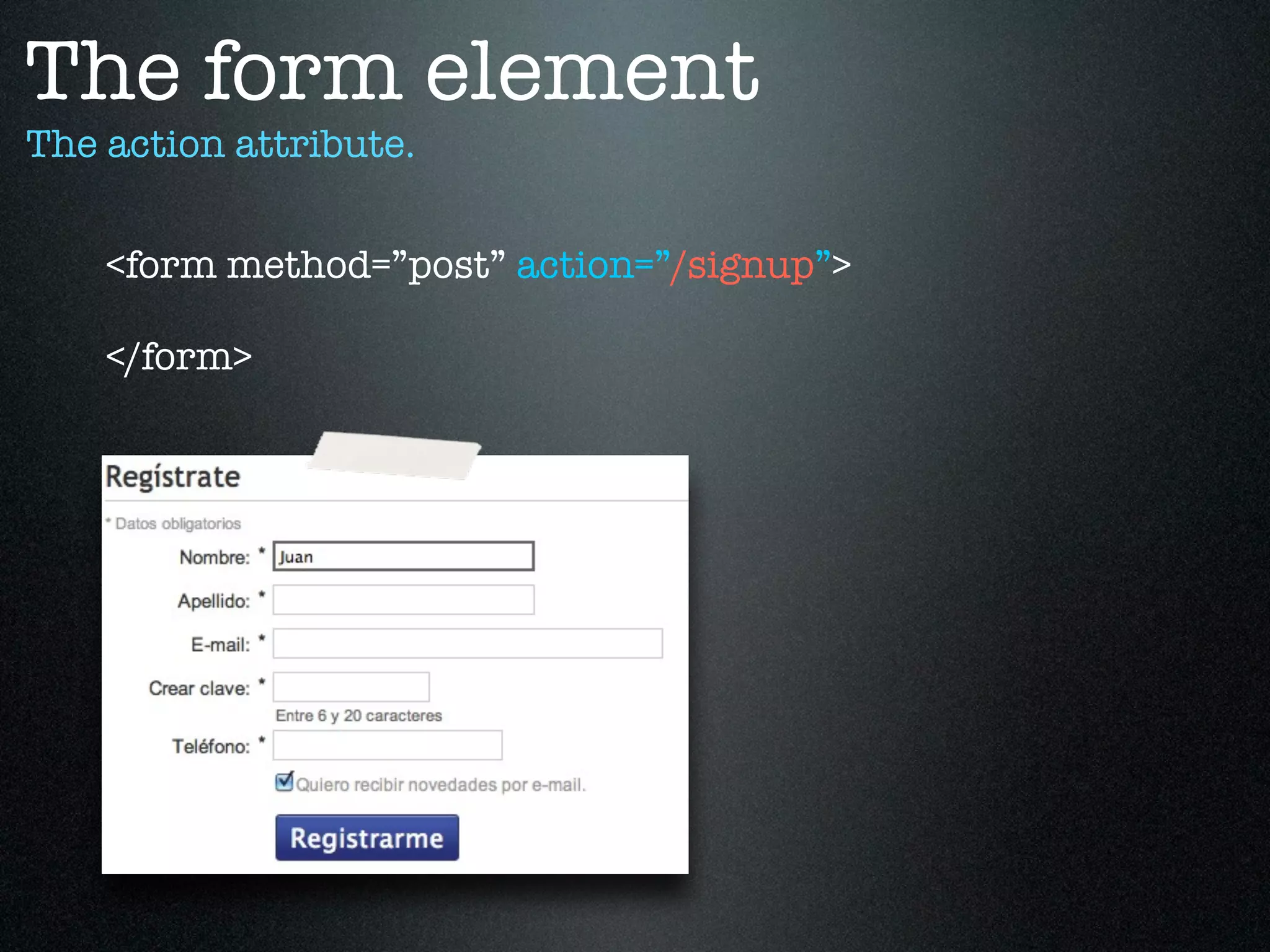

The form element
The action attribute.


</form>

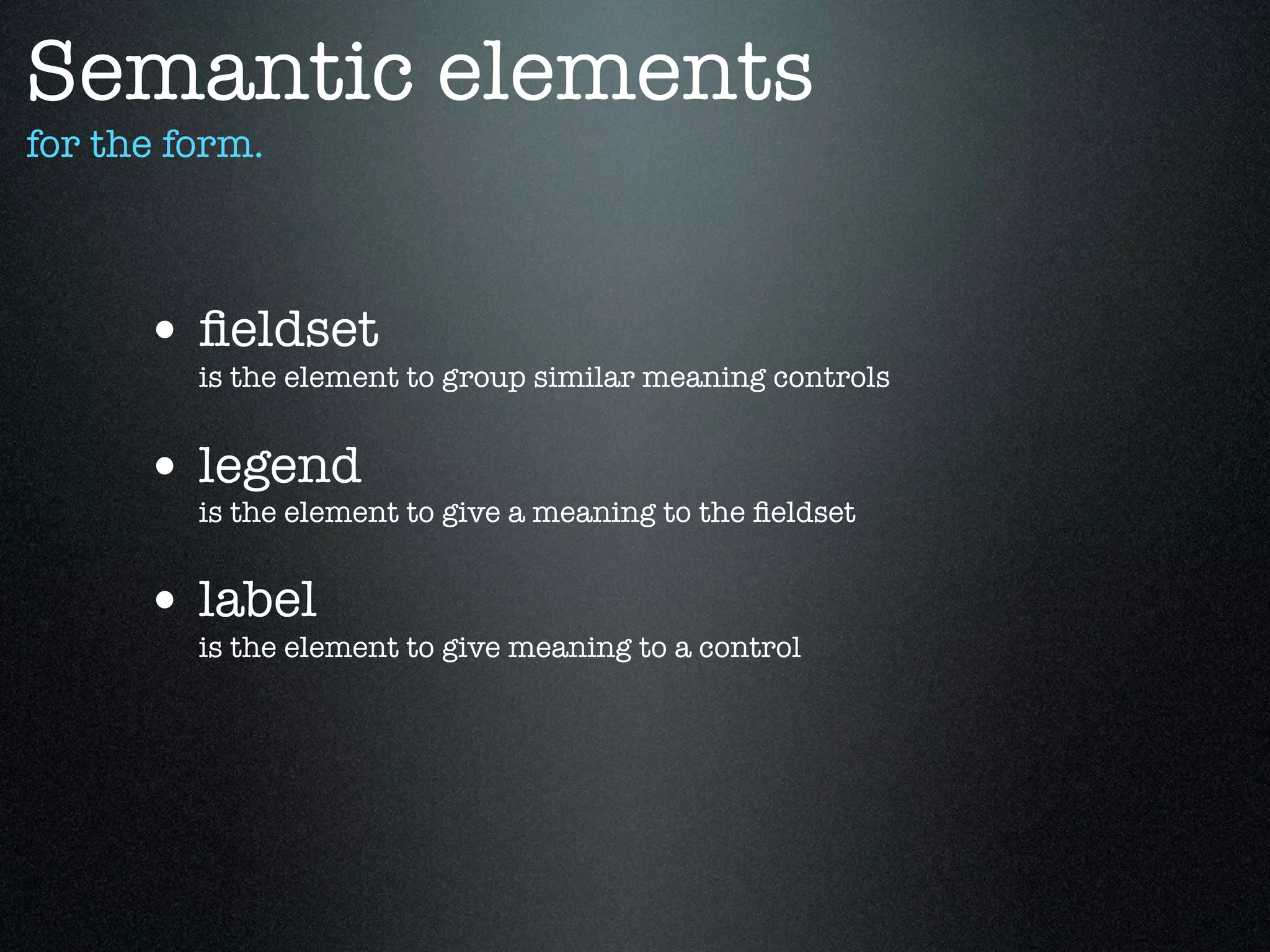

Semantic elements
for the form.

• ﬁeldset
is the element to group similar meaning controls

• legend
is the element to give a meaning to the ﬁeldset

• label
is the element to give meaning to a control

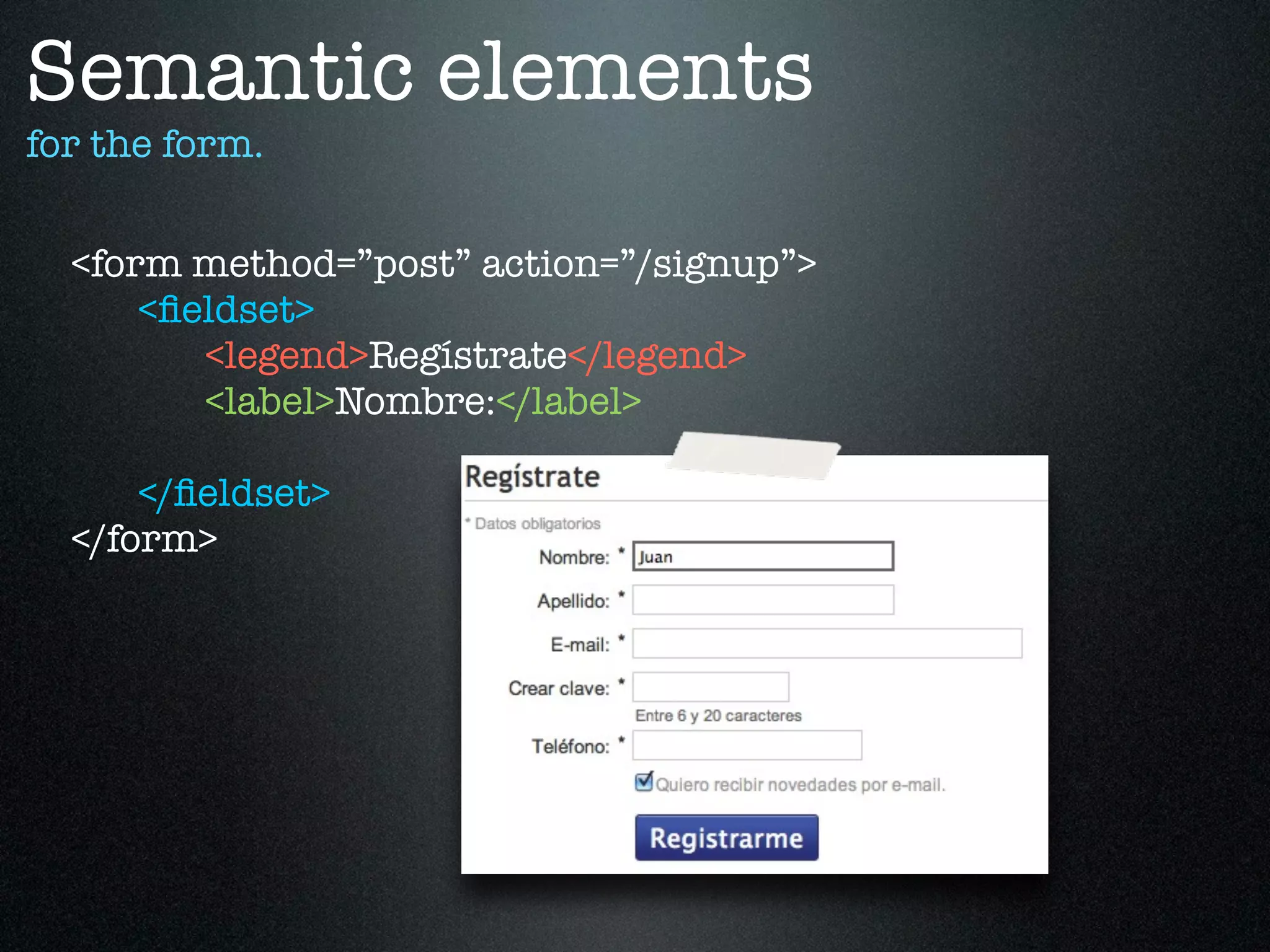

Semantic elements
for the form.

<ﬁeldset>
<legend>Regístrate</legend>
<label>Nombre:</label>

</ﬁeldset>
</form>

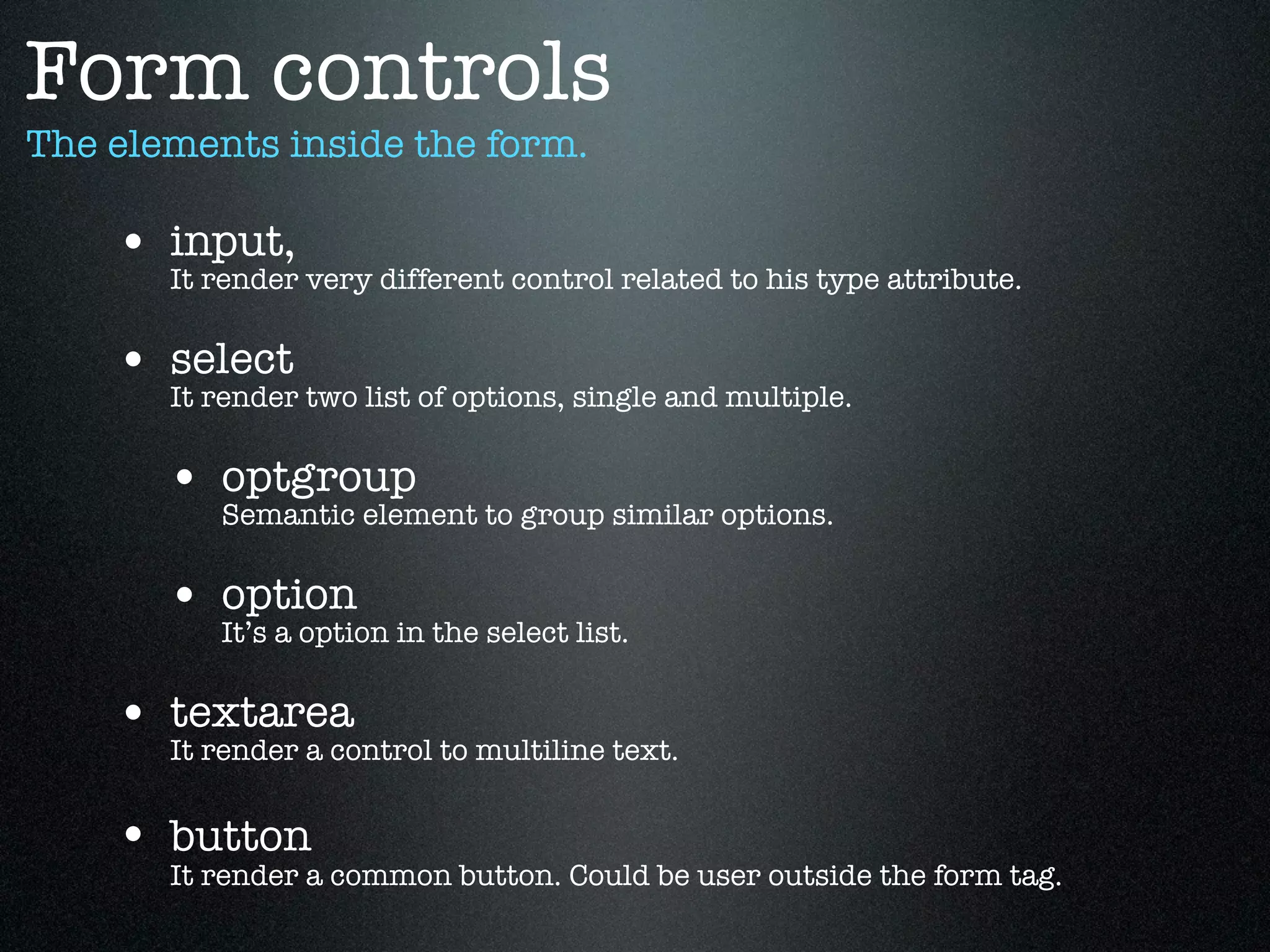

Form controls
The elements inside the form.

• input,
It render very different control related to his type attribute.

• select
It render two list of options, single and multiple.

• optgroup
Semantic element to group similar options.

• option
It’s a option in the select list.

• textarea
It render a control to multiline text.

• button
It render a common button. Could be user outside the form tag.

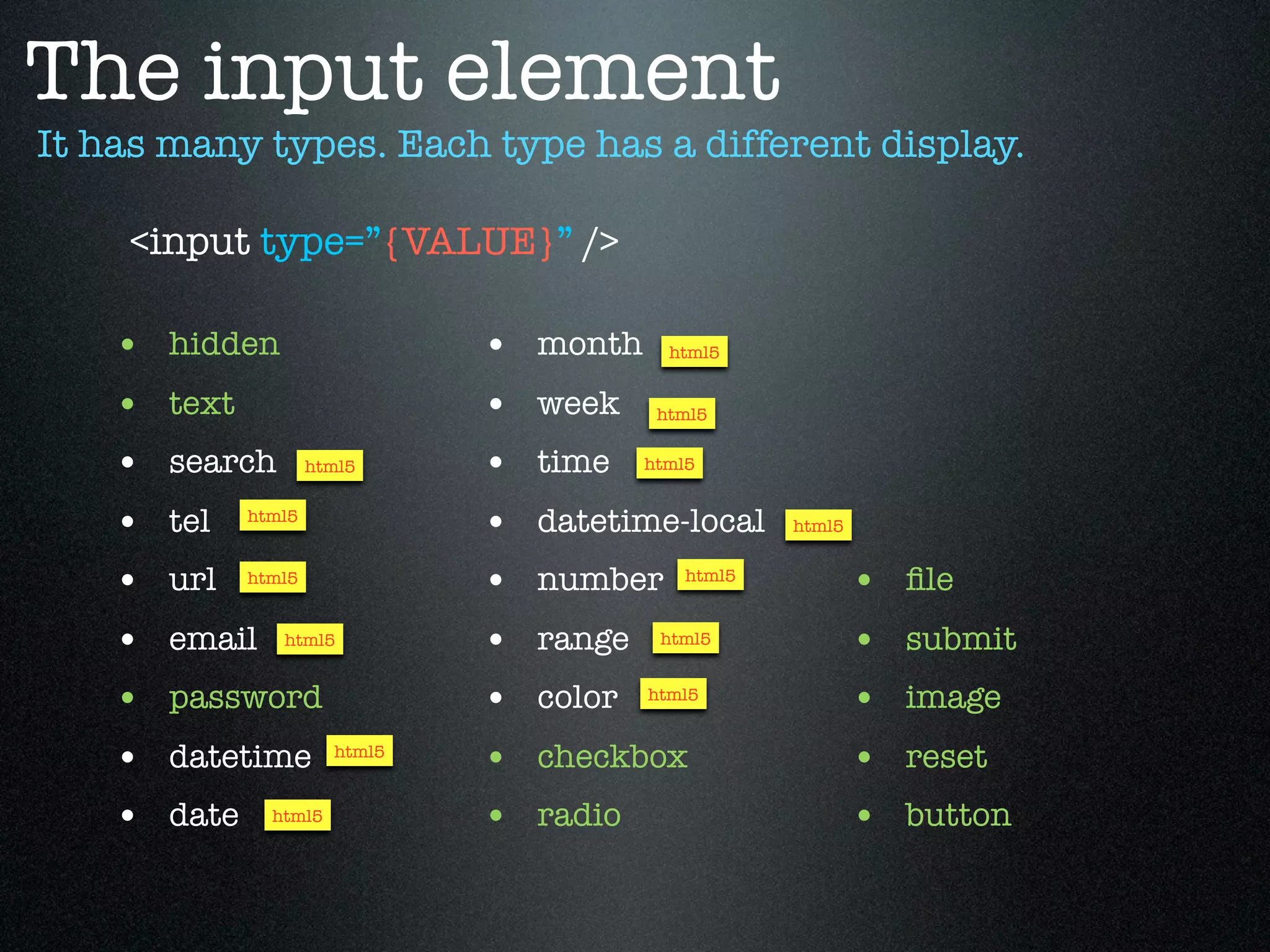

The input element
It has many types. Each type has a different display.

<input type=”{VALUE}” />

• hidden • month html5

• text • week html5

• search html5 • time html5

• tel html5
• datetime-local html5

• url html5
• number html5
• ﬁle
• email html5 • range html5 • submit
• password • color html5
• image
• datetime html5
• checkbox • reset
• date html5 • radio • button

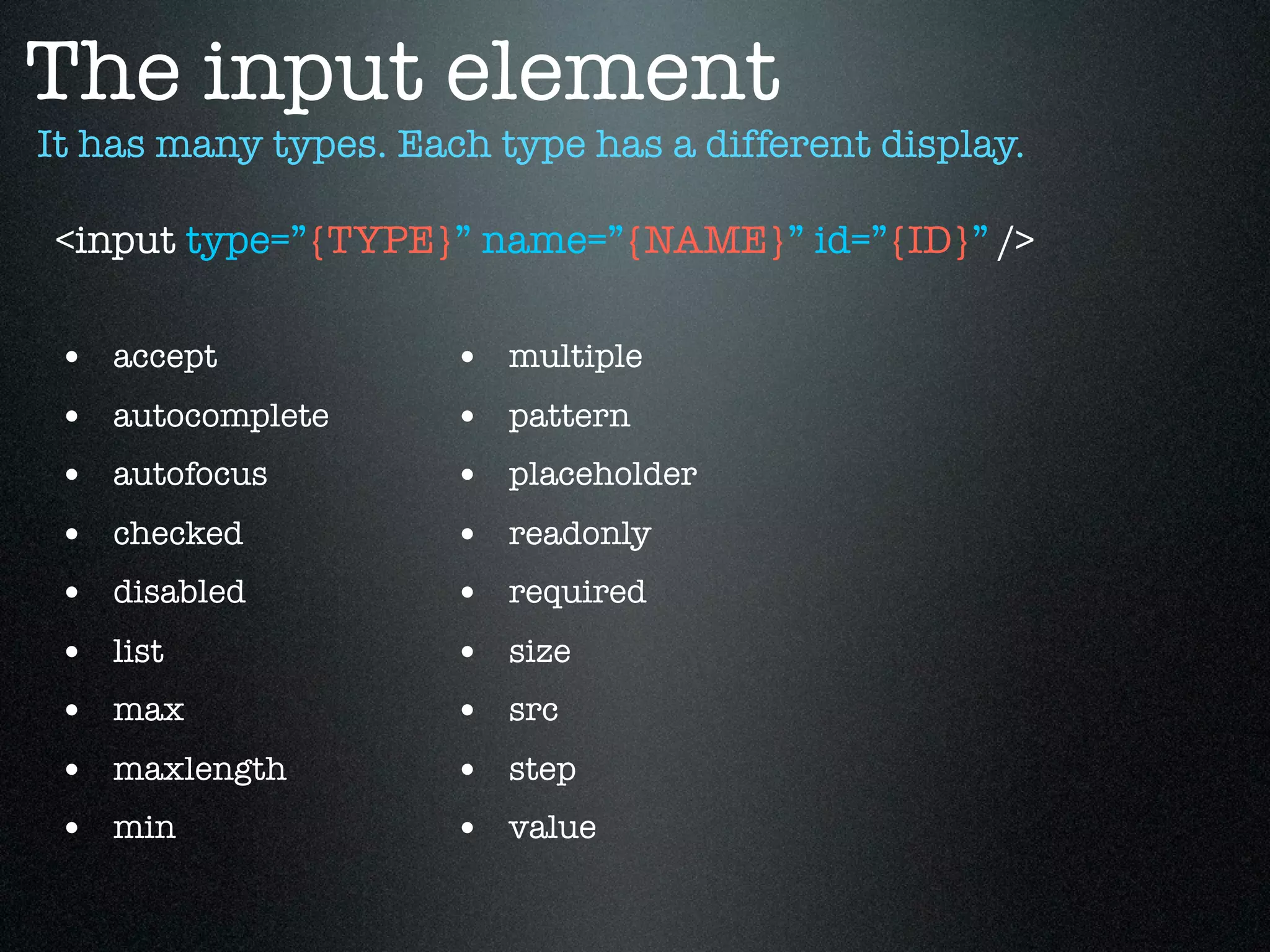

The input element
It has many types. Each type has a different display.

<input type=”{TYPE}” name=”{NAME}” id=”{ID}” />

• accept • multiple
• autocomplete • pattern
• autofocus • placeholder
• checked • readonly
• disabled • required
• list • size
• max • src
• maxlength • step
• min • value

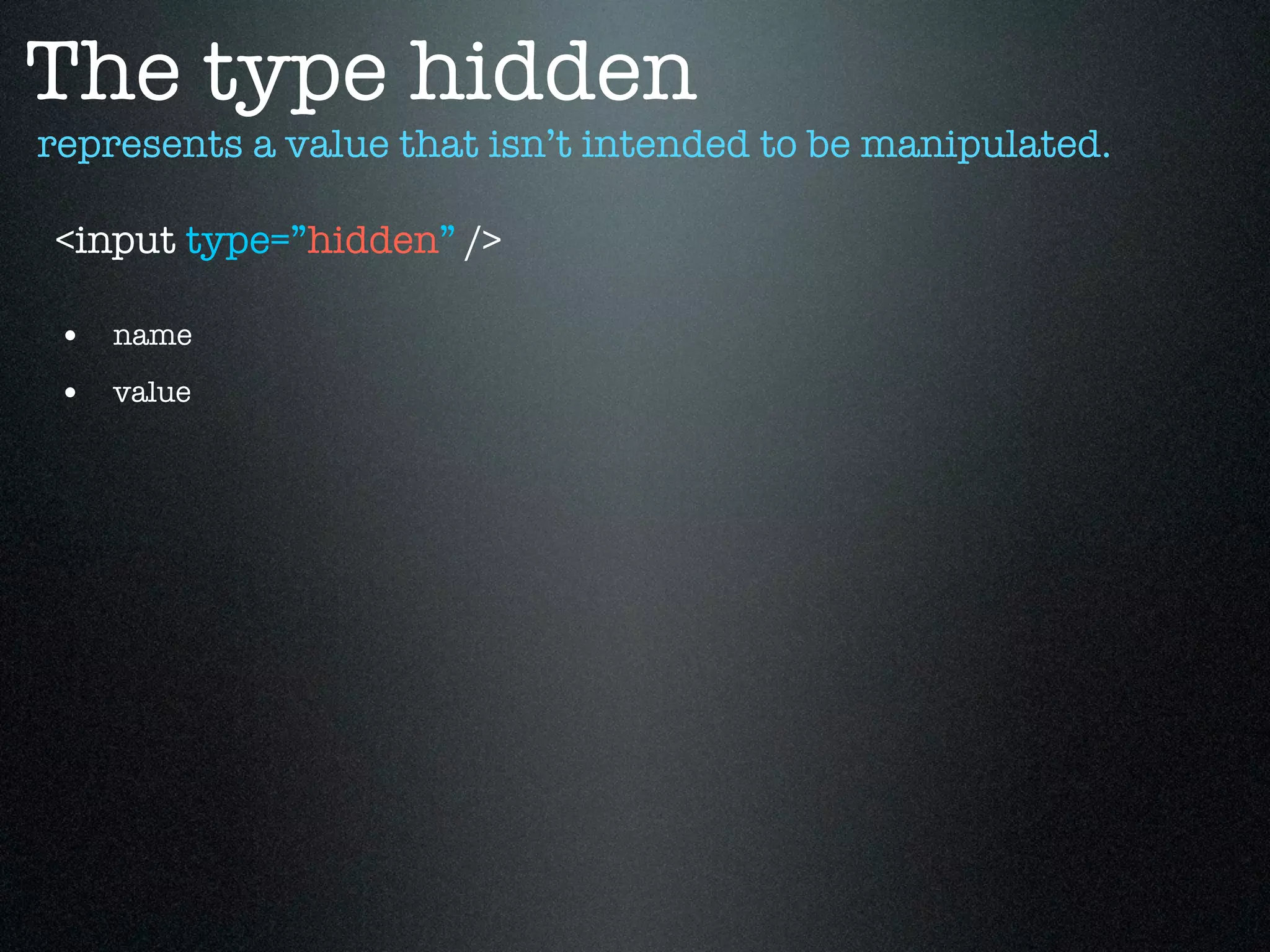

The type hidden
represents a value that isn’t intended to be manipulated.

<input type=”hidden” />

• name
• value

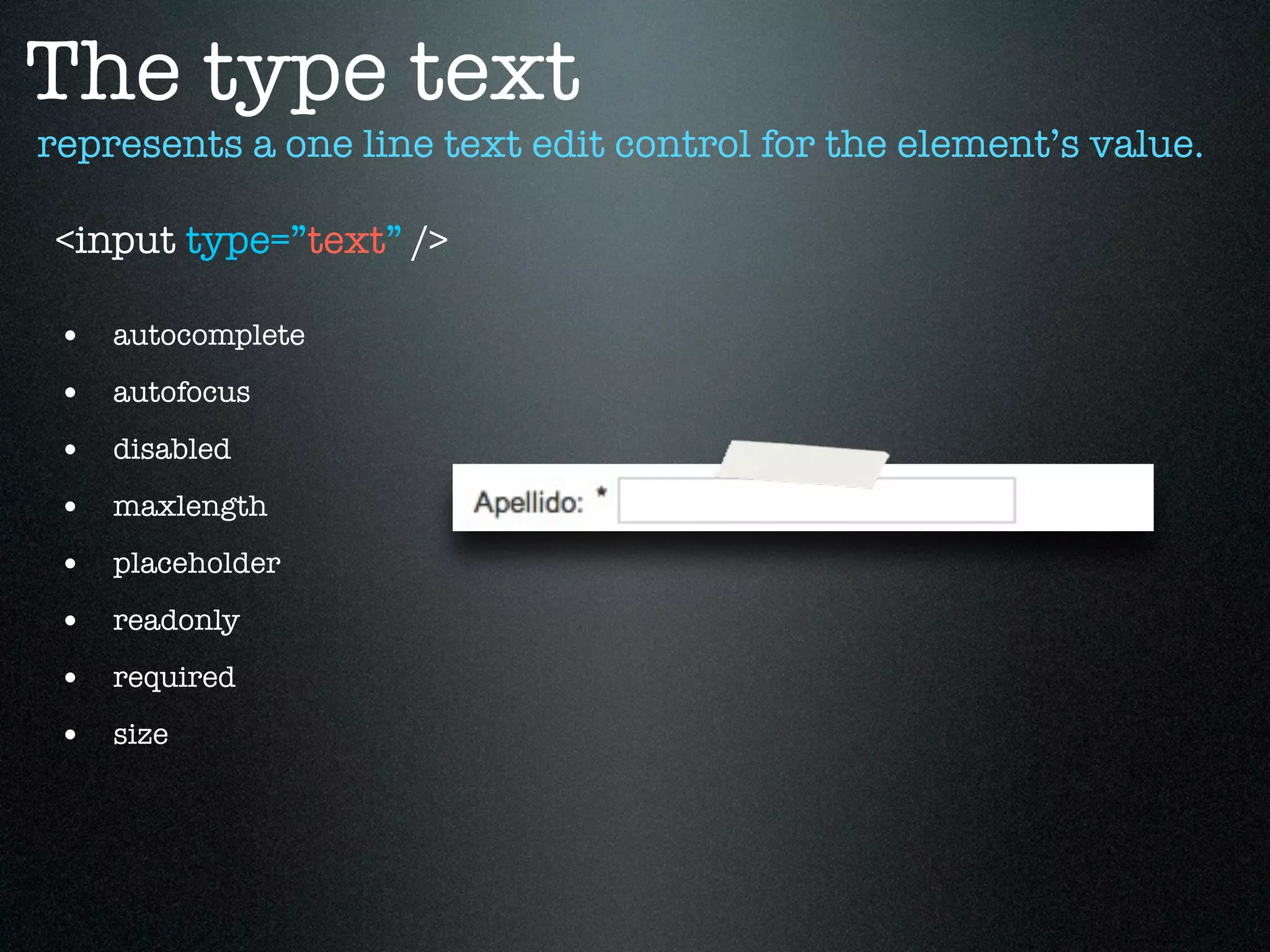

The type text
represents a one line text edit control for the element’s value.

<input type=”text” />

• autocomplete
• autofocus
• disabled
• maxlength
• placeholder
• readonly
• required
• size

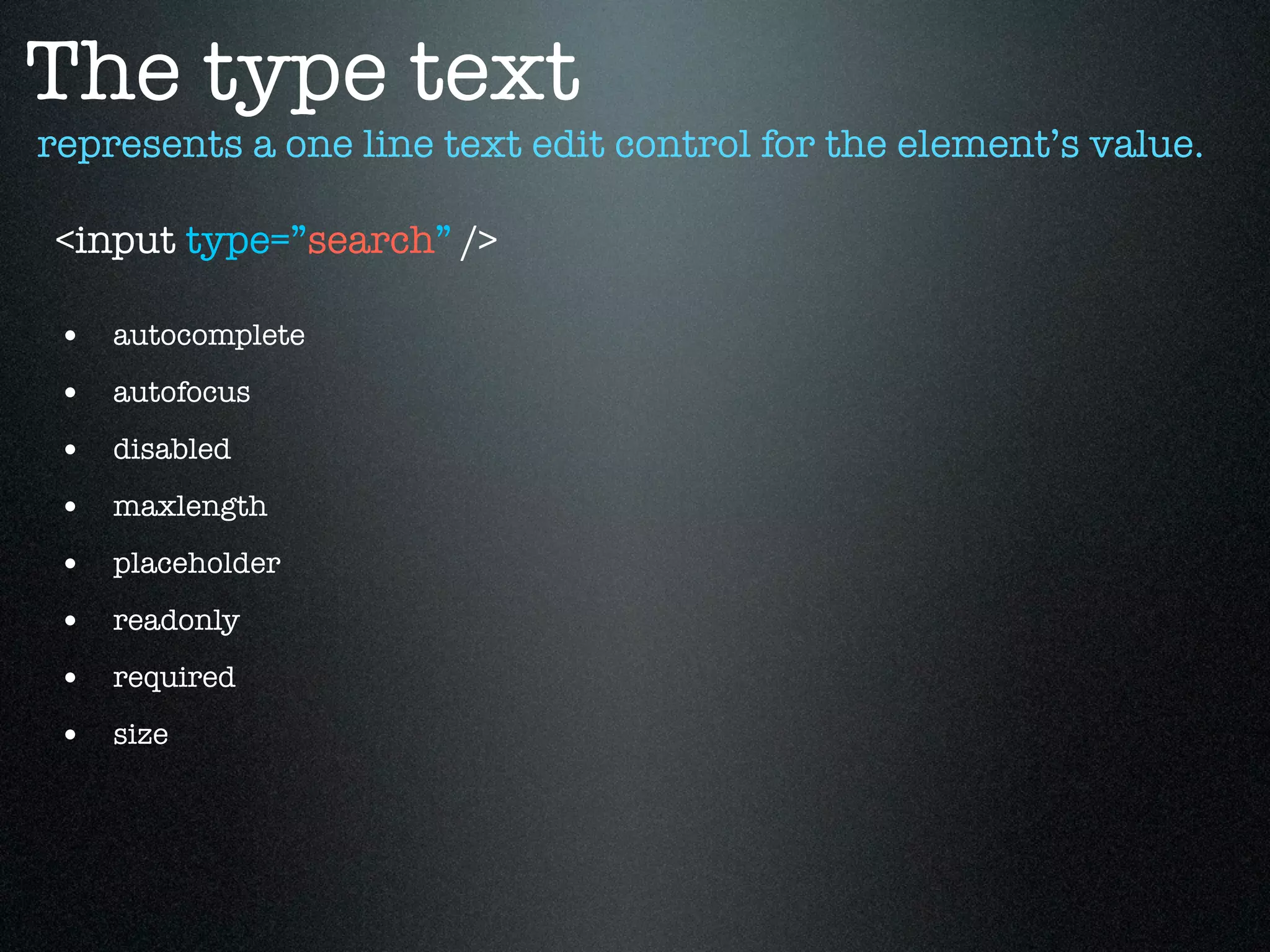

The type text

<input type=”search” />

• autocomplete
• autofocus
• disabled
• maxlength
• placeholder
• readonly
• required
• size

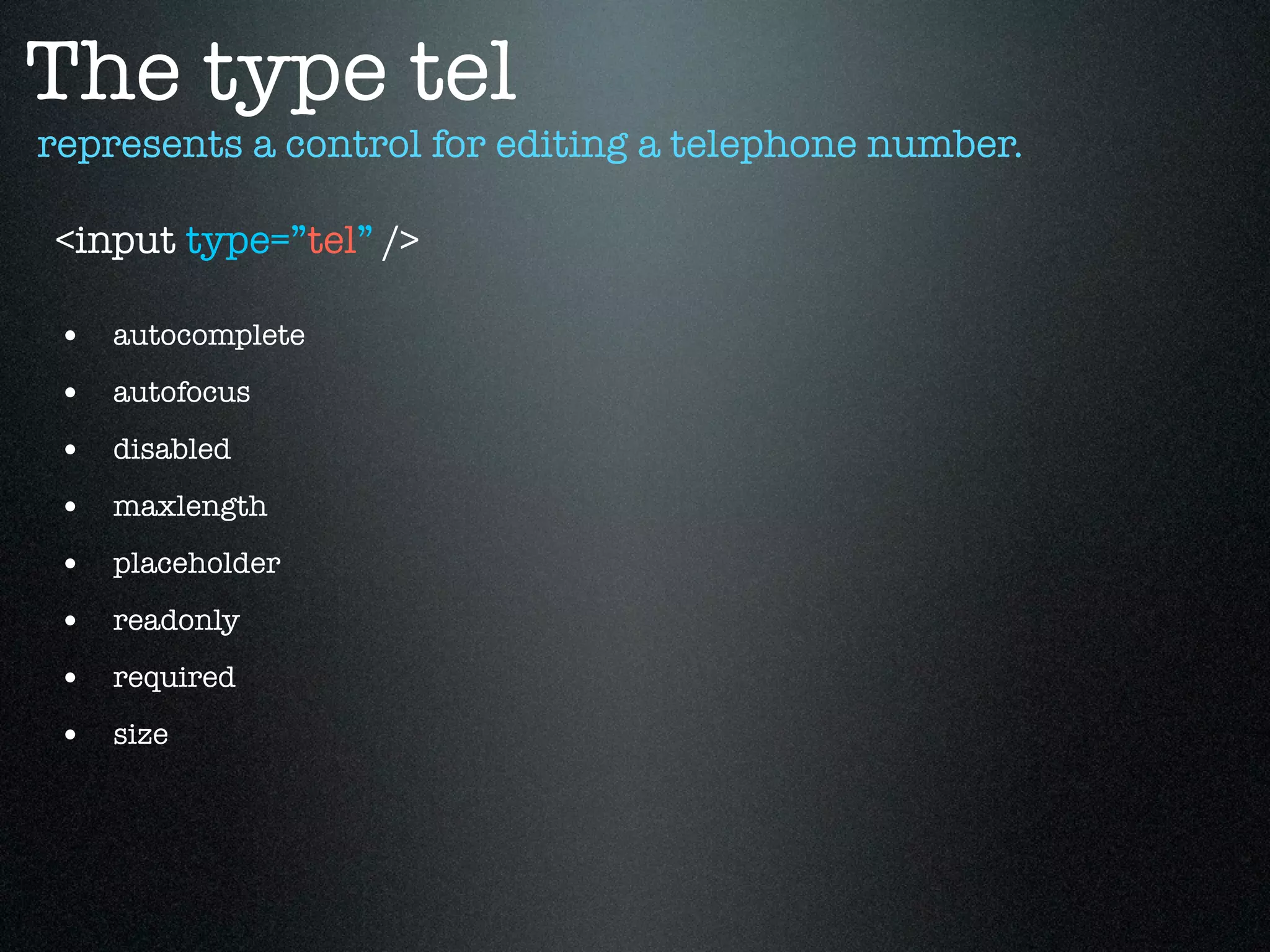

The type tel
represents a control for editing a telephone number.

<input type=”tel” />

• autocomplete
• autofocus
• disabled
• maxlength
• placeholder
• readonly
• required
• size

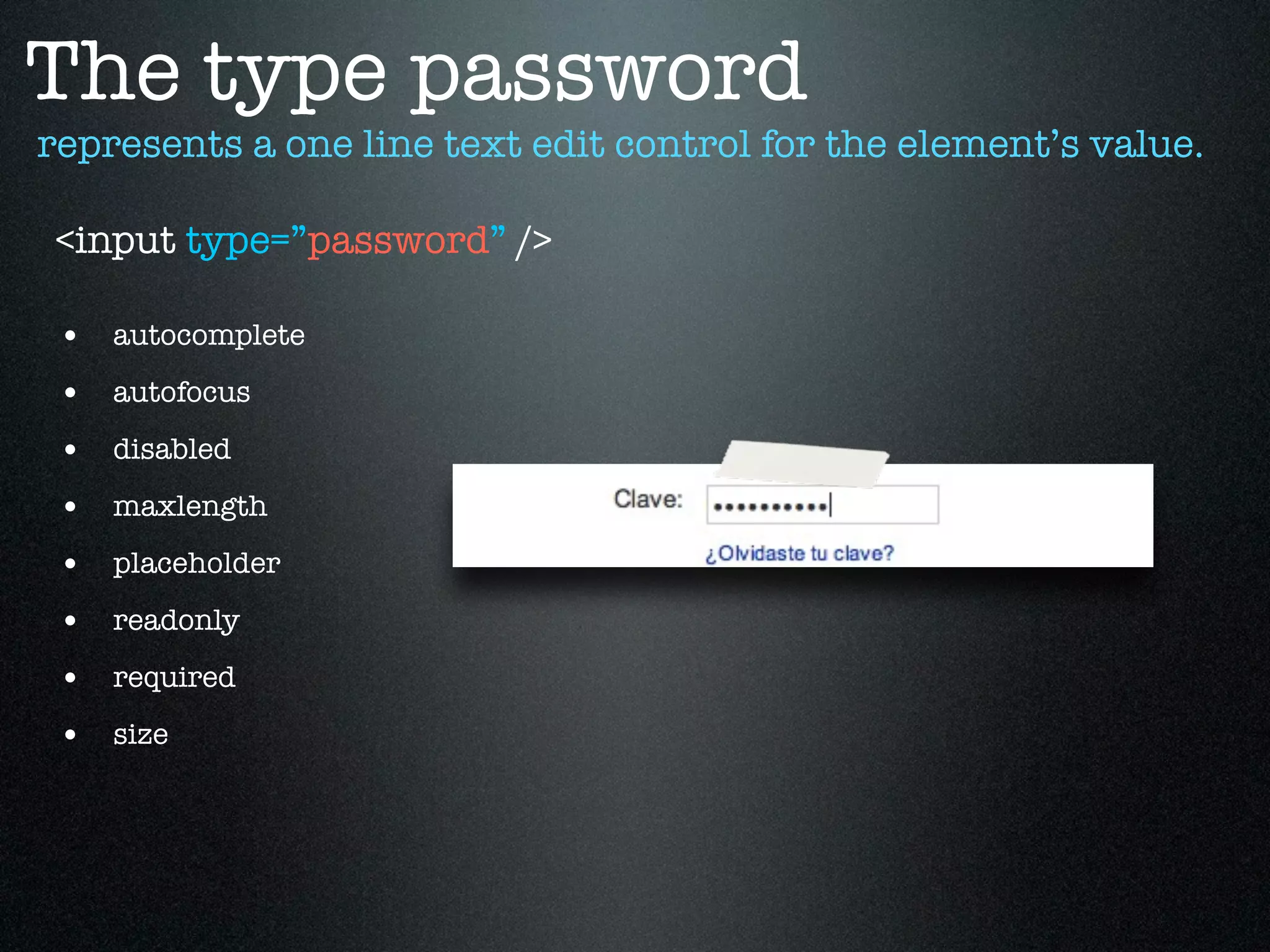

The type password

<input type=”password” />

• autocomplete
• autofocus
• disabled
• maxlength
• placeholder
• readonly
• required
• size

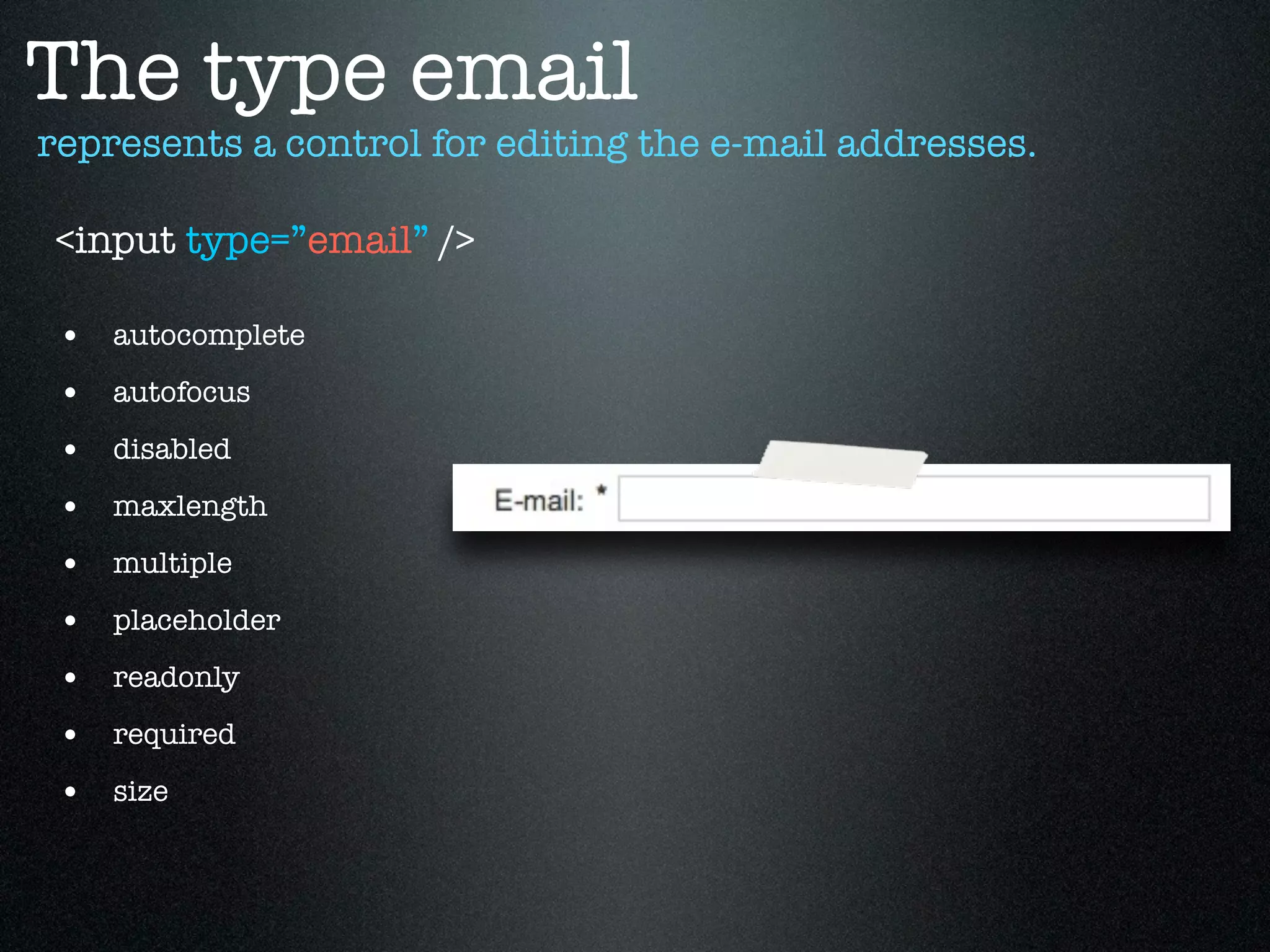

The type email
represents a control for editing the e-mail addresses.

<input type=”email” />

• autocomplete
• autofocus
• disabled
• maxlength
• multiple
• placeholder
• readonly
• required
• size

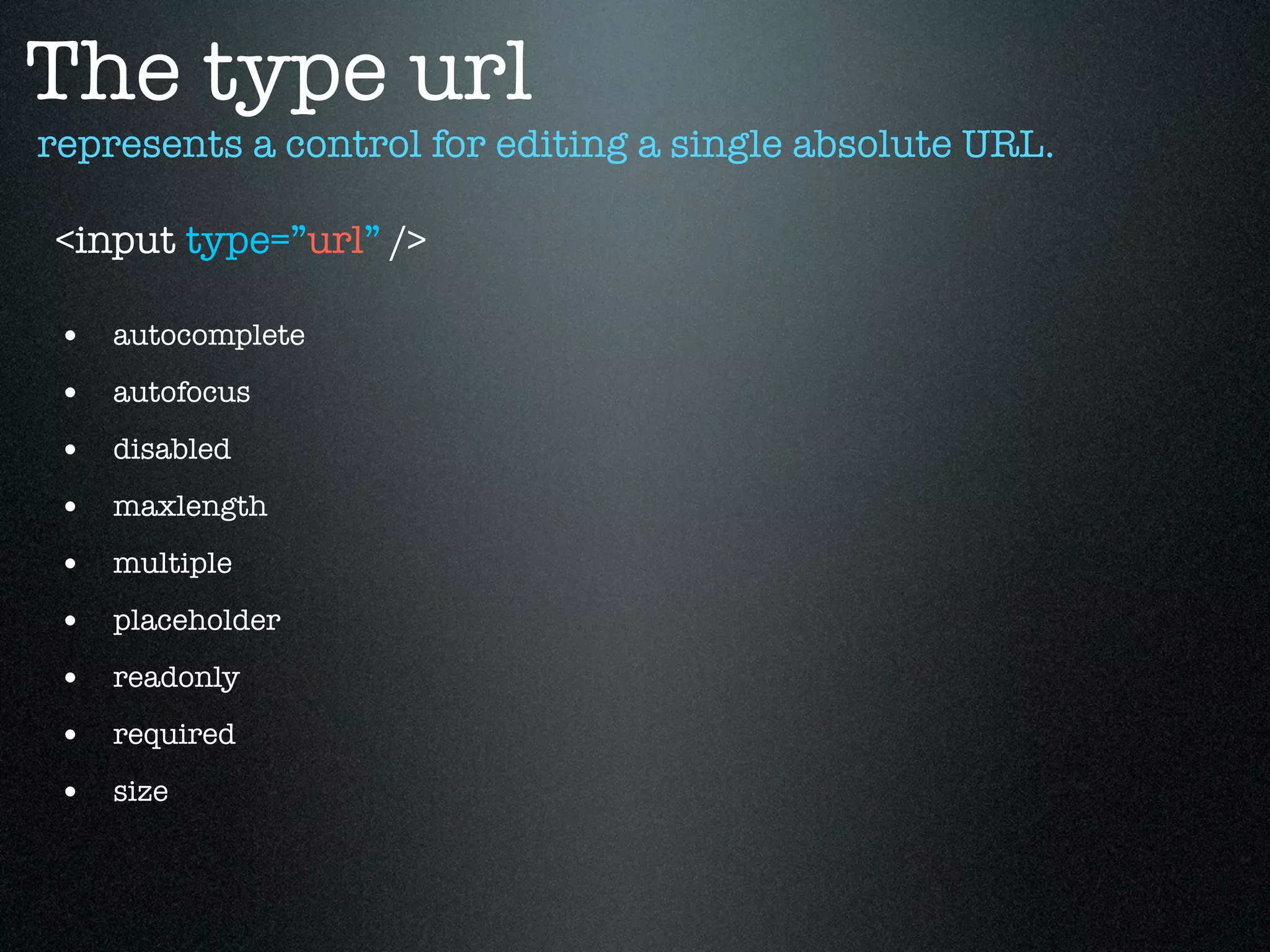

The type url
represents a control for editing a single absolute URL.

<input type=”url” />

• autocomplete
• autofocus
• disabled
• maxlength
• multiple
• placeholder
• readonly
• required
• size

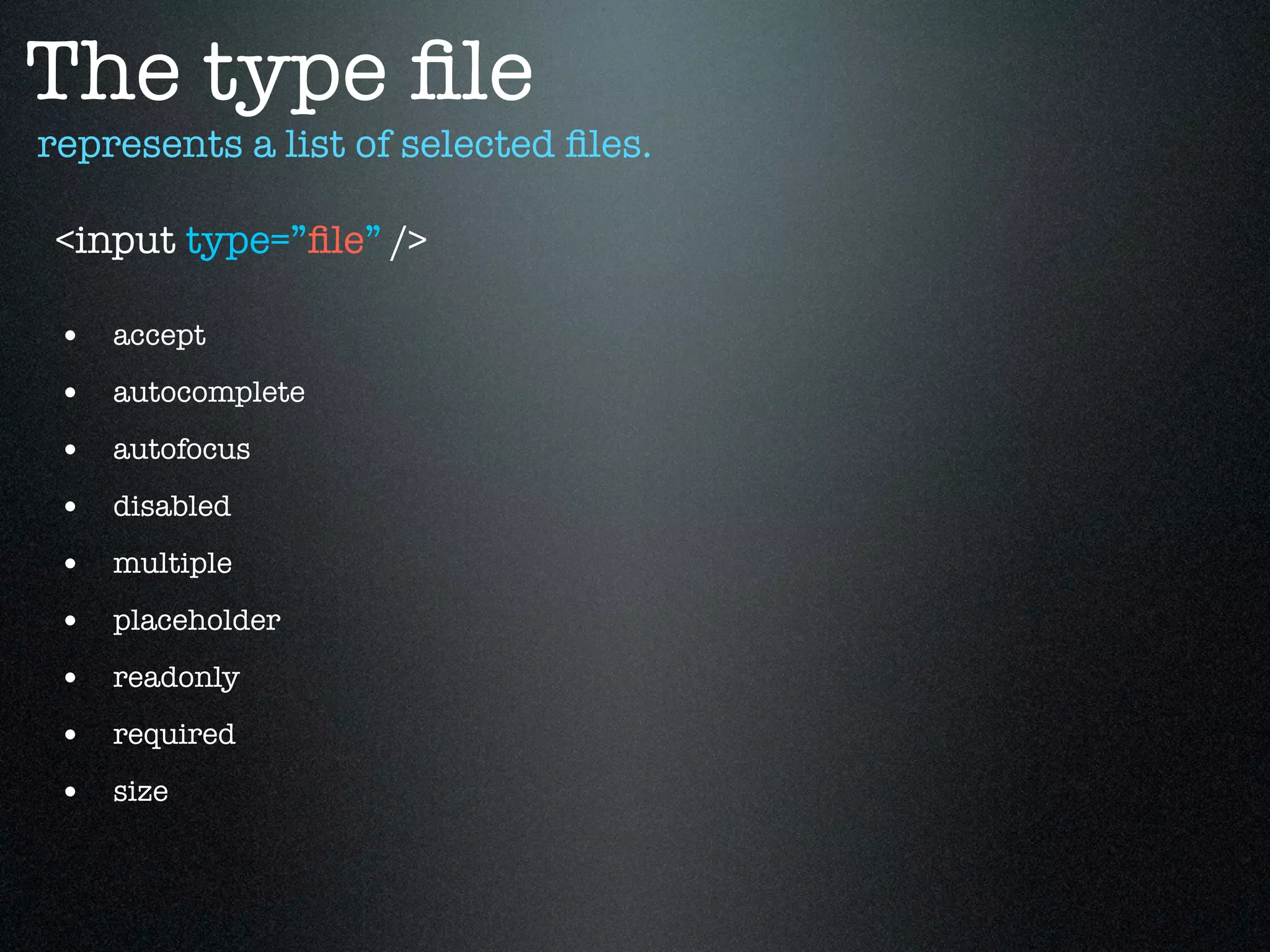

The type file
represents a list of selected files.

<input type=”file” />

• accept
• autocomplete
• autofocus
• disabled
• multiple
• placeholder
• readonly
• required
• size

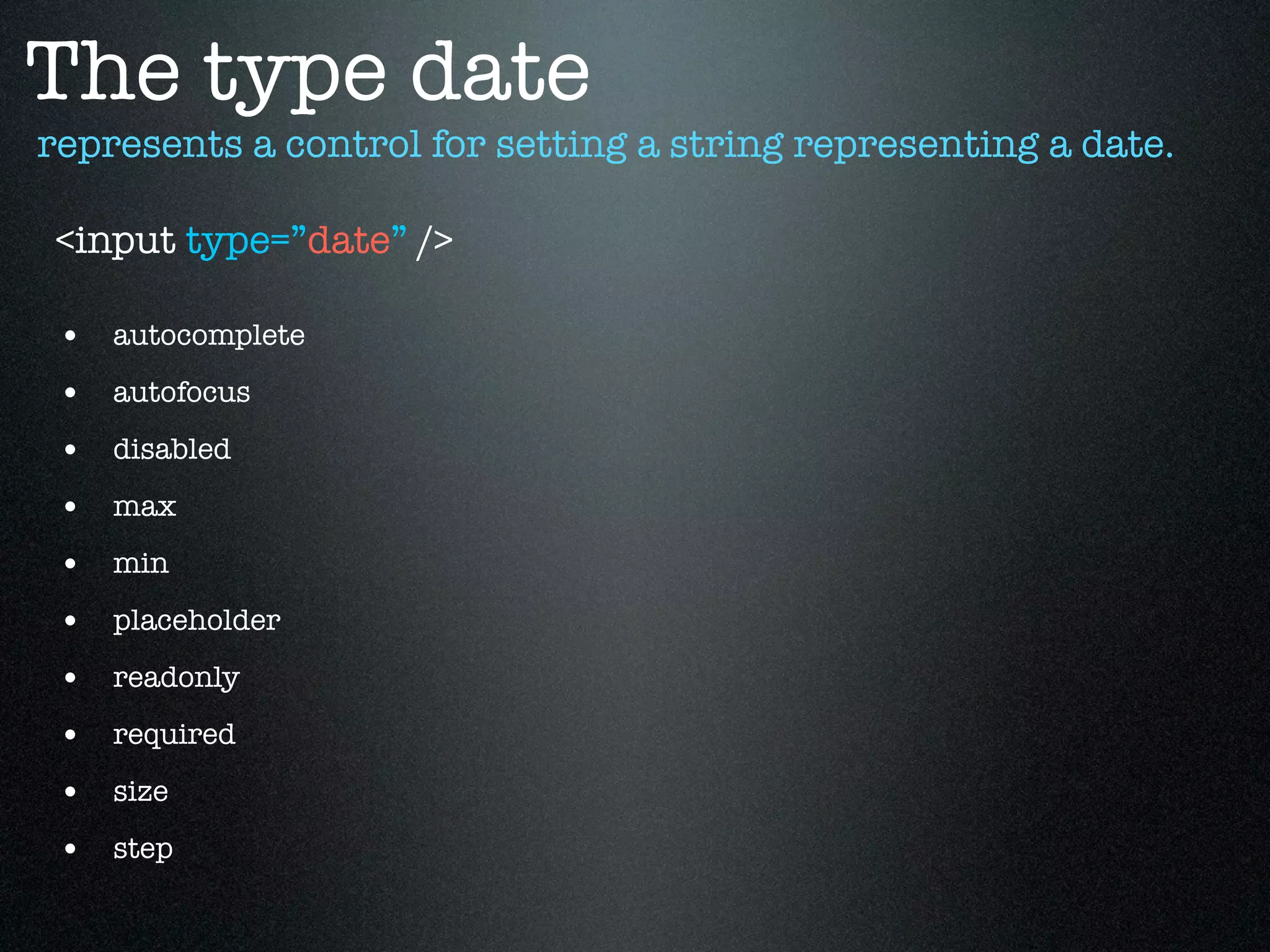

The type date
represents a control for setting a string representing a date.

<input type=”date” />

• autocomplete
• autofocus
• disabled
• max
• min
• placeholder
• readonly
• required
• size
• step

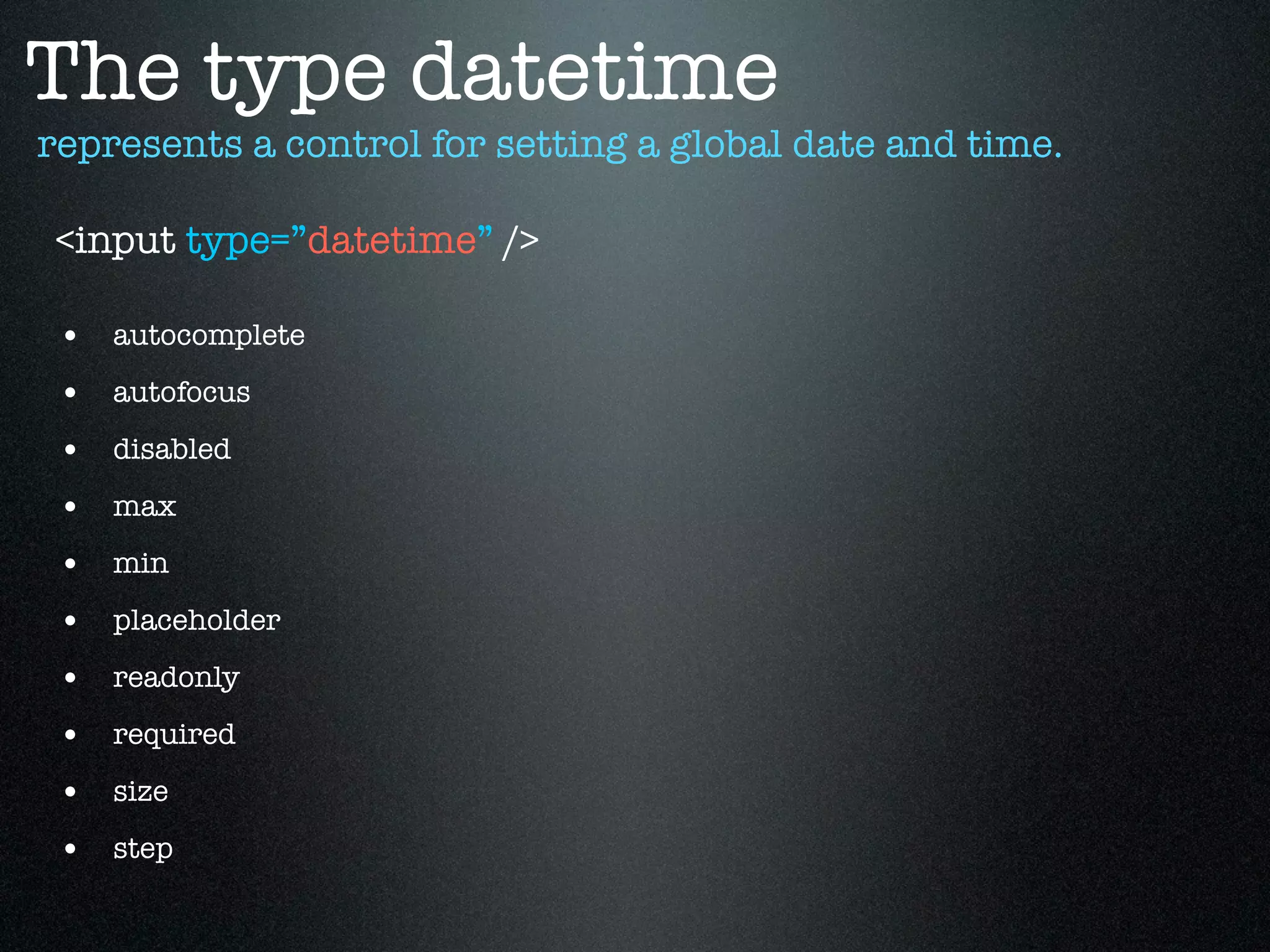

The type datetime
represents a control for setting a global date and time.

<input type=”datetime” />

• autocomplete
• autofocus
• disabled
• max
• min
• placeholder
• readonly
• required
• size
• step

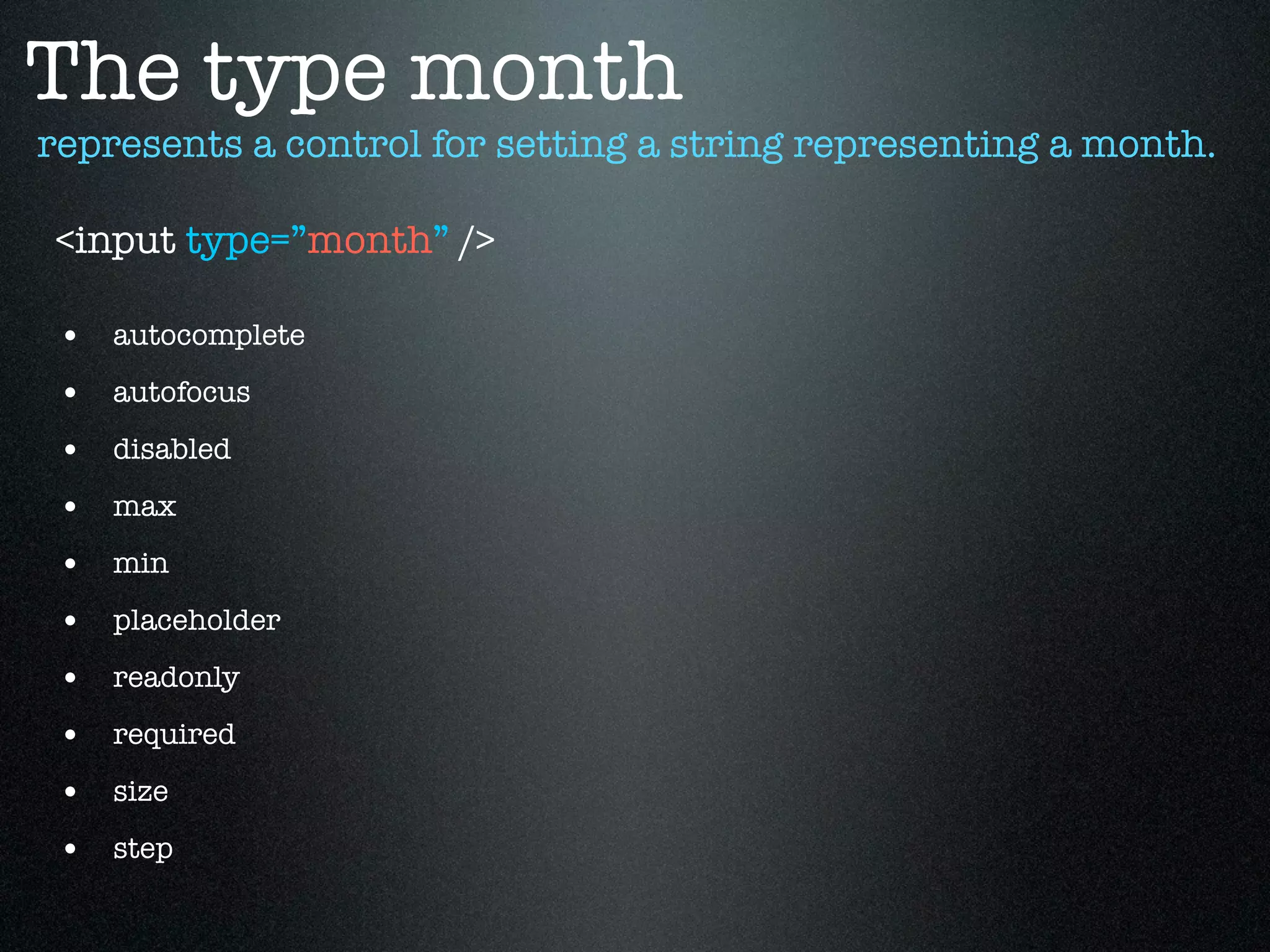

The type month
represents a control for setting a string representing a month.

<input type=”month” />

• autocomplete
• autofocus
• disabled
• max
• min
• placeholder
• readonly
• required
• size
• step

The type week
represents a control for setting a string representing a week.

<input type=”week” />

• autocomplete
• autofocus
• disabled
• max
• min
• placeholder
• readonly
• required
• size
• step

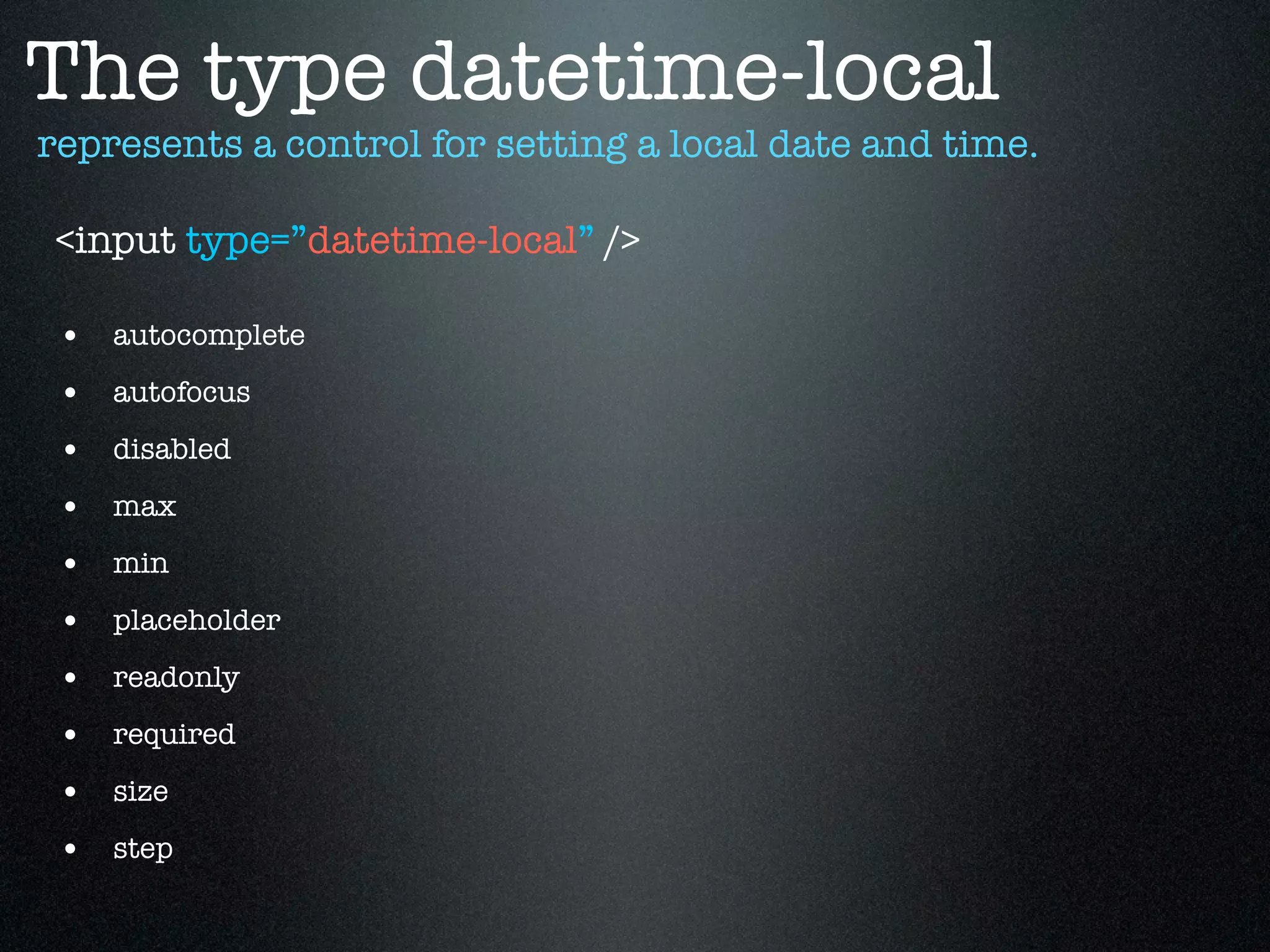

The type datetime-local
represents a control for setting a local date and time.

<input type=”datetime-local” />

• autocomplete
• autofocus
• disabled
• max
• min
• placeholder
• readonly
• required
• size
• step

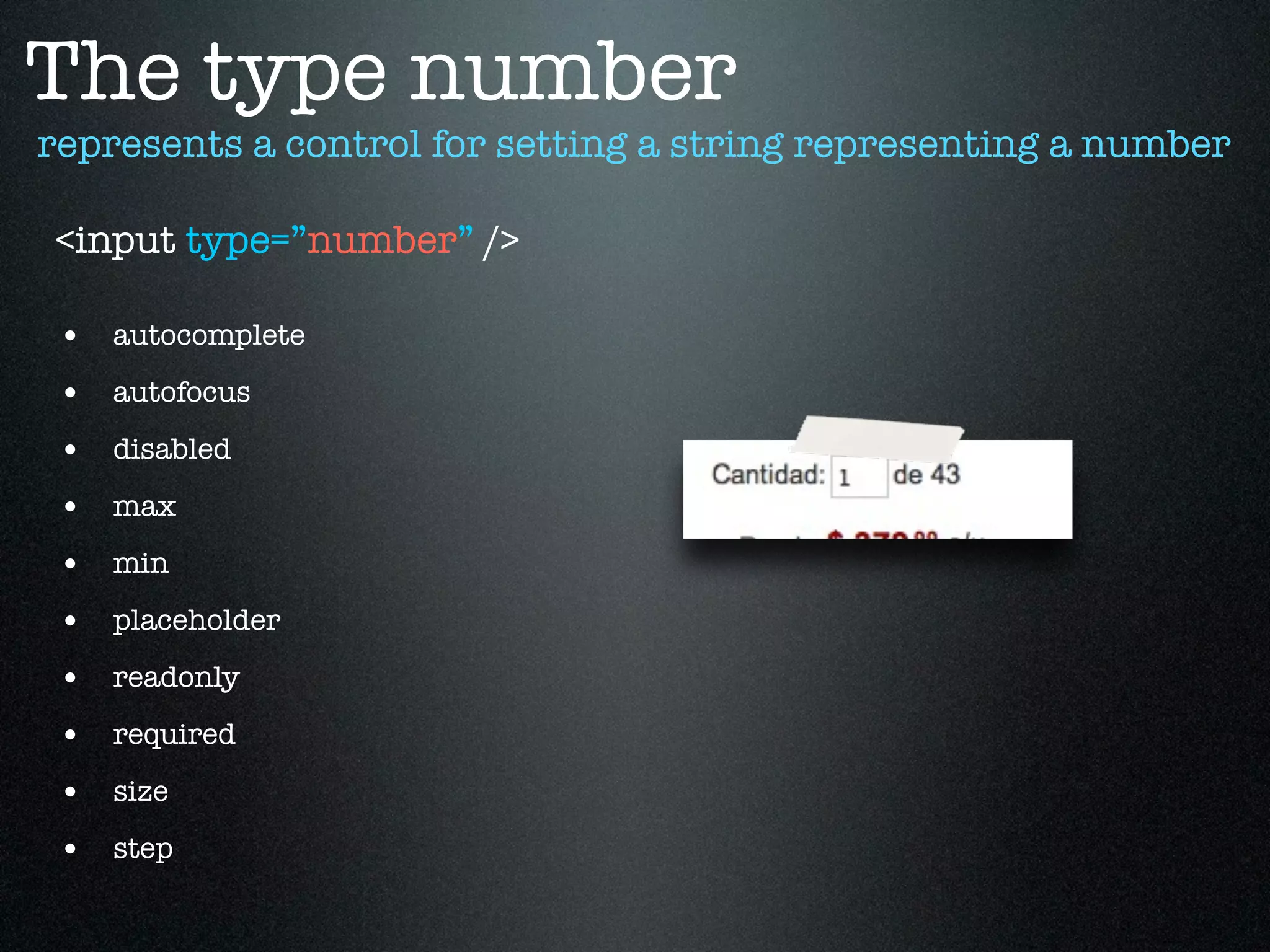

The type number
represents a control for setting a string representing a number

<input type=”number” />

• autocomplete
• autofocus
• disabled
• max
• min
• placeholder
• readonly
• required
• size
• step

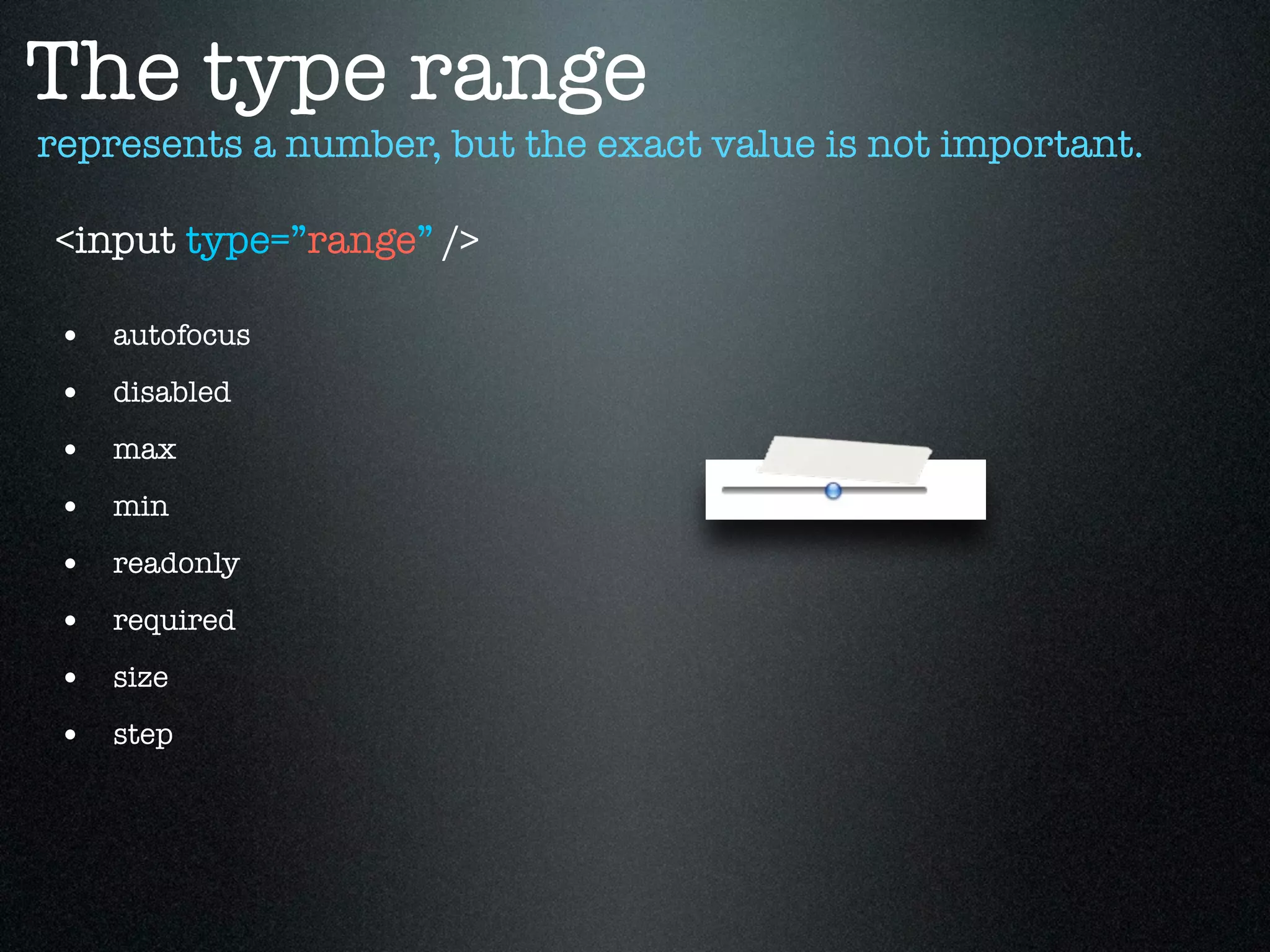

The type range
represents a number, but the exact value is not important.

<input type=”range” />

• autofocus
• disabled
• max
• min
• readonly
• required
• size
• step

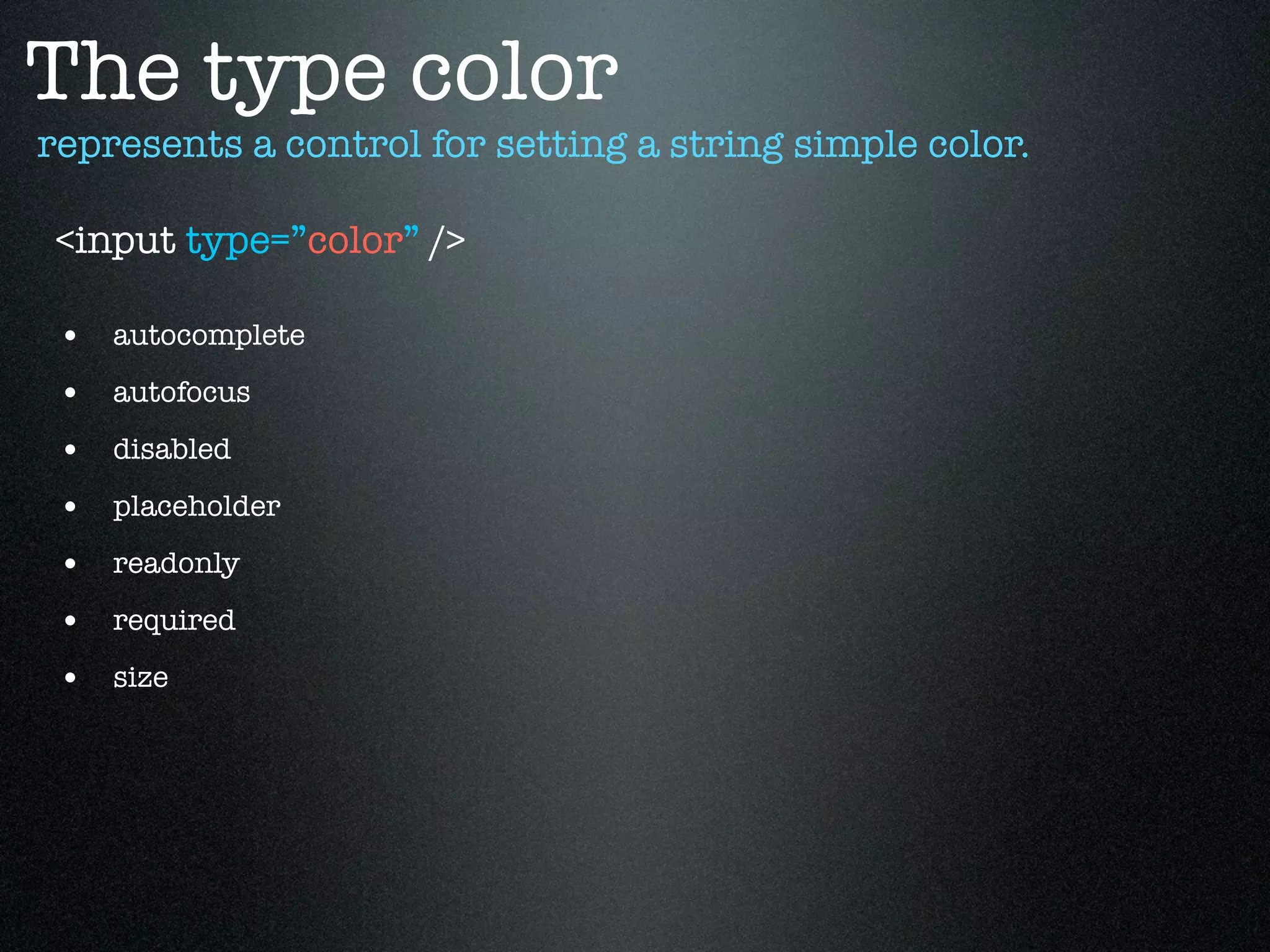

The type color
represents a control for setting a string simple color.

<input type=”color” />

• autocomplete
• autofocus
• disabled
• placeholder
• readonly
• required
• size

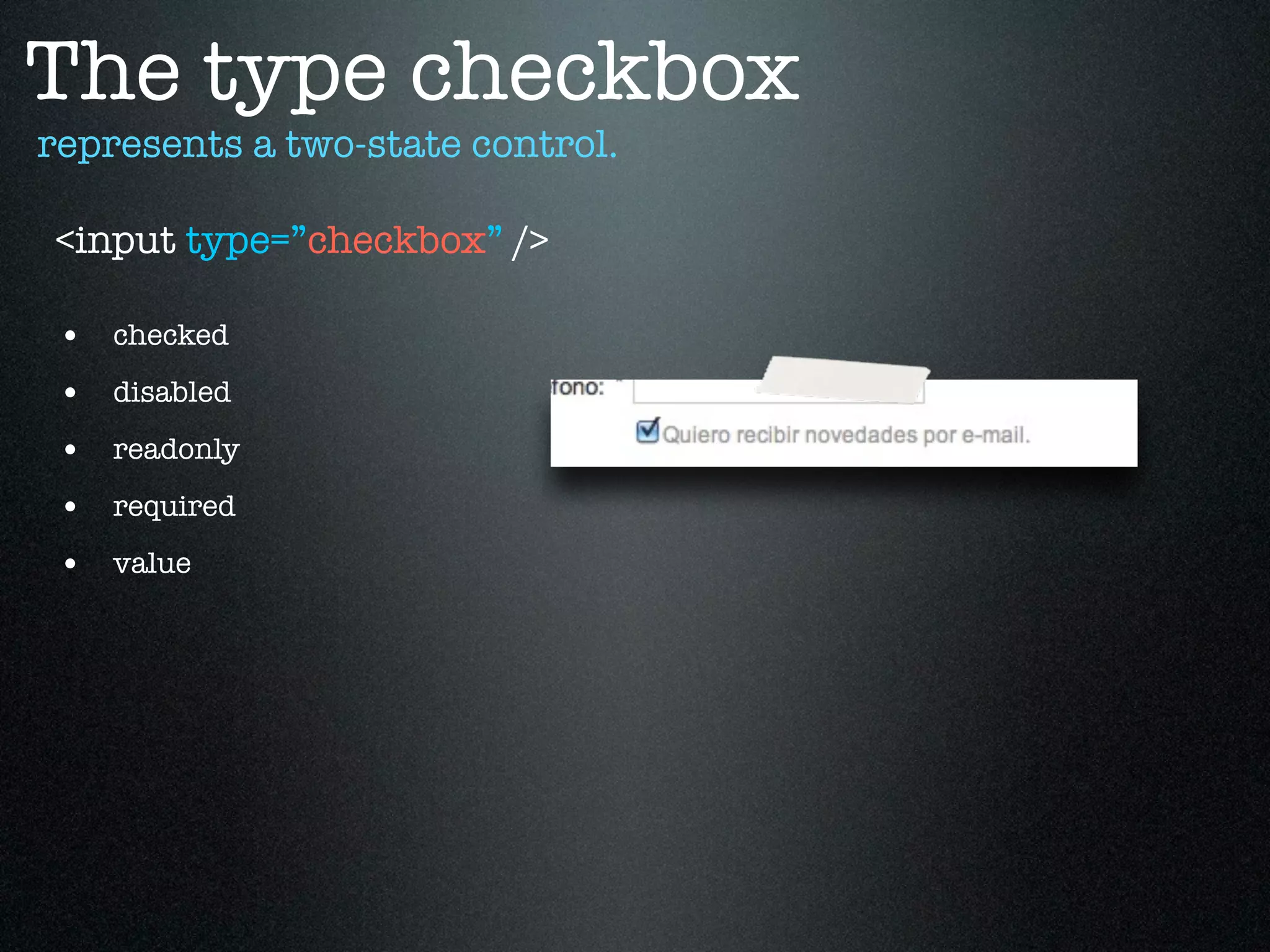

The type checkbox
represents a two-state control.

<input type=”checkbox” />

• checked
• disabled
• readonly
• required
• value

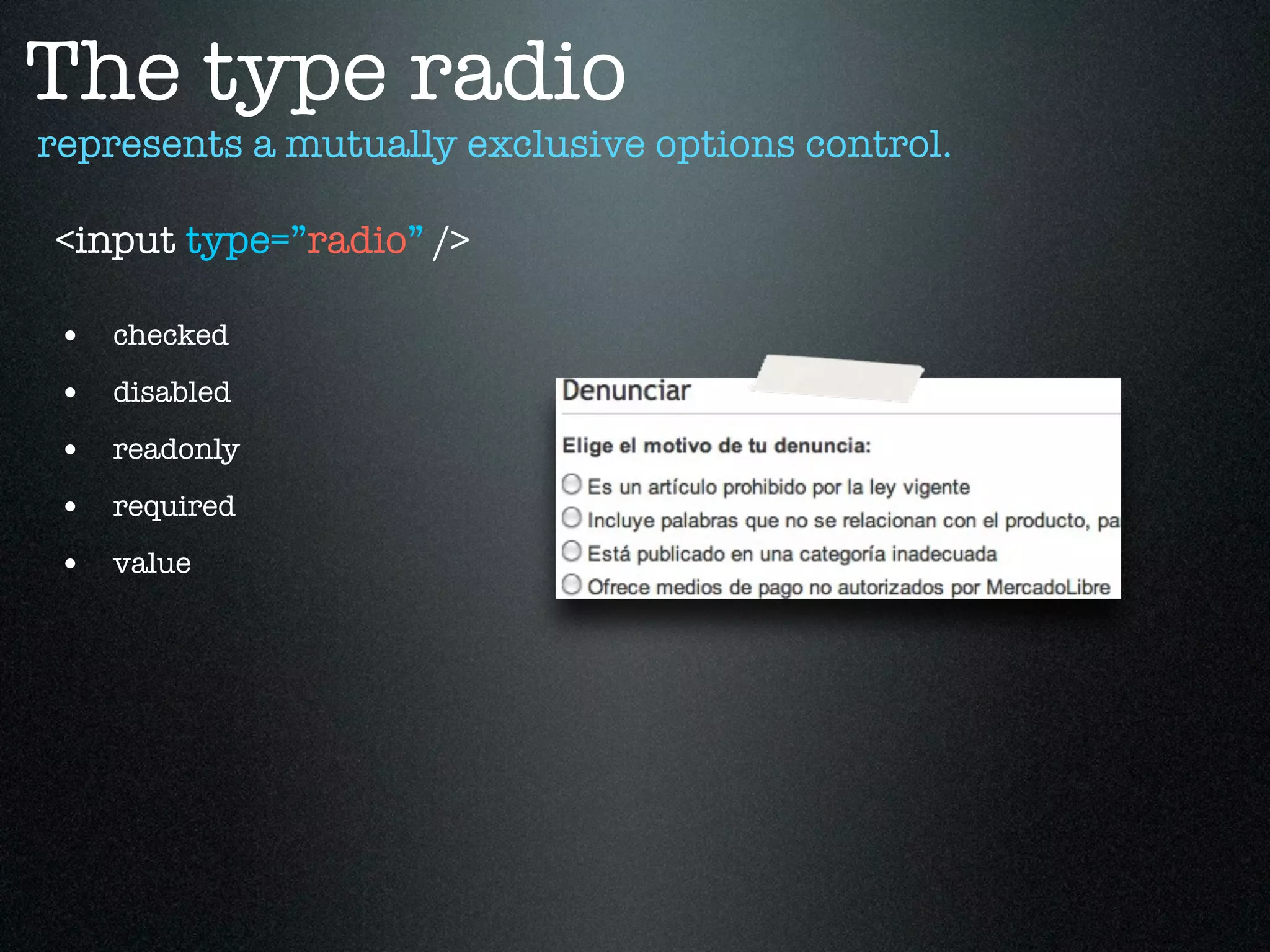

The type radio
represents a mutually exclusive options control.

<input type=”radio” />

• checked
• disabled
• readonly
• required
• value

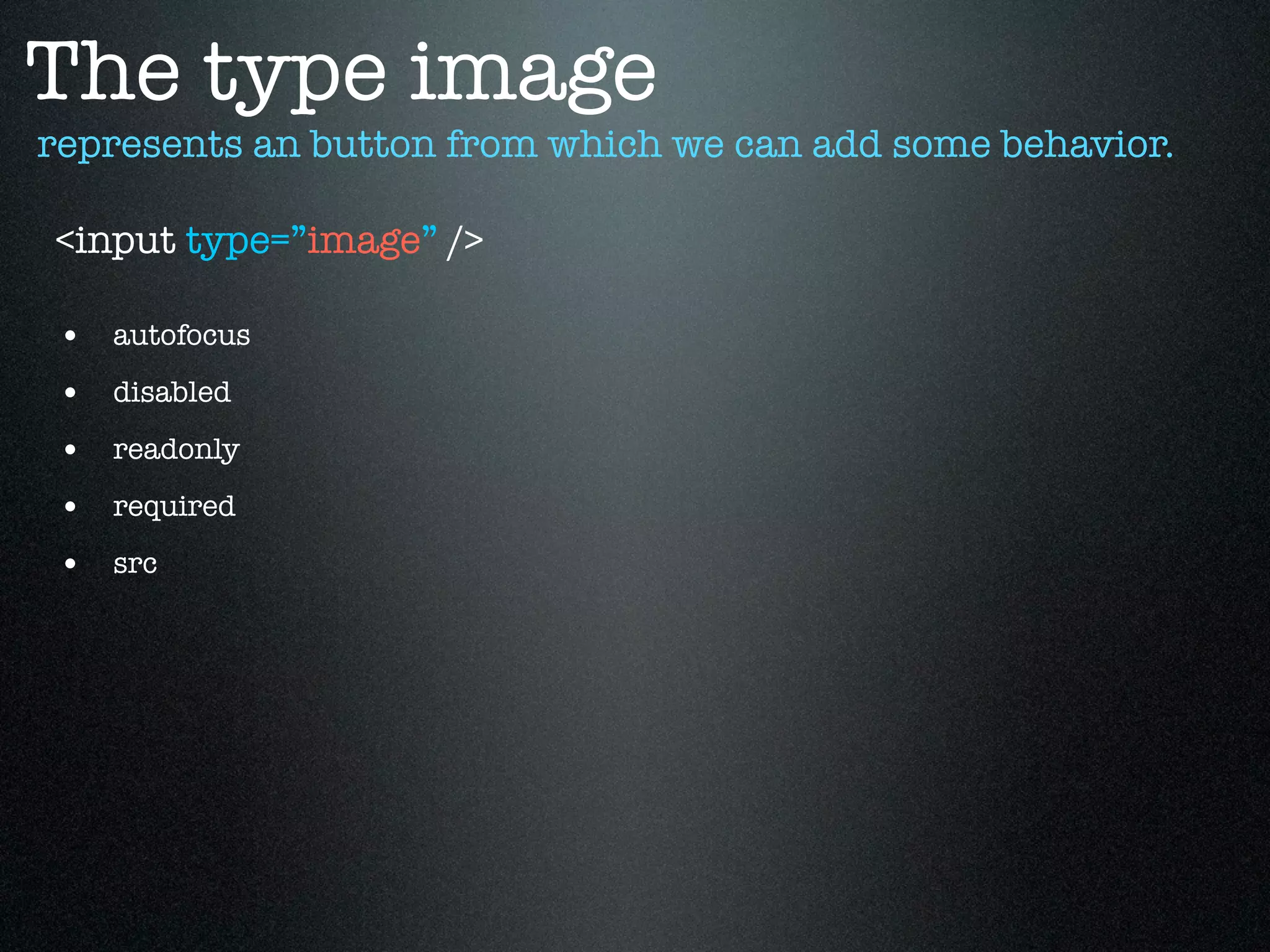

The type image
represents an button from which we can add some behavior.

<input type=”image” />

• autofocus
• disabled
• readonly
• required
• src

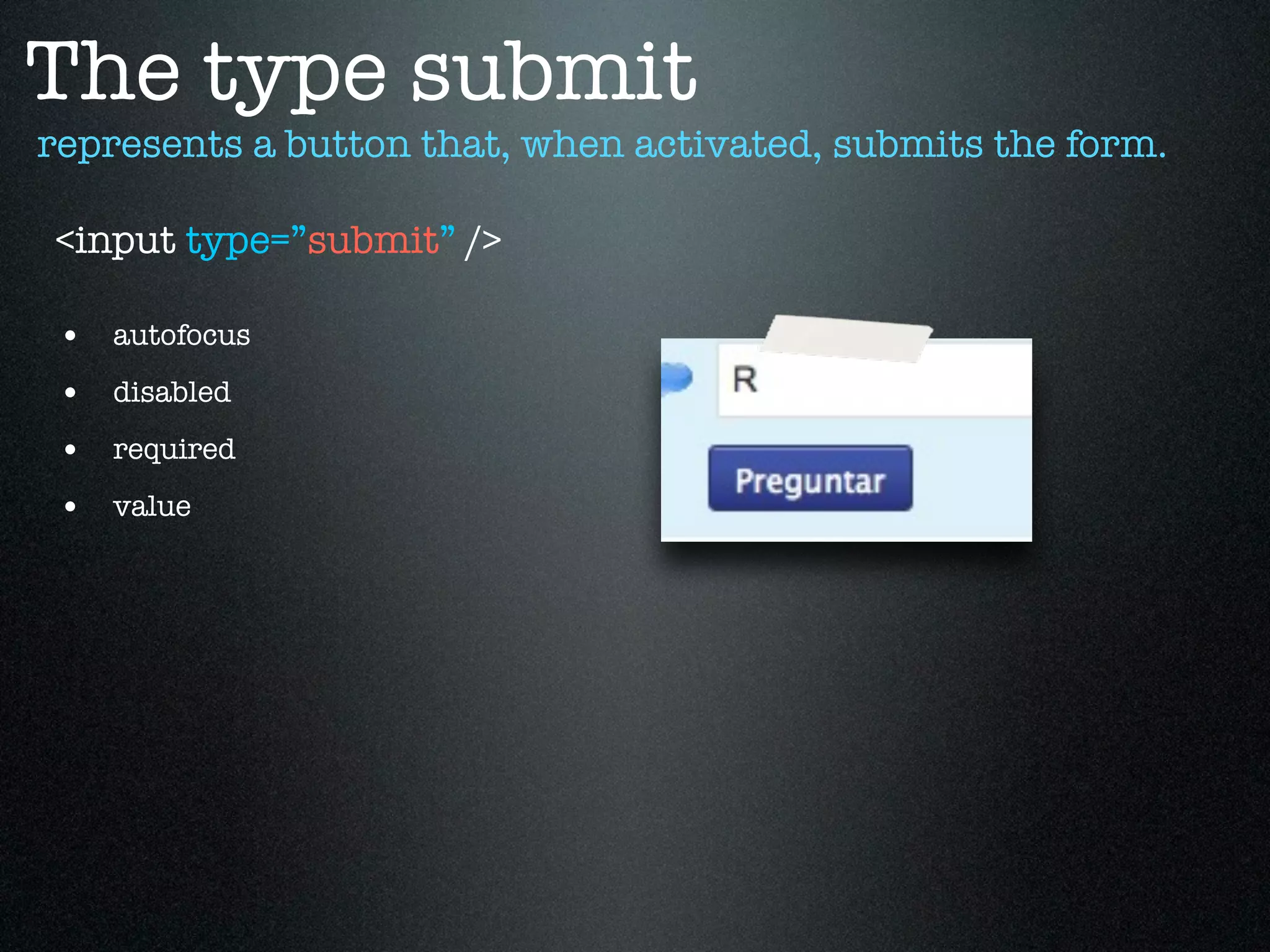

The type submit
represents a button that, when activated, submits the form.

<input type=”submit” />

• autofocus
• disabled
• required
• value

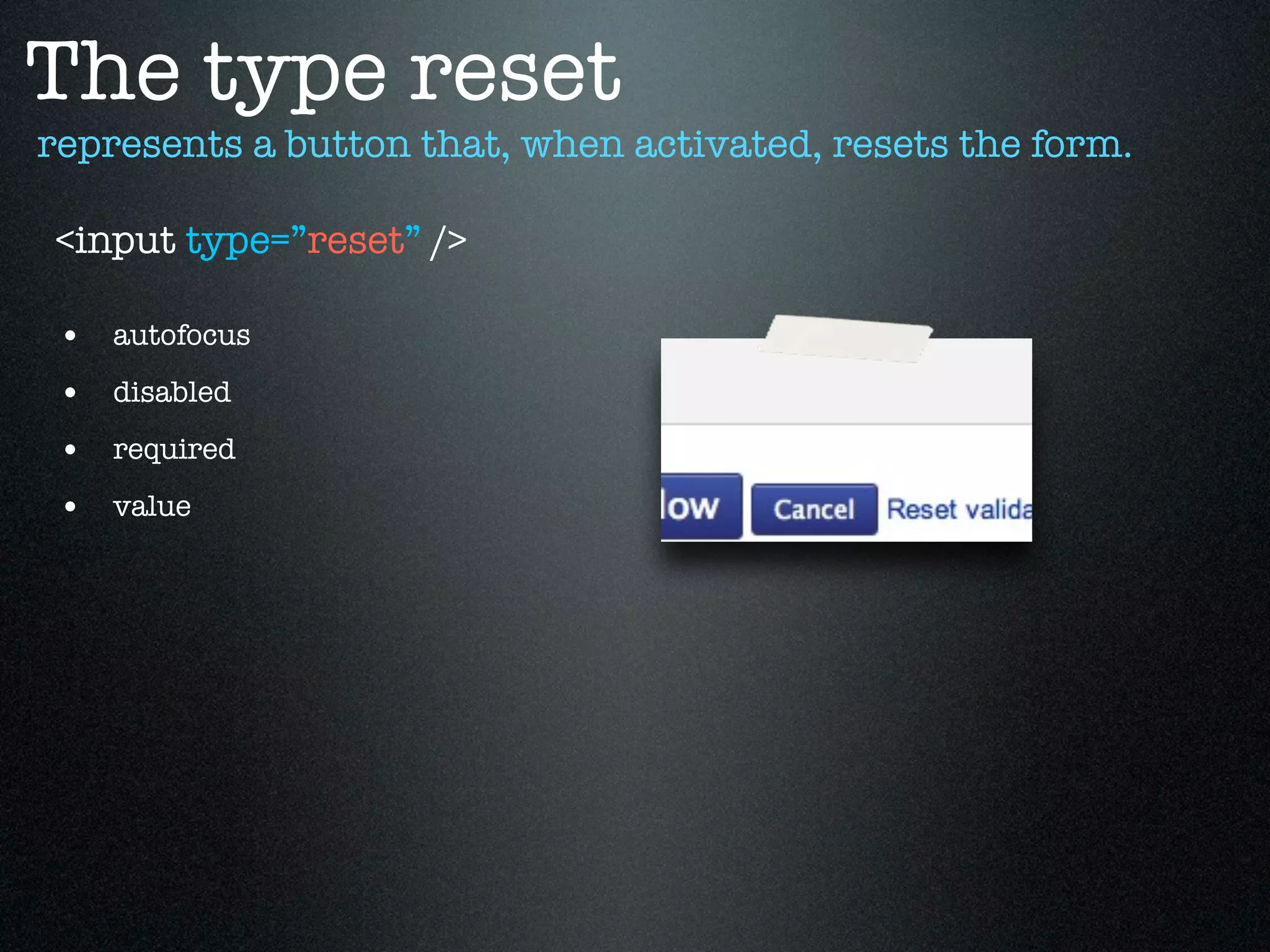

The type reset
represents a button that, when activated, resets the form.

<input type=”reset” />

• autofocus
• disabled
• required
• value

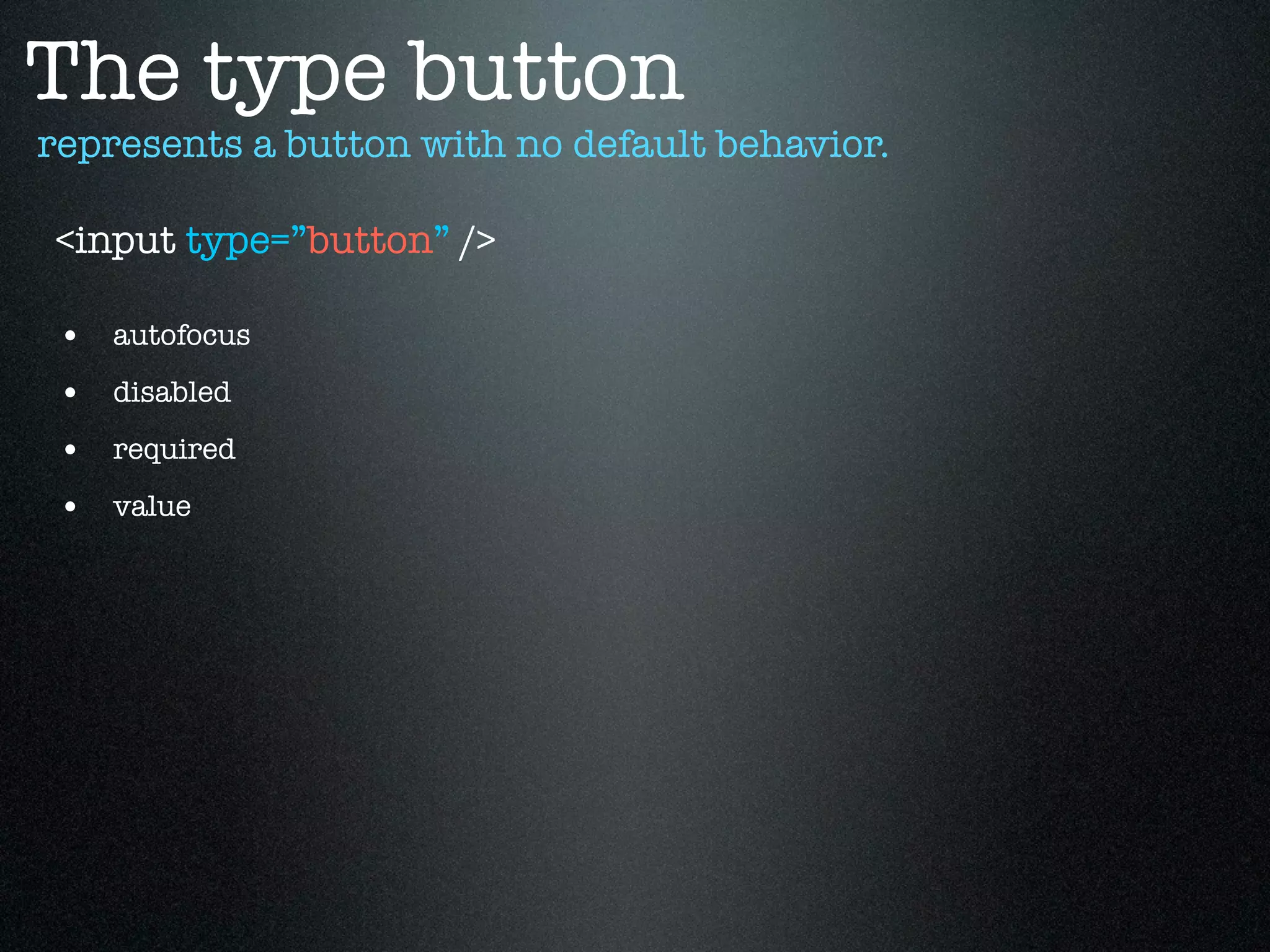

The type button
represents a button with no default behavior.

<input type=”button” />

• autofocus
• disabled
• required
• value

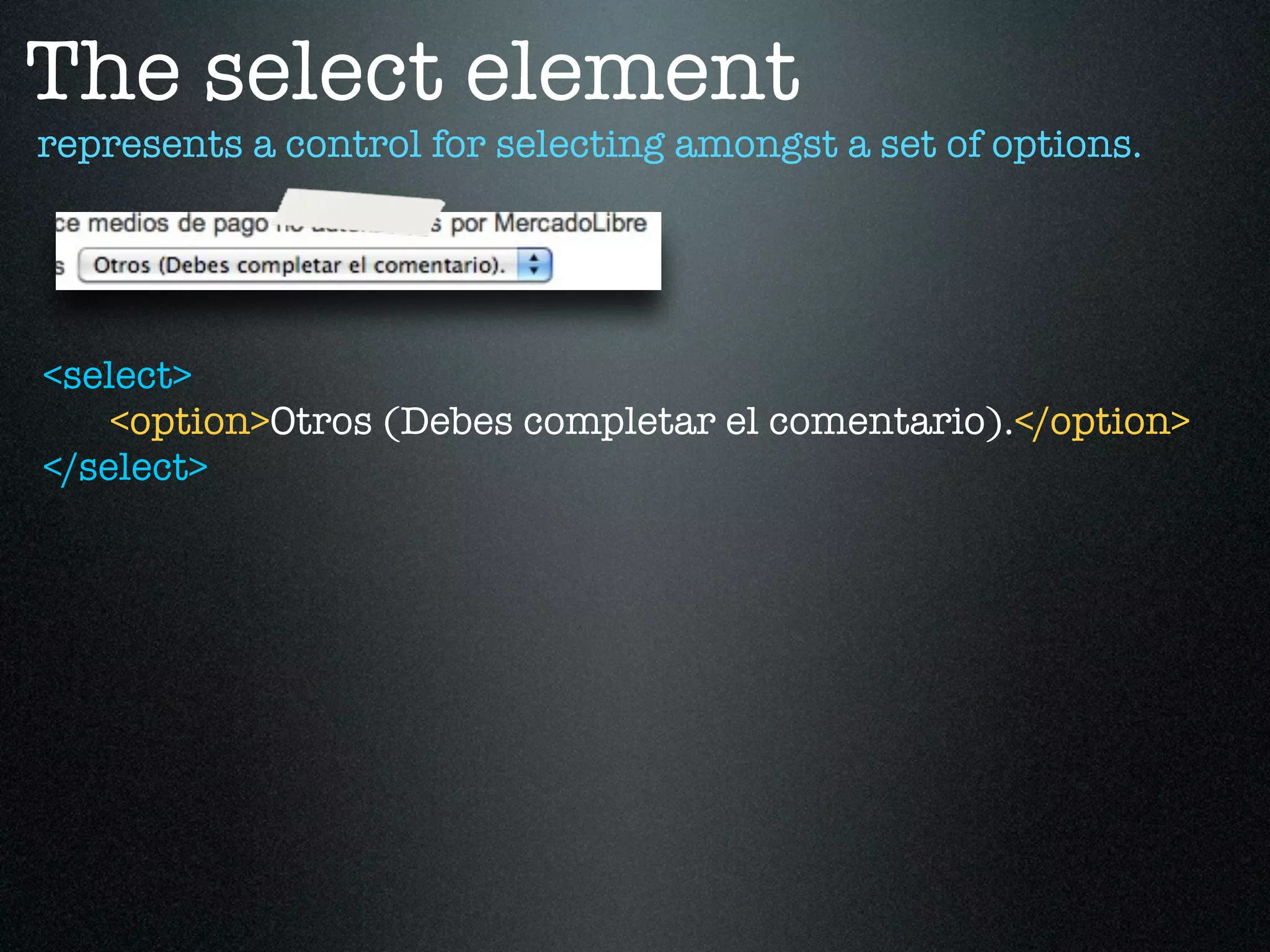

The select element
represents a control for selecting amongst a set of options.

<select>
<option>Otros (Debes completar el comentario).</option>
</select>

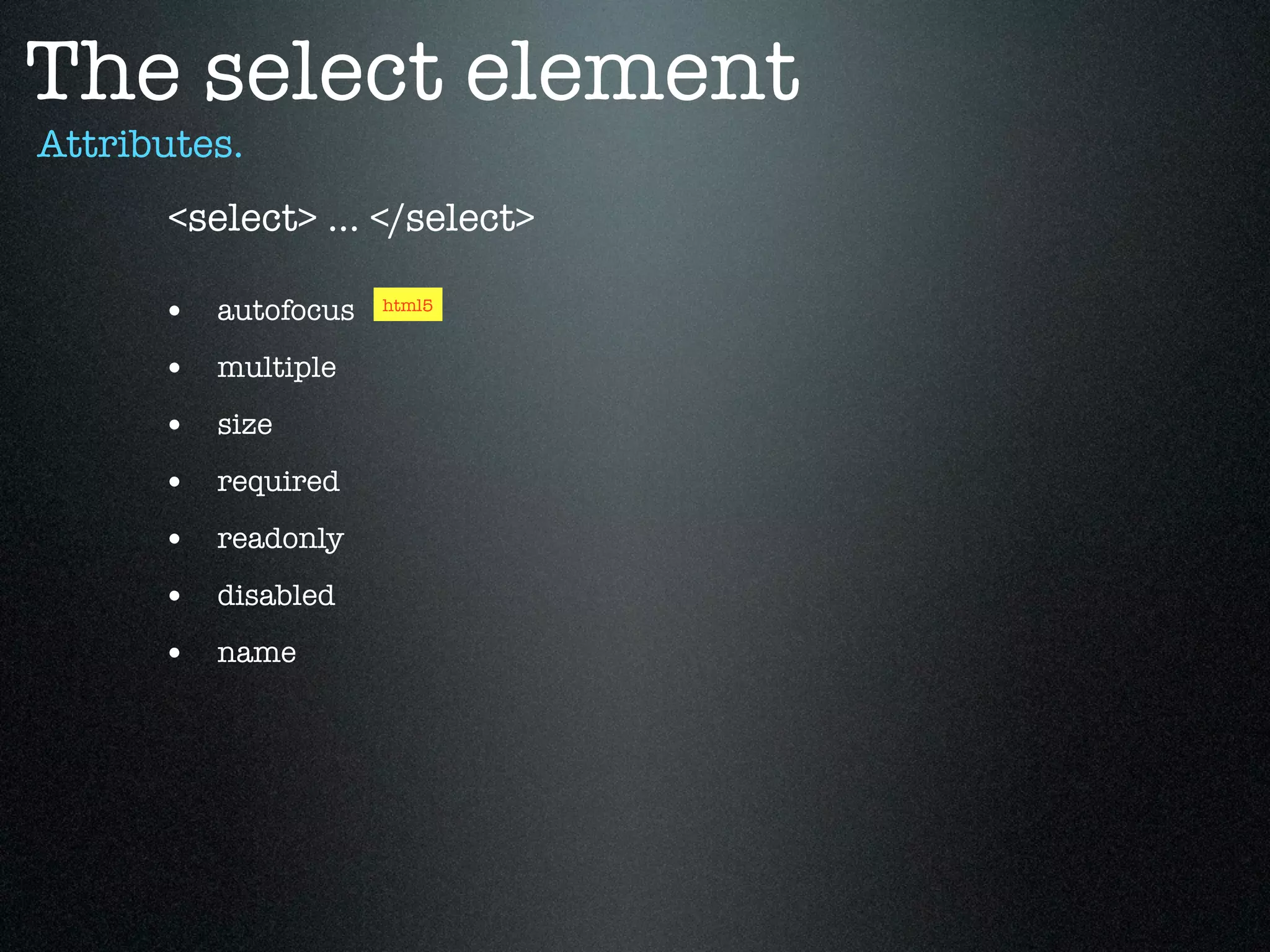

The select element
Attributes.
<select> ... </select>

• autofocus html5

• multiple
• size
• required
• readonly
• disabled
• name

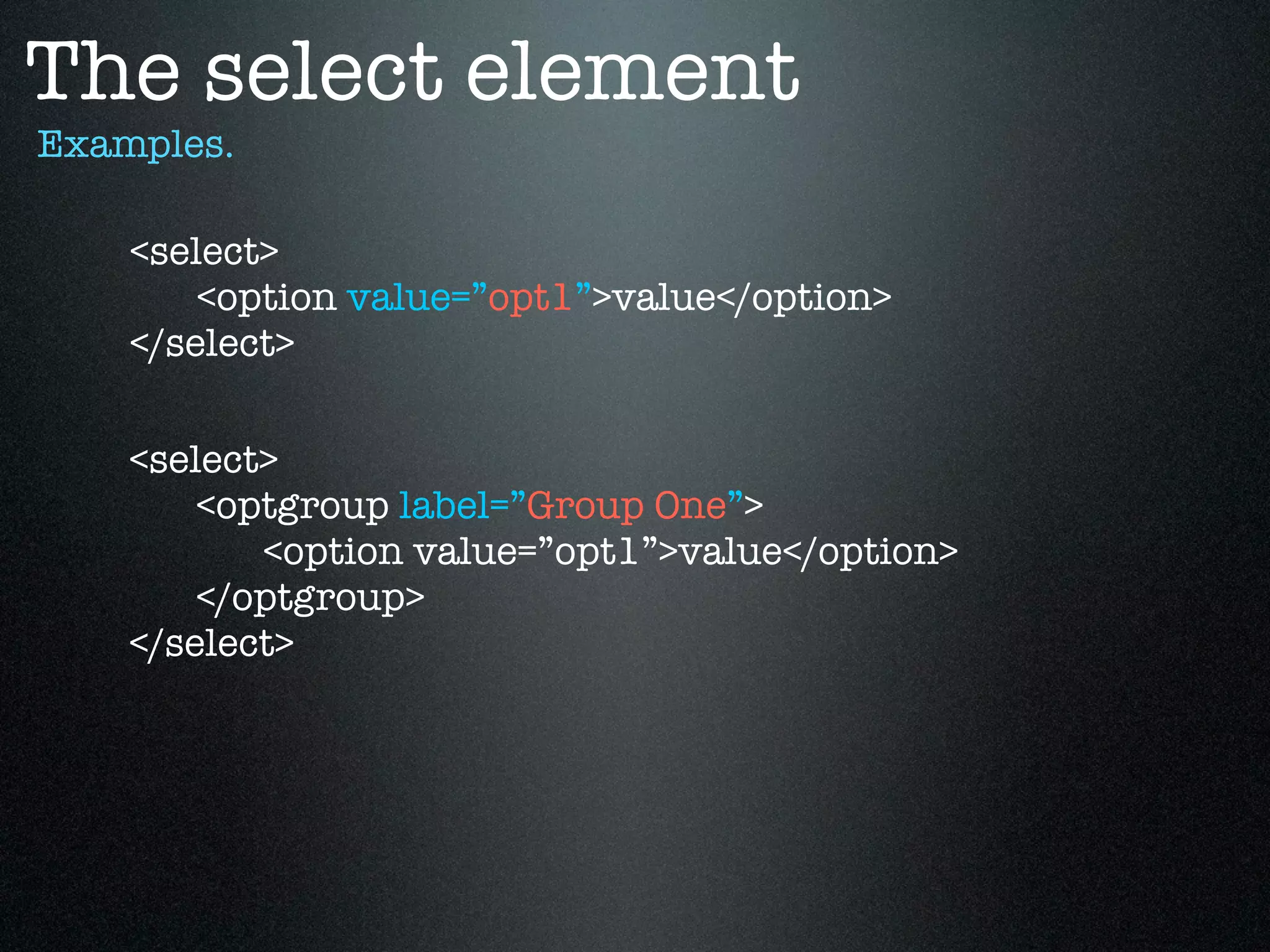

The select element
Examples.

<select>
<option value=”opt1”>value</option>
</select>

<select>
<optgroup label=”Group One”>
<option value=”opt1”>value</option>
</optgroup>
</select>

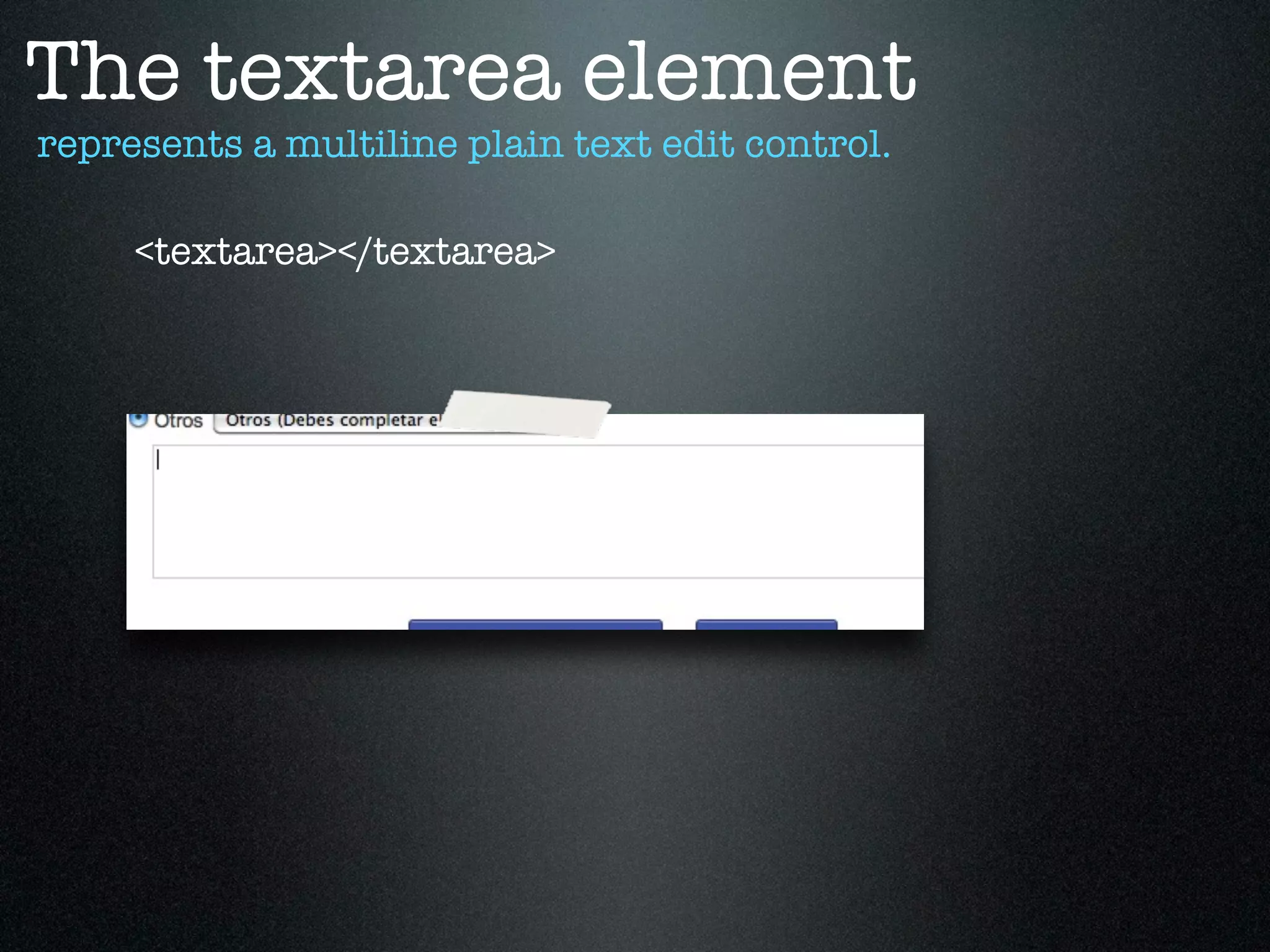

The textarea element
represents a multiline plain text edit control.

<textarea></textarea>

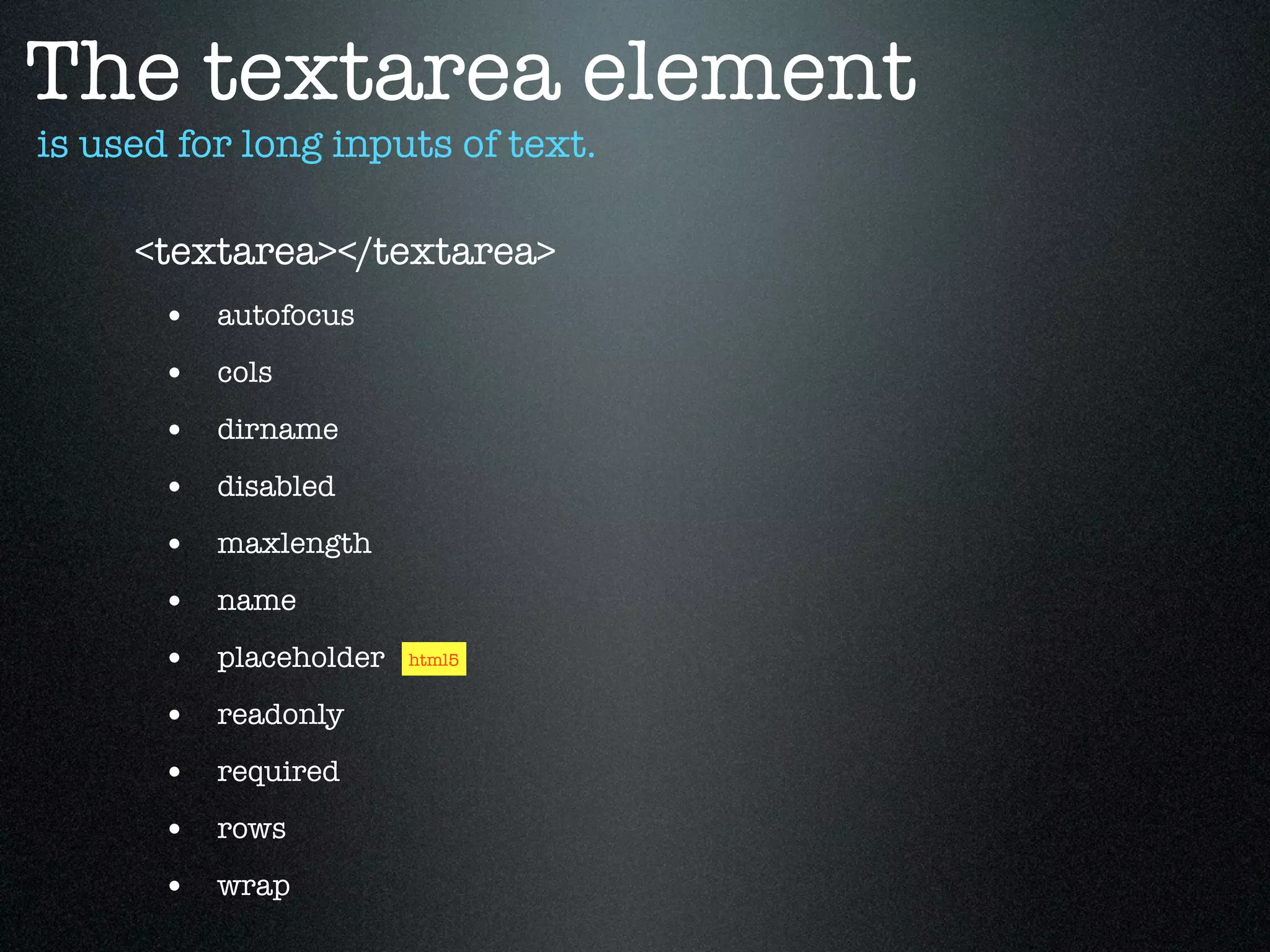

The textarea element
is used for long inputs of text.

<textarea></textarea>
• autofocus
• cols
• dirname
• disabled
• maxlength
• name
• placeholder html5

• readonly
• required
• rows
• wrap

Frontend for developers

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (10)

Similar to Frontend for developers

Similar to Frontend for developers (20)

More from Hernan Mammana

More from Hernan Mammana (8)

Recently uploaded

Recently uploaded (20)

Frontend for developers
