Toyota Dashboard Warning Lights [FULL]

The document describes the messages displayed by various dashboard warning lights for different vehicle systems. It includes warning lights for issues with charging systems, brakes, oil levels, temperatures, airbags, seatbelts, parking brakes, transmissions, tires, stability control, blind spots, lane departure and more. Most of the warning lights indicate there is a problem that needs immediate attention or service by a dealer or mechanic.

Automotive◦
In this document
Powered by AI

Discusses various warning lights including Charging System, Brake Trouble, Oil, Temperature, Power Steering, and Airbag indicators.

Covers indicators for the Security system, Door Ajar, Master Warning, Electric Park Brake, and Tire Pressure Monitoring.

Details on Collision Warning Systems and Malfunction Indicators, highlighting the system's deactivation.

Discusses Electric Park Brake faults, Oil Warning conditions, and associated emergencies with Temperature indicators.

Explains Keyless Ignition Detection, various fuel alerts, and indicators related to windshield washer fluid.

Details about Keyless Ignition Detection, Check Engine light, and stability control alerts for safe operations.

Indicates various levels of Stability Control and alerts associated with slippery conditions and system faults.

Discusses Tire Pressure Monitoring System and Antilock Braking System indicators along with additional warnings.

Details on Blind Spot Monitoring, Lane Departure Alerts, and Collision Warning Systems functionality.

Explains the Collision Warning System, Park Assist Notifications, and Intelligent Clearance Sonar indicators.

Discusses Active or Advanced Cruise Control Indicators and various driving assist systems that support safety.

Explains indicators related to 4 Wheel Drive, Differential Lock, and special driving modes for off-road conditions.

Details on lighting indicators including Headlamp Levels, Automatic Dimmer functions, and various rear indicators.

Covers an overview of various system indicators including Security, Lane Departure, and Brake Hold functionality.

Discusses practical indicators for Low Speed, Electric Vehicle Operation, and Drive Modes emphasizing control.

Explains the function of tow/haul modes, hybrid indicators, and signaling for different driving conditions.

Introduces issues related to Automatic Headlight systems, including malfunctions and functionality alerts.

Summarizes indicators related to engine performance, Parking Assist, and ambient conditions affecting driving.

Details on Active Cruise Control functions, system activation alerts, and various performance indicators.

Covers indicators for Differential Lock, Extended Range EV modes, and Automatic Headlight system messages.

Embed presentation

Downloaded 100 times

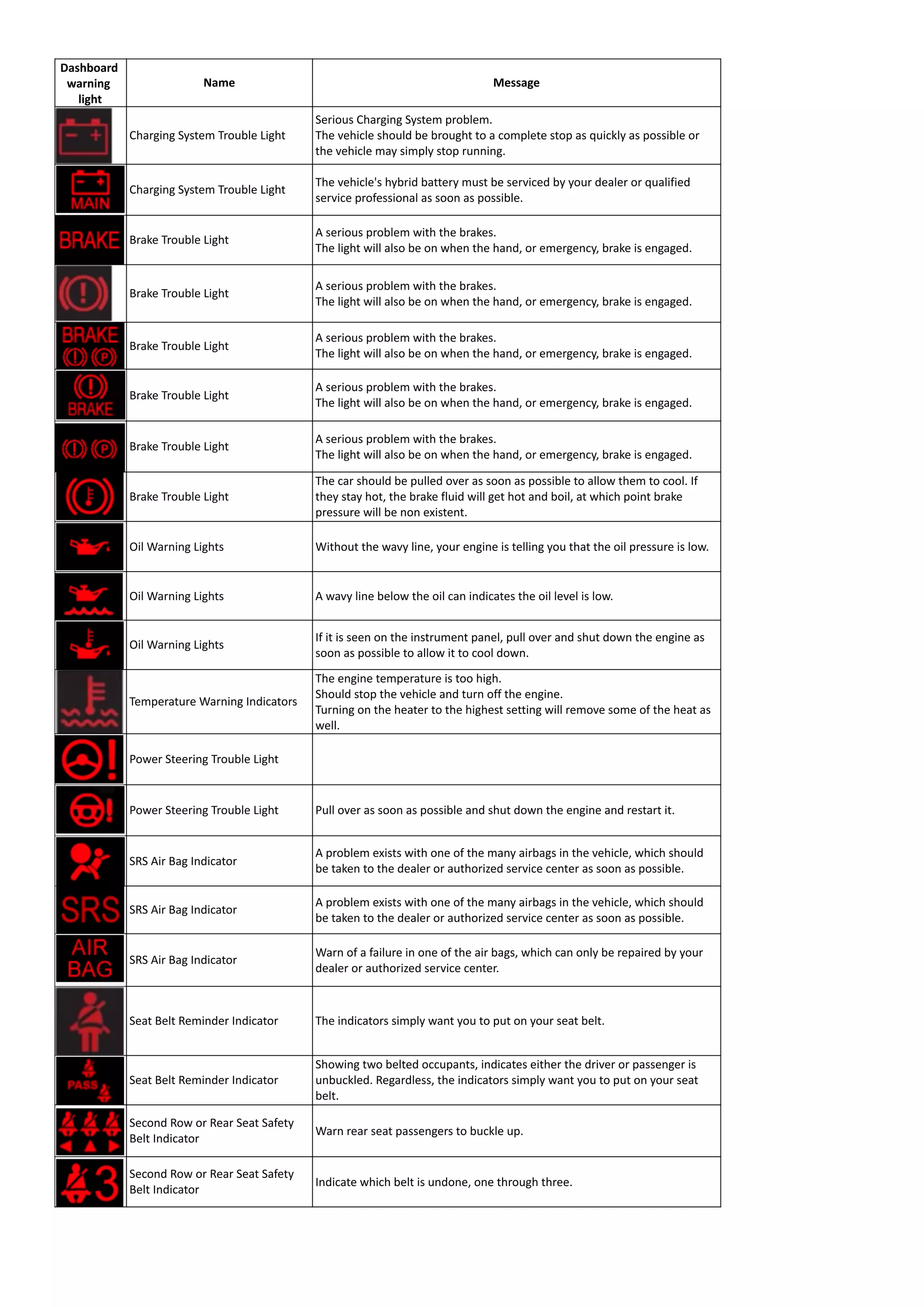

Dashboard warning light Name Message Charging System Trouble Light Serious Charging System problem. The vehicle should be brought to a complete stop as quickly as possible or the vehicle may simply stop running. Charging System Trouble Light The vehicle's hybrid battery must be serviced by your dealer or qualified service professional as soon as possible. Brake Trouble Light A serious problem with the brakes. The light will also be on when the hand, or emergency, brake is engaged. Brake Trouble Light A serious problem with the brakes. The light will also be on when the hand, or emergency, brake is engaged. Brake Trouble Light A serious problem with the brakes. The light will also be on when the hand, or emergency, brake is engaged. Brake Trouble Light A serious problem with the brakes. The light will also be on when the hand, or emergency, brake is engaged. Brake Trouble Light A serious problem with the brakes. The light will also be on when the hand, or emergency, brake is engaged. Brake Trouble Light The car should be pulled over as soon as possible to allow them to cool. If they stay hot, the brake fluid will get hot and boil, at which point brake pressure will be non existent. Oil Warning Lights Without the wavy line, your engine is telling you that the oil pressure is low. Oil Warning Lights A wavy line below the oil can indicates the oil level is low. Oil Warning Lights If it is seen on the instrument panel, pull over and shut down the engine as soon as possible to allow it to cool down. Temperature Warning Indicators The engine temperature is too high. Should stop the vehicle and turn off the engine. Turning on the heater to the highest setting will remove some of the heat as well. Power Steering Trouble Light Power Steering Trouble Light Pull over as soon as possible and shut down the engine and restart it. SRS Air Bag Indicator A problem exists with one of the many airbags in the vehicle, which should be taken to the dealer or authorized service center as soon as possible. SRS Air Bag Indicator A problem exists with one of the many airbags in the vehicle, which should be taken to the dealer or authorized service center as soon as possible. SRS Air Bag Indicator Warn of a failure in one of the air bags, which can only be repaired by your dealer or authorized service center. Seat Belt Reminder Indicator The indicators simply want you to put on your seat belt. Seat Belt Reminder Indicator Showing two belted occupants, indicates either the driver or passenger is unbuckled. Regardless, the indicators simply want you to put on your seat belt. Second Row or Rear Seat Safety Belt Indicator Warn rear seat passengers to buckle up. Second Row or Rear Seat Safety Belt Indicator Indicate which belt is undone, one through three.

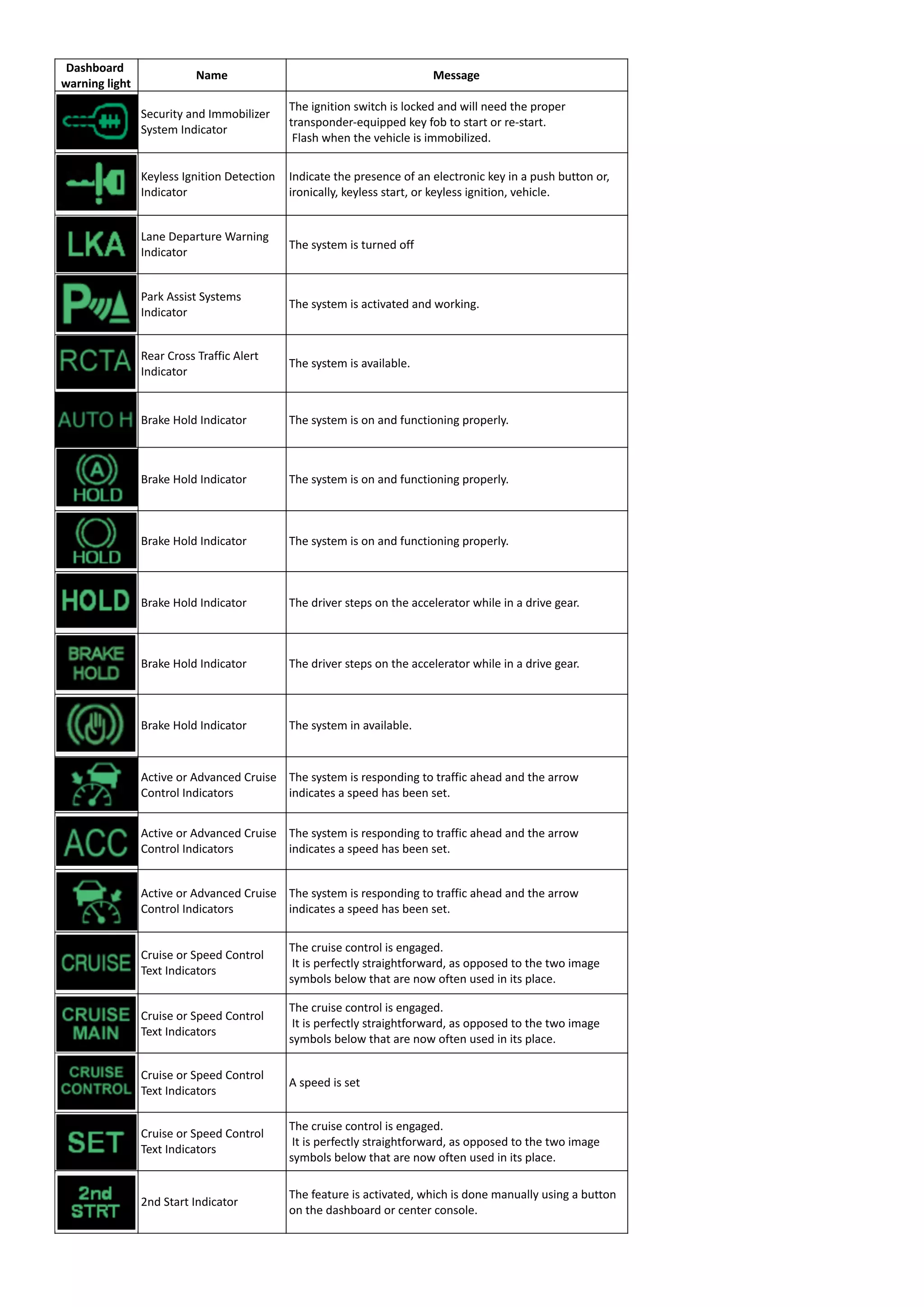

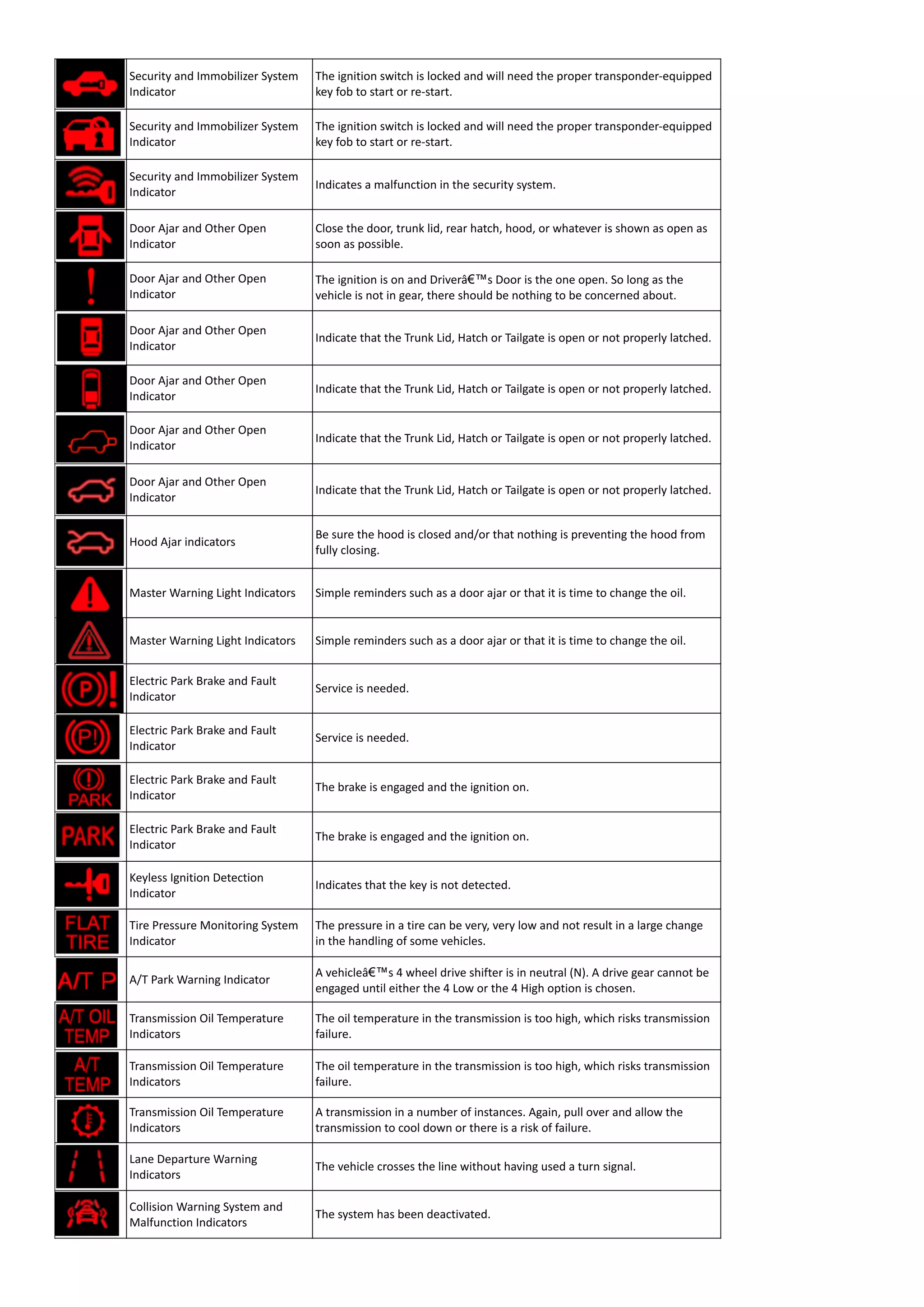

Security and Immobilizer System Indicator The ignition switch is locked and will need the proper transponder-equipped key fob to start or re-start. Security and Immobilizer System Indicator The ignition switch is locked and will need the proper transponder-equipped key fob to start or re-start. Security and Immobilizer System Indicator Indicates a malfunction in the security system. Door Ajar and Other Open Indicator Close the door, trunk lid, rear hatch, hood, or whatever is shown as open as soon as possible. Door Ajar and Other Open Indicator The ignition is on and Driver’s Door is the one open. So long as the vehicle is not in gear, there should be nothing to be concerned about. Door Ajar and Other Open Indicator Indicate that the Trunk Lid, Hatch or Tailgate is open or not properly latched. Door Ajar and Other Open Indicator Indicate that the Trunk Lid, Hatch or Tailgate is open or not properly latched. Door Ajar and Other Open Indicator Indicate that the Trunk Lid, Hatch or Tailgate is open or not properly latched. Door Ajar and Other Open Indicator Indicate that the Trunk Lid, Hatch or Tailgate is open or not properly latched. Hood Ajar indicators Be sure the hood is closed and/or that nothing is preventing the hood from fully closing. Master Warning Light Indicators Simple reminders such as a door ajar or that it is time to change the oil. Master Warning Light Indicators Simple reminders such as a door ajar or that it is time to change the oil. Electric Park Brake and Fault Indicator Service is needed. Electric Park Brake and Fault Indicator Service is needed. Electric Park Brake and Fault Indicator The brake is engaged and the ignition on. Electric Park Brake and Fault Indicator The brake is engaged and the ignition on. Keyless Ignition Detection Indicator Indicates that the key is not detected. Tire Pressure Monitoring System Indicator The pressure in a tire can be very, very low and not result in a large change in the handling of some vehicles. A/T Park Warning Indicator A vehicle’s 4 wheel drive shifter is in neutral (N). A drive gear cannot be engaged until either the 4 Low or the 4 High option is chosen. Transmission Oil Temperature Indicators The oil temperature in the transmission is too high, which risks transmission failure. Transmission Oil Temperature Indicators The oil temperature in the transmission is too high, which risks transmission failure. Transmission Oil Temperature Indicators A transmission in a number of instances. Again, pull over and allow the transmission to cool down or there is a risk of failure. Lane Departure Warning Indicators The vehicle crosses the line without having used a turn signal. Collision Warning System and Malfunction Indicators The system has been deactivated.

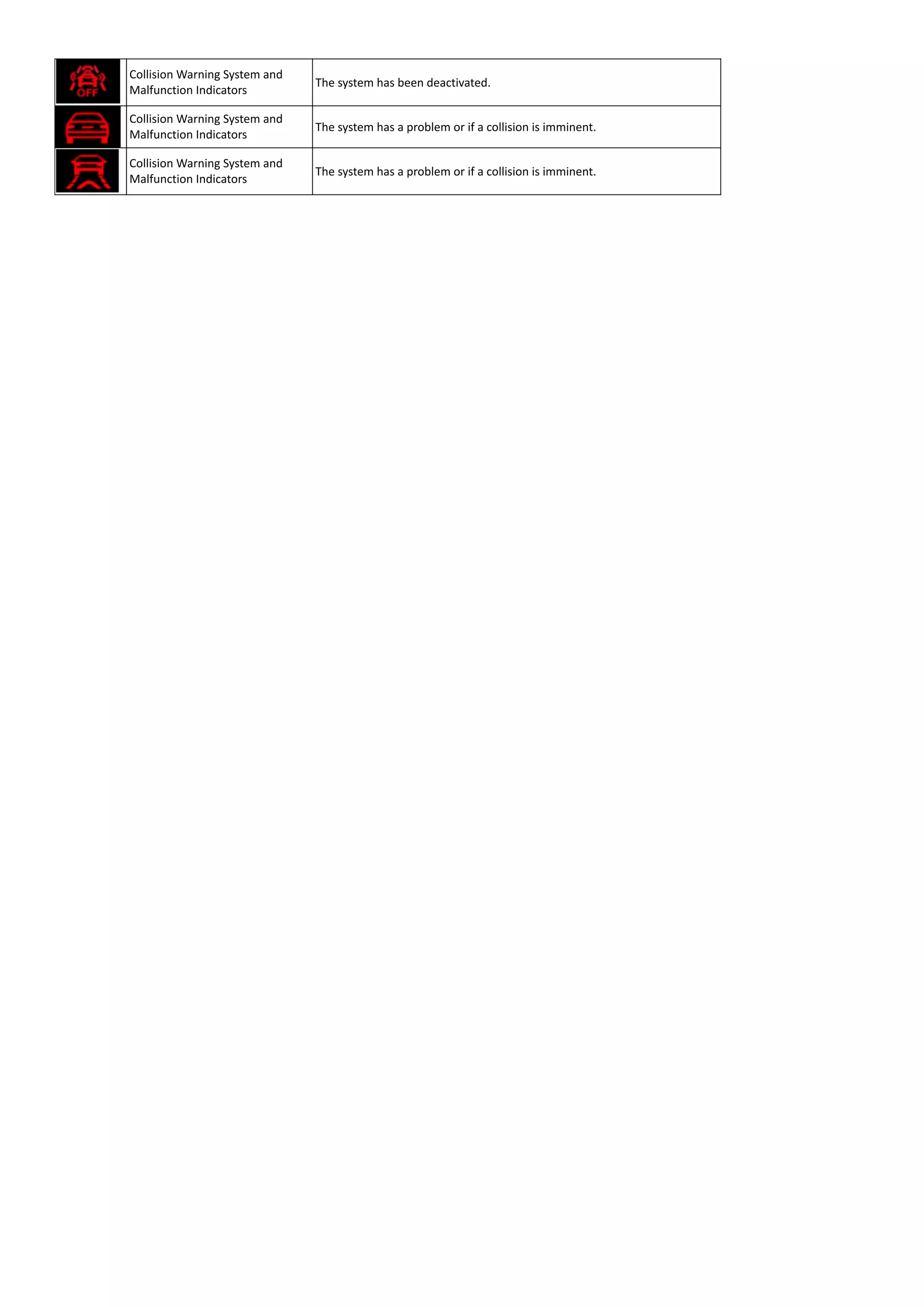

Collision Warning System and Malfunction Indicators The system has been deactivated. Collision Warning System and Malfunction Indicators The system has a problem or if a collision is imminent. Collision Warning System and Malfunction Indicators The system has a problem or if a collision is imminent.

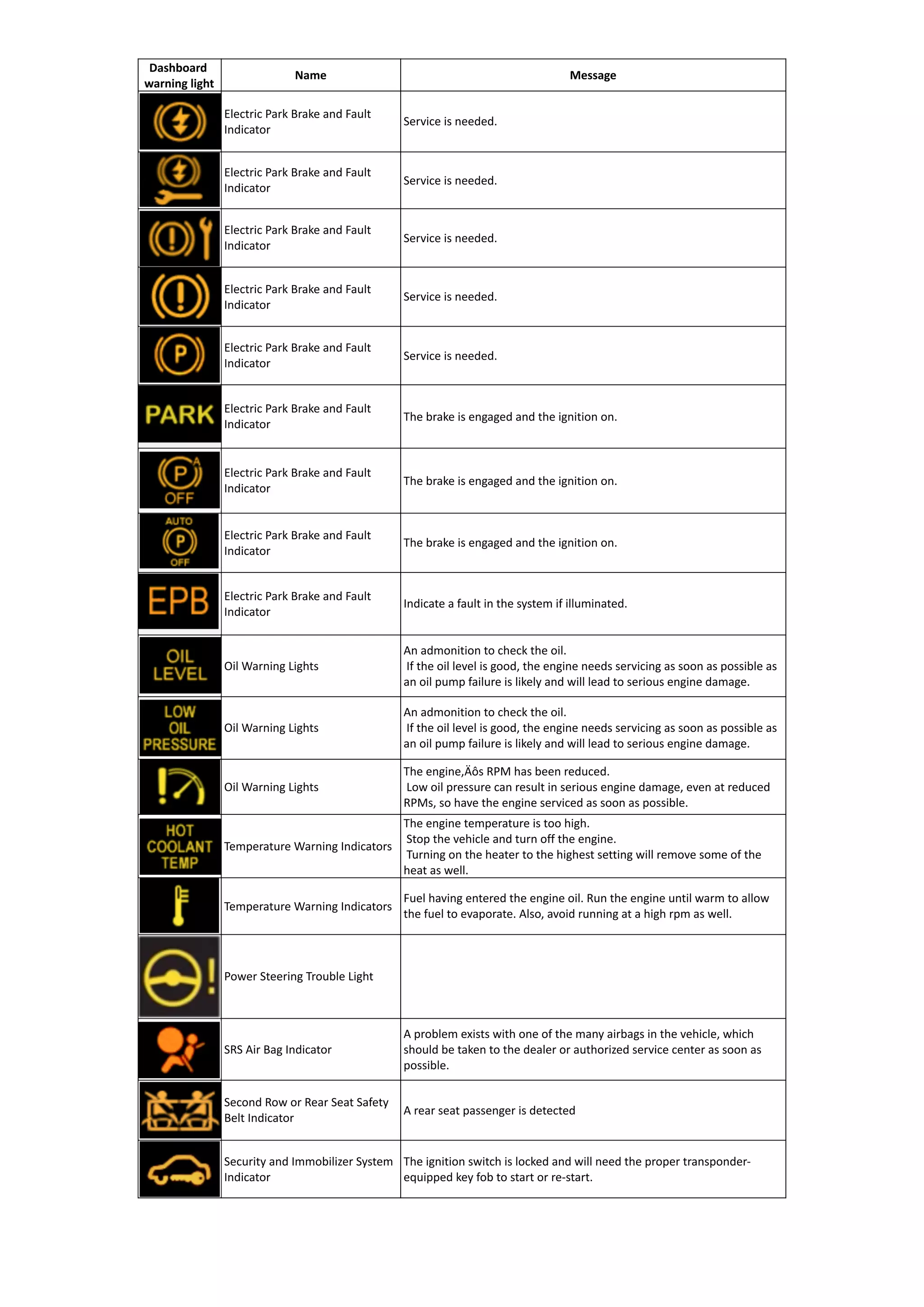

Dashboard warning light Name Message Electric Park Brake and Fault Indicator Service is needed. Electric Park Brake and Fault Indicator Service is needed. Electric Park Brake and Fault Indicator Service is needed. Electric Park Brake and Fault Indicator Service is needed. Electric Park Brake and Fault Indicator Service is needed. Electric Park Brake and Fault Indicator The brake is engaged and the ignition on. Electric Park Brake and Fault Indicator The brake is engaged and the ignition on. Electric Park Brake and Fault Indicator The brake is engaged and the ignition on. Electric Park Brake and Fault Indicator Indicate a fault in the system if illuminated. Oil Warning Lights An admonition to check the oil. If the oil level is good, the engine needs servicing as soon as possible as an oil pump failure is likely and will lead to serious engine damage. Oil Warning Lights An admonition to check the oil. If the oil level is good, the engine needs servicing as soon as possible as an oil pump failure is likely and will lead to serious engine damage. Oil Warning Lights The engine’s RPM has been reduced. Low oil pressure can result in serious engine damage, even at reduced RPMs, so have the engine serviced as soon as possible. Temperature Warning Indicators The engine temperature is too high. Stop the vehicle and turn off the engine. Turning on the heater to the highest setting will remove some of the heat as well. Temperature Warning Indicators Fuel having entered the engine oil. Run the engine until warm to allow the fuel to evaporate. Also, avoid running at a high rpm as well. Power Steering Trouble Light SRS Air Bag Indicator A problem exists with one of the many airbags in the vehicle, which should be taken to the dealer or authorized service center as soon as possible. Second Row or Rear Seat Safety Belt Indicator A rear seat passenger is detected Security and Immobilizer System Indicator The ignition switch is locked and will need the proper transponder- equipped key fob to start or re-start.

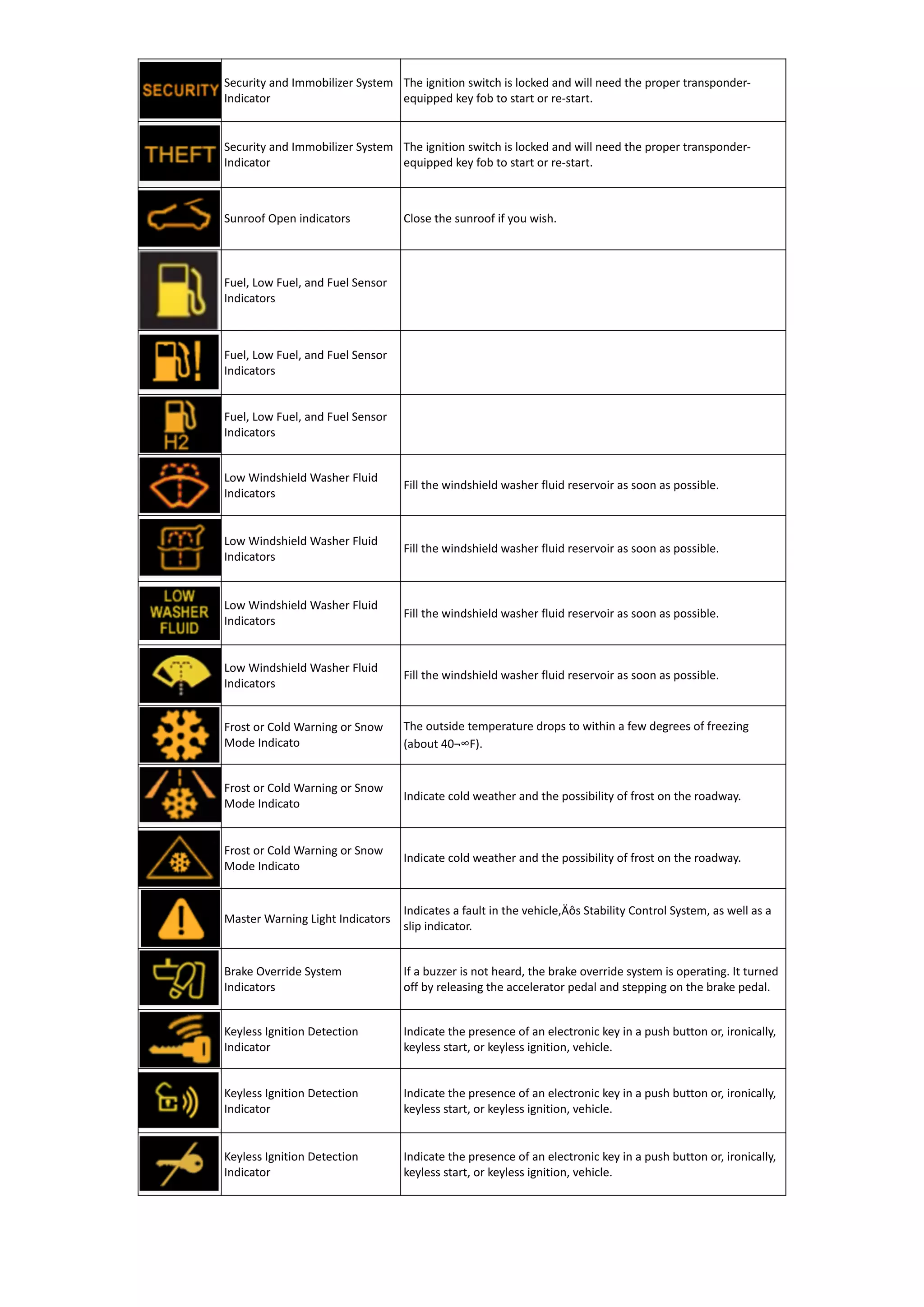

Security and Immobilizer System Indicator The ignition switch is locked and will need the proper transponder- equipped key fob to start or re-start. Security and Immobilizer System Indicator The ignition switch is locked and will need the proper transponder- equipped key fob to start or re-start. Sunroof Open indicators Close the sunroof if you wish. Fuel, Low Fuel, and Fuel Sensor Indicators Fuel, Low Fuel, and Fuel Sensor Indicators Fuel, Low Fuel, and Fuel Sensor Indicators Low Windshield Washer Fluid Indicators Fill the windshield washer fluid reservoir as soon as possible. Low Windshield Washer Fluid Indicators Fill the windshield washer fluid reservoir as soon as possible. Low Windshield Washer Fluid Indicators Fill the windshield washer fluid reservoir as soon as possible. Low Windshield Washer Fluid Indicators Fill the windshield washer fluid reservoir as soon as possible. Frost or Cold Warning or Snow Mode Indicato The outside temperature drops to within a few degrees of freezing (about 40°F). Frost or Cold Warning or Snow Mode Indicato Indicate cold weather and the possibility of frost on the roadway. Frost or Cold Warning or Snow Mode Indicato Indicate cold weather and the possibility of frost on the roadway. Master Warning Light Indicators Indicates a fault in the vehicle’s Stability Control System, as well as a slip indicator. Brake Override System Indicators If a buzzer is not heard, the brake override system is operating. It turned off by releasing the accelerator pedal and stepping on the brake pedal. Keyless Ignition Detection Indicator Indicate the presence of an electronic key in a push button or, ironically, keyless start, or keyless ignition, vehicle. Keyless Ignition Detection Indicator Indicate the presence of an electronic key in a push button or, ironically, keyless start, or keyless ignition, vehicle. Keyless Ignition Detection Indicator Indicate the presence of an electronic key in a push button or, ironically, keyless start, or keyless ignition, vehicle.

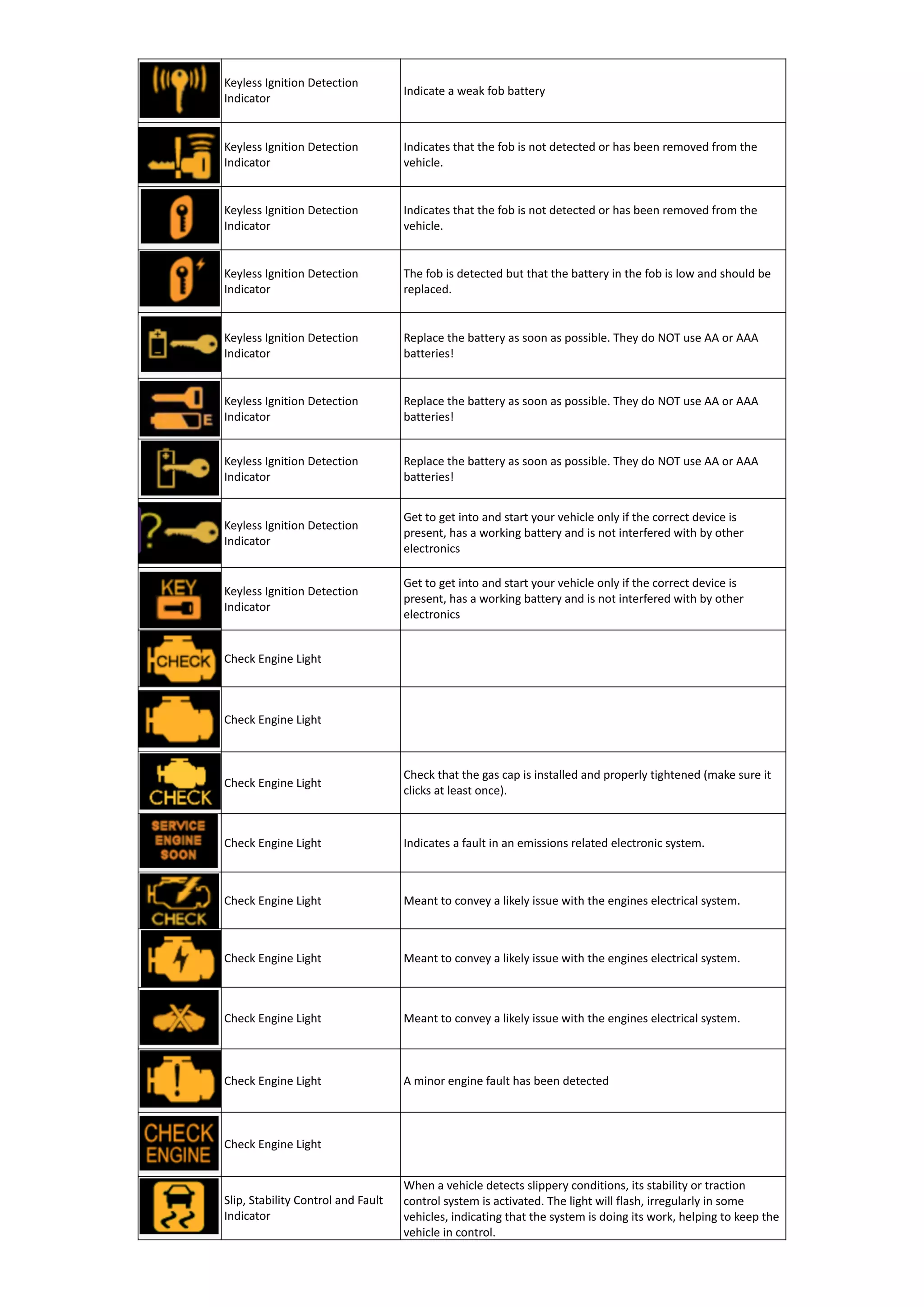

Keyless Ignition Detection Indicator Indicate a weak fob battery Keyless Ignition Detection Indicator Indicates that the fob is not detected or has been removed from the vehicle. Keyless Ignition Detection Indicator Indicates that the fob is not detected or has been removed from the vehicle. Keyless Ignition Detection Indicator The fob is detected but that the battery in the fob is low and should be replaced. Keyless Ignition Detection Indicator Replace the battery as soon as possible. They do NOT use AA or AAA batteries! Keyless Ignition Detection Indicator Replace the battery as soon as possible. They do NOT use AA or AAA batteries! Keyless Ignition Detection Indicator Replace the battery as soon as possible. They do NOT use AA or AAA batteries! Keyless Ignition Detection Indicator Get to get into and start your vehicle only if the correct device is present, has a working battery and is not interfered with by other electronics Keyless Ignition Detection Indicator Get to get into and start your vehicle only if the correct device is present, has a working battery and is not interfered with by other electronics Check Engine Light Check Engine Light Check Engine Light Check that the gas cap is installed and properly tightened (make sure it clicks at least once). Check Engine Light Indicates a fault in an emissions related electronic system. Check Engine Light Meant to convey a likely issue with the engines electrical system. Check Engine Light Meant to convey a likely issue with the engines electrical system. Check Engine Light Meant to convey a likely issue with the engines electrical system. Check Engine Light A minor engine fault has been detected Check Engine Light Slip, Stability Control and Fault Indicator When a vehicle detects slippery conditions, its stability or traction control system is activated. The light will flash, irregularly in some vehicles, indicating that the system is doing its work, helping to keep the vehicle in control.

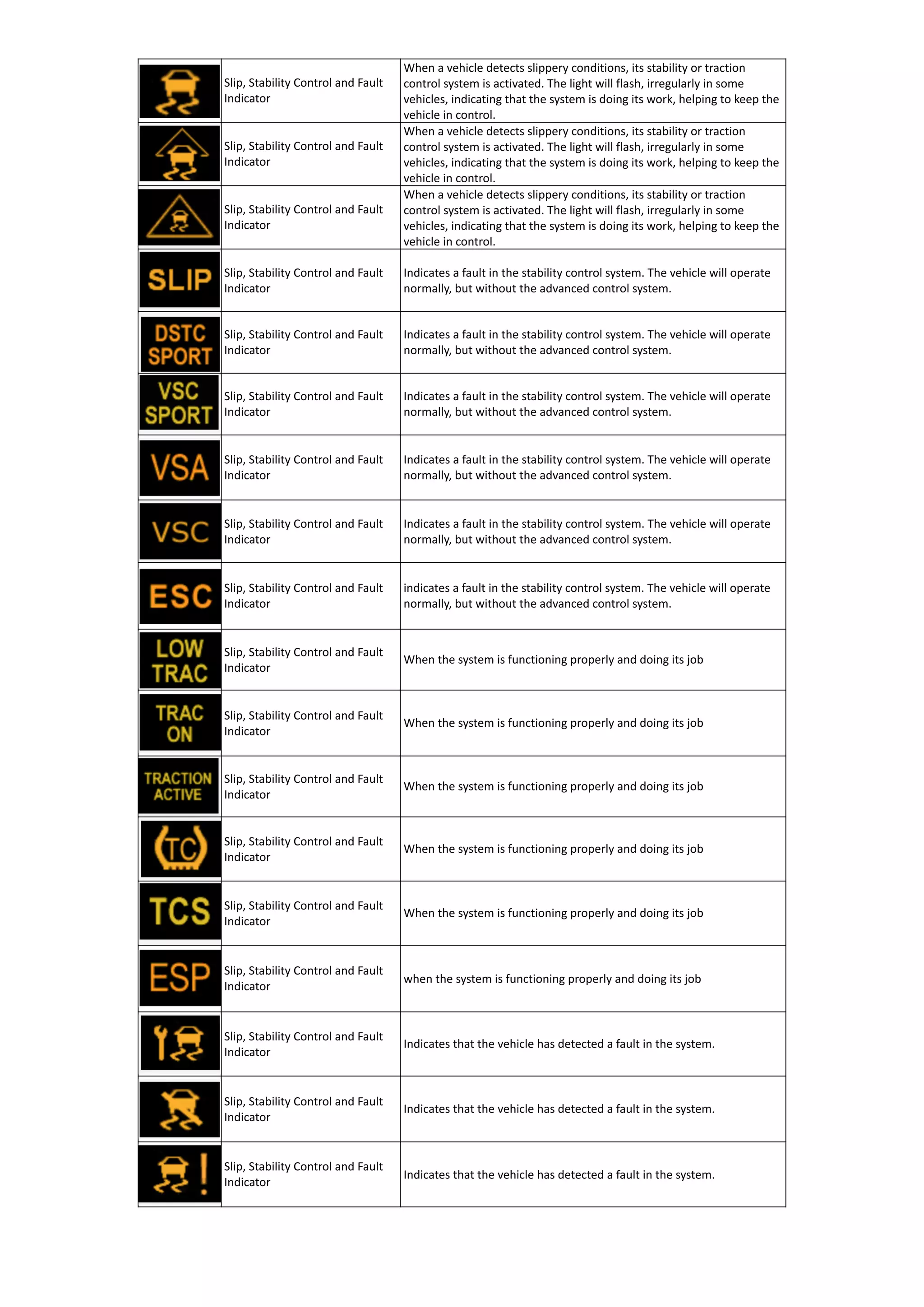

Slip, Stability Control and Fault Indicator When a vehicle detects slippery conditions, its stability or traction control system is activated. The light will flash, irregularly in some vehicles, indicating that the system is doing its work, helping to keep the vehicle in control. Slip, Stability Control and Fault Indicator When a vehicle detects slippery conditions, its stability or traction control system is activated. The light will flash, irregularly in some vehicles, indicating that the system is doing its work, helping to keep the vehicle in control. Slip, Stability Control and Fault Indicator When a vehicle detects slippery conditions, its stability or traction control system is activated. The light will flash, irregularly in some vehicles, indicating that the system is doing its work, helping to keep the vehicle in control. Slip, Stability Control and Fault Indicator Indicates a fault in the stability control system. The vehicle will operate normally, but without the advanced control system. Slip, Stability Control and Fault Indicator Indicates a fault in the stability control system. The vehicle will operate normally, but without the advanced control system. Slip, Stability Control and Fault Indicator Indicates a fault in the stability control system. The vehicle will operate normally, but without the advanced control system. Slip, Stability Control and Fault Indicator Indicates a fault in the stability control system. The vehicle will operate normally, but without the advanced control system. Slip, Stability Control and Fault Indicator Indicates a fault in the stability control system. The vehicle will operate normally, but without the advanced control system. Slip, Stability Control and Fault Indicator indicates a fault in the stability control system. The vehicle will operate normally, but without the advanced control system. Slip, Stability Control and Fault Indicator When the system is functioning properly and doing its job Slip, Stability Control and Fault Indicator When the system is functioning properly and doing its job Slip, Stability Control and Fault Indicator When the system is functioning properly and doing its job Slip, Stability Control and Fault Indicator When the system is functioning properly and doing its job Slip, Stability Control and Fault Indicator When the system is functioning properly and doing its job Slip, Stability Control and Fault Indicator when the system is functioning properly and doing its job Slip, Stability Control and Fault Indicator Indicates that the vehicle has detected a fault in the system. Slip, Stability Control and Fault Indicator Indicates that the vehicle has detected a fault in the system. Slip, Stability Control and Fault Indicator Indicates that the vehicle has detected a fault in the system.

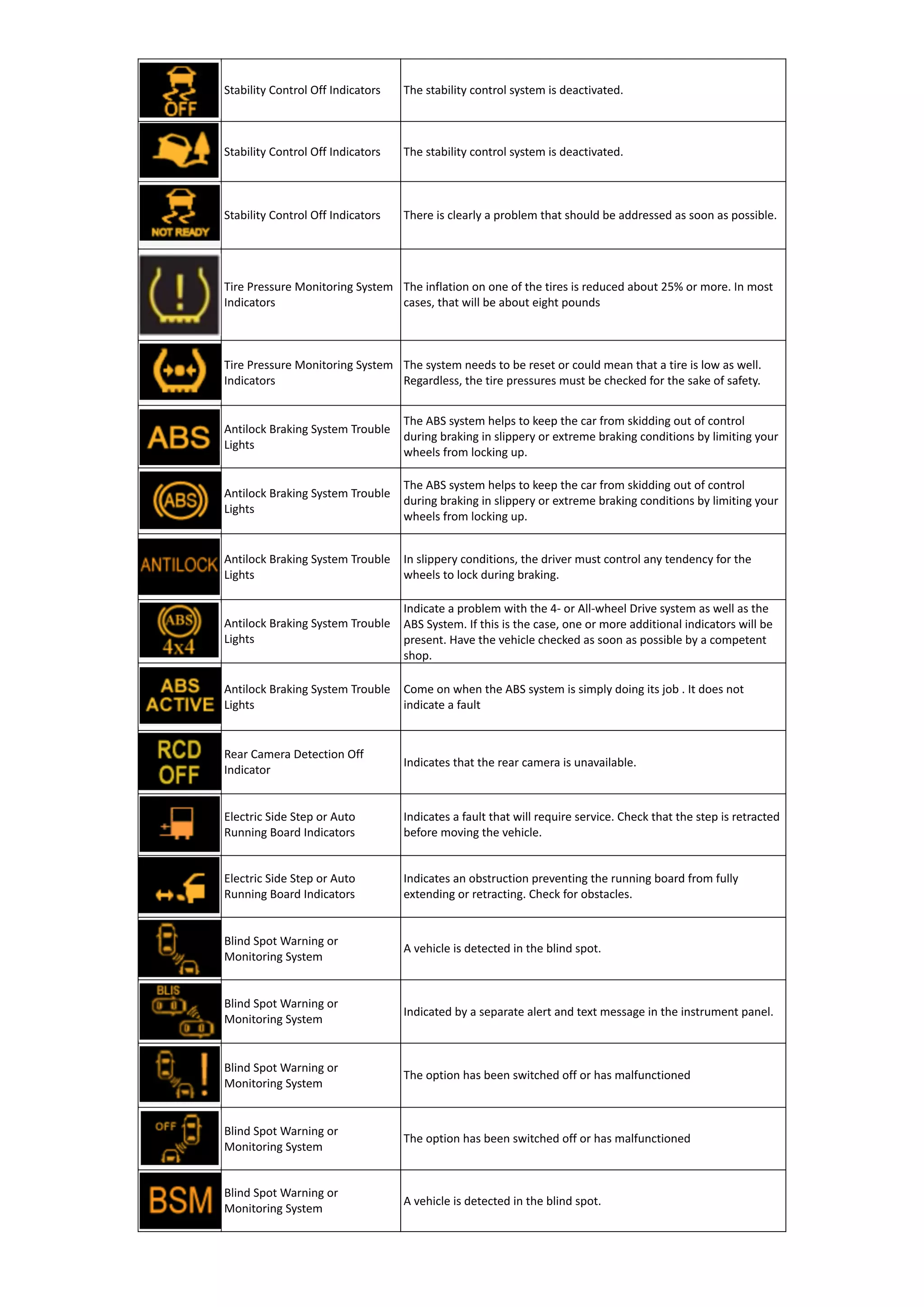

Stability Control Off Indicators The stability control system is deactivated. Stability Control Off Indicators The stability control system is deactivated. Stability Control Off Indicators There is clearly a problem that should be addressed as soon as possible. Tire Pressure Monitoring System Indicators The inflation on one of the tires is reduced about 25% or more. In most cases, that will be about eight pounds Tire Pressure Monitoring System Indicators The system needs to be reset or could mean that a tire is low as well. Regardless, the tire pressures must be checked for the sake of safety. Antilock Braking System Trouble Lights The ABS system helps to keep the car from skidding out of control during braking in slippery or extreme braking conditions by limiting your wheels from locking up. Antilock Braking System Trouble Lights The ABS system helps to keep the car from skidding out of control during braking in slippery or extreme braking conditions by limiting your wheels from locking up. Antilock Braking System Trouble Lights In slippery conditions, the driver must control any tendency for the wheels to lock during braking. Antilock Braking System Trouble Lights Indicate a problem with the 4- or All-wheel Drive system as well as the ABS System. If this is the case, one or more additional indicators will be present. Have the vehicle checked as soon as possible by a competent shop. Antilock Braking System Trouble Lights Come on when the ABS system is simply doing its job . It does not indicate a fault Rear Camera Detection Off Indicator Indicates that the rear camera is unavailable. Electric Side Step or Auto Running Board Indicators Indicates a fault that will require service. Check that the step is retracted before moving the vehicle. Electric Side Step or Auto Running Board Indicators Indicates an obstruction preventing the running board from fully extending or retracting. Check for obstacles. Blind Spot Warning or Monitoring System A vehicle is detected in the blind spot. Blind Spot Warning or Monitoring System Indicated by a separate alert and text message in the instrument panel. Blind Spot Warning or Monitoring System The option has been switched off or has malfunctioned Blind Spot Warning or Monitoring System The option has been switched off or has malfunctioned Blind Spot Warning or Monitoring System A vehicle is detected in the blind spot.

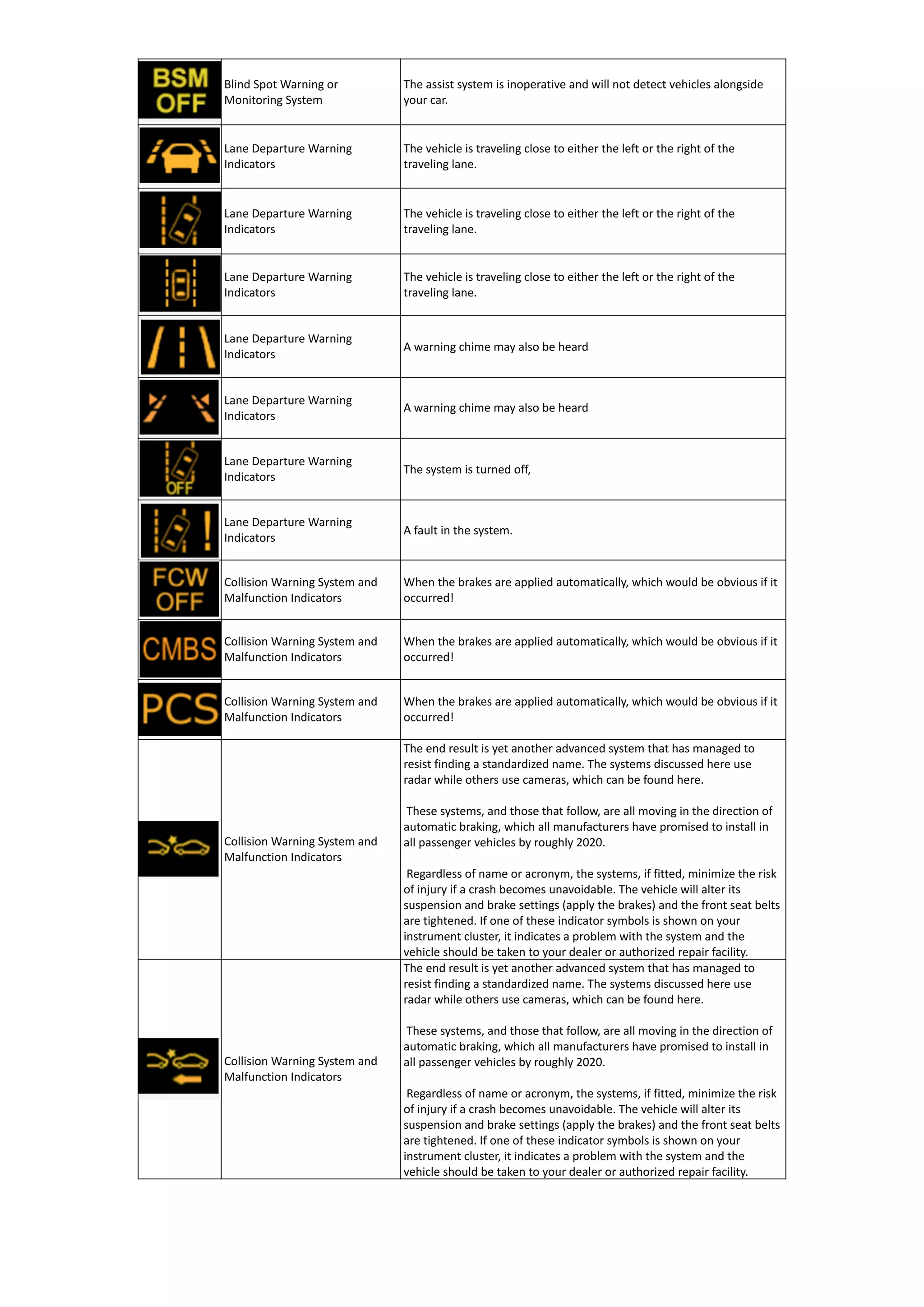

Blind Spot Warning or Monitoring System The assist system is inoperative and will not detect vehicles alongside your car. Lane Departure Warning Indicators The vehicle is traveling close to either the left or the right of the traveling lane. Lane Departure Warning Indicators The vehicle is traveling close to either the left or the right of the traveling lane. Lane Departure Warning Indicators The vehicle is traveling close to either the left or the right of the traveling lane. Lane Departure Warning Indicators A warning chime may also be heard Lane Departure Warning Indicators A warning chime may also be heard Lane Departure Warning Indicators The system is turned off, Lane Departure Warning Indicators A fault in the system. Collision Warning System and Malfunction Indicators When the brakes are applied automatically, which would be obvious if it occurred! Collision Warning System and Malfunction Indicators When the brakes are applied automatically, which would be obvious if it occurred! Collision Warning System and Malfunction Indicators When the brakes are applied automatically, which would be obvious if it occurred! Collision Warning System and Malfunction Indicators The end result is yet another advanced system that has managed to resist finding a standardized name. The systems discussed here use radar while others use cameras, which can be found here. These systems, and those that follow, are all moving in the direction of automatic braking, which all manufacturers have promised to install in all passenger vehicles by roughly 2020. Regardless of name or acronym, the systems, if fitted, minimize the risk of injury if a crash becomes unavoidable. The vehicle will alter its suspension and brake settings (apply the brakes) and the front seat belts are tightened. If one of these indicator symbols is shown on your instrument cluster, it indicates a problem with the system and the vehicle should be taken to your dealer or authorized repair facility. Collision Warning System and Malfunction Indicators The end result is yet another advanced system that has managed to resist finding a standardized name. The systems discussed here use radar while others use cameras, which can be found here. These systems, and those that follow, are all moving in the direction of automatic braking, which all manufacturers have promised to install in all passenger vehicles by roughly 2020. Regardless of name or acronym, the systems, if fitted, minimize the risk of injury if a crash becomes unavoidable. The vehicle will alter its suspension and brake settings (apply the brakes) and the front seat belts are tightened. If one of these indicator symbols is shown on your instrument cluster, it indicates a problem with the system and the vehicle should be taken to your dealer or authorized repair facility.

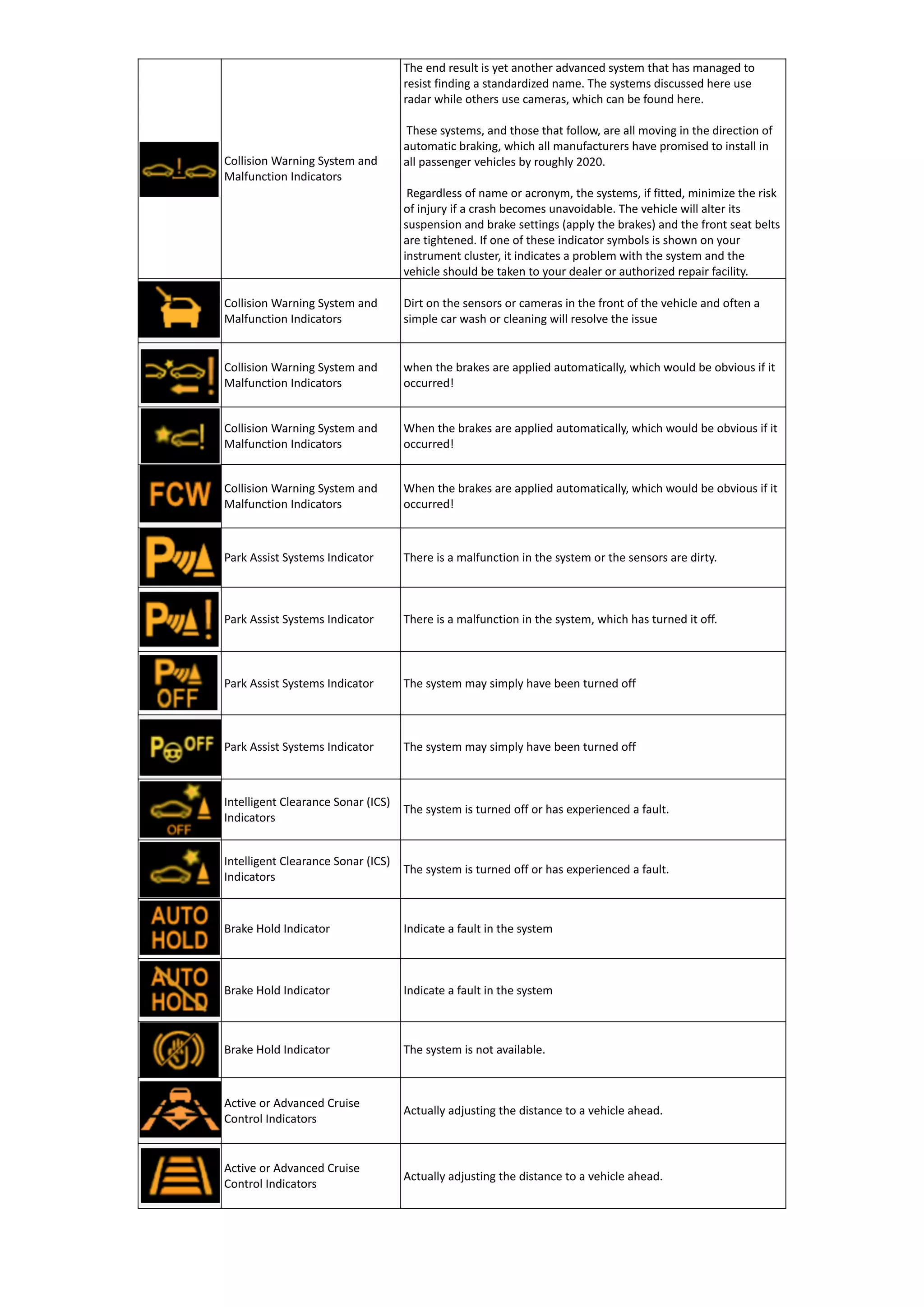

Collision Warning System and Malfunction Indicators The end result is yet another advanced system that has managed to resist finding a standardized name. The systems discussed here use radar while others use cameras, which can be found here. These systems, and those that follow, are all moving in the direction of automatic braking, which all manufacturers have promised to install in all passenger vehicles by roughly 2020. Regardless of name or acronym, the systems, if fitted, minimize the risk of injury if a crash becomes unavoidable. The vehicle will alter its suspension and brake settings (apply the brakes) and the front seat belts are tightened. If one of these indicator symbols is shown on your instrument cluster, it indicates a problem with the system and the vehicle should be taken to your dealer or authorized repair facility. Collision Warning System and Malfunction Indicators Dirt on the sensors or cameras in the front of the vehicle and often a simple car wash or cleaning will resolve the issue Collision Warning System and Malfunction Indicators when the brakes are applied automatically, which would be obvious if it occurred! Collision Warning System and Malfunction Indicators When the brakes are applied automatically, which would be obvious if it occurred! Collision Warning System and Malfunction Indicators When the brakes are applied automatically, which would be obvious if it occurred! Park Assist Systems Indicator There is a malfunction in the system or the sensors are dirty. Park Assist Systems Indicator There is a malfunction in the system, which has turned it off. Park Assist Systems Indicator The system may simply have been turned off Park Assist Systems Indicator The system may simply have been turned off Intelligent Clearance Sonar (ICS) Indicators The system is turned off or has experienced a fault. Intelligent Clearance Sonar (ICS) Indicators The system is turned off or has experienced a fault. Brake Hold Indicator Indicate a fault in the system Brake Hold Indicator Indicate a fault in the system Brake Hold Indicator The system is not available. Active or Advanced Cruise Control Indicators Actually adjusting the distance to a vehicle ahead. Active or Advanced Cruise Control Indicators Actually adjusting the distance to a vehicle ahead.

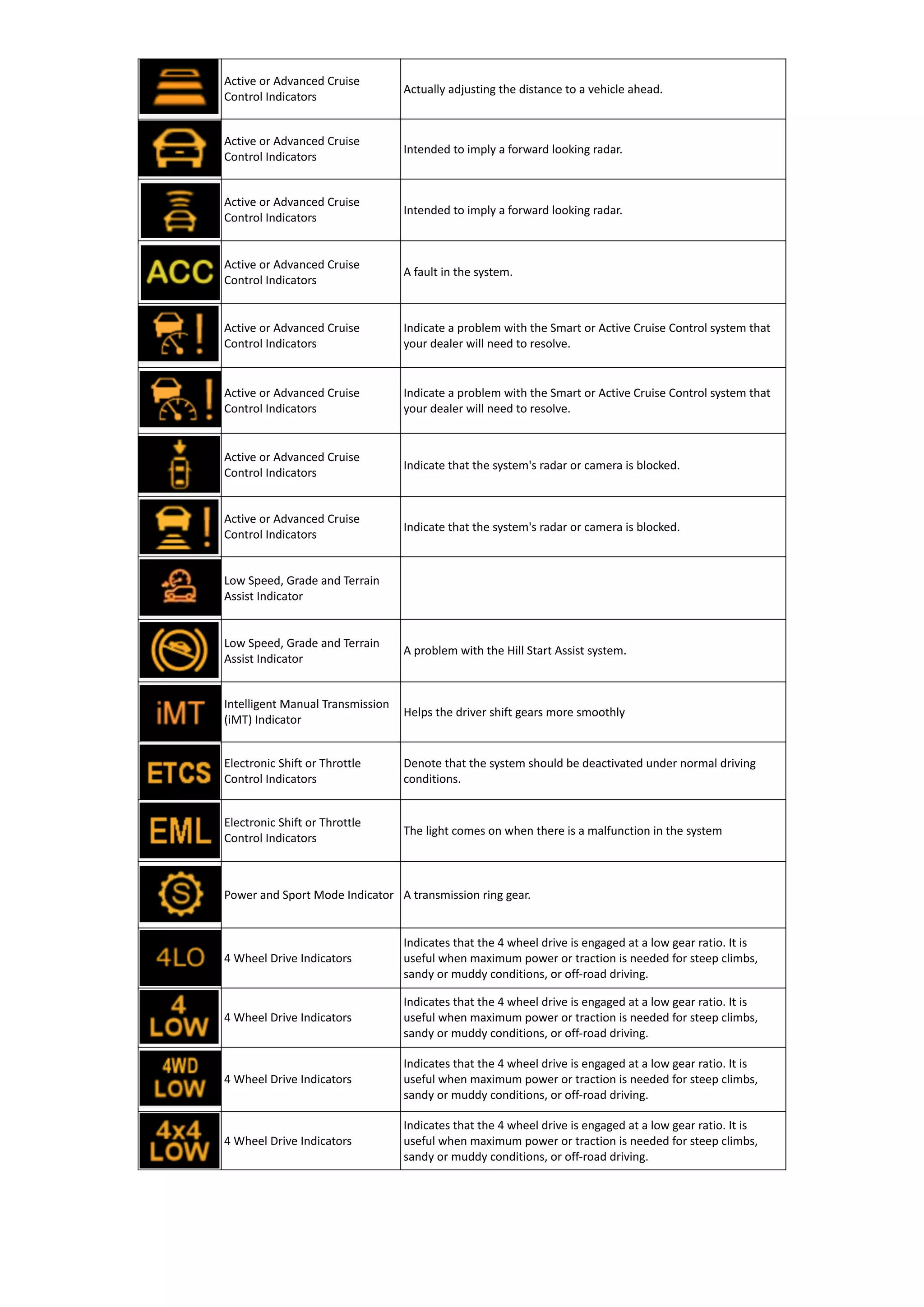

Active or Advanced Cruise Control Indicators Actually adjusting the distance to a vehicle ahead. Active or Advanced Cruise Control Indicators Intended to imply a forward looking radar. Active or Advanced Cruise Control Indicators Intended to imply a forward looking radar. Active or Advanced Cruise Control Indicators A fault in the system. Active or Advanced Cruise Control Indicators Indicate a problem with the Smart or Active Cruise Control system that your dealer will need to resolve. Active or Advanced Cruise Control Indicators Indicate a problem with the Smart or Active Cruise Control system that your dealer will need to resolve. Active or Advanced Cruise Control Indicators Indicate that the system's radar or camera is blocked. Active or Advanced Cruise Control Indicators Indicate that the system's radar or camera is blocked. Low Speed, Grade and Terrain Assist Indicator Low Speed, Grade and Terrain Assist Indicator A problem with the Hill Start Assist system. Intelligent Manual Transmission (iMT) Indicator Helps the driver shift gears more smoothly Electronic Shift or Throttle Control Indicators Denote that the system should be deactivated under normal driving conditions. Electronic Shift or Throttle Control Indicators The light comes on when there is a malfunction in the system Power and Sport Mode Indicator A transmission ring gear. 4 Wheel Drive Indicators Indicates that the 4 wheel drive is engaged at a low gear ratio. It is useful when maximum power or traction is needed for steep climbs, sandy or muddy conditions, or off-road driving. 4 Wheel Drive Indicators Indicates that the 4 wheel drive is engaged at a low gear ratio. It is useful when maximum power or traction is needed for steep climbs, sandy or muddy conditions, or off-road driving. 4 Wheel Drive Indicators Indicates that the 4 wheel drive is engaged at a low gear ratio. It is useful when maximum power or traction is needed for steep climbs, sandy or muddy conditions, or off-road driving. 4 Wheel Drive Indicators Indicates that the 4 wheel drive is engaged at a low gear ratio. It is useful when maximum power or traction is needed for steep climbs, sandy or muddy conditions, or off-road driving.

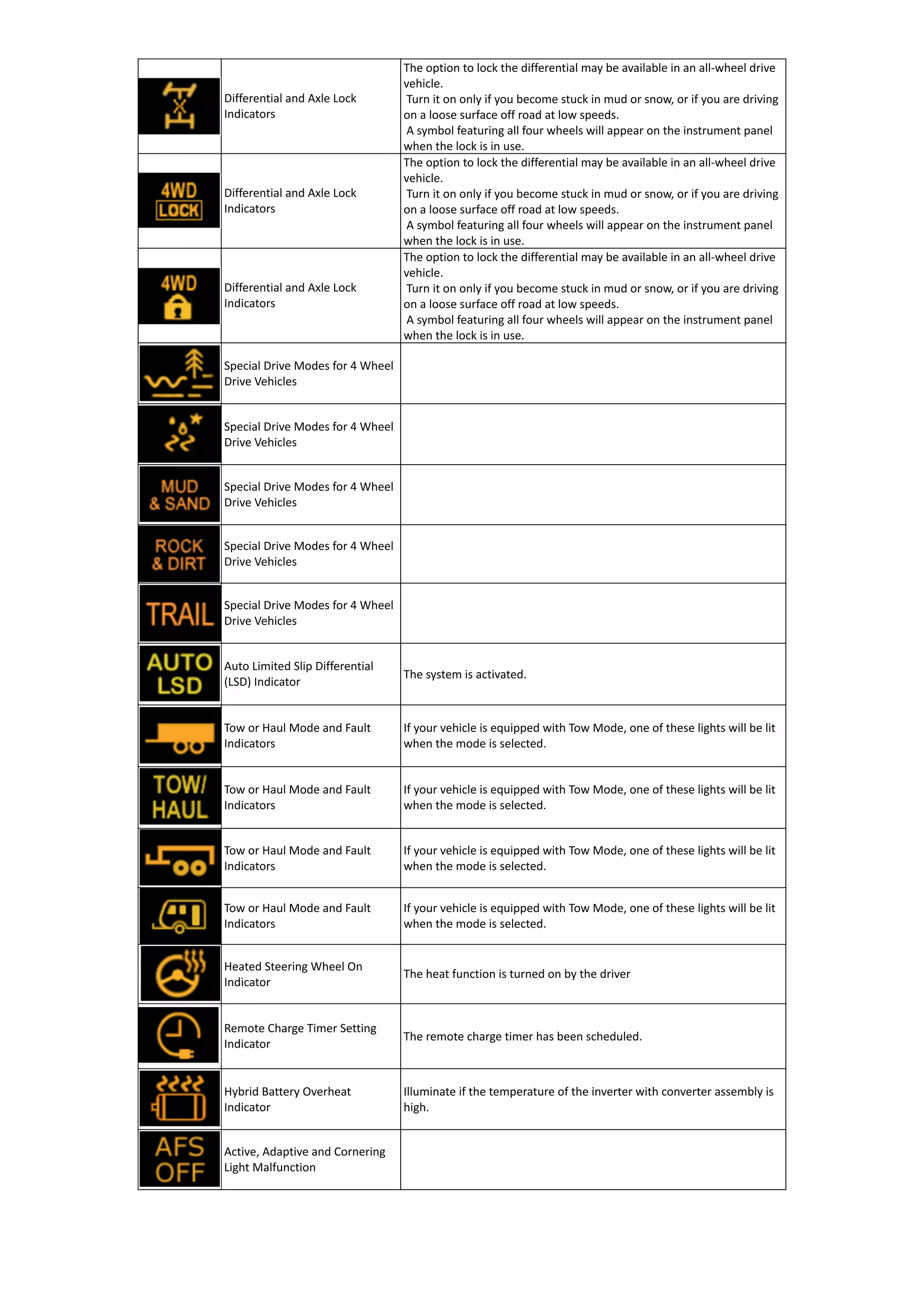

Differential and Axle Lock Indicators The option to lock the differential may be available in an all-wheel drive vehicle. Turn it on only if you become stuck in mud or snow, or if you are driving on a loose surface off road at low speeds. A symbol featuring all four wheels will appear on the instrument panel when the lock is in use. Differential and Axle Lock Indicators The option to lock the differential may be available in an all-wheel drive vehicle. Turn it on only if you become stuck in mud or snow, or if you are driving on a loose surface off road at low speeds. A symbol featuring all four wheels will appear on the instrument panel when the lock is in use. Differential and Axle Lock Indicators The option to lock the differential may be available in an all-wheel drive vehicle. Turn it on only if you become stuck in mud or snow, or if you are driving on a loose surface off road at low speeds. A symbol featuring all four wheels will appear on the instrument panel when the lock is in use. Special Drive Modes for 4 Wheel Drive Vehicles Special Drive Modes for 4 Wheel Drive Vehicles Special Drive Modes for 4 Wheel Drive Vehicles Special Drive Modes for 4 Wheel Drive Vehicles Special Drive Modes for 4 Wheel Drive Vehicles Auto Limited Slip Differential (LSD) Indicator The system is activated. Tow or Haul Mode and Fault Indicators If your vehicle is equipped with Tow Mode, one of these lights will be lit when the mode is selected. Tow or Haul Mode and Fault Indicators If your vehicle is equipped with Tow Mode, one of these lights will be lit when the mode is selected. Tow or Haul Mode and Fault Indicators If your vehicle is equipped with Tow Mode, one of these lights will be lit when the mode is selected. Tow or Haul Mode and Fault Indicators If your vehicle is equipped with Tow Mode, one of these lights will be lit when the mode is selected. Heated Steering Wheel On Indicator The heat function is turned on by the driver Remote Charge Timer Setting Indicator The remote charge timer has been scheduled. Hybrid Battery Overheat Indicator Illuminate if the temperature of the inverter with converter assembly is high. Active, Adaptive and Cornering Light Malfunction

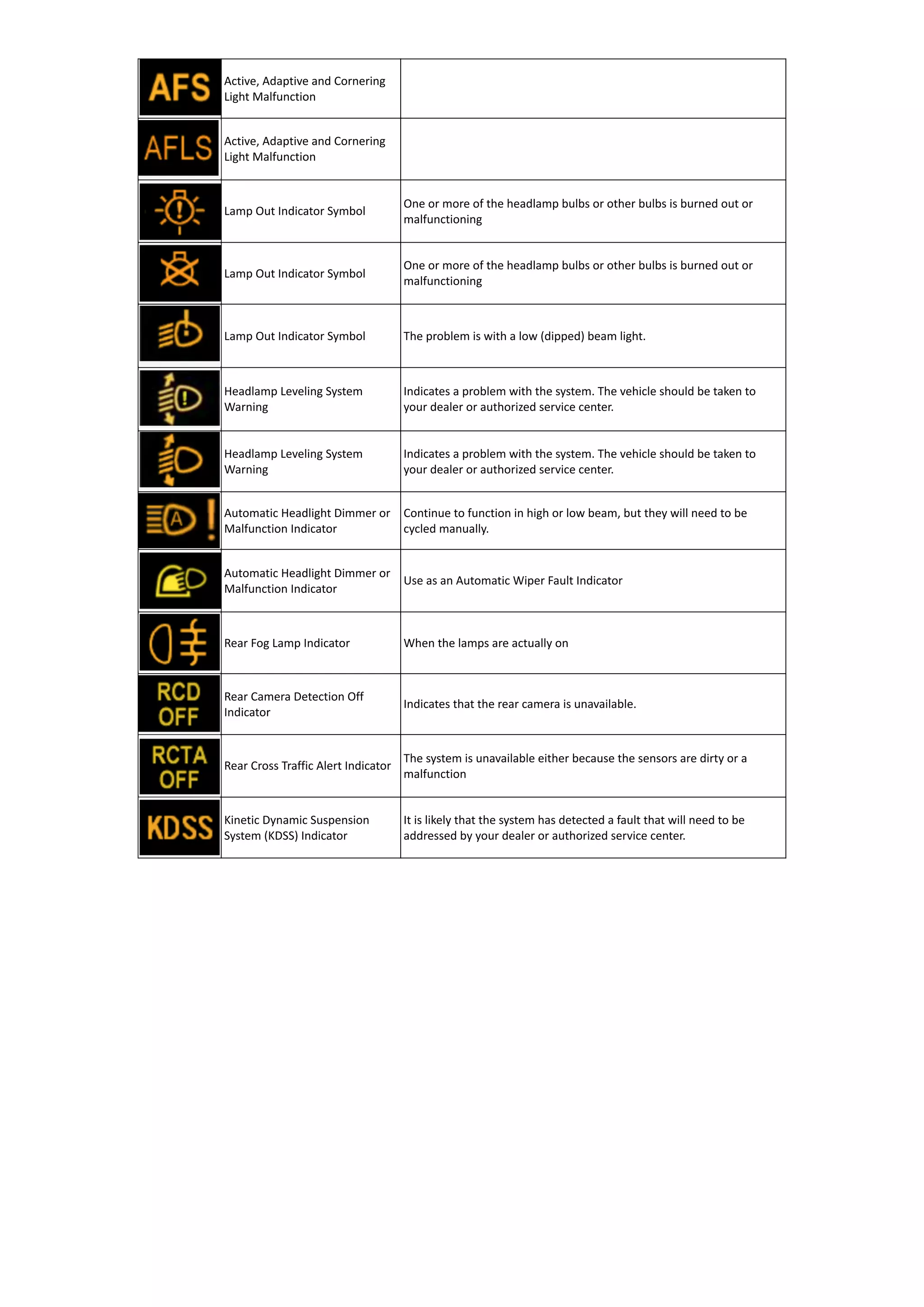

Active, Adaptive and Cornering Light Malfunction Active, Adaptive and Cornering Light Malfunction Lamp Out Indicator Symbol One or more of the headlamp bulbs or other bulbs is burned out or malfunctioning Lamp Out Indicator Symbol One or more of the headlamp bulbs or other bulbs is burned out or malfunctioning Lamp Out Indicator Symbol The problem is with a low (dipped) beam light. Headlamp Leveling System Warning Indicates a problem with the system. The vehicle should be taken to your dealer or authorized service center. Headlamp Leveling System Warning Indicates a problem with the system. The vehicle should be taken to your dealer or authorized service center. Automatic Headlight Dimmer or Malfunction Indicator Continue to function in high or low beam, but they will need to be cycled manually. Automatic Headlight Dimmer or Malfunction Indicator Use as an Automatic Wiper Fault Indicator Rear Fog Lamp Indicator When the lamps are actually on Rear Camera Detection Off Indicator Indicates that the rear camera is unavailable. Rear Cross Traffic Alert Indicator The system is unavailable either because the sensors are dirty or a malfunction Kinetic Dynamic Suspension System (KDSS) Indicator It is likely that the system has detected a fault that will need to be addressed by your dealer or authorized service center.
Dashboard warning light Name Message Security and Immobilizer System Indicator The ignition switch is locked and will need the proper transponder-equipped key fob to start or re-start. Flash when the vehicle is immobilized. Keyless Ignition Detection Indicator Indicate the presence of an electronic key in a push button or, ironically, keyless start, or keyless ignition, vehicle. Lane Departure Warning Indicator The system is turned off Park Assist Systems Indicator The system is activated and working. Rear Cross Traffic Alert Indicator The system is available. Brake Hold Indicator The system is on and functioning properly. Brake Hold Indicator The system is on and functioning properly. Brake Hold Indicator The system is on and functioning properly. Brake Hold Indicator The driver steps on the accelerator while in a drive gear. Brake Hold Indicator The driver steps on the accelerator while in a drive gear. Brake Hold Indicator The system in available. Active or Advanced Cruise Control Indicators The system is responding to traffic ahead and the arrow indicates a speed has been set. Active or Advanced Cruise Control Indicators The system is responding to traffic ahead and the arrow indicates a speed has been set. Active or Advanced Cruise Control Indicators The system is responding to traffic ahead and the arrow indicates a speed has been set. Cruise or Speed Control Text Indicators The cruise control is engaged. It is perfectly straightforward, as opposed to the two image symbols below that are now often used in its place. Cruise or Speed Control Text Indicators The cruise control is engaged. It is perfectly straightforward, as opposed to the two image symbols below that are now often used in its place. Cruise or Speed Control Text Indicators A speed is set Cruise or Speed Control Text Indicators The cruise control is engaged. It is perfectly straightforward, as opposed to the two image symbols below that are now often used in its place. 2nd Start Indicator The feature is activated, which is done manually using a button on the dashboard or center console.

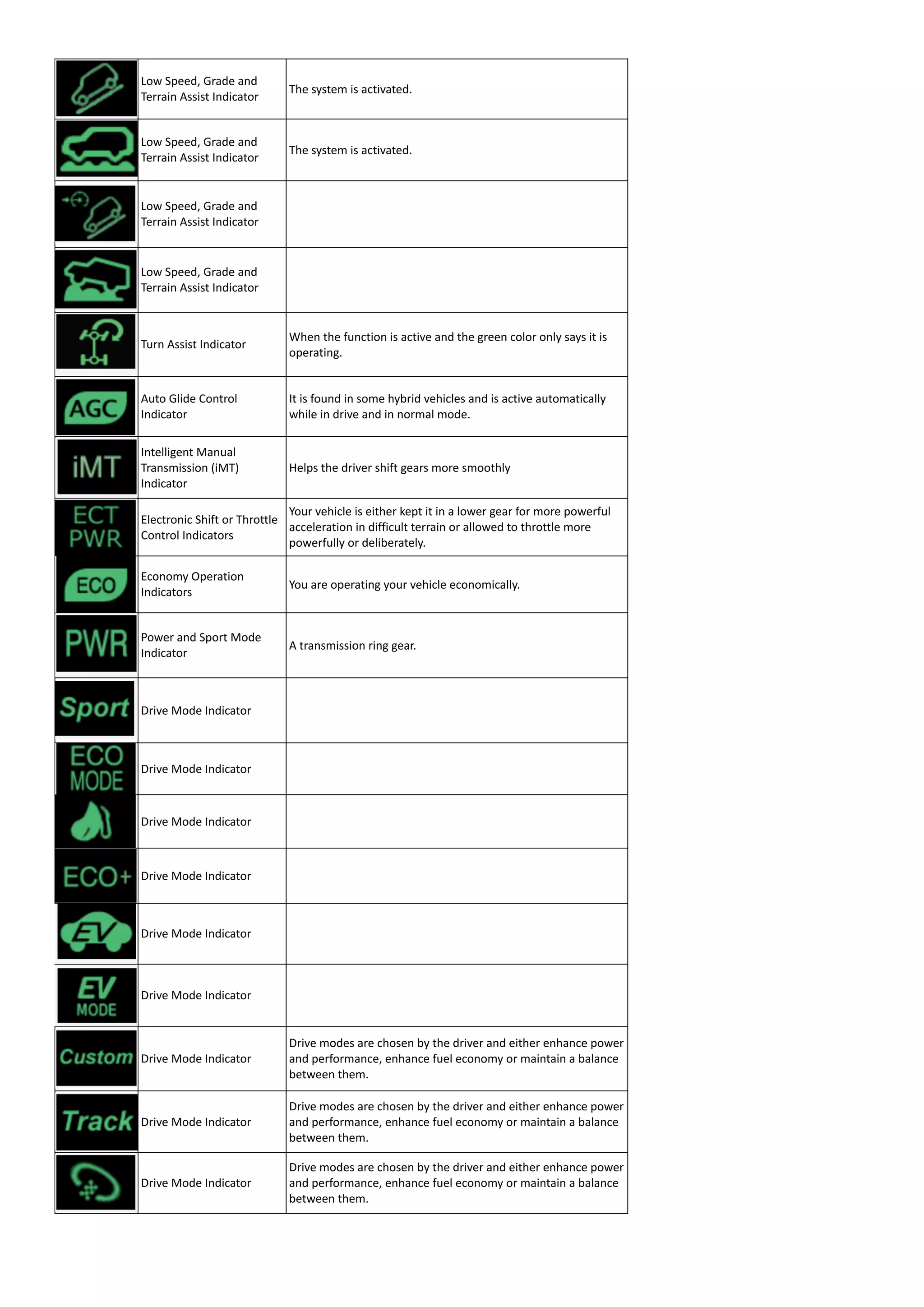

Low Speed, Grade and Terrain Assist Indicator The system is activated. Low Speed, Grade and Terrain Assist Indicator The system is activated. Low Speed, Grade and Terrain Assist Indicator Low Speed, Grade and Terrain Assist Indicator Turn Assist Indicator When the function is active and the green color only says it is operating. Auto Glide Control Indicator It is found in some hybrid vehicles and is active automatically while in drive and in normal mode. Intelligent Manual Transmission (iMT) Indicator Helps the driver shift gears more smoothly Electronic Shift or Throttle Control Indicators Your vehicle is either kept it in a lower gear for more powerful acceleration in difficult terrain or allowed to throttle more powerfully or deliberately. Economy Operation Indicators You are operating your vehicle economically. Power and Sport Mode Indicator A transmission ring gear. Drive Mode Indicator Drive Mode Indicator Drive Mode Indicator Drive Mode Indicator Drive Mode Indicator Drive Mode Indicator Drive Mode Indicator Drive modes are chosen by the driver and either enhance power and performance, enhance fuel economy or maintain a balance between them. Drive Mode Indicator Drive modes are chosen by the driver and either enhance power and performance, enhance fuel economy or maintain a balance between them. Drive Mode Indicator Drive modes are chosen by the driver and either enhance power and performance, enhance fuel economy or maintain a balance between them.

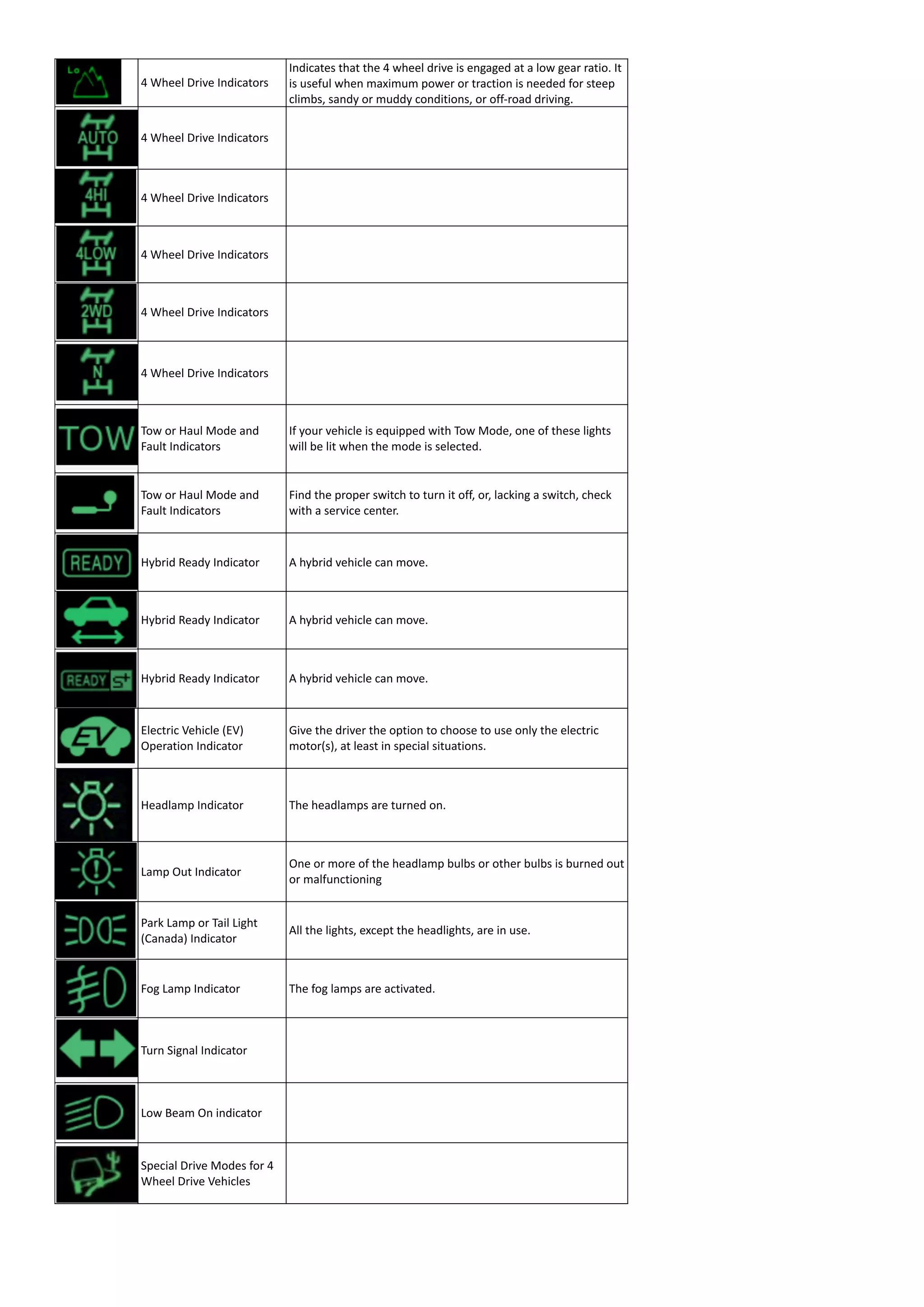

4 Wheel Drive Indicators Indicates that the 4 wheel drive is engaged at a low gear ratio. It is useful when maximum power or traction is needed for steep climbs, sandy or muddy conditions, or off-road driving. 4 Wheel Drive Indicators 4 Wheel Drive Indicators 4 Wheel Drive Indicators 4 Wheel Drive Indicators 4 Wheel Drive Indicators Tow or Haul Mode and Fault Indicators If your vehicle is equipped with Tow Mode, one of these lights will be lit when the mode is selected. Tow or Haul Mode and Fault Indicators Find the proper switch to turn it off, or, lacking a switch, check with a service center. Hybrid Ready Indicator A hybrid vehicle can move. Hybrid Ready Indicator A hybrid vehicle can move. Hybrid Ready Indicator A hybrid vehicle can move. Electric Vehicle (EV) Operation Indicator Give the driver the option to choose to use only the electric motor(s), at least in special situations. Headlamp Indicator The headlamps are turned on. Lamp Out Indicator One or more of the headlamp bulbs or other bulbs is burned out or malfunctioning Park Lamp or Tail Light (Canada) Indicator All the lights, except the headlights, are in use. Fog Lamp Indicator The fog lamps are activated. Turn Signal Indicator Low Beam On indicator Special Drive Modes for 4 Wheel Drive Vehicles

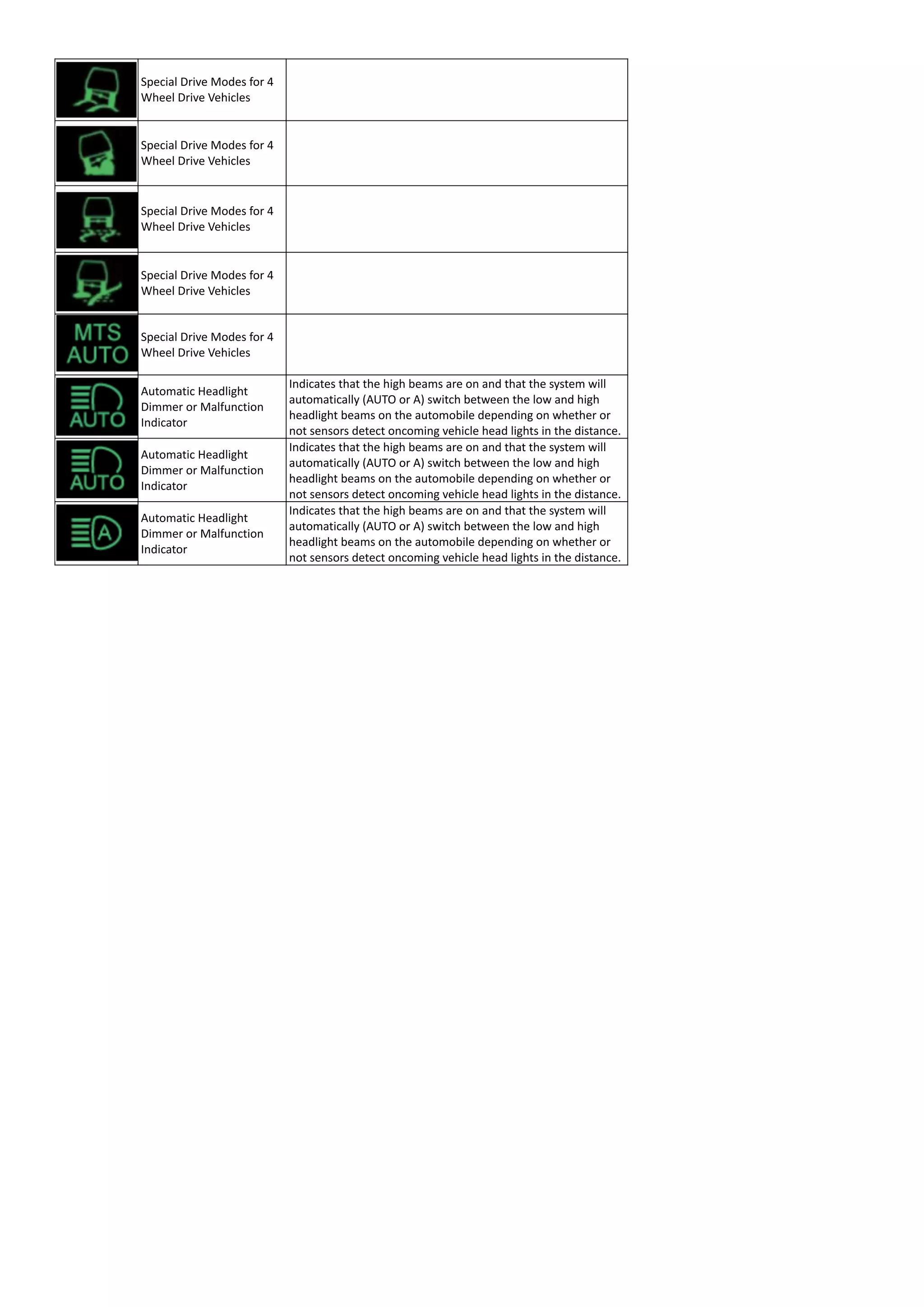

Special Drive Modes for 4 Wheel Drive Vehicles Special Drive Modes for 4 Wheel Drive Vehicles Special Drive Modes for 4 Wheel Drive Vehicles Special Drive Modes for 4 Wheel Drive Vehicles Special Drive Modes for 4 Wheel Drive Vehicles Automatic Headlight Dimmer or Malfunction Indicator Indicates that the high beams are on and that the system will automatically (AUTO or A) switch between the low and high headlight beams on the automobile depending on whether or not sensors detect oncoming vehicle head lights in the distance. Automatic Headlight Dimmer or Malfunction Indicator Indicates that the high beams are on and that the system will automatically (AUTO or A) switch between the low and high headlight beams on the automobile depending on whether or not sensors detect oncoming vehicle head lights in the distance. Automatic Headlight Dimmer or Malfunction Indicator Indicates that the high beams are on and that the system will automatically (AUTO or A) switch between the low and high headlight beams on the automobile depending on whether or not sensors detect oncoming vehicle head lights in the distance.

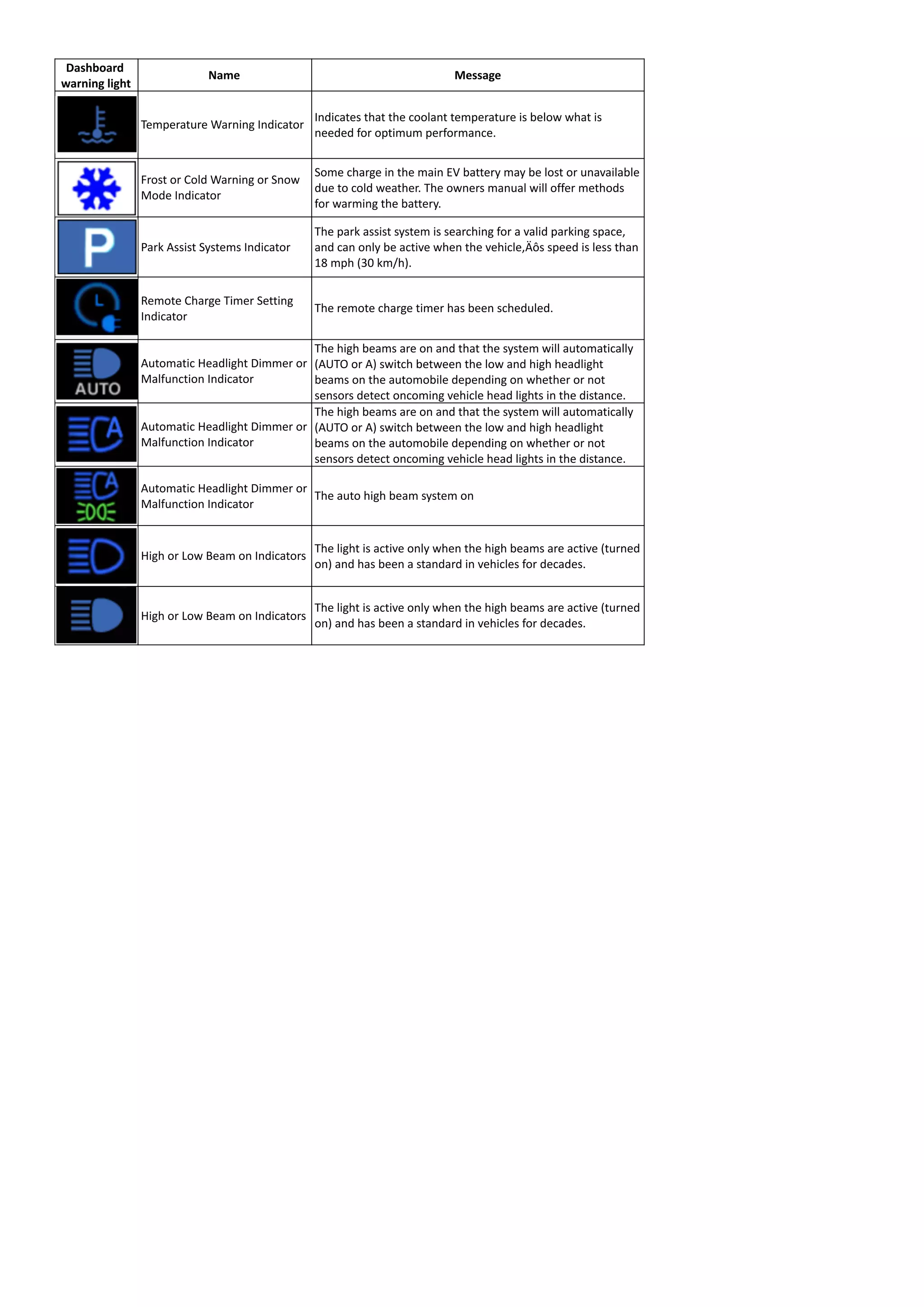

Dashboard warning light Name Message Temperature Warning Indicator Indicates that the coolant temperature is below what is needed for optimum performance. Frost or Cold Warning or Snow Mode Indicator Some charge in the main EV battery may be lost or unavailable due to cold weather. The owners manual will offer methods for warming the battery. Park Assist Systems Indicator The park assist system is searching for a valid parking space, and can only be active when the vehicle’s speed is less than 18 mph (30 km/h). Remote Charge Timer Setting Indicator The remote charge timer has been scheduled. Automatic Headlight Dimmer or Malfunction Indicator The high beams are on and that the system will automatically (AUTO or A) switch between the low and high headlight beams on the automobile depending on whether or not sensors detect oncoming vehicle head lights in the distance. Automatic Headlight Dimmer or Malfunction Indicator The high beams are on and that the system will automatically (AUTO or A) switch between the low and high headlight beams on the automobile depending on whether or not sensors detect oncoming vehicle head lights in the distance. Automatic Headlight Dimmer or Malfunction Indicator The auto high beam system on High or Low Beam on Indicators The light is active only when the high beams are active (turned on) and has been a standard in vehicles for decades. High or Low Beam on Indicators The light is active only when the high beams are active (turned on) and has been a standard in vehicles for decades.

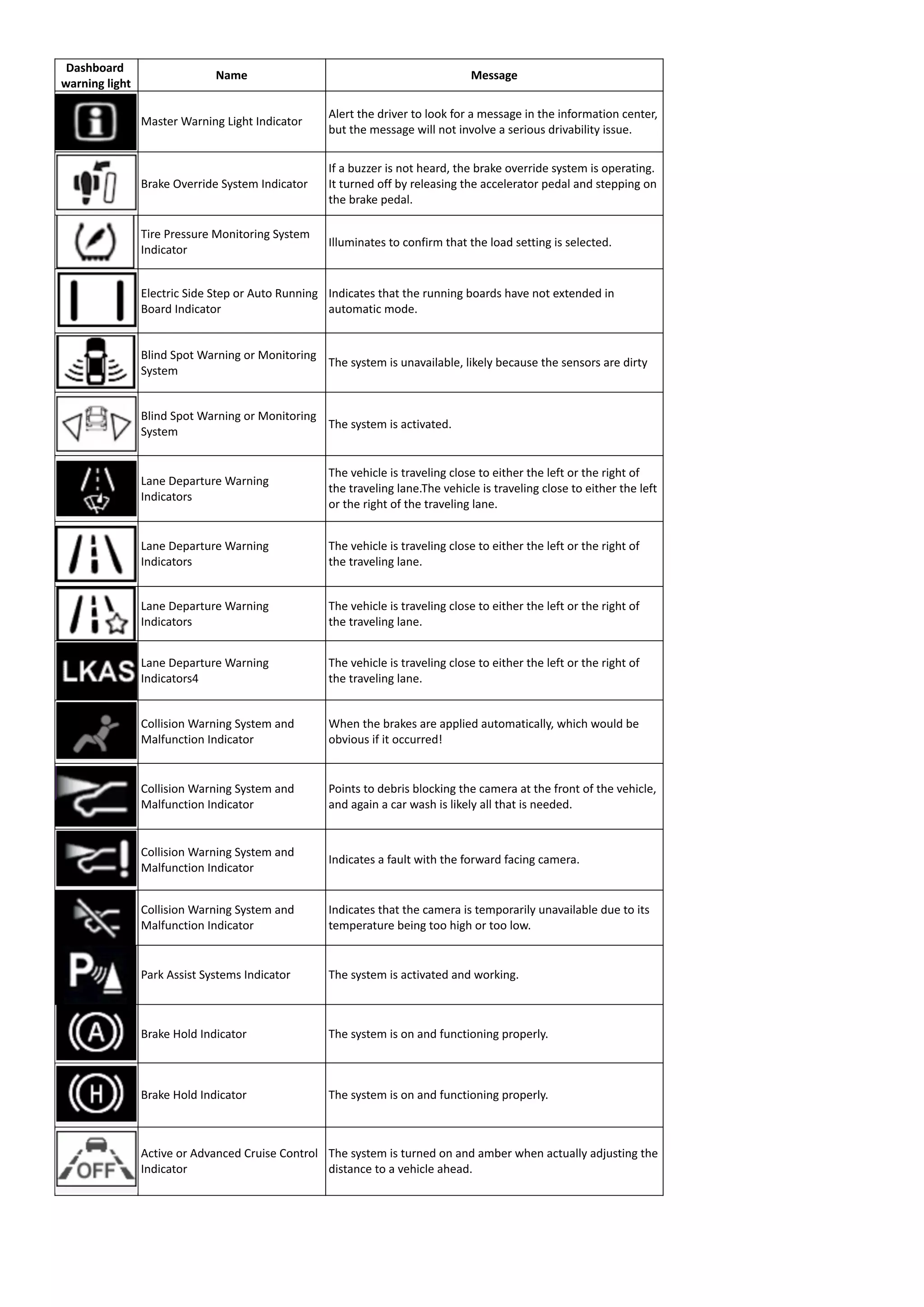

Dashboard warning light Name Message Master Warning Light Indicator Alert the driver to look for a message in the information center, but the message will not involve a serious drivability issue. Brake Override System Indicator If a buzzer is not heard, the brake override system is operating. It turned off by releasing the accelerator pedal and stepping on the brake pedal. Tire Pressure Monitoring System Indicator Illuminates to confirm that the load setting is selected. Electric Side Step or Auto Running Board Indicator Indicates that the running boards have not extended in automatic mode. Blind Spot Warning or Monitoring System The system is unavailable, likely because the sensors are dirty Blind Spot Warning or Monitoring System The system is activated. Lane Departure Warning Indicators The vehicle is traveling close to either the left or the right of the traveling lane.The vehicle is traveling close to either the left or the right of the traveling lane. Lane Departure Warning Indicators The vehicle is traveling close to either the left or the right of the traveling lane. Lane Departure Warning Indicators The vehicle is traveling close to either the left or the right of the traveling lane. Lane Departure Warning Indicators4 The vehicle is traveling close to either the left or the right of the traveling lane. Collision Warning System and Malfunction Indicator When the brakes are applied automatically, which would be obvious if it occurred! Collision Warning System and Malfunction Indicator Points to debris blocking the camera at the front of the vehicle, and again a car wash is likely all that is needed. Collision Warning System and Malfunction Indicator Indicates a fault with the forward facing camera. Collision Warning System and Malfunction Indicator Indicates that the camera is temporarily unavailable due to its temperature being too high or too low. Park Assist Systems Indicator The system is activated and working. Brake Hold Indicator The system is on and functioning properly. Brake Hold Indicator The system is on and functioning properly. Active or Advanced Cruise Control Indicator The system is turned on and amber when actually adjusting the distance to a vehicle ahead.

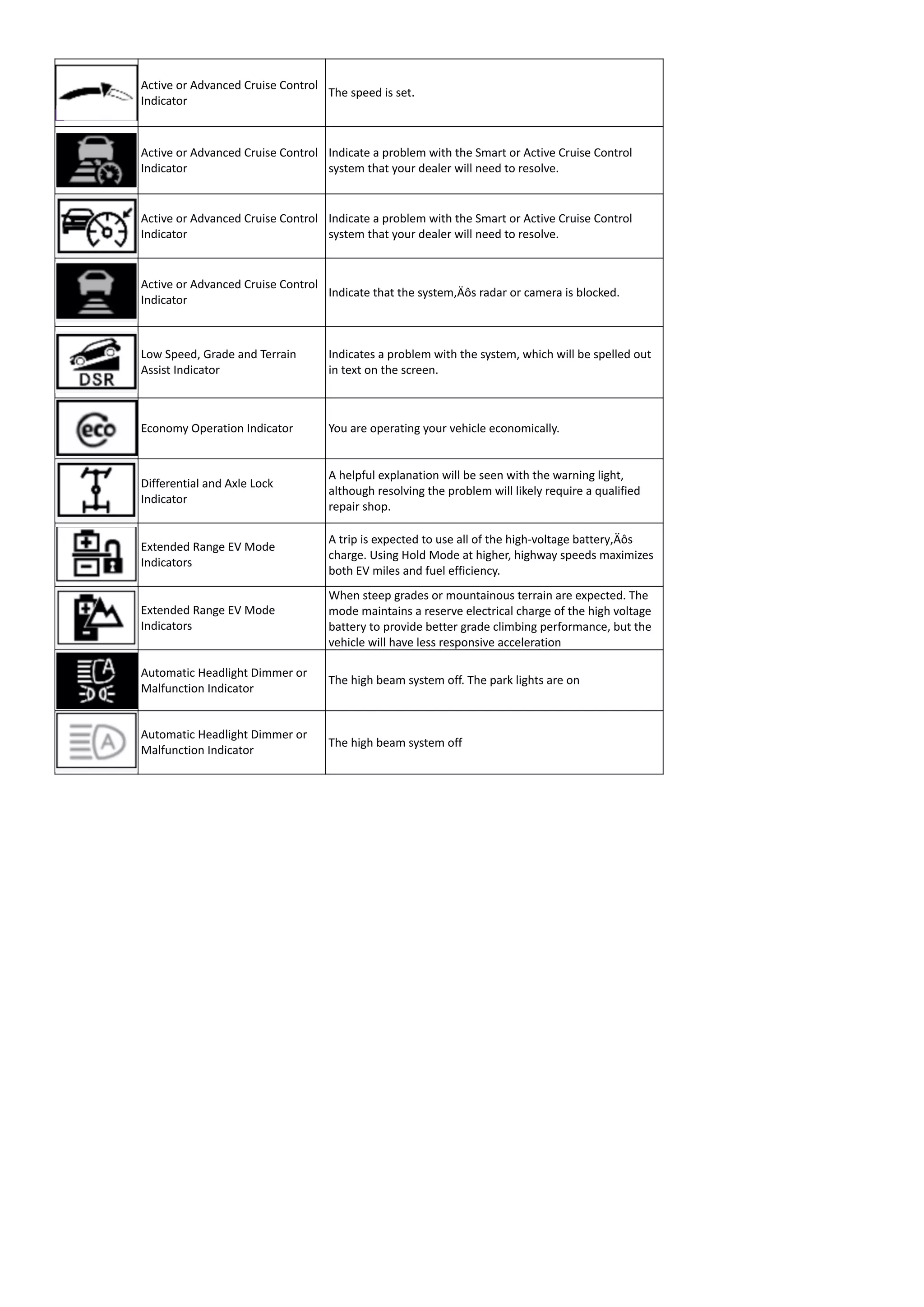

Active or Advanced Cruise Control Indicator The speed is set. Active or Advanced Cruise Control Indicator Indicate a problem with the Smart or Active Cruise Control system that your dealer will need to resolve. Active or Advanced Cruise Control Indicator Indicate a problem with the Smart or Active Cruise Control system that your dealer will need to resolve. Active or Advanced Cruise Control Indicator Indicate that the system’s radar or camera is blocked. Low Speed, Grade and Terrain Assist Indicator Indicates a problem with the system, which will be spelled out in text on the screen. Economy Operation Indicator You are operating your vehicle economically. Differential and Axle Lock Indicator A helpful explanation will be seen with the warning light, although resolving the problem will likely require a qualified repair shop. Extended Range EV Mode Indicators A trip is expected to use all of the high-voltage battery’s charge. Using Hold Mode at higher, highway speeds maximizes both EV miles and fuel efficiency. Extended Range EV Mode Indicators When steep grades or mountainous terrain are expected. The mode maintains a reserve electrical charge of the high voltage battery to provide better grade climbing performance, but the vehicle will have less responsive acceleration Automatic Headlight Dimmer or Malfunction Indicator The high beam system off. The park lights are on Automatic Headlight Dimmer or Malfunction Indicator The high beam system off
