G+G Foal 2023 AIA Submission

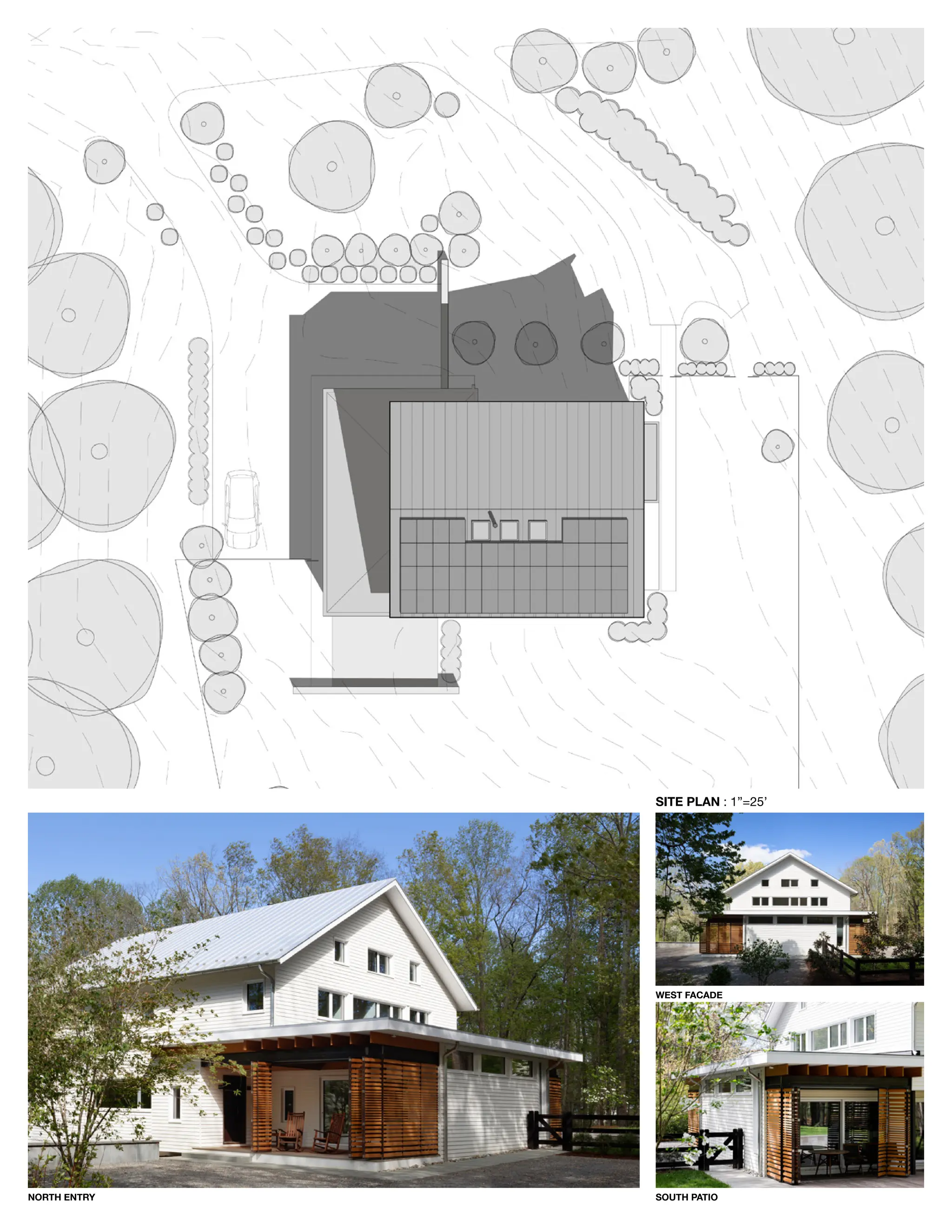

- 1. SITE PLAN :1”=25’ NORTH ENTRY SOUTH PATIO WEST FACADE

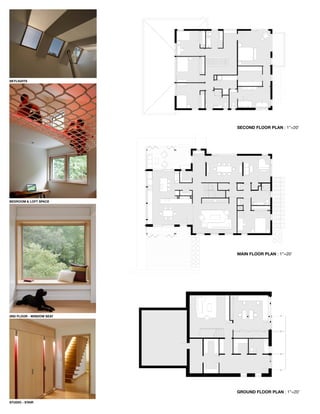

- 2. MAIN FLOOR PLAN: 1”=20’ GROUND FLOOR PLAN : 1”=20’ SECOND FLOOR PLAN : 1”=20’ STUDIO - STAIR 2ND FLOOR - WINDOW SEAT BEDROOM & LOFT SPACE SKYLIGHTS

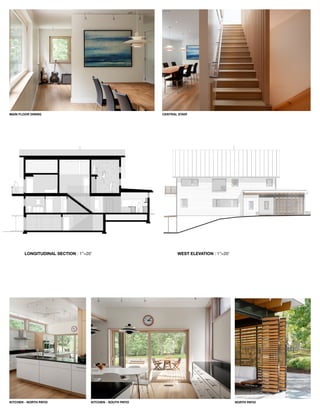

- 3. LONGITUDINAL SECTION :1”=20’ WEST ELEVATION : 1”=20’ MAIN FLOOR DINING CENTRAL STAIR KITCHEN - NORTH PATIO KITCHEN - SOUTH PATIO NORTH PATIO

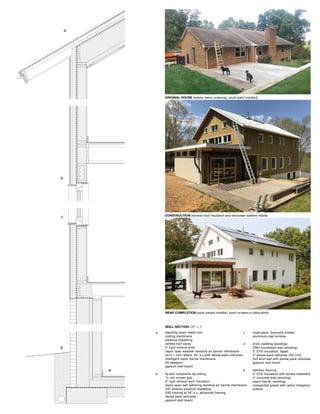

- 4. ORIGINAL HOUSE (interiordemo underway, south patio installed) CONSTRUCTION (mineral wool insulation and rainscreen battens visible) a standing seam metal roof roofing membrane plywood sheathing vented roof cavity 2” rigid mineral wool vapor open weather resistive air barrier membrane 2x12 + 2x2 rafters, 24” o.c.with dense-pack cellulose intelligent vapor barrier membrane 2X sleepers gypsum wall board b fly-ash composite lap siding 1x rain screen gap 3” rigid mineral wool insulation vapor open self-adhering resistive air barrier membrane 3/4” exterior plywood sheathing 2X6 framing at 24” o.c. advanced framing dense pack cellulose gypsum wall board c triple-pane, thermally broken, aluminum-clad window d brick cladding (existing) CMU foundation wall (existing) 2” EPS insulation, taped 2” dense-pack cellulose (R3.7/in) 2x4 stud wall with dense-pack cellulose gypsum wall board e bamboo flooring 2” EPS insulation with borate treatment 4” concrete slab (existing) vapor barrier (existing) compacted gravel with radon mitigation subsoil NEAR COMPLETION (solar panels installed, porch screens in fabrication) a b c d e a b c d e WALL SECTION 1/2” = 1’

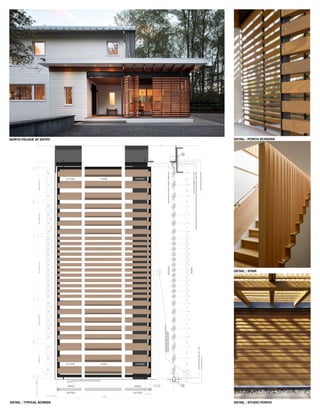

- 5. NORTH FACADE ATENTRY DETAIL : PORCH SCREENS DETAIL : STAIR DETAIL : STUDIO PORCH DETAIL : TYPICAL SCREEN
