Session from the TYPO3 Camp Mitteldeutschland in Dresden that explains the basic concepts of the FLUID tempalting in the TYPO3 solr search extension

1. EXT:solr and FLUID:
Use FLUID templating for your search
1

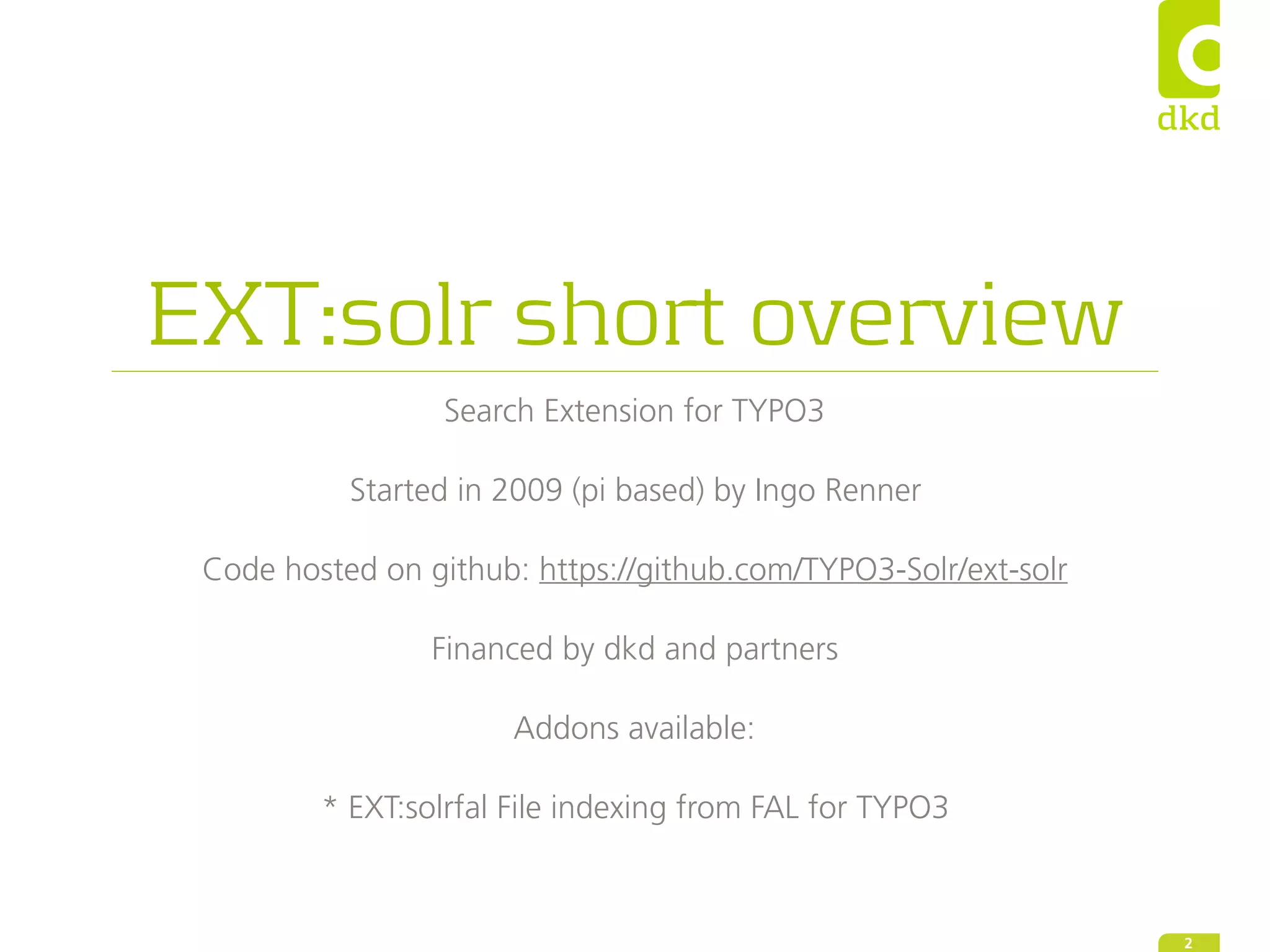

2. EXT:solr short overview
Search Extension for TYPO3
Started in 2009 (pi based) by Ingo Renner
Code hosted on github: https://github.com/TYPO3-Solr/ext-solr
Financed by dkd and partners
Addons available:
* EXT:solrfal File indexing from FAL for TYPO3
2

3. About me
3
Timo Hund
33 years old
@TYPO3 since: 2003
@Apache Solr since: 2009
@dkd since: 2015
Email: timo.hund@dkd.de
Xing: https://www.xing.com/profile/Timo_Hund2
Github: https://github.com/timohund
Twitter: @TimoHund

4. Our team
4
Olivier
Dobberkau
Timo
Hund
Ingo
Renner
Markus
Friedrich
Thomas
Janke
Development Development Development Management Management
Rafael
Kähm
Development

5. Useful links
• Blogpost of solrfuid 1.0:
http://www.typo3-solr.com/en/blog/details/news/
solrfluid_100_has_been_released/
• Customizing boilerplate extension:
https://github.com/TYPO3-Solr/ext-solrfluidexample
• Slack channel:
https://typo3.slack.com/messages/ext-solr
• Documentation:
https://www.typo3-solr.com/en/solr-for-typo3/documentation/
5

6. Overview
Available frontend plugins and what they do…
6

7. Searchbox
7
• Renders the search form only
• Can be used as entry point from outside to start a search
• Triggers SearchController::formAction

8. Searchbox
8

9. Frequent searches
9
• Renders frequent searches from the statistics
• Triggers SearchController::frequentlySearchedAction()

10. Frequent searches
10

11. Search resultlist
11
• Renders the search results (Form, Results, AdditionalComponents)
• Triggers SearchController::resultsAction()

12. Search resultlist
12

13. Concepts & Structure
Concepts & Structure of the FLUID templating in EXT:solr
13(c) by Timo Hund & dkd Internet Service GmbH (Copy for internal use only).

14. Marker based templating
• Default before EXT:solr 7.0.0
(FLUID was not available when EXT:solr was started)
• Extended marker concept of the core (loops, if/else, …), innovative at
that time…
• Limitations
• No Partials
• Limited ViewHelpers
• Additional learning
• Implicite loading of JS and CSS files
• Spreathed logic for url generation
• Templateengine was part of the extension => more maintenance
• PI based (No MVC)
14

15. FLUID based templating
• Since 7.0.0 part of EXT:solr
• Brings
• Domain model for Results/Facets/Sorting/…
• Extbase controllers (MVC & DDD Pattern)
• Default fluid layouts/partials and templates
• ViewHelpers needed for search
• Unified url generation
• Performance improvements
15

16. 16
What happens when the
User hits „Search“?

17. 17
Browser
HTTP GET
HTTP GET
JsonHtml

18. 18
Browser
HTTP GET
HTTP GET
JsonHtml

19. 19
• Simplified sequence diagram
• The searchAction passes the SearchResultSet to the view
• The SearchResultSet can be used to access results, facets,…

20. 20
Browser
HTTP GET
HTTP GET
JsonHtml

21. Example query and response
http://8.7.local.typo3.org:8083/solr/core_en/select?fl=*,score
&fq=siteHash:“9e9d76a598c63d4ff578fea5c5254c27d9554fc6"
&fq={typo3access}-1,0
&debugQuery=true
&echoParams=all
&spellcheck.maxCollationTries=1
&qf=content^40.0 title^5.0 keywords^2.0 tagsH1^5.0 tagsH2H3^3.0 tagsH4H5H6^2.0 tagsInline&hl=true
&hl.fragsize=200
&hl.fl=content
&facet=true
&facet.mincount=1
&facet.limit=100&facet.field=type
&facet.field=keywords_stringM
&facet.query=created:[NOW/DAY-7DAYS TO *]
&facet.query=created:[NOW/DAY-1MONTH TO NOW/DAY-7DAYS]
&facet.query=created:[NOW/DAY-6MONTHS TO NOW/DAY-1MONTH]
&facet.query=created:[NOW/DAY-1YEAR TO NOW/DAY-6MONTHS]
&facet.query=created:[* TO NOW/DAY-1YEAR]
&facet.sort=count
&wt=json
&json.nl=map&q=cms&start=0&rows=10
21
EXT:solr builds this query
for your and queries the
Apache Solr Server

22. Example query and response
22
Apache Solr delivers a json/xml
response that contains facets, results …
EXT:solr creates the SearchResultSet from
that.
The SearchResultSet can be used to access
all needed data for the output

23. Search resultlist
23
FormSorting
Facet Area Results
Last Searches
Frequent Searches

24. Get domain objects from SearchResultSet
24

25. 25
Example:
<f:for each="{resultSet.searchResults}" as="result">
<h1>{result.title}</h1>
</f:for>
Get domain objects from SearchResultSet

26. Example:
<f:for each="{resultSet.facets.available}" as="facet">
<h1>{facet.label}</h1>
<f:for each="{facet.options}" as=“option“>
{option.label}
</f:for>
</f:for>
26
options, hierarchy, queryGroup
numericRange & dateRange
Get domain objects from SearchResultSet

27. Get domain objects from SearchResultSet
27
Example:
<f:if condition="{resultSet.sortings.hasSelected}">
<p>{resultSet.sortings.selected.label}</p>
</f:if>

28. Get domain objects from SearchResultSet
28
Example:
<p>{resultSet.usedSearchRequest.page}</p>

29. FLUID templates
overview
29

30. Search resultlist
30
FormSorting
Facet Area Results
Last Searches
Frequent Searches
• Rendering starts in: EXT:solr/Resources/Private/Templates/Search/Results.html

31. Search results
How to the search results are rendered
31

32. Search resultlist
32
Results

33. Search resultlist
<f:if condition="{hasSearched}">
<f:if condition="{resultSet.usedSearch.numberOfResults}">
<f:render partial="Result/PerPage" section="PerPage" arguments="{resultSet: resultSet}" />
</f:if>
<s:widget.resultPaginate resultSet="{resultSet}">
<ol start="{pagination.displayRangeStart}" class="results-list">
<f:for each="{documents}" as="document">
<f:render partial="Result/Document" section="Document"
arguments="{resultSet:resultSet, document:document}" />
</f:for>
</ol>
</s:widget.resultPaginate>
</f:if>
33
Every document is passed
to the Results/Document
partial to render the
search result
• You can use: EXT:solr/Resources/Private/Partials/Result/Document.html and
adapt it to your needs.

34. Faceting
What are facets and how to configure them?
34

35. Faceting
35
Facet Area

36. Faceting
• Facets help the user to „narrow down“ or „filter“ the results, to find
what he is looking for.
• Based on a solr field
• Configured with TypoScript
• Have different types
• Option
• Query Group
• Hierarchical
• Date Range
• Numeric Range
36

37. Example
Content type facet of a page:
plugin.tx_solr.search.faceting.facets {
type {
label = Content Type
field = type
type = options*
}
}
*type „options“ is default
37

38. Available option based facets
38
options
hierarchy
queryGroup
Flat list of selectable options
Nested tree of options
Flat list based on solr querys
Example: EXT:solr/Configuration/TypoScript/Examples/Facets/QueryGroup/setup.txt
Example: EXT:solr/Configuration/TypoScript/Examples/Facets/Hierarchy/setup.txt
Default Partial: EXT:solr/Resources/Private/Partials/Facets/Options.html
Default Partial: EXT:solr/Resources/Private/Partials/Facets/Hierarchy.html
Default Partial: EXT:solr/Resources/Private/Partials/Facets/Options.html

39. Available range based facets
39
numericRange
dateRange
Numeric range between a
min and max value
Date range between a start and
end date
Example: EXT:solr/Configuration/TypoScript/Examples/Facets/NumericRange/setup.txt
Example: EXT:solr/Configuration/TypoScript/Examples/Facets/DateRange/setup.txt
Default Partial: EXT:solr/Resources/Private/Partials/Facets/NumericRange.html
Default Partial: EXT:solr/Resources/Private/Partials/Facets/DateRange.html

40. Customizing
Use custom Templates / Partials or ViewHelpers
40

41. Resources
• EXT:solrfluidexample - example extension that shows how to use:
• Custom Templates
• Custom Translations
• Custom ViewHelpers
• https://github.com/TYPO3-Solr/ext-solrfluidexample
• EXT:solr documentation:
• https://docs.typo3.org/typo3cms/extensions/solr/
41

42. Custom templates
Use templates for a custom extension
42

43. Using FLUID rootPaths
• FLUID supports fallbacks:
plugin.tx_solr.view {
partialRootPaths {
0 = EXT:solr/Resources/Private/Partials/
100 = EXT:myextension/Resources/Private/Partials/
}
templateRootPaths {
0 = EXT:solr/Resources/Private/Templates/
100 = EXT:myextension/Resources/Private/Templates/
}
}
• See also: https://www.fiedomedia.de/news/artikel/template-fallbacks-in-typo3-fluid/
43

44. Custom facet partials
How to render facets in a custom partials
44

45. Use custom facet partial
Change the partialName to „Custom“ in TypoScript:
plugin.tx_solr.search.faceting.facets {
category {
label = Category
field = keywords_stringM
type = options
partialName = Custom
}
}
Copy the default partial „Options.html“ to
„Custom.html“
Use the core ViewHelper to make the option uppercase:
{option.label} => <f:format.case value="{option.label}" mode="upper"/>
45
