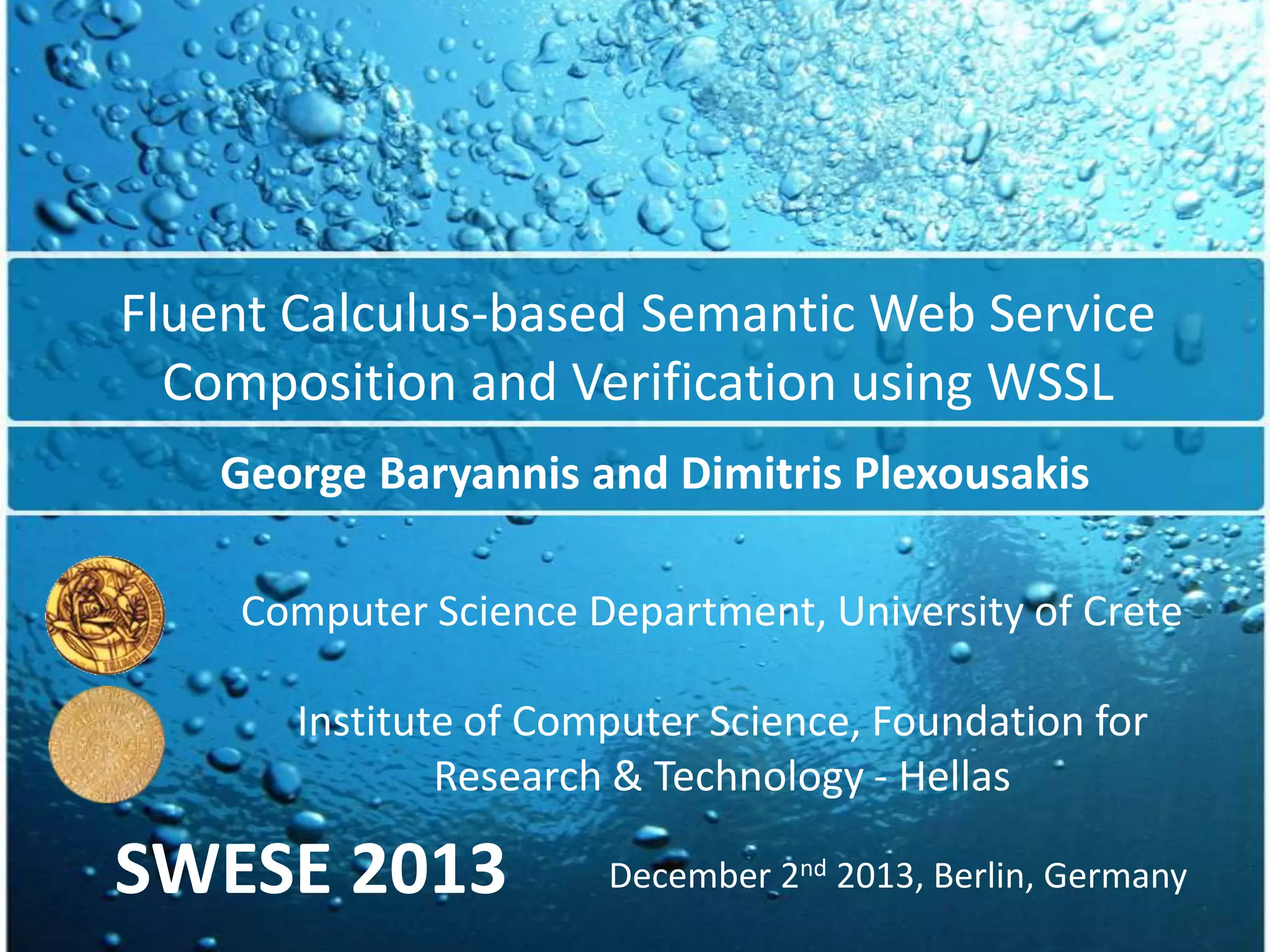

Fluent Calculus-based Semantic Web Service Composition and Verification using WSSL

Fluent Calculus-based Semantic Web Service
Composition and Verification using WSSL
George Baryannis and Dimitris Plexousakis
Computer Science Department, University of Crete

Institute of Computer Science, Foundation for
Research & Technology - Hellas

SWESE 2013

December 2nd 2013, Berlin, Germany

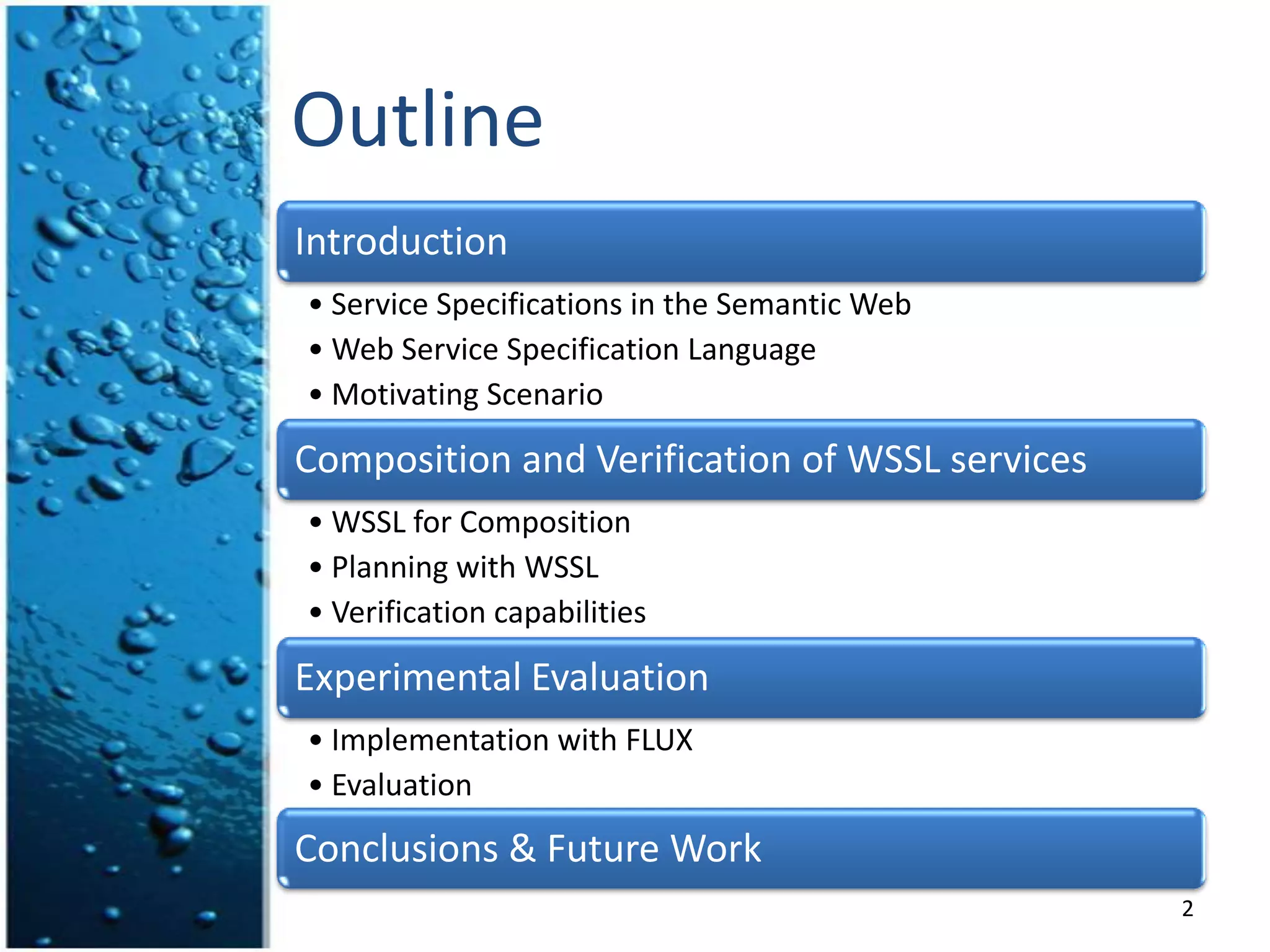

Outline
Introduction
• Service Specifications in the Semantic Web
• Web Service Specification Language
• Motivating Scenario

Composition and Verification of WSSL services
• WSSL for Composition
• Planning with WSSL
• Verification capabilities

Experimental Evaluation
• Implementation with FLUX
• Evaluation

Conclusions & Future Work
2

Service Specifications in the Semantic Web (1)
• Service behavior can be formally modeled using
semantic specifications
– in the form of Inputs, Outputs, Preconditions and
Effects (IOPEs)
– using concepts defined in ontologies

• Such specifications drive the complete service
lifecycle
– Automated and effective composition based on
accurately defined service behavior
– Verification of (composite) service properties against
such specifications


3

• Specifications including pre/postconditions are
prone to three well-known problems in AI
literature
1. Frame Problem: how to effectively express what
doesn’t change, apart from what’s changed,
based on a specification
– e.g., how to answer definitively whether a money
withdrawal service doesn’t affect other accounts

2. Ramification Problem: how to represent knockon and indirect effects (ramifications)
– e.g., invalidate a credit card after the latest
transaction causes a daily limit to be reached


4

3. Qualification Problem: how to deal with
qualifications that are outside our knowledge
and result in inconsistent behavior
– e.g., all preconditions hold for a money withdrawal
service but no effects occur after executing it

• We addressed all three problems by defining the
Web Service Specification Language (WSSL), a
formal semantic language based on the fluent
calculus


5

WSSL Overview (1)



6

WSSL Overview (2)



7

WSSL Overview (3)



8

WSSL Placement
USDL

Higherlevel

SoaML
WSSL
OWL-S

WSMO

SAWSDL

Semantics/
Behavior

WSDL


Ground

9

Motivating Scenario (1)
• Service-based process of assisting vehicle drivers
– Users contact road assistance via call or SMS
– Driver’s location and vehicle status are retrieved and a search
for the most suitable mechanic is conducted
– After resolving the issue a payment process follows and a
report is sent to the driver by post or e-mail

• Given a set of service specifications, we want to
automatically create a composite process that realizes the
scenario
– Taking into account ramifications of services
– Determining execution results even under unforeseen
circumstances
– Verify the composability and correctness of a candidate
composite process


10

Motivating Scenario (2)



11

Outline
Introduction


• Evaluation

12

WSSL for Composition (1)



13

Planning with WSSL (1)



14

• Introduce heuristics to
– produce more than sequential-only plans
– address issues of termination and computation
complexity

• Heuristic encoding of a WSSL planning problem:
a FLUX program describing how to reach the goal
state from the initial state
• As the heuristics grow more and more restrictive,
the complexity of the planner decreases (and
termination probability increases)


15

• The most restrictive example encoding for the motivating scenario:
assist_plan(Z,[A|P],Z_PR) :- A1=receivesms(_,_),
A2=receivecall(_,_), A=xor(A1,A2), poss_xor(A1,A2,Z),
state_update_xor(Z,A1,A2, Z_1), assist_plan1(Z_1,P,Z_PR).
assist_plan1(Z,[A|P],Z_PR) :- A1=retrievelocation(_,_,_),
A2=retrievediagnostics(_,_,_), A=and(A1, A2), poss_and(A1,A2,Z),
state_update_and(Z,A1,A2,Z_1),assist_plan2(Z_1,P,Z_PR).
assist_plan2(Z,[A|P],Z_PR) :- A=findmech(_,_,_), poss(A,Z),
state_update(Z,A,Z_1), assist_plan3(Z_1,P,Z_PR).
assist_plan3(Z,[A|P],Z_PR) :- A=receivepay(_, _), poss(A,Z),
state_update(Z,A,Z_1), assist_plan4(Z_1,P,Z_PR).
assist_plan4(Z,A,Z_PR) :- F=req_deliv(REPORT),
A1=ereport(_,_),A2=mreport(_,_), A=if(F,A1,A2),
poss_if(F,A1,A2,Z), state_update_if(Z,F,A1,A2,Z_PR).

• Any answer to the FLUX query
assist_plan([callcenterup, gpsactive(user1),
systemactive(vehicle1), req_deliv(report1)], P, Z_PR).

yields a plan that realizes the goals of the scenario


16

Verification Capabilities
• Focus mainly on answering questions about the
behavior of produced compositions
– Liveness properties: e.g., to prove that the produced plan
realizes the goals, we prove that either
holds(emailed(report,z) or
holds(delivered(report, z) in the final state z.
– Safety properties: e.g., make sure that payment is
performed for the correct payment form by proving
holds(hasinput(payform, z_in),
holds(paycompleted(payform, z)
– Explanations for unexpected behavior, thanks to WSSL’s
accident modeling, e.g., no report delivery after executing
the composition plan means accident failure(deliv)
has occurred


17

Outline
Introduction


• Evaluation

18

Implementation with FLUX
• Composition (and verification) goals and
candidate service specifications expressed in
WSSL are translated into FLUX
– JAVA used for the translation mechanism
– the ECLiPSe CLP system to execute FLUX queries



19

Evaluation (1)
• To investigate scalability of the composition
process we varied planning problem complexity
– by increasing service repository size (at the same time
increasing the difficulty of achieving the goal)
– by allowing for more elaborate plans

• Experiments relied on synthetically generated
specifications containing an IOPE quad (plus a
causal rule for the final experiment)
• Composition plans examined contained
sequential, parallel and alternating combination
of sequential and parallel constructs


20

Evaluation (2)

• Runtime stays at reasonable levels for up to 500 services and peaks
to 4sec for 1000 services and sequence/parallel combinations
• The inclusion of ramifications (a 50% increase in the size of
specifications) leads to a significant increase in runtime)
– In real-world problems only some postconditions are expected to be
linked to a ramification

21

Outline
Introduction


• Evaluation

22

Conclusions
• We proposed a service composition and verification
framework using WSSL, a novel specification language
for Web services based on the fluent calculus
– satisfying significant requirements such as automation,
dynamicity, and non-determinism
– supporting rich, semantic behavioral descriptions of
services and compositions
– exploiting WSSL’s solutions to the frame, ramification and
qualification problems

• The framework is an effective demonstration of
– the benefits of semantic specifications in the context of
service science
– the way to exploit such specifications for the purposes of
service composition and verification



23

Future Work

Extending WSSL
to support
quality aspects so
as to achieve
QoS-aware
service
composition and
verification

Future

Next

Currently

Improve efficiency
by investigating
complexity for
different
heuristics, limiting
search space
before planning,
exploring graphbased rule
optimization


Support knowledge
states and
comprehensive
modeling of
partially observable
behavior,
asynchronous
service execution,
and derivation of
executable
business processes


24

Questions

http://www.csd.uoc.gr/~gmparg/research.html


25
