1. FIWARE implementation of IDS concepts
( IDS コンセプトの FIWARE 実装)
Juanjo Hierro
FIWARE Foundation CTO
juanjose.hierro@fiware.org, @JuanjoHierro, @FIWARE
www.slideshare.net/JuanjoHierro
(Translated into Japanese by Kazuhito Suda k@fisuda.jp)

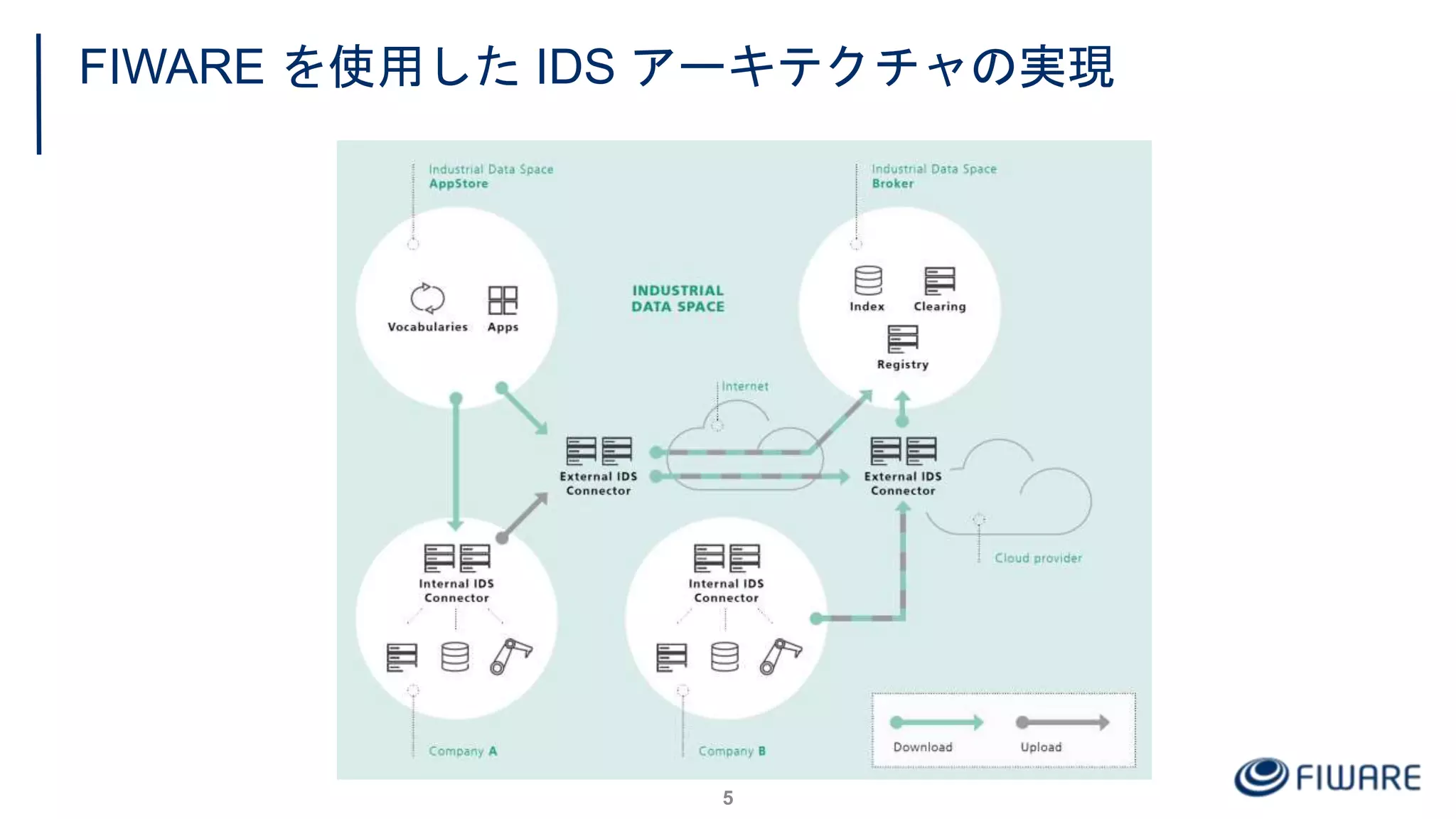

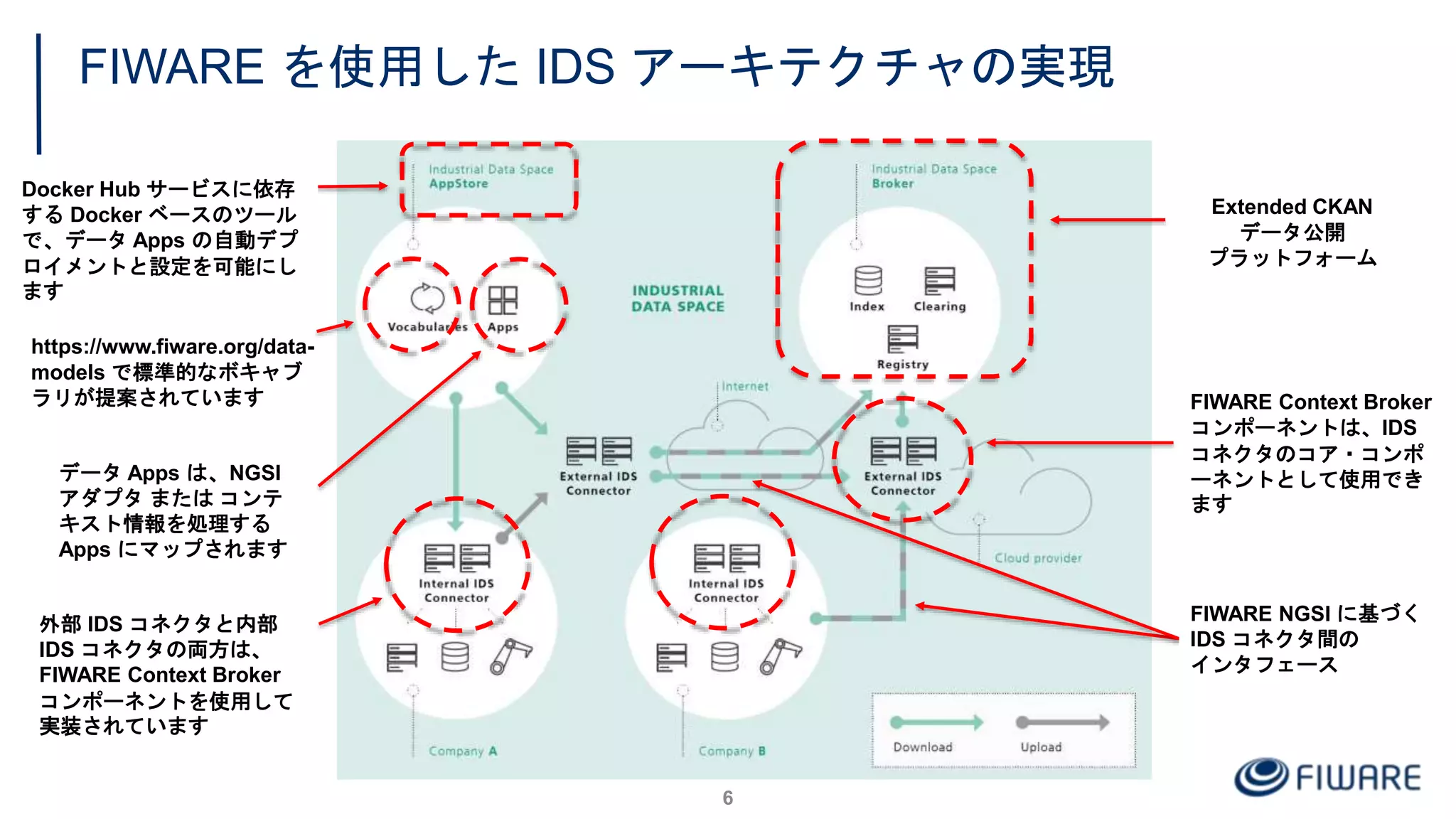

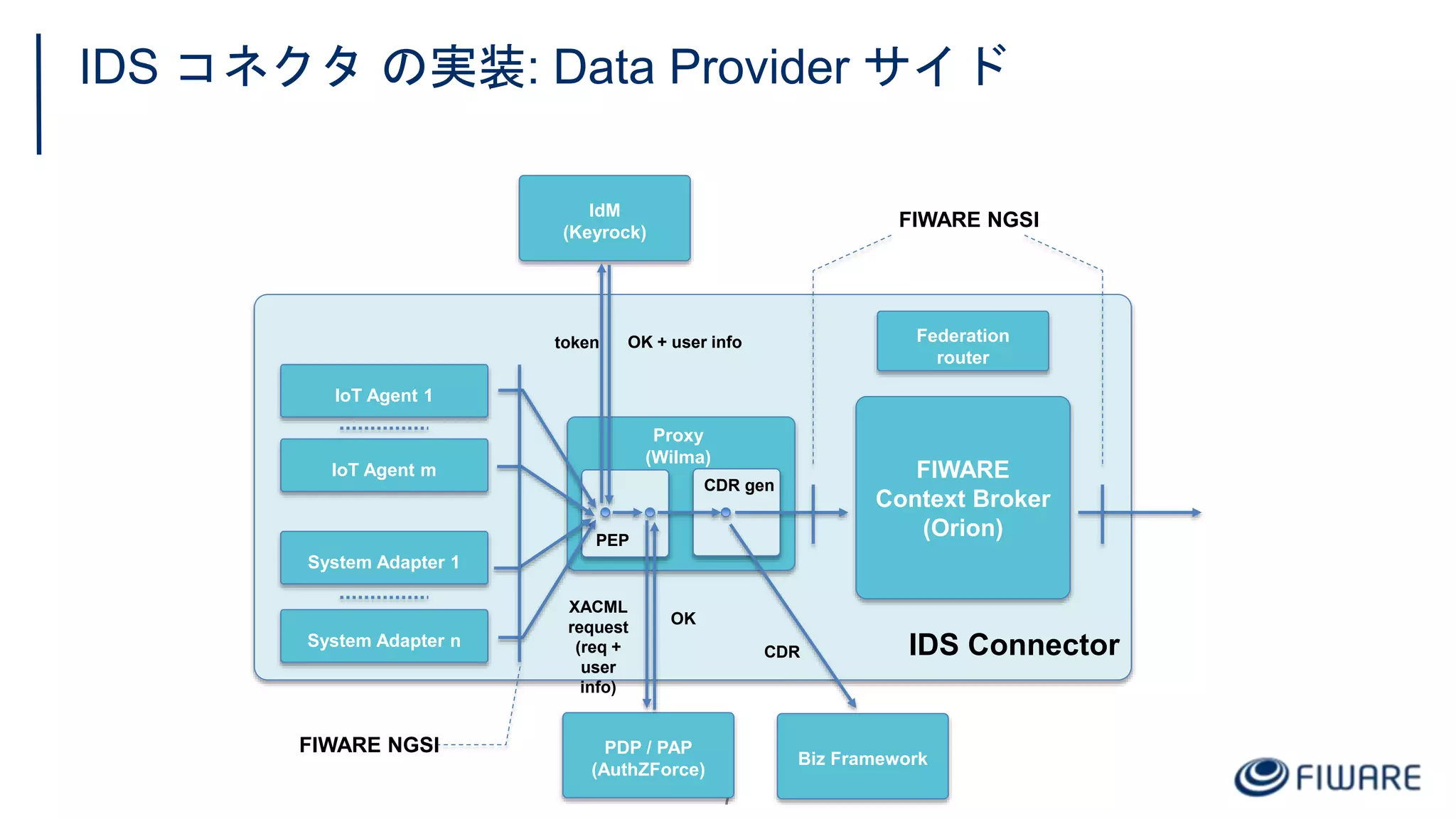

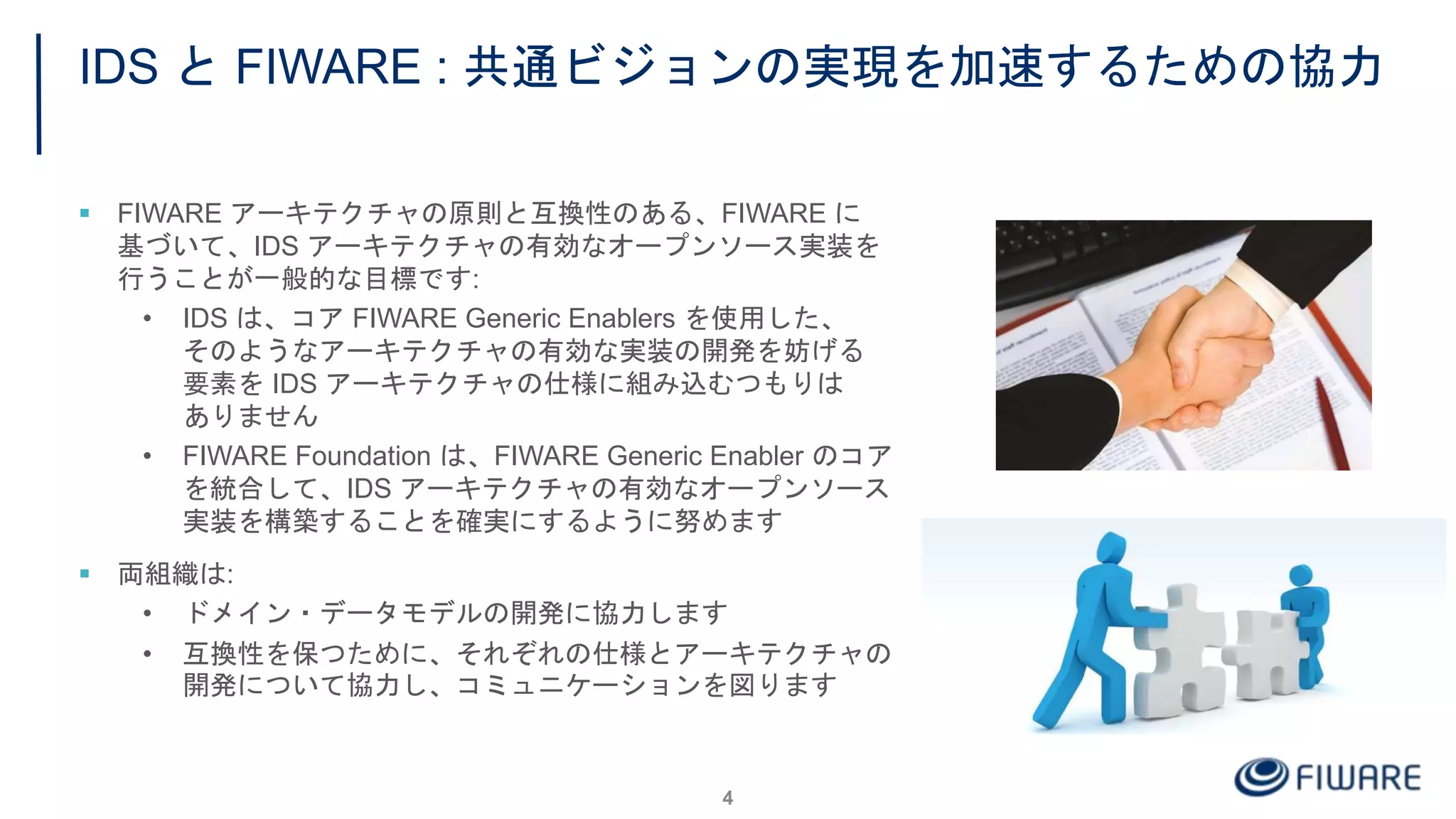

8. 7
FIWARE
Context Broker
(Orion)
PDP / PAP
(AuthZForce)
PEP
CDR gen
Biz Framework
IdM
(Keyrock)
Proxy
(Wilma)
Federation
router
IoT Agent 1
IoT Agent m
System Adapter 1
System Adapter n IDS Connector
token OK + user info
XACML
request
(req +
user
info)
OK
CDR
IDS コネクタ の実装: Data Provider サイド
FIWARE NGSI
FIWARE NGSI

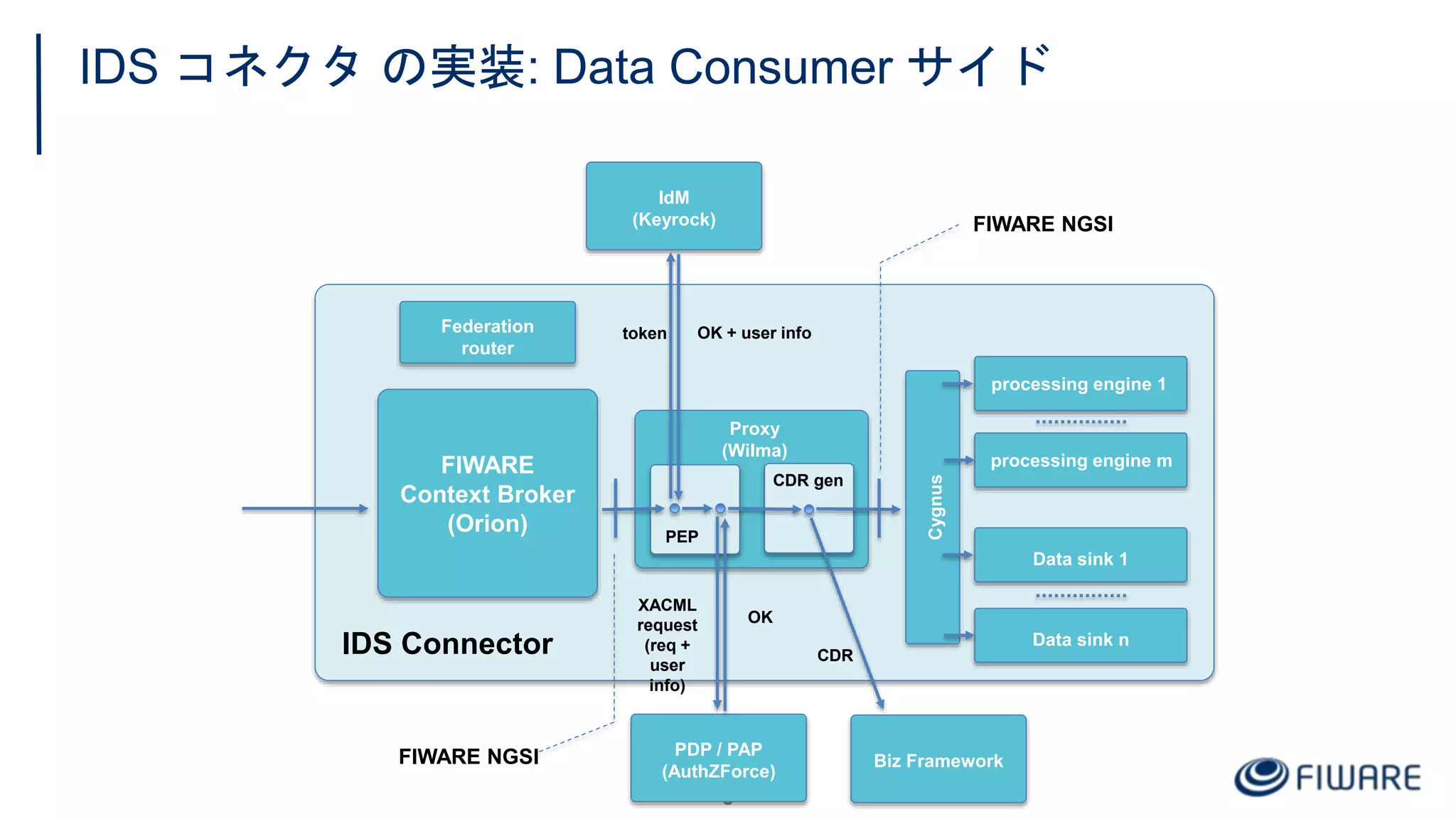

9. 8
PDP / PAP
(AuthZForce)
PEP
CDR gen
Biz Framework
IdM
(Keyrock)
token OK + user info
XACML
request
(req +
user
info)
OK
CDR
FIWARE
Context Broker
(Orion)
Proxy
(Wilma)
Federation
router
processing engine 1
processing engine m
Data sink 1
Data sink nIDS Connector
Cygnus
IDS コネクタ の実装: Data Consumer サイド
FIWARE NGSI
FIWARE NGSI

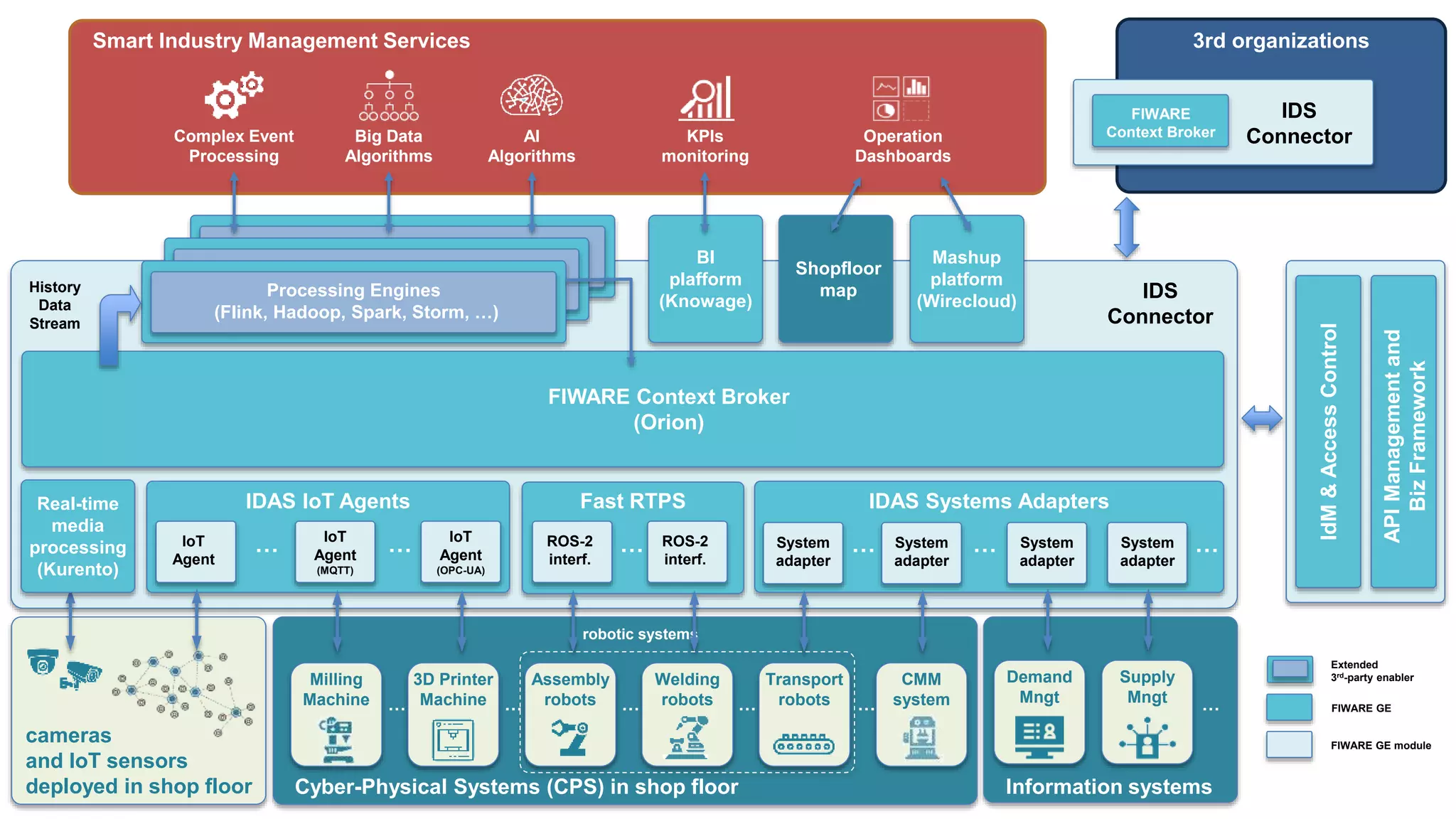

11. IoT
Agent
(MQTT)
Complex Event
Processing
Big Data
Algorithms
Smart Industry Management Services
IDAS Systems Adapters
cameras
and IoT sensors
deployed in shop floor
IdM&AccessControl
APIManagementand
BizFramework
Cyber-Physical Systems (CPS) in shop floor
Demand
Mngt
Supply
Mngt
Information systems
IDAS IoT Agents
KPIs
monitoring
Operation
Dashboards
Shopfloor
map
BI
plafform
(Knowage)
Mashup
platform
(Wirecloud)
FIWARE Context Broker
(Orion)
Processing Engines
(Flink, Hadoop, Spark, Storm, …)
AI
Algorithms
History
Data
Stream
IDS
Connector
3rd organizations
robotic systems
…
3D Printer
Machine
Welding
robots
IoT
Agent
(OPC-UA)
IoT
Agent
ROS-2
interf.
ROS-2
interf.
System
adapter
System
adapter
System
adapter
System
adapter
Fast RTPS
CMM
system
Transport
robots
Assembly
robots
Milling
Machine
… … … …
… … ……… …
…
Extended
3rd-party enabler
FIWARE GE
FIWARE GE module
FIWARE
Context Broker
IDS
Connector
Real-time
media
processing
(Kurento)
