- 1. Have Yourself An AzureContainer Registry Festive Tech Calendar 2021
- 2. whoami • Philip Welz •Senior Kubernetes & DevOps Engineer @ white duck • Certified Kubernetes { A | AD | S } • GitOps, Kubernetes & Azure © white duck GmbH 2021 Email: Philip.Welz@whiteduck.de Twitter: @philip_welz LinkedIn: https://www.linkedin.com/in/philip-welz Blog: https://philinthe.cloud

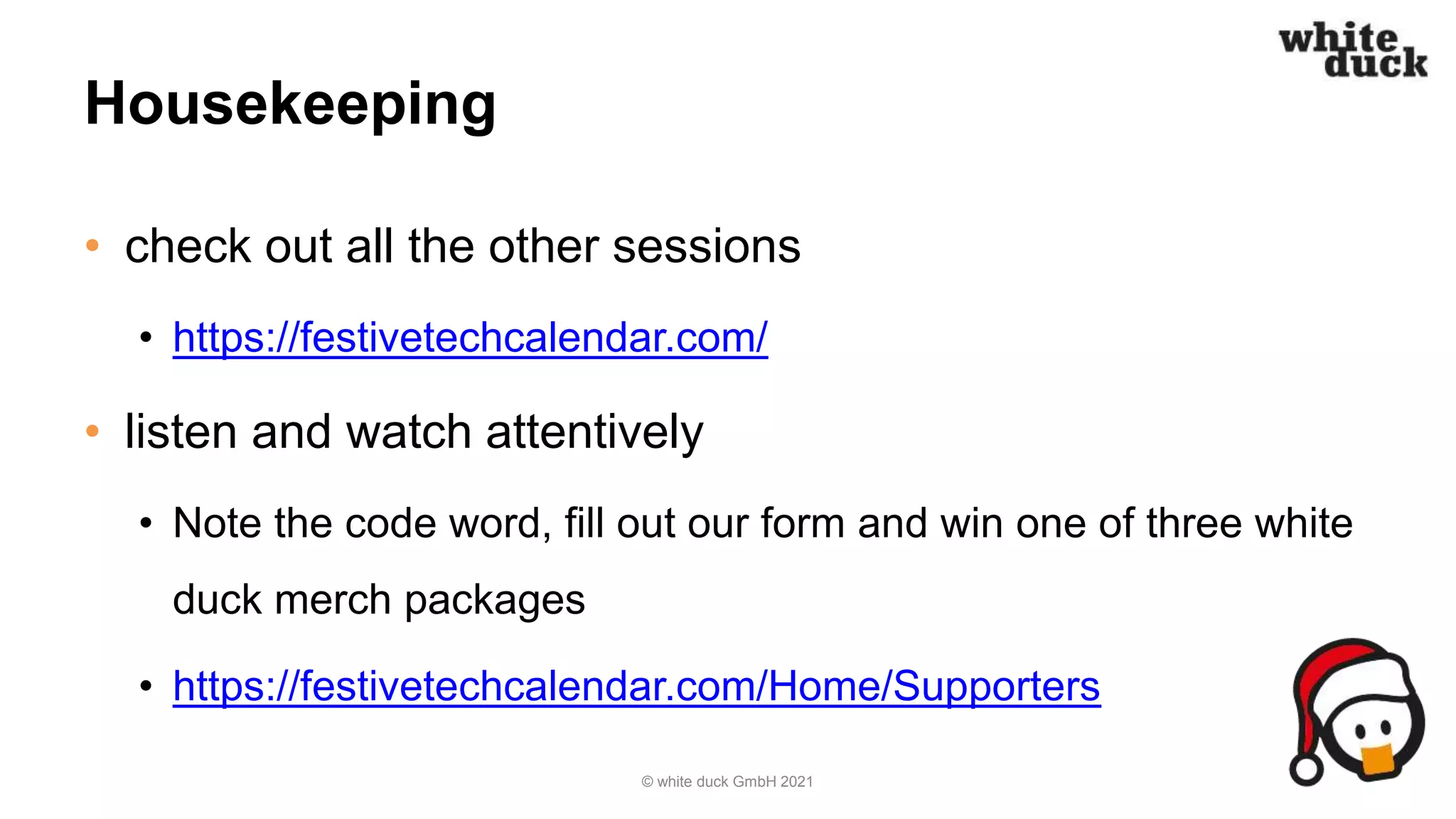

- 3. Housekeeping • check outall the other sessions • https://festivetechcalendar.com/ • listen and watch attentively • Note the code word, fill out our form and win one of three white duck merch packages • https://festivetechcalendar.com/Home/Supporters © white duck GmbH 2021

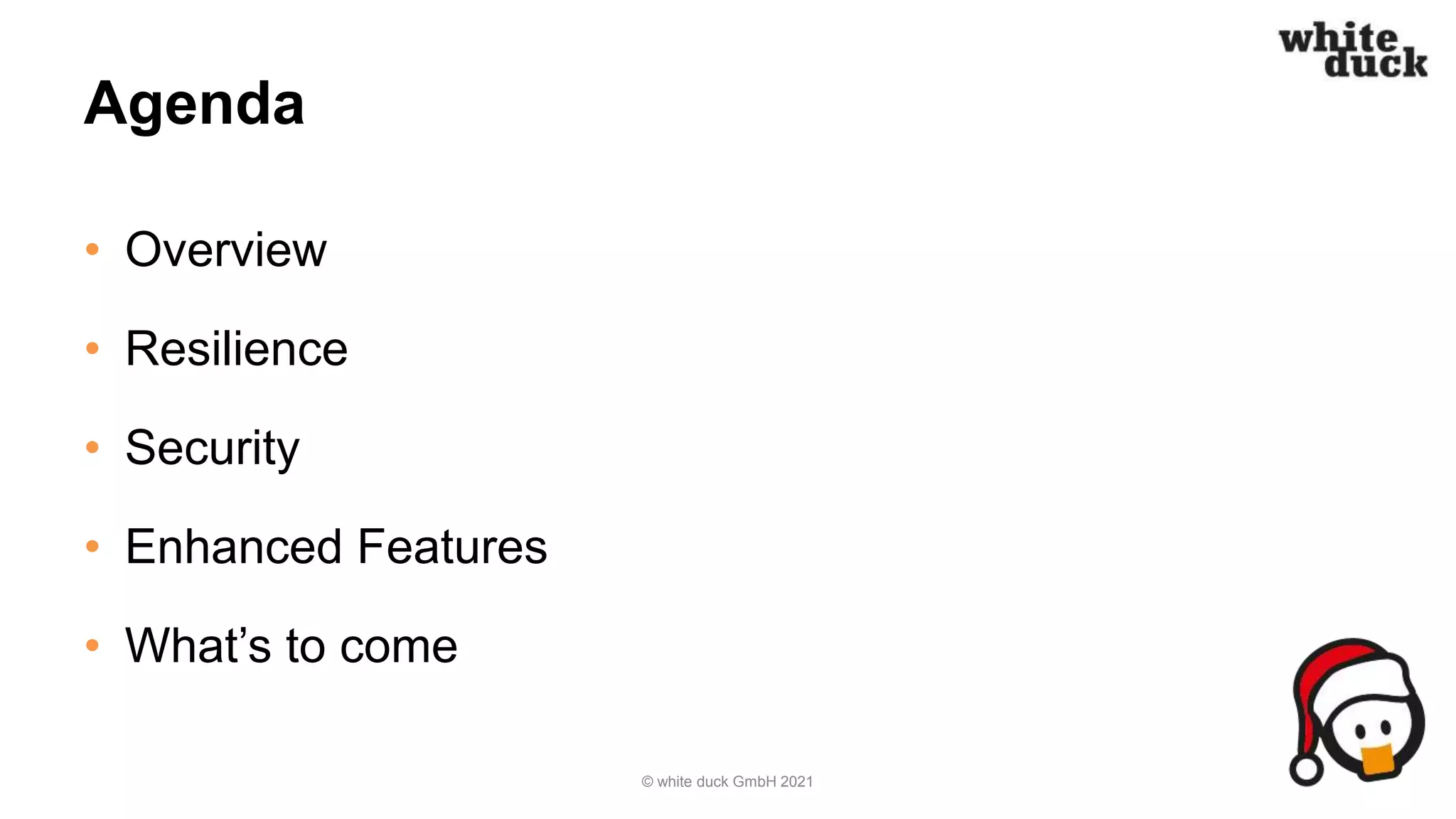

- 4. Agenda • Overview • Resilience •Security • Enhanced Features • What’s to come © white duck GmbH 2021

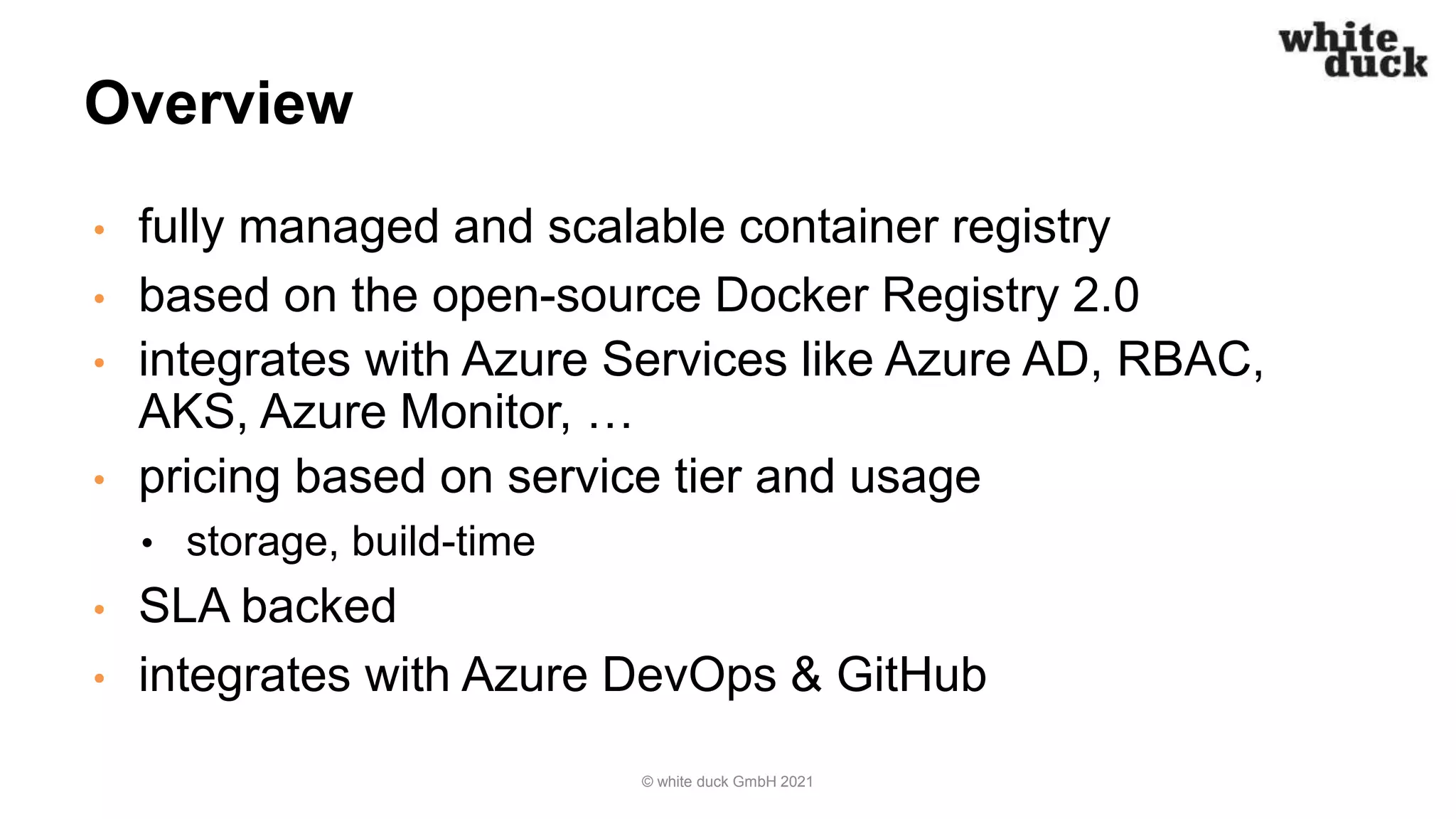

- 5. Overview • fully managedand scalable container registry • based on the open-source Docker Registry 2.0 • integrates with Azure Services like Azure AD, RBAC, AKS, Azure Monitor, … • pricing based on service tier and usage • storage, build-time • SLA backed • integrates with Azure DevOps & GitHub © white duck GmbH 2021
- 6. RESILIENCE © white duckGmbH 2021

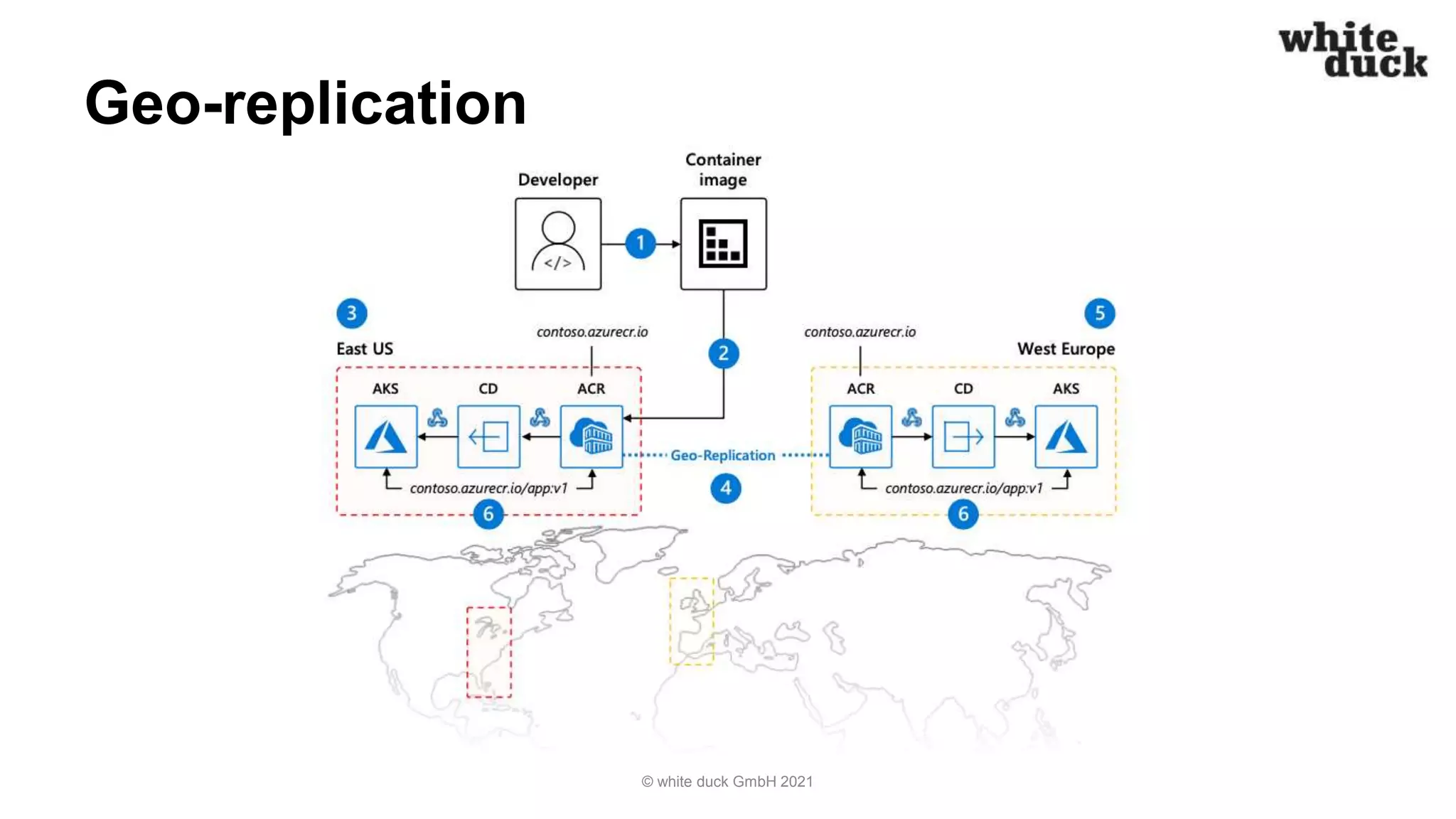

- 7. Geo-replication © white duckGmbH 2021

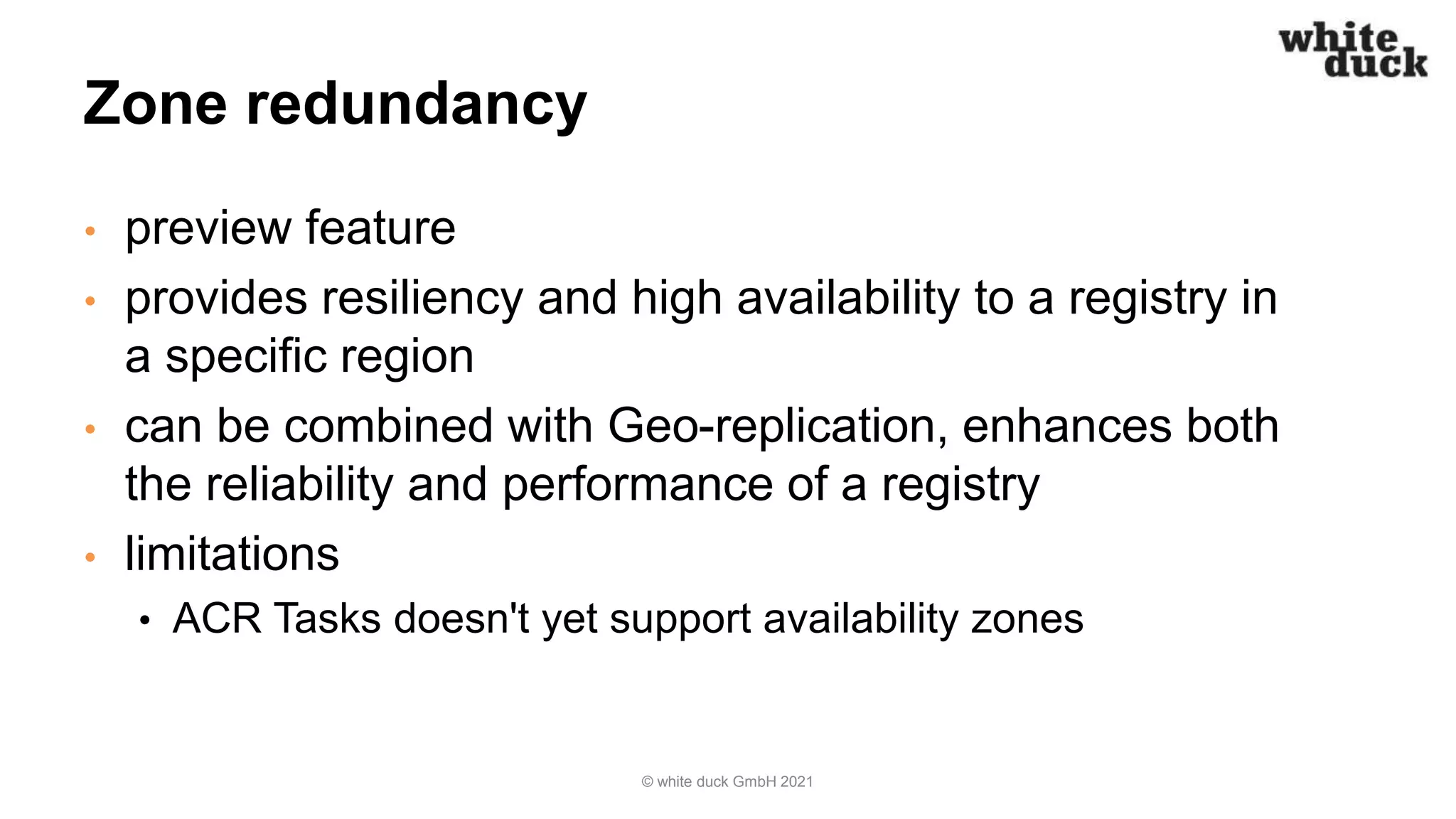

- 8. Zone redundancy • previewfeature • provides resiliency and high availability to a registry in a specific region • can be combined with Geo-replication, enhances both the reliability and performance of a registry • limitations • ACR Tasks doesn't yet support availability zones © white duck GmbH 2021

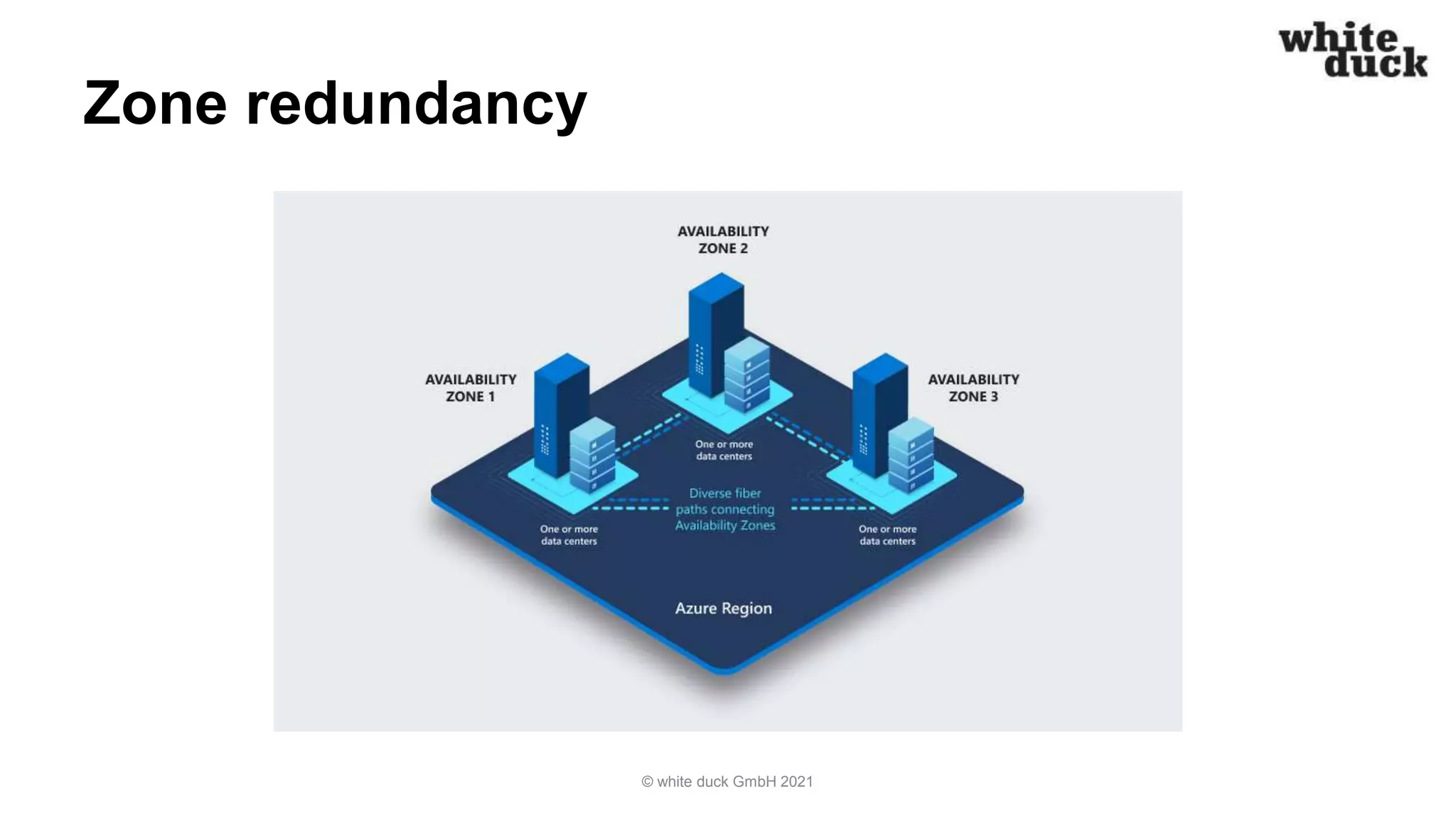

- 9. Zone redundancy © whiteduck GmbH 2021
- 10. SECURITY © white duckGmbH 2021

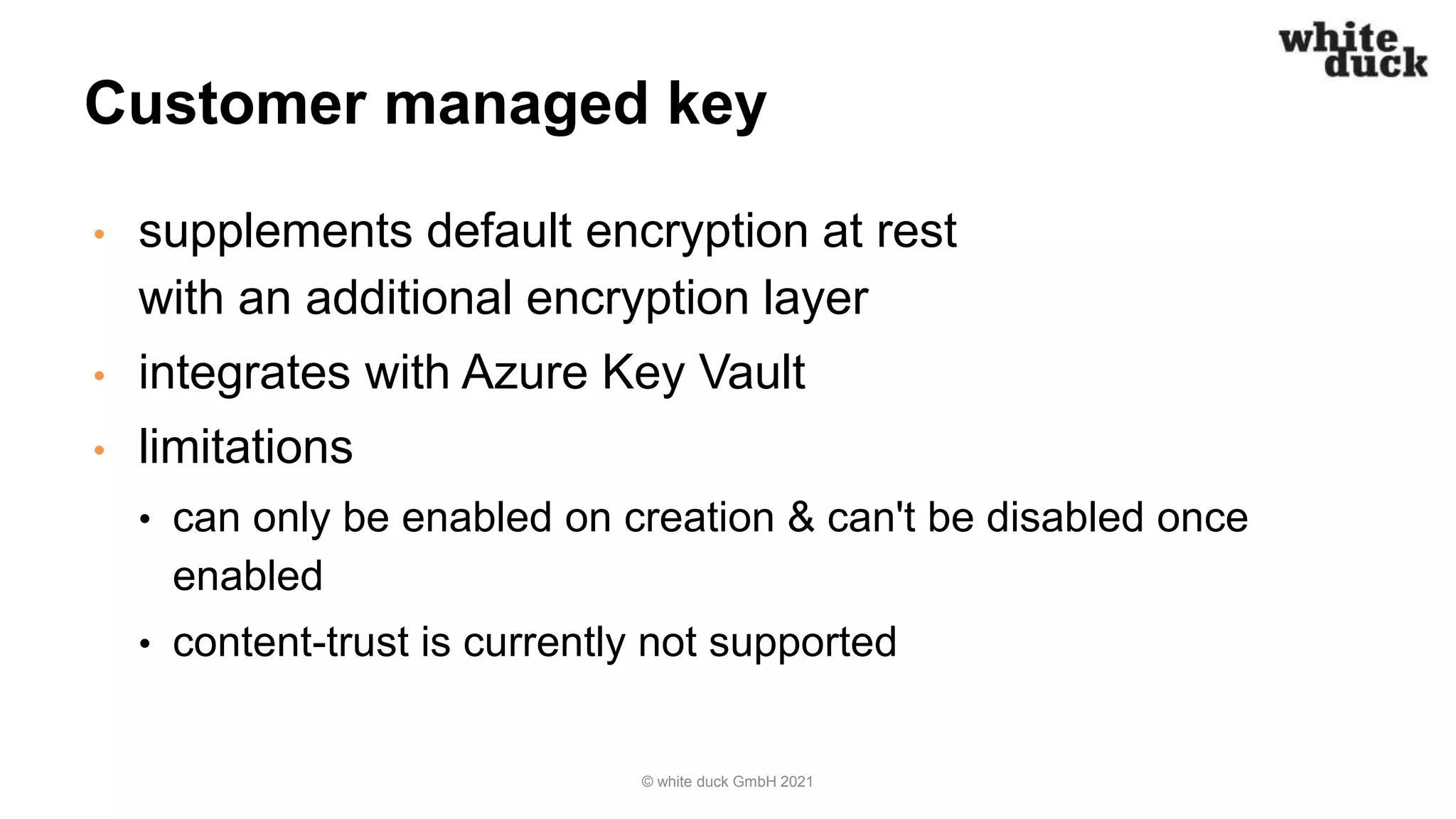

- 11. Customer managed key •supplements default encryption at rest with an additional encryption layer • integrates with Azure Key Vault • limitations • can only be enabled on creation & can't be disabled once enabled • content-trust is currently not supported © white duck GmbH 2021

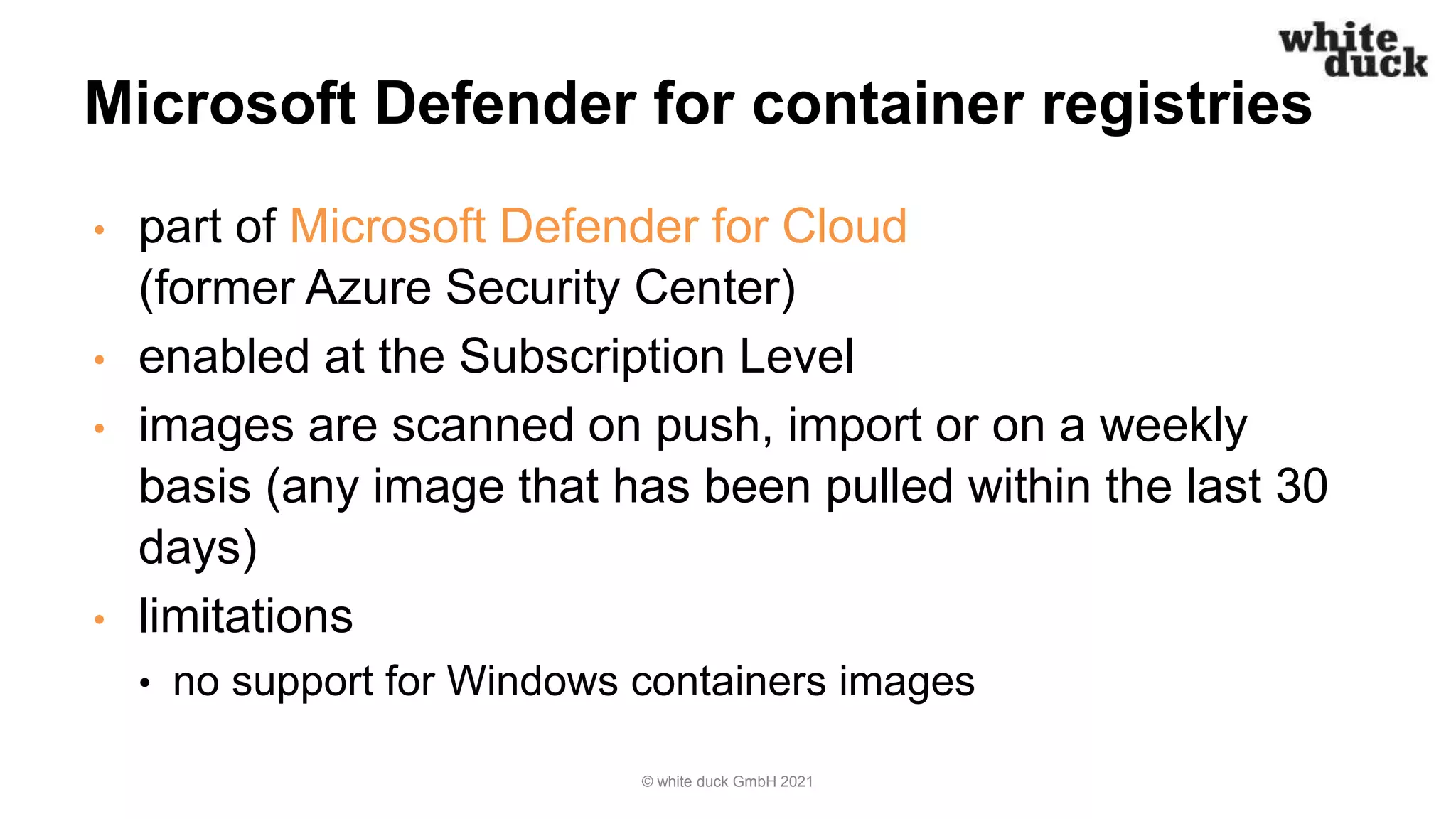

- 12. Microsoft Defender forcontainer registries • part of Microsoft Defender for Cloud (former Azure Security Center) • enabled at the Subscription Level • images are scanned on push, import or on a weekly basis (any image that has been pulled within the last 30 days) • limitations • no support for Windows containers images © white duck GmbH 2021

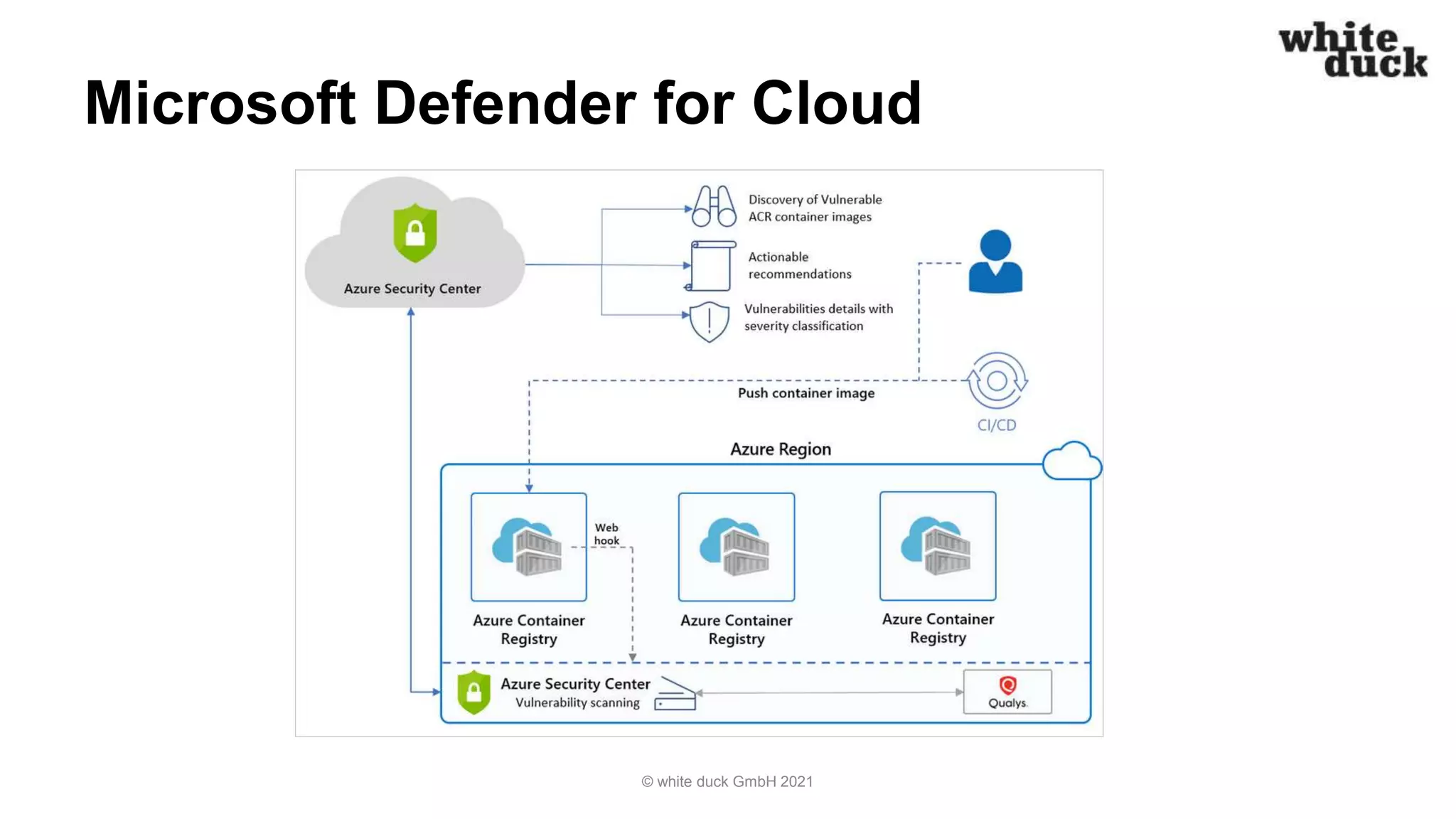

- 13. Microsoft Defender forCloud © white duck GmbH 2021

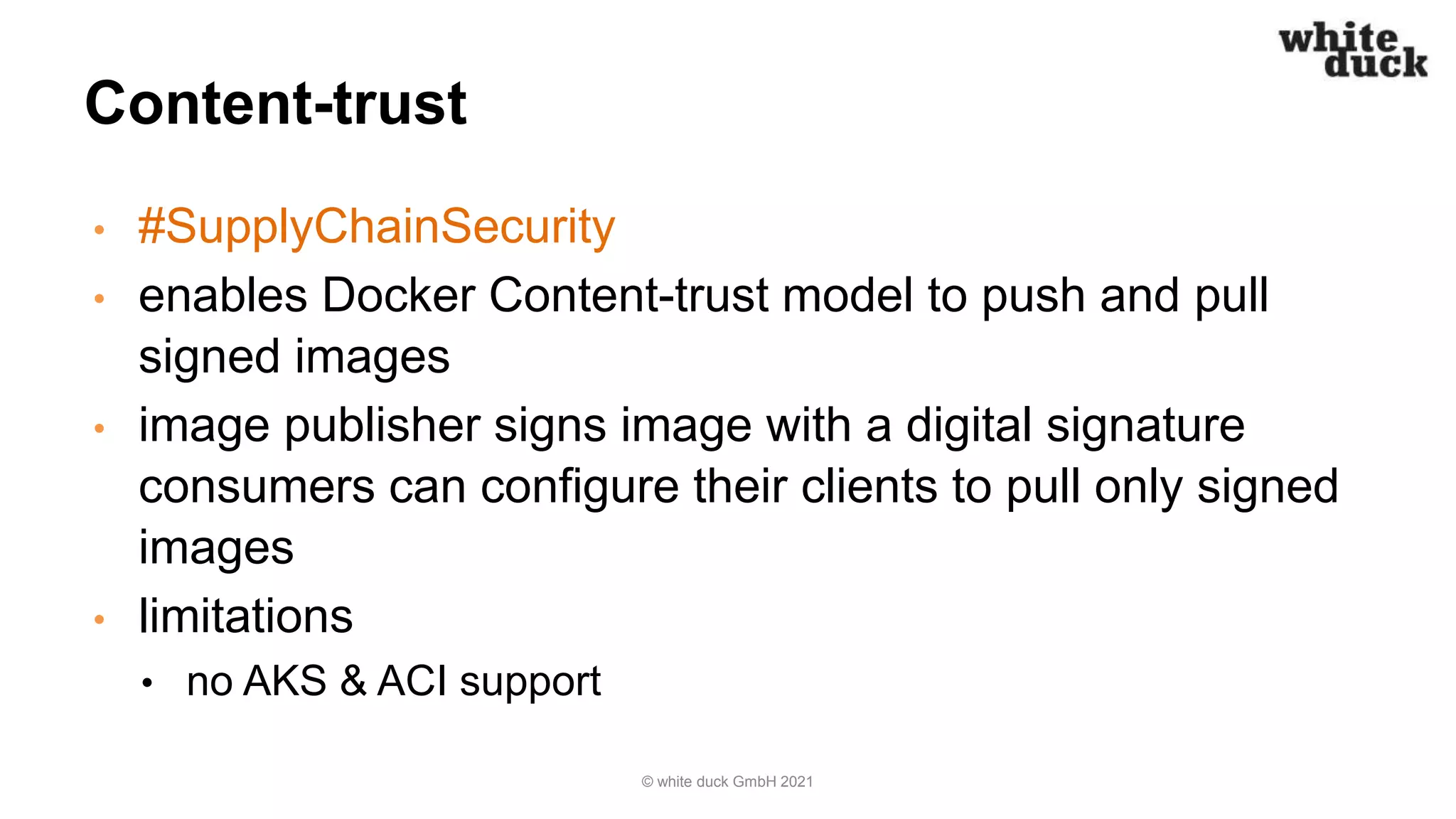

- 14. Content-trust • #SupplyChainSecurity • enablesDocker Content-trust model to push and pull signed images • image publisher signs image with a digital signature consumers can configure their clients to pull only signed images • limitations • no AKS & ACI support © white duck GmbH 2021

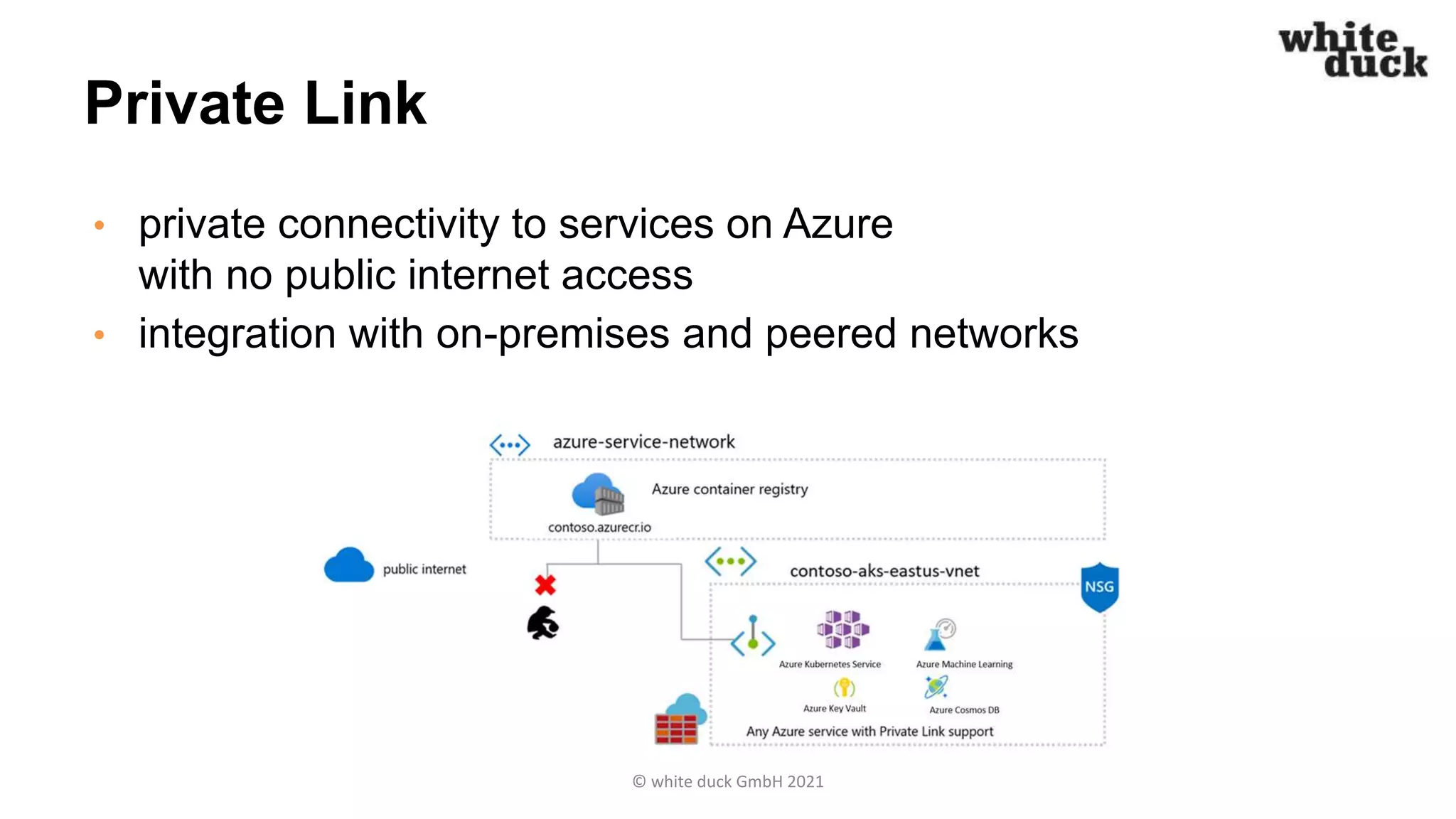

- 15. Private Link • privateconnectivity to services on Azure with no public internet access • integration with on-premises and peered networks © white duck GmbH 2021

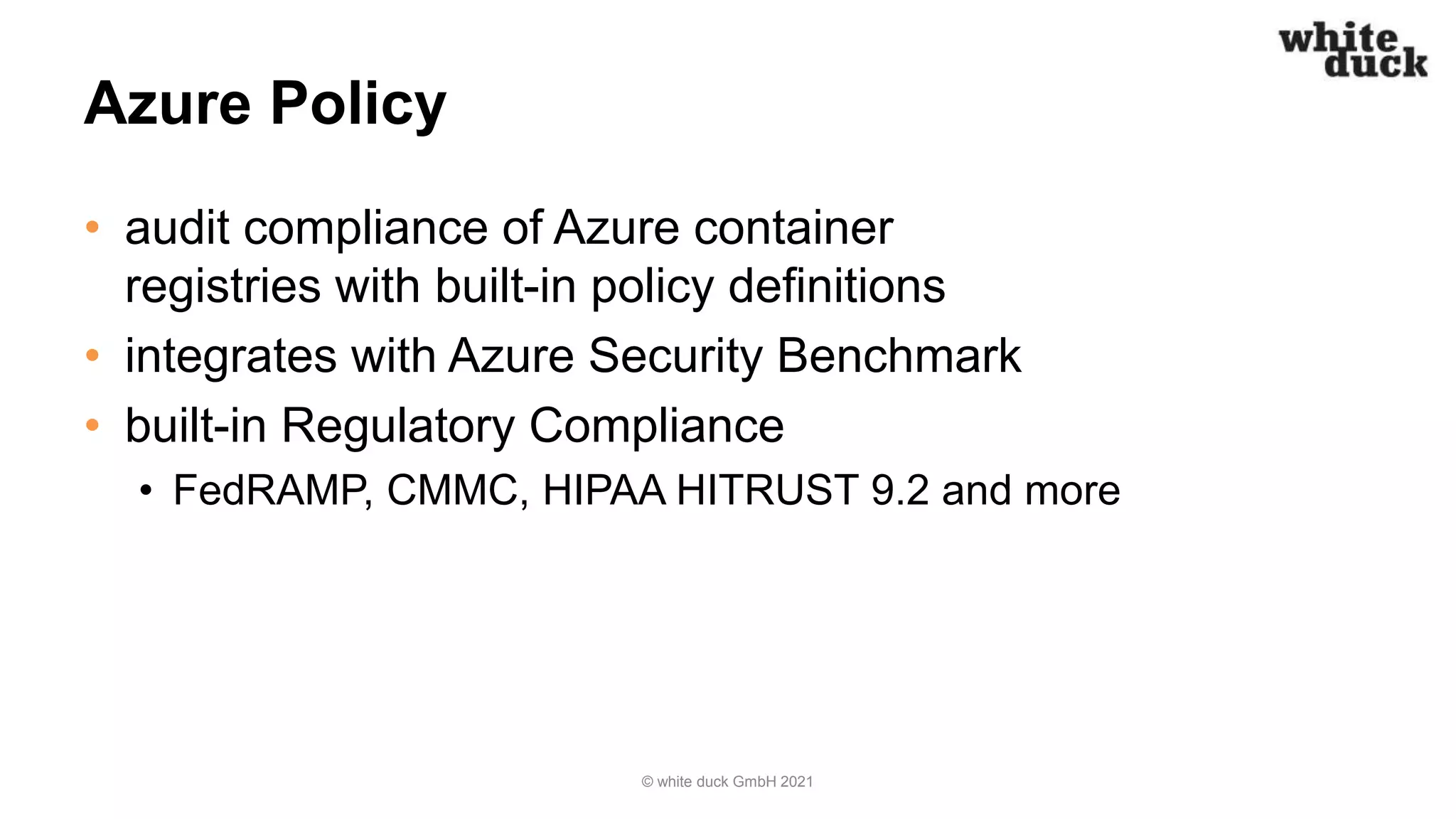

- 16. Azure Policy • auditcompliance of Azure container registries with built-in policy definitions • integrates with Azure Security Benchmark • built-in Regulatory Compliance • FedRAMP, CMMC, HIPAA HITRUST 9.2 and more © white duck GmbH 2021
- 17. ENHANCED FEATURES © whiteduck GmbH 2021

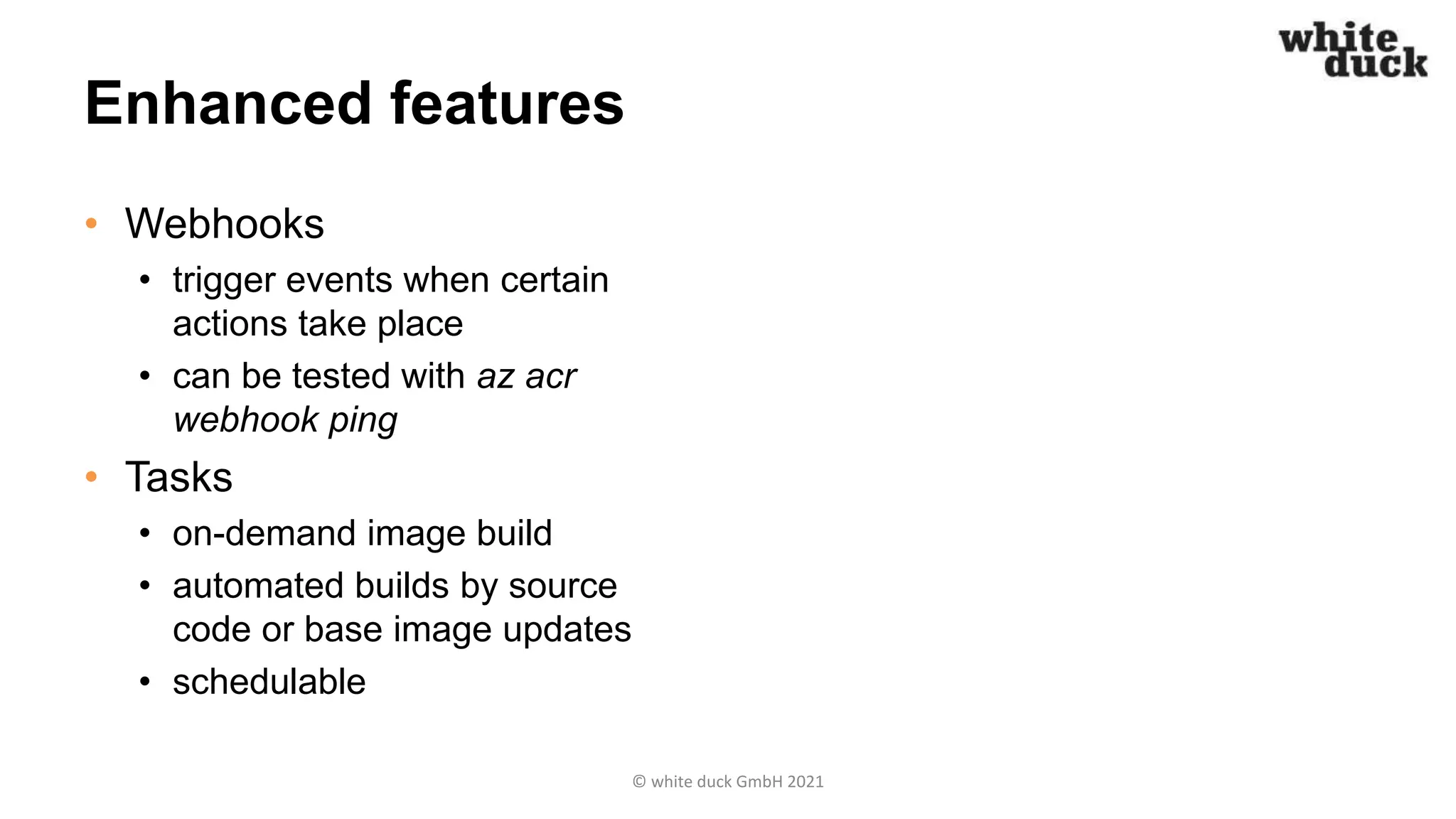

- 18. Enhanced features • Webhooks •trigger events when certain actions take place • can be tested with az acr webhook ping • Tasks • on-demand image build • automated builds by source code or base image updates • schedulable © white duck GmbH 2021

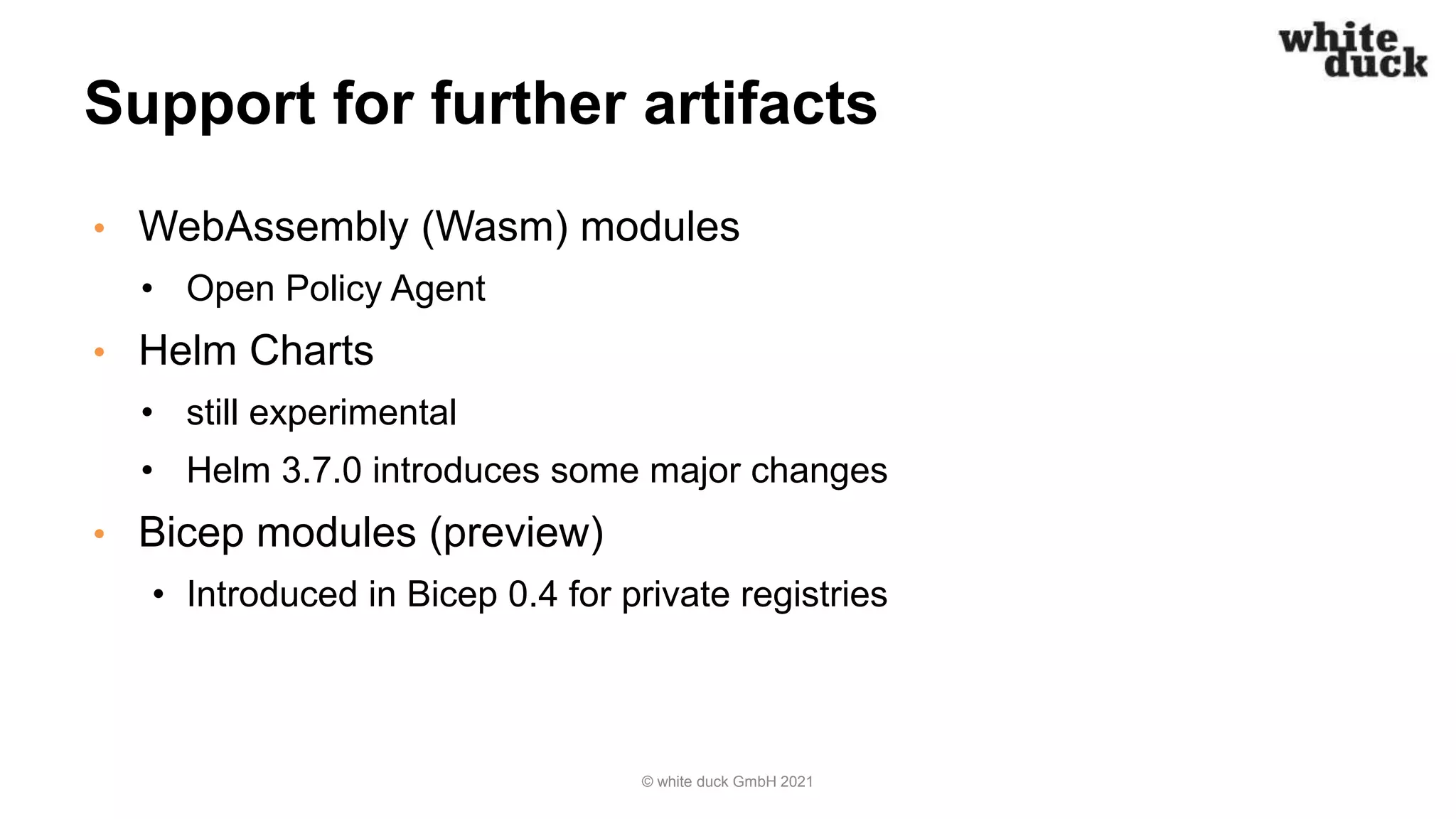

- 19. Support for furtherartifacts • WebAssembly (Wasm) modules • Open Policy Agent • Helm Charts • still experimental • Helm 3.7.0 introduces some major changes • Bicep modules (preview) • Introduced in Bicep 0.4 for private registries © white duck GmbH 2021

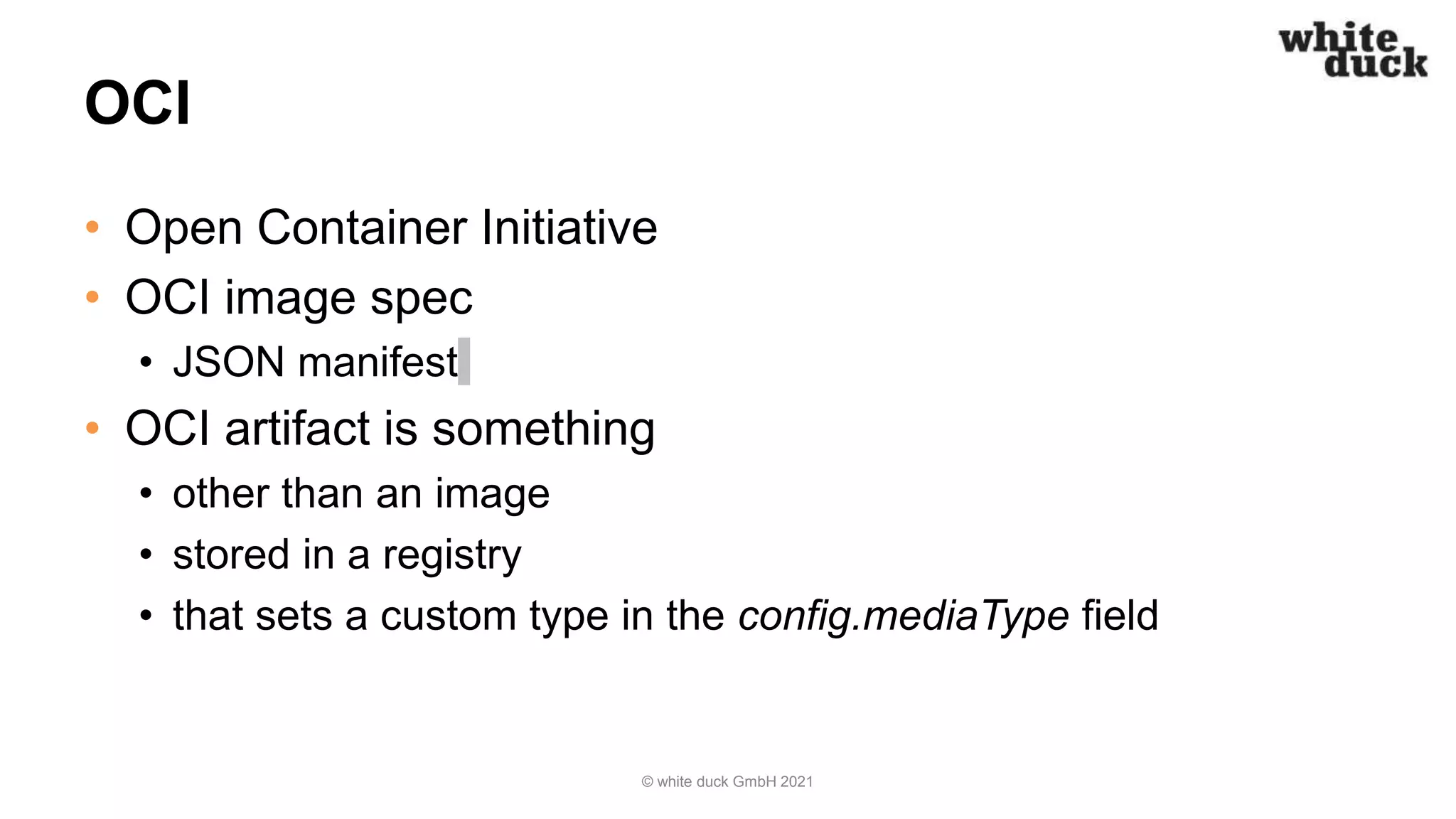

- 20. OCI • Open ContainerInitiative • OCI image spec • JSON manifest • OCI artifact is something • other than an image • stored in a registry • that sets a custom type in the config.mediaType field © white duck GmbH 2021

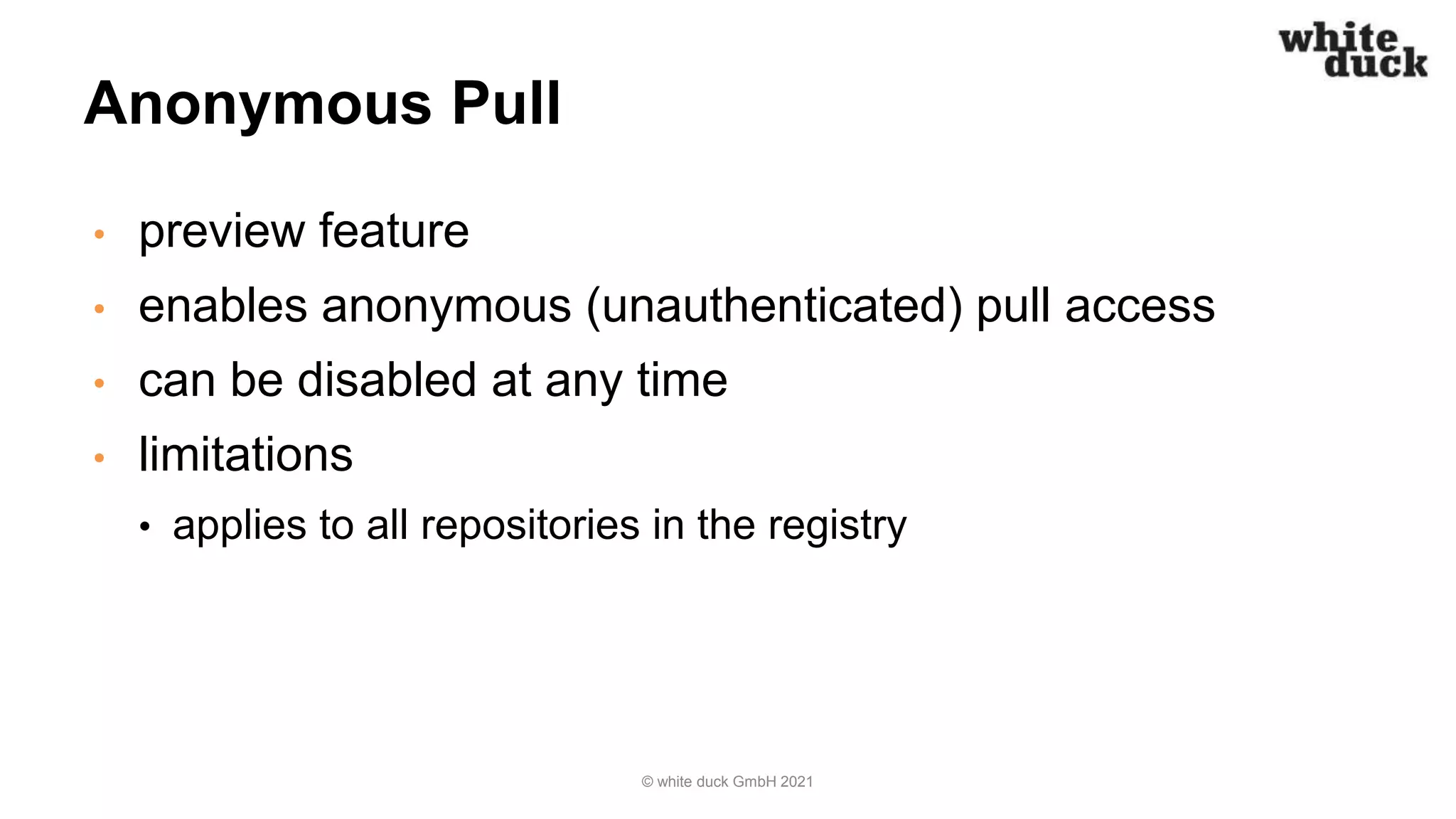

- 21. Anonymous Pull • previewfeature • enables anonymous (unauthenticated) pull access • can be disabled at any time • limitations • applies to all repositories in the registry © white duck GmbH 2021

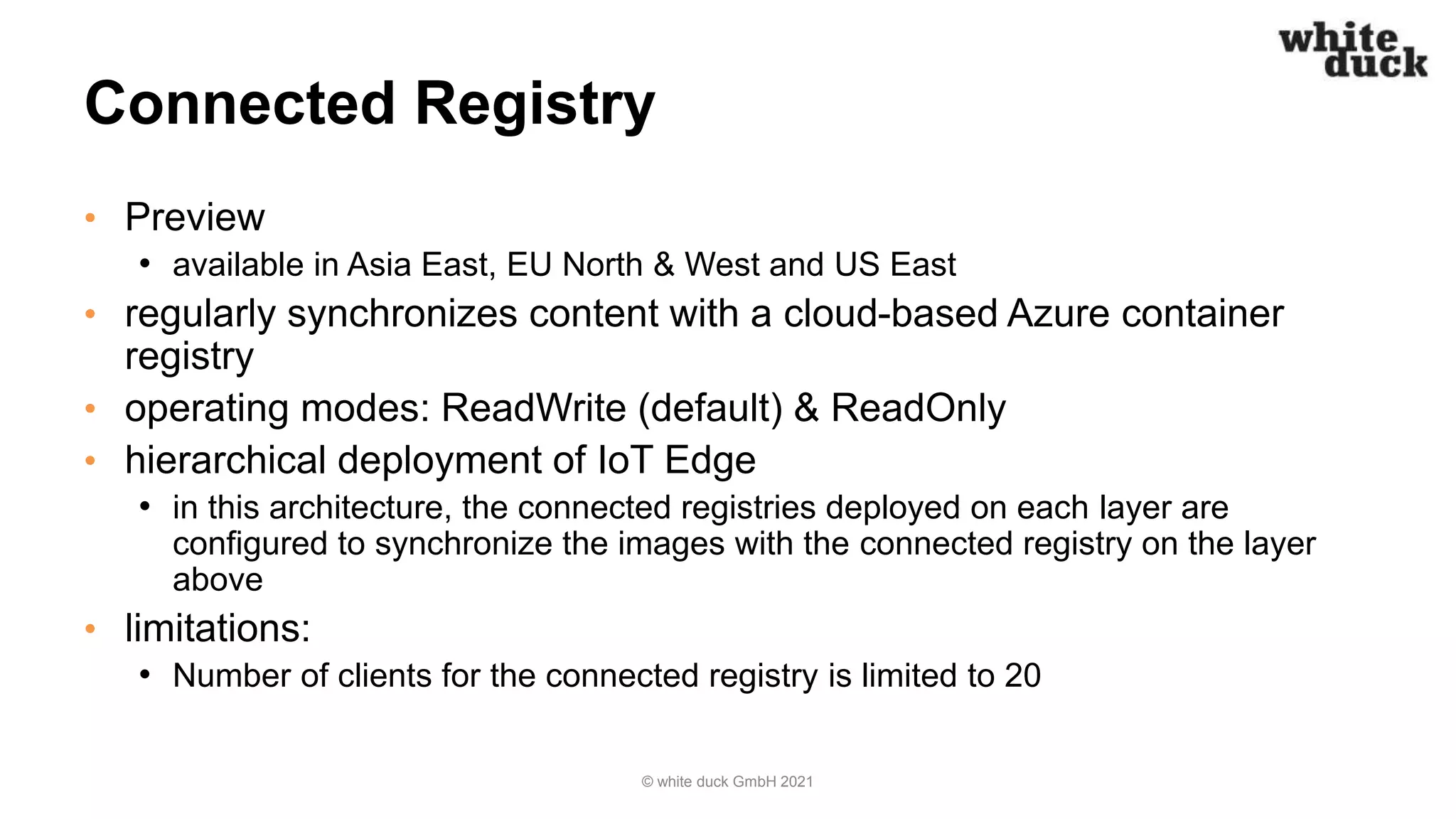

- 22. Connected Registry • Preview •available in Asia East, EU North & West and US East • regularly synchronizes content with a cloud-based Azure container registry • operating modes: ReadWrite (default) & ReadOnly • hierarchical deployment of IoT Edge • in this architecture, the connected registries deployed on each layer are configured to synchronize the images with the connected registry on the layer above • limitations: • Number of clients for the connected registry is limited to 20 © white duck GmbH 2021

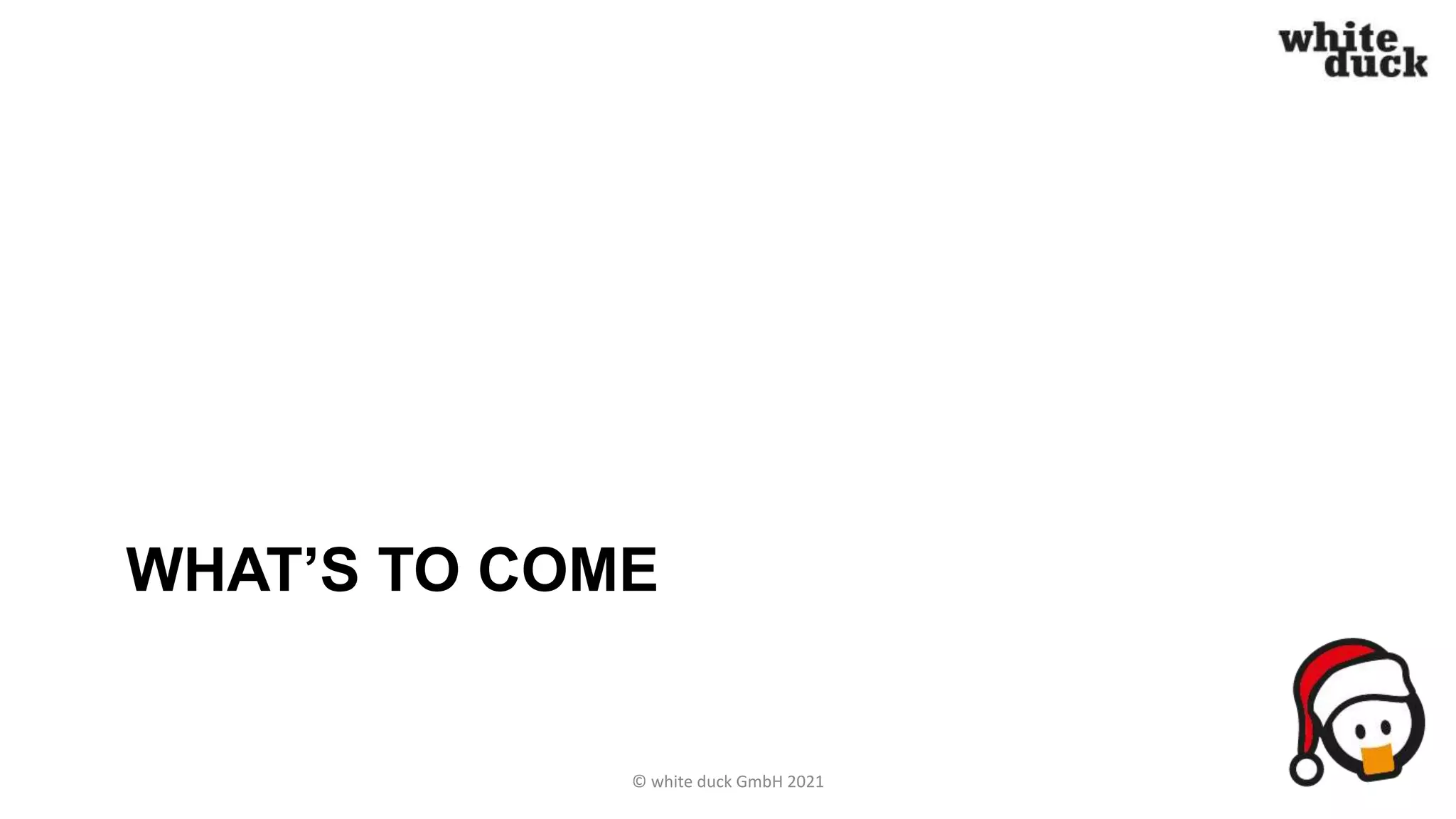

- 23. WHAT’S TO COME ©white duck GmbH 2021

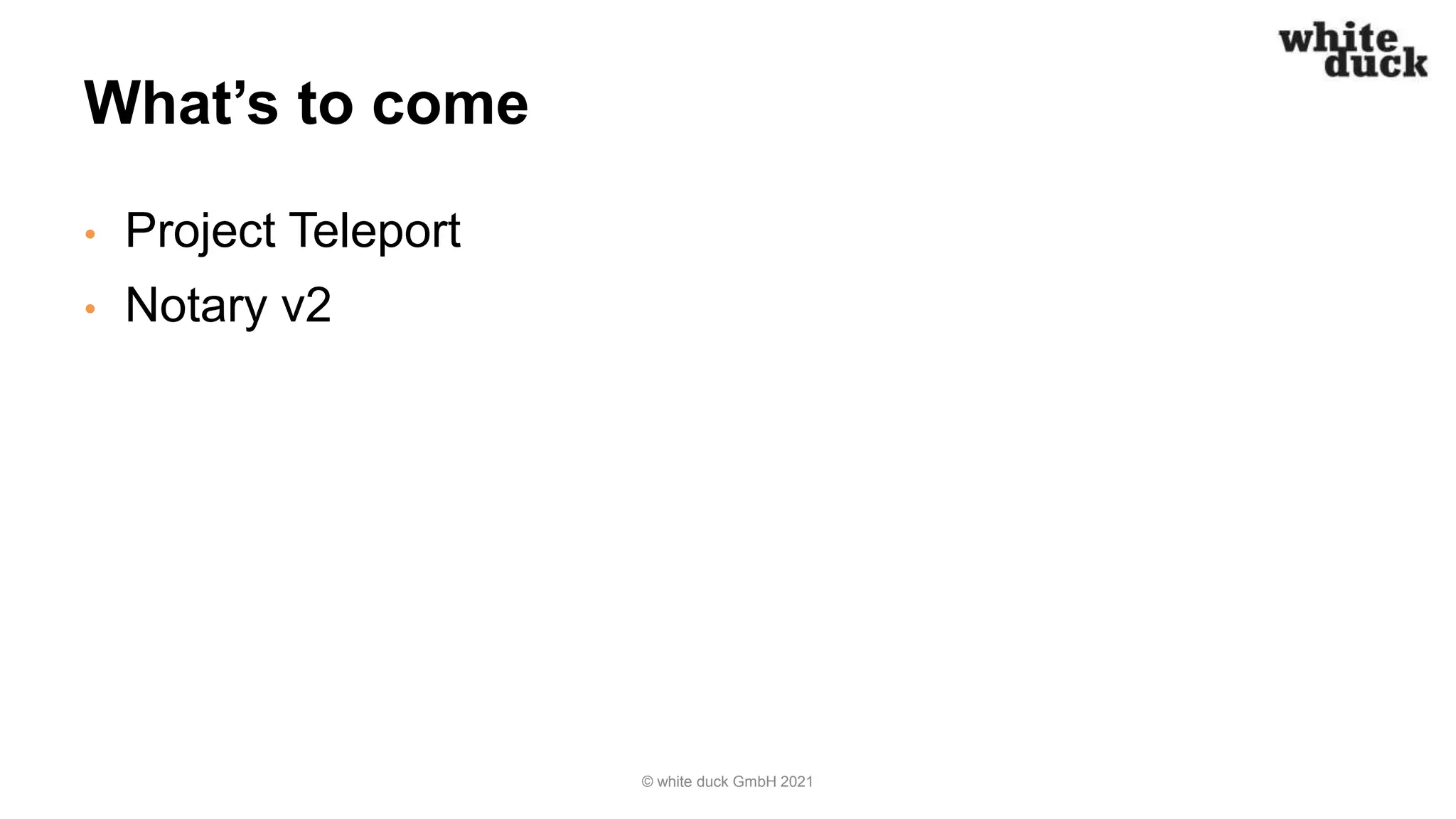

- 24. What’s to come •Project Teleport • Notary v2 © white duck GmbH 2021

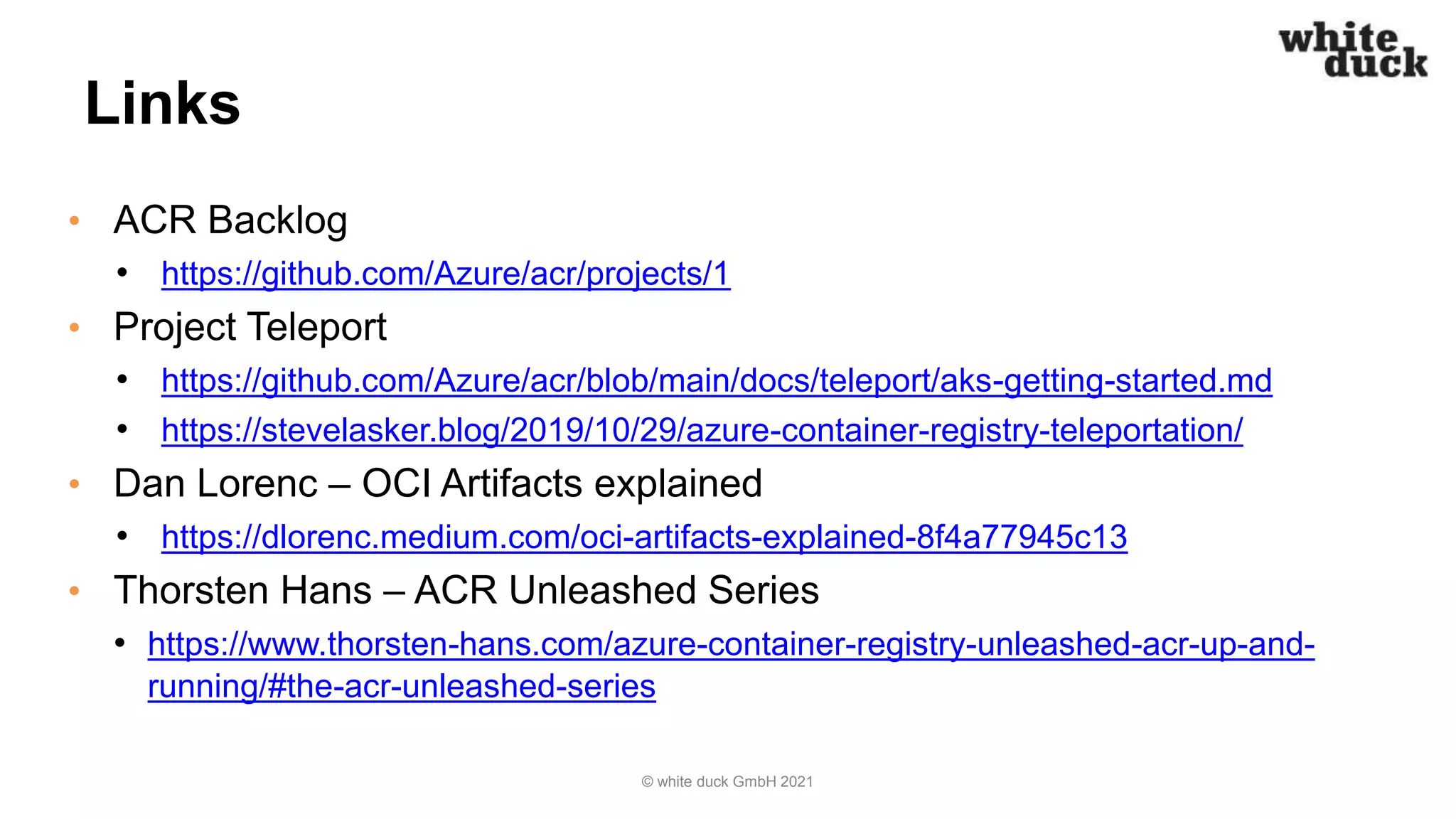

- 25. Links • ACR Backlog •https://github.com/Azure/acr/projects/1 • Project Teleport • https://github.com/Azure/acr/blob/main/docs/teleport/aks-getting-started.md • https://stevelasker.blog/2019/10/29/azure-container-registry-teleportation/ • Dan Lorenc – OCI Artifacts explained • https://dlorenc.medium.com/oci-artifacts-explained-8f4a77945c13 • Thorsten Hans – ACR Unleashed Series • https://www.thorsten-hans.com/azure-container-registry-unleashed-acr-up-and- running/#the-acr-unleashed-series © white duck GmbH 2021
