This document provides details on augermatic feeding systems for poultry farms, including:
1. It describes the main components of the main and sub augermatic feed line systems, including silos, delivery systems, motors and technical specifications.
2. It provides specifications for different sized silos including their volume, height and diameter.
3. It includes diagrams showing the general assembly of a sub automatic broiler feed line system and its main components.
4. It provides information on options for poultry feed pans including dimensions, materials, capacities and cleaning methods.
1. 1. Main augermatic feed line system
2. Sub augermatic broiler feed line system
1. Silo . 2. Silo base part 3. Delivery system (pipe and auger) 4. Main feed motor 5. Sub-broiler feed line
Type pipe 75 Pipe 90
Conveying capacity(horizontal) 1400Kg/h 2500Kg/h
Max. conveying length 60m 50m
Gear motor 0.75Kw 0.75Kw
Detail of pipe ¢75 mm*3.6mm ¢90mm*4mm
Code No. Volume (m3) Height-B(m) Ø of the silo-A(m)
RF17801 3.9M3 3.36 1.78
RF17802 6M3 4.26 1.78
RF26502 16.06 5.6 2.65
RF26503 20.99 6.5 2.65
RF30504 34.78 7.6 3.05
RF36503 40 6.6 3.65
RF36504 49.2 7.5 3.65
1.Motor 2.Hoper 3.End tube 4.Tuber with auger
5.Ship chain 6.S hook 7.φ6 steel wire clip
8.φ5 steel wire 9.Pulley 105 10.Pulley 45
11.Cable lock 12. Hanger for tube
13. Steel wire 3mm
General assembling drawing for sub automatic broiler feed line system
Runfor
Companent of Augermatic Feeding System
Main Feed Delivery Technical Data
Silo specific
2
3
4
5
1
1
Main Silo Detail
Main Feed Technical Data
window in funnel
rubber cap for
bolts
2. ALL KINDS OF FEED PAN –YOUR OPTION
-------POULTRYand Livestock Equipment , Solution Provider
Drive motor
Taiwan YK brand .
Power : 0.75KW and we can customize for you
Delivery system
Feed pipe: Ø45mm *1.2mm
Auger : imported from SouthAfrica
Delivery :450Kg/h
Pan Feature
Pan Diameter 330mm, 350mm.
Pan material: 100% Pure PE material
UV: with anti- UV additive
Feed Capacity 55 birds/ pan
Pan bottom can use as starter pan
Pan use: starting from Day 1
Wash and dry : Hanging dry, High pressure water wash.
Wave Pan Bottom Design

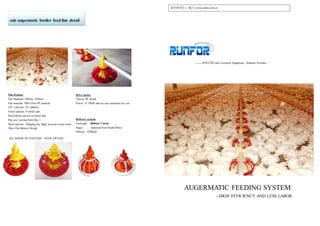

AUGERMATIC FEEDING SYSTEM
--HIGH EFFICIENCY AND LESS LABOR
sub augermatic broiler feed line detail
