Xin Hengfu Feed Pellet Mill PRODUCTS

Xinxiang Hengfu Electronic Machinery Co.,Ltd
www.hengfumall.com
- 1 -
LEADING TECHNOLOGY
EXECLLENT QUALITY
CREDIBILITY FIRST
Xinxiang Hengfu Electronic Machinery Co.,Ltd, was founded in 1990,currently the
best company specialized in research, development and manufacture(produce) of feed
machinery and electronic machinery in the company , the company has obtain the
certificate of ISO9001 in 2008 , Our complete machines has been exported to Africa and
some other European countries . Our company has a high reputation and also Trustworthy
for it Quality and Outstanding product in China. Commitment, integrity, trust ,team work,
accountability and also to satisfy customers is our priority .we produce and supply
chicken feed mill and feed pellet mill. Customers will receive good quality service before
and after sale.
Xinxiang Hengfu Electronic Machinery Co.,Ltd，founded in 1990s,is currently the best
key enterprise specialized in the research and development of feed machinery and
electronic machinry in the machinery manufacturing industry.Our company is located
nearby Beijing-Zhuhai Expressingway and No.107 National Road,with strategic
location,very convenient transportation and beautiful natural environment.Our company
covers an area of 33,000 square meters with bright and spacious plant as well as
reasonable layout.We also have sophisticated machining equipment,tooling and testing
equipment.Our company has more than 150 highly qualified staffs,including first-class
mechanical design experts,senior engineers,engineers and more than 30 senior
management personnels.
With strong R&D strength,excellent after-sale service team of marketing,advanced
management system,strict quality assurance system,and efficient production,our
company has the advantage of short production cycle.So our company has been rated as
outstanding Star for five consecutive years.
Branch company was set up inder the feed machinery and electronic machinery
branches.We will rely on:the consistent pursuit of “execllent product
performance,full-featured,quality first,service improvement to ensure customer
satisfaction”.
We will make unremitting efforts with the times,with”technological innovation,sincere
service”business philosophy,providing steady and continuous customized products and
services.Our commitment is to make each product undergo the rigorous testing!

www.hengfumall.com
- 2 -

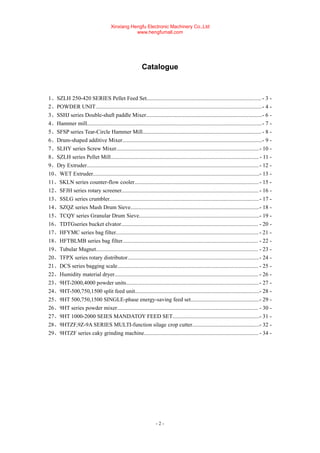

Catalogue
1、SZLH 250-420 SERIES Pellet Feed Set.................................................................................. - 3 -
2、POWDER UNIT.......................................................................................................................- 4 -
3、SSHJ series Double-shaft paddle Mixer...................................................................................- 6 -
4、Hammer mill.............................................................................................................................- 7 -
5、SFSP series Tear-Circle Hammer Mill..................................................................................... - 8 -
6、Drum-shaped additive Mixer....................................................................................................- 9 -
7、SLHY series Screw Mixer......................................................................................................- 10 -
8、SZLH series Pellet Mill.......................................................................................................... - 11 -
9、Dry Extruder...........................................................................................................................- 12 -
10、WET Extruder.......................................................................................................................- 13 -
11、SKLN series counter-flow cooler.........................................................................................- 15 -
12、SFJH series rotary screener..................................................................................................- 16 -
13、SSLG series crumbler...........................................................................................................- 17 -
14、SZQZ series Mash Drum Sieve............................................................................................- 18 -
15、TCQY series Granular Drum Sieve......................................................................................- 19 -
16、TDTGseries bucket elvator.................................................................................................. - 20 -
17、HFYMC series bag filter...................................................................................................... - 21 -
18、HFTBLMB series bag filter................................................................................................. - 22 -
19、Tubular Magnet.................................................................................................................... - 23 -
20、TFPX series rotary distributor..............................................................................................- 24 -
21、DCS series bagging scale..................................................................................................... - 25 -
22、Humidity material dryer....................................................................................................... - 26 -
23、9HT-2000,4000 powder units...............................................................................................- 27 -
24、9HT-500,750,1500 split feed unit.........................................................................................- 28 -
25、9HT 500,750,1500 SINGLE-phase energy-saving feed set.................................................- 29 -
26、9HT series powder mixer..................................................................................................... - 30 -
27、9HT 1000-2000 SEIES MANDATOY FEED SET..............................................................- 31 -
28、9HTZF,9Z-9A SERIES MULTI-function silage crop cutter................................................- 32 -
29、9HTZF series caky grinding machine..................................................................................- 34 -

www.hengfumall.com
- 3 -

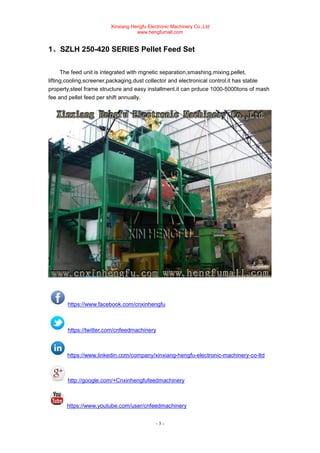

1、SZLH 250-420 SERIES Pellet Feed Set
The feed unit is integrated with mgnetic separation,smashing,mixing,pellet,
lifting,cooling,screener,packaging,dust collector and electronical control.it has stable
property,steel frame structure and easy installment.it can prduce 1000-5000tons of mash
fee and pellet feed per shift annually.
https://www.facebook.com/cnxinhengfu
https://twitter.com/cnfeedmachinery
https://www.linkedin.com/company/xinxiang-hengfu-electronic-machinery-co-ltd
http://google.com/+Cnxinhengfufeedmachinery
https://www.youtube.com/user/cnfeedmachinery

www.hengfumall.com
- 4 -

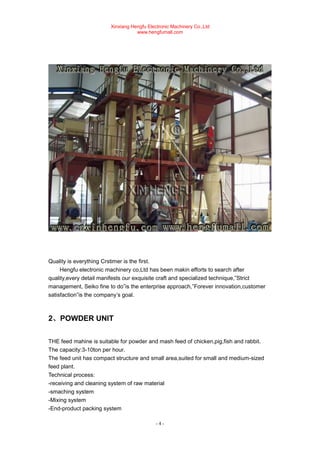

Quality is everything Crstimer is the first.
Hengfu electronic machinery co,Ltd has been makin efforts to search after
quality,every detail manifests our exquisite craft and specialized technique,”Strict
management, Seiko fine to do”is the enterprise approach,”Forever innovation,customer
satisfaction”is the company’s goal.
2、POWDER UNIT
THE feed mahine is suitable for powder and mash feed of chicken,pig,fish and rabbit.
The capacity:3-10ton per hour.
The feed unit has compact structure and small area,suited for small and medium-sized
feed plant.
Technical process:
-receiving and cleaning system of raw material
-smaching system
-Mixing system
-End-product packing system

www.hengfumall.com

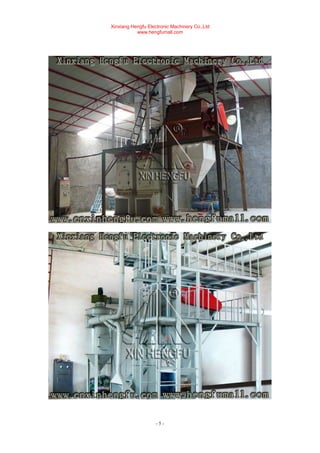

- 5 -

www.hengfumall.com
- 6 -

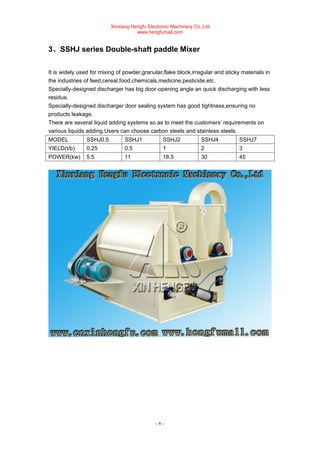

3、SSHJ series Double-shaft paddle Mixer
It is widely used for mixing of powder,granular,flake block,irregular and sticky materials in
the industries of feed,cereal,food,chemicals,medicine,pesticide,etc.
Specially-designed discharger has big door-opening angle an quick discharging with less
residue.
Specially-designed discharger door sealing system has good tightness,ensuring no
products leakage.
There are several liquid adding systems so as to meet the customers’ requirements on
various liquids adding.Users can choose carbon steels and stainless steels.
MODEL SSHJ0.5 SSHJ1 SSHJ2 SSHJ4 SSHJ7
YIELD(t/b) 0.25 0.5 1 2 3
POWER(kw) 5.5 11 18.5 30 45

www.hengfumall.com
- 7 -

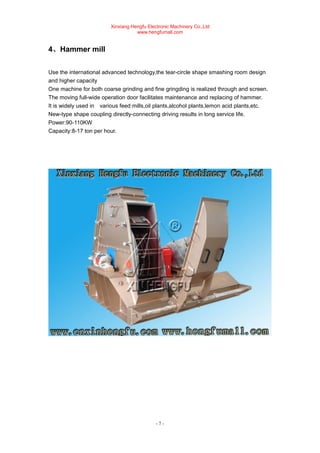

4、Hammer mill
Use the international advanced technology,the tear-circle shape smashing room design
and higher capacity
One machine for both coarse grinding and fine gringding is realized through and screen.
The moving full-wide operation door facilitates maintenance and replacing of hammer.
It is widely used in various feed mills,oil plants,alcohol plants,lemon acid plants,etc.
New-type shape coupling directly-connecting driving results in long service life.
Power:90-110KW
Capacity:8-17 ton per hour.

www.hengfumall.com
- 8 -

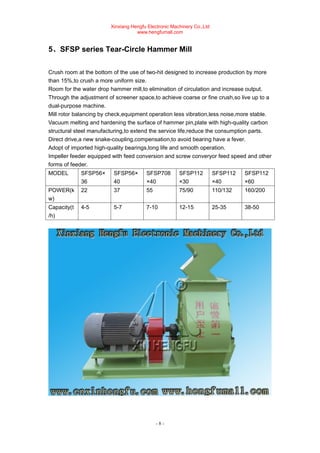

5、SFSP series Tear-Circle Hammer Mill
Crush room at the bottom of the use of two-hit designed to increase production by more
than 15%,to crush a more uniform size.
Room for the water drop hammer mill,to elimination of circulation and increase output.
Through the adjustment of screener space,to achieve coarse or fine crush,so live up to a
dual-purpose machine.
Mill rotor balancing by check,equipment operation less vibration,less noise,more stable.
Vacuum melting and hardening the surface of hammer pin,plate with high-quality carbon
structural steel manufacturing,to extend the service life,reduce the consumption parts.
Direct drive,a new snake-coupling,compensation,to avoid bearing have a fever.
Adopt of imported high-quality bearings,long life and smooth operation.
Impeller feeder equipped with feed conversion and screw converyor feed speed and other
forms of feeder.
MODEL SFSP56×
36
SFSP56×
40
SFSP708
×40
SFSP112
×30
SFSP112
×40
SFSP112
×60
POWER(k
w)
22 37 55 75/90 110/132 160/200
Capacity(t
/h)
4-5 5-7 7-10 12-15 25-35 38-50

www.hengfumall.com
- 9 -

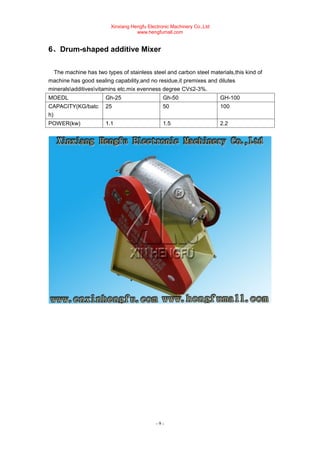

6、Drum-shaped additive Mixer
The machine has two types of stainless steel and carbon steel materials,this kind of
machine has good sealing capability,and no residue,it premixes and dilutes
mineralsadditivesvitamins etc.mix evenness degree CV≤2-3%.
MOEDL Gh-25 Gh-50 GH-100
CAPACITY(KG/batc
h)
25 50 100
POWER(kw) 1.1 1.5 2.2

www.hengfumall.com
- 10 -

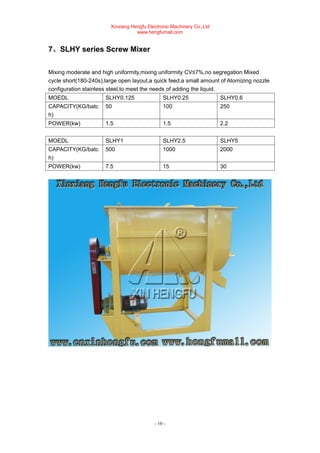

7、SLHY series Screw Mixer
Mixing moderate and high uniformity,mixing uniformity CV≤7%,no segregation Mixed
cycle short(180-240s),large open layout,a quick feed,a small amount of Atomizing nozzle
configuration stainless steel,to meet the needs of adding the liquid.
MOEDL SLHY0.125 SLHY0.25 SLHY0.6
CAPACITY(KG/batc
h)
50 100 250
POWER(kw) 1.5 1.5 2.2
MOEDL SLHY1 SLHY2.5 SLHY5
CAPACITY(KG/batc
h)
500 1000 2000
POWER(kw) 7.5 15 30

www.hengfumall.com
- 11 -

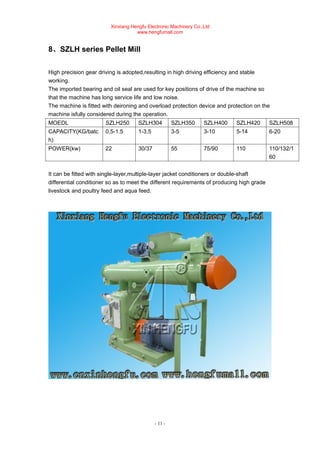

8、SZLH series Pellet Mill
High precision gear driving is adopted,resulting in high driving efficiency and stable
working.
The imported bearing and oil seal are used for key positions of drive of the machine so
that the machine has long service life and low noise.
The machine is fitted with deironing and overload protection device and protection on the
machine isfully considered during the operation.
MOEDL SZLH250 SZLH304 SZLH350 SZLH400 SZLH420 SZLH508
CAPACITY(KG/batc
h)
0.5-1.5 1-3.5 3-5 3-10 5-14 6-20
POWER(kw) 22 30/37 55 75/90 110 110/132/1
60
It can be fitted with single-layer,multiple-layer jacket conditioners or double-shaft
differential conditioner so as to meet the different requirements of producing high grade
livestock and poultry feed and aqua feed.

www.hengfumall.com
- 12 -

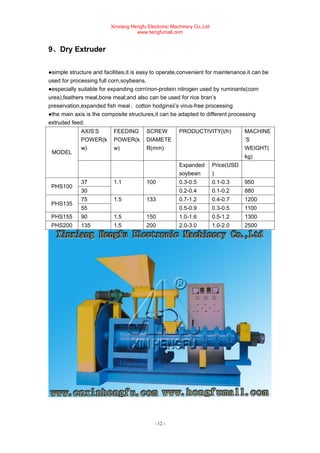

9、Dry Extruder
●simple structure and facilities.it is easy to operate,convenient for maintenance.it can be
used for processing full corn,soybeans.
●especially suitable for expanding cornnon-protein nitrogen used by ruminants(corn
urea),feathers meal,bone meal;and also can be used for rice bran’s
preservation,expanded fish meal、cotton hodginsii’s virus-free processing
●the main axis is the composite structures,it can be adapted to different processing
extruded feed.
MODEL
AXIS’S
POWER(k
w)
FEEDING
POWER(k
w)
SCREW
DIAMETE
R(mm)
PRODUCTIVITY(t/h) MACHINE
’S
WEIGHT(
kg)
Expanded
soybean
Price(USD
)
PHS100
37 1.1 100 0.3-0.5 0.1-0.3 950
30 0.2-0.4 0.1-0.2 880
PHS135
75 1.5 133 0.7-1.2 0.4-0.7 1200
55 0.5-0.9 0.3-0.5 1100
PHS155 90 1.5 150 1.0-1.6 0.5-1.2 1300
PHS200 135 1.5 200 2.0-3.0 1.0-2.0 2500

www.hengfumall.com
- 13 -

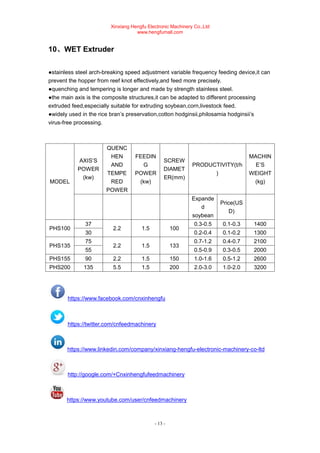

10、WET Extruder
●stainless steel arch-breaking speed adjustment variable frequency feeding device,it can
prevent the hopper from reef knot effectively,and feed more precisely.
●quenching and tempering is longer and made by strength stainless steel.
●the main axis is the composite structures,it can be adapted to different processing
extruded feed,especially suitable for extruding soybean,corn,livestock feed.
●widely used in the rice bran’s preservation,cotton hodginsii,philosamia hodginsii’s
virus-free processing.
MODEL
AXIS’S
POWER
(kw)
QUENC
HEN
AND
TEMPE
RED
POWER
FEEDIN
G
POWER
(kw)
SCREW
DIAMET
ER(mm)
PRODUCTIVITY(t/h
)
MACHIN
E’S
WEIGHT
(kg)
Expande
d
soybean
Price(US
D)
PHS100
37
2.2 1.5 100
0.3-0.5 0.1-0.3 1400
30 0.2-0.4 0.1-0.2 1300
PHS135
75
2.2 1.5 133
0.7-1.2 0.4-0.7 2100
55 0.5-0.9 0.3-0.5 2000
PHS155 90 2.2 1.5 150 1.0-1.6 0.5-1.2 2600
PHS200 135 5.5 1.5 200 2.0-3.0 1.0-2.0 3200

www.hengfumall.com
- 14 -

www.hengfumall.com
- 15 -

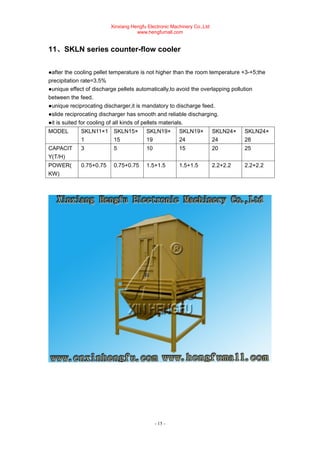

11、SKLN series counter-flow cooler
●after the cooling pellet temperature is not higher than the room temperature +3-+5;the
precipitation rate=3.5%
●unique effect of discharge pellets automatically,to avoid the overlapping pollution
between the feed.
●unique reciprocating discharger,it is mandatory to discharge feed.
●slide reciprocating discharger has smooth and reliable discharging.
●it is suited for cooling of all kinds of pellets materials.
MODEL SKLN11×1
1
SKLN15×
15
SKLN19×
19
SKLN19×
24
SKLN24×
24
SKLN24×
28
CAPACIT
Y(T/H)
3 5 10 15 20 25
POWER(
KW)
0.75+0.75 0.75+0.75 1.5+1.5 1.5+1.5 2.2+2.2 2.2+2.2

www.hengfumall.com
- 16 -

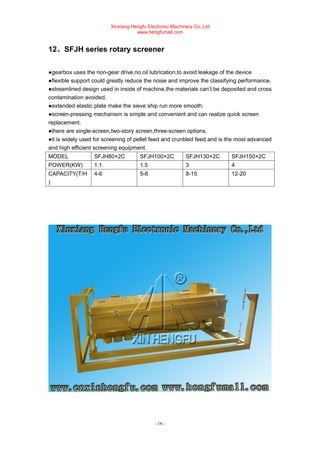

12、SFJH series rotary screener
●gearbox uses the non-gear drive,no oil lubrication,to avoid leakage of the device
●flexible support could greatly reduce the noise and improve the classifying performance.
●streamlined design used in inside of machine,the materials can’t be deposited and cross
contamination avoided.
●extended elastic plate make the sieve ship run more smooth.
●screen-pressing mechanism is simple and convenient and can realize quick screen
replacement.
●there are single-screen,two-story screen,three-screen options.
●it is widely used for screening of pellet feed and crunbled feed and is the most advanced
and high efficient screening equipment.
MODEL SFJH80×2C SFJH100×2C SFJH130×2C SFJH150×2C
POWER(KW) 1.1 1.5 3 4
CAPACITY(T/H
)
4-6 5-8 8-15 12-20

www.hengfumall.com
- 17 -
13、SSLG series crumbler
●it is suited for crumbling or pellet feed plant,also used the crumbling of corn and bean.
●rolls perform differential rotational speed.pellets are pressed,sheared and torn,thus
reaching ideal crumbling effect.pellets feed of various sizes could be crumbled to
2-2.5mm.
●high efficiency,low noise and consumption;when bypassing,automatic stoppage is
realized through limit switch.
MODEL SSLG15×80 SSLG15×10
0
SSLG15×15
0
SSLG20×17
0
POWER(KW) 2-4 3-6 5-10 10-20
CAPACITY(T/H
)
4 5.5 7.5 11/15

www.hengfumall.com
- 18 -

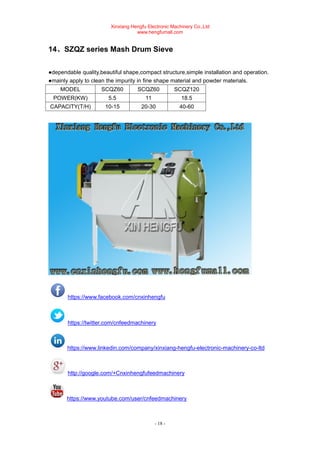

14、SZQZ series Mash Drum Sieve
●dependable quality,beautiful shape,compact structure,simple installation and operation.
●mainly apply to clean the impurity in fine shape material and powder materials.
MODEL SCQZ60 SCQZ60 SCQZ120
POWER(KW) 5.5 11 18.5
CAPACITY(T/H) 10-15 20-30 40-60

www.hengfumall.com
- 19 -

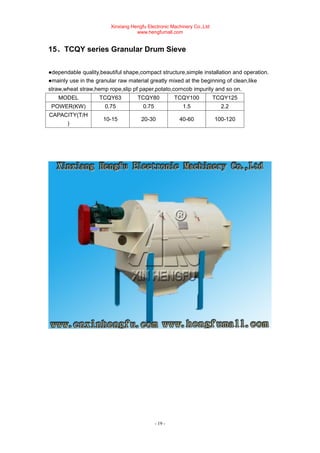

15、TCQY series Granular Drum Sieve
●dependable quality,beautiful shape,compact structure,simple installation and operation.
●mainly use in the granular raw material greatly mixed at the beginning of clean,like
straw,wheat straw,hemp rope,slip pf paper,potato,corncob impurity and so on.
MODEL TCQY63 TCQY80 TCQY100 TCQY125
POWER(KW) 0.75 0.75 1.5 2.2
CAPACITY(T/H
)
10-15 20-30 40-60 100-120

www.hengfumall.com
- 20 -
16、TDTGseries bucket elvator
●apply to transport of powder,granular material vertically
●the machine is equipped with explosion-proof mouth,could prevent powder explosion
effectively,safe and reliable.
●it can be also equipped with the automatic draw back device to prevent the machine’s
damming caused by power failure.
●the seat apply to flanging combination craft the intensity is high,the leak-proof quality is
good.
●automatic anti-deviation structure
●could equip speed test device
●widely used in a variety of vertical transportation powder,granular materials in food,feed
and other industries.
Model TDTG20/10 TDTG26/13 TDTG26/21 TDTG36/30 TDTG40/33
CAPACITY(
T/H)
4-6 6-8 9-12 13-16 19-30

www.hengfumall.com
- 21 -

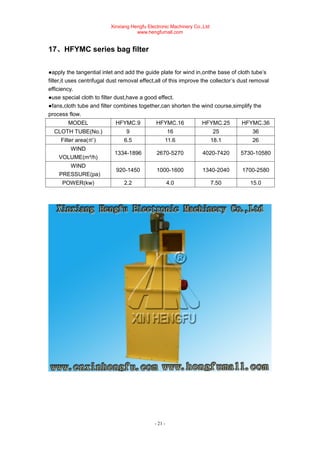

17、HFYMC series bag filter
●apply the tangential inlet and add the guide plate for wind in,onthe base of cloth tube’s
filter,it uses centrifugal dust removal effect,all of this improve the collector’s dust removal
efficiency.
●use special cloth to filter dust,have a good effect.
●fans,cloth tube and filter combines together,can shorten the wind course,simplify the
process flow.
MODEL HFYMC.9 HFYMC.16 HFYMC.25 HFYMC.36
CLOTH TUBE(No.) 9 16 25 36
Filter area(㎡) 6.5 11.6 18.1 26
WIND
VOLUME(m³/h)
1334-1896 2670-5270 4020-7420 5730-10580
WIND
PRESSURE(pa)
920-1450 1000-1600 1340-2040 1700-2580
POWER(kw) 2.2 4.0 7.50 15.0

www.hengfumall.com
- 22 -
18、HFTBLMB series bag filter
●use the flat bag and box-type structure,compact instructure,occupy small area,high dust
removal efficiency.
●use special cloth ti filter dust,have a good effect.
●apply unique blowing unit,could blow the dust on the cloth effectively.
MODEL HFTBLMB.6 HFTBLMB.9 HFTBLMB.12 HFTBLMB.15
DUST
EFFECT(%)
≥99.5 ≥99.5 ≥99.5 ≥99.5
FILTER
AREA(㎡)
6 9 12 15
WIND
VOLUME(m³/h)
1200-1700 1900-2500 2100-3300 3200-4200
WIND
PRESSURE(pa
)
940-900 1500-1100 1650-1500 1650-1500
POWER(kw) 1.5 2.2 3.0 3.0

www.hengfumall.com
- 23 -

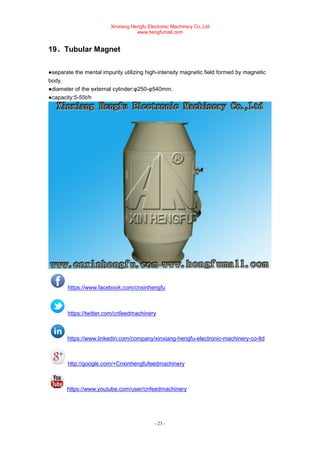

19、Tubular Magnet
●separate the mental impurity utilizing high-intensity magnetic field formed by magnetic
body.
●diameter of the external cylinder:φ250-φ540mm.
●capacity:5-55t/h

www.hengfumall.com
- 24 -

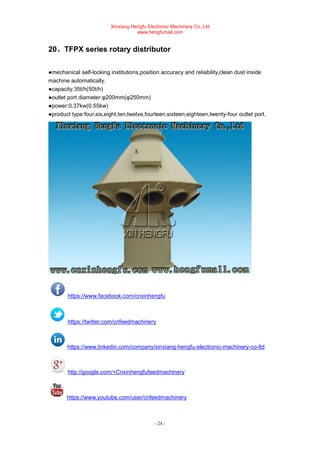

20、TFPX series rotary distributor
●mechanical self-locking institutions,position accuracy and reliability,clean dust inside
machine automatically.
●capacity:35t/h(50t/h)
●outlet port diameter:φ200mm(φ250mm)
●power:0.37kw(0.55kw)
●product type:four,six,eight,ten,twelve,fourteen,sixteen,eighteen,twenty-four outlet port.

www.hengfumall.com
- 25 -
21、DCS series bagging scale
●unique seismic devises can promise measuring accuracy,fast packing speed,it can run
smoothly in severe condition.it’s convenient to regulate and maintenance.
●the main components are imported with original packaging,long working life,high ability
of anti-drought.
●change the fall at any time,adjust the digital code,and track automatically.
●applicable to granule and powder materials’ packing.

www.hengfumall.com
- 26 -

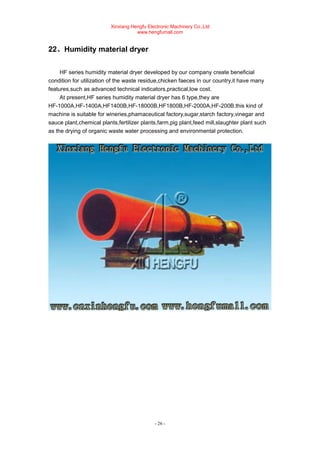

22、Humidity material dryer
HF series humidity material dryer developed by our company create beneficial
condition for utilization of the waste residue,chicken faeces in our country,it have many
features,such as advanced technical indicators,practical,low cost.
At present,HF series humidity material dryer has 6 type,they are
HF-1000A,HF-1400A,HF1400B,HF-18000B,HF1800B,HF-2000A,HF-200B.this kind of
machine is suitable for wineries,phamaceutical factory,sugar,starch factory,vinegar and
sauce plant,chemical plants,fertilizer plants,farm,pig plant,feed mill,slaughter plant such
as the drying of organic waste water processing and environmental protection.

www.hengfumall.com
- 27 -
23、9HT-2000,4000 powder units
Applicable to large and medium-sized cultivation companies and small-scale feed
processing plants,less powder consumption.save power,mixed uniformly.the machine use
the twisted dragon to upgrade the materials,smash fast,horizontal mixer mixed more
evenly,could work continuously operation, high capacity.
MODEL 2000 4000
POWER(KW) 23.7-27.4 42.9
CAPACITY(T/H) 1.5-2 3-4

www.hengfumall.com
- 28 -

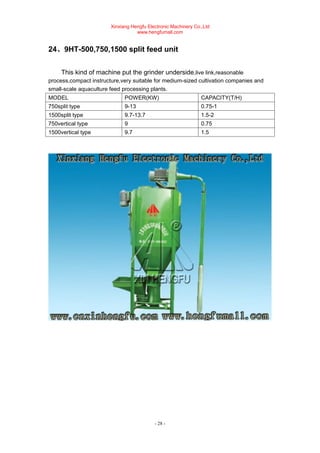

24、9HT-500,750,1500 split feed unit
This kind of machine put the grinder underside,live link,reasonable
process,compact instructure,very suitable for medium-sized cultivation companies and
small-scale aquaculture feed processing plants.
MODEL POWER(KW) CAPACITY(T/H)
750split type 9-13 0.75-1
1500split type 9.7-13.7 1.5-2
750vertical type 9 0.75
1500vertical type 9.7 1.5

www.hengfumall.com
- 29 -

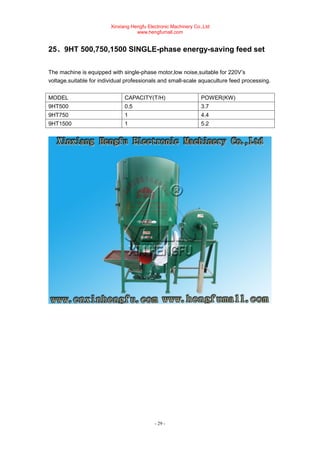

25、9HT 500,750,1500 SINGLE-phase energy-saving feed set
The machine is equipped with single-phase motor,low noise,suitable for 220V’s
voltage.suitable for individual professionals and small-scale aquaculture feed processing.
MODEL CAPACITY(T/H) POWER(KW)
9HT500 0.5 3.7
9HT750 1 4.4
9HT1500 1 5.2

www.hengfumall.com
- 30 -
26、9HT series powder mixer
●mainly used in variety of powder’s mixture,just like chemicals,building
materials,paints,pesticides,paint,cables,wires,plastics,ceramics,dry mortar,dry putty and
so on.
●the feeding and outlet part apply mandatory helix structure,small total power,high
efficiency,good sealing performance etc.
9HT750 0.5-0.8 4
9HT750 1-1.5 5.5

www.hengfumall.com
- 31 -
27、9HT 1000-2000 SEIES MANDATOY FEED SET
●The machine apply spiral upgrade,feeding enforcedly to make the best use of the
power,improve the units’ capacity.
1000 1 14
2000 2 14.7-18.7

www.hengfumall.com
- 32 -

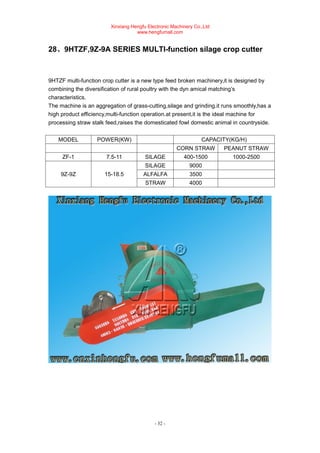

28、9HTZF,9Z-9A SERIES MULTI-function silage crop cutter
9HTZF multi-function crop cutter is a new type feed broken machinery,it is designed by
combining the diversification of rural poultry with the dyn amical matching’s
characteristics.
The machine is an aggregation of grass-cutting,silage and grinding.it runs smoothly,has a
high product efficiency,multi-function operation.at present,it is the ideal machine for
processing straw stalk feed,raises the domesticated fowl domestic animal in countryside.
MODEL POWER(KW) CAPACITY(KG/H)
CORN STRAW PEANUT STRAW
ZF-1 7.5-11 SILAGE 400-1500 1000-2500
9Z-9Z 15-18.5
SILAGE 9000
ALFALFA 3500
STRAW 4000

www.hengfumall.com
- 33 -

Xin Hengfu Feed Pellet Mill PRODUCTS

More Related Content

What's hot

Similar to Xin Hengfu Feed Pellet Mill PRODUCTS

Recently uploaded

Xin Hengfu Feed Pellet Mill PRODUCTS
