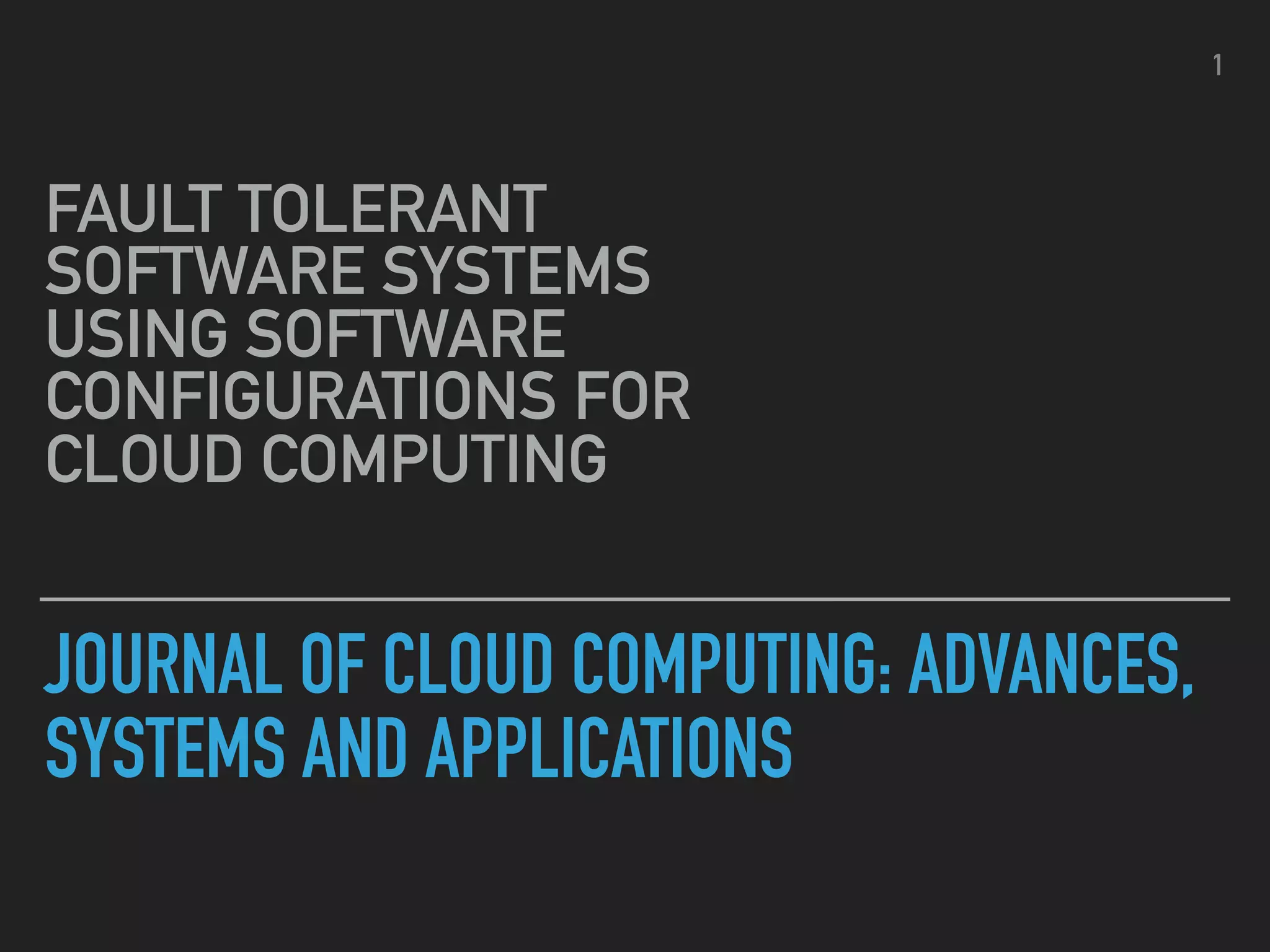

FAULT TOLERANT
SOFTWARE SYSTEMS
USING SOFTWARE
CONFIGURATIONS FOR
CLOUD COMPUTING
1

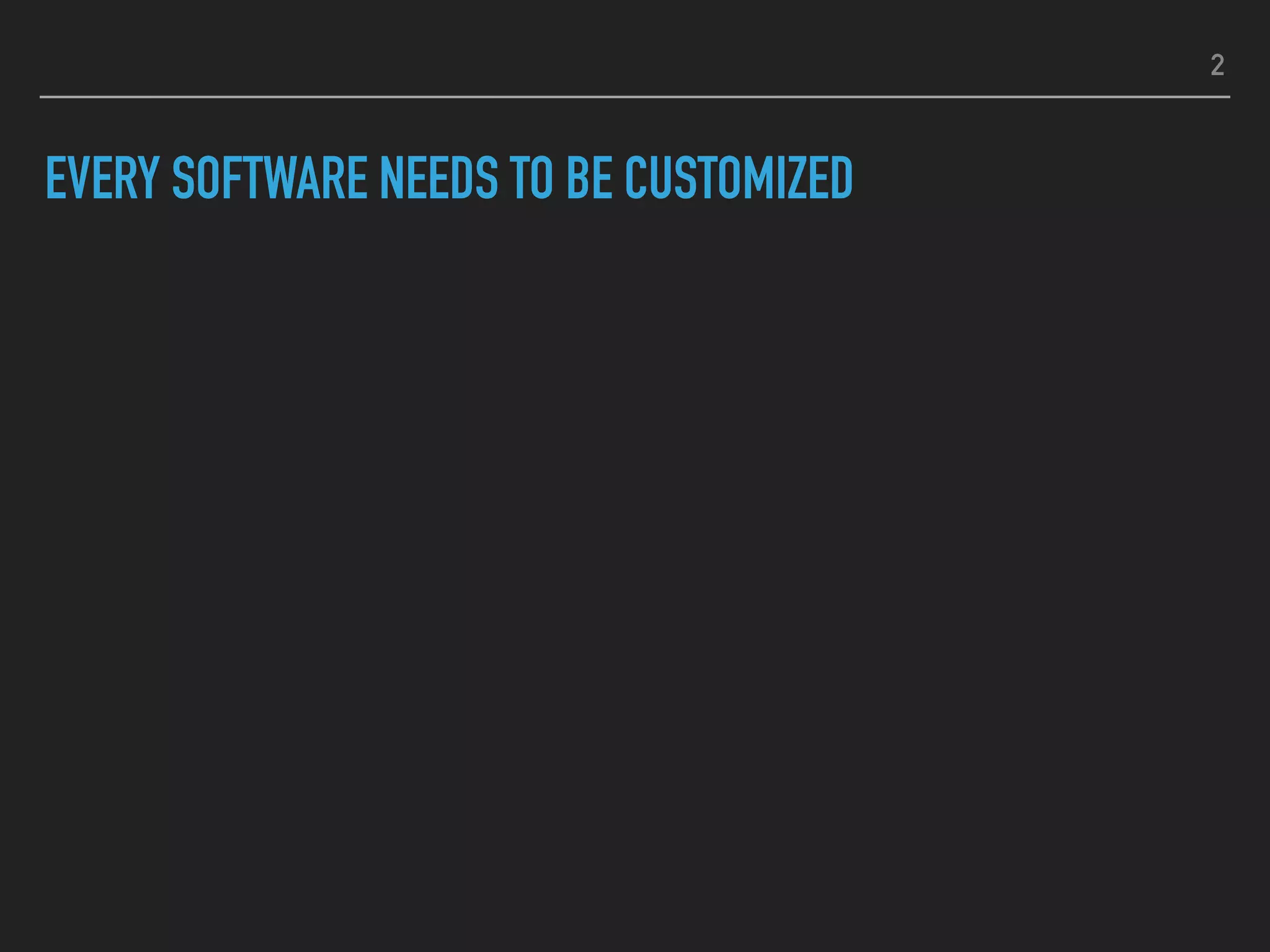

2. EVERY SOFTWARE NEEDS TO BE CUSTOMIZED
2

3. EVERY SOFTWARE NEEDS TO BE CUSTOMIZED
▸ Customization of a software system varies with user
requirements or target platform
3

4. EVERY SOFTWARE NEEDS TO BE CUSTOMIZED
▸ Customization of a software system varies with user
requirements or target platform
▸ Programmers employ preprocessor directives, command-
line arguments, setup files, configuration files to customize
a software system.
4

5. EVERY SOFTWARE NEEDS TO BE CUSTOMIZED
▸ Customization of a software system varies with user
requirements or target platform
▸ Programmers employ preprocessor directives, command-
line arguments, setup files, configuration files to customize
a software system.
▸ Any customizable option that can be selected during the
compile or load time is called a feature of a program.
5

6. What's a Software Configuration?
6

7. A SOFTWARE CONFIGURATION
CONSISTS OF NON-FUNCTIONAL
PROPERTIES CUSTOMIZED TO A
SPECIFIC SET OF FEATURES.
What's a Software Configuration?
7

8. A SOFTWARE SYSTEM THAT
CONSISTS OF HUNDREDS OR
THOUSANDS OF CONFIGURATIONS
IS PRONE TO FAILURE.
8

9. A SOFTWARE SYSTEM THAT
CONSISTS OF HUNDREDS OR
THOUSANDS OF CONFIGURATIONS
IS PRONE TO FAILURE.
9

10. CONFIGURATION CLASSIFICATION
10

11. CONFIGURATION CLASSIFICATION
▸ Configurations that perform important, common or default
operations are called critical configurations. During the
execution of software system many non-critical
configurations interact with critical configurations. Critical
configurations are specialized versions of non-critical
configurations
11

12. CONFIGURATION CLASSIFICATION
▸ Configurations that perform important, common or default
operations are called critical configurations. During the
execution of software system many non-critical
configurations interact with critical configurations. Critical
configurations are specialized versions of non-critical
configurations
12

13. CONFIGURATION CLASSIFICATION
▸ Configurations that perform important, common or default
operations are called critical configurations. During the
execution of software system many non-critical
configurations interact with critical configurations. Critical
configurations are specialized versions of non-critical
configurations
13

14. CONFIGURATION CLASSIFICATION
▸ Configurations that perform important, common or default
operations are called critical configurations. During the
execution of software system many non-critical
configurations interact with critical configurations. Critical
configurations are specialized versions of non-critical
configurations
14

15. CONFIGURATION CLASSIFICATION
▸ Configurations that perform important, common or default
operations are called critical configurations. During the
execution of software system many non-critical
configurations interact with critical configurations. Critical
configurations are specialized versions of non-critical
configurations
15
Frequently used or Critical configurations

16. CONFIGURATION CLASSIFICATION
▸ Configurations that perform important, common or default
operations are called critical configurations. During the
execution of software system many non-critical
configurations interact with critical configurations. Critical
configurations are specialized versions of non-critical
configurations
16
Frequently used or Critical configurations
vs

17. CONFIGURATION CLASSIFICATION
▸ Configurations that perform important, common or default
operations are called critical configurations. During the
execution of software system many non-critical
configurations interact with critical configurations. Critical
configurations are specialized versions of non-critical
configurations
17
Frequently used or Critical configurations
vs
Less frequently used or non-critical configurations

18. A CONFIGURATION IS SAID TO
BE FAILED CONFIGURATION IF
IT EITHER PRODUCE ERRORS
DURING ITS EXECUTION OR
FAIL TO SUCCESSFULLY
COMPLETE ITS TASK.
18

19. A CONFIGURATION IS SAID TO
BE FAILED CONFIGURATION IF
IT EITHER PRODUCE ERRORS
DURING ITS EXECUTION OR
FAIL TO SUCCESSFULLY
COMPLETE ITS TASK.
19

20. Configurations Interaction
20

21. PASSING
PARAMETER,
RETURN VALUES
OR ETC AMONG
CONFIGURATIONS
Configurations Interaction
21

22. PASSING
PARAMETER,
RETURN VALUES
OR ETC AMONG
CONFIGURATIONS
Configurations Interaction
22

23. PROPOSED ARCHITECTURE
23

24. PROPOSED ARCHITECTURE
24
A SOFTWARE SYSTEM CAN BE MODELED AS A WEIGHTED DIRECTED GRAPH

25. PROPOSED ARCHITECTURE
25
HOW TO CLASSIFY?

26. CLASSIFICATION OF CONFIGURATIONS
26

27. CLASSIFICATION OF CONFIGURATIONS
27

28. CLASSIFICATION OF CONFIGURATIONS
28
Where Fjk represent the number of times
configuration Cj invoked Ck and N is the number
of configurations present in a software system.

29. CLASSIFICATION OF CONFIGURATIONS
29
Where Fjk represent the number of times
configuration Cj invoked Ck and N is the number
of configurations present in a software system.
1) Frequency of interactions between configurations(IFrFT)
2) Characteristics such as structure (critical or non-critical) and frequency of interactions (ChIFrFT )

30. FREQUENCY OF INTERACTIONS BETWEEN CONFIGURATIONS
30

31. FREQUENCY OF INTERACTIONS BETWEEN CONFIGURATIONS
31
In this approach all configurations are treated
as equal by setting their individual interaction
value to zero at the beginning of execution of
a software system.

32. FREQUENCY OF INTERACTIONS BETWEEN CONFIGURATIONS
32
Configurations that are involved in most
of the interactions during execution of
software system are considered as critical
configurations.
In this approach all configurations are treated
as equal by setting their individual interaction
value to zero at the beginning of execution of
a software system.

33. FREQUENCY OF INTERACTIONS BETWEEN CONFIGURATIONS
33
Configurations that are involved in most
of the interactions during execution of
software system are considered as critical
configurations.
In this approach all configurations are treated
as equal by setting their individual interaction
value to zero at the beginning of execution of
a software system.
We propose a mathematical model to find
frequently used configurations of a software
system based on frequency of interactions.

34. FREQUENCY OF INTERACTIONS BETWEEN CONFIGURATIONS
34
Configurations that are involved in most
of the interactions during execution of
software system are considered as critical
configurations.
In this approach all configurations are treated
as equal by setting their individual interaction
value to zero at the beginning of execution of
a software system.
We propose a mathematical model to find
frequently used configurations of a software
system based on frequency of interactions.

35. CHIFRFT: FAULT TOLERANCE BASED ON CHARACTERISTICS AND INTERACTION FREQUENCIES OF CONFIGURATIONS
35

36. CHIFRFT: FAULT TOLERANCE BASED ON CHARACTERISTICS AND INTERACTION FREQUENCIES OF CONFIGURATIONS
36
In this approach software configurations are categorized into two sets
1) configurations which perform critical tasks (checking for uniqueness, size of index table, search
operation)
2) 2) of configurations which perform non-critical tasks (the padding of special symbol in fixed-length
records).

37. CHIFRFT: FAULT TOLERANCE BASED ON CHARACTERISTICS AND INTERACTION FREQUENCIES OF CONFIGURATIONS
37
In this approach software configurations are categorized into two sets
1) configurations which perform critical tasks (checking for uniqueness, size of index table, search
operation)
2) 2) of configurations which perform non-critical tasks (the padding of special symbol in fixed-length
records).
Initial interaction values of configurations that belong to the set critical configurations are assigned to
higher values compare to non-critical configurations.

38. CHIFRFT: FAULT TOLERANCE BASED ON CHARACTERISTICS AND INTERACTION FREQUENCIES OF CONFIGURATIONS
38
In this approach software configurations are categorized into two sets
1) configurations which perform critical tasks (checking for uniqueness, size of index table, search
operation)
2) 2) of configurations which perform non-critical tasks (the padding of special symbol in fixed-length
records).
Initial interaction values of configurations that belong to the set critical configurations are assigned to
higher values compare to non-critical configurations.

39. CHIFRFT: FAULT TOLERANCE BASED ON CHARACTERISTICS AND INTERACTION FREQUENCIES OF CONFIGURATIONS
39
In this approach software configurations are categorized into two sets
1) configurations which perform critical tasks (checking for uniqueness, size of index table, search
operation)
2) 2) of configurations which perform non-critical tasks (the padding of special symbol in fixed-length
records).
Initial interaction values of configurations that belong to the set critical configurations are assigned to
higher values compare to non-critical configurations.

40. PROPOSED ARCHITECTURE
40
👍

41. PROPOSED ARCHITECTURE
41
NOW, YOU HAVE NUMBERS!

42. PROPOSED ARCHITECTURE
42
WHICH ONE IS SUITABLE?

43. FAULT TOLERANCE
SCHEMES
43

44. FAULT TOLERANCE
SCHEMES
Proactive Scheme
44

45. FAULT TOLERANCE
SCHEMES
Proactive Scheme
45
Reactive Scheme

46. PROACTIVE SCHEME
46
Proactive schemes are costlier as they need lots of resources to support simultaneous execution of
primary job and its replicas

47. PROACTIVE SCHEME
47
Proactive schemes are costlier as they need lots of resources to support simultaneous execution of
primary job and its replicas
1- Preemptive migration
2- N-Version Programming
3- N-Copy Programming
4- Byzantine Fault Tolerance

48. PROACTIVE SCHEME
48
Proactive schemes are costlier as they need lots of resources to support simultaneous execution of
primary job and its replicas
1- Preemptive migration
2- N-Version Programming
3- N-Copy Programming
4- Byzantine Fault Tolerance

49. REACTIVE SCHEME
49

50. REACTIVE SCHEME
50
Reactive fault tolerance schemes act on the recovery process after the occurrence of failure.

51. REACTIVE SCHEME
51
1- Recovery Block Programming
2- Process Checkpointing
3- Process Migration
Reactive fault tolerance schemes act on the recovery process after the occurrence of failure.

52. PERFORMANCE EVALUATION
52
Using C++ language we have developed a software system for file structure techniques proposed by
Michael J. Folk in [54].

53. PERFORMANCE EVALUATION - CONT
53

54. 54
PERFORMANCE EVALUATION - CONT

55. 55
PERFORMANCE EVALUATION - CONT

56. 56
PERFORMANCE EVALUATION - CONT

57. 57
PERFORMANCE EVALUATION - CONT

58. 58
PERFORMANCE EVALUATION - CONT

59. 59
PERFORMANCE EVALUATION - CONT

60. 60
PERFORMANCE EVALUATION - CONT

61. 61
PERFORMANCE EVALUATION - CONT

62. 62
PERFORMANCE EVALUATION - CONT

63. 63
NOW, YOU CAN CHOOSE!

64. RECAP
64

65. RECAP
65
In this research article we have proposed fault tolerant techniques based on frequency of
interactions, characteristics of configurations. IFrFT technique based on frequency of interactions
makes use of interaction values of configurations to measure the reliability and performance of a
software system. ChIFrFT technique is based on frequency of interactions and characteristics
(critical operations such as payment transactions and control systems) makes use of structural
information of configurations. Performance of NoFT, AllFT, IFrFT and ChIFrFT techniques compared
for various percentages of critical con- figurations, number of interaction requests. While AllFT
technique perform better than all the other techniques ChIFrFT approach has consistent
performance compare to IFrFT and NoFT. Performance of IFrFT and ChIFrFT techniques, in terms of
the number of successful interactions, has increased by 25 and 40% respectively compare to NoFT.

66. RECAP
66
In this research article we have proposed fault tolerant techniques based on frequency of
interactions, characteristics of configurations. IFrFT technique based on frequency of interactions
makes use of interaction values of configurations to measure the reliability and performance of a
software system. ChIFrFT technique is based on frequency of interactions and characteristics
(critical operations such as payment transactions and control systems) makes use of structural
information of configurations. Performance of NoFT, AllFT, IFrFT and ChIFrFT techniques compared
for various percentages of critical con- figurations, number of interaction requests. While AllFT
technique perform better than all the other techniques ChIFrFT approach has consistent
performance compare to IFrFT and NoFT. Performance of IFrFT and ChIFrFT techniques, in terms of
the number of successful interactions, has increased by 25 and 40% respectively compare to NoFT.

67. RECAP
67
In this research article we have proposed fault tolerant techniques based on frequency of
interactions, characteristics of configurations. IFrFT technique based on frequency of interactions
makes use of interaction values of configurations to measure the reliability and performance of a
software system. ChIFrFT technique is based on frequency of interactions and characteristics
(critical operations such as payment transactions and control systems) makes use of structural
information of configurations. Performance of NoFT, AllFT, IFrFT and ChIFrFT techniques compared
for various percentages of critical con- figurations, number of interaction requests. While AllFT
technique perform better than all the other techniques ChIFrFT approach has consistent
performance compare to IFrFT and NoFT. Performance of IFrFT and ChIFrFT techniques, in terms of
the number of successful interactions, has increased by 25 and 40% respectively compare to NoFT.

68. RECAP
68
In this research article we have proposed fault tolerant techniques based on frequency of
interactions, characteristics of configurations. IFrFT technique based on frequency of interactions
makes use of interaction values of configurations to measure the reliability and performance of a
software system. ChIFrFT technique is based on frequency of interactions and characteristics
(critical operations such as payment transactions and control systems) makes use of structural
information of configurations. Performance of NoFT, AllFT, IFrFT and ChIFrFT techniques compared
for various percentages of critical con- figurations, number of interaction requests. While AllFT
technique perform better than all the other techniques ChIFrFT approach has consistent
performance compare to IFrFT and NoFT. Performance of IFrFT and ChIFrFT techniques, in terms of
the number of successful interactions, has increased by 25 and 40% respectively compare to NoFT.

69. RECAP
69
In this research article we have proposed fault tolerant techniques based on frequency of
interactions, characteristics of configurations. IFrFT technique based on frequency of interactions
makes use of interaction values of configurations to measure the reliability and performance of a
software system. ChIFrFT technique is based on frequency of interactions and characteristics
(critical operations such as payment transactions and control systems) makes use of structural
information of configurations. Performance of NoFT, AllFT, IFrFT and ChIFrFT techniques compared
for various percentages of critical con- figurations, number of interaction requests. While AllFT
technique perform better than all the other techniques ChIFrFT approach has consistent
performance compare to IFrFT and NoFT. Performance of IFrFT and ChIFrFT techniques, in terms of
the number of successful interactions, has increased by 25 and 40% respectively compare to NoFT.

70. RECAP
70
In this research article we have proposed fault tolerant techniques based on frequency of
interactions, characteristics of configurations. IFrFT technique based on frequency of interactions
makes use of interaction values of configurations to measure the reliability and performance of a
software system. ChIFrFT technique is based on frequency of interactions and characteristics
(critical operations such as payment transactions and control systems) makes use of structural
information of configurations. Performance of NoFT, AllFT, IFrFT and ChIFrFT techniques compared
for various percentages of critical con- figurations, number of interaction requests. While AllFT
technique perform better than all the other techniques ChIFrFT approach has consistent
performance compare to IFrFT and NoFT. Performance of IFrFT and ChIFrFT techniques, in terms of
the number of successful interactions, has increased by 25 and 40% respectively compare to NoFT.

71. RECAP
71
In this research article we have proposed fault tolerant techniques based on frequency of
interactions, characteristics of configurations. IFrFT technique based on frequency of interactions
makes use of interaction values of configurations to measure the reliability and performance of a
software system. ChIFrFT technique is based on frequency of interactions and characteristics
(critical operations such as payment transactions and control systems) makes use of structural
information of configurations. Performance of NoFT, AllFT, IFrFT and ChIFrFT techniques compared
for various percentages of critical con- figurations, number of interaction requests. While AllFT
technique perform better than all the other techniques ChIFrFT approach has consistent
performance compare to IFrFT and NoFT. Performance of IFrFT and ChIFrFT techniques, in terms of
the number of successful interactions, has increased by 25 and 40% respectively compare to NoFT.

72. RECAP
72
In this research article we have proposed fault tolerant techniques based on frequency of
interactions, characteristics of configurations. IFrFT technique based on frequency of interactions
makes use of interaction values of configurations to measure the reliability and performance of a
software system. ChIFrFT technique is based on frequency of interactions and characteristics
(critical operations such as payment transactions and control systems) makes use of structural
information of configurations. Performance of NoFT, AllFT, IFrFT and ChIFrFT techniques compared
for various percentages of critical con- figurations, number of interaction requests. While AllFT
technique perform better than all the other techniques ChIFrFT approach has consistent
performance compare to IFrFT and NoFT. Performance of IFrFT and ChIFrFT techniques, in terms of
the number of successful interactions, has increased by 25 and 40% respectively compare to NoFT.

73. 73
THANKS
