1. Fault Tolerance in a
High Volume, Distributed System
Ben Christensen
Software Engineer – API Platform at Netflix
@benjchristensen
http://www.linkedin.com/in/benjchristensen
1

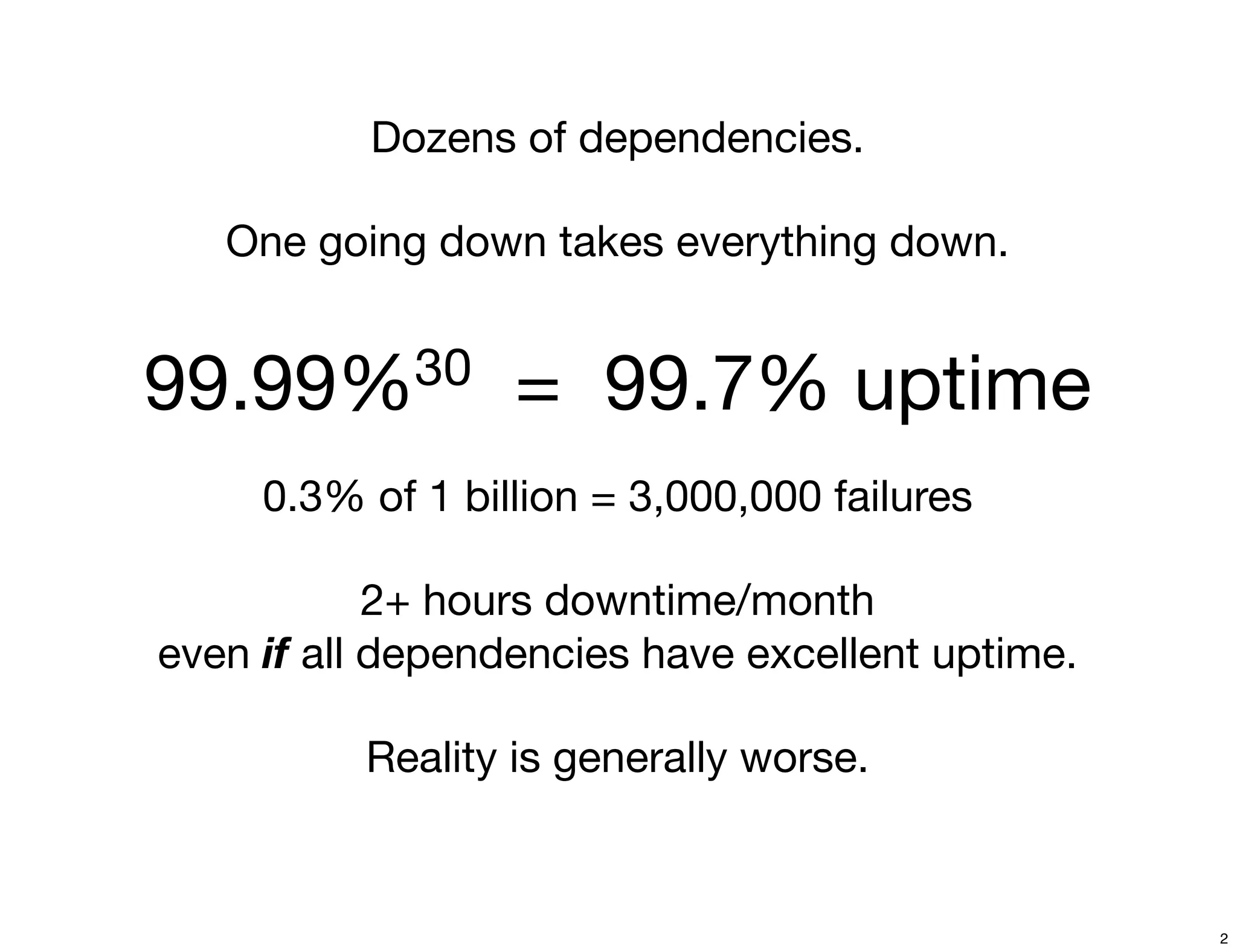

2. Dozens of dependencies.
One going down takes everything down.
99.99%30 = 99.7% uptime
0.3% of 1 billion = 3,000,000 failures
2+ hours downtime/month
even if all dependencies have excellent uptime.
Reality is generally worse.
2

3. 3

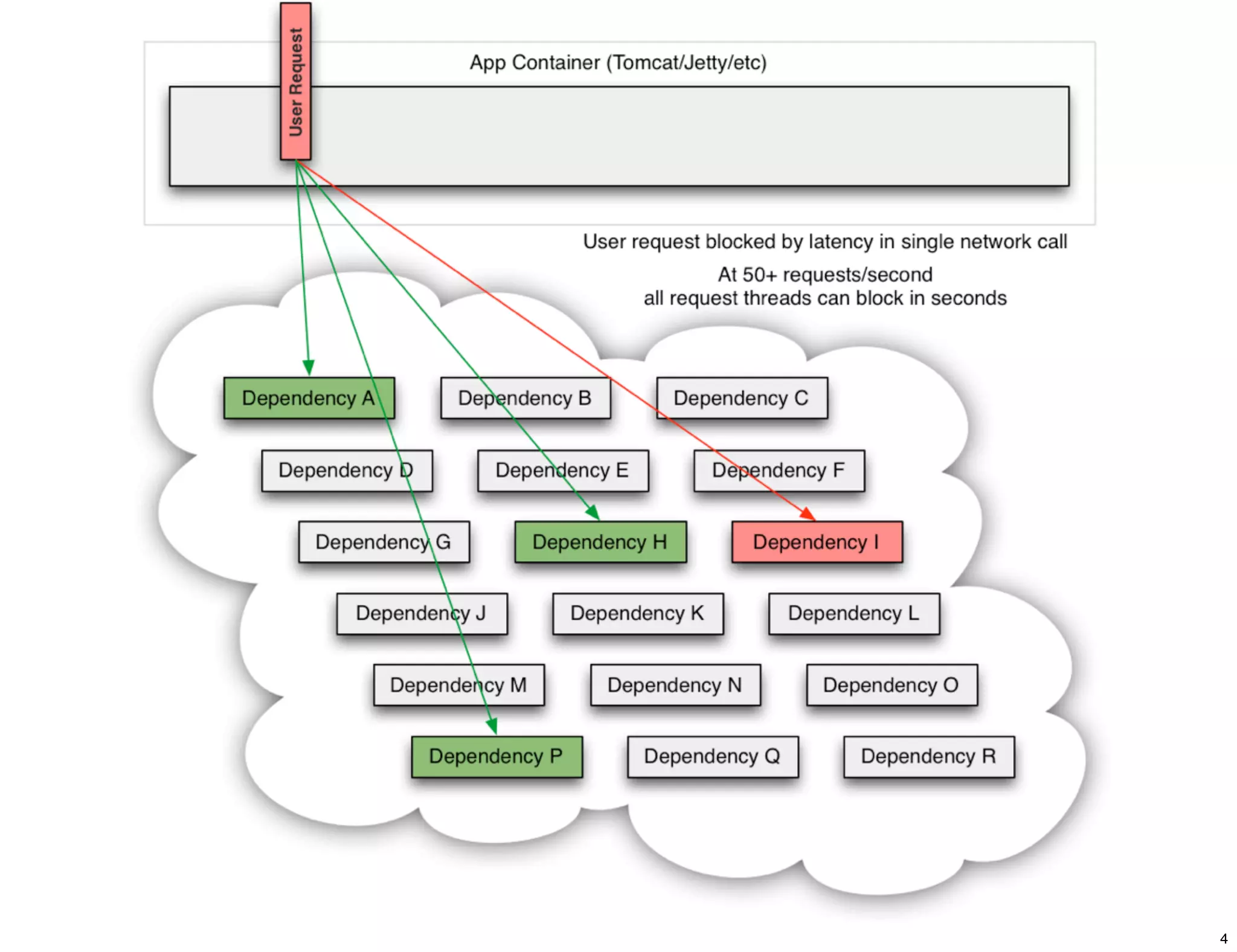

4. 4

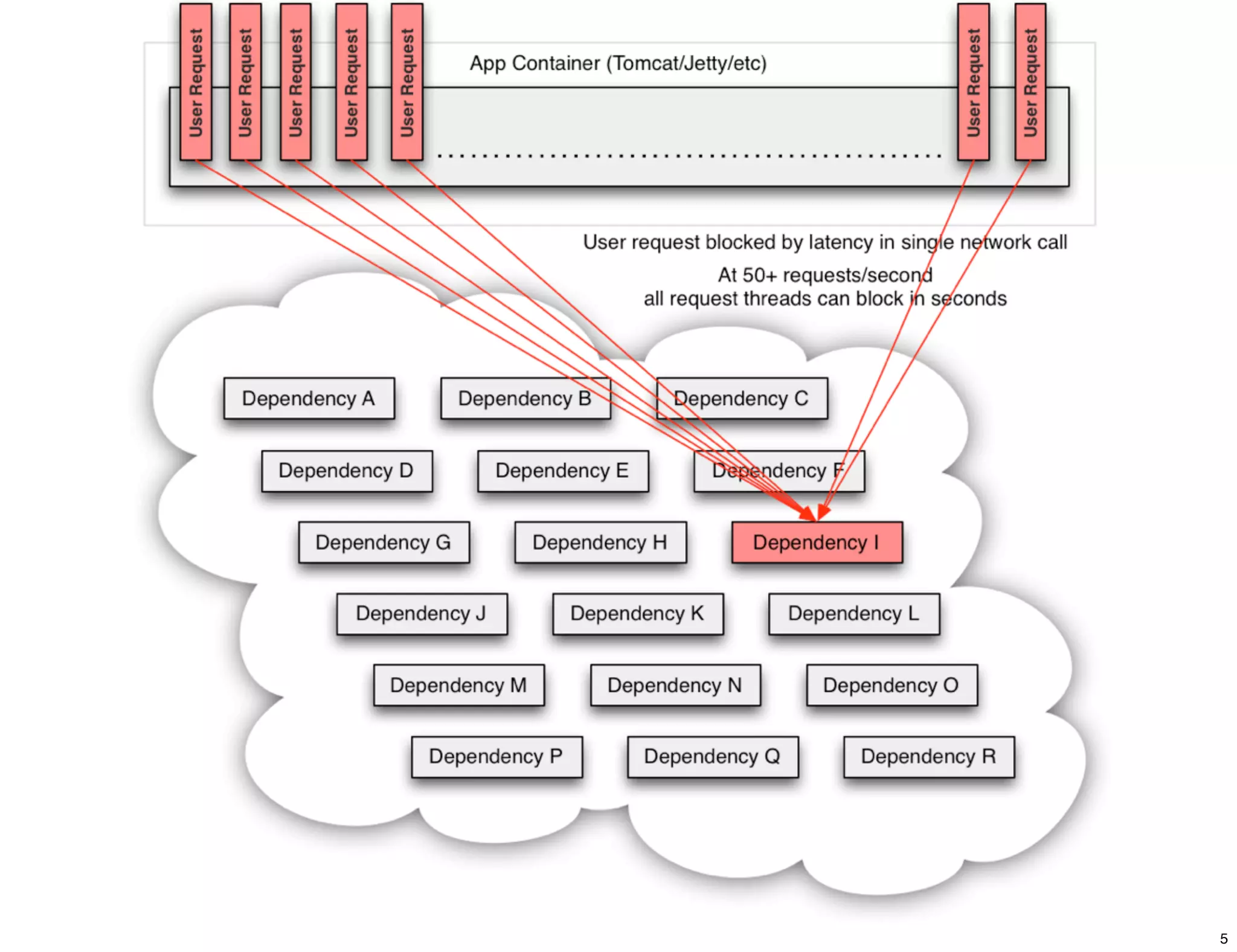

5. 5

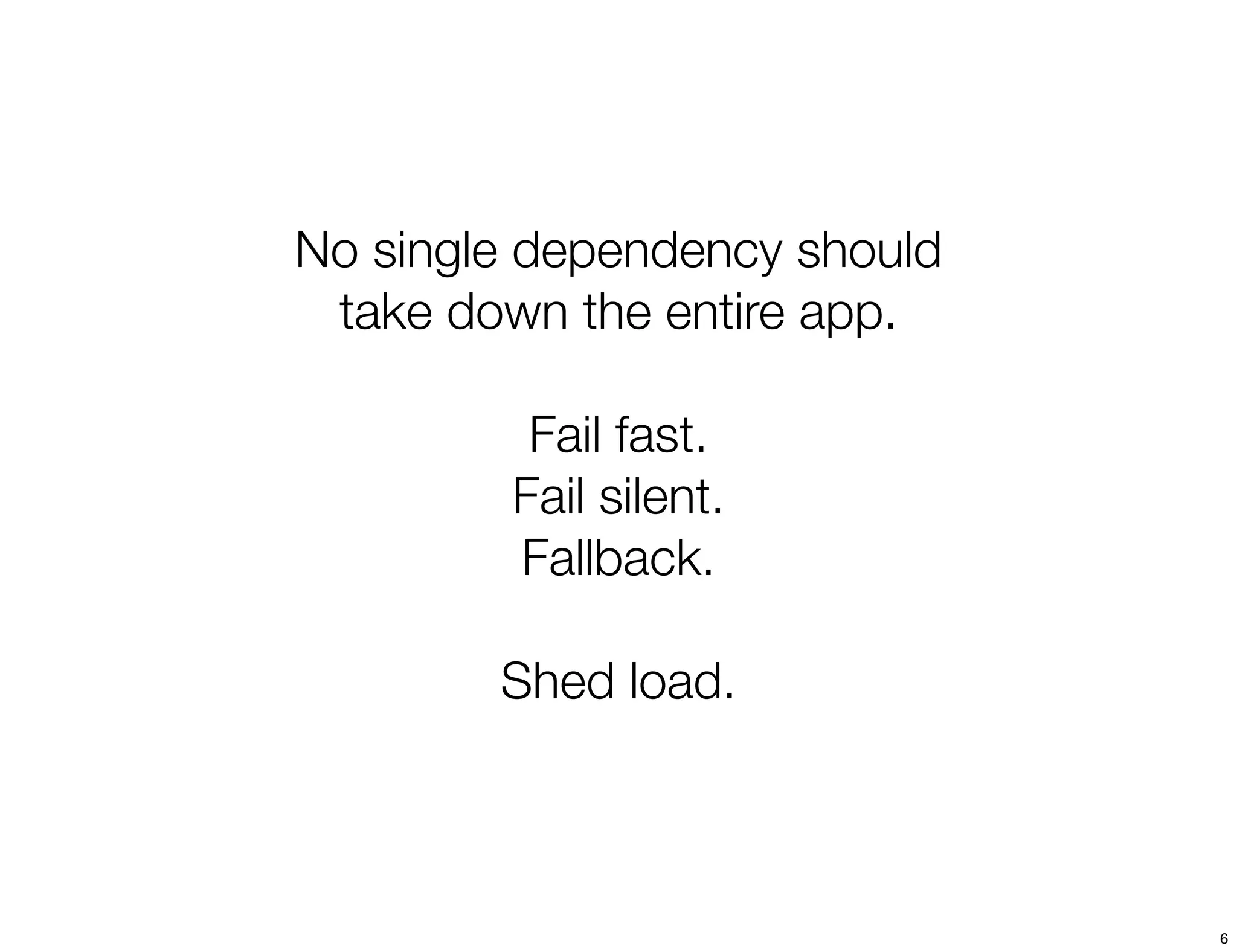

6. No single dependency should
take down the entire app.
Fail fast.
Fail silent.
Fallback.
Shed load.
6

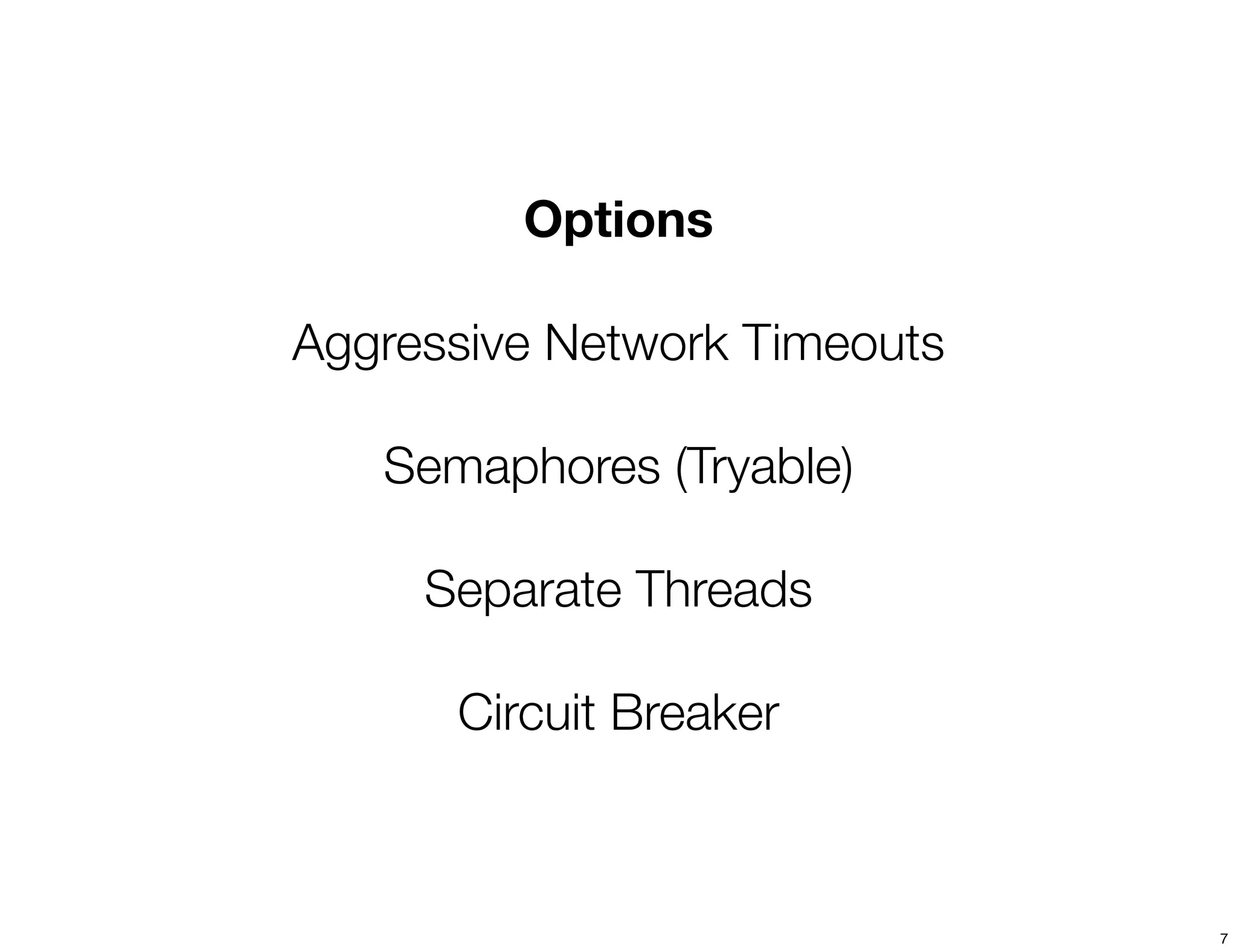

7. Options
Aggressive Network Timeouts
Semaphores (Tryable)
Separate Threads
Circuit Breaker
7

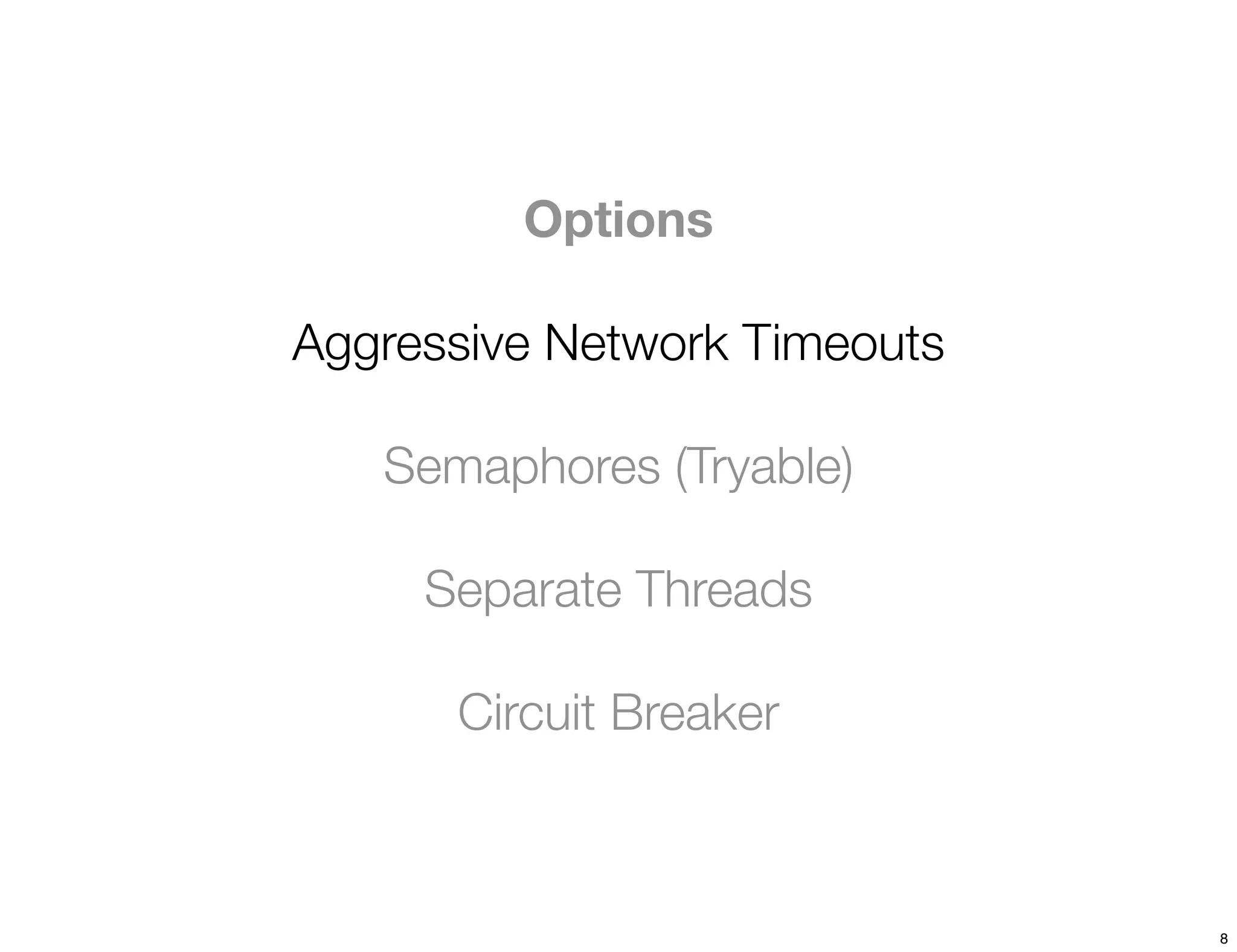

8. Options
Aggressive Network Timeouts
Semaphores (Tryable)
Separate Threads
Circuit Breaker
8

9. Options
Aggressive Network Timeouts
Semaphores (Tryable)
Separate Threads
Circuit Breaker
9

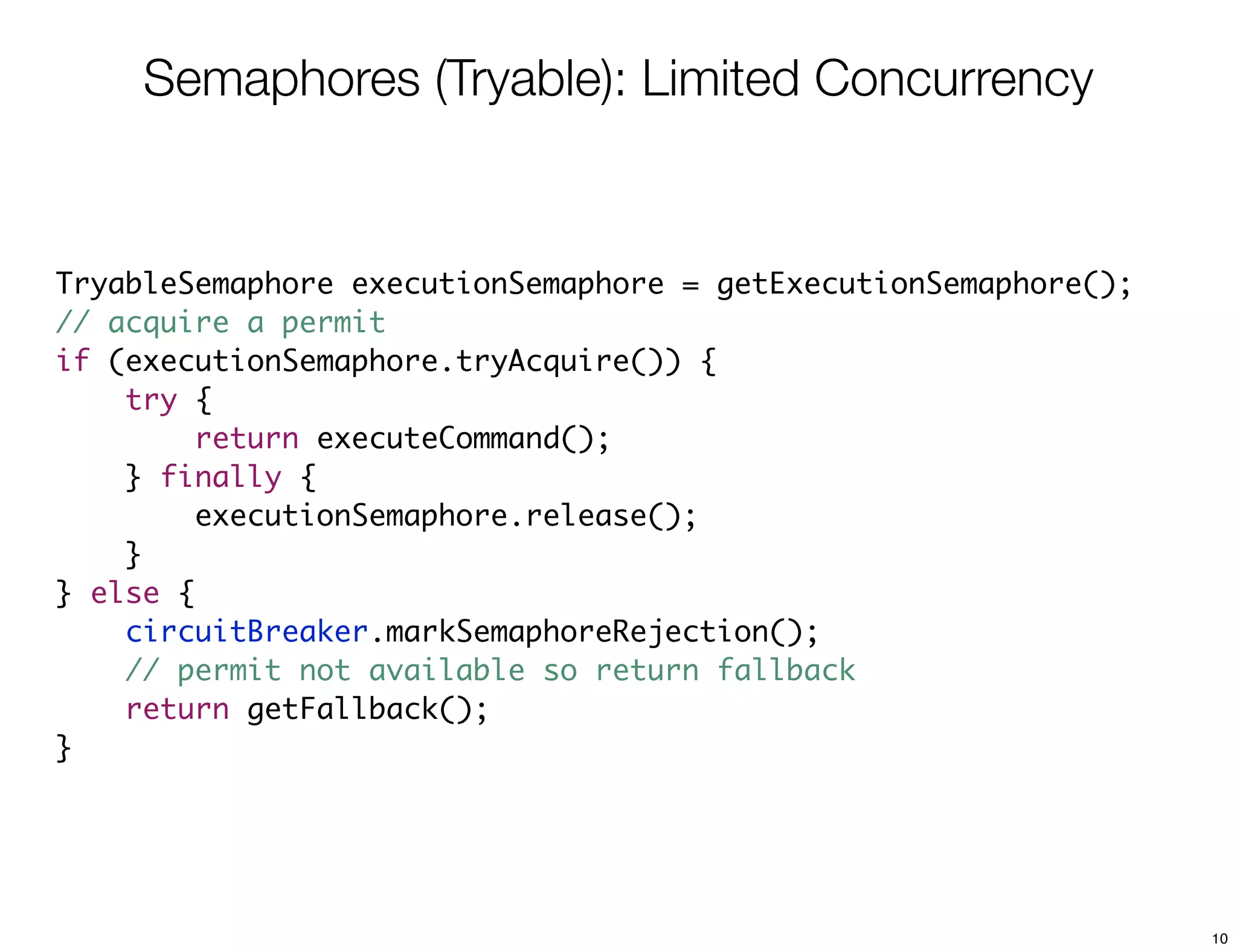

10. Semaphores (Tryable): Limited Concurrency
TryableSemaphore executionSemaphore = getExecutionSemaphore();
// acquire a permit
if (executionSemaphore.tryAcquire()) {
try {
return executeCommand();
} finally {
executionSemaphore.release();
}
} else {
circuitBreaker.markSemaphoreRejection();
// permit not available so return fallback
return getFallback();
}
10

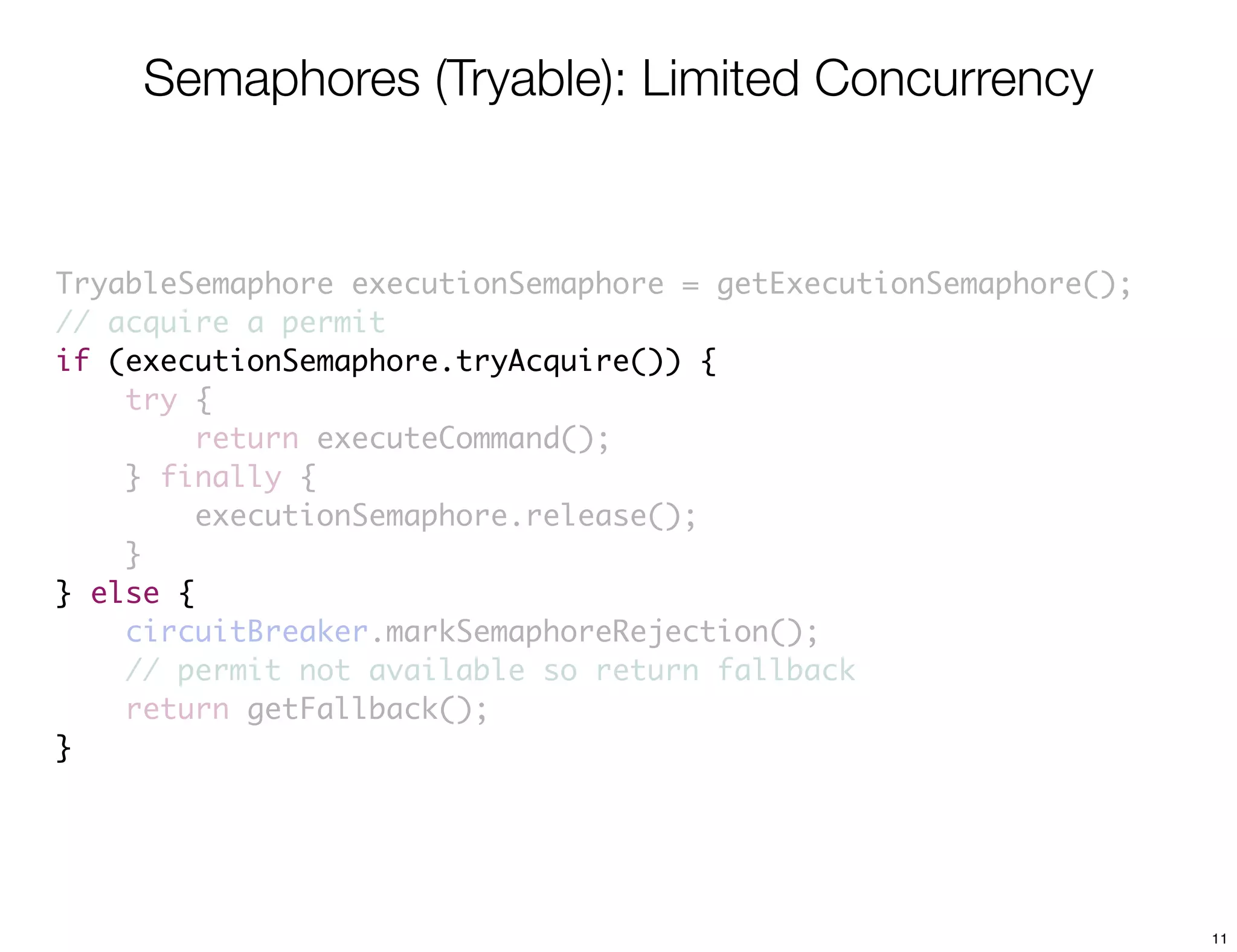

11. Semaphores (Tryable): Limited Concurrency
TryableSemaphore executionSemaphore = getExecutionSemaphore();
// acquire a permit
if (executionSemaphore.tryAcquire()) {
try {
return executeCommand();
} finally {
executionSemaphore.release();
}
} else {
circuitBreaker.markSemaphoreRejection();
// permit not available so return fallback
return getFallback();
}
11

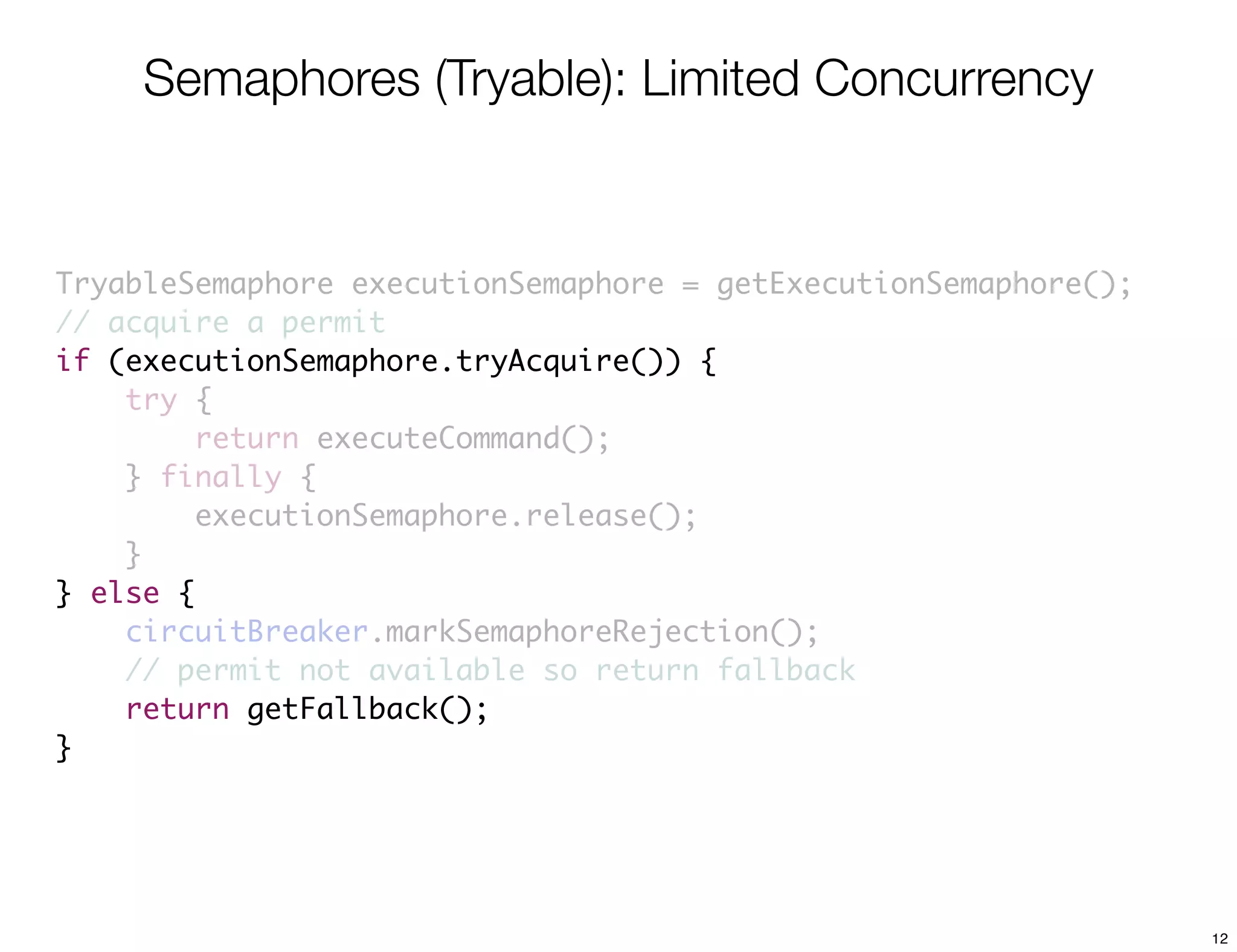

12. Semaphores (Tryable): Limited Concurrency
TryableSemaphore executionSemaphore = getExecutionSemaphore();
// acquire a permit
if (executionSemaphore.tryAcquire()) {
try {
return executeCommand();
} finally {
executionSemaphore.release();
}
} else {
circuitBreaker.markSemaphoreRejection();
// permit not available so return fallback
return getFallback();
}
12

13. Options
Aggressive Network Timeouts
Semaphores (Tryable)
Separate Threads
Circuit Breaker
13

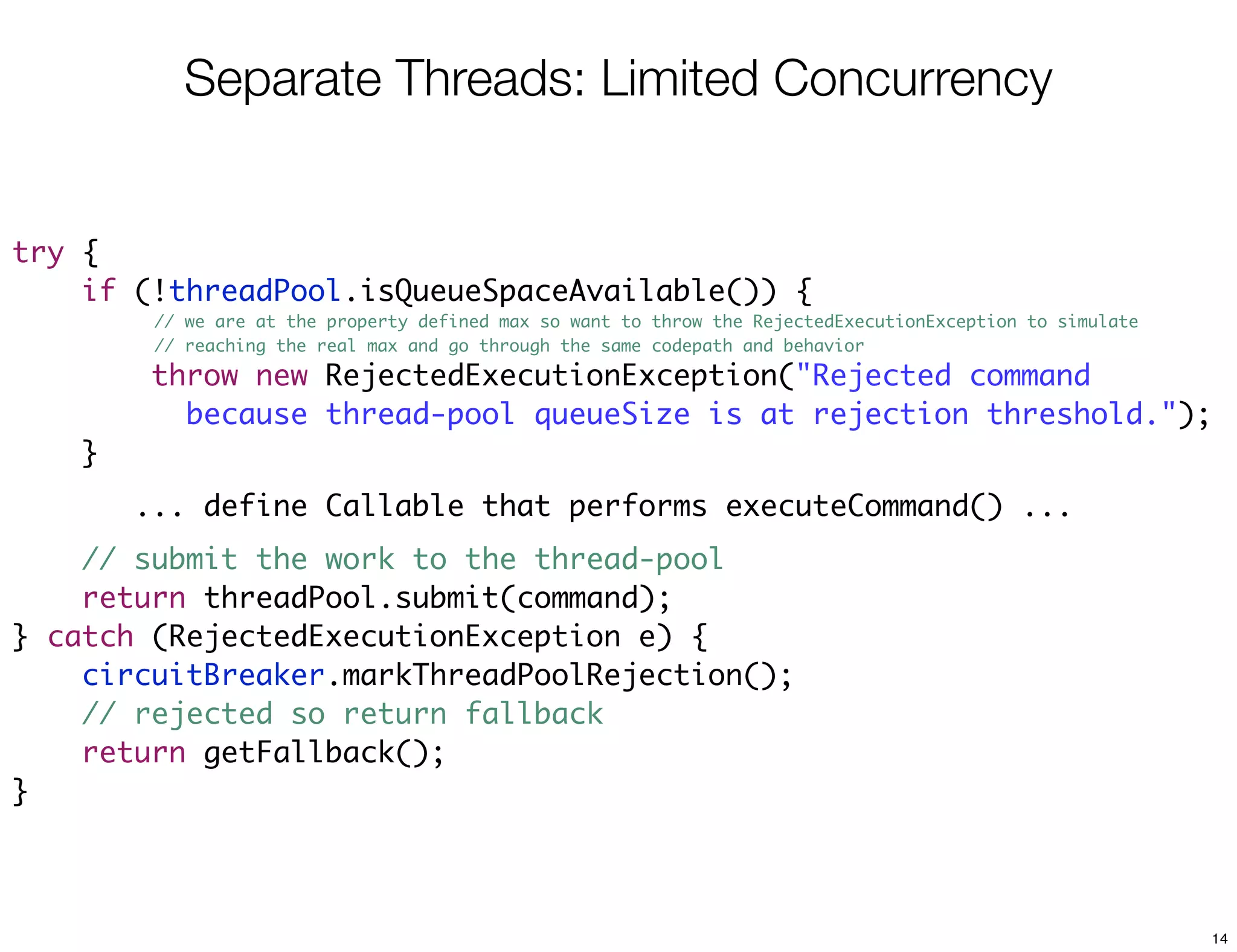

14. Separate Threads: Limited Concurrency
try {
if (!threadPool.isQueueSpaceAvailable()) {
// we are at the property defined max so want to throw the RejectedExecutionException to simulate
// reaching the real max and go through the same codepath and behavior
throw new RejectedExecutionException("Rejected command
because thread-pool queueSize is at rejection threshold.");
}
... define Callable that performs executeCommand() ...
// submit the work to the thread-pool
return threadPool.submit(command);
} catch (RejectedExecutionException e) {
circuitBreaker.markThreadPoolRejection();
// rejected so return fallback
return getFallback();
}
14

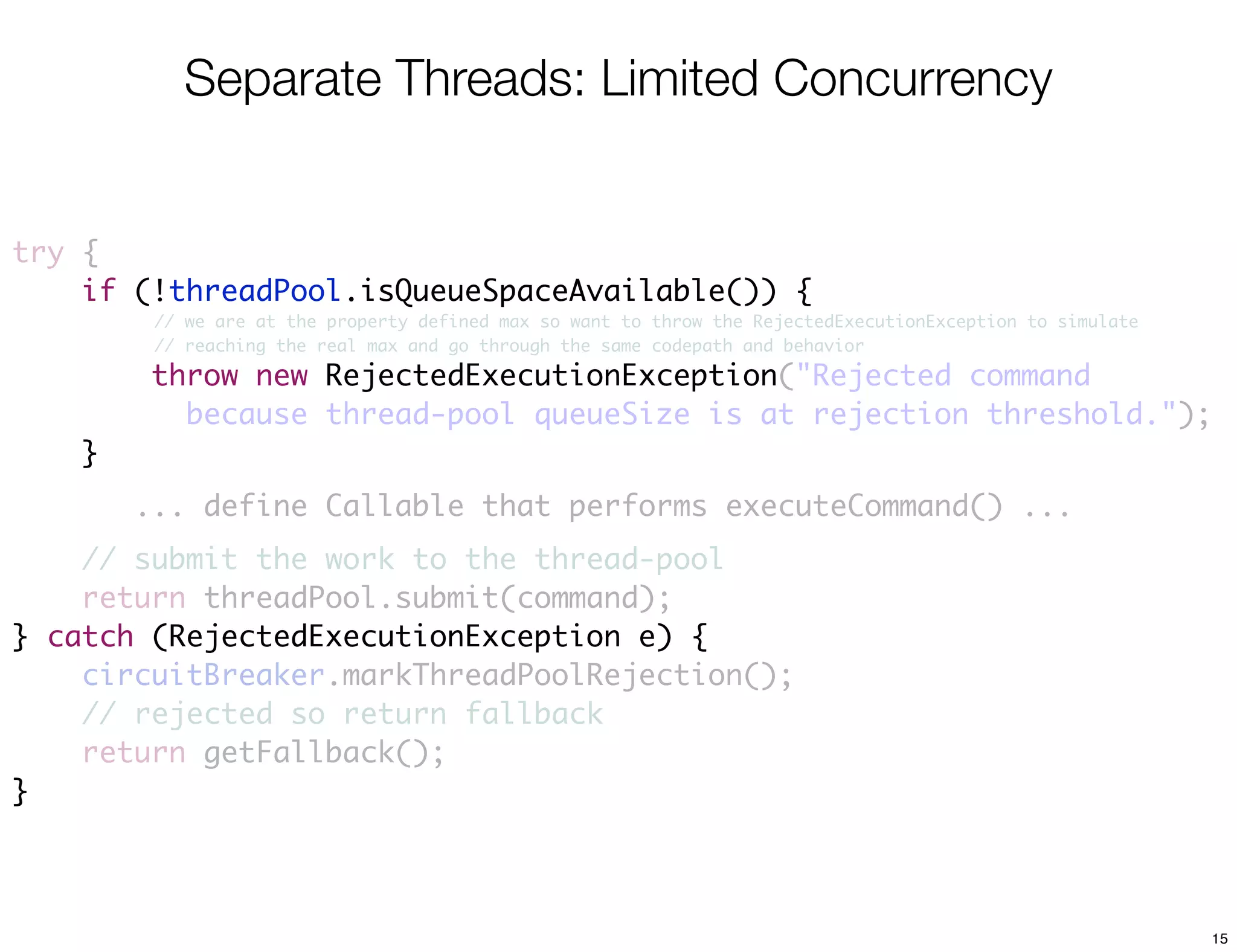

15. Separate Threads: Limited Concurrency
try {
if (!threadPool.isQueueSpaceAvailable()) {
// we are at the property defined max so want to throw the RejectedExecutionException to simulate
// reaching the real max and go through the same codepath and behavior
throw new RejectedExecutionException("Rejected command
RejectedExecutionException
because thread-pool queueSize is at rejection threshold.");
}
... define Callable that performs executeCommand() ...
// submit the work to the thread-pool
return threadPool.submit(command);
} catch (RejectedExecutionException e) {
circuitBreaker.markThreadPoolRejection();
// rejected so return fallback
return getFallback();
}
15

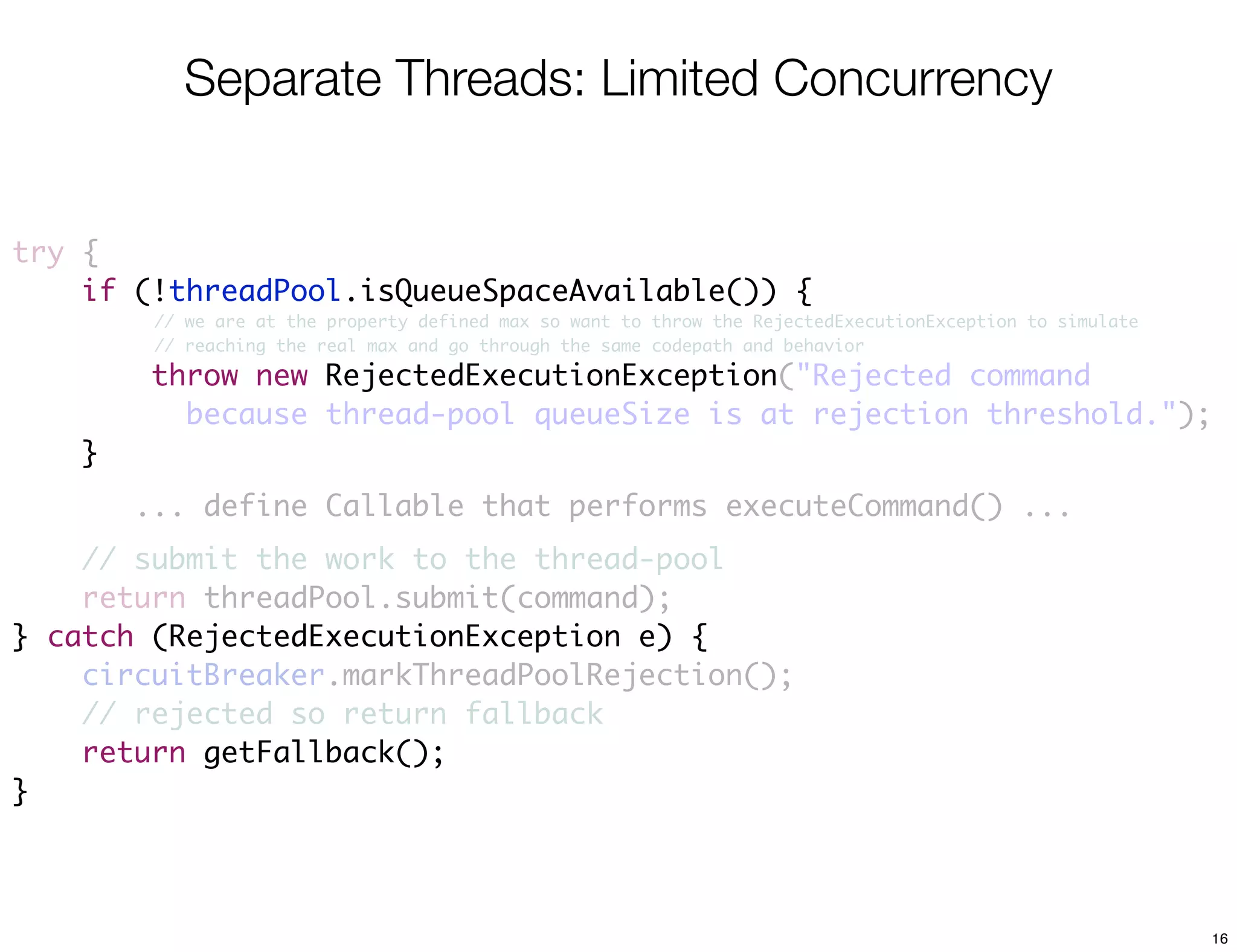

16. Separate Threads: Limited Concurrency
try {
if (!threadPool.isQueueSpaceAvailable()) {
// we are at the property defined max so want to throw the RejectedExecutionException to simulate
// reaching the real max and go through the same codepath and behavior
throw new RejectedExecutionException("Rejected command
RejectedExecutionException
because thread-pool queueSize is at rejection threshold.");
}
... define Callable that performs executeCommand() ...
// submit the work to the thread-pool
return threadPool.submit(command);
} catch (RejectedExecutionException e) {
circuitBreaker.markThreadPoolRejection();
// rejected so return fallback
return getFallback();
}
16

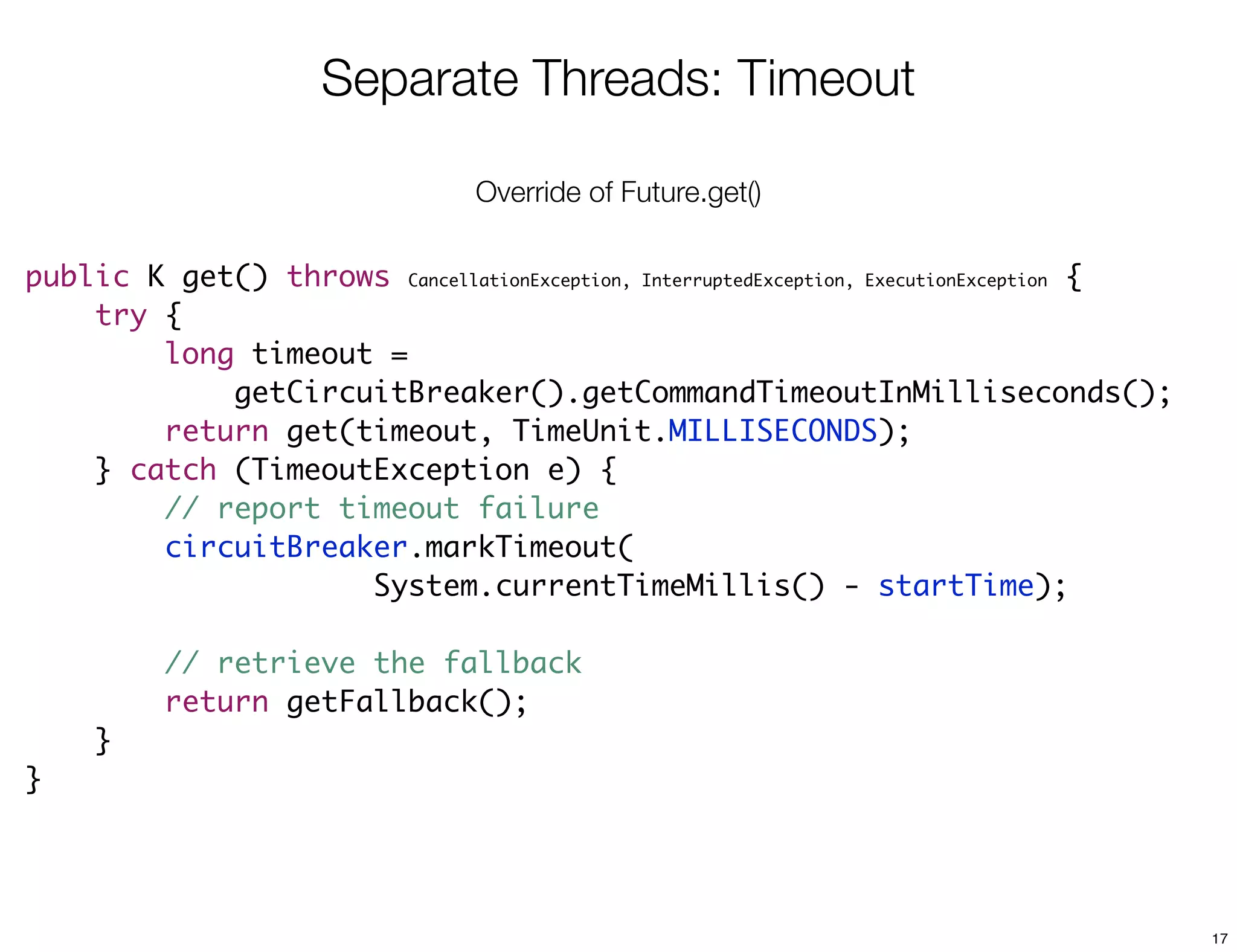

17. Separate Threads: Timeout
Override of Future.get()
public K get() throws CancellationException, InterruptedException, ExecutionException {
try {
long timeout =
getCircuitBreaker().getCommandTimeoutInMilliseconds();
return get(timeout, TimeUnit.MILLISECONDS);
} catch (TimeoutException e) {
// report timeout failure
circuitBreaker.markTimeout(
System.currentTimeMillis() - startTime);
// retrieve the fallback
return getFallback();
}
}
17

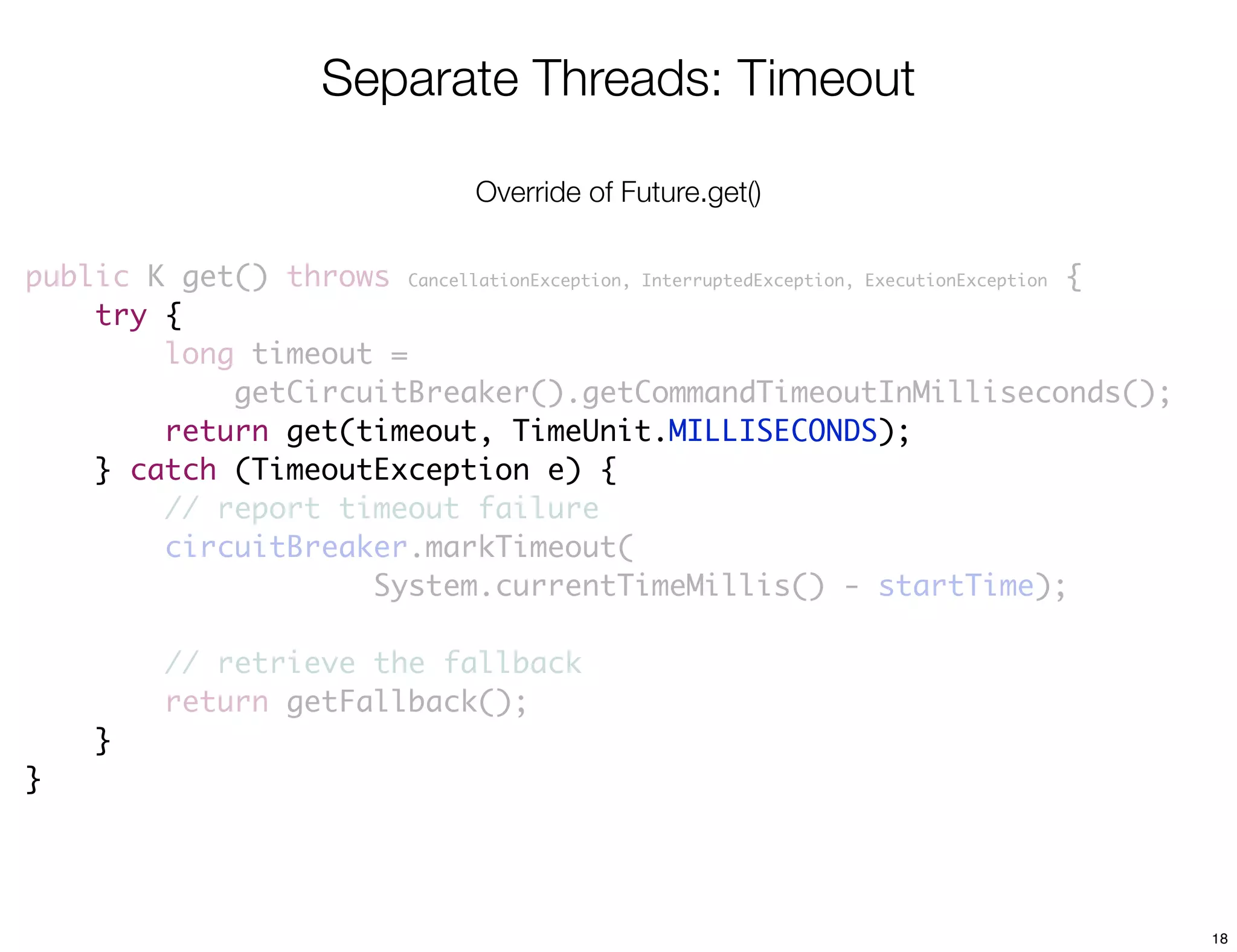

18. Separate Threads: Timeout
Override of Future.get()
public K get() throws CancellationException, InterruptedException, ExecutionException {
try {
long timeout =
getCircuitBreaker().getCommandTimeoutInMilliseconds();
return get(timeout, TimeUnit.MILLISECONDS);
} catch (TimeoutException e) {
// report timeout failure
circuitBreaker.markTimeout(
System.currentTimeMillis() - startTime);
// retrieve the fallback
return getFallback();
}
}
18

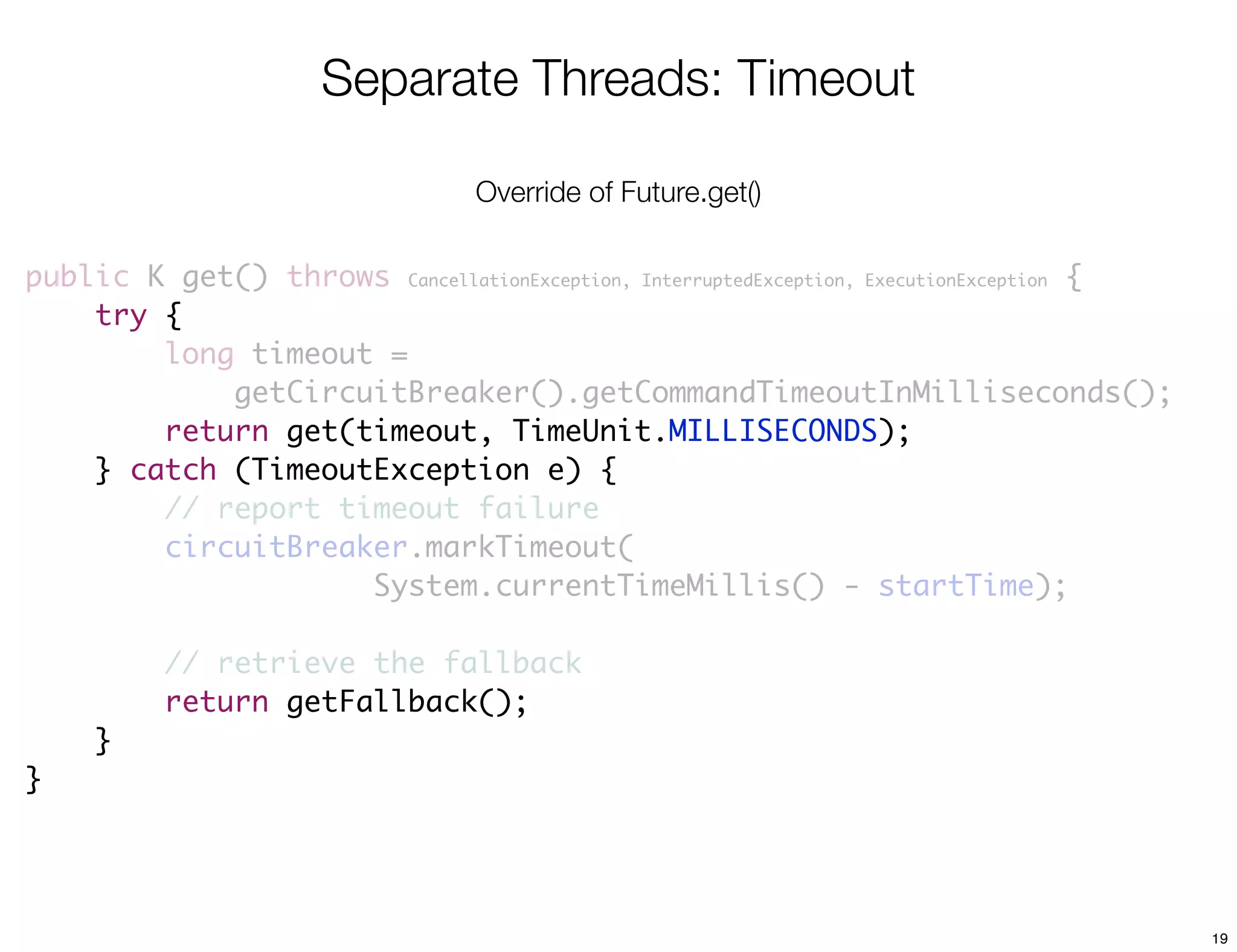

19. Separate Threads: Timeout
Override of Future.get()
public K get() throws CancellationException, InterruptedException, ExecutionException {
try {
long timeout =
getCircuitBreaker().getCommandTimeoutInMilliseconds();
return get(timeout, TimeUnit.MILLISECONDS);
} catch (TimeoutException e) {
// report timeout failure
circuitBreaker.markTimeout(
System.currentTimeMillis() - startTime);
// retrieve the fallback
return getFallback();
}
}
19

20. Options
Aggressive Network Timeouts
Semaphores (Tryable)
Separate Threads
Circuit Breaker
20

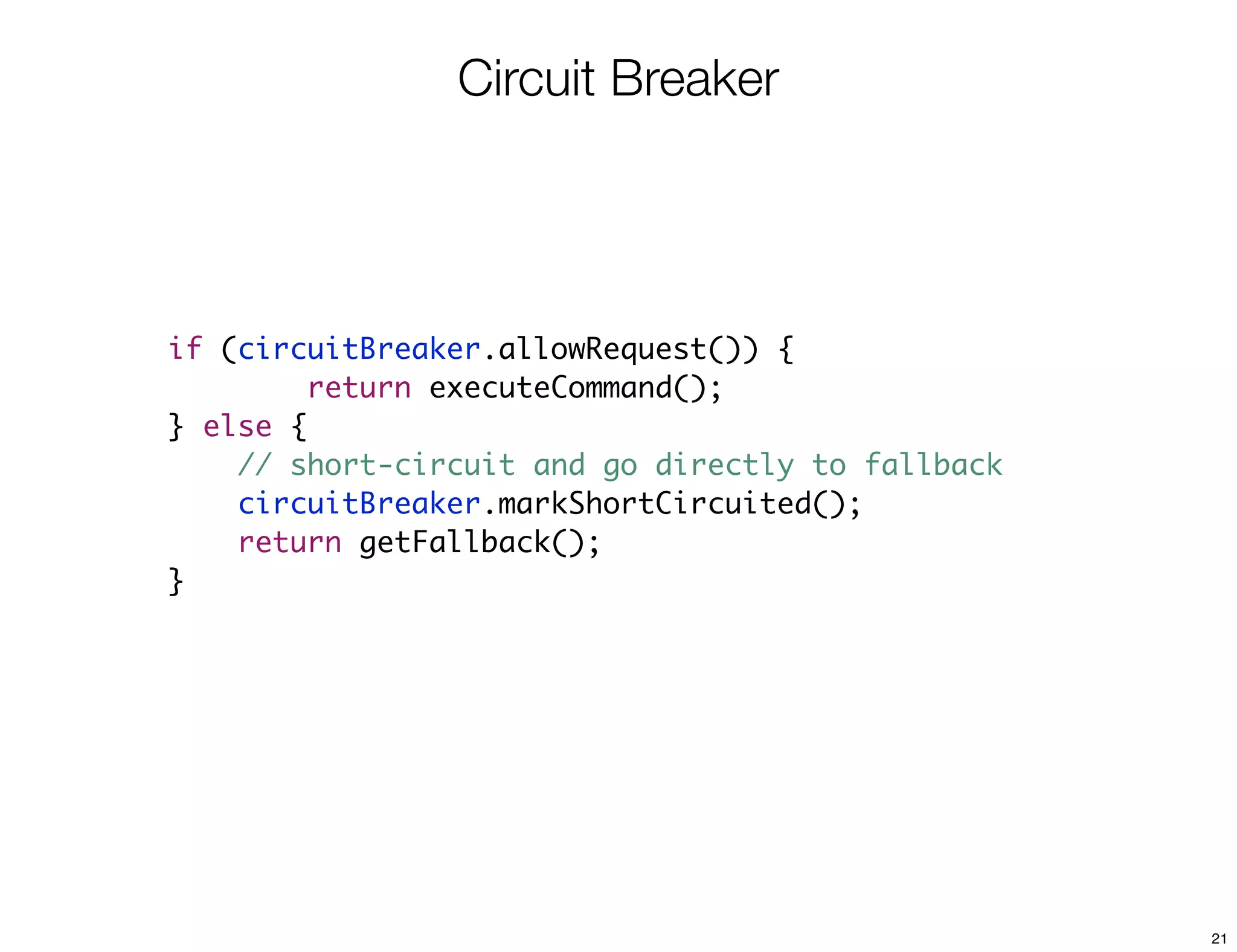

21. Circuit Breaker
if (circuitBreaker.allowRequest()) {
return executeCommand();
} else {
// short-circuit and go directly to fallback
circuitBreaker.markShortCircuited();
return getFallback();
}
21

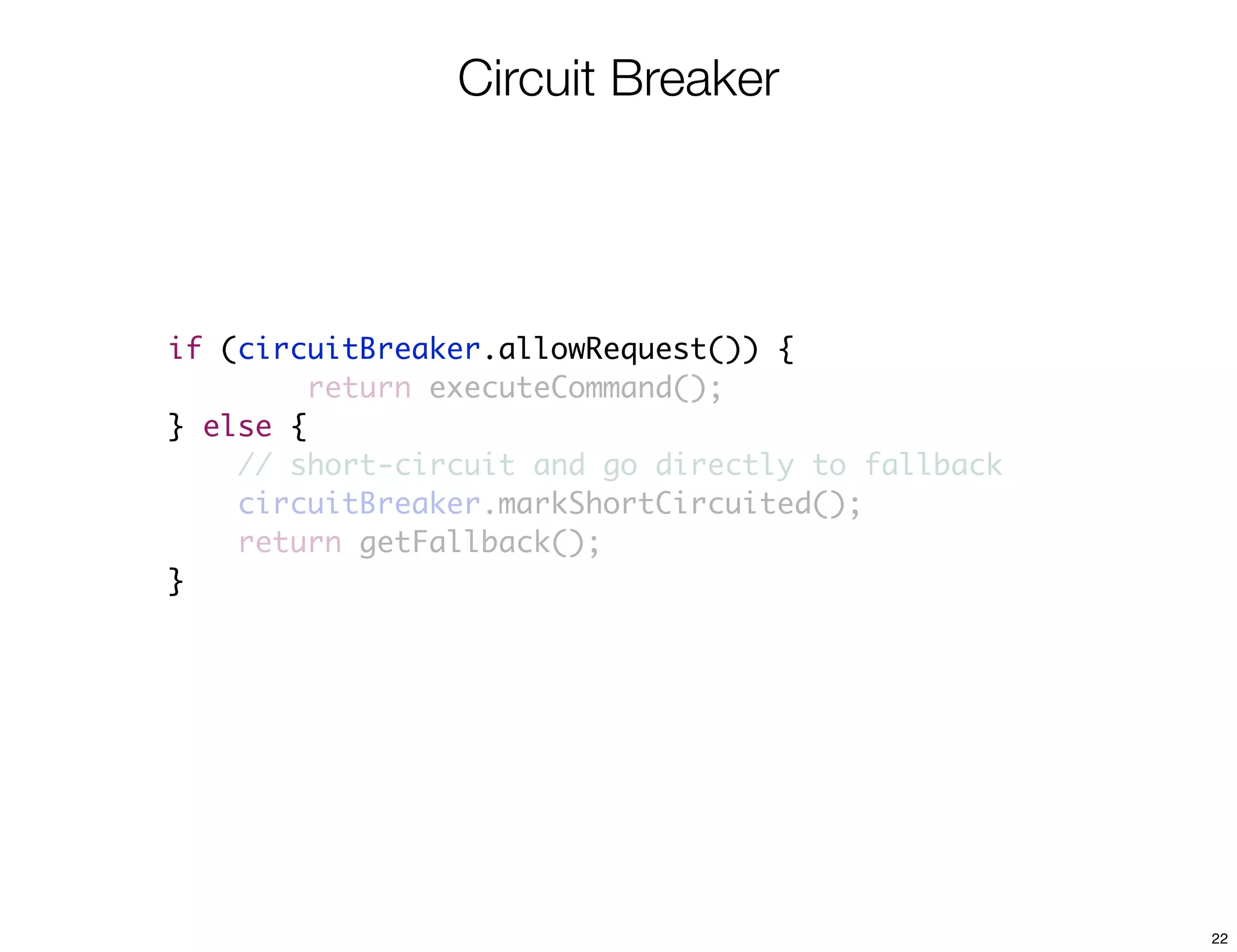

22. Circuit Breaker
if (circuitBreaker.allowRequest()) {
return executeCommand();
} else {
// short-circuit and go directly to fallback
circuitBreaker.markShortCircuited();
return getFallback();
}
22

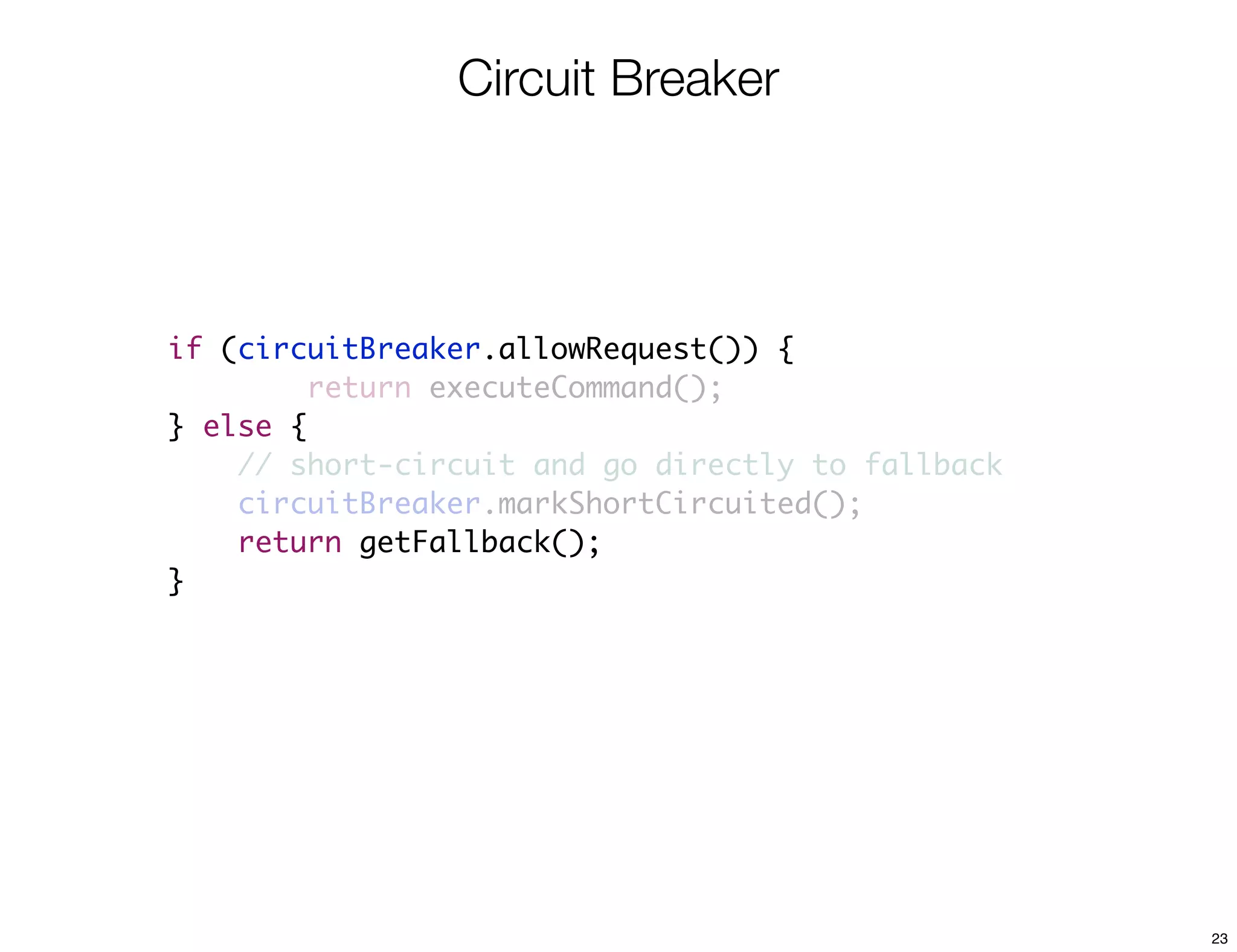

23. Circuit Breaker
if (circuitBreaker.allowRequest()) {
return executeCommand();
} else {
// short-circuit and go directly to fallback
circuitBreaker.markShortCircuited();
return getFallback();
}
23

24. Netflix uses all 4 in combination
24

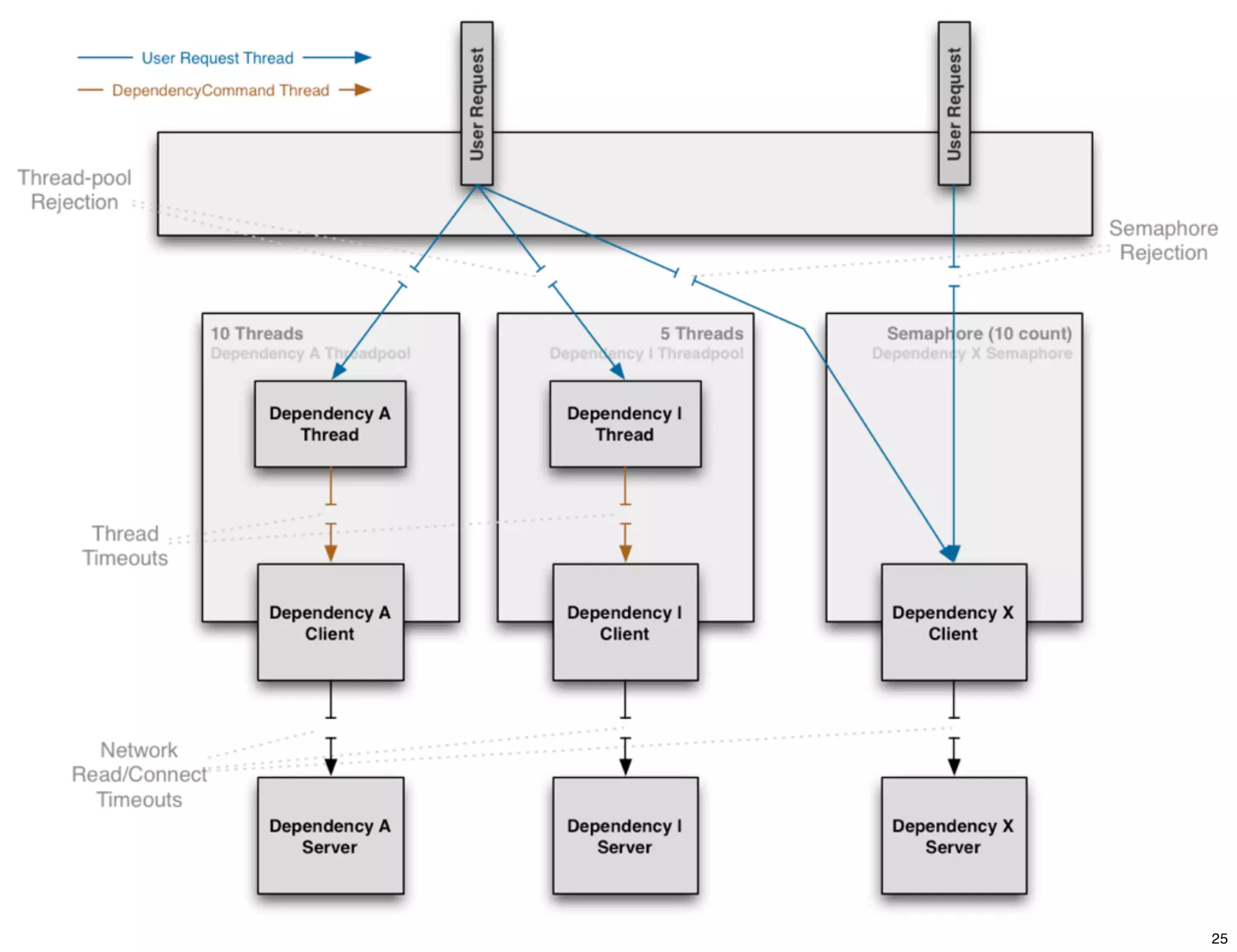

25. 25

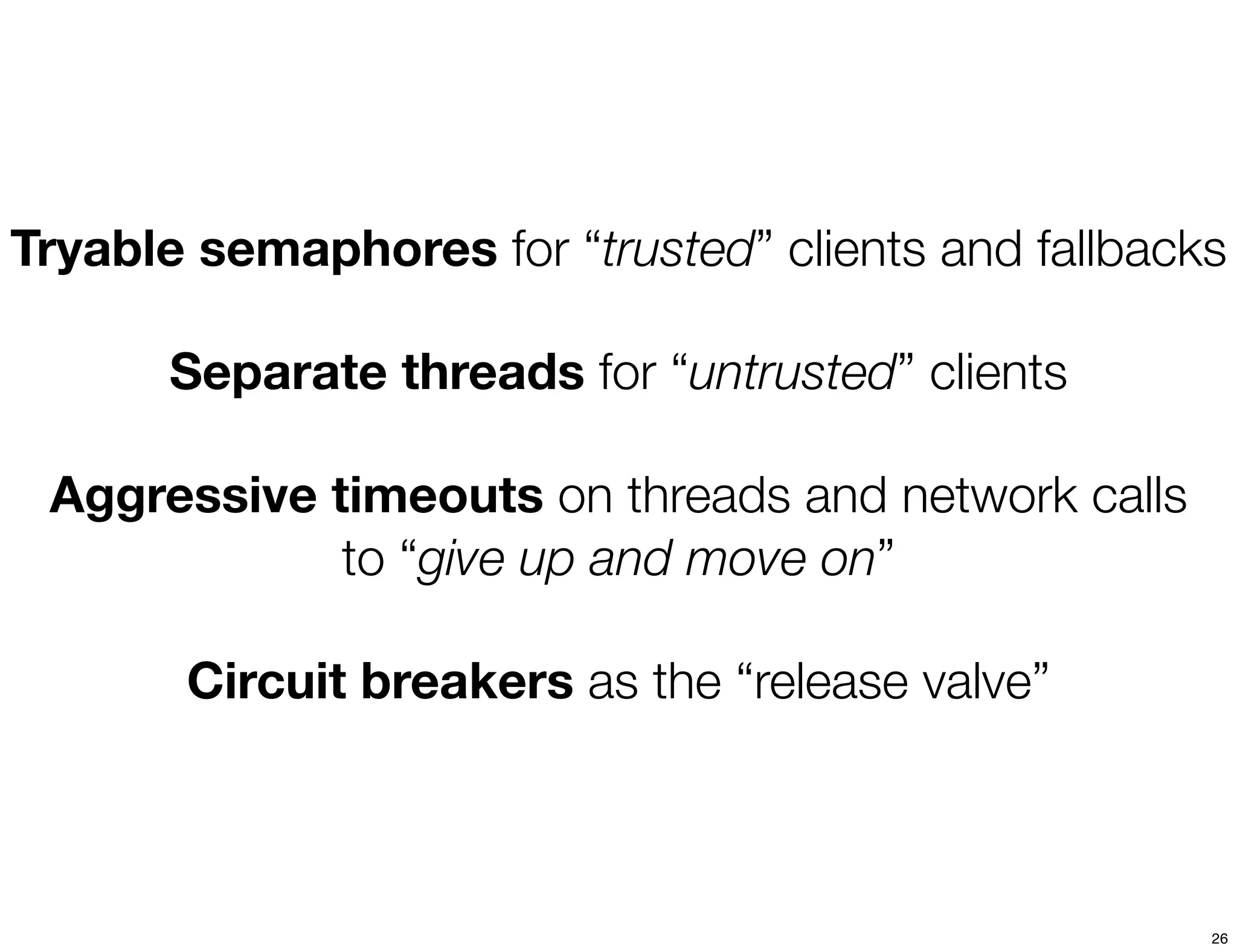

26. Tryable semaphores for “trusted” clients and fallbacks
Separate threads for “untrusted” clients
Aggressive timeouts on threads and network calls
to “give up and move on”
Circuit breakers as the “release valve”
26

27. 27

28. 28

29. 29

30. Benefits of Separate Threads
Protection from client libraries
Lower risk to accept new/updated clients
Quick recovery from failure
Client misconfiguration
Client service performance characteristic changes
Built-in concurrency
30

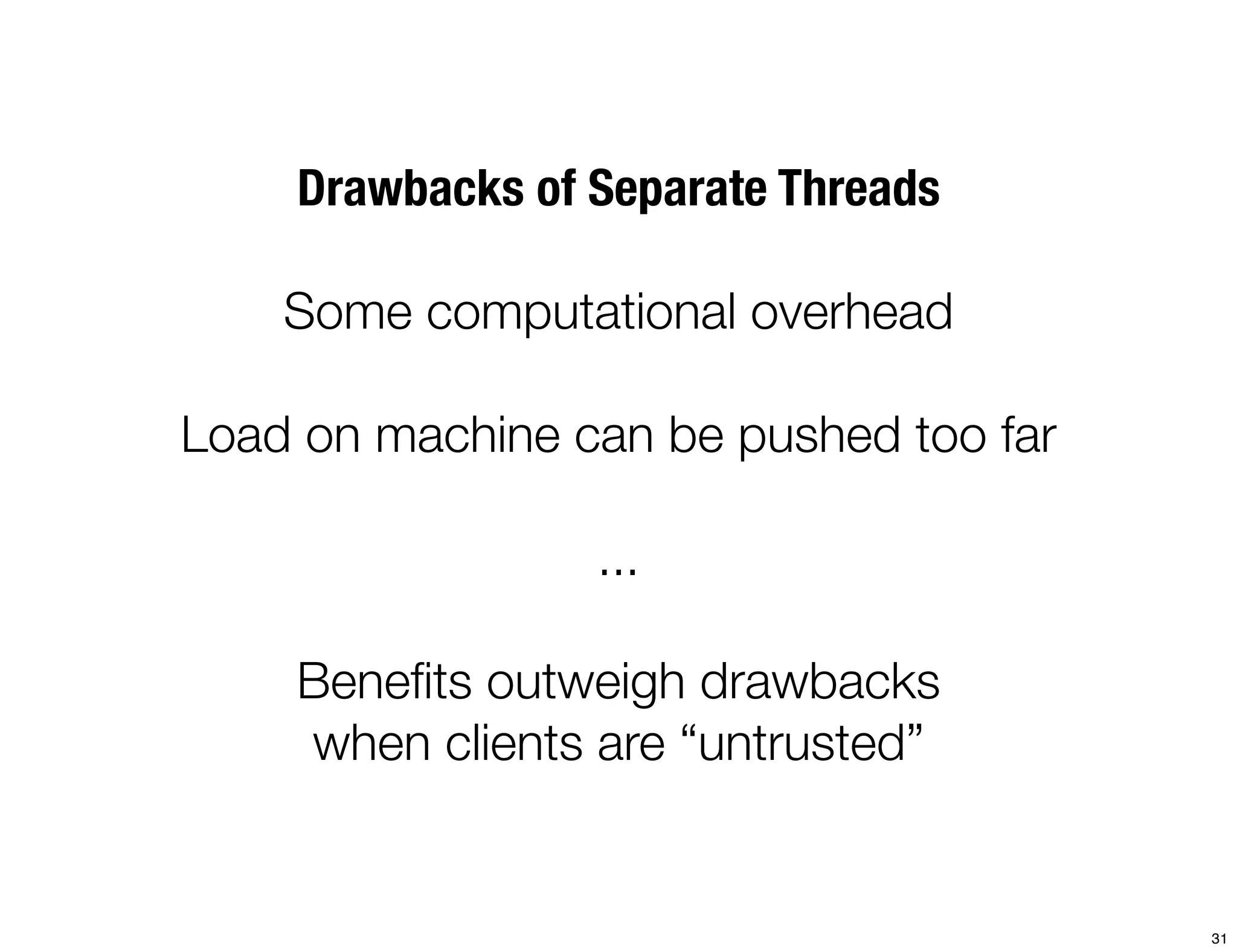

31. Drawbacks of Separate Threads
Some computational overhead
Load on machine can be pushed too far
...
Benefits outweigh drawbacks
when clients are “untrusted”
31

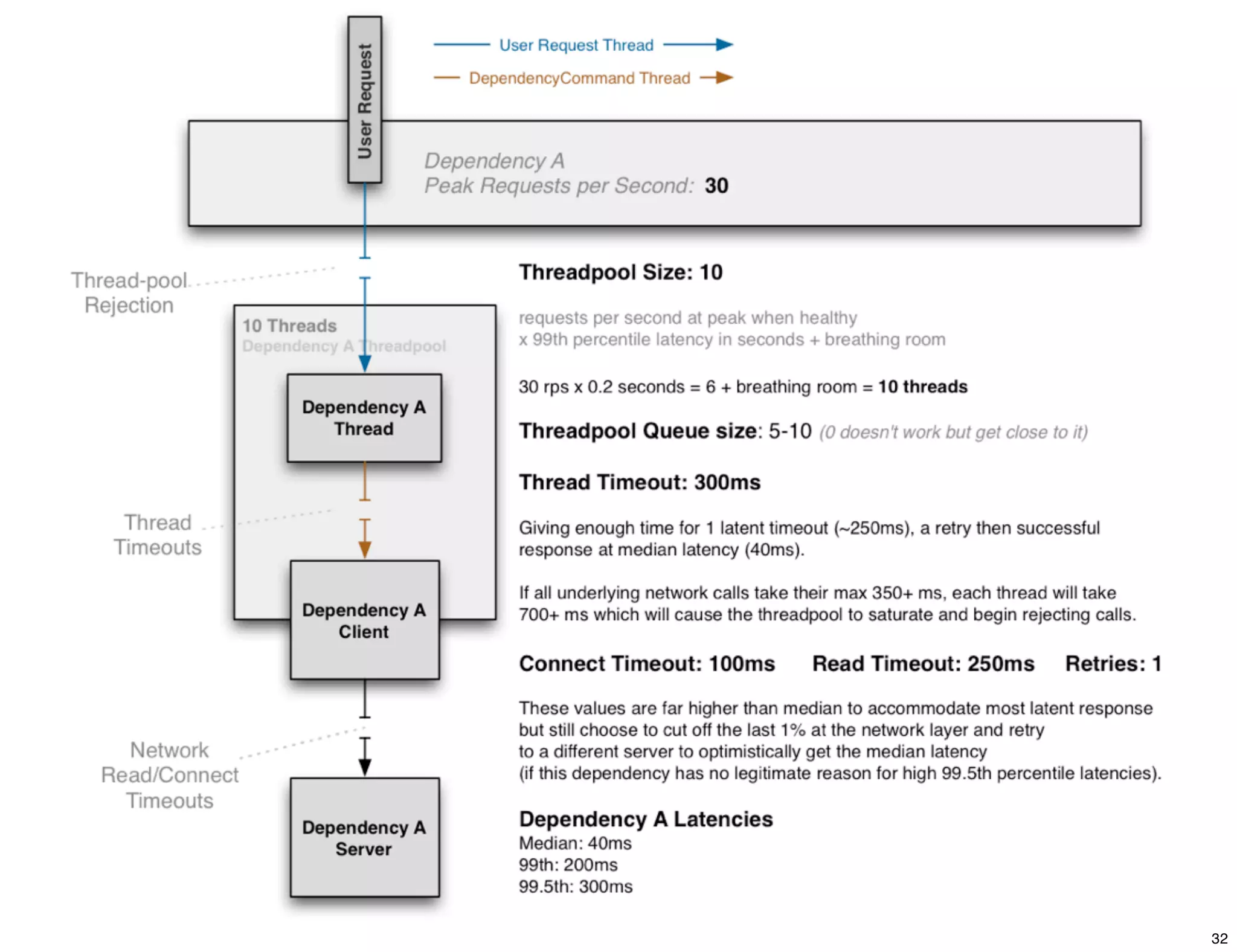

32. 32

33. Visualizing Circuits in Realtime
(generally sub-second latency)
Video available at
https://vimeo.com/33576628
33

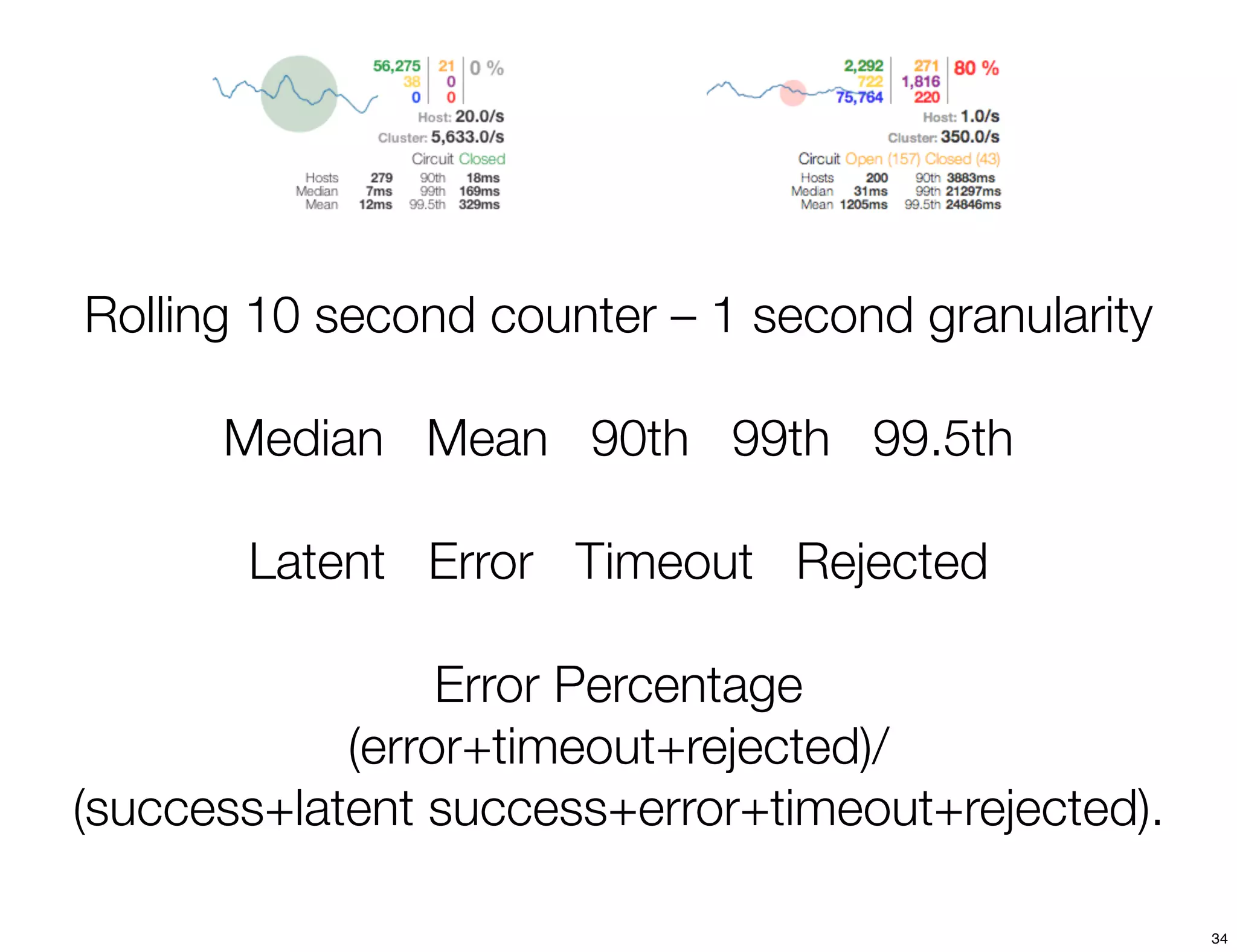

34. Rolling 10 second counter – 1 second granularity
Median Mean 90th 99th 99.5th
Latent Error Timeout Rejected
Error Percentage
(error+timeout+rejected)/
(success+latent success+error+timeout+rejected).
34

35. Netflix DependencyCommand Implementation
35

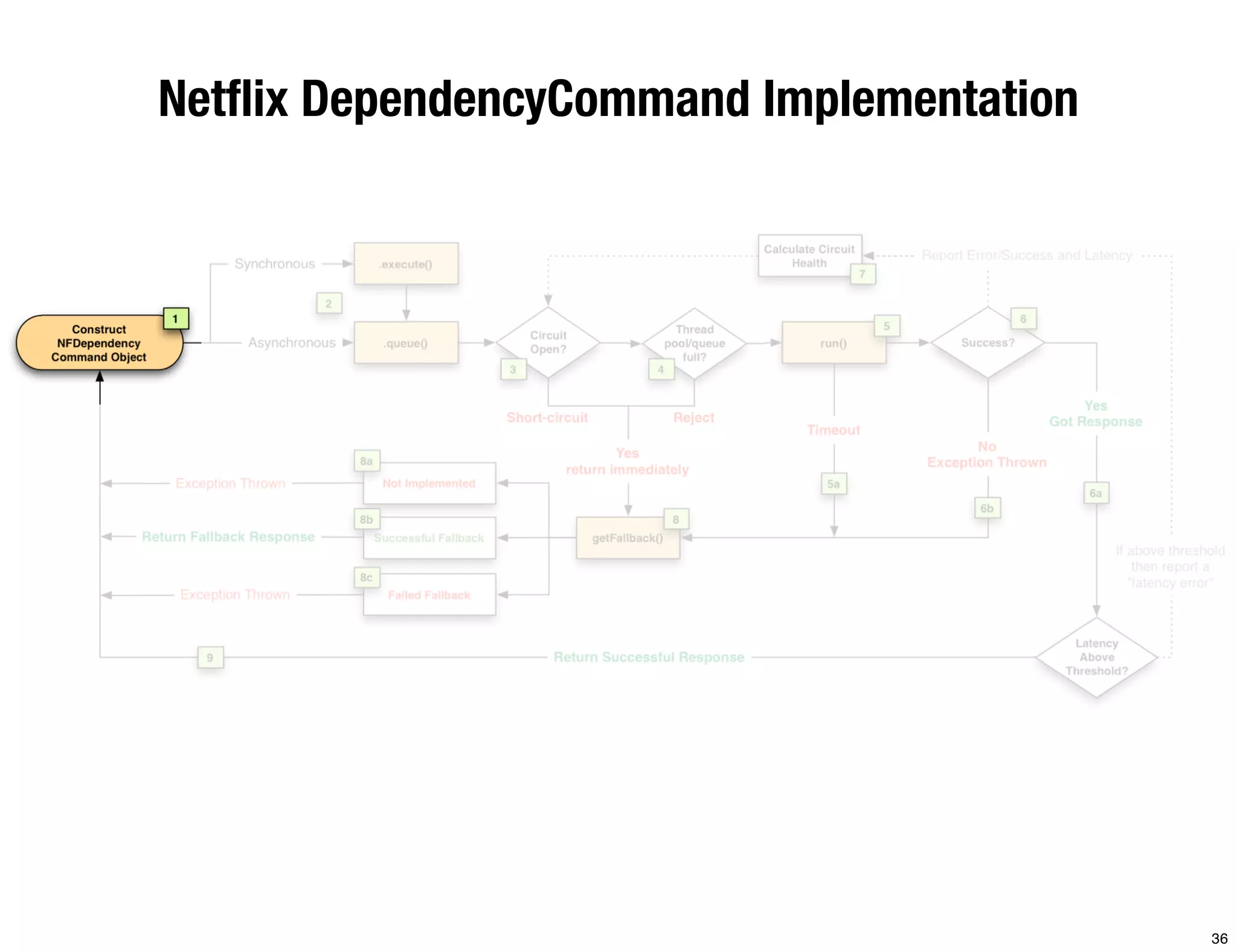

36. Netflix DependencyCommand Implementation
36

37. Netflix DependencyCommand Implementation
37

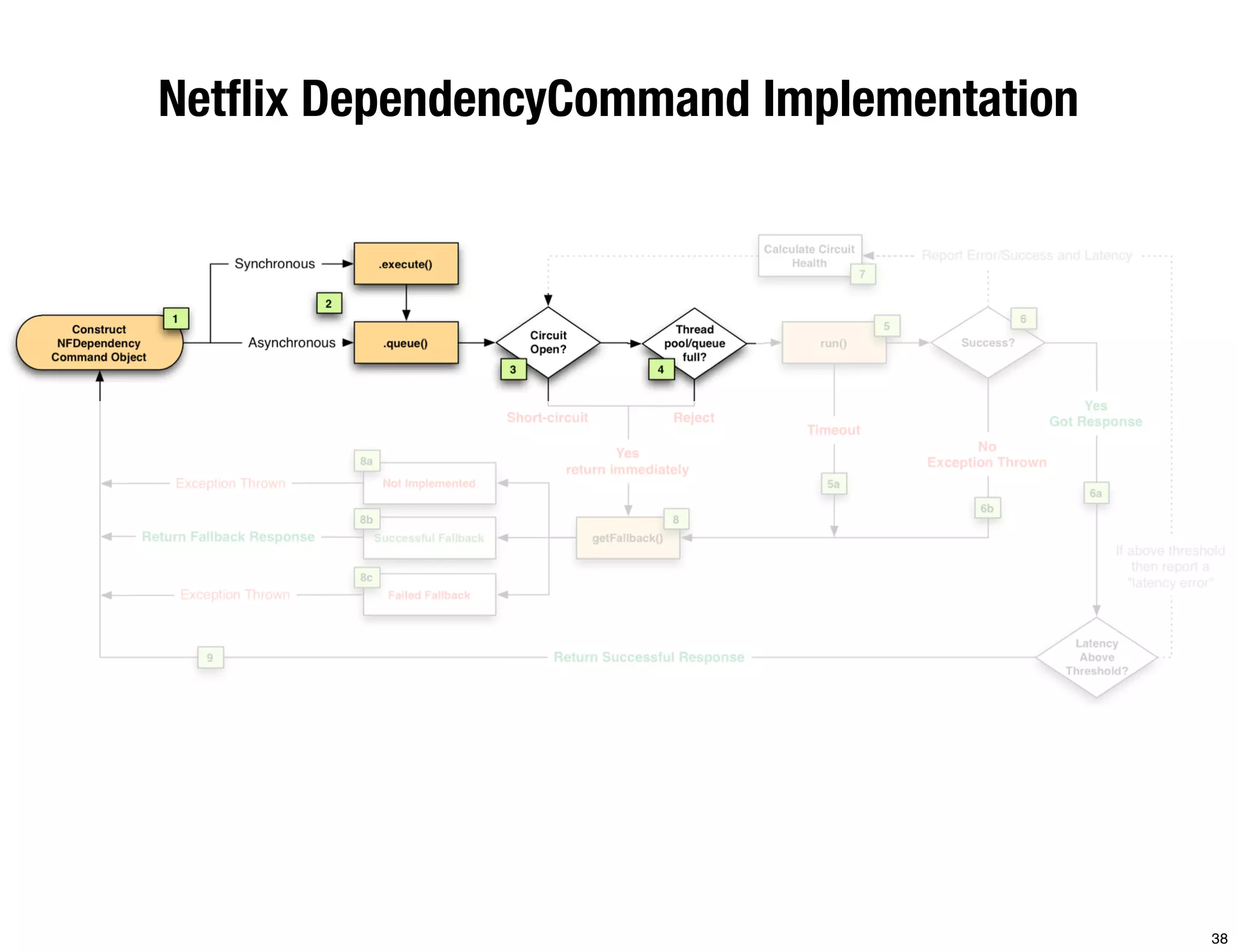

38. Netflix DependencyCommand Implementation
38

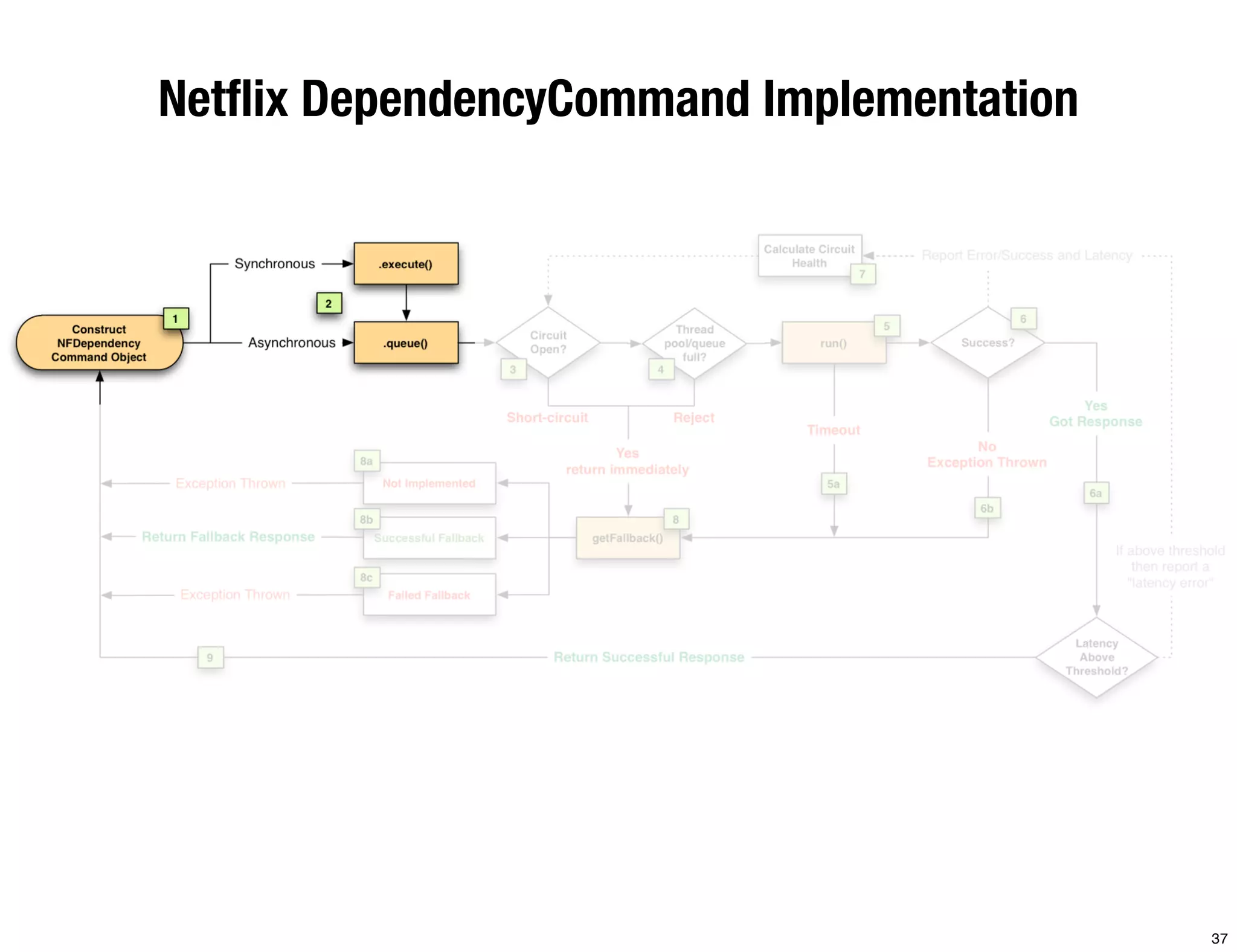

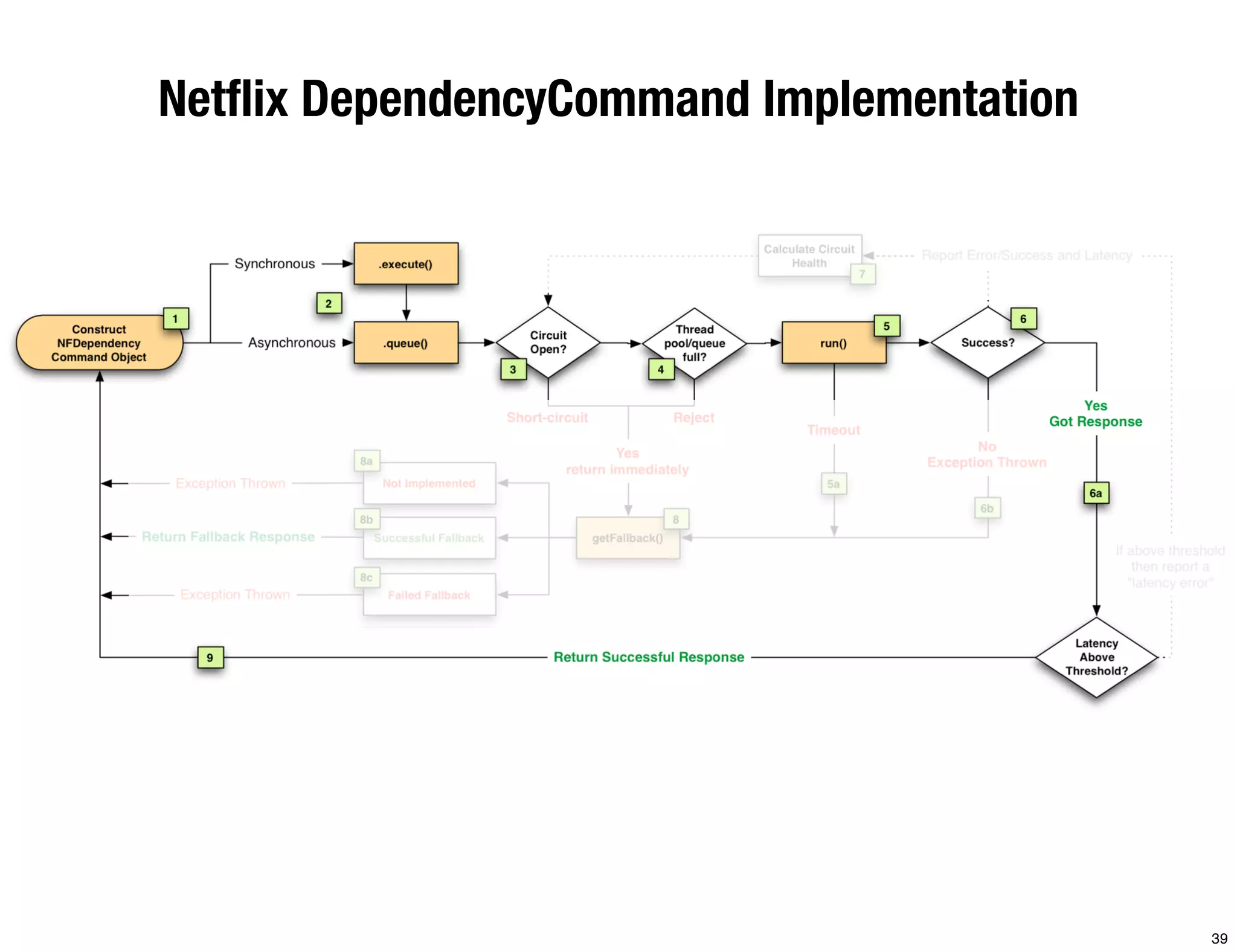

39. Netflix DependencyCommand Implementation
39

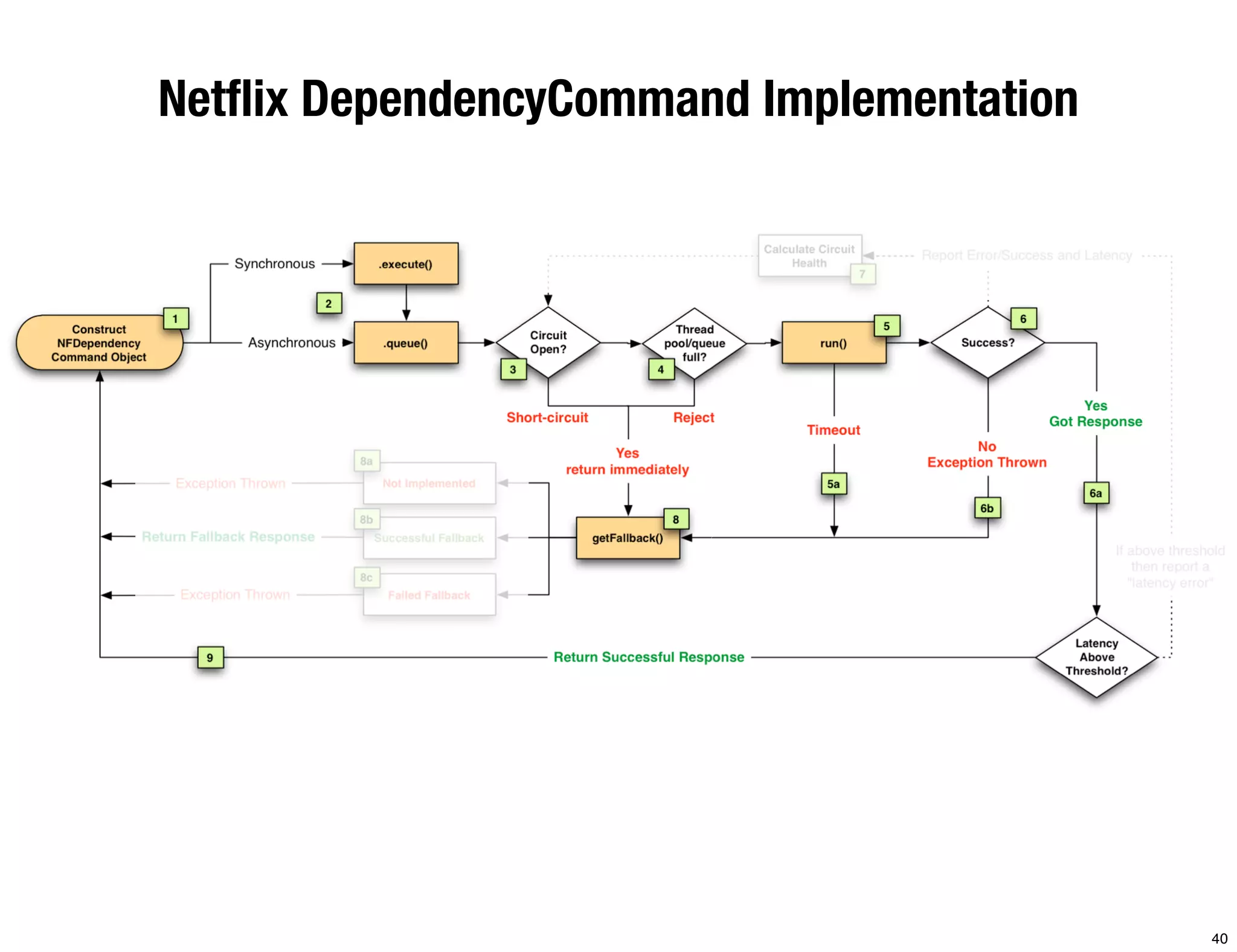

40. Netflix DependencyCommand Implementation
40

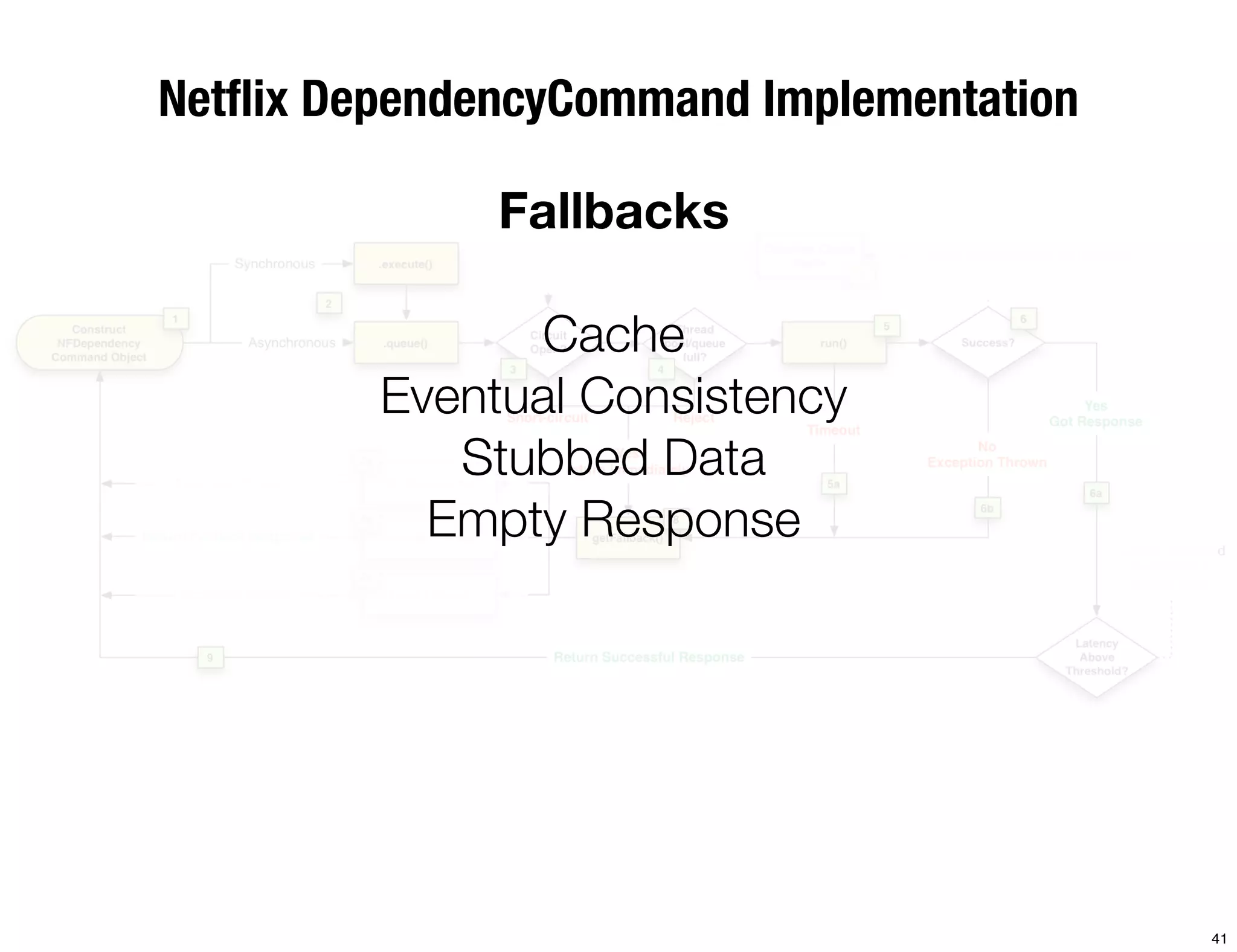

41. Netflix DependencyCommand Implementation
Fallbacks
Cache
Eventual Consistency
Stubbed Data
Empty Response
41

42. Netflix DependencyCommand Implementation
42

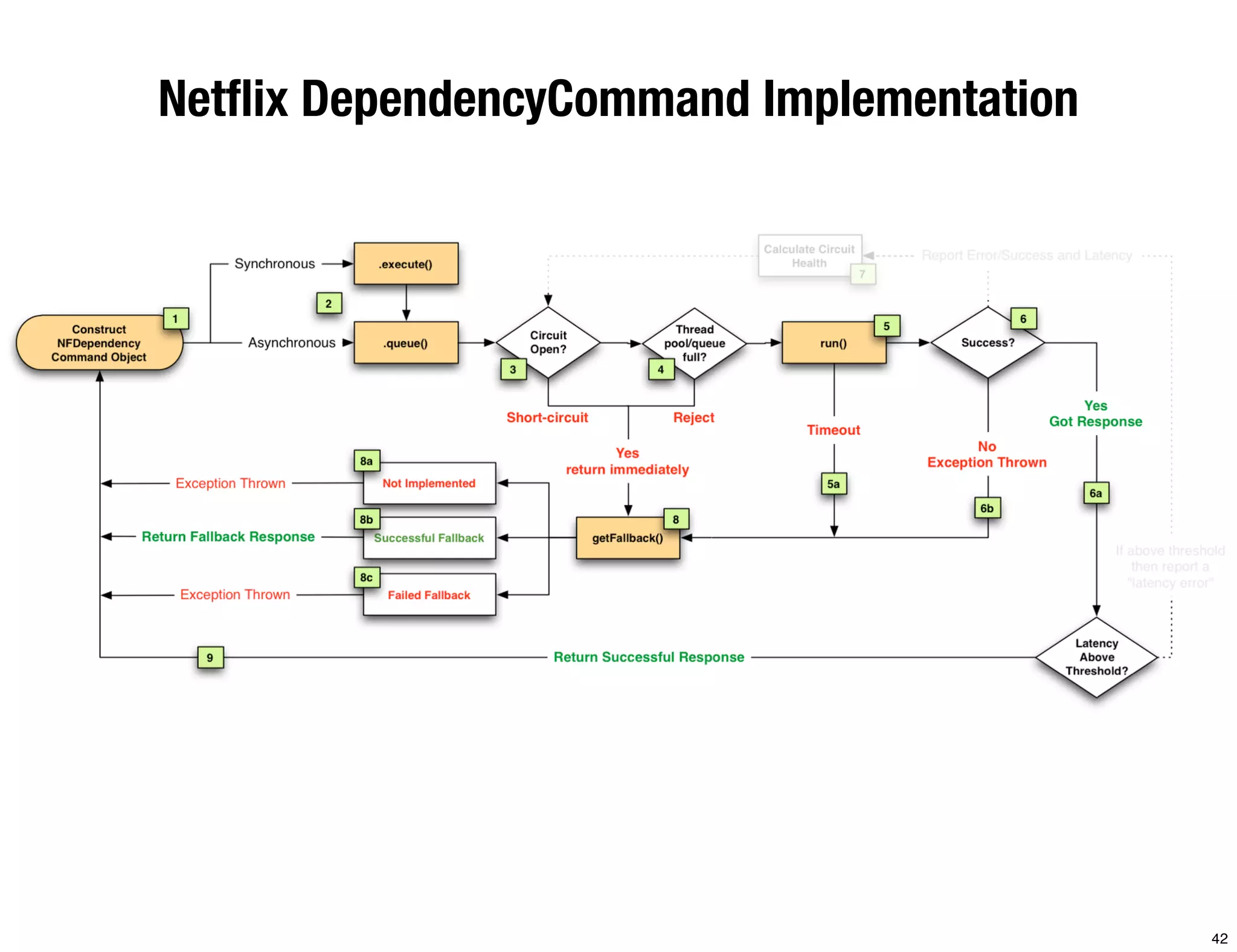

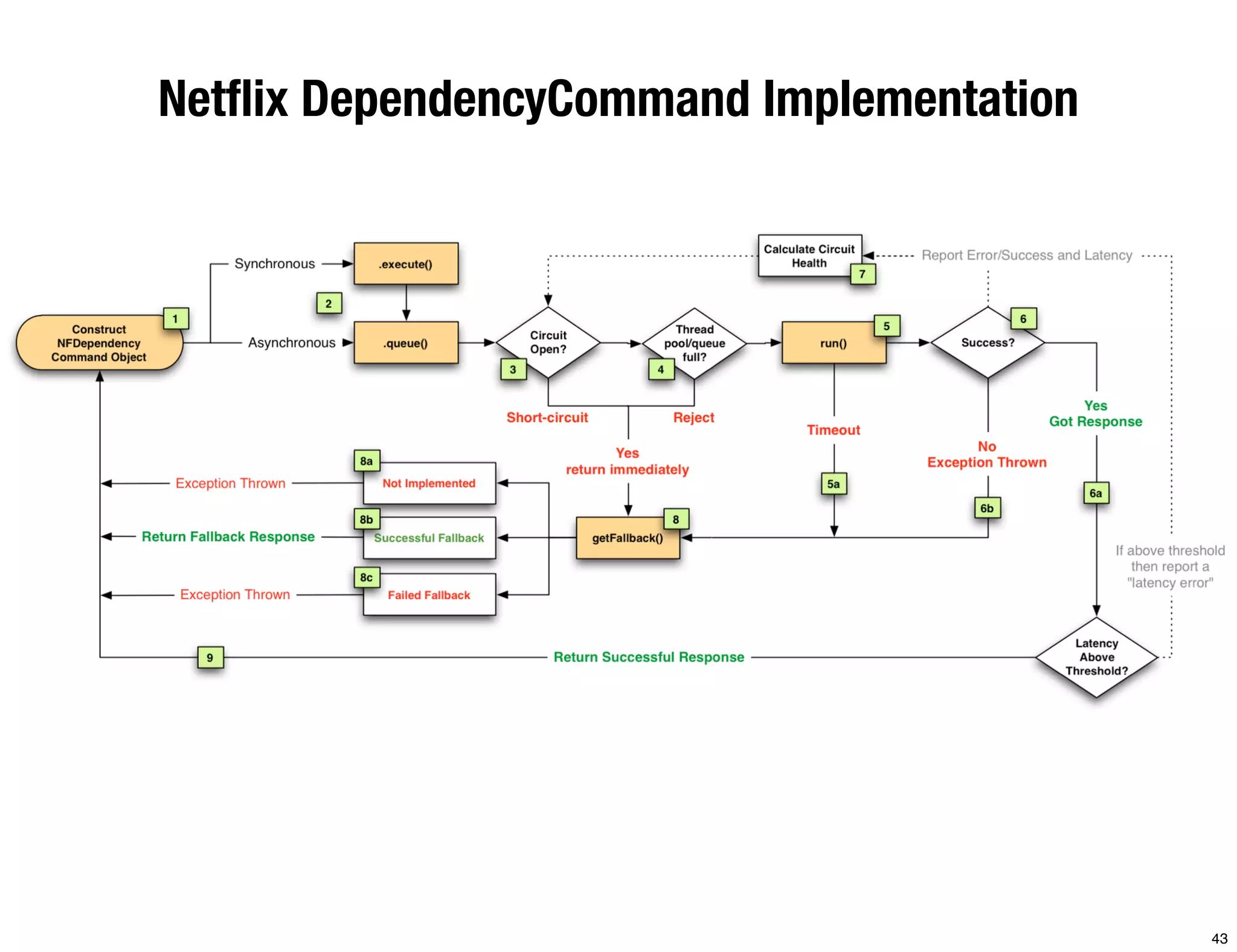

43. Netflix DependencyCommand Implementation
43

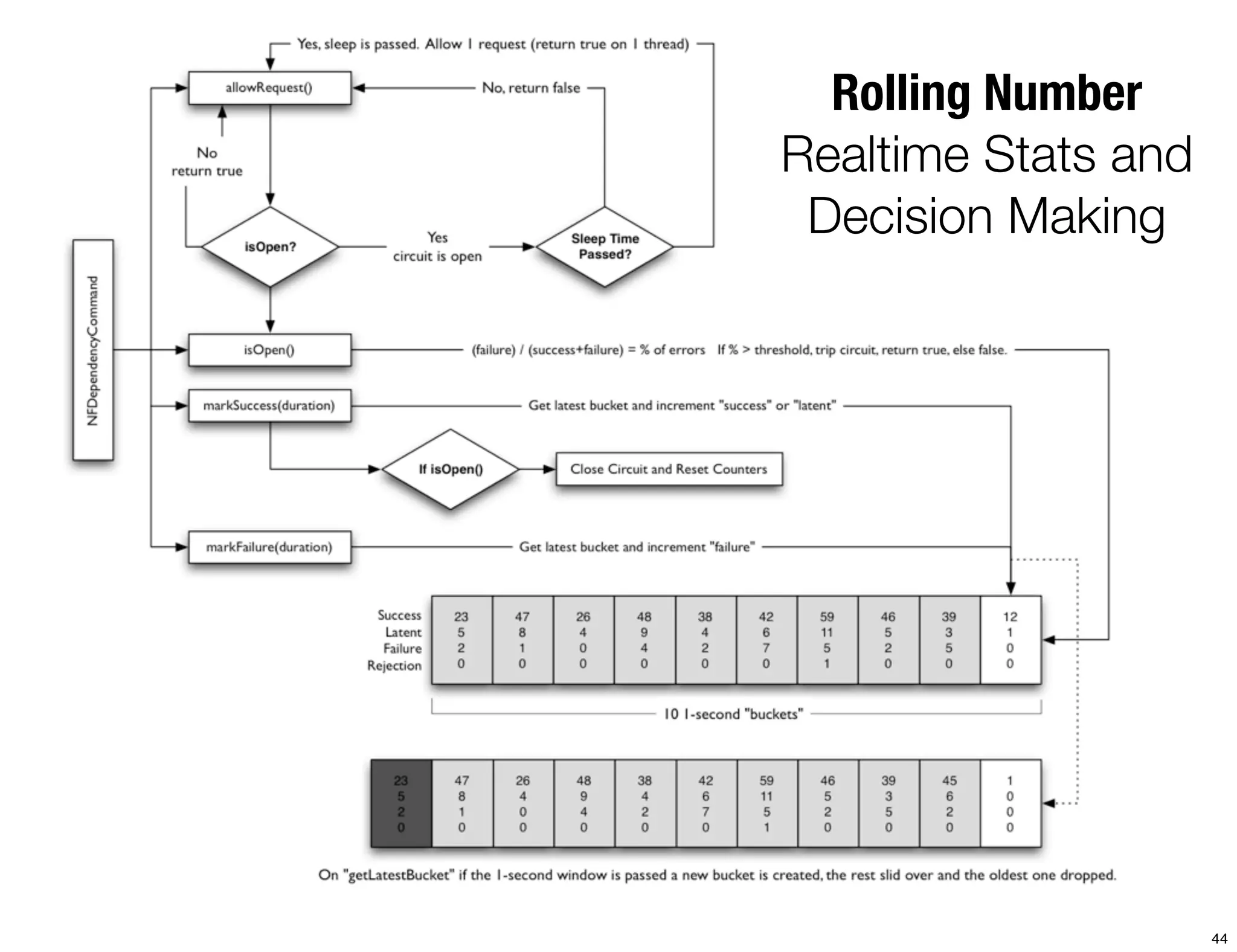

44. Rolling Number
Realtime Stats and
Decision Making
44

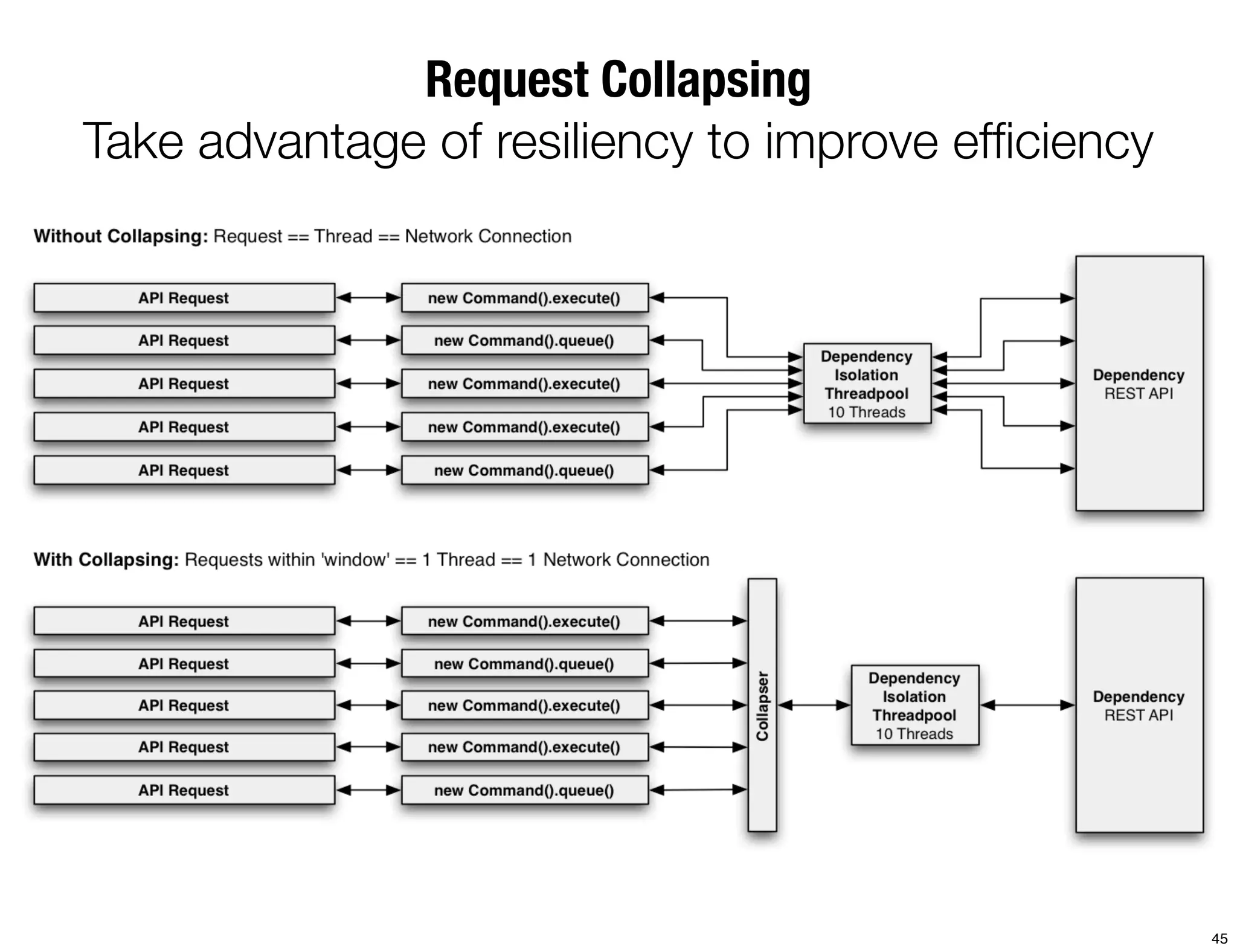

45. Request Collapsing
Take advantage of resiliency to improve efficiency
45

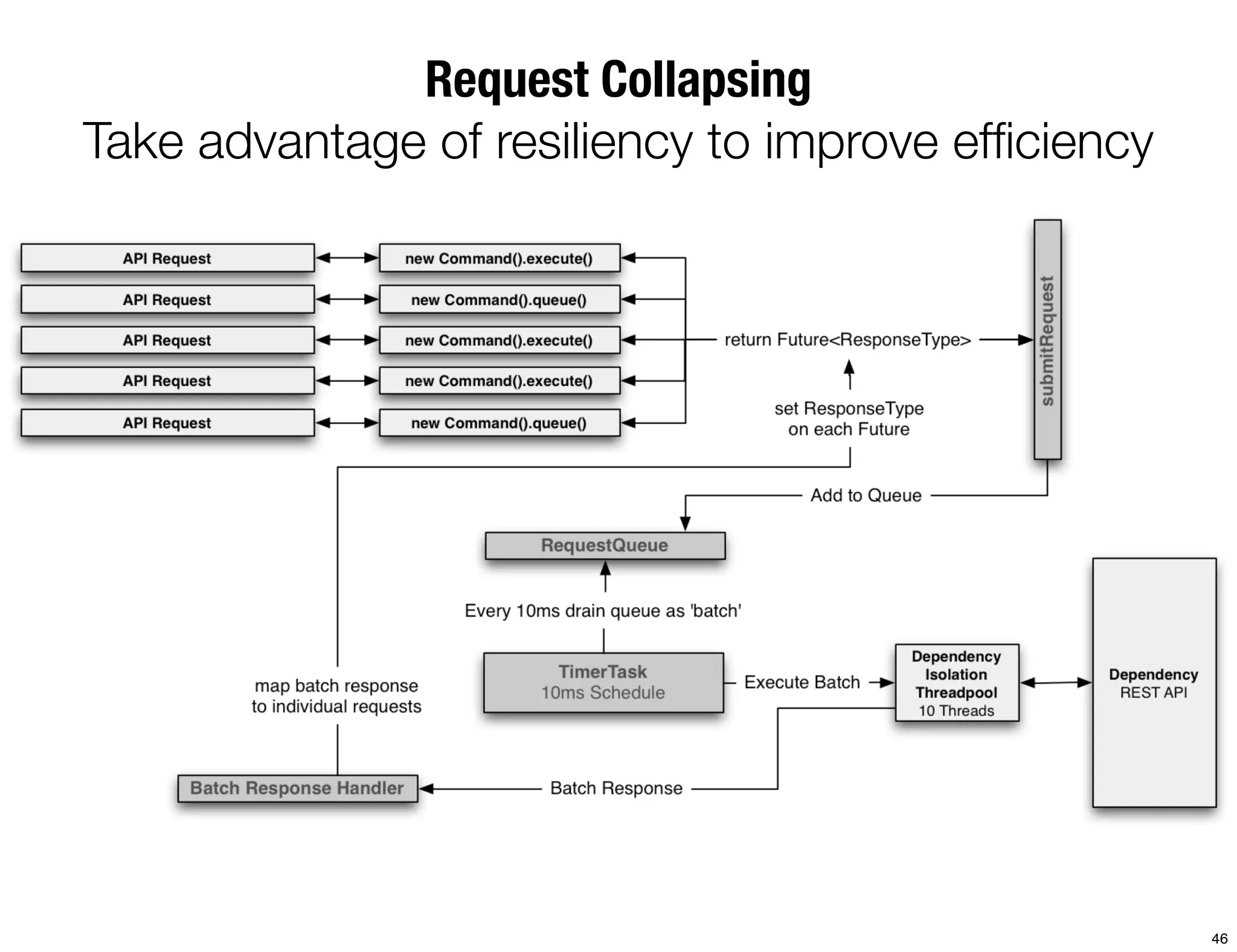

46. Request Collapsing
Take advantage of resiliency to improve efficiency
46

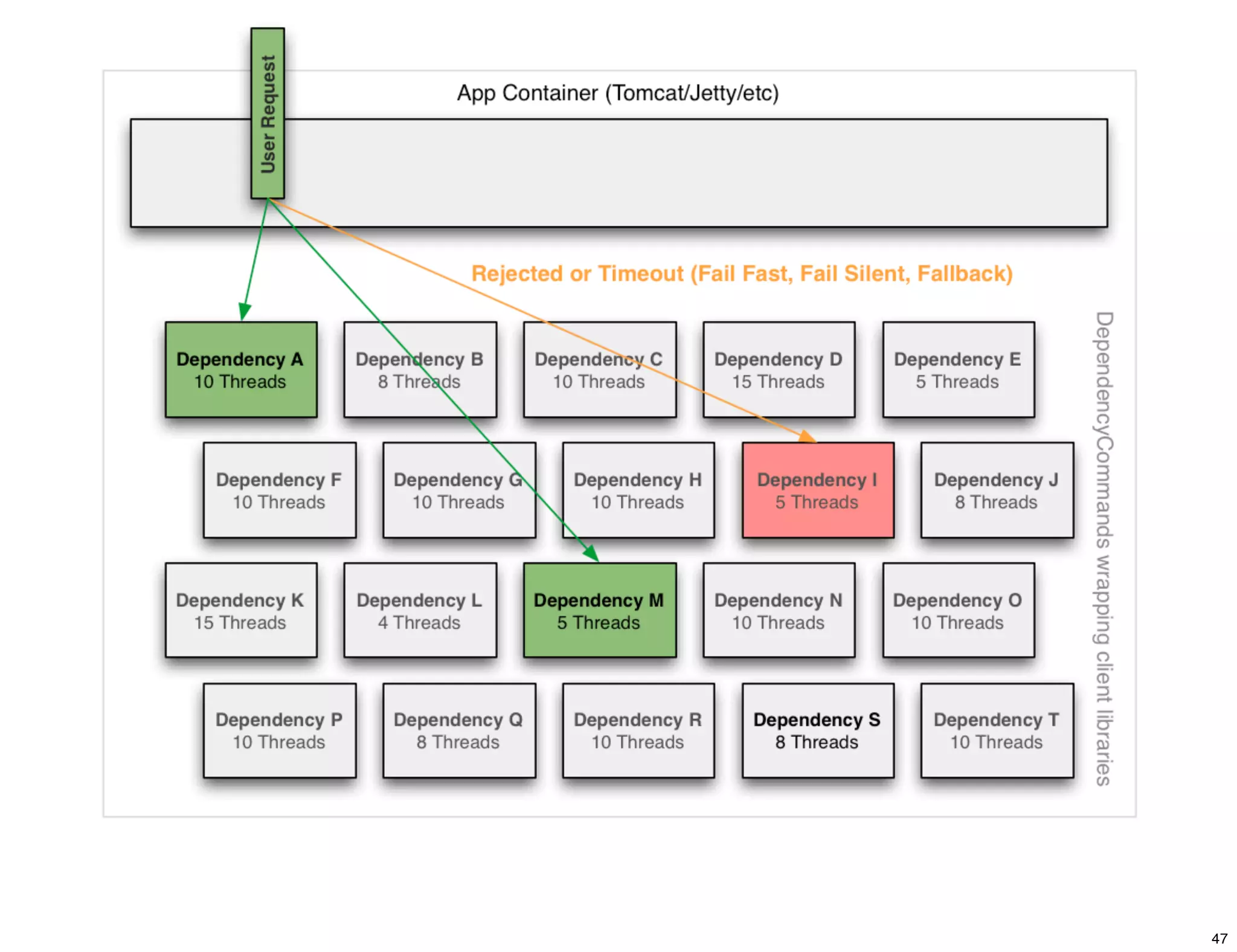

47. 47

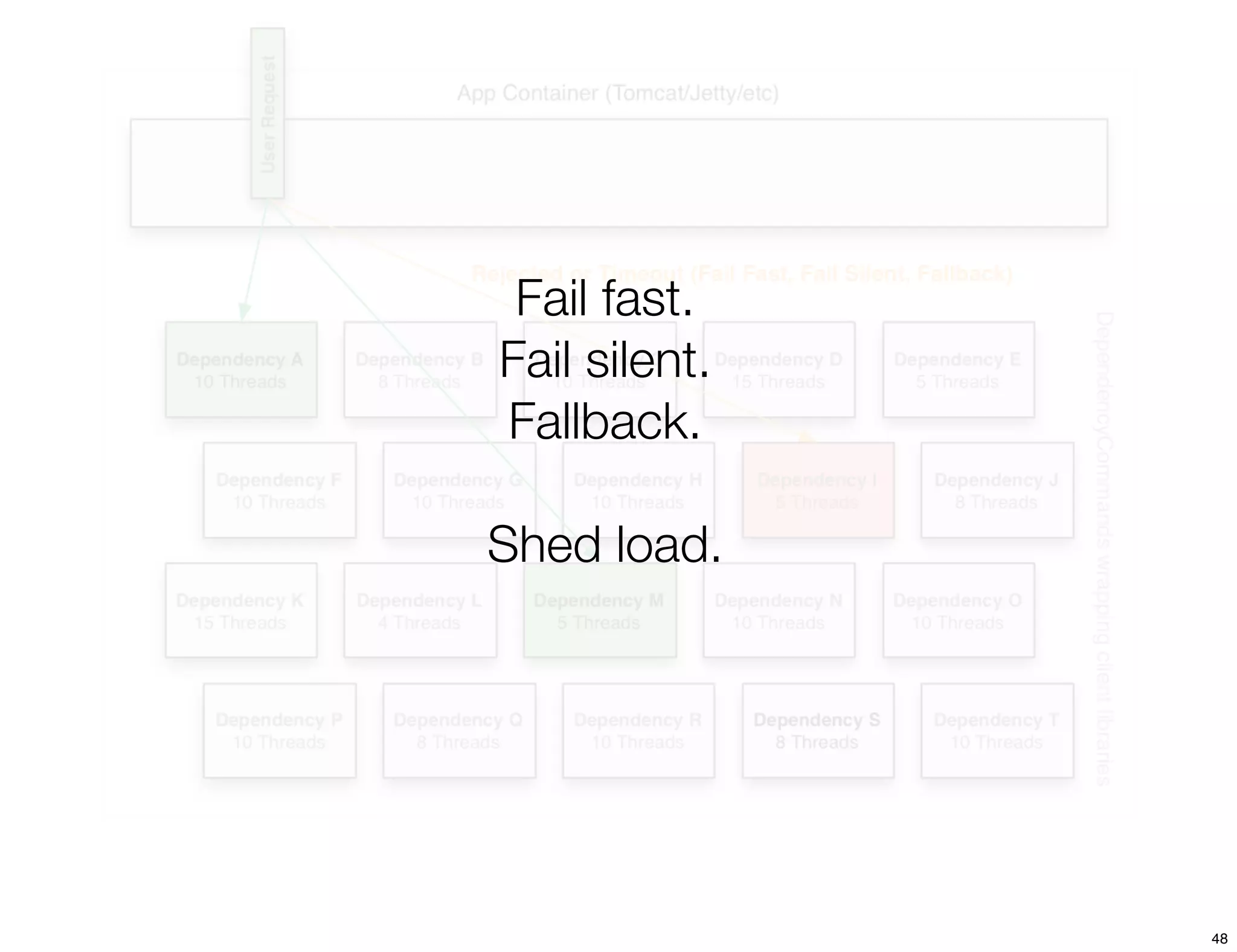

48. Fail fast.
Fail silent.
Fallback.
Shed load.
48

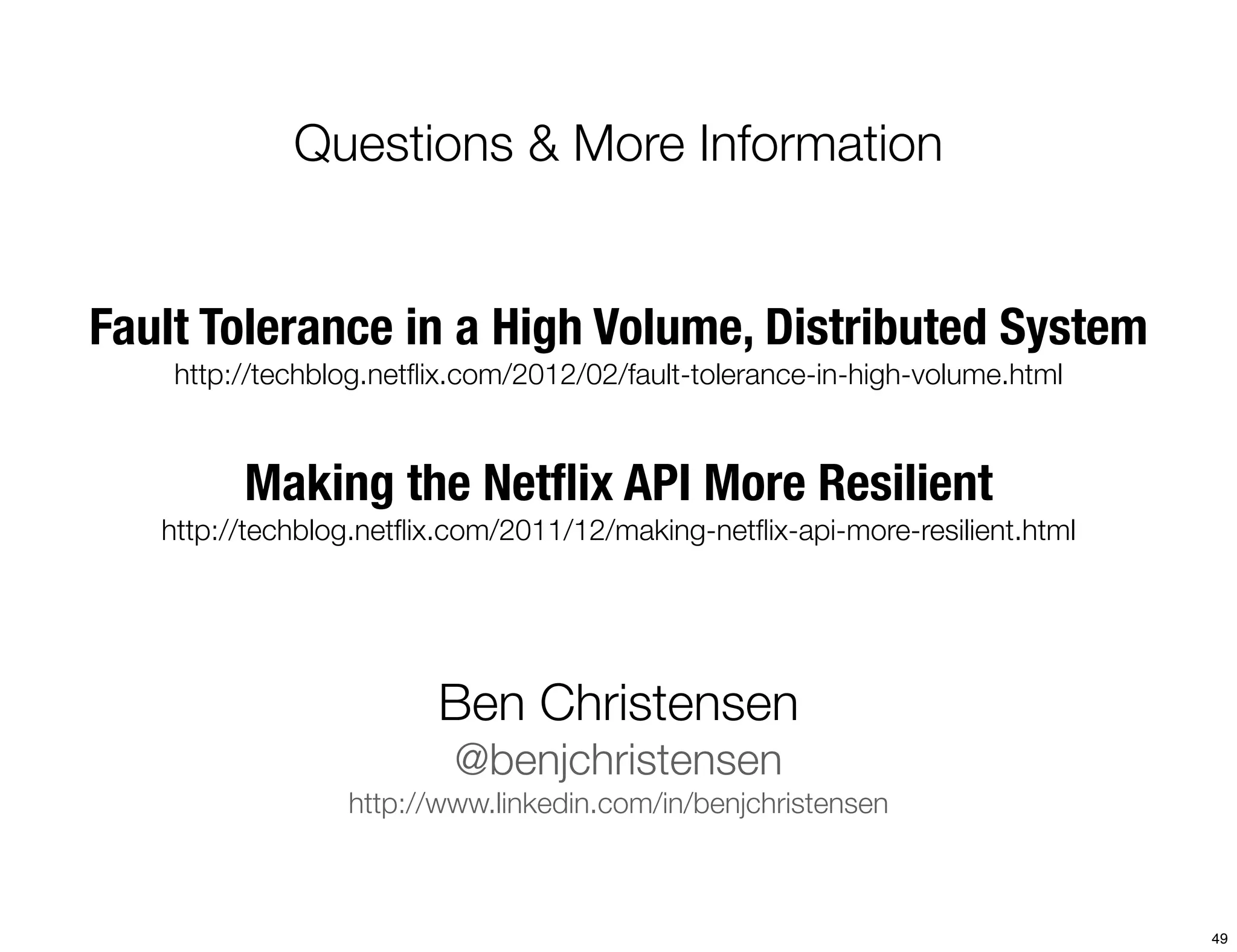

49. Questions & More Information
Fault Tolerance in a High Volume, Distributed System
http://techblog.netflix.com/2012/02/fault-tolerance-in-high-volume.html
Making the Netflix API More Resilient
http://techblog.netflix.com/2011/12/making-netflix-api-more-resilient.html
Ben Christensen
@benjchristensen
http://www.linkedin.com/in/benjchristensen
49
